1. Introduction to Advanced Workflows!
Gavin Cornwell, Development Manager, Services Team, Alfresco!

2. Agenda!
• UI
• Process Definition
• Task Definition
• Deployment
• Configuration
• UI!
• Form!
• Engine!
• Demo
• Q & A

3. UI!

4. My Tasks!

5. Edit Task!

6. Workflows Iʼve Started!

7. Workflow Details!

8. Admin Console!

9. Workflow Console!

10. Process Definition!

11. Example Process Definition!

12. Start Task!
<process id="presentationReview” name="DevCon Presentation Review">
<startEvent id="start”
activiti:formKey="dcwkflw:submitPresentationReviewTask" />
<sequenceFlow id='flow1' sourceRef='start' targetRef='reviewTask' />

13. Review Task!
<userTask id="reviewTask" name="Review Presentation" activiti:formKey="dcwkflw:presentationReviewTask">
<extensionElements>
<activiti:taskListener event="create" class="org.alfresco.repo.workflow.activiti.tasklistener.ScriptTaskListener">
…
</activiti:taskListener>
<activiti:taskListener event="complete" class="org.alfresco.repo.workflow.activiti.tasklistener.ScriptTaskListener">
<activiti:field name="script">
<activiti:string>
execution.setVariable('dcwkflw_reviewOutcome', task.getVariable('dcwkflw_reviewOutcome'));
</activiti:string>
</activiti:field>
</activiti:taskListener>
</extensionElements>
<humanPerformer>
<resourceAssignmentExpression>
<formalExpression>${bpm_assignee.properties.userName}</formalExpression>
</resourceAssignmentExpression>
</humanPerformer>
</userTask>

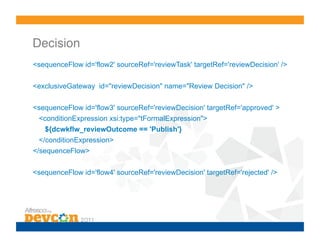

14. Decision!
<sequenceFlow id='flow2' sourceRef='reviewTask' targetRef='reviewDecision' />
<exclusiveGateway id="reviewDecision" name="Review Decision" />
<sequenceFlow id='flow3' sourceRef='reviewDecision' targetRef='approved' >
<conditionExpression xsi:type="tFormalExpression">
${dcwkflw_reviewOutcome == 'Publish'}
</conditionExpression>
</sequenceFlow>
<sequenceFlow id='flow4' sourceRef='reviewDecision' targetRef='rejected' />

15. Approved Task!
<userTask id="approved" name="Presentation Approved"
activiti:formKey="wf:approvedTask" >
<extensionElements>
<activiti:taskListener event="create”
class="org.alfresco.repo.workflow.activiti.tasklistener.ScriptTaskListener">
…
</activiti:taskListener>
</extensionElements>
<humanPerformer>
<resourceAssignmentExpression>
<formalExpression>${initiator.properties.userName}</formalExpression>
</resourceAssignmentExpression>
</humanPerformer>
</userTask>

16. Rejected Task!
<userTask id=”rejected" name="Presentation Rejected"
activiti:formKey="wf:rejectedTask" >
<extensionElements>
<activiti:taskListener event="create”
class="org.alfresco.repo.workflow.activiti.tasklistener.ScriptTaskListener">
…
</activiti:taskListener>
</extensionElements>
<humanPerformer>
<resourceAssignmentExpression>
<formalExpression>${initiator.properties.userName}</formalExpression>
</resourceAssignmentExpression>
</humanPerformer>
</userTask>

17. Task Definition!

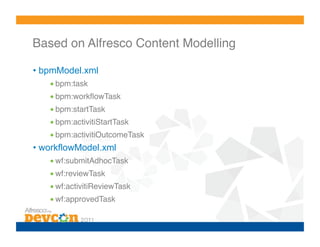

18. Based on Alfresco Content Modelling!
• bpmModel.xml
• bpm:task!
• bpm:workflowTask!
• bpm:startTask!
• bpm:activitiStartTask!
• bpm:activitiOutcomeTask!
• workflowModel.xml
• wf:submitAdhocTask!
• wf:reviewTask!
• wf:activitiReviewTask!
• wf:approvedTask!

19. Start Task!
<type name="dcwkflw:submitPresentationReviewTask">
<parent>wf:submitReviewTask</parent>
<mandatory-aspects>
<aspect>dcwkflw:details</aspect>
</mandatory-aspects>
</type>

20. Task Definition – Start Task cont.!
<aspect name="dcwkflw:details">!
<properties>!
<property name="dcwkflw:abstract">!
<type>d:text</type>!
</property>!
<property name="dcwkflw:duration">!
<type>d:int</type>!
</property>!
</properties>!
<associations>!
<association name="dcwkflw:presenter”>!
<source>…</source>!
<target>!
<class>cm:person</class>!
<mandatory>true</mandatory>!
<many>false</many>!
</target>!
</association>!
</associations>!
</aspect>!

21. Task Definition – Review Task!
<type name="dcwkflw:presentationReviewTask">
<parent>bpm:activitiOutcomeTask</parent>
<properties>
<property name="dcwkflw:reviewOutcome">
<type>d:text</type>
<default>Reject</default>
<constraints>
<constraint ref="dcwkflw:choices" />
</constraints>
</property>
</properties>
<overrides>
<property name="bpm:outcomePropertyName">
<default>
{http://www.alfresco.org/model/dcworkflow/1.0}reviewOutcome
</default>
</property>
</overrides>
<mandatory-aspects><aspect>dcwkflw:details</aspect></mandatory-
aspects>
</type>

22. Task Definition – Review Task cont.!
<constraint name="dcwkflw:choices" type="LIST">
<parameter name="allowedValues">
<list>
<value>Publish</value>
<value>Reject</value>
</list>
</parameter>
</constraint>

23. Deployment!

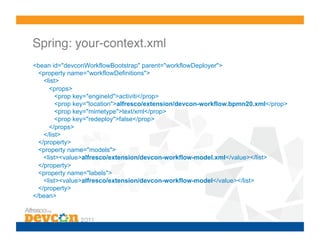

24. Spring: your-context.xml!
<bean id="devconWorkflowBootstrap" parent="workflowDeployer">
<property name="workflowDefinitions">
<list>
<props>
<prop key="engineId">activiti</prop>
<prop key="location">alfresco/extension/devcon-workflow.bpmn20.xml</prop>
<prop key="mimetype">text/xml</prop>
<prop key="redeploy">false</prop>
</props>
</list>
</property>
<property name="models">
<list><value>alfresco/extension/devcon-workflow-model.xml</value></list>
</property>
<property name="labels">
<list><value>alfresco/extension/devcon-workflow-model</value></list>
</property>
</bean>

25. Workflow Console!

26. Configuration!

27. UI – Hiding Workflows!
<config evaluator="string-compare" condition="Workflow">
<hidden-workflows>
<!-- Hide all WCM related workflows -->
<workflow name="jbpm$wcmwf:*"/>
<workflow name="jbpm$wf:articleapproval"/>
</hidden-workflows>
</config>

28. UI – Hiding Tasks!
<config evaluator="string-compare" condition="Workflow">
<hidden-tasks>
<!-- Hide all WCM related tasks -->
<task type="wcmwf:*"/>
</hidden-tasks>
</config>

29. Start Workflow Form!
<config evaluator="string-compare" condition="activiti$presentationReview">
<forms>
<form>
<field-visibility>
<show id="bpm:workflowDescription" />
<show id="bpm:workflowDueDate" />
<show id="bpm:workflowPriority" />
<show id="bpm:assignee" />
<show id="dcwkflw:abstract" />
<show id="dcwkflw:duration" />
<show id="dcwkflw:presenter" />
<show id="packageItems" />
<show id="bpm:sendEMailNotifications" />
</field-visibility>
<appearance>…</appearance>
</form>
</forms>
</config>

30. Task Form!
<config evaluator="task-type" condition="dcwkflw:presentationReviewTask">
<forms>
<form>
<field-visibility>
…
<show id="dcwkflw:abstract" />
<show id="dcwkflw:duration" />
<show id="dcwkflw:presenter" />
<show id="dcwkflw:reviewOutcome" />
</field-visibility>
<appearance>
…
<field id="dcwkflw:reviewOutcome”>
<control template="/org/.../workflow/activiti-transitions.ftl" />
</field>
…
</appearance>
</form>
</forms>
</config>

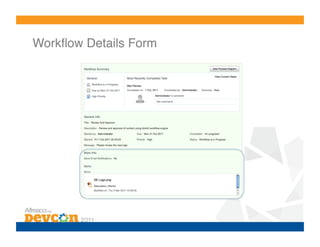

31. Workflow Details Form!

32. Workflow Details Form!
<config evaluator="task-type”
condition="dcwkflw:submitPresentationReviewTask">
<forms>
<form id="workflow-details">
<field-visibility>
<show id="bpm:sendEMailNotifications" />
<show id="dcwkflw:abstract" />
<show id="dcwkflw:duration" />
<show id="dcwkflw:presenter" />
<show id="packageItems" />
</field-visibility>
<appearance>…</appearance>
</form>
</forms>
</config>

33. Engine!
• Disabling
• system.workflow.engine.jbpm.enabled=true!
• system.workflow.engine.activiti.enabled=true!
• Definition Visibility
• system.workflow.engine.jbpm.definitions.visible=false!
• system.workflow.engine.activiti.definitions.visible=true!
• Override in alfresco-global.properties
• Values shown in Admin Console or JMX Dump

34. Demo!
• Start ‘DevCon Presentation Review’ Workflow
• Manage Task
• Monitor Progress
• Workflow Details!
• Workflow Console!

35. Questions ?!

36. Learn More!
http://wiki.alfresco.com/wiki/Workflow
http://wiki.alfresco.com/wiki/Forms
http://www.activiti.org
