1. Forms Config, Customization, & Extension!
Gavin Cornwell, Development Manager, Services Team, Alfresco!

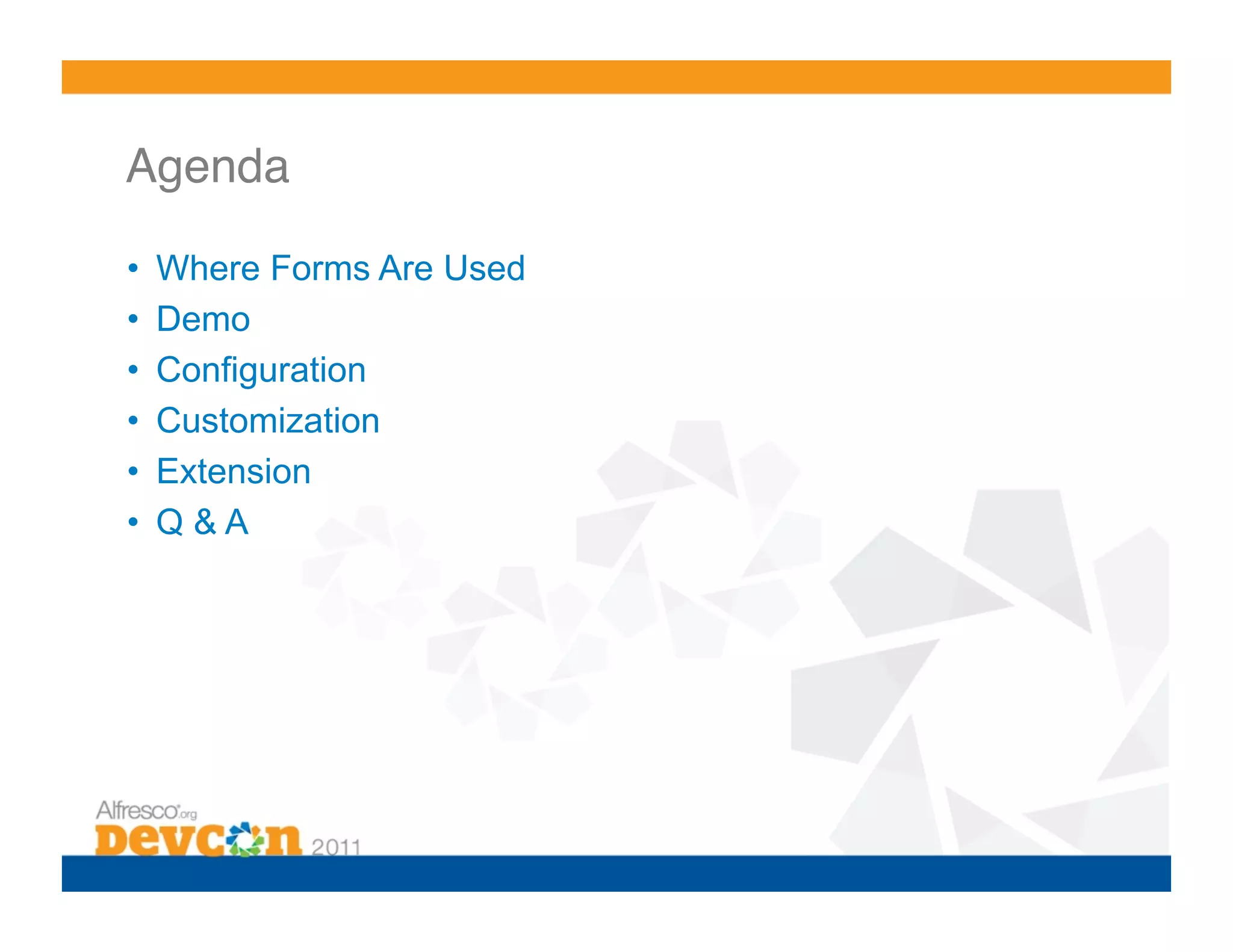

2. Agenda!
• Where Forms Are Used
• Demo
• Configuration
• Customization
• Extension
• Q & A

3. Where Forms Are Used!

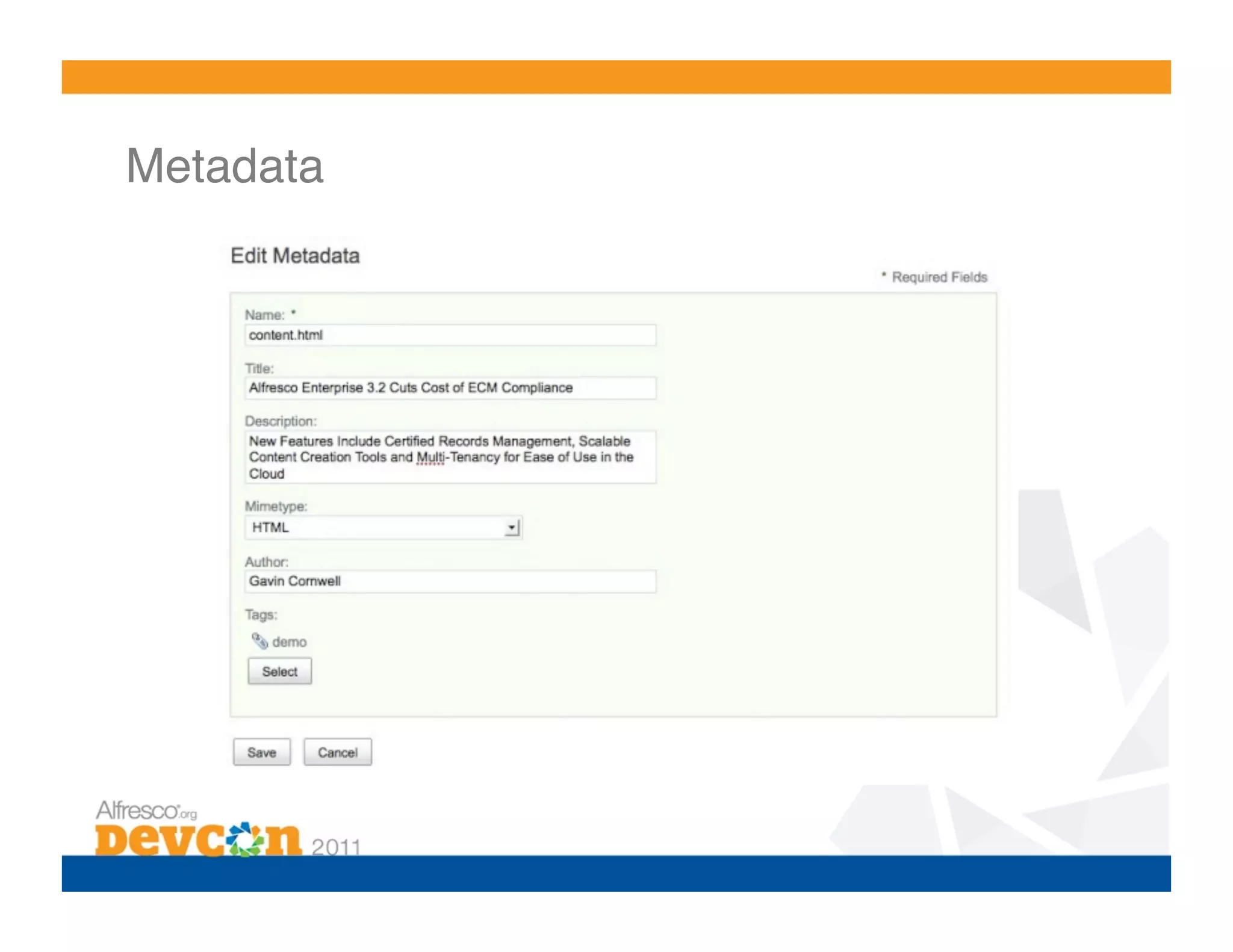

4. Metadata !

5. Advanced Search!

6. Workflow !

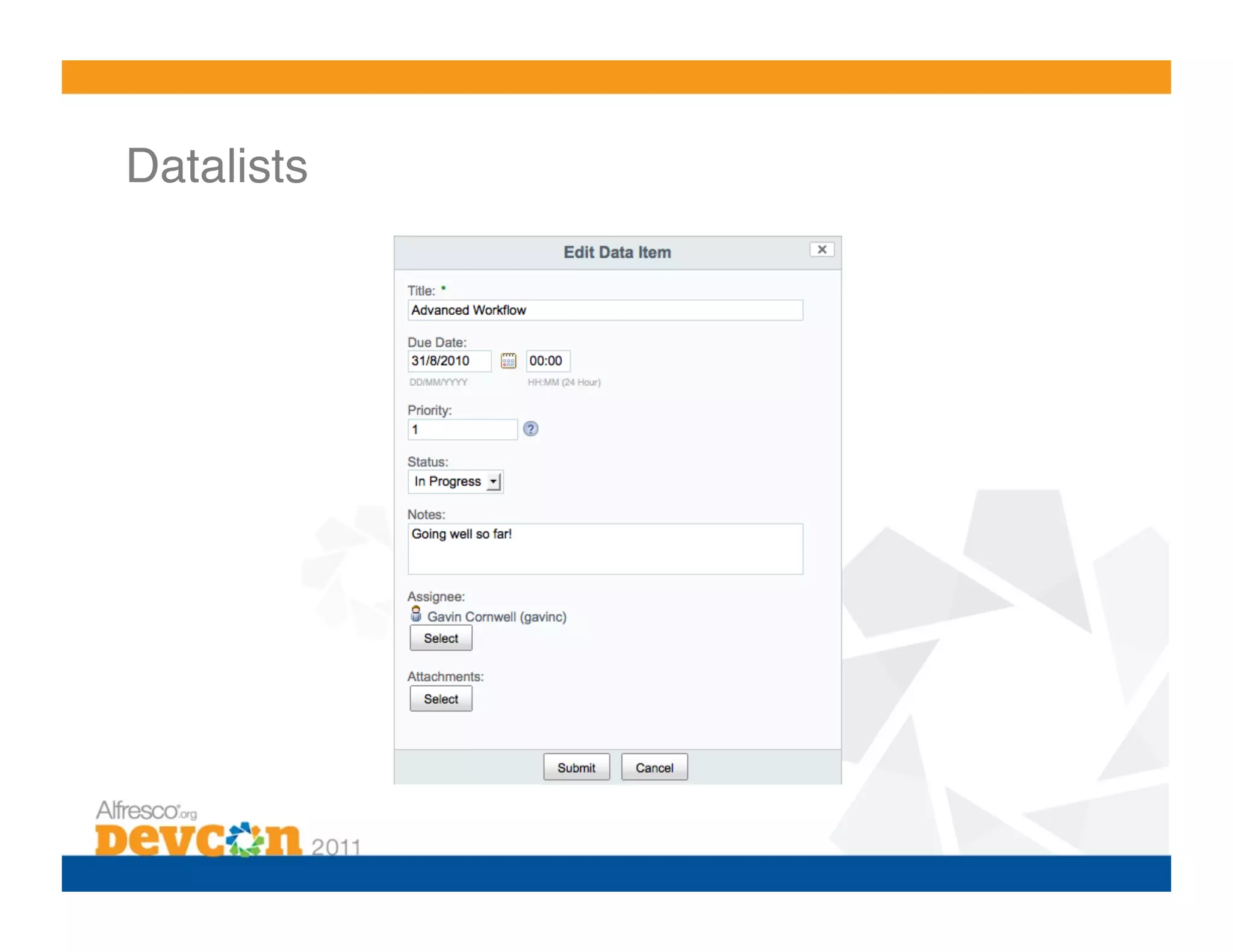

7. Datalists !

8. Actions (4.0)!

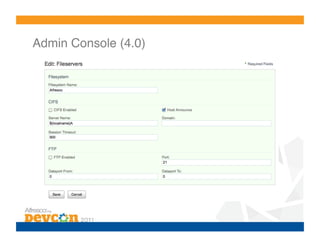

9. Admin Console (4.0)!

10. Demo!
• Custom Type
• Custom Control
• Advanced Search
• FDK
• startLocation!
• Custom “foldername” NodeLocator!
• Built-in NodeLocators; ancestor, doclib, userhome!
• Unit Test Page!

11. Configuration!

12. Global Defaults – form-config.xml
<config>
<forms>
<default-controls>
...
</default-controls>
<constraint-handlers>
...
</constraint-handlers>
<dependencies>
...
</dependencies>
</forms>
</config>

13. Default Controls!
<default-controls>
<type name="text” template="/org.../textfield.ftl" />
<type name=”datetime” template="/org.../date.ftl”>
<control-param name="showTime”>
true
</control-param>
</type>
...
</default-controls>

14. Default Constraint Handlers!
<constraint-handlers>
…
<constraint type="MANDATORY”
validation-handler="...mandatory”
event="keyup" />
<constraint type="NUMBER”
validation-handler=”...number”
event="keyup" />
...
</constraint-handlers>

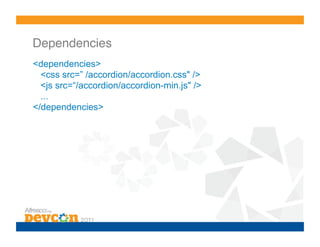

15. Dependencies!
<dependencies>
<css src=” /accordion/accordion.css" />
<js src=“/accordion/accordion-min.js" />
...
</dependencies>

16. Custom Type (dcforms:presentation)!
• Name (d:text) inherited from cm:content
• Code (d:text)
• Abstract (d:text)
• Level (d:text with LIST constraint)
• Duration (d:int)
• When (d:datetime)
• Rating (d:int)
• Presenter (association to cm:person)

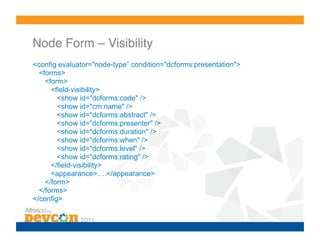

17. Node Form – Visibility !
<config evaluator="node-type” condition="dcforms:presentation">
<forms>
<form>
<field-visibility>
<show id="dcforms:code" />
<show id="cm:name" />
<show id="dcforms:abstract" />
<show id="dcforms:presenter" />
<show id="dcforms:duration" />
<show id="dcforms:when" />
<show id="dcforms:level" />
<show id="dcforms:rating" />
</field-visibility>
<appearance>….</appearance>
</form>
</forms>
</config>

18. Node Form – Appearance !
<appearance>
<set id="" label-id="form.set.general” appearance="title”/>
<set id="time" label="Time” appearance="title”/>
<set id="feedback" label="Feedback" appearance=”panel”/>
<field id="dcforms:abstract">
<control template="/org/…/controls/textarea.ftl" />
</field>
<field id="dcforms:rating" set="feedback” />
<field id="dcforms:when" set="time" />
<field id="dcforms:duration" set="time" />
</appearance>

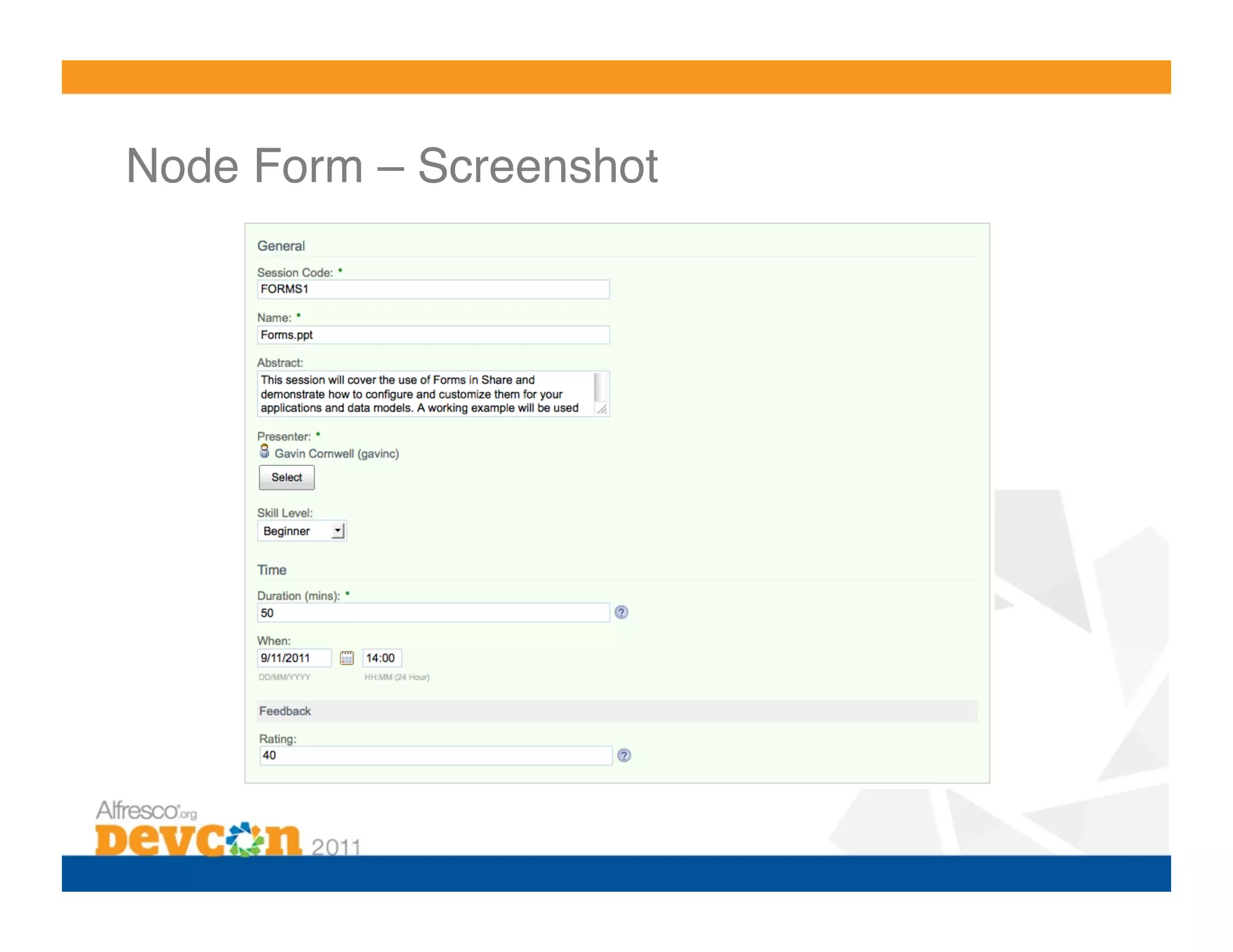

19. Node Form – Screenshot !

20. Node Form – Hiding the ʻAuthorʼ field!
<config evaluator="node-type" condition="cm:content">
<forms>
<form>
<field-visibility>
<hide id="cm:author" />
</field-visibility>
</form>
</forms>
</config>

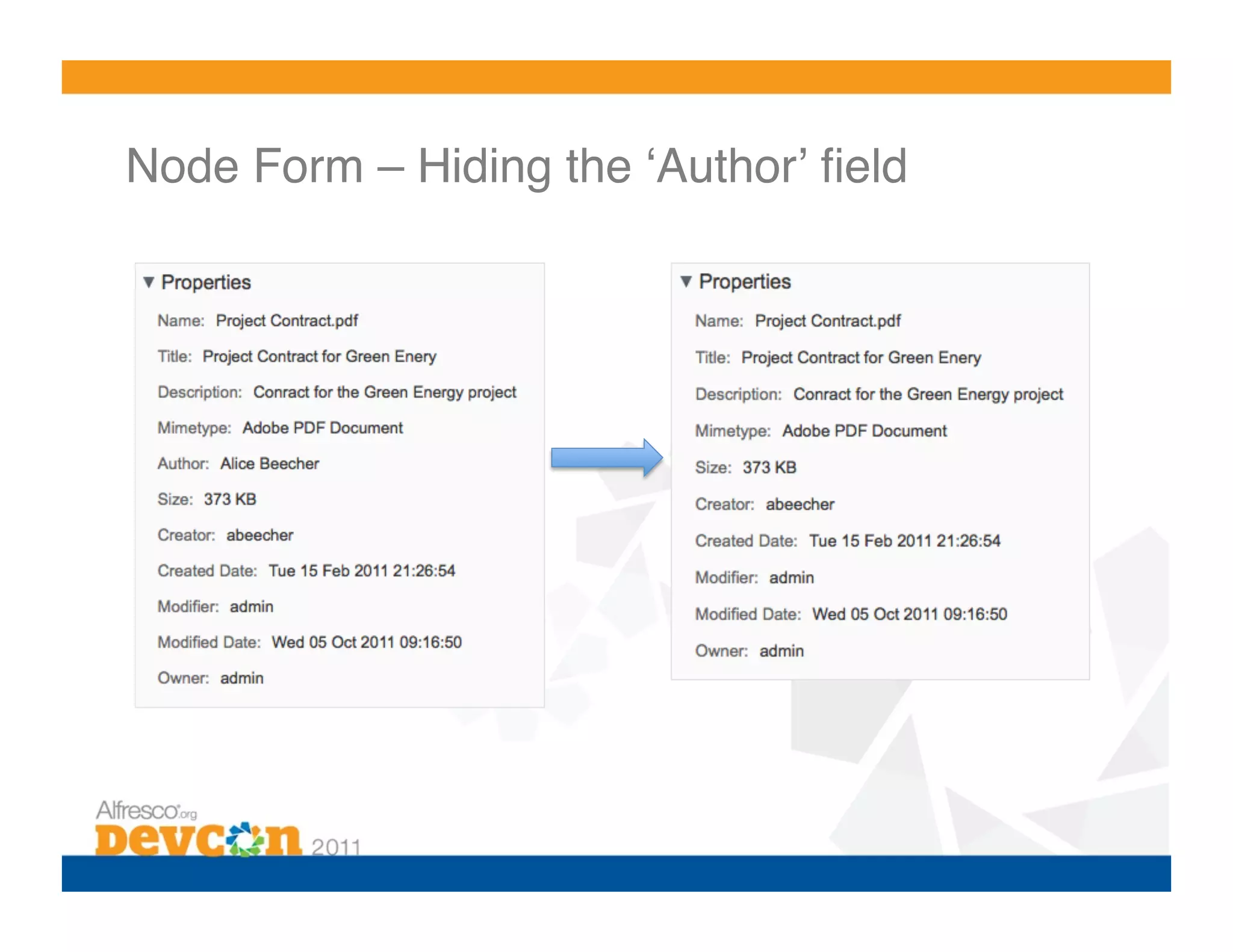

21. Node Form – Hiding the ʻAuthorʼ field!

22. Search Form!
<config evaluator="model-type" condition="dcforms:presentation">
<forms>
<form id="search">
<field-visibility>
<show id="cm:name" />
<show id="dcforms:code" />
<show id="dcforms:level" />
<show id="dcforms:when" />
</field-visibility>
<appearance>
<field id="dcforms:when">
<control template="/org/alfresco/components/form/controls/daterange.ftl" />
</field>
</appearance>
</form>
</forms>
</config>

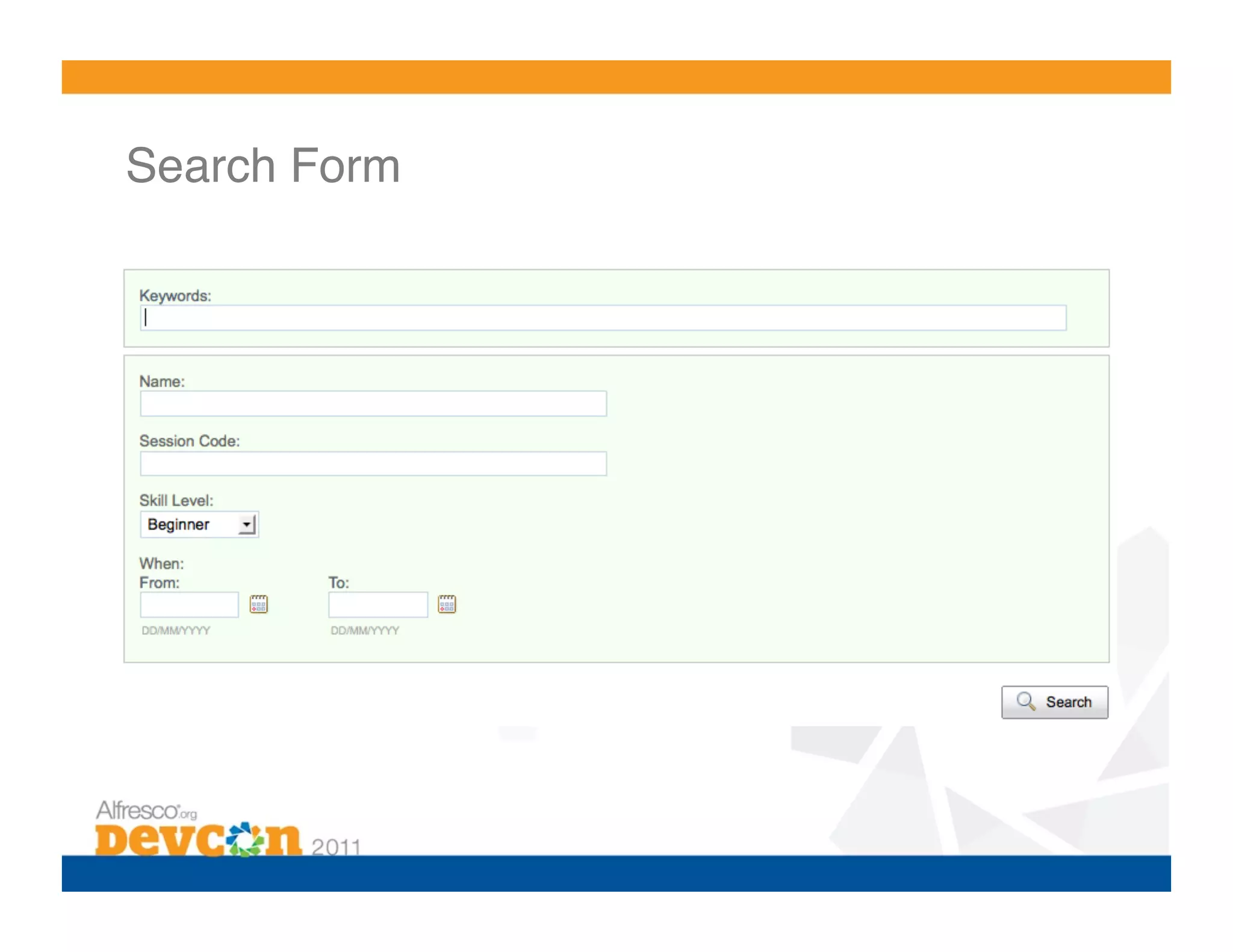

23. Search Form

24. Customization!

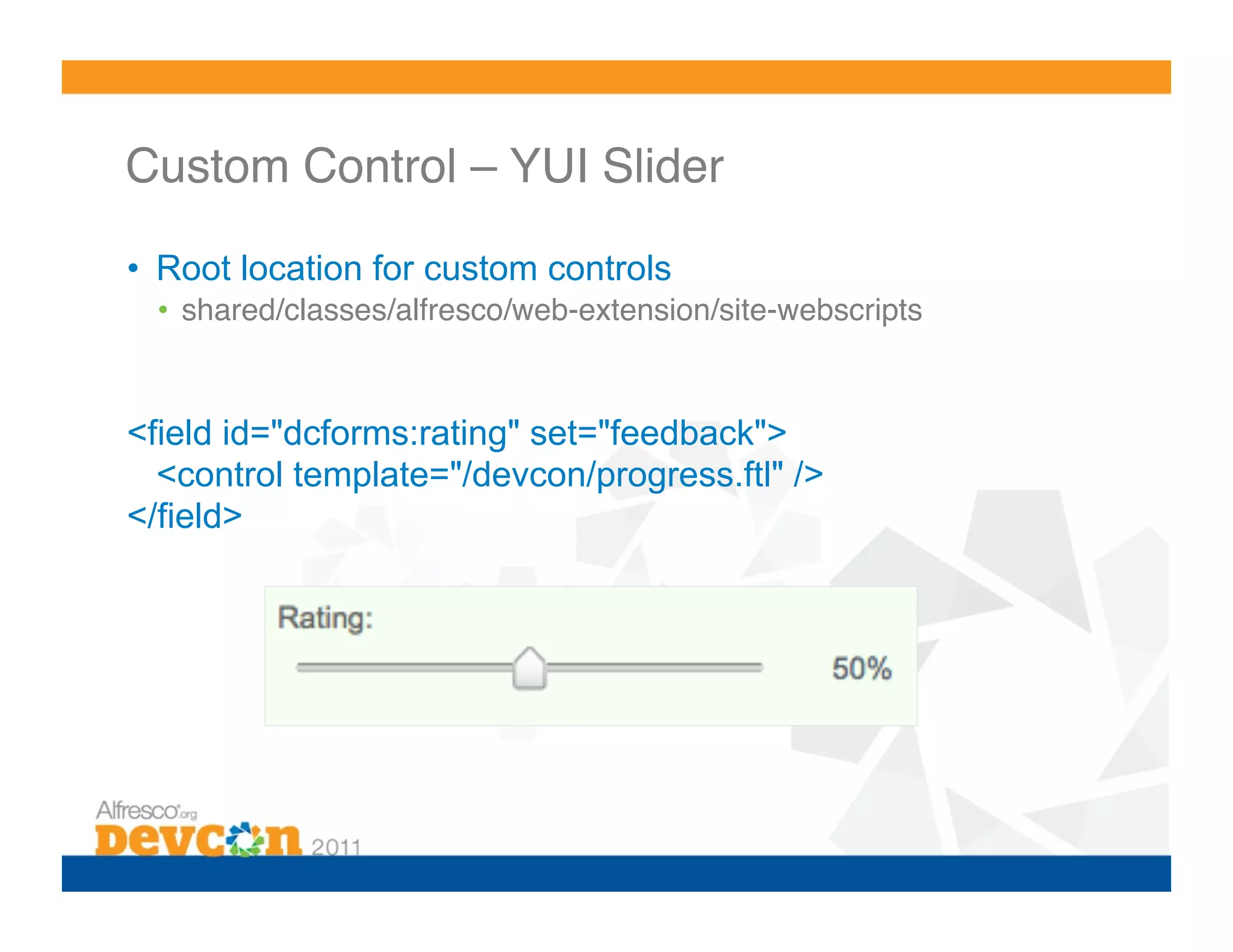

25. Custom Control – YUI Slider!
• Root location for custom controls
• shared/classes/alfresco/web-extension/site-webscripts!
<field id="dcforms:rating" set="feedback">
<control template="/devcon/progress.ftl" />
</field>

26. Custom Form Template!
<config evaluator="task-type" condition="inwf:activitiInvitePendingTask">
<forms>
<form>
<view-form template="/org/alfresco/components/form/invite-task-form.ftl”/>
<edit-form template="/org/alfresco/components/form/invite-task-form.ftl”/>
<field-visibility>
<show id="inwf:resourceTitle" />
<show id="inwf:resourceDescription" />
<show id="inwf:inviteeRole" />
<show id="bpm:priority" />
<show id="bpm:comment" />
<show id="inwf:inviteOutcome" />
</field-visibility>
</form>
</forms>
</config>!

27. Custom Form Template!
inwf:resourceTitle
bpm:priority
inwf:inviteeRole
bpm:comment
inwf:inviteOutcome

28. Extension!

29. Form Processors!
• Pluggable Form Processors
• Driven by “itemKind”!
• Provide implementation to generate and persist form!
• OOTB Form Processors!
• Node, Type, Workflow, Task, Action & JMX!
• Form Filter
• Allows pre and post processing of fields!

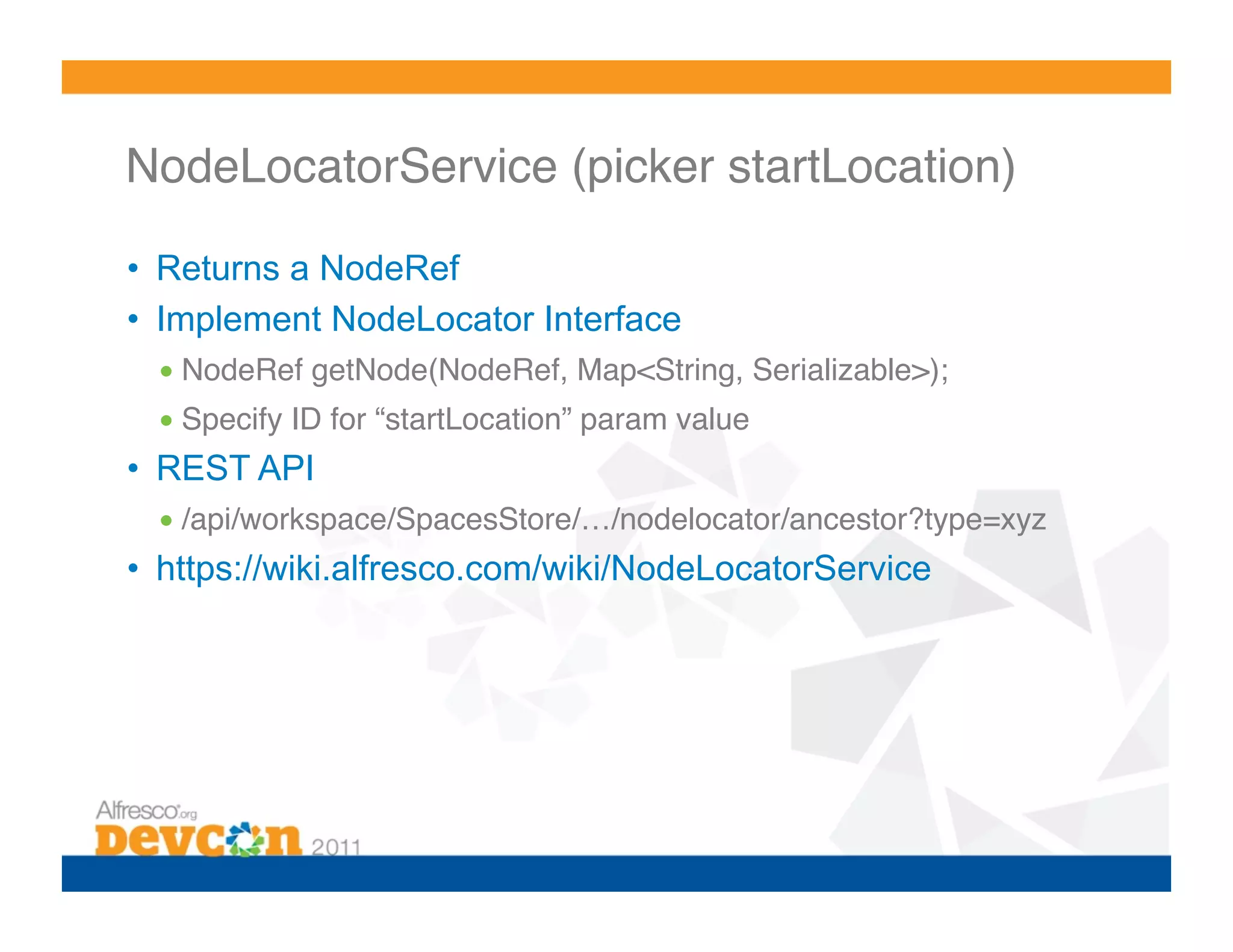

30. NodeLocatorService (picker startLocation)!
• Returns a NodeRef
• Implement NodeLocator Interface
• NodeRef getNode(NodeRef, Map<String, Serializable>);!
• Specify ID for “startLocation” param value!
• REST API
• /api/workspace/SpacesStore/…/nodelocator/ancestor?type=xyz !
• https://wiki.alfresco.com/wiki/NodeLocatorService

31. Whatʼs New & Tips!

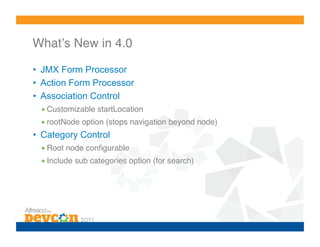

32. Whatʼs New in 4.0!
• JMX Form Processor
• Action Form Processor
• Association Control
• Customizable startLocation !
• rootNode option (stops navigation beyond node)!
• Category Control
• Root node configurable!
• Include sub categories option (for search)!

33. Tips!
• Log4J settings
• org.alfresco.repo.forms=debug!
• org.alfresco.web.config.forms=debug!
• org.alfresco.web.scripts.forms=debug!
• Eclipse (breakpoints)
• FormUIGet for UI!
• FilteredFormProcessor for server!

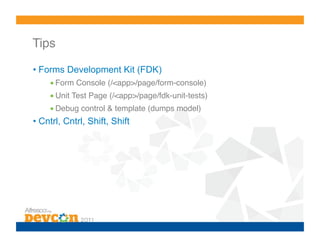

34. Tips!
• Forms Development Kit (FDK)
• Form Console (/<app>/page/form-console)!
• Unit Test Page (/<app>/page/fdk-unit-tests)!
• Debug control & template (dumps model)!
• Cntrl, Cntrl, Shift, Shift

35. Questions ?!

36. Learn More!
http://wiki.alfresco.com/wiki/Forms
http://wiki.alfresco.com/wiki/Share_Advanced_Search
