Introducing Practical RabbitMQ (php[tek] 2016 - Tutorial)
- 1. this slide is intentionally left blank

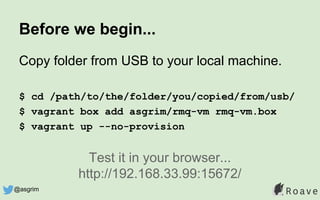

- 2. Before we begin... Copy folder from USB to your local machine. $ cd /path/to/the/folder/you/copied/from/usb/ $ vagrant box add asgrim/rmq-vm rmq-vm.box $ vagrant up --no-provision Test it in your browser... http://192.168.33.99:15672/ @asgrim
- 6. James Titcumb www.jamestitcumb.com www.roave.com www.phphants.co.uk www.phpsouthcoast.co.uk @asgrim Who is this guy?
- 7. What is a message? @asgrim

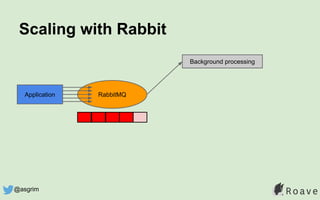

- 11. Scaling with Rabbit RabbitMQApplication Background processing @asgrim
- 12. Scaling with Rabbit RabbitMQApplication Background processing Background processing @asgrim

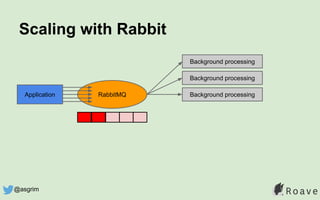

- 13. Scaling with Rabbit RabbitMQApplication Background processing Background processing Background processing @asgrim

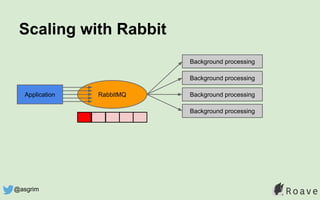

- 14. Scaling with Rabbit RabbitMQApplication Background processing Background processing Background processing Background processing @asgrim

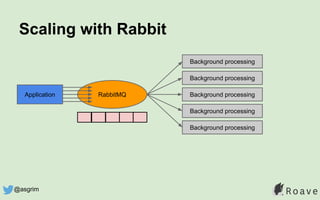

- 15. Scaling with Rabbit RabbitMQApplication Background processing Background processing Background processing Background processing Background processing @asgrim
- 17. SOA @asgrim
- 19. (you need Vagrant+VirtualBox already) Installing RabbitMQ @asgrim

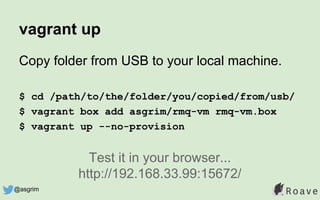

- 20. vagrant up Copy folder from USB to your local machine. $ cd /path/to/the/folder/you/copied/from/usb/ $ vagrant box add asgrim/rmq-vm rmq-vm.box $ vagrant up --no-provision Test it in your browser... http://192.168.33.99:15672/ @asgrim

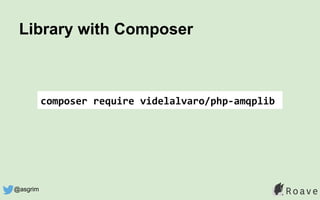

- 21. Library with Composer composer require videlalvaro/php-amqplib @asgrim

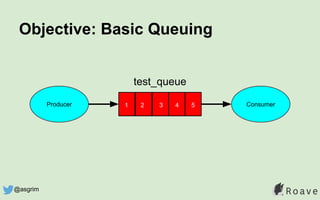

- 24. Objective: Basic Queuing Producer Consumer test_queue 1 2 3 4 5 @asgrim

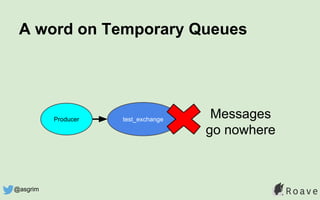

- 27. A word on Temporary Queues test_exchangeProducer Messages go nowhere @asgrim

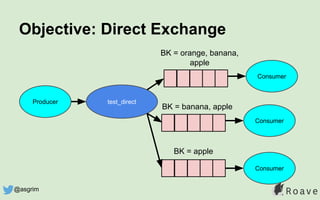

- 29. Objective: Direct Exchange test_direct BK = apple BK = banana, apple Consumer Consumer Producer BK = orange, banana, apple Consumer @asgrim

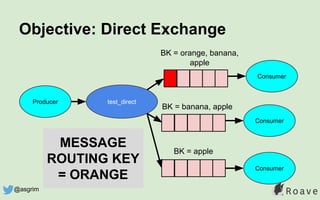

- 30. Objective: Direct Exchange test_direct BK = apple BK = banana, apple Consumer Consumer Producer MESSAGE ROUTING KEY = ORANGE BK = orange, banana, apple Consumer @asgrim
- 31. Objective: Direct Exchange test_direct BK = apple BK = banana, apple Consumer Consumer Producer MESSAGE ROUTING KEY = BANANA BK = orange, banana, apple Consumer @asgrim

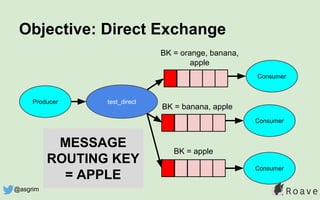

- 32. Objective: Direct Exchange test_direct BK = apple BK = banana, apple Consumer Consumer Producer MESSAGE ROUTING KEY = APPLE BK = orange, banana, apple Consumer @asgrim
- 34. Objective: Topic Exchange test_topic BK = *.vegetable BK = # Consumer Consumer Producer BK = green.# Consumer BK = *.grass.* / *.*.long Consumer @asgrim

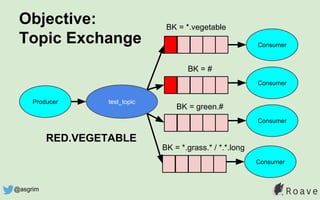

- 35. Objective: Topic Exchange test_topic BK = *.vegetable BK = # Consumer Consumer Producer RED.VEGETABLE BK = green.# Consumer BK = *.grass.* / *.*.long Consumer @asgrim

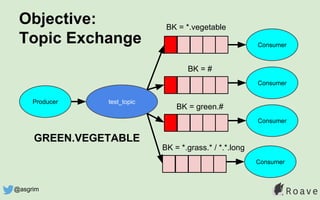

- 36. Objective: Topic Exchange test_topic BK = *.vegetable BK = # Consumer Consumer Producer GREEN.VEGETABLE BK = green.# Consumer BK = *.grass.* / *.*.long Consumer @asgrim

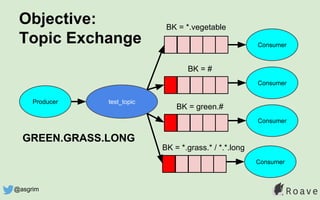

- 37. Objective: Topic Exchange test_topic BK = *.vegetable BK = # Consumer Consumer Producer GREEN.GRASS.LONG BK = green.# Consumer BK = *.grass.* / *.*.long Consumer @asgrim

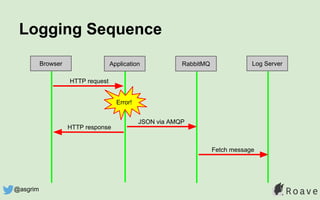

- 41. Fetch message Logging Sequence ApplicationBrowser Log Server HTTP request JSON via AMQP Error! HTTP response RabbitMQ @asgrim
- 45. Photo: © Rob Allen (akrabat) https://flic.kr/p/6wp9iz @asgrim
- 46. RPC @asgrim

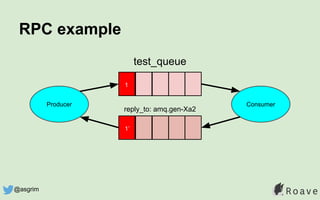

- 47. RPC example Producer Consumer test_queue 1 reply_to: amq.gen-Xa2 1’ @asgrim
- 48. TTL @asgrim

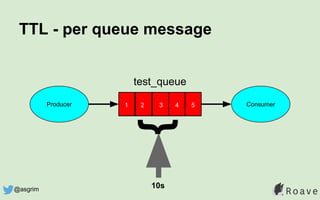

- 49. TTL - per queue message Producer Consumer test_queue 1 2 3 4 5 } 10s@asgrim

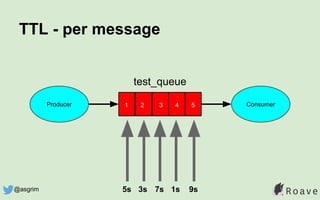

- 50. TTL - per message Producer Consumer test_queue 1 2 3 4 5 5s 3s 7s 1s 9s@asgrim

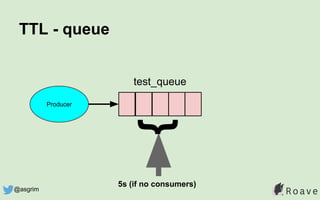

- 51. TTL - queue Producer test_queue } 5s (if no consumers) @asgrim

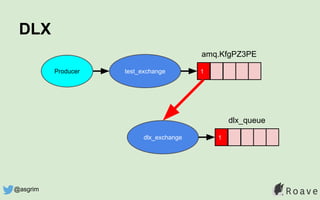

- 52. DLX @asgrim
- 54. Scheduling / Delayed messages @asgrim
- 55. Shovel @asgrim
- 56. Priority @asgrim

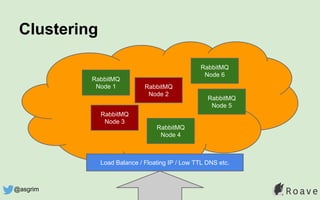

- 61. Clustering RabbitMQ Node 1 RabbitMQ Node 3 RabbitMQ Node 2 RabbitMQ Node 4 RabbitMQ Node 5 RabbitMQ Node 6 Load Balance / Floating IP / Low TTL DNS etc. @asgrim

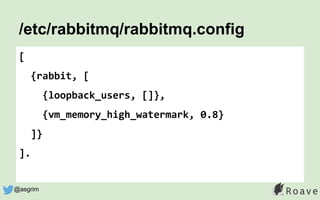

- 65. /etc/rabbitmq/rabbitmq.config [ {rabbit, [ {loopback_users, []}, {vm_memory_high_watermark, 0.8} ]} ]. @asgrim

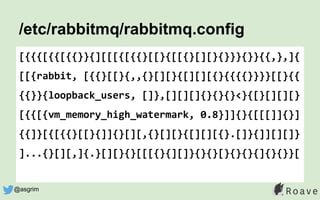

- 66. /etc/rabbitmq/rabbitmq.config [{{{[{{[{{}}{][[[{[{{}[[}{[[{}[][}{}}}{}}{{,},]{ [[{rabbit, [{{}[[}{,,{}[][}{[][][{}{{{{}}}}[[}{{ {{}}{loopback_users, []},[][][]{}{}{}<}{[}[][][} [{{[{vm_memory_high_watermark, 0.8}]]{}{[[[]]{}] {{]}[{[{{}[[}{]]{}[][,{}[][}{[][][{}.[]}{]][][]} ]...{}[][,]{.}[][}{}[[[{}{][]}{}{}[}{}{}{]{}{}}[ @asgrim

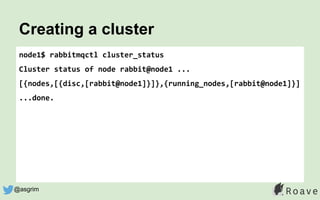

- 67. node1$ rabbitmqctl cluster_status Cluster status of node rabbit@node1 ... [{nodes,[{disc,[rabbit@node1]}]},{running_nodes,[rabbit@node1]}] ...done. Creating a cluster @asgrim
- 68. node2$ rabbitmqctl join_cluster --ram rabbit@node1 node3$ rabbitmqctl join_cluster rabbit@node2 node3$ rabbitmqctl cluster_status Cluster status of node rabbit@node3 ... [{nodes,[{disc,[rabbit@node3,rabbit@node1]},{ram,[rabbit@node2]}]}, {running_nodes,[rabbit@node2,rabbit@node1,rabbit@node3]}] ...done. Creating a cluster @asgrim
- 70. node1$ rabbitmqctl stop_app node2$ rabbitmqctl forget_cluster_node rabbit@node1 node1$ rabbitmqctl reset node1$ rabbitmqctl start_app node2$ rabbitmqctl cluster_status Cluster status of node rabbit@node2 ... [{nodes,[{disc,[rabbit@node3]},{ram,[rabbit@node2]}]}, {running_nodes,[rabbit@node2,rabbit@node3]}] ...done. Removing Nodes @asgrim

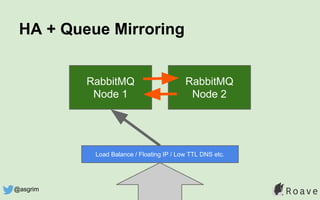

- 72. HA + Queue Mirroring RabbitMQ Node 1 RabbitMQ Node 2 Load Balance / Floating IP / Low TTL DNS etc. @asgrim
- 75. Any questions? :) https://joind.in/talk/8a46c James Titcumb @asgrim
