@asgrim Climbing the Abstract Syntax Tree James Titcumb Southeast PHP 2018
$ whoami James Titcumb www.jamestitcumb.com www.roave.com @asgrim

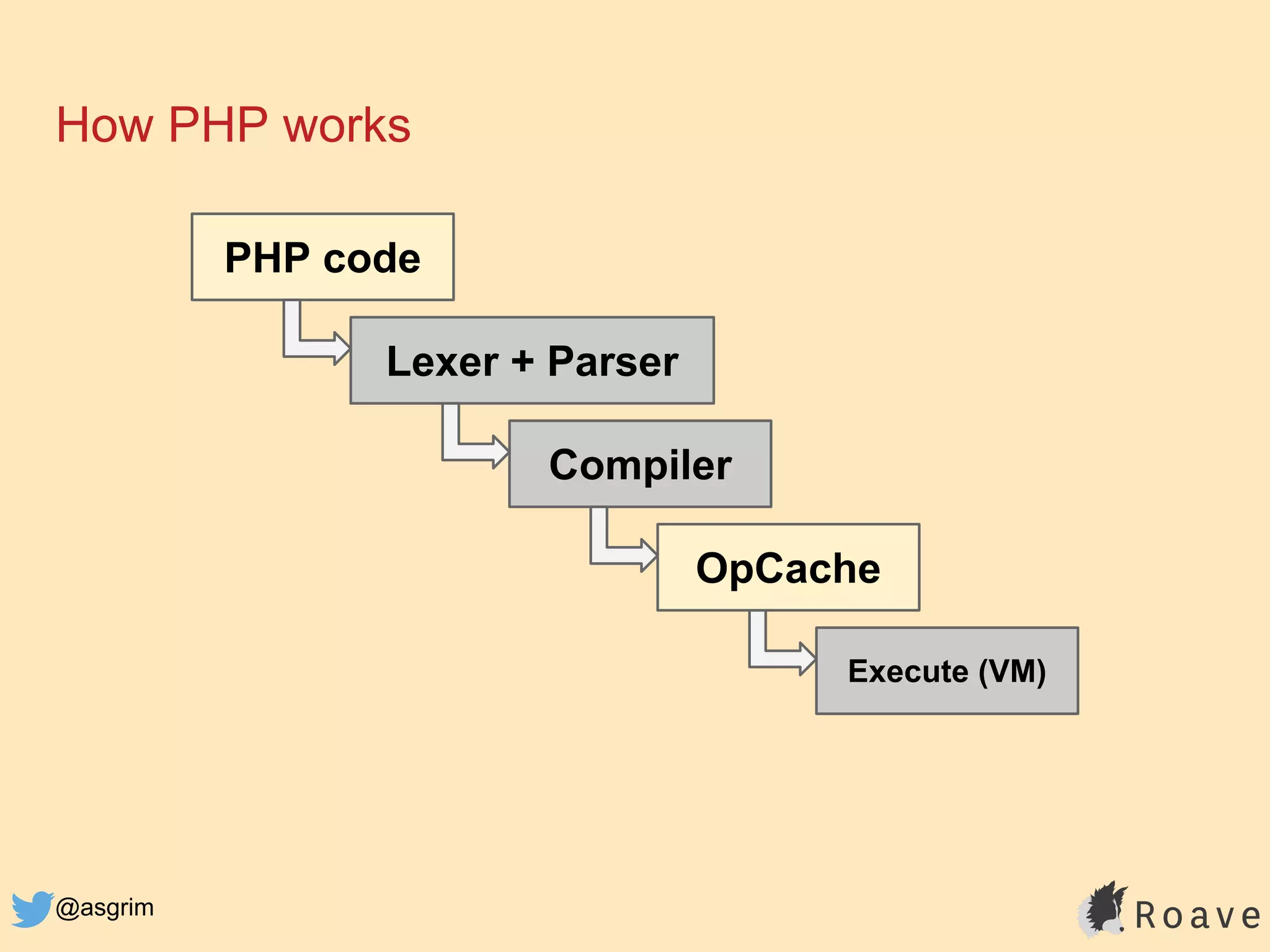

@asgrim How PHP works PHP code OpCache Execute (VM) Lexer + Parser Compiler
@asgrim The PHP Lexer zend_language_scanner.l

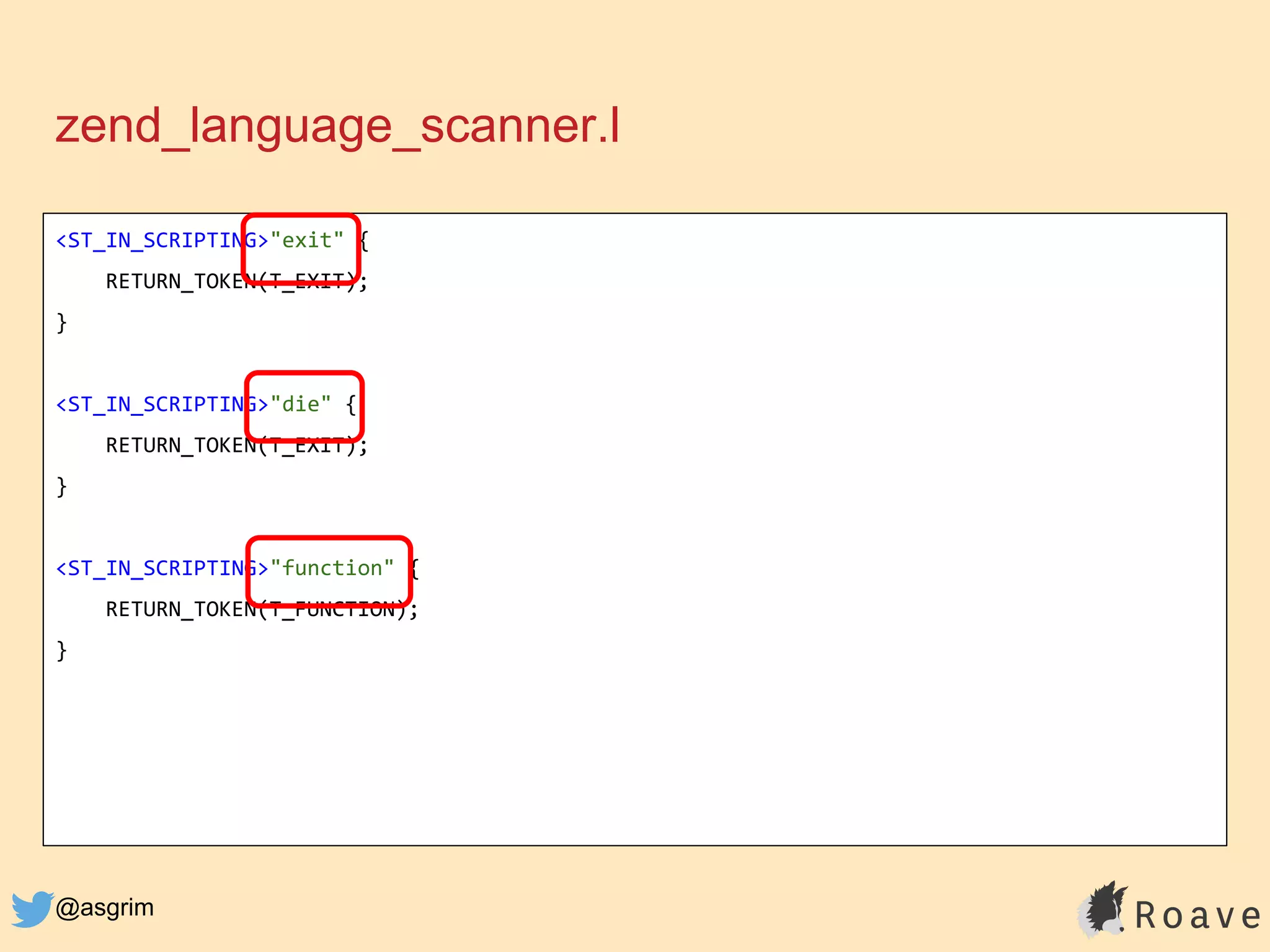

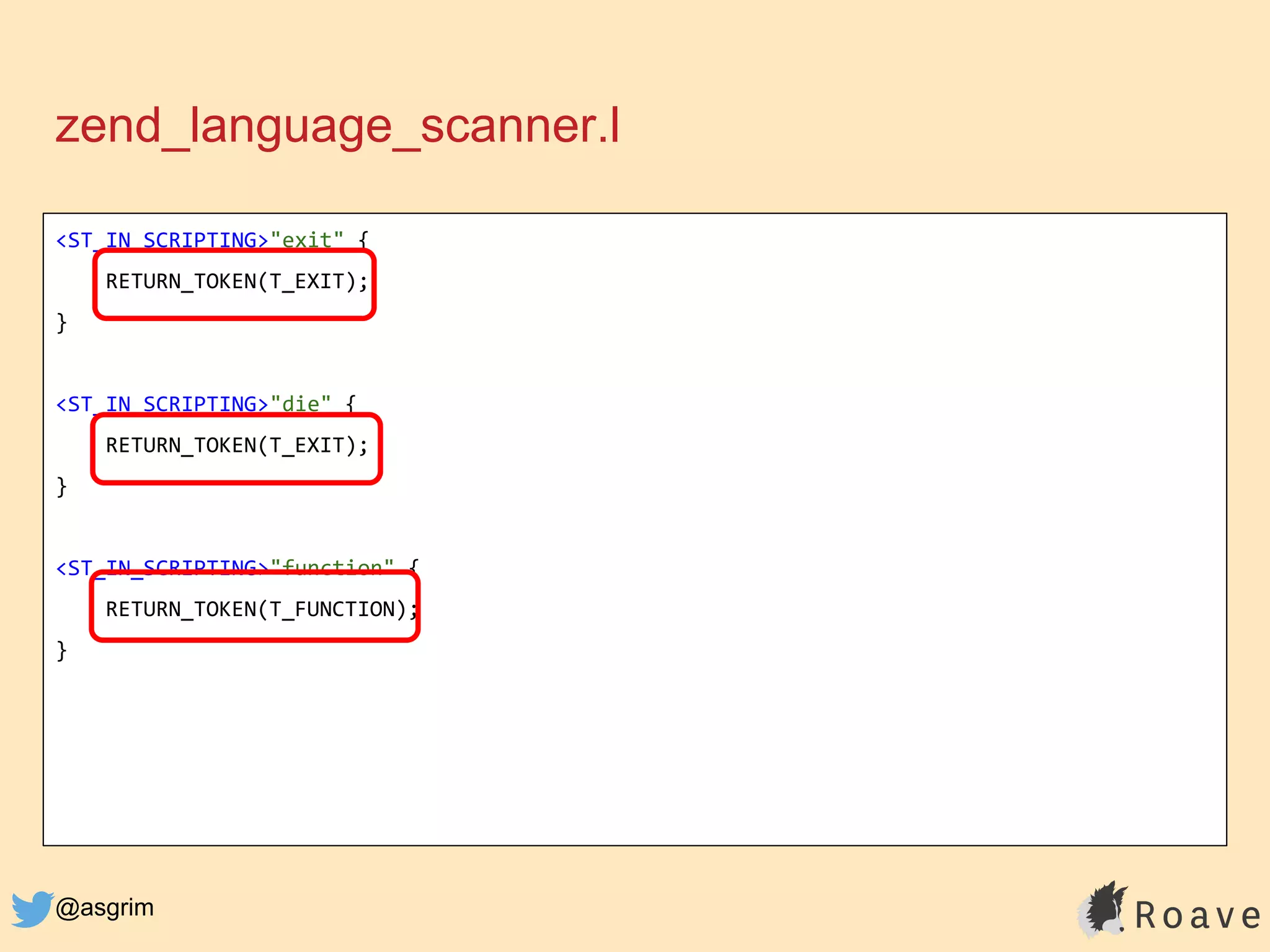

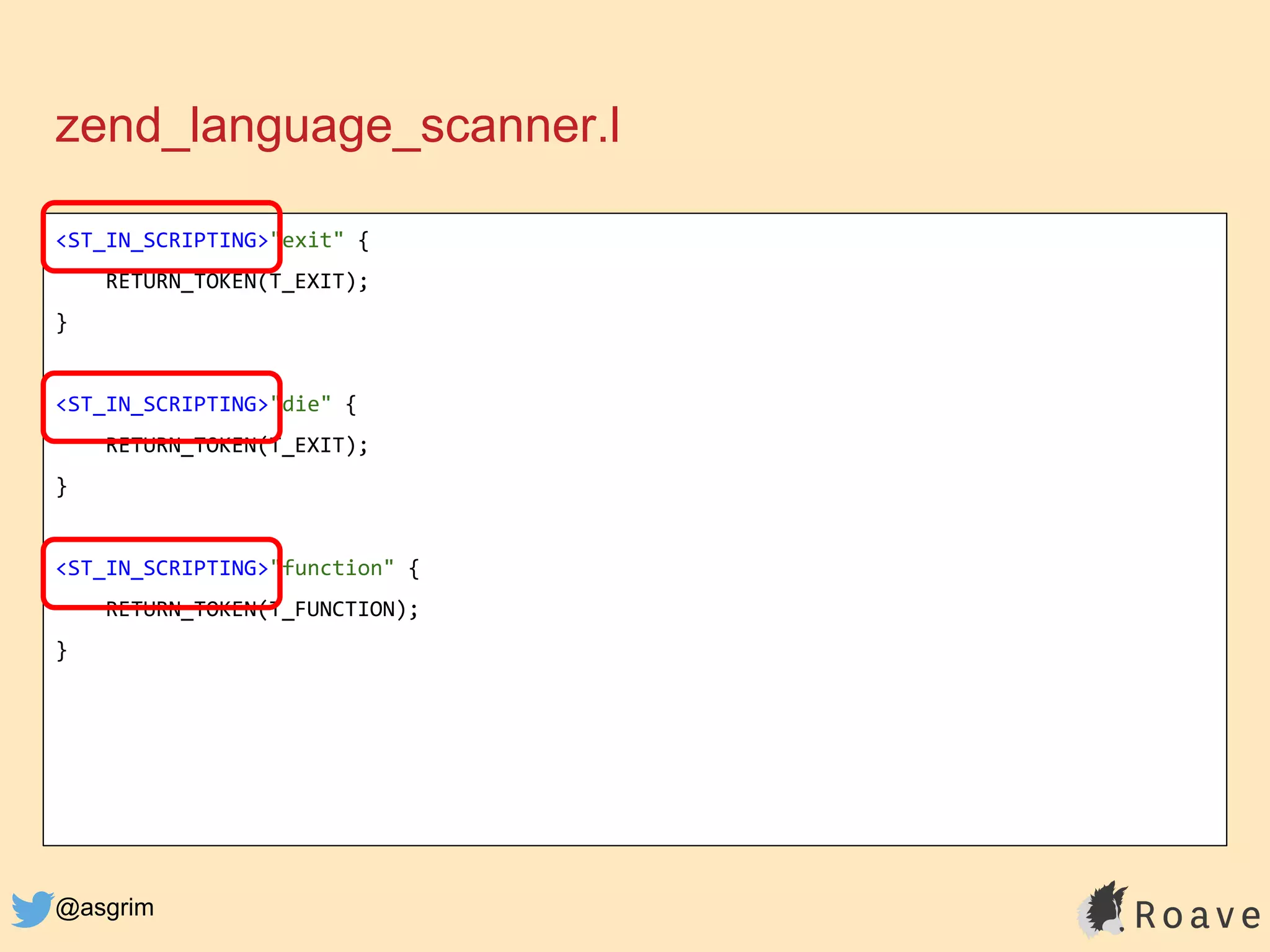

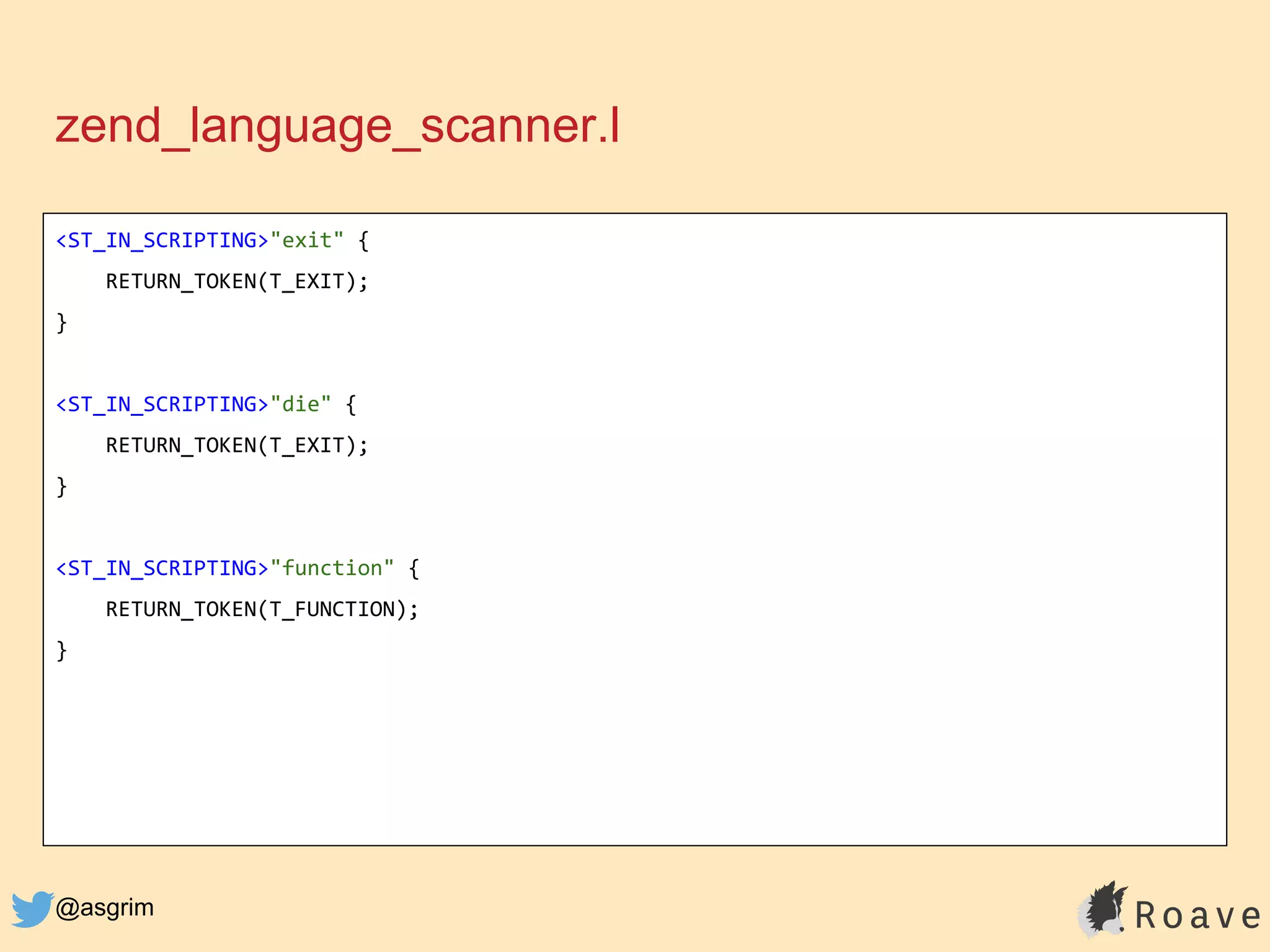

@asgrim zend_language_scanner.l <ST_IN_SCRIPTING>"exit" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"die" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"function" { RETURN_TOKEN(T_FUNCTION); }
@asgrim zend_language_scanner.l <ST_IN_SCRIPTING>"exit" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"die" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"function" { RETURN_TOKEN(T_FUNCTION); }
@asgrim zend_language_scanner.l <ST_IN_SCRIPTING>"exit" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"die" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"function" { RETURN_TOKEN(T_FUNCTION); }
@asgrim zend_language_scanner.l <ST_IN_SCRIPTING>"exit" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"die" { RETURN_TOKEN(T_EXIT); } <ST_IN_SCRIPTING>"function" { RETURN_TOKEN(T_FUNCTION); }

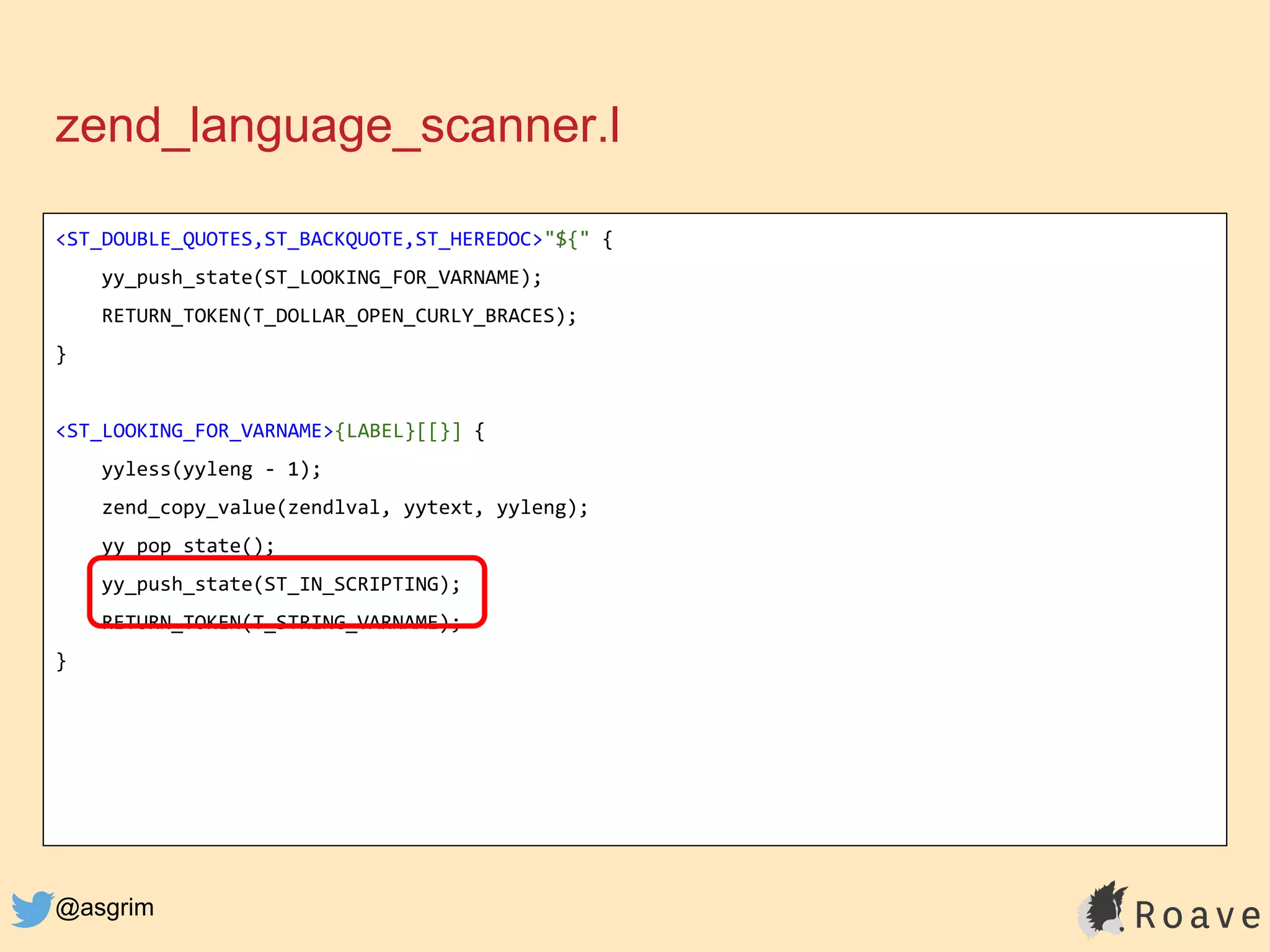

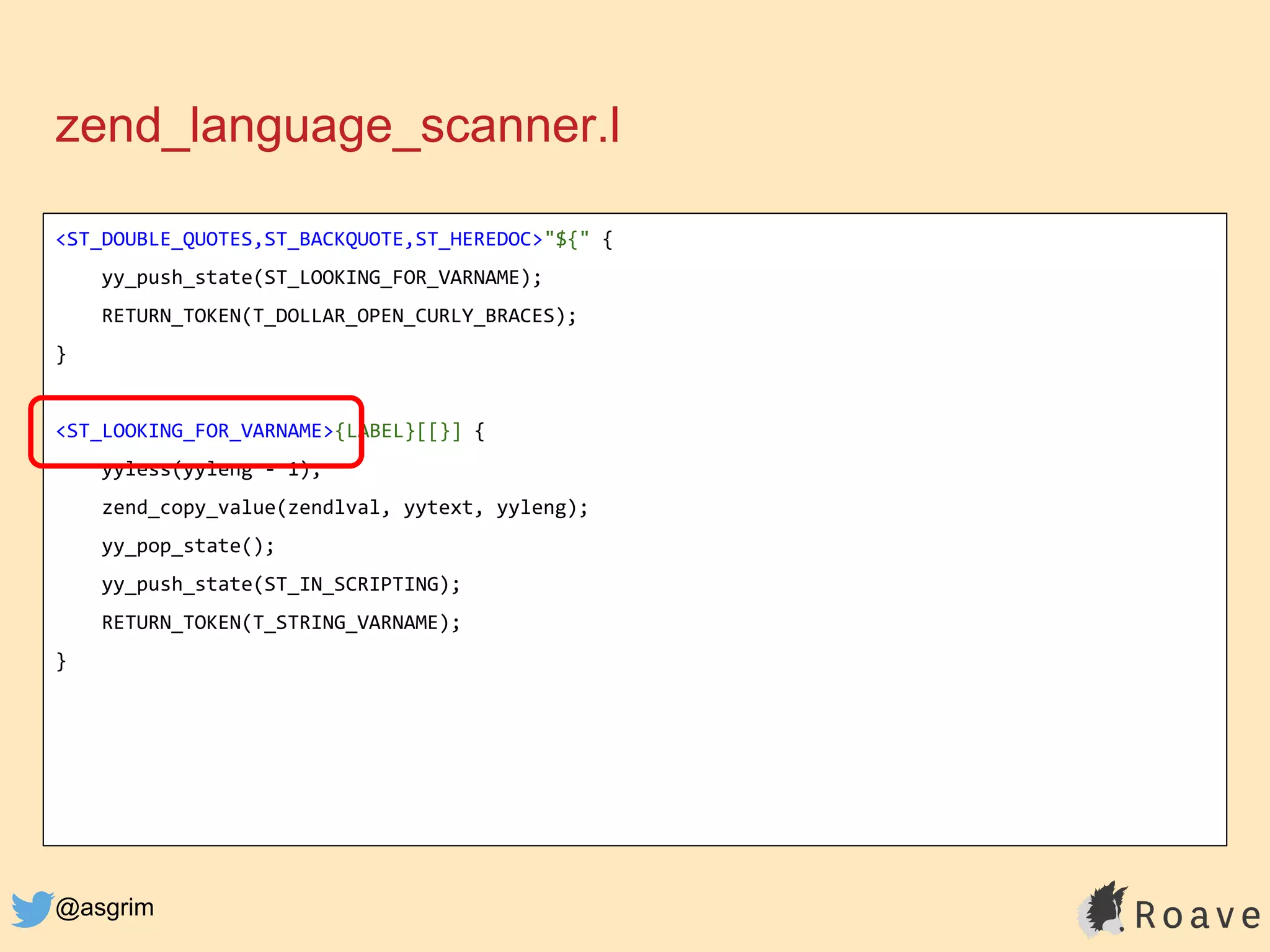

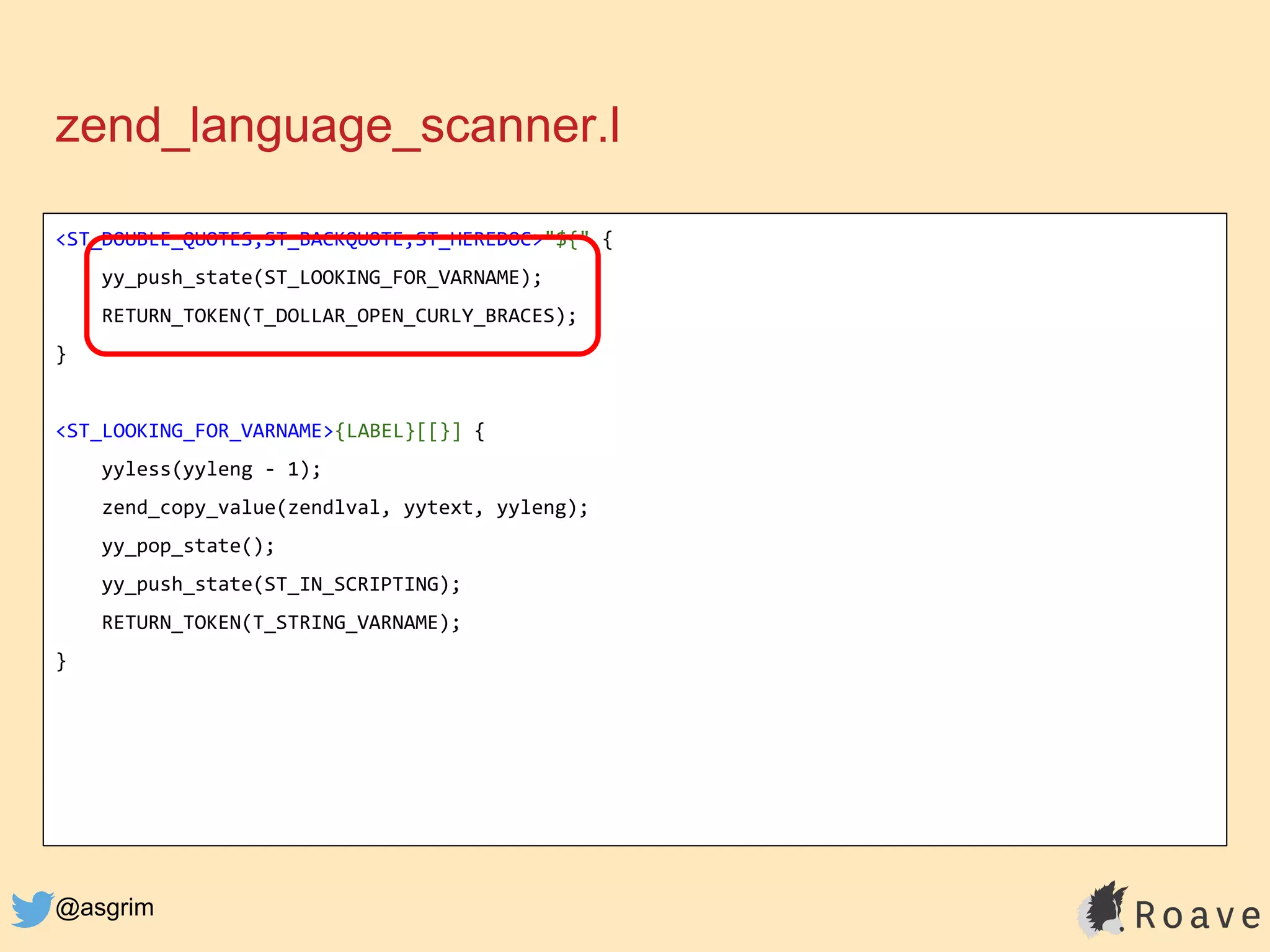

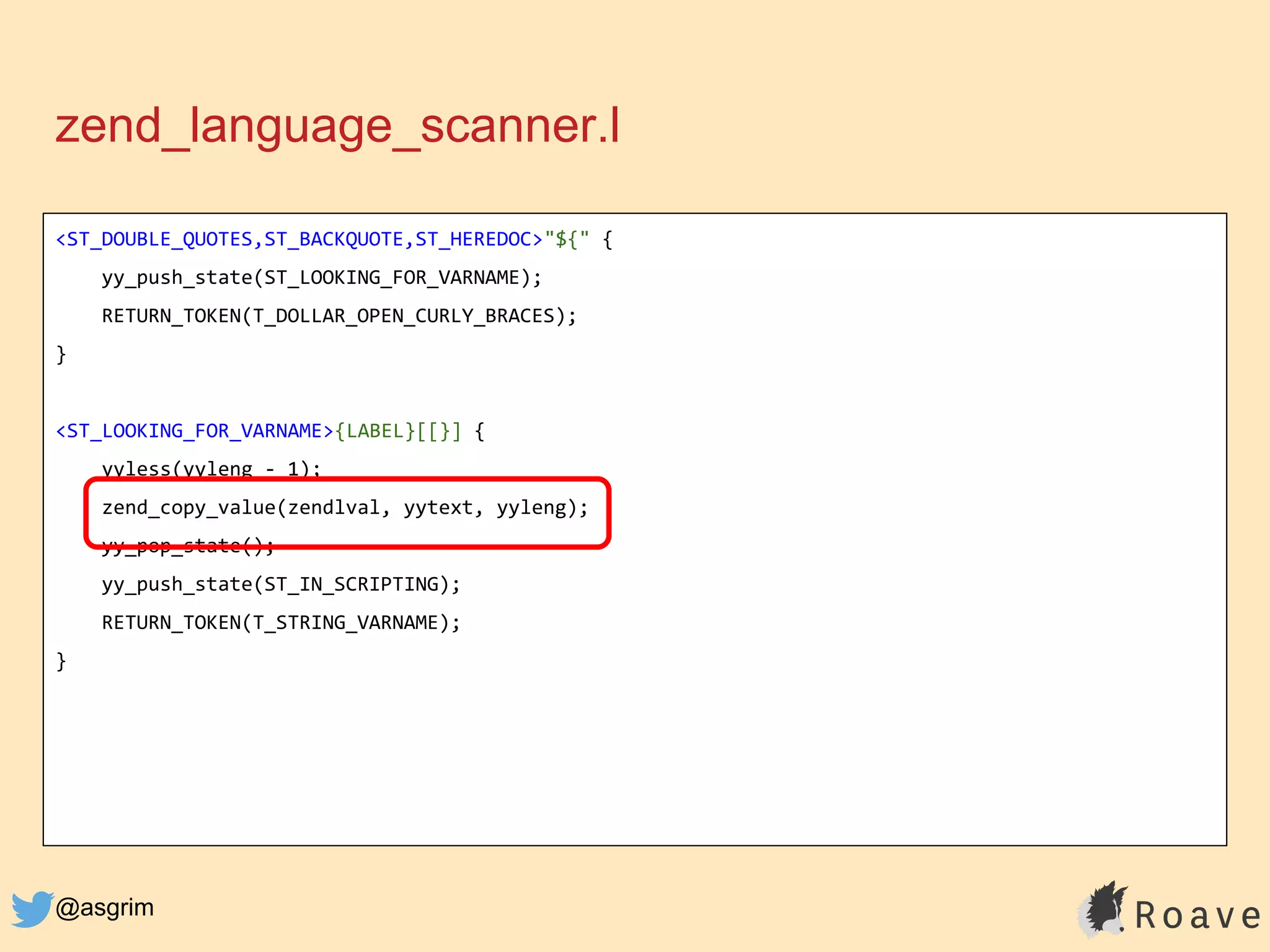

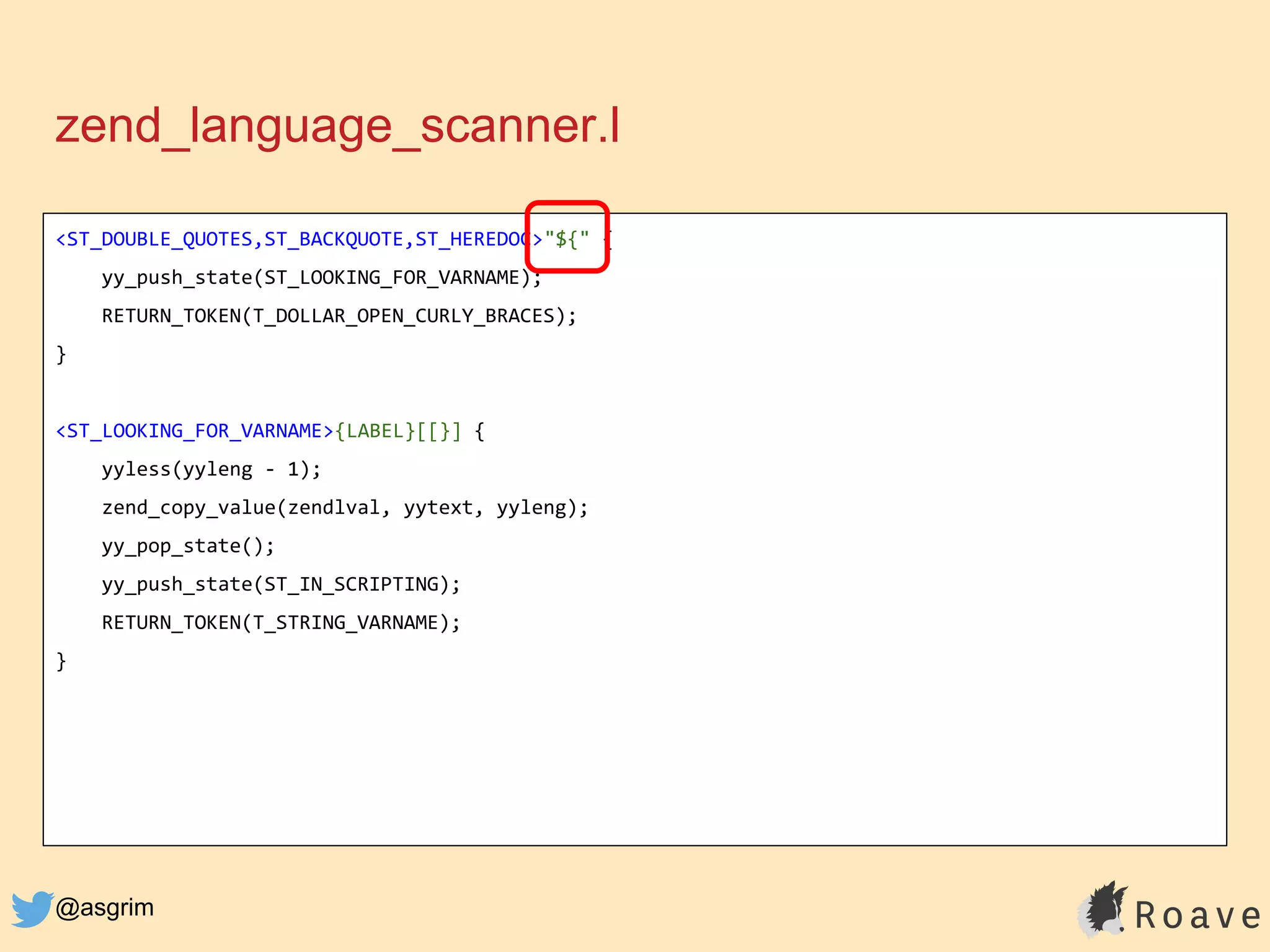

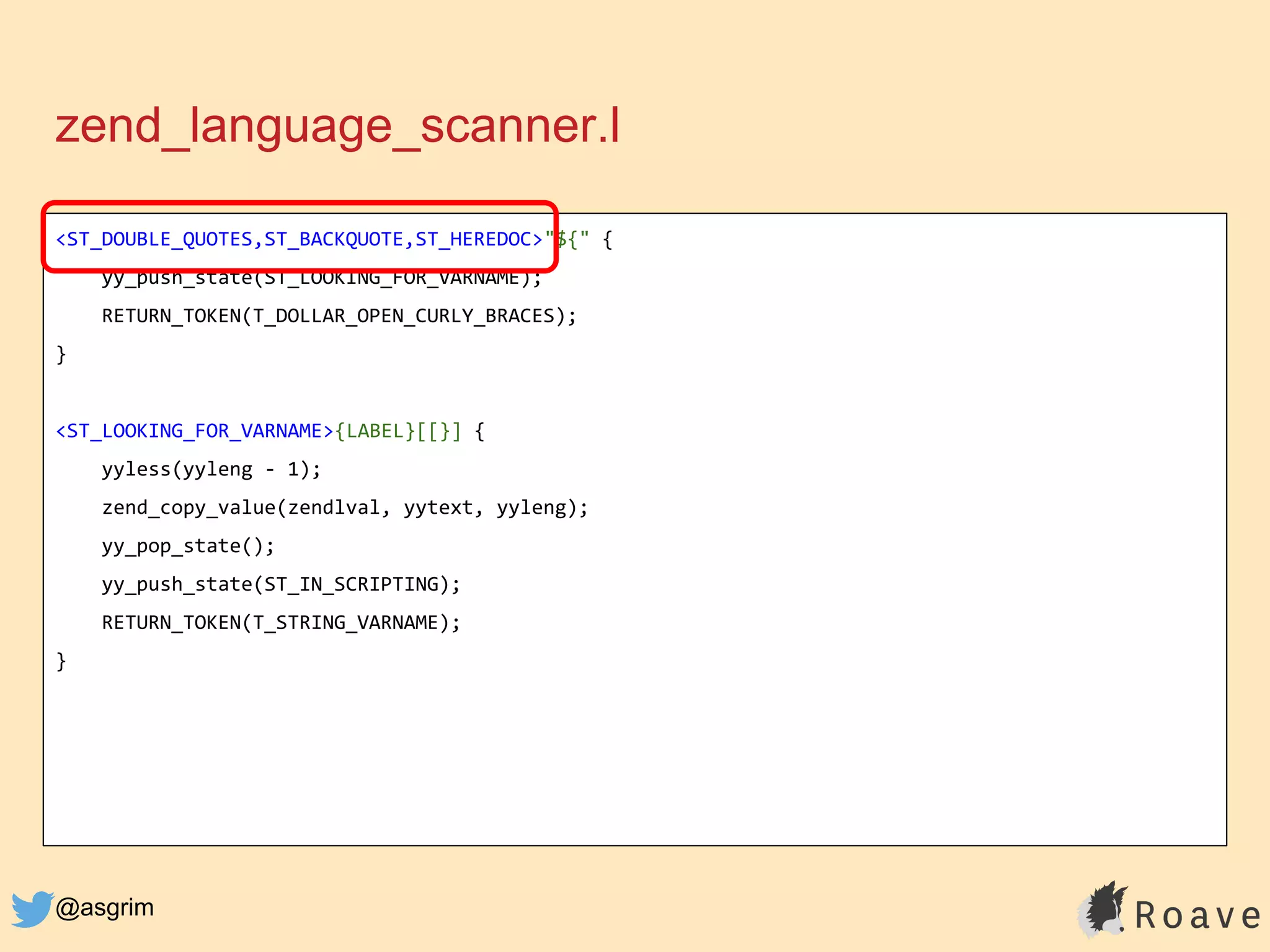

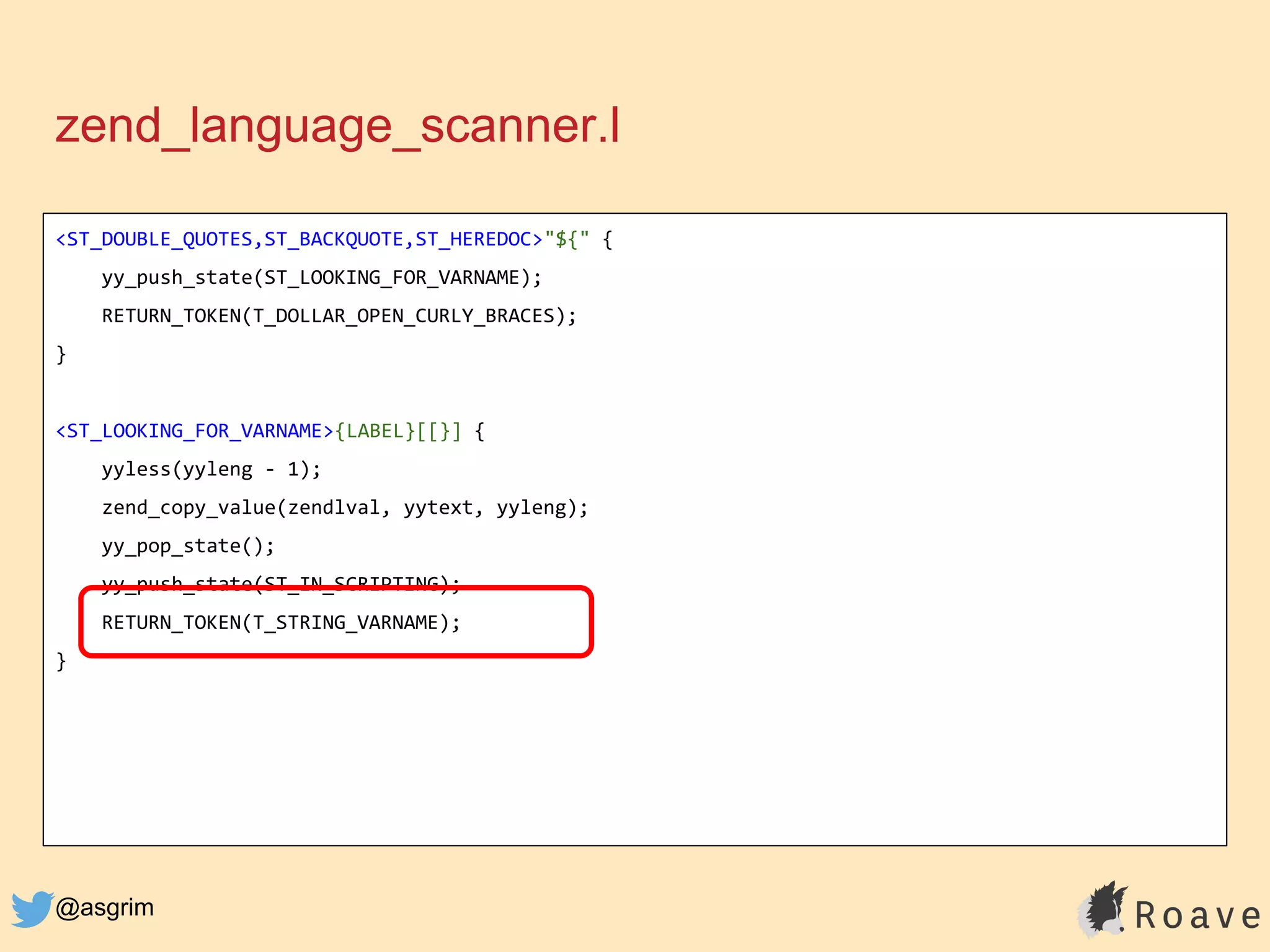

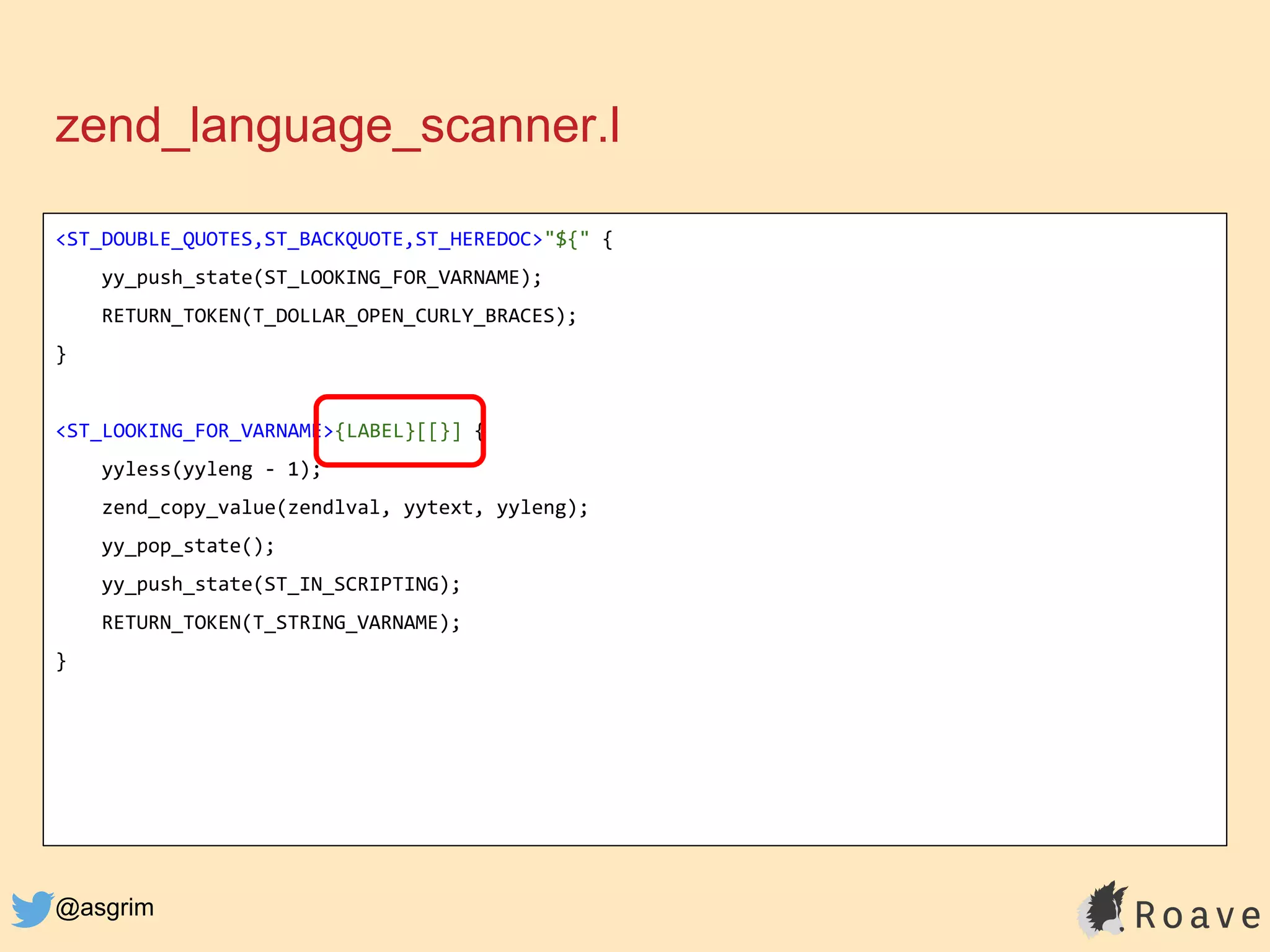

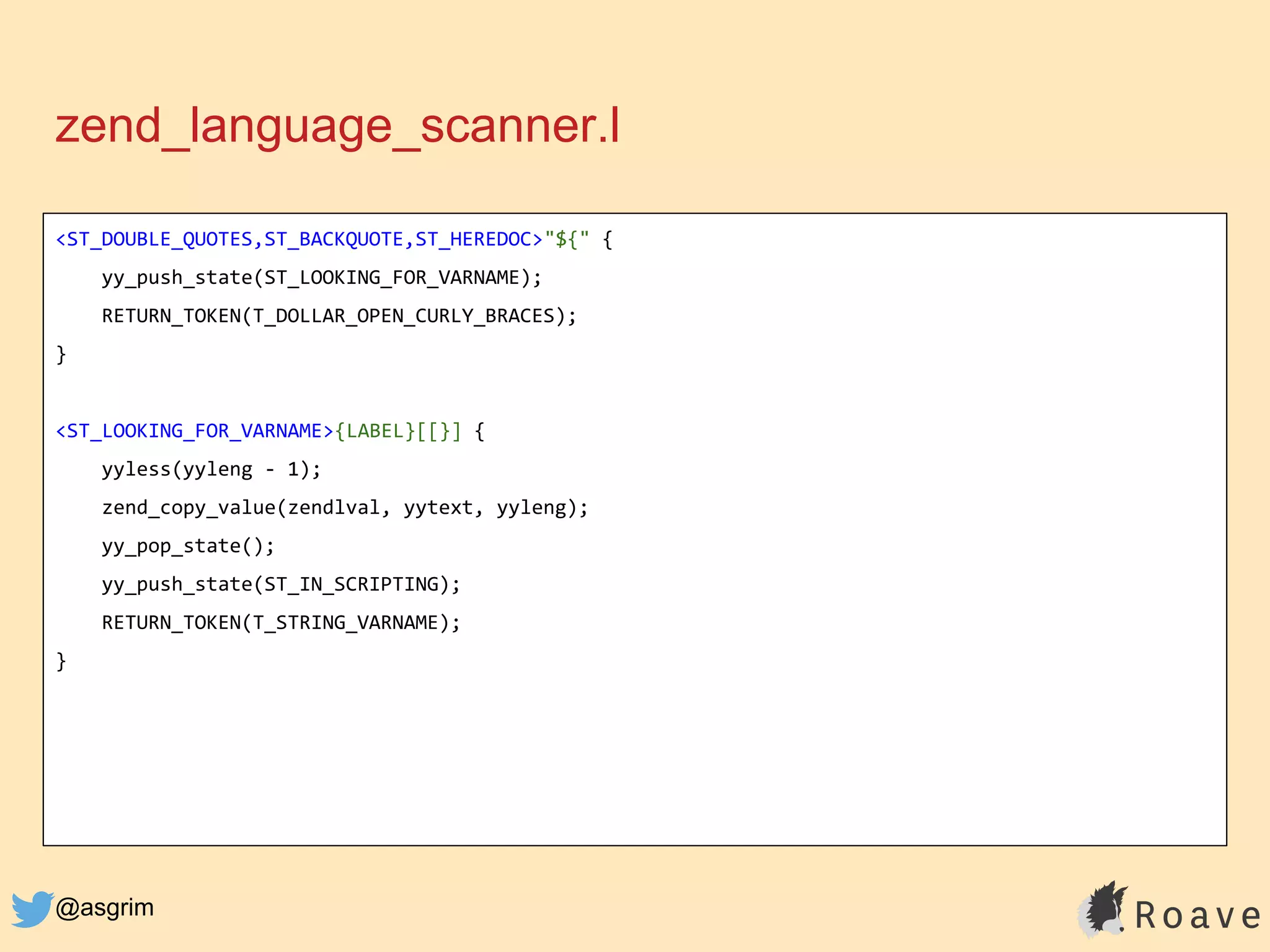

@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng - 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }
@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng - 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }
@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng - 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }
@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng - 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }
@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng - 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }
@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng - 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }
@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng - 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }
@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng - 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }
@asgrim zend_language_scanner.l <ST_DOUBLE_QUOTES,ST_BACKQUOTE,ST_HEREDOC>"${" { yy_push_state(ST_LOOKING_FOR_VARNAME); RETURN_TOKEN(T_DOLLAR_OPEN_CURLY_BRACES); } <ST_LOOKING_FOR_VARNAME>{LABEL}[[}] { yyless(yyleng - 1); zend_copy_value(zendlval, yytext, yyleng); yy_pop_state(); yy_push_state(ST_IN_SCRIPTING); RETURN_TOKEN(T_STRING_VARNAME); }

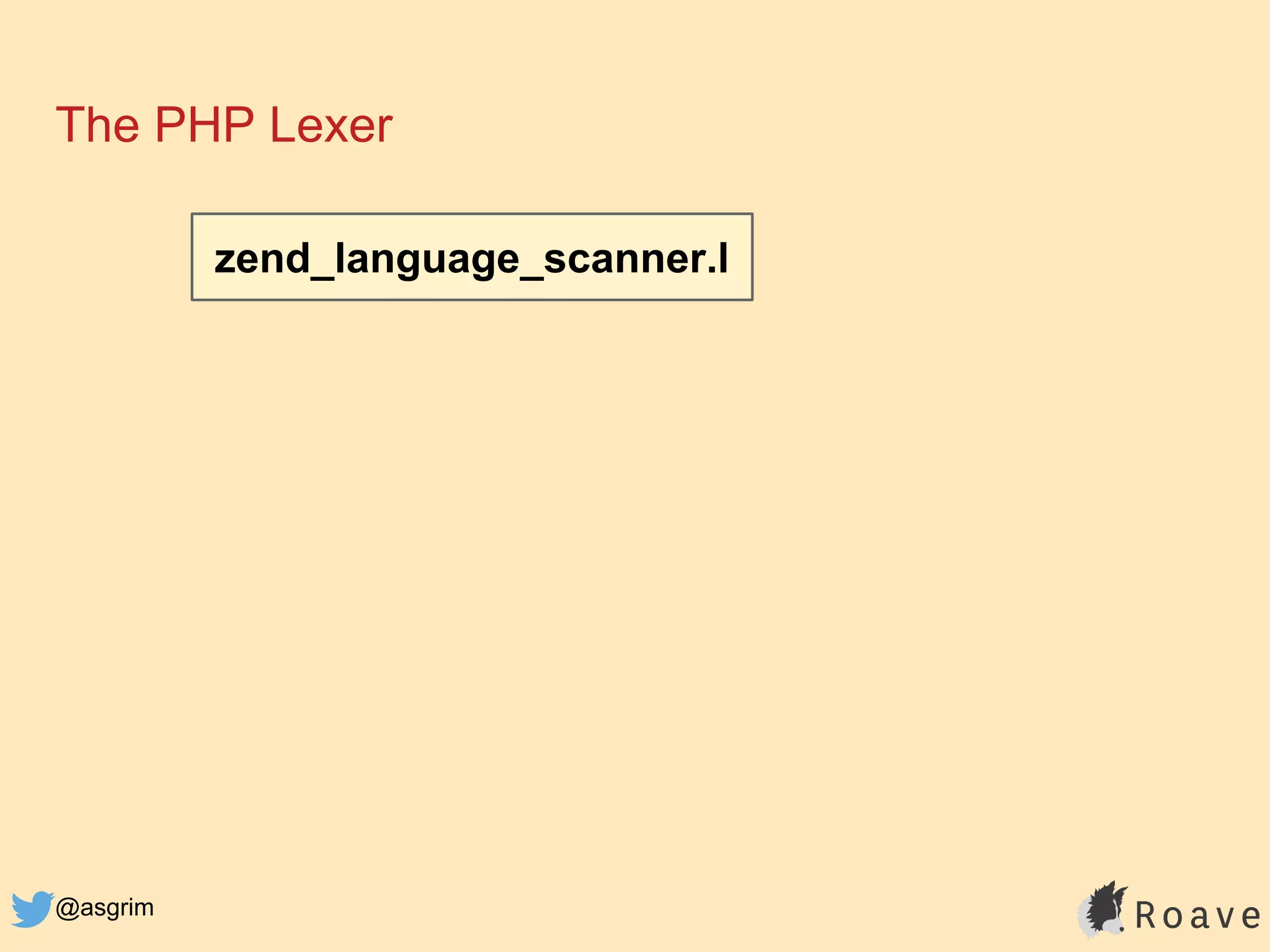

@asgrim The PHP Lexer zend_language_scanner.l

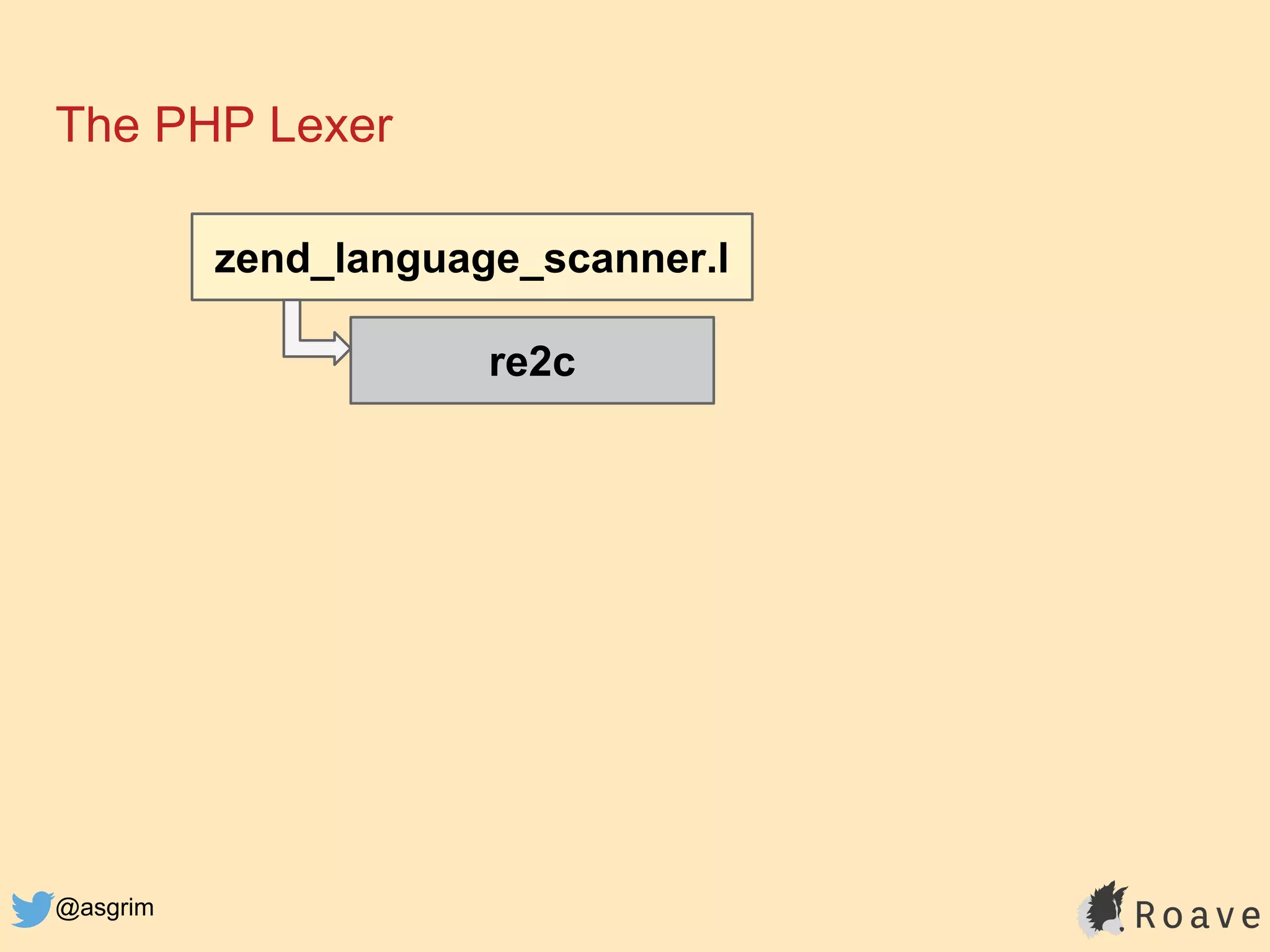

@asgrim The PHP Lexer zend_language_scanner.l re2c

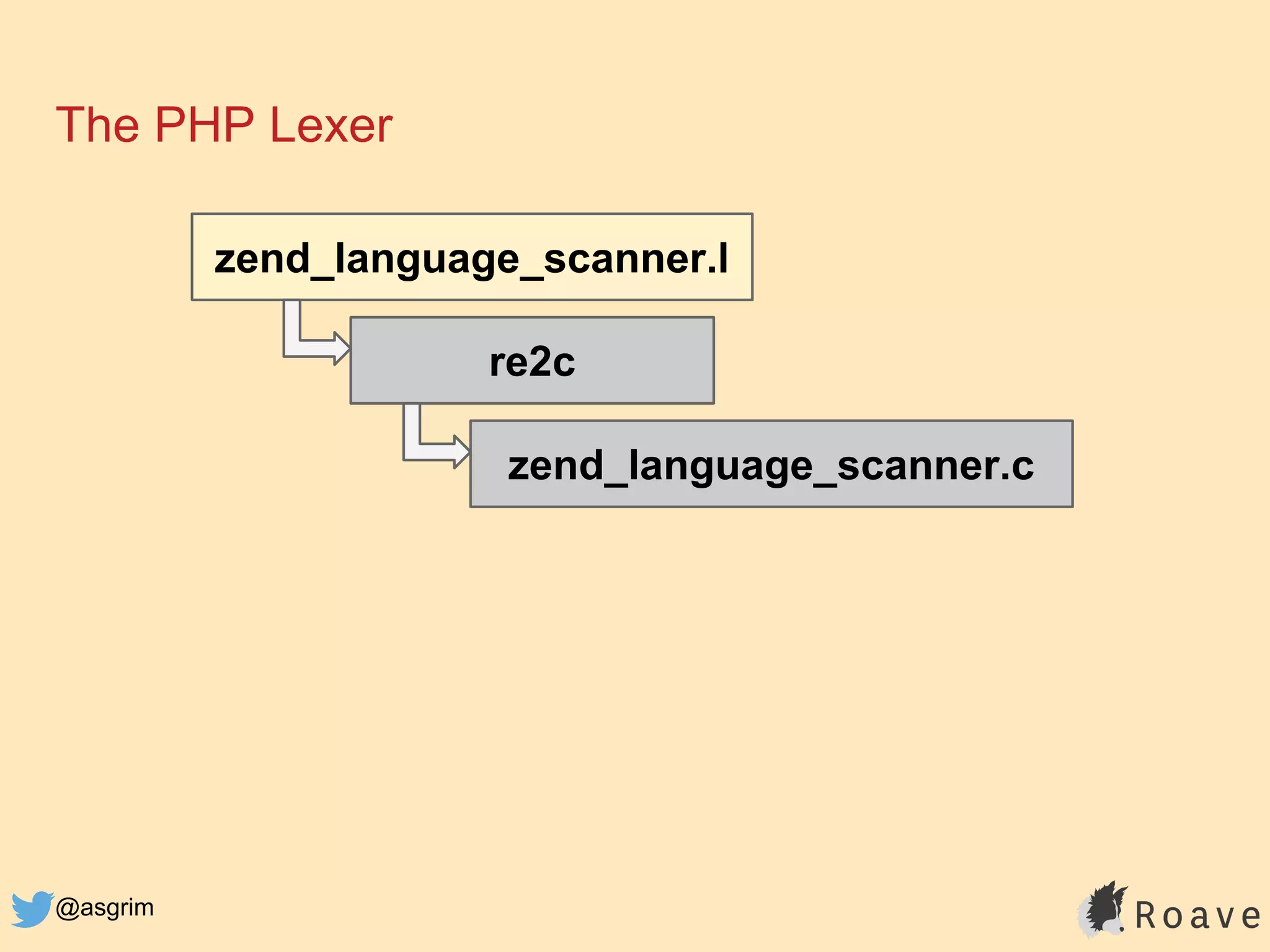

@asgrim The PHP Lexer zend_language_scanner.l re2c zend_language_scanner.c

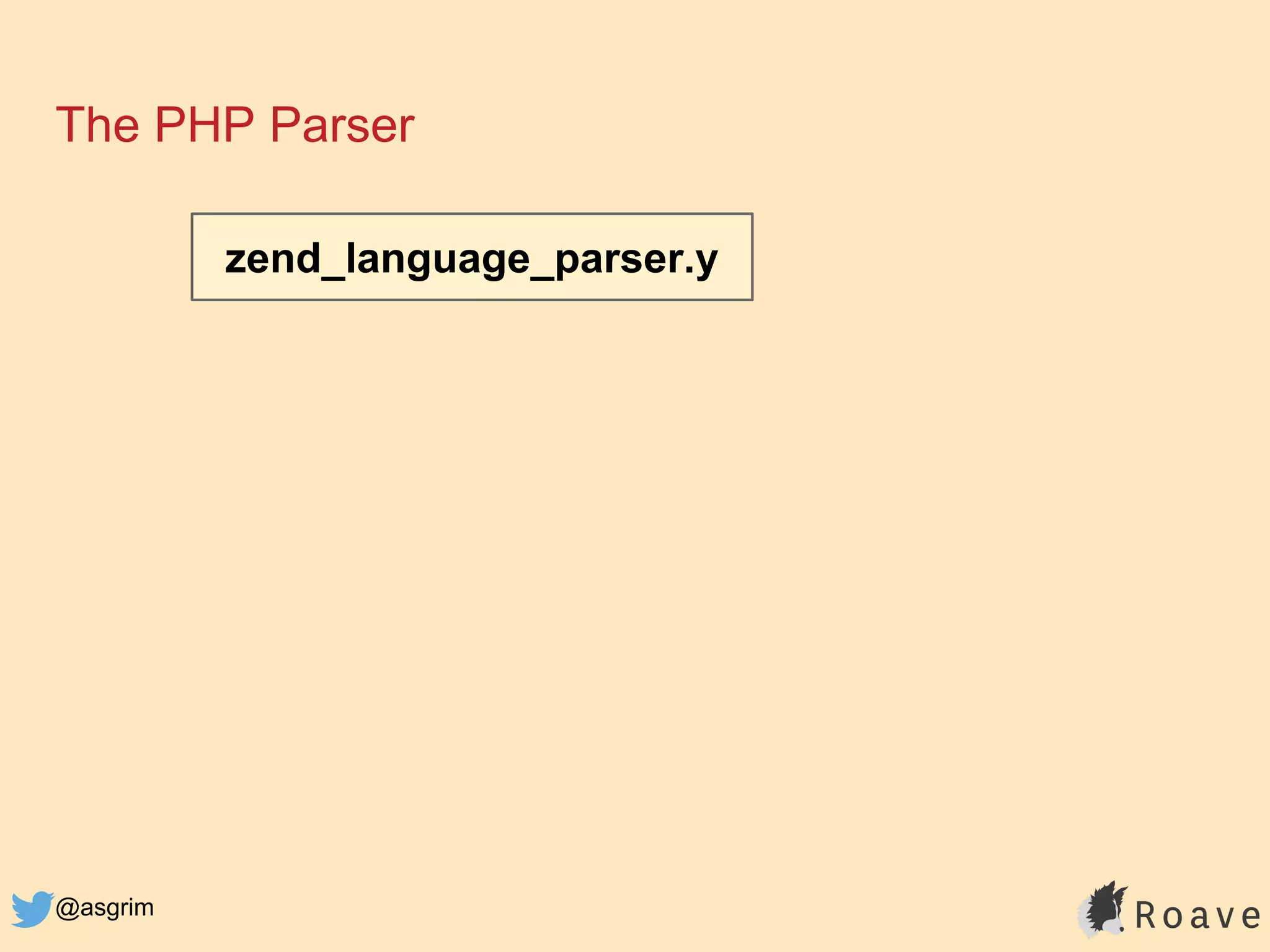

@asgrim The PHP Parser zend_language_parser.y

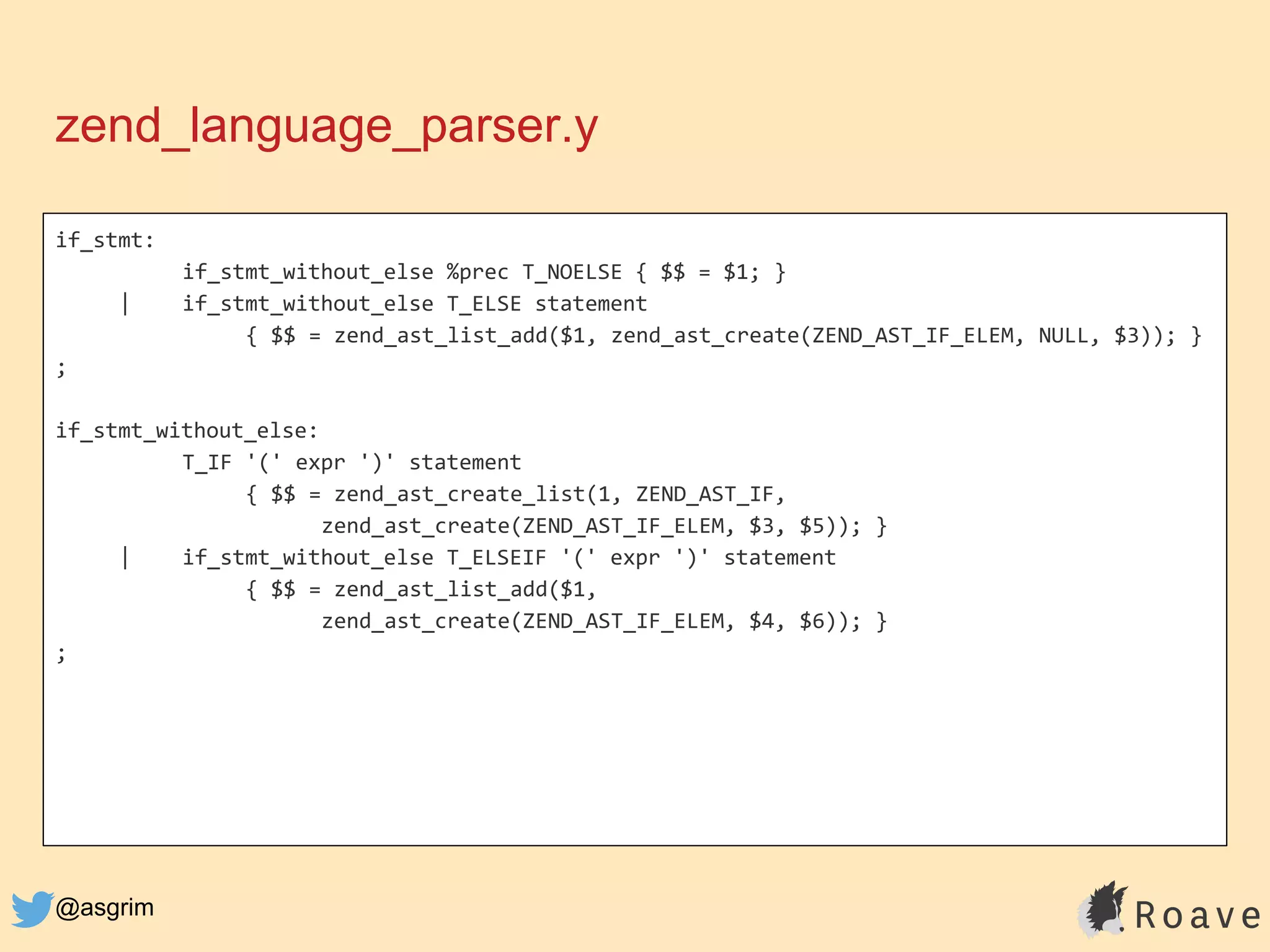

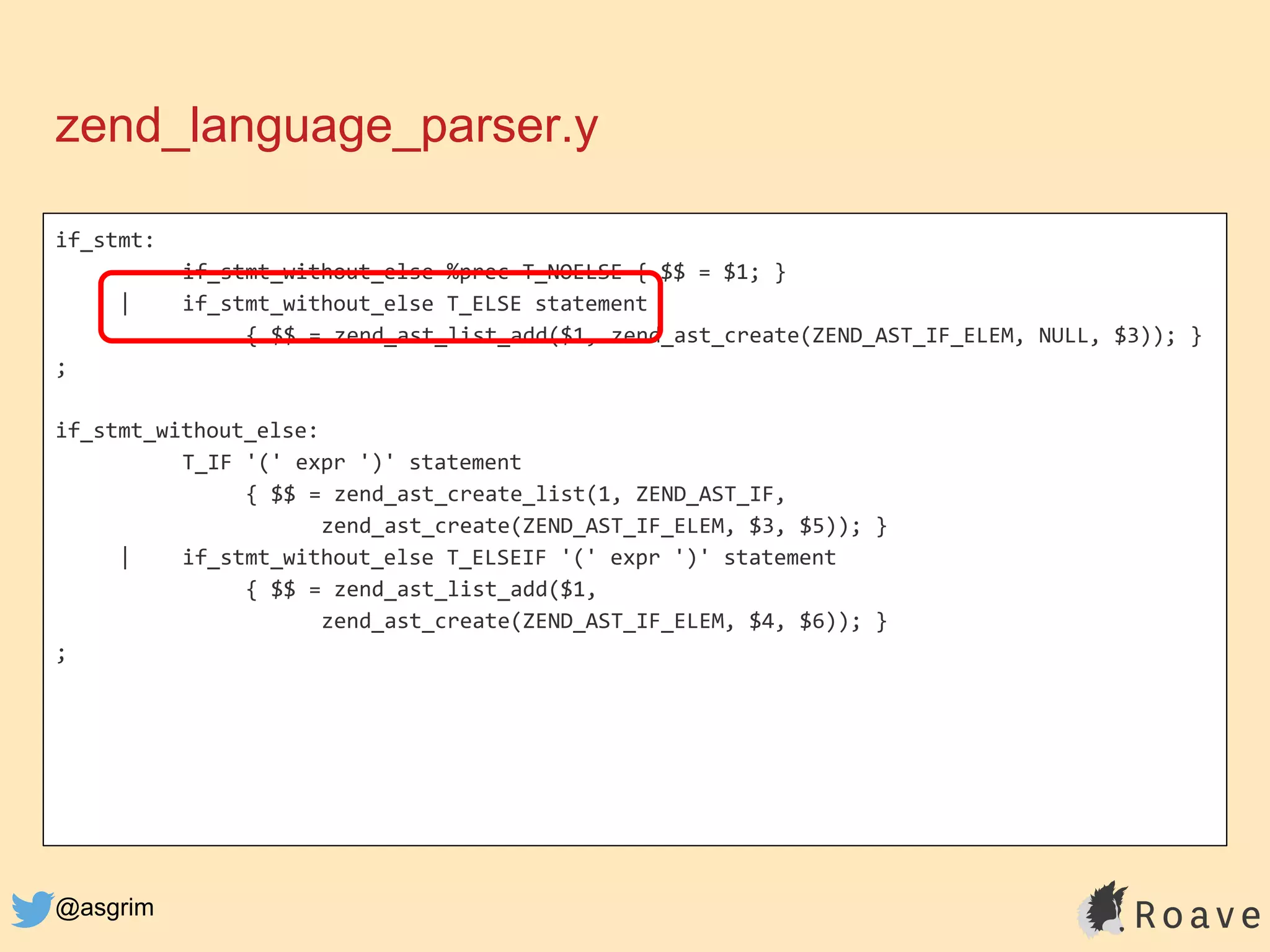

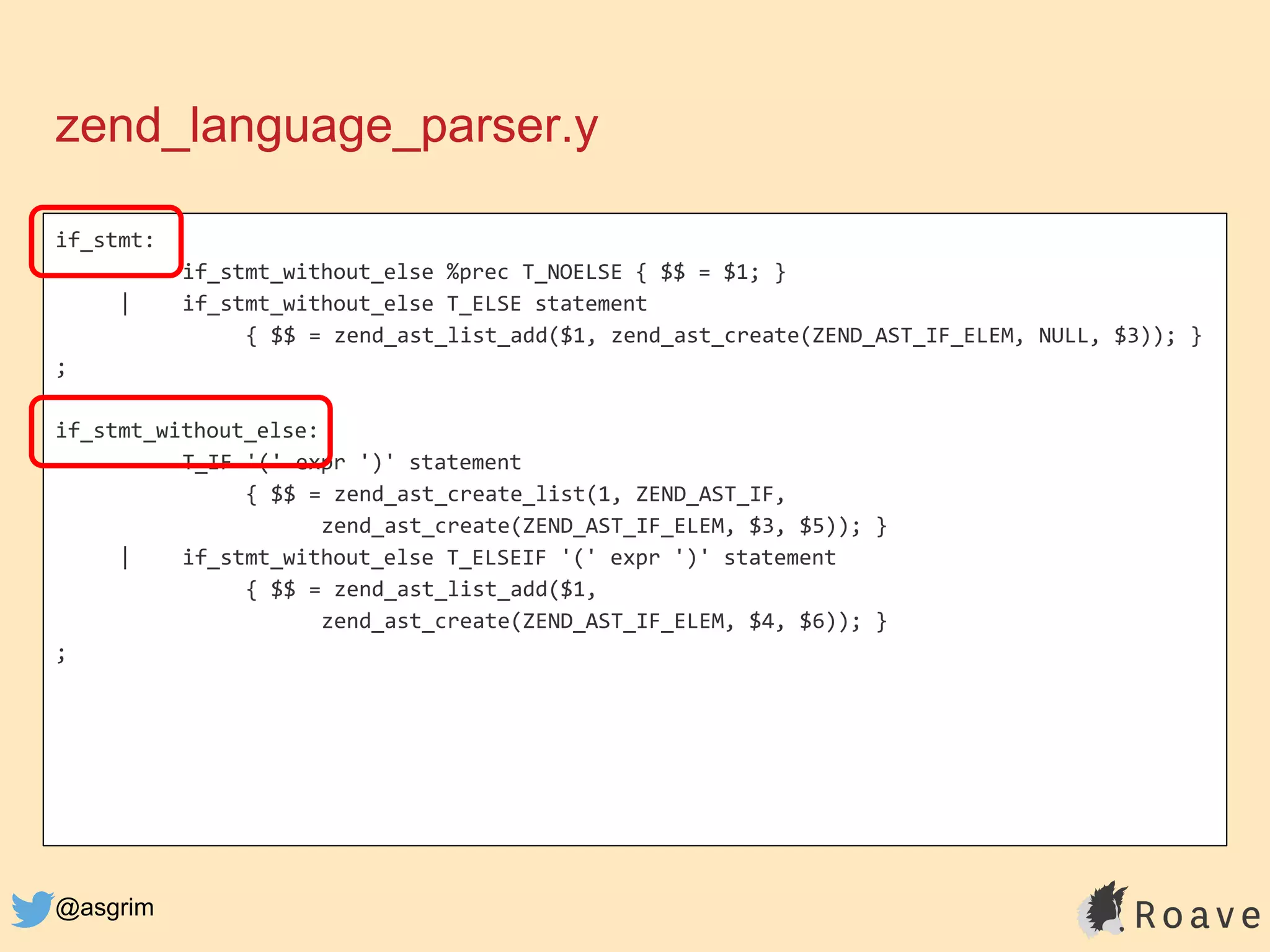

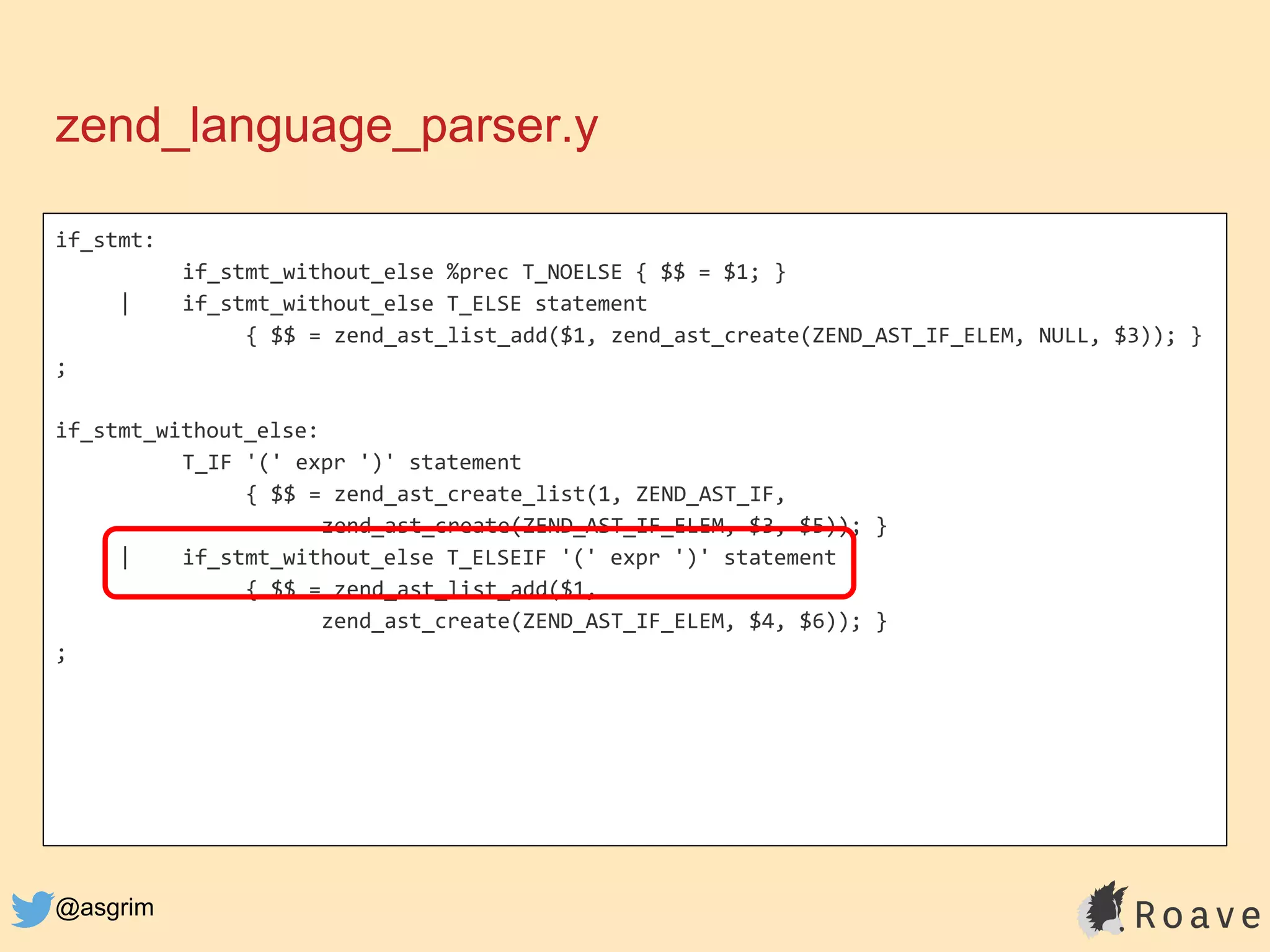

@asgrim zend_language_parser.y if_stmt: if_stmt_without_else %prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ;

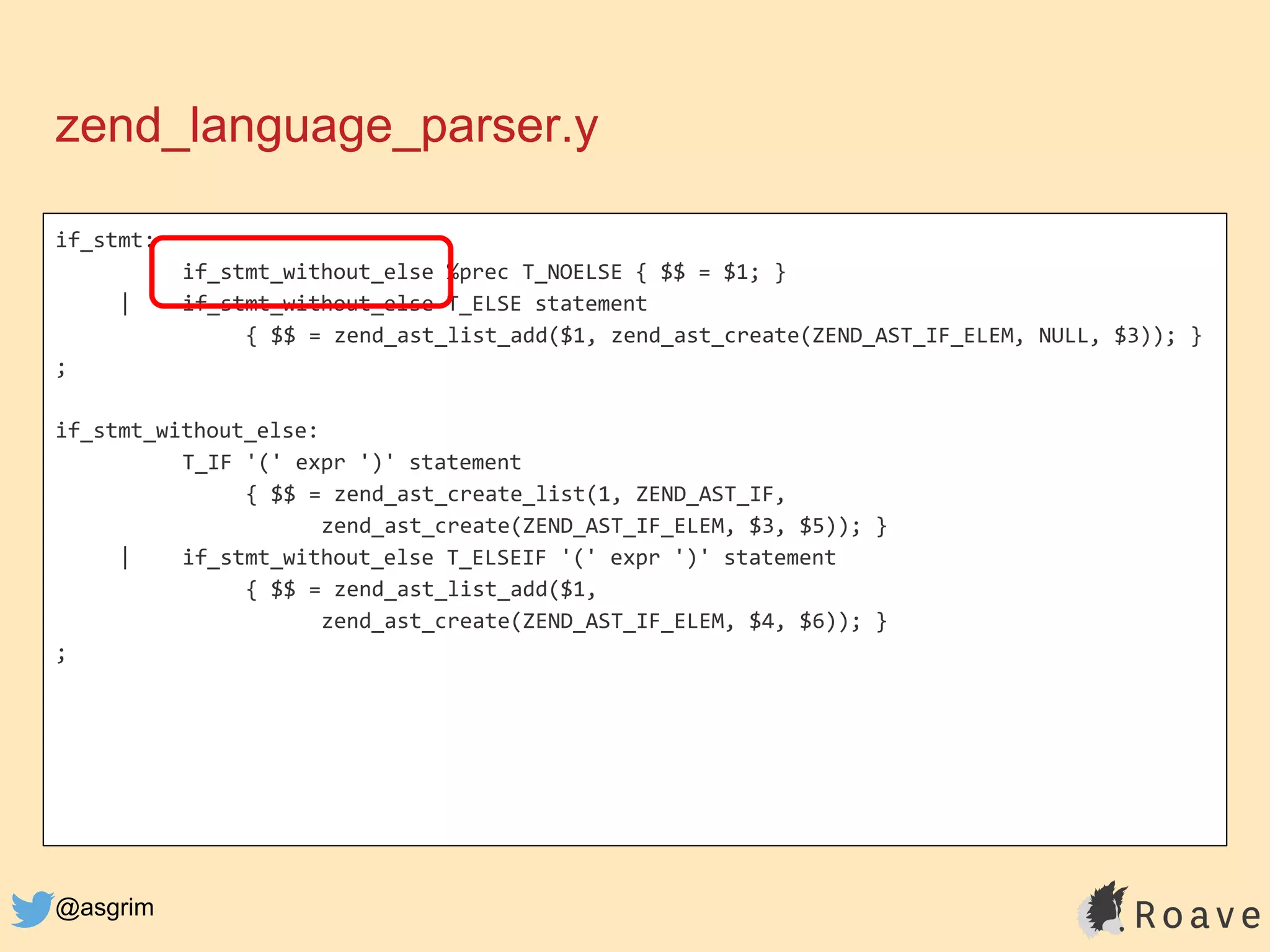

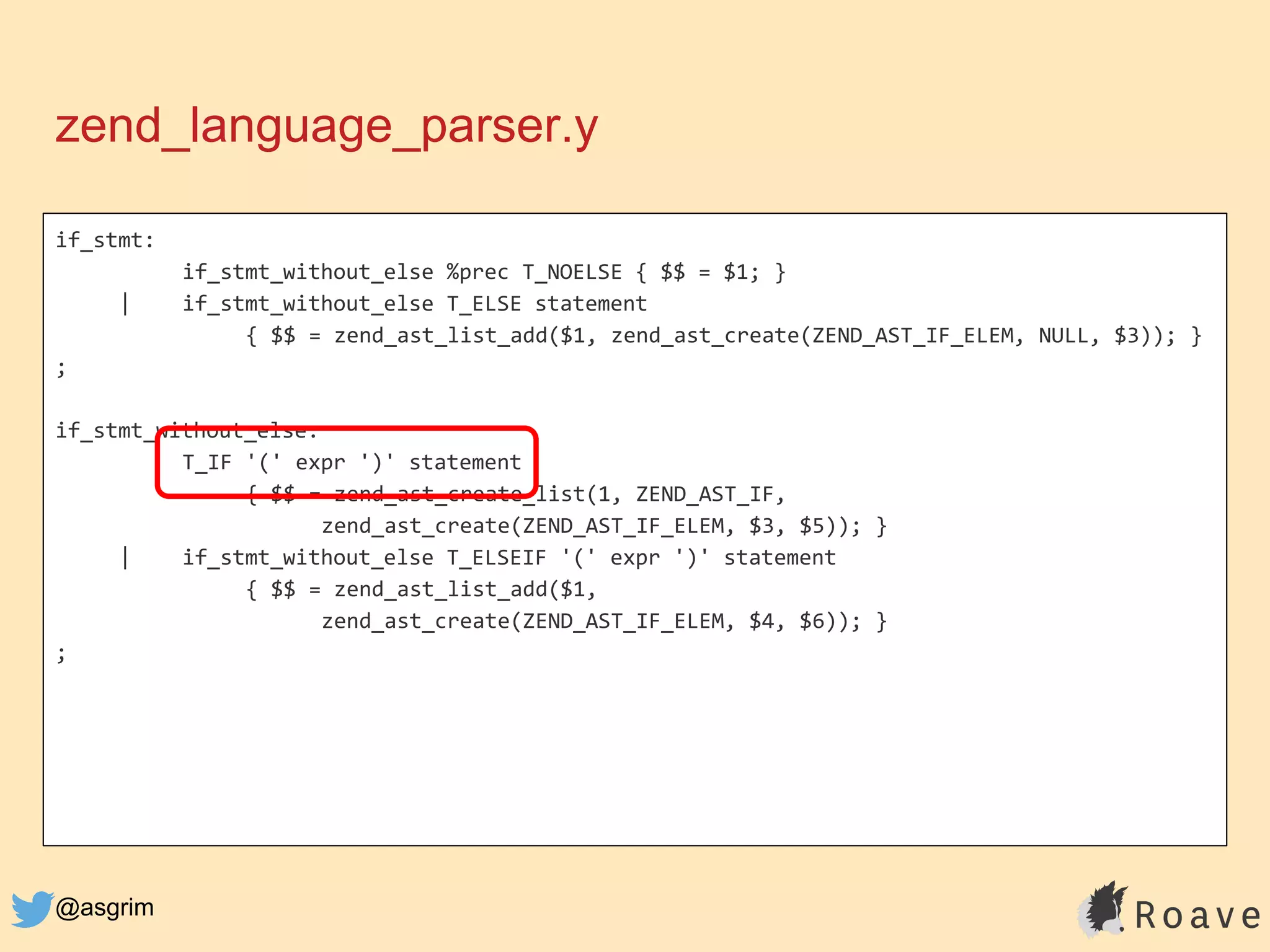

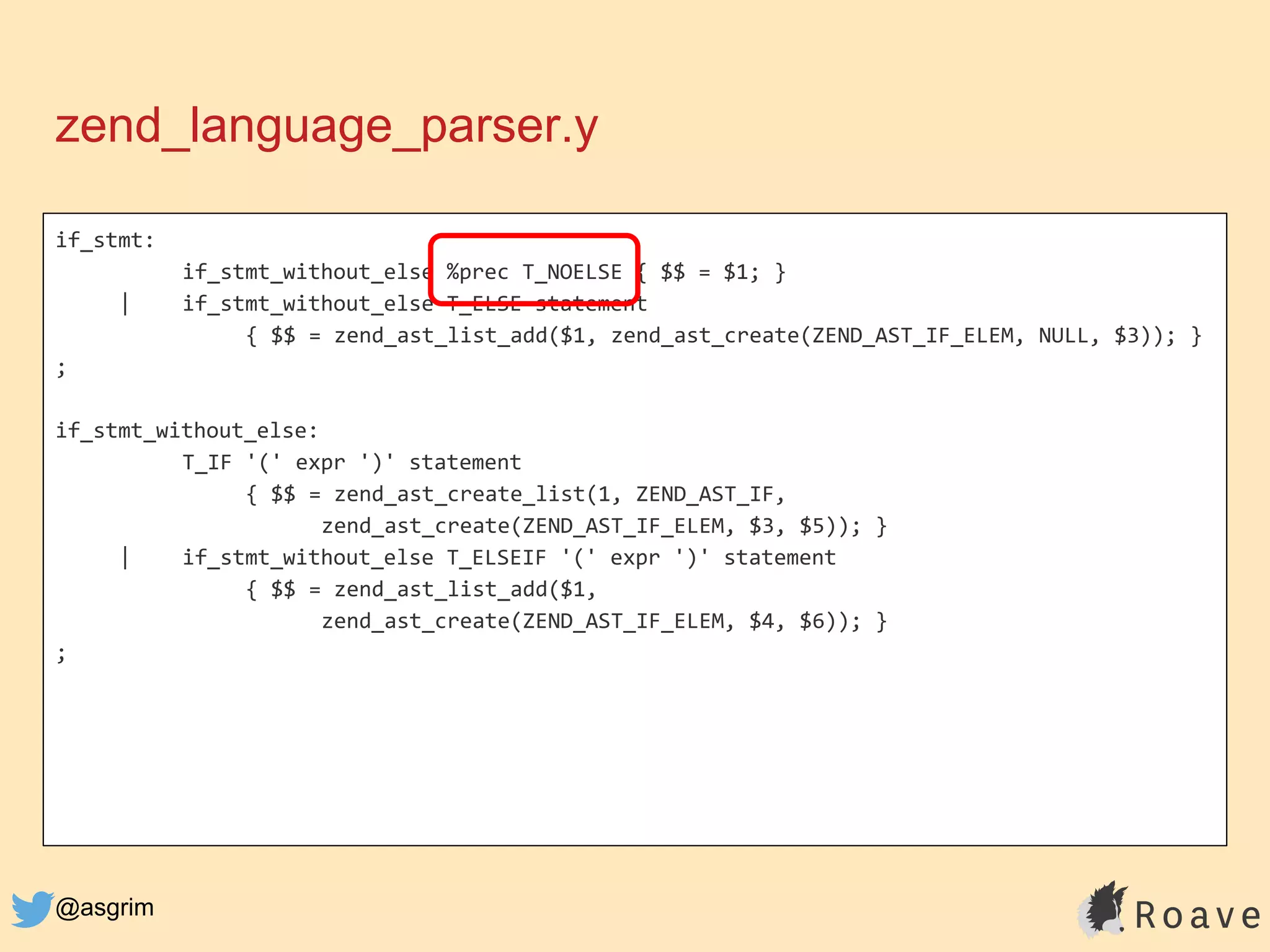

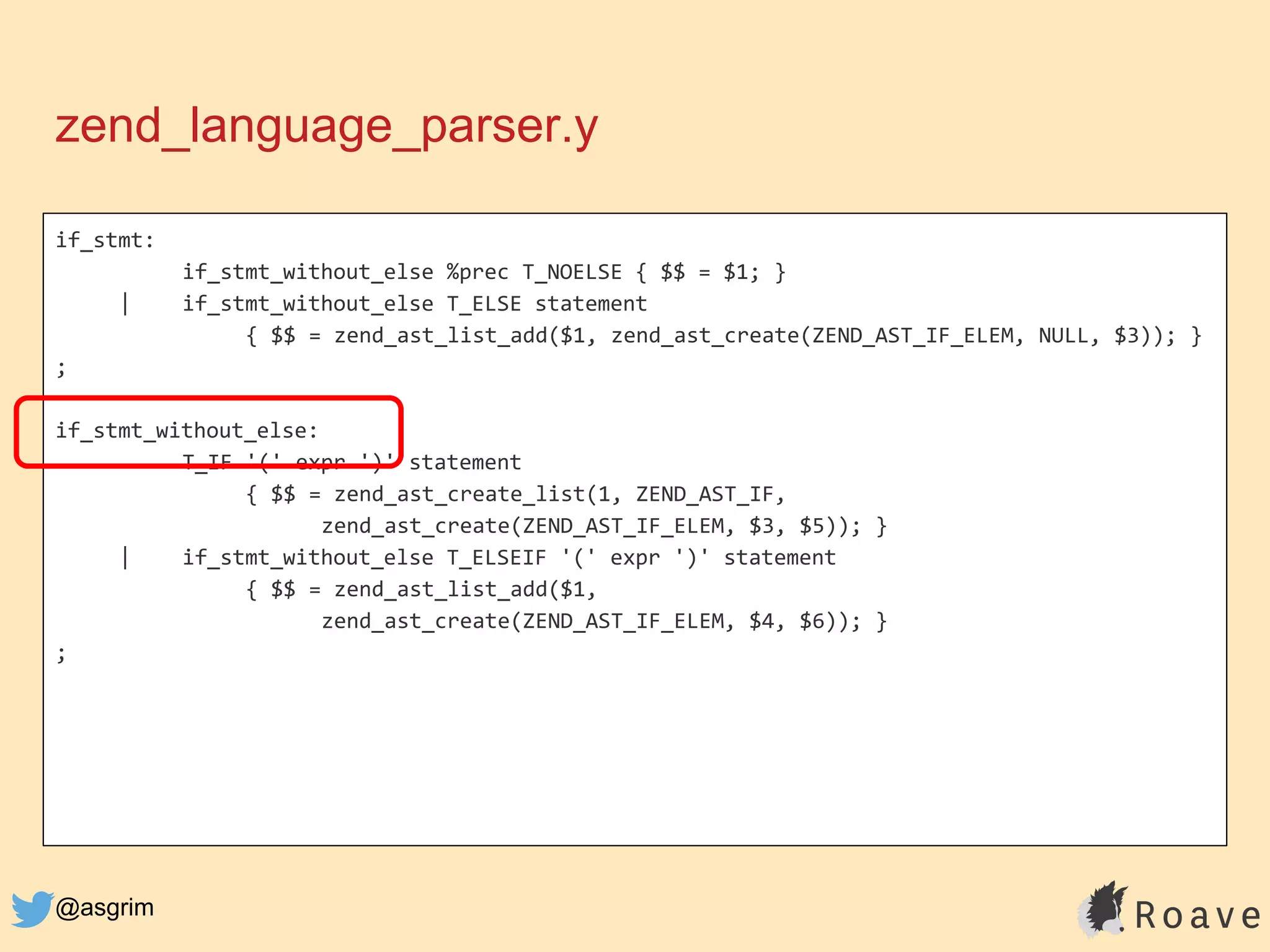

@asgrim if_stmt: if_stmt_without_else %prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ; zend_language_parser.y
@asgrim if_stmt: if_stmt_without_else %prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ; zend_language_parser.y
@asgrim if_stmt: if_stmt_without_else %prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ; zend_language_parser.y
@asgrim if_stmt: if_stmt_without_else %prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ; zend_language_parser.y
@asgrim if_stmt: if_stmt_without_else %prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ; zend_language_parser.y
@asgrim if_stmt: if_stmt_without_else %prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ; zend_language_parser.y
@asgrim if_stmt: if_stmt_without_else %prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ; zend_language_parser.y

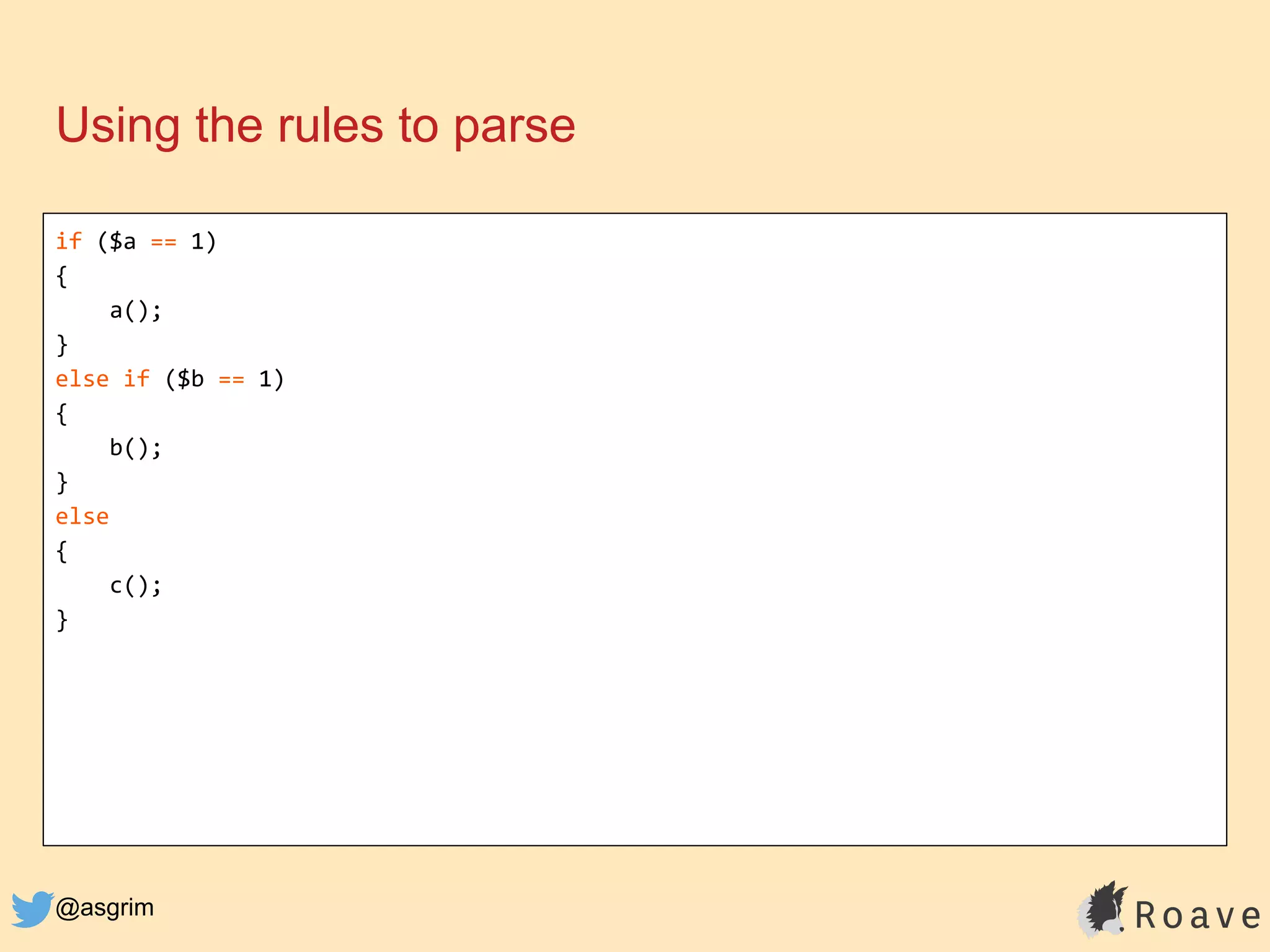

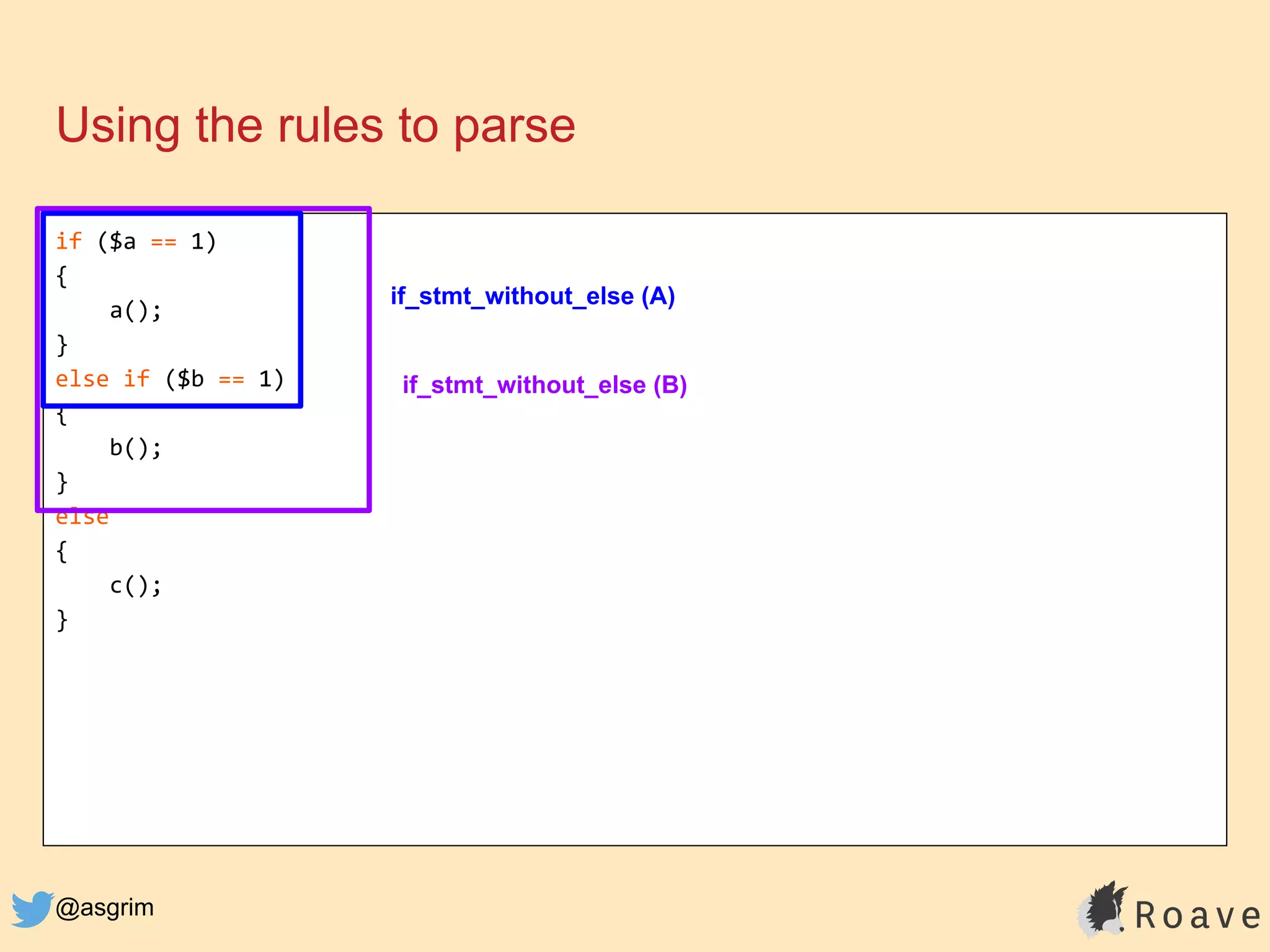

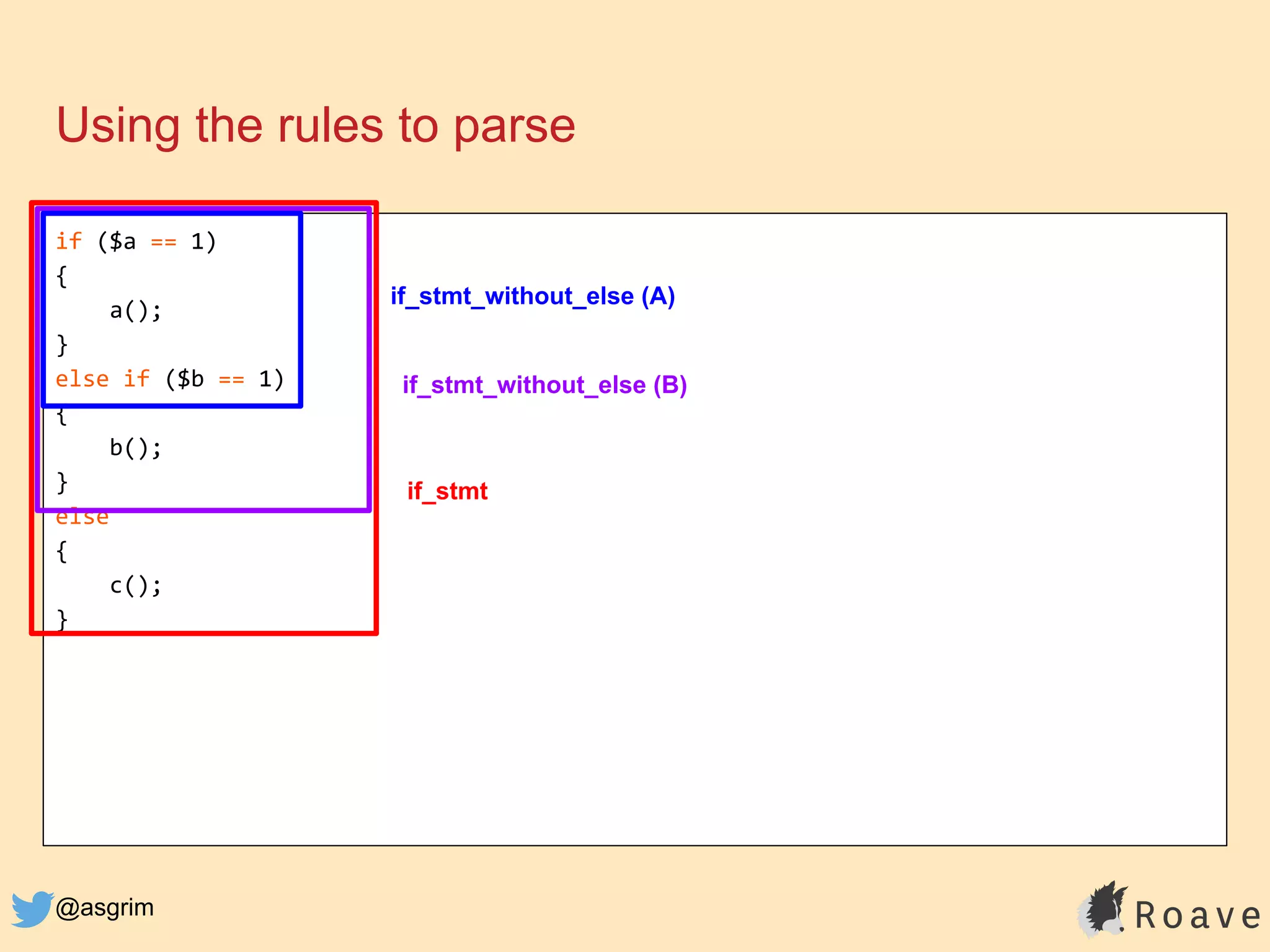

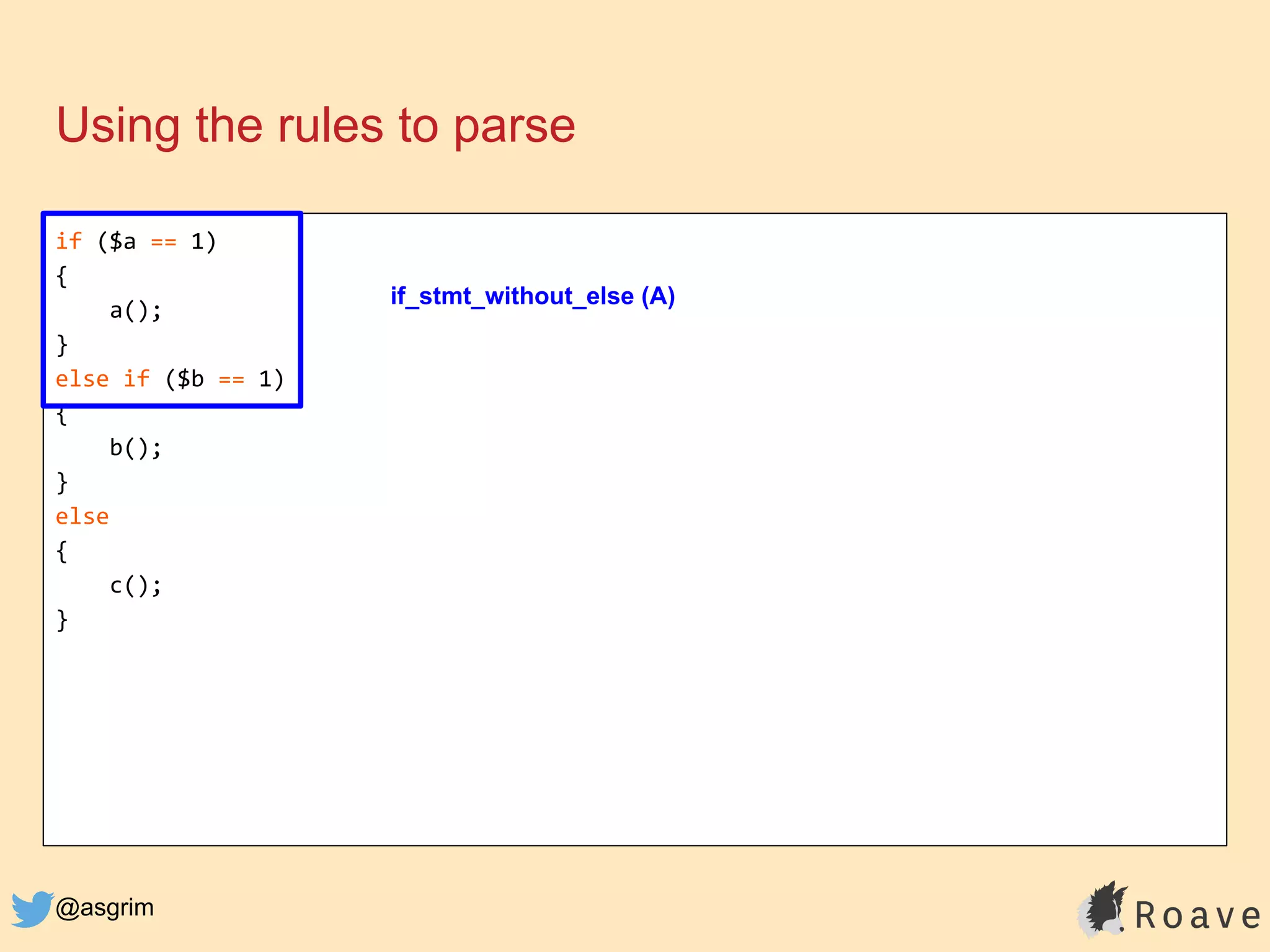

@asgrim if ($a == 1) { a(); } else if ($b == 1) { b(); } else { c(); } Using the rules to parse
@asgrim if ($a == 1) { a(); } else if ($b == 1) { b(); } else { c(); } Using the rules to parse if_stmt_without_else (A)
@asgrim if ($a == 1) { a(); } else if ($b == 1) { b(); } else { c(); } Using the rules to parse if_stmt_without_else (A) if_stmt_without_else (B)
@asgrim if ($a == 1) { a(); } else if ($b == 1) { b(); } else { c(); } Using the rules to parse if_stmt_without_else (A) if_stmt_without_else (B) if_stmt

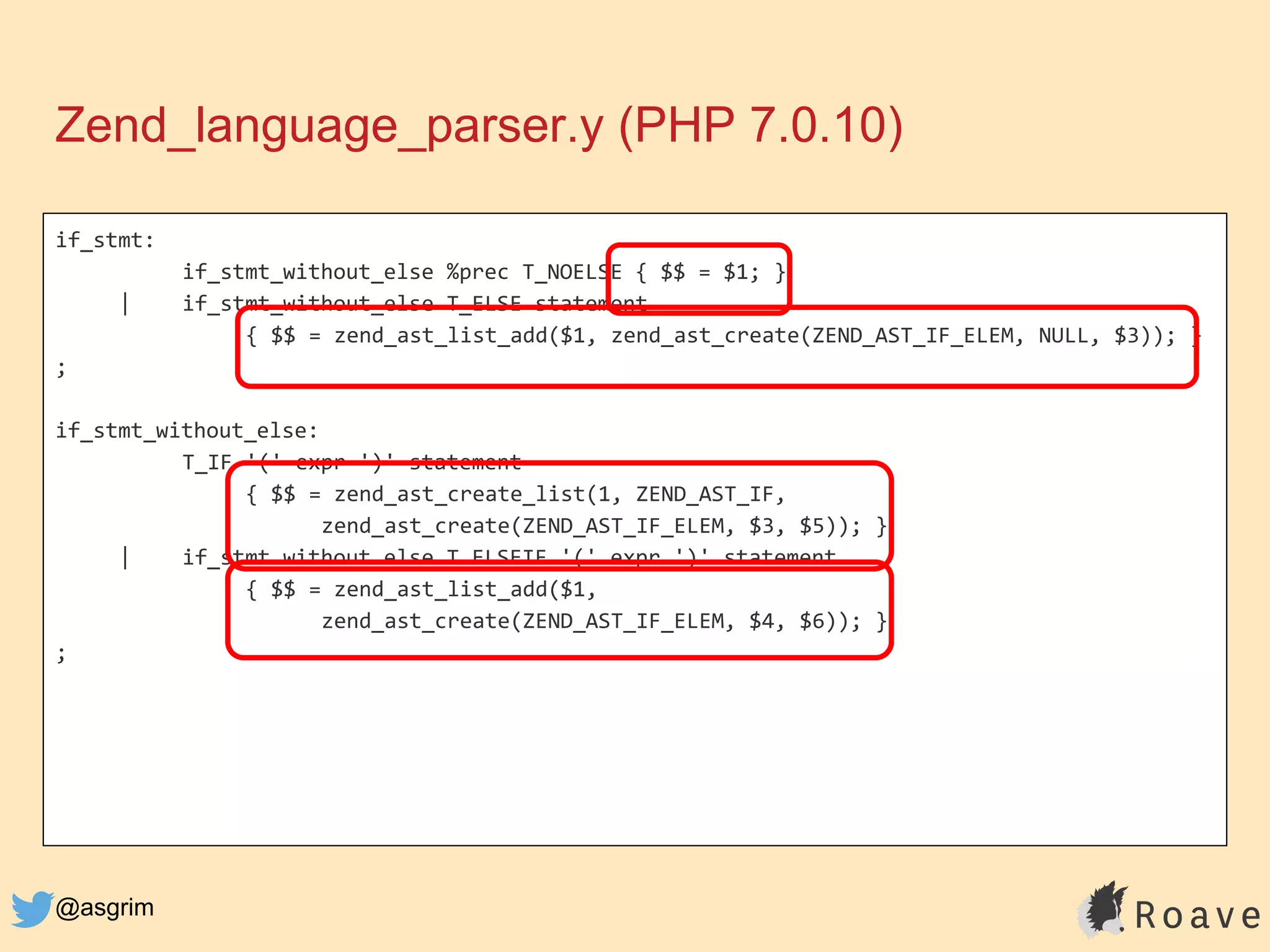

@asgrim Zend_language_parser.y (PHP 7.0.10) if_stmt: if_stmt_without_else %prec T_NOELSE { $$ = $1; } | if_stmt_without_else T_ELSE statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, NULL, $3)); } ; if_stmt_without_else: T_IF '(' expr ')' statement { $$ = zend_ast_create_list(1, ZEND_AST_IF, zend_ast_create(ZEND_AST_IF_ELEM, $3, $5)); } | if_stmt_without_else T_ELSEIF '(' expr ')' statement { $$ = zend_ast_list_add($1, zend_ast_create(ZEND_AST_IF_ELEM, $4, $6)); } ;

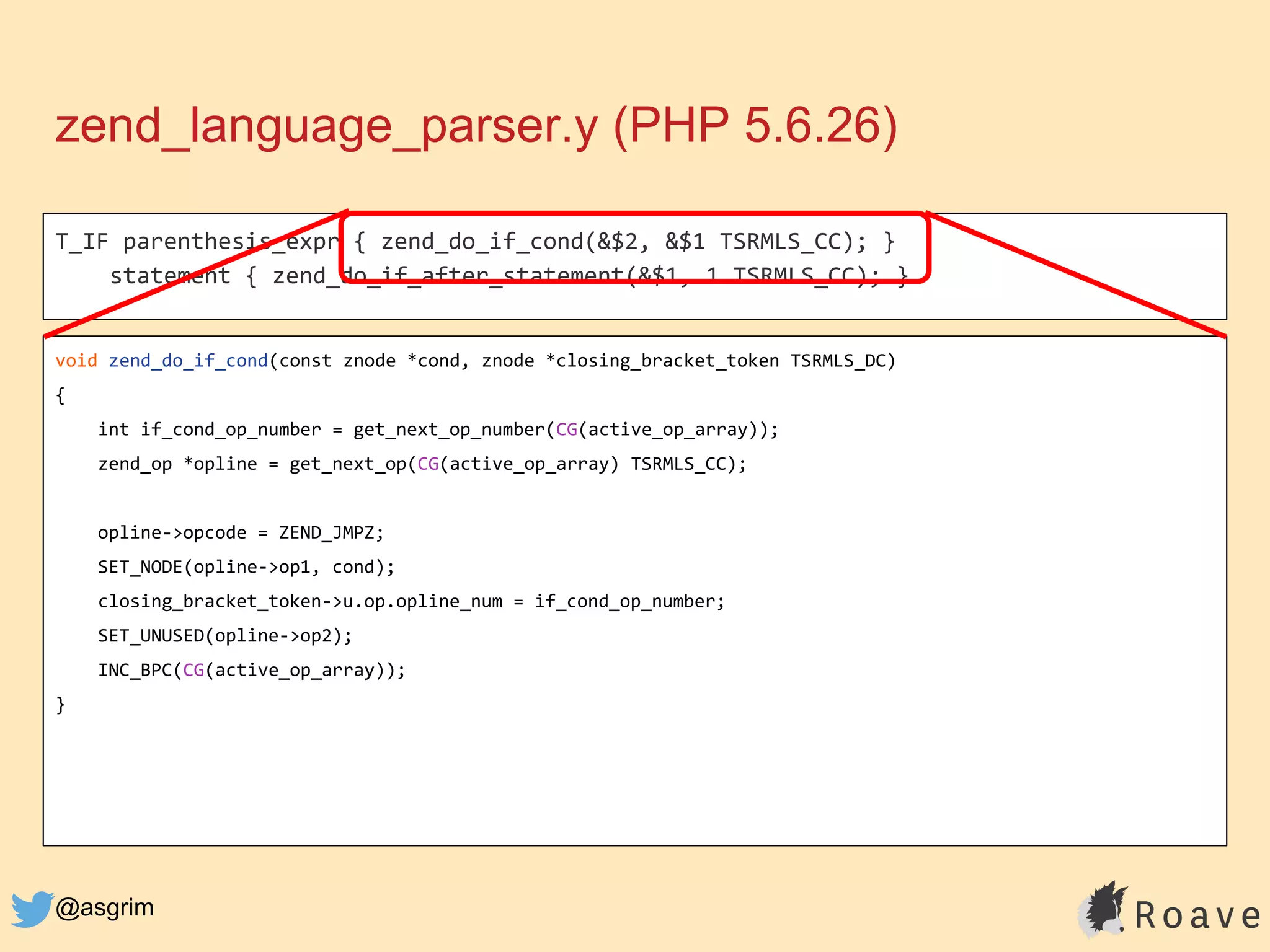

@asgrim zend_language_parser.y (PHP 5.6.26) T_IF parenthesis_expr { zend_do_if_cond(&$2, &$1 TSRMLS_CC); } statement { zend_do_if_after_statement(&$1, 1 TSRMLS_CC); } void zend_do_if_cond(const znode *cond, znode *closing_bracket_token TSRMLS_DC) { int if_cond_op_number = get_next_op_number(CG(active_op_array)); zend_op *opline = get_next_op(CG(active_op_array) TSRMLS_CC); opline->opcode = ZEND_JMPZ; SET_NODE(opline->op1, cond); closing_bracket_token->u.op.opline_num = if_cond_op_number; SET_UNUSED(opline->op2); INC_BPC(CG(active_op_array)); }
@asgrim AST is new in PHP 7+
@asgrim How PHP works PHP code OpCache Execute (VM) Lexer + Parser Compiler
@asgrim Let’s simplify!
@asgrim First… WTF is AST?
@asgrim AST is just a data structure

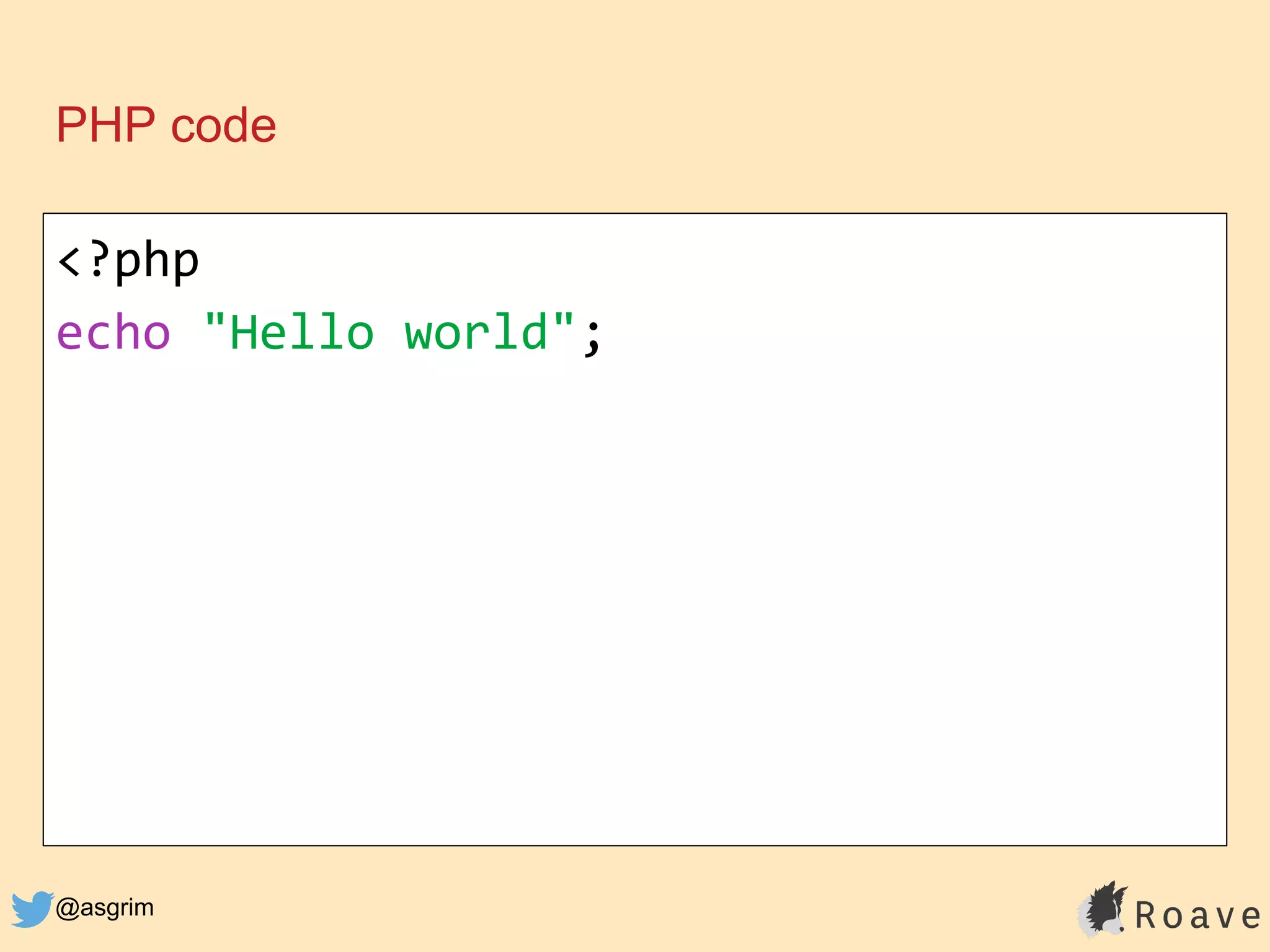

@asgrim PHP code <?php echo "Hello world";

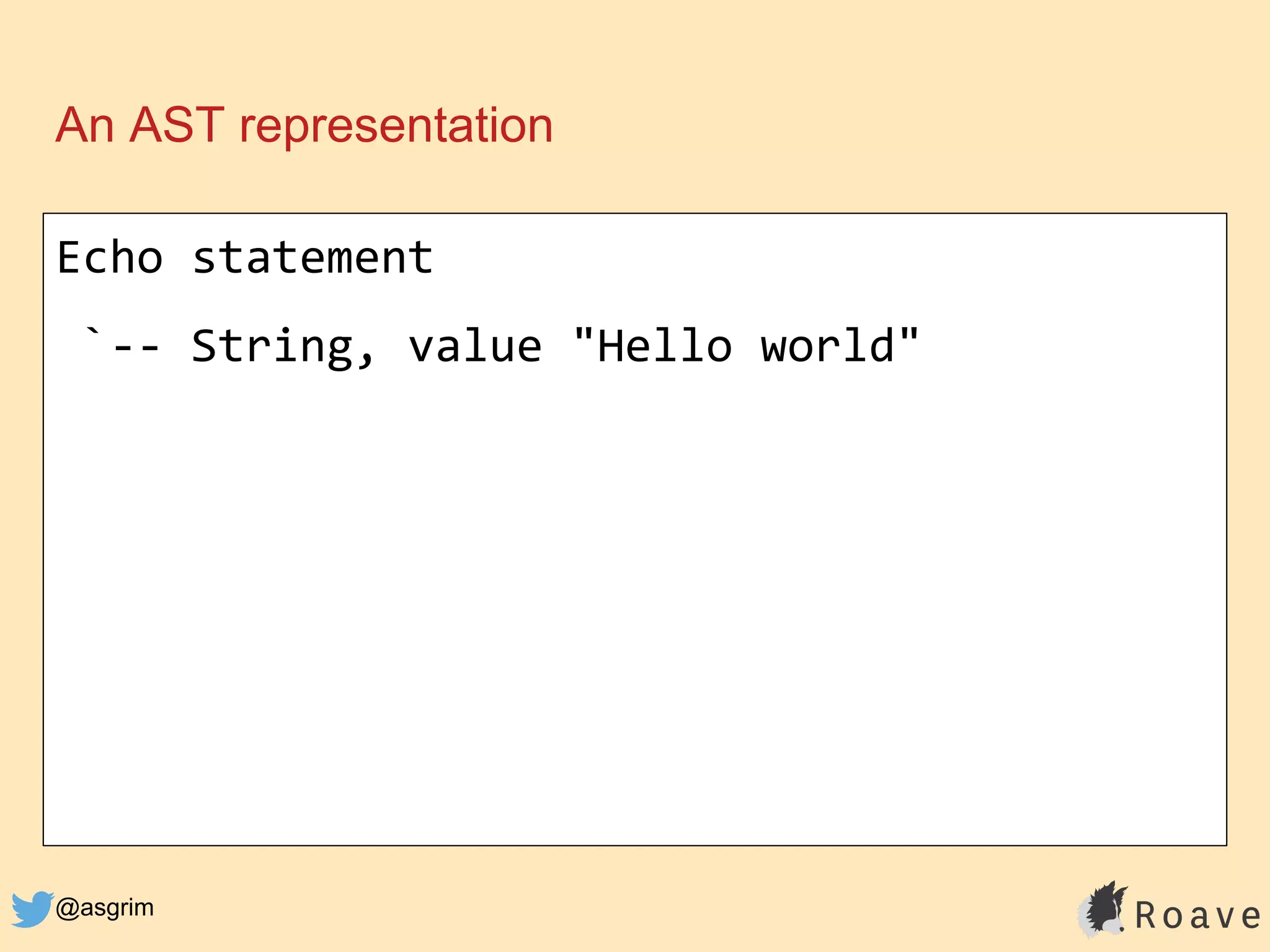

@asgrim An AST representation Echo statement `-- String, value "Hello world"

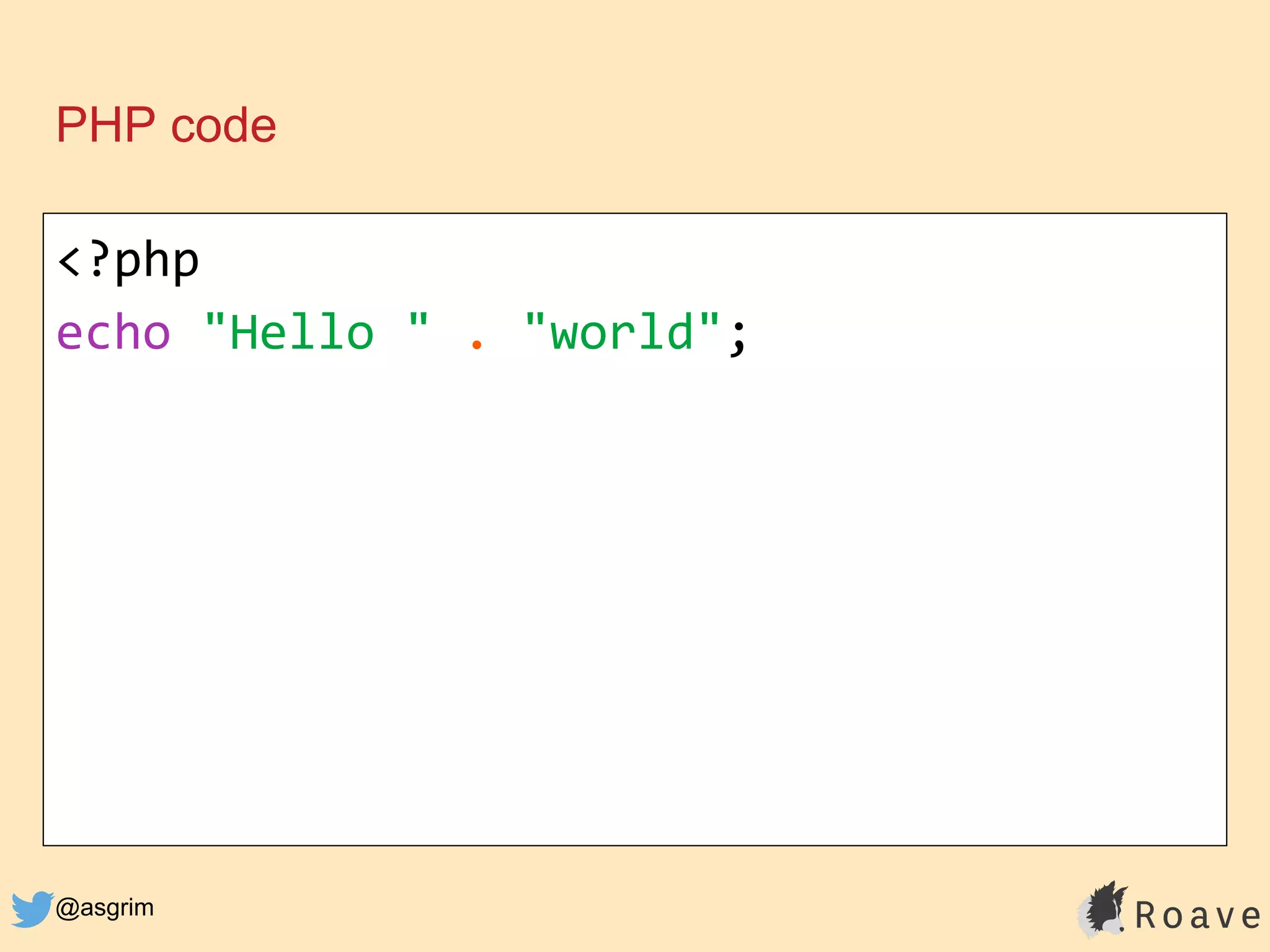

@asgrim PHP code <?php echo "Hello " . "world";

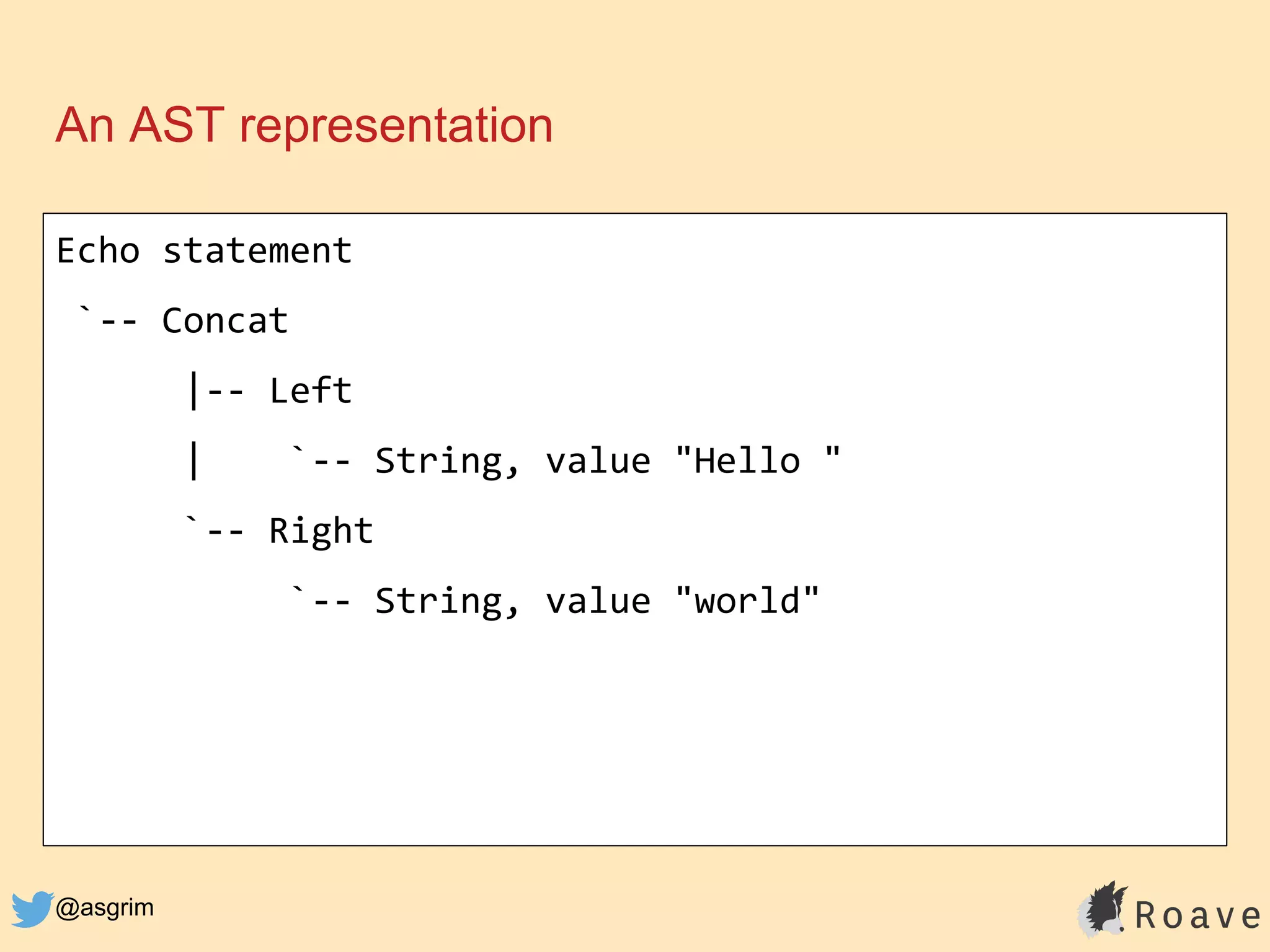

@asgrim An AST representation Echo statement `-- Concat |-- Left | `-- String, value "Hello " `-- Right `-- String, value "world"

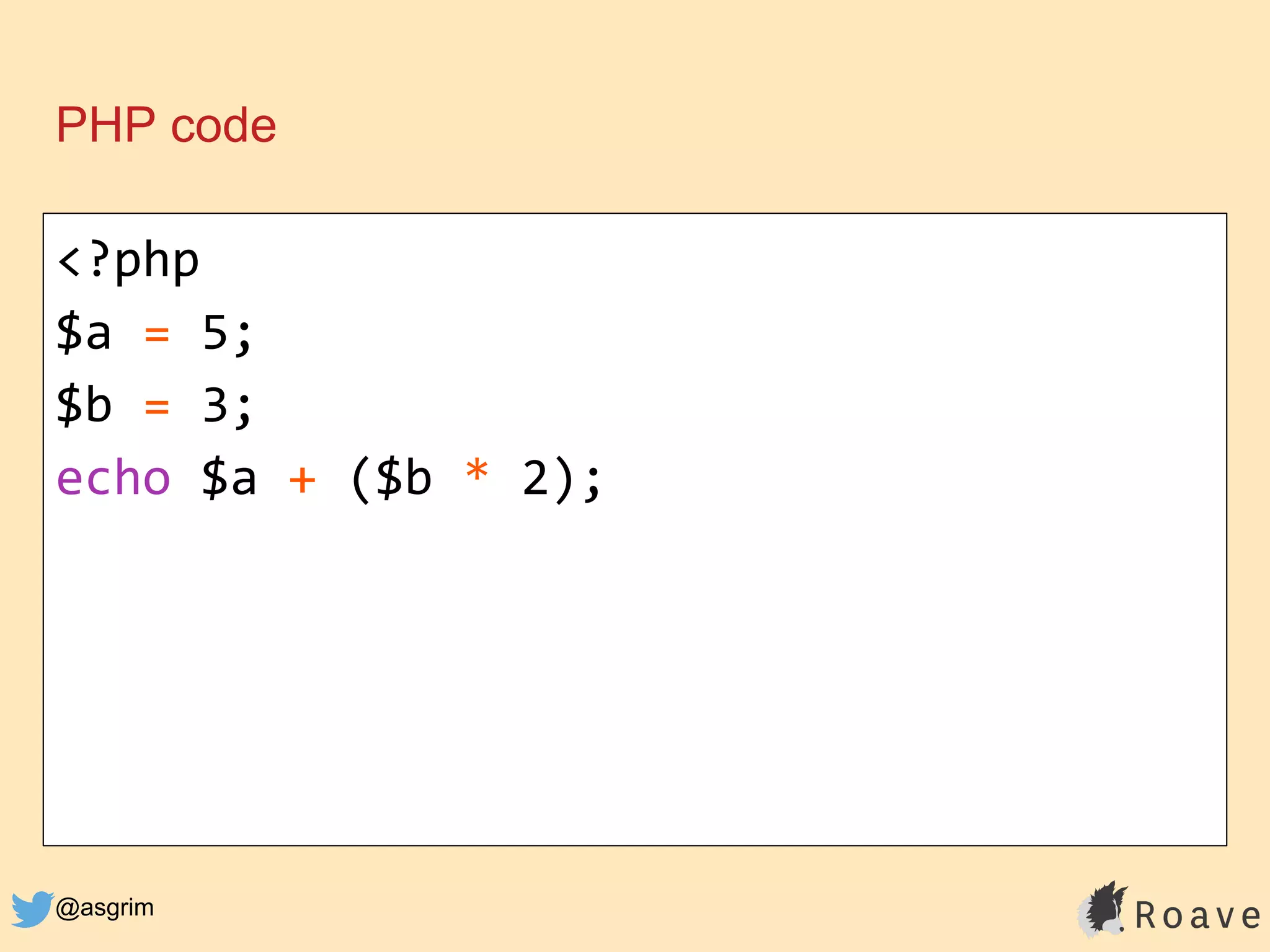

@asgrim PHP code <?php $a = 5; $b = 3; echo $a + ($b * 2);

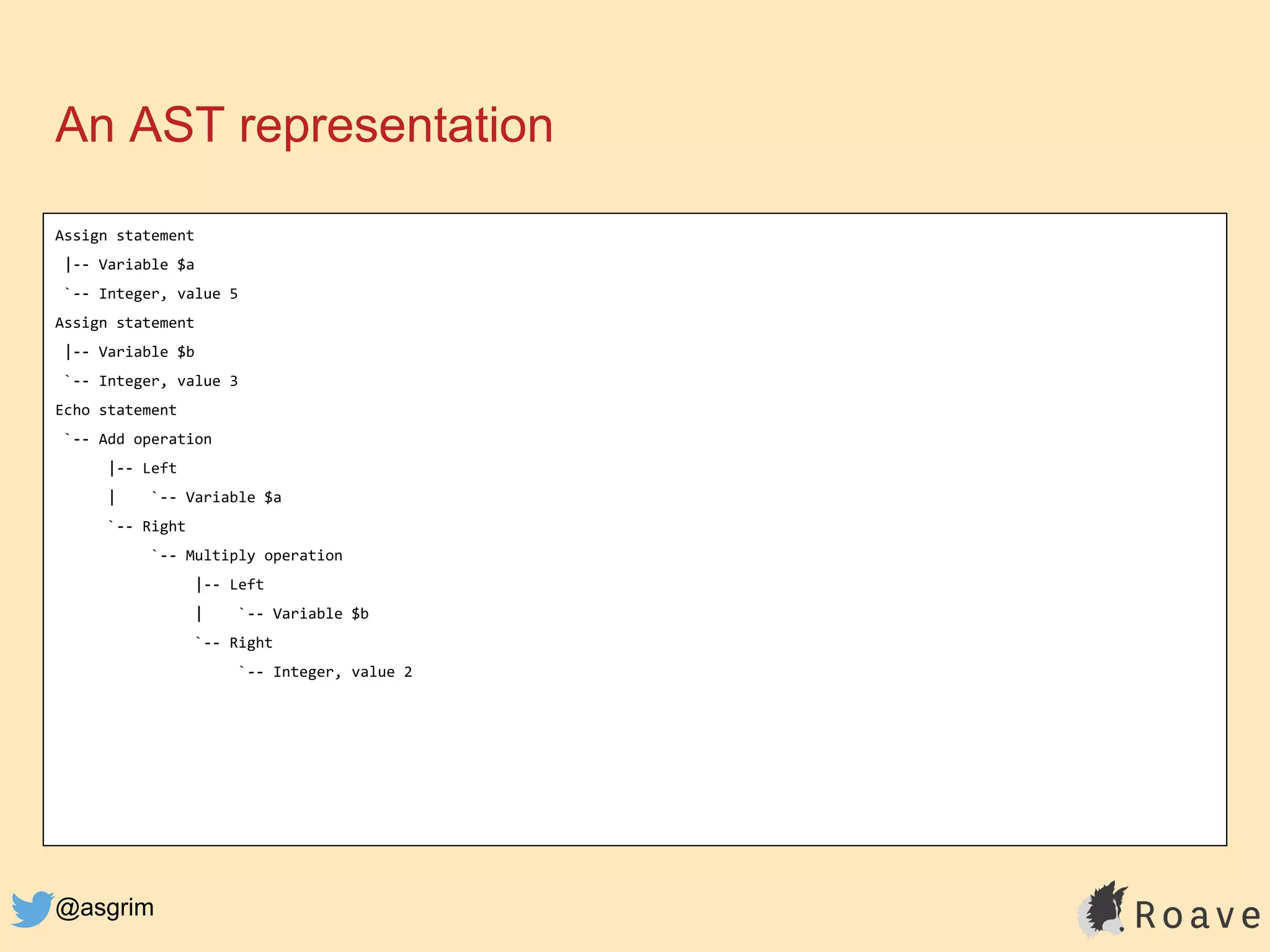

@asgrim An AST representation Assign statement |-- Variable $a `-- Integer, value 5 Assign statement |-- Variable $b `-- Integer, value 3 Echo statement `-- Add operation |-- Left | `-- Variable $a `-- Right `-- Multiply operation |-- Left | `-- Variable $b `-- Right `-- Integer, value 2
@asgrim Why?
@asgrim Faster!*

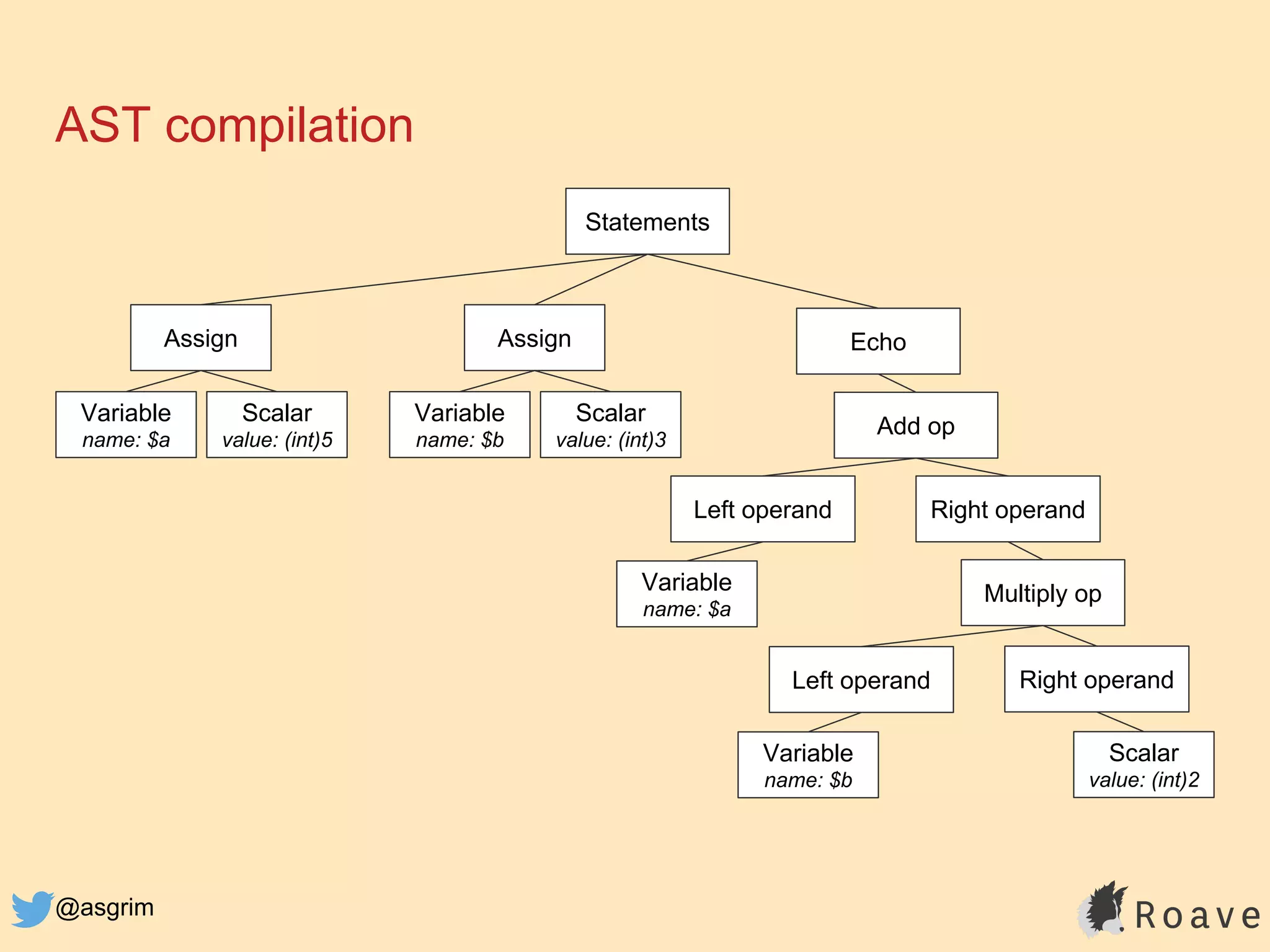

@asgrim AST compilation Statements EchoAssign Scalar value: (int)5 Variable name: $a Assign Scalar value: (int)3 Variable name: $b Add op Right operandLeft operand Variable name: $a Multiply op Right operandLeft operand Variable name: $b Scalar value: (int)2

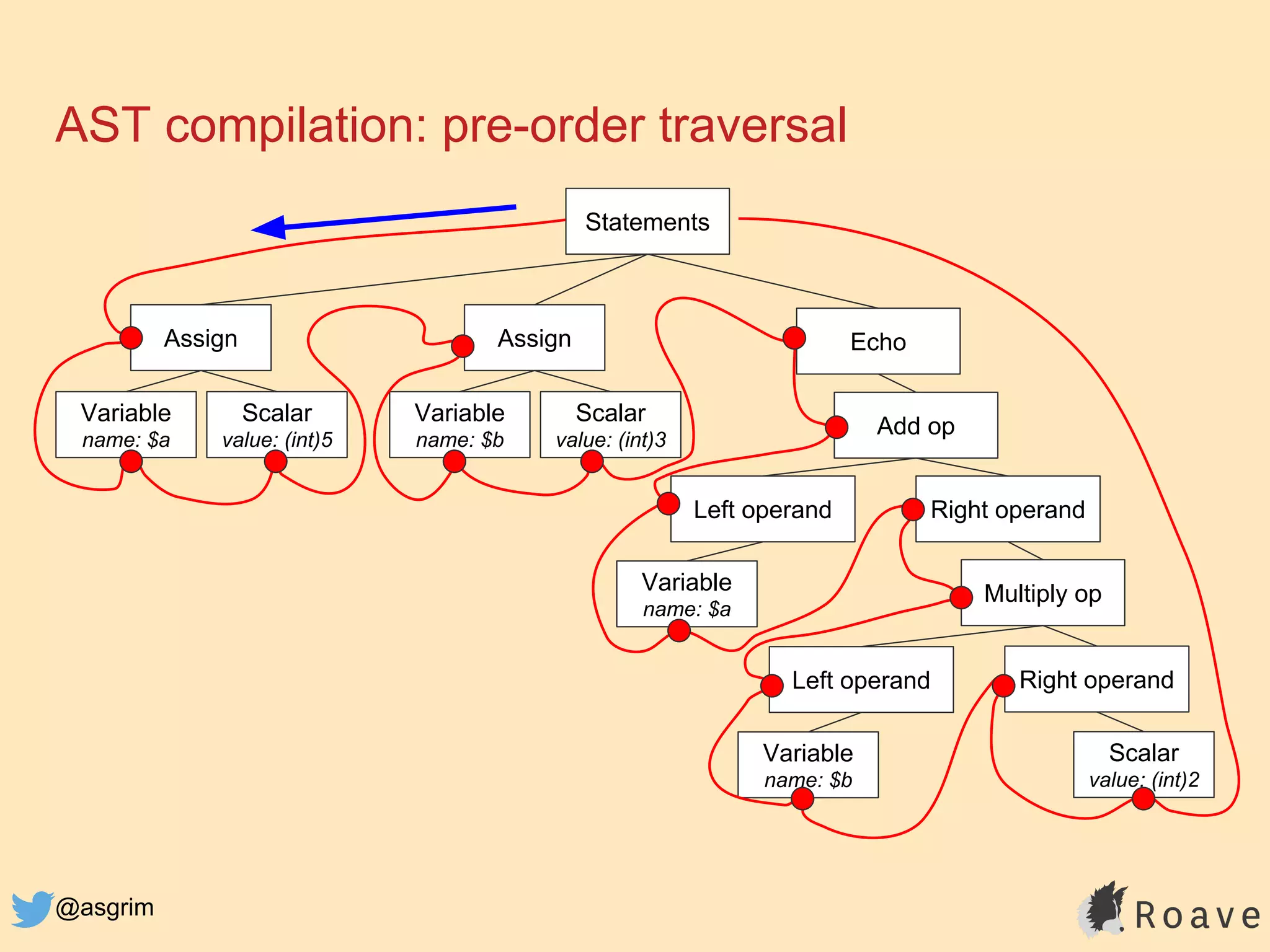

@asgrim AST compilation: pre-order traversal Statements EchoAssign Scalar value: (int)5 Variable name: $a Assign Scalar value: (int)3 Variable name: $b Add op Right operandLeft operand Variable name: $a Multiply op Right operandLeft operand Variable name: $b Scalar value: (int)2

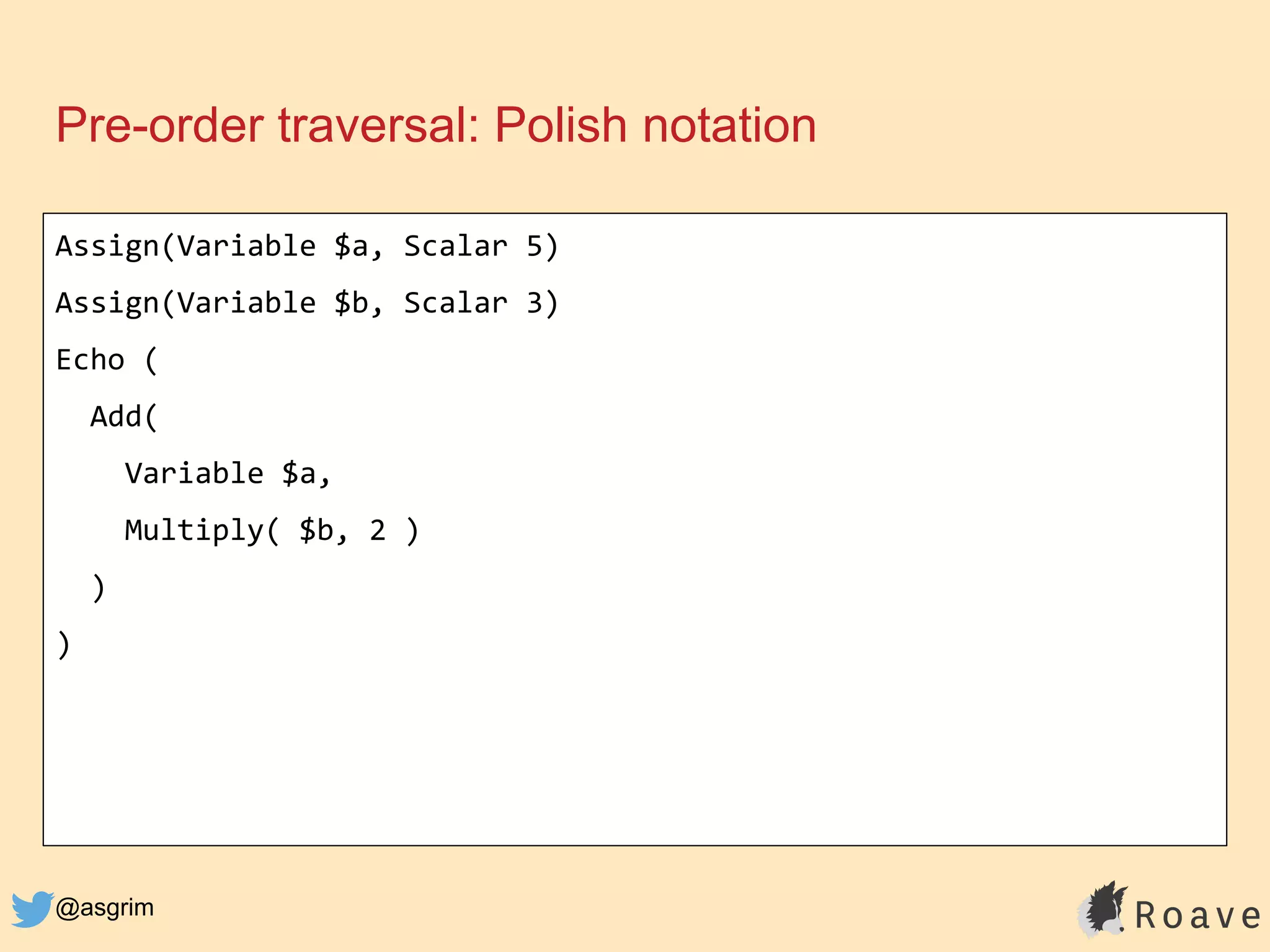

@asgrim Pre-order traversal: Polish notation Assign(Variable $a, Scalar 5) Assign(Variable $b, Scalar 3) Echo ( Add( Variable $a, Multiply( $b, 2 ) ) )

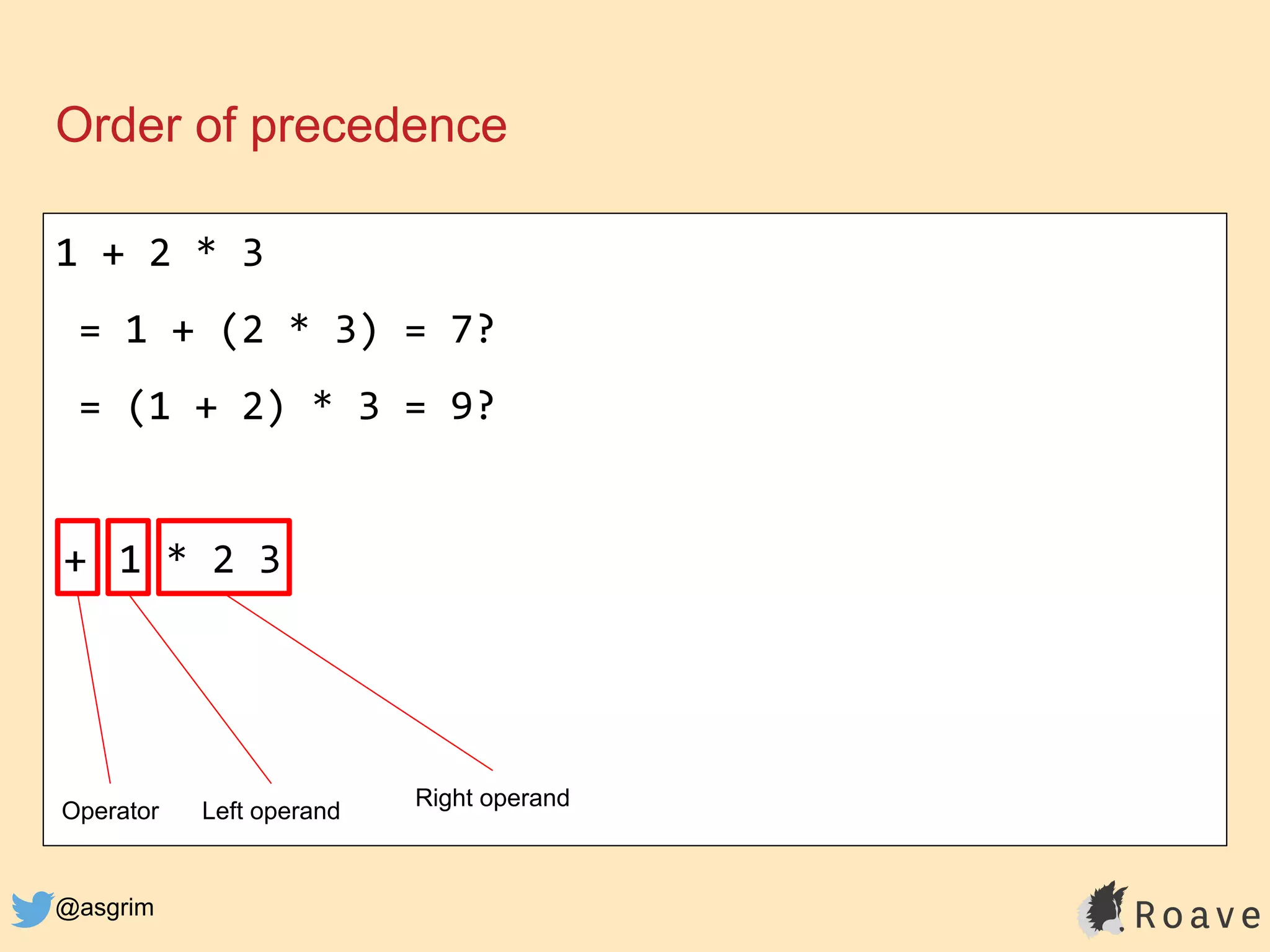

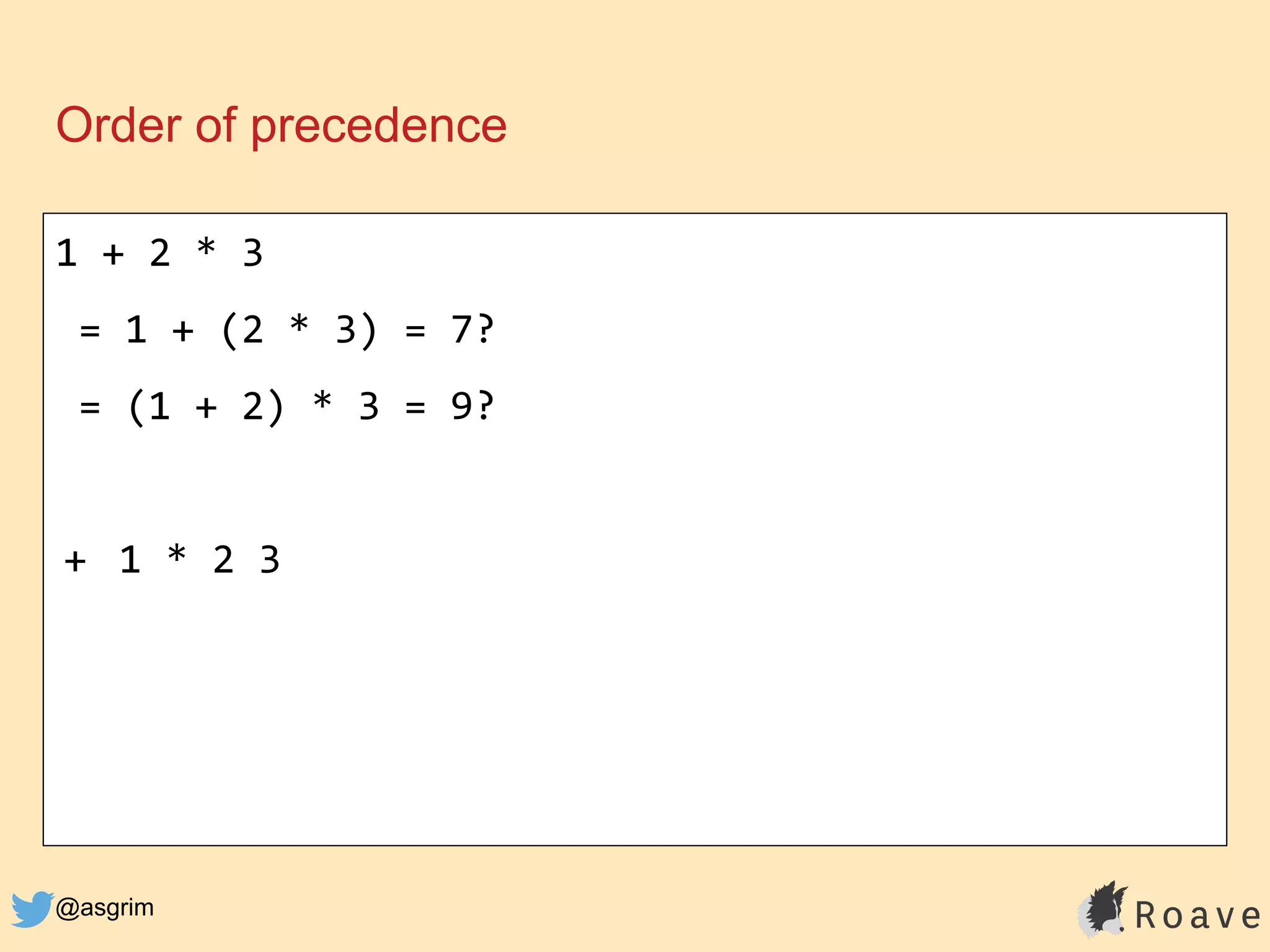

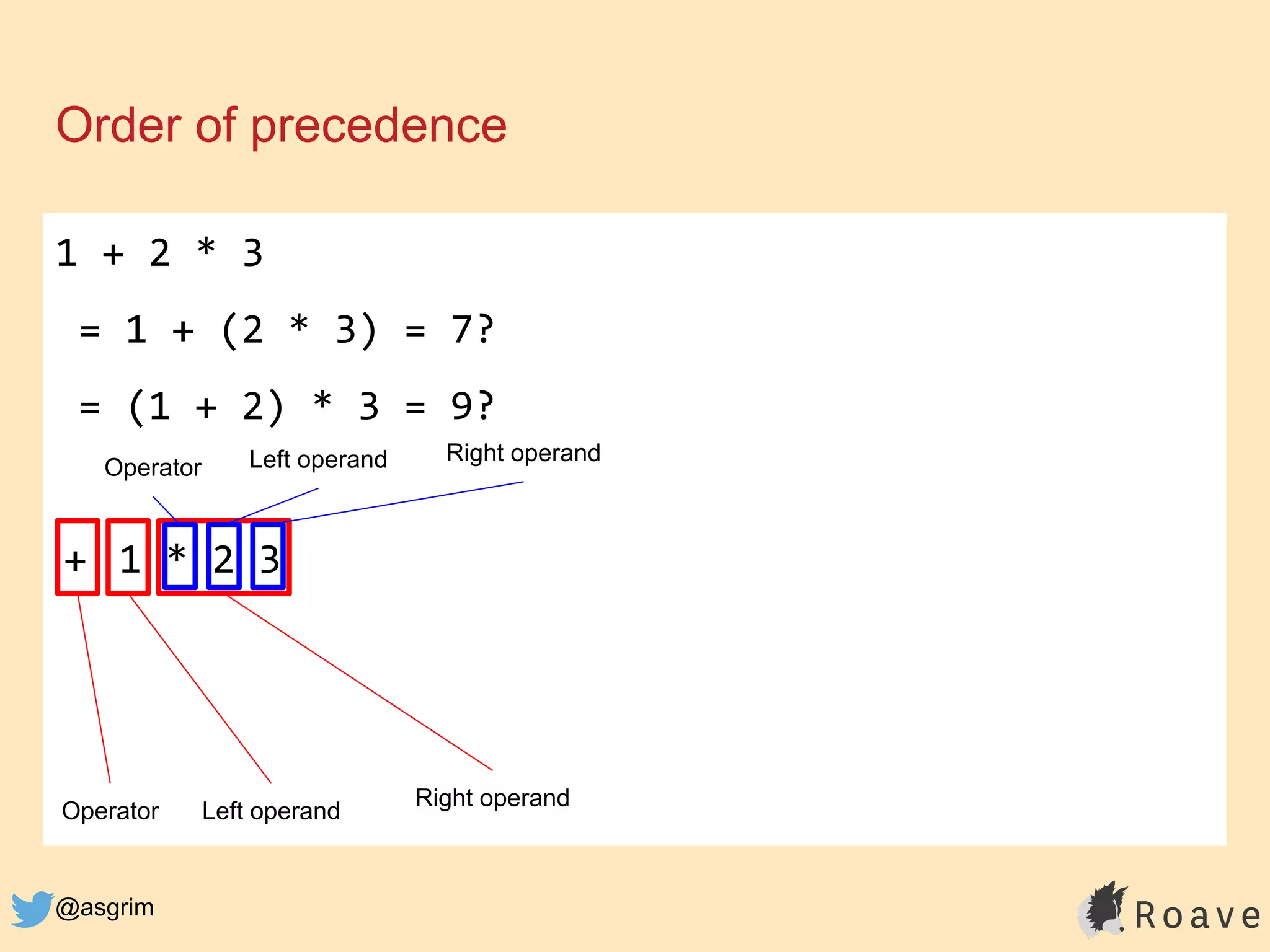

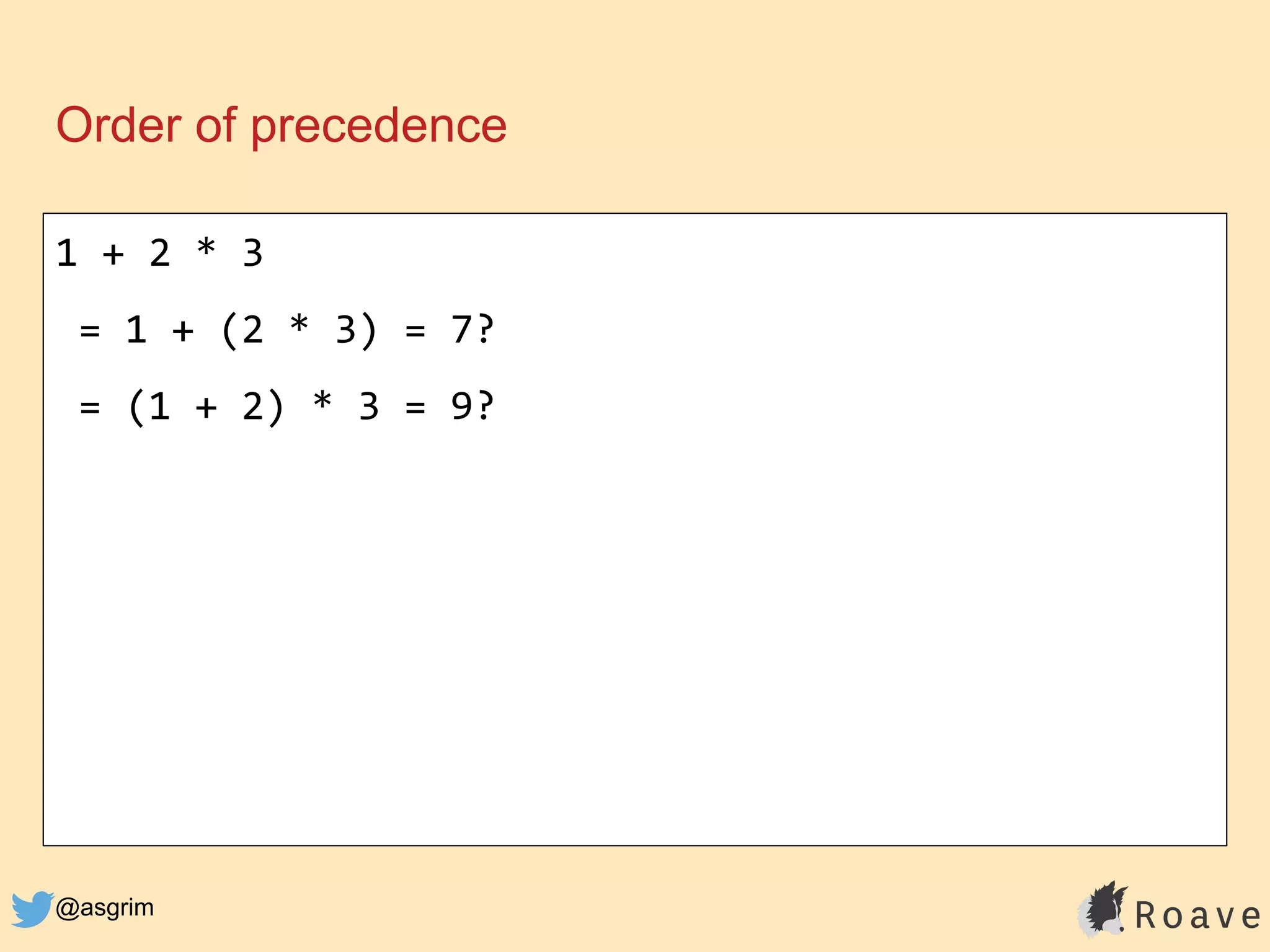

@asgrim Order of precedence 1 + 2 * 3 = 1 + (2 * 3) = 7? = (1 + 2) * 3 = 9?
@asgrim Order of precedence 1 + 2 * 3 = 1 + (2 * 3) = 7? = (1 + 2) * 3 = 9? + 1 * 2 3
@asgrim Order of precedence 1 + 2 * 3 = 1 + (2 * 3) = 7? = (1 + 2) * 3 = 9? + 1 * 2 3 Operator Left operand Right operand
@asgrim Order of precedence 1 + 2 * 3 = 1 + (2 * 3) = 7? = (1 + 2) * 3 = 9? + 1 * 2 3 Operator Left operand Right operand Operator Left operand Right operand

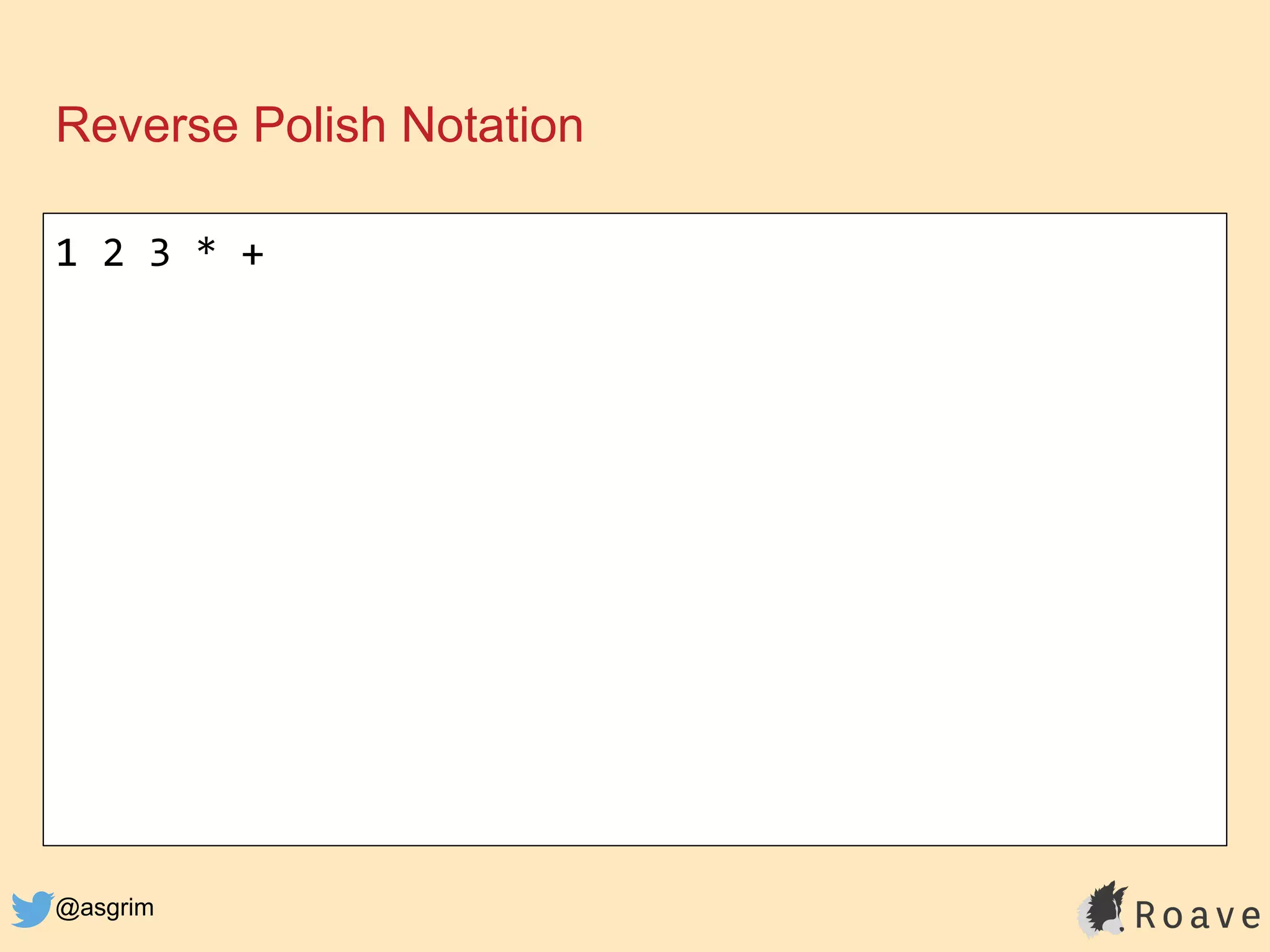

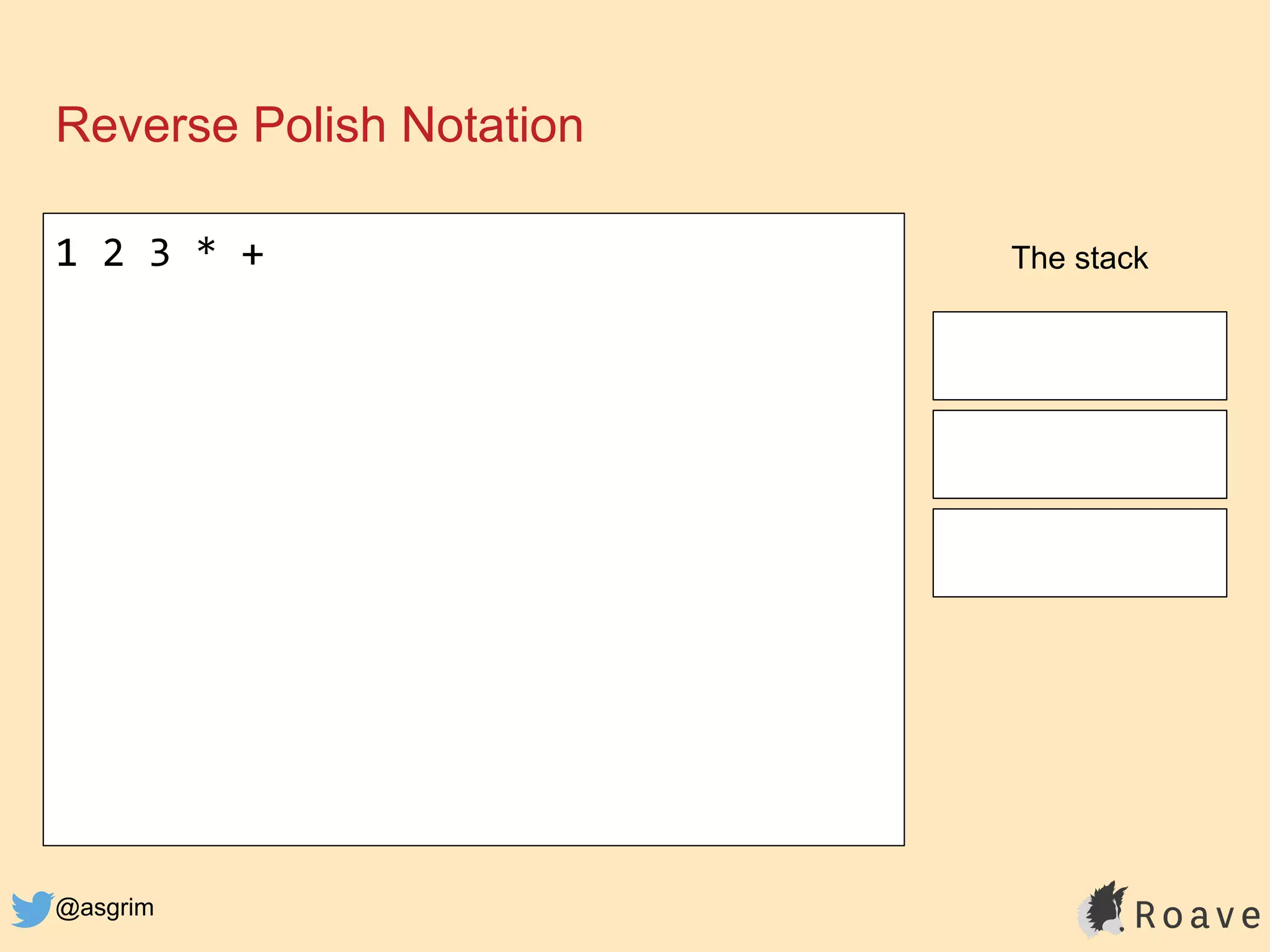

@asgrim Reverse Polish Notation 1 2 3 * +
@asgrim Reverse Polish Notation 1 2 3 * + The stack

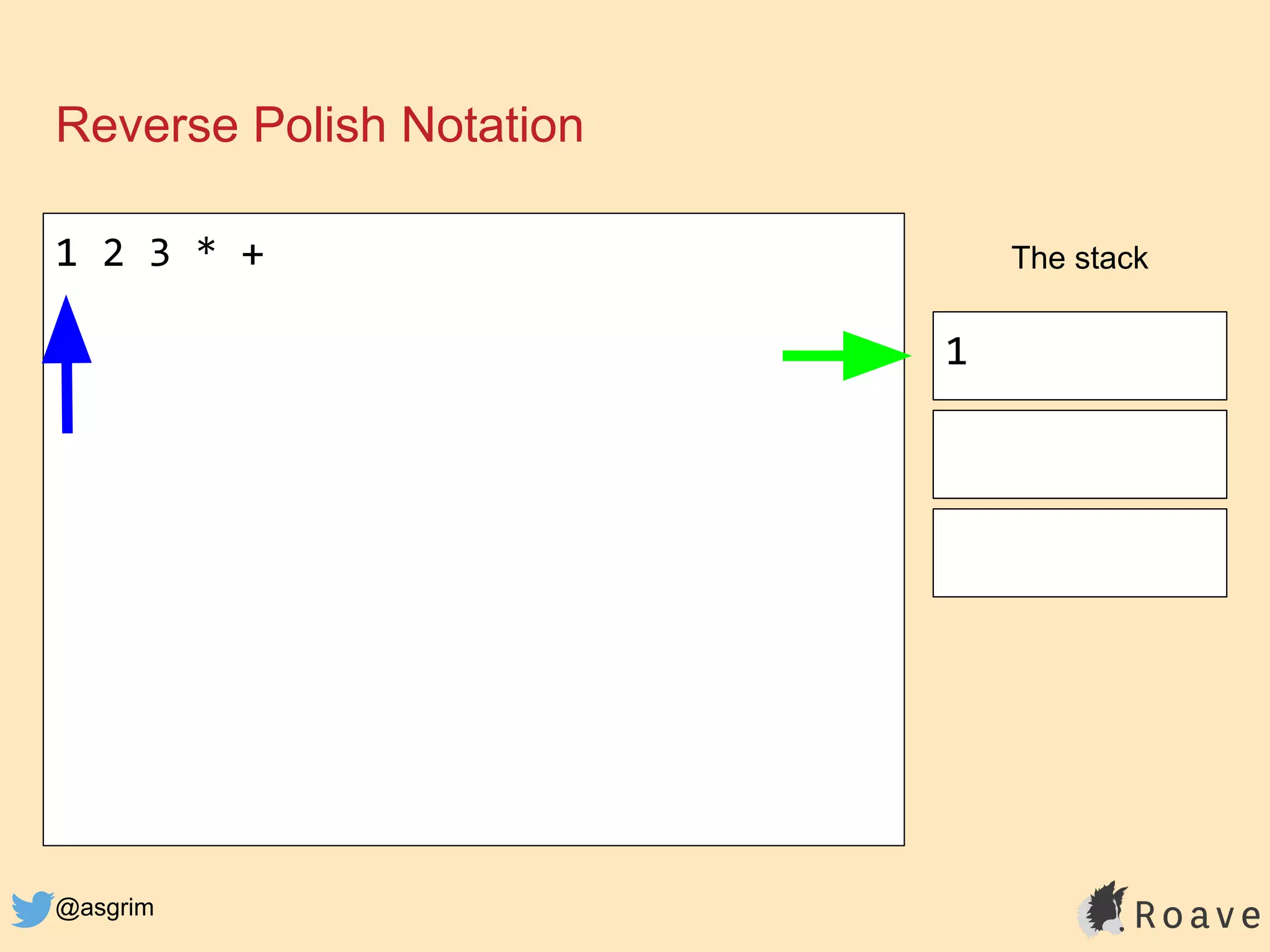

@asgrim Reverse Polish Notation 1 2 3 * + The stack 1

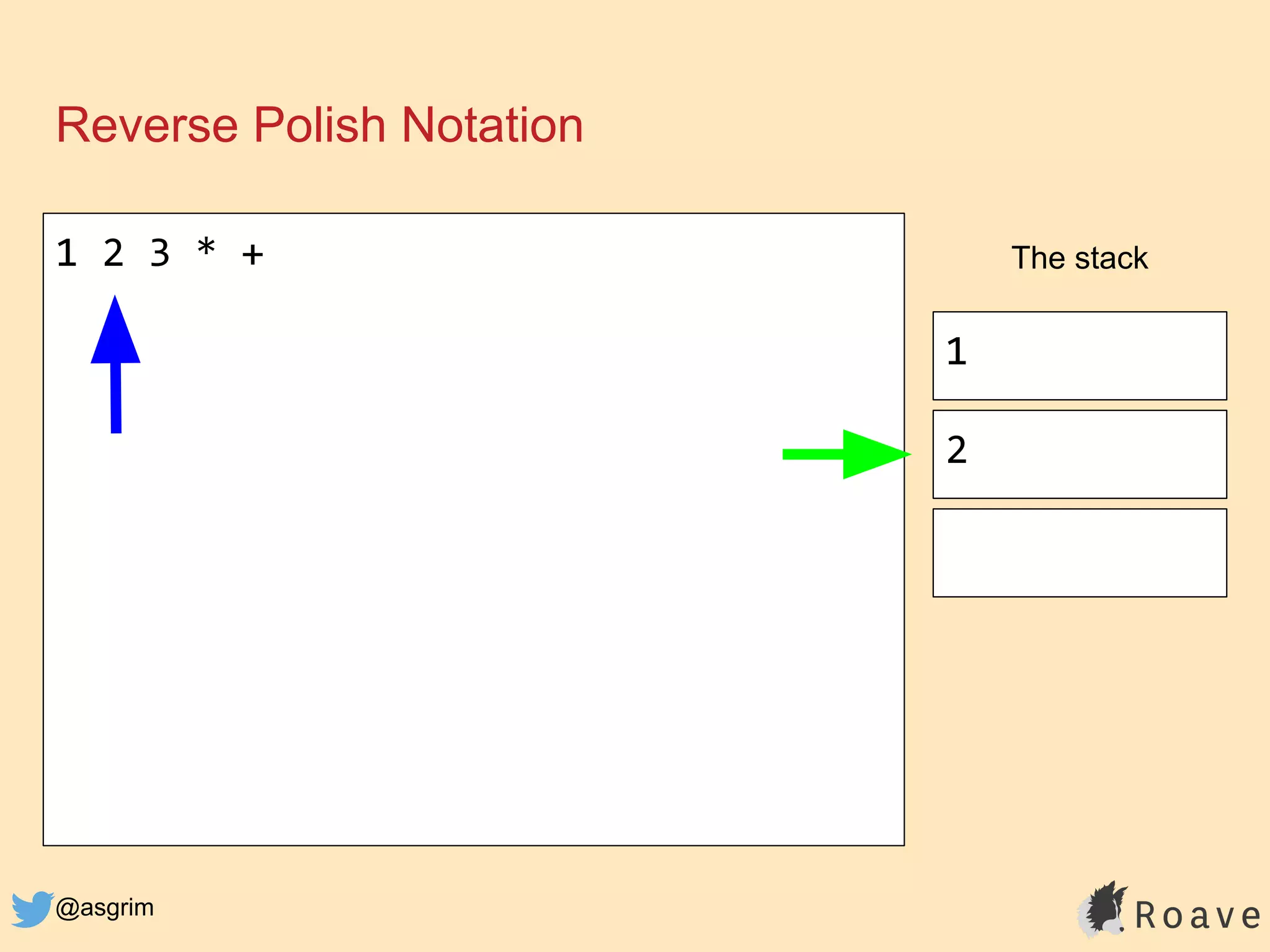

@asgrim Reverse Polish Notation 1 2 3 * + The stack 1 2

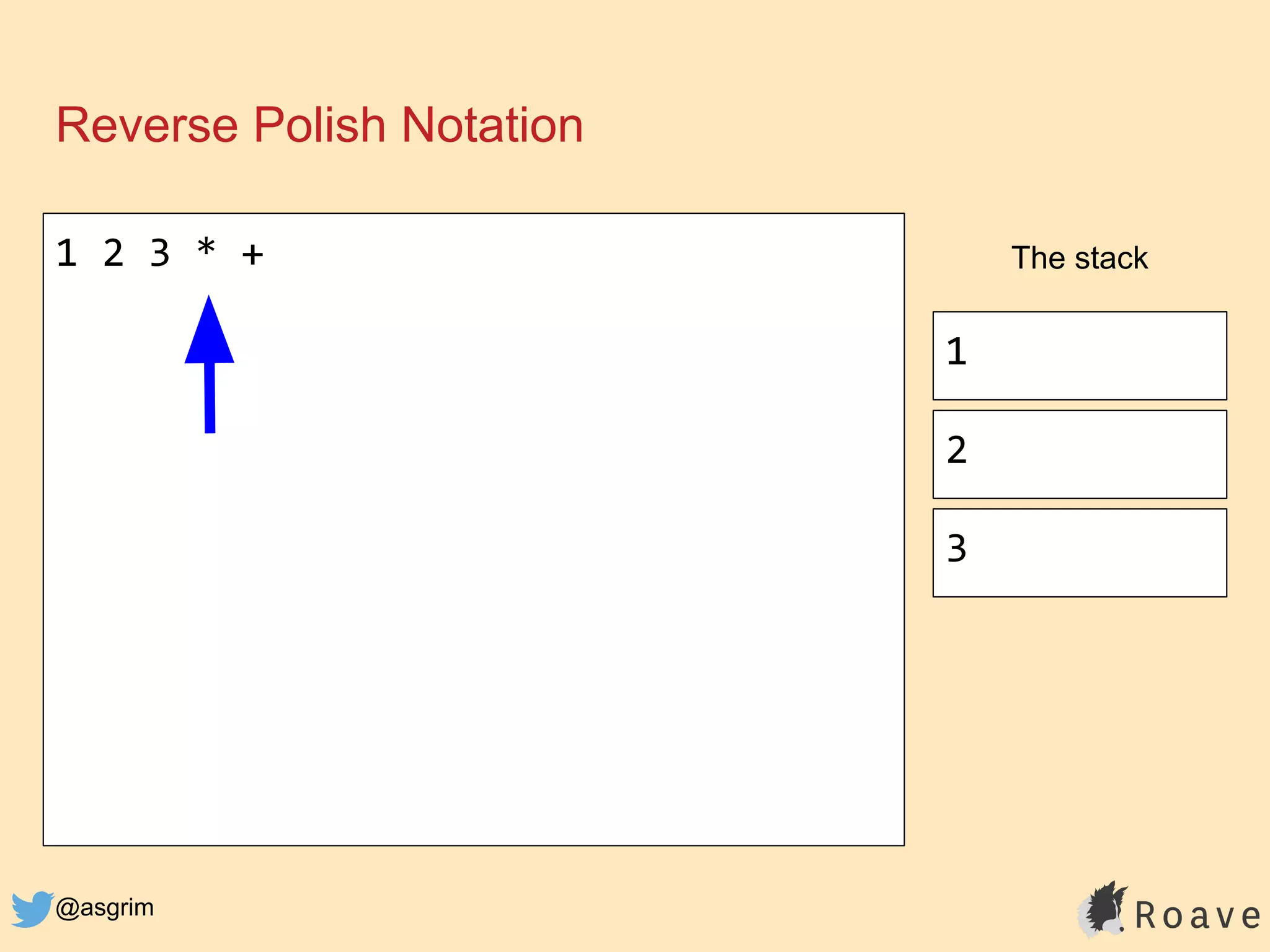

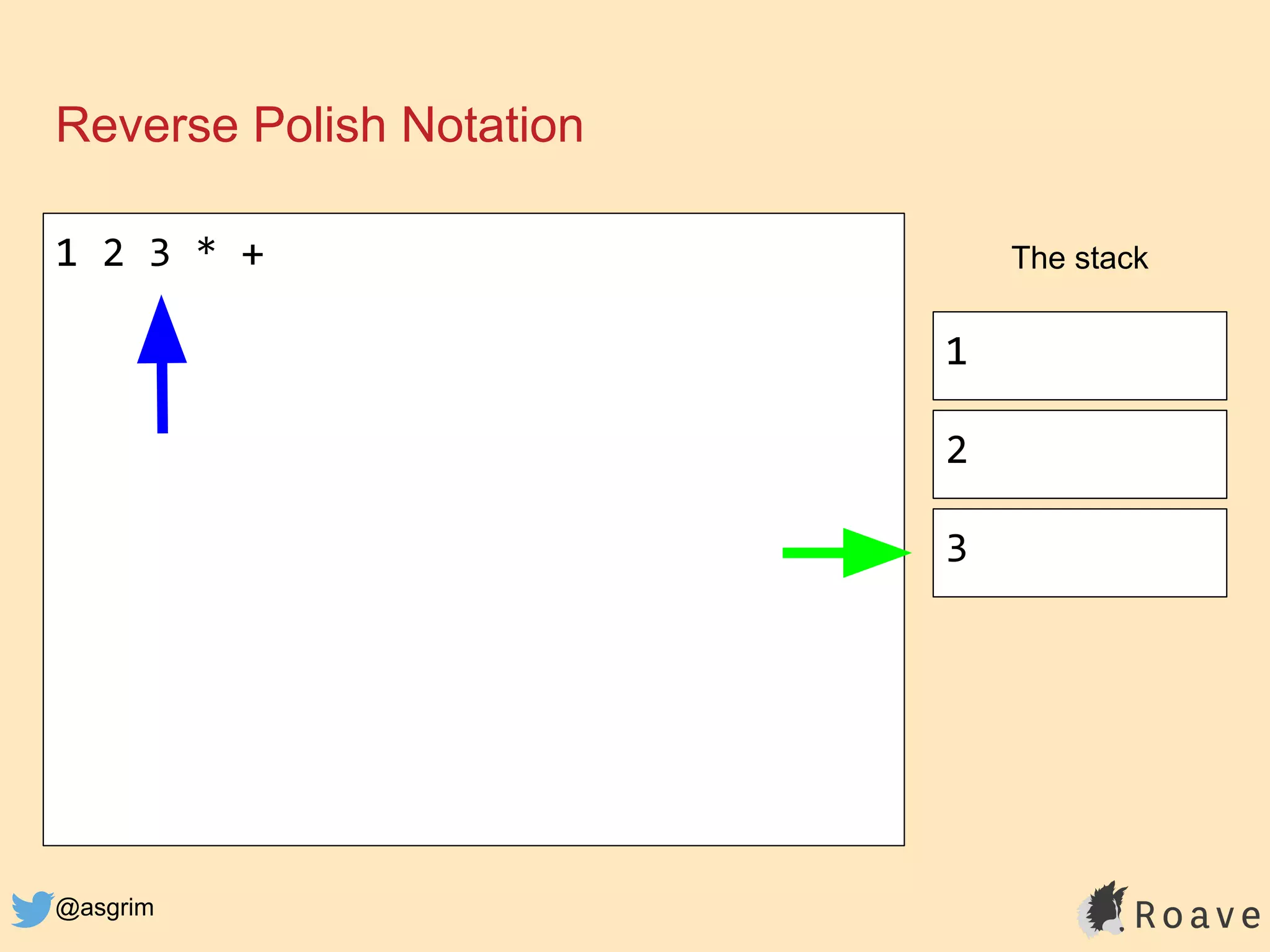

@asgrim Reverse Polish Notation 1 2 3 * + The stack 1 2 3

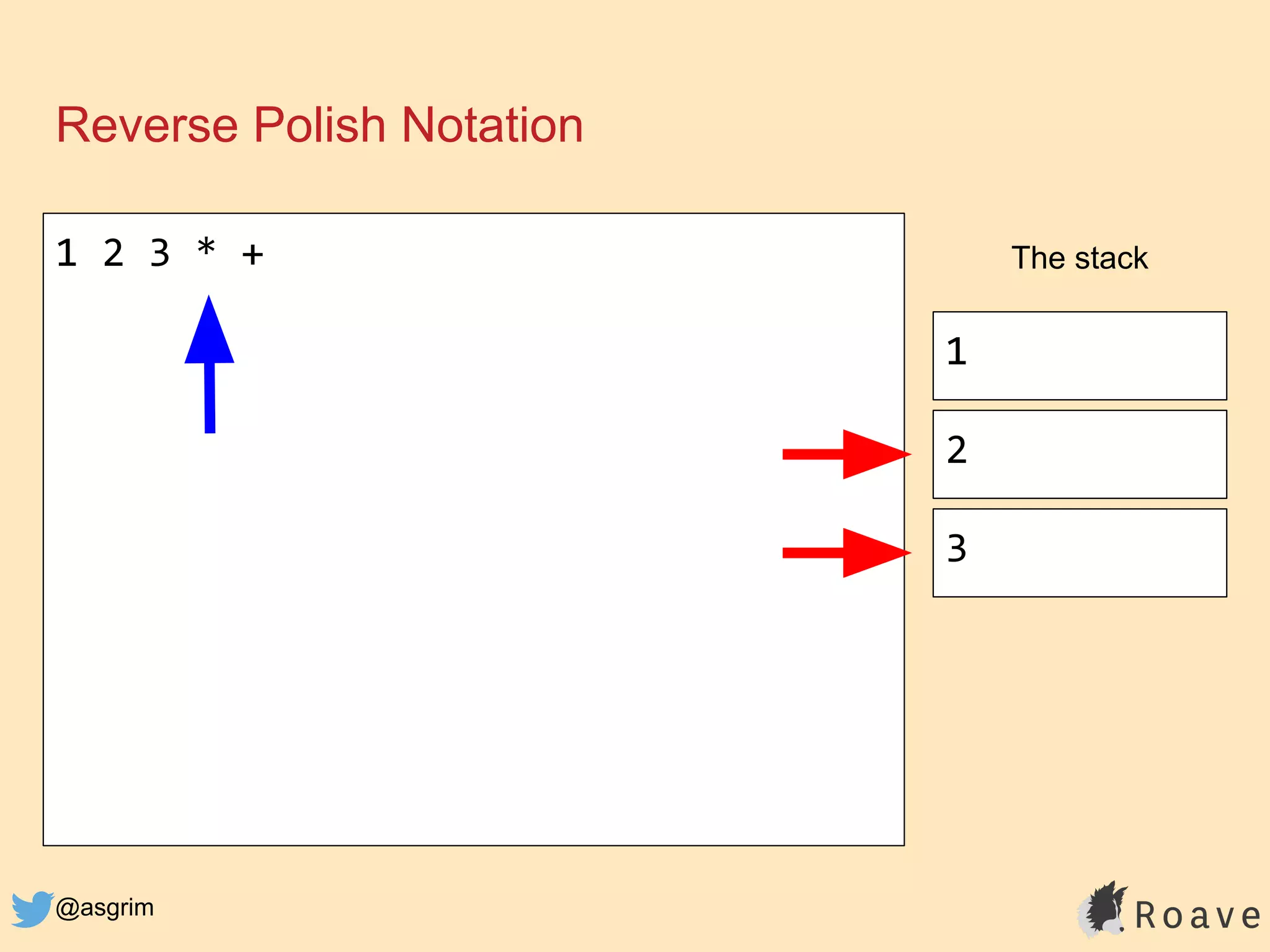

@asgrim Reverse Polish Notation 1 2 3 * + The stack 1 2 3
@asgrim Reverse Polish Notation 1 2 3 * + The stack 1 2 3

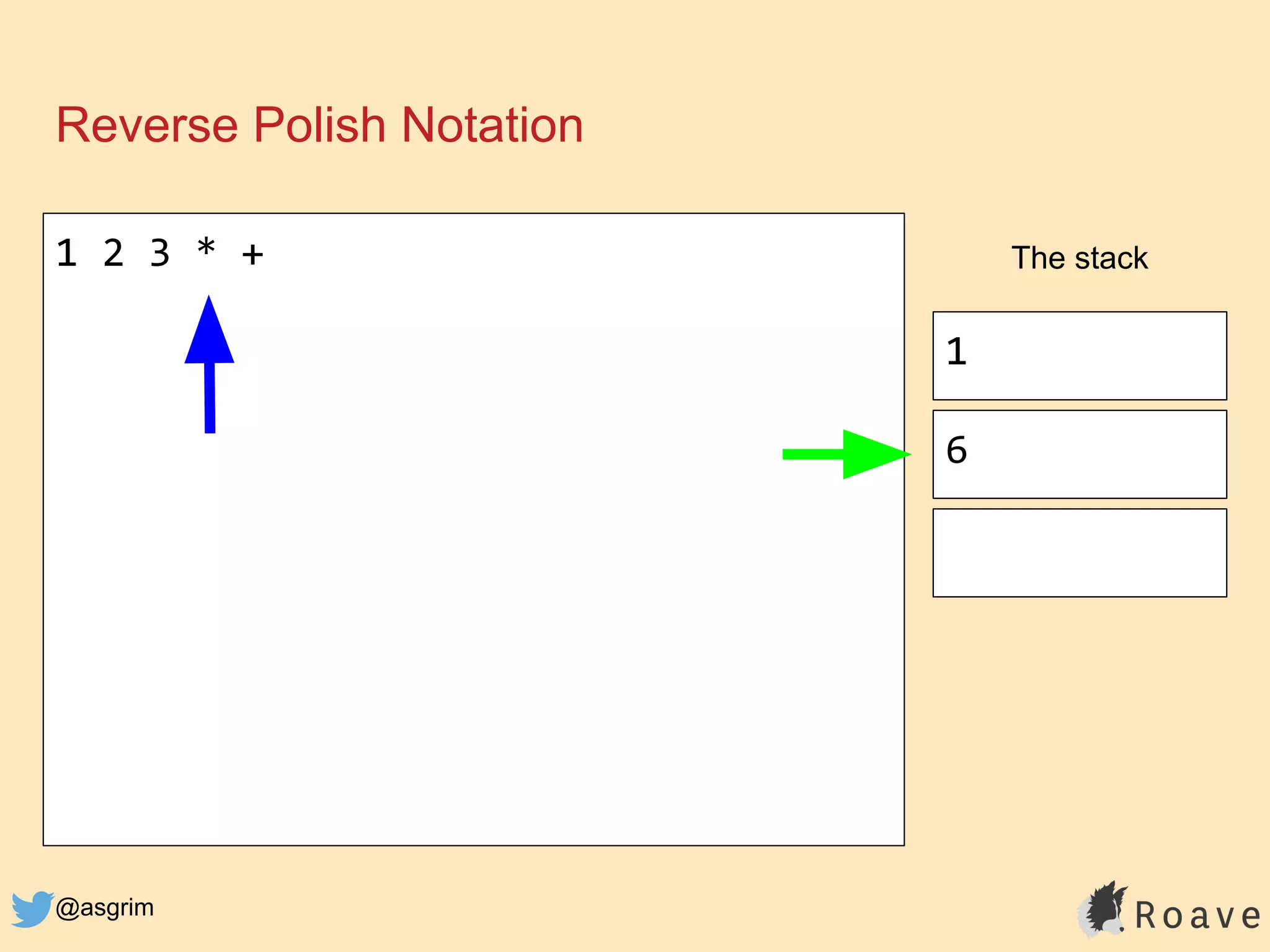

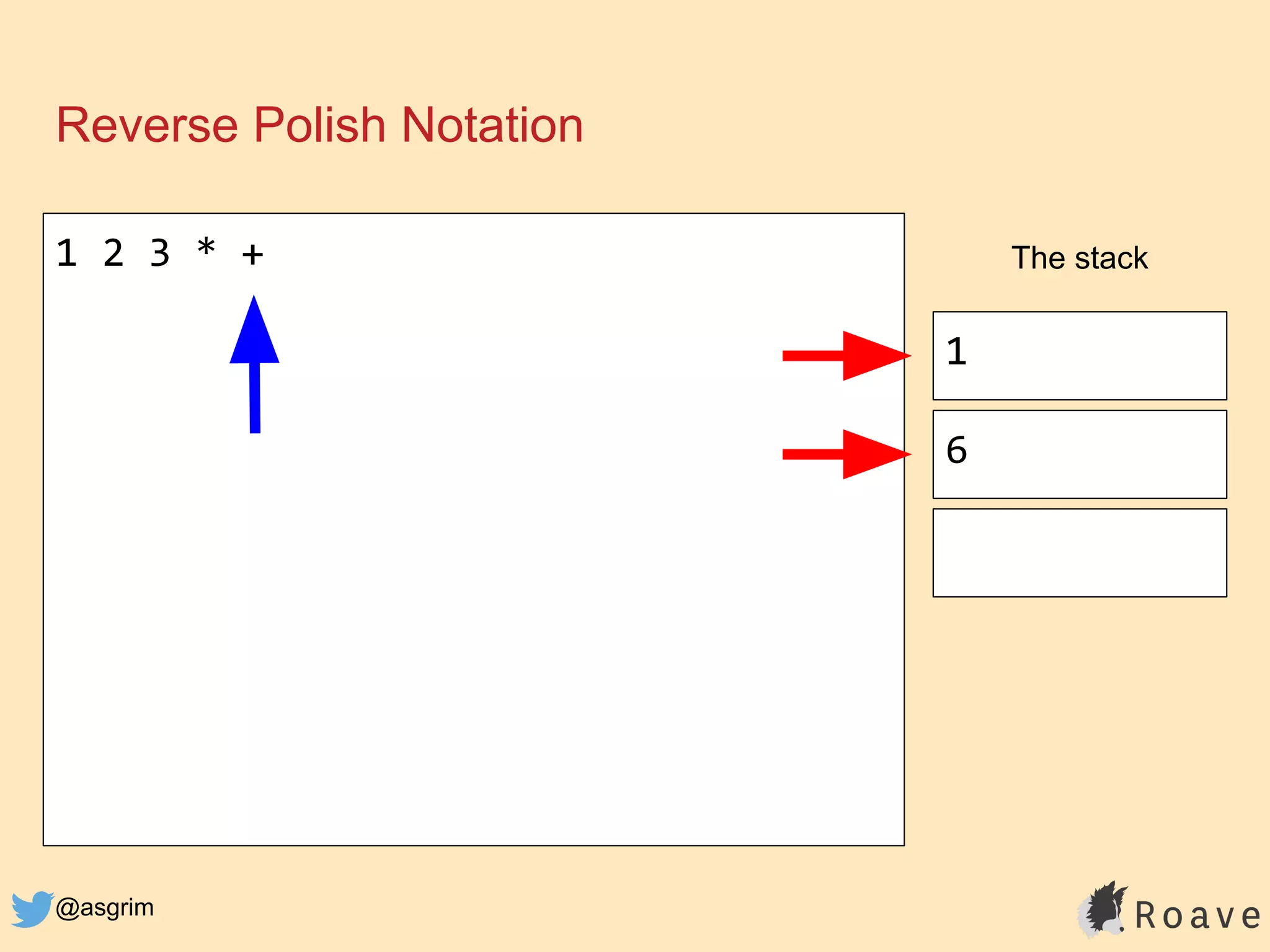

@asgrim Reverse Polish Notation 1 2 3 * + The stack 1 6
@asgrim Reverse Polish Notation 1 2 3 * + The stack 1 6

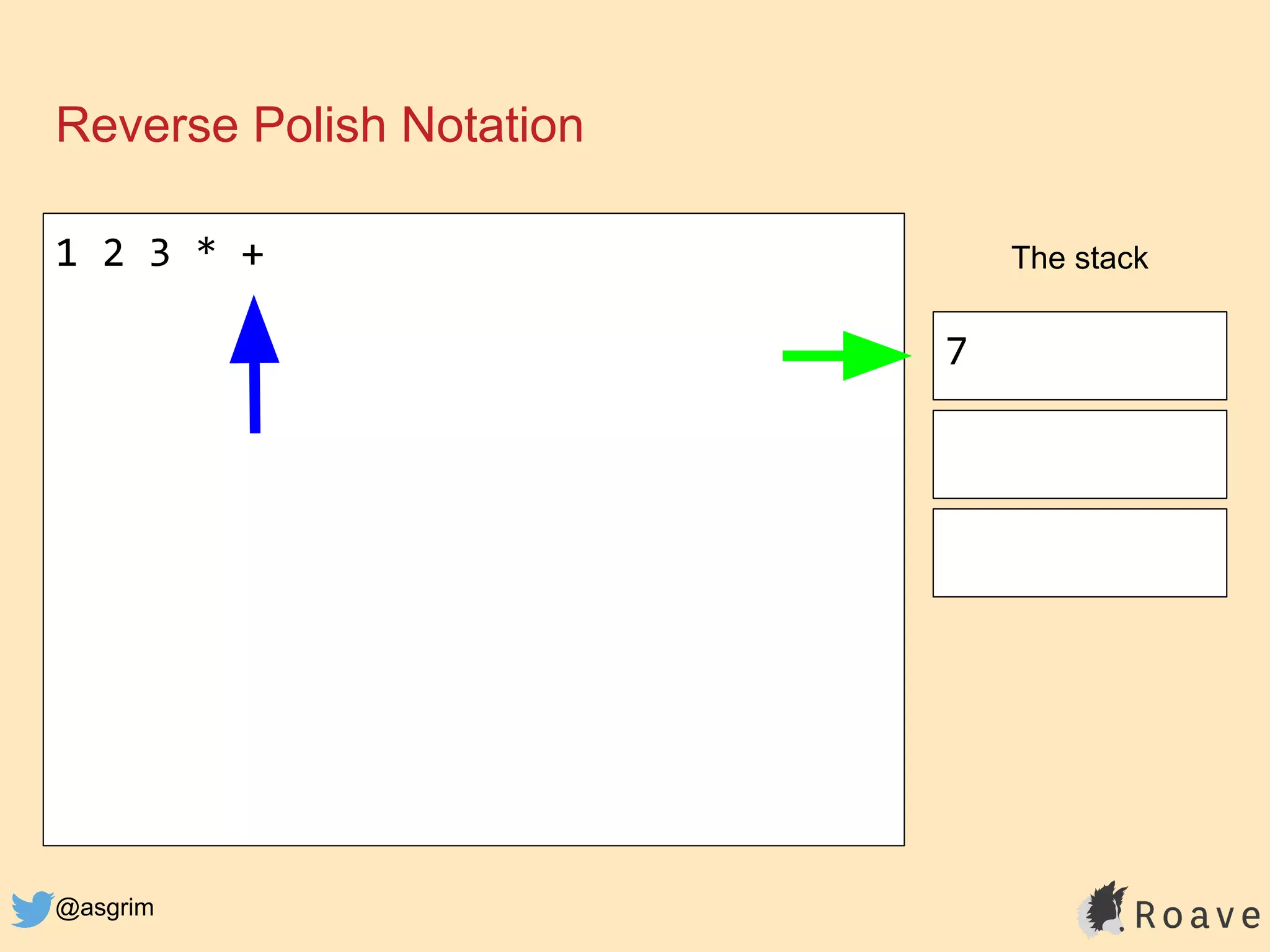

@asgrim Reverse Polish Notation 1 2 3 * + The stack 7
@asgrim Let’s write a compiler (!!!) In three easy steps…
@asgrim Warning: do not use in production
@asgrim View > Source https://github.com/asgrim/basic-maths-compiler

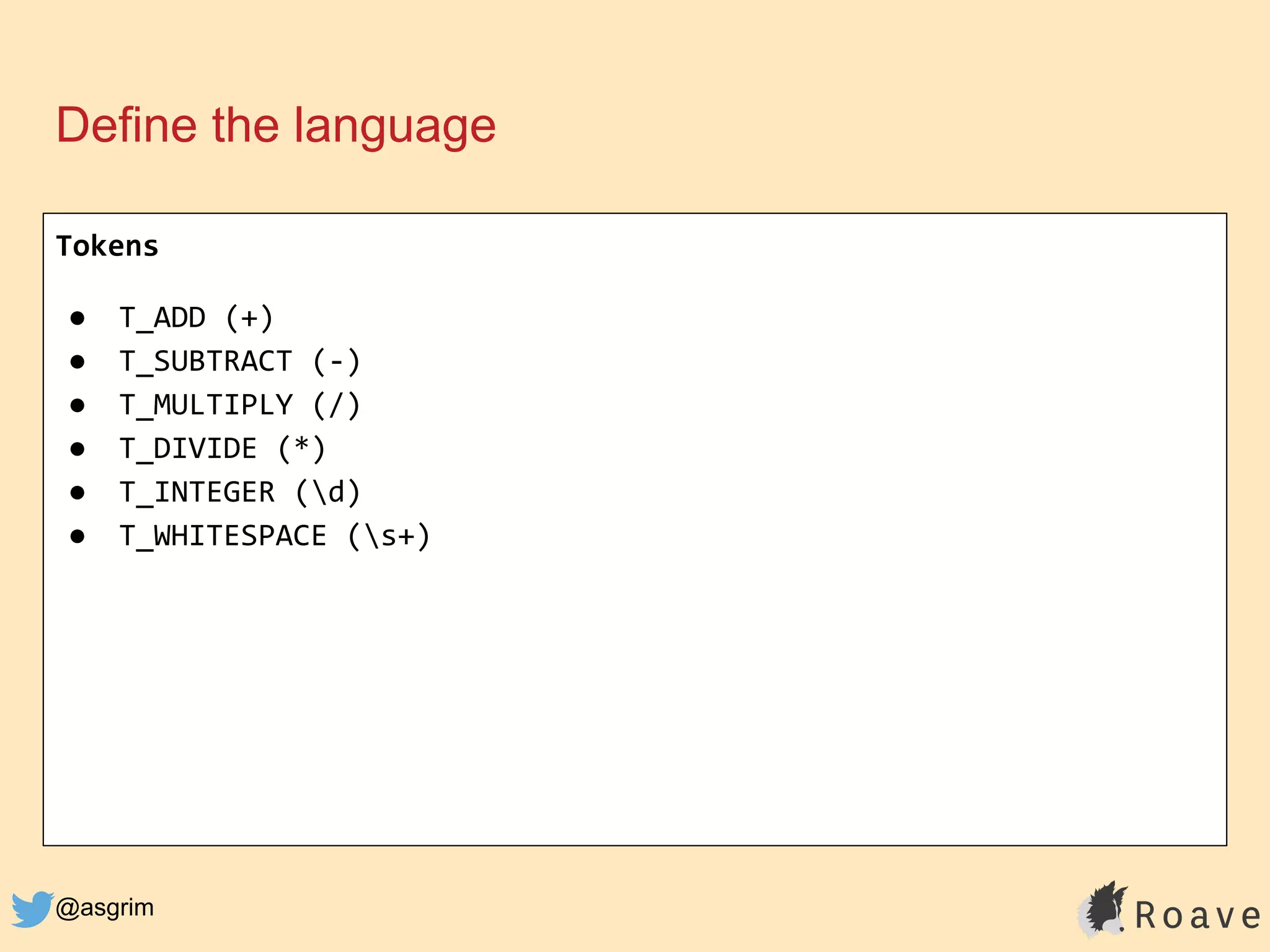

@asgrim Define the language Tokens ● T_ADD (+) ● T_SUBTRACT (-) ● T_MULTIPLY (/) ● T_DIVIDE (*) ● T_INTEGER (d) ● T_WHITESPACE (s+)
@asgrim Step 1: Writing a simple lexer

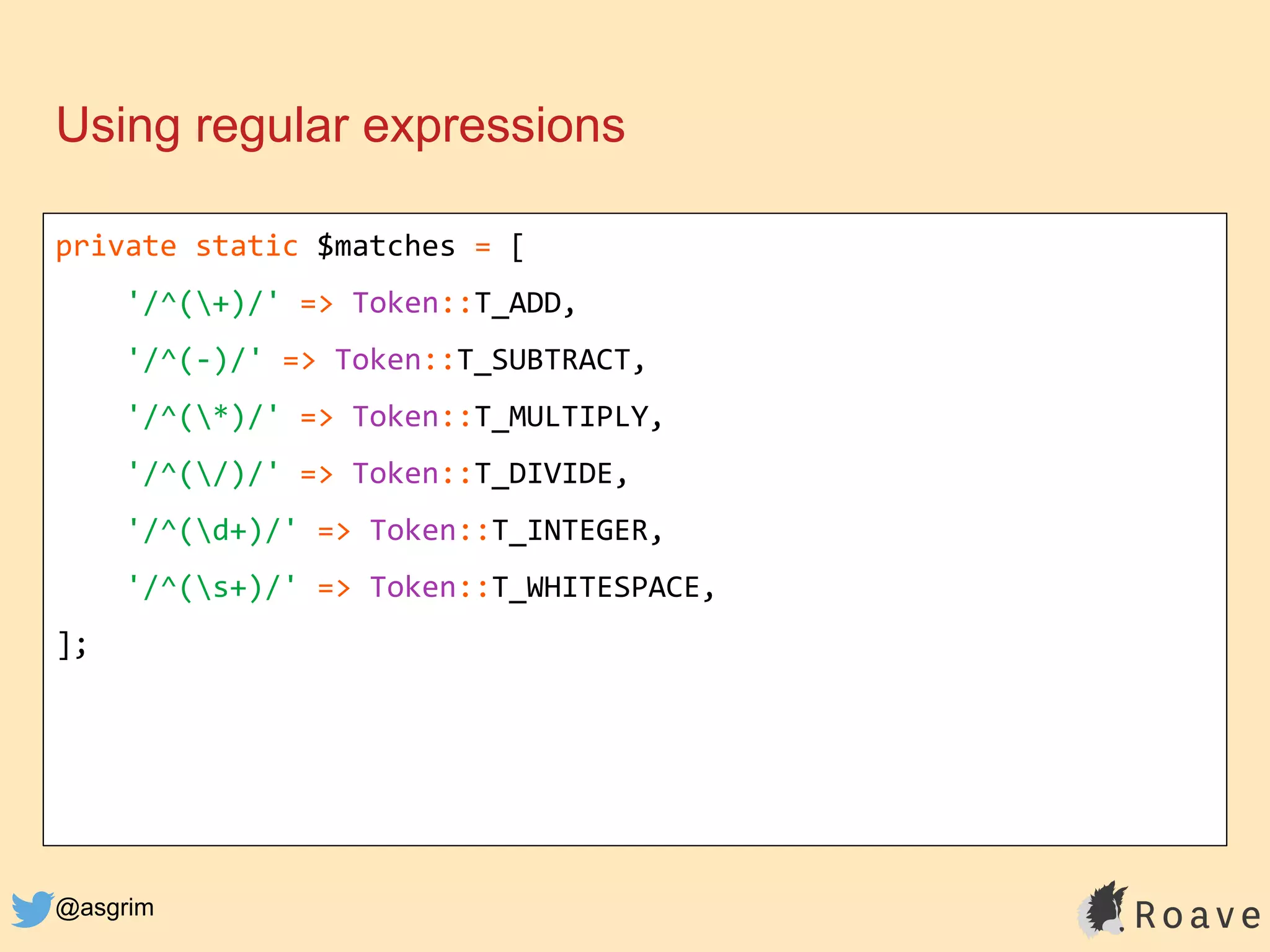

@asgrim Using regular expressions private static $matches = [ '/^(+)/' => Token::T_ADD, '/^(-)/' => Token::T_SUBTRACT, '/^(*)/' => Token::T_MULTIPLY, '/^(/)/' => Token::T_DIVIDE, '/^(d+)/' => Token::T_INTEGER, '/^(s+)/' => Token::T_WHITESPACE, ];

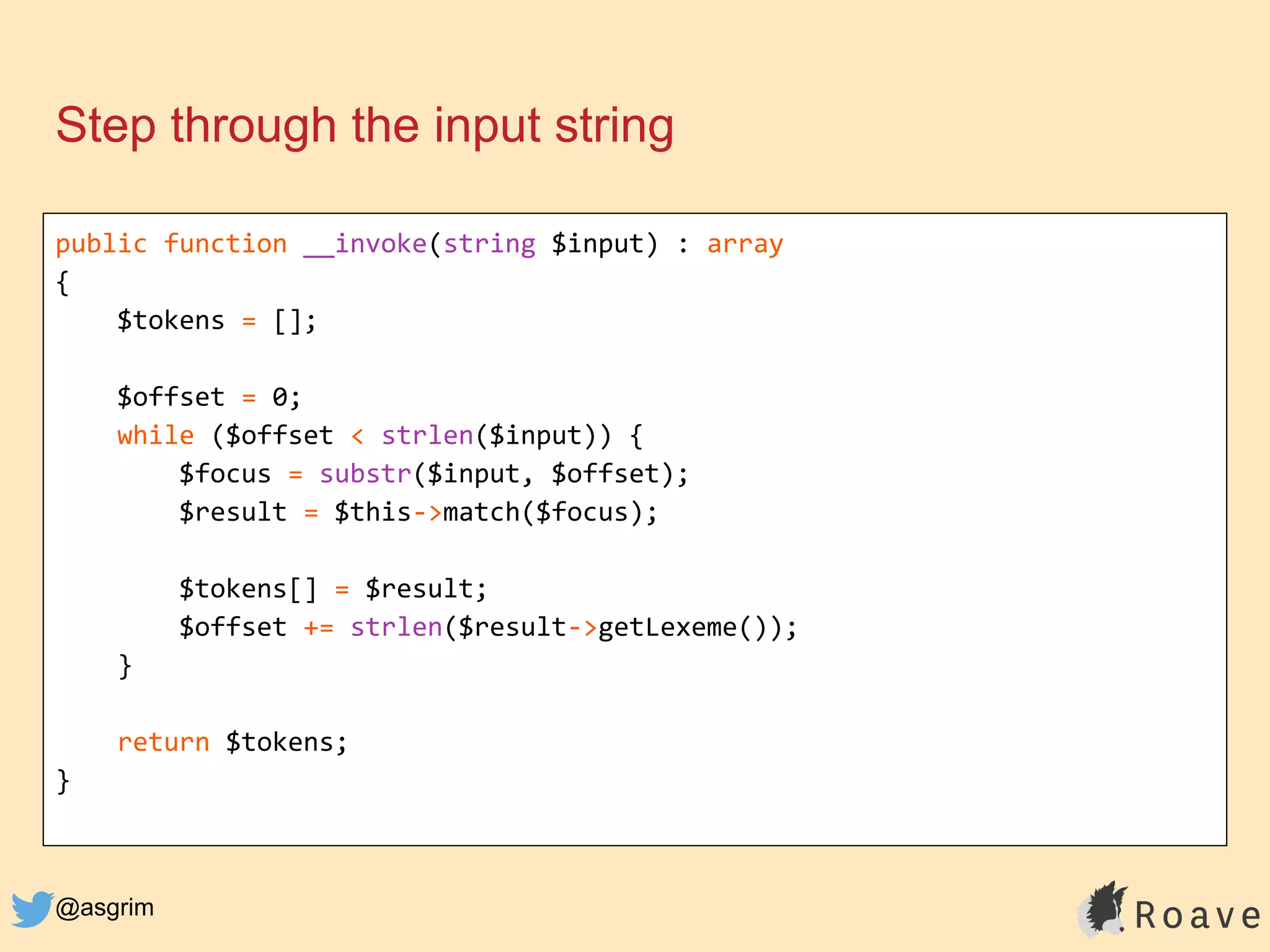

@asgrim Step through the input string public function __invoke(string $input) : array { $tokens = []; $offset = 0; while ($offset < strlen($input)) { $focus = substr($input, $offset); $result = $this->match($focus); $tokens[] = $result; $offset += strlen($result->getLexeme()); } return $tokens; }

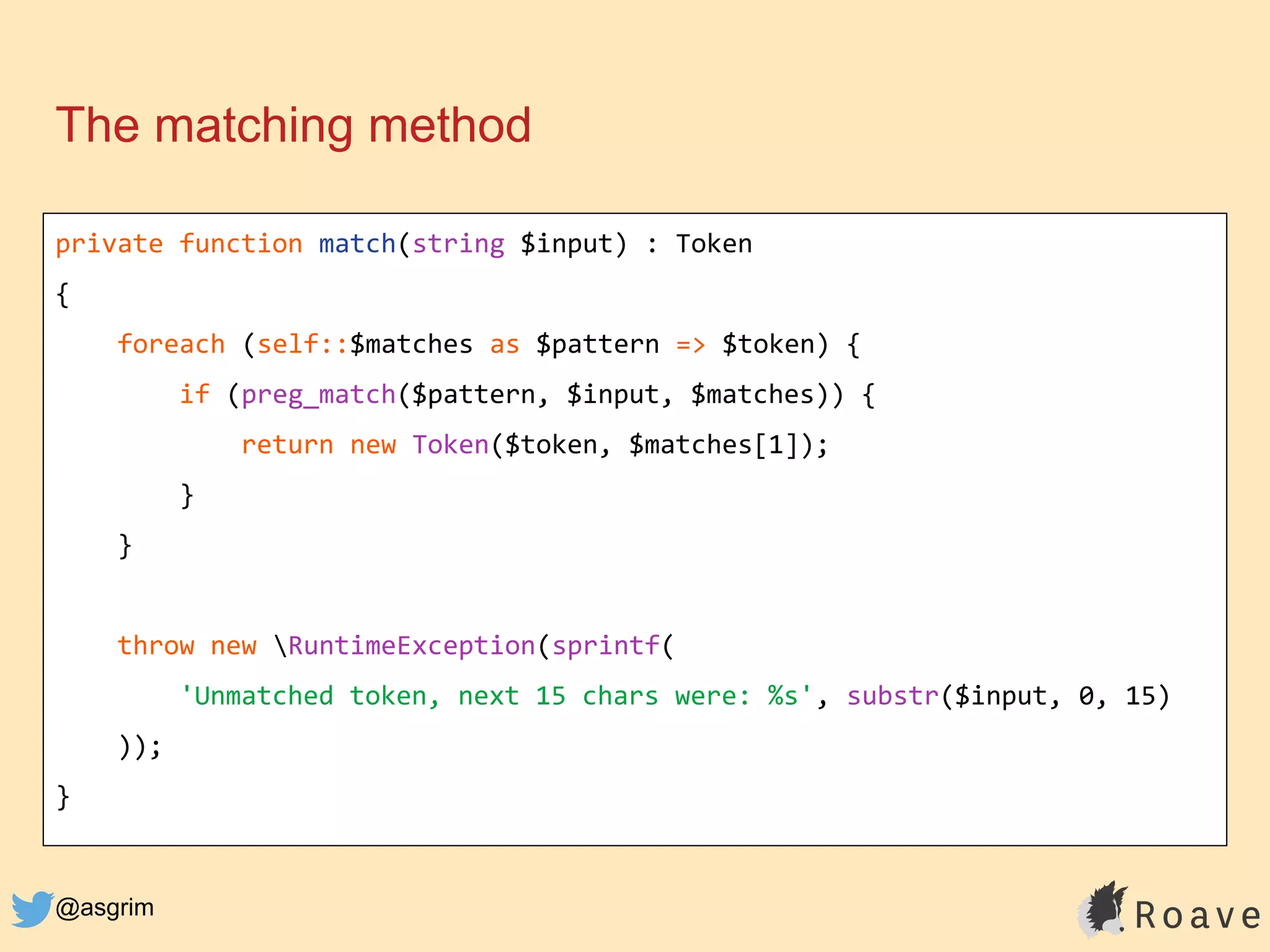

@asgrim The matching method private function match(string $input) : Token { foreach (self::$matches as $pattern => $token) { if (preg_match($pattern, $input, $matches)) { return new Token($token, $matches[1]); } } throw new RuntimeException(sprintf( 'Unmatched token, next 15 chars were: %s', substr($input, 0, 15) )); }
@asgrim Step 2: Parsing the tokens

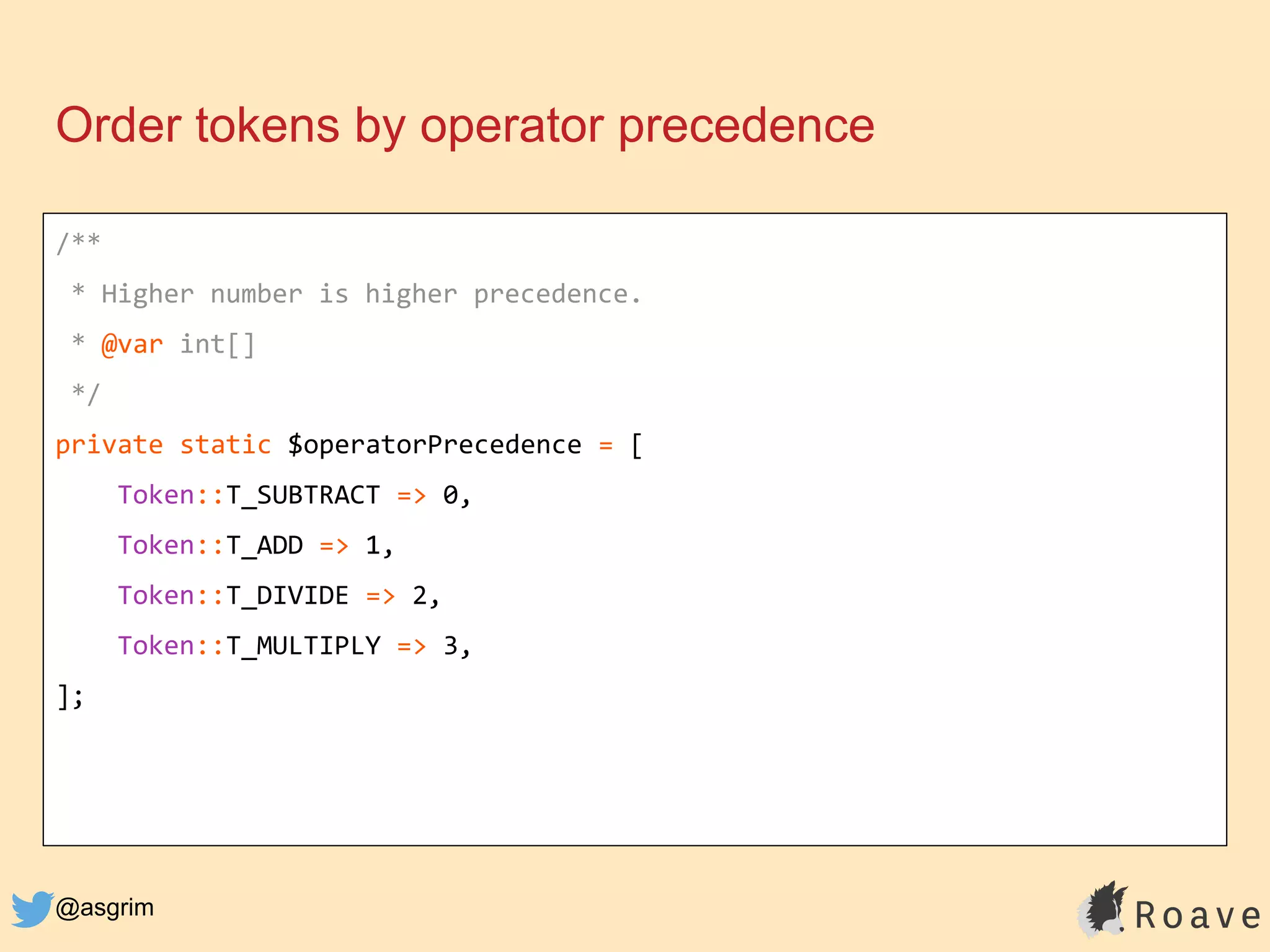

@asgrim Order tokens by operator precedence /** * Higher number is higher precedence. * @var int[] */ private static $operatorPrecedence = [ Token::T_SUBTRACT => 0, Token::T_ADD => 1, Token::T_DIVIDE => 2, Token::T_MULTIPLY => 3, ];

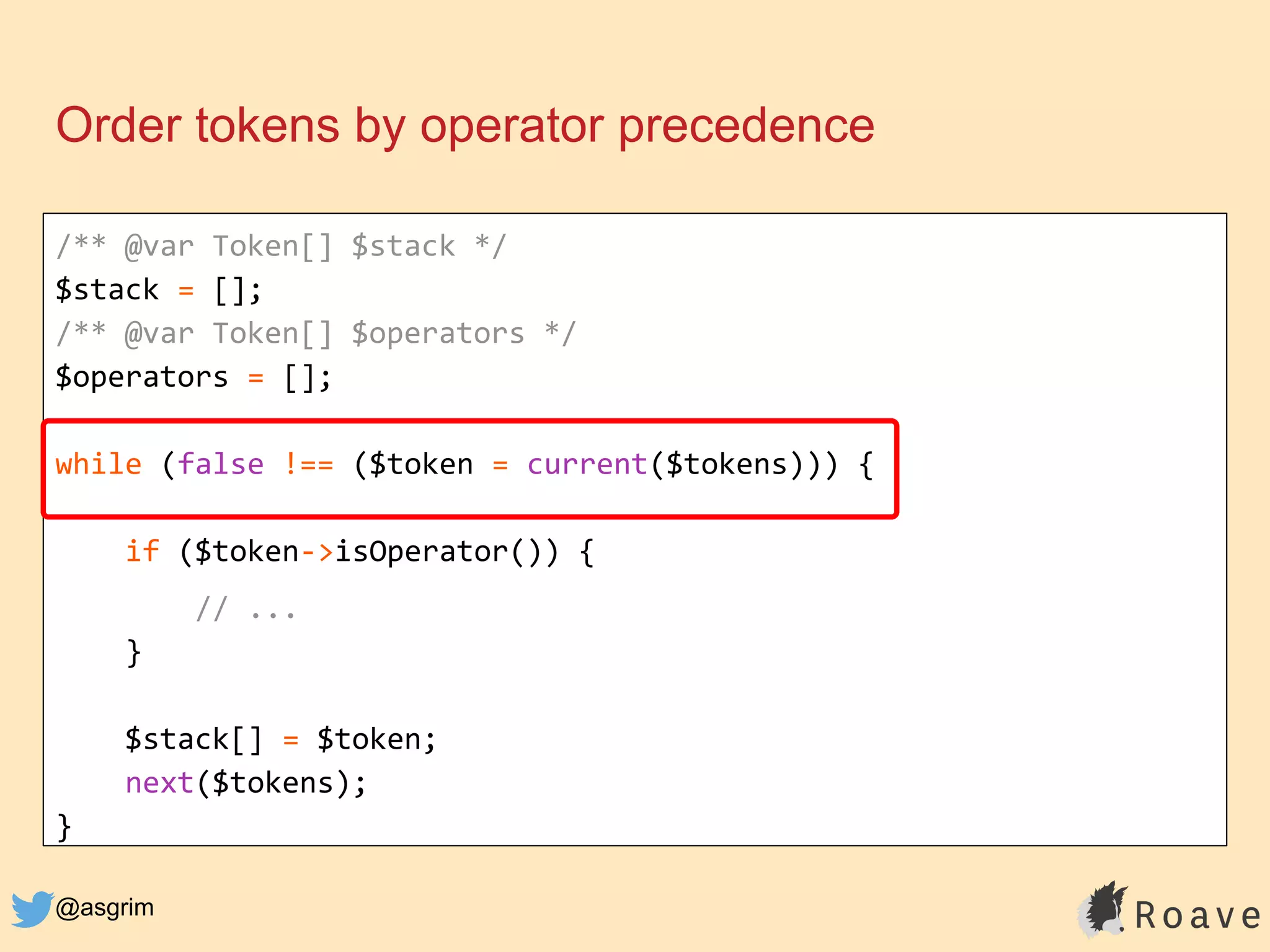

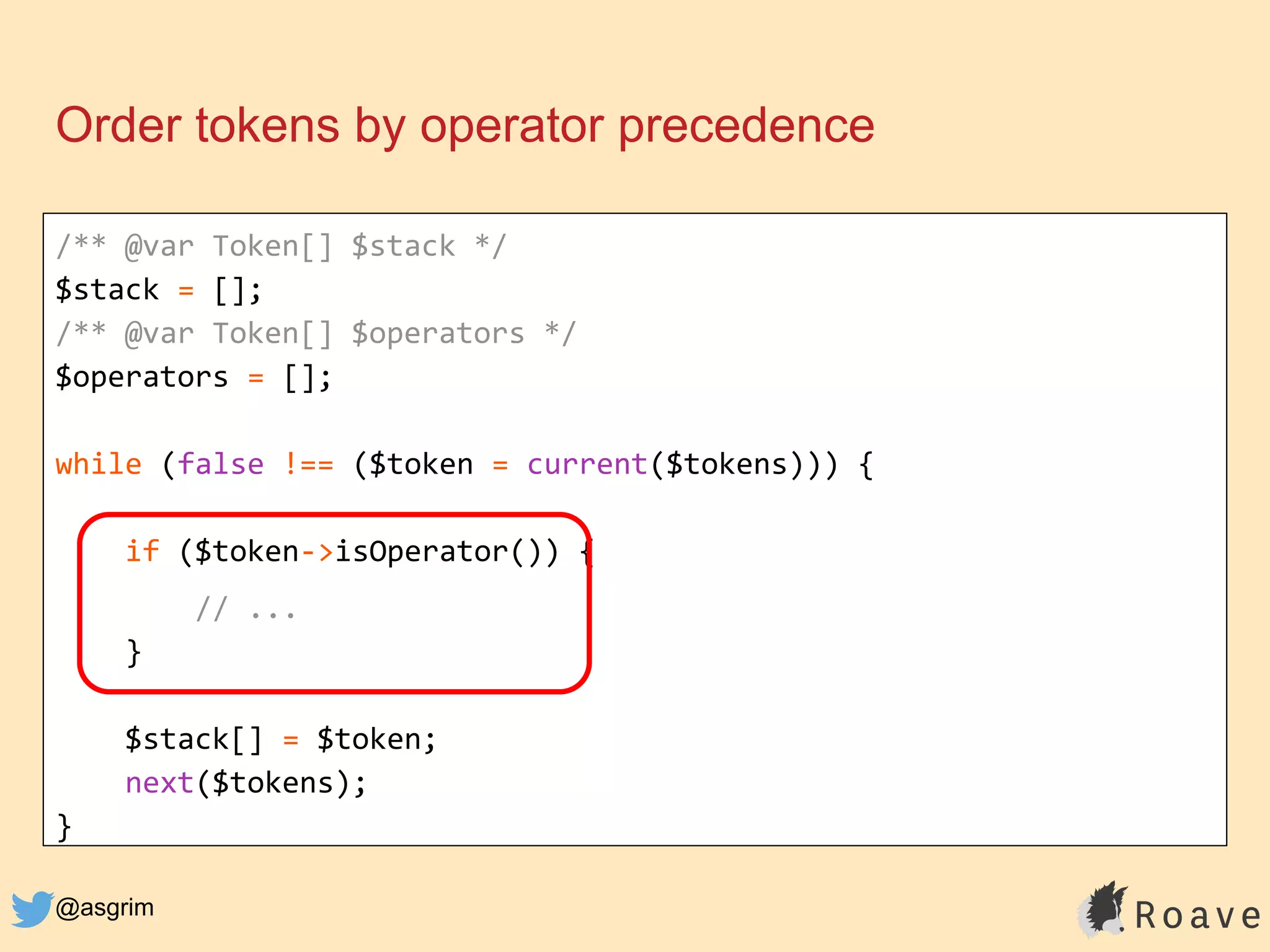

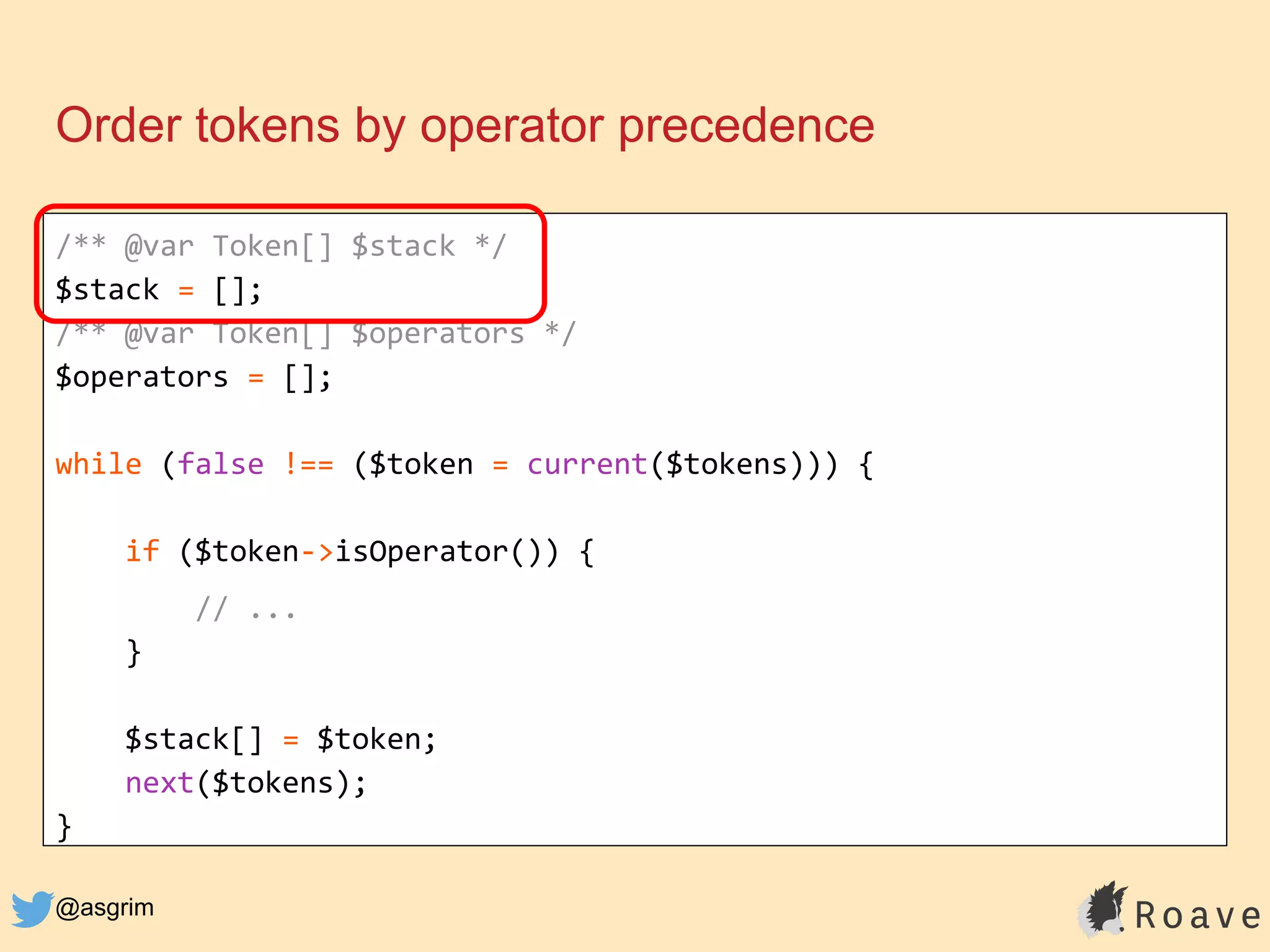

@asgrim Order tokens by operator precedence /** @var Token[] $stack */ $stack = []; /** @var Token[] $operators */ $operators = []; while (false !== ($token = current($tokens))) { if ($token->isOperator()) { // ... } $stack[] = $token; next($tokens); }

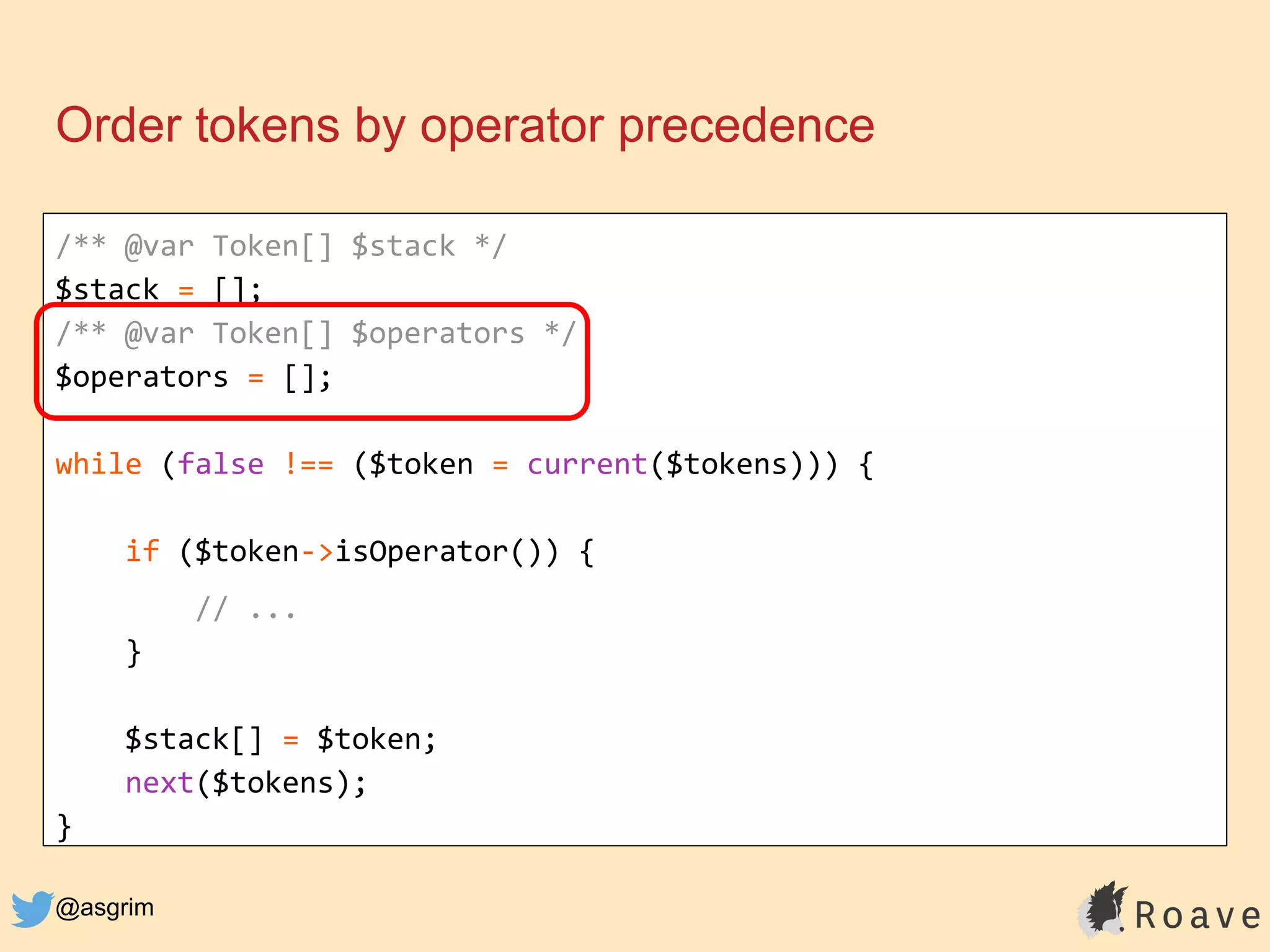

@asgrim Order tokens by operator precedence /** @var Token[] $stack */ $stack = []; /** @var Token[] $operators */ $operators = []; while (false !== ($token = current($tokens))) { if ($token->isOperator()) { // ... } $stack[] = $token; next($tokens); }
@asgrim Order tokens by operator precedence /** @var Token[] $stack */ $stack = []; /** @var Token[] $operators */ $operators = []; while (false !== ($token = current($tokens))) { if ($token->isOperator()) { // ... } $stack[] = $token; next($tokens); }
@asgrim Order tokens by operator precedence /** @var Token[] $stack */ $stack = []; /** @var Token[] $operators */ $operators = []; while (false !== ($token = current($tokens))) { if ($token->isOperator()) { // ... } $stack[] = $token; next($tokens); }

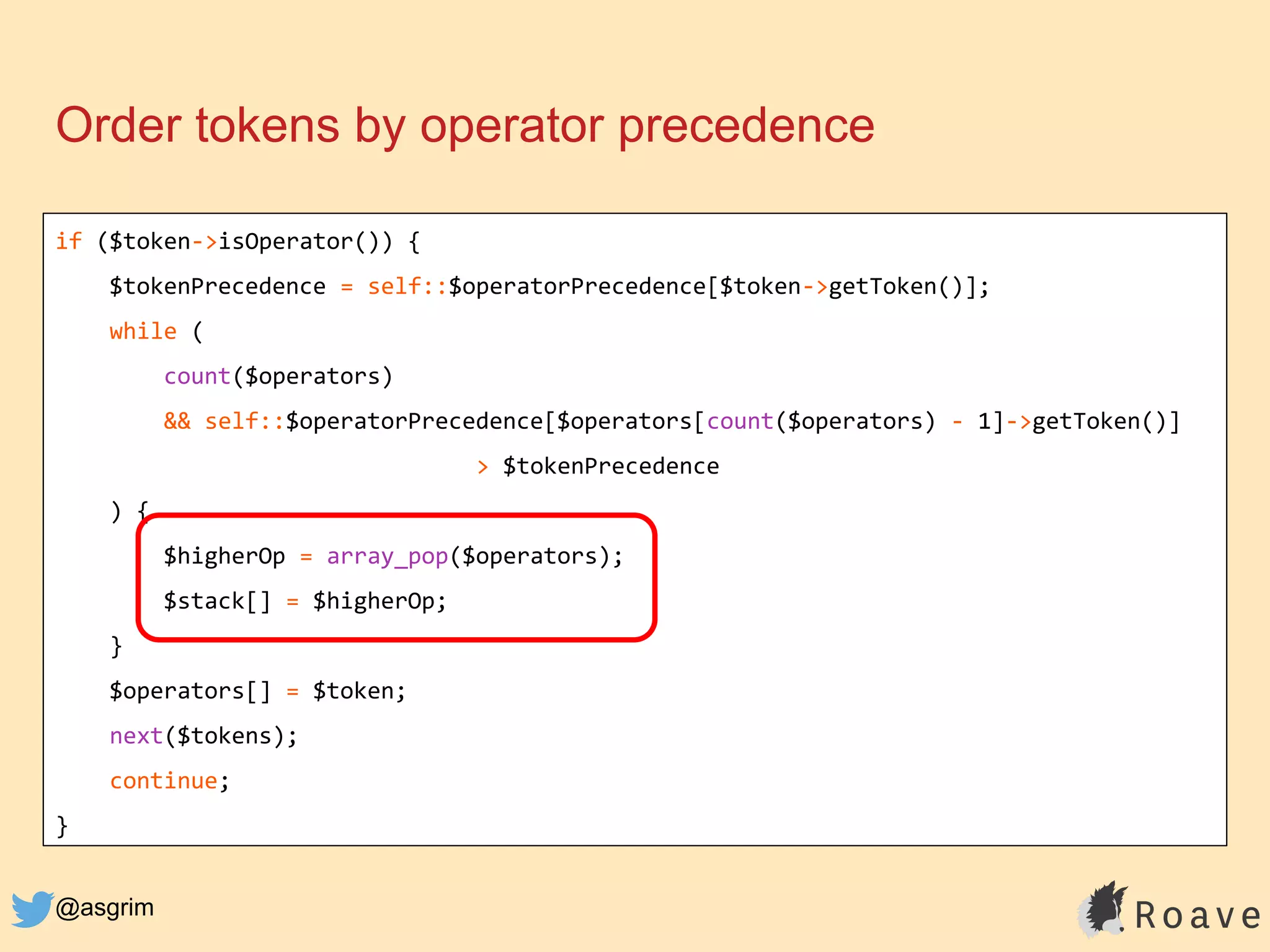

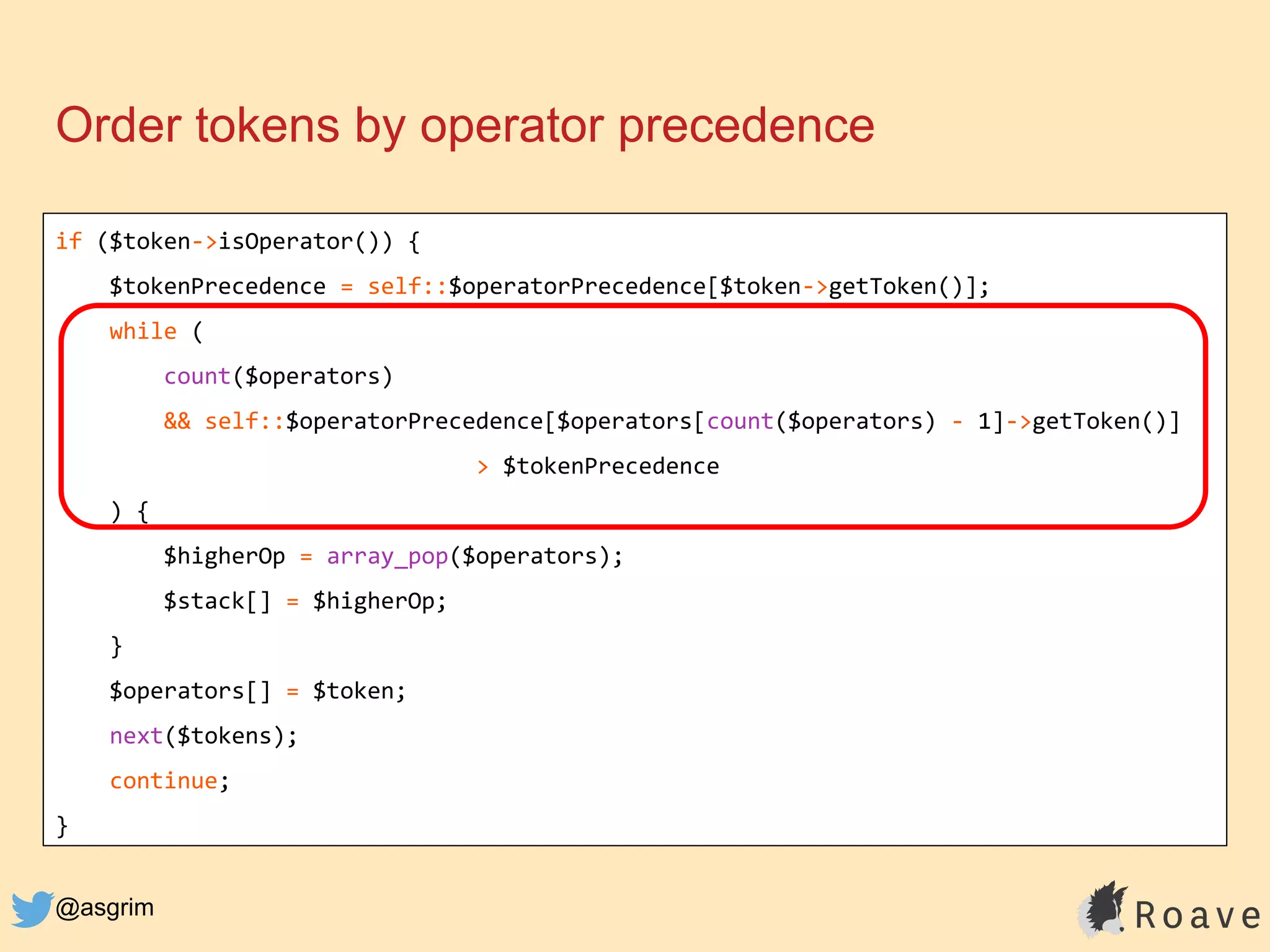

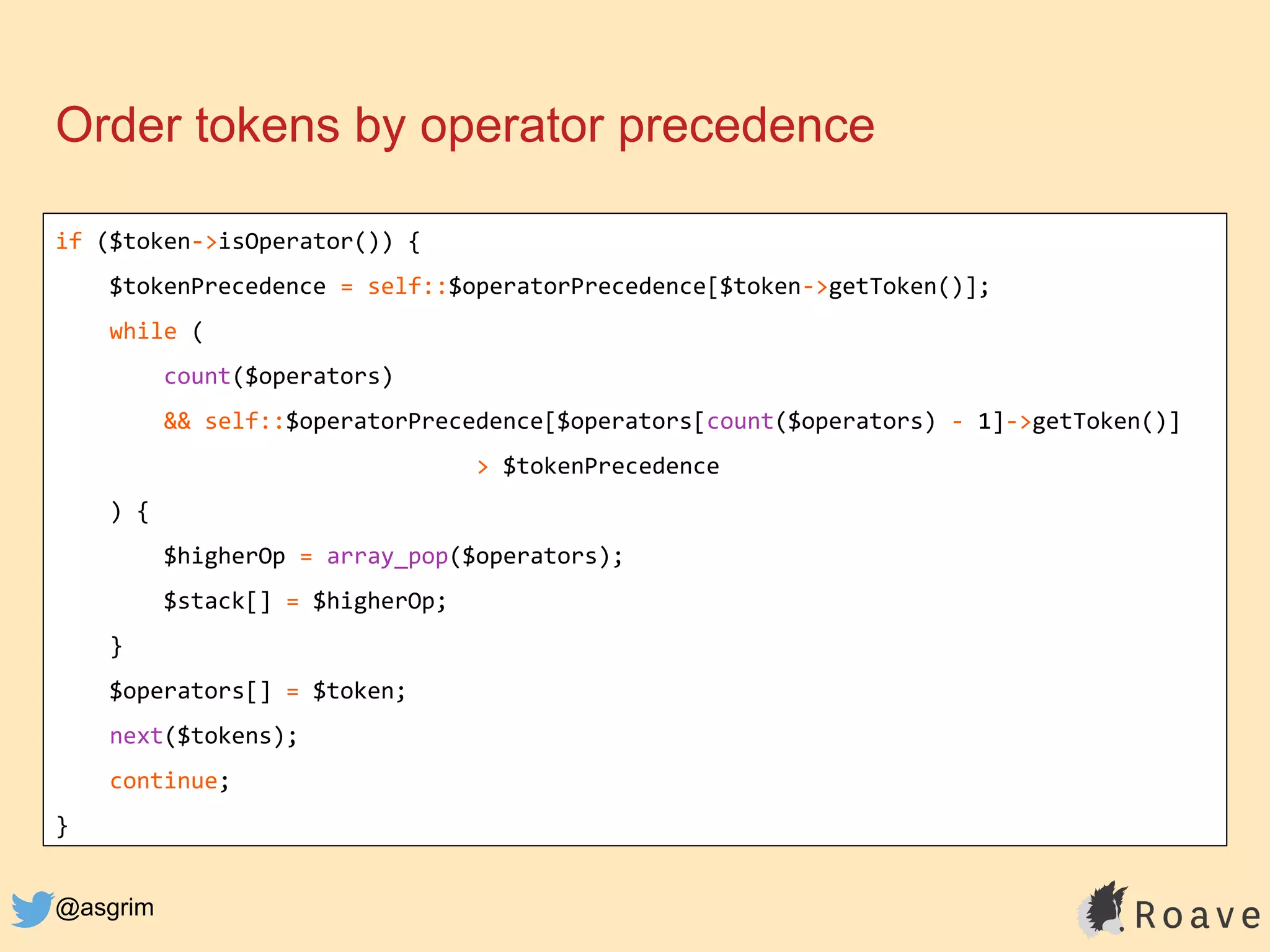

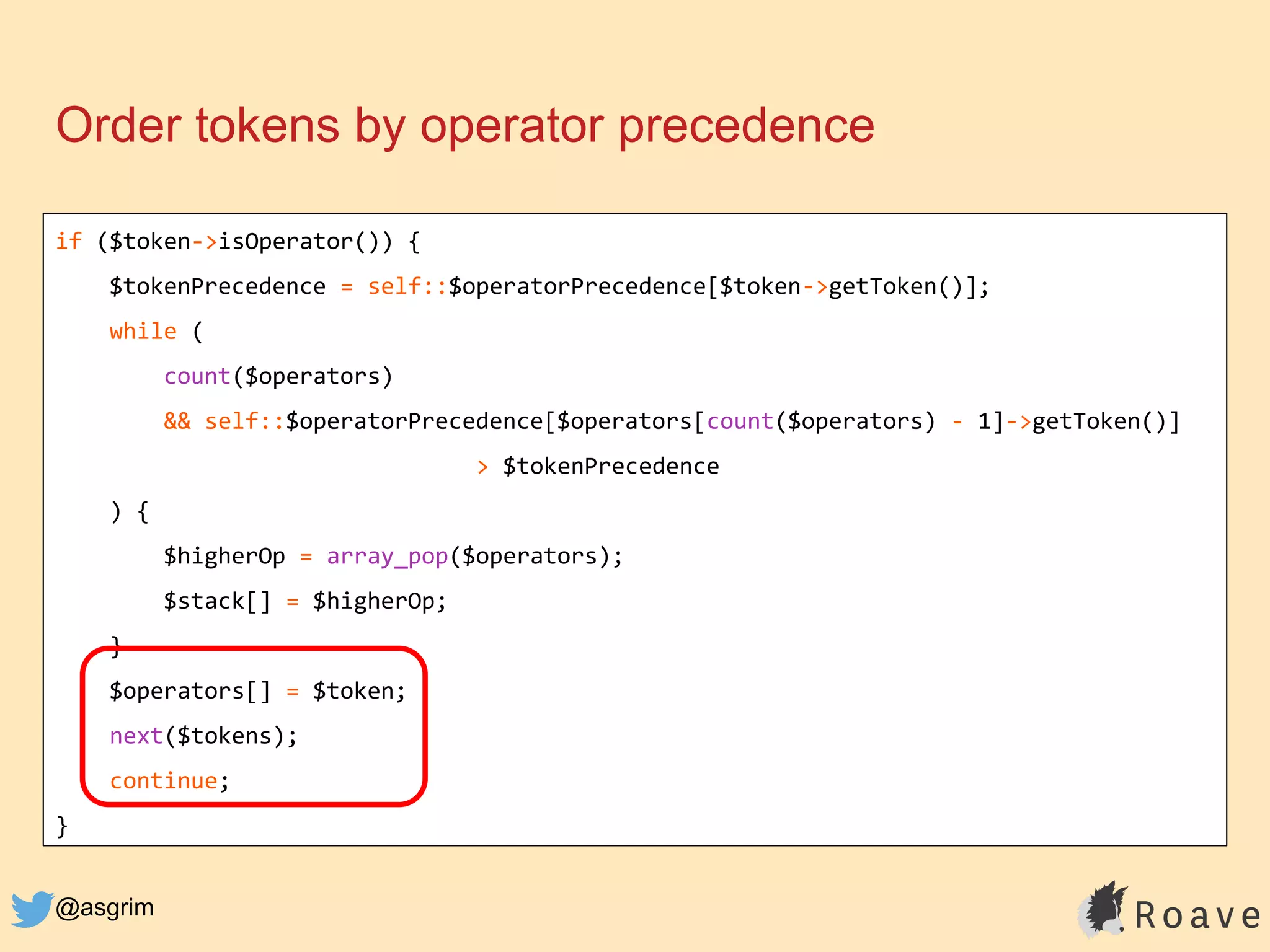

@asgrim Order tokens by operator precedence if ($token->isOperator()) { $tokenPrecedence = self::$operatorPrecedence[$token->getToken()]; while ( count($operators) && self::$operatorPrecedence[$operators[count($operators) - 1]->getToken()] > $tokenPrecedence ) { $higherOp = array_pop($operators); $stack[] = $higherOp; } $operators[] = $token; next($tokens); continue; }
@asgrim Order tokens by operator precedence if ($token->isOperator()) { $tokenPrecedence = self::$operatorPrecedence[$token->getToken()]; while ( count($operators) && self::$operatorPrecedence[$operators[count($operators) - 1]->getToken()] > $tokenPrecedence ) { $higherOp = array_pop($operators); $stack[] = $higherOp; } $operators[] = $token; next($tokens); continue; }
@asgrim Order tokens by operator precedence if ($token->isOperator()) { $tokenPrecedence = self::$operatorPrecedence[$token->getToken()]; while ( count($operators) && self::$operatorPrecedence[$operators[count($operators) - 1]->getToken()] > $tokenPrecedence ) { $higherOp = array_pop($operators); $stack[] = $higherOp; } $operators[] = $token; next($tokens); continue; }
@asgrim Order tokens by operator precedence if ($token->isOperator()) { $tokenPrecedence = self::$operatorPrecedence[$token->getToken()]; while ( count($operators) && self::$operatorPrecedence[$operators[count($operators) - 1]->getToken()] > $tokenPrecedence ) { $higherOp = array_pop($operators); $stack[] = $higherOp; } $operators[] = $token; next($tokens); continue; }

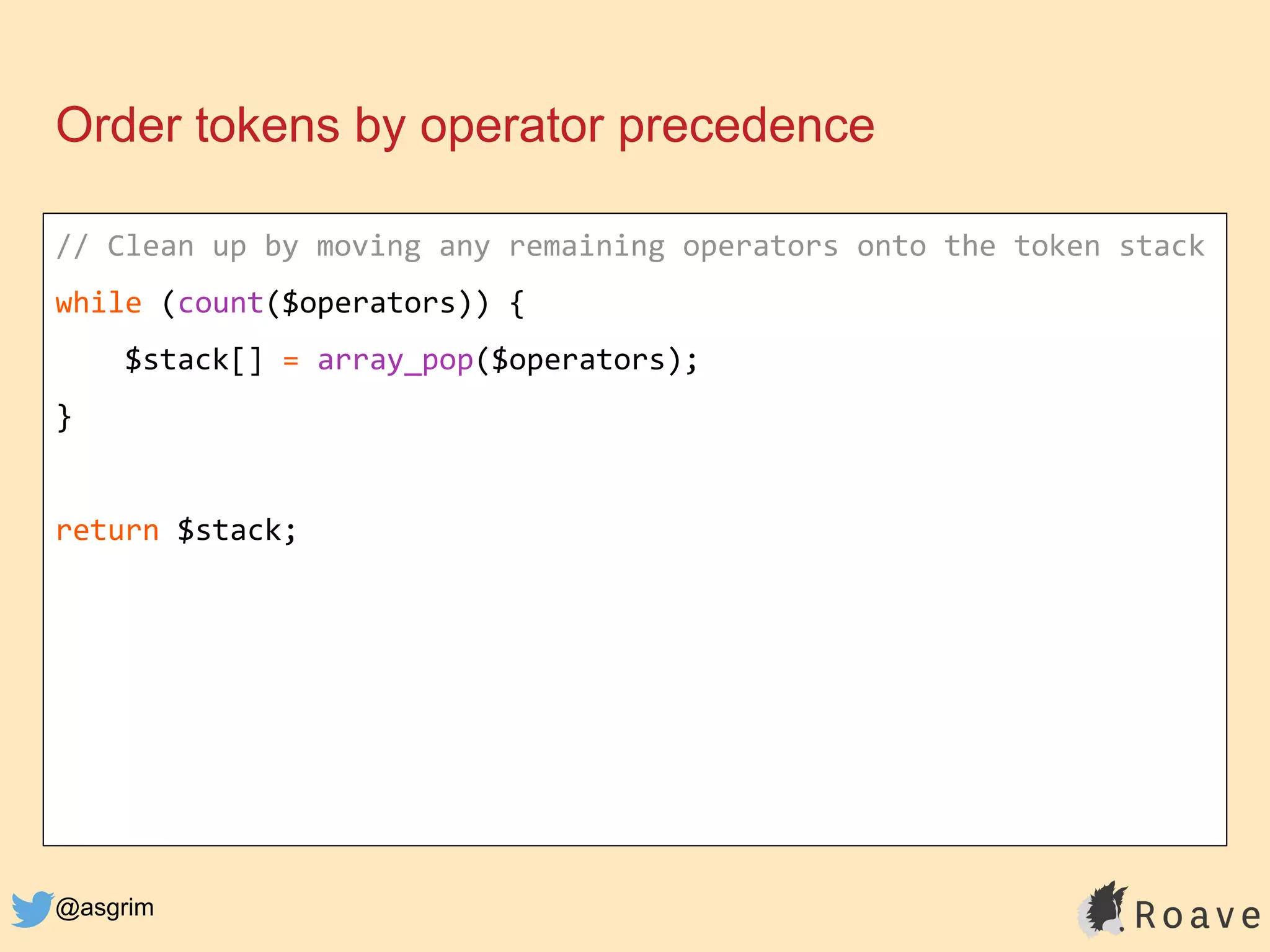

@asgrim Order tokens by operator precedence // Clean up by moving any remaining operators onto the token stack while (count($operators)) { $stack[] = array_pop($operators); } return $stack;

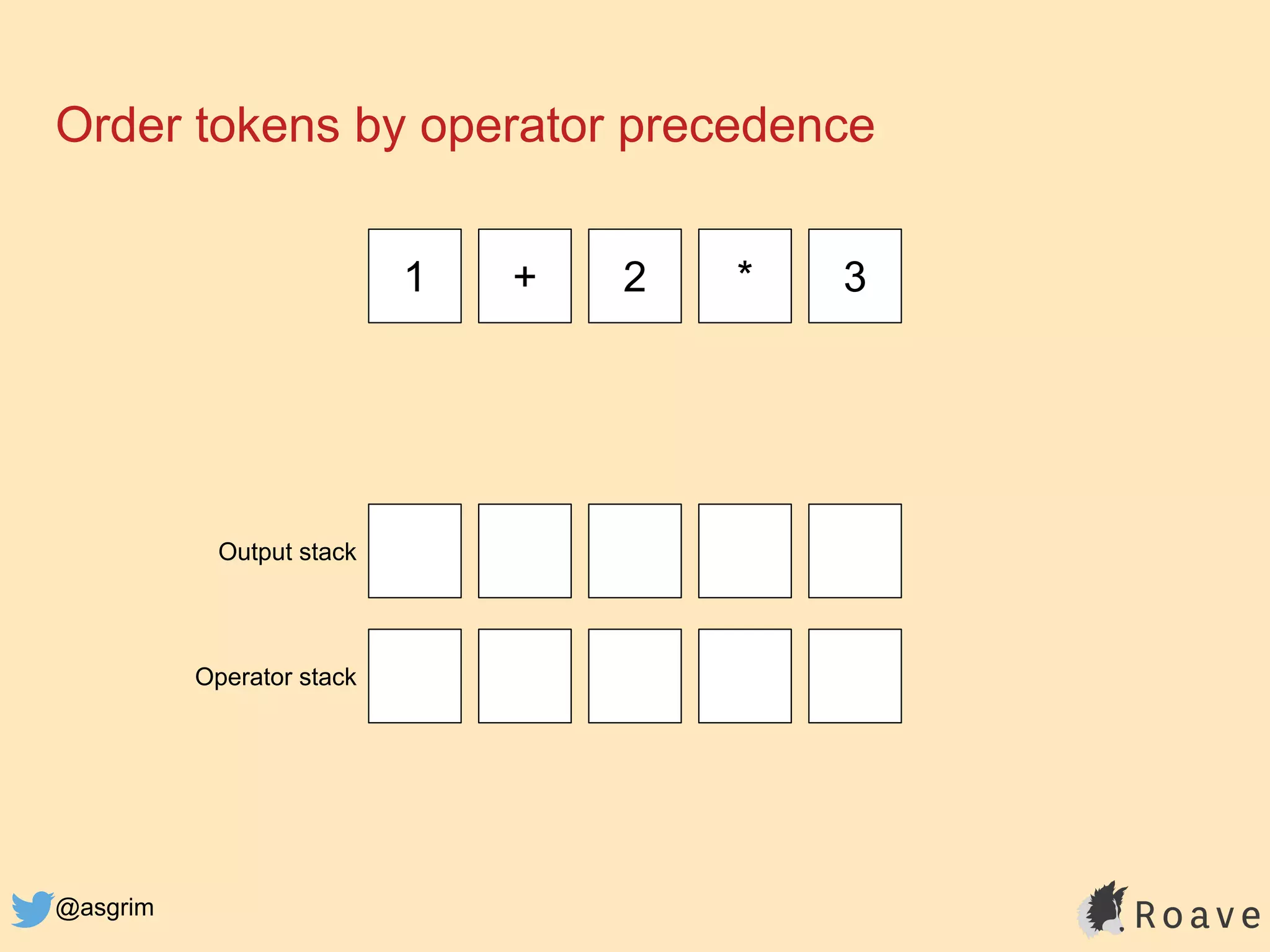

@asgrim Order tokens by operator precedence 1 + 2 * 3 Output stack Operator stack

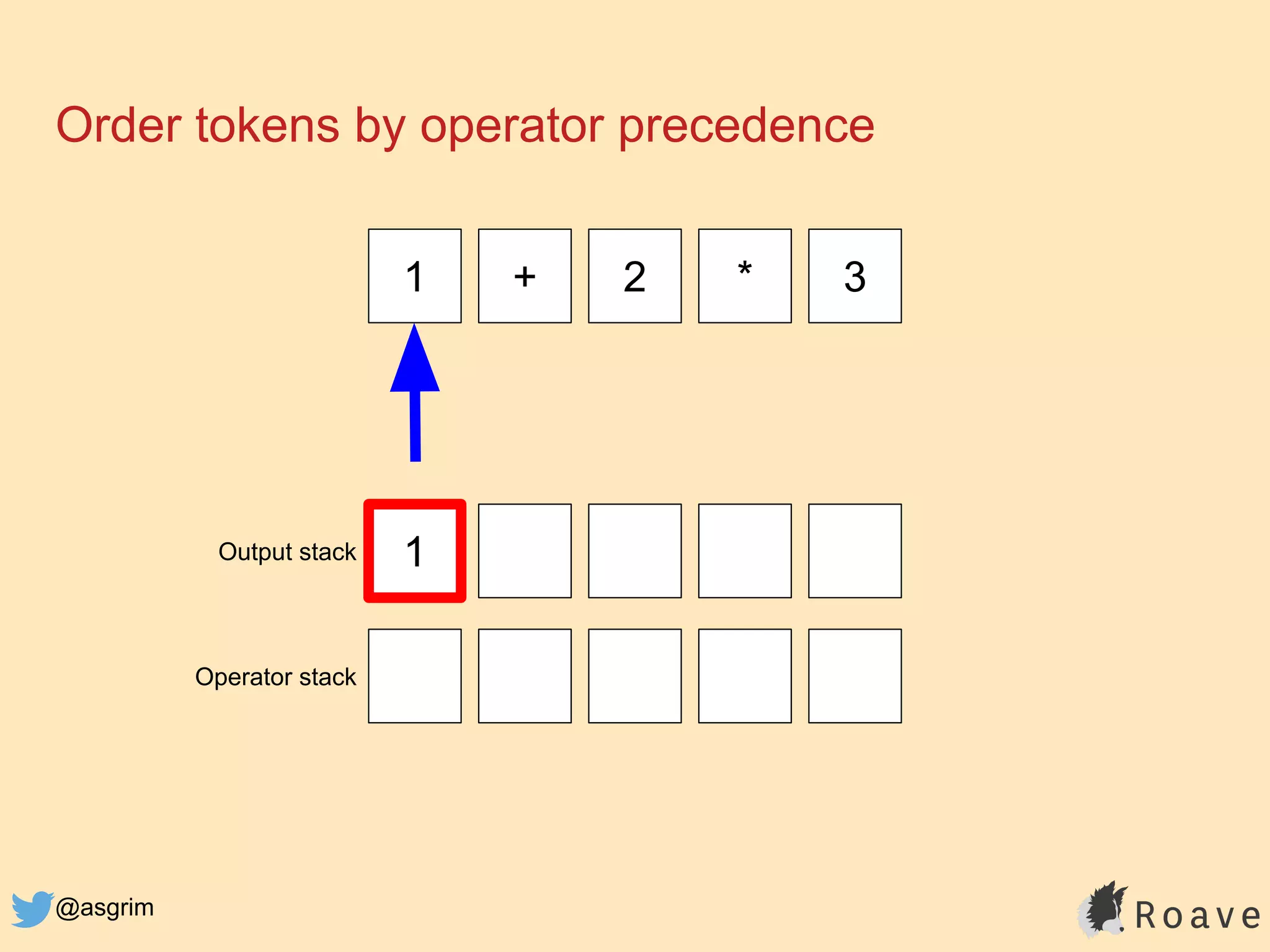

@asgrim Order tokens by operator precedence 1 + 2 * 3 1Output stack Operator stack

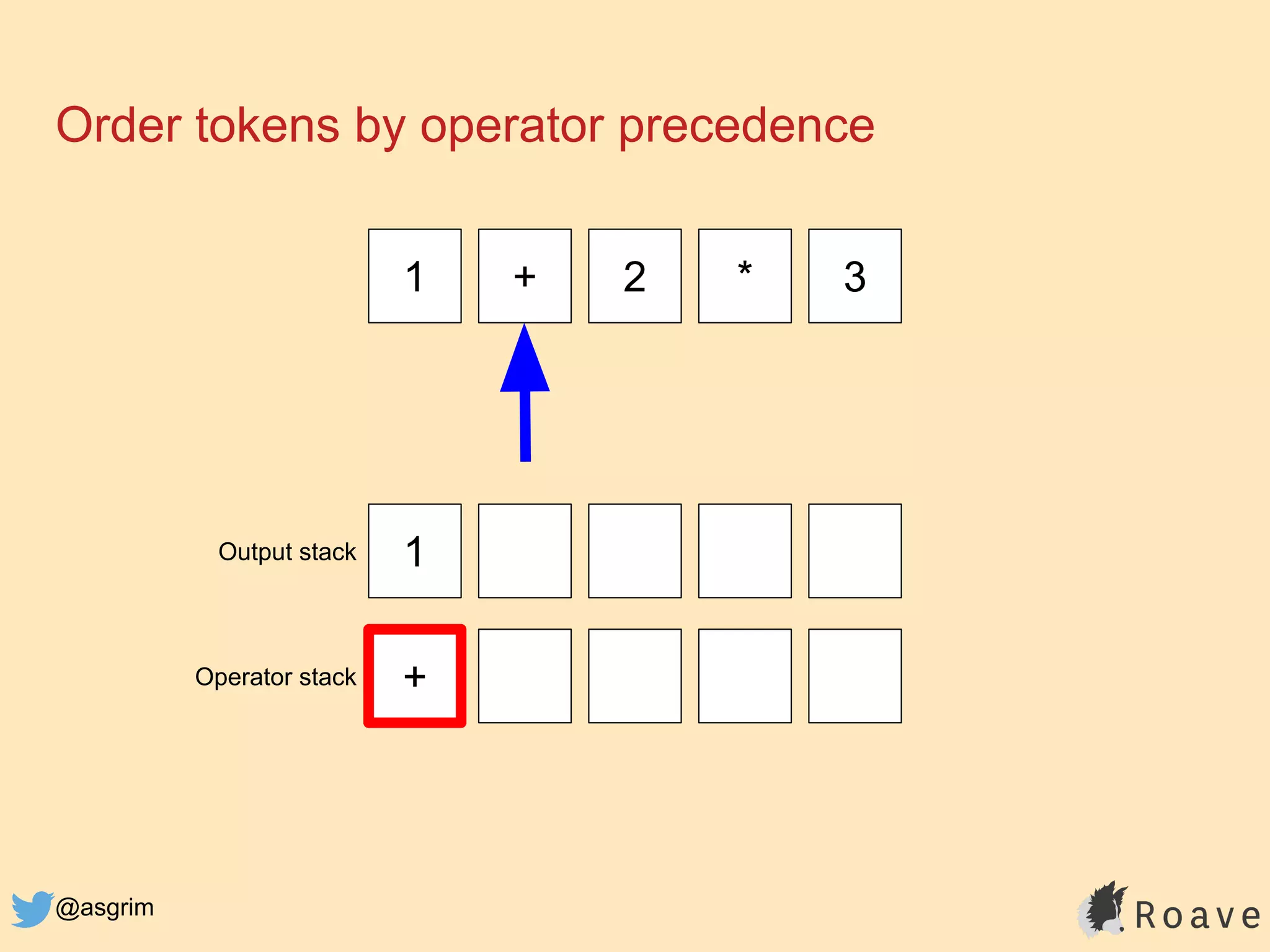

@asgrim Order tokens by operator precedence 1 + 2 * 3 1 + Output stack Operator stack

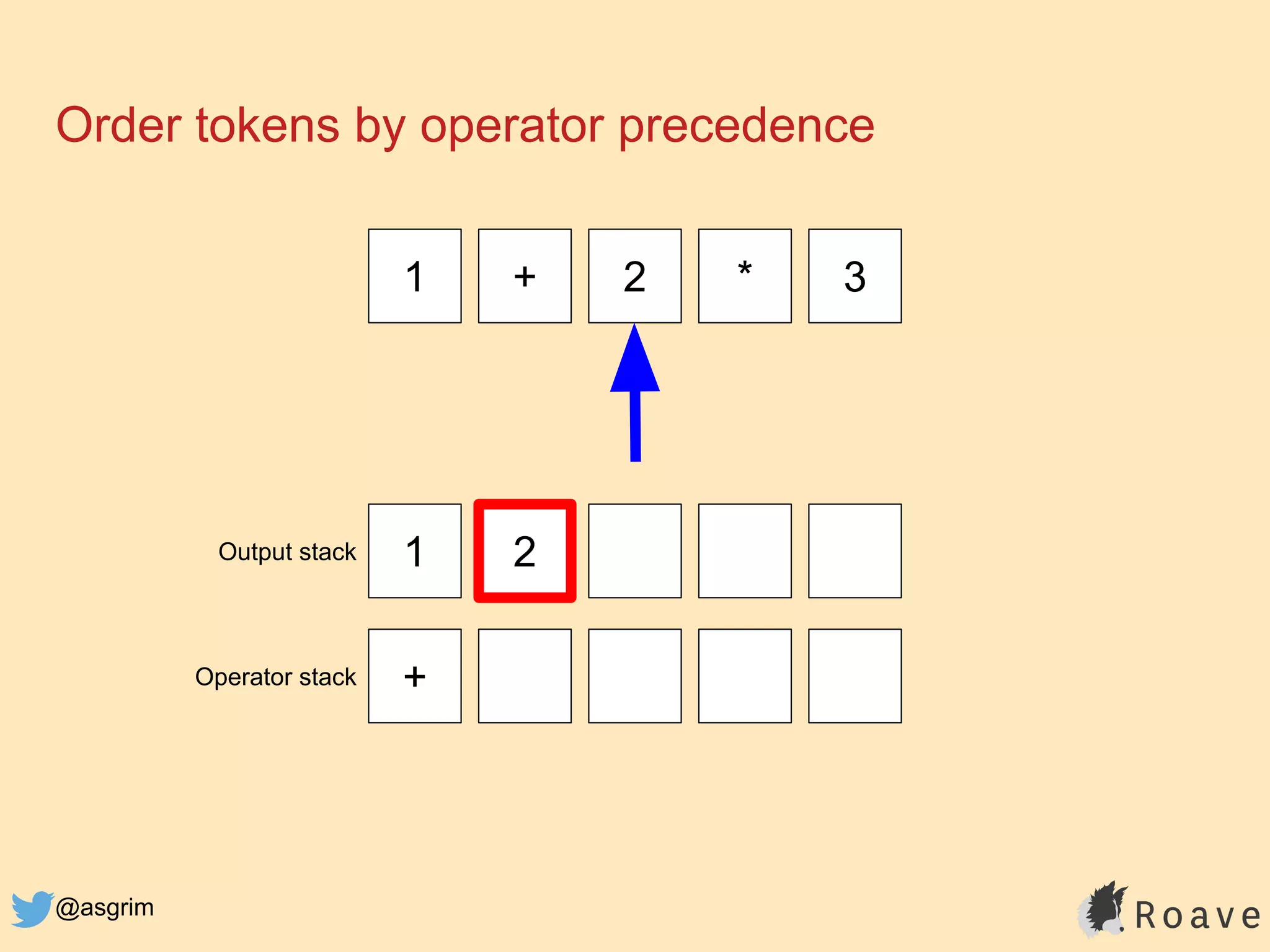

@asgrim Order tokens by operator precedence 1 + 2 * 3 1 2 + Output stack Operator stack

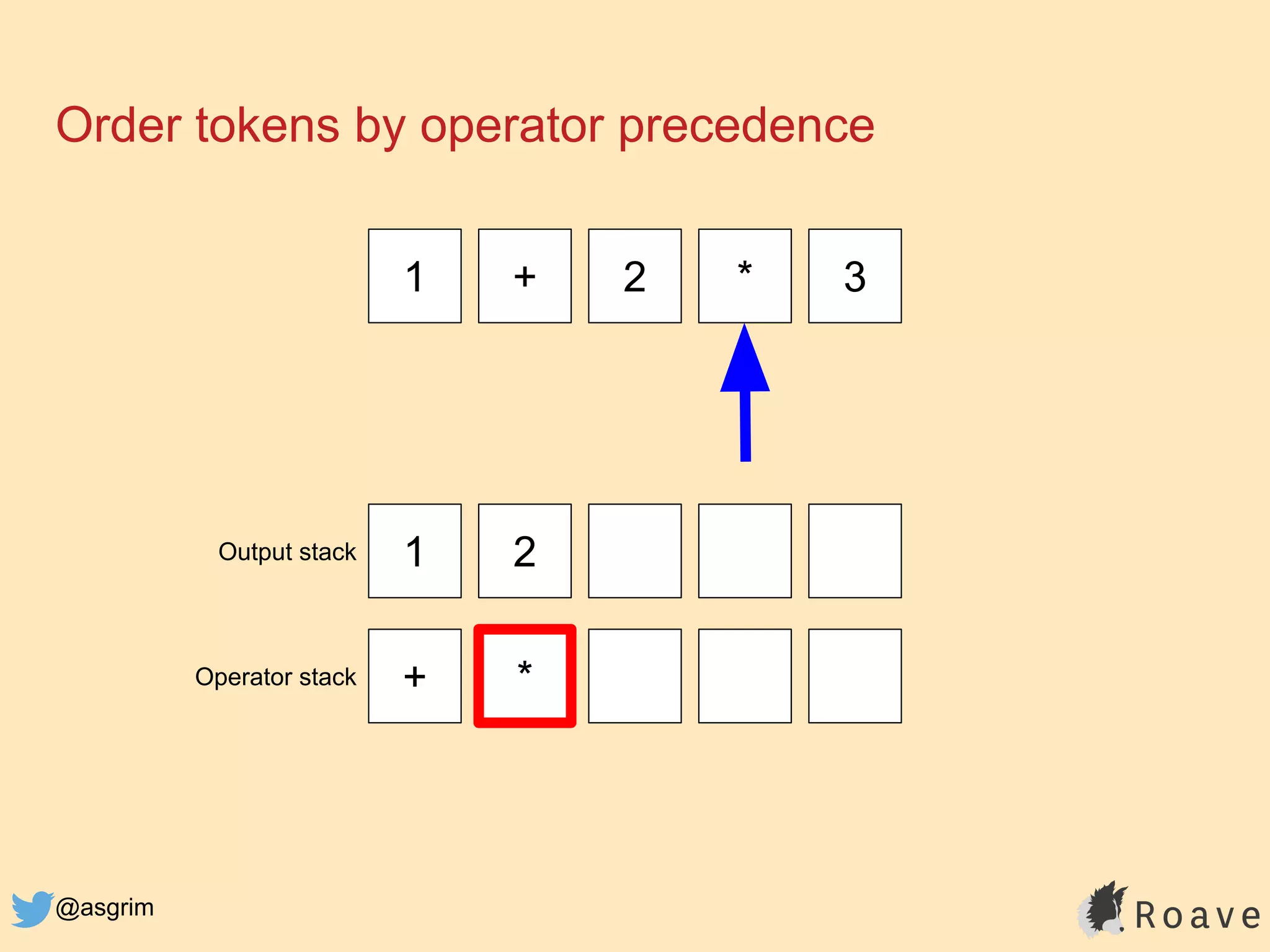

@asgrim Order tokens by operator precedence 1 + 2 * 3 1 2 + * Output stack Operator stack

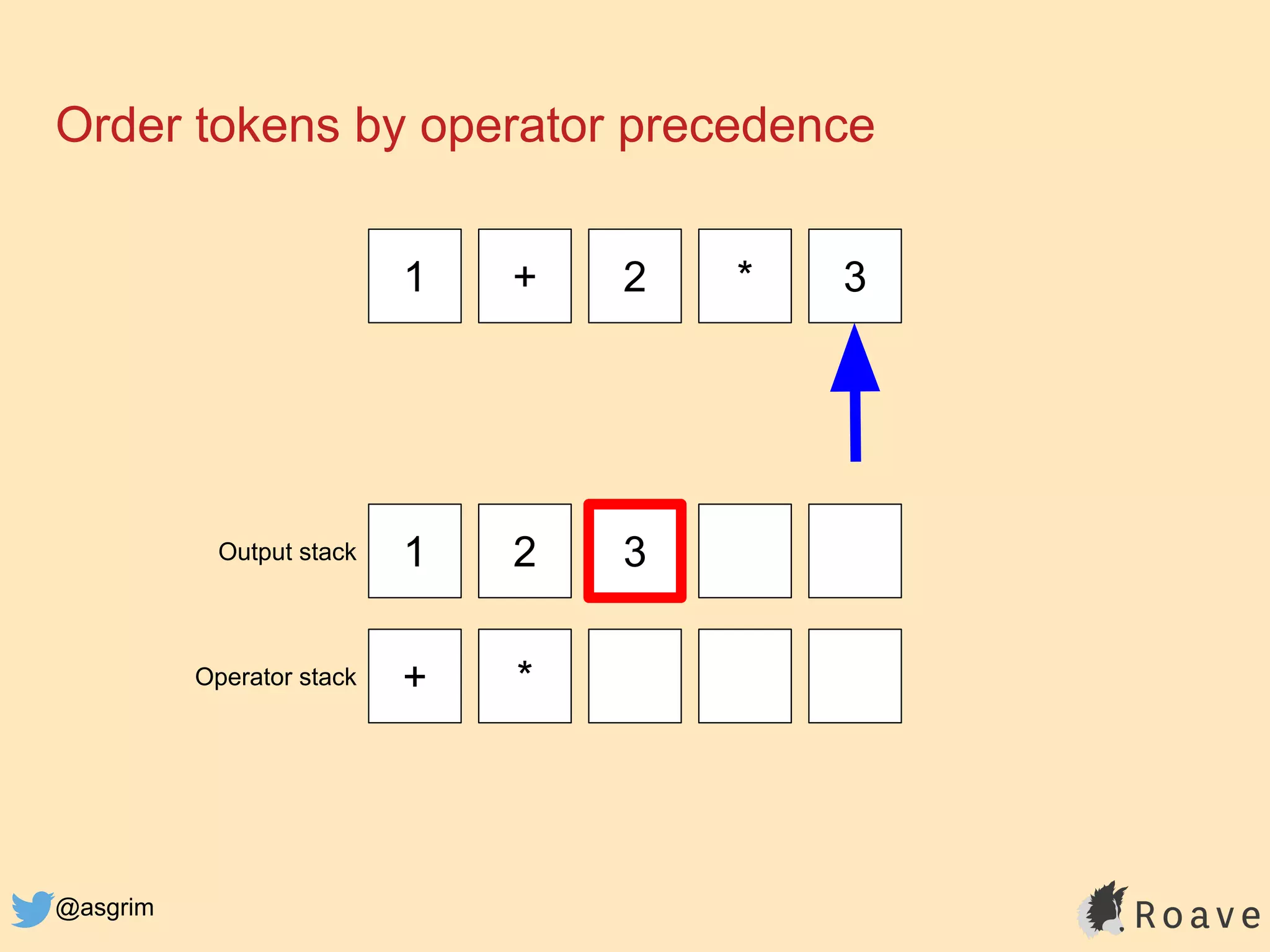

@asgrim Order tokens by operator precedence 1 + 2 * 3 1 2 3 + * Output stack Operator stack

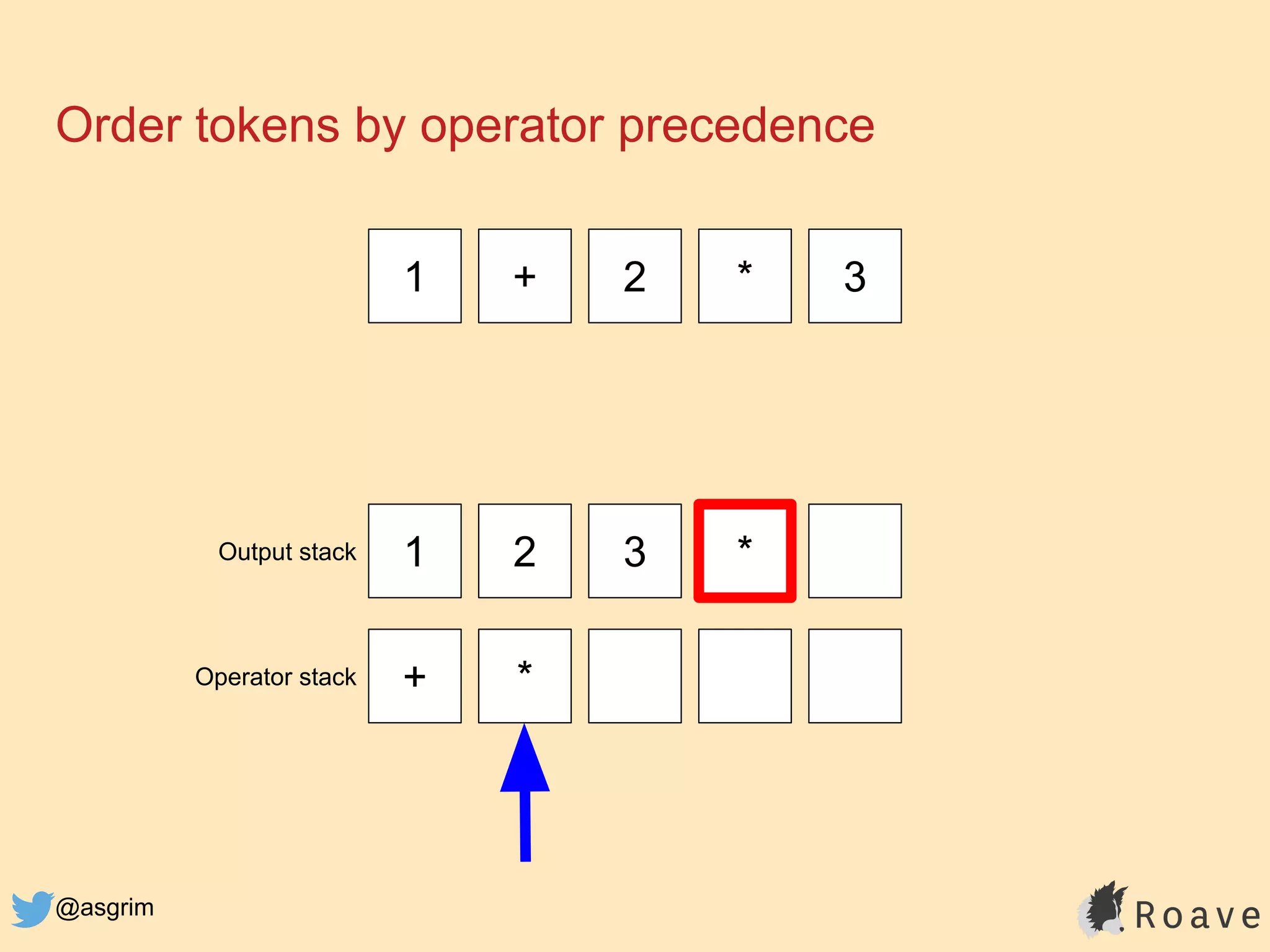

@asgrim Order tokens by operator precedence 1 + 2 * 3 1 2 3 * + * Output stack Operator stack

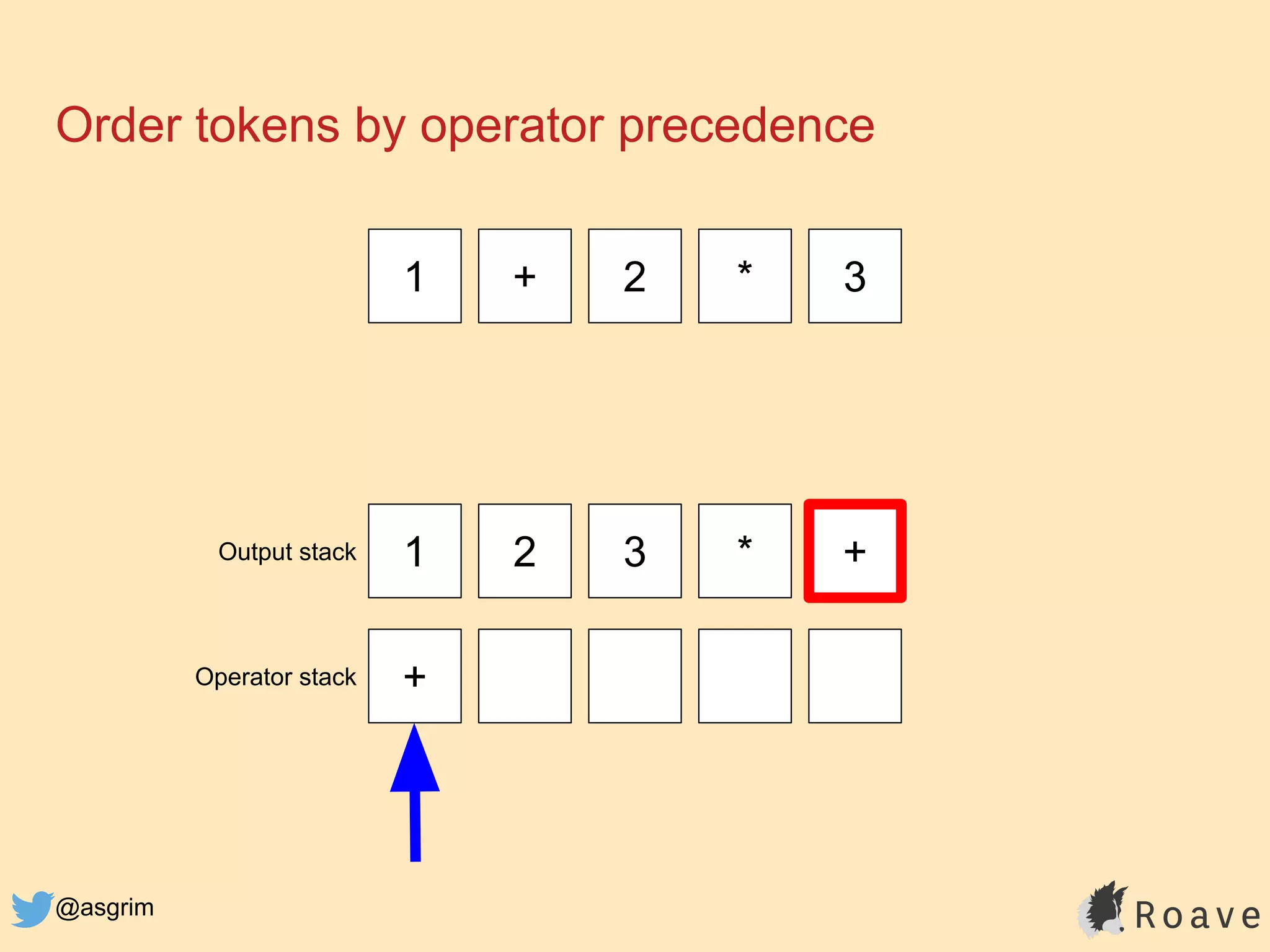

@asgrim Order tokens by operator precedence 1 + 2 * 3 1 2 3 * + + Output stack Operator stack

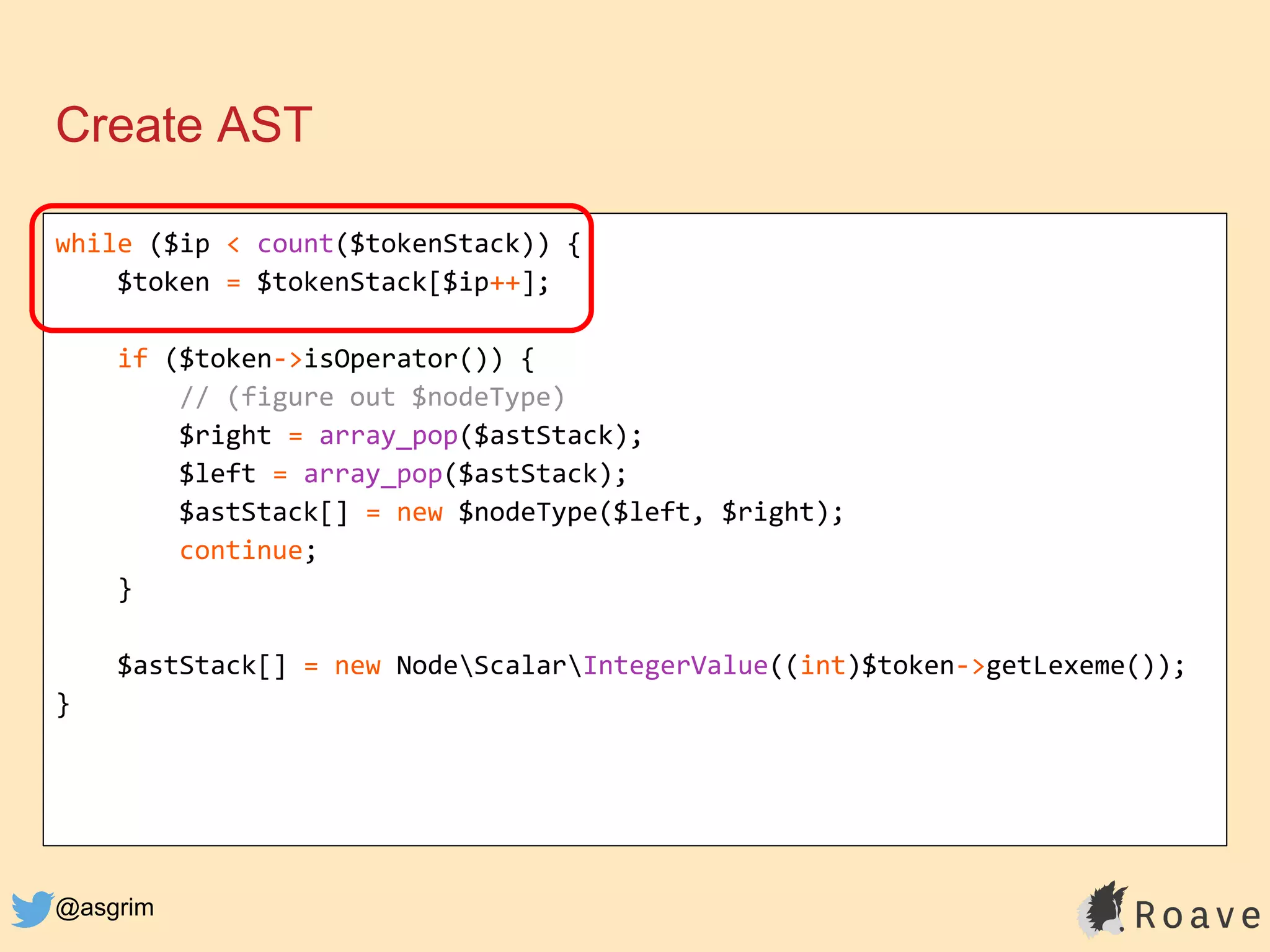

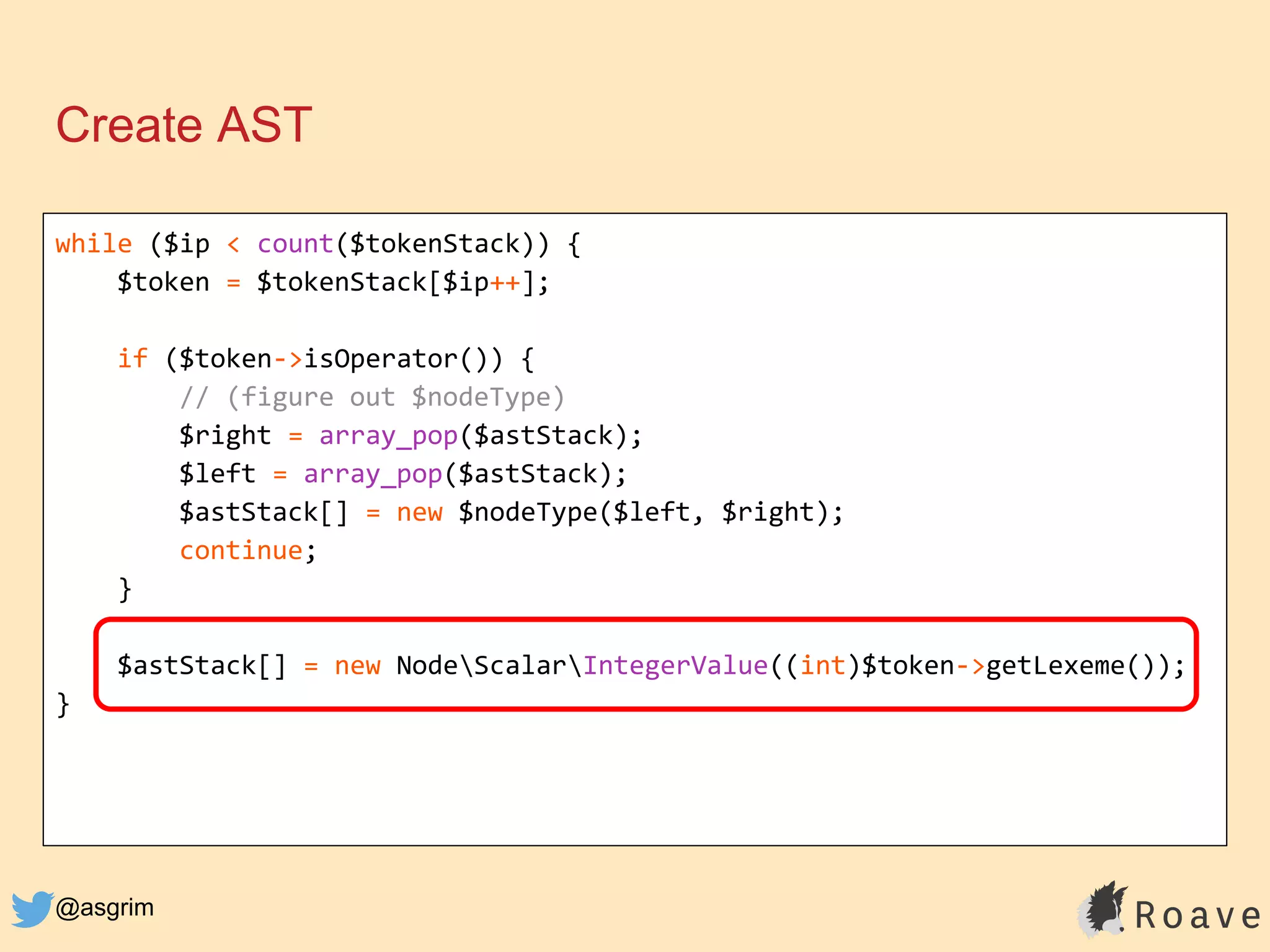

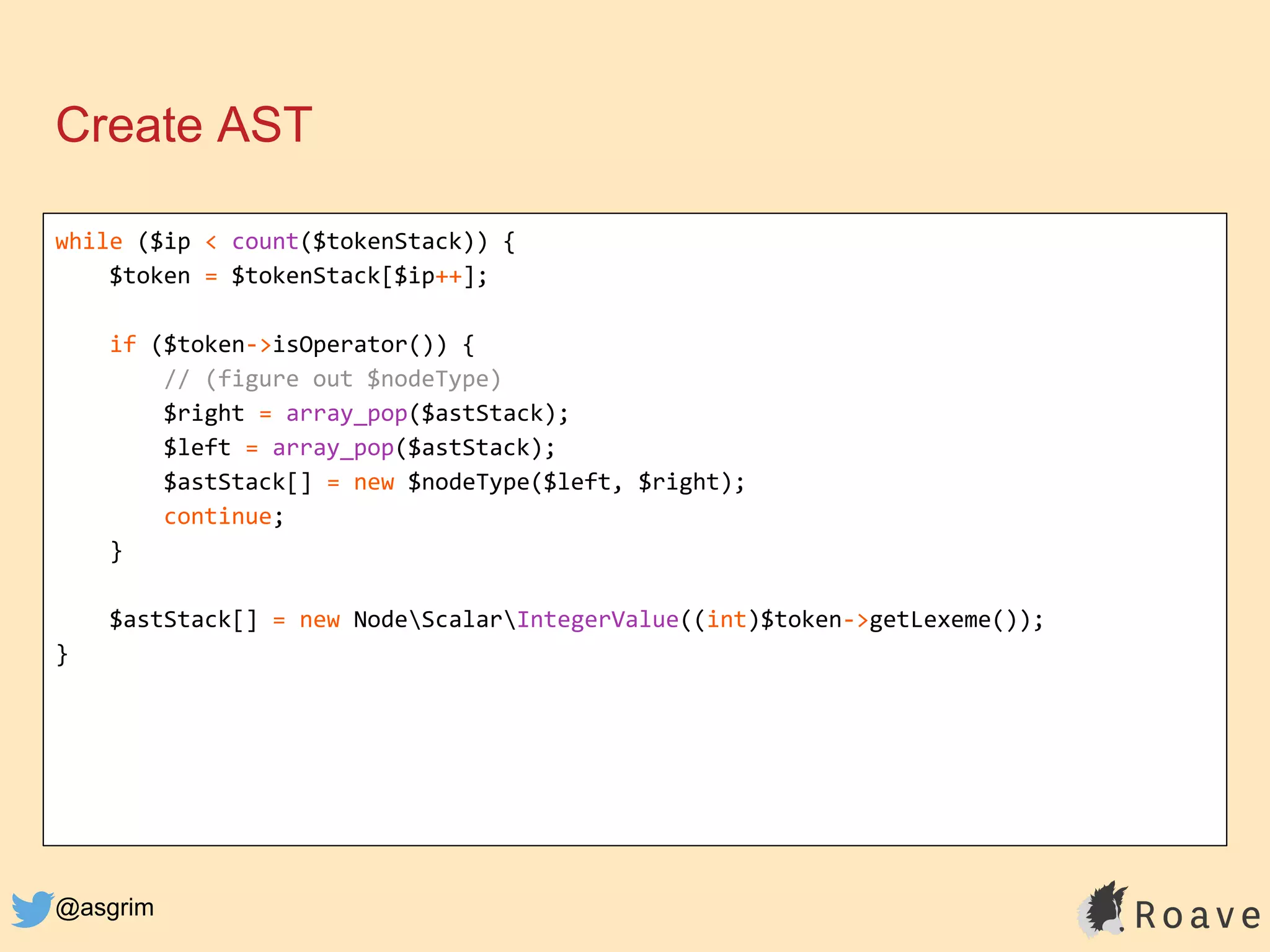

@asgrim Create AST while ($ip < count($tokenStack)) { $token = $tokenStack[$ip++]; if ($token->isOperator()) { // (figure out $nodeType) $right = array_pop($astStack); $left = array_pop($astStack); $astStack[] = new $nodeType($left, $right); continue; } $astStack[] = new NodeScalarIntegerValue((int)$token->getLexeme()); }
@asgrim Create AST while ($ip < count($tokenStack)) { $token = $tokenStack[$ip++]; if ($token->isOperator()) { // (figure out $nodeType) $right = array_pop($astStack); $left = array_pop($astStack); $astStack[] = new $nodeType($left, $right); continue; } $astStack[] = new NodeScalarIntegerValue((int)$token->getLexeme()); }

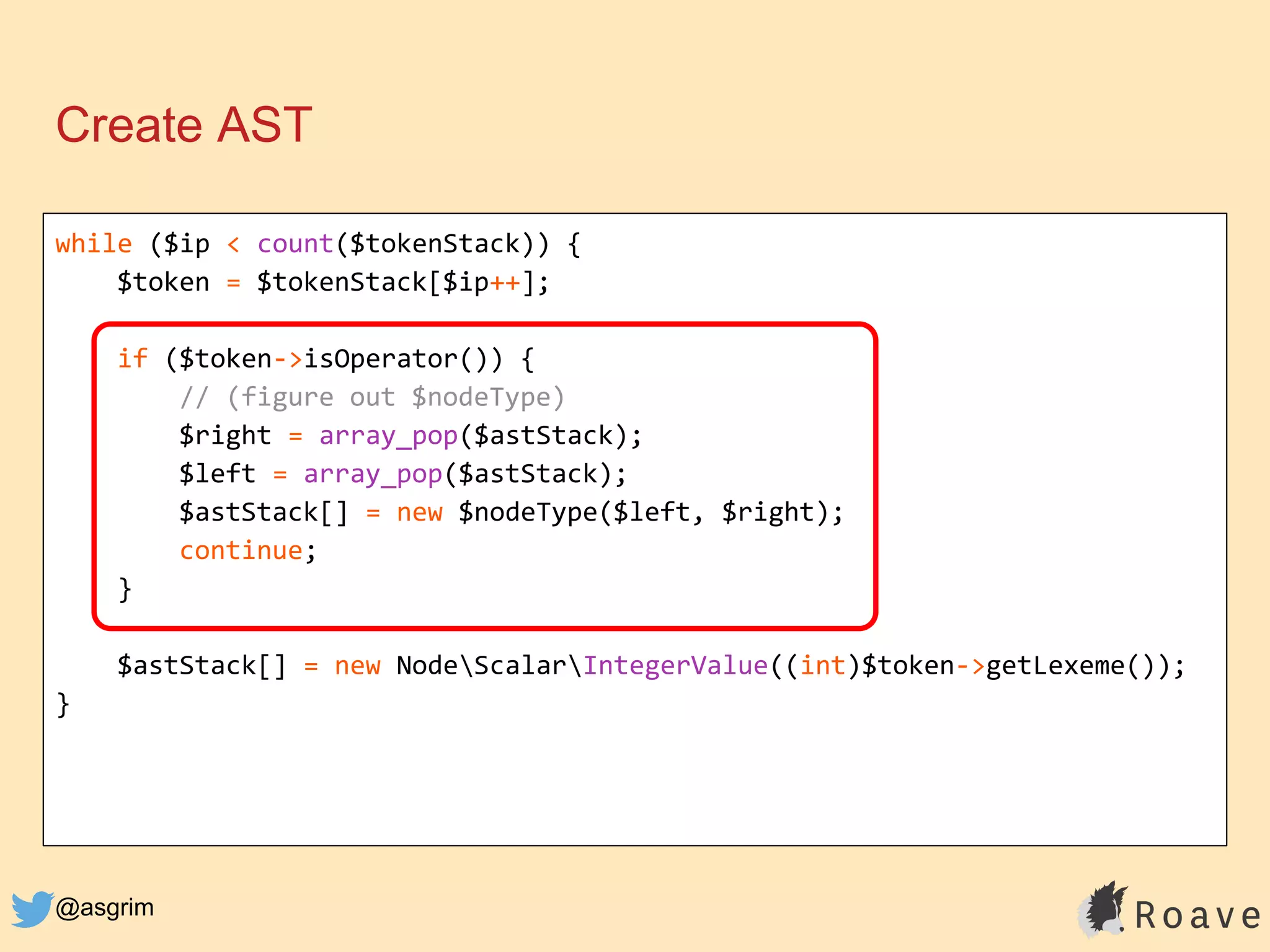

@asgrim Create AST while ($ip < count($tokenStack)) { $token = $tokenStack[$ip++]; if ($token->isOperator()) { // (figure out $nodeType) $right = array_pop($astStack); $left = array_pop($astStack); $astStack[] = new $nodeType($left, $right); continue; } $astStack[] = new NodeScalarIntegerValue((int)$token->getLexeme()); }
@asgrim Create AST while ($ip < count($tokenStack)) { $token = $tokenStack[$ip++]; if ($token->isOperator()) { // (figure out $nodeType) $right = array_pop($astStack); $left = array_pop($astStack); $astStack[] = new $nodeType($left, $right); continue; } $astStack[] = new NodeScalarIntegerValue((int)$token->getLexeme()); }

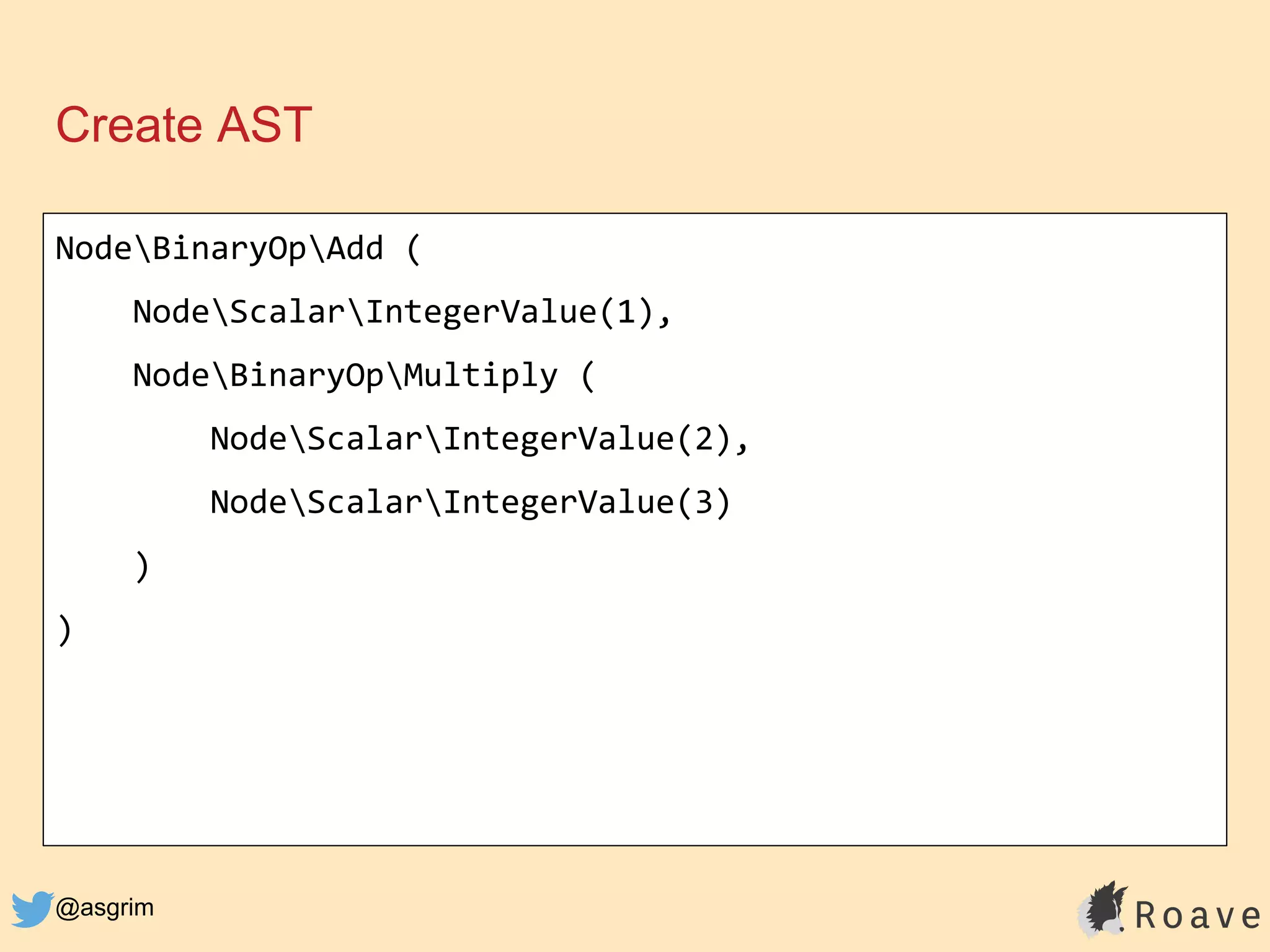

@asgrim Create AST NodeBinaryOpAdd ( NodeScalarIntegerValue(1), NodeBinaryOpMultiply ( NodeScalarIntegerValue(2), NodeScalarIntegerValue(3) ) )
@asgrim Step 3: Executing the AST

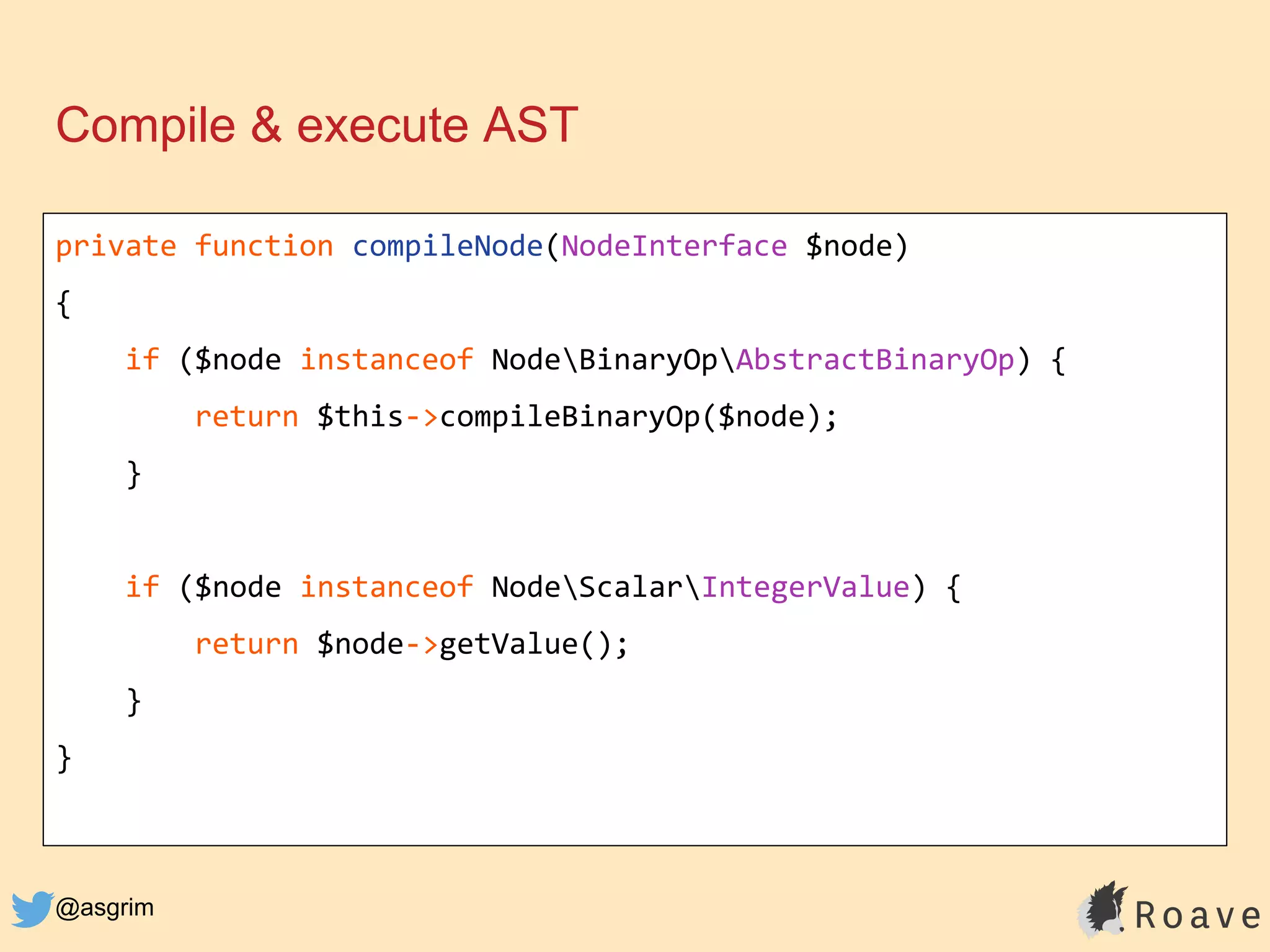

@asgrim Compile & execute AST private function compileNode(NodeInterface $node) { if ($node instanceof NodeBinaryOpAbstractBinaryOp) { return $this->compileBinaryOp($node); } if ($node instanceof NodeScalarIntegerValue) { return $node->getValue(); } }

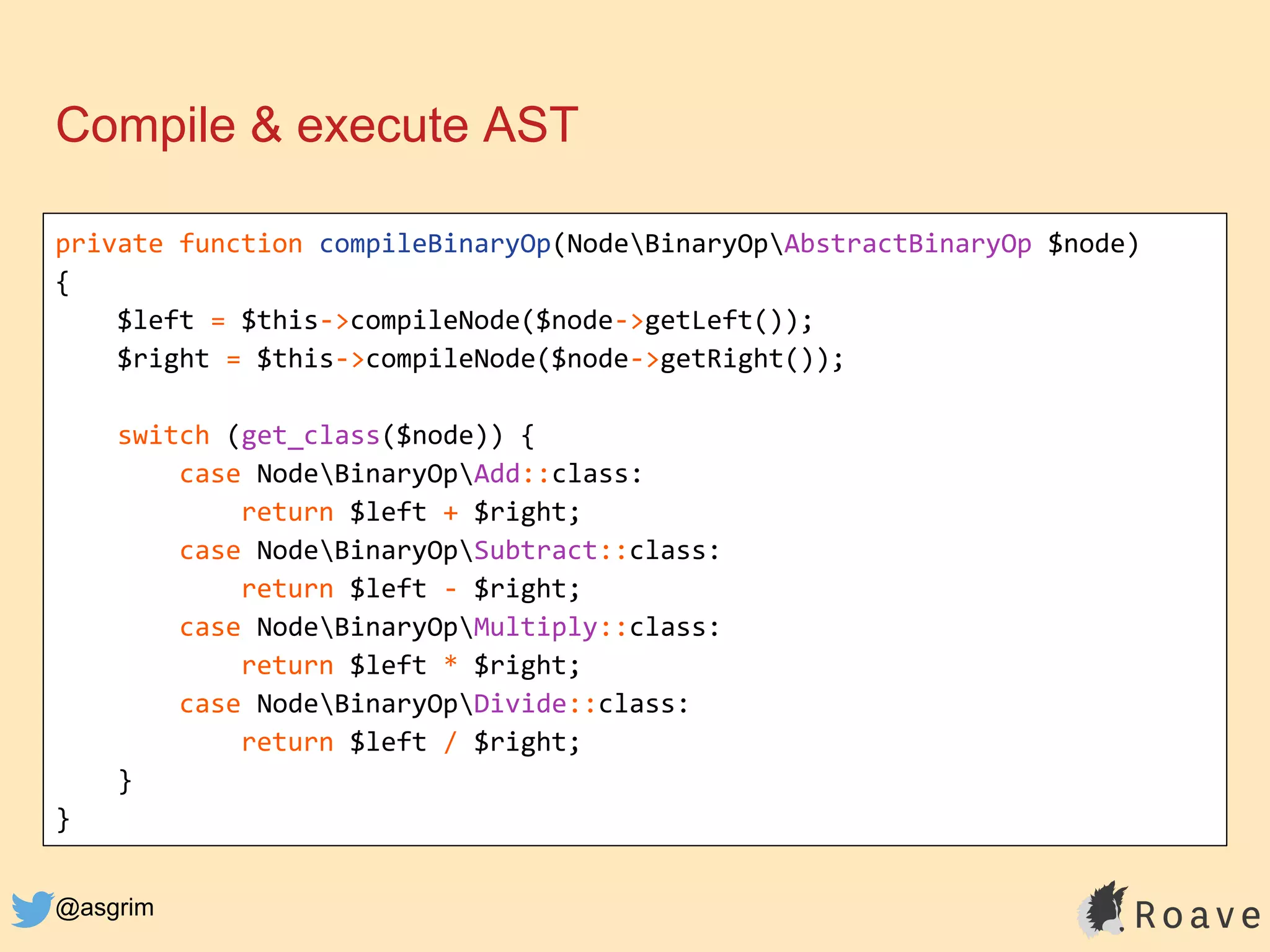

@asgrim Compile & execute AST private function compileBinaryOp(NodeBinaryOpAbstractBinaryOp $node) { $left = $this->compileNode($node->getLeft()); $right = $this->compileNode($node->getRight()); switch (get_class($node)) { case NodeBinaryOpAdd::class: return $left + $right; case NodeBinaryOpSubtract::class: return $left - $right; case NodeBinaryOpMultiply::class: return $left * $right; case NodeBinaryOpDivide::class: return $left / $right; } }
@asgrim What does this mean for me?
@asgrim AST in userland
@asgrim php-ast extension https://github.com/nikic/php-ast

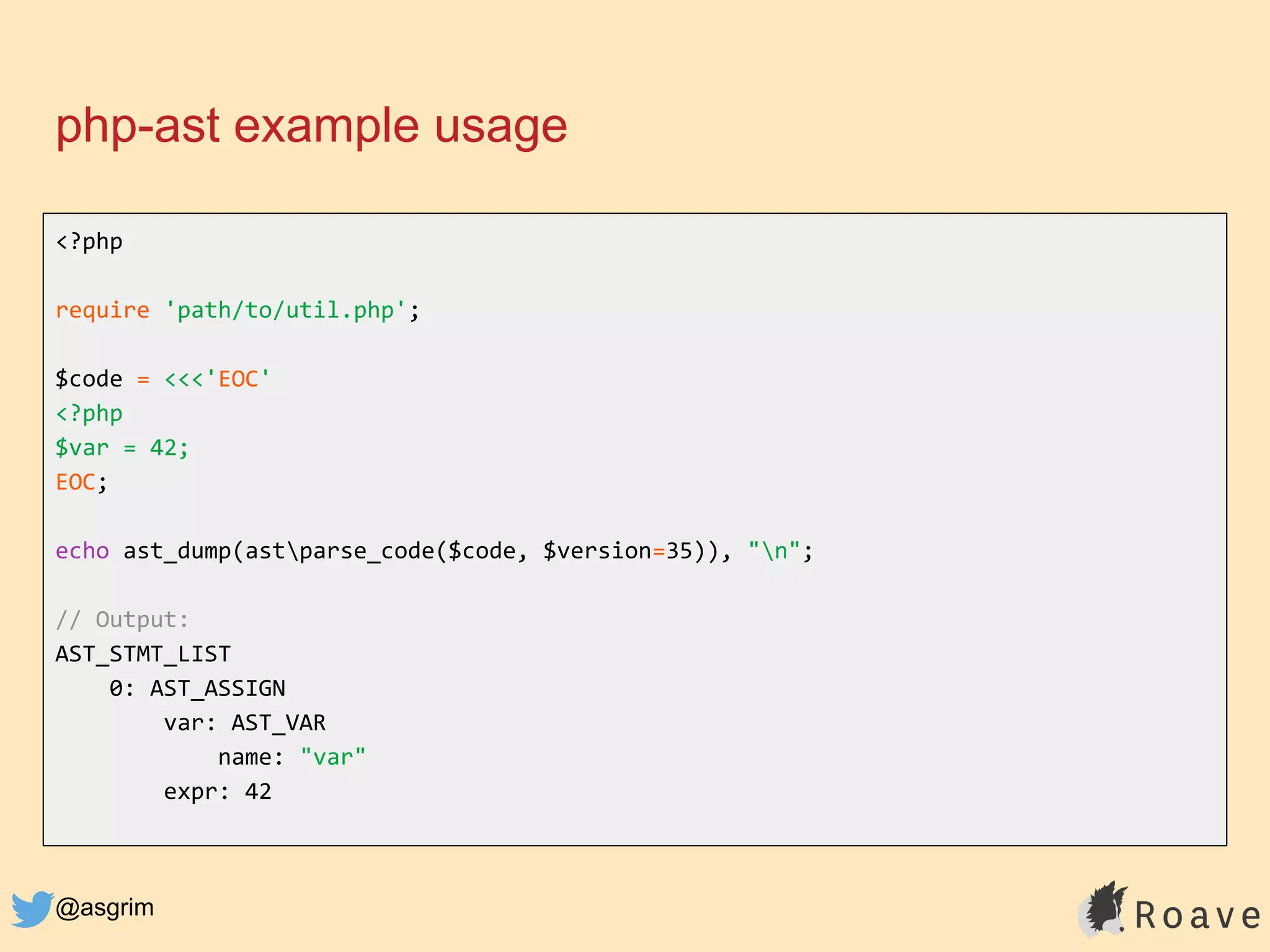

@asgrim php-ast example usage <?php require 'path/to/util.php'; $code = <<<'EOC' <?php $var = 42; EOC; echo ast_dump(astparse_code($code, $version=35)), "n"; // Output: AST_STMT_LIST 0: AST_ASSIGN var: AST_VAR name: "var" expr: 42

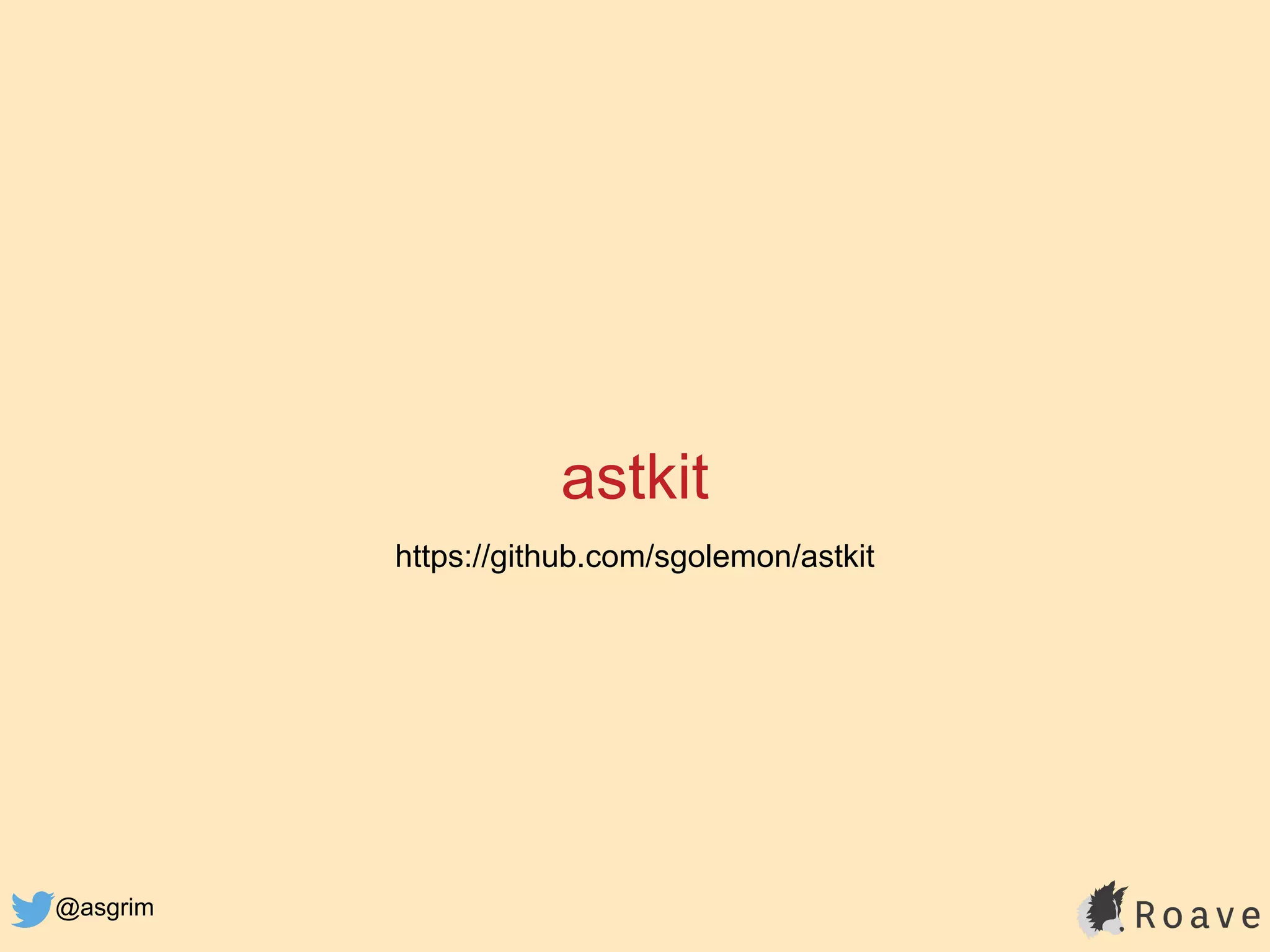

@asgrim astkit https://github.com/sgolemon/astkit

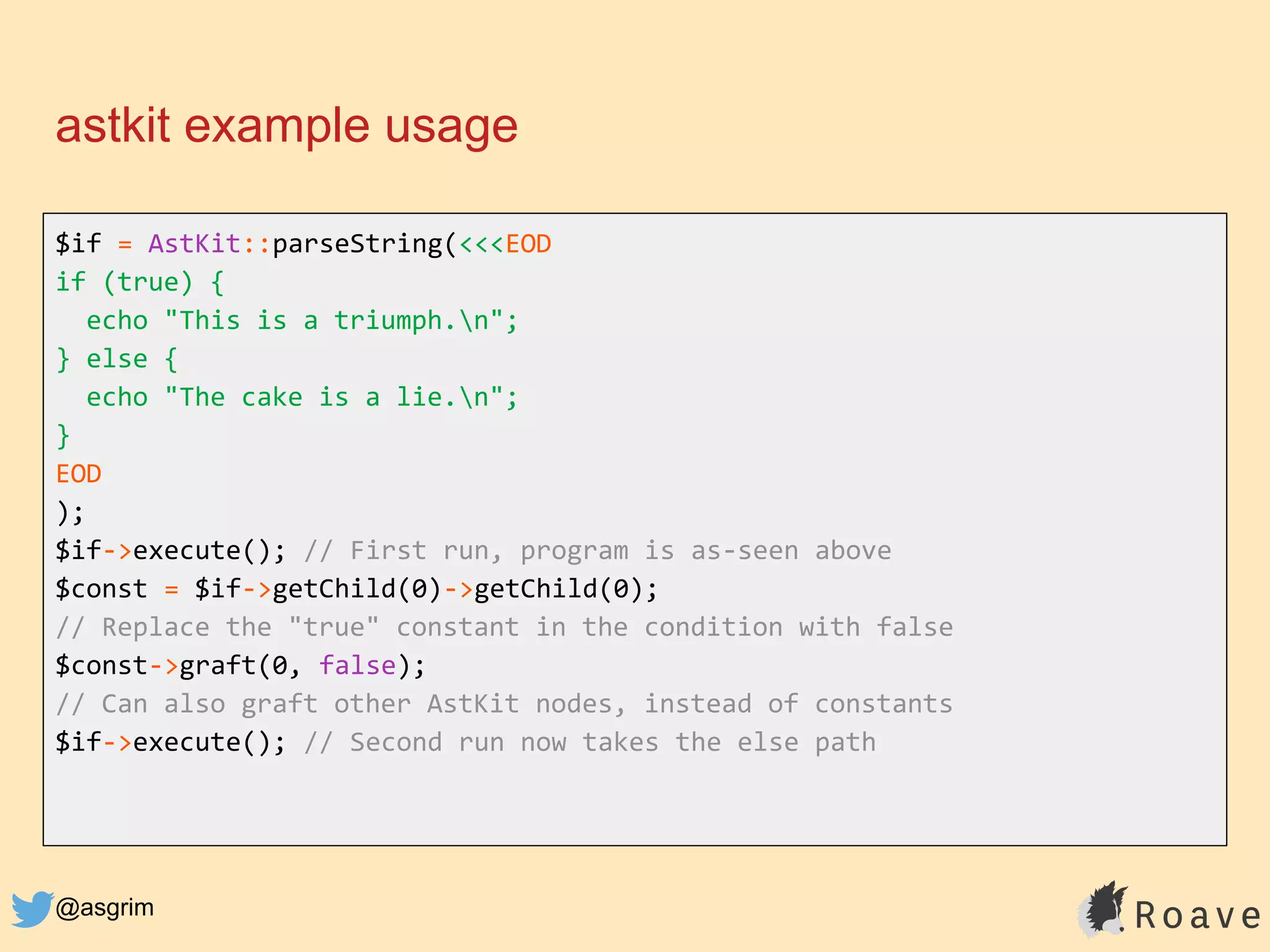

@asgrim astkit example usage $if = AstKit::parseString(<<<EOD if (true) { echo "This is a triumph.n"; } else { echo "The cake is a lie.n"; } EOD ); $if->execute(); // First run, program is as-seen above $const = $if->getChild(0)->getChild(0); // Replace the "true" constant in the condition with false $const->graft(0, false); // Can also graft other AstKit nodes, instead of constants $if->execute(); // Second run now takes the else path

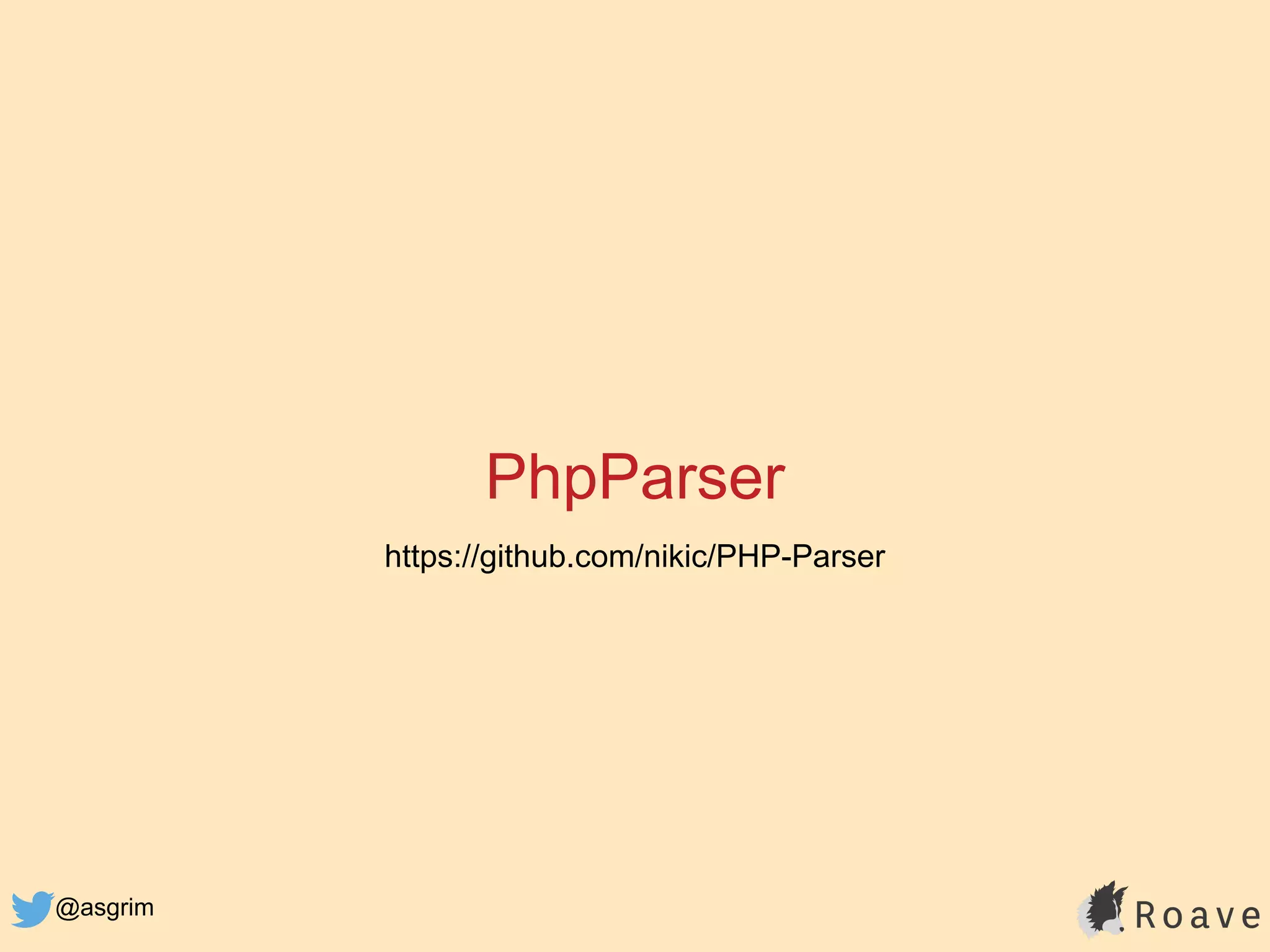

@asgrim PhpParser https://github.com/nikic/PHP-Parser

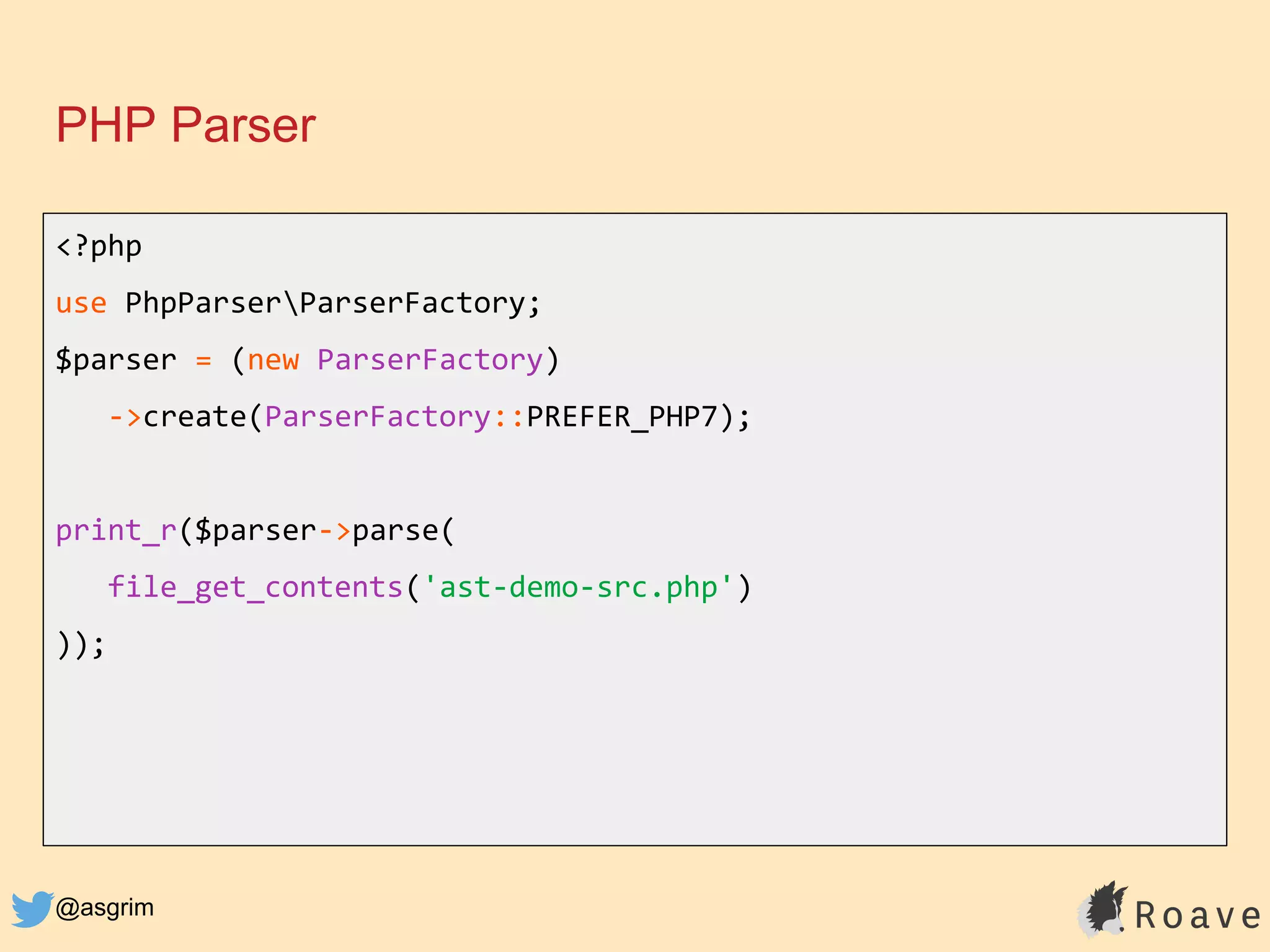

@asgrim PHP Parser <?php use PhpParserParserFactory; $parser = (new ParserFactory) ->create(ParserFactory::PREFER_PHP7); print_r($parser->parse( file_get_contents('ast-demo-src.php') ));
@asgrim Better Reflection https://github.com/Roave/BetterReflection

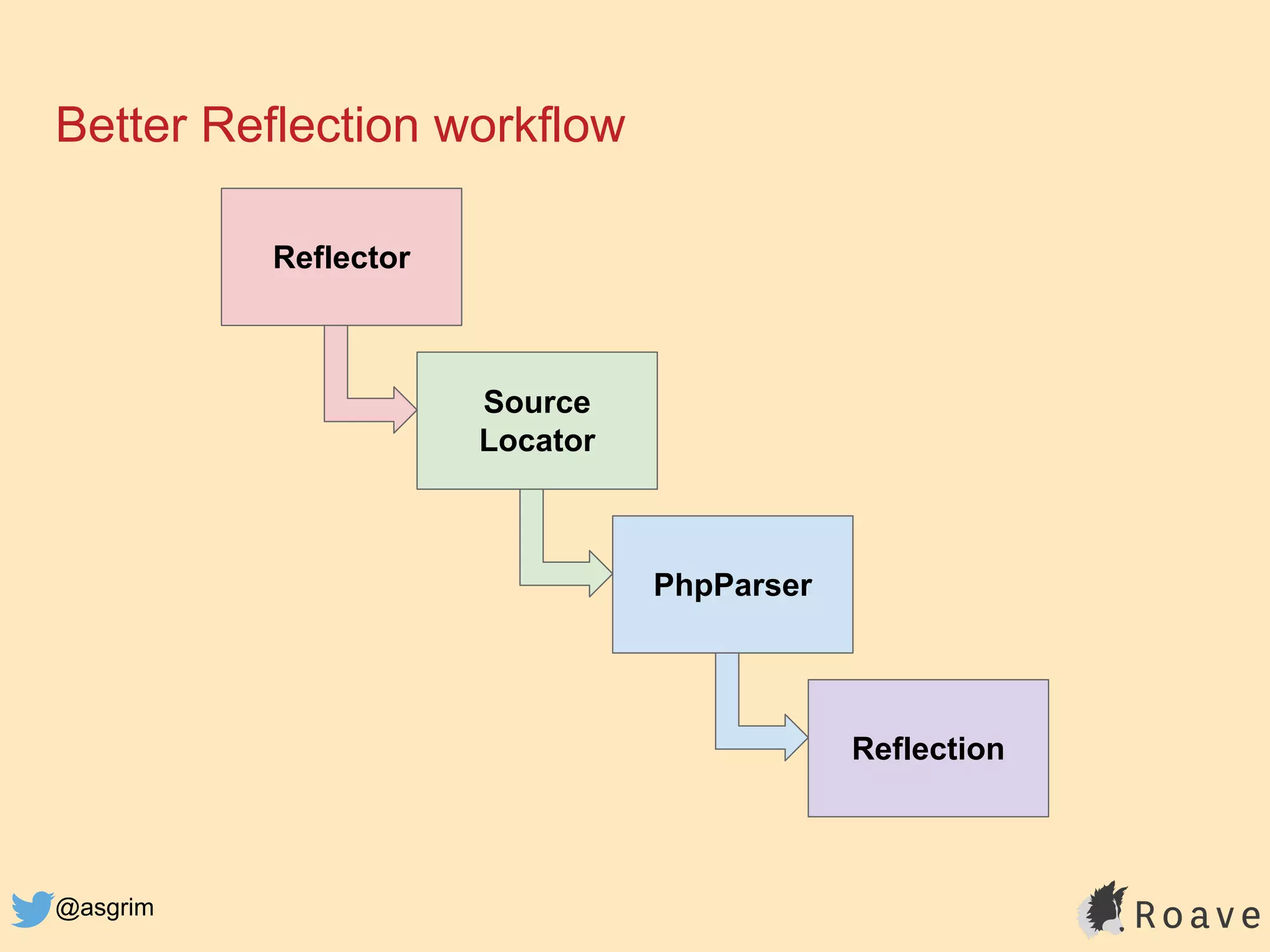

@asgrim Better Reflection workflow Reflector Source Locator PhpParser Reflection

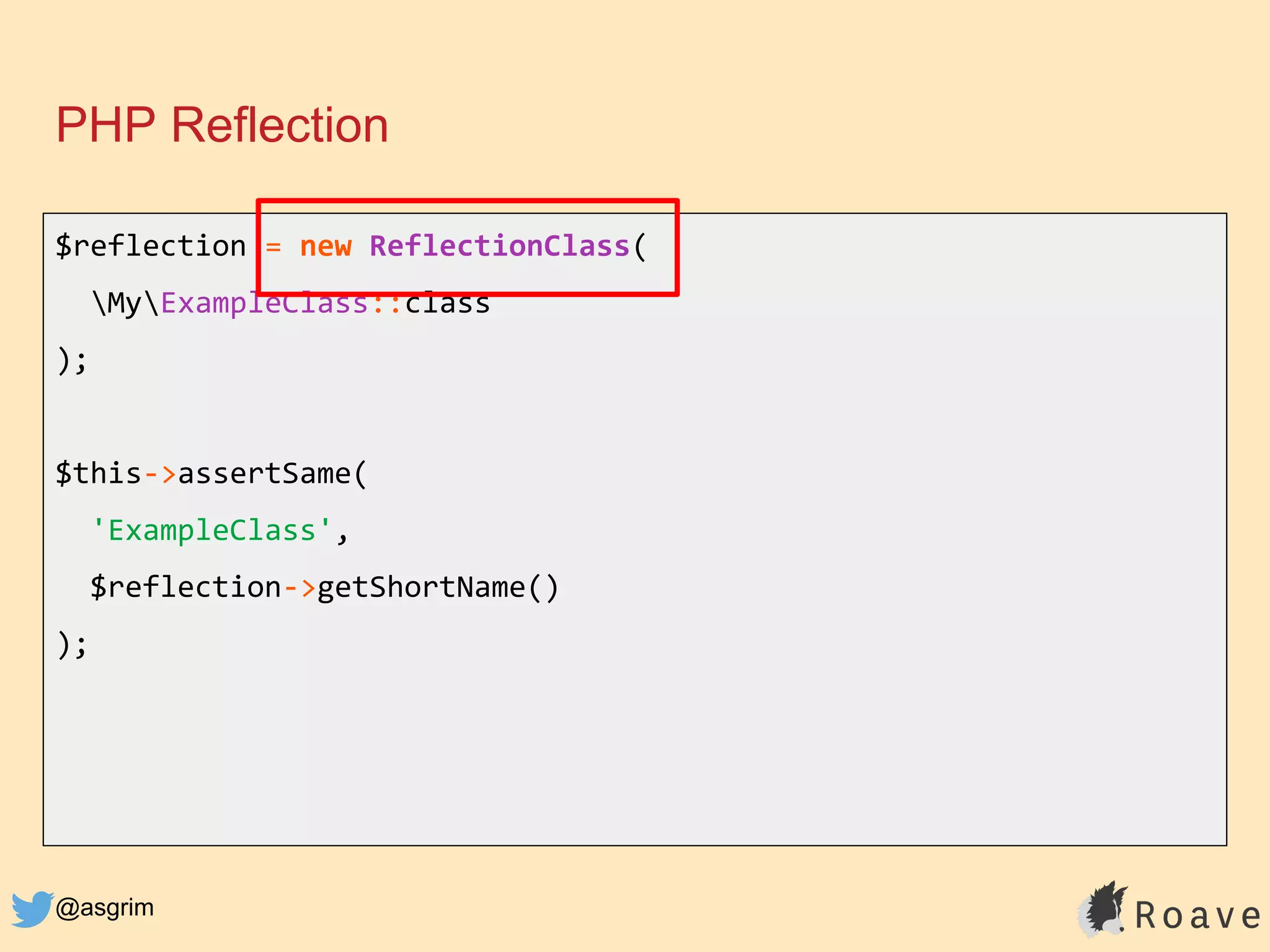

@asgrim PHP Reflection $reflection = new ReflectionClass( MyExampleClass::class ); $this->assertSame( 'ExampleClass', $reflection->getShortName() );

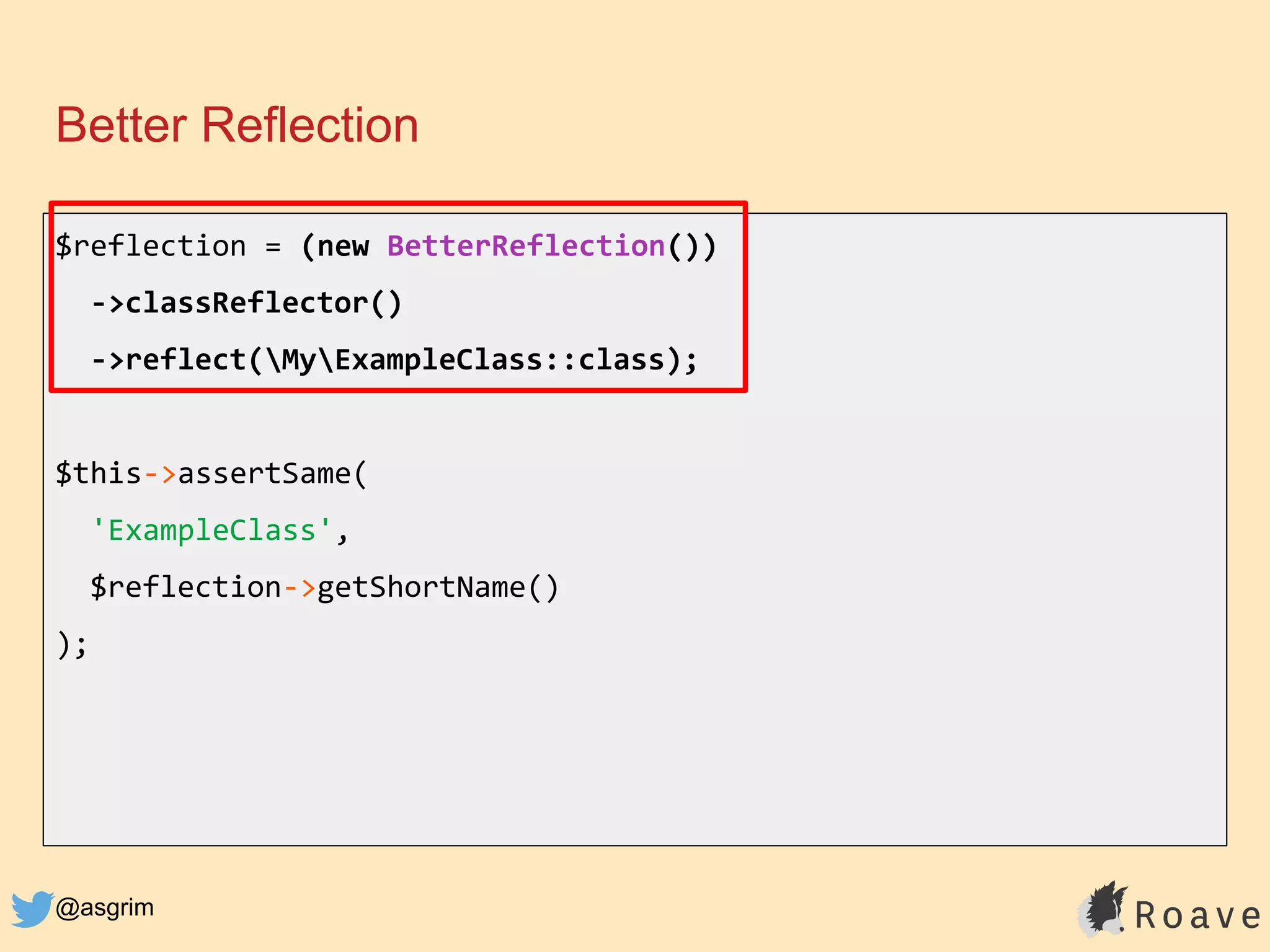

@asgrim Better Reflection $reflection = (new BetterReflection()) ->classReflector() ->reflect(MyExampleClass::class); $this->assertSame( 'ExampleClass', $reflection->getShortName() );

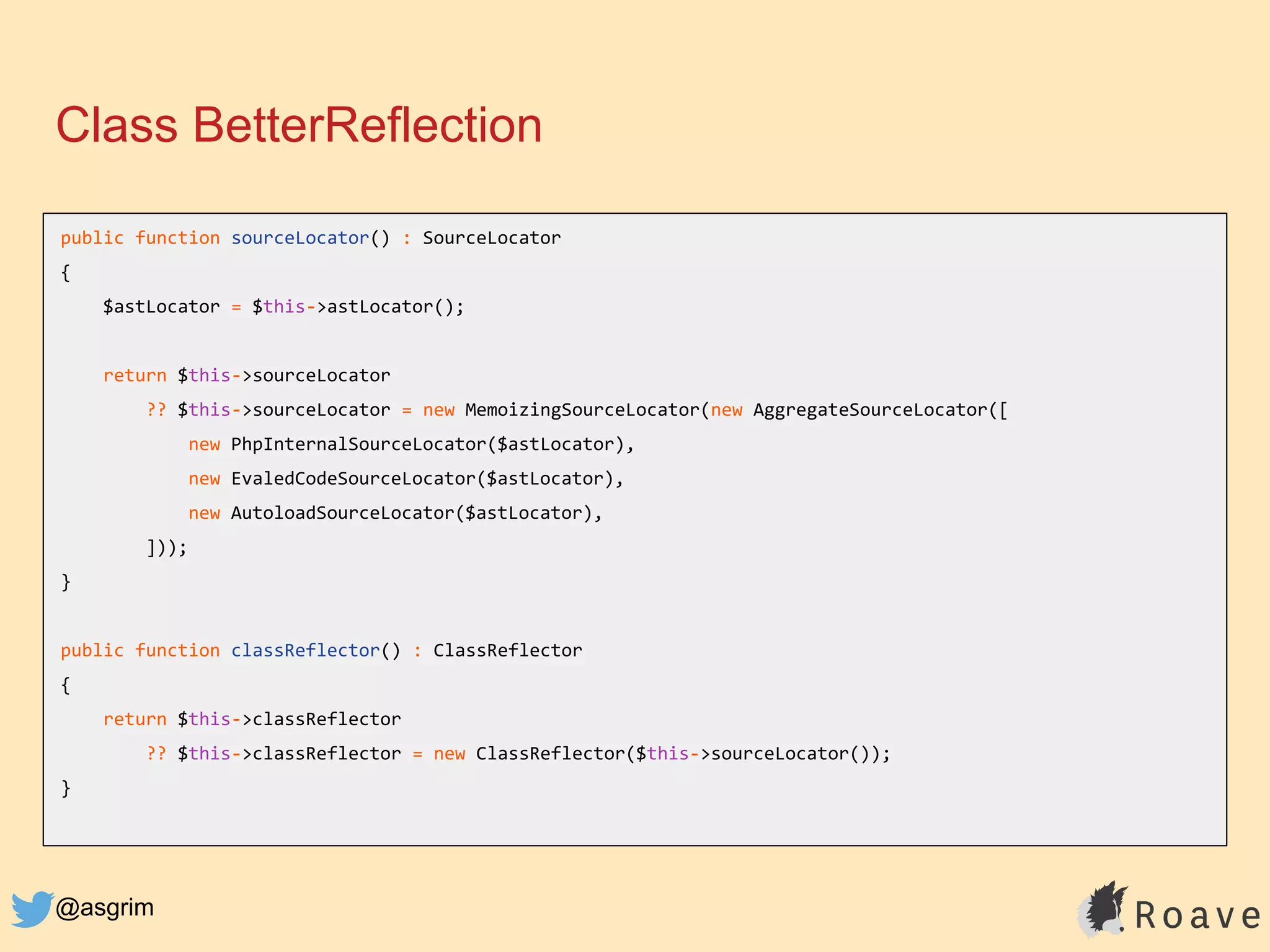

@asgrim Class BetterReflection public function sourceLocator() : SourceLocator { $astLocator = $this->astLocator(); return $this->sourceLocator ?? $this->sourceLocator = new MemoizingSourceLocator(new AggregateSourceLocator([ new PhpInternalSourceLocator($astLocator), new EvaledCodeSourceLocator($astLocator), new AutoloadSourceLocator($astLocator), ])); } public function classReflector() : ClassReflector { return $this->classReflector ?? $this->classReflector = new ClassReflector($this->sourceLocator()); }

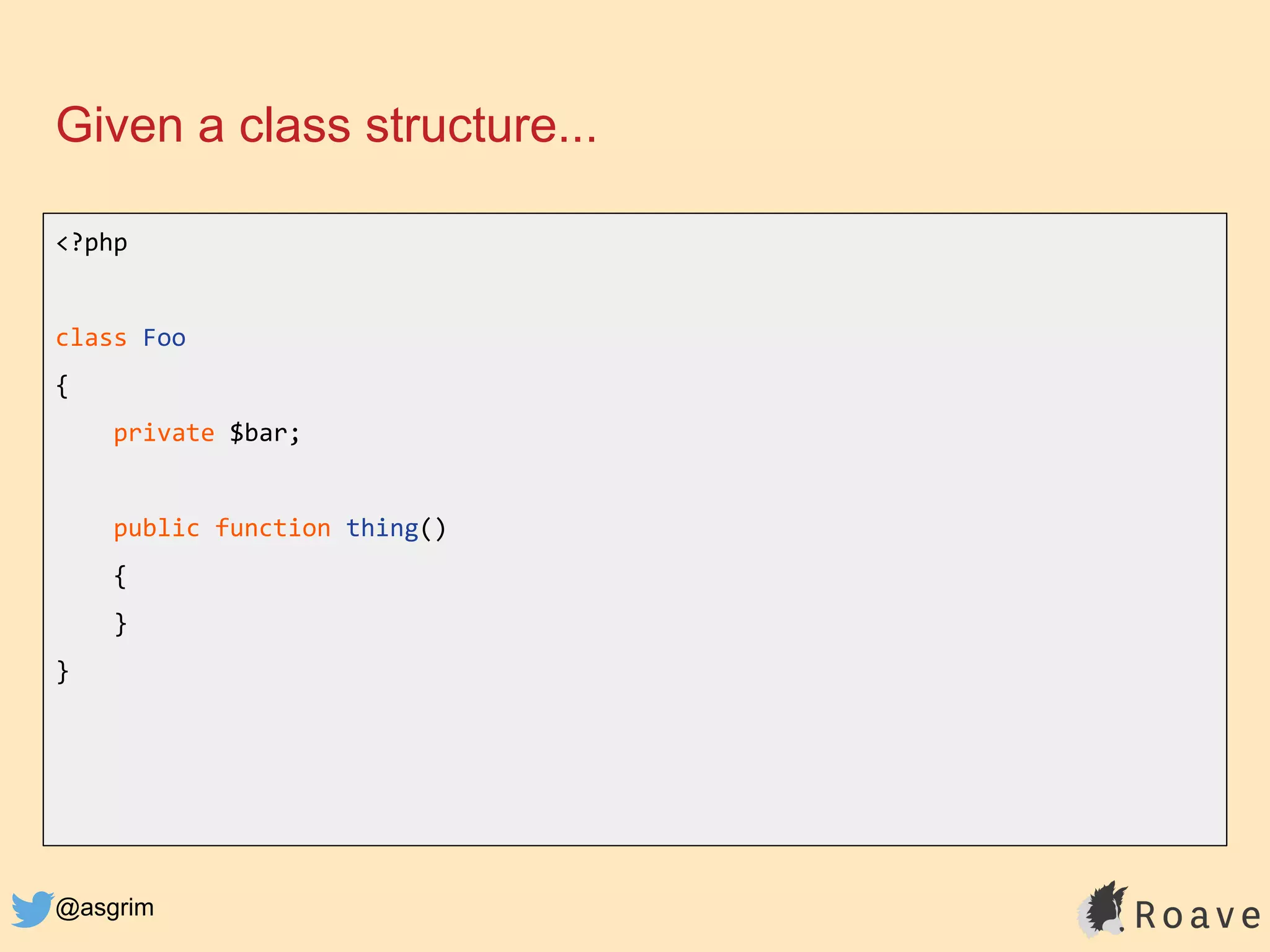

@asgrim Given a class structure... <?php class Foo { private $bar; public function thing() { } }

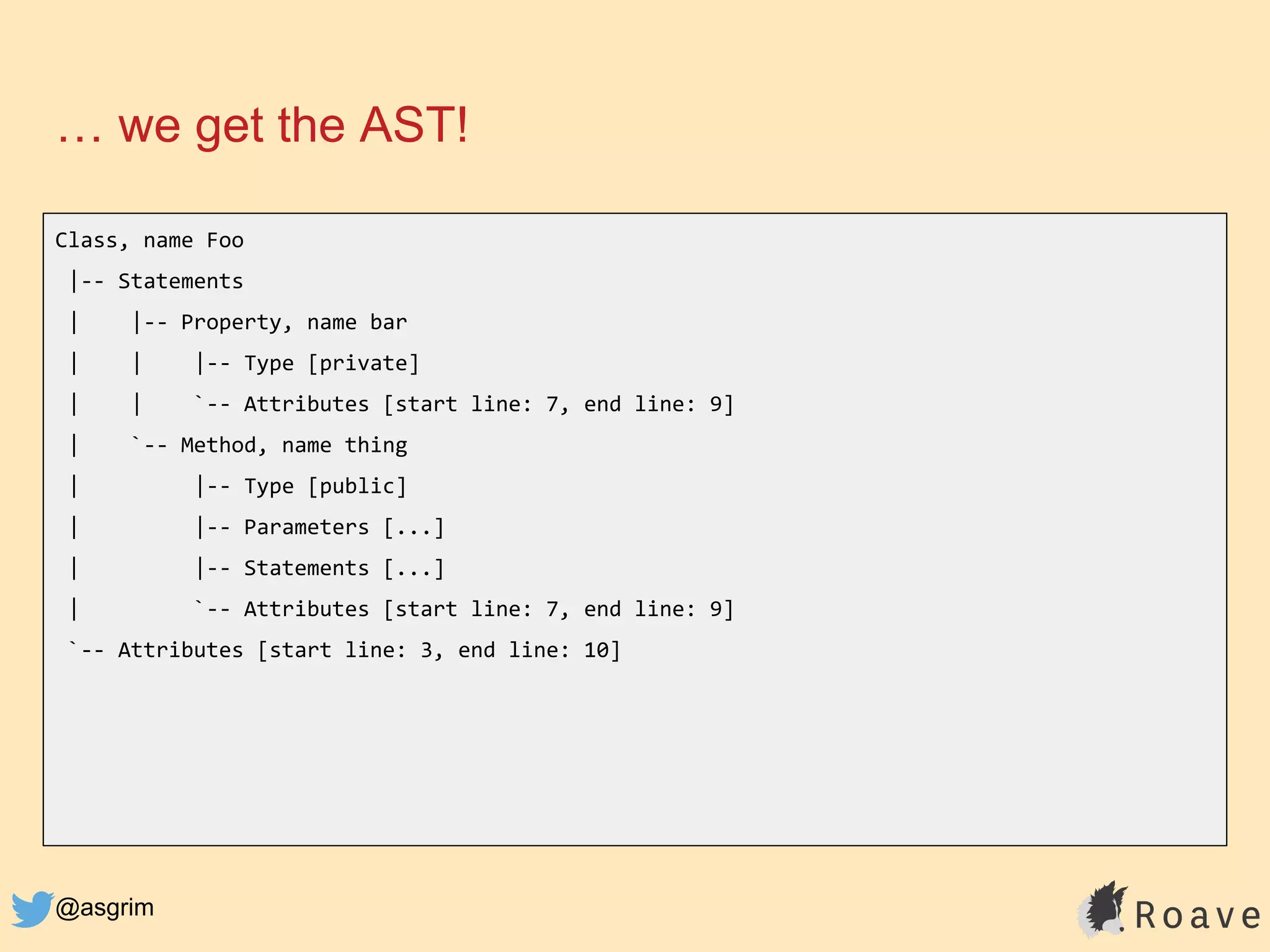

@asgrim … we get the AST! Class, name Foo |-- Statements | |-- Property, name bar | | |-- Type [private] | | `-- Attributes [start line: 7, end line: 9] | `-- Method, name thing | |-- Type [public] | |-- Parameters [...] | |-- Statements [...] | `-- Attributes [start line: 7, end line: 9] `-- Attributes [start line: 3, end line: 10]
@asgrim What can I use Better Reflection for?

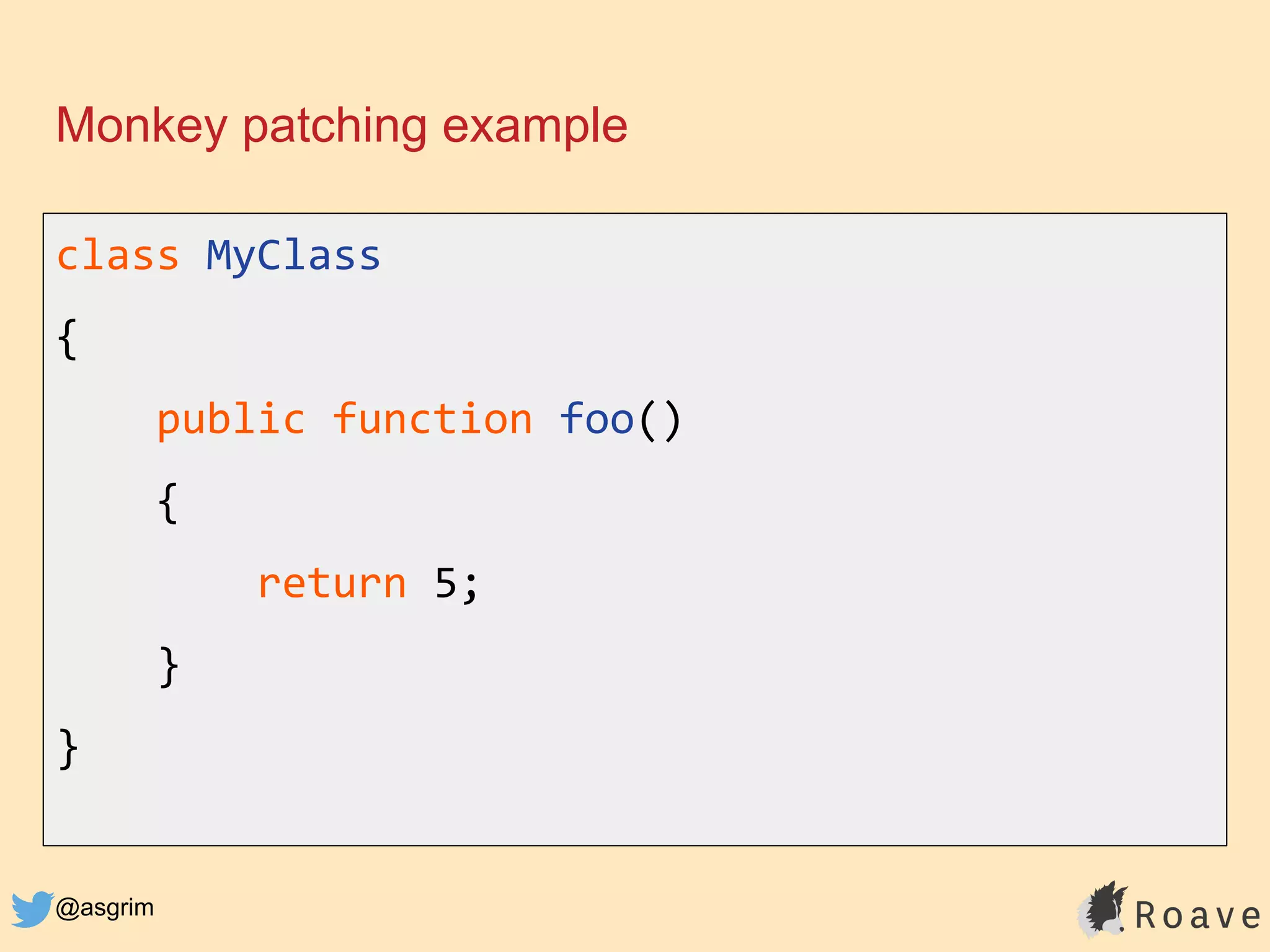

@asgrim Monkey patching example class MyClass { public function foo() { return 5; } }

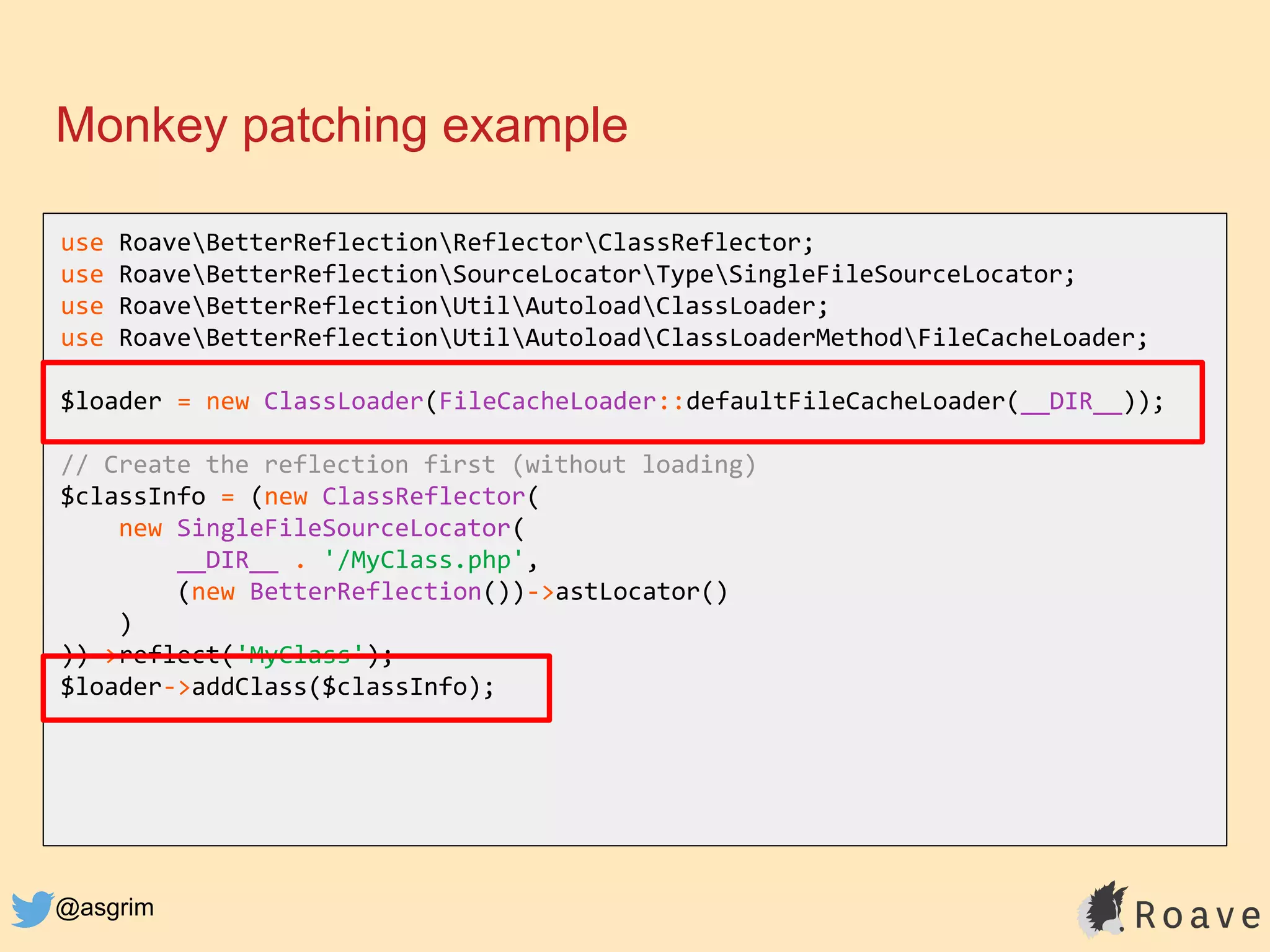

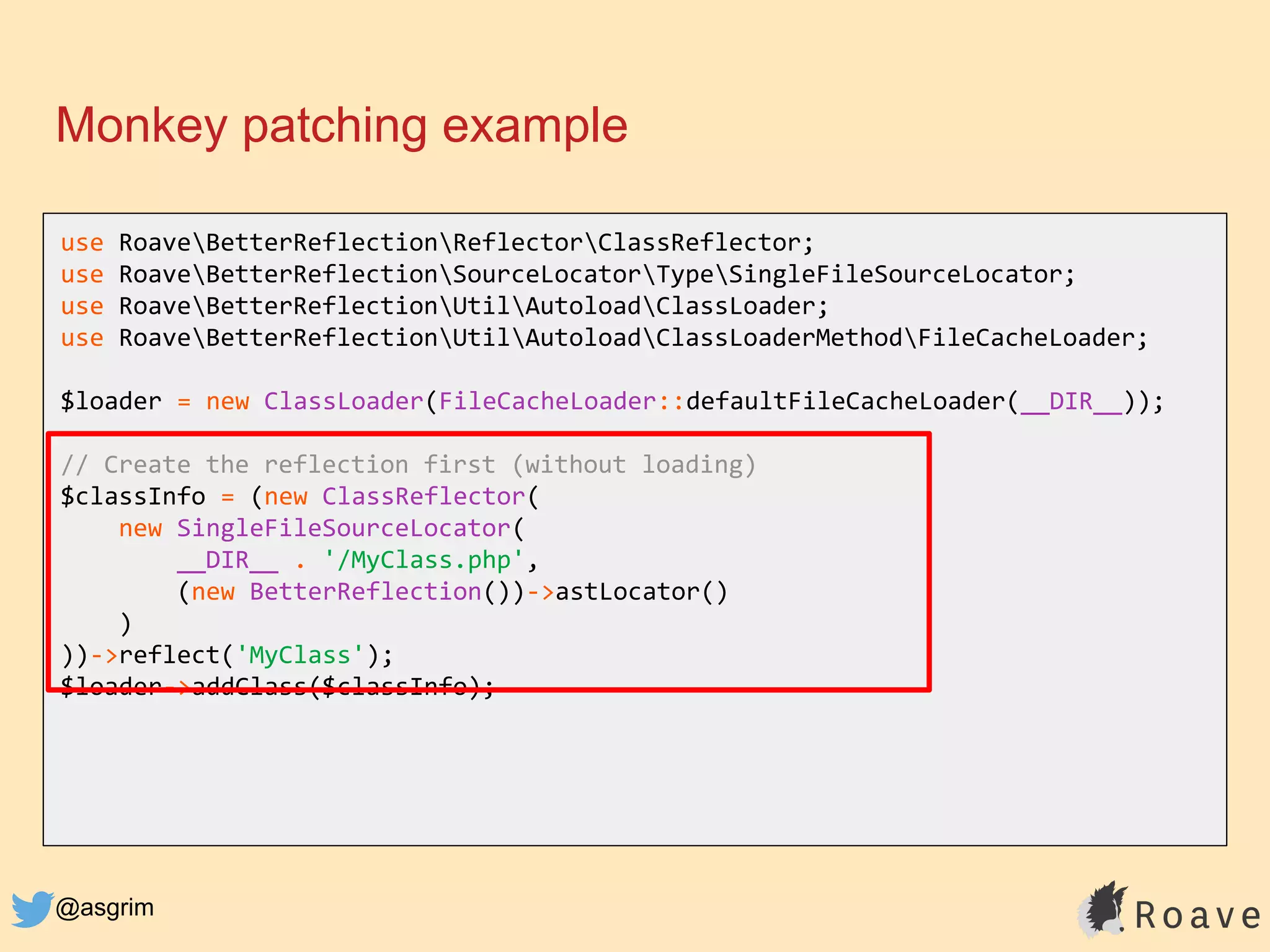

@asgrim Monkey patching example use RoaveBetterReflectionReflectorClassReflector; use RoaveBetterReflectionSourceLocatorTypeSingleFileSourceLocator; use RoaveBetterReflectionUtilAutoloadClassLoader; use RoaveBetterReflectionUtilAutoloadClassLoaderMethodFileCacheLoader; $loader = new ClassLoader(FileCacheLoader::defaultFileCacheLoader(__DIR__)); // Create the reflection first (without loading) $classInfo = (new ClassReflector( new SingleFileSourceLocator( __DIR__ . '/MyClass.php', (new BetterReflection())->astLocator() ) ))->reflect('MyClass'); $loader->addClass($classInfo);
@asgrim Monkey patching example use RoaveBetterReflectionReflectorClassReflector; use RoaveBetterReflectionSourceLocatorTypeSingleFileSourceLocator; use RoaveBetterReflectionUtilAutoloadClassLoader; use RoaveBetterReflectionUtilAutoloadClassLoaderMethodFileCacheLoader; $loader = new ClassLoader(FileCacheLoader::defaultFileCacheLoader(__DIR__)); // Create the reflection first (without loading) $classInfo = (new ClassReflector( new SingleFileSourceLocator( __DIR__ . '/MyClass.php', (new BetterReflection())->astLocator() ) ))->reflect('MyClass'); $loader->addClass($classInfo);

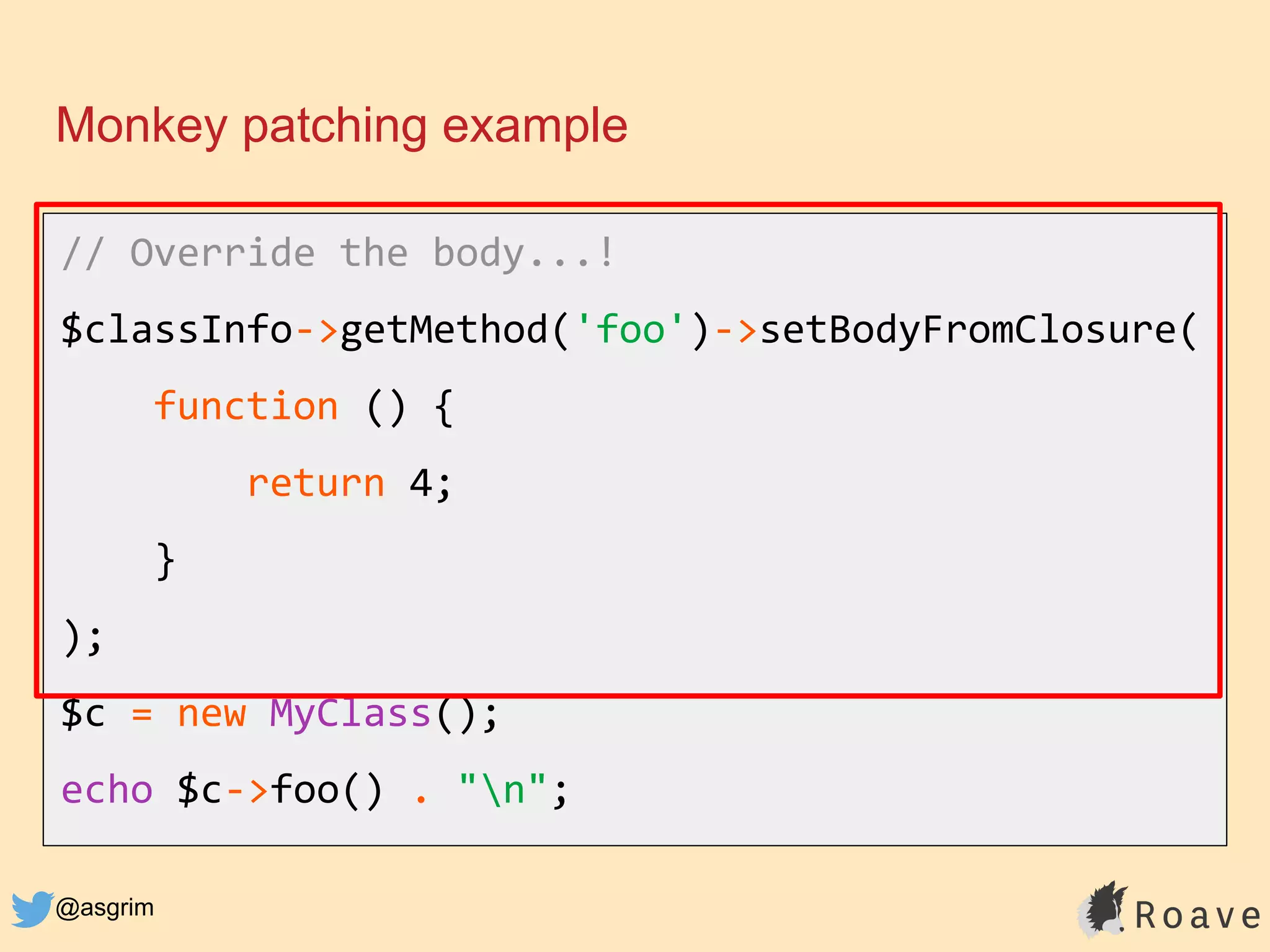

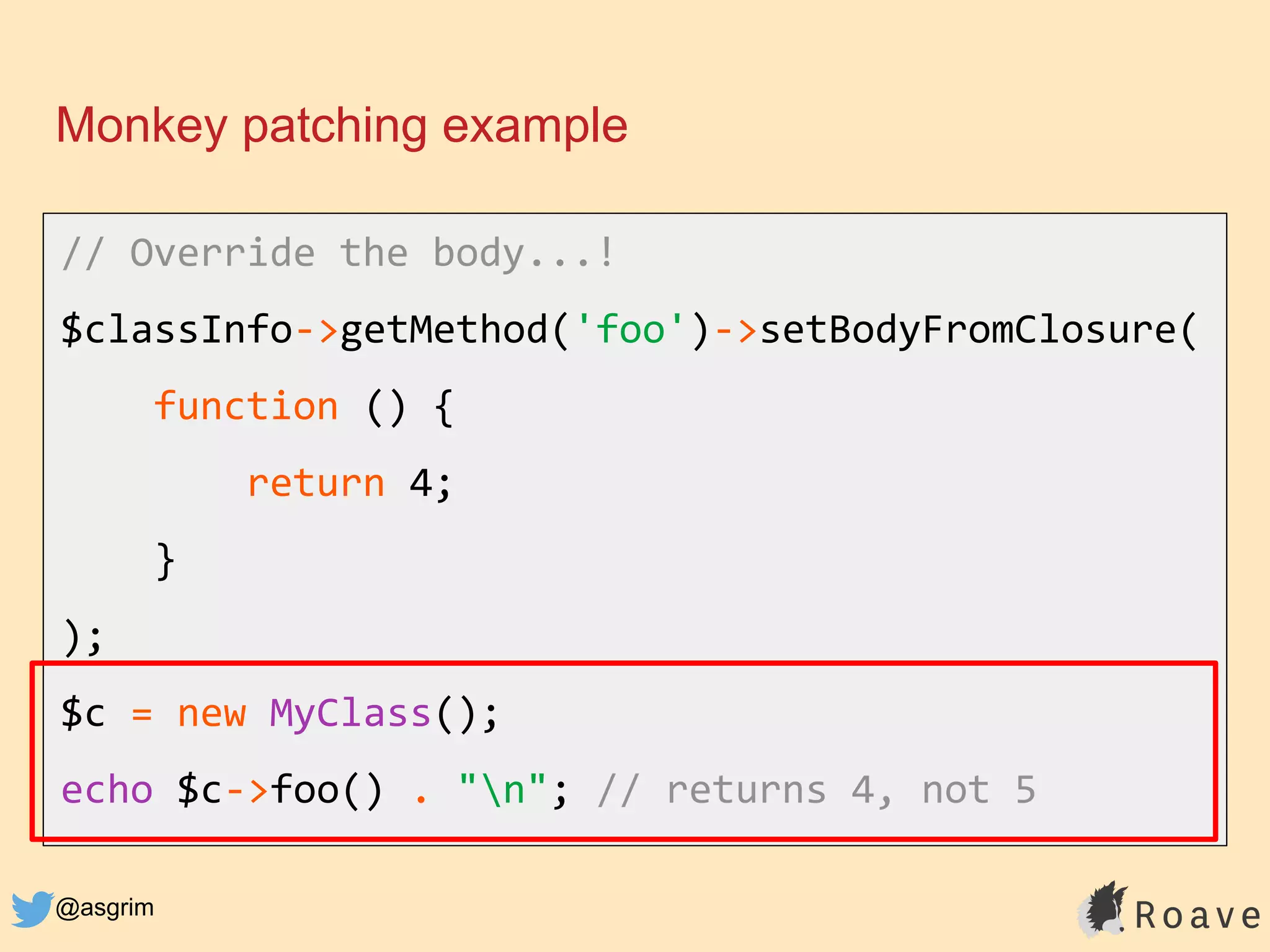

@asgrim Monkey patching example // Override the body...! $classInfo->getMethod('foo')->setBodyFromClosure( function () { return 4; } ); $c = new MyClass(); echo $c->foo() . "n";
@asgrim Monkey patching example // Override the body...! $classInfo->getMethod('foo')->setBodyFromClosure( function () { return 4; } ); $c = new MyClass(); echo $c->foo() . "n"; // returns 4, not 5

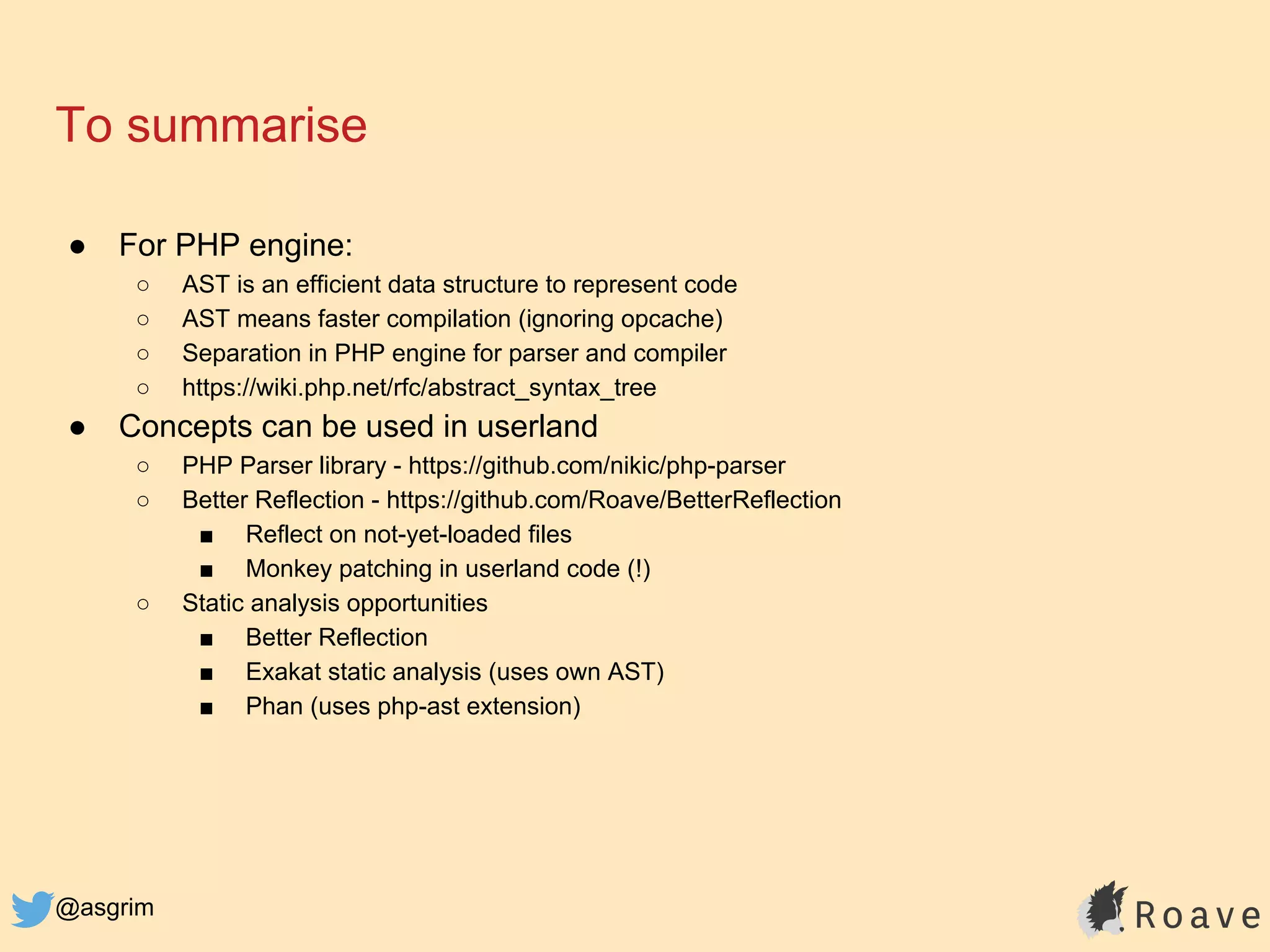

@asgrim To summarise ● For PHP engine: ○ AST is an efficient data structure to represent code ○ AST means faster compilation (ignoring opcache) ○ Separation in PHP engine for parser and compiler ○ https://wiki.php.net/rfc/abstract_syntax_tree ● Concepts can be used in userland ○ PHP Parser library - https://github.com/nikic/php-parser ○ Better Reflection - https://github.com/Roave/BetterReflection ■ Reflect on not-yet-loaded files ■ Monkey patching in userland code (!) ○ Static analysis opportunities ■ Better Reflection ■ Exakat static analysis (uses own AST) ■ Phan (uses php-ast extension)
Any questions? Please leave feedback! https://joind.in/talk/72e38 James Titcumb @asgrim
