The document describes the DMC 3000 personal electronic dosimeter, highlighting its new features, improvements, measurement capabilities, and accessories. The DMC 3000 has enhancements such as vibration alarms, military-grade EMI immunity, an expanded energy range, and a larger, brighter display. It provides dose and dose rate measurements between 0.1 μSv/hr to 10 Sv/hr with accuracy within 10-15% for various radiation types. The dosimeter stores histogram and event log data and has alarm indicators. Additional accessories include belt clips, wireless readers, and calibration devices.

1. Radiation Safety. Perfected.

2. Radiation. Safety.
DMC 3000
Personal Electronic Dosimeter

3. Radiation. Safety.

4. Radiation. Safety.
The DMC 3000| New Features and Improvements
New Features
Vibration Alarms
Pocket and Belt Clips
Military Grade EMI Immunity
Multiple LED Alarm Indicators

5. Radiation. Safety.
The DMC 3000 | New Features and Improvements
Improvements
Larger Display
Louder Speaker
Ultra Bright LED
Expanded Energy Range
Uses a AAA Battery
9-11 Month Battery Life

6. Radiation. Safety.
The DMC 3000 | Overview
Display Features
- Large viewing angle
- 6-8 alpha-numeric digits
- 3 top mounted LED’s for alarms and dose increments
- Two push buttons for ease-of-use

7. Radiation. Safety.
The DMC 3000 | Overview
Alarm Features
- Alarming speaker with level > 85 dB (A)
at 30cm, frequency < 4800 Hz
- Tactile alarm (vibrator)
- High efficiency red flash LED on front of device
- Dose and dose rate alarms
- Alarm on battery removal

8. Radiation. Safety.
The DMC 3000 | Overview
Histogram Features
- Histogram is saved to non-volatile memory (EEPROM)
- Workers dose (1uSv/0.1 mrem)
- Stored in increments 10s, 1 min, 10 min, 1h, or 24h
- Event log marks events during the selected time period
- Stores data for several consecutive workers’ entries and exits

9. Radiation. Safety.
The DMC 3000 | Overview
Measurement Characteristics
Energy Response: 15 keV to 7 MeV at better than +/- 20%
Accuracy: <+/- 10% for Cs137 @ 21mSv/h
<= +/- 15% for Am241 and X:16keV
Measurement Range: 0.1uSv/hr to 10 Sv/hr (0.01mrem/h - 1000R/h)
Dose Display: 1uSv/hr to 10Sv/hr (0.1mrem/h - 1000R/h)
Rate Display: 0.01mSv/h to 10 Sv/h (1mrem/h to 1000R/h)
Dose Rate Linearity: <-/+ 20% up to 10 Sv/h
(1000 rem/h) for Co-60 & X-Ray H30 20 keV
Pulsed Field Linearity: <-/+ 20% up to 6 Sv/h
(600 rem/h) for Pulsed X-Rays, 20msec pulse
width, 1, 10 & 20 pulses/sec
Saturation: Indication above 6 Sv/h (600 rem/h)
Units Displayed: mSv, uSv, mrem

10. Radiation. Safety.
The DMC 3000 | Overview
Energy Response

11. Radiation. Safety.
The DMC 3000 | Overview
Dose Rate Linearity

12. Radiation. Safety.

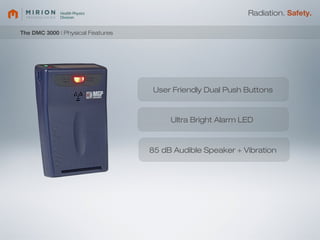

The DMC 3000 | Physical Features
User Friendly Dual Push Buttons
Ultra Bright Alarm LED
85 dB Audible Speaker + Vibration

13. Radiation. Safety.
The DMC 3000 | Physical Features
Red Alarm Indicator
Green or Blue Dose Increment
Indicator
8 Digit Backlit LCD Display

14. Radiation. Safety.
The DMC 3000 | Physical Features
Optional Robust Belt Clip
Inexpensive AAA Battery
Up to 9 Months Battery Life

15. Radiation. Safety.
The DMC 3000 | Accessories
Standard Clip Optional Belt Clip Front Pocket Clip

16. Radiation. Safety.
The DMC 3000 | Accessories
Wall Mounted Wireless
Wireless Desktop USB Reader
USB Reader

17. Radiation. Safety.
The DMC 3000 | Accessories
Transmits Real Time Data to
Telemetry Receivers
Low-power Optimized for AAA
Battery with Long Life
External Power Options and
900 MHz or 2.4 GHz
Frequencies
Telemetry Module

18. Radiation. Safety.
The DMC 3000 | Accessories
Upgrades to iDC Calibrator
New Carriage for IRD Calibrator
For DMC 3000

19. Radiation. Safety.

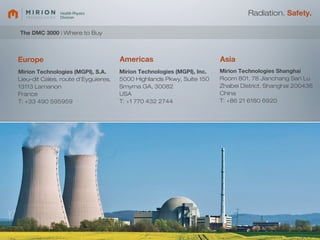

The DMC 3000 | Where to Buy
Europe Americas Asia
Mirion Technologies (MGPI), S.A. Mirion Technologies (MGPI), Inc. Mirion Technologies Shanghai
Lieu-dit Cales, route d’Eyguieres, 5000 Highlands Pkwy, Suite 150 Room 801, 78 Jianchang San Lu
13113 Lamanon Smyrna GA, 30082 Zhabei District, Shanghai 200436
France USA China
T: +33 490 595959 T: +1 770 432 2744 T: +86 21 6180 6920

20. Radiation. Safety.
DMC 3000
Personal Electronic Dosimeter
Available July 2012
