- 1. Neurostimulation: An Overview Thursday Feb28th Shaun Comfort, MD, MBA Adaptix Clinical Solutions, LLC American Society for Experimental NeuroTherapeutics | 15th Annual Meeting

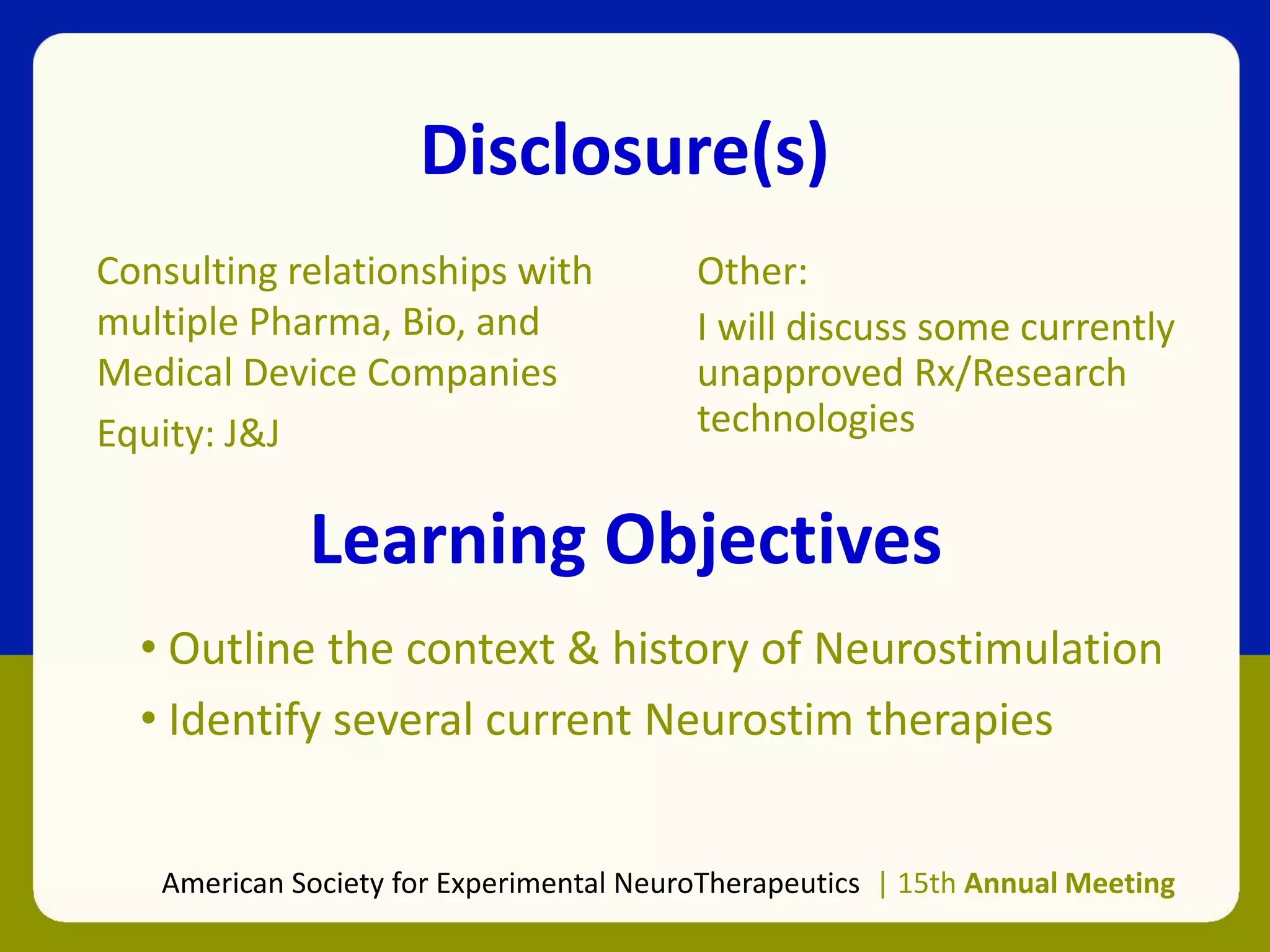

- 2. Disclosure(s) Consulting relationships with multiplePharma, Bio, and Medical Device Companies Equity: J&J American Society for Experimental NeuroTherapeutics | 15th Annual Meeting Other: I will discuss some currently unapproved Rx/Research technologies Learning Objectives • Outline the context & history of Neurostimulation • Identify several current Neurostim therapies
- 3. The Brave NewWorld of Neurostimulation American Society for Experimental NeuroTherapeutics | 15th Annual Meeting
- 4. Basic Definitions • FundamentalQuantity: Charge = Coulomb • Negative Charges: Electrons = 1.6 x 10-19 C • Moving Charges: Current = Amp {C/sec} • Charge Source (eg Battery): Voltage = Potential Energy/Ch = Volt {Joules/C} • Useful Relation: Ohm’s Law V = iR • Other Useful Terms: • Frequency = Cycles/sec {Hertz} American Society for Experimental NeuroTherapeutics | 15th Annual Meeting

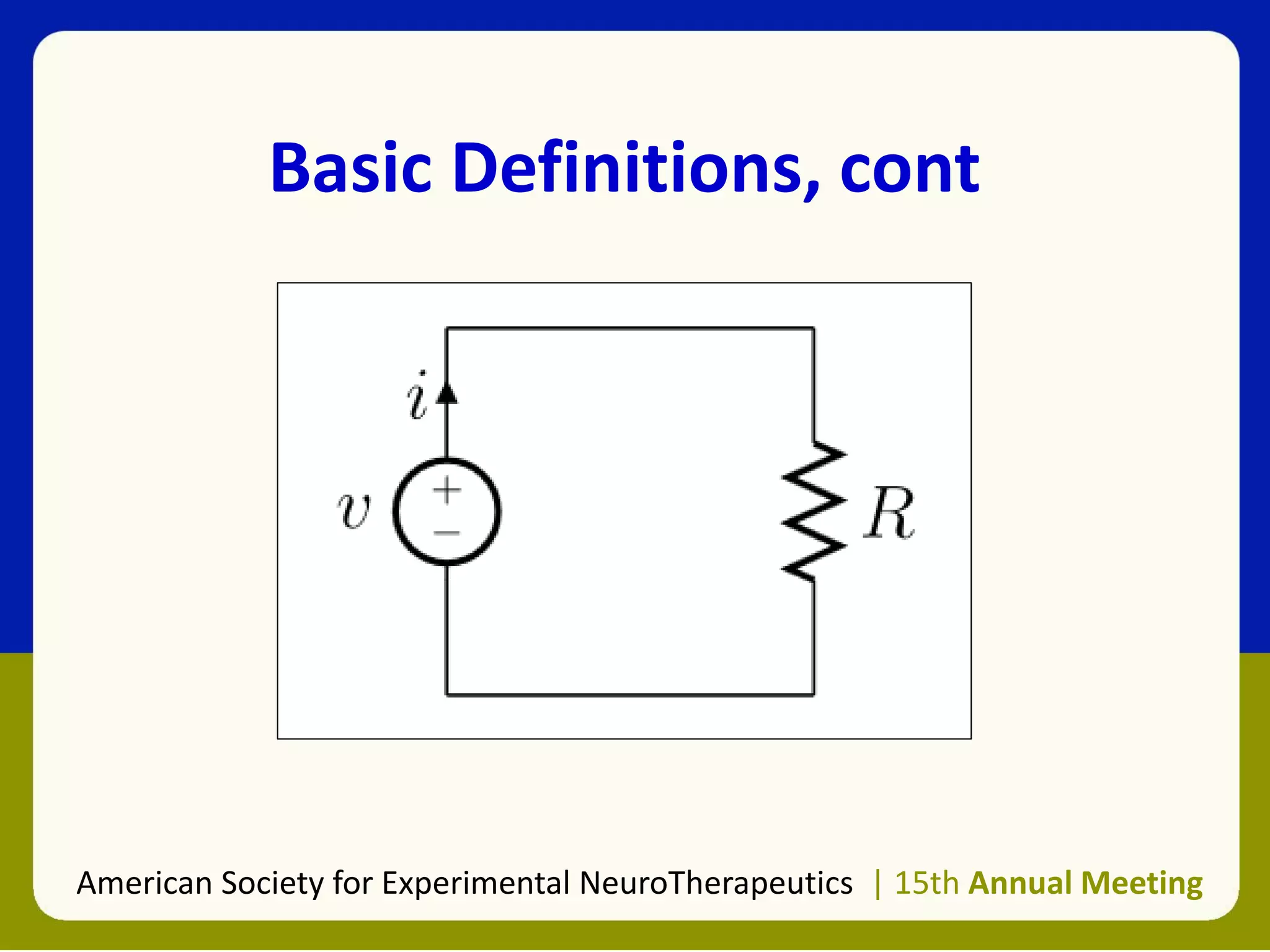

- 5. Basic Definitions, cont AmericanSociety for Experimental NeuroTherapeutics | 15th Annual Meeting
- 6. Neurostimulation? • Neurostimulation? • Themodulation of nervous system activity by electrically activating individual or groups of neurons in the body, to achieve a clinical goal. • Can be achieved using: • Surface electrodes • Implantable electrodes • Indirect: Vector Force Fields (TMS) American Society for Experimental NeuroTherapeutics | 15th Annual Meeting
- 7. Early Neurostimulation? • Firstapplication of neurostimulation: • Scribonius Largus, 65 AD • Torpedo fish (electric ray) • for relieving pain (Early TENS?) • Empirical findings that electricity applied to skin had interesting effects such as pain reduction American Society for Experimental NeuroTherapeutics | 15th Annual Meeting

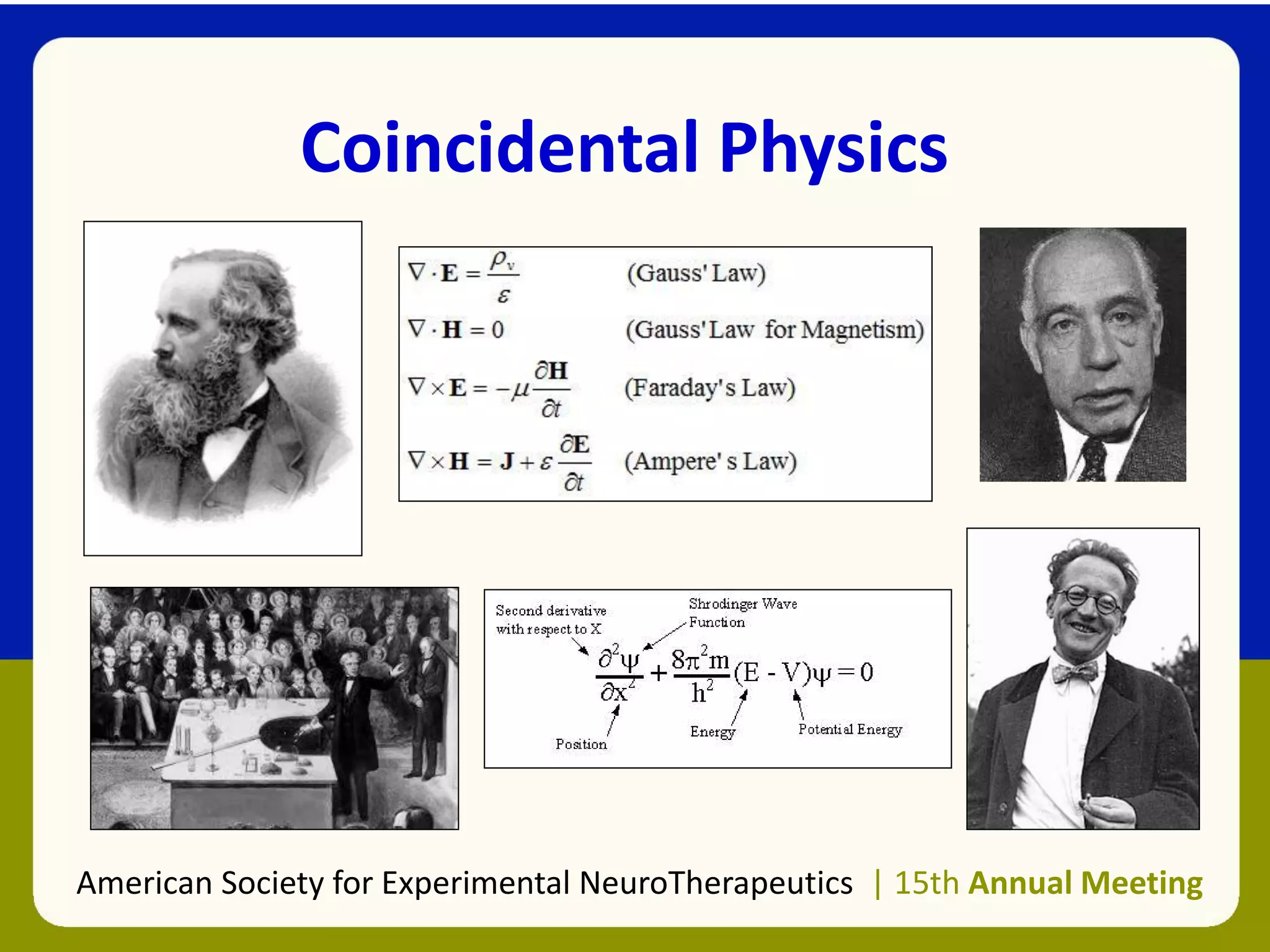

- 8. Coincidental Physics American Societyfor Experimental NeuroTherapeutics | 15th Annual Meeting

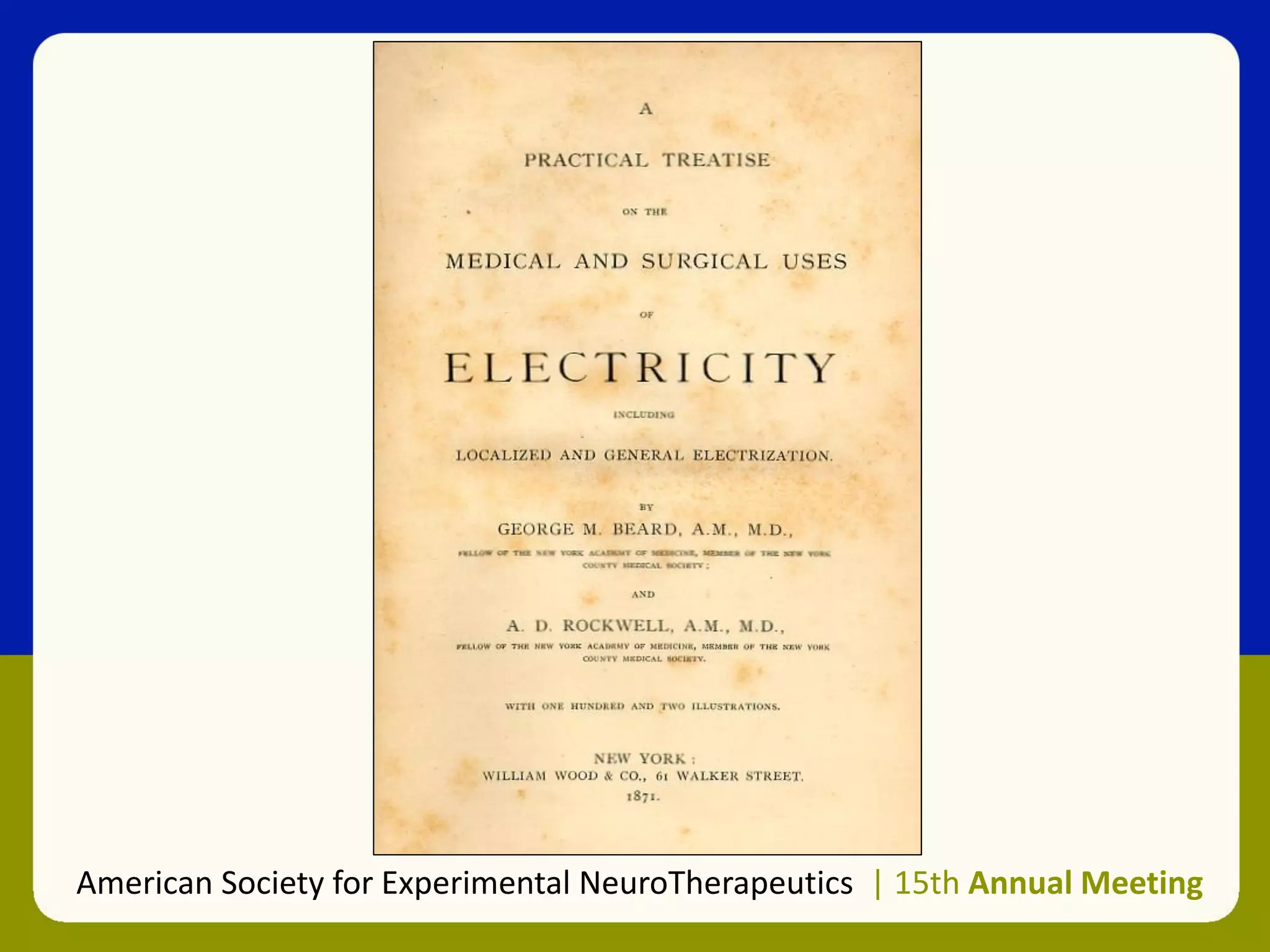

- 9. American Society forExperimental NeuroTherapeutics | 15th Annual Meeting

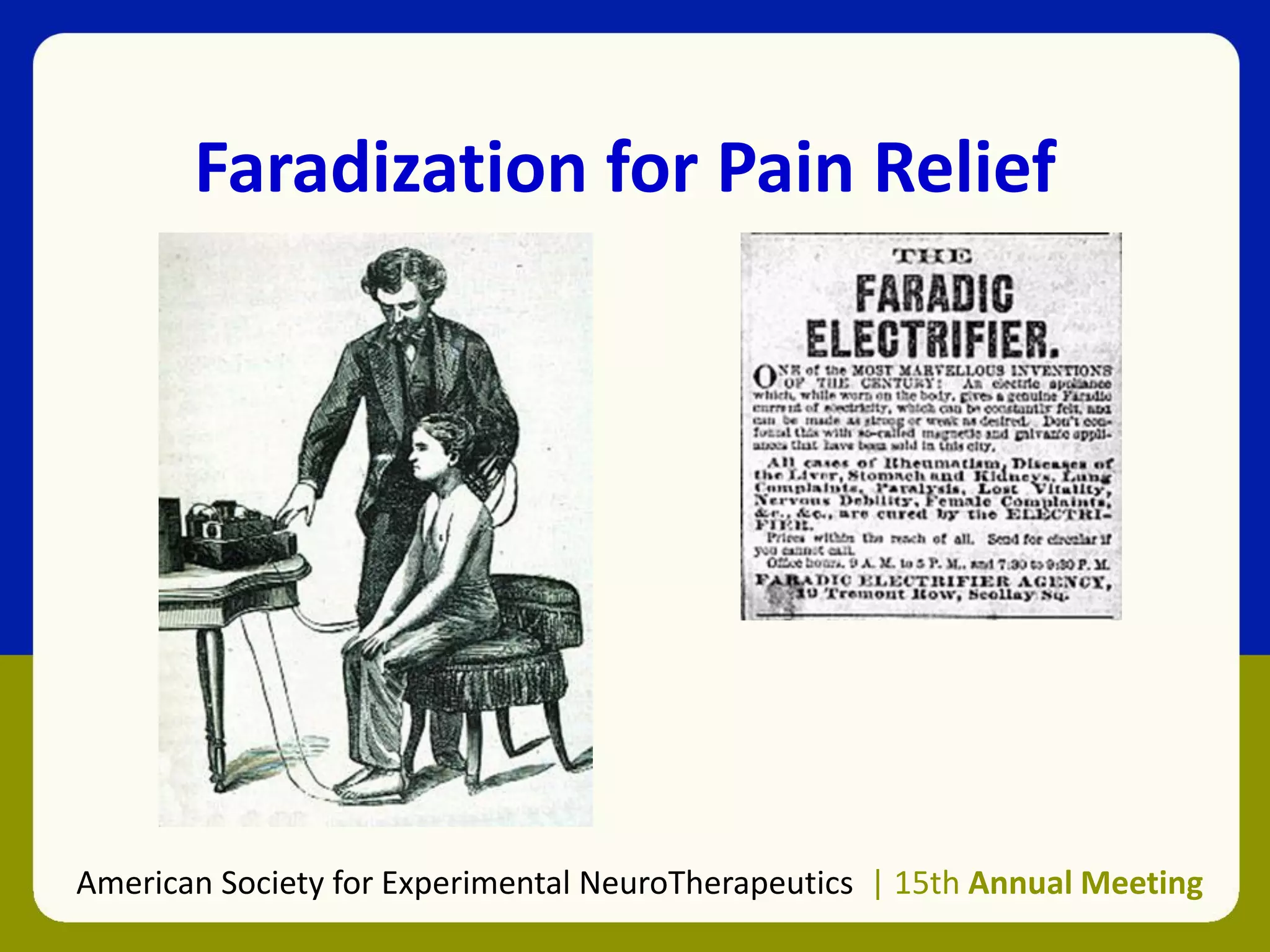

- 10. Faradization for PainRelief American Society for Experimental NeuroTherapeutics | 15th Annual Meeting

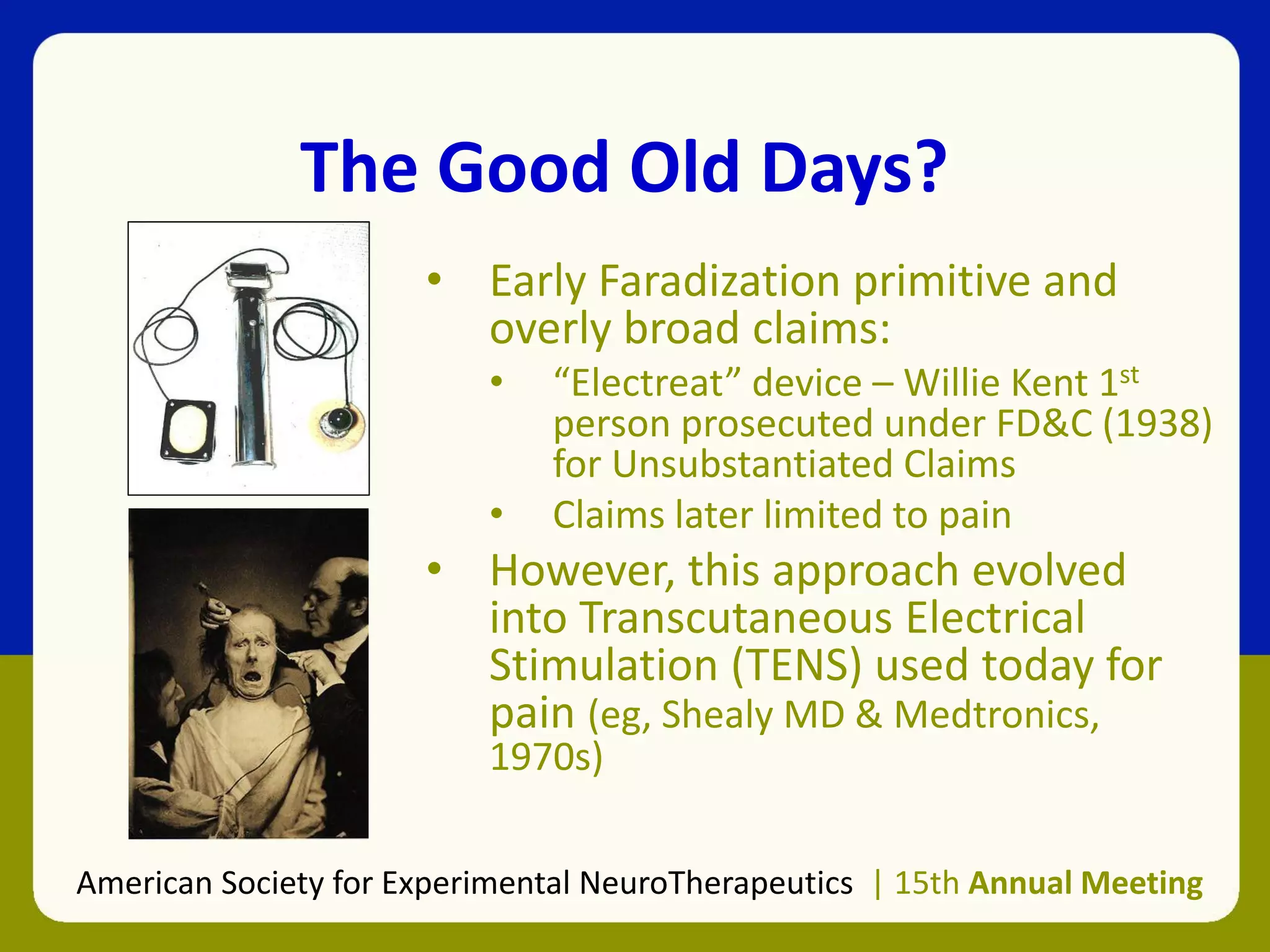

- 11. The Good OldDays? • Early Faradization primitive and overly broad claims: • “Electreat” device – Willie Kent 1st person prosecuted under FD&C (1938) for Unsubstantiated Claims • Claims later limited to pain • However, this approach evolved into Transcutaneous Electrical Stimulation (TENS) used today for pain (eg, Shealy MD & Medtronics, 1970s) American Society for Experimental NeuroTherapeutics | 15th Annual Meeting

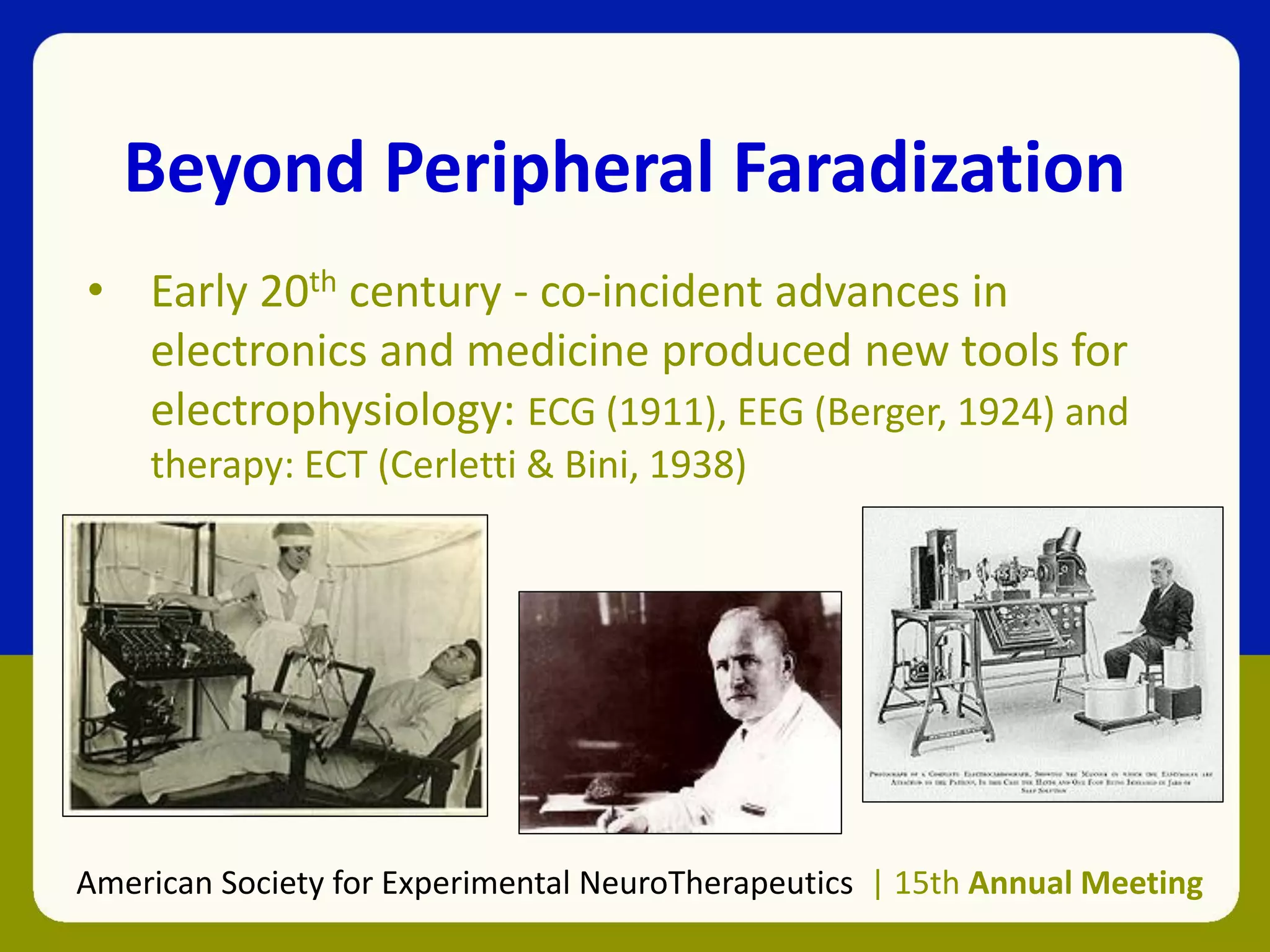

- 12. Beyond Peripheral Faradization •Early 20th century - co-incident advances in electronics and medicine produced new tools for electrophysiology: ECG (1911), EEG (Berger, 1924) and therapy: ECT (Cerletti & Bini, 1938) American Society for Experimental NeuroTherapeutics | 15th Annual Meeting
- 13. If That Isthe Past, Where Are We Today? • We are riding the 20th Century wave of Neuroscience + Moore’s Law • The results are: • Implantable micro-electronics • Open (VNS, DBS) - and Closed-loop (?) therapies • Wireless monitoring (eg, Implanted EEG) • Smart diagnostics (eg, ECG/EEG Interpretation) • Rapid advances in Neurosurgery, fMRI, etc American Society for Experimental NeuroTherapeutics | 15th Annual Meeting

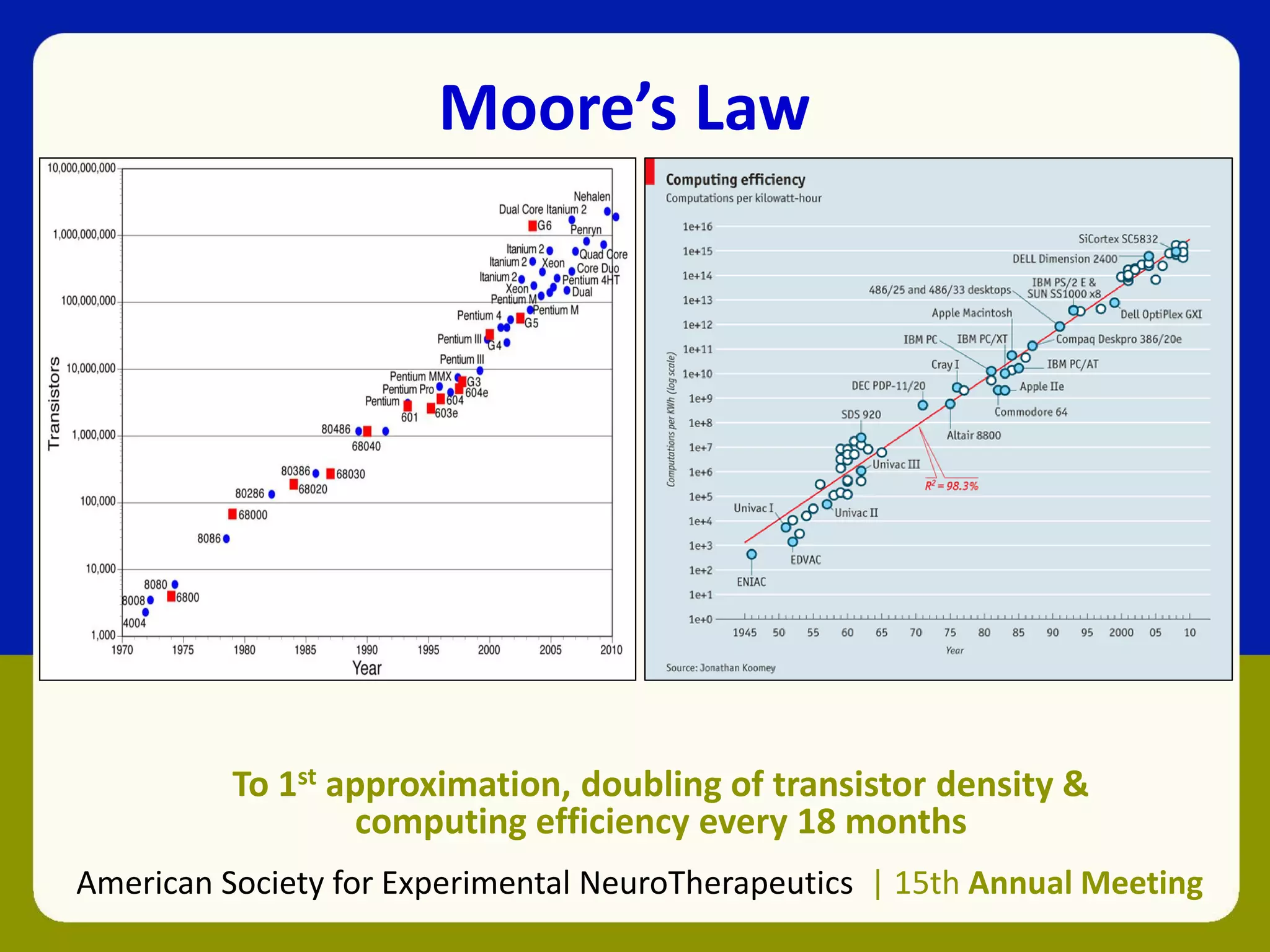

- 14. Moore’s Law To 1stapproximation, doubling of transistor density & computing efficiency every 18 months American Society for Experimental NeuroTherapeutics | 15th Annual Meeting

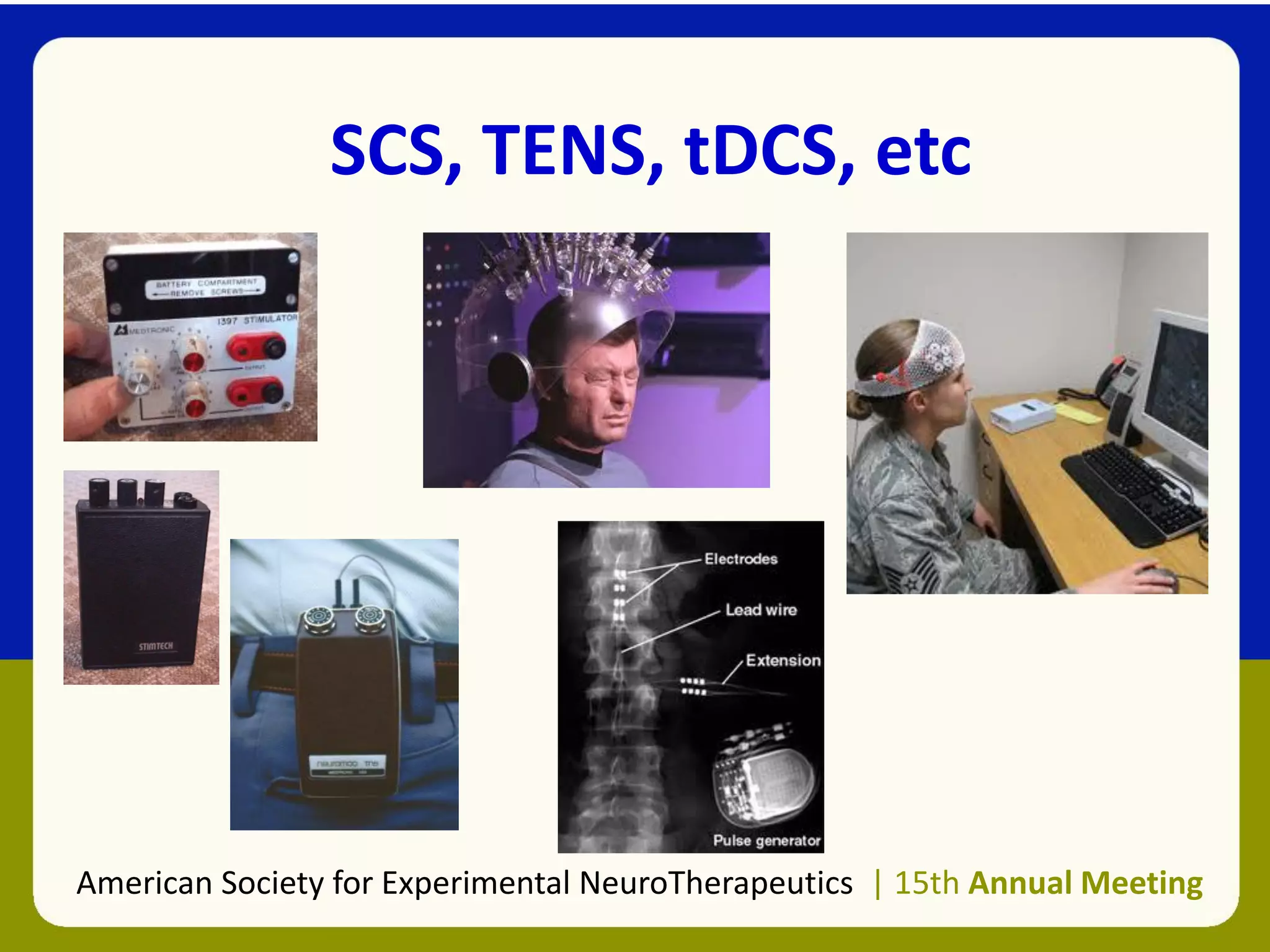

- 15. SCS, TENS, tDCS,etc American Society for Experimental NeuroTherapeutics | 15th Annual Meeting

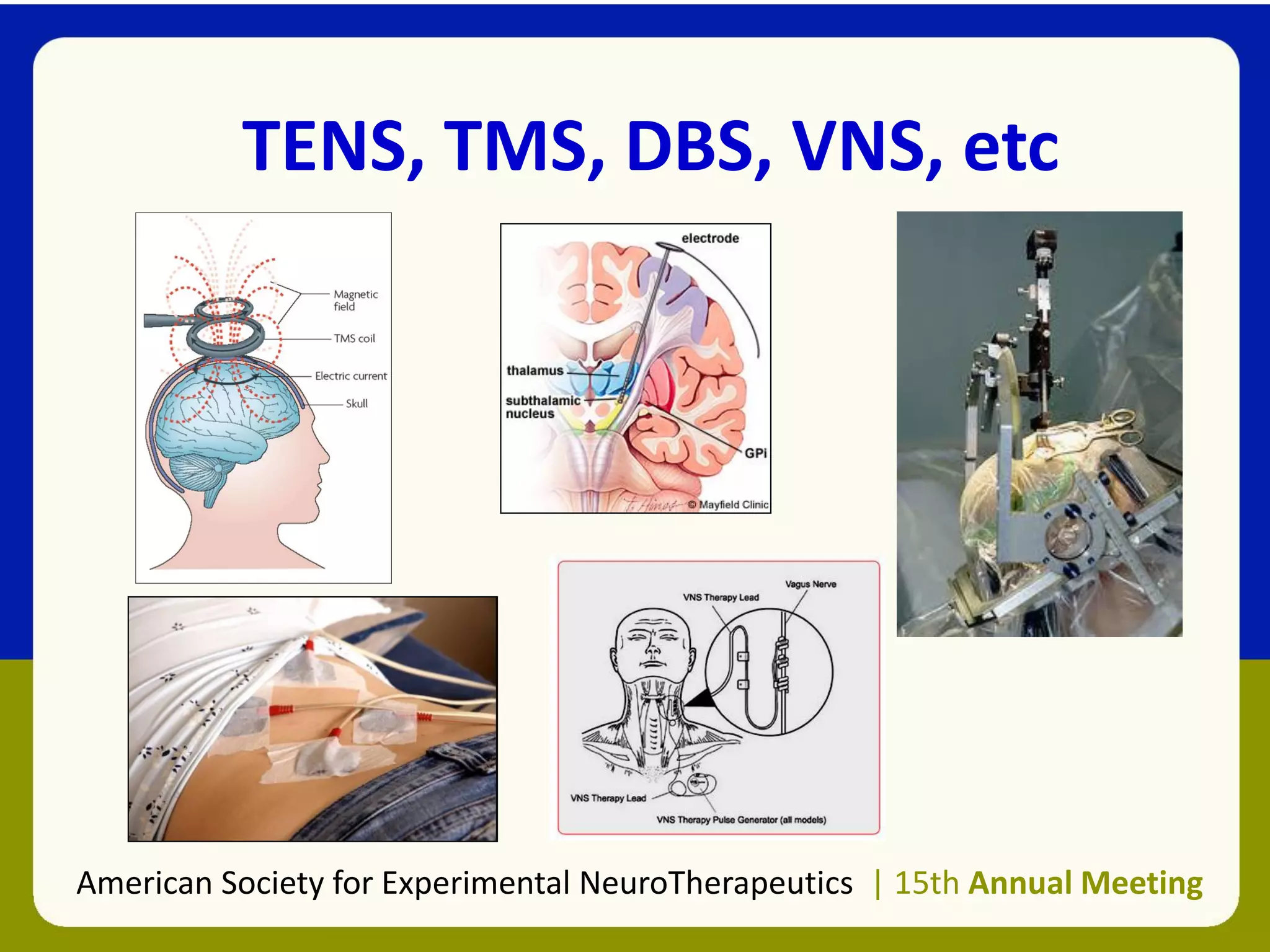

- 16. TENS, TMS, DBS,VNS, etc American Society for Experimental NeuroTherapeutics | 15th Annual Meeting

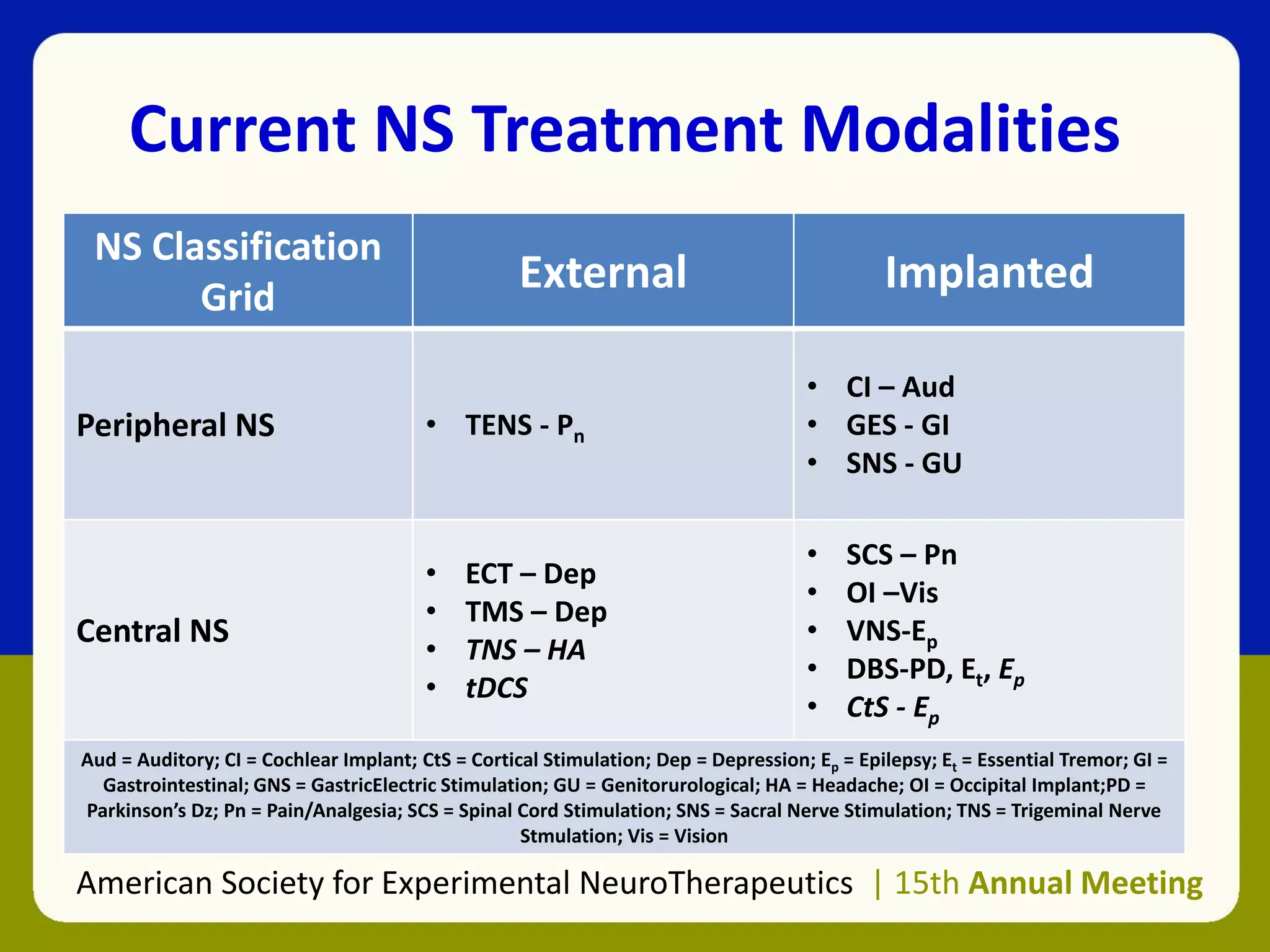

- 17. American Society forExperimental NeuroTherapeutics | 15th Annual Meeting NS Classification Grid External Implanted Peripheral NS • TENS - Pn • CI – Aud • GES - GI • SNS - GU Central NS • ECT – Dep • TMS – Dep • TNS – HA • tDCS • SCS – Pn • OI –Vis • VNS-Ep • DBS-PD, Et, Ep • CtS - Ep Aud = Auditory; CI = Cochlear Implant; CtS = Cortical Stimulation; Dep = Depression; Ep = Epilepsy; Et = Essential Tremor; GI = Gastrointestinal; GNS = GastricElectric Stimulation; GU = Genitorurological; HA = Headache; OI = Occipital Implant;PD = Parkinson’s Dz; Pn = Pain/Analgesia; SCS = Spinal Cord Stimulation; SNS = Sacral Nerve Stimulation; TNS = Trigeminal Nerve Stmulation; Vis = Vision Current NS Treatment Modalities

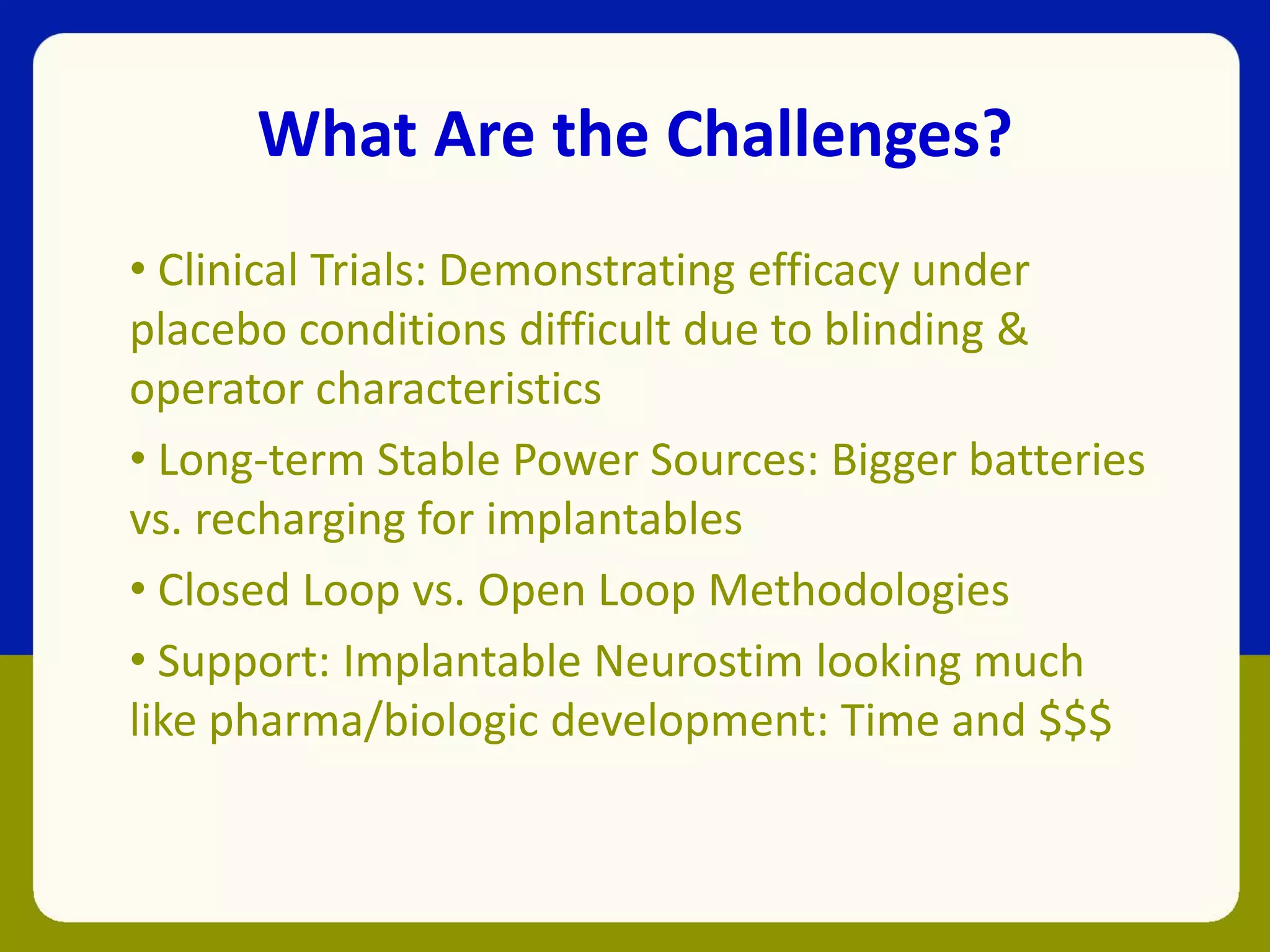

- 18. What Are theChallenges? • Clinical Trials: Demonstrating efficacy under placebo conditions difficult due to blinding & operator characteristics • Long-term Stable Power Sources: Bigger batteries vs. recharging for implantables • Closed Loop vs. Open Loop Methodologies • Support: Implantable Neurostim looking much like pharma/biologic development: Time and $$$

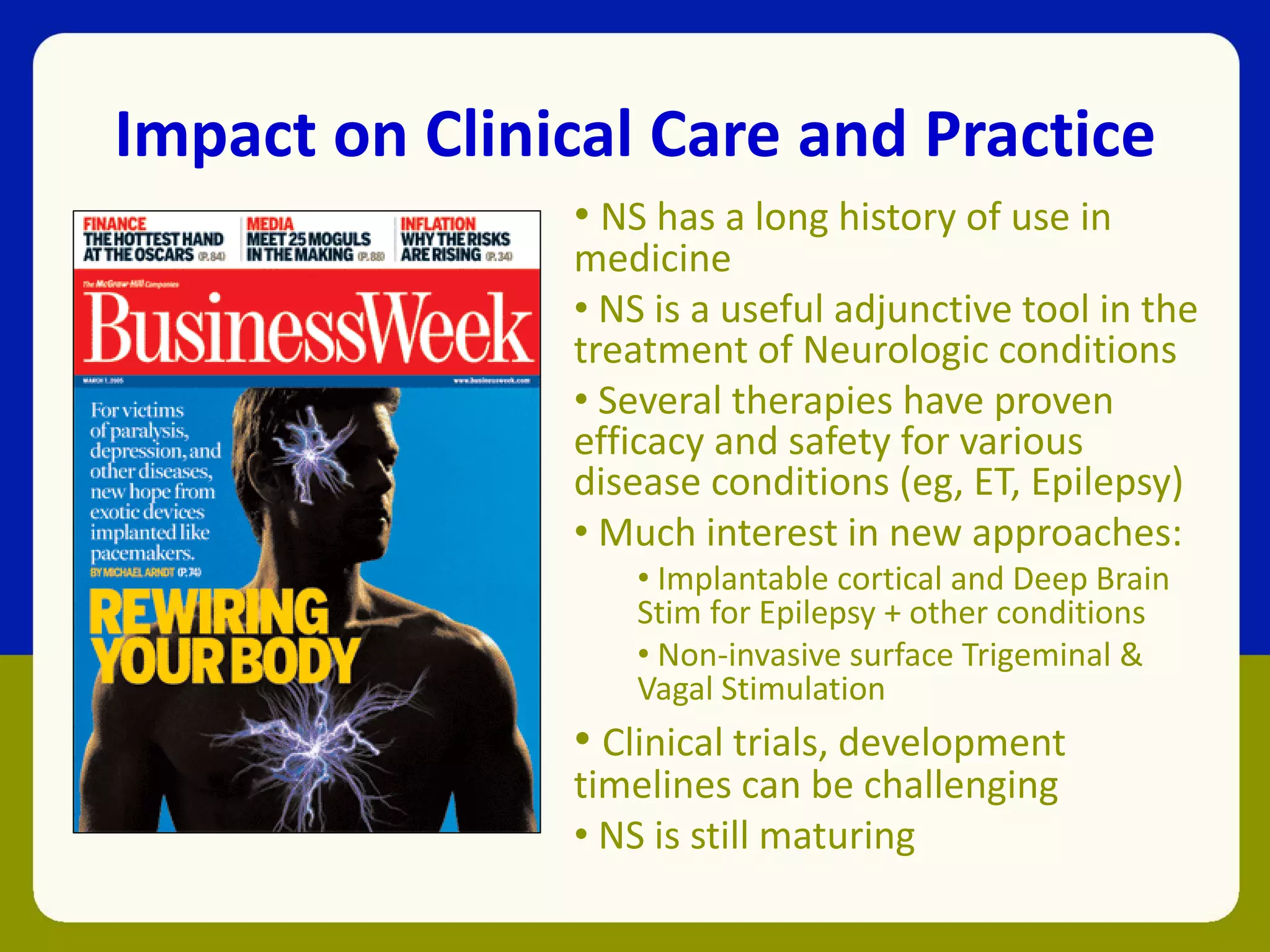

- 19. Impact on ClinicalCare and Practice • NS has a long history of use in medicine • NS is a useful adjunctive tool in the treatment of Neurologic conditions • Several therapies have proven efficacy and safety for various disease conditions (eg, ET, Epilepsy) • Much interest in new approaches: • Implantable cortical and Deep Brain Stim for Epilepsy + other conditions • Non-invasive surface Trigeminal & Vagal Stimulation • Clinical trials, development timelines can be challenging • NS is still maturing
