what is internet of Things ,internet of things Device,IOT Ecosystem,Application of IOT,Major Components of IOT Devices,Devices and protocol to work with IOT,Raspberry pi ,Thingspeak and blynk cloud platform

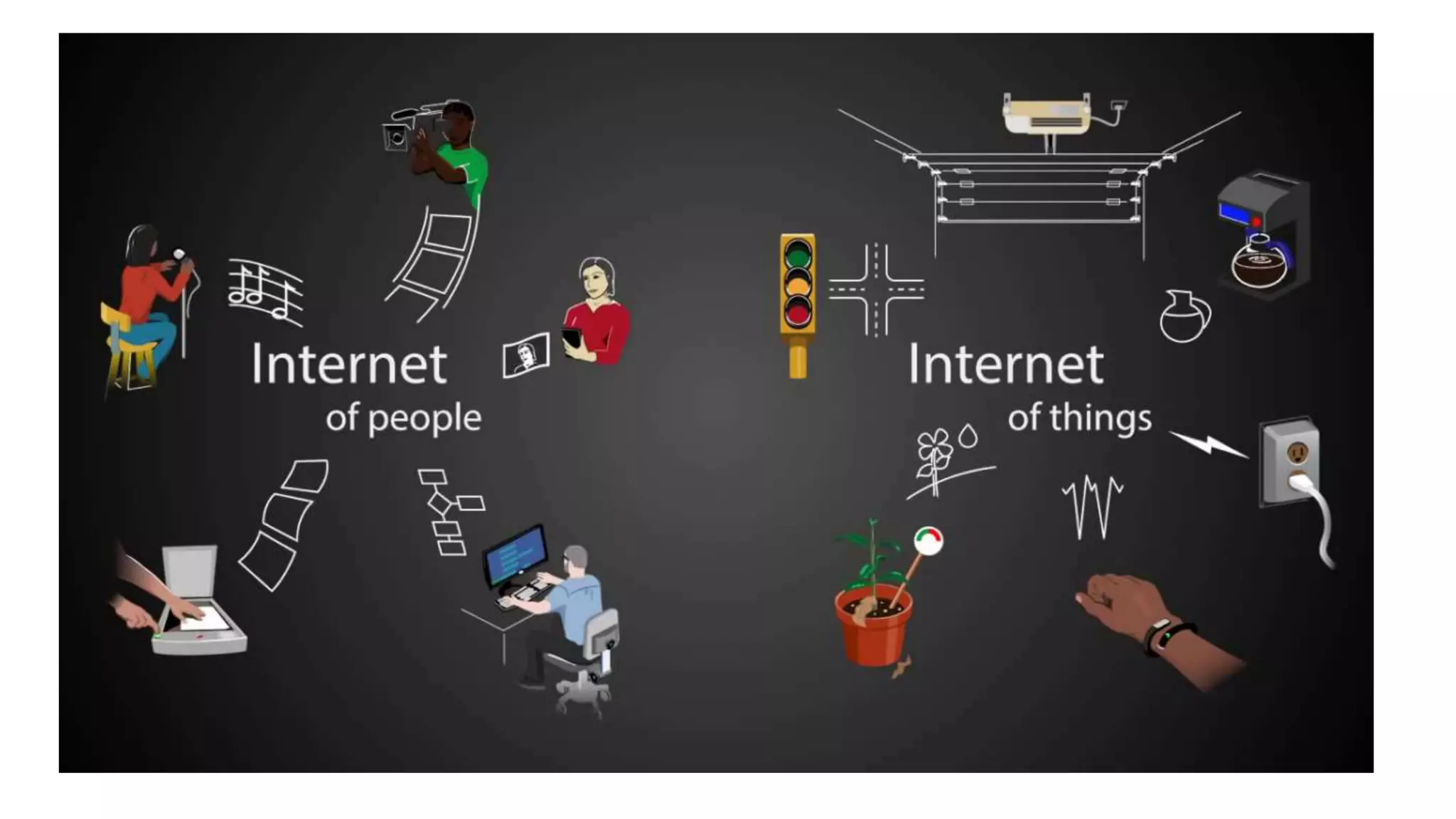

4. What is the Internet of Things (IoT)?
• The Internet of things (IoT) is the network of physical devices,
vehicles, and other items embedded with electronics,
software, sensors, actuators, and network connectivity which enable
these objects to collect and exchange data.

5. Internet of Things device
• Any stand-alone internet-connected device that can be monitored
and/or controlled from a remote location.

6. The IOT Ecosystem

7. IoT Industries

8. Application areas for the Internet of Things

10. Applications of the Internet of Things

11. Smart Home
Nest Learning Thermostat
Philips Hue

12. Wearables

13. Smart Cities
Bigbelly smart waste and recycling system

14. Major Components of IOT Devices
Control Units
A microcontroller can be considered as a small computer on a single
integrated circuit (IC) containing a processor core, memory, and
programmable input and output peripherals.
Control a Relay From Anywhere Using the Raspberry Pi

15. Sensors
Sensors are devices that can measure a physical quantity(like
temperature, humidity, etc.) and convert it into a signal, which can be
read and interpreted by the microcontroller unit.

16. Communication Modules
• RFID
• Bluetooth
• ZigBee
• WiFi
• RF Links
• Cellular Networks:The Mobile internet
• Wired(Ethernet)

17. Power Sources

19. Arduino is an open-source microcontroller board based on the ATmega328P.

20. Broadcom BCM2387 chipset
The 1.2GHz 64-bit quad-core
ARM Cortex-A53 CPU
Integrated 802.11n wireless LAN
and Bluetooth 4.1
A Raspberry Pi is a general-purpose computer, usually with a
Linux operating system, and the ability to run multiple programs

23. INTERNET OF THINGS
• Attach a DHT11 Temperature/Humidity sensor to a Raspberry Pi
Model B+ and use thingspeak.com to plot the data.
• This project involves a Raspberry Pi taking to a DHT11 Humidity and
Temperature sensor and serving up the collected data as a graph.

24. Interfacing diagram

25. • ThingSpeak™ is an IoT analytics platform service that allows you to
aggregate, visualize and analyze live data streams in the cloud.
ThingSpeak provides instant visualizations of data posted by your
devices to ThingSpeak

28. Control a Relay From Anywhere Using the Raspberry Pi

29. THANK YOU !
