1. GE
Security
Fiber Optic
Serial Digital Video
Transmitters and Receivers
1-Channel
Serial Digital
Video
601B and 601SB
Overview
With the steady transition to SDI outputs in today's high
performance broadcast equipment, the ability to extend operating
distance while maintaining signal integrity is easily solved using
the 601B or 601SB serial digital video fiber link. Production
environments designed as digital islands, with audio embedded
into the SDI signal are also supported by the 601B and 601SB.
Applicable Standards
The 601B and 601SB units conform to CCIR 601 and
SMPTE 259M standards. The 601B passes the SDI
signal with the optional embedded audio signal.
Superior Diagnostics
The SMARTS™ diagnostic technology provides built-
in diagnostic tools including LEDs that monitor the
operating status of the video and optical signals.
Standard Features
• One-way video transmission over one multimode or
single mode fiber
• Accommodates serial digital video with imbedded audio
• Conforms to SMPTE 259M and CCIR 601 digital video standards
• SMPTE 310, DVB/ASI compatible
• 10 dB optical budget
• Operating distance 8.9 miles (14 km)
• Standalone configuration

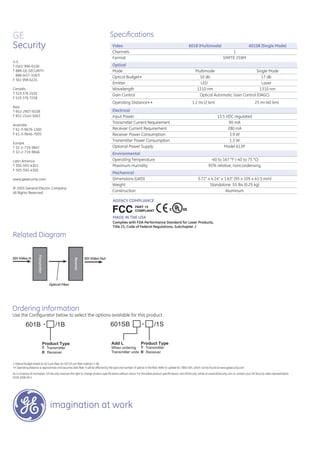

2. GE
Security
imagination at work
SDI Video In
Related Diagram
Ordering Information
Use the Configurator below to select the options available for this product.
GE
Security
imagination at work
Optical Fiber
SDI Video Out
Receiver
601SB - /1S
Add L Product Type
When ordering
Transmitter units
Receiver
Transmitter
T Transmitter
R Receiver
Receiver
601B - /1B
Product Type
T Transmitter
R Receiver
Specifications
Video 601B (Multimode) 601SB (Single Mode)
Channels 1
Format SMPTE 259M
Optical
Mode Multimode Single Mode
Optical Budget∗ 10 db 17 db
Emitter LED Laser
Wavelength 1310 nm 1310 nm
Gain Control
Operating Distance∗∗
Optical Automatic Gain Control (OAGC)
1.2 mi (2 km) 25 mi (40 km)
Electrical
Input Power 13.5 VDC regulated
Transmitter Current Requirement 90 mA
Receiver Current Requirement 280 mA
Receiver Power Consumption 3.9 W
Transmitter Power Consumption 1.3 W
Optional Power Supply Model 613P
Environmental
Operating Temperature -40 to 167 °F (-40 to 75 °C)
Maximum Humidity 95% relative, noncondensing
Mechanical
Dimensions (LWD) 3.72” x 4.14” x 1.63” (95 x 105 x 41.5 mm)
Weight Standalone .55 lbs (0.25 kg)
Construction Aluminum
U.S.
T (561) 998-6100
T 888-GE-SECURITY
888-(437-3287)
F 561 998 6224
Canada
T 519 376 2430
F 519 376 7258
Asia
T 852-2907-8108
F 852-2142-5063
Australia
T 61-3-9676-1300
F 61-3-9646-7005
Europe
T 32-2-719-9847
F 32-2-719-9846
Latin America
T 305-593-4301
F 305-593-4300
www.gesecurity.com
© 2005 General Electric Company
All Rights Reserved
As a company of innovation, GE Security reserves the right to change product specifications without notice. For the latest product specifications, visit GESecurity online at www.GESecurity.com or contact your GE Security sales representative.
601B-2006-09-2
∗ Optical Budget based on 62.5 μm fiber, for 50/125 μm fiber subtract 3 dB.
∗∗ Operating distance is approximate and assumes best fiber. It will be affected by the type and number of splices in the fiber. Refer to update No. TB00-005, which can be found at www.gesecurity.com
