The document provides information about Arjun, Rahul, Sheeba, and Tushar's internship experience at ONGC, including examining the servers and network devices at the ONGC server room in Telbhawan. It describes ONGC as India's largest oil and gas exploration company. It also discusses different networking topics like modems, FDDI, Ethernet, network topologies, network interface cards, and types of networks like LAN, WAN, MAN, and wireless networks.

1. Networking
Arjun
Rahul
Sheeba
Tushar
ONGC
July 6, 2012

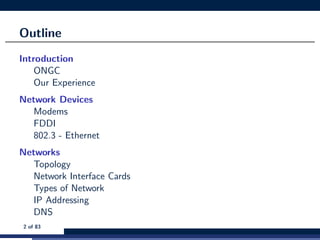

2. Outline
Introduction
ONGC
Our Experience
Network Devices
Modems
FDDI
802.3 - Ethernet
Networks
Topology
Network Interface Cards
Types of Network
IP Addressing
DNS
2 of 83

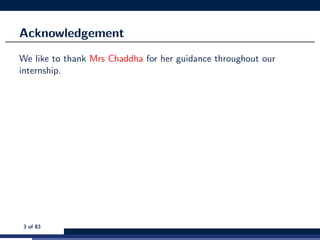

3. Acknowledgement
We like to thank Mrs Chaddha for her guidance throughout our
internship.
3 of 83

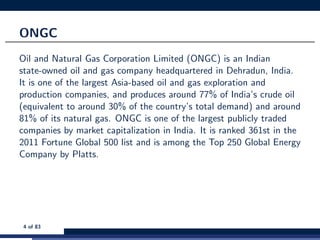

4. ONGC
Oil and Natural Gas Corporation Limited (ONGC) is an Indian
state-owned oil and gas company headquartered in Dehradun, India.
It is one of the largest Asia-based oil and gas exploration and
production companies, and produces around 77% of India’s crude oil
(equivalent to around 30% of the country’s total demand) and around
81% of its natural gas. ONGC is one of the largest publicly traded
companies by market capitalization in India. It is ranked 361st in the
2011 Fortune Global 500 list and is among the Top 250 Global Energy
Company by Platts.
4 of 83

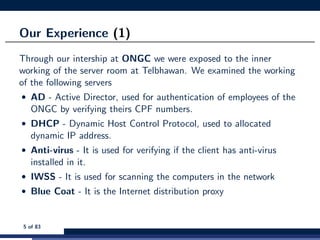

5. Our Experience (1)
Through our intership at ONGC we were exposed to the inner
working of the server room at Telbhawan. We examined the working
of the following servers
• AD - Active Director, used for authentication of employees of the
ONGC by verifying theirs CPF numbers.
• DHCP - Dynamic Host Control Protocol, used to allocated
dynamic IP address.
• Anti-virus - It is used for verifying if the client has anti-virus
installed in it.
• IWSS - It is used for scanning the computers in the network
• Blue Coat - It is the Internet distribution proxy
5 of 83

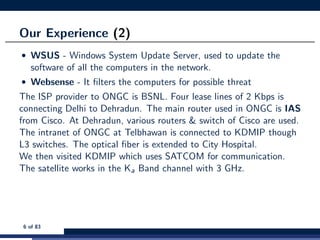

6. Our Experience (2)
• WSUS - Windows System Update Server, used to update the
software of all the computers in the network.
• Websense - It filters the computers for possible threat
The ISP provider to ONGC is BSNL. Four lease lines of 2 Kbps is
connecting Delhi to Dehradun. The main router used in ONGC is IAS
from Cisco. At Dehradun, various routers & switch of Cisco are used.
The intranet of ONGC at Telbhawan is connected to KDMIP though
L3 switches. The optical fiber is extended to City Hospital.
We then visited KDMIP which uses SATCOM for communication.
The satellite works in the Ka Band channel with 3 GHz.
6 of 83

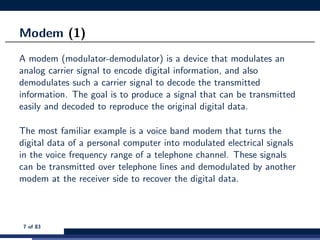

7. Modem (1)
A modem (modulator-demodulator) is a device that modulates an
analog carrier signal to encode digital information, and also
demodulates such a carrier signal to decode the transmitted
information. The goal is to produce a signal that can be transmitted
easily and decoded to reproduce the original digital data.
The most familiar example is a voice band modem that turns the
digital data of a personal computer into modulated electrical signals
in the voice frequency range of a telephone channel. These signals
can be transmitted over telephone lines and demodulated by another
modem at the receiver side to recover the digital data.
7 of 83

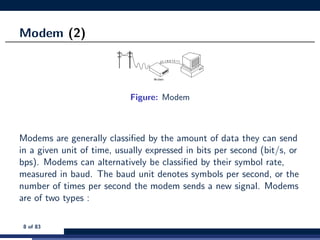

8. Modem (2)
Figure: Modem
Modems are generally classified by the amount of data they can send
in a given unit of time, usually expressed in bits per second (bit/s, or
bps). Modems can alternatively be classified by their symbol rate,
measured in baud. The baud unit denotes symbols per second, or the
number of times per second the modem sends a new signal. Modems
are of two types :
8 of 83

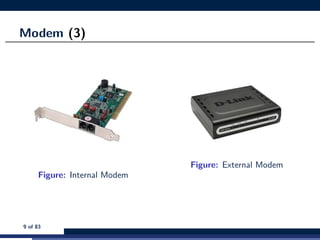

9. Modem (3)
Figure: Internal Modem
Figure: External Modem
9 of 83

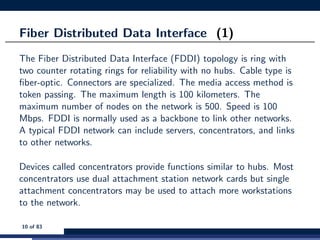

10. Fiber Distributed Data Interface (1)
The Fiber Distributed Data Interface (FDDI) topology is ring with
two counter rotating rings for reliability with no hubs. Cable type is
fiber-optic. Connectors are specialized. The media access method is
token passing. The maximum length is 100 kilometers. The
maximum number of nodes on the network is 500. Speed is 100
Mbps. FDDI is normally used as a backbone to link other networks.
A typical FDDI network can include servers, concentrators, and links
to other networks.
Devices called concentrators provide functions similar to hubs. Most
concentrators use dual attachment station network cards but single
attachment concentrators may be used to attach more workstations
to the network.
10 of 83

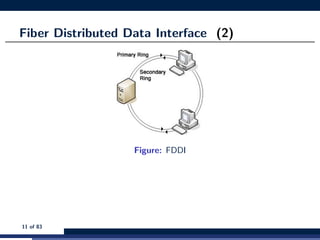

11. Fiber Distributed Data Interface (2)
Figure: FDDI
11 of 83

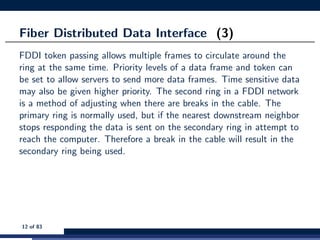

12. Fiber Distributed Data Interface (3)
FDDI token passing allows multiple frames to circulate around the
ring at the same time. Priority levels of a data frame and token can
be set to allow servers to send more data frames. Time sensitive data
may also be given higher priority. The second ring in a FDDI network
is a method of adjusting when there are breaks in the cable. The
primary ring is normally used, but if the nearest downstream neighbor
stops responding the data is sent on the secondary ring in attempt to
reach the computer. Therefore a break in the cable will result in the
secondary ring being used.
12 of 83

13. Fiber Distributed Data Interface (4)
Figure: FDDI
13 of 83

14. Fiber Distributed Data Interface (5)
There are two network cards which are:
• Dual attachment stations (DAS) used for servers and concentrators
are attached to both rings.
• Single Attachment stations (SAS) attached to one ring and used
to attach workstations to concentrators.
A router or switch can link an FDDI network to a local area network
(LAN). Normally FDDI is used to link LANs together since it covers
long distances.
14 of 83

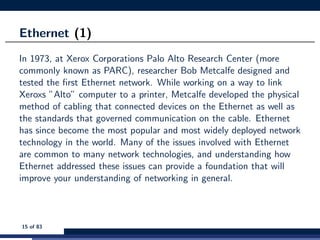

15. Ethernet (1)
In 1973, at Xerox Corporations Palo Alto Research Center (more
commonly known as PARC), researcher Bob Metcalfe designed and
tested the first Ethernet network. While working on a way to link
Xeroxs ”Alto” computer to a printer, Metcalfe developed the physical
method of cabling that connected devices on the Ethernet as well as
the standards that governed communication on the cable. Ethernet
has since become the most popular and most widely deployed network
technology in the world. Many of the issues involved with Ethernet
are common to many network technologies, and understanding how
Ethernet addressed these issues can provide a foundation that will
improve your understanding of networking in general.
15 of 83

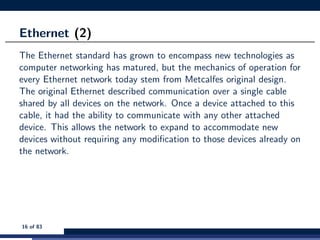

16. Ethernet (2)
The Ethernet standard has grown to encompass new technologies as
computer networking has matured, but the mechanics of operation for
every Ethernet network today stem from Metcalfes original design.
The original Ethernet described communication over a single cable
shared by all devices on the network. Once a device attached to this
cable, it had the ability to communicate with any other attached
device. This allows the network to expand to accommodate new
devices without requiring any modification to those devices already on
the network.
16 of 83

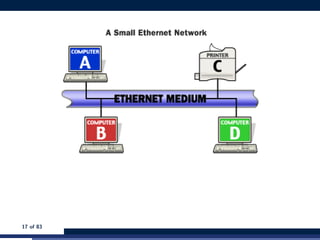

17. 17 of 83

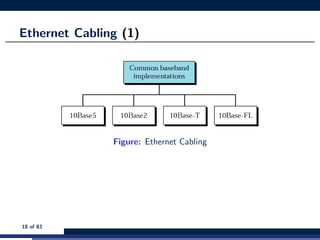

18. Ethernet Cabling (1)
Figure: Ethernet Cabling
18 of 83

19. Ethernet Cabling (2)
Figure: The most common kinds of Ethernet cabling
19 of 83

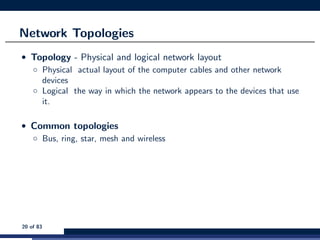

20. Network Topologies
• Topology - Physical and logical network layout
◦ Physical actual layout of the computer cables and other network
devices
◦ Logical the way in which the network appears to the devices that use
it.
• Common topologies
◦ Bus, ring, star, mesh and wireless
20 of 83

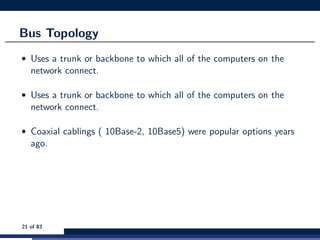

21. Bus Topology
• Uses a trunk or backbone to which all of the computers on the
network connect.
• Uses a trunk or backbone to which all of the computers on the
network connect.
• Coaxial cablings ( 10Base-2, 10Base5) were popular options years
ago.
21 of 83

22. Advantages
• Cable faults are easily located,
making troubleshooting easier
• Ring network are moderately
easy to install
Disadvantages
• Expansion to the network can
cause network disruption
• A single break in the cable can
disrupt the entire network
Figure: Bus Topology
22 of 83

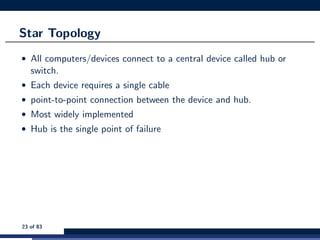

23. Star Topology
• All computers/devices connect to a central device called hub or
switch.
• Each device requires a single cable
• point-to-point connection between the device and hub.
• Most widely implemented
• Hub is the single point of failure
23 of 83

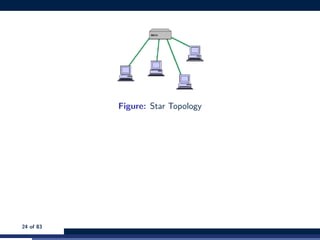

24. Figure: Star Topology
24 of 83

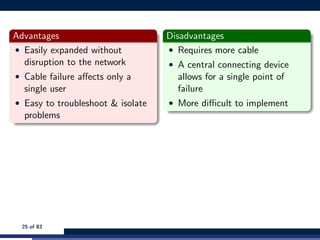

25. Advantages
• Easily expanded without
disruption to the network
• Cable failure affects only a
single user
• Easy to troubleshoot & isolate
problems
Disadvantages
• Requires more cable
• A central connecting device
allows for a single point of
failure
• More difficult to implement
25 of 83

26. Mesh Topology
• Each computer connects to every other
• High level of redundancy.
• Rarely used
◦ Wiring is very complicated
◦ Cabling cost is high
◦ Troubleshooting a failed cable is tricky
◦ A variation hybrid mesh create point to point connection between
specific network devices, often seen in WAN implementation.
26 of 83

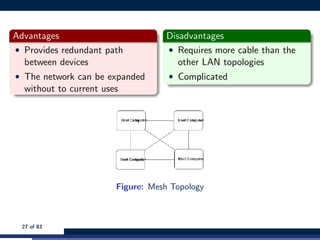

27. Advantages
• Provides redundant path
between devices
• The network can be expanded
without to current uses
Disadvantages
• Requires more cable than the
other LAN topologies
• Complicated
Figure: Mesh Topology
27 of 83

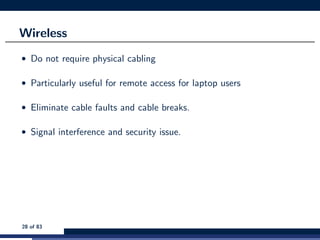

28. Wireless
• Do not require physical cabling
• Particularly useful for remote access for laptop users
• Eliminate cable faults and cable breaks.
• Signal interference and security issue.
28 of 83

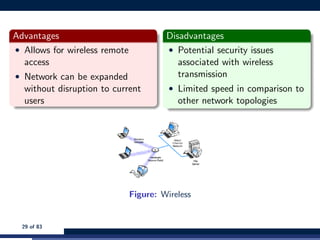

29. Advantages
• Allows for wireless remote
access
• Network can be expanded
without disruption to current
users
Disadvantages
• Potential security issues
associated with wireless
transmission
• Limited speed in comparison to
other network topologies
Figure: Wireless
29 of 83

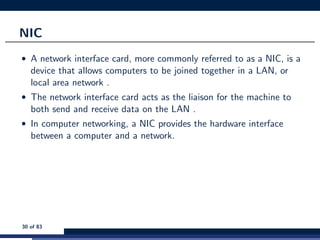

30. NIC
• A network interface card, more commonly referred to as a NIC, is a
device that allows computers to be joined together in a LAN, or
local area network .
• The network interface card acts as the liaison for the machine to
both send and receive data on the LAN .
• In computer networking, a NIC provides the hardware interface
between a computer and a network.
30 of 83

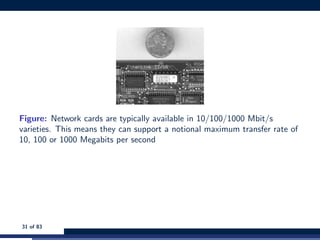

31. Figure: Network cards are typically available in 10/100/1000 Mbit/s
varieties. This means they can support a notional maximum transfer rate of
10, 100 or 1000 Megabits per second
31 of 83

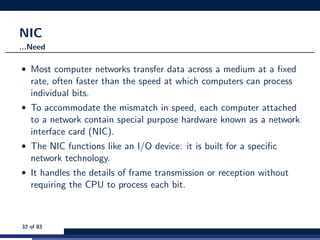

32. NIC
...Need
• Most computer networks transfer data across a medium at a fixed
rate, often faster than the speed at which computers can process
individual bits.
• To accommodate the mismatch in speed, each computer attached
to a network contain special purpose hardware known as a network
interface card (NIC).
• The NIC functions like an I/O device: it is built for a specific
network technology.
• It handles the details of frame transmission or reception without
requiring the CPU to process each bit.
32 of 83

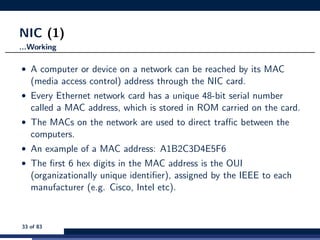

33. NIC (1)
...Working
• A computer or device on a network can be reached by its MAC
(media access control) address through the NIC card.
• Every Ethernet network card has a unique 48-bit serial number
called a MAC address, which is stored in ROM carried on the card.
• The MACs on the network are used to direct traffic between the
computers.
• An example of a MAC address: A1B2C3D4E5F6
• The first 6 hex digits in the MAC address is the OUI
(organizationally unique identifier), assigned by the IEEE to each
manufacturer (e.g. Cisco, Intel etc).
33 of 83

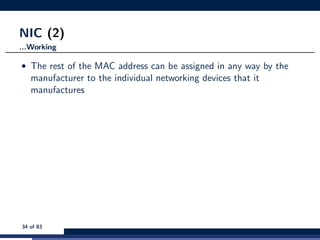

34. NIC (2)
...Working
• The rest of the MAC address can be assigned in any way by the
manufacturer to the individual networking devices that it
manufactures
34 of 83

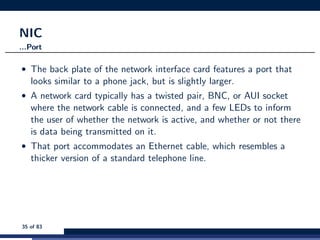

35. NIC
...Port
• The back plate of the network interface card features a port that
looks similar to a phone jack, but is slightly larger.
• A network card typically has a twisted pair, BNC, or AUI socket
where the network cable is connected, and a few LEDs to inform
the user of whether the network is active, and whether or not there
is data being transmitted on it.
• That port accommodates an Ethernet cable, which resembles a
thicker version of a standard telephone line.
35 of 83

36. 36 of 83

37. Figure: Network Interface Card for connection of a computer to an Ethernet
Network
37 of 83

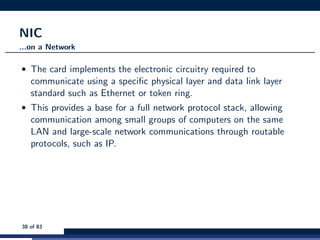

38. NIC
...on a Network
• The card implements the electronic circuitry required to
communicate using a specific physical layer and data link layer
standard such as Ethernet or token ring.
• This provides a base for a full network protocol stack, allowing
communication among small groups of computers on the same
LAN and large-scale network communications through routable
protocols, such as IP.
38 of 83

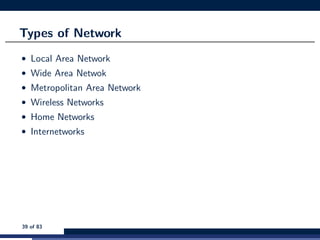

39. Types of Network
• Local Area Network
• Wide Area Netwok
• Metropolitan Area Network
• Wireless Networks
• Home Networks
• Internetworks
39 of 83

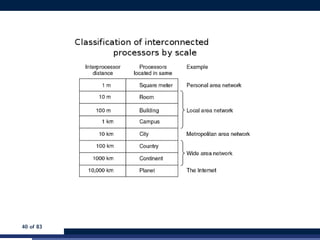

40. 40 of 83

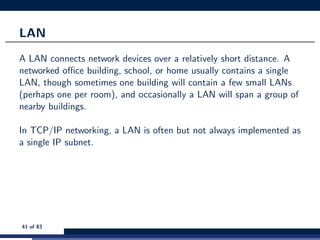

41. LAN
A LAN connects network devices over a relatively short distance. A
networked office building, school, or home usually contains a single
LAN, though sometimes one building will contain a few small LANs
(perhaps one per room), and occasionally a LAN will span a group of
nearby buildings.
In TCP/IP networking, a LAN is often but not always implemented as
a single IP subnet.
41 of 83

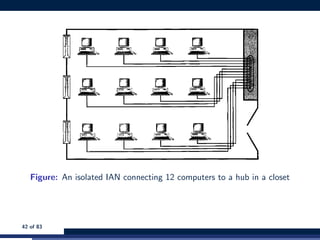

42. Figure: An isolated IAN connecting 12 computers to a hub in a closet
42 of 83

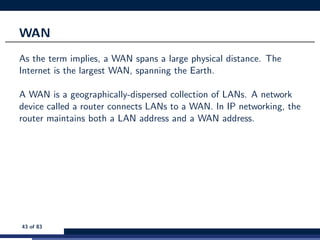

43. WAN
As the term implies, a WAN spans a large physical distance. The
Internet is the largest WAN, spanning the Earth.
A WAN is a geographically-dispersed collection of LANs. A network
device called a router connects LANs to a WAN. In IP networking, the
router maintains both a LAN address and a WAN address.
43 of 83

44. 44 of 83

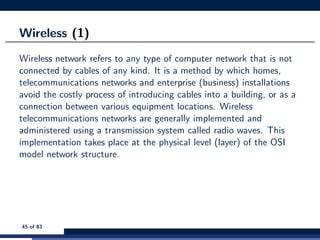

45. Wireless (1)
Wireless network refers to any type of computer network that is not
connected by cables of any kind. It is a method by which homes,
telecommunications networks and enterprise (business) installations
avoid the costly process of introducing cables into a building, or as a
connection between various equipment locations. Wireless
telecommunications networks are generally implemented and
administered using a transmission system called radio waves. This
implementation takes place at the physical level (layer) of the OSI
model network structure.
45 of 83

46. Wireless (2)
Figure: Wireless
46 of 83

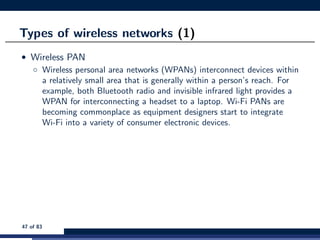

47. Types of wireless networks (1)
• Wireless PAN
◦ Wireless personal area networks (WPANs) interconnect devices within
a relatively small area that is generally within a person’s reach. For
example, both Bluetooth radio and invisible infrared light provides a
WPAN for interconnecting a headset to a laptop. Wi-Fi PANs are
becoming commonplace as equipment designers start to integrate
Wi-Fi into a variety of consumer electronic devices.
47 of 83

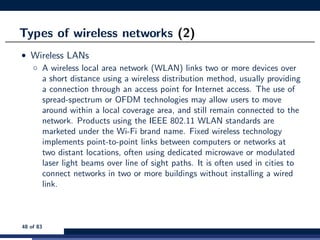

48. Types of wireless networks (2)
• Wireless LANs
◦ A wireless local area network (WLAN) links two or more devices over
a short distance using a wireless distribution method, usually providing
a connection through an access point for Internet access. The use of
spread-spectrum or OFDM technologies may allow users to move
around within a local coverage area, and still remain connected to the
network. Products using the IEEE 802.11 WLAN standards are
marketed under the Wi-Fi brand name. Fixed wireless technology
implements point-to-point links between computers or networks at
two distant locations, often using dedicated microwave or modulated
laser light beams over line of sight paths. It is often used in cities to
connect networks in two or more buildings without installing a wired
link.
48 of 83

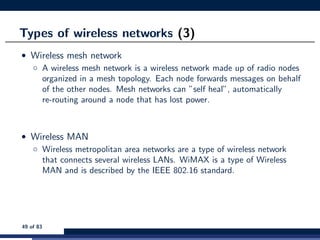

49. Types of wireless networks (3)
• Wireless mesh network
◦ A wireless mesh network is a wireless network made up of radio nodes
organized in a mesh topology. Each node forwards messages on behalf
of the other nodes. Mesh networks can ”self heal”, automatically
re-routing around a node that has lost power.
• Wireless MAN
◦ Wireless metropolitan area networks are a type of wireless network
that connects several wireless LANs. WiMAX is a type of Wireless
MAN and is described by the IEEE 802.16 standard.
49 of 83

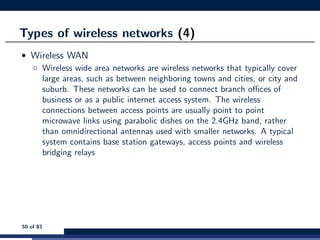

50. Types of wireless networks (4)
• Wireless WAN
◦ Wireless wide area networks are wireless networks that typically cover
large areas, such as between neighboring towns and cities, or city and
suburb. These networks can be used to connect branch offices of
business or as a public internet access system. The wireless
connections between access points are usually point to point
microwave links using parabolic dishes on the 2.4GHz band, rather
than omnidirectional antennas used with smaller networks. A typical
system contains base station gateways, access points and wireless
bridging relays
50 of 83

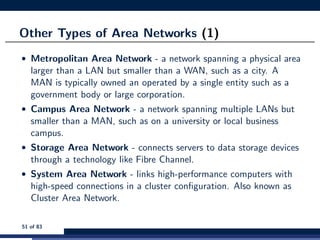

51. Other Types of Area Networks (1)
• Metropolitan Area Network - a network spanning a physical area
larger than a LAN but smaller than a WAN, such as a city. A
MAN is typically owned an operated by a single entity such as a
government body or large corporation.
• Campus Area Network - a network spanning multiple LANs but
smaller than a MAN, such as on a university or local business
campus.
• Storage Area Network - connects servers to data storage devices
through a technology like Fibre Channel.
• System Area Network - links high-performance computers with
high-speed connections in a cluster configuration. Also known as
Cluster Area Network.
51 of 83

52. OSI Model
Virtually all networks in use today are based in some fashion on the
Open Systems Interconnection (OSI) standard. OSI was developed in
1984 by the International Organization for Standardization (ISO), a
global federation of national standards organizations representing
approximately 130 countries.
52 of 83

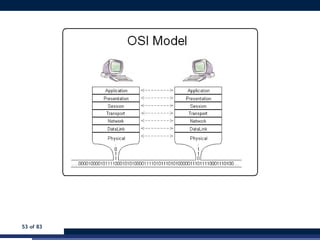

53. 53 of 83

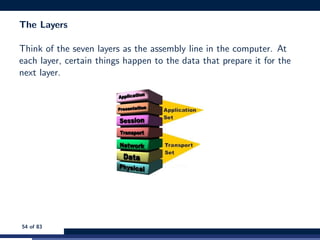

54. The Layers
Think of the seven layers as the assembly line in the computer. At
each layer, certain things happen to the data that prepare it for the
next layer.
54 of 83

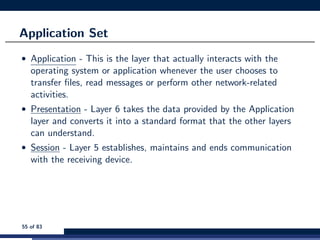

55. Application Set
• Application - This is the layer that actually interacts with the
operating system or application whenever the user chooses to
transfer files, read messages or perform other network-related
activities.
• Presentation - Layer 6 takes the data provided by the Application
layer and converts it into a standard format that the other layers
can understand.
• Session - Layer 5 establishes, maintains and ends communication
with the receiving device.
55 of 83

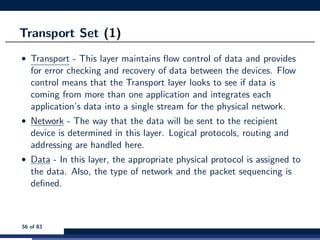

56. Transport Set (1)
• Transport - This layer maintains flow control of data and provides
for error checking and recovery of data between the devices. Flow
control means that the Transport layer looks to see if data is
coming from more than one application and integrates each
application’s data into a single stream for the physical network.
• Network - The way that the data will be sent to the recipient
device is determined in this layer. Logical protocols, routing and
addressing are handled here.
• Data - In this layer, the appropriate physical protocol is assigned to
the data. Also, the type of network and the packet sequencing is
defined.
56 of 83

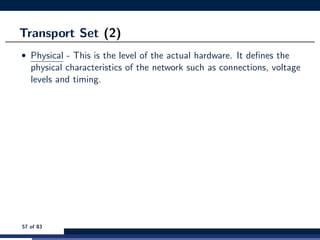

57. Transport Set (2)
• Physical - This is the level of the actual hardware. It defines the
physical characteristics of the network such as connections, voltage
levels and timing.
57 of 83

58. Benefits of the OSI Model
By separating the network communications into logical smaller pieces,
the OSI model simplifies how network protocols are designed. The
OSI model was designed to ensure different types of equipment (such
as network adapters, hubs, and routers) would all be compatible even
if built by different manufacturers. A product from one network
equipment vendor that implements OSI Layer 2 functionality, for
example, will be much more likely to interoperate with another
vendor’s OSI Layer 3 product because both vendors are following the
same model.
58 of 83

59. IPv4 Addressing
An IP address is an identifier that is assigned at the Internet layer to
an interface or a set of interfaces. Each IP address can identify the
source or destination of IP packets. For IPv4, every node on a network
has one or more interfaces, and you can enable TCP/IP on each of
those interfaces. When you enable TCP/IP on an interface, you
assign it one or more logical IPv4 addresses, either automatically or
manually. The IPv4 address is a logical address because it is assigned
at the Internet layer and has no relation to the addresses that are
used at the Network Interface layer. IPv4 addresses are 32 bits long
59 of 83

60. Figure: IPv4 Address Syntax
60 of 83

61. Types of IPv4 Addresses
Internet standards define the following types of IPv4 addresses:
• Unicast
Assigned to a single network interface located on a specific subnet;
used for one-to-one communication.
• Multicast
Assigned to one or more network interfaces located on various
subnets; used for one-to-many communication
• Broadcast
Assigned to all network interfaces located on a subnet; used for
one-to-everyone on a subnet communication.
61 of 83

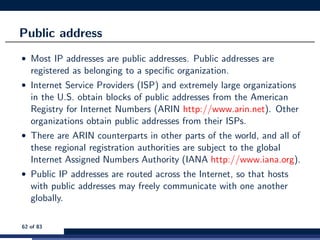

62. Public address
• Most IP addresses are public addresses. Public addresses are
registered as belonging to a specific organization.
• Internet Service Providers (ISP) and extremely large organizations
in the U.S. obtain blocks of public addresses from the American
Registry for Internet Numbers (ARIN http://www.arin.net). Other
organizations obtain public addresses from their ISPs.
• There are ARIN counterparts in other parts of the world, and all of
these regional registration authorities are subject to the global
Internet Assigned Numbers Authority (IANA http://www.iana.org).
• Public IP addresses are routed across the Internet, so that hosts
with public addresses may freely communicate with one another
globally.
62 of 83

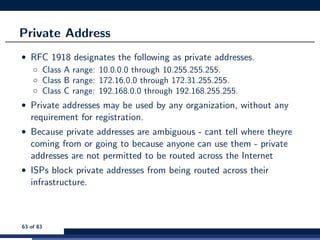

63. Private Address
• RFC 1918 designates the following as private addresses.
◦ Class A range: 10.0.0.0 through 10.255.255.255.
◦ Class B range: 172.16.0.0 through 172.31.255.255.
◦ Class C range: 192.168.0.0 through 192.168.255.255.
• Private addresses may be used by any organization, without any
requirement for registration.
• Because private addresses are ambiguous - cant tell where theyre
coming from or going to because anyone can use them - private
addresses are not permitted to be routed across the Internet
• ISPs block private addresses from being routed across their
infrastructure.
63 of 83

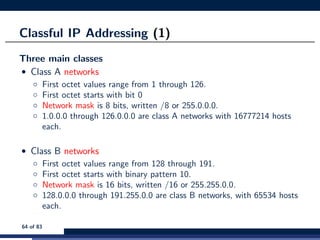

64. Classful IP Addressing (1)
Three main classes
• Class A networks
◦ First octet values range from 1 through 126.
◦ First octet starts with bit 0
◦ Network mask is 8 bits, written /8 or 255.0.0.0.
◦ 1.0.0.0 through 126.0.0.0 are class A networks with 16777214 hosts
each.
• Class B networks
◦ First octet values range from 128 through 191.
◦ First octet starts with binary pattern 10.
◦ Network mask is 16 bits, written /16 or 255.255.0.0.
◦ 128.0.0.0 through 191.255.0.0 are class B networks, with 65534 hosts
each.
64 of 83

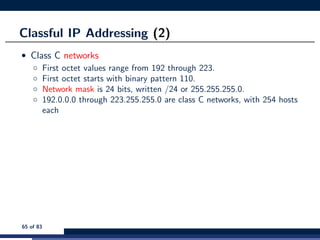

65. Classful IP Addressing (2)
• Class C networks
◦ First octet values range from 192 through 223.
◦ First octet starts with binary pattern 110.
◦ Network mask is 24 bits, written /24 or 255.255.255.0.
◦ 192.0.0.0 through 223.255.255.0 are class C networks, with 254 hosts
each
65 of 83

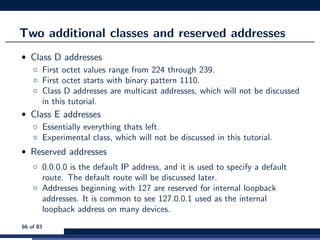

66. Two additional classes and reserved addresses
• Class D addresses
◦ First octet values range from 224 through 239.
◦ First octet starts with binary pattern 1110.
◦ Class D addresses are multicast addresses, which will not be discussed
in this tutorial.
• Class E addresses
◦ Essentially everything thats left.
◦ Experimental class, which will not be discussed in this tutorial.
• Reserved addresses
◦ 0.0.0.0 is the default IP address, and it is used to specify a default
route. The default route will be discussed later.
◦ Addresses beginning with 127 are reserved for internal loopback
addresses. It is common to see 127.0.0.1 used as the internal
loopback address on many devices.
66 of 83

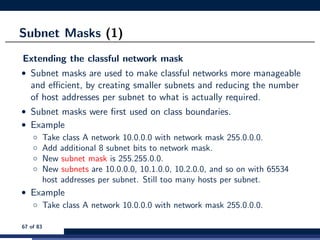

67. Subnet Masks (1)
Extending the classful network mask
• Subnet masks are used to make classful networks more manageable
and efficient, by creating smaller subnets and reducing the number
of host addresses per subnet to what is actually required.
• Subnet masks were first used on class boundaries.
• Example
◦ Take class A network 10.0.0.0 with network mask 255.0.0.0.
◦ Add additional 8 subnet bits to network mask.
◦ New subnet mask is 255.255.0.0.
◦ New subnets are 10.0.0.0, 10.1.0.0, 10.2.0.0, and so on with 65534
host addresses per subnet. Still too many hosts per subnet.
• Example
◦ Take class A network 10.0.0.0 with network mask 255.0.0.0.
67 of 83

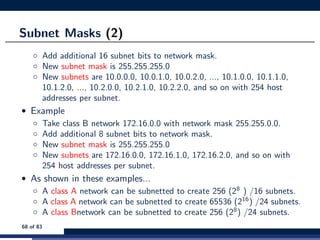

68. Subnet Masks (2)
◦ Add additional 16 subnet bits to network mask.
◦ New subnet mask is 255.255.255.0
◦ New subnets are 10.0.0.0, 10.0.1.0, 10.0.2.0, ..., 10.1.0.0, 10.1.1.0,
10.1.2.0, ..., 10.2.0.0, 10.2.1.0, 10.2.2.0, and so on with 254 host
addresses per subnet.
• Example
◦ Take class B network 172.16.0.0 with network mask 255.255.0.0.
◦ Add additional 8 subnet bits to network mask.
◦ New subnet mask is 255.255.255.0
◦ New subnets are 172.16.0.0, 172.16.1.0, 172.16.2.0, and so on with
254 host addresses per subnet.
• As shown in these examples...
◦ A class A network can be subnetted to create 256 (28
) /16 subnets.
◦ A class A network can be subnetted to create 65536 (216
) /24 subnets.
◦ A class Bnetwork can be subnetted to create 256 (28
) /24 subnets.
68 of 83

69. DNS
Short for Domain Name System (or Service or Server), an Internet
service that translates domain names into IP addresses. Because
domain names are alphabetic, they’re easier to remember. The
Internet however, is really based on IP addresses.
Every time you use a domain name, therefore, a DNS service must
translate the name into the corresponding IP address. For example,
the domain name www.example.com might translate to
198.105.232.4.
69 of 83

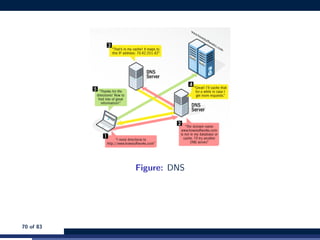

70. Figure: DNS
70 of 83

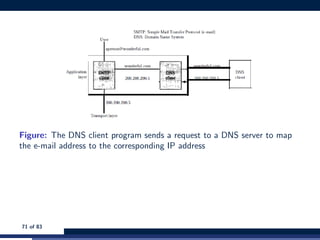

71. Figure: The DNS client program sends a request to a DNS server to map
the e-mail address to the corresponding IP address
71 of 83

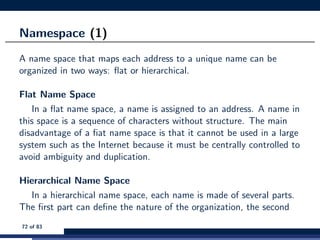

72. Namespace (1)
A name space that maps each address to a unique name can be
organized in two ways: flat or hierarchical.
Flat Name Space
In a flat name space, a name is assigned to an address. A name in
this space is a sequence of characters without structure. The main
disadvantage of a fiat name space is that it cannot be used in a large
system such as the Internet because it must be centrally controlled to
avoid ambiguity and duplication.
Hierarchical Name Space
In a hierarchical name space, each name is made of several parts.
The first part can define the nature of the organization, the second
72 of 83

73. Namespace (2)
part can define the name of an organization, the third part can define
departments in the organization, and so on. For example, assume two
colleges and a company call one of their computers challenger. The
first college is given a name by the central authority such as jhda.edu,
the second college is given the name berkeley.edu, and the company is
given the name smart. com. When these organizations add the name
challenger to the name they have already been given, the end result is
three distinguishable names: challenger.jhda.edu,
challenger.berkeley.edu, and challenger.smart.com. The names are
unique without the need for assignment by a central authority.
73 of 83

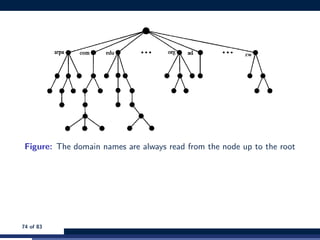

74. Figure: The domain names are always read from the node up to the root
74 of 83

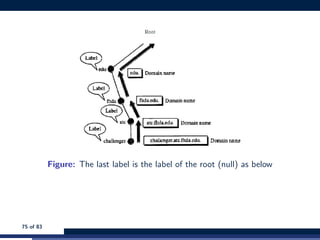

75. Figure: The last label is the label of the root (null) as below
75 of 83

76. Domain
Figure: A domain is a subtree of the domain name space. The name of the
domain is the domain name of the node at the top of the subtree
76 of 83

77. DISTRIBUTION OF NAME SPACE
Hierarchy of Name Servers
The solution to these problems is to distribute the information
among many computers called DNS servers. One way to do this is to
divide the whole space into many domains based on the first level.
77 of 83

78. Zone
Since the complete domain name hierarchy cannot be stored on a
single server, it is divided among many servers. What a server is
responsible for or has authority over is called a zone. The server
makes a database called a zone file and keeps all the information for
every node under that domain.
78 of 83

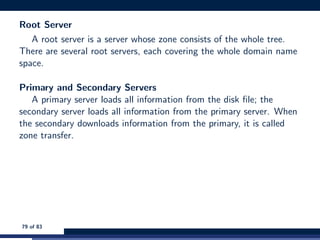

79. Root Server
A root server is a server whose zone consists of the whole tree.
There are several root servers, each covering the whole domain name
space.
Primary and Secondary Servers
A primary server loads all information from the disk file; the
secondary server loads all information from the primary server. When
the secondary downloads information from the primary, it is called
zone transfer.
79 of 83

80. Figure: DNS is a protocol that can be used in different platforms. In the
Internet, the domain name space (tree) is divided into three different
sections: generic domains, country domains, and the inverse domain
80 of 83

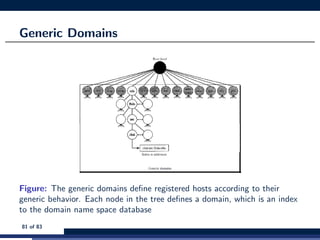

81. Generic Domains
Figure: The generic domains define registered hosts according to their
generic behavior. Each node in the tree defines a domain, which is an index
to the domain name space database
81 of 83

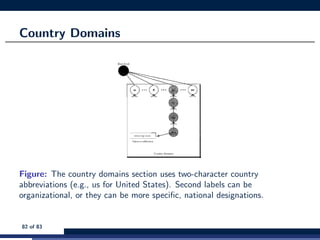

82. Country Domains
Figure: The country domains section uses two-character country
abbreviations (e.g., us for United States). Second labels can be
organizational, or they can be more specific, national designations.
82 of 83

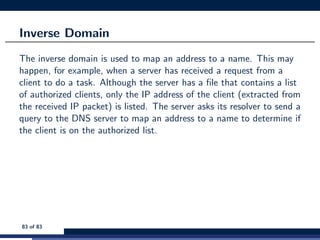

83. Inverse Domain
The inverse domain is used to map an address to a name. This may
happen, for example, when a server has received a request from a
client to do a task. Although the server has a file that contains a list
of authorized clients, only the IP address of the client (extracted from
the received IP packet) is listed. The server asks its resolver to send a
query to the DNS server to map an address to a name to determine if
the client is on the authorized list.
83 of 83
