1. Integrating Artificial
Intelligence with IoT

2. Agenda
Intro to Machine
Learning
First Task
Second Task
Tensorflow
Lite
Intro to Neural
Networks
Intro to
Convolutional
Neural Networks

3. Intro to Machine
Learning
Learn, Adapt, Innovate: Your Guide to
Machine Learning
Let’s start ?

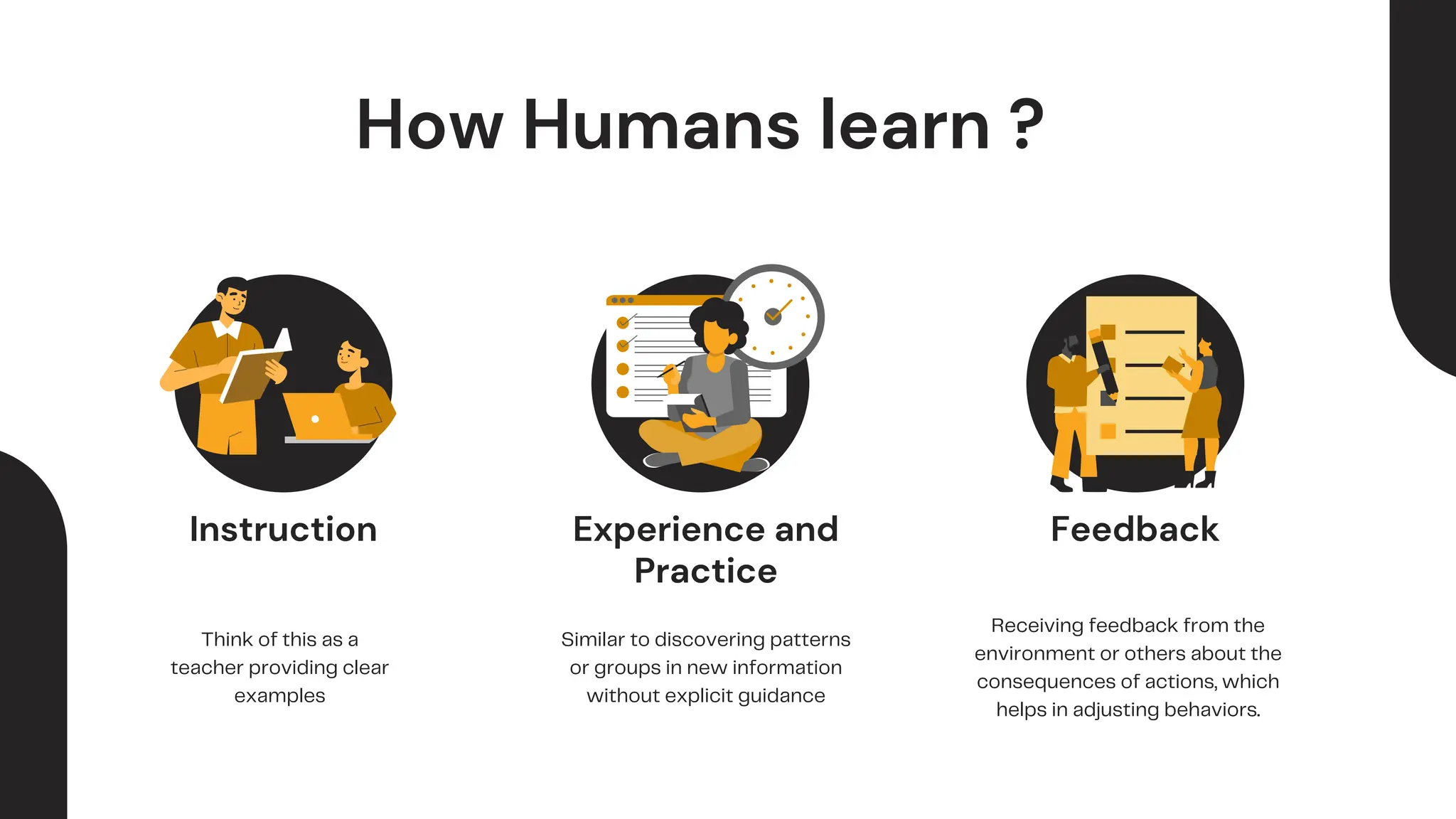

4. How Humans learn ?

5. How Humans learn ?
Instruction Experience and
Practice
Feedback
Think of this as a
teacher providing clear
examples
Similar to discovering patterns
or groups in new information
without explicit guidance
Receiving feedback from the
environment or others about the
consequences of actions, which
helps in adjusting behaviors.

6. How Computer Learn ?

7. The simple definition of
"Artificially intelligent" is
attempting to simulate human
intelligence, including aspects
that involve learning, which we
aim to replicate through Machine
Learning techniques.

8. Thank You

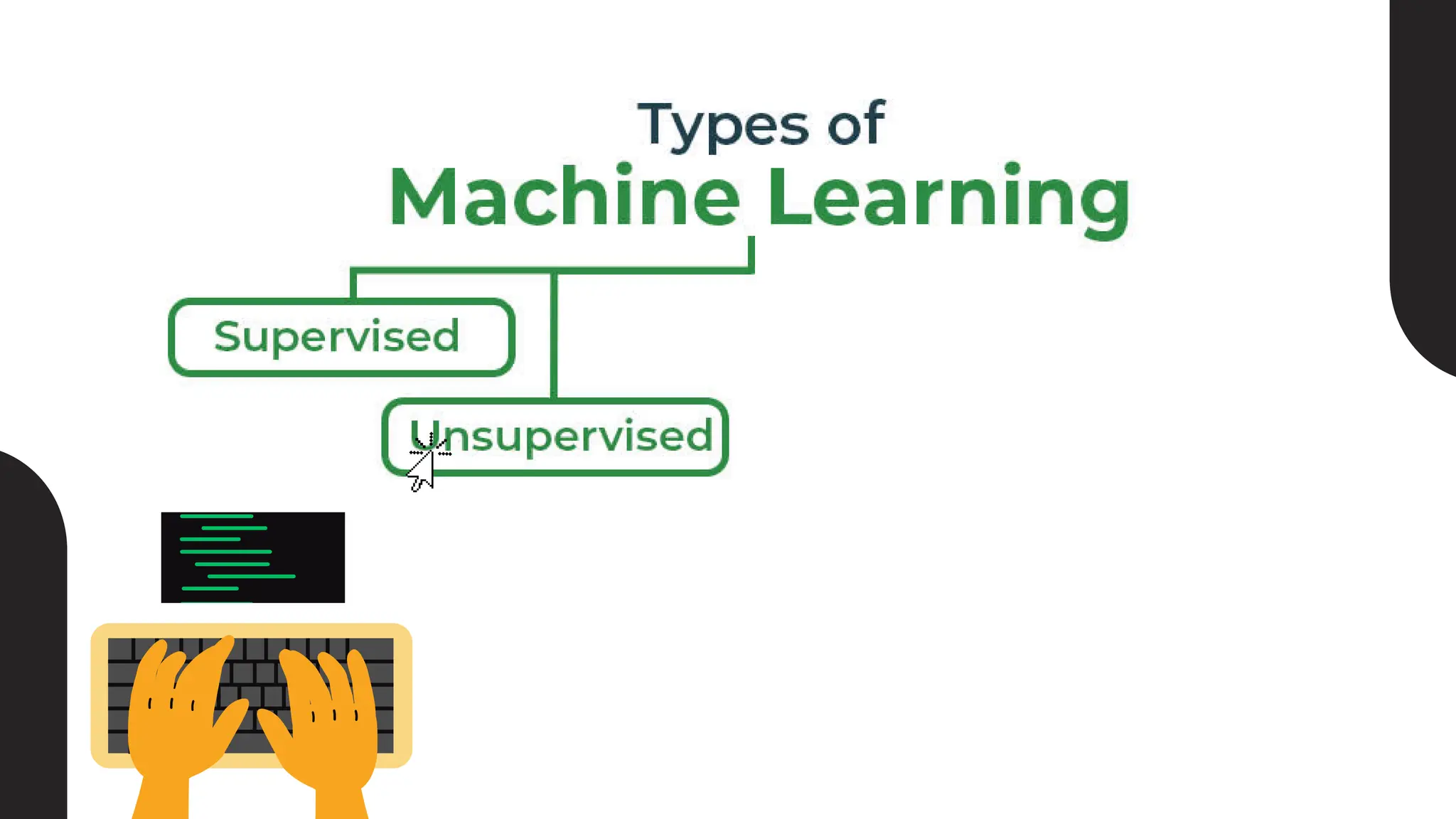

Types Of Machine
Learning

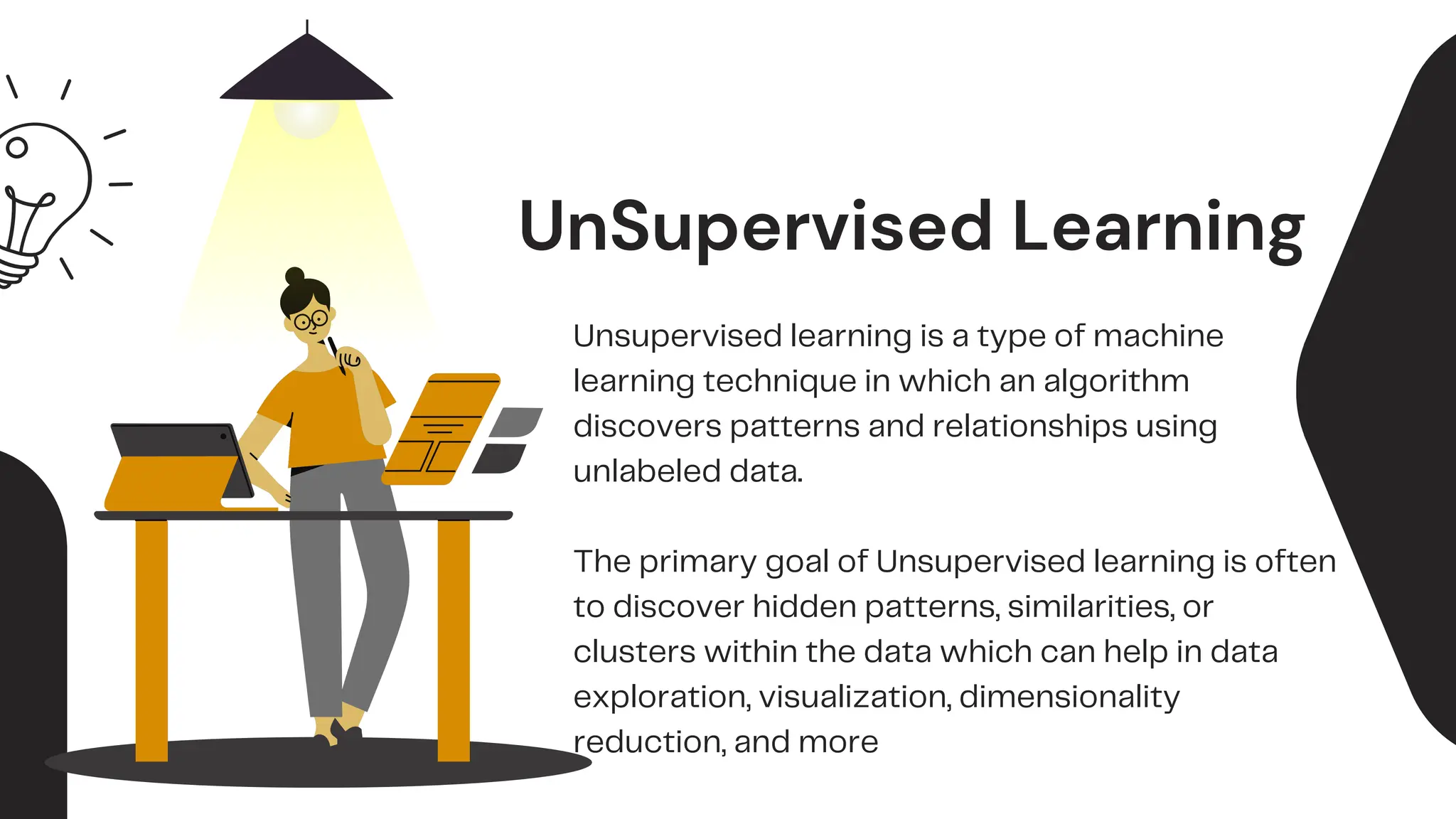

10. UnSupervised Learning
Unsupervised learning is a type of machine
learning technique in which an algorithm
discovers patterns and relationships using
unlabeled data.
The primary goal of Unsupervised learning is often
to discover hidden patterns, similarities, or
clusters within the data which can help in data
exploration, visualization, dimensionality
reduction, and more

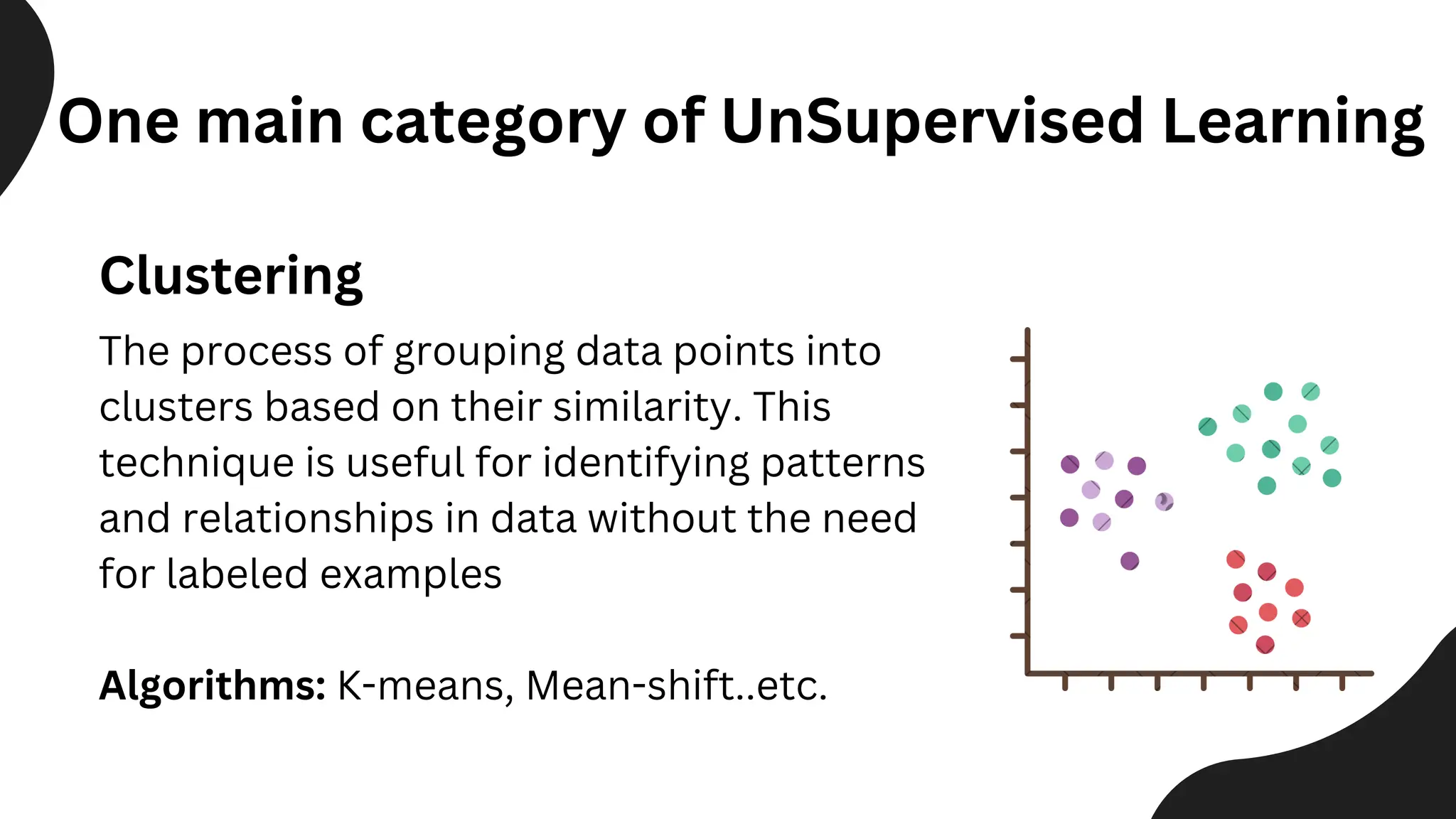

11. Clustering
The process of grouping data points into
clusters based on their similarity. This
technique is useful for identifying patterns
and relationships in data without the need
for labeled examples
Algorithms: K-means, Mean-shift..etc.
One main category of UnSupervised Learning

12. Supervised Learning
Supervised learning is defined as when a model
gets trained on a “Labelled Dataset”. Labelled
datasets have both input (X) and output
parameters (Y). In Supervised Learning,
algorithms learn to map points between inputs
and correct outputs.
Supervised Learning models have a baseline
understanding of what the correct output values
should be

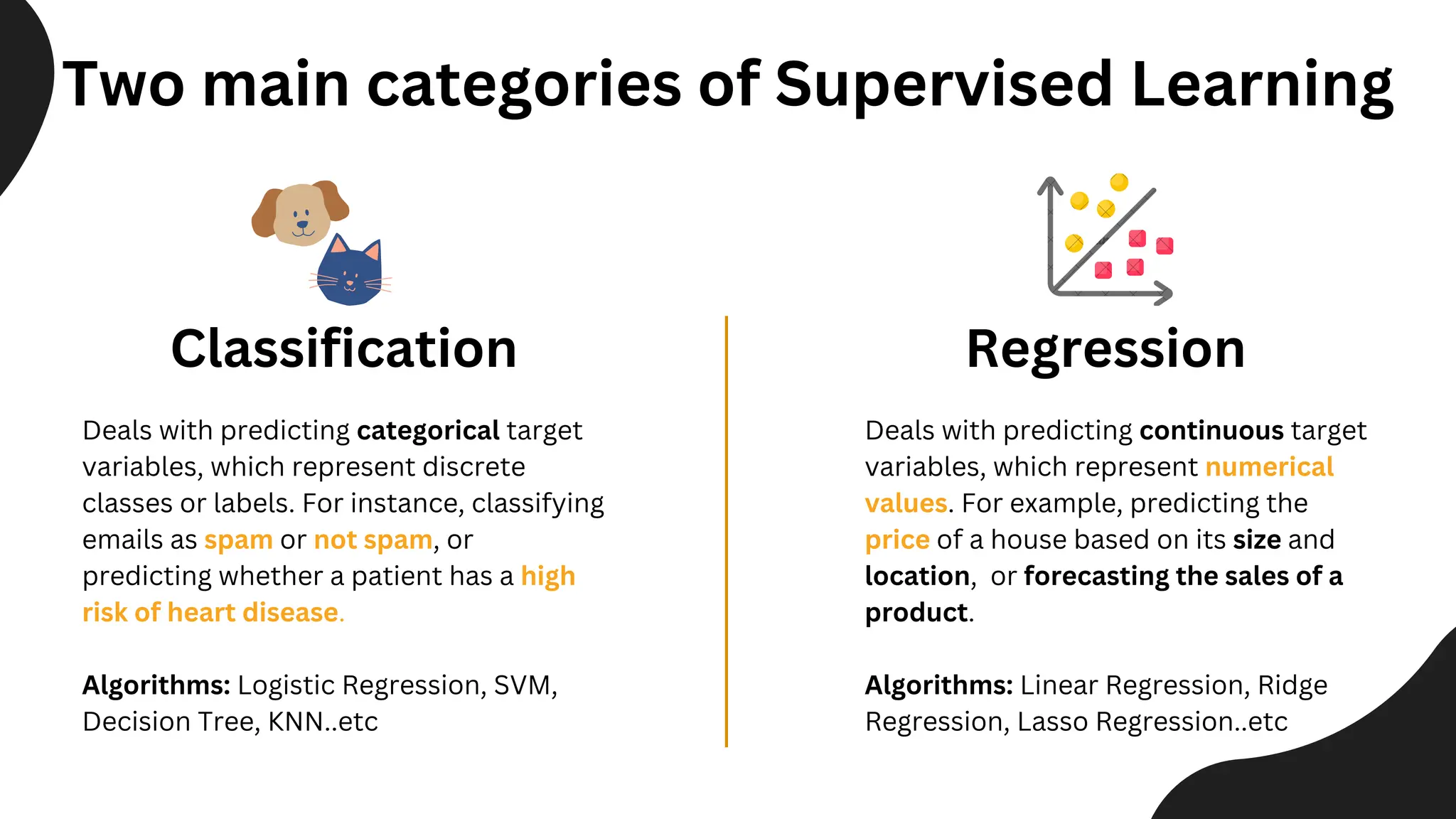

13. Two main categories of Supervised Learning
Classification Regression
Deals with predicting categorical target
variables, which represent discrete
classes or labels. For instance, classifying
emails as spam or not spam, or
predicting whether a patient has a high
risk of heart disease.
Algorithms: Logistic Regression, SVM,
Decision Tree, KNN..etc
Deals with predicting continuous target
variables, which represent numerical
values. For example, predicting the
price of a house based on its size and
location, or forecasting the sales of a
product.
Algorithms: Linear Regression, Ridge
Regression, Lasso Regression..etc

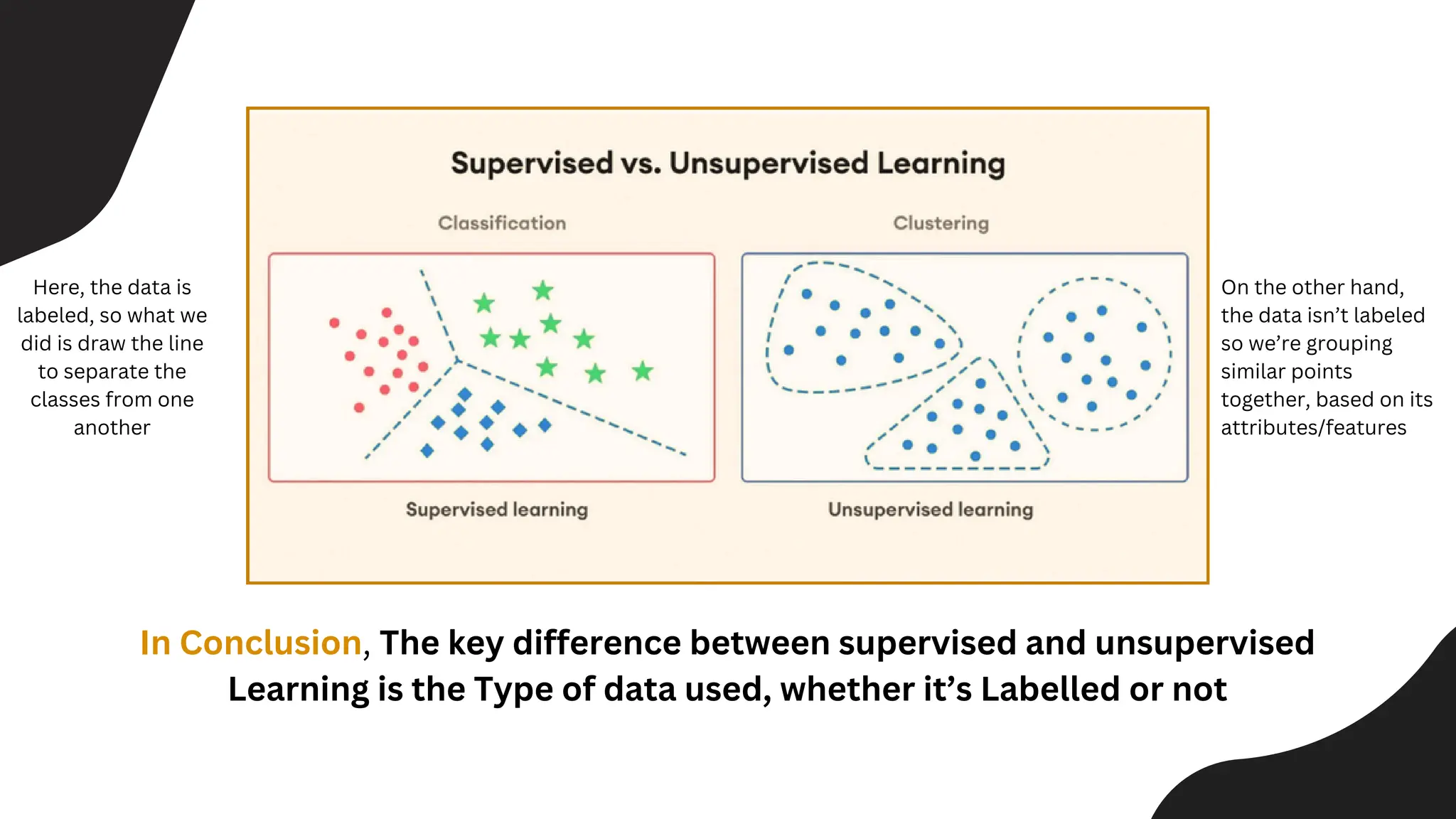

14. In Conclusion, The key difference between supervised and unsupervised
Learning is the Type of data used, whether it’s Labelled or not
Here, the data is
labeled, so what we
did is draw the line
to separate the
classes from one
another
On the other hand,
the data isn’t labeled
so we’re grouping
similar points
together, based on its
attributes/features

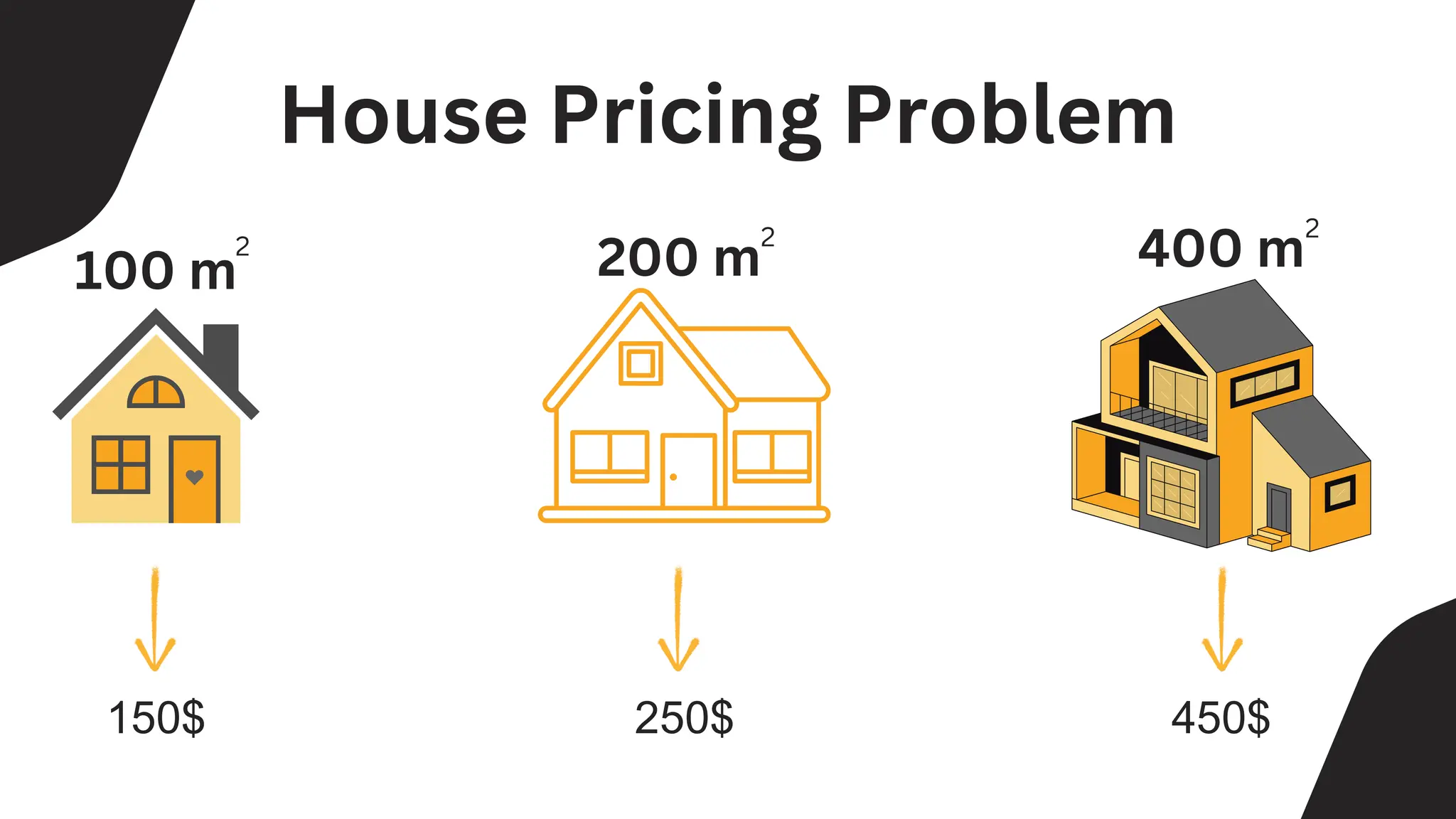

15. 450$
150$ 250$
100 m 200 m
2 2
400 m
2
House Pricing Problem

16. 300 m
2

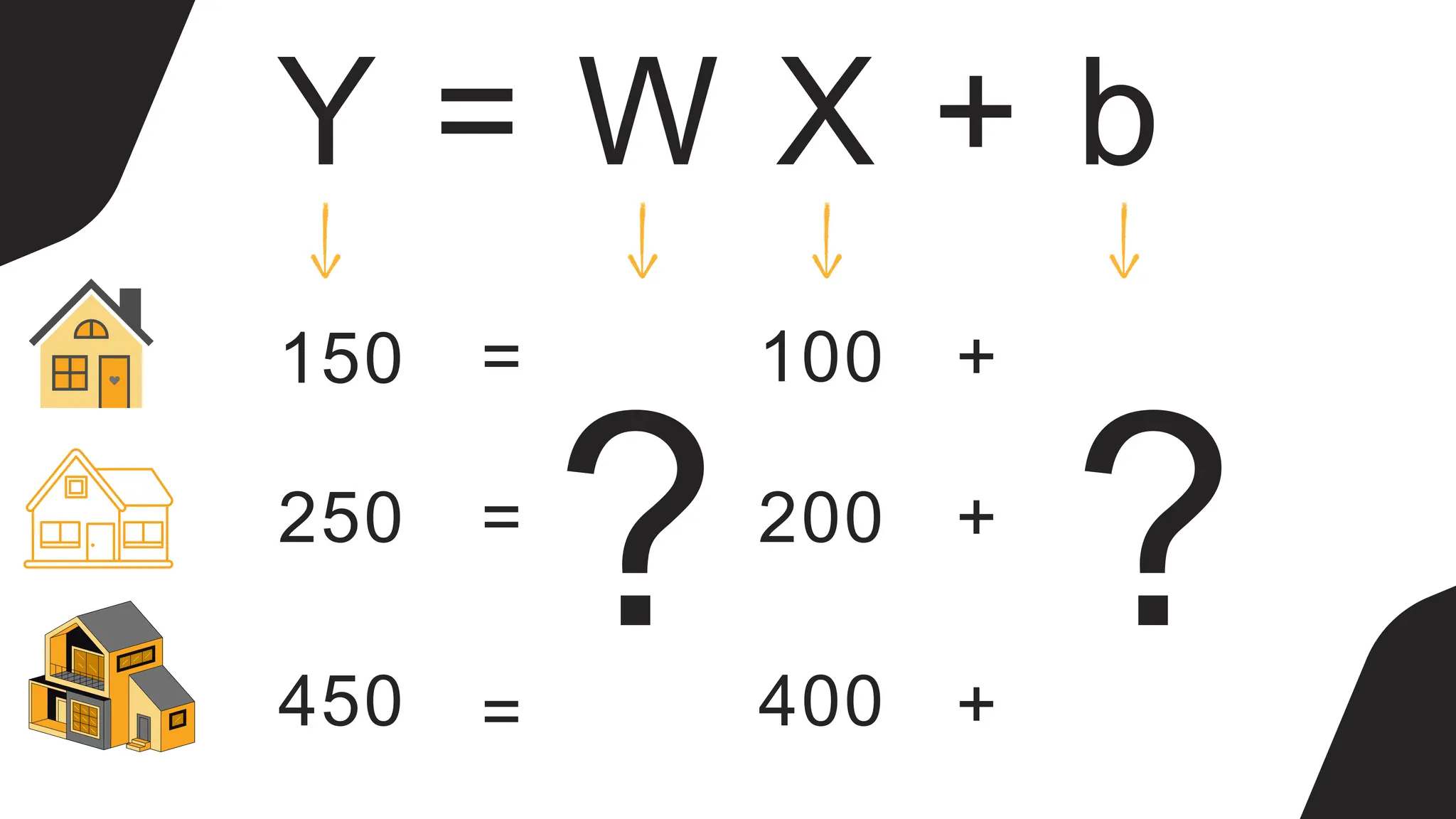

17. Y = W X + b
150 100
250 200
400
450
=
=
=
+
+
+
? ?

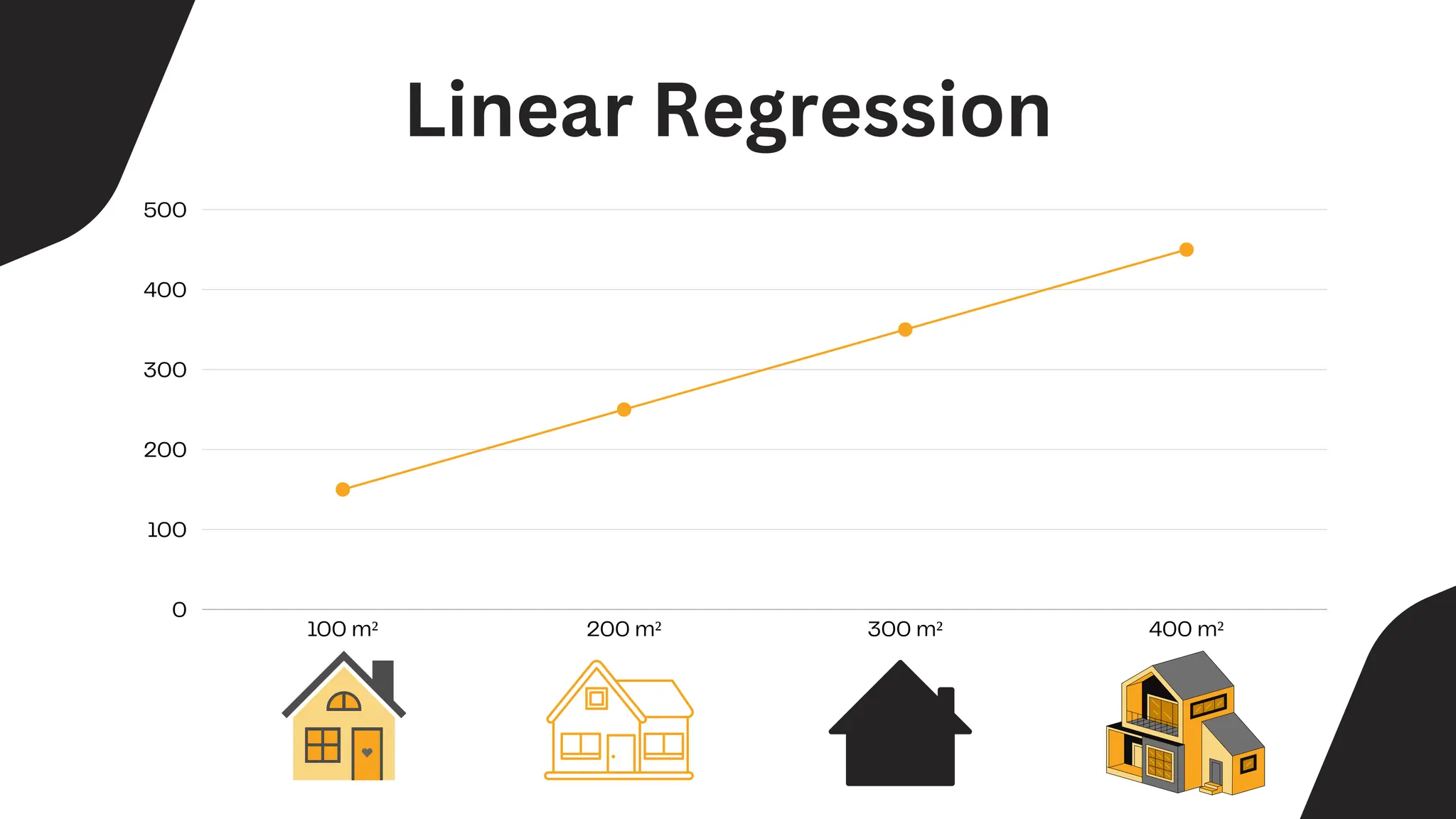

18. 100 m² 200 m² 300 m² 400 m²
0
100
200
300
400
500
Linear Regression

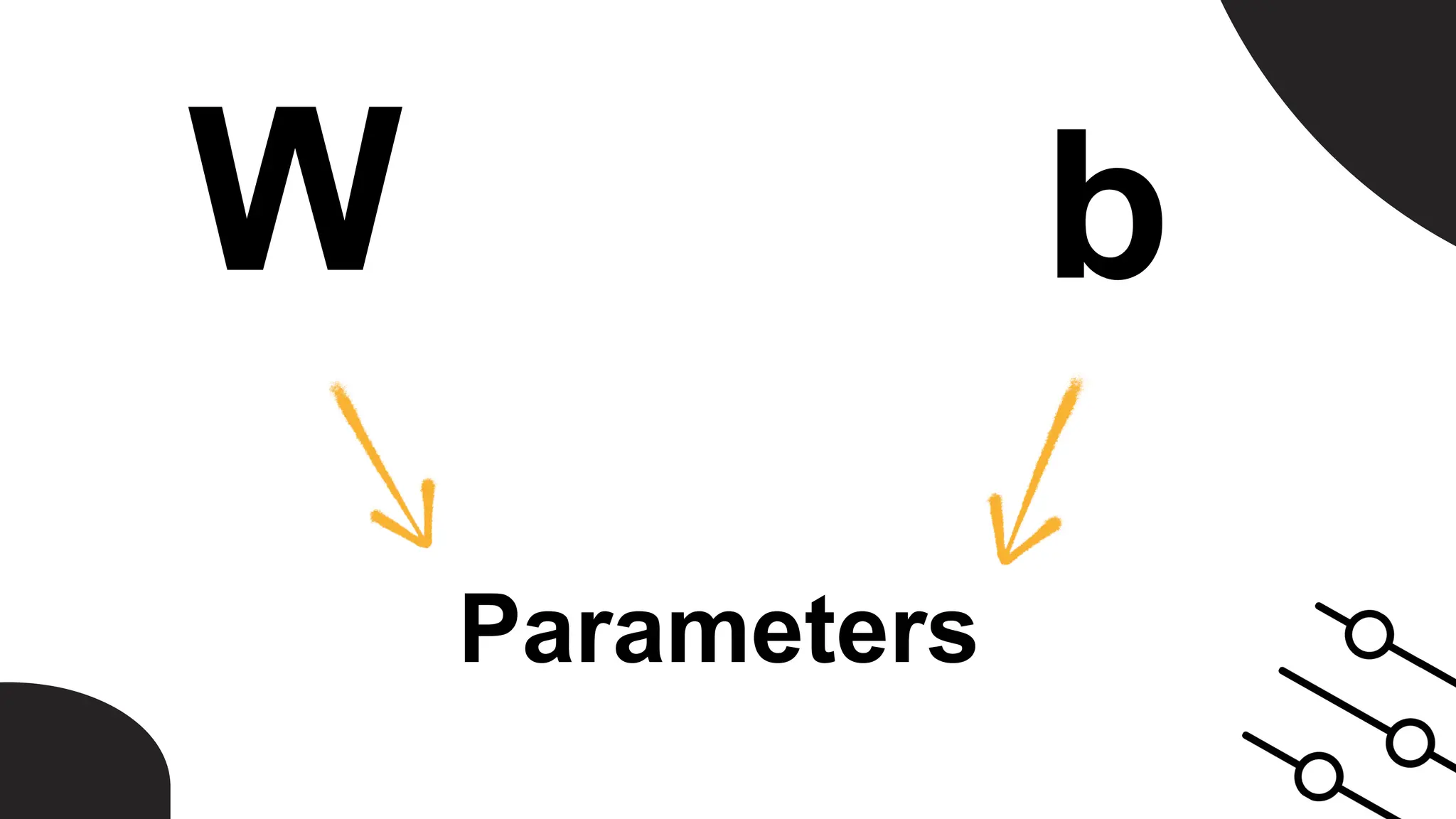

19. W b
Parameters

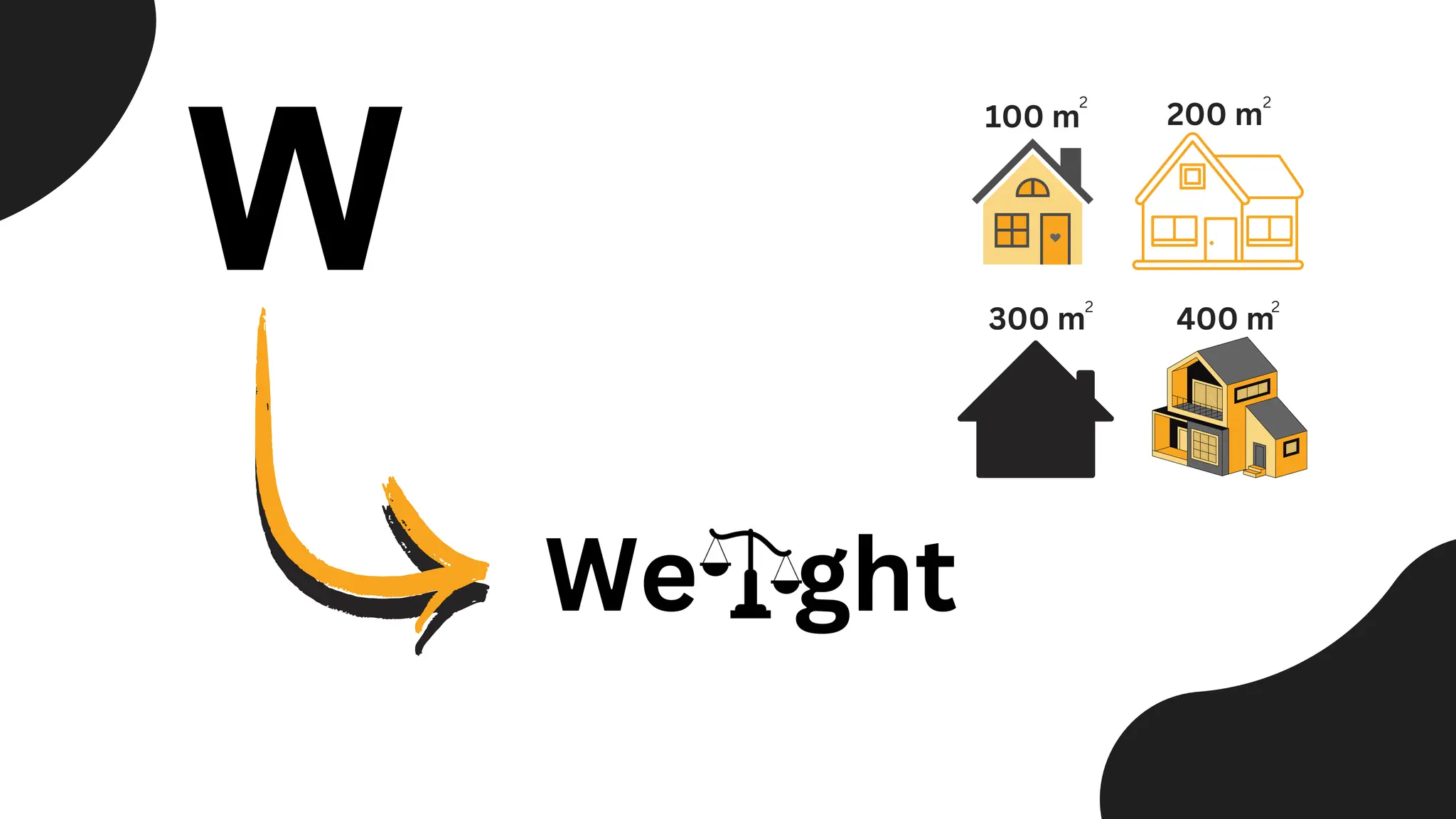

20. W
We ght
100 m 200 m
2 2
400 m
2
300 m
2

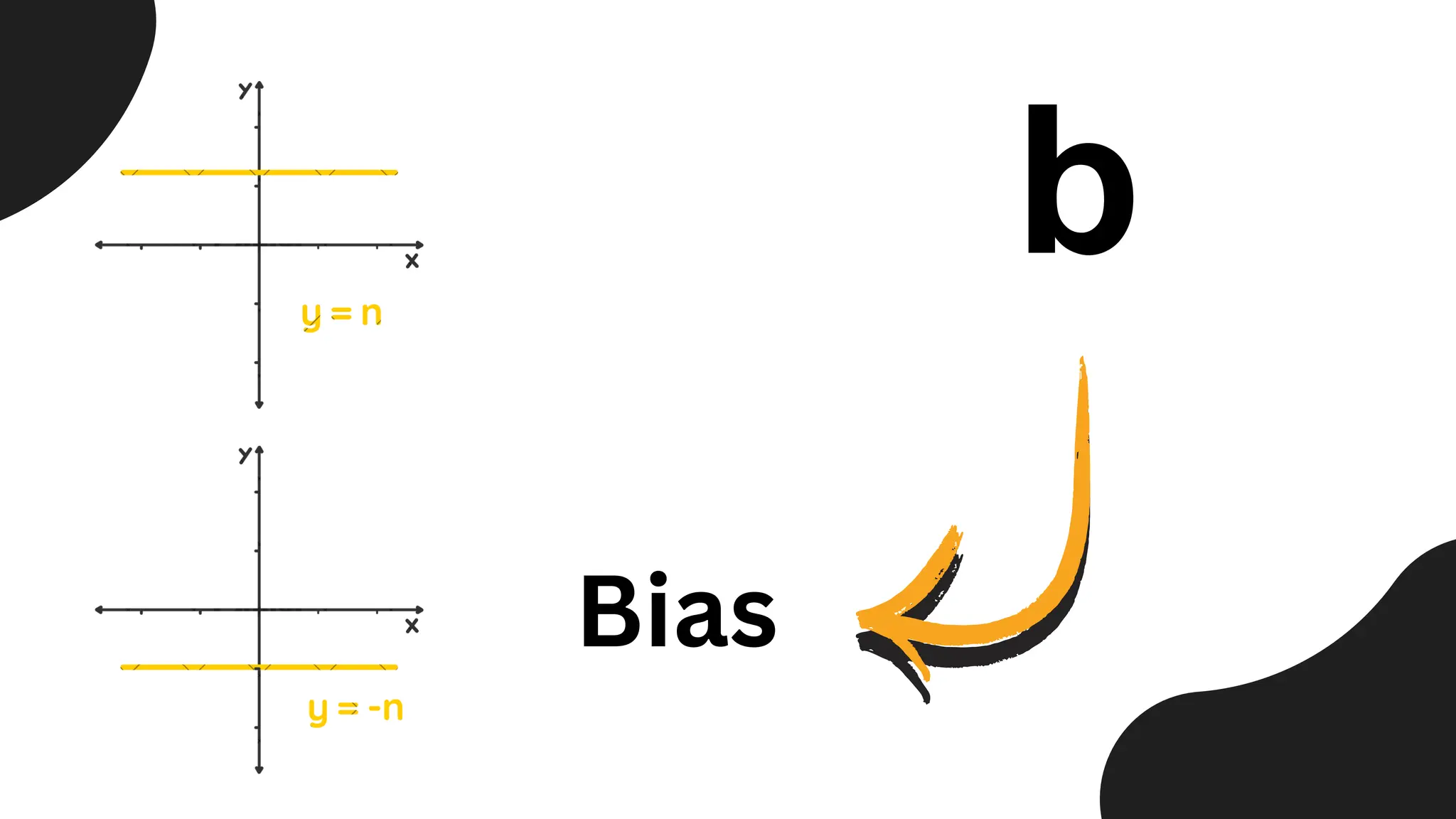

21. b
Bias

22. Model is trying to get the best
parameters...
What is Training ?

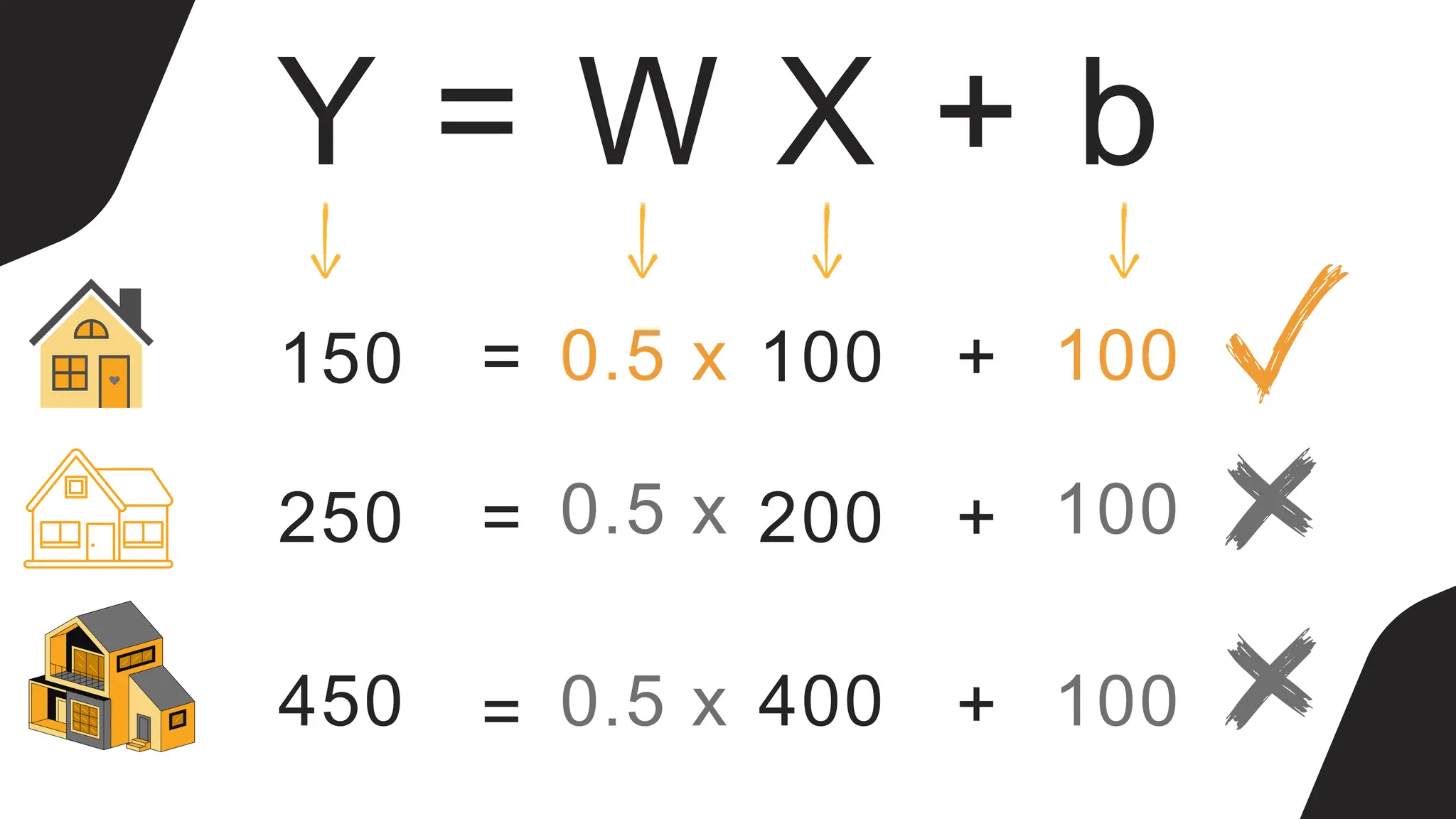

23. Y = W X + b
150 100
250 200
400
450
=
=
=
+
+
+
0.5 x
0.5 x
0.5 x
100
100
100

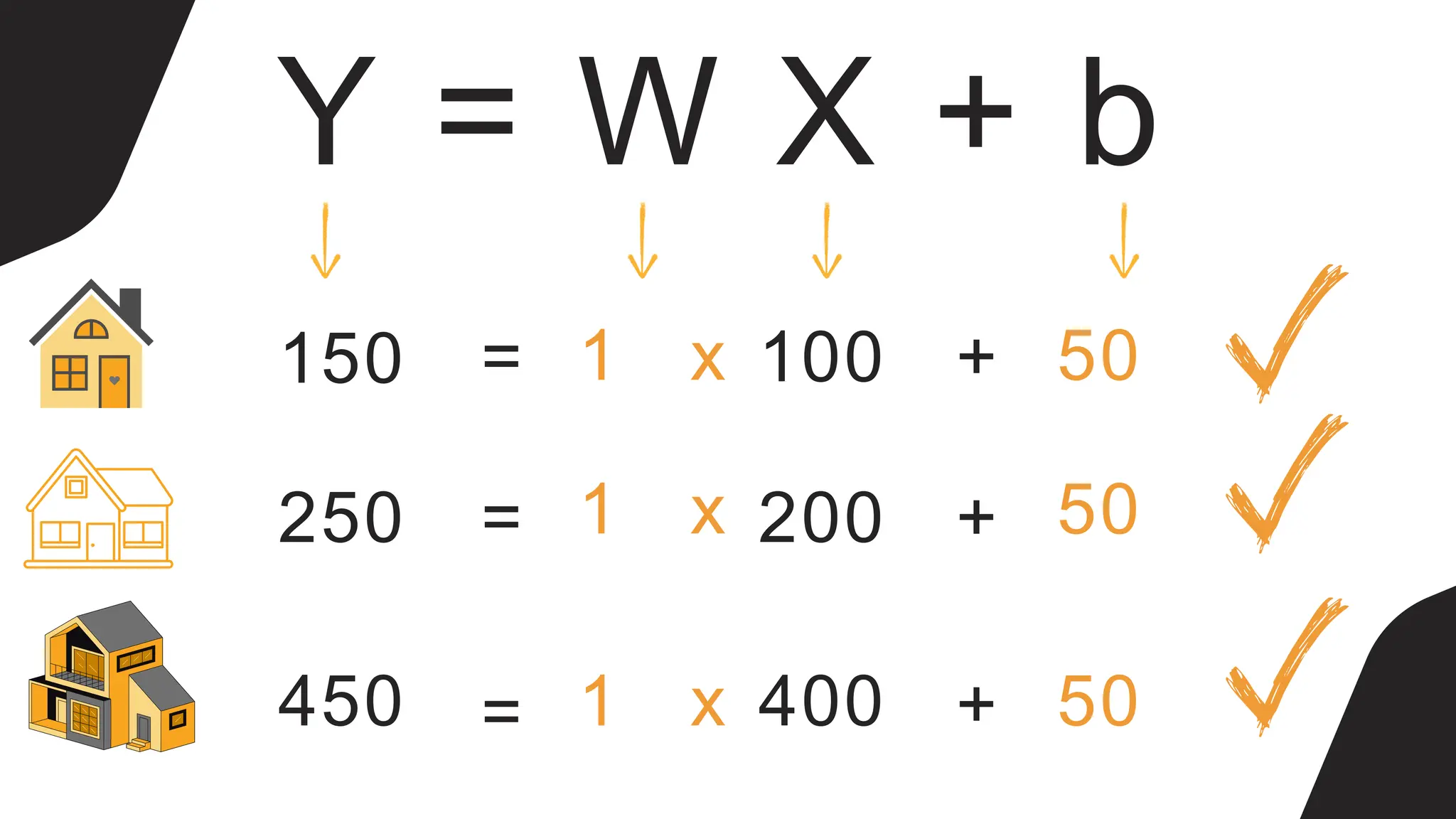

24. Y = W X + b
150 100
250 200
400
450
=
=
=
+
+
+
1 x
1 x
1 x
50
50
50

25. Solving these equations, We get
Model adjusted its parameters
M=100, C=50

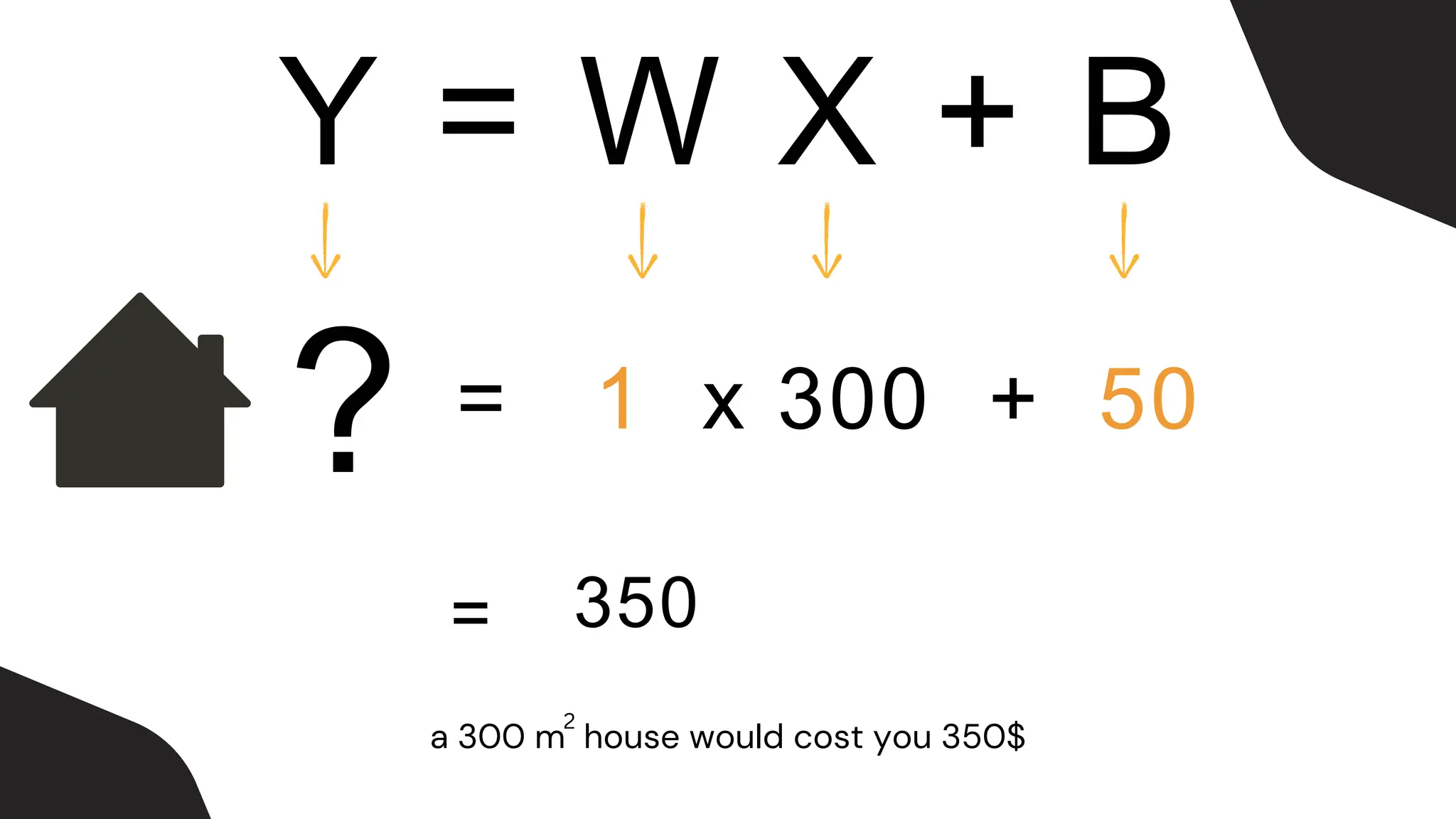

26. Y = W X + B
? = 1 x 300 + 50
= 350
a 300 m house would cost you 350$
2

27. Our Model has
finished training
successfully

28. What if we have Multiple Features ?

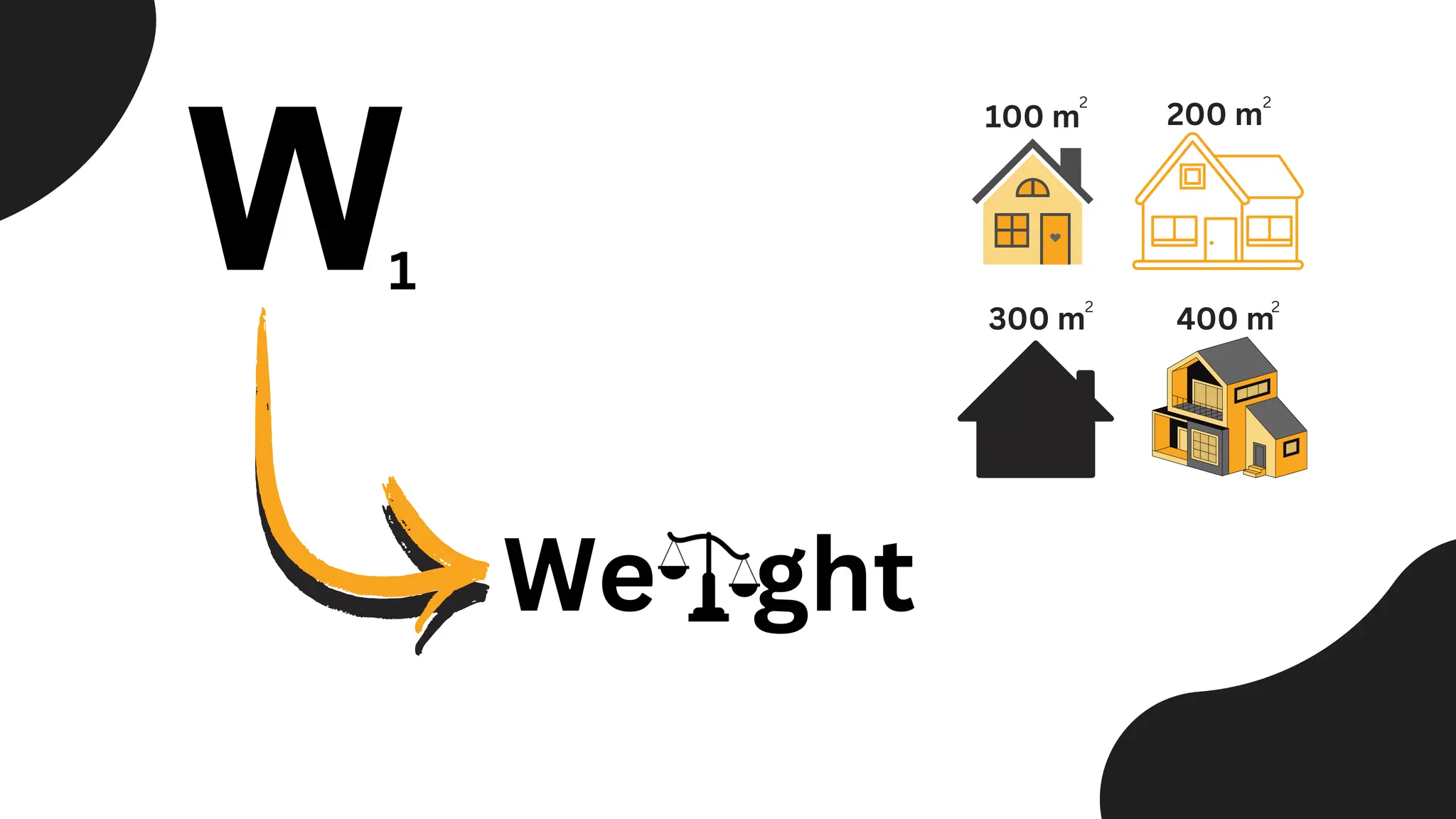

29. W
We ght
100 m 200 m
2 2
400 m
2
300 m
2
1

30. W
Weight
2

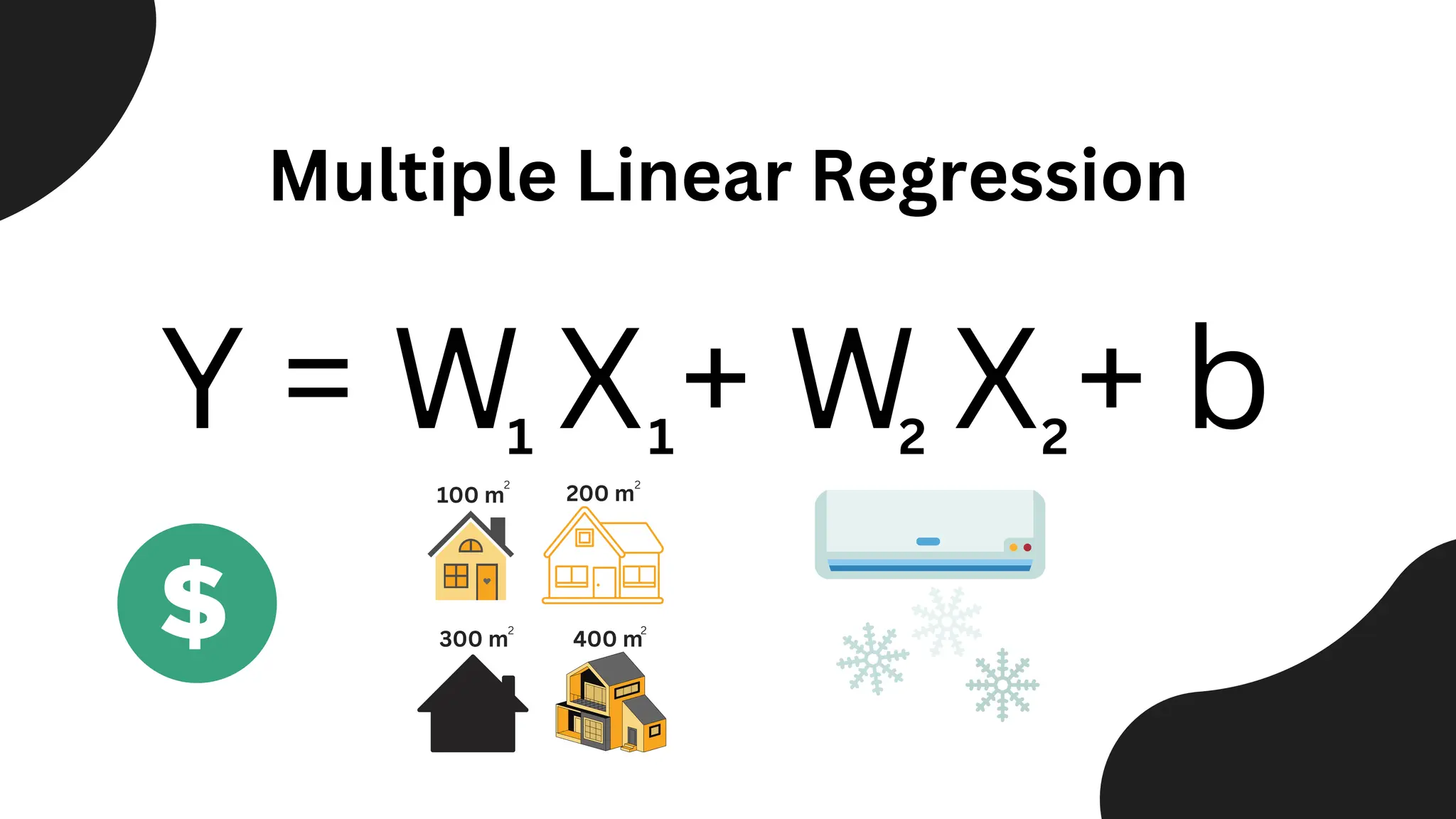

31. 100 m 200 m
2 2
400 m
2
300 m
2
Y = W X + W X + b
1 2
1 2
Multiple Linear Regression

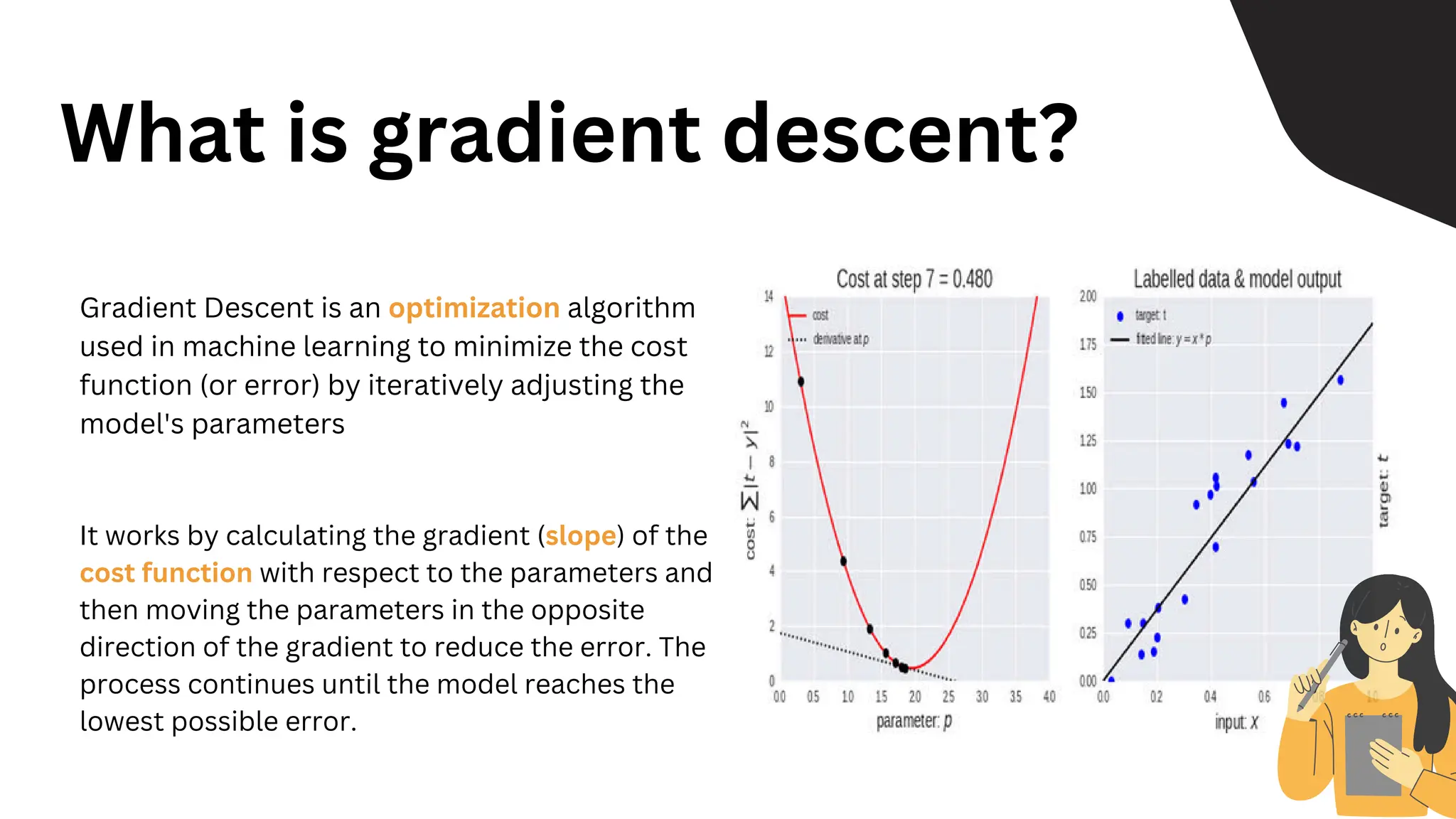

32. What is gradient descent?
Gradient Descent is an optimization algorithm
used in machine learning to minimize the cost
function (or error) by iteratively adjusting the
model's parameters
It works by calculating the gradient (slope) of the
cost function with respect to the parameters and
then moving the parameters in the opposite
direction of the gradient to reduce the error. The
process continues until the model reaches the
lowest possible error.

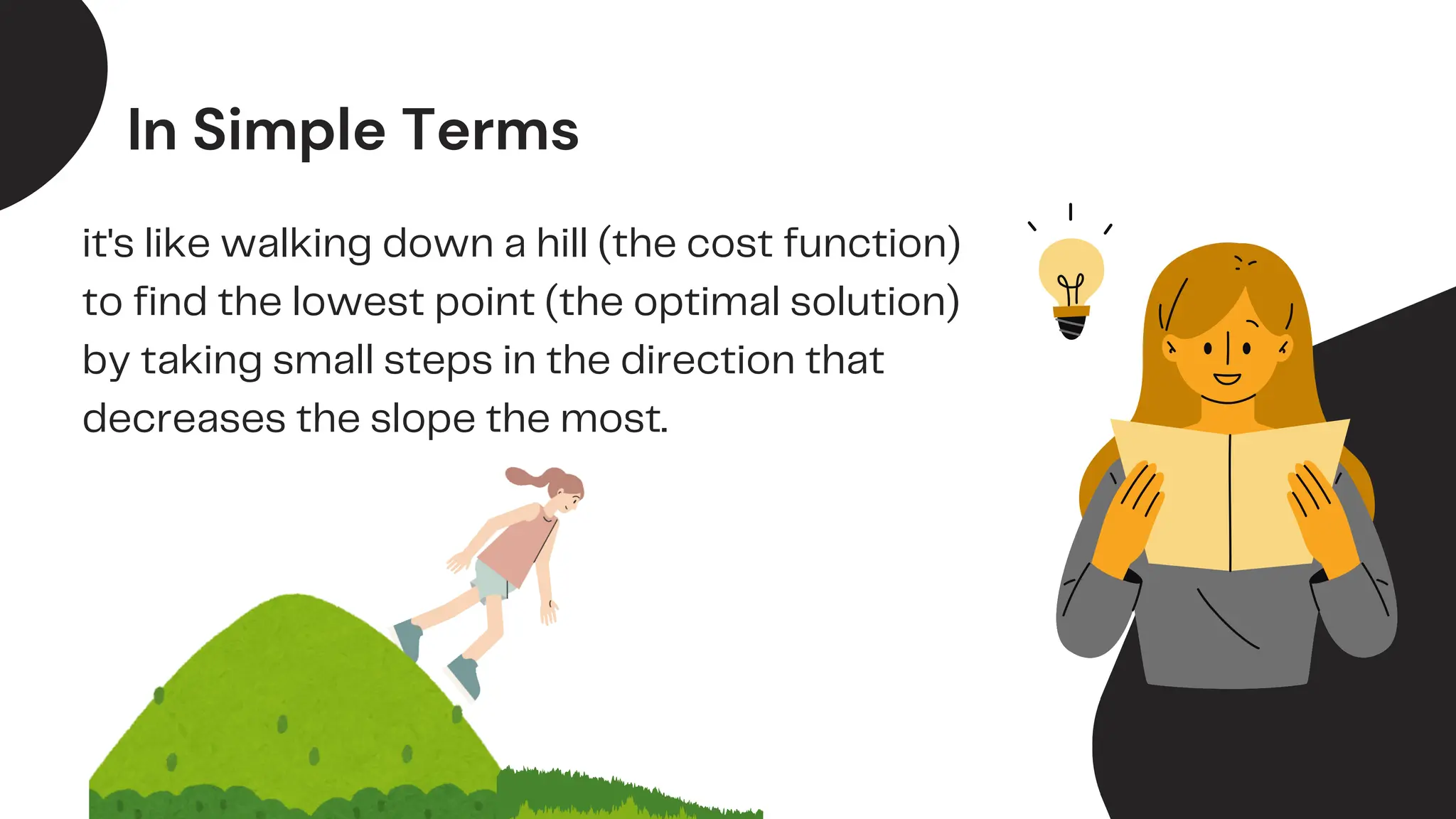

33. it's like walking down a hill (the cost function)
to find the lowest point (the optimal solution)
by taking small steps in the direction that
decreases the slope the most.
In Simple Terms

34. Recap

35. Instruction
For instance, a student learns math by solving
problems with provided solutions to check
correctness.
Machine Learning Model is trained on a dataset
that includes input-output pairs, where the
correct output for each input is provided. This
process is similar to how a student learns math
problems with provided solutions

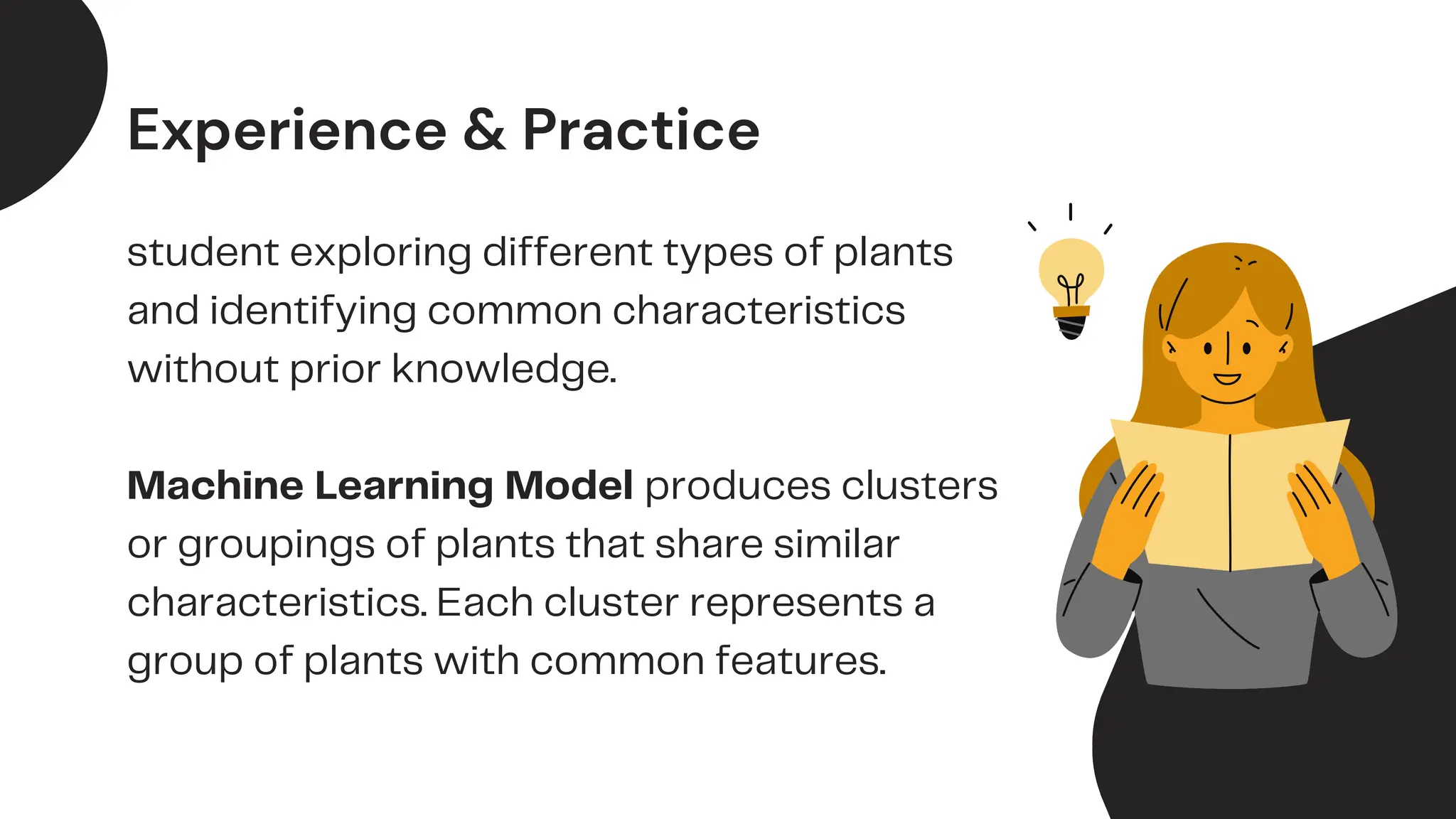

36. student exploring different types of plants
and identifying common characteristics
without prior knowledge.
Machine Learning Model produces clusters
or groupings of plants that share similar
characteristics. Each cluster represents a
group of plants with common features.
Experience & Practice

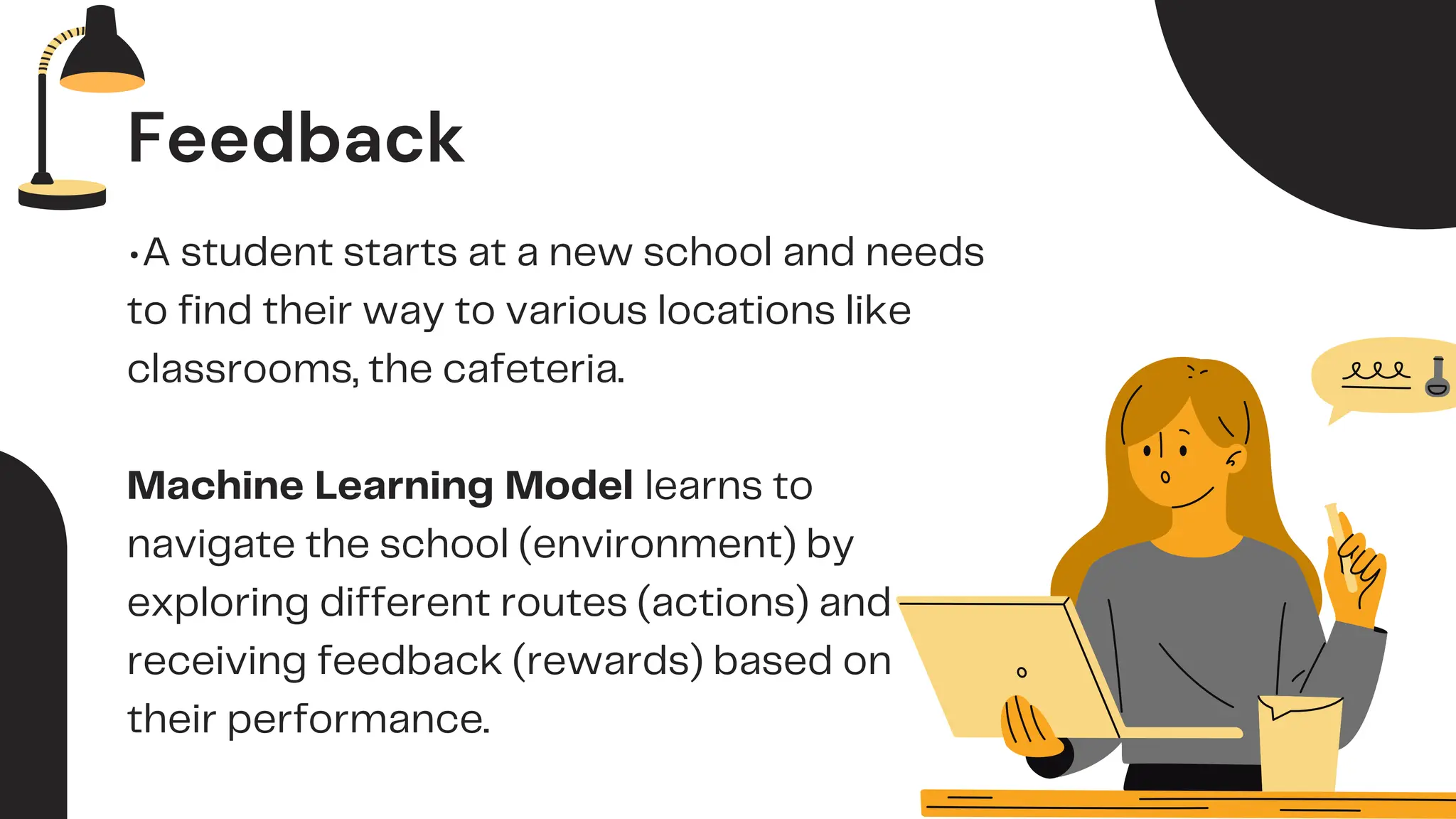

37. •A student starts at a new school and needs
to find their way to various locations like
classrooms, the cafeteria.
Machine Learning Model learns to
navigate the school (environment) by
exploring different routes (actions) and
receiving feedback (rewards) based on
their performance.
Feedback

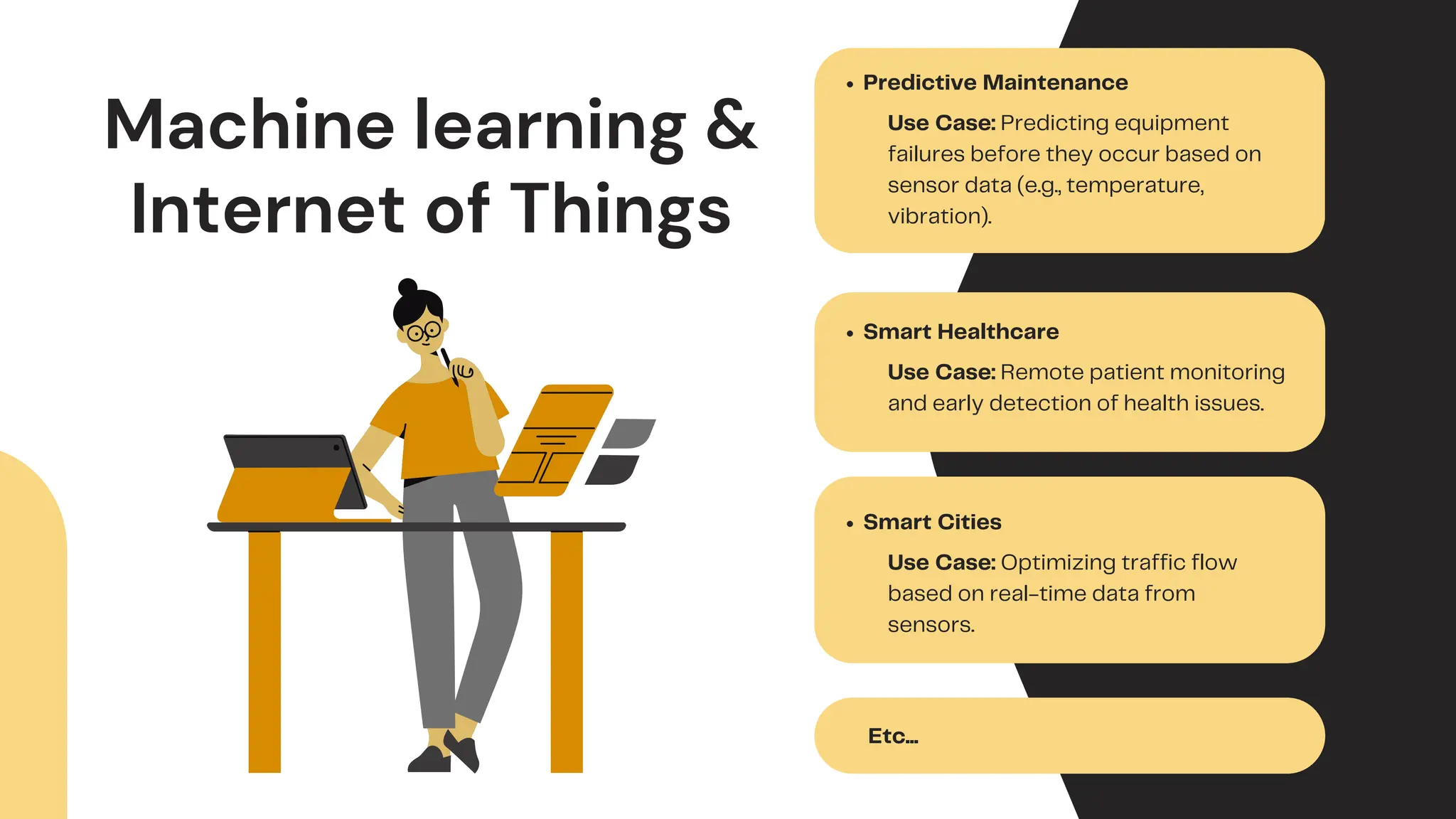

38. Machine learning &
Internet of Things
Predictive Maintenance
Use Case: Predicting equipment
failures before they occur based on
sensor data (e.g., temperature,
vibration).
Smart Healthcare
Use Case: Remote patient monitoring
and early detection of health issues.
Smart Cities
Use Case: Optimizing traffic flow
based on real-time data from
sensors.
Etc...

39. Thank You
Types Of AI
Learning Algorithms

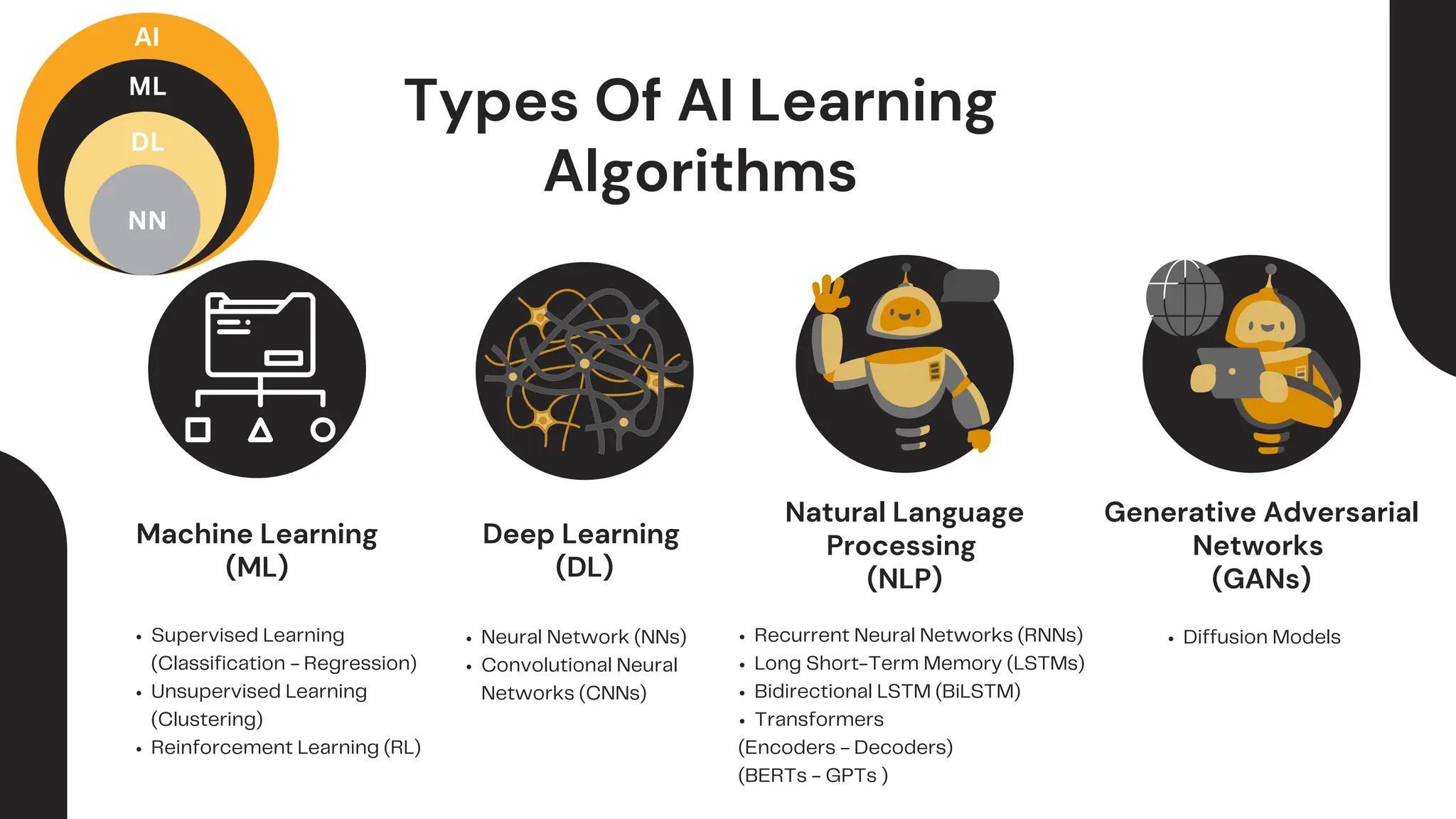

40. Types Of AI Learning
Algorithms
Machine Learning
(ML)
Deep Learning
(DL)
Natural Language
Processing
(NLP)
Supervised Learning
(Classification - Regression)
Unsupervised Learning
(Clustering)
Reinforcement Learning (RL)
Neural Network (NNs)
Convolutional Neural
Networks (CNNs)
Recurrent Neural Networks (RNNs)
Long Short-Term Memory (LSTMs)
Bidirectional LSTM (BiLSTM)
Transformers
(Encoders - Decoders)
(BERTs - GPTs )
Generative Adversarial
Networks
(GANs)
Diffusion Models
AI
ML
DL
NN

41. First
Kahoot

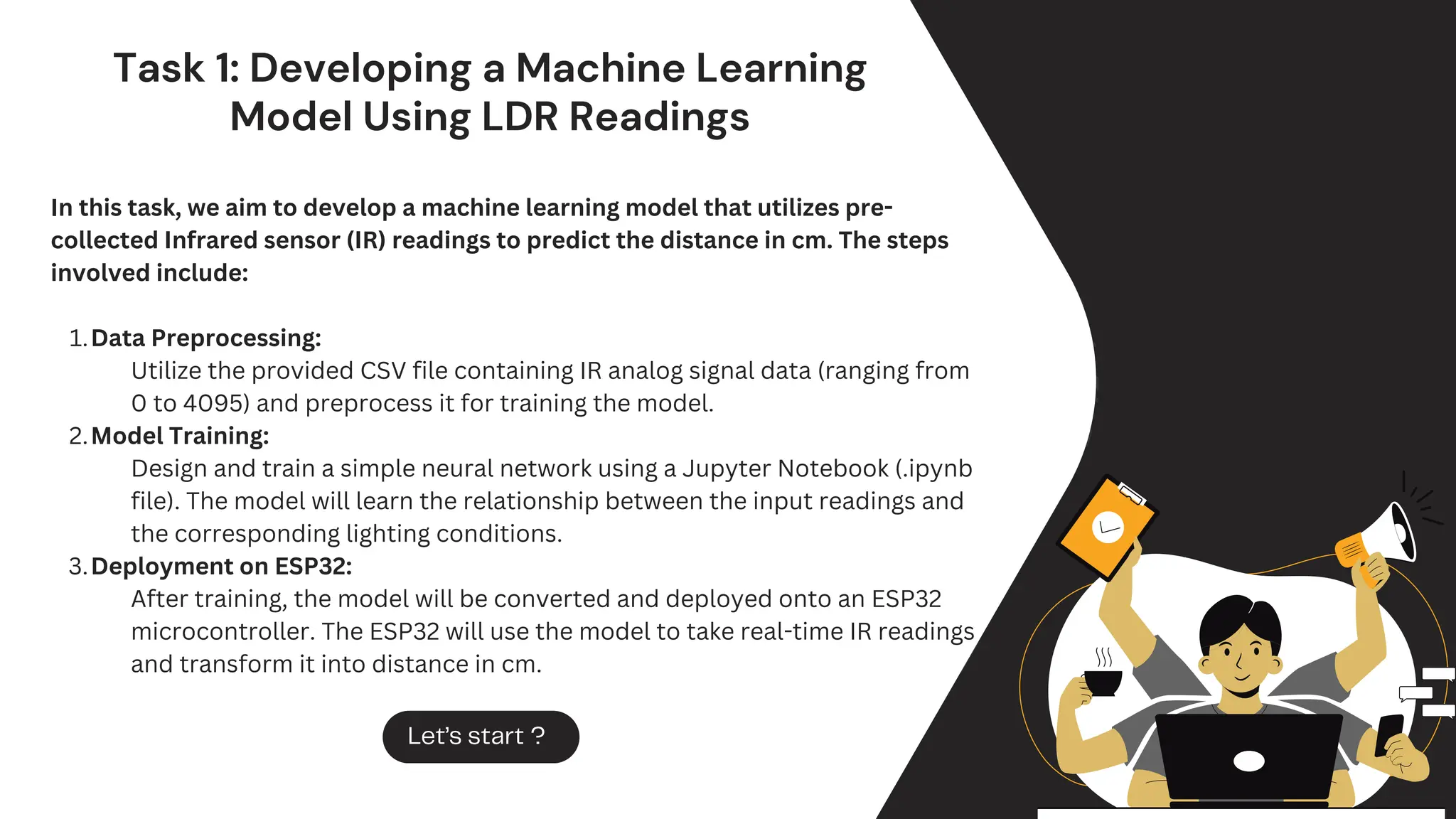

42. Task 1: Developing a Machine Learning
Model Using LDR Readings
In this task, we aim to develop a machine learning model that utilizes pre-
collected Infrared sensor (IR) readings to predict the distance in cm. The steps
involved include:
Data Preprocessing:
1.
Utilize the provided CSV file containing IR analog signal data (ranging from
0 to 4095) and preprocess it for training the model.
Model Training:
2.
Design and train a simple neural network using a Jupyter Notebook (.ipynb
file). The model will learn the relationship between the input readings and
the corresponding lighting conditions.
Deployment on ESP32:
3.
After training, the model will be converted and deployed onto an ESP32
microcontroller. The ESP32 will use the model to take real-time IR readings
and transform it into distance in cm.
Let’s start ?

43. Intro to Neural
Networks
From Data to Decisions: Understanding
Neural Networks
Let’s start ?

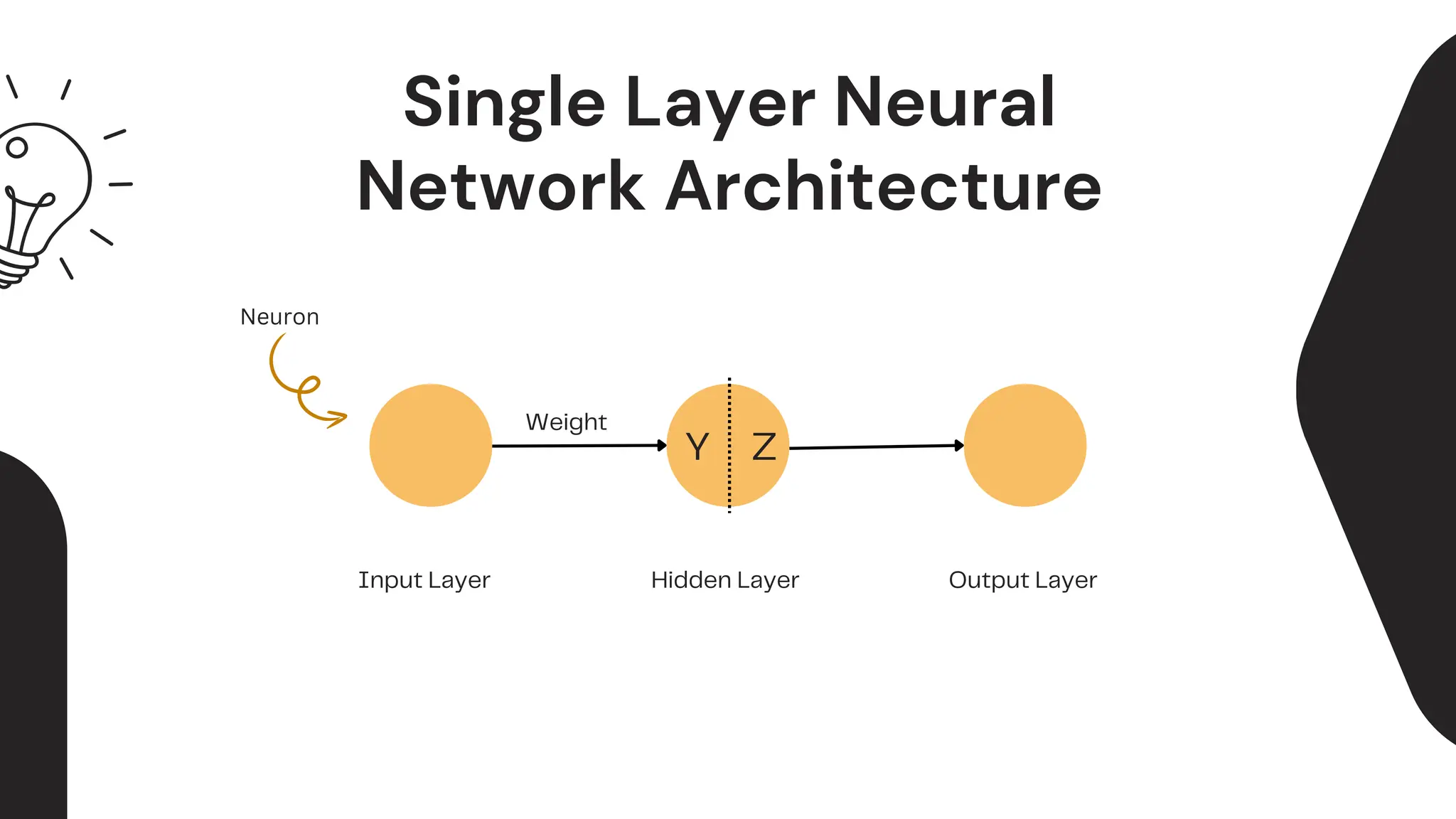

44. Single Layer Neural
Network Architecture
Input Layer Hidden Layer Output Layer
Neuron
Weight
Y Z

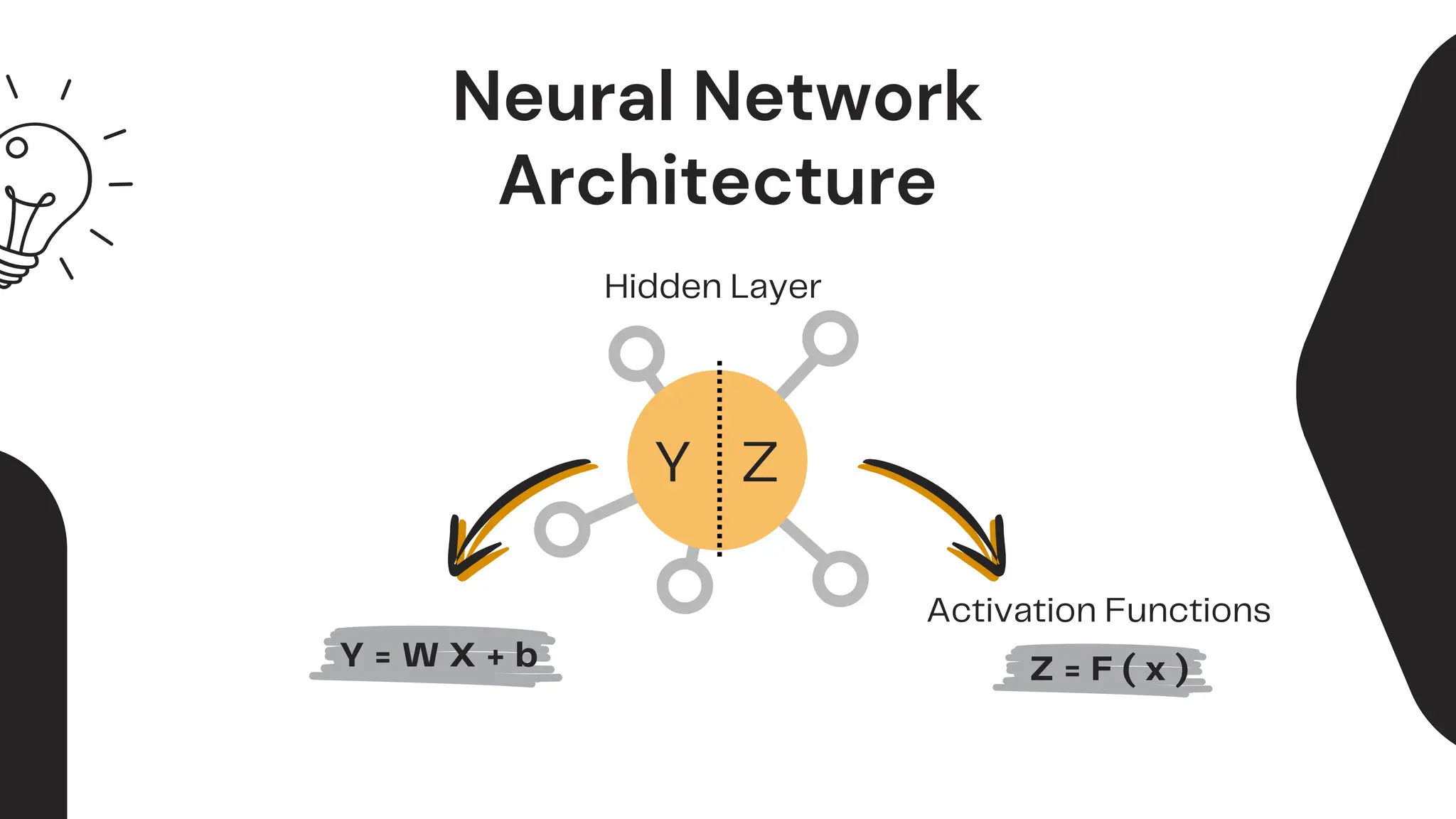

45. Neural Network
Architecture
Hidden Layer
Y Z
Y = W X + b Z = F ( x )
Activation Functions

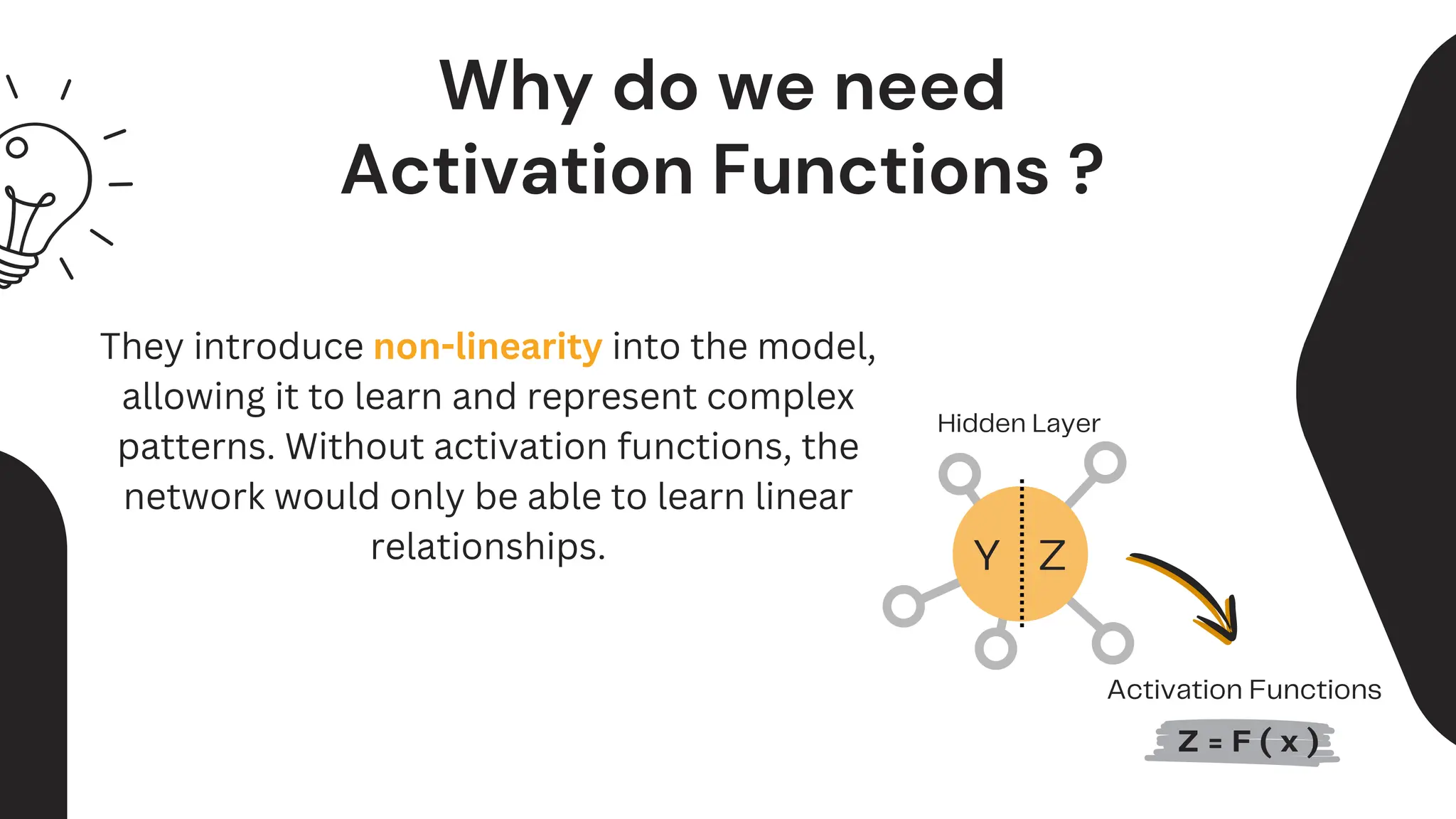

46. Hidden Layer
Y Z
Z = F ( x )
Why do we need
Activation Functions ?
Activation Functions
They introduce non-linearity into the model,
allowing it to learn and represent complex
patterns. Without activation functions, the
network would only be able to learn linear
relationships.

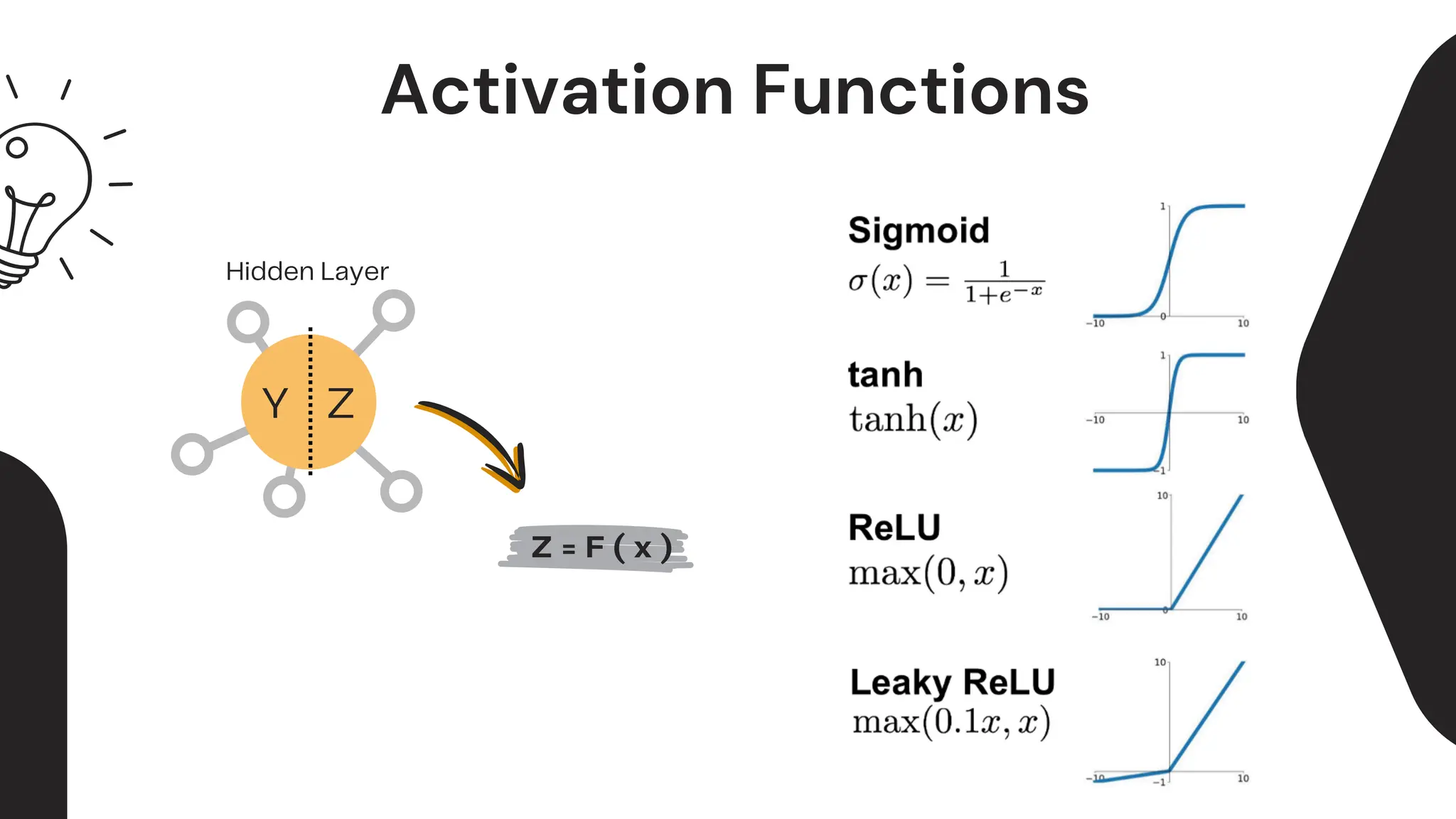

47. Hidden Layer
Y Z
Z = F ( x )
Activation Functions

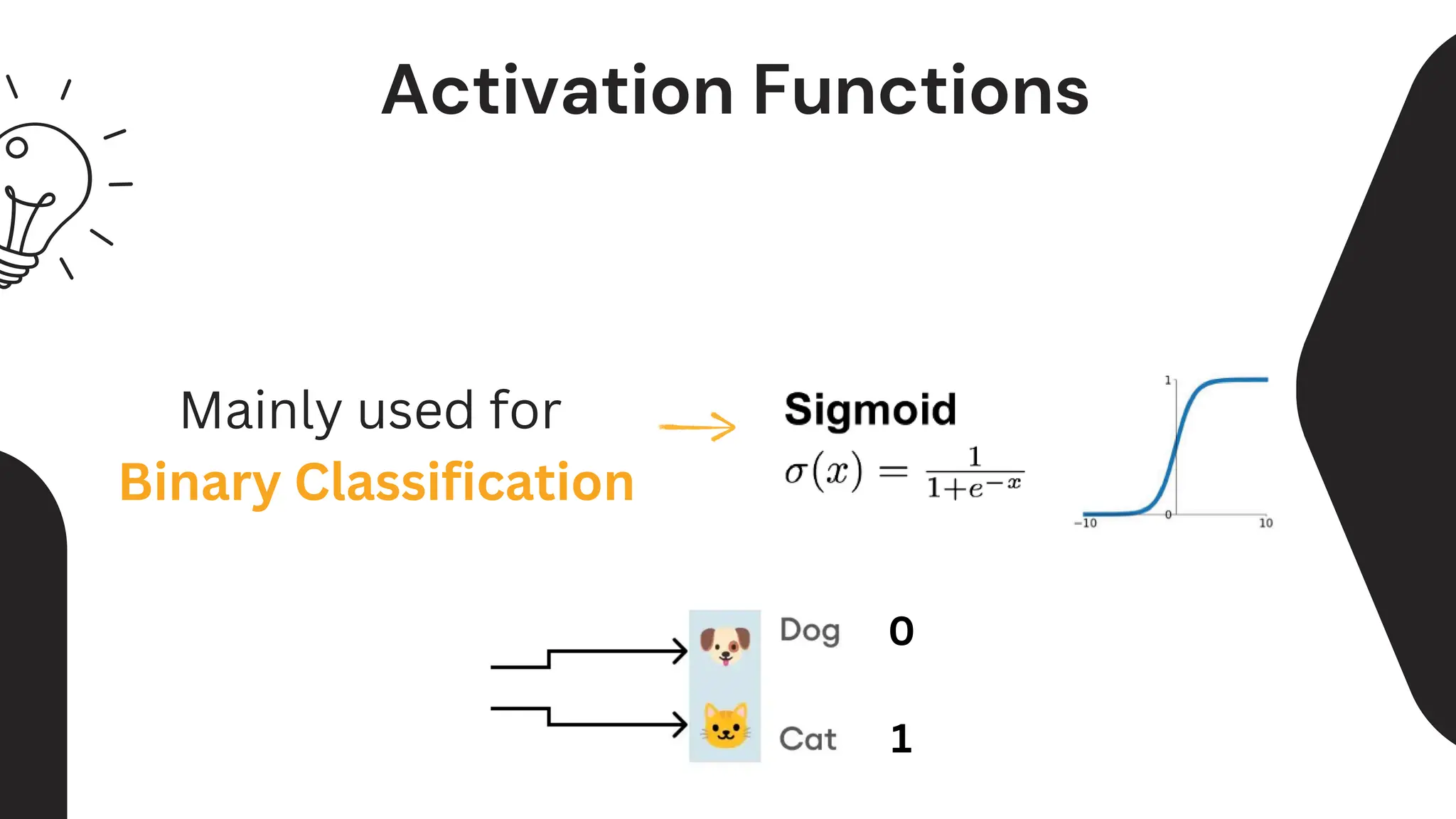

48. Activation Functions
Mainly used for
Binary Classification
1
0

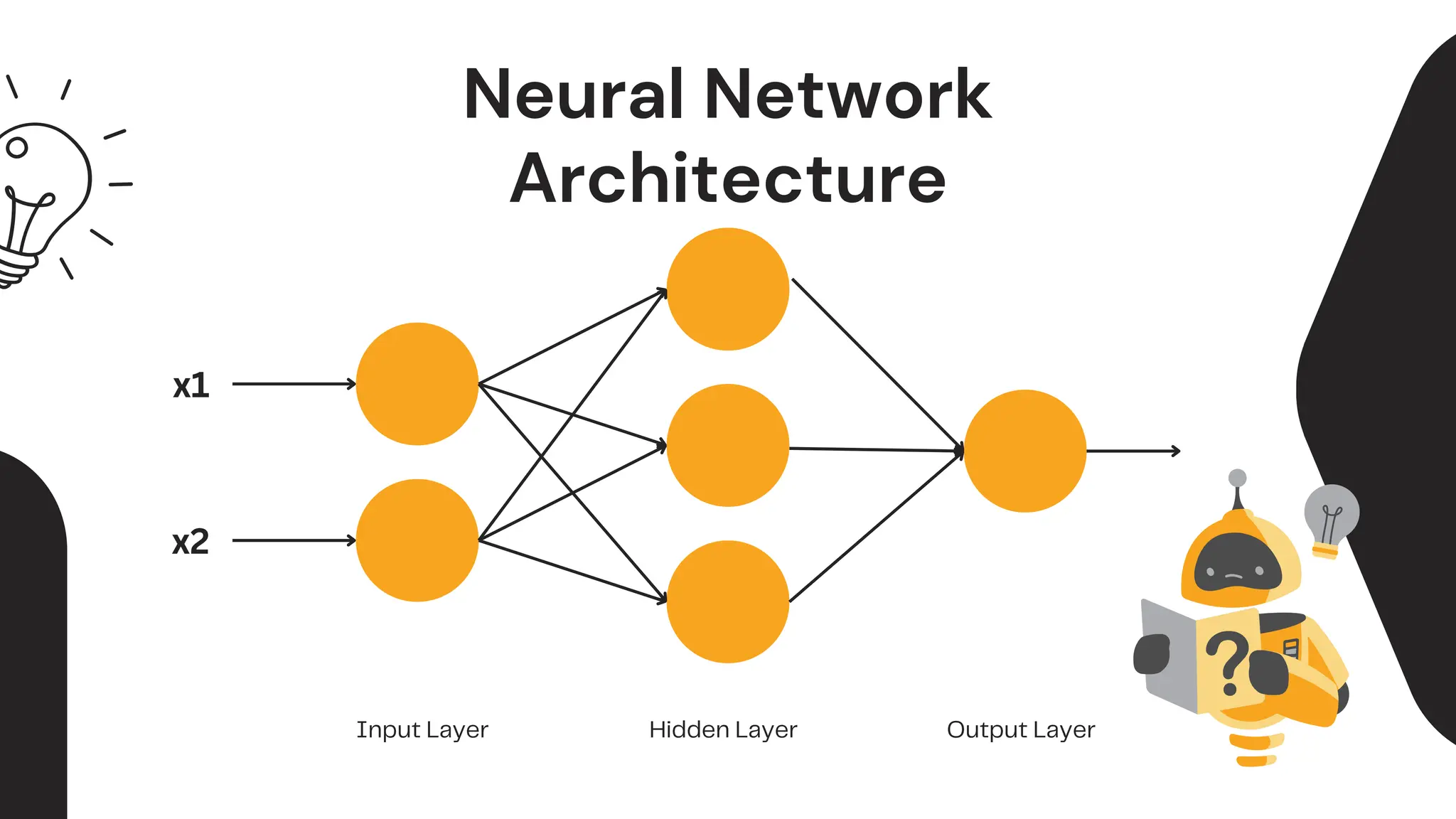

49. Neural Network
Architecture
Input Layer Hidden Layer Output Layer
x1
x2

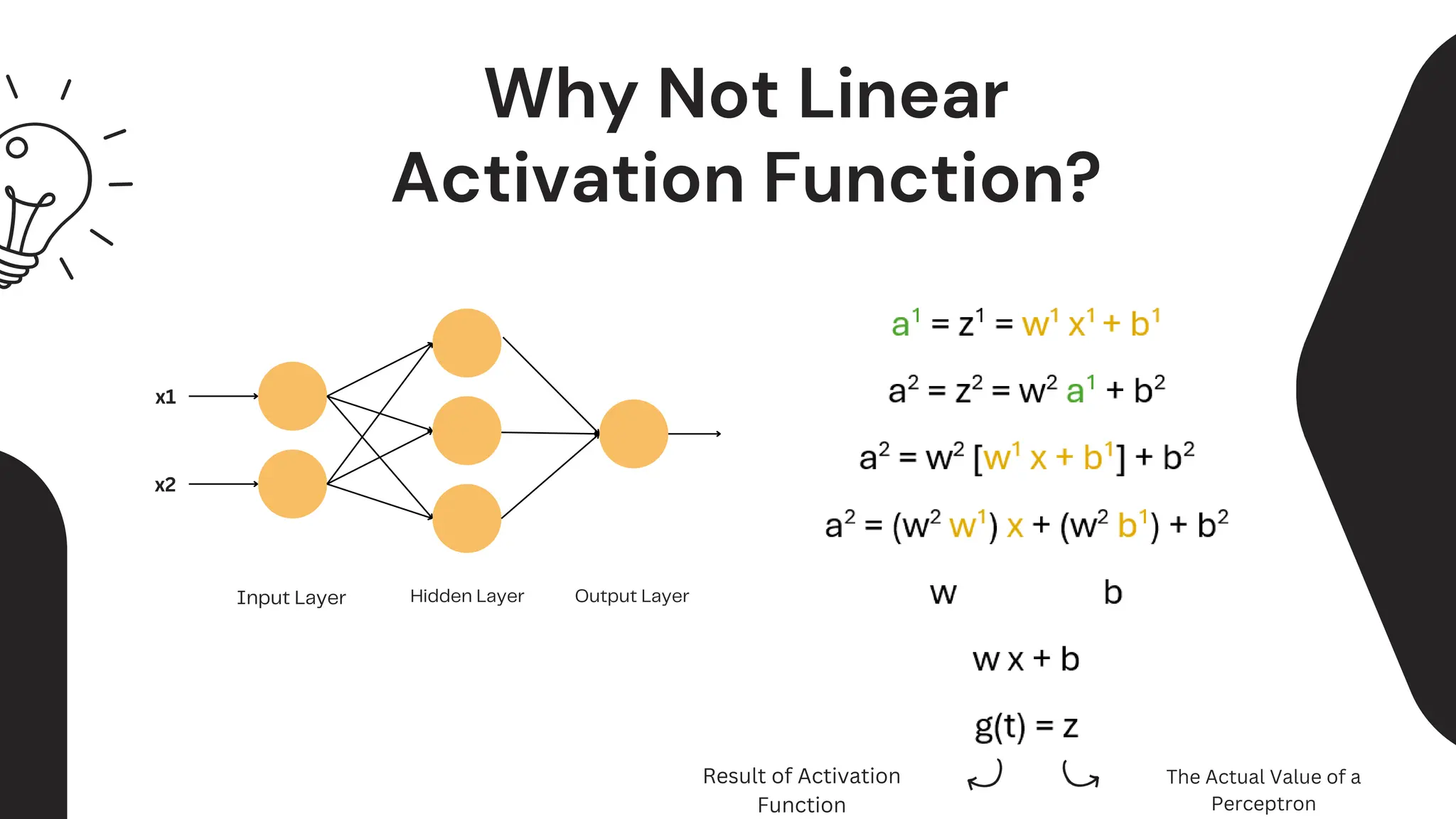

50. Why Not Linear
Activation Function?
Input Layer Hidden Layer Output Layer
x1
x2
Result of Activation
Function
The Actual Value of a
Perceptron

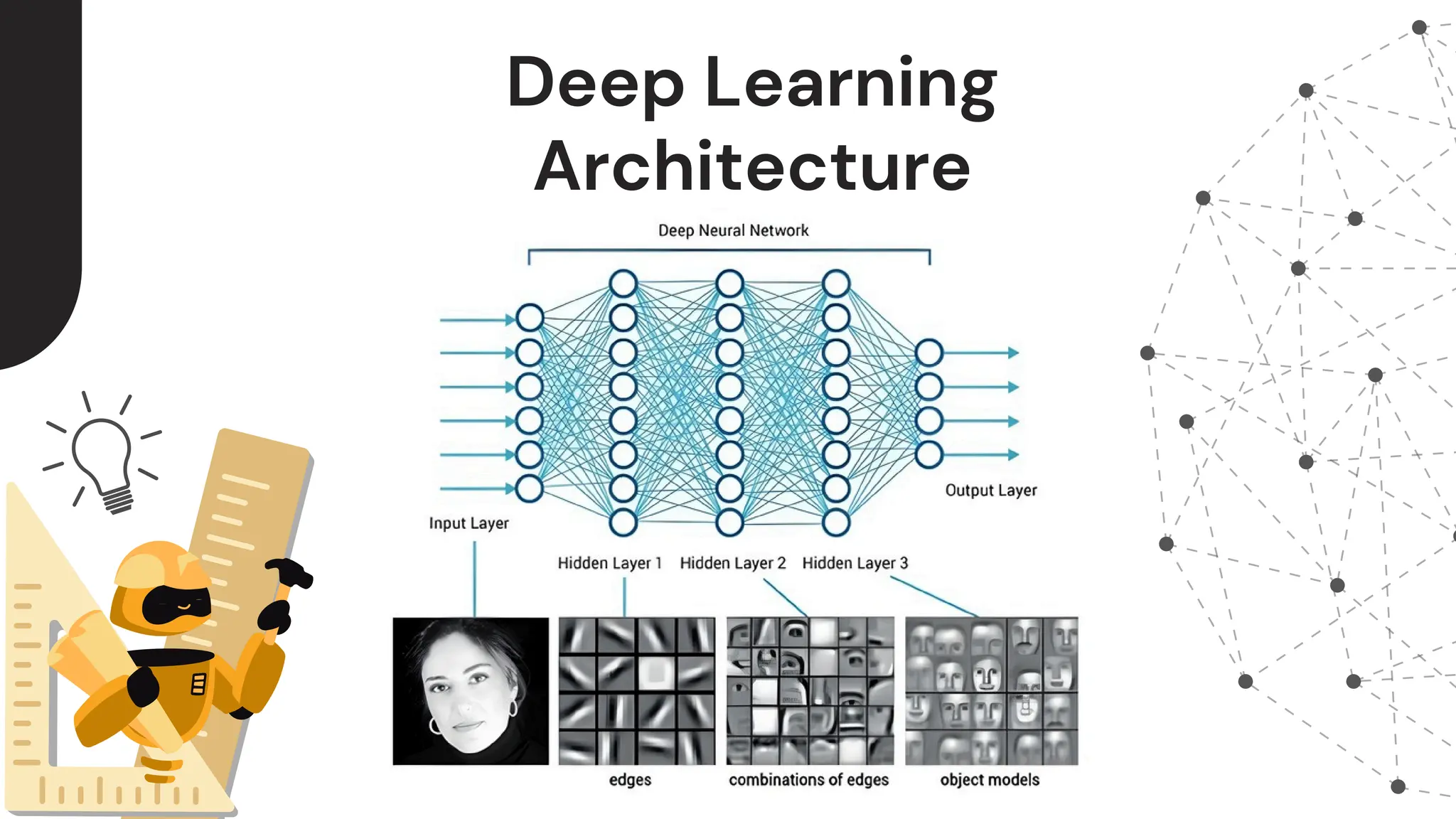

51. Deep Learning
Architecture

52. Deployment ?

53. Intro to CNN
Convolutional
Neural Networks
Where Vision Meets Intelligence
Let’s start ?

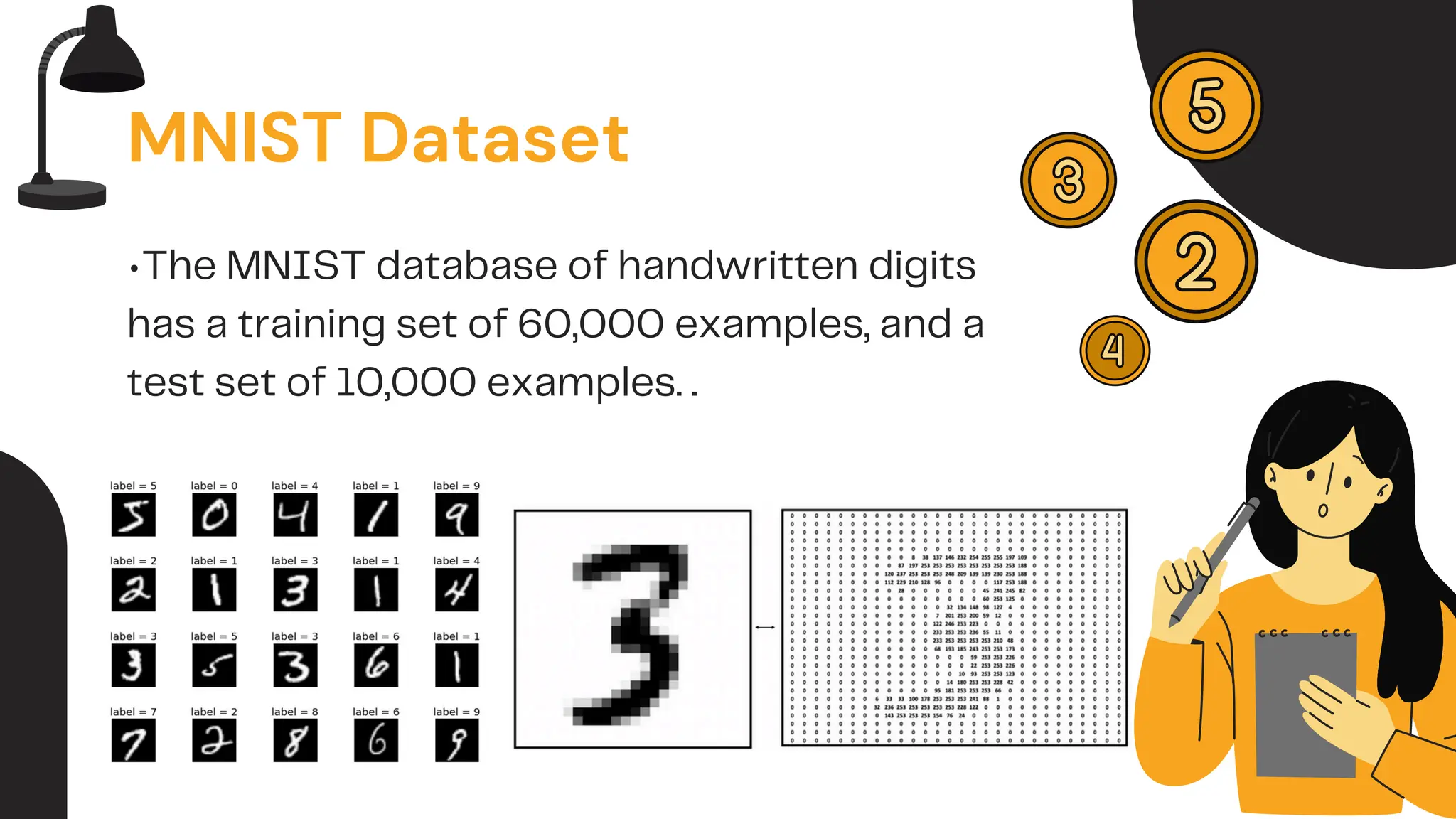

54. •The MNIST database of handwritten digits
has a training set of 60,000 examples, and a
test set of 10,000 examples. .
MNIST Dataset

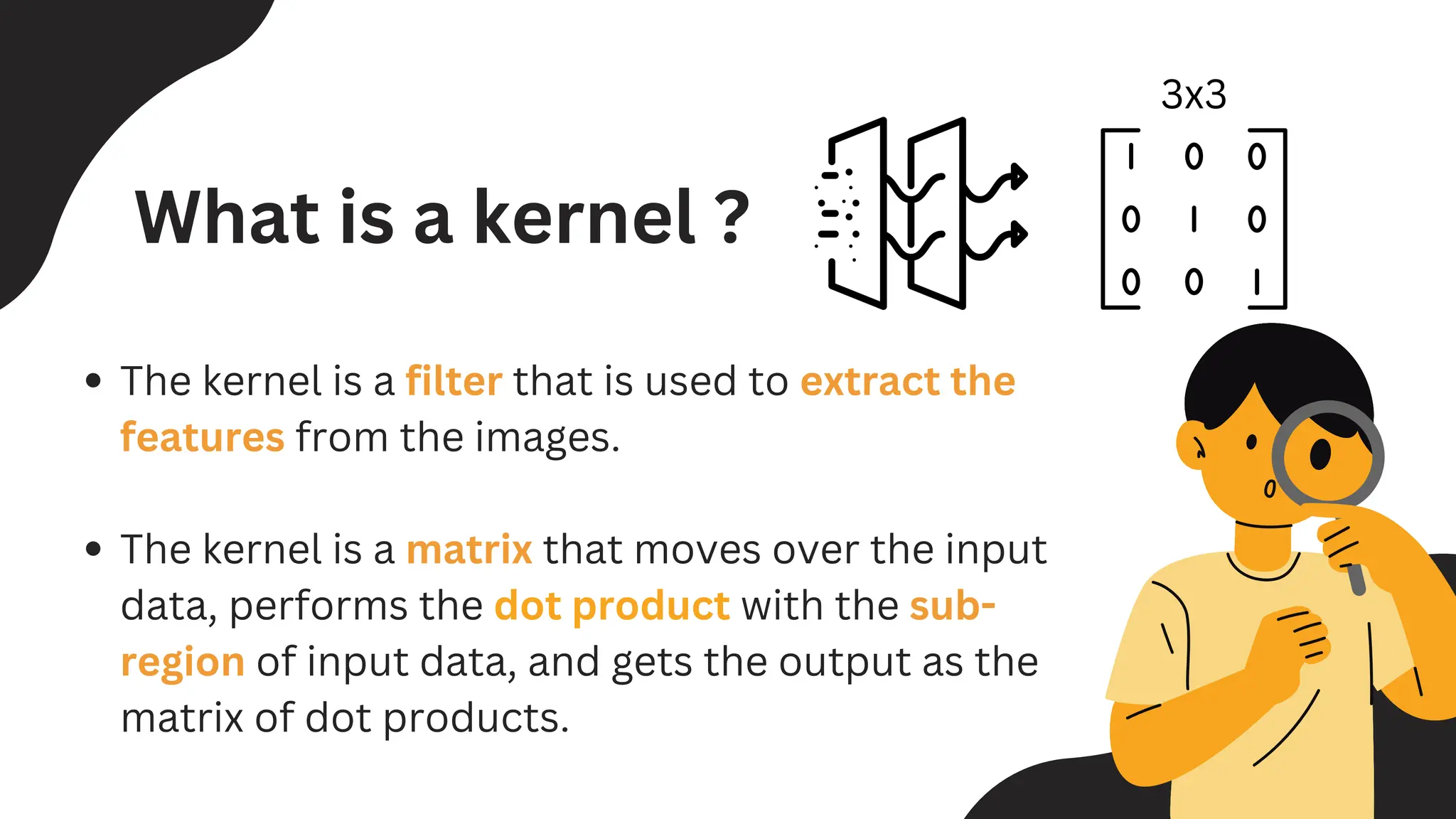

55. The kernel is a filter that is used to extract the
features from the images.
The kernel is a matrix that moves over the input
data, performs the dot product with the sub-
region of input data, and gets the output as the
matrix of dot products.
What is a kernel ?
3x3

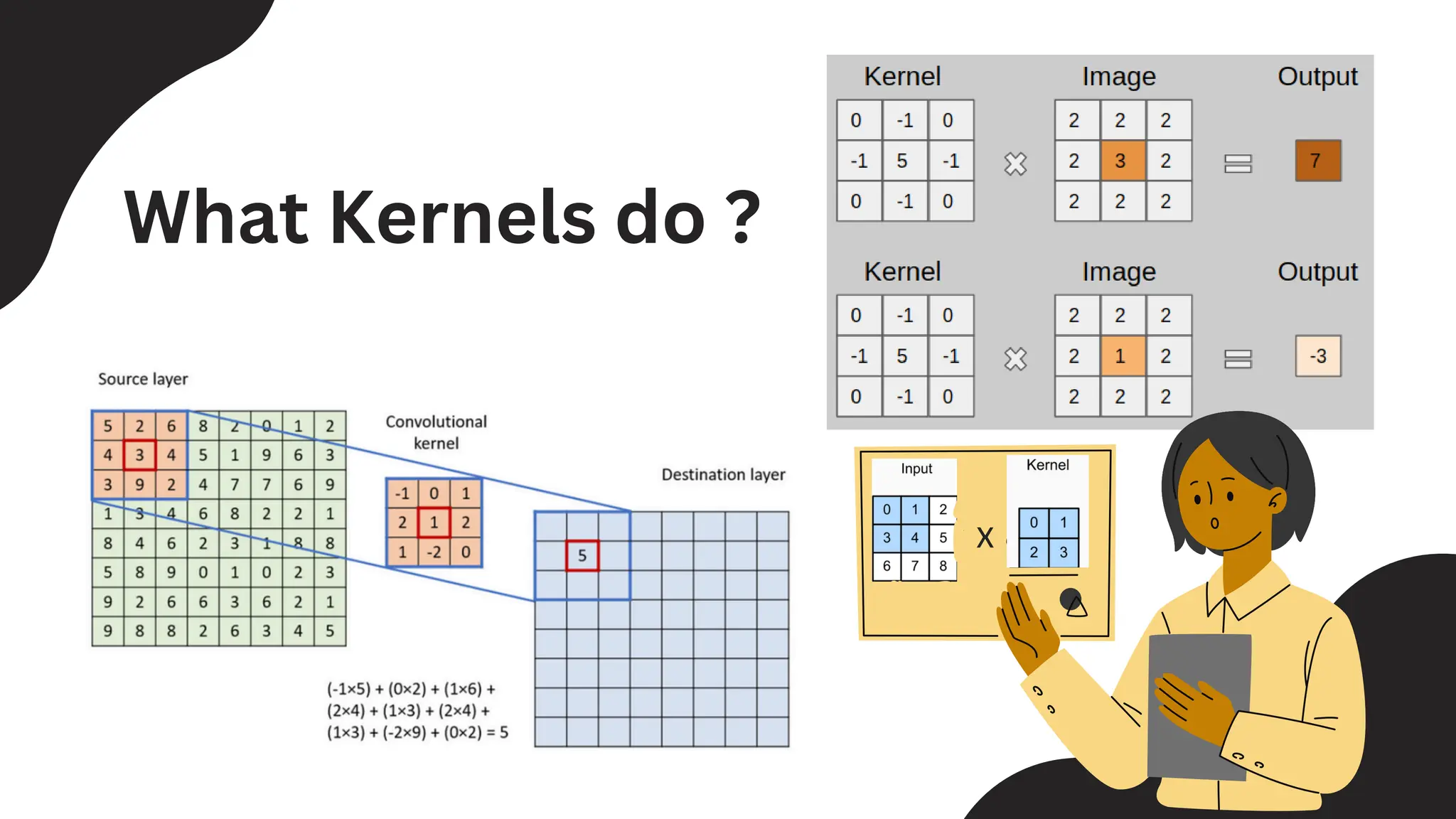

56. What Kernels do ?
x

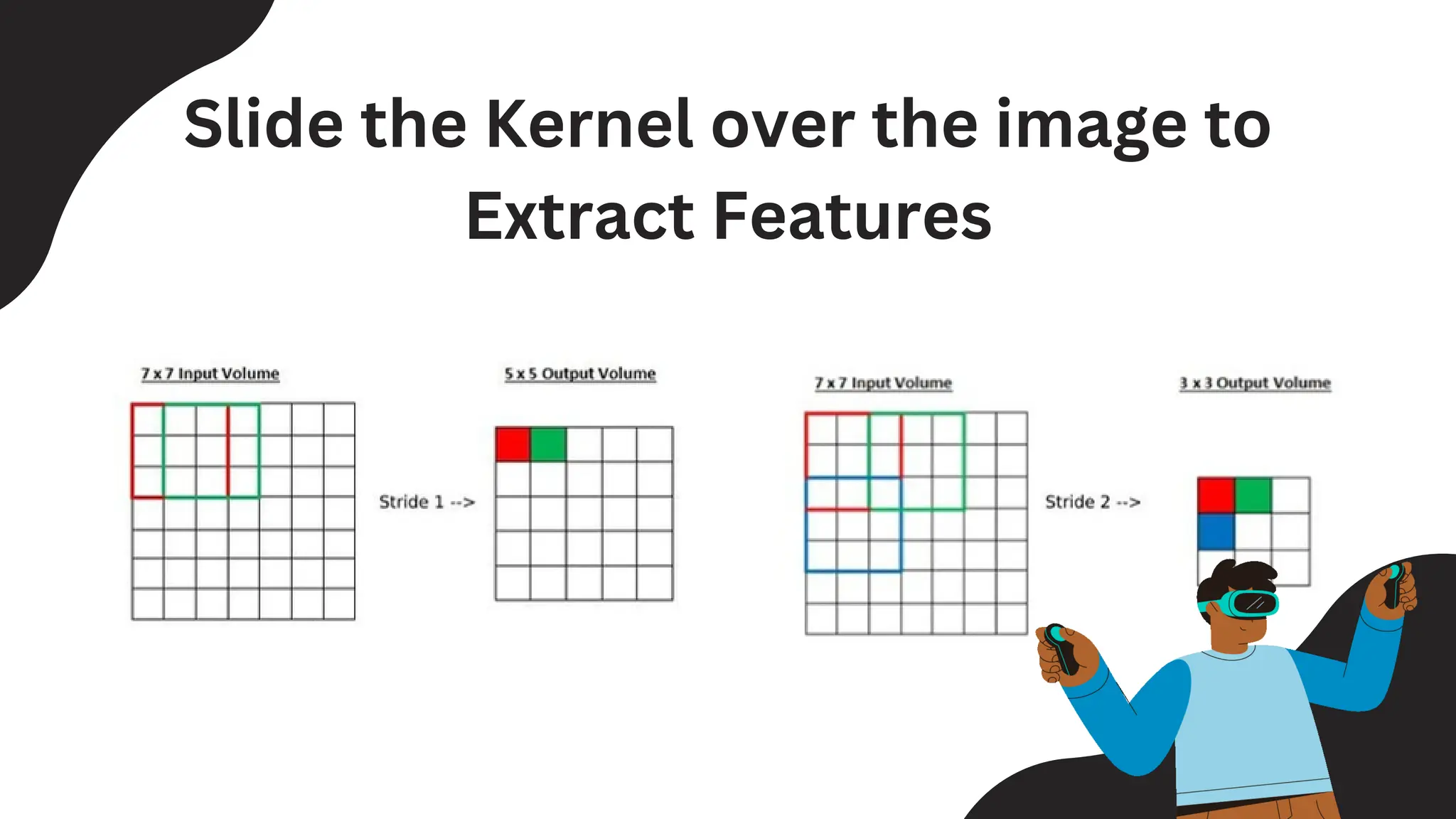

57. Slide the Kernel over the image to
Extract Features

58. Main Component in the CNN
Architecture is Conv Layer!!
Conv Layer is a set of kernels!!

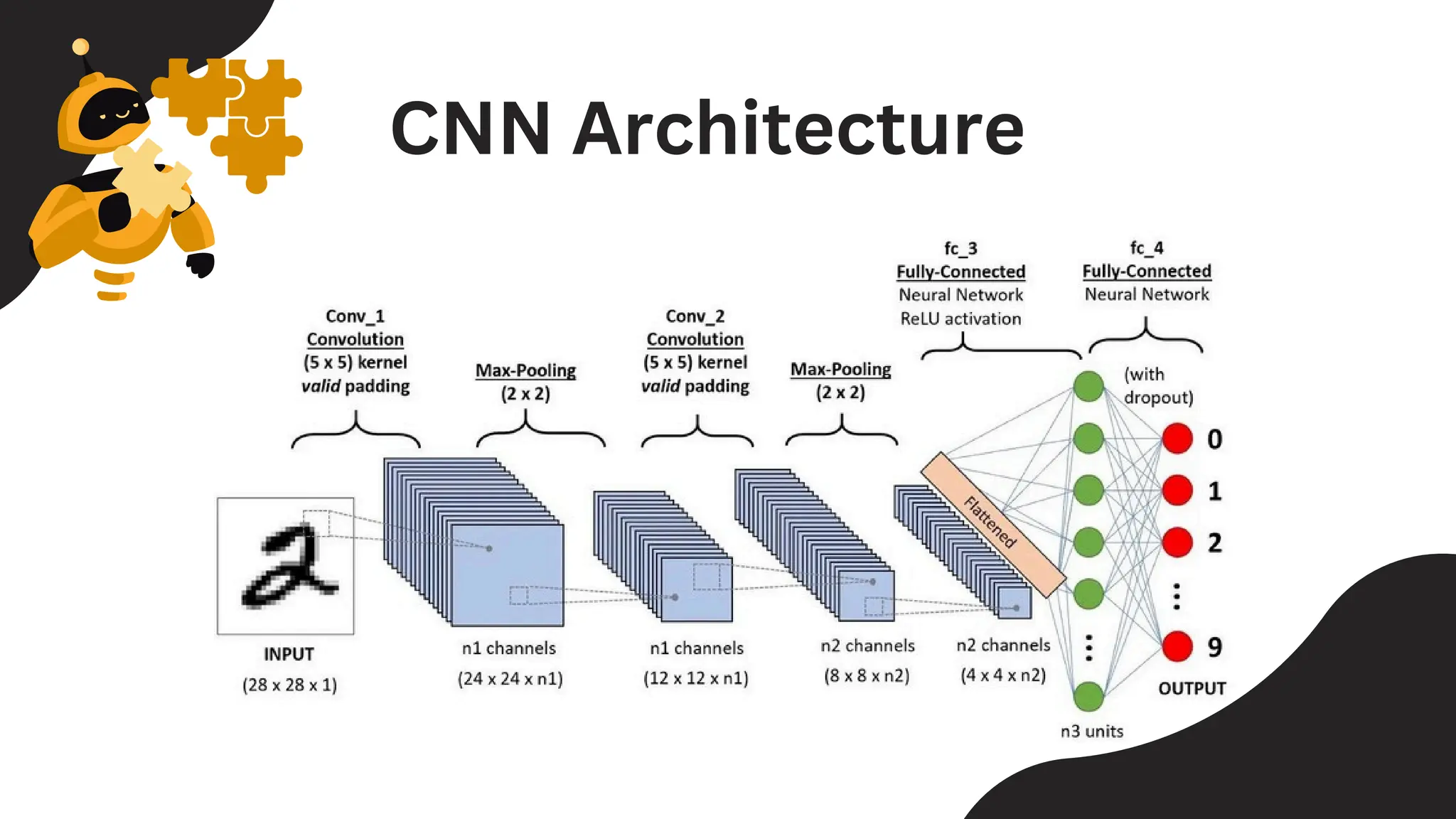

59. CNN Architecture

60. So... What is the difference between
Neural Networks (NN) and
Convolution Neural Networks
(CNN)?

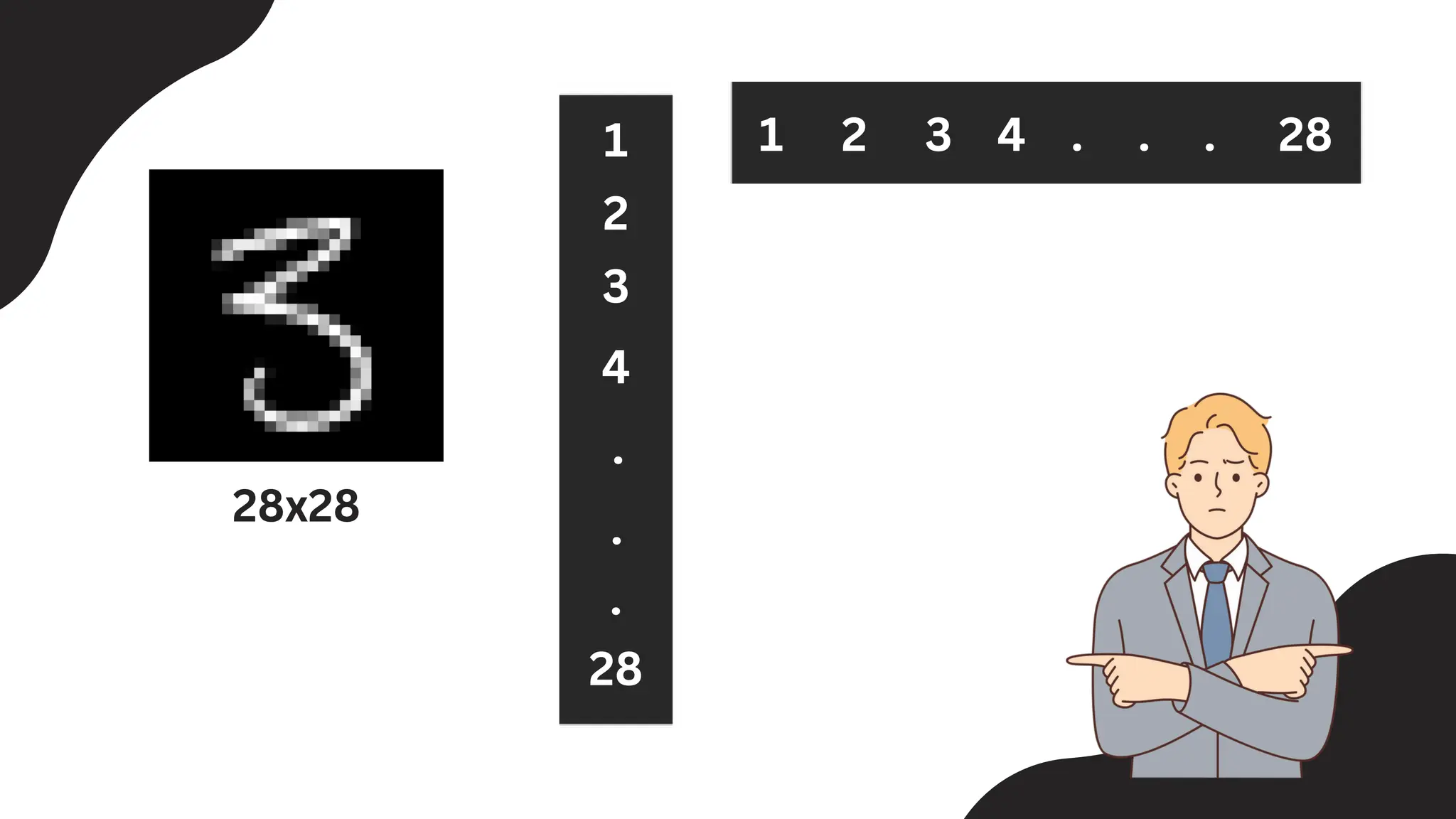

61. 1 2
3
4
28
.
.
.
1
2
3 4 28
. . .
28x28

62. How can we take 2D input and insert it
as input for NN ?
Let’s squeeze them into 1D Array !!

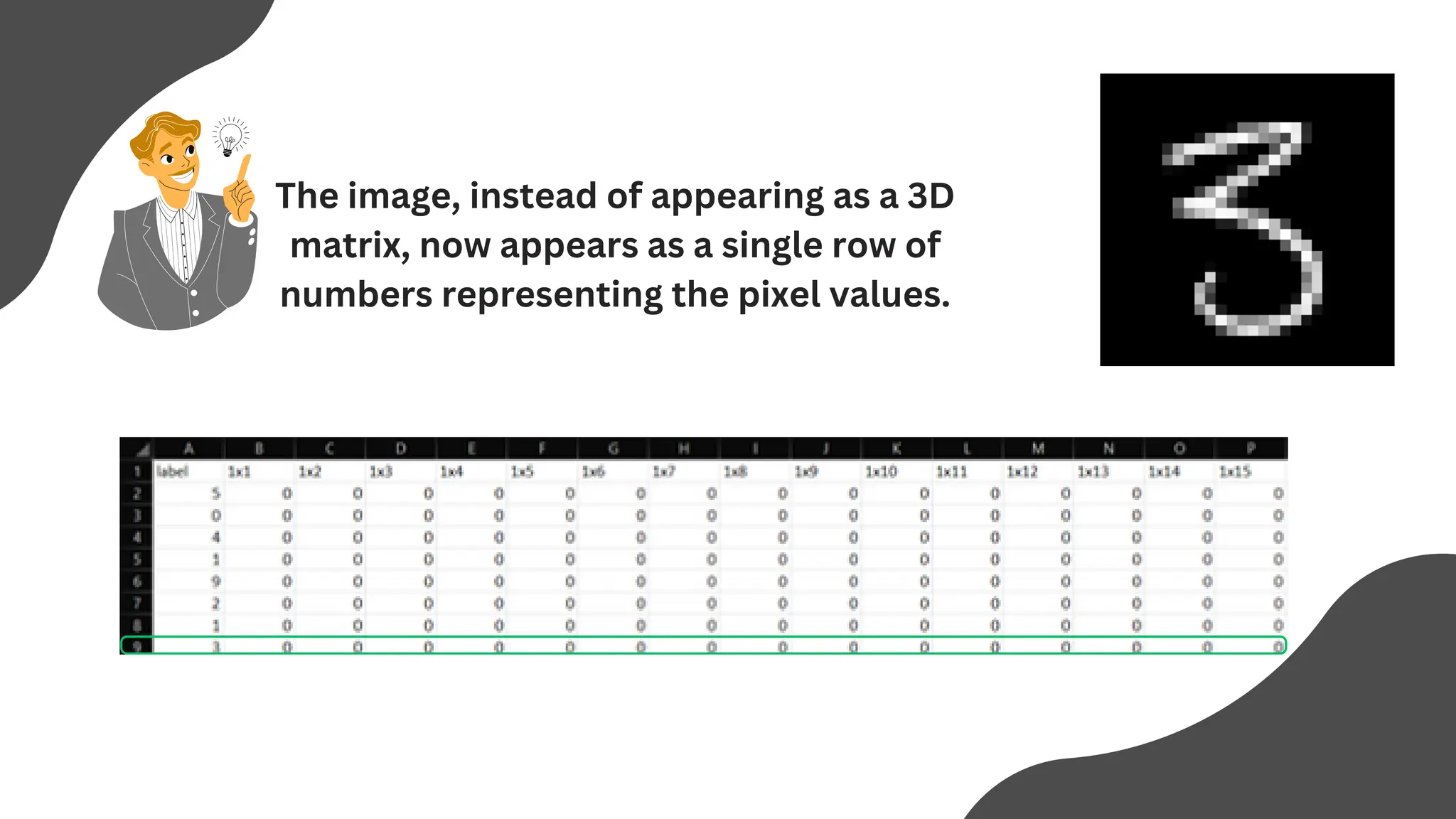

63. The image, instead of appearing as a 3D
matrix, now appears as a single row of
numbers representing the pixel values.

64. Is that Efficient?
True & False at the same time

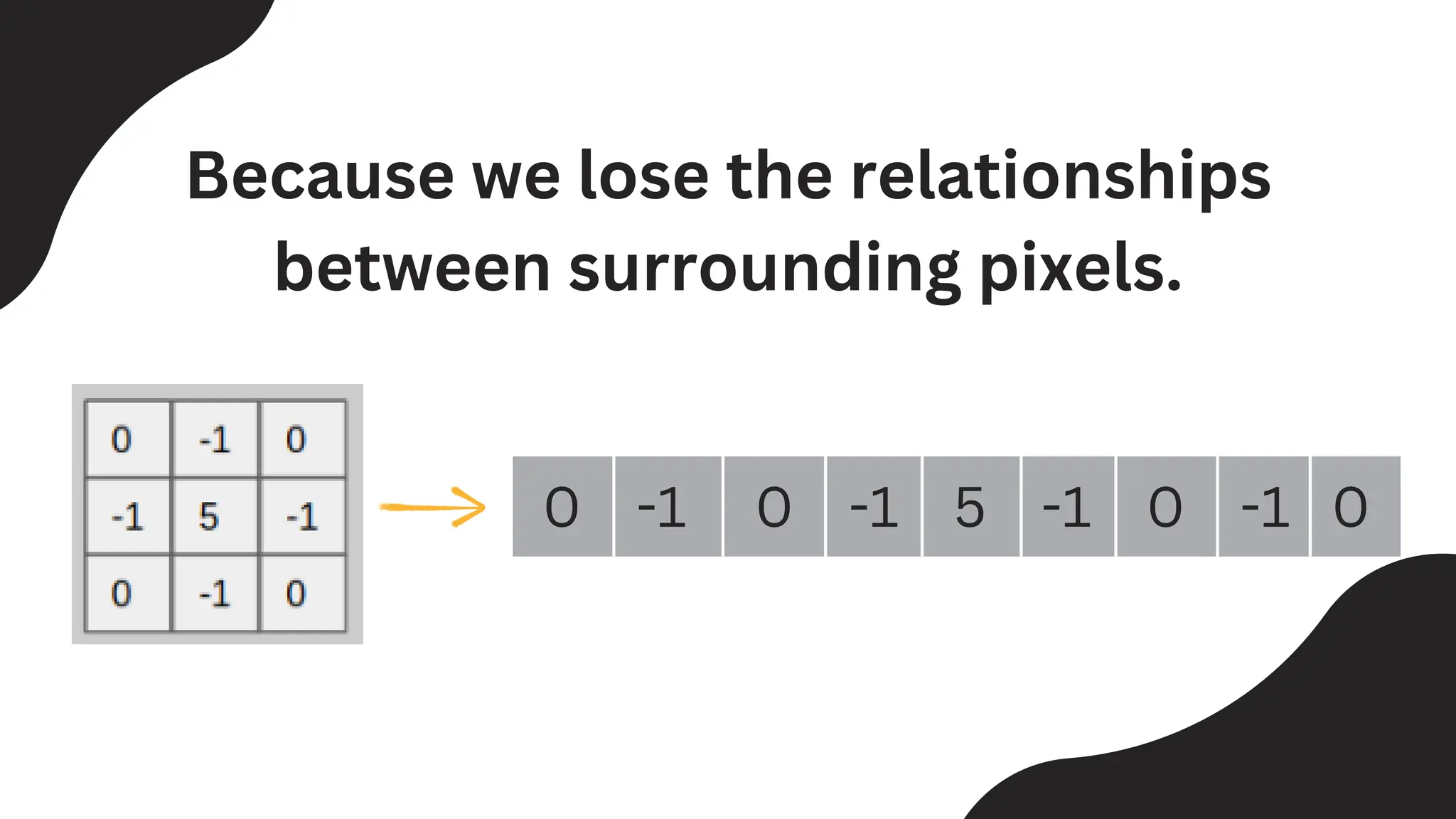

65. 0 -1 0 -1 5 -1 0 -1 0
Because we lose the relationships
between surrounding pixels.

66. What about in CNN ?
We don’t, that’s why the
accuracy shoots up!

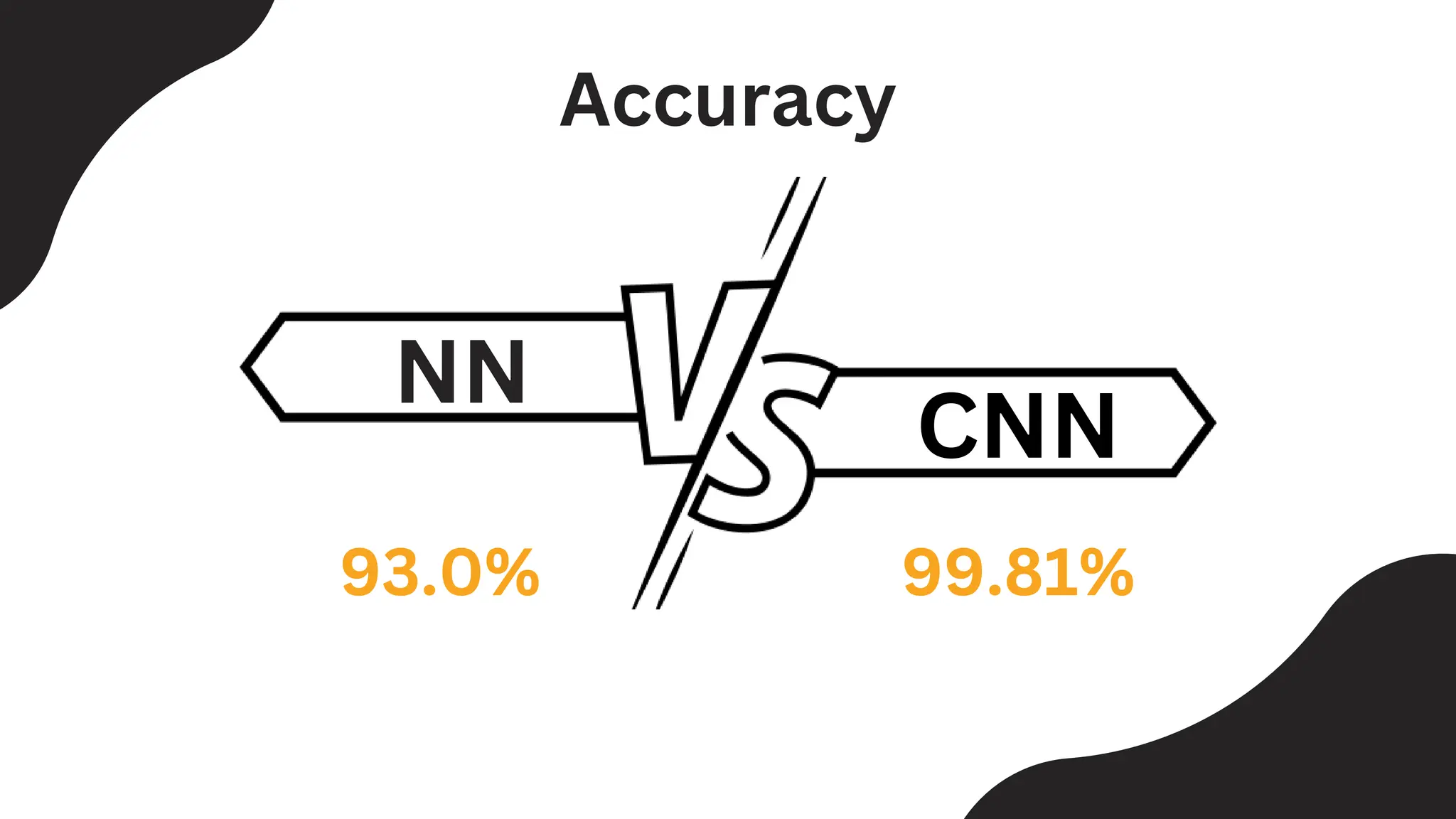

67. NN
Accuracy
93.0% 99.81%
CNN

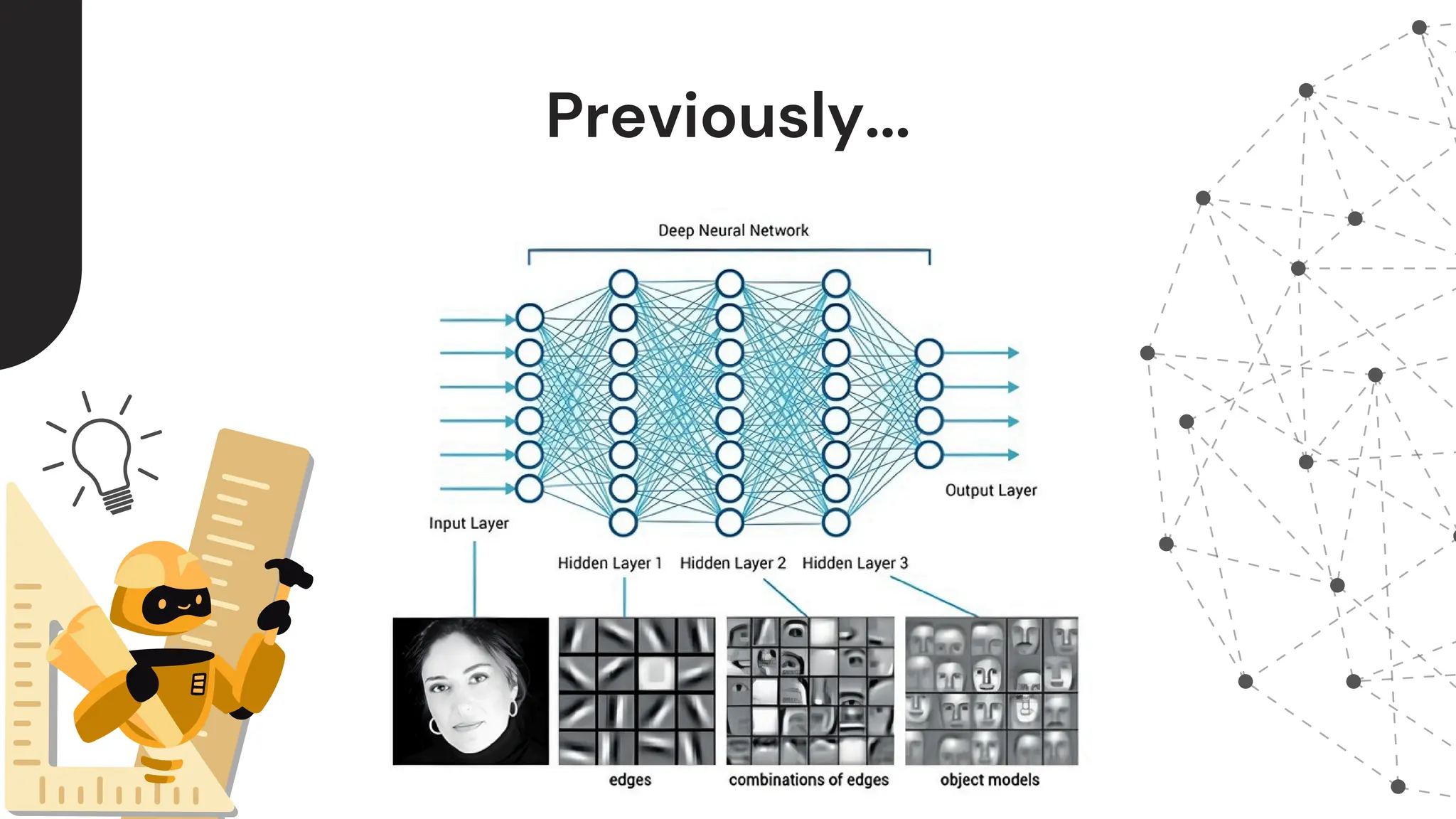

68. Previously...

70. TensorFlow Lite (TFLite) is a
collection of tools to convert and
optimize TensorFlow models to run
on mobile and edge devices.
You can find ready-to-run
TensorFlow Lite models for a wide
range of ML/AI tasks, or convert and
run TensorFlow and PyTorch models
to the TFLite format using the AI
Edge conversion and optimization
tools.

71. Key Features
Optimized for on-device
machine learning
Multi-platform support
Multi-framework model
options
Diverse language support High performance

72. Second
Kahoot

73. Project

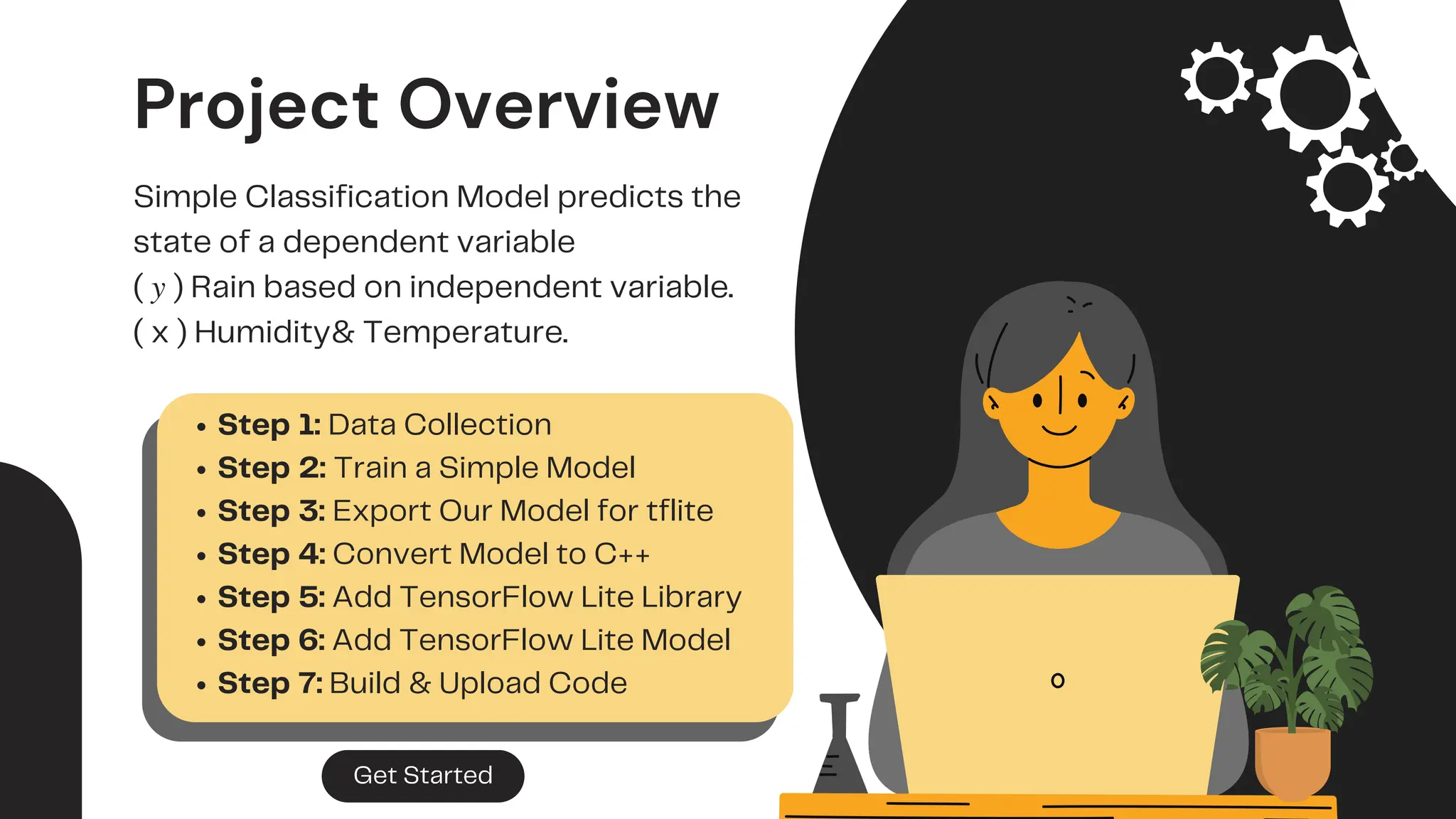

74. Project Overview
Simple Classification Model predicts the
state of a dependent variable
( 𝑦 ) Rain based on independent variable.
( x ) Humidity& Temperature.
Get Started
Step 1: Data Collection
Step 2: Train a Simple Model
Step 3: Export Our Model for tflite
Step 4: Convert Model to C++
Step 5: Add TensorFlow Lite Library
Step 6: Add TensorFlow Lite Model
Step 7: Build & Upload Code

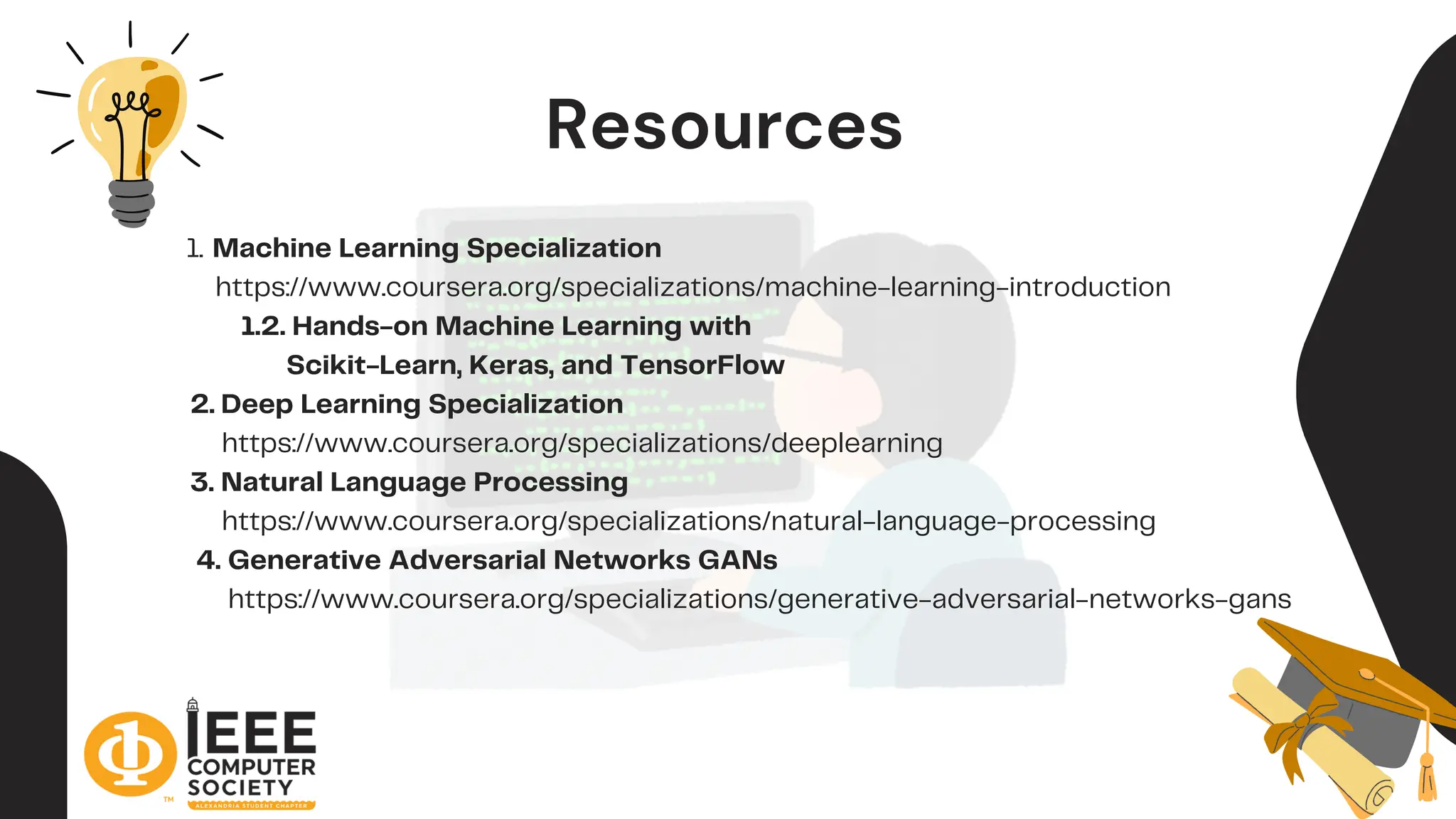

75. Resources
Machine Learning Specialization
1.
https://www.coursera.org/specializations/machine-learning-introduction
1.2. Hands-on Machine Learning with
Scikit-Learn, Keras, and TensorFlow
2. Deep Learning Specialization
https://www.coursera.org/specializations/deeplearning
3. Natural Language Processing
https://www.coursera.org/specializations/natural-language-processing
4. Generative Adversarial Networks GANs
https://www.coursera.org/specializations/generative-adversarial-networks-gans

77. Supervised
Unsupervised
Classification
Clustering
Other types of Regression
Gradient Descent
Feed Forward
Backpropagation
