Presentation on Instant page speed optimization

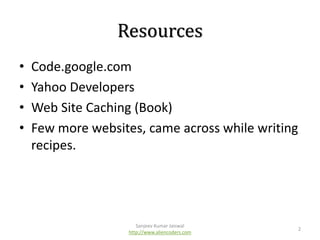

Resources
•
•
•
•

Code.google.com
Yahoo Developers
Web Site Caching (Book)
Few more websites, came across while writing
recipes.

Sanjeev Kumar Jaiswal
http://www.aliencoders.com

2

Table Of Contents


3

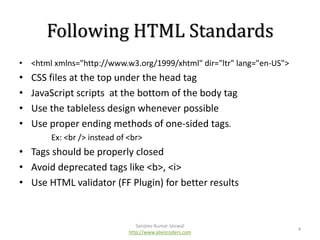

Following HTML Standards
• <html xmlns="http://www.w3.org/1999/xhtml" dir="ltr" lang="en-US">

•
•
•
•

CSS files at the top under the head tag
JavaScript scripts at the bottom of the body tag
Use the tableless design whenever possible
Use proper ending methods of one-sided tags.
Ex: <br /> instead of <br>

• Tags should be properly closed
• Avoid deprecated tags like <b>, <i>
• Use HTML validator (FF Plugin) for better results


4

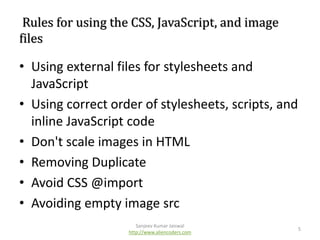

Rules for using the CSS, JavaScript, and image
files

• Using external files for stylesheets and
JavaScript
• Using correct order of stylesheets, scripts, and
inline JavaScript code
• Don't scale images in HTML
• Removing Duplicate
• Avoid CSS @import
• Avoiding empty image src

5

Minimizing HTTP Requests
•
•
•
•
•
•

Reducing DNS Lookups
Using combined CSS files and scripts
Using CSS Sprites (spriteme.org)
Using imagemaps (FF Plugin imagemap editor)
Firefox plugins Speed DNS
Minify js scripts and CSS files


6

Optimizing Images
• Use text with CSS3 instead of images, if
possible
• Use web format of images like gif or png
• Use photo editor to use exact image size
required
• Use the height and width attributes under the
img tag


7

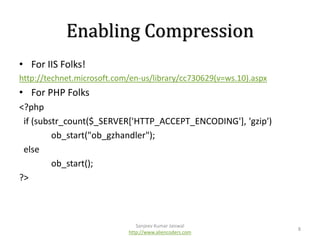

Enabling Compression
• For IIS Folks!
http://technet.microsoft.com/en-us/library/cc730629(v=ws.10).aspx

• For PHP Folks
<?php
if (substr_count($_SERVER['HTTP_ACCEPT_ENCODING'], 'gzip')
ob_start("ob_gzhandler");
else
ob_start();
?>


8

Enabling Compression cont…
For Apache Geeks
• Apache has two compression modes,
mod_deflate and mod_gzip.
http://httpd.apache.org/docs/2.0/mod/mod_deflate.html

• compress specific file types:
<files *.html>
SetOutputFilter DEFLATE
</files>

• or use AddOutputFilterByType
AddOutputFilterByType DEFLATE text/html text/plain text/xml


9

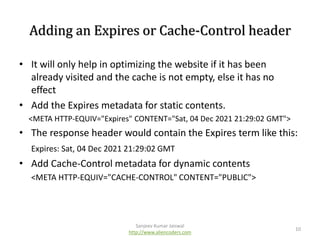

Adding an Expires or Cache-Control header
• It will only help in optimizing the website if it has been
already visited and the cache is not empty, else it has no
effect
• Add the Expires metadata for static contents.
<META HTTP-EQUIV="Expires" CONTENT="Sat, 04 Dec 2021 21:29:02 GMT">

• The response header would contain the Expires term like this:
Expires: Sat, 04 Dec 2021 21:29:02 GMT

• Add Cache-Control metadata for dynamic contents
<META HTTP-EQUIV="CACHE-CONTROL" CONTENT="PUBLIC">


10

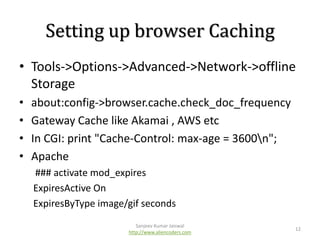

Setting up browser Caching
• Tools->Options->Advanced->Network->offline
Storage
•
•
•
•

about:config->browser.cache.check_doc_frequency
Gateway Cache like Akamai , AWS etc
In CGI: print "Cache-Control: max-age = 3600n";
Apache
### activate mod_expires
ExpiresActive On
ExpiresByType image/gif seconds

12

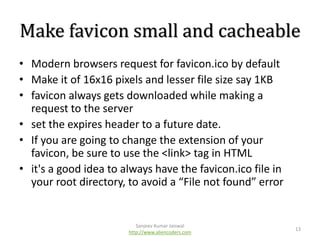

Make favicon small and cacheable
• Modern browsers request for favicon.ico by default
• Make it of 16x16 pixels and lesser file size say 1KB
• favicon always gets downloaded while making a
request to the server
• set the expires header to a future date.
• If you are going to change the extension of your
favicon, be sure to use the <link> tag in HTML
• it's a good idea to always have the favicon.ico file in
your root directory, to avoid a “File not found” error


13

Configuring Etags (Entity Tags)
• browser's cache contents are the same or different
from the origin server
• ETags useful for the CSS, JavaScript, and image files
• Enable ETag if served from the same server else disable
• add the following line at the end of httpd.conf or
apache2.conf:
– FileETag INode MTime Size

• To Disable add lines at the end of httpd.conf or
apache2.conf:
– FileETag None
– Header unset ETag

14

Using Apache mod_pagespeed
• It supports only :
– Debian/Ubuntu (32&64)
– CentOS/Fedora (32&64)

• Install
– pkg -i mod-pagespeed-*.deb apt-get -f install (Debian)
– rpm -U mod-pagespeed-*.rpm (For CentOS)

• It installs mod_pagespeed.so for Apache 2.2 and
mod_pagespeed_ap24.so for Apache 2.4
• <IfModule pagespeed_module>#config lines here</IfModule>
• # mod_pagespeed output handler.
– AddOutputFilterByType MOD_PAGESPEED_OUTPUT_FILTER text/html

• mod_pagespeed automatically enables mod_deflate for compression

• ModPagespeed on/off/unplugged

15

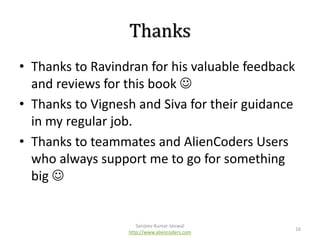

Thanks
• Thanks to Ravindran for his valuable feedback
and reviews for this book 
• Thanks to Vignesh and Siva for their guidance
in my regular job.
• Thanks to teammates and AlienCoders Users
who always support me to go for something
big 


16

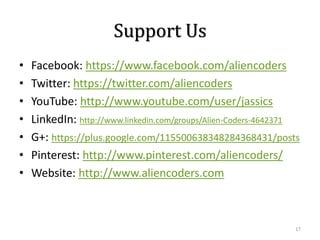

Support Us
•
•
•
•
•
•
•
