Installation and setting up ibm elm

Installation and setting up
IBM ELM
By Ankit Vashistha
ankitsharma0087@gmail.com

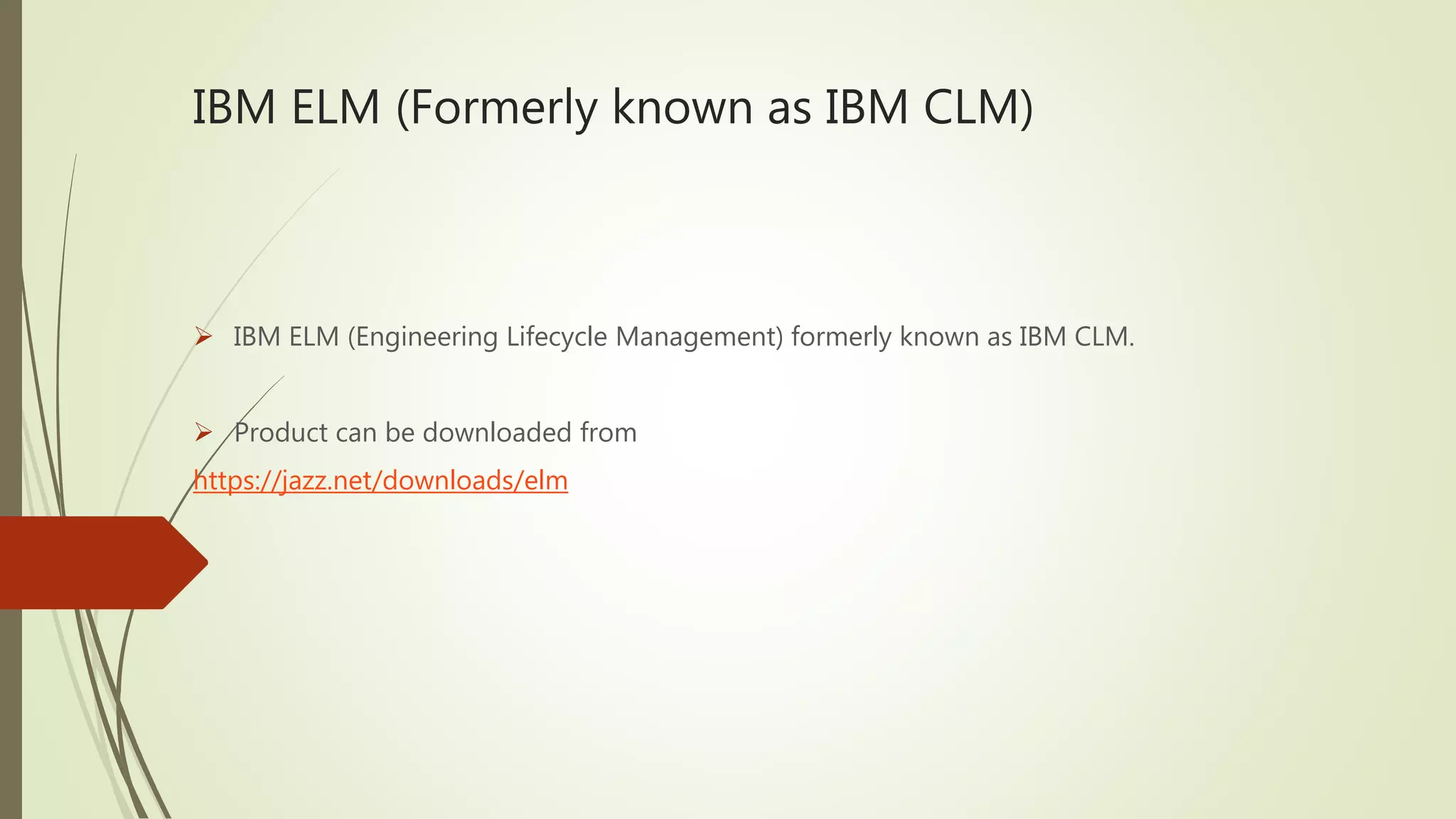

IBM ELM (Formerly known as IBM CLM)
 IBM ELM (Engineering Lifecycle Management) formerly known as IBM CLM.
 Product can be downloaded from
https://jazz.net/downloads/elm

IBM ELM Installation
 Download folder contains one batch file by the name of Launchpad. Simply press
enter on that.
 ELM installer window will appear as shown in the next slide. Select the installer.

 After selecting the installer IBM Installation Manager will be open with all the
packages available for installation.
 You need to choose the packages to be installed as per your requirement and click
on the next button as shown in next slide.

 The next screen of installation is a prerequisite validation for the packages selected
for installation.
 All the selected packages in previous steps shall be available here with the
prerequisites and any error if there.

 The next screen of installation is license agreements for all the packages selected for
installation.

 The next step will ask for the installation directory on your machine. There are two
directories when it comes to IBM ELM installation.
I. Shared Resource Directory (Resources that are shared by multiple packages)
II. Installation Directory (Any resources that are unique to the package that you are
installing).
 Provide the path to the directory in next two steps as shown in slides and press
next.

 The next step will ask for the translations to be installed for the ELM. You need to
choose as per your requirement and simply press next button.

 The next step will ask for few common configurations needs to be done before
finishing up with the installation process.
i. Web Application Servers.
ii. Context Root Options.
iii. Jazz Security Architecture.

 As seen in the slide Web Application Servers configuration provides the option to
install ELM applications with WAS Liberty profile.
 User can also just select the application WAR files to be installed on the existing
WebSphere Application Server.

 The next common configuration is setting up context root for the application to be installed. By
default context root options are also available which is used generally.
i. Change Configuration Management – ccm (Engineering workflow management (RTC))
ii. Global Configuration Management – gc
iii. Jazz Team Server – jts
iv. Link Index Provider – ldx
v. Quality Management – qm (Engineering Test Management (RQM))
vi. Requirements Management – rm (Engineering Req Mgmt DOORS Next (DNG))

 The next common configuration is Jazz Security Architecture Single Sign-on (SSO).
Choose as per your requirement and press next button.

 Final step is to verify the installation summary once again before proceeding ahead
with the installation process.
Note:- If you are using web installer make sure you are connected to high speed internet.

 After successful installation final page shows you the packages installed with an option for
user to open documentation to configure. Just click the finish button once you select.
 After successful installation what we need to do know is to configure the Jazz Team Server.
 To configure the jts user needs to start the ELM Server from the installed directory as shown in
the next slide.

IBM Jazz Team Server Setup
 Make sure you run the command prompt as administrator to execute the
server.startup.bat file
 Once you see the message on command prompt with server clm started, you need to
access the https://localhost:9443/jts/setup url in browser.
 Click on the Advanced button on warning to connection is not private

 Next step requires the credentials to proceed ahead with setting up the jts.
 User ID – ADMIN
 Password – ADMIN
And click on login button.
Default Administrator username and password are ADMIN in capital letters.

 From the next step we will start with the Jazz Team Server and Application Setup. The
setup wizard provides two options for setting up the server.
 Express Setup.
 Custom Setup.
Note:- User needs to select the setup as per their requirement. For demo purpose I have
selected Express Setup.

 First step in setting up the application servers is configuring the public url.
Note:- Please make sure to set it carefully as while setting up you need to select the
check box in step 2 read that carefully.

 Once public url is set click on the next button.
 Next Step is to create first administrator account apart from the ADMIN user which
we are currently logged in.

 On pressing next button setting up of application server will start.
 This process may take some time to finish.

 Once the setting up application process completes click on next button.
 Next and final step in setting up the server is activating trial licenses for the installed
applications and assigning the license for each application the administrator user we
created while setting up.

 After assigning the license now you are done with setting up the application servers.
 Applications are ready for your use.

Topics for next presentation
 Creating life cycle project, adding users, settings in project in different applications.
 Work item customization in EWM.
 Projects settings in EWM, RDNG, ETM.
 How to start working with GC.
 Setting up of EWM eclipse client.
 How to use source code management(Configuration management) using EWM.
