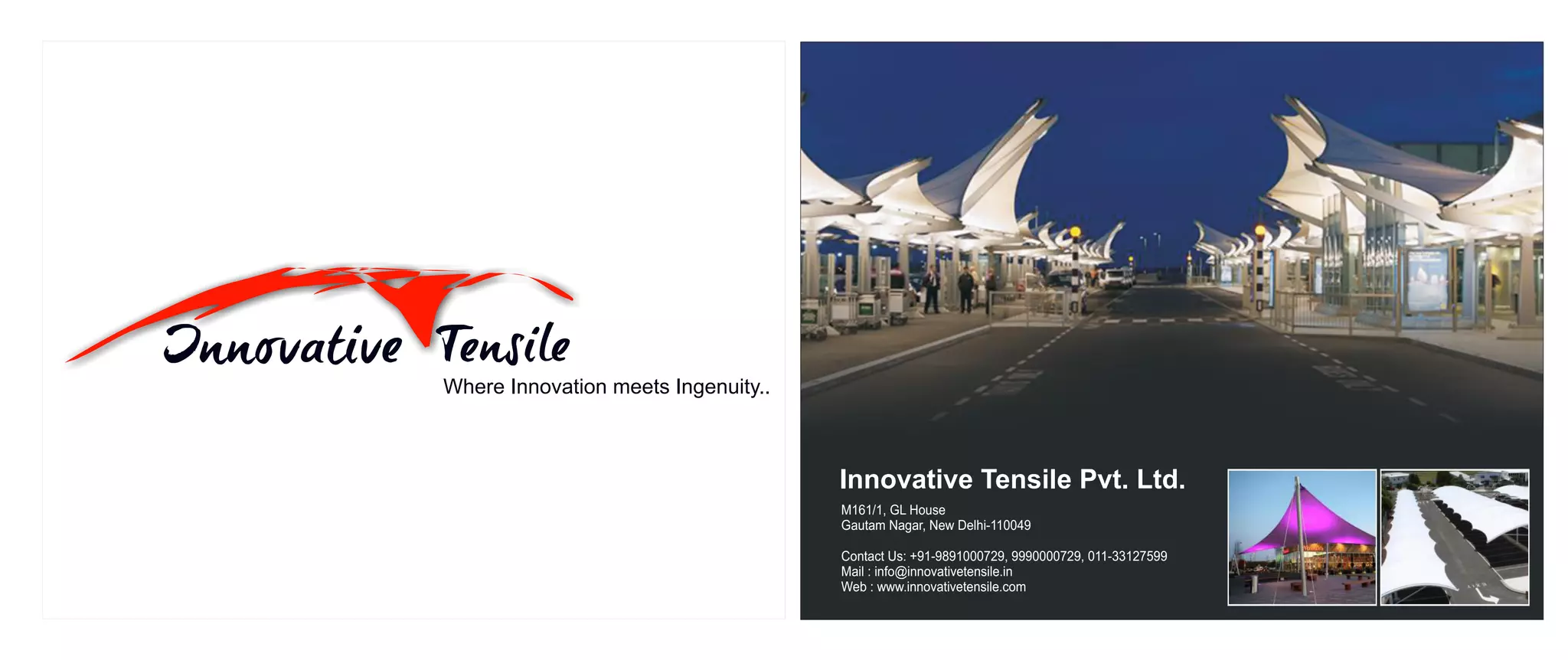

Innovative Tensile Pvt Ltd

M161/1, GL House
Gautam Nagar, New Delhi-110049
Contact Us: +91-9891000729, 9990000729, 011-33127599
Mail : info@innovativetensile.in
Web : www.innovativetensile.com
Innovative Tensile Pvt. Ltd.
Where Innovation meets Ingenuity..

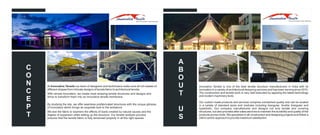

At Innovative Tensile our team of designers and technicians make sure all rich details of
different shapes from intricate designs of tensile fabric to architectural tensile.
With utmost innovation, we create most amazing tensile structures and designs and
strive to transform them into an innovative tensile membrane.
By studying the site, we offer seamless prefabricated structures with the unique glimpse
of innovation which brings an exquisite look to the ambience.
We test the fabric to examine the effects of loads created by natural causes and the
degree of expansion while setting up the structure. Our tensile analysis process
ensures that the tensile fabric is fully tensioned properly in all the right spaces.
Innovative Tensile is one of the best tensile structure manufacturers in India with its
innovation in a variety of architectural designing services and has been serving since 2010.
The construction and tensile work is very well executed by applying the latest technology
and modern machinery tools.
Our custom made products and services comprise unmatched quality and can be availed
in a variety of standard sizes and modules including triangular, double triangular and
hyperbolic. Our company manufactures and designs not only tensile and covering
structures, but also provides after sales services to maintain the durability and quality of the
products across India. We specialize in all construction and designing projects and follow a
client-centric approach to provide maximum satisfaction.
C
O
N
C
E
P
T
A
B
O
U
T
U
S
Where Innovation meets Ingenuity.. Where Innovation meets Ingenuity..

Manufacture
Once design and budget are approved, detailed design commences. This includes general
arrangement drawings and foundation designs. Detailed fabrication drawings then follow.
Once these are fully approved, manufacture can begin. This involves 3D CAD modelling of
fabric and the manufacture of steel or timber components, culminating in a series of
specialist parts all ready for installation on site.
Installation
When it comes to installation our riggers have the experience that makes all the difference.
The project manager, briefing the site team on all aspects of the build, leads the installation
and makes sure the client is kept up to date with progress and any changes on site, and
ensures that a consistent communication flow is present throughout the project.
Initial Consultation
Here we establish an overall brief of what the client is wishing to achieve. This may involve a
request to the client for visuals or architectural drawings, as well as attending design
meetings and site visits.
Design
With solid brief to hand, Innovative Tensile will offer initial design concepts including fabric
types, type of structural support e.g. timber or steel work, rigging options, installation
layouts and any extra features such as printing
Budget & Quotations
Once the client is happy with the design of the product, Innovative Tensile will provide
budgets and quotations including the confirmation of sketches or visuals where
appropriate.
P
R
O
C
E
S
S
P
R
O
C
E
S
S

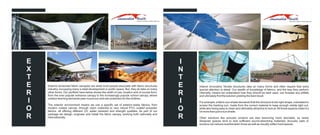

Interior Innovative Tensile structures take on many forms and often require that extra
special attention to detail. Our wealth of knowledge of fabrics, and the way they perform
internally, means we understand how they should be best used, can foresee any pitfalls
and ultimately find the solution yielding the best result.
For example, a fabric sun shade demands that the structure is the right shape, orientated to
screen the tracking sun, made from the correct material to keep enough visible light out,
while also being easy to clean and ultimately attractive to look at.All these aspects make it a
lot more than just a sun shade.
Other solutions like acoustic screens are also becoming more desirable, as newly
designed spaces tend to lack sufficient sound-absorbing materials. Acoustic sails or
screens can reduce reverberation times as well as visually soften hard spaces.
Exterior tensioned fabric canopies are what most people associate with fabric structures
industry, occupying many a retail development or public space. But, they do take on many
other forms. Our portfolio here below shows this width of use, location and of course form,
from the ever popular entrance canopy to the increasingly popular school canopy, where
outdoor learning demands year-round sun and rain protection for the children.
The exterior environment means we use a specific set of exterior-ready fabrics, from
modern coated canvas, through nylon materials to very robust PVC coated polyester
fabrics, all offering different UV, water resistant and strength qualities. As part of our
package we design, engineer and install the fabric canopy, working both nationally and
internationally.
I
N
T
E
R
I
O
R
E
X
T
E
R
I
O
R
Where Innovation meets Ingenuity.. Where Innovation meets Ingenuity.

"Tensile fabric" is a term used simply to describe fabric that is under tension, i.e. being
pulled in opposing directions. It can take many forms, though its generally based around
three shapes: the Cone (or fluted cone), the Double Curve Barrel Vault and the Hypar (or
hyperbolic shape).
The fabric form is computer generated using a specific programme for the industry. This
'form' is then converted into flat panel which then can be cut out to create paper patterns or
the information can be used to computer cut the panels on a plotter/cutter. Because of the
nature of fabrics used, the presence of the double curve and the process of manufacturing,
tensioning is always required in order to induce the correct shape and take out any minor
creases in the fabric
 Tensile Structures
 Interior Fabric Structures
 Sunshades
 Tensile Ceilings
 Tensile Structure Car Parking
 Walkway Covering Structure
 Gazebo Tensile Structure
 Swimming Pool Tensile Covering
 Tensile Membrane Structure
 Cantilevers Tensile Structure
 Indoor Tensile Structure
 Zoo Tensile Structure
 Mesh fabric Structure
P
R
O
D
U
C
T
S
T
E
N
S
I
L
E

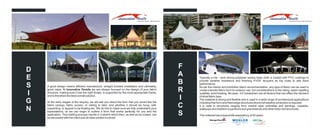

A good design means efficient manufacture, straight forward installation and ultimately,
good value. At Innovative Tensile we are always focused on the design of your fabric
structure, making sure it has the right shape, is supported by the most appropriate frame,
and is therefore the best overall solution.
At the early stages of the enquiry, we will ask you about the form that you would like the
fabric canopy, fabric screen, or ceiling to take, and whether it should be hung, self-
supporting, or appear to be floating etc. We do this to make sure we fully understand your
expectations, so we can begin to outline a form that works perfectly for you and the
application. This briefing process results in a sketch which then, as well as be costed, can
be discussed with the client and all other parties involved.
Typically a low - wick strong polyester weave base cloth is coated with PVC coatings to
provide weather resistance and finishing PVDF lacquers as top coats to add extra
performance.
As per the interior and exhibition fabric recommendation, any type of fabric can be used to
create a tensile fabric form for exterior use, but considerations to fire rating, water repelling
qualities, wind loading, life span, UV breakdown are all factors that can effect the decision
of what fabric type.
The material is strong and flexible and is used in a wide range of architectural applications
including free form and fixed edge structures where full weather protection is required.
It is used in structures ranging from market style umbrellas and awnings, carparks,
walkways and shelters to pavilions and grandstands and other fixed roof structures.
This material has a typical life expectancy of 20 years.
F
A
B
R
I
C
S
D
E
S
I
G
N

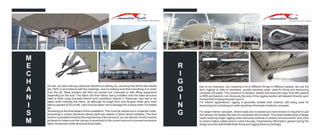

On site, our team will pay particular attention to setting out, checking that all the site details
are 100% in accordance with the drawings, and so making sure that everything is in order
from the off. Steel erection will then be carried out, manually or with lifting equipment
depending on the size. The fabric will then follow, being installed onto the steel structure
itself or fixed using brackets where wind conditions require it. Particular care has to be
taken when handing the fabric, as although its tough form and lacquer finish give most
fabrics upward of 25 yrs life, care must be taken not to damage the surface when it is folded
etc..
Tensioning is the final aspect of the installation. This must be carried out in a specific order,
tensioning in certain directions where particular details or fabric stretch dictates. The final
tension is predetermined by the engineering of the structure, as 'pre-tension' levels must be
achieved to make sure the canopy is tensioned to the correct amount to prevent excessive
fabric movement under wind and snow loads.
Key to our business, but meaning a lot of different things to different people, we use the
term 'rigging' to refer to hardware, usually stainless steel, used for fixing and tensioning
canopies into place. The variations in designs, details and sizes are huge, from M5 upward
to M36 and beyond, but obviously the size of the rigging section will depend directly upon
the load that is being imposed upon it.
For interior applications, rigging is generally smaller than exterior, still being used for
tensioning but not being put under anywhere the loads of exterior canopies.
For larger interior canopies, where loads are increased (as more tension is required to pull
the canopy into shape) the size of connectors will increase. This direct relationship of larger
loads requiring larger rigging sizes obviously extends to exterior environments, and more
so where higher safety factors come into play. Engineering information gained during the
design process will dictate these fixing and rigging sizes accordingly.
R
I
G
G
I
N
G
M
E
C
H
A
N
I
S
M

To keep your Tensile canopy in tip top shape, cleaning and maintenance is vital. Therefore,
if you would like your tensile structure to remain in the same quality as at installation,
thereby extending its lifetime, Innovative Tensile recommends regular checks of your
structure, examining for any cleaning or maintenance issues in accordance with the
operations and maintenance manual that we will issue you with at installation completion.
Maintenance and cleaning frequency depends on a number of different factors, such as the
canopy form, its location relative to dirt/debris sources (like trees for exterior canopies and
air conditioning ducts for interior canopies) and the amount of other airborne dirt. As a
general guideline we recommend that the canopy should be cleaned and maintenance
checks conducted annually. Again, this frequency will be suggested in the Operations and
Maintenance manual (O & M manual).
M
A
I
N
T
E
N
A
N
C
E
C
L
I
E
N
T
S
