1. How to write
an annotation processor
in Android
Ivan Kušt

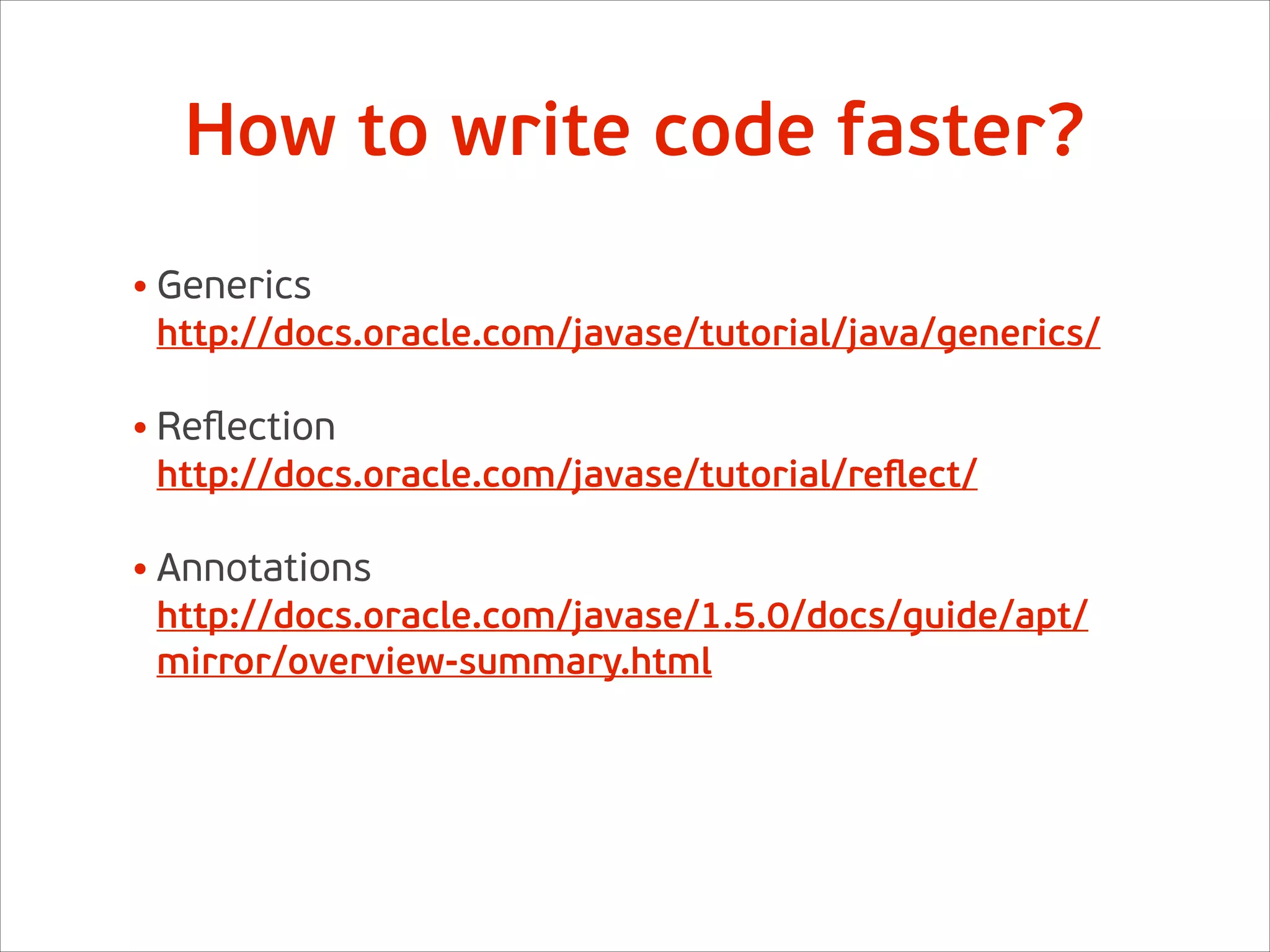

2. • Generics
http://docs.oracle.com/javase/tutorial/java/generics/
• Reflection
http://docs.oracle.com/javase/tutorial/reflect/
• Annotations
http://docs.oracle.com/javase/1.5.0/docs/guide/apt/
mirror/overview-summary.html
How to write code faster?

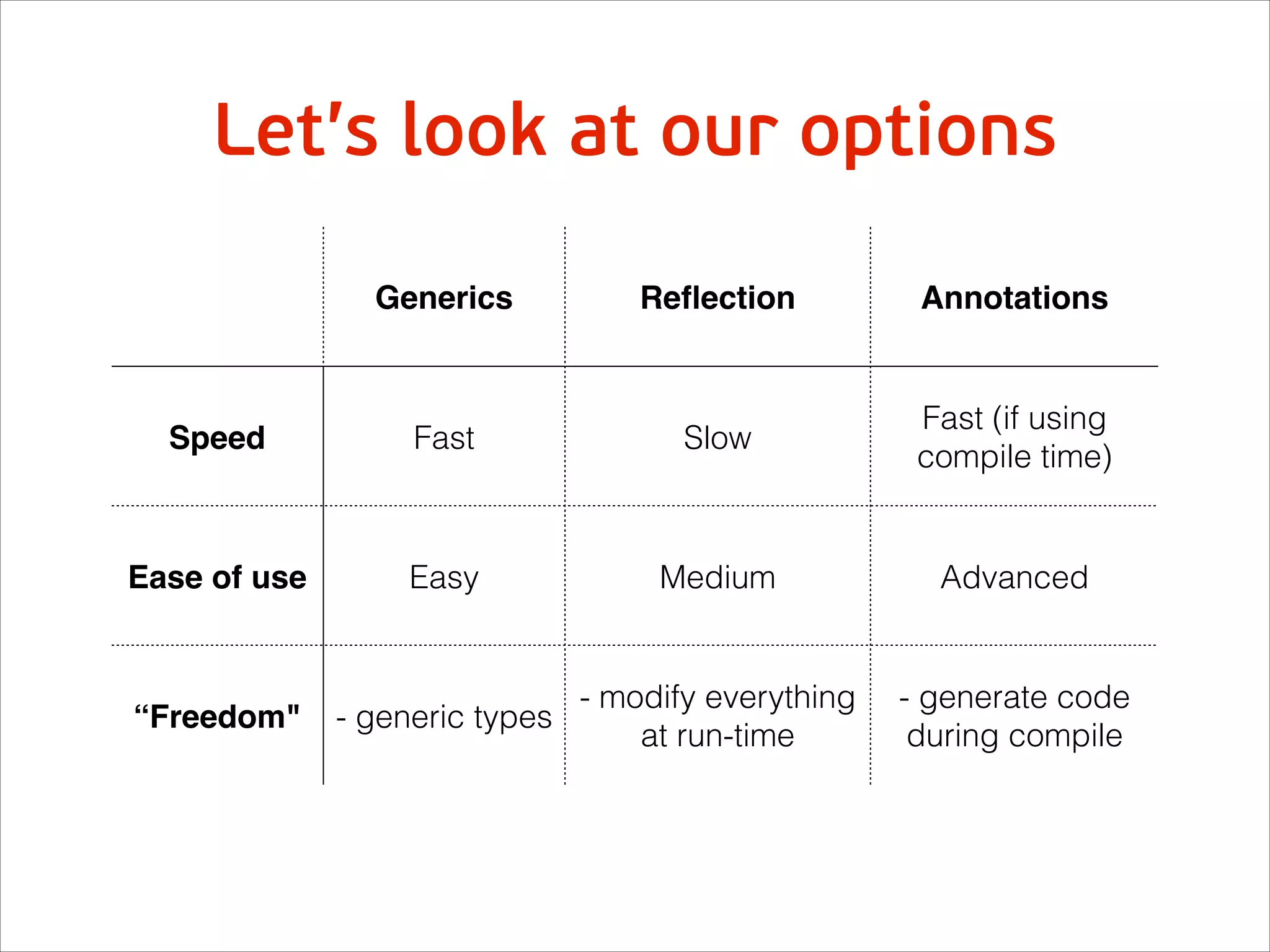

3. Let’s look at our options
Generics Reflection Annotations
Speed Fast Slow
Fast (if using
compile time)
Ease of use Easy Medium Advanced
“Freedom" - generic types
- modify everything
at run-time
- generate code
during compile

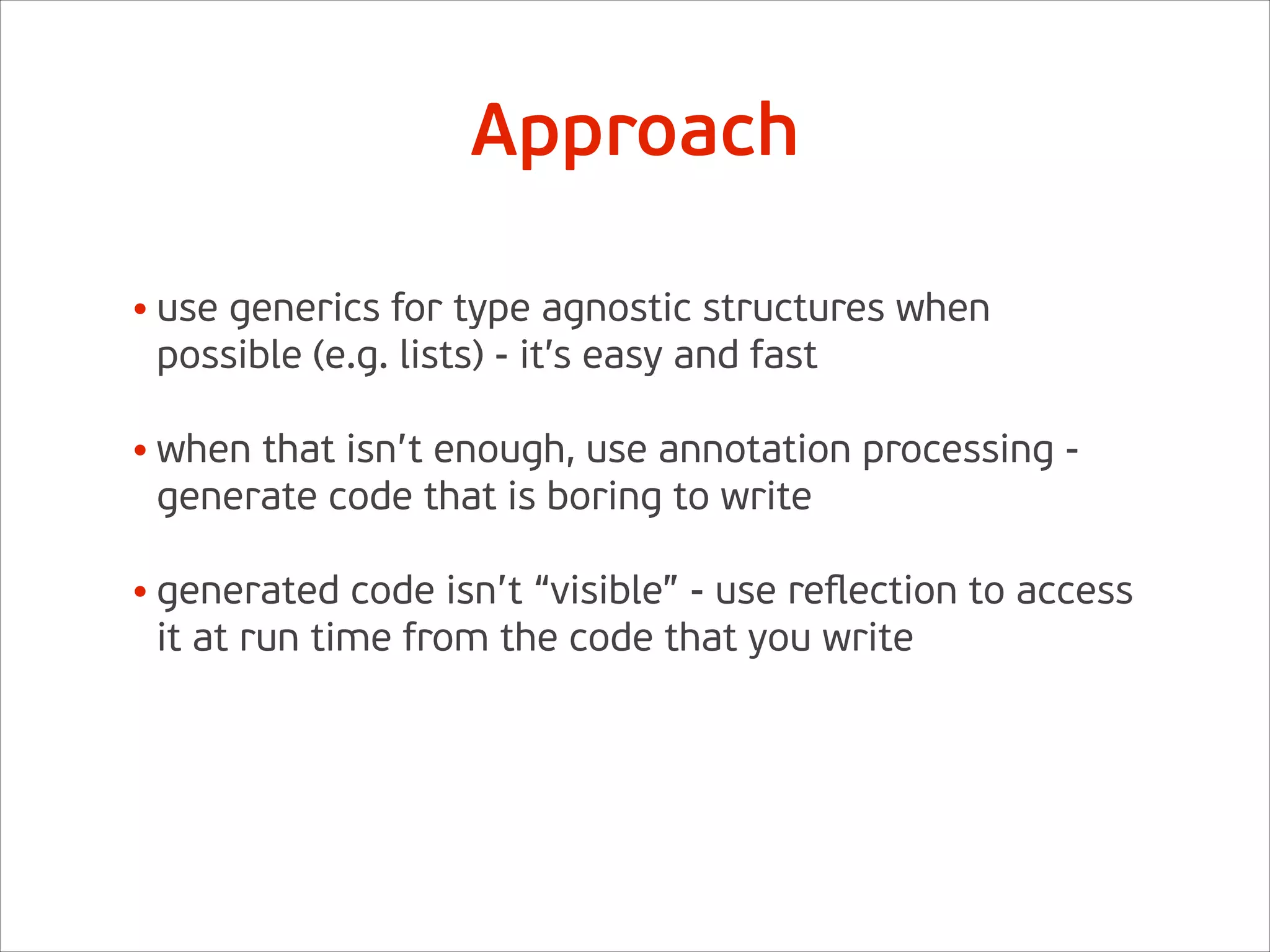

4. • use generics for type agnostic structures when
possible (e.g. lists) - it’s easy and fast
• when that isn’t enough, use annotation processing -
generate code that is boring to write
• generated code isn’t “visible” - use reflection to access
it at run time from the code that you write
Approach

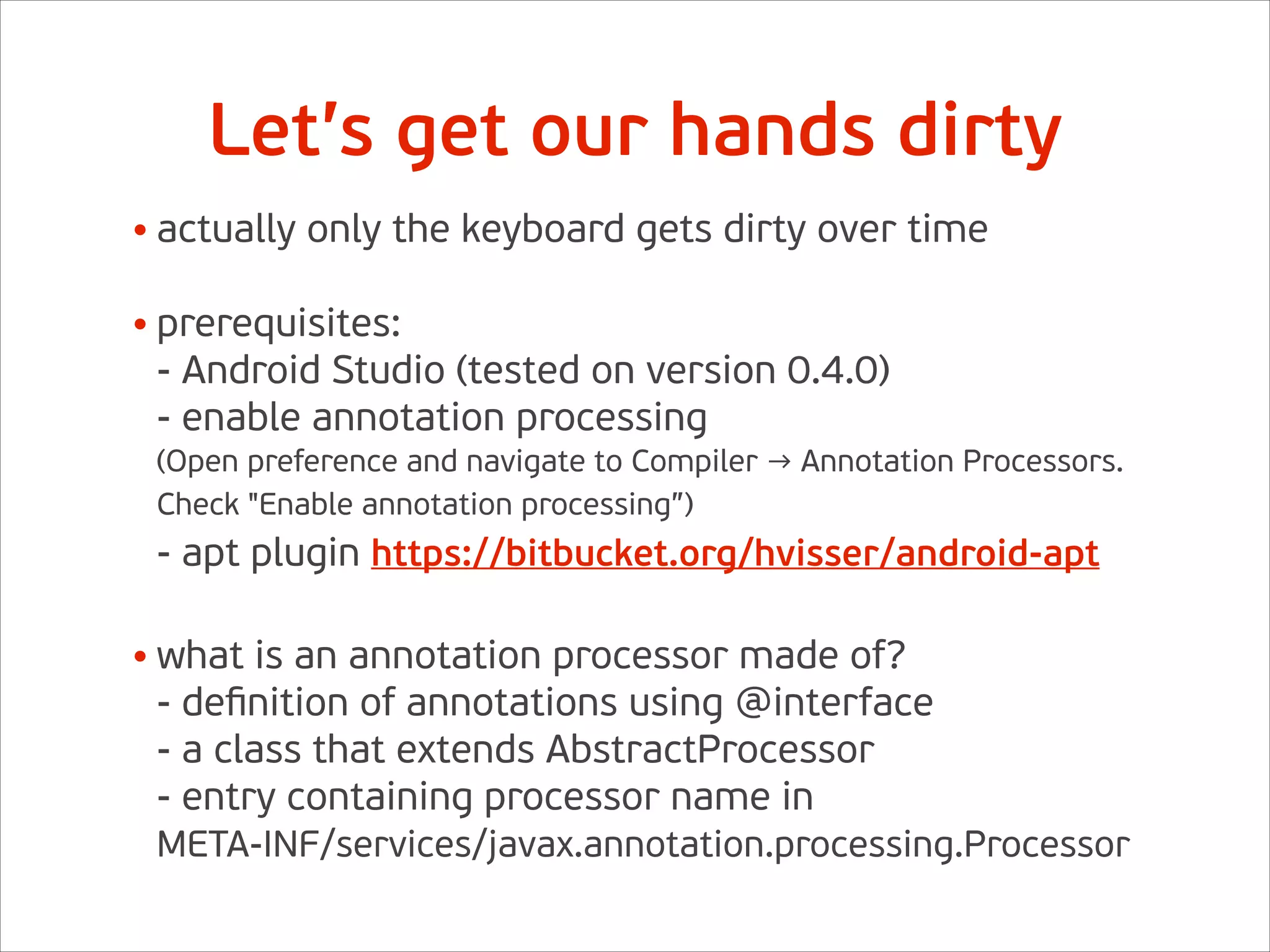

5. Let’s get our hands dirty
• actually only the keyboard gets dirty over time
• prerequisites:
- Android Studio (tested on version 0.4.0)
- enable annotation processing
(Open preference and navigate to Compiler → Annotation Processors.
Check "Enable annotation processing”)
- apt plugin https://bitbucket.org/hvisser/android-apt
• what is an annotation processor made of?
- definition of annotations using @interface
- a class that extends AbstractProcessor
- entry containing processor name in
META-INF/services/javax.annotation.processing.Processor

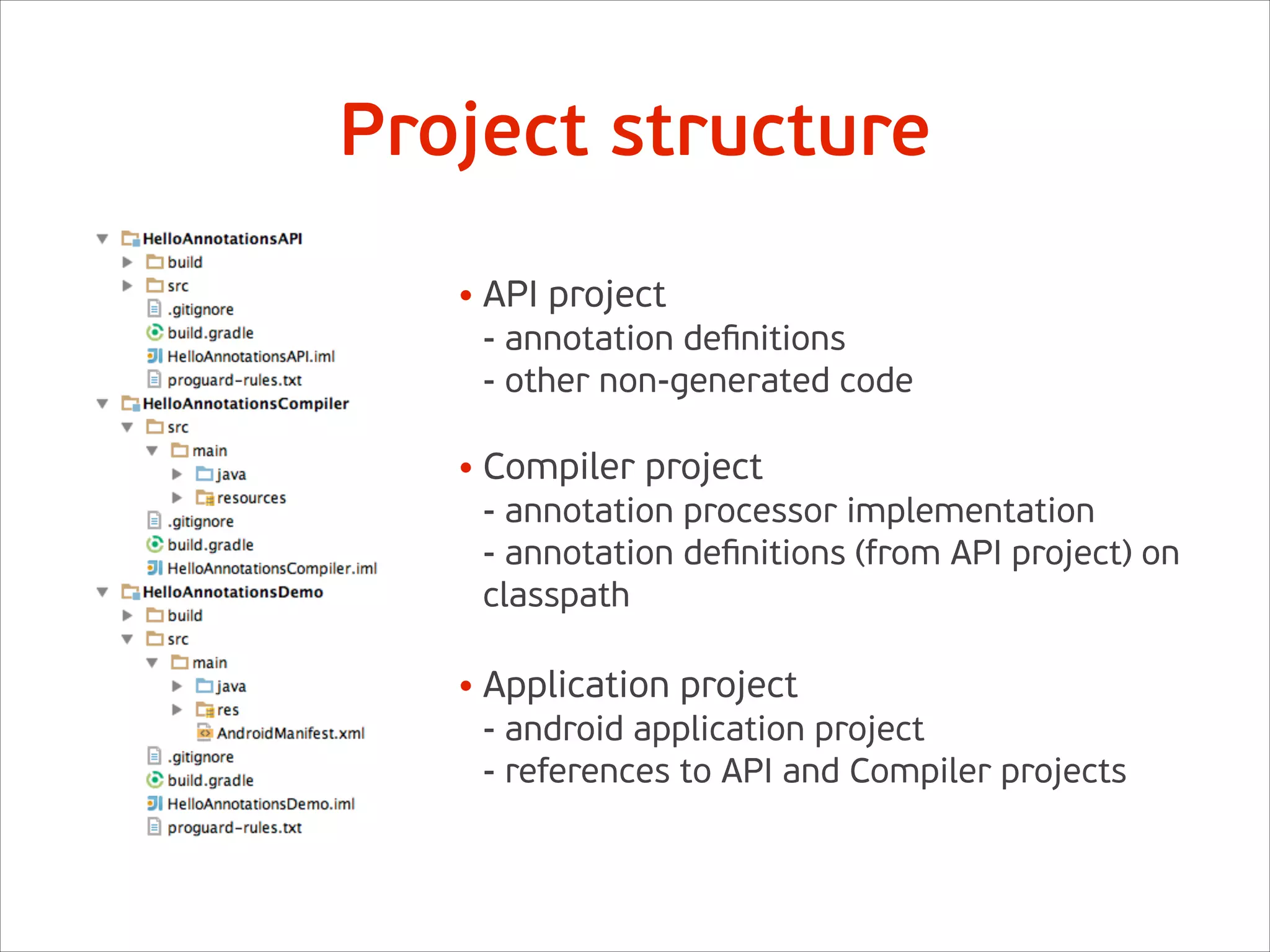

6. Project structure
• API project
- annotation definitions
- other non-generated code
• Compiler project
- annotation processor implementation
- annotation definitions (from API project) on
classpath
• Application project
- android application project
- references to API and Compiler projects

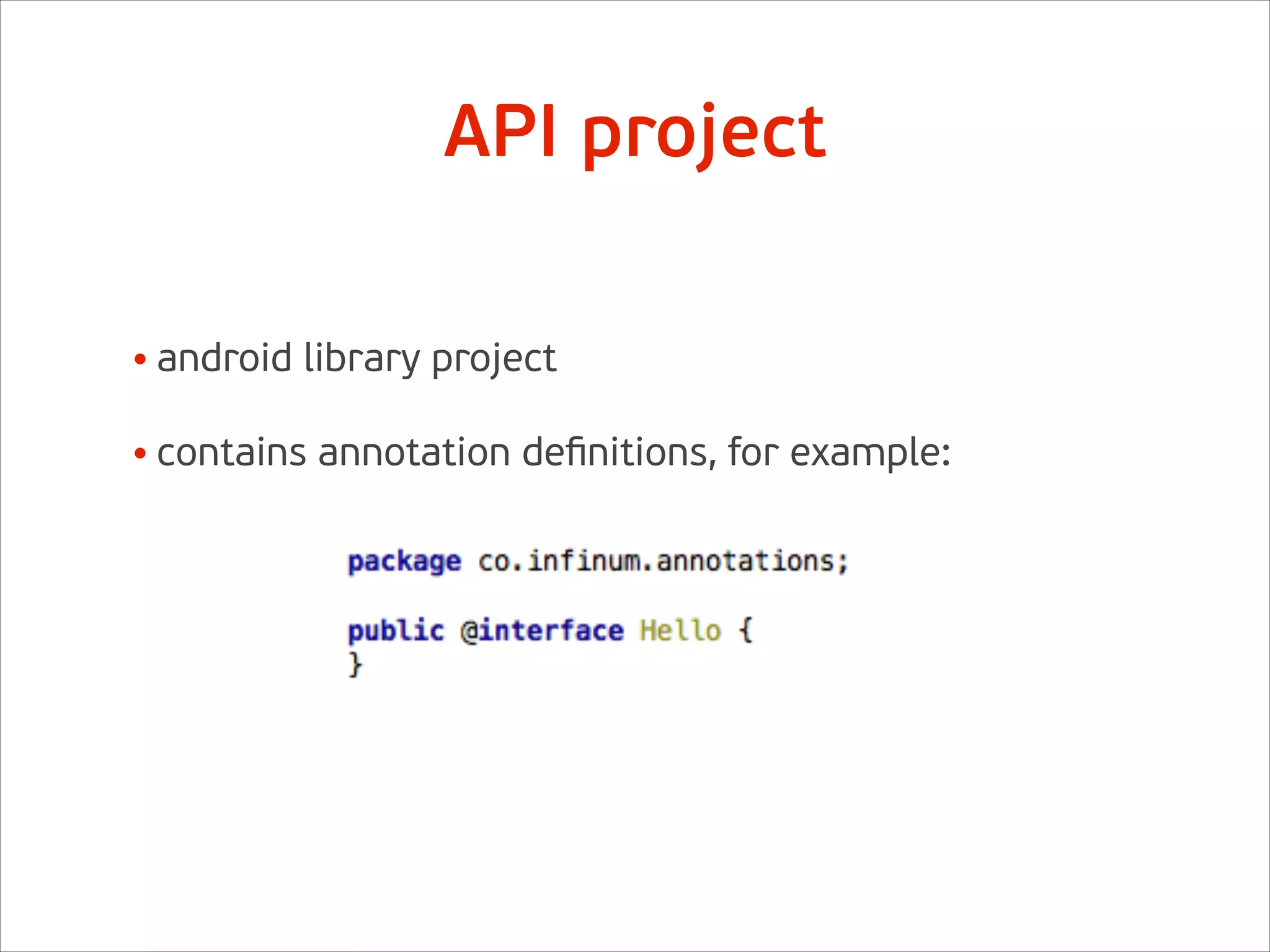

7. API project
• android library project
• contains annotation definitions, for example:

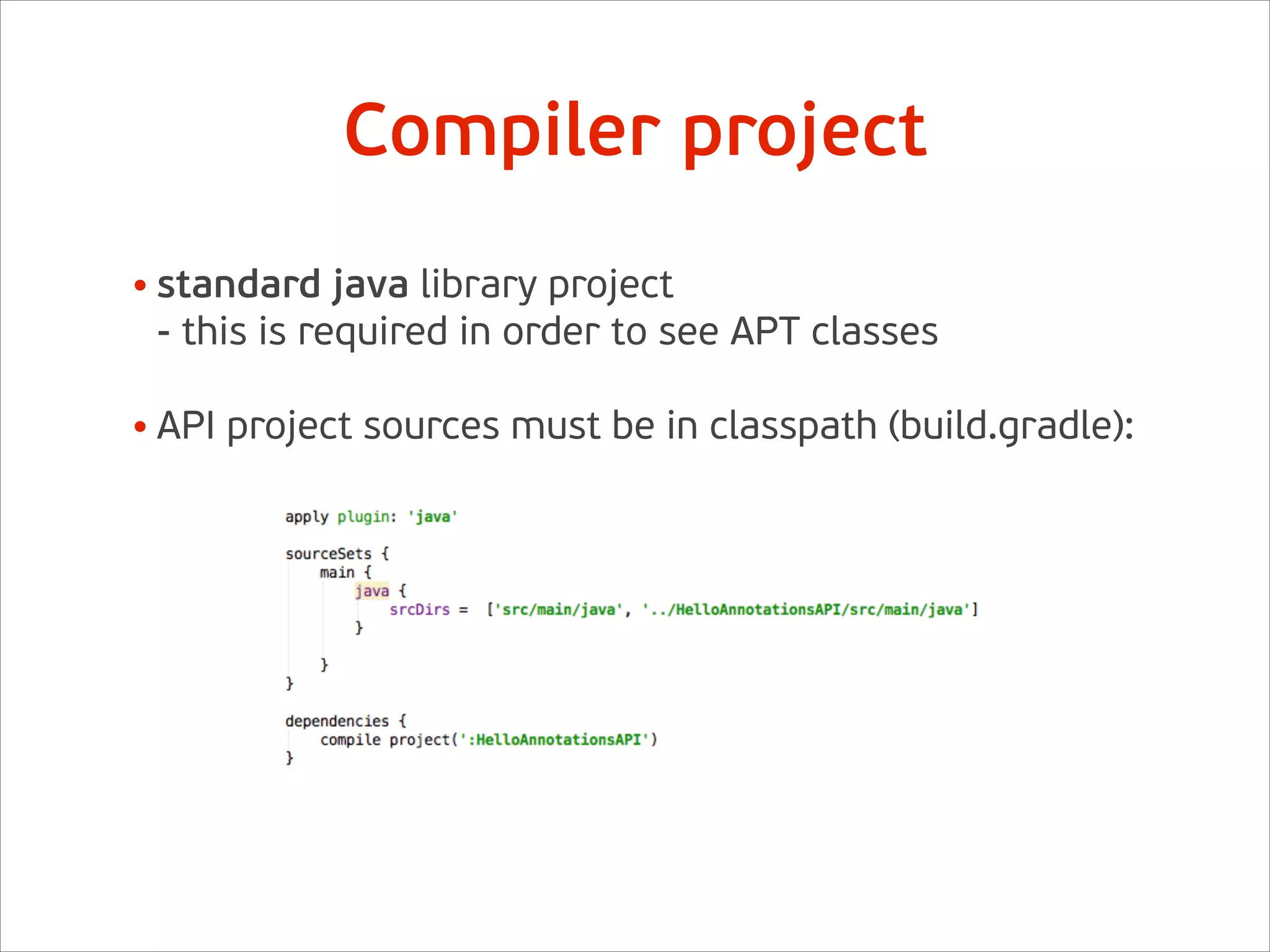

8. Compiler project
• standard java library project
- this is required in order to see APT classes
• API project sources must be in classpath (build.gradle):

9. Compiler project
• AbstractProcessor implementation
- override process(…) method
- return true if processing was successfull
- add following annotations to processor class:
@SupportedAnnotationTypes(“your.package.AnnotationName”)
@SupportedSourceVersion(SourceVersion.RELEASE_7)
• create file:
src/main/resources/META-INF/services/javax.annotation.processing.Processor
• add fully qualified class name of your processor class to the
file (e.g. co.infinum.annotations.processor.TestProcessor)

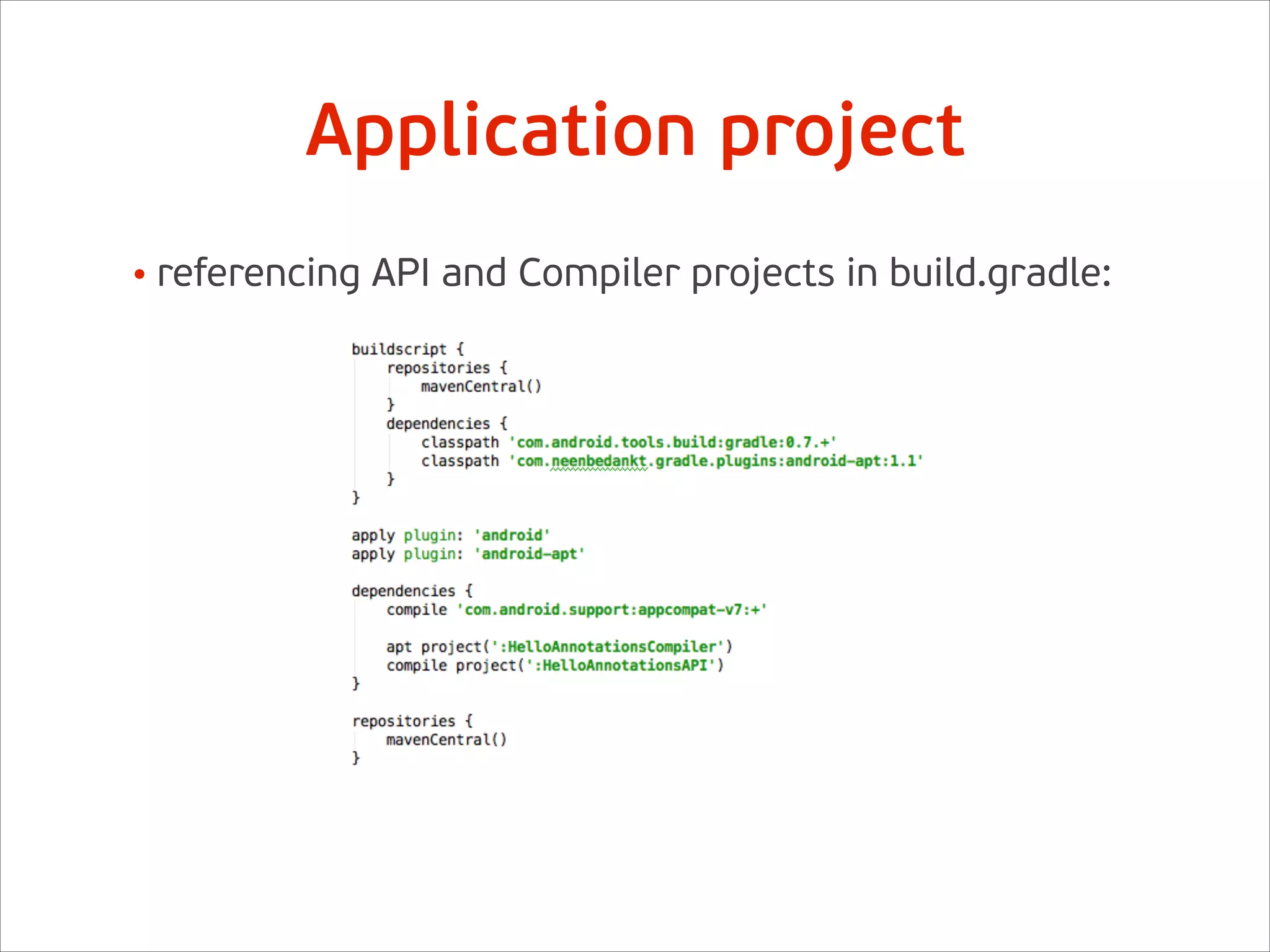

10. Application project
• referencing API and Compiler projects in build.gradle:

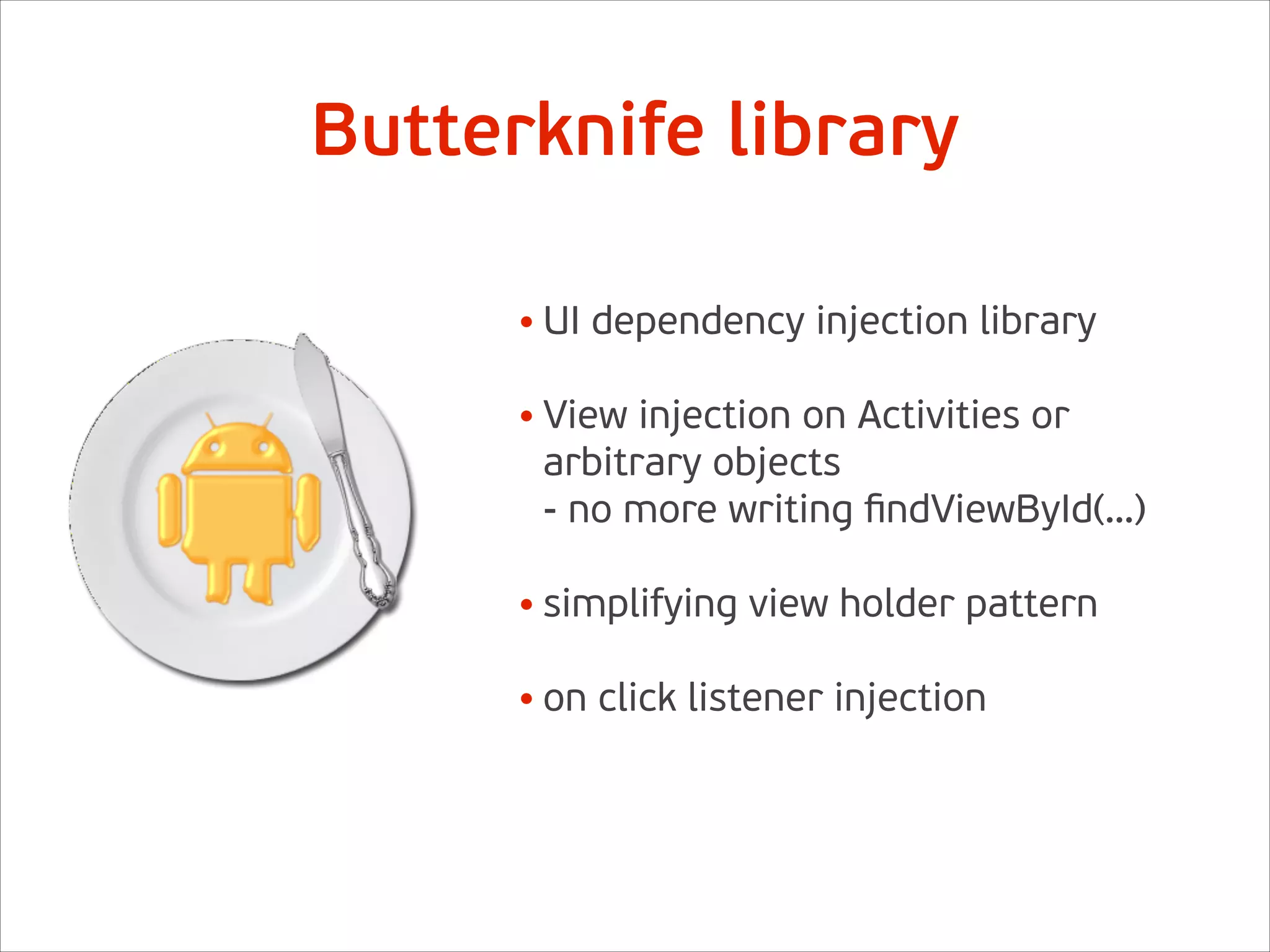

11. Butterknife library
• UI dependency injection library
• View injection on Activities or
arbitrary objects
- no more writing findViewById(…)
• simplifying view holder pattern
• on click listener injection

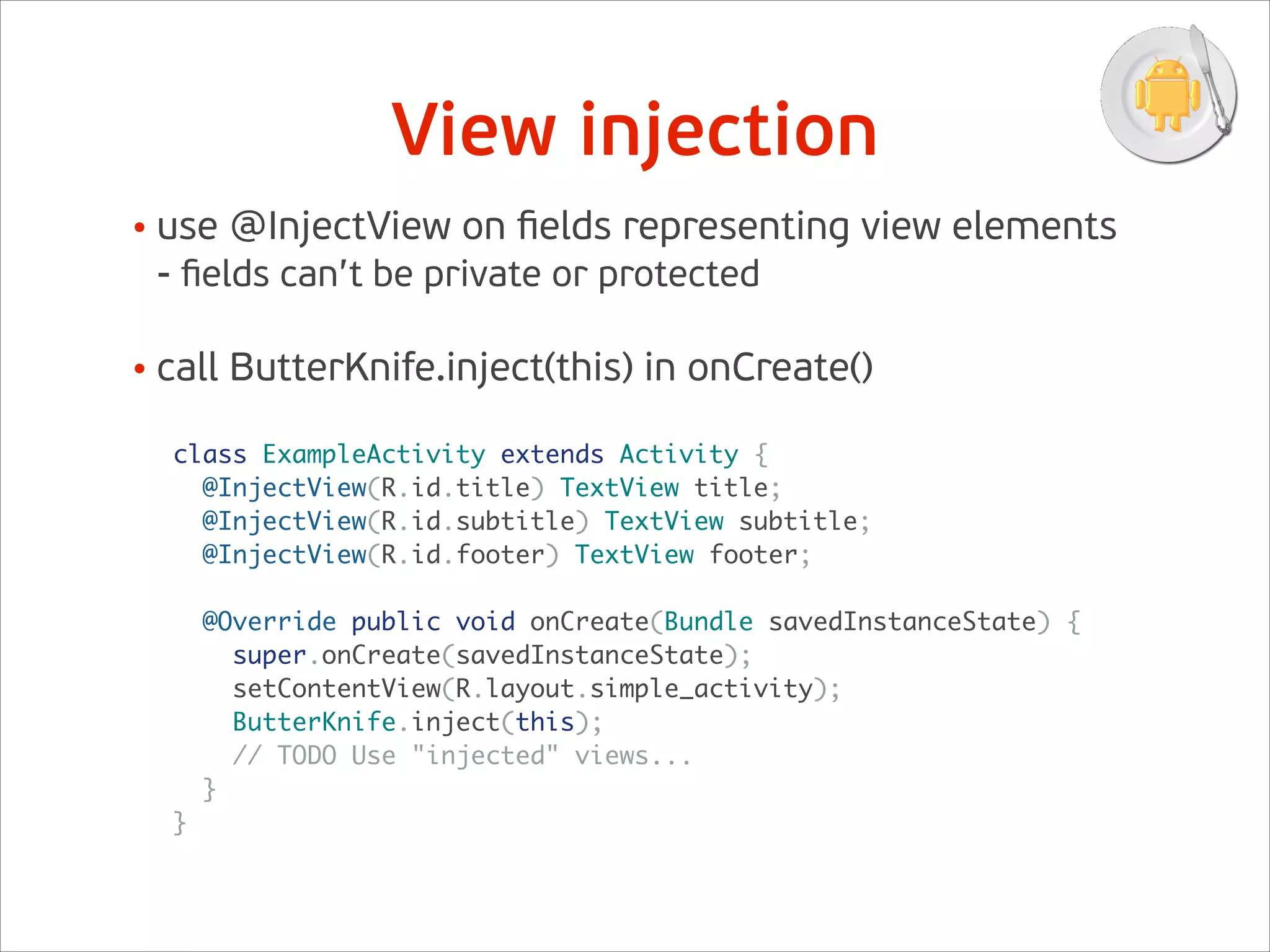

12. View injection
class ExampleActivity extends Activity {
@InjectView(R.id.title) TextView title;
@InjectView(R.id.subtitle) TextView subtitle;
@InjectView(R.id.footer) TextView footer;
!
@Override public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.simple_activity);
ButterKnife.inject(this);
// TODO Use "injected" views...
}
}
• use @InjectView on fields representing view elements
- fields can’t be private or protected
• call ButterKnife.inject(this) in onCreate()

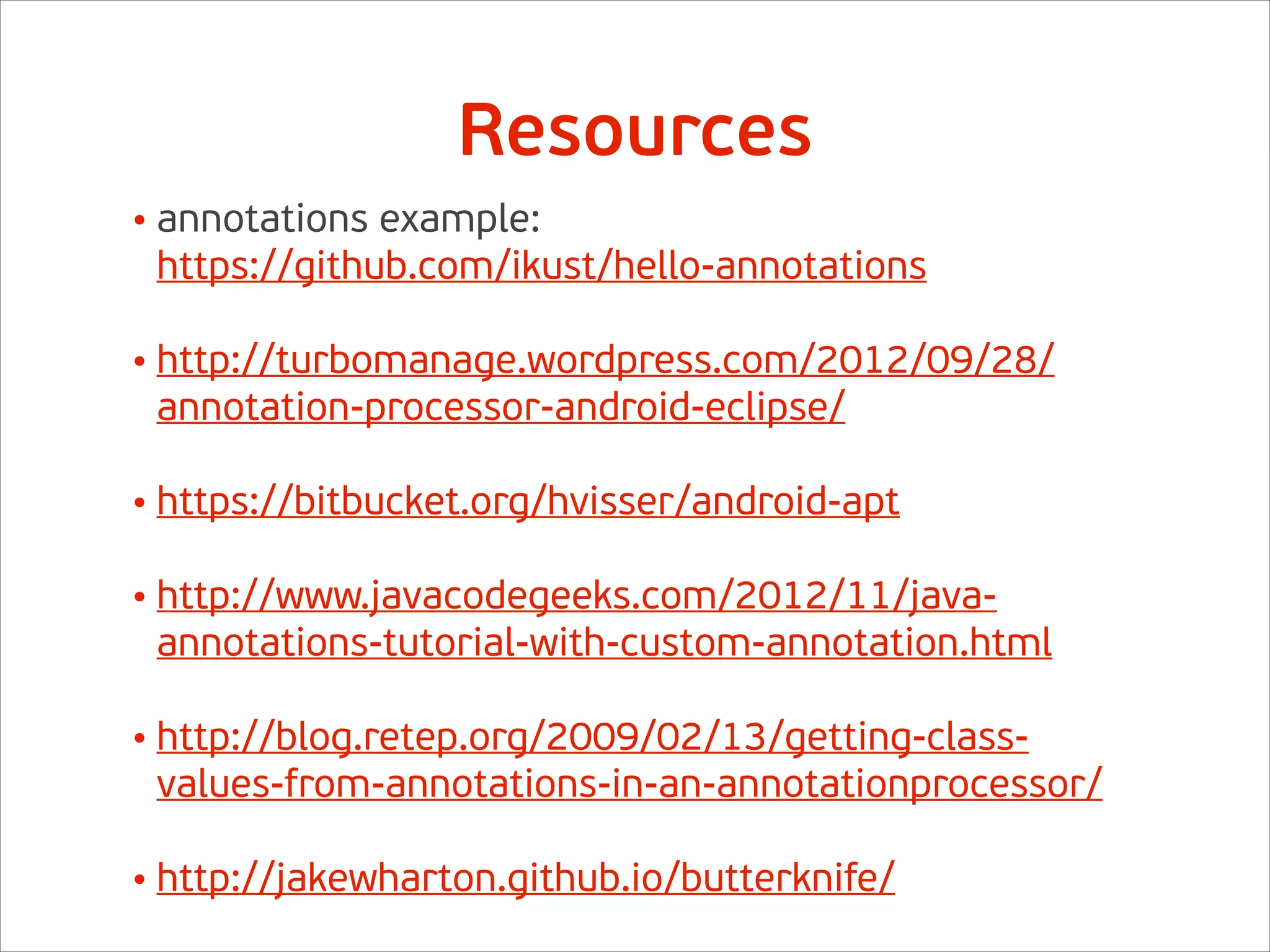

13. Resources
• annotations example:
https://github.com/ikust/hello-annotations
• http://turbomanage.wordpress.com/2012/09/28/
annotation-processor-android-eclipse/
• https://bitbucket.org/hvisser/android-apt
• http://www.javacodegeeks.com/2012/11/java-
annotations-tutorial-with-custom-annotation.html
• http://blog.retep.org/2009/02/13/getting-class-
values-from-annotations-in-an-annotationprocessor/
• http://jakewharton.github.io/butterknife/
