JavaOne 2017 CON3282 - Code Generation with Annotation Processors: State of the Art in Java 9

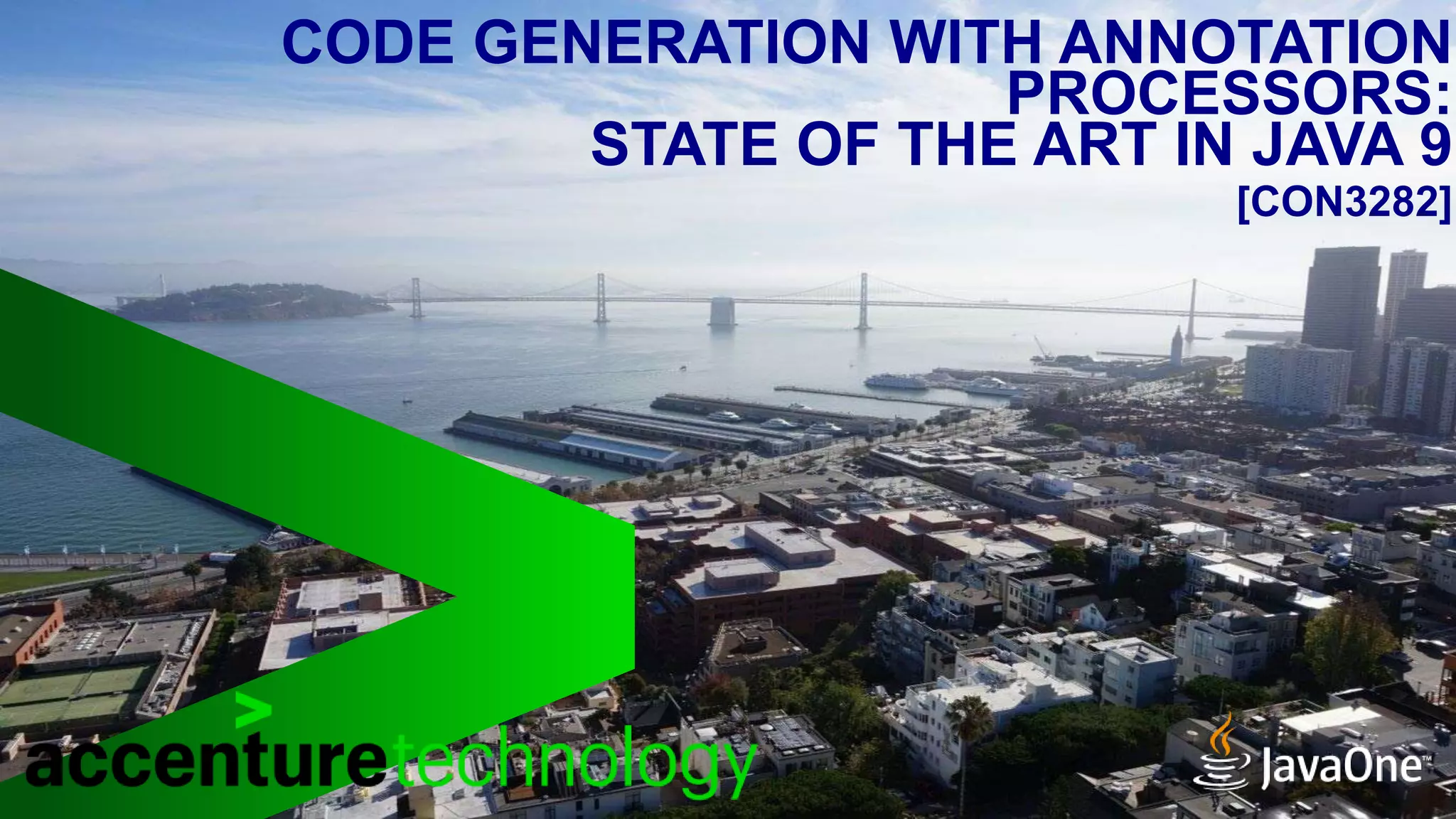

CODE GENERATION WITH ANNOTATION
PROCESSORS:
STATE OF THE ART IN JAVA 9
[CON3282]

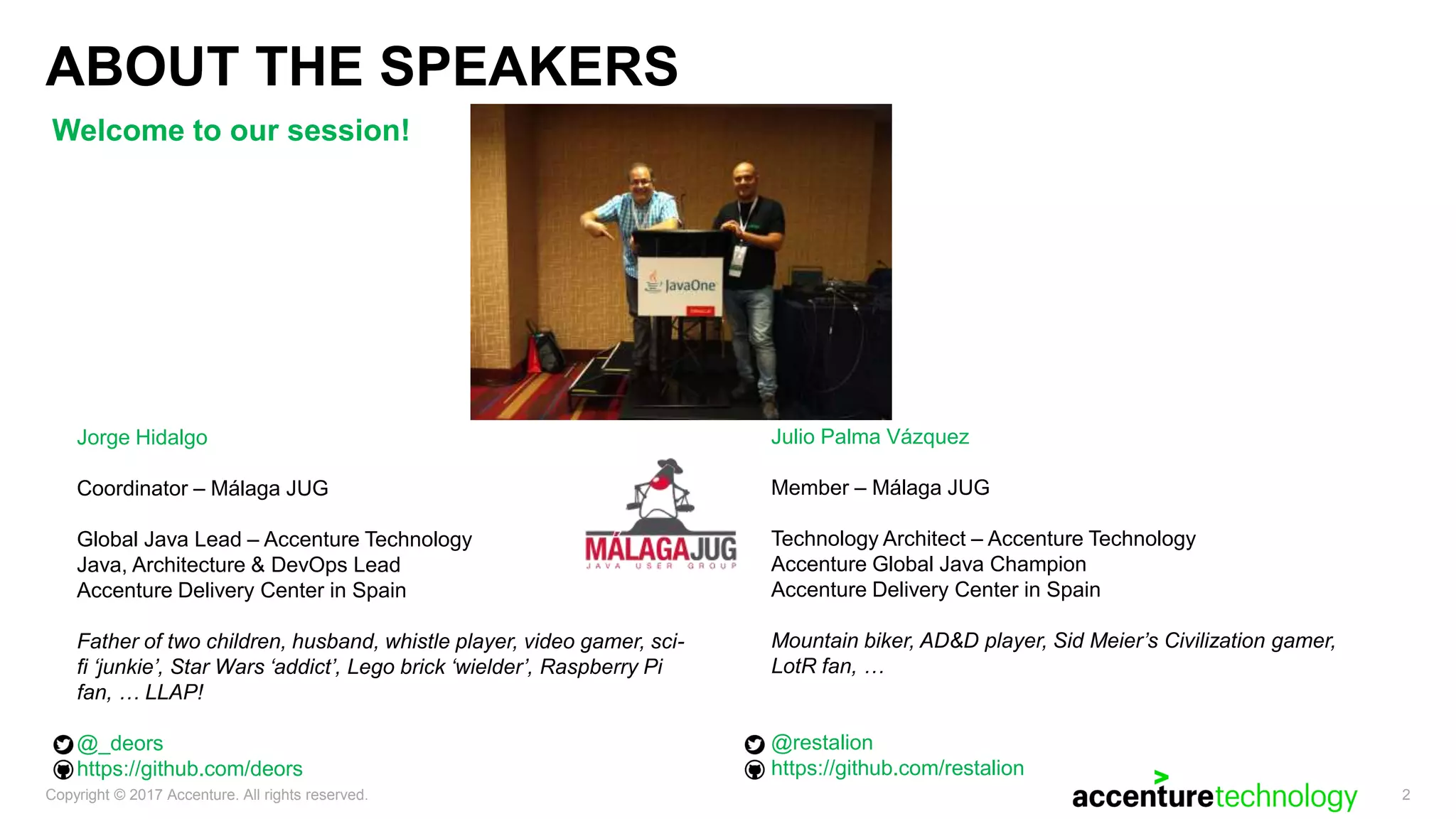

ABOUT THE SPEAKERS
Copyright © 2017 Accenture. All rights reserved. 2
Welcome to our session!
Julio Palma Vázquez
Member – Málaga JUG
Technology Architect – Accenture Technology
Accenture Global Java Champion
Accenture Delivery Center in Spain
Mountain biker, AD&D player, Sid Meier’s Civilization gamer,
LotR fan, …
@restalion
https://github.com/restalion
Jorge Hidalgo
Coordinator – Málaga JUG
Global Java Lead – Accenture Technology
Java, Architecture & DevOps Lead
Accenture Delivery Center in Spain
Father of two children, husband, whistle player, video gamer, sci-
fi ‘junkie’, Star Wars ‘addict’, Lego brick ‘wielder’, Raspberry Pi
fan, … LLAP!
@_deors
https://github.com/deors

• Overview of Annotations and Annotation Processors in Java
• What’s new in Java 9 APT API
• Learn how to create Annotation Processors
• Learn how to use Annotation Processors to generate source code
• Annotation Processors and Modules in Java 9
• With lots of examples and source code
CODE GENERATION IN THE JAVA COMPILER
Objetives for the session

Please raise your hands if you are familiar with Annotations, know how to use them or are
even capable of writing Annotation Types
POLL #1

ANNOTATIONS IN
JAVA LANGUAGE

• Annotations were first introduced in Java 5
• Add metadata capabilities to the Java language:
• Build/deployment information
• Configuration properties
• Compiler behavior
• Quality checks
• Dependency injection
• Persistence mapping
• ...
ANNOTATIONS IN THE JAVA LANGUAGE
History

• Annotations always appear before the annotated piece of code
• Annotations can ‘decorate’...
• Packages
• Types (classes, interfaces, enums, annotation types)
• Variables (class, instance and local variables)
• Constructors, methods and their parameters
• Generic type parameter (since Java 8)
• Any type use (since Java 8)
Overview

• Can be grouped, nested, repeated... very powerful!
Map<@NonNull String, @NonEmpty List<@Readonly Document>> docStore;
• Annotations may be used just as a ‘marker’
@NonNull String email;
• They may contain name-value pairs, and arrays
@Author(name = "Albert",
created = "17/09/2010",
revision = 3,
reviewers = {"George", "Fred"})
public class SomeClass {...}
• Can be defined with default values, and then omitted when used
• When it has only one attribute named value, it can be omitted, too
@DatabaseTable(“MY_TABLE”) public class MyTable {...}
Overview

HOW TO CREATE
ANNOTATIONS AND
ANNOTATION
PROCESSORS

Please raise your hands if you are familiar with Annotation Processors, their capabilities or
know how to write new ones
POLL #2

• A special type of interface
public @interface Author {
String name();
String created();
int revision() default 1;
String[] reviewers() default {};
}
• Only primitives, enum types, annotation types, String, Class and arrays of them are
allowed as elements
• May be annotated itself, i.e. to define the retention policy or targets
@Retention(RetentionPolicy.SOURCE)
@Target({ElementType.ANNOTATION_TYPE, ElementType.TYPE})
public @interface Author {...}
Can trigger custom actions at compile time managed by
Annotation Processors!
ANNOTATIONS
Create an Annotation Type

• Annotation Processor:
– Implements javax.annotation.processing.Processor
– Or extends javax.annotation.processing.AbstractProcessor
• May use three annotations to configure itself:
– jx.a.p.SupportedAnnotationTypes – Used to flag which Annotation Types are managed by the
– jx.a.p.SupportedSourceVersion – Used to flag the latest Java source level supported by the processor
– jx.a.p.SupportedOptions – Used to register custom parameters that may be passed through the
• TL;DR – Implement the process() method
ANNOTATION PROCESSORS
Annotation Processing API

• Annotation processing happens in ‘rounds’
• In each round, a subset of sources are compiled, and then
processors matching the annotations found on those sources
are called
• Processing ends when no more sources/annotations are
pending
• Processors may claim all annotation types with a wildcard
• process() method has two parameters:
– Set<? extends jx.lang.model.element.TypeElement> – subset of annotations being processed
– jx.a.p.RoundEnvironment – access to information about the current and previous round
Annotation Processing API

jx.a.p.ProcessingEnvironment also provides access to the Filer utility that allows for easy file creation
• Files are placed in the right folder as required by the compiler settings
• Folder hierarchy matching the package name
JavaFileObject jfo = processingEnv.getFiler()
.createSourceFile(newClassQualifiedName);
Writer writer = jfo.openWriter();
...or...
JavaFileObject jfo = processingEnv.getFiler()
.createClassFile(newClassQualifiedName);
OutputStream os = jfo.openOutputStream();
Creating Files

Annotation Processors leverage the standard services mechanism
• Package the processors in a Jar file
• Include file META-INF/services/javax.annotation.processing.Processor
• Contents are the fully qualified names of the bundled processors, one per line
How the compiler knows?

Find more information about APT in JavaOne 2014 session:
https://www.slideshare.net/deors/javaone-2014-con2013-code-generation-in-the-java-compiler-annotation-processors-do-the-hard-work
https://www.youtube.com/watch?v=xswPPwYPAFM
Running Annotation Processors

Multiple ways:
• javac
• Apache Maven builds
• Continuous Integration builds
• IDE
Running Annotation Processors

ADAPT LEGACY APT
PROJECTS TO JAVA
9

• Update <java.version> tag in pom.xml
<java.version>1.9</java.version>
• Update version of maven-compiler-plugin
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.6.2</version>
• Upgrade the supported source version in Processor class
@SupportedAnnotationTypes(“com.foo.AnnotationSample")
@SupportedSourceVersion(SourceVersion.RELEASE_9)
public class AnnotationSampleProcessor
ADAPT LEGACY CODE
Upgrading your code to Java 9

• mvn clean install finish without errors:
ANNOTATIONS API IN JAVA 9

DEMO
Executing upgraded projects

Upgraded legacy code sample can be found in github:
https://github.com/deors/deors.demos.annotations
ADAPT LEGACY CODE

WHAT’S NEW IN
JAVA 9 APT API

Overview
• New @Generated Annotation
• To add information about the annotation processor, date, and comments:
@Generated(value = "com.foo.processors.SampleProcessor",
date = "2017-09-28T09:43:28.170886",
comments = "Sample")
• Processed as a subsequent step by the annotation processor.
• Two new methods in RoundEnvironment interface
• Simplify processing of multiple annotations
default Set<? extends Element> getElementsAnnotatedWithAny(
Set<Class<? extends Annotation>> annotations);
default Set<? extends Element> getElementsAnnotatedWithAny(
TypeElement... annotations);

Overview
• Changes in all methods of Filer interface.
To manage files in a module, module name is prefixed to the type name and separated using a
“/” character, i.e.:
JavaFileObject jfo = processingEnv.getFiler().createSourceFile(
"com.foo/com.foo.Bar");
JavaFileObject jfo = processingEnv.getFiler().getResource(location,
"com.foo/com.foo", "Bar");

NEW FEATURES IN JAVA 9
• It’s a best practice to include this annotation in the generated code:
bw.append("@Generated(value = "" + this.getClass().getName() +
"" , date = "" +
LocalDateTime.now() +
"", comments = "Test generator")");
Generated Annotation
Comments
MUST have the name of
the code generator
Date when the source was generated

• During annotation processing,the Generated annotation will be found but nothing is done,
it’s just informational.
• Generated code:
NEW FEATURES IN JAVA 9
Generated Annotation
Name of the code generator
Generation date Comments

Module

ANNOTATION
PROCESSORS AND
MODULES IN JAVA
9

ANNOTATION PROCESSORS AND MODULES
Creating classes in modules
• In previous examples we have three
different jar files:
• Annotation type
• Annotation processor
• classes that use annotations
• Dependencies are managed using the
regular classpath
30
annotation
annotation.processor
client

Grouping classes in modules
• One module per jar file.
• Put a module-info.java file into each module.
• Each module-info file needs to define exported
packages and required modules.
annotation
client

annotation module:
module com.foo.annotation {
exports com.foo.annotation;
}
annotation.processor module:
module com.foo.annotation.processors {
requires com.foo.annotation;
requires java.compiler;
}
client module:
module com.foo.client {
exports com.foo.client;
requires com.foo.annotation;
requires java.compiler;
}
Why? Because we add
@Generated annotation
annotation
client

DEMO
https://github.com/restalion/deors.demos.annotations/tree/jdk9

• APT API is as powerful as in previous versions.
• All your legacy code still works as expected.
• You can add a couple a of new functionalities:
• @Generator annotation
• Simplified processing of multiple annotations
• You can also manage file generation in other modules
SUMMARY

Q & A
Many thanks for attending!
@_deors
https://github.com/deors
@restalion
https://github.com/restalion
