The document discusses a Python framework for testing Alfresco extensions. It allows testing REST APIs, UI interactions, and complex scenarios. The framework uses Python and Proboscis for testing, Selenium for browser emulation, and provides wrappers for common REST calls and predefined classes for interacting with Alfresco Share forms. Examples are given of REST API tests, setting up browser-specific UI tests, and testing a workflow dashlet and form.

1. Testing Alfresco extensions
(no, it’s not about jUnit)
07/11/2013
Alexey Ermakov / ITD Systems
#SummitNow

2. 2
What’s the target?
•
•
•
•
REST APIs tests
UI tests
complex behavioral scenarios
easy-to-write tests
#SummitNow
#SummitNow

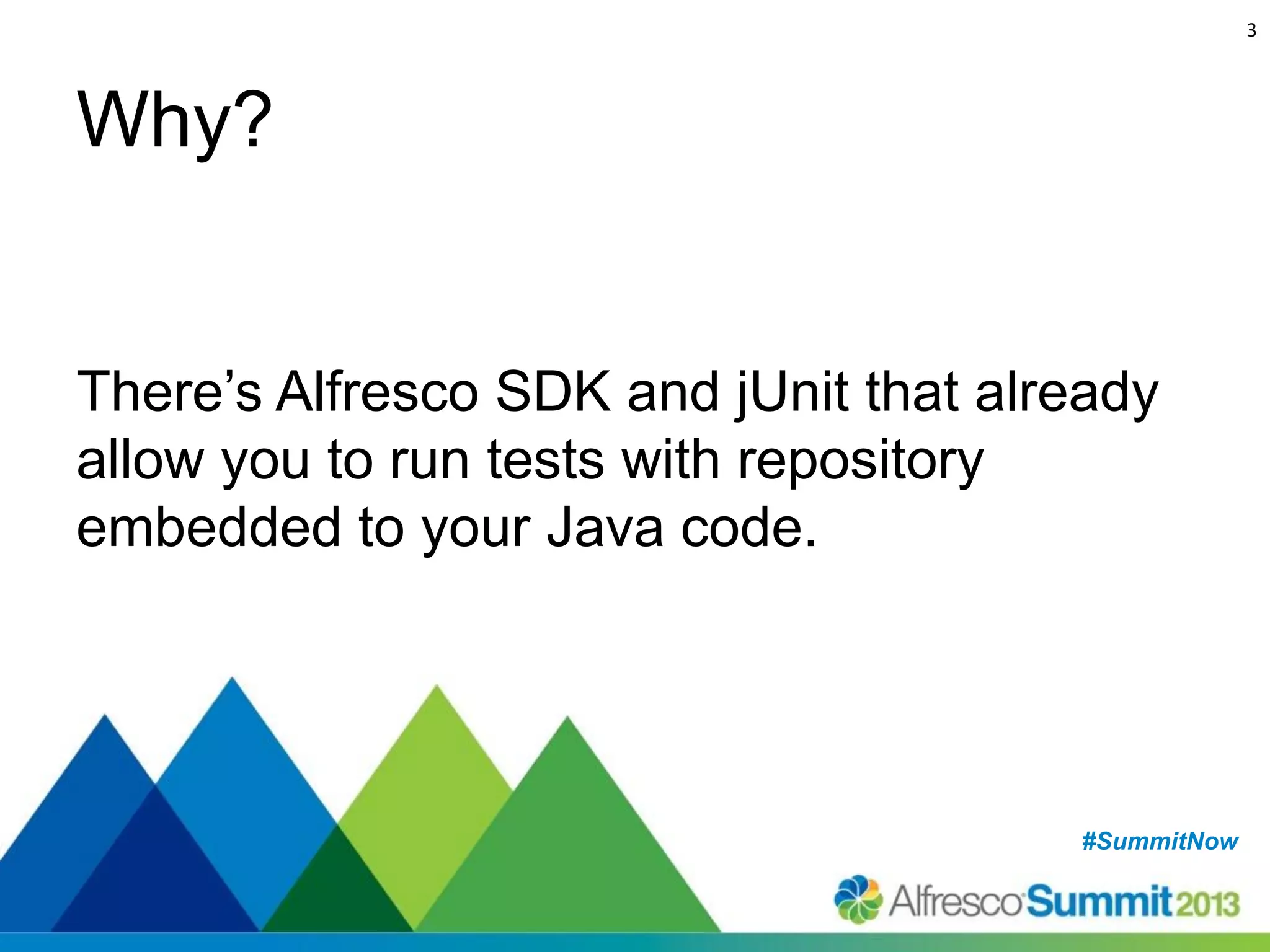

3. 3
Why?
There’s Alfresco SDK and jUnit that already
allow you to run tests with repository
embedded to your Java code.
#SummitNow
#SummitNow

4. 4
Because we can!
#SummitNow
#SummitNow

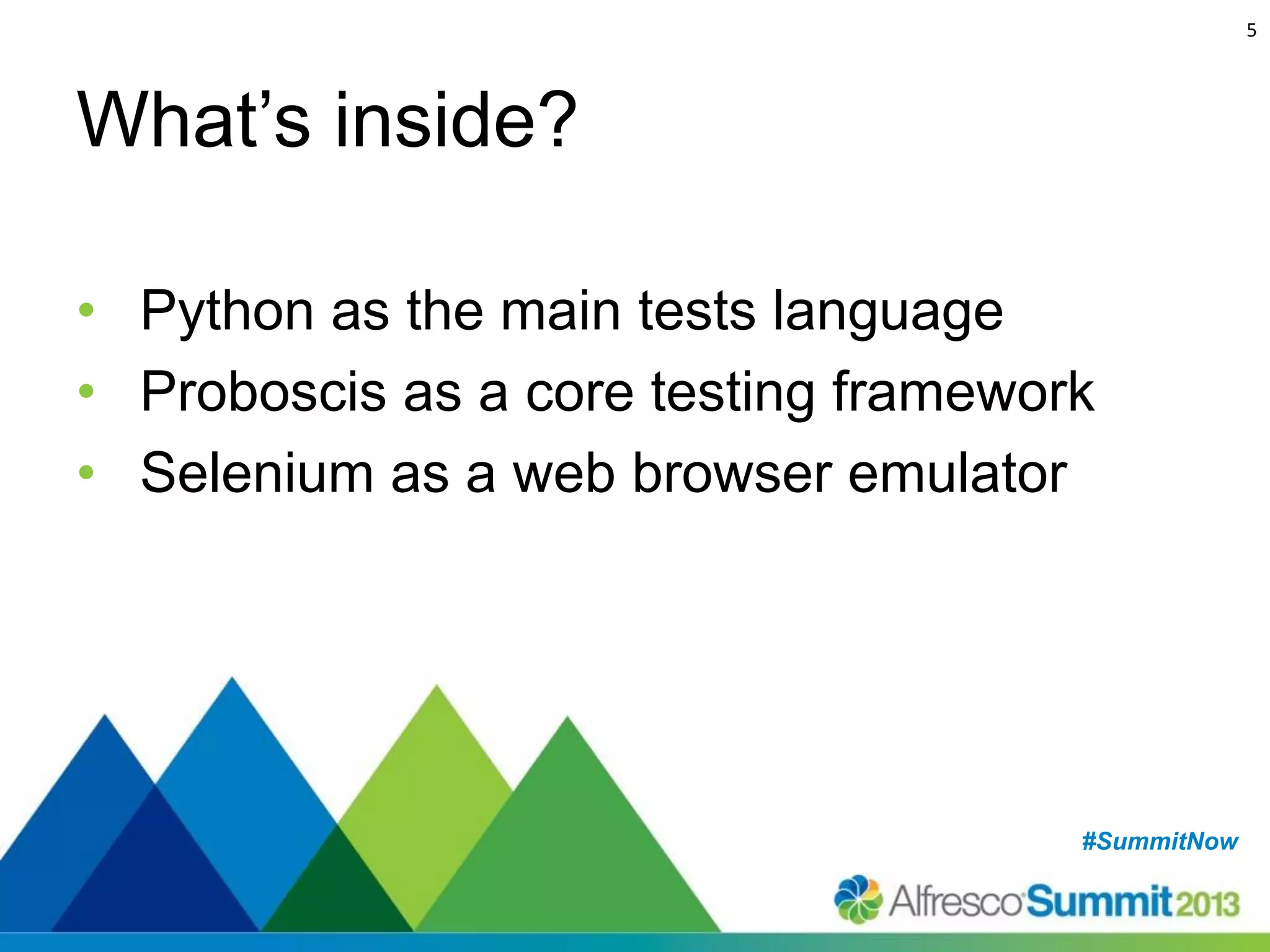

5. 5
What’s inside?
• Python as the main tests language
• Proboscis as a core testing framework
• Selenium as a web browser emulator
#SummitNow
#SummitNow

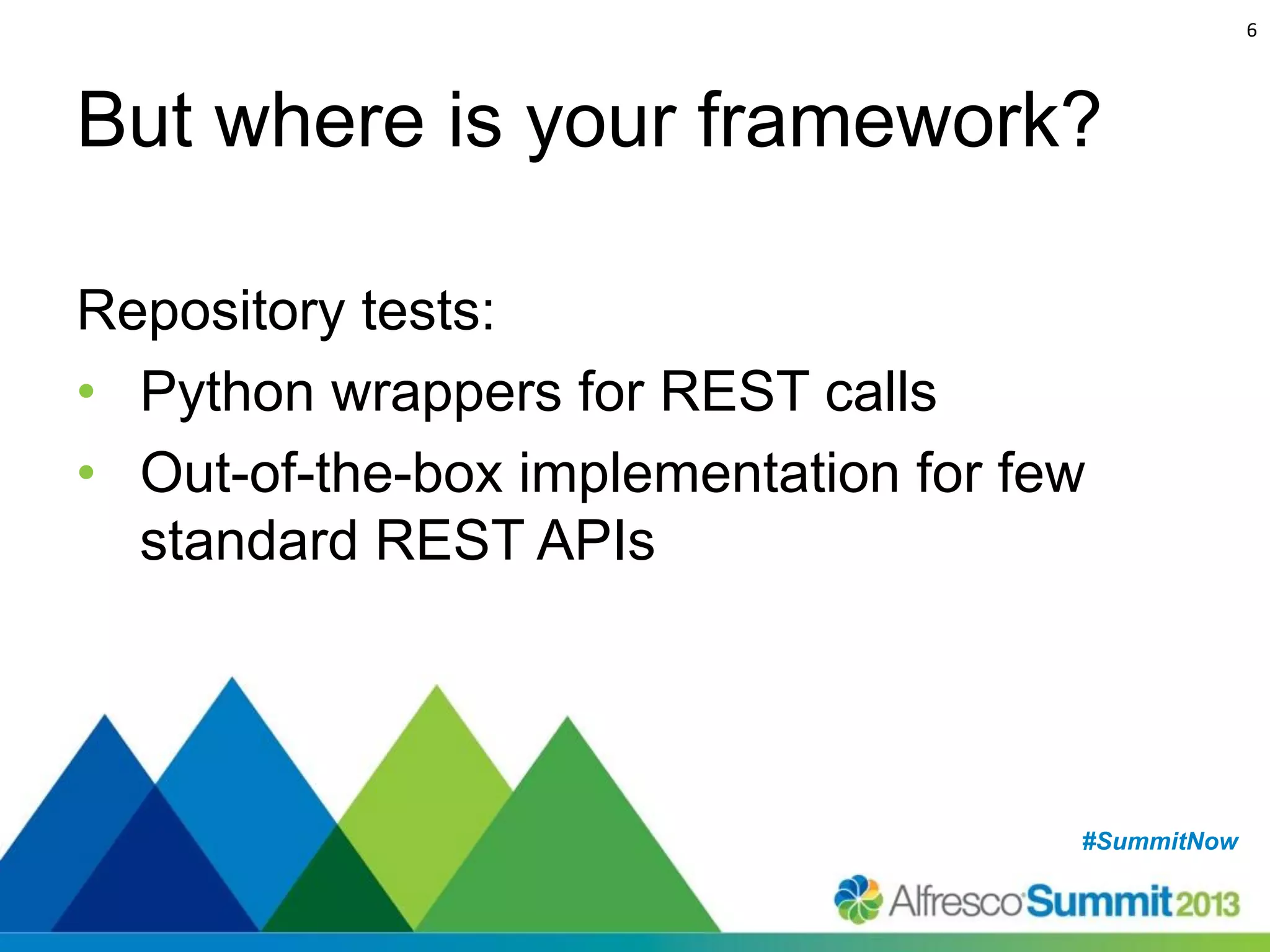

6. 6
But where is your framework?
Repository tests:
• Python wrappers for REST calls
• Out-of-the-box implementation for few
standard REST APIs
#SummitNow
#SummitNow

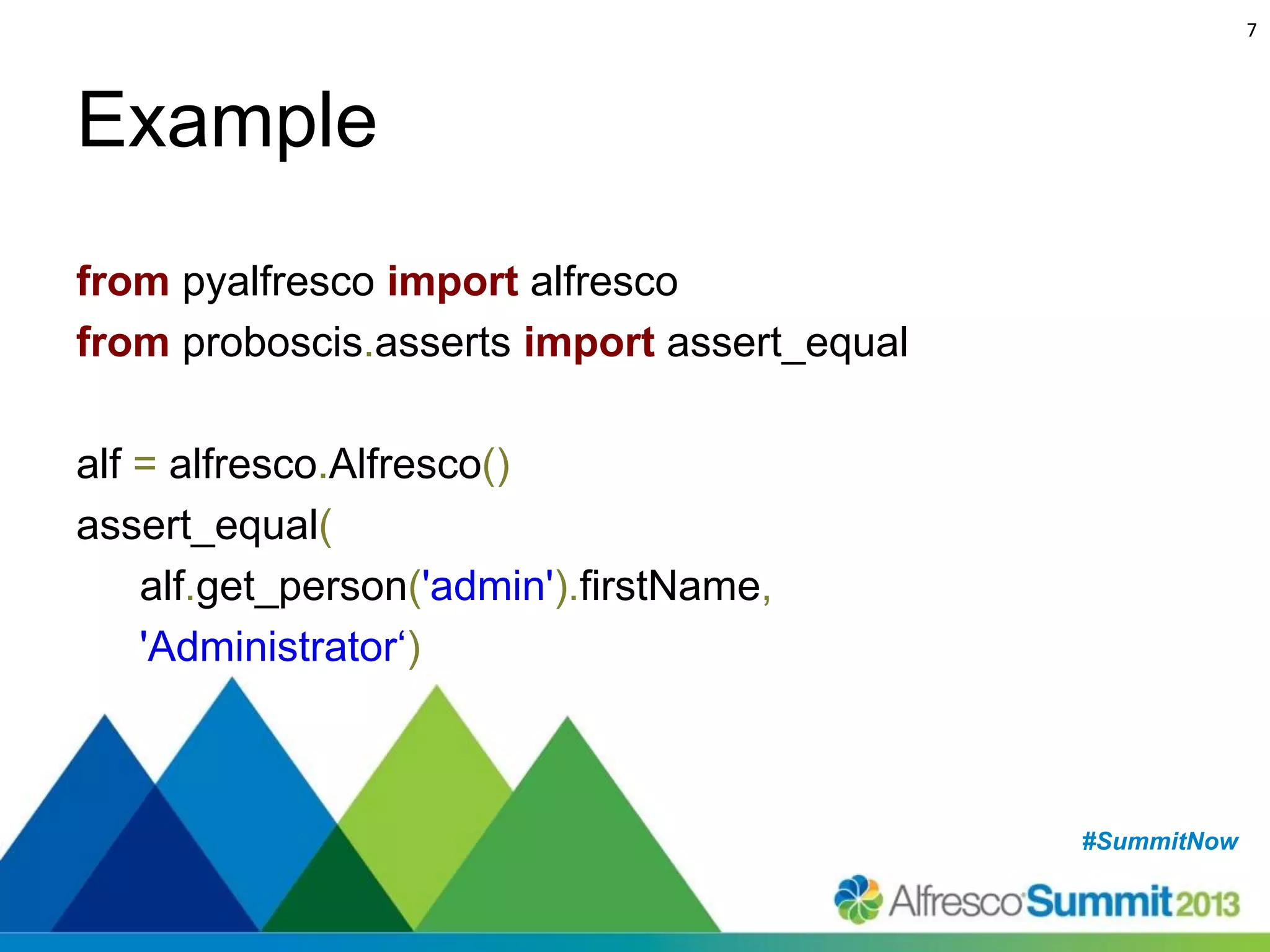

7. 7
Example
from pyalfresco import alfresco
from proboscis.asserts import assert_equal
alf = alfresco.Alfresco()
assert_equal(
alf.get_person('admin').firstName,
'Administrator‘)
#SummitNow
#SummitNow

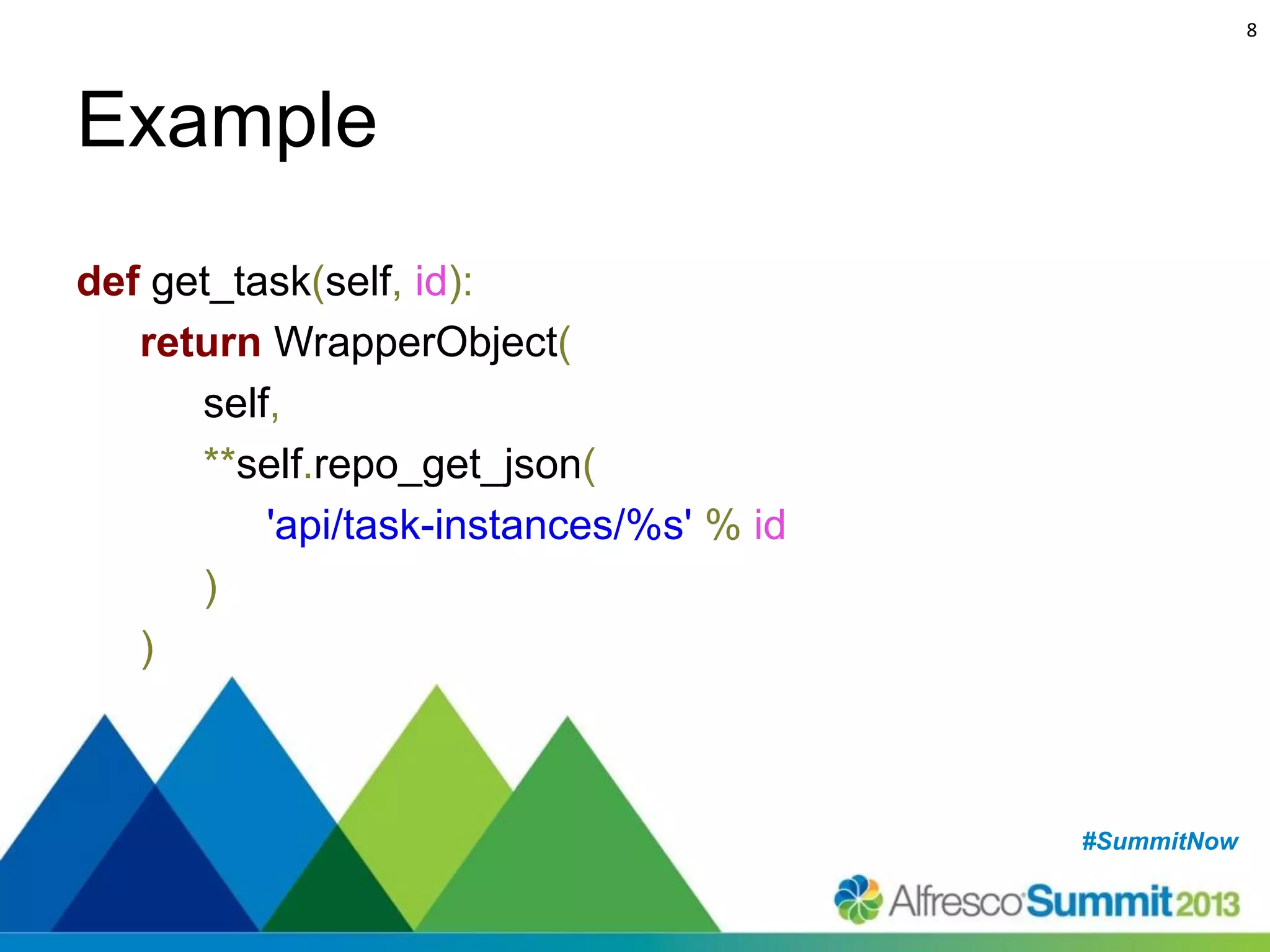

8. 8
Example
def get_task(self, id):
return WrapperObject(
self,
**self.repo_get_json(
'api/task-instances/%s' % id
)
)
#SummitNow
#SummitNow

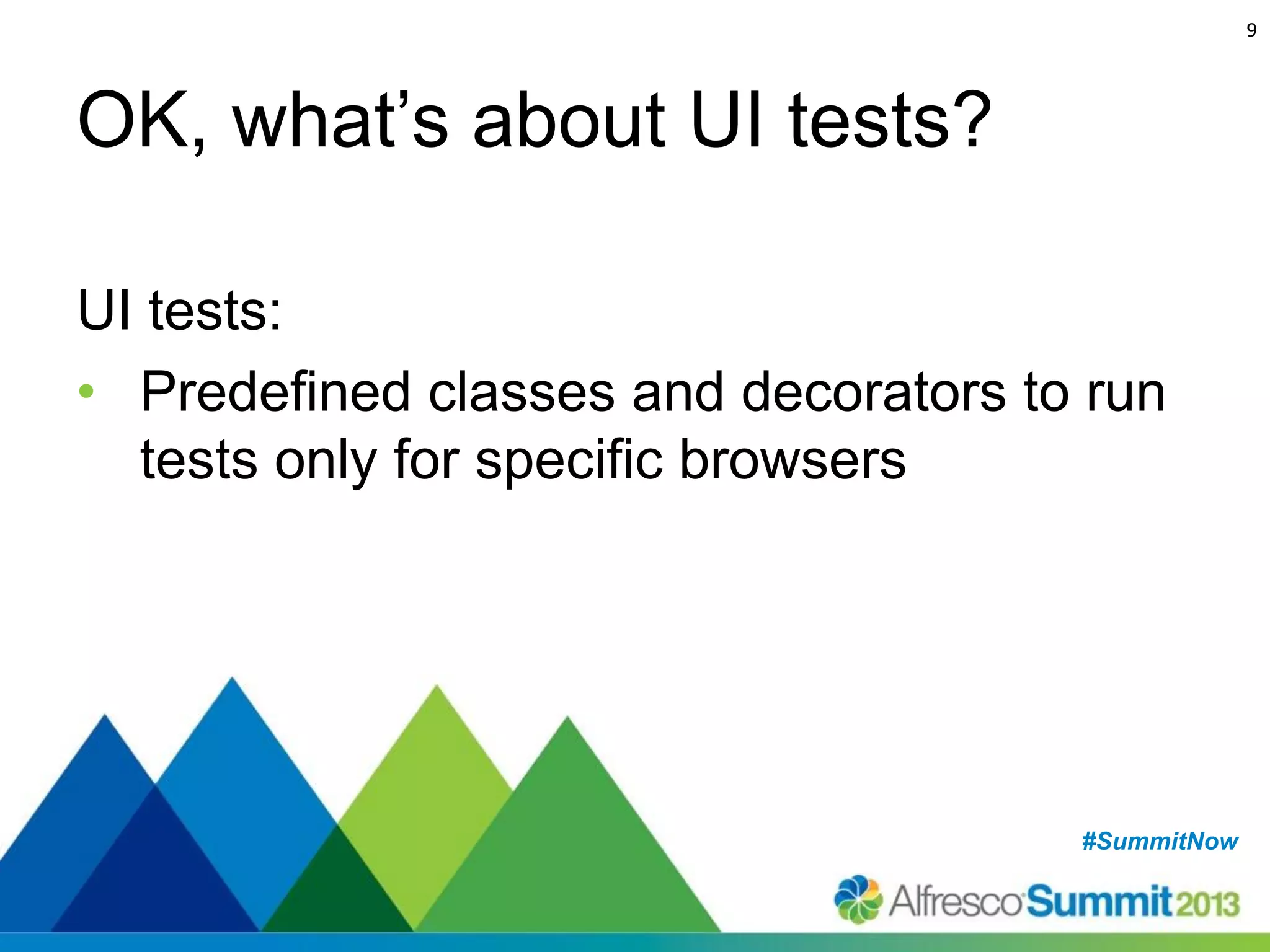

9. 9
OK, what’s about UI tests?
UI tests:
• Predefined classes and decorators to run
tests only for specific browsers
#SummitNow
#SummitNow

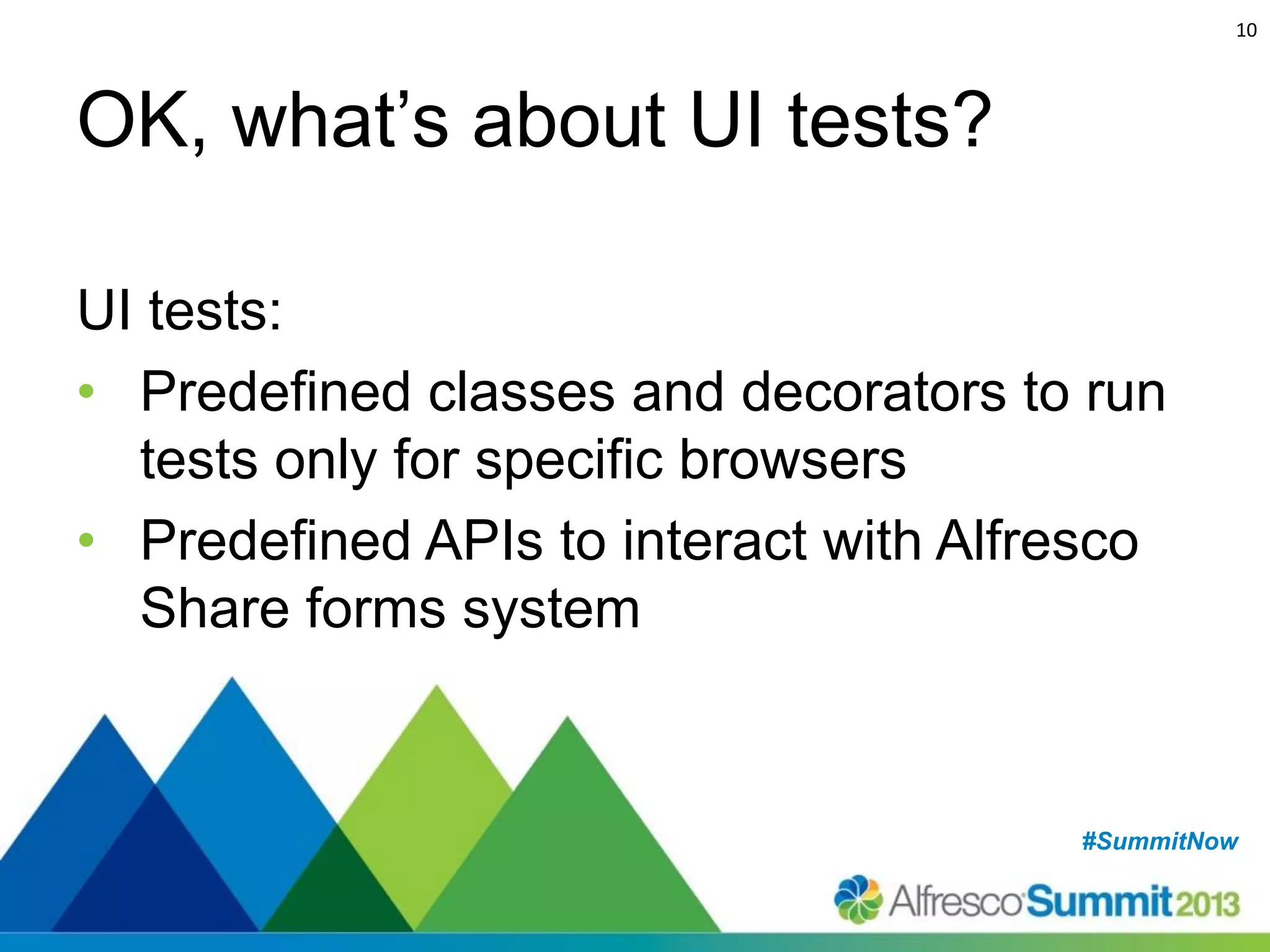

10. 10
OK, what’s about UI tests?
UI tests:
• Predefined classes and decorators to run
tests only for specific browsers
• Predefined APIs to interact with Alfresco
Share forms system
#SummitNow
#SummitNow

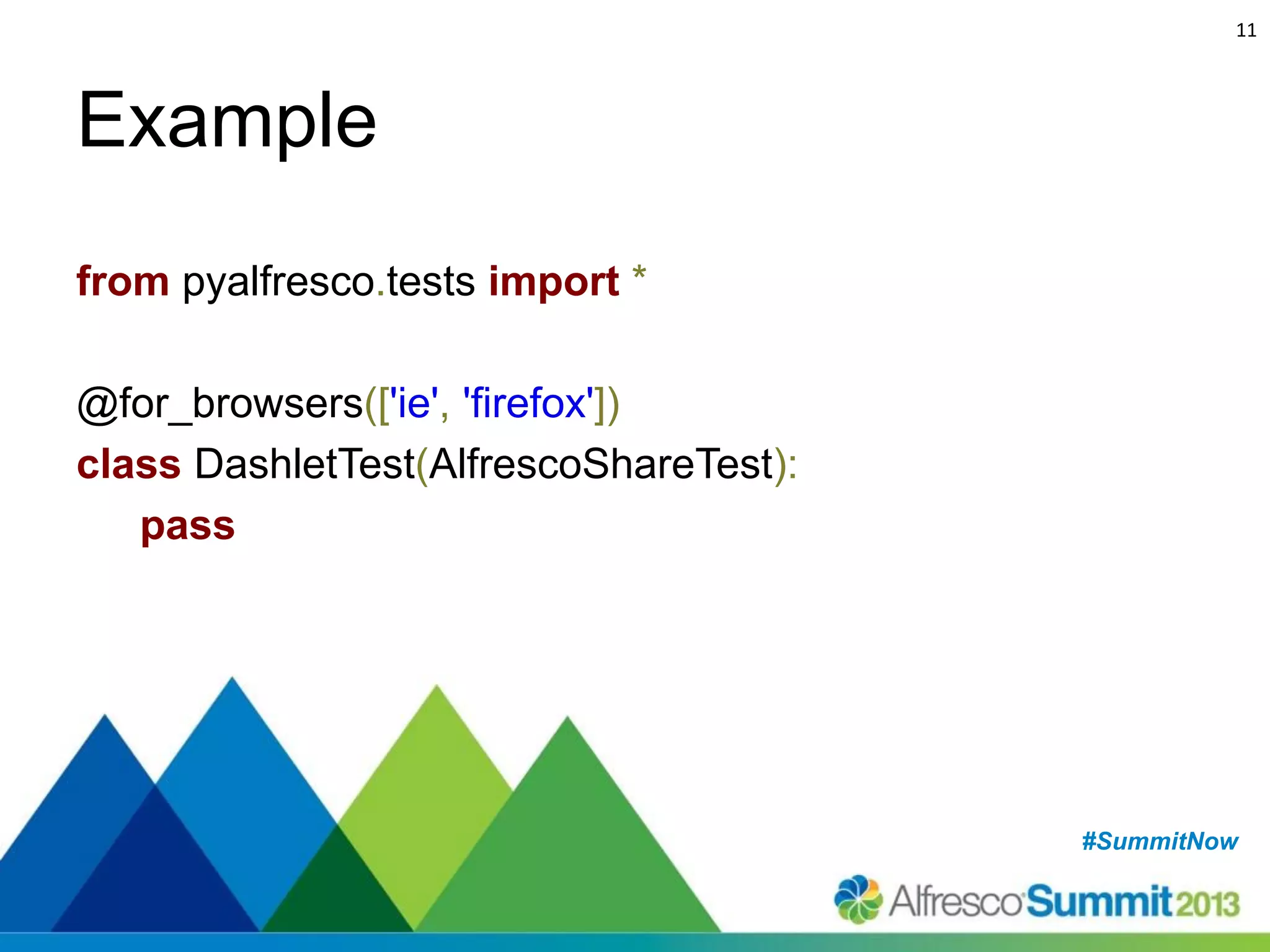

11. 11
Example
from pyalfresco.tests import *
@for_browsers(['ie', 'firefox'])
class DashletTest(AlfrescoShareTest):
pass
#SummitNow
#SummitNow

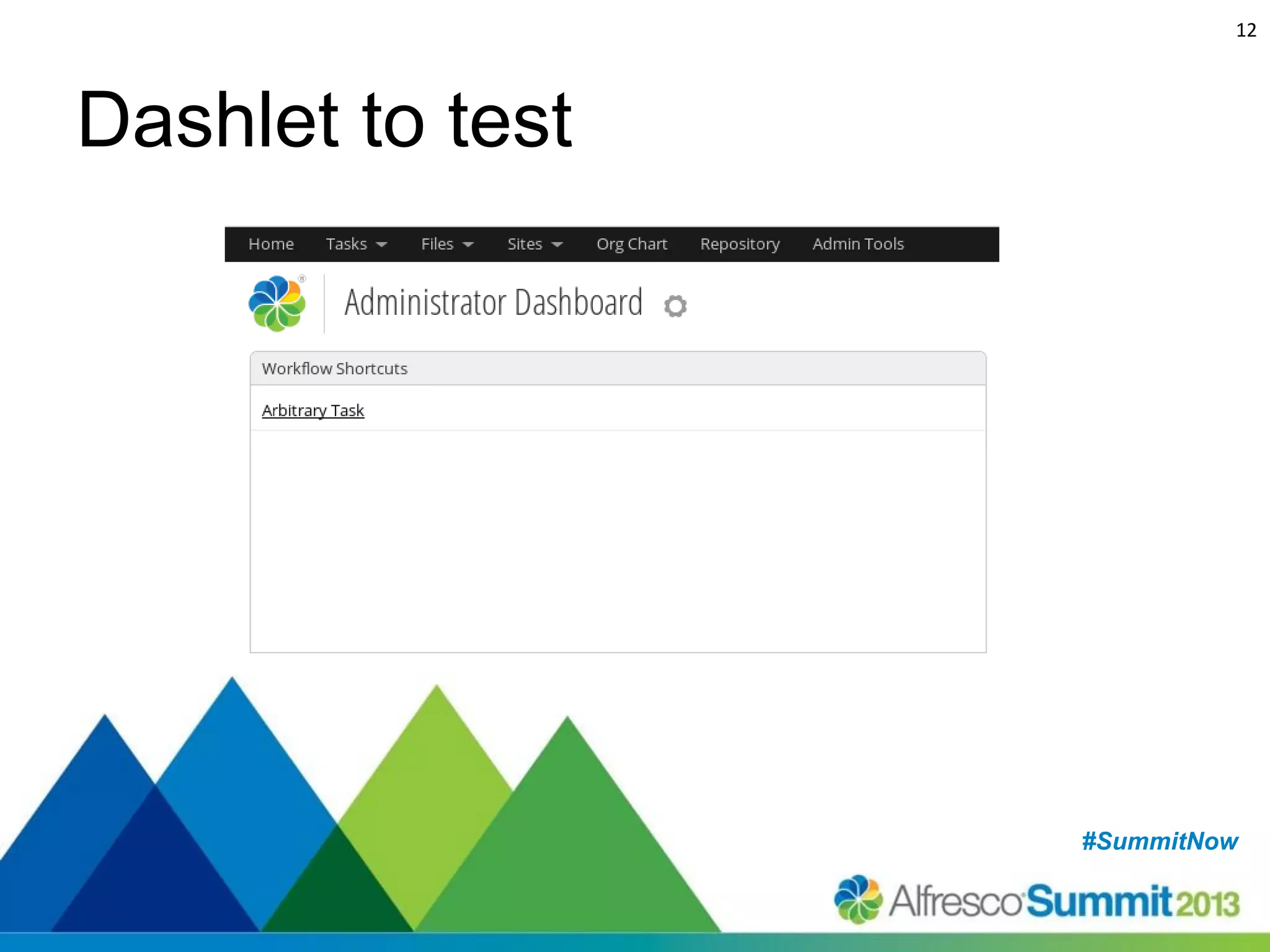

12. 12
Dashlet to test
#SummitNow
#SummitNow

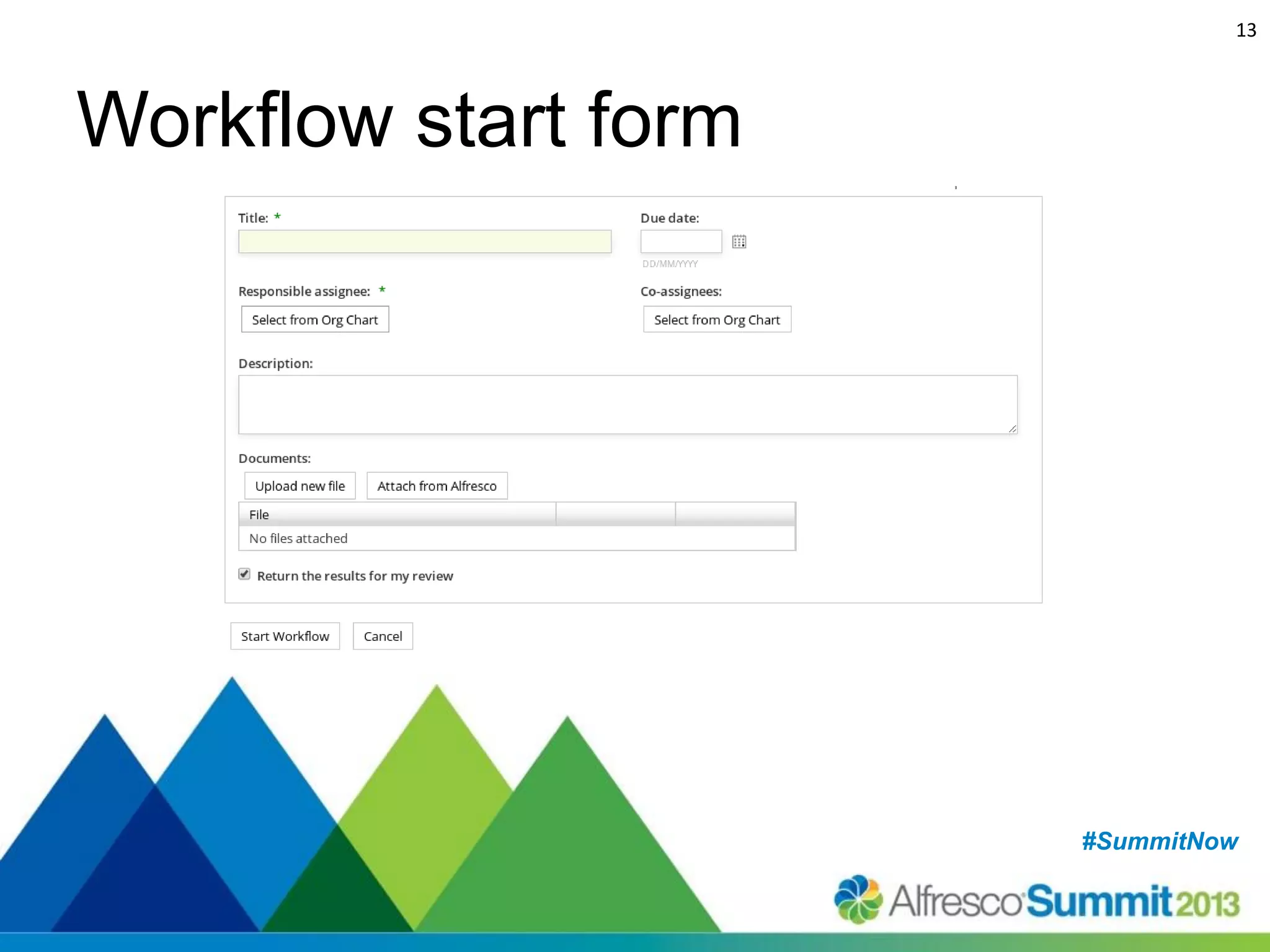

13. 13
Workflow start form
#SummitNow
#SummitNow

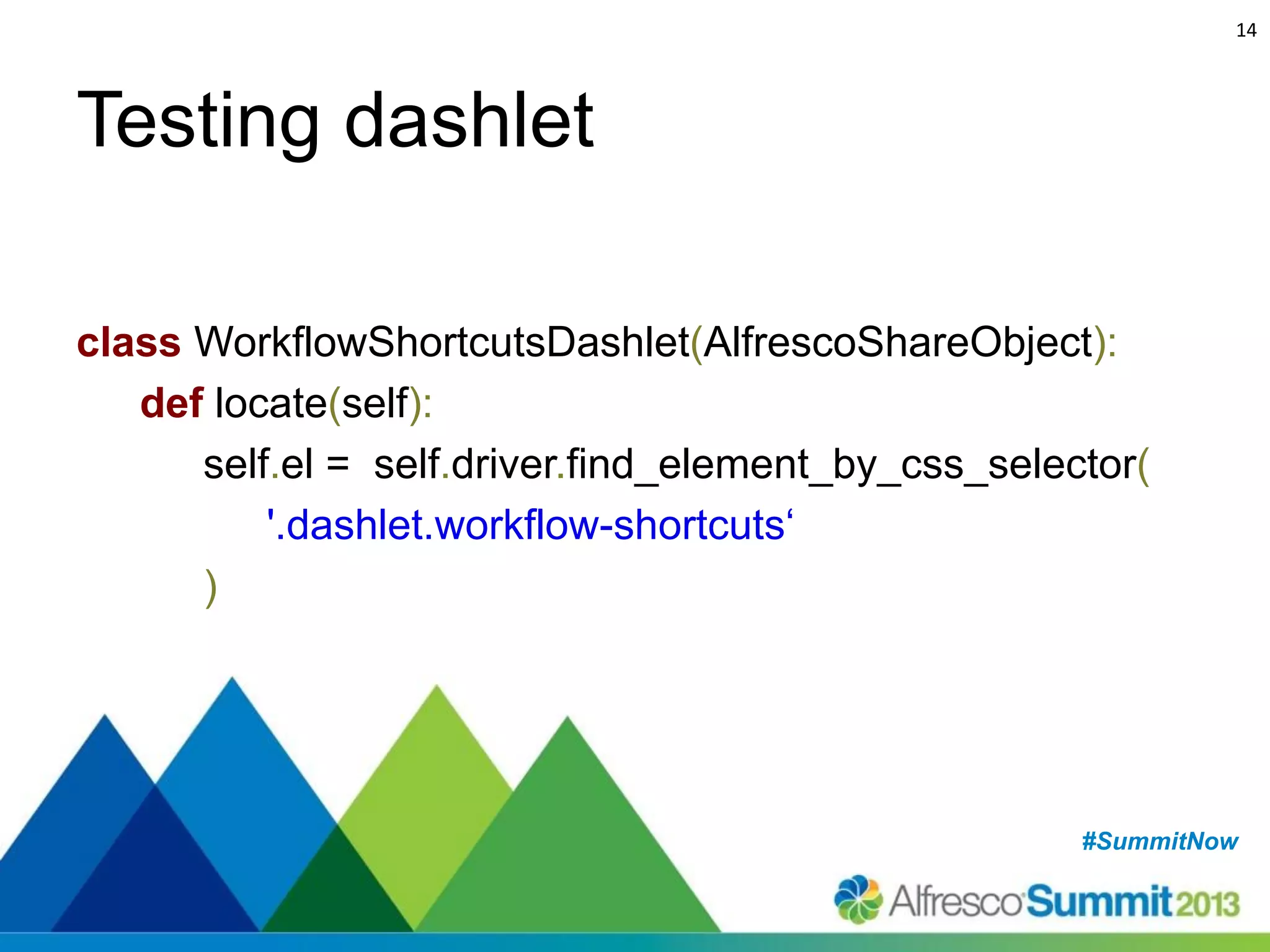

14. 14
Testing dashlet
class WorkflowShortcutsDashlet(AlfrescoShareObject):
def locate(self):
self.el = self.driver.find_element_by_css_selector(
'.dashlet.workflow-shortcuts‘
)
#SummitNow
#SummitNow

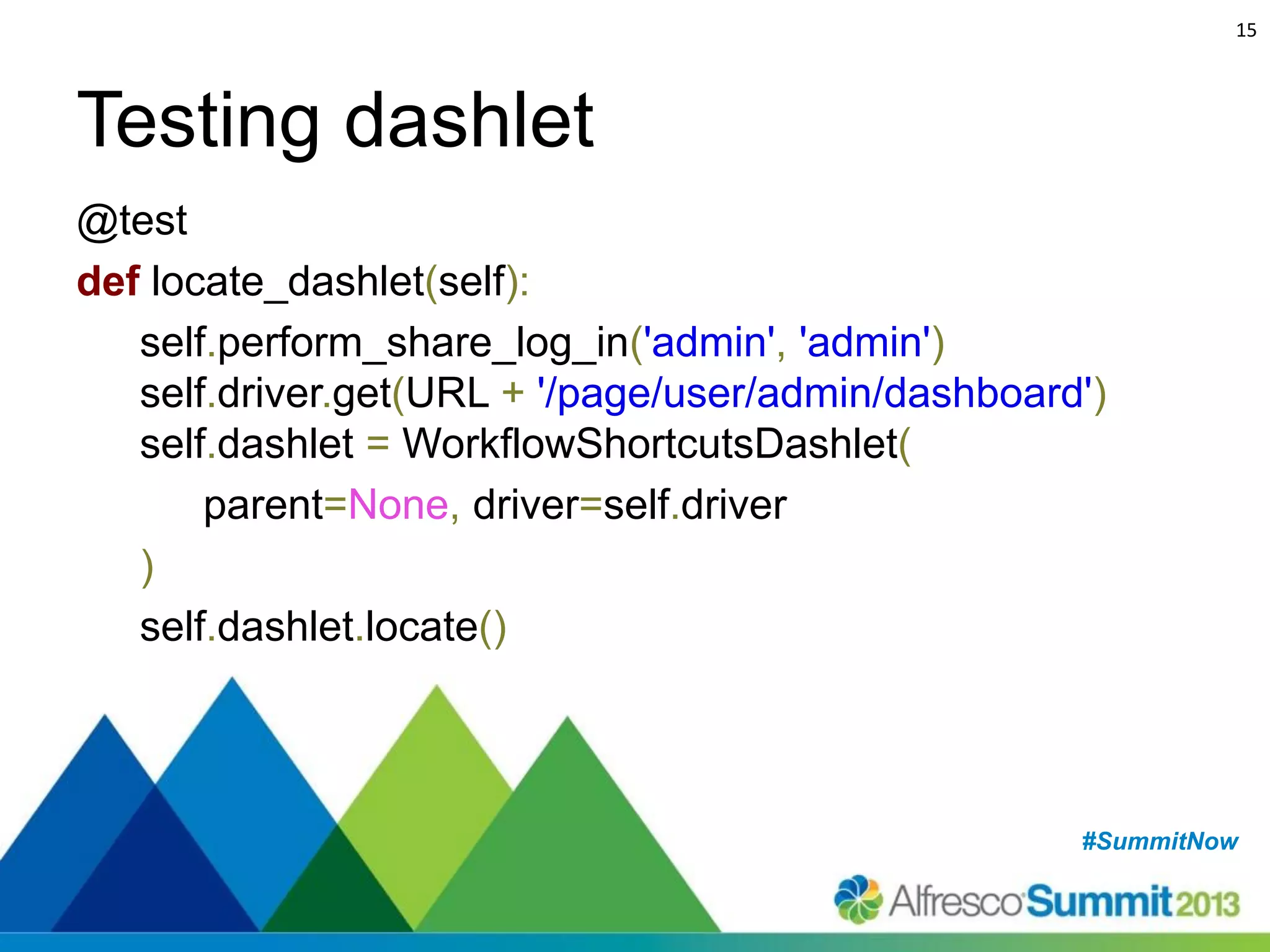

15. 15
Testing dashlet
@test
def locate_dashlet(self):
self.perform_share_log_in('admin', 'admin')
self.driver.get(URL + '/page/user/admin/dashboard')
self.dashlet = WorkflowShortcutsDashlet(
parent=None, driver=self.driver
)
self.dashlet.locate()
#SummitNow
#SummitNow

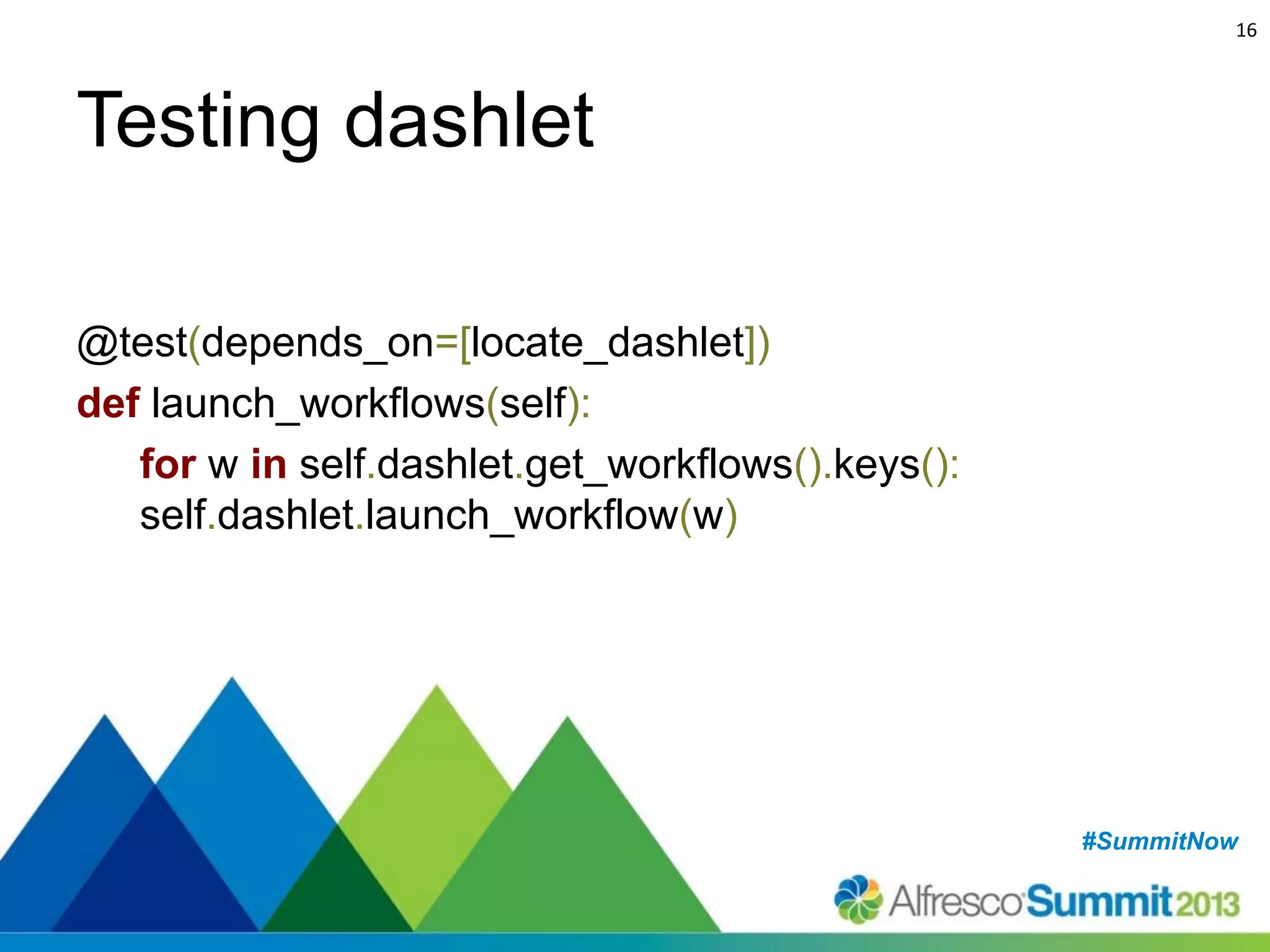

16. 16
Testing dashlet
@test(depends_on=[locate_dashlet])
def launch_workflows(self):
for w in self.dashlet.get_workflows().keys():
self.dashlet.launch_workflow(w)
#SummitNow
#SummitNow

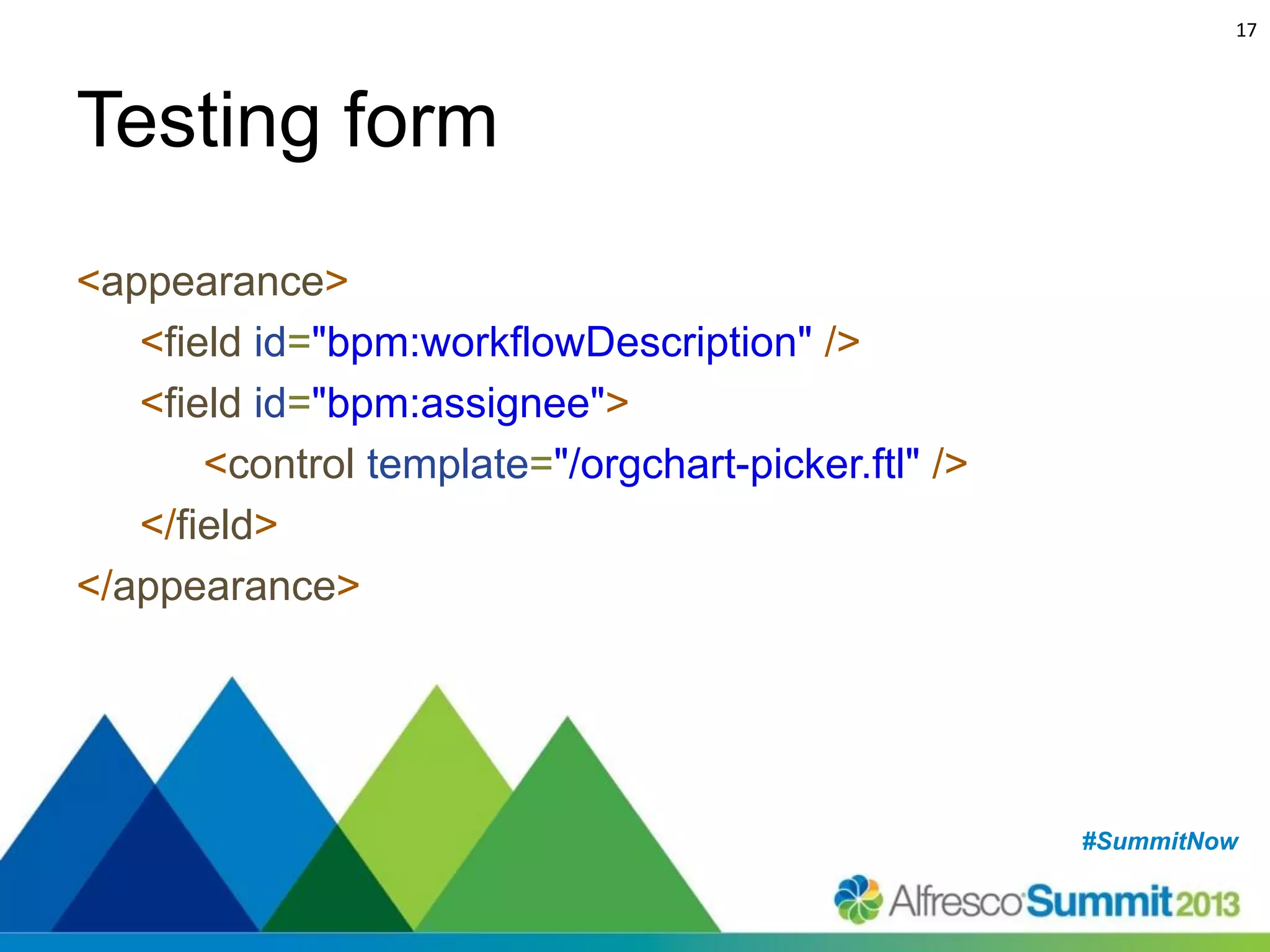

17. 17
Testing form
<appearance>
<field id="bpm:workflowDescription" />
<field id="bpm:assignee">
<control template="/orgchart-picker.ftl" />
</field>
</appearance>
#SummitNow
#SummitNow

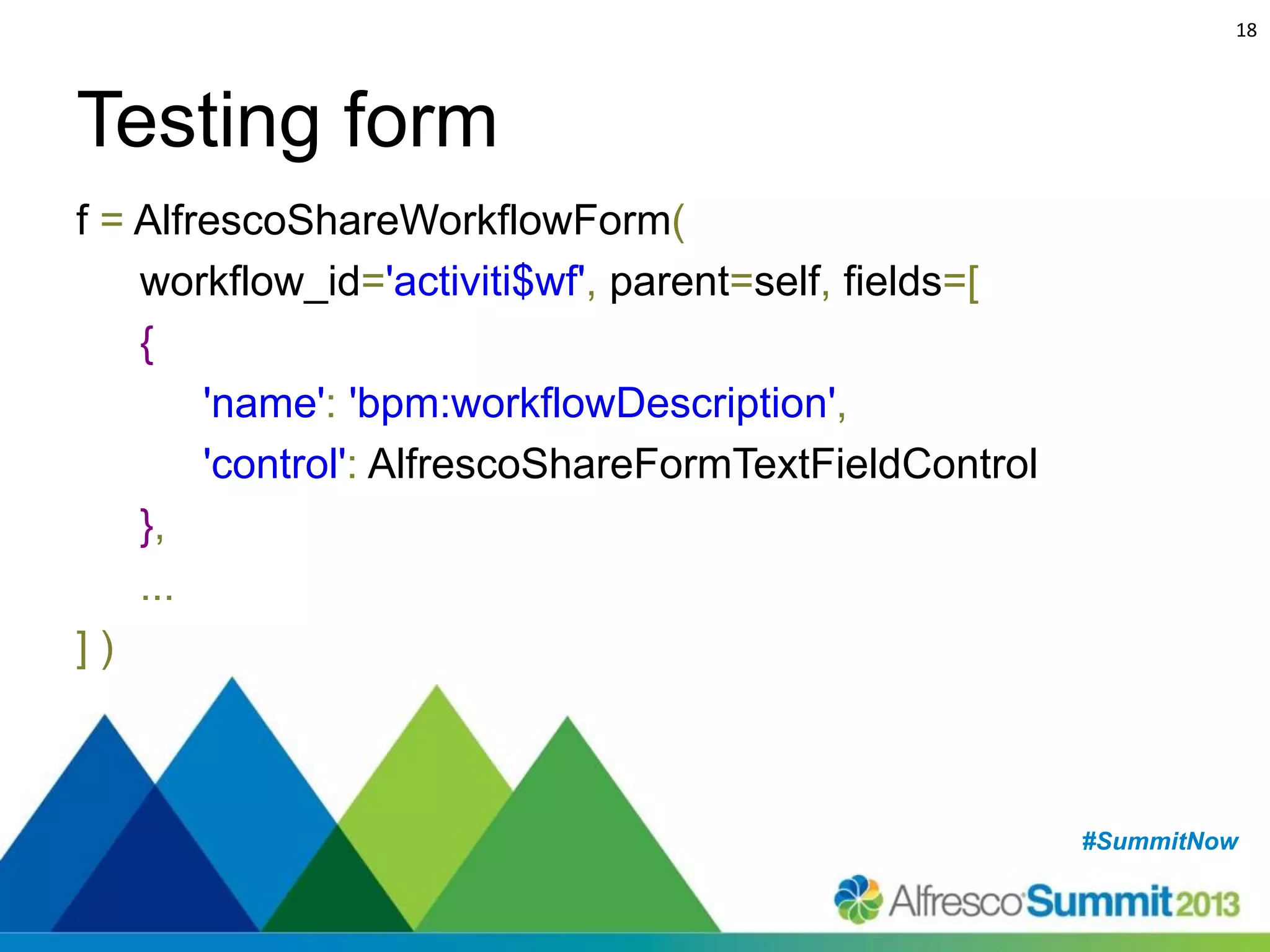

18. 18
Testing form
f = AlfrescoShareWorkflowForm(
workflow_id='activiti$wf', parent=self, fields=[
{
'name': 'bpm:workflowDescription',
'control': AlfrescoShareFormTextFieldControl
},
...
])
#SummitNow
#SummitNow

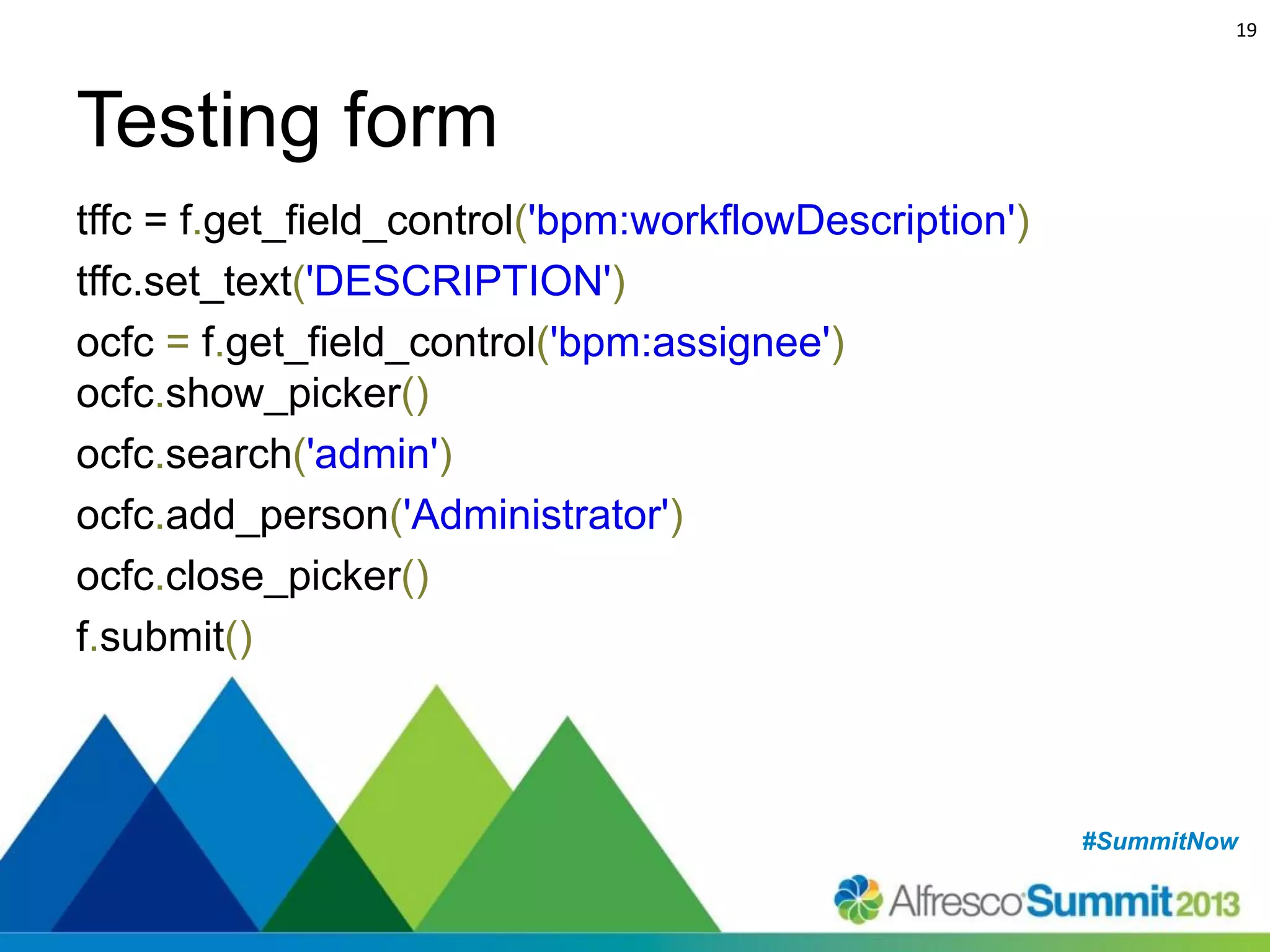

19. 19
Testing form
tffc = f.get_field_control('bpm:workflowDescription')
tffc.set_text('DESCRIPTION')
ocfc = f.get_field_control('bpm:assignee')
ocfc.show_picker()
ocfc.search('admin')
ocfc.add_person('Administrator')
ocfc.close_picker()
f.submit()
#SummitNow
#SummitNow

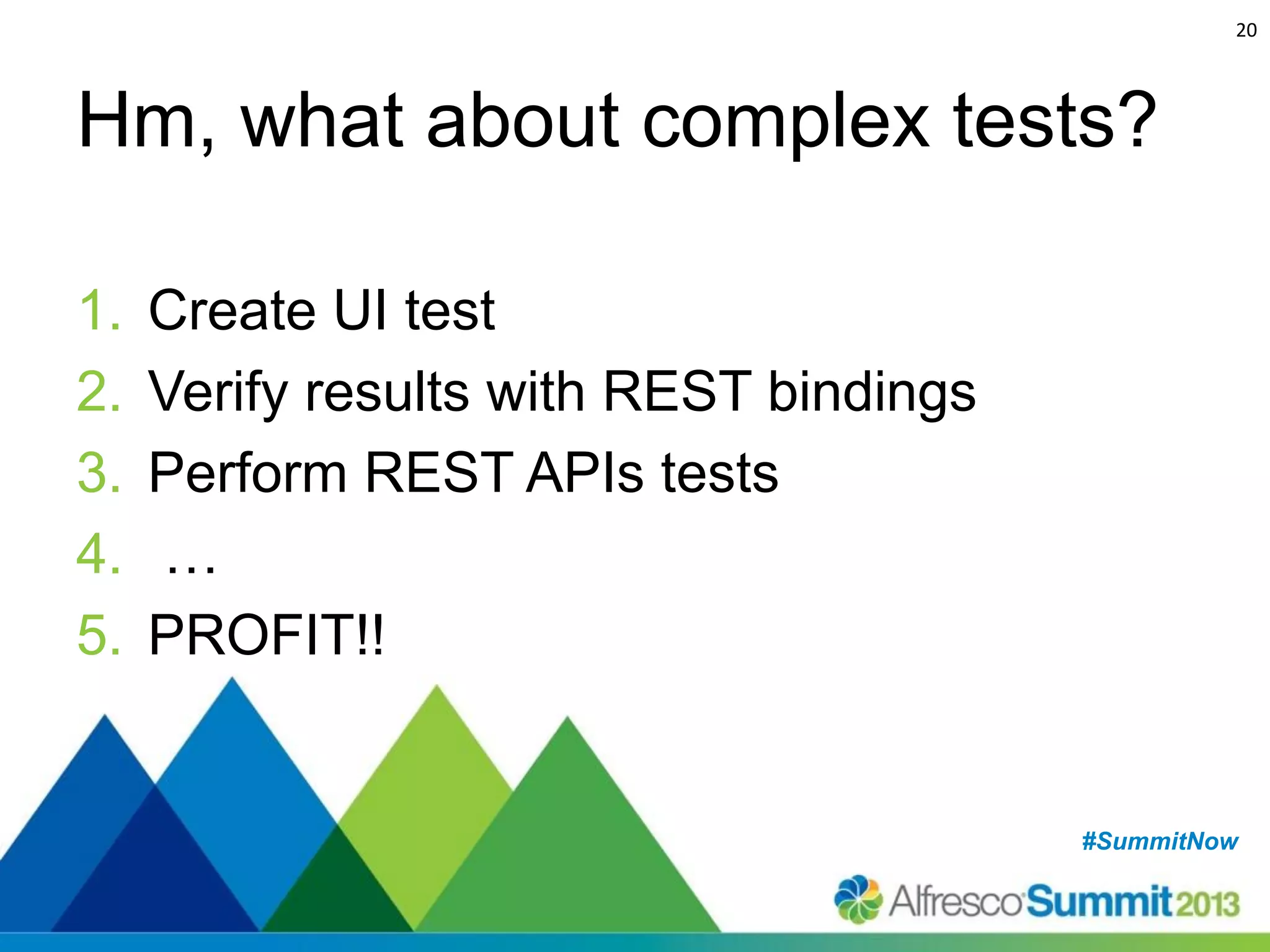

20. 20
Hm, what about complex tests?
1.
2.
3.
4.
5.
Create UI test
Verify results with REST bindings
Perform REST APIs tests
…
PROFIT!!
#SummitNow
#SummitNow

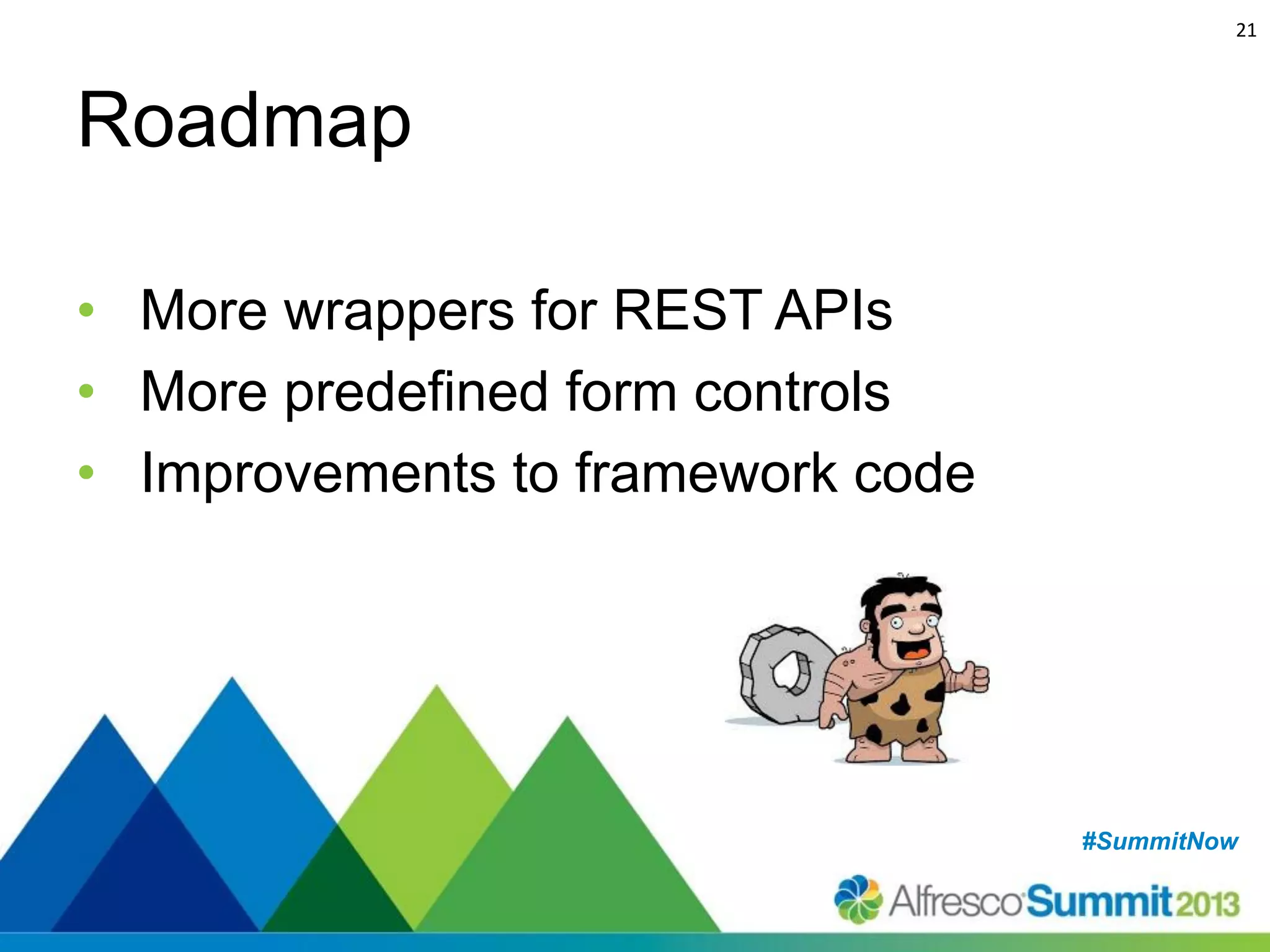

21. 21
Roadmap
• More wrappers for REST APIs
• More predefined form controls
• Improvements to framework code
#SummitNow
#SummitNow

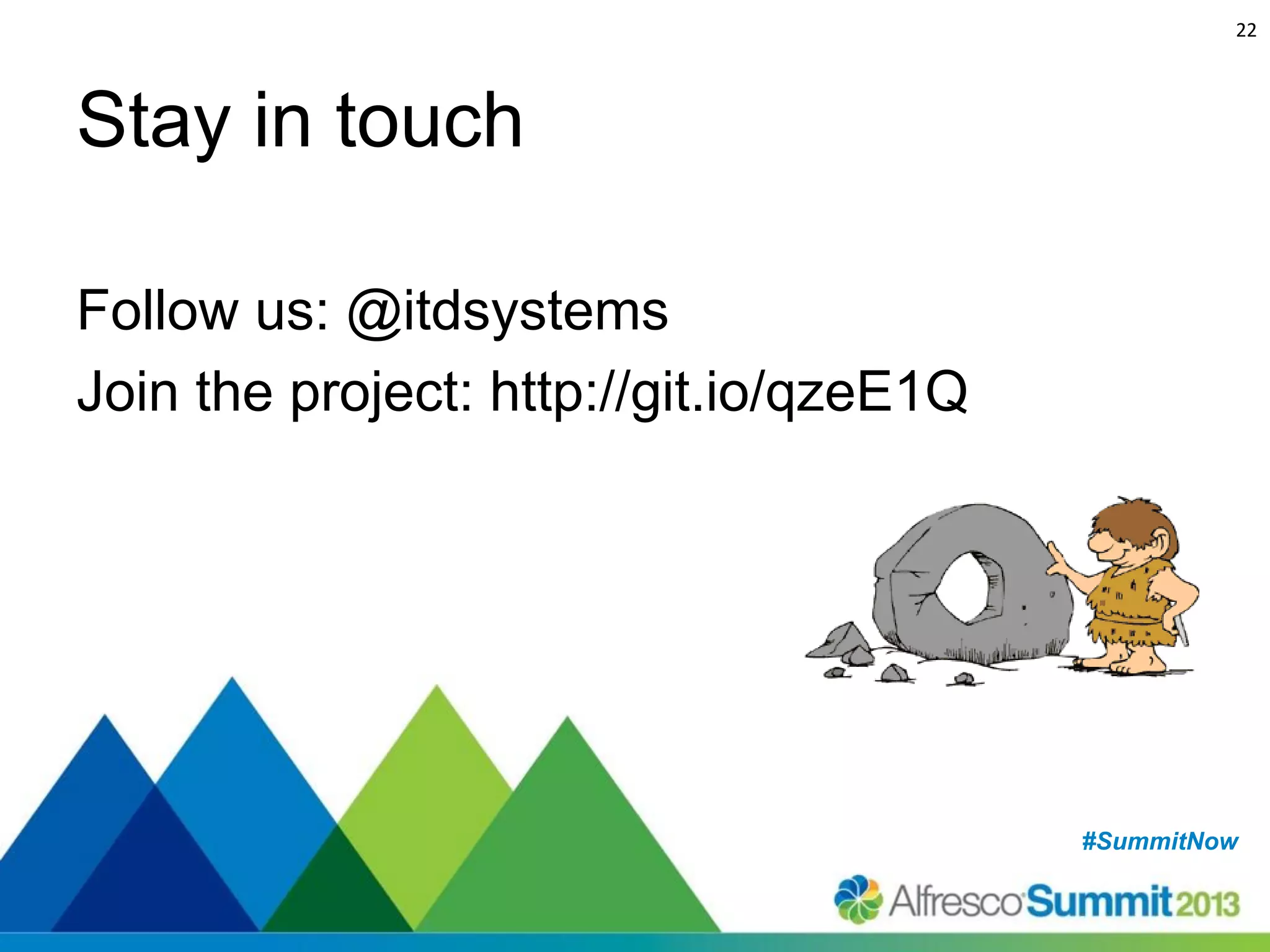

22. 22
Stay in touch
Follow us: @itdsystems
Join the project: http://git.io/qzeE1Q
