In this session Les Hazlewood, the Apache Shiro PMC Chair, will cover Shiro's enterprise session management capabilities, how it can be used across any application (not just web or JEE applications) and how to use Cassandra as Shiro's session store, enabling a distributed session cluster supporting hundreds of thousands or even millions of concurrent sessions. As a working example, Les will show how to set up a session cluster in under 10 minutes using Cassandra. If you need to scale user session load, you won't want to miss this!

1. #ApacheCon
Infinite Session Clustering with
Apache Shiro & Cassandra
Les Hazlewood @lhazlewood
Apache Shiro Project Chair
CTO, Stormpath stormpath.com
ApacheCon 2014

2. #ApacheCon
.com
• User Management and Authentication API
• Security for your applications
• User security workflows
• Security best practices
• Developer tools, SDKs, libraries

3. #ApacheCon
• Application security framework
• ASF TLP http://shiro.apache.org
• Quick and Easy
• Simplifies Security
What is Apache Shiro?

4. #ApacheCon
Web Session Management
Auxiliary Features
AuthorizationAuthentication
Cryptography
Session
Management
Web Support

5. #ApacheCon
Quick Concepts
Subject currentUser =
SecurityUtils.getSubject();
currentUser.login(...)
currentUser.isPermitted(...)

6. #ApacheCon

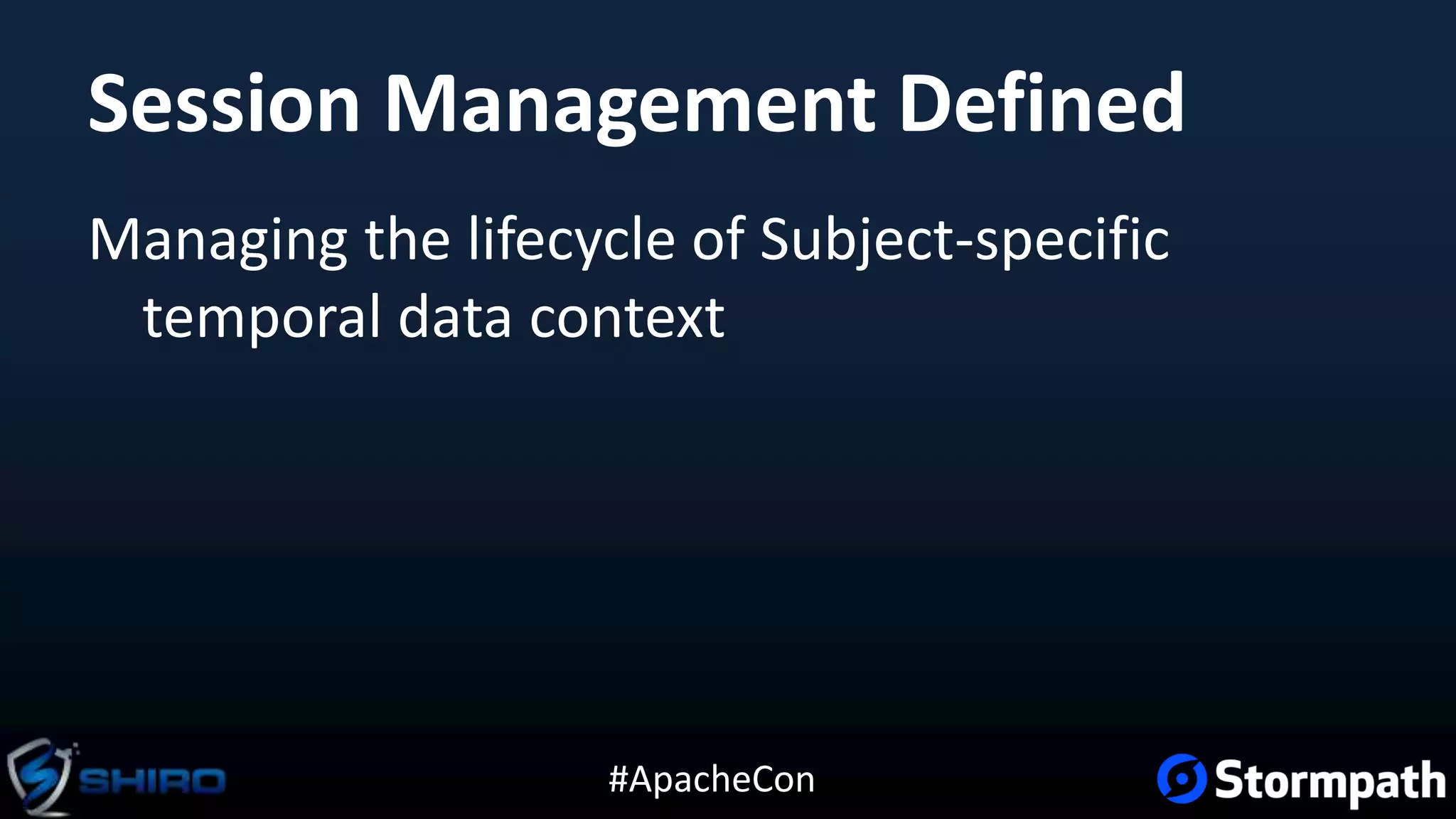

Session Management Defined
Managing the lifecycle of Subject-specific
temporal data context

7. #ApacheCon
Session Management Features
• Heterogeneous client access
• POJO/J2SE based (IoC friendly)
• Event listeners
• Host address retention
• Inactivity/expiration support (touch())
• Transparent web use - HttpSession
• Container-Independent Clustering!

8. #ApacheCon
Acquiring and Creating Sessions
Subject subject =
SecurityUtils.getSubject()
//guarantee a session
Session session = subject.getSession();
//get a session if it exists
subject.getSession(false);

9. #ApacheCon
Session API
getStartTimestamp()
getLastAccessTime()
getAttribute(key)
setAttribute(key, value)
get/setTimeout(long)
touch()
...

10. #ApacheCon
Session Management Architecture
Subject .getSession()  Session

11. #ApacheCon
Session Management Architecture
Subject
SessionManager
.getSession()  Session

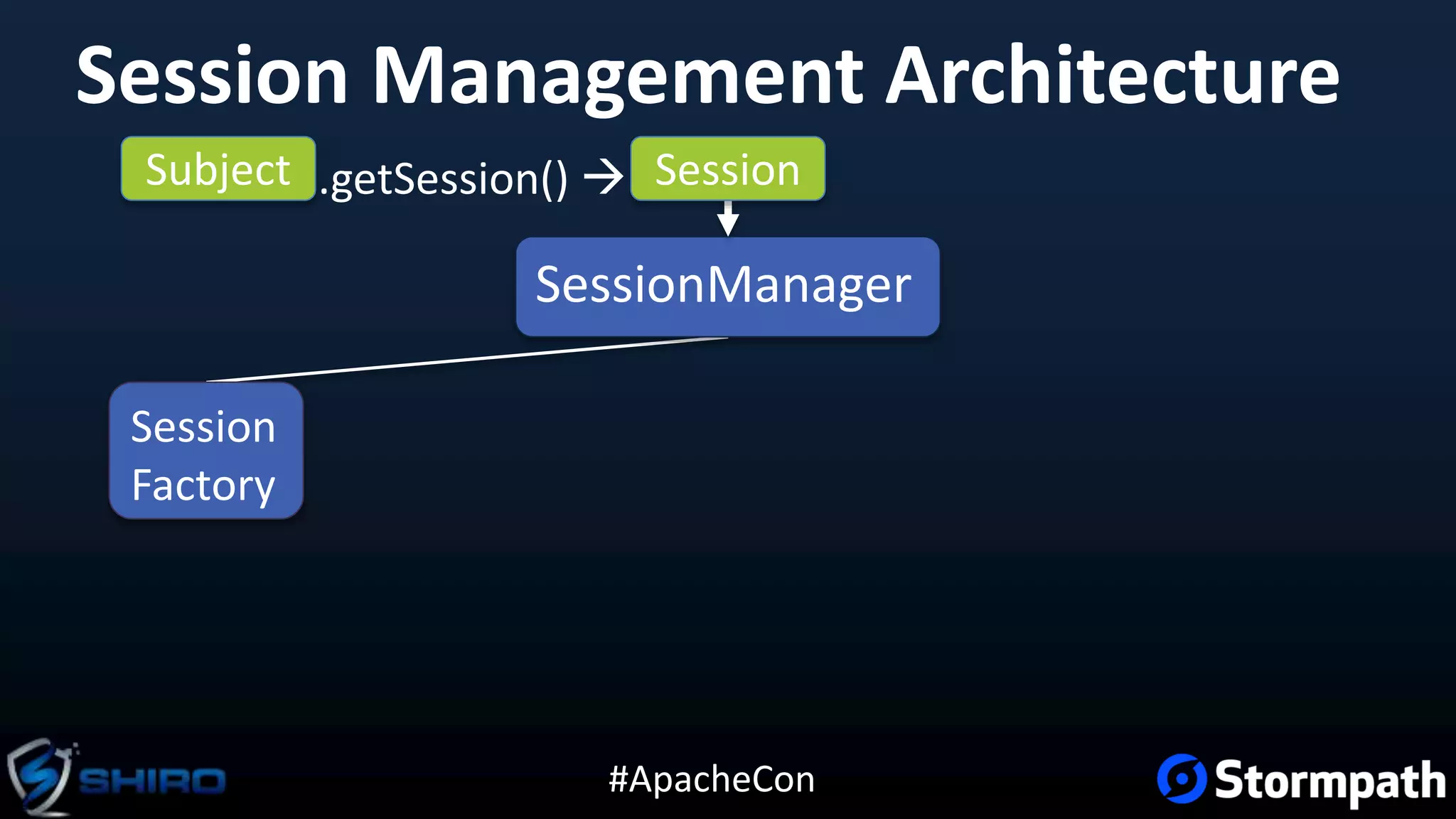

12. #ApacheCon
Session Management Architecture
Subject
SessionManager
.getSession() 
Session
Factory
Session

13. #ApacheCon
Session Management Architecture
Subject
SessionManager
SessionDAO
.getSession() 
Session
Factory
Session

14. #ApacheCon
Session Management Architecture
Subject
SessionManager
SessionDAO
.getSession() 
Session ID
Generator
Session
Factory
Session

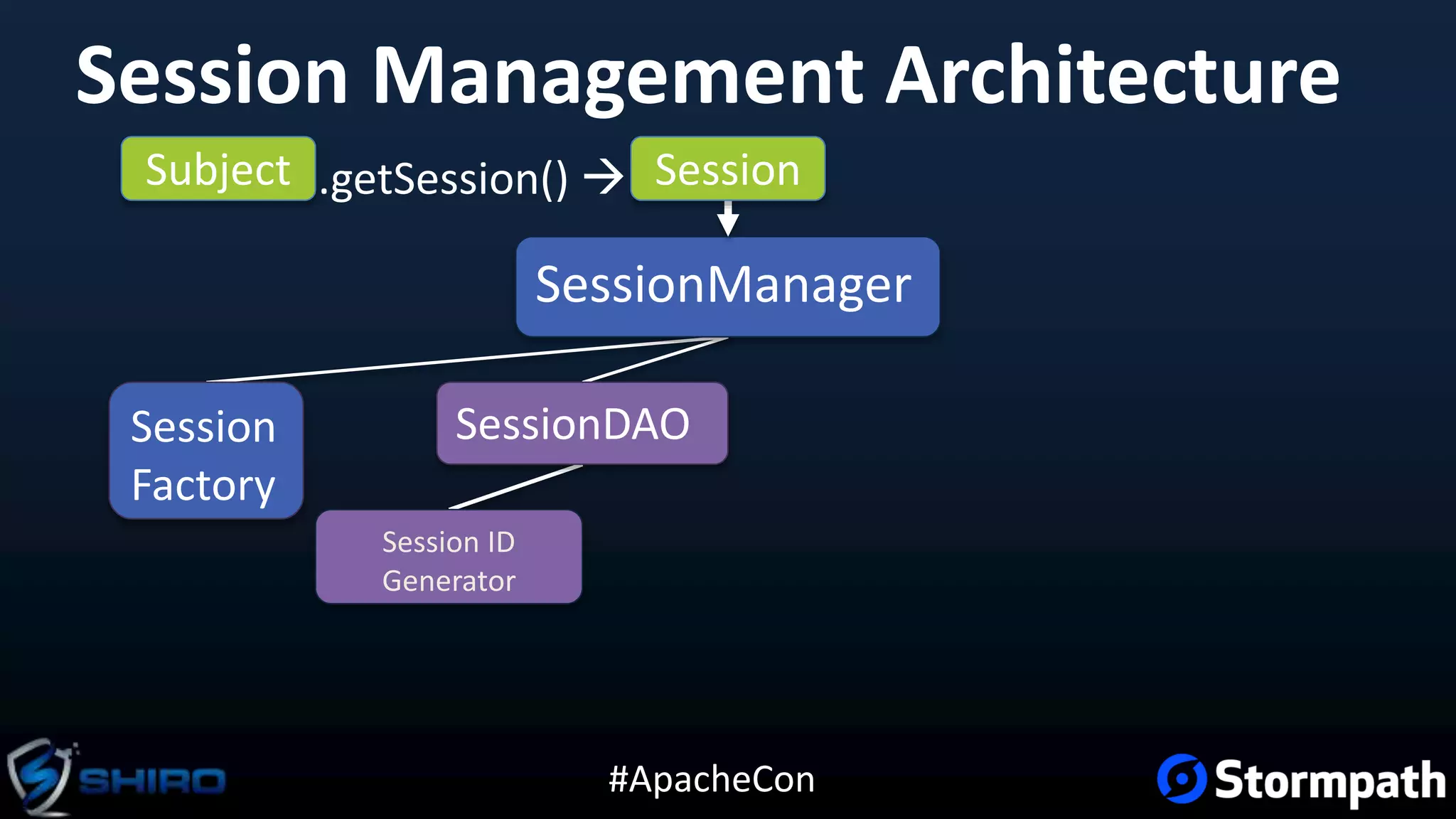

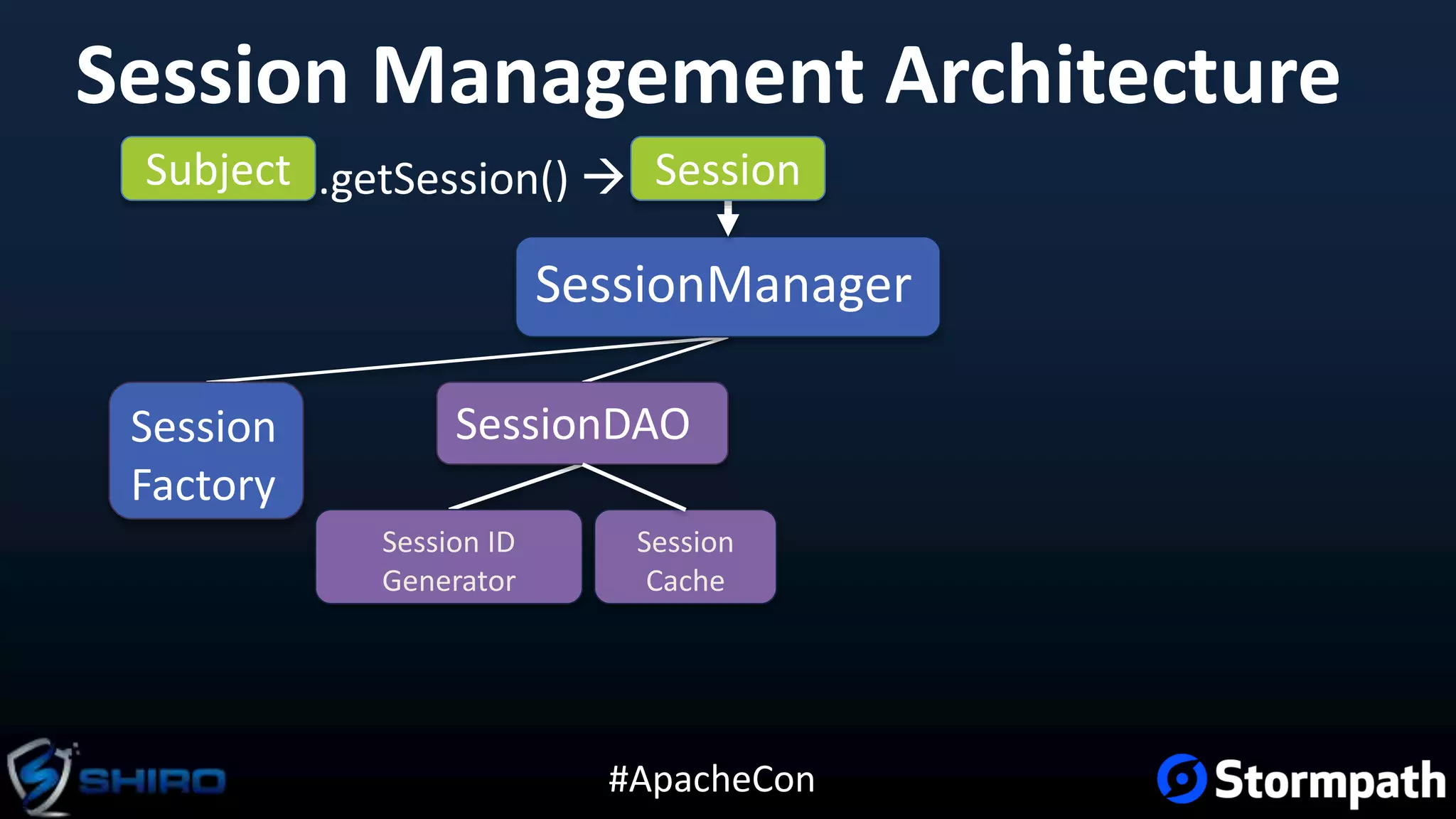

15. #ApacheCon
Session Management Architecture
Subject
SessionManager
SessionDAO
.getSession() 
Session ID
Generator
Session
Cache
Session
Factory
Session

16. #ApacheCon

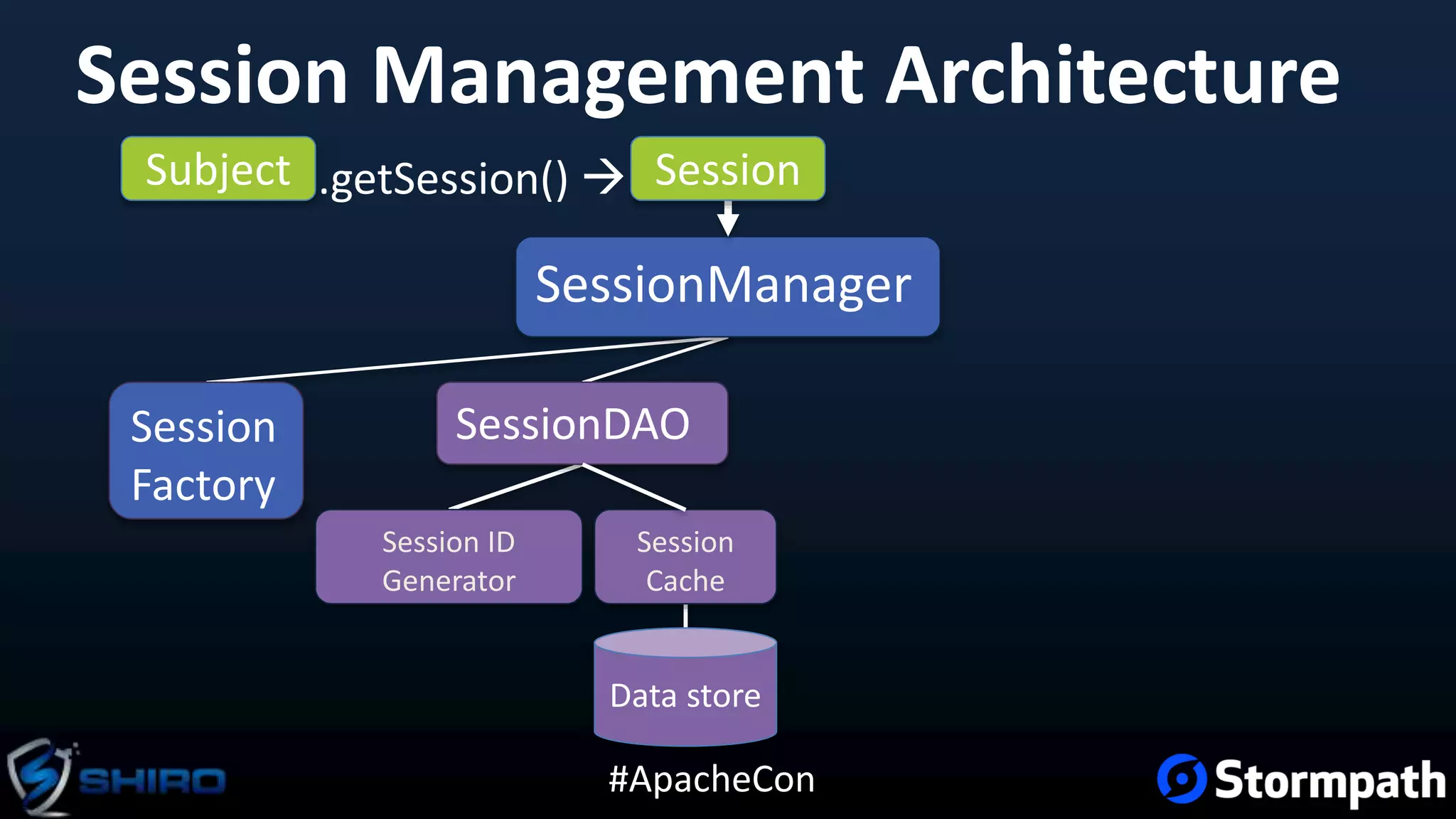

Session Management Architecture
Subject
SessionManager
SessionDAO
.getSession() 
Session ID
Generator
Session
Cache
Session
Factory
Session
Data store

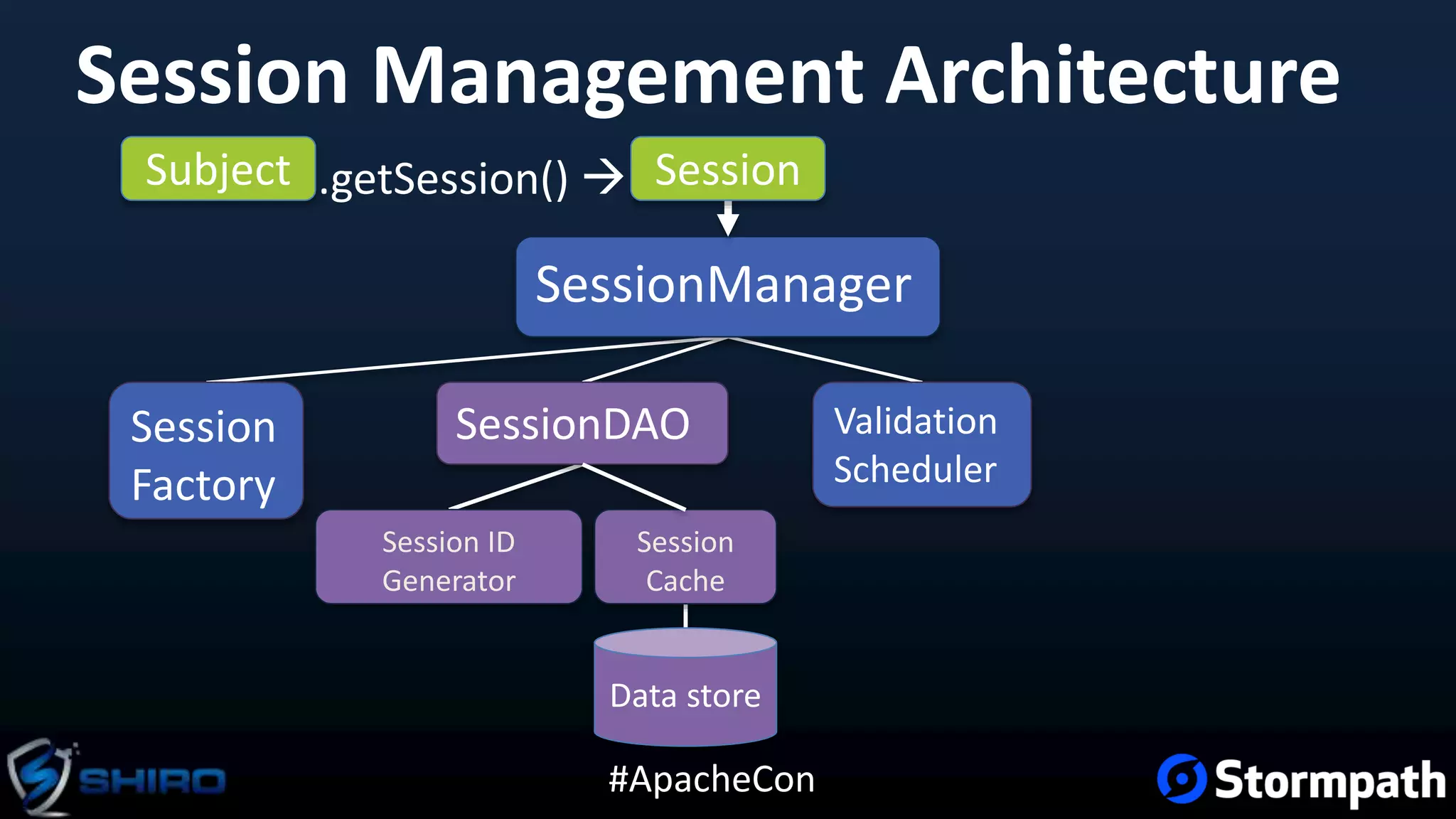

17. #ApacheCon
Session Management Architecture
Subject
SessionManager
SessionDAO
.getSession() 
Session ID
Generator
Session
Cache
Session
Factory
Validation
Scheduler
Session
Data store

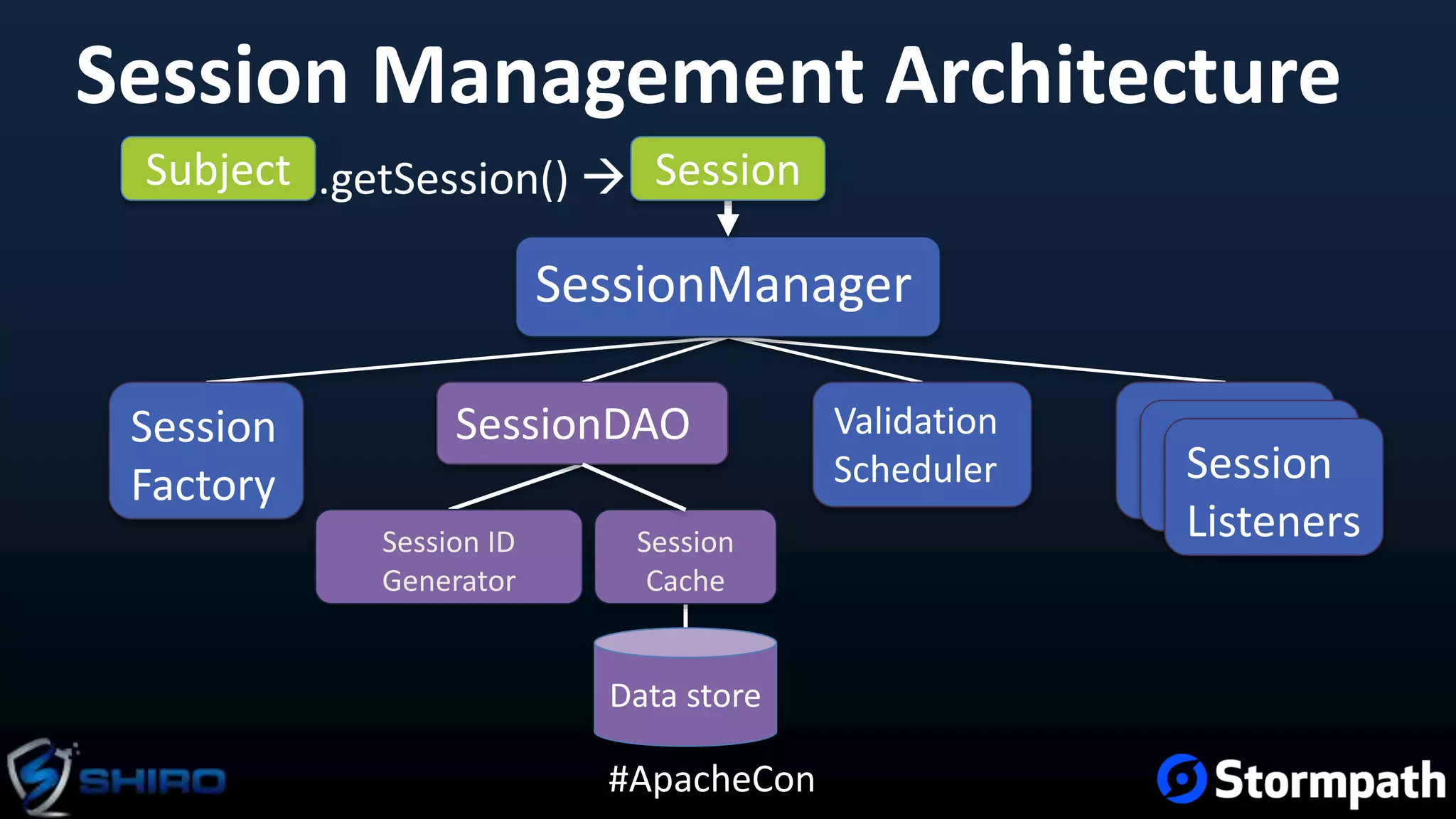

18. #ApacheCon
Session Management Architecture
Subject
SessionManager
SessionDAO
.getSession() 
Session ID
Generator
Session
Cache
Session
Factory
Validation
Scheduler Session
Listeners
Session
Data store

19. #ApacheCon

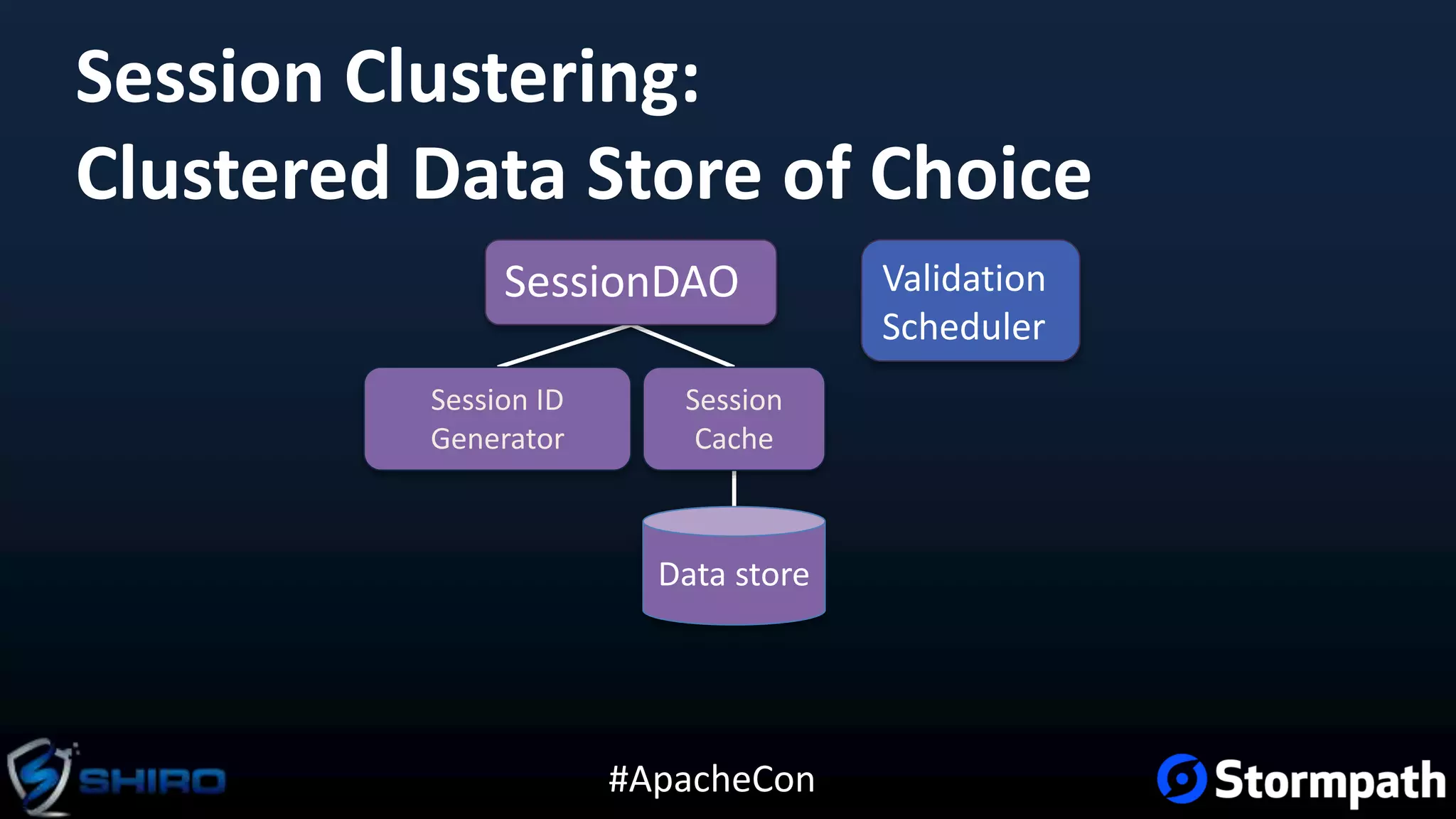

Session Clustering:
Clustered Data Store of Choice
SessionDAO
Session ID
Generator
Session
Cache
Validation
Scheduler
Data store

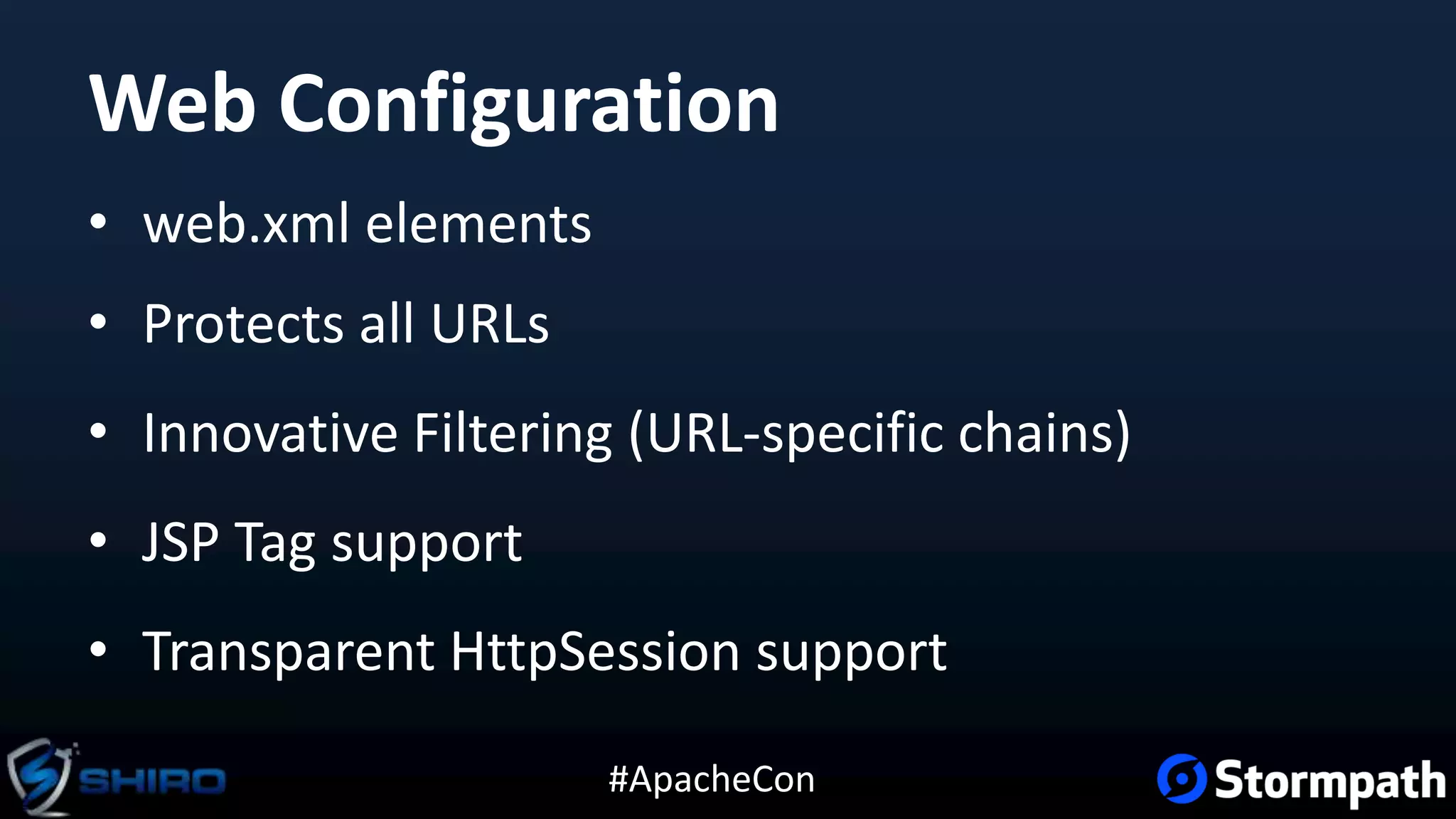

20. #ApacheCon
Web Configuration
• web.xml elements
• Protects all URLs
• Innovative Filtering (URL-specific chains)
• JSP Tag support
• Transparent HttpSession support

21. #ApacheCon

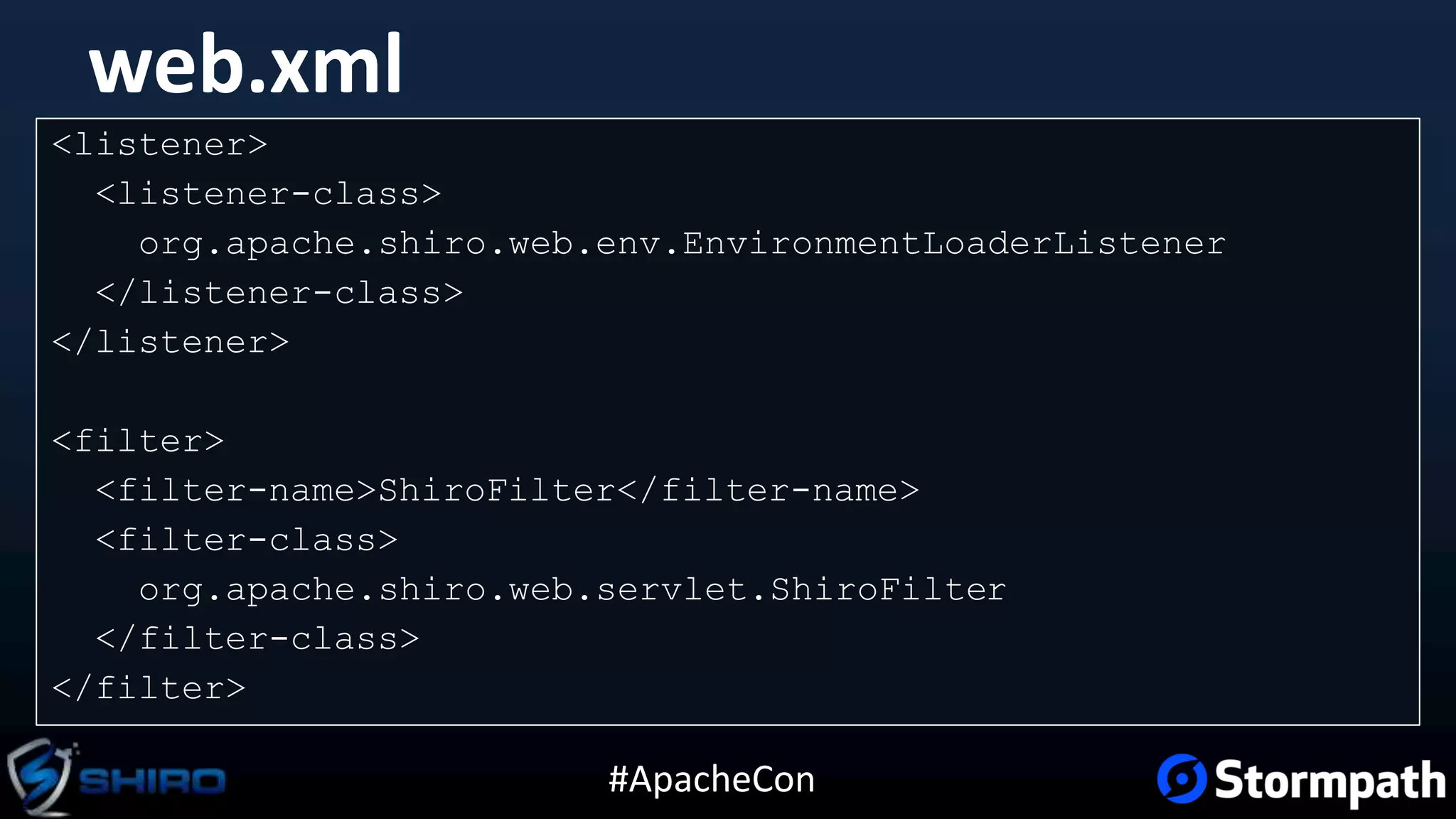

web.xml
<listener>
<listener-class>
org.apache.shiro.web.env.EnvironmentLoaderListener
</listener-class>
</listener>
<filter>
<filter-name>ShiroFilter</filter-name>
<filter-class>
org.apache.shiro.web.servlet.ShiroFilter
</filter-class>
</filter>

22. #ApacheCon

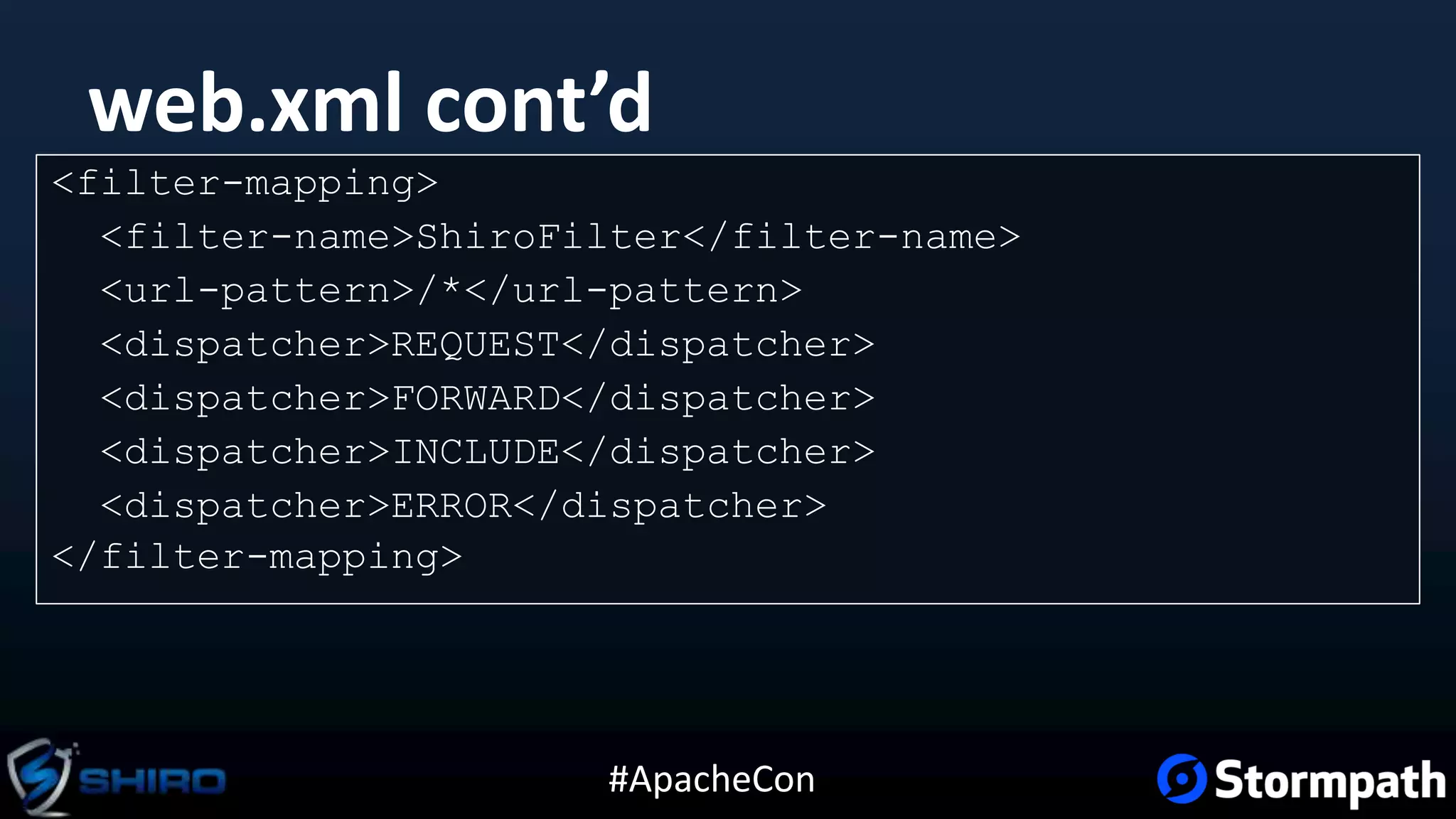

web.xml cont’d
<filter-mapping>
<filter-name>ShiroFilter</filter-name>
<url-pattern>/*</url-pattern>
<dispatcher>REQUEST</dispatcher>
<dispatcher>FORWARD</dispatcher>
<dispatcher>INCLUDE</dispatcher>
<dispatcher>ERROR</dispatcher>
</filter-mapping>

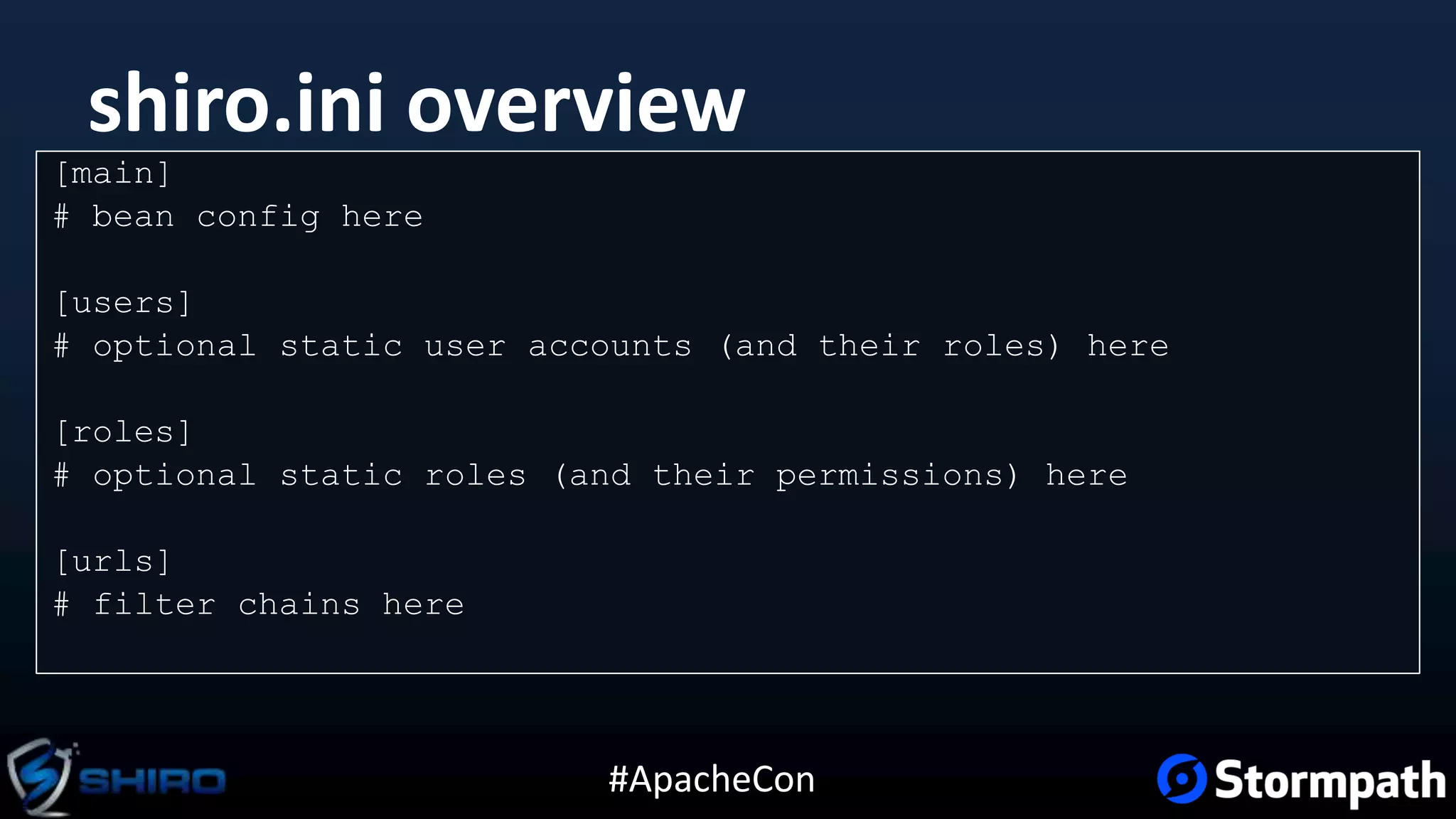

23. #ApacheCon
shiro.ini overview
[main]
# bean config here
[users]
# optional static user accounts (and their roles) here
[roles]
# optional static roles (and their permissions) here
[urls]
# filter chains here

24. #ApacheCon
Session Clustering

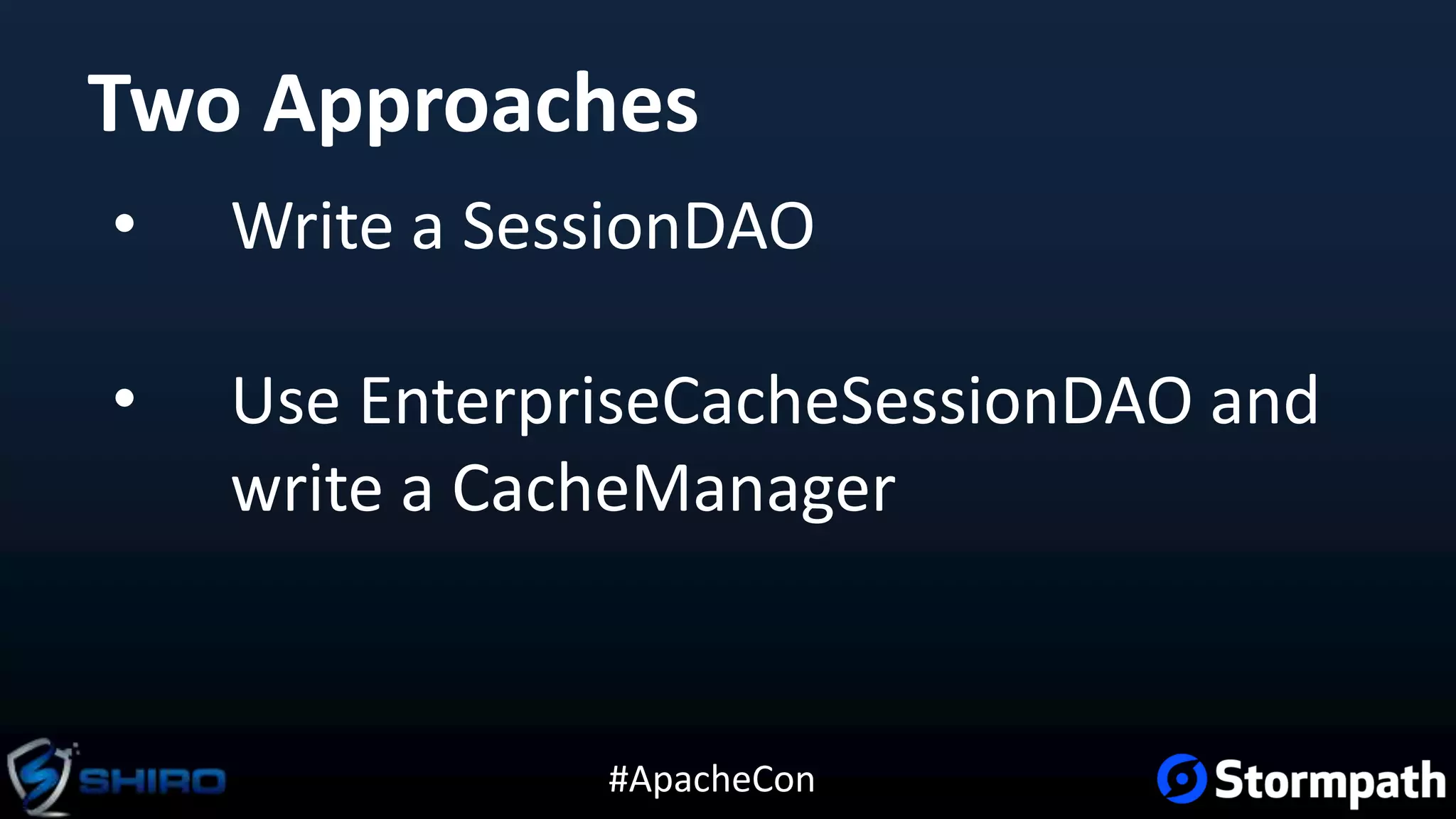

25. #ApacheCon
Two Approaches
• Write a SessionDAO
• Use EnterpriseCacheSessionDAO and
write a CacheManager

26. #ApacheCon
Cassandra SessionDAO

27. #ApacheCon

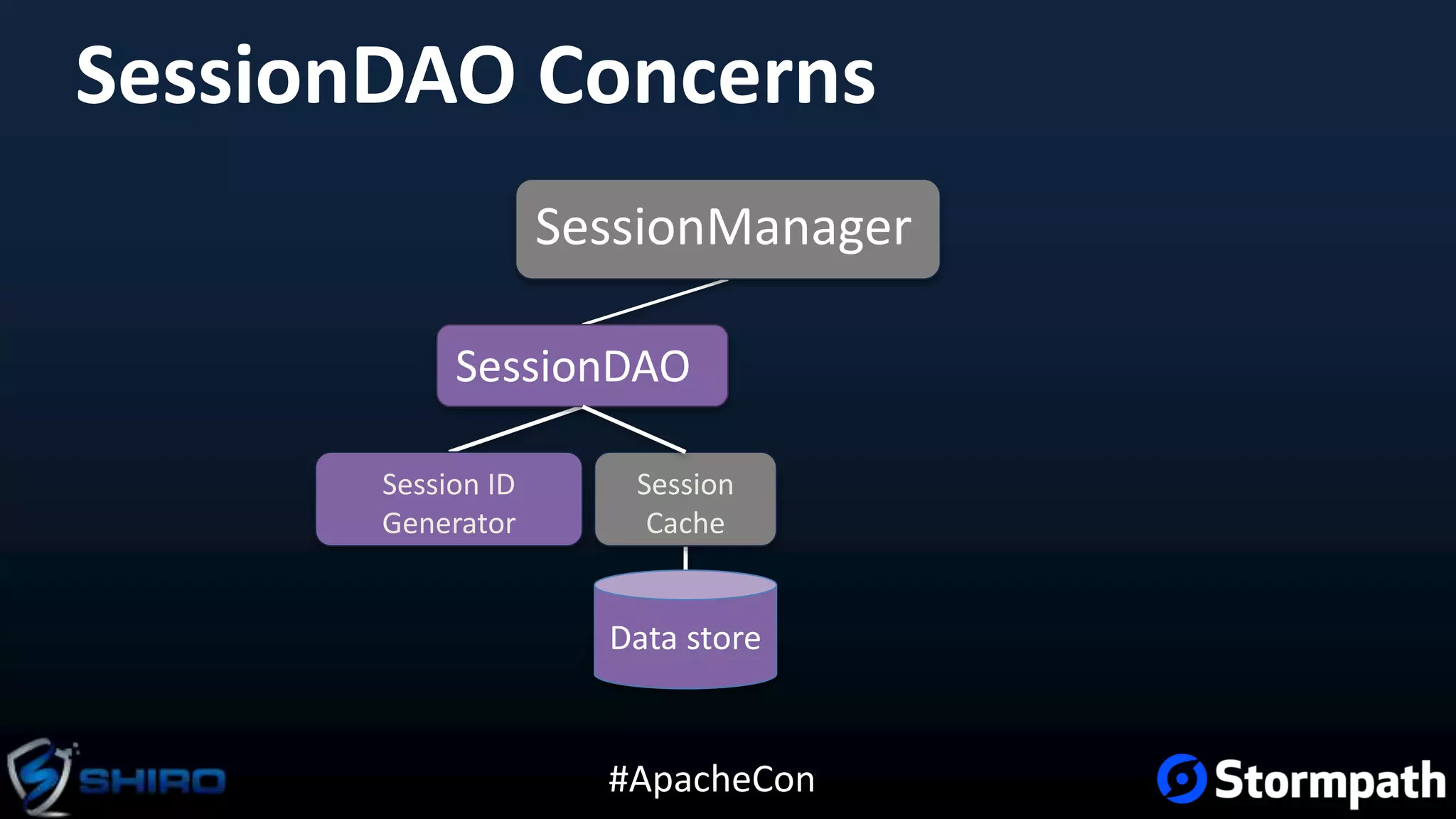

SessionDAO Concerns
SessionManager
SessionDAO
Session ID
Generator
Session
Cache
Data store

28. #ApacheCon

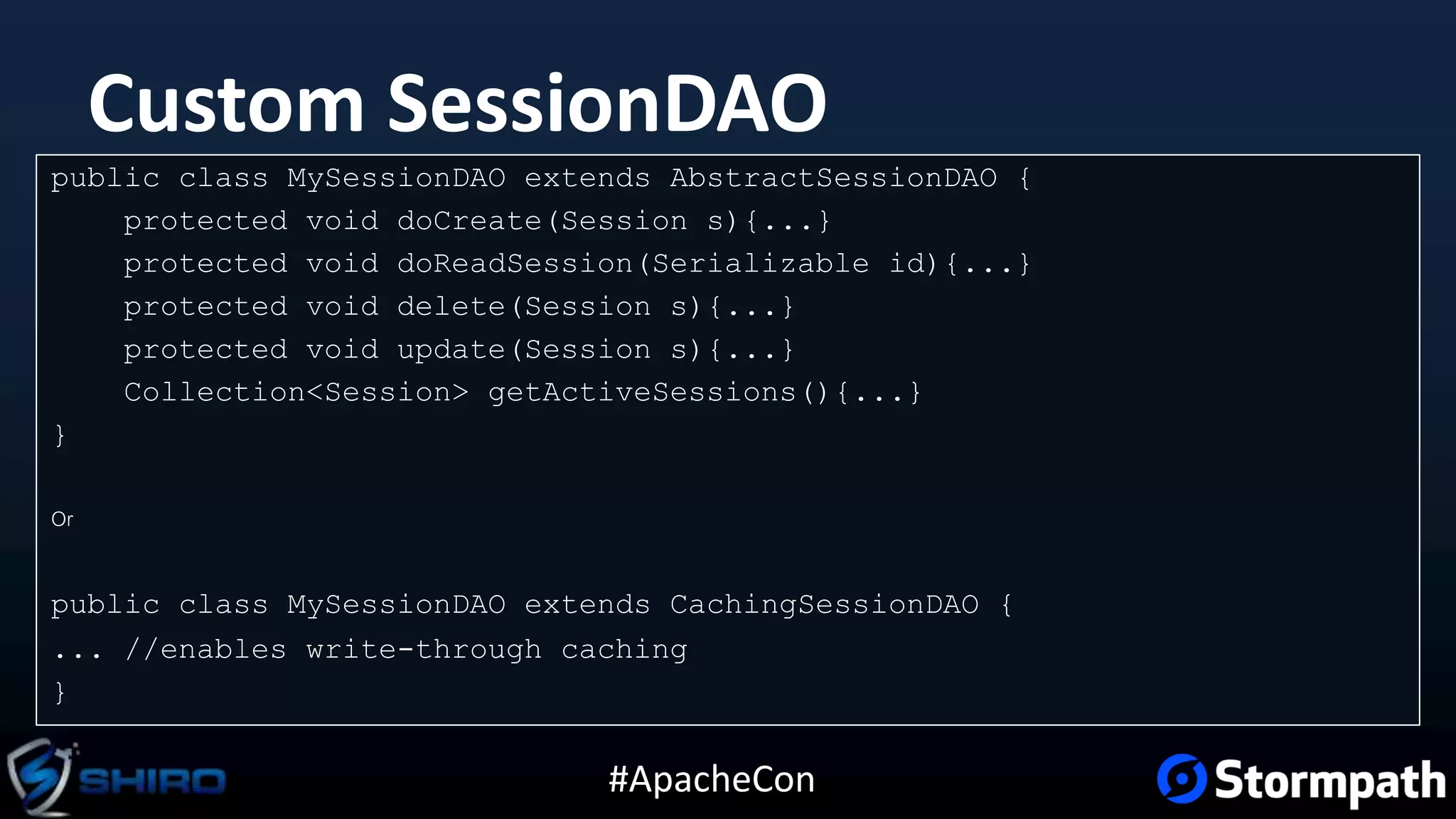

Custom SessionDAO
public class MySessionDAO extends AbstractSessionDAO {
protected void doCreate(Session s){...}
protected void doReadSession(Serializable id){...}
protected void delete(Session s){...}
protected void update(Session s){...}
Collection<Session> getActiveSessions(){...}
}
Or
public class MySessionDAO extends CachingSessionDAO {
... //enables write-through caching
}

29. #ApacheCon

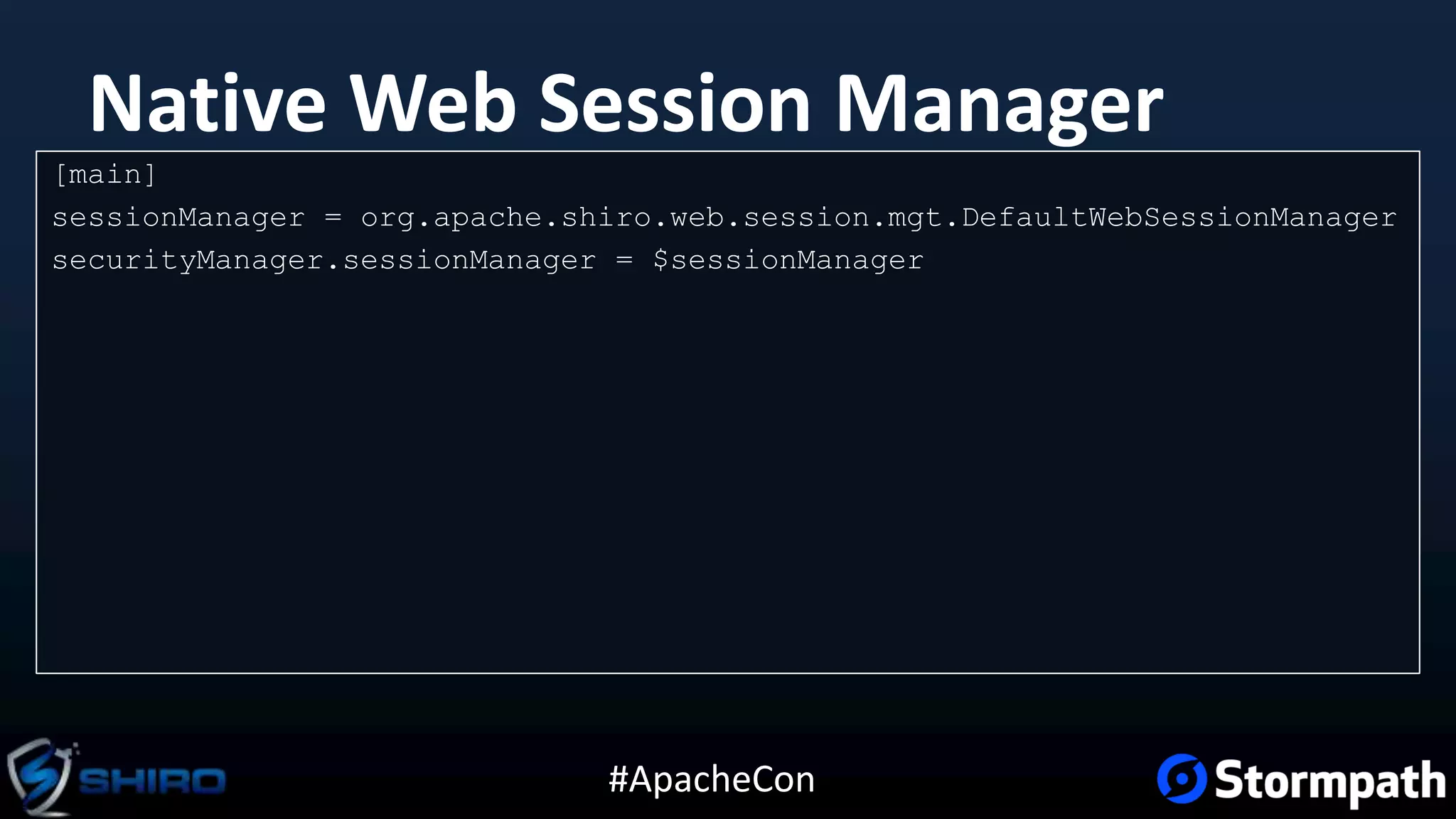

Native Web Session Manager
[main]
sessionManager = org.apache.shiro.web.session.mgt.DefaultWebSessionManager
securityManager.sessionManager = $sessionManager

30. #ApacheCon
Cassandra SessionDAO
[main]
...
cassandraCluster = com.leshazlewood.samples.shiro.cassandra.ClusterFactory
sessionDAO = com.leshazlewood.samples.shiro.cassandra.CassandraSessionDAO
sessionDAO.cluster = $cassandraCluster
sessionDAO.keyspaceName = shirosessions
sessionDAO.tableName = sessions
...

31. #ApacheCon

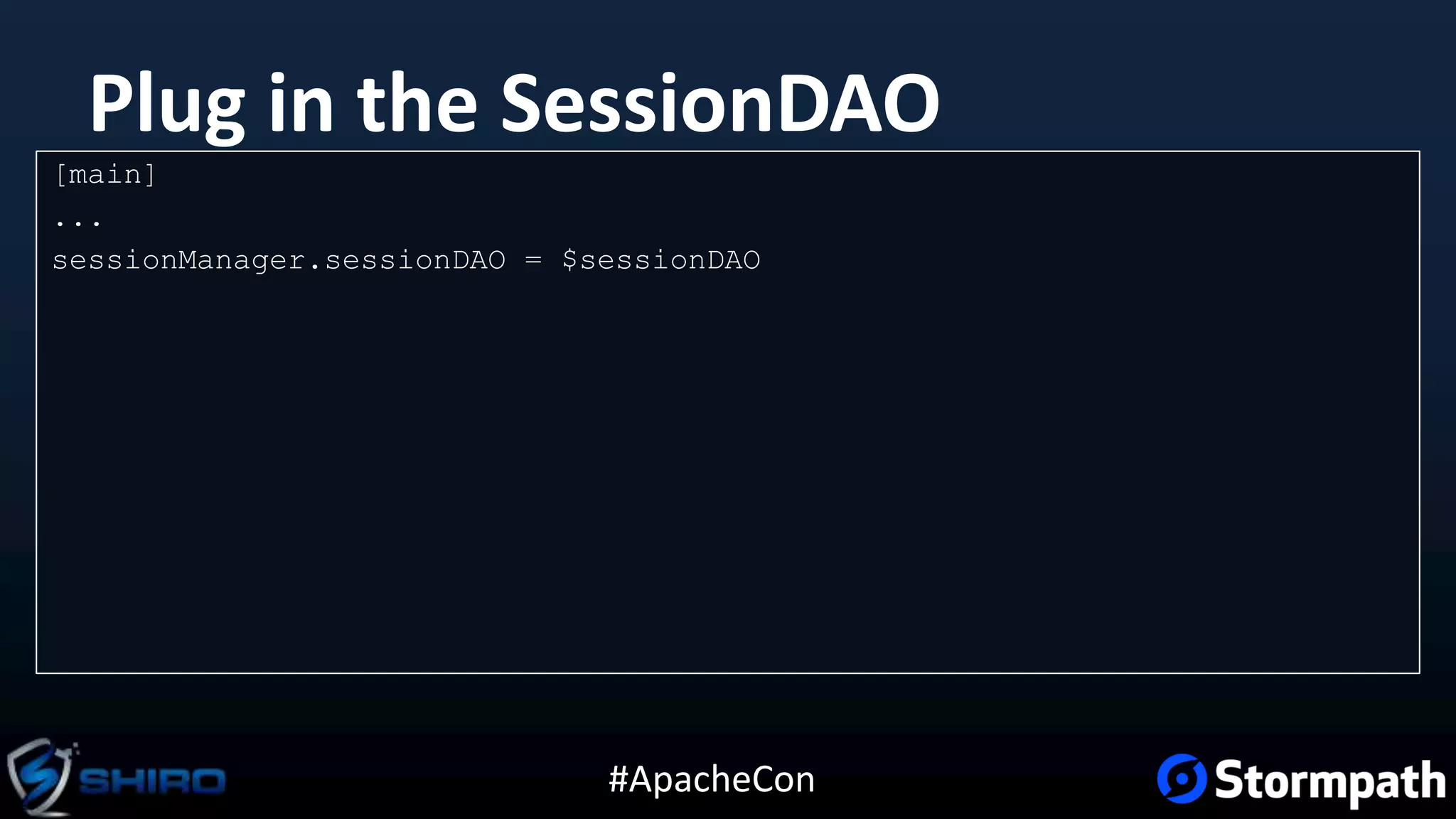

Plug in the SessionDAO
[main]
...
sessionManager.sessionDAO = $sessionDAO

32. #ApacheCon

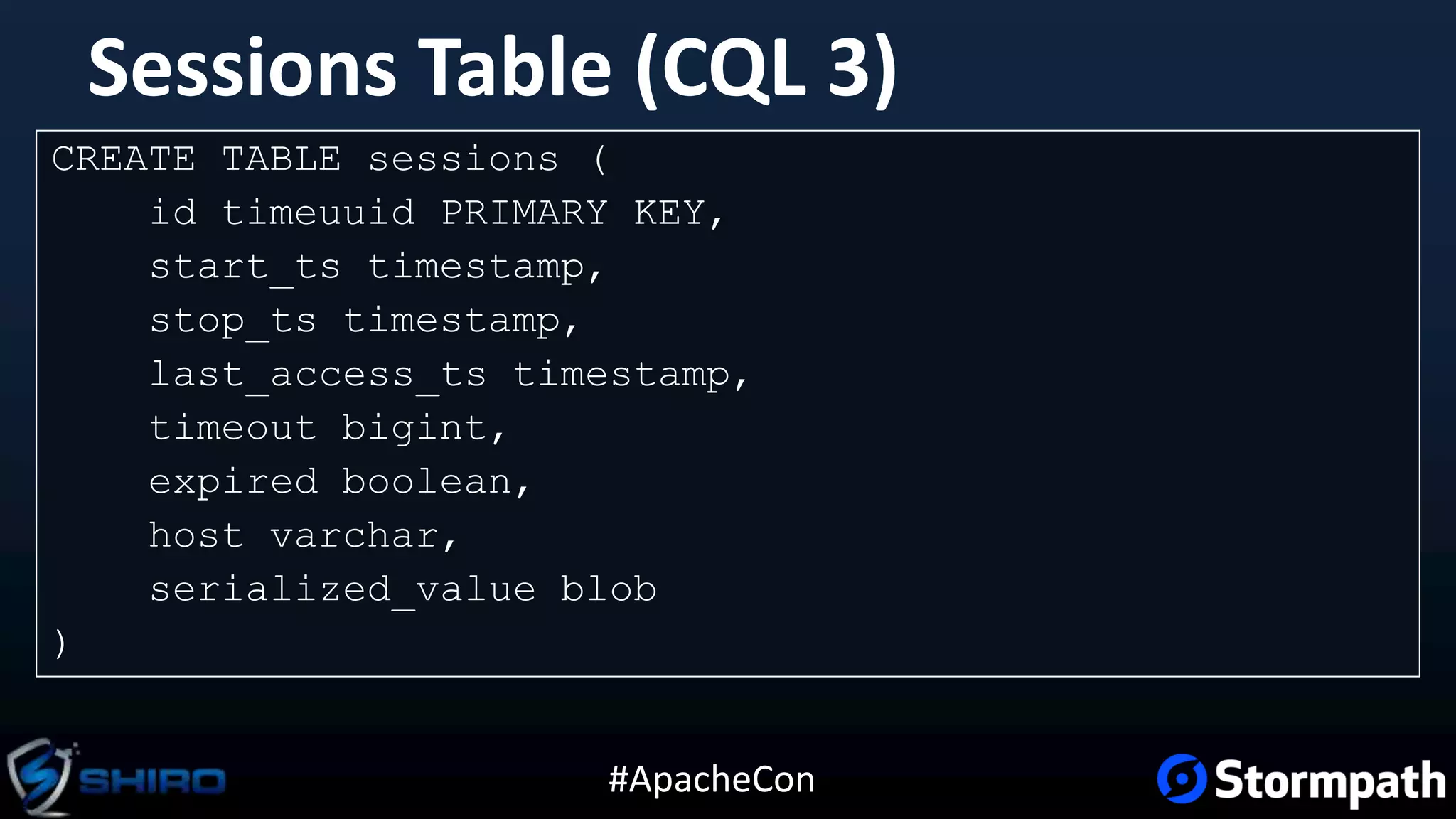

Sessions Table (CQL 3)
CREATE TABLE sessions (
id timeuuid PRIMARY KEY,
start_ts timestamp,
stop_ts timestamp,
last_access_ts timestamp,
timeout bigint,
expired boolean,
host varchar,
serialized_value blob
)

33. #ApacheCon
No Validation Scheduler?

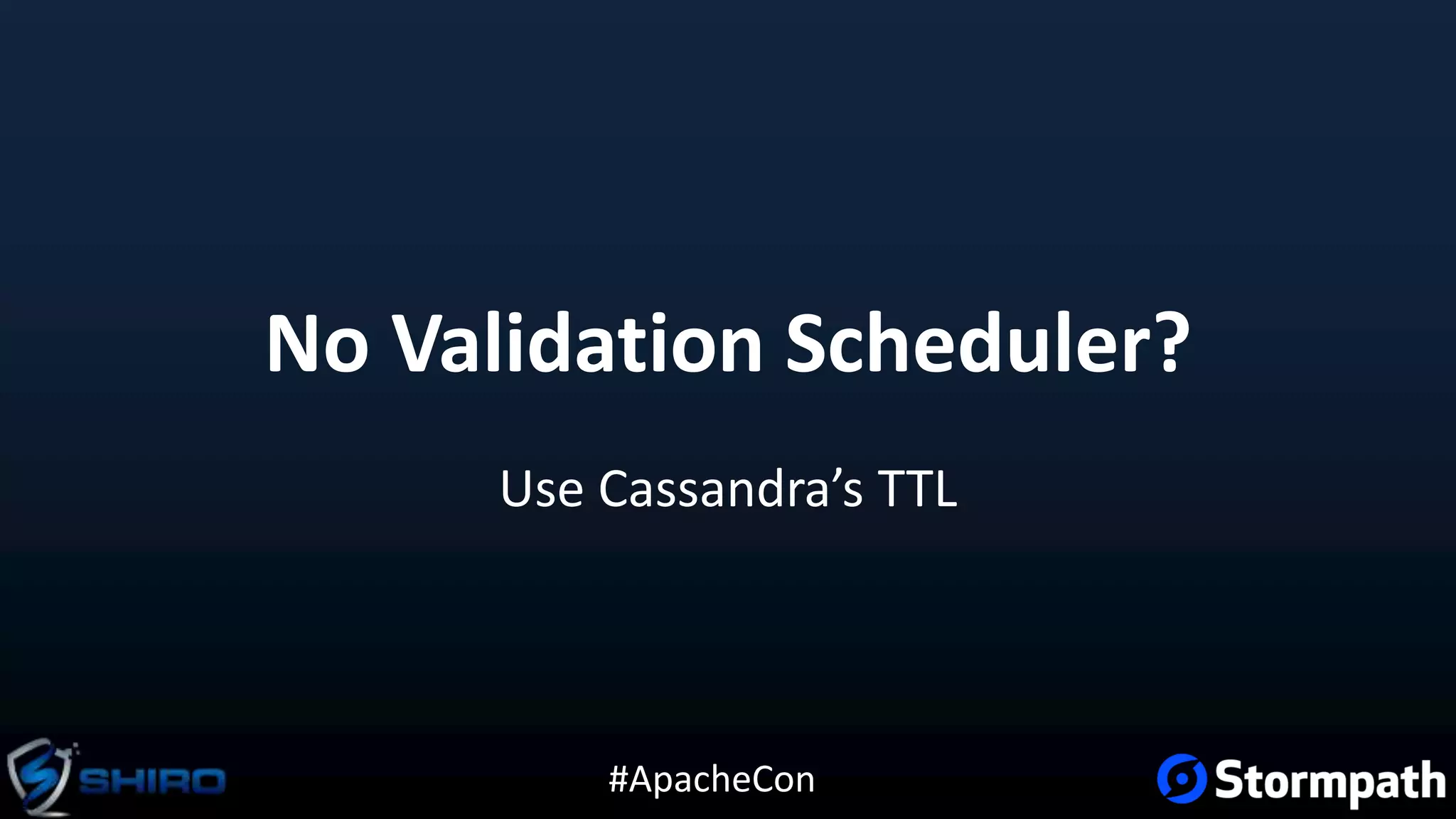

34. #ApacheCon
No Validation Scheduler?
Use Cassandra’s TTL

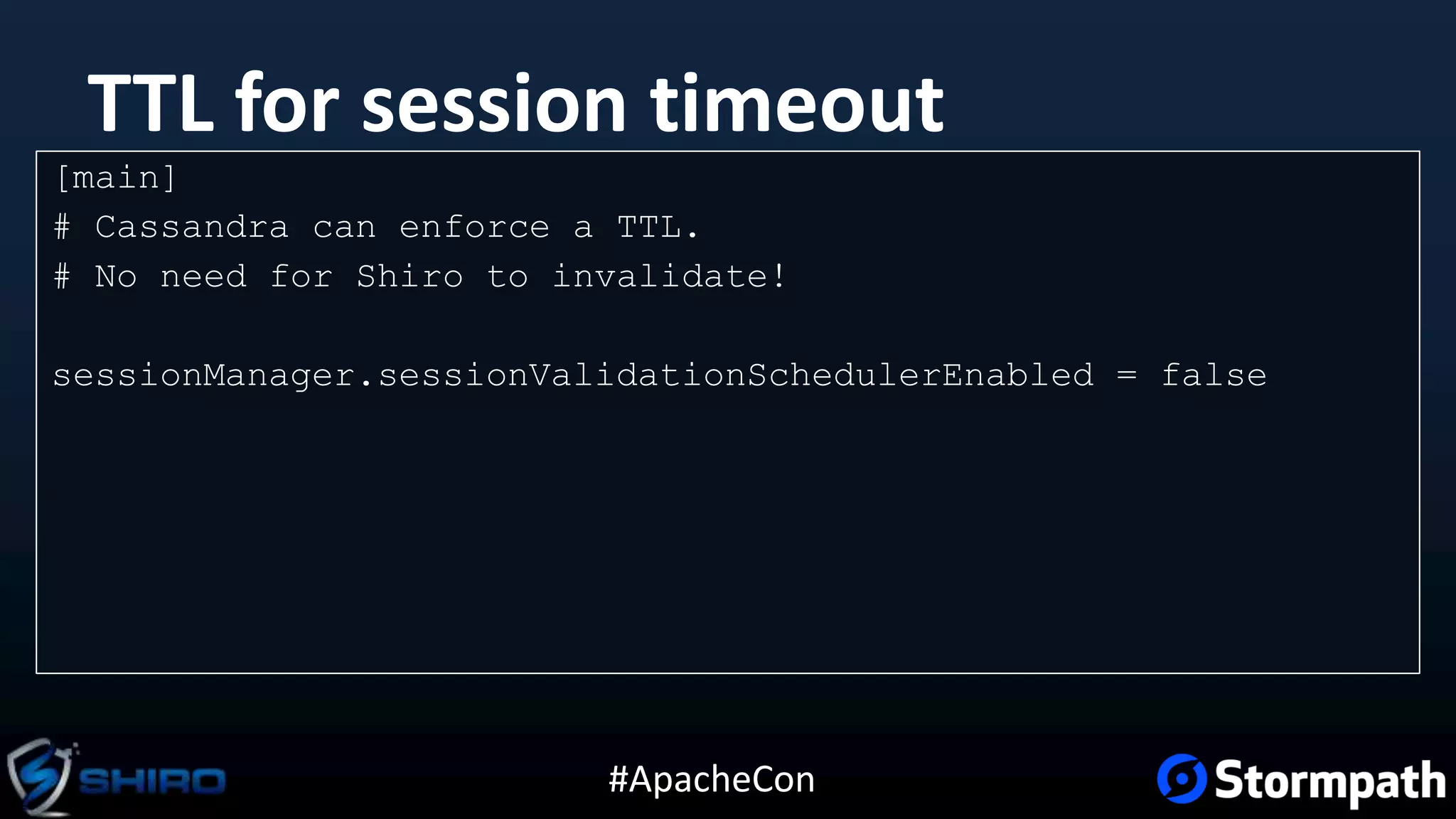

35. #ApacheCon
TTL for session timeout
[main]
# Cassandra can enforce a TTL.
# No need for Shiro to invalidate!
sessionManager.sessionValidationSchedulerEnabled = false

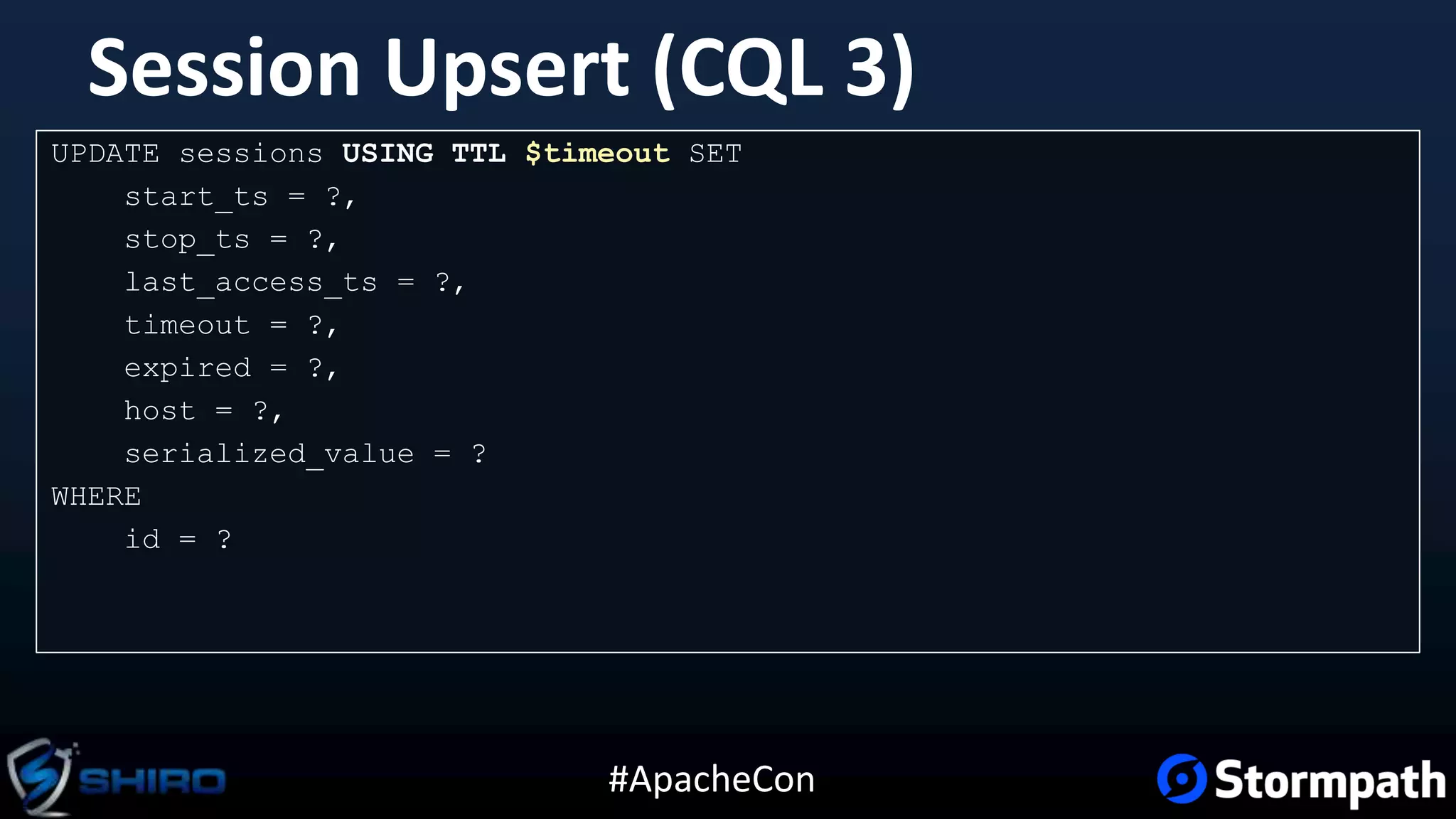

36. #ApacheCon
Session Upsert (CQL 3)
UPDATE sessions USING TTL $timeout SET
start_ts = ?,
stop_ts = ?,
last_access_ts = ?,
timeout = ?,
expired = ?,
host = ?,
serialized_value = ?
WHERE
id = ?

37. #ApacheCon
But what about tombstones!?!?

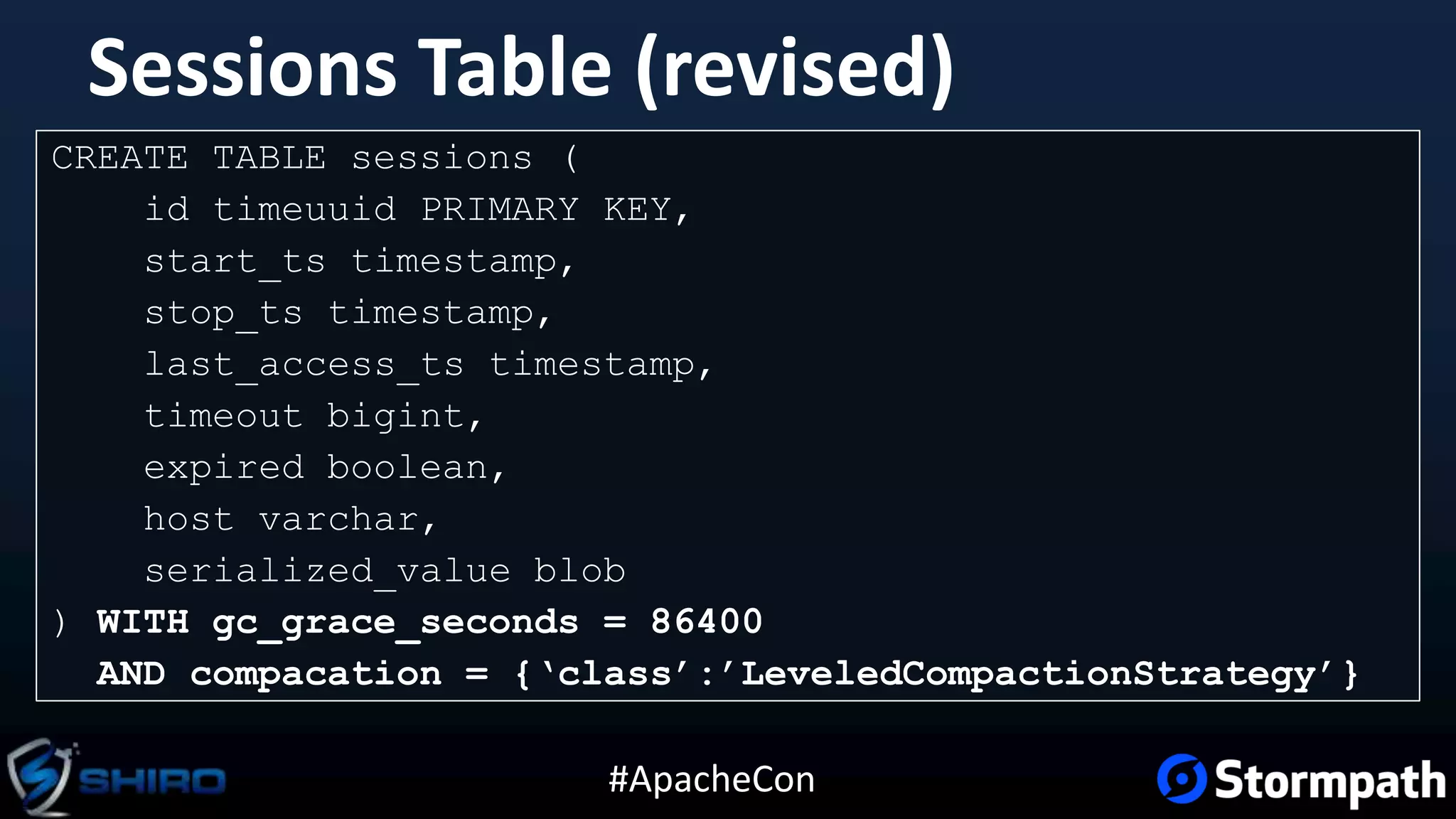

38. #ApacheCon
Sessions Table (revised)
CREATE TABLE sessions (
id timeuuid PRIMARY KEY,
start_ts timestamp,
stop_ts timestamp,
last_access_ts timestamp,
timeout bigint,
expired boolean,
host varchar,
serialized_value blob
) WITH gc_grace_seconds = 86400
AND compacation = {‘class’:’LeveledCompactionStrategy’}

39. #ApacheCon
But what about row caching?

40. #ApacheCon

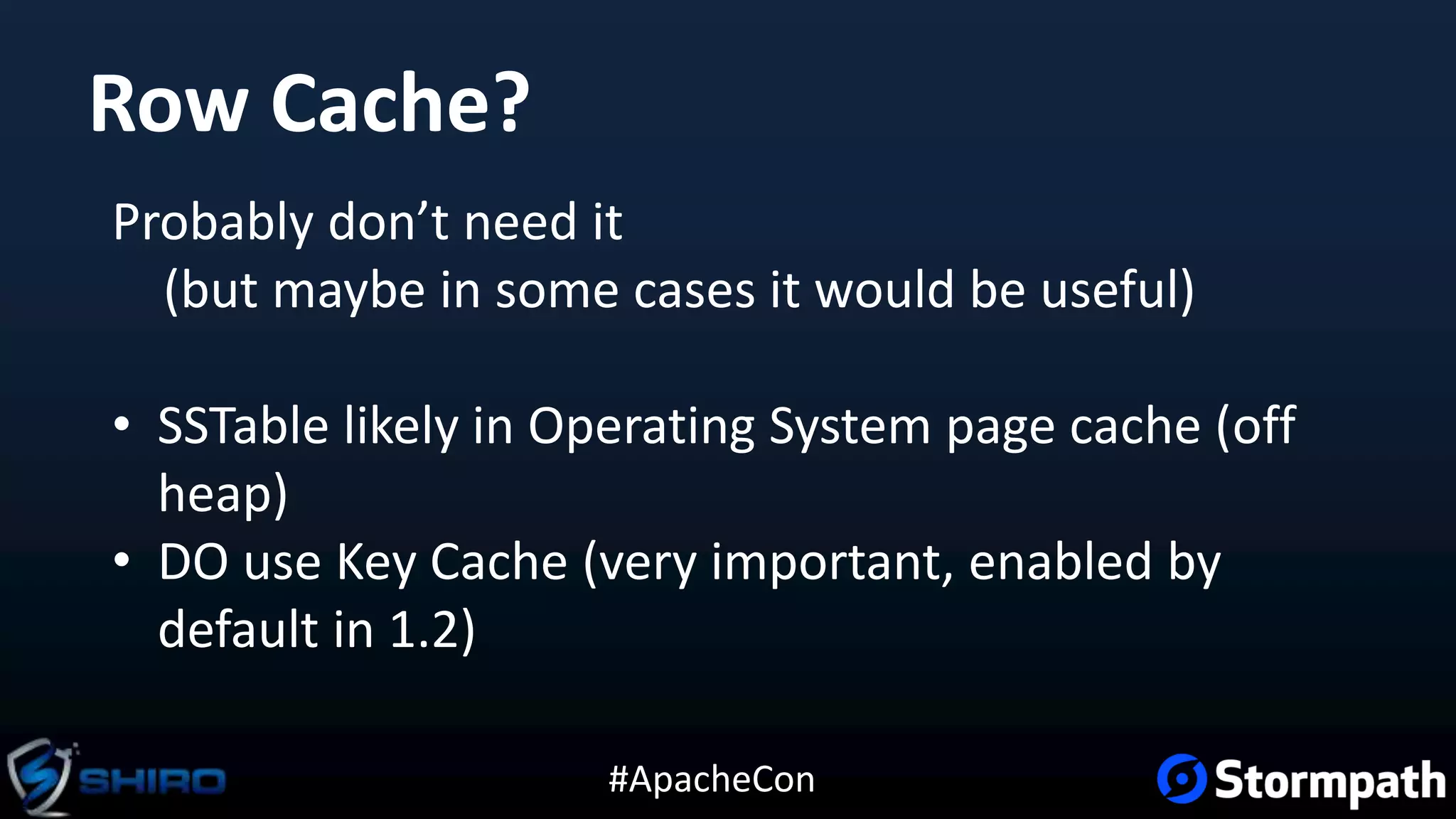

Row Cache?
Probably don’t need it
(but maybe in some cases it would be useful)
• SSTable likely in Operating System page cache (off
heap)
• DO use Key Cache (very important, enabled by
default in 1.2)

41. #ApacheCon

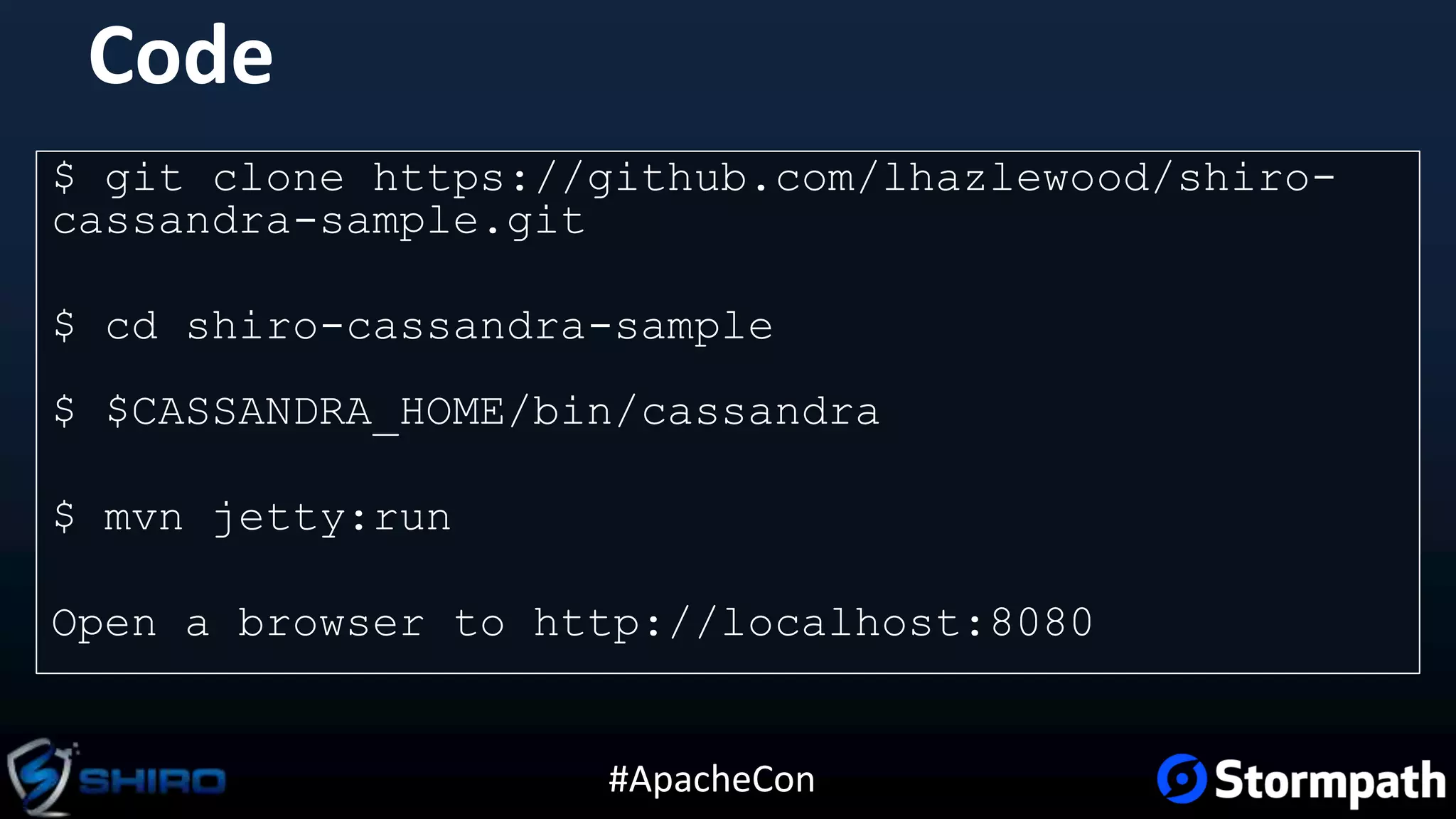

Code
$ git clone https://github.com/lhazlewood/shiro-
cassandra-sample.git
$ cd shiro-cassandra-sample
$ $CASSANDRA_HOME/bin/cassandra
$ mvn jetty:run
Open a browser to http://localhost:8080

42. #ApacheCon
Thank You!
• les@stormpath.com
• Twitter: @lhazlewood
• http://www.stormpath.com
