The document discusses several types of storage racking systems including selective pallet racking, shelving systems, double deep pallet racking, drive-in/drive-thru racking, mobile pallet rack and mobile shelving, cantilever racking, flow racking, push back racking, mezzanine floors and multi-tier racking, and rack supported warehouses. Each type of system is designed for storing different types and configurations of items, maximizing storage capacity, and balancing factors like accessibility, throughput, and load capacity. The company Inlogsys Techno provides various racking solutions to meet customers' storage needs.

1. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

2. SELECTIVE PALLET RACKING SYSTEM Selective Pallet Racking is ideal for today’s modern stores, warehouses or distribution centers to meet your formidable load and selectivity challenges. Our Selective Pallet Racking System provides extraordinary strength because they are made of our unique “Sturdy Embossed ’’ profile using high strength steel. It allows the flexibility to store or handle palletized materials for virtually every industry. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

3. SHELVING SYSTEM Shelving system is designed to store non-palletized goods. Shelving is designed for loading/unloading goods manually or with Order Pickers. Stored goods can be from smallest components to large and odd shaped items. It can be customized as per the specific requirements of clients. Static, mobile and multi-tiers shelves are commonly preferred applications. Shelving can be standard, wide span or long span with load capacities ranging from normal duty to extra heavy duty. Shelving system can also be categorized depending on size and weight of material to be stored like, Light Boy, Strong Boy & Long Boy Inlogsys Techno Pvt. Ltd. By Santosh Tatti

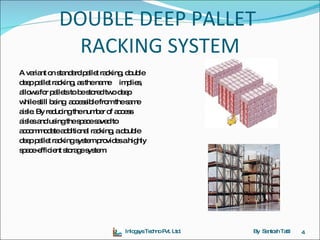

4. DOUBLE DEEP PALLET RACKING SYSTEM A variant on standard pallet racking, double deep pallet racking, as the name implies, allows for pallets to be stored two deep while still being accessible from the same aisle. By reducing the number of access aisles and using the space saved to accommodate additional racking, a double deep pallet racking system provides a highly space-efficient storage system. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

5. DRIVE-IN / DRIVE-THRU RACKING SYSTEM Drive-In / Drive-Thru Racking is suggested for applications where space utilization is more important than selectivity. For Last In First Out (LIFO) capability the Drive-In allows only one common entrance / exit in the front of the system, while for First in First Out (FIFO) capability the Drive-Thru allows front and rear aisles. The system offer high cubic space utilization while being quite stable. Safety is ensured through use of guide rails. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

6. MOBILE PALLET RACK & MOBILE SHELVING SYSTEM Mobile racking increases storage capacity up to 125%. The racking is mounted on mobile chassis, which run on rails along the breadth and some times along the length. Generally only one aisle is available for storing/retrieving for material handling equipments like Reach Truck and this aisle gets shared by all the mobile units. Mobile racking can be manual, mechanically or even power driven. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

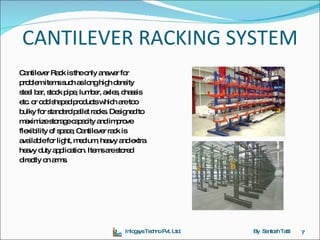

7. CANTILEVER RACKING SYSTEM Cantilever Rack is the only answer for problem items such as long high density steel bar, stock pipe, lumber, axles, chassis etc. or odd shaped products which are too bulky for standard pallet racks. Designed to maximize storage capacity and improve flexibility of space, Cantilever rack is available for light, medium, heavy and extra heavy duty application. Items are stored directly on arms. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

8. FLOW RACKING SYSTEM Flow racking or dynamic storage system has inventory in cartons or on pallets stored on racks combined with rollers or track & wheels. Loading from the rear and unloading from the front ensures a FIFO system. As a load (pallet or carton) is removed, the row of loads behind it automatically moves ahead. Method of loading and unloading include manual, Forklift, Stackers, Reach Trucks, Order Pickers, NA, VNA and even VVNA trucks. This offers high density storage with relatively high level of selectivity and throughput. It is possible to retrofit Drive- In / Drive-Thru racking into a flow racking system. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

9. PUSH BACK RACKING SYSTEM Push Back Racking has pallets placed on carts which can be pushed along the depth to combine the advantages of pallet flow racking and Drive-In Racking for high turnover warehouses and distribution centers. By storing pallets 3 or 4 deep, it offers both maximum space utilization plus improved picking faces on a single aisle, hence higher productivity. In spite of being a LIFO arrangement the storage and retrieval time is reduced while there is immediate access to all SKU’s. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

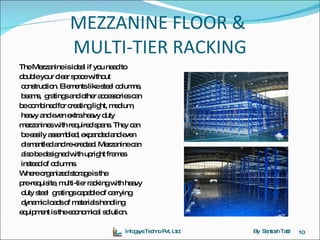

10. MEZZANINE FLOOR & MULTI-TIER RACKING The Mezzanine is ideal if you need to double your clear space without construction. Elements like steel columns, beams, gratings and other accessories can be combined for creating light, medium, heavy and even extra heavy duty mezzanines with required spans. They can be easily assembled, expanded and even dismantled and re-erected. Mezzanine can also be designed with upright frames instead of columns. Where organized storage is the pre-requisite, multi-tier racking with heavy duty steel gratings capable of carrying dynamic loads of materials handling equipment is the economical solution. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

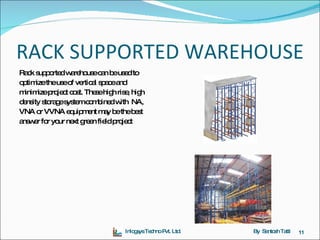

11. RACK SUPPORTED WAREHOUSE Rack supported warehouse can be used to optimize the use of vertical space and minimize project cost. These high rise, high density storage system combined with NA, VNA or VVNA equipment may be the best answer for your next green field project Inlogsys Techno Pvt. Ltd. By Santosh Tatti

12. Inlogsys Techno Pvt. Ltd. By Santosh Tatti

13. Inlogsys Techno Pvt. Ltd. By Santosh Tatti
