This document describes Unique's industrial racking solutions. It summarizes Unique's broad product range of selective pallet racks, multi-tier racks, drive-in systems, multi-deep racking with radio shuttles, long span shelving racks, mezzanine flooring systems, cantilever racks, gravity racks, slotted angle racks, and steel pallets. It then provides details on selective pallet racking systems, benefits of racks, examples of pallet racking systems installed for customers, features of multi-tier racks and drive-in systems, and describes mezzanine flooring, cantilever racks, gravity flow racks, and slotted angle racks. The document concludes with information on Unique's

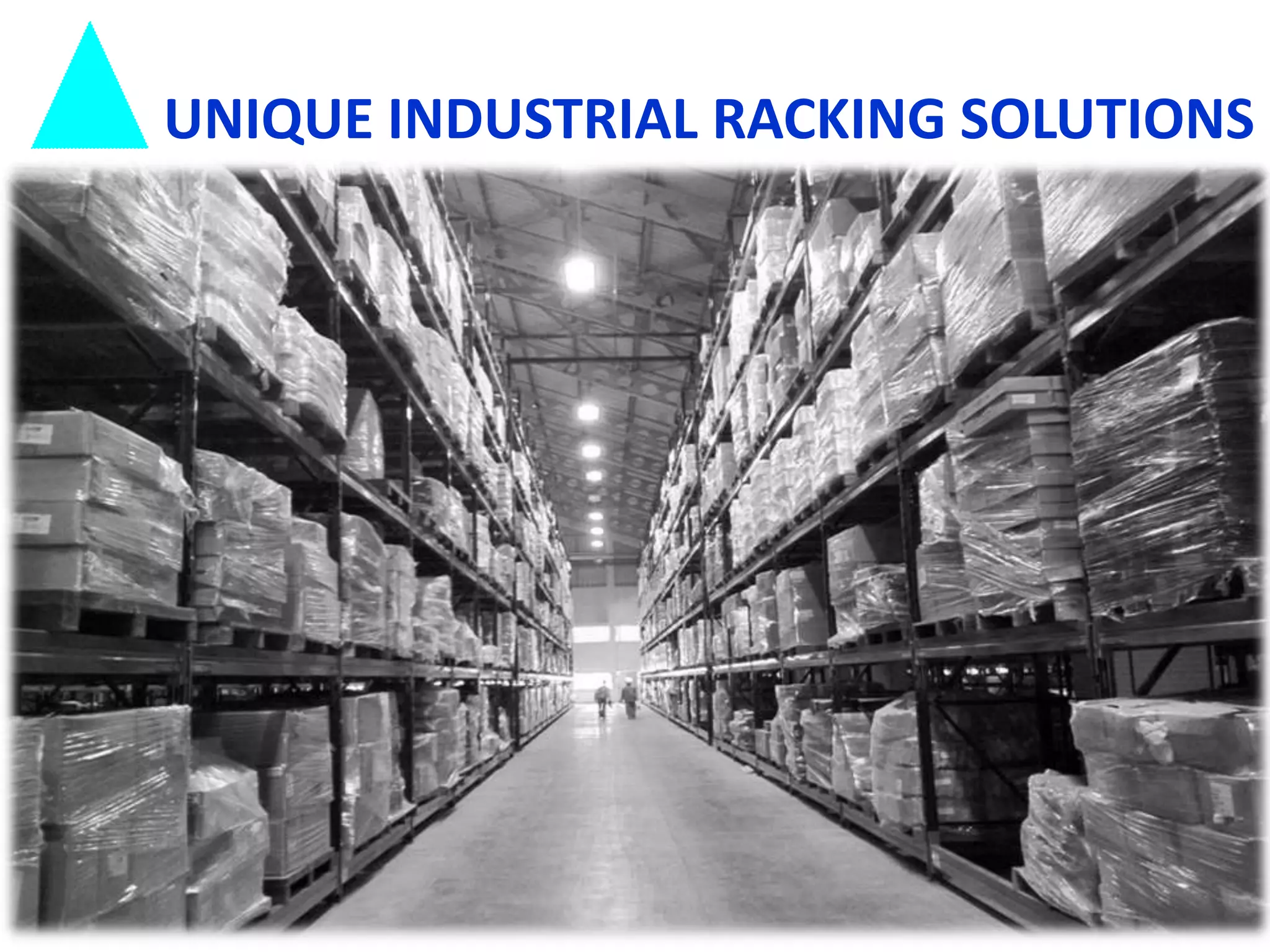

1. UNIQUE INDUSTRIAL RACKING SOLUTIONS

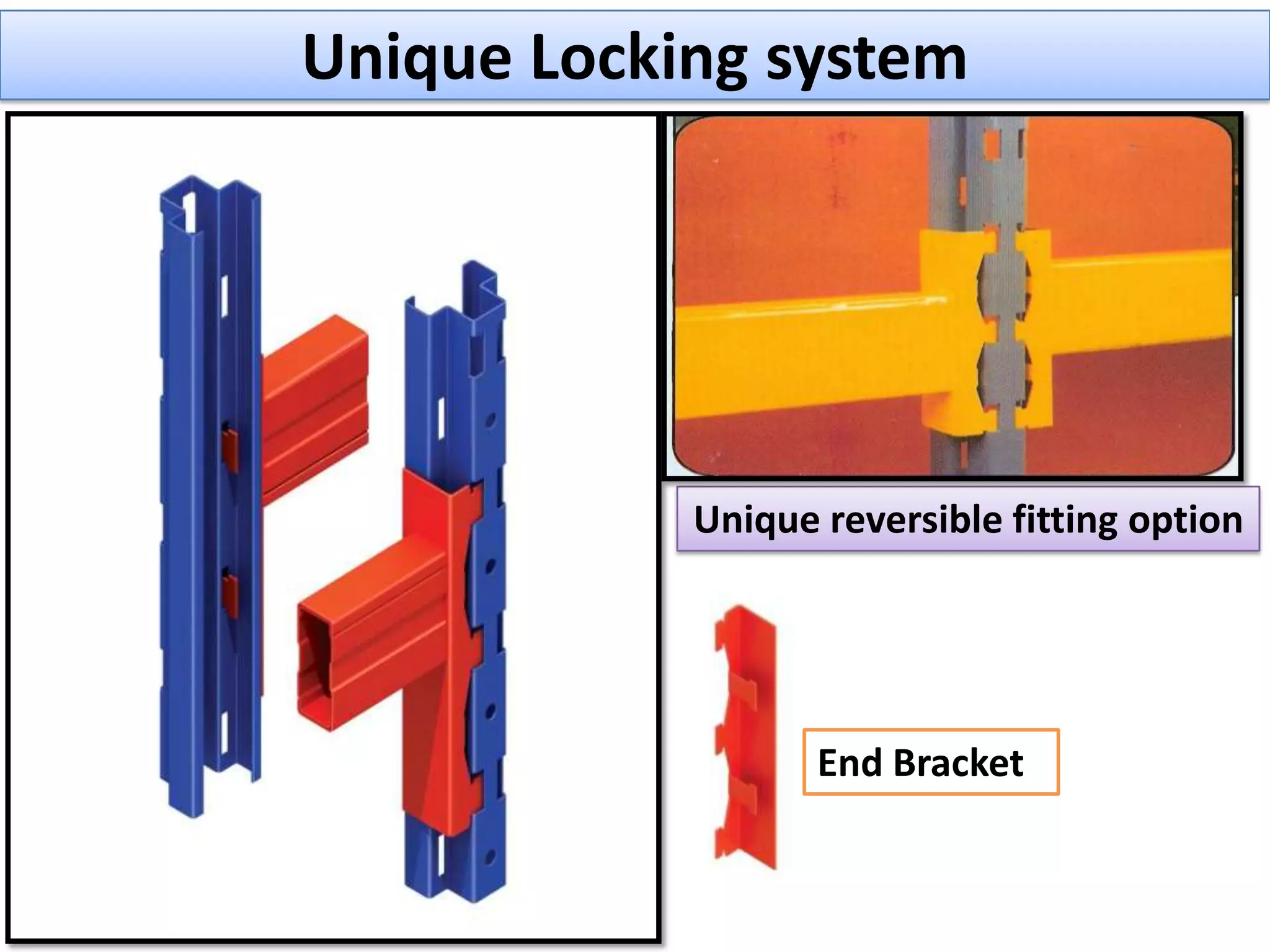

2. Unique Locking system
Unique reversible fitting option
End Bracket

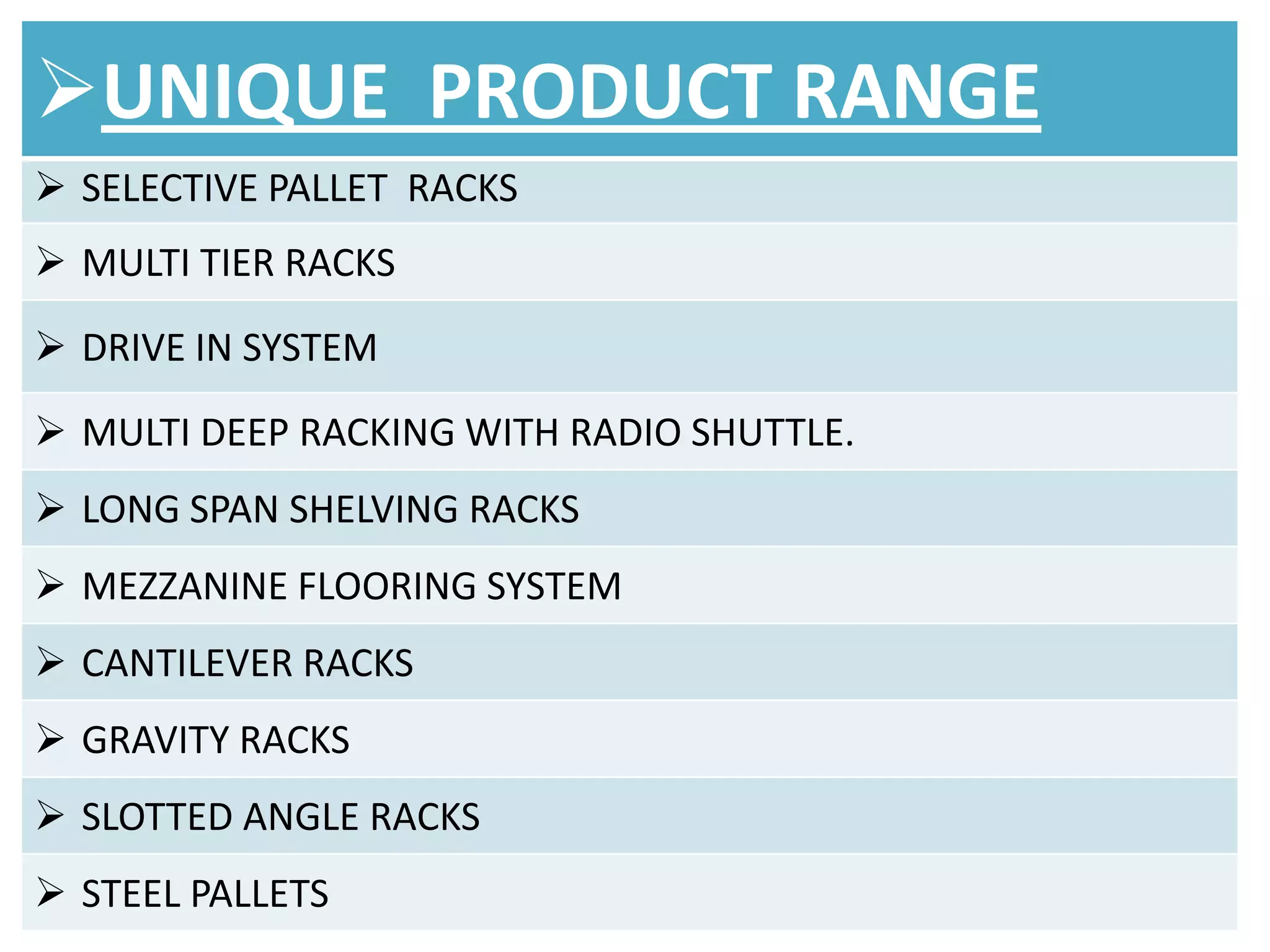

3. UNIQUE PRODUCT RANGE
 SELECTIVE PALLET RACKS
 MULTI TIER RACKS
 DRIVE IN SYSTEM
 MULTI DEEP RACKING WITH RADIO SHUTTLE.
 LONG SPAN SHELVING RACKS
 MEZZANINE FLOORING SYSTEM
 CANTILEVER RACKS
 GRAVITY RACKS
 SLOTTED ANGLE RACKS
 STEEL PALLETS

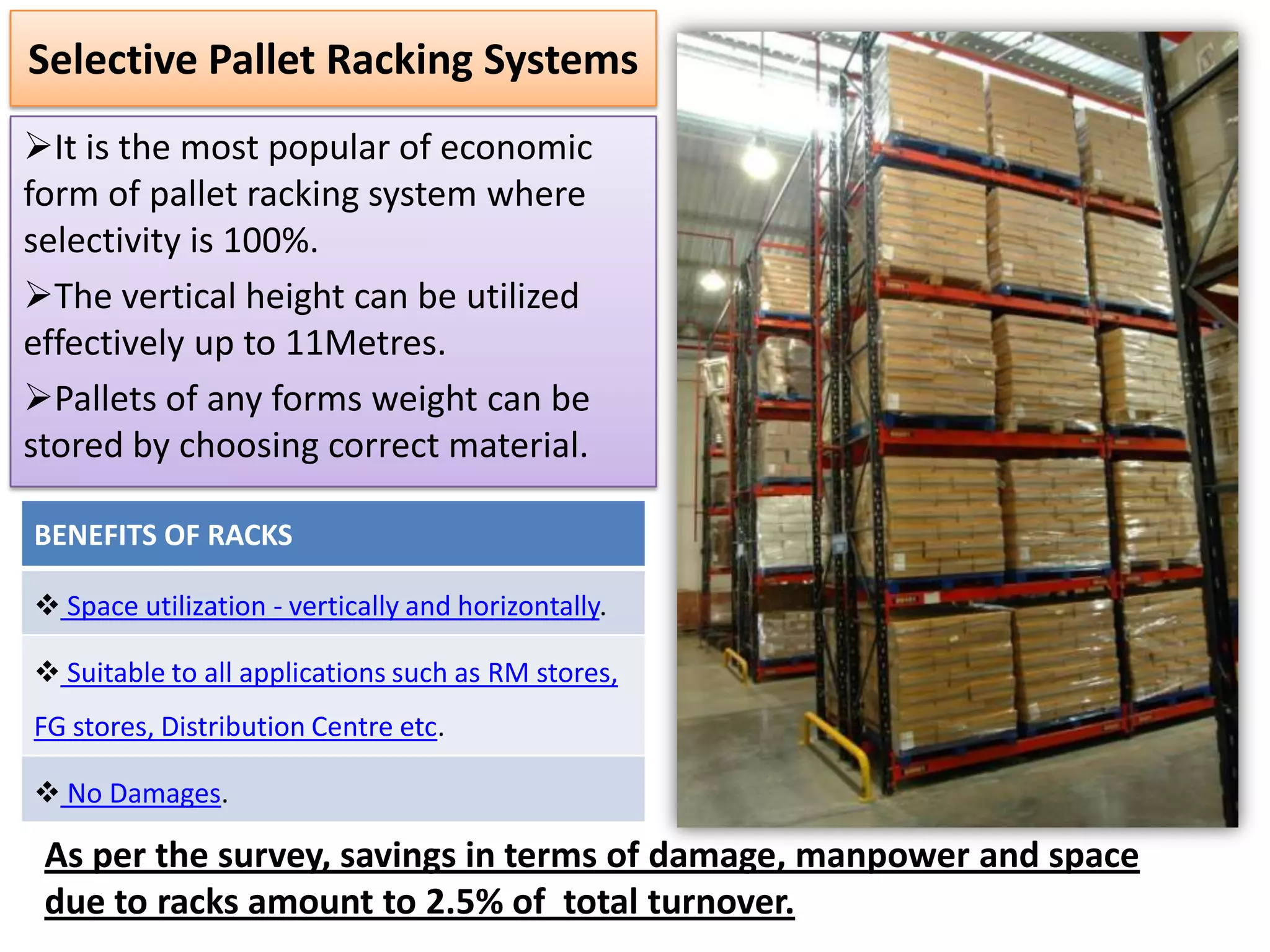

4. Selective Pallet Racking Systems
It is the most popular of economic
form of pallet racking system where
selectivity is 100%.
The vertical height can be utilized
effectively up to 11Metres.
Pallets of any forms weight can be
stored by choosing correct material.
BENEFITS OF RACKS
 Space utilization - vertically and horizontally.
 Suitable to all applications such as RM stores,
FG stores, Distribution Centre etc.
 No Damages.
As per the survey, savings in terms of damage, manpower and space
due to racks amount to 2.5% of total turnover.

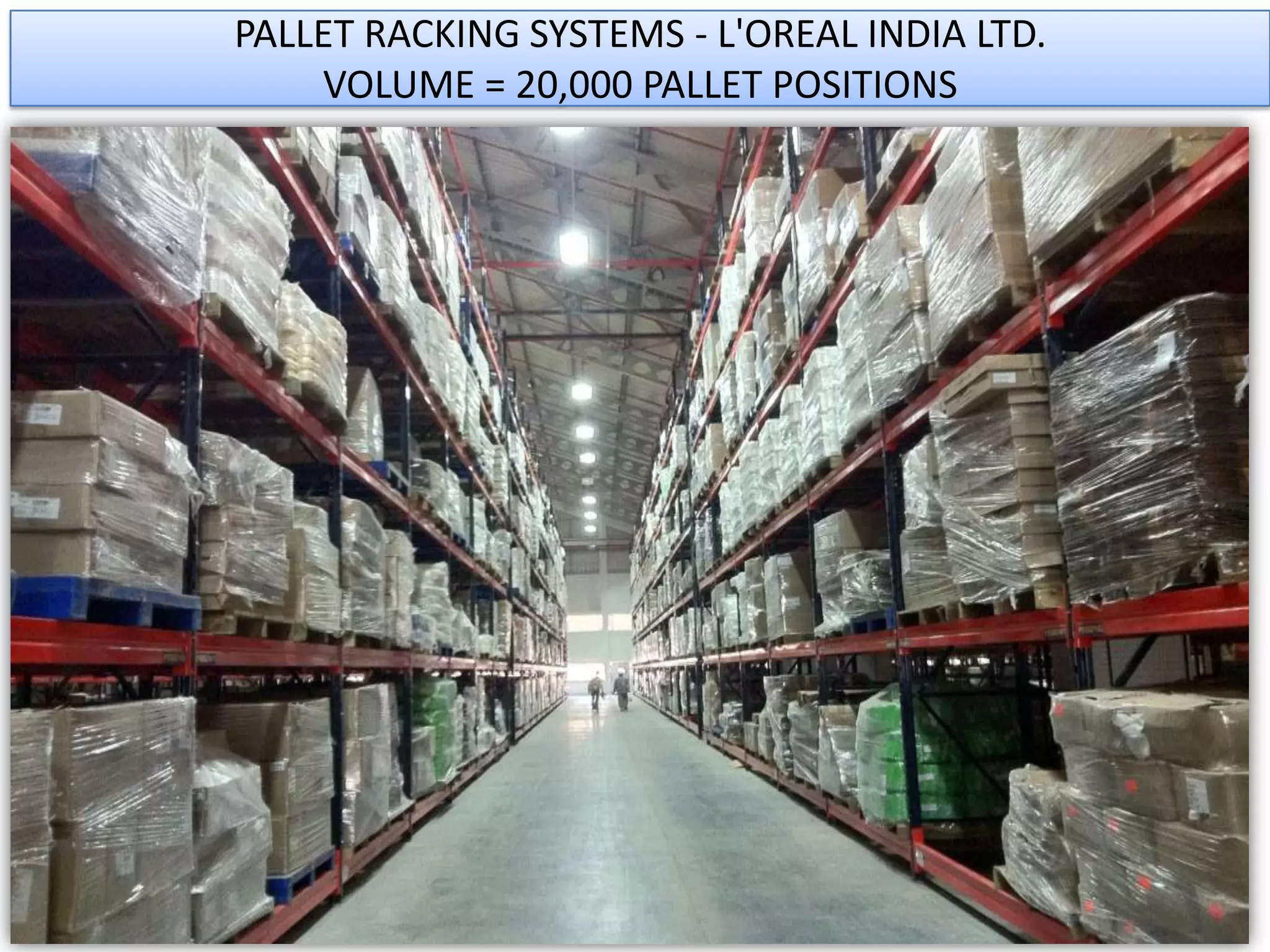

5. PALLET RACKING SYSTEMS - L'OREAL INDIA LTD.
VOLUME = 20,000 PALLET POSITIONS

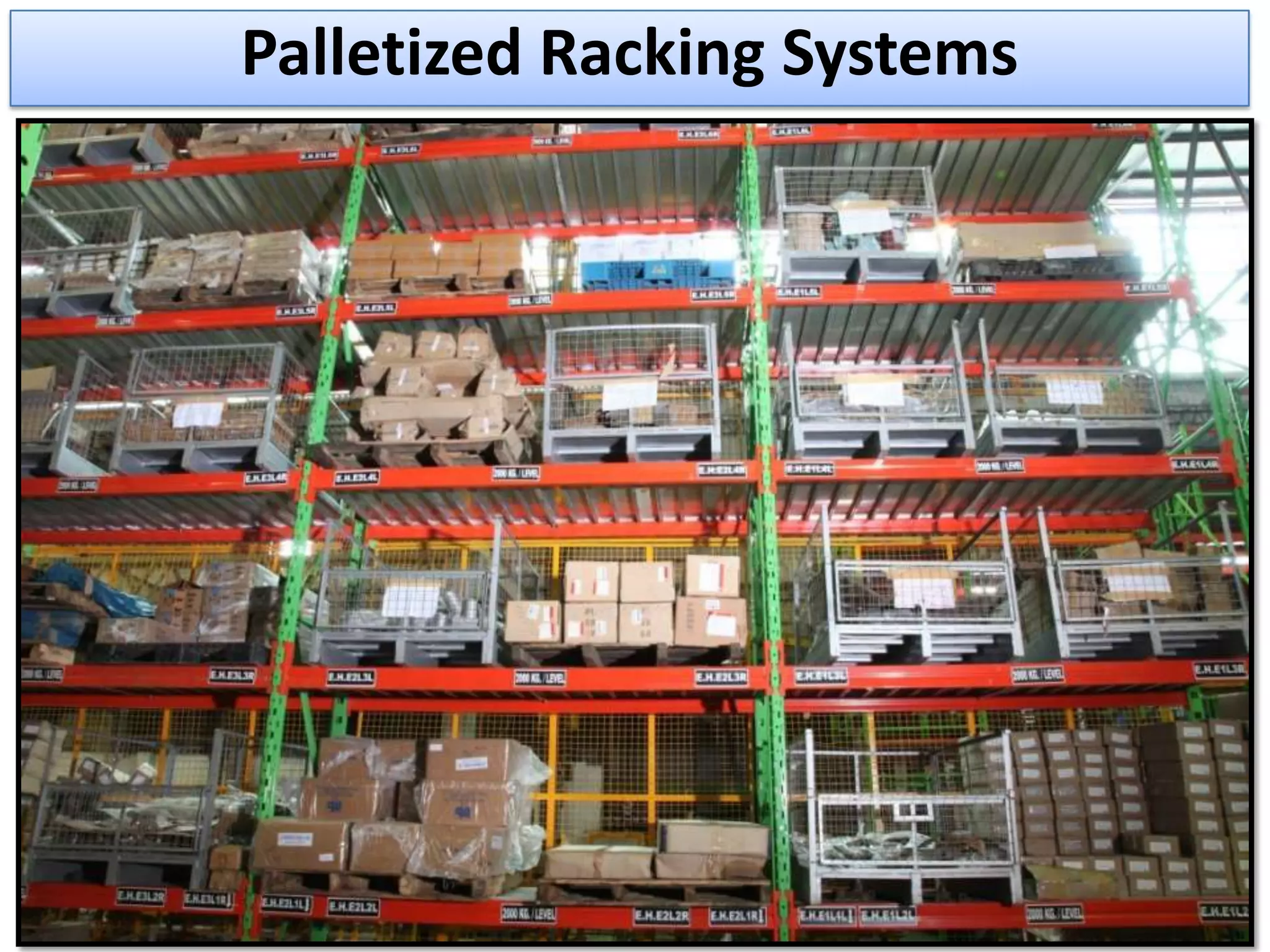

6. Palletized Racking Systems

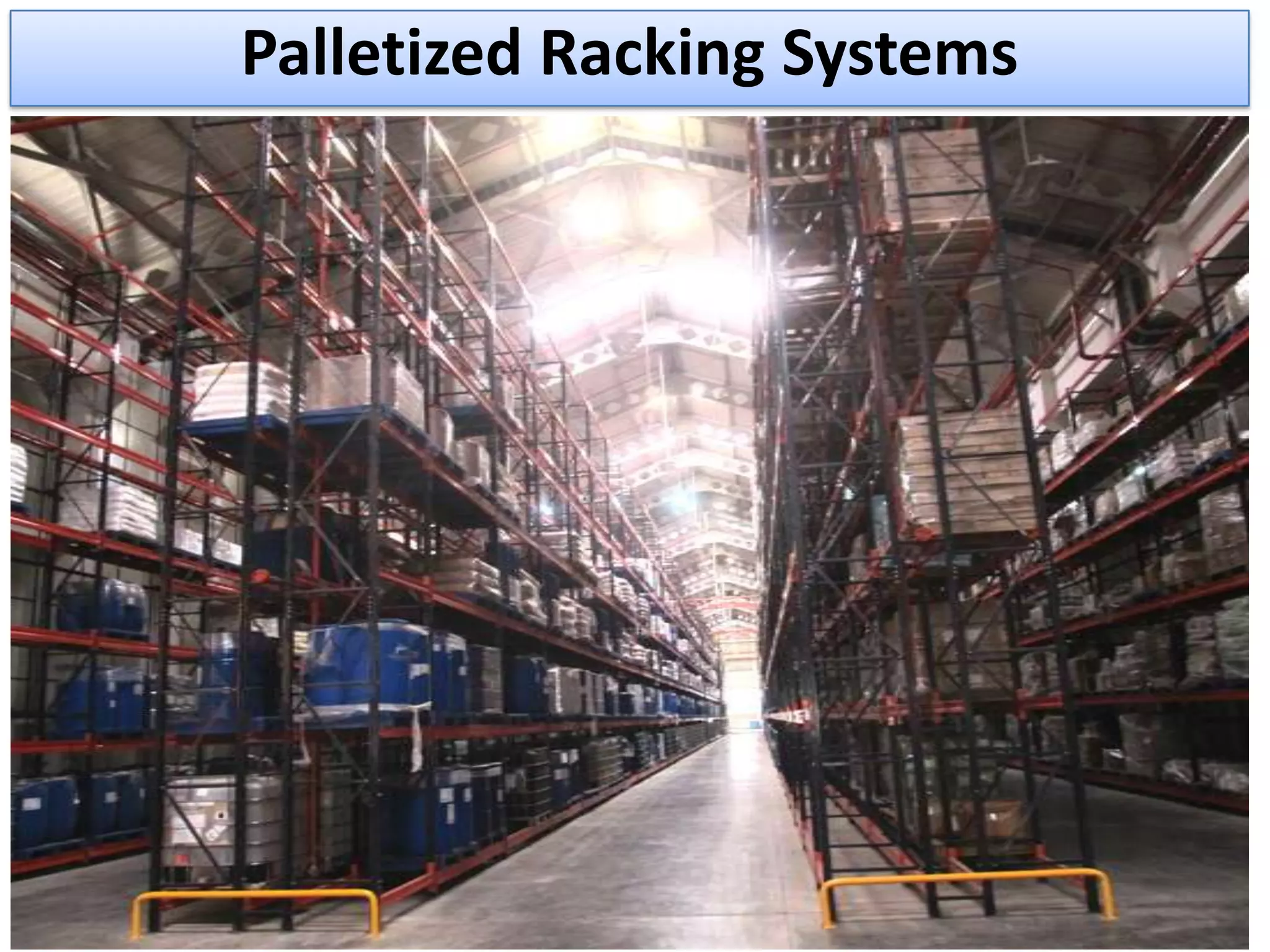

7. Palletized Racking Systems

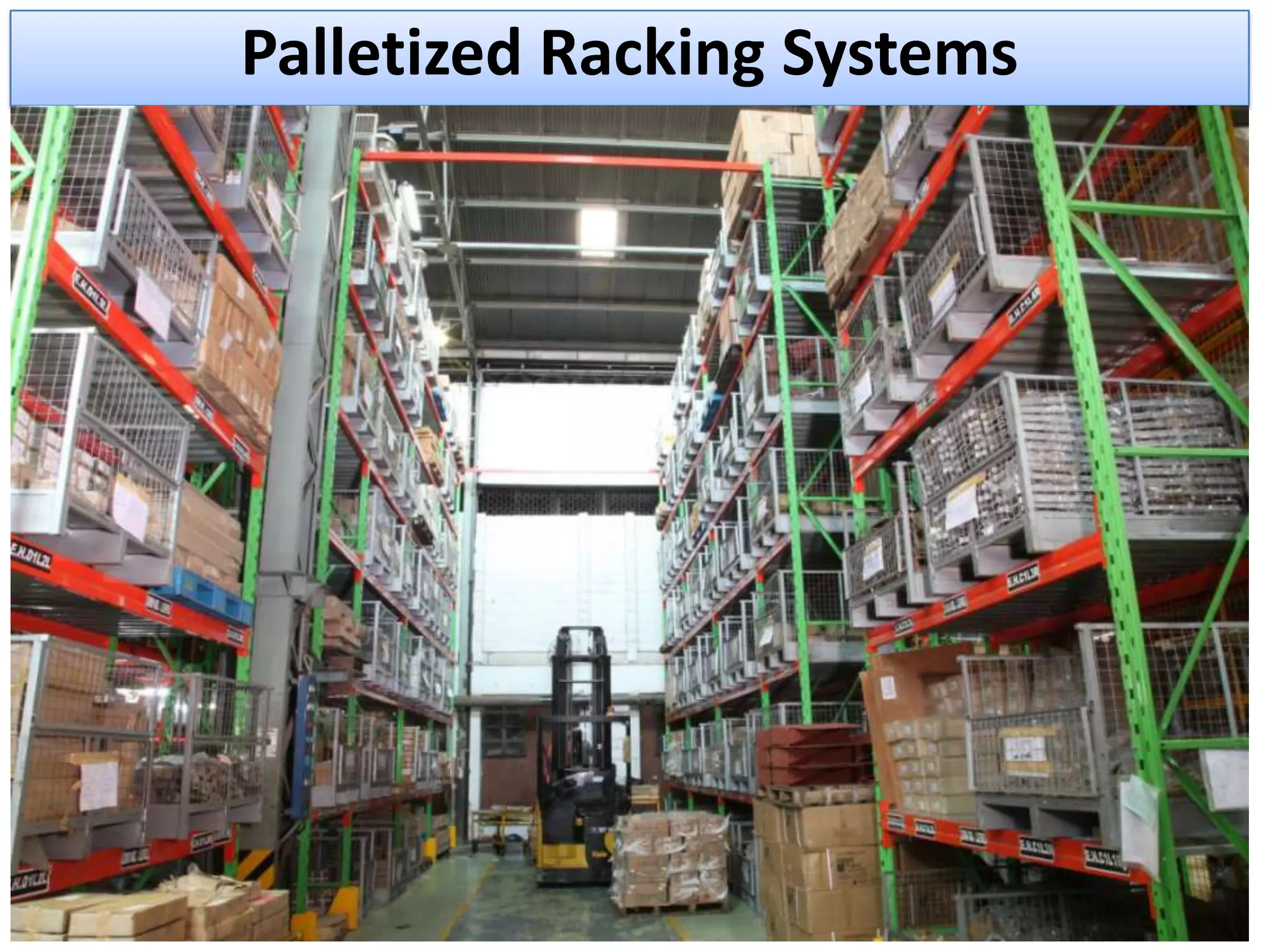

8. Palletized Racking Systems

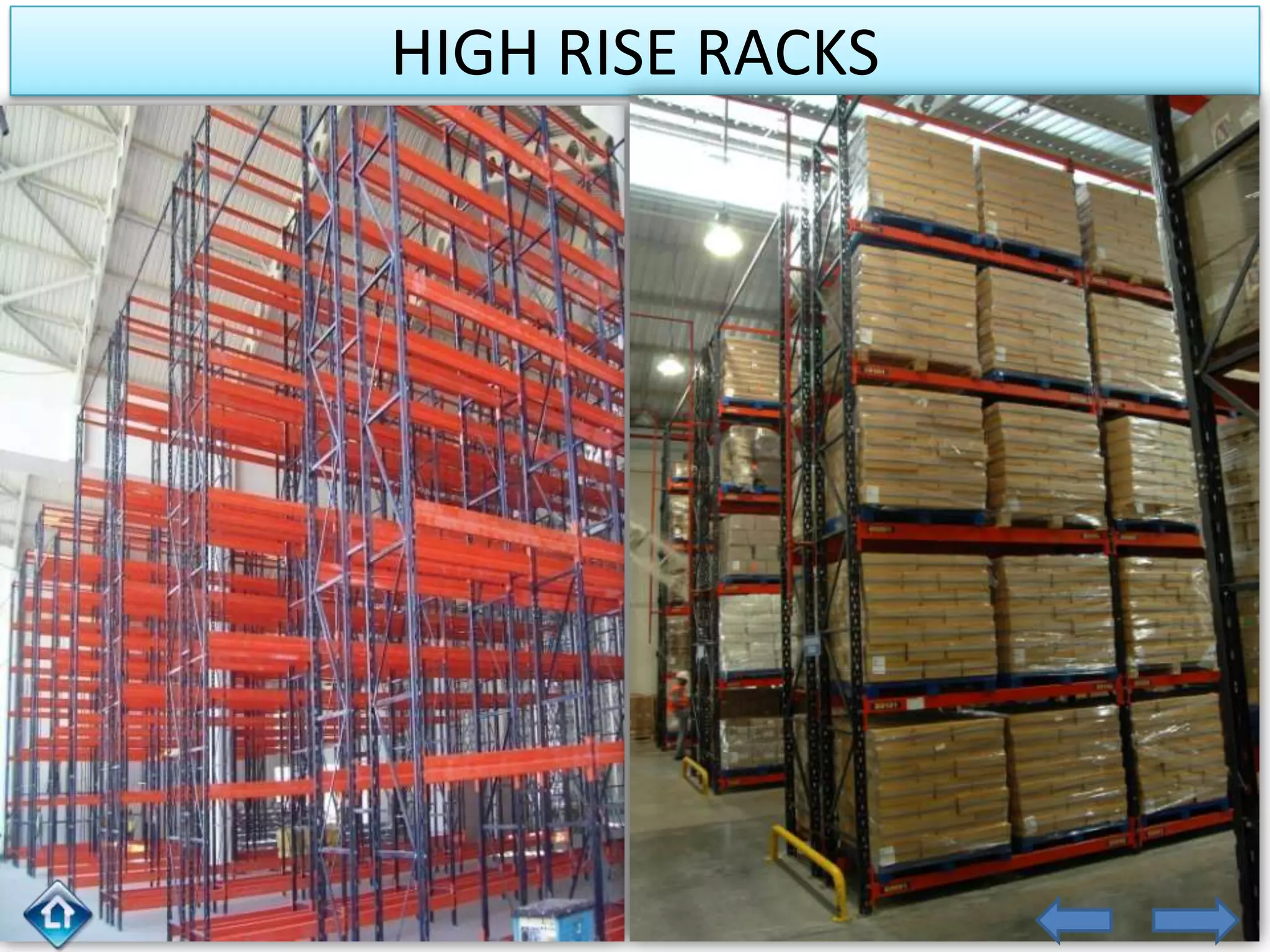

9. HIGH RISE RACKS

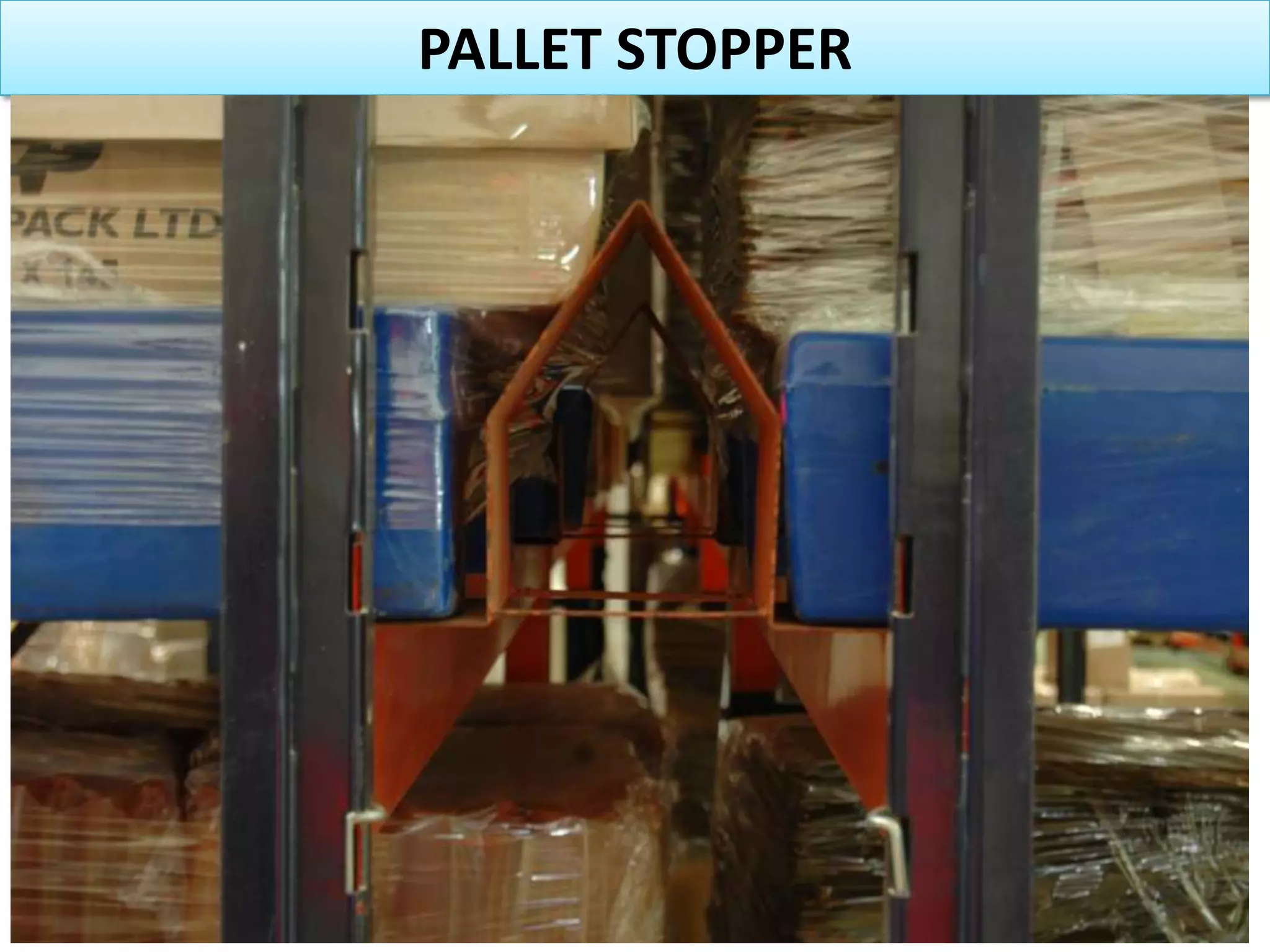

10. PALLET STOPPER

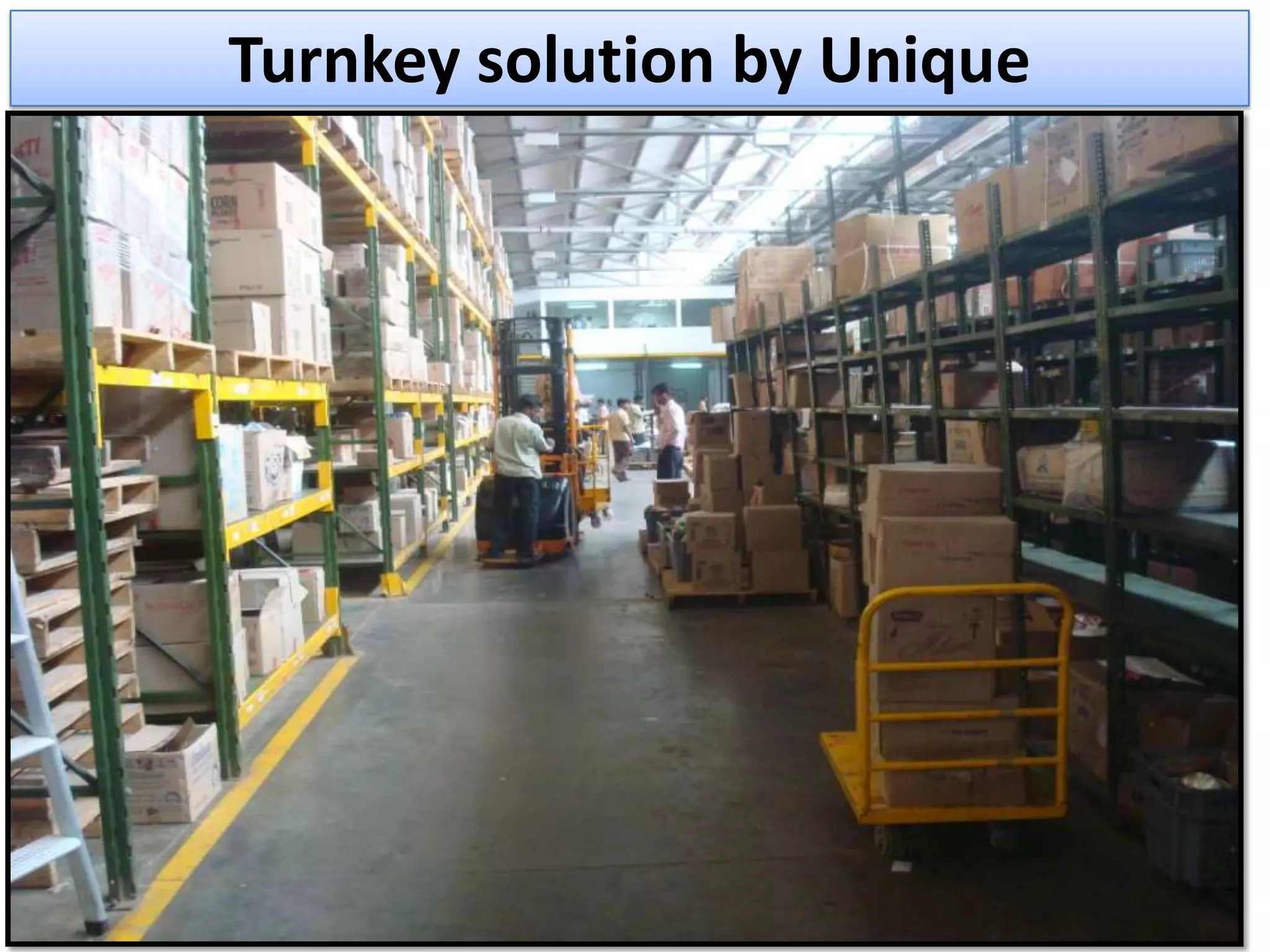

11. Turnkey solution by Unique

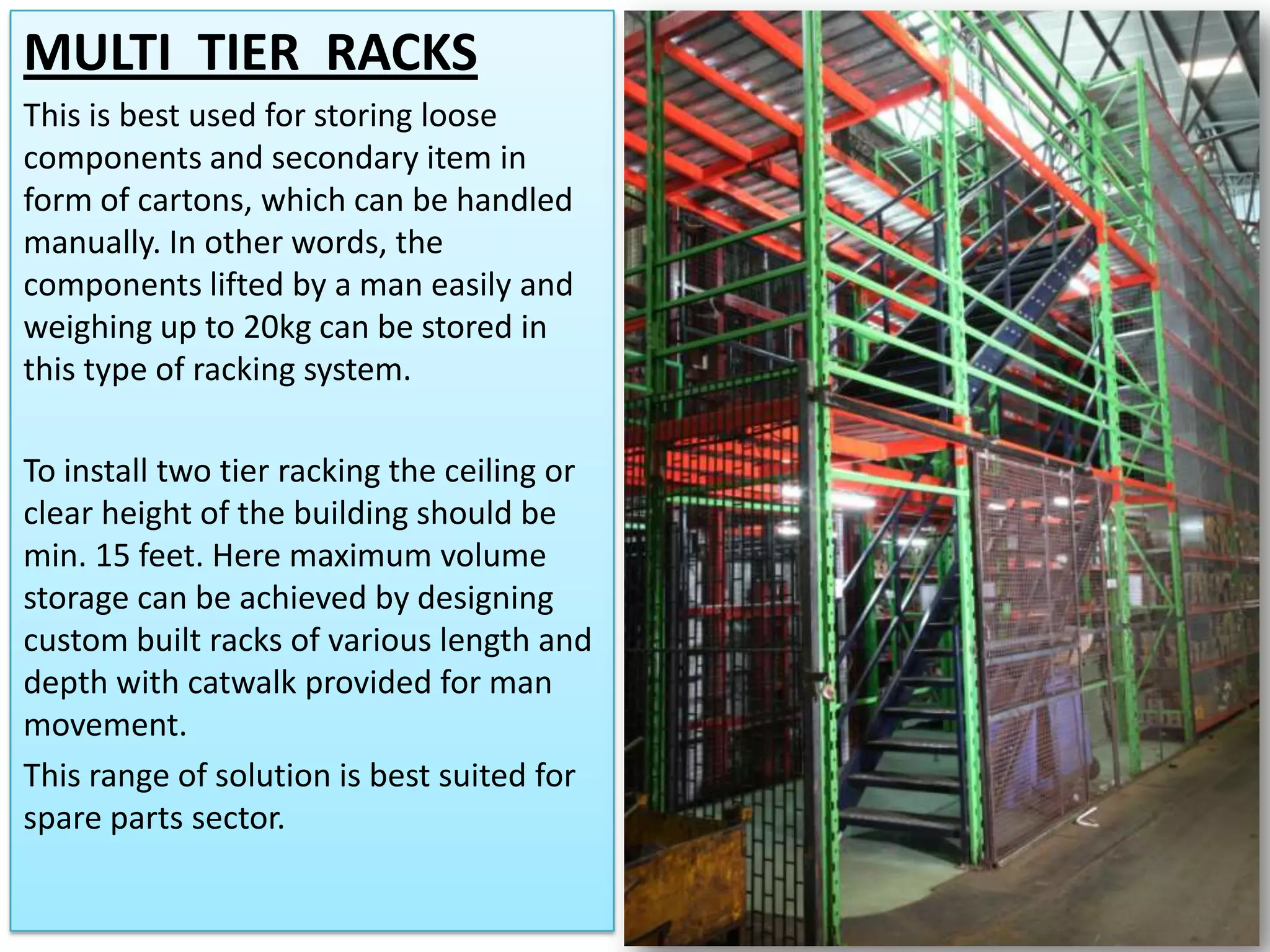

12. MULTI TIER RACKS
This is best used for storing loose
components and secondary item in
form of cartons, which can be handled
manually. In other words, the
components lifted by a man easily and
weighing up to 20kg can be stored in
this type of racking system.
To install two tier racking the ceiling or
clear height of the building should be
min. 15 feet. Here maximum volume
storage can be achieved by designing
custom built racks of various length and
depth with catwalk provided for man
movement.
This range of solution is best suited for
spare parts sector.

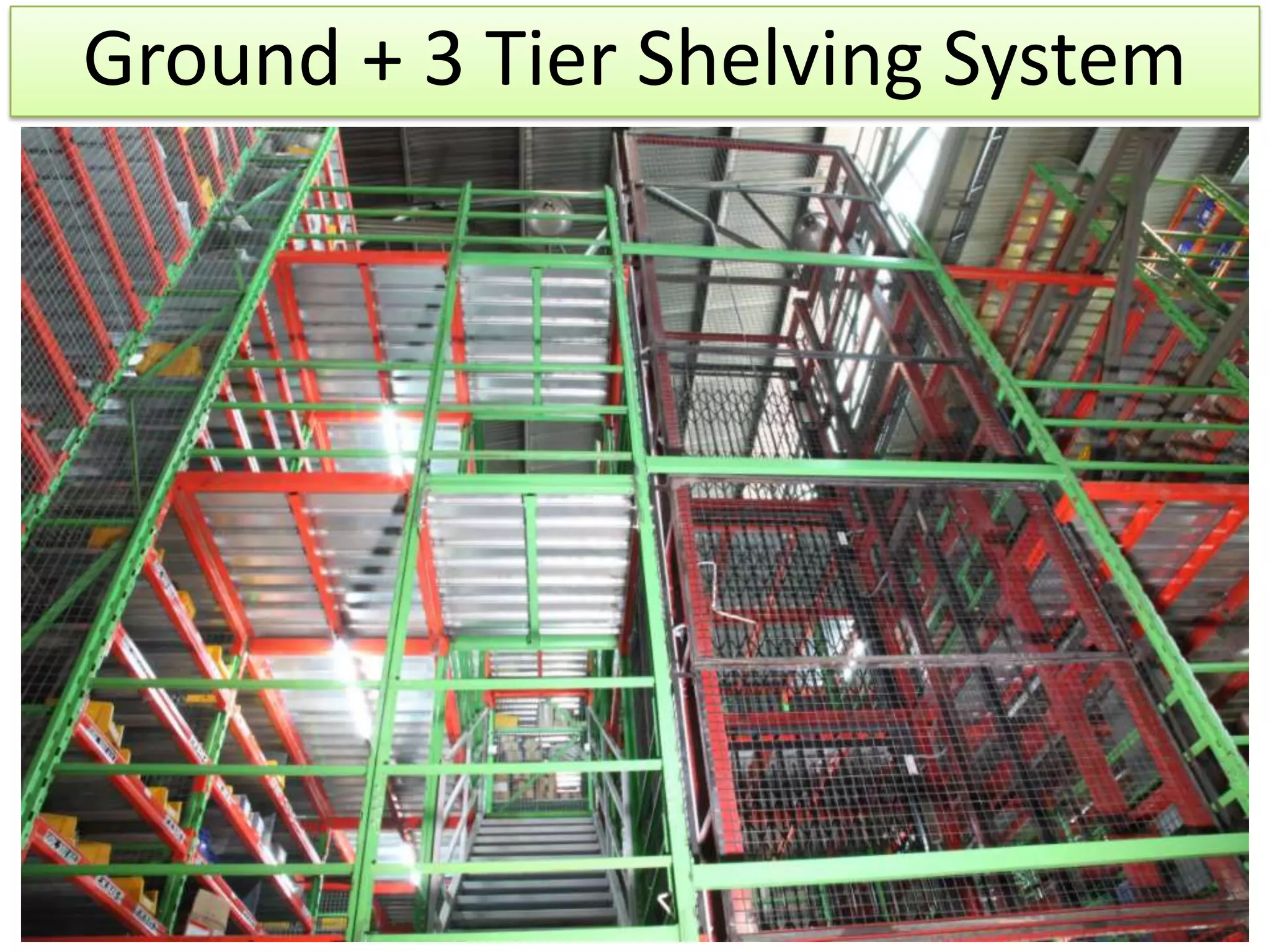

13. Ground + 3 Tier Shelving System

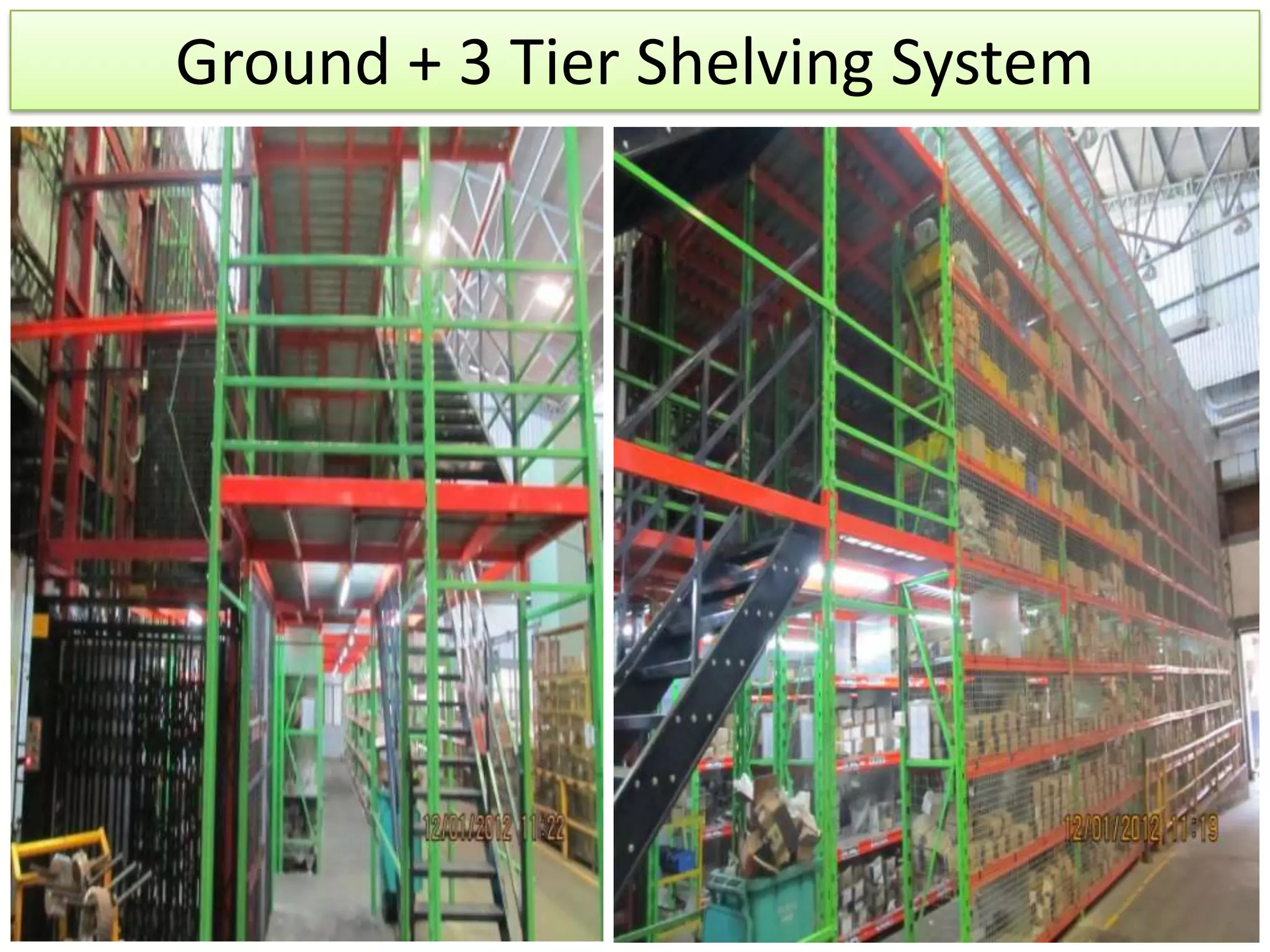

14. Ground + 3 Tier Shelving System

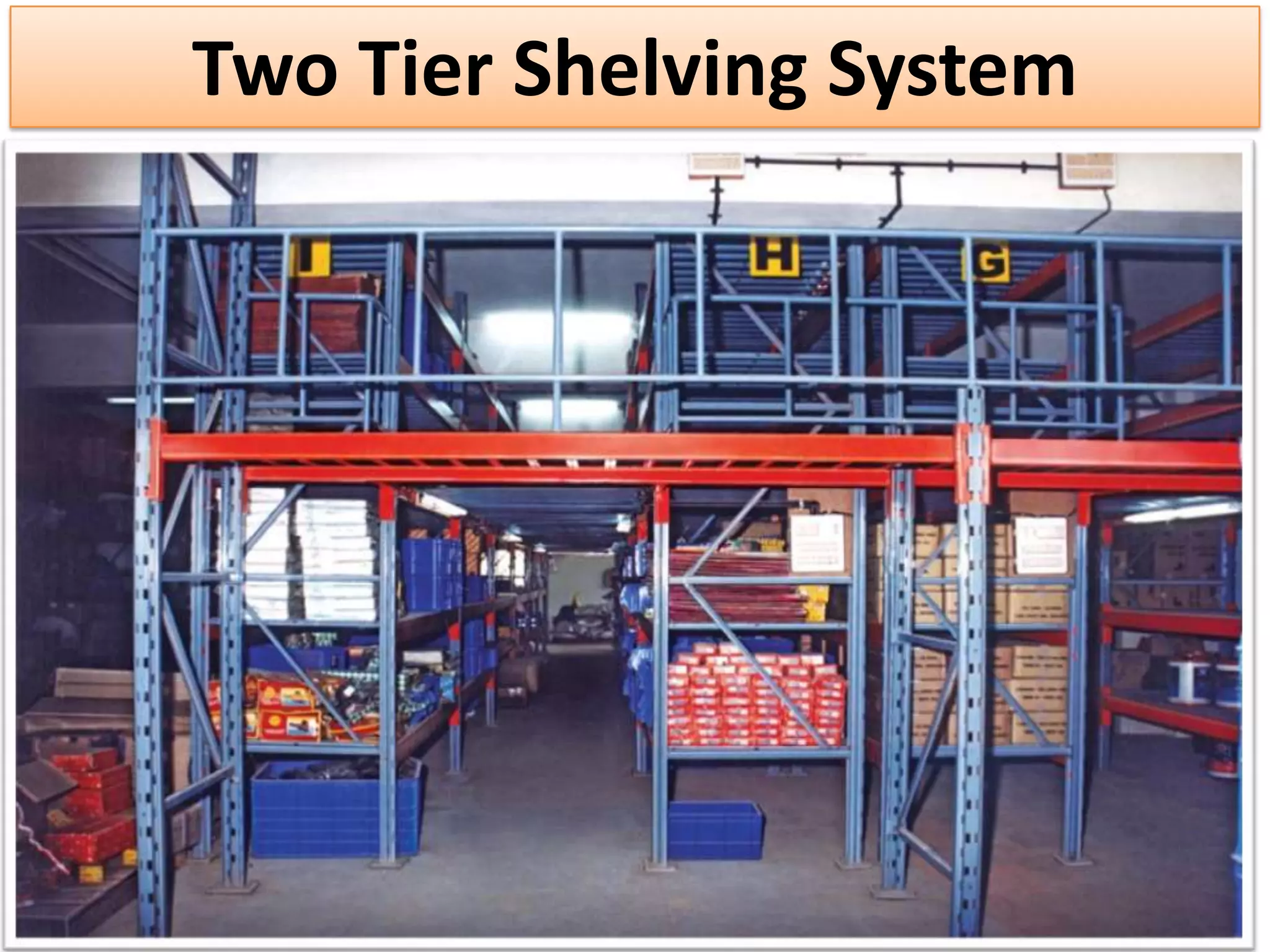

17. Two Tier Shelving System

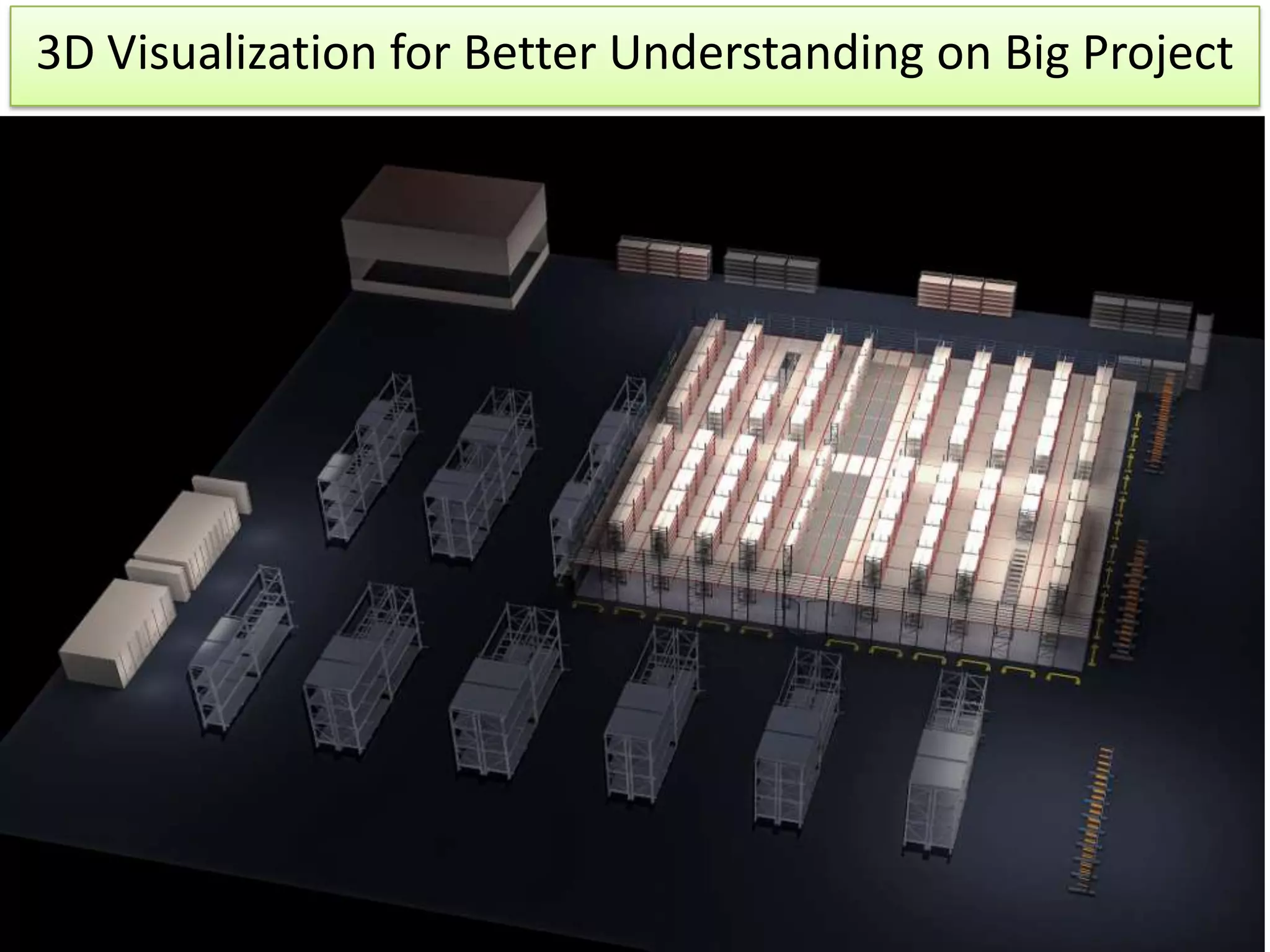

18. 3D Visualization for Better Understanding on Big Project

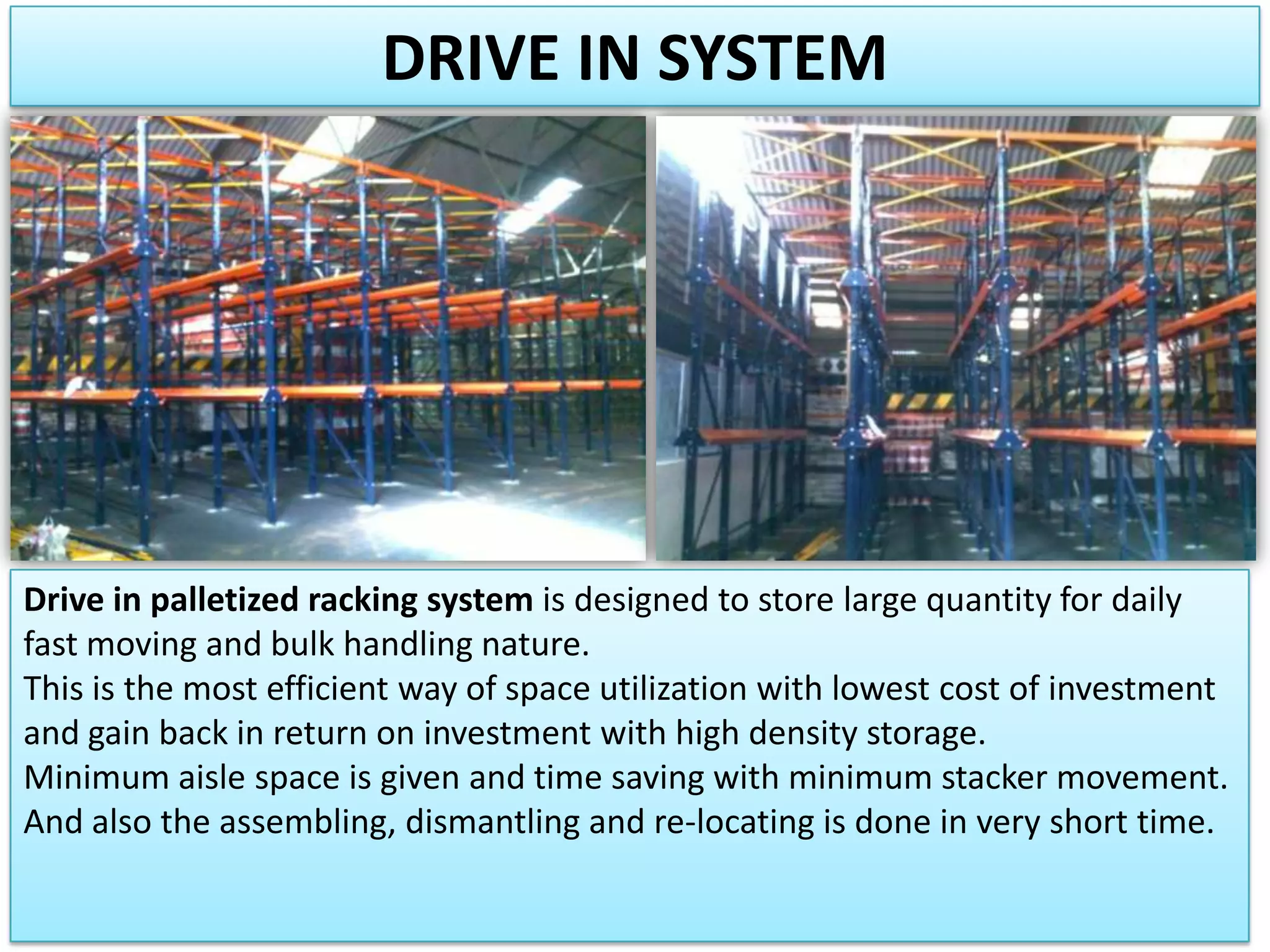

22. DRIVE IN SYSTEM
Drive in palletized racking system is designed to store large quantity for daily
fast moving and bulk handling nature.
This is the most efficient way of space utilization with lowest cost of investment
and gain back in return on investment with high density storage.
Minimum aisle space is given and time saving with minimum stacker movement.
And also the assembling, dismantling and re-locating is done in very short time.

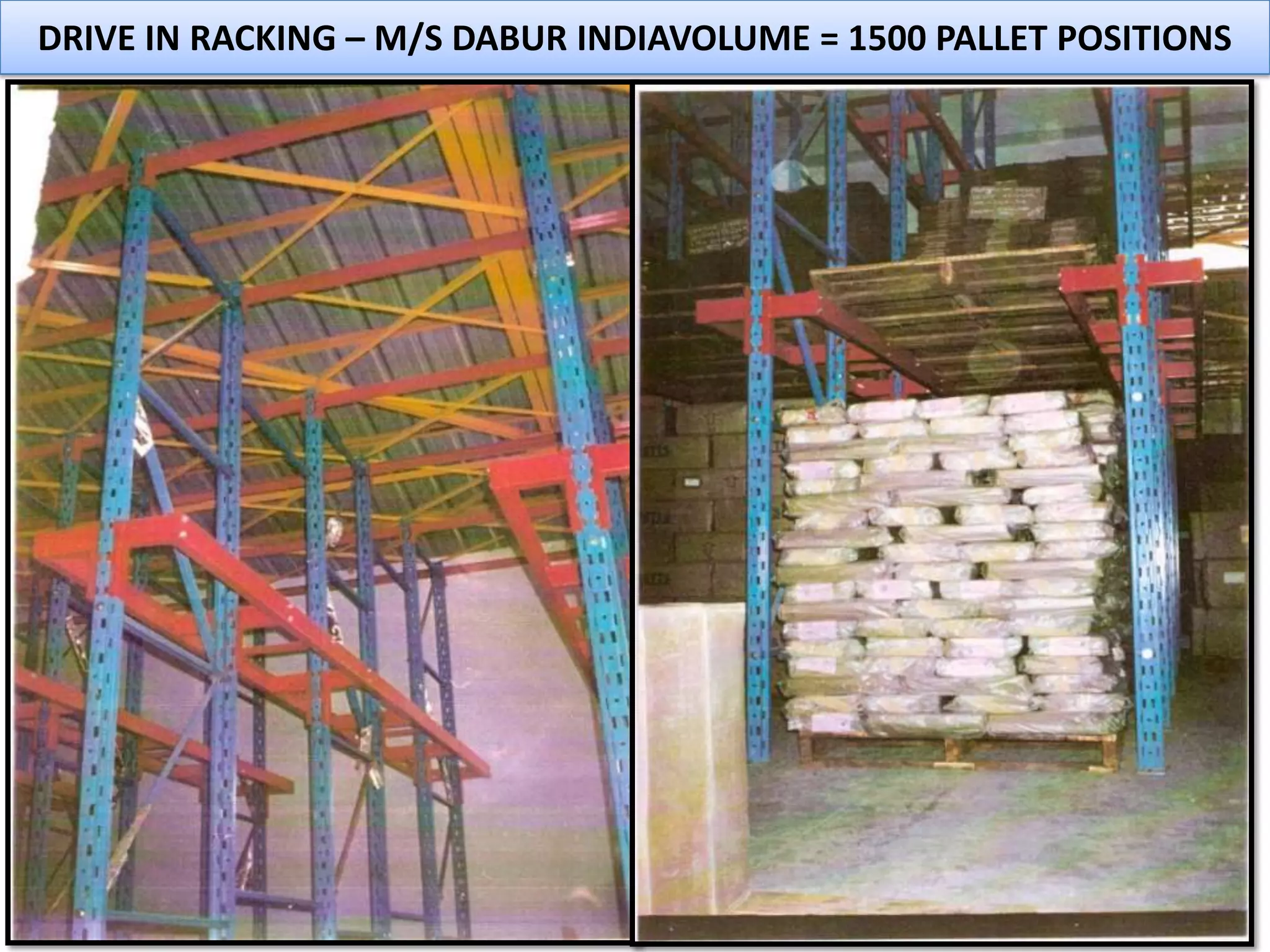

23. DRIVE IN RACKING – M/S DABUR INDIAVOLUME = 1500 PALLET POSITIONS

24. MULTI DEEP RACKING WITH RADIO SHUTTLE

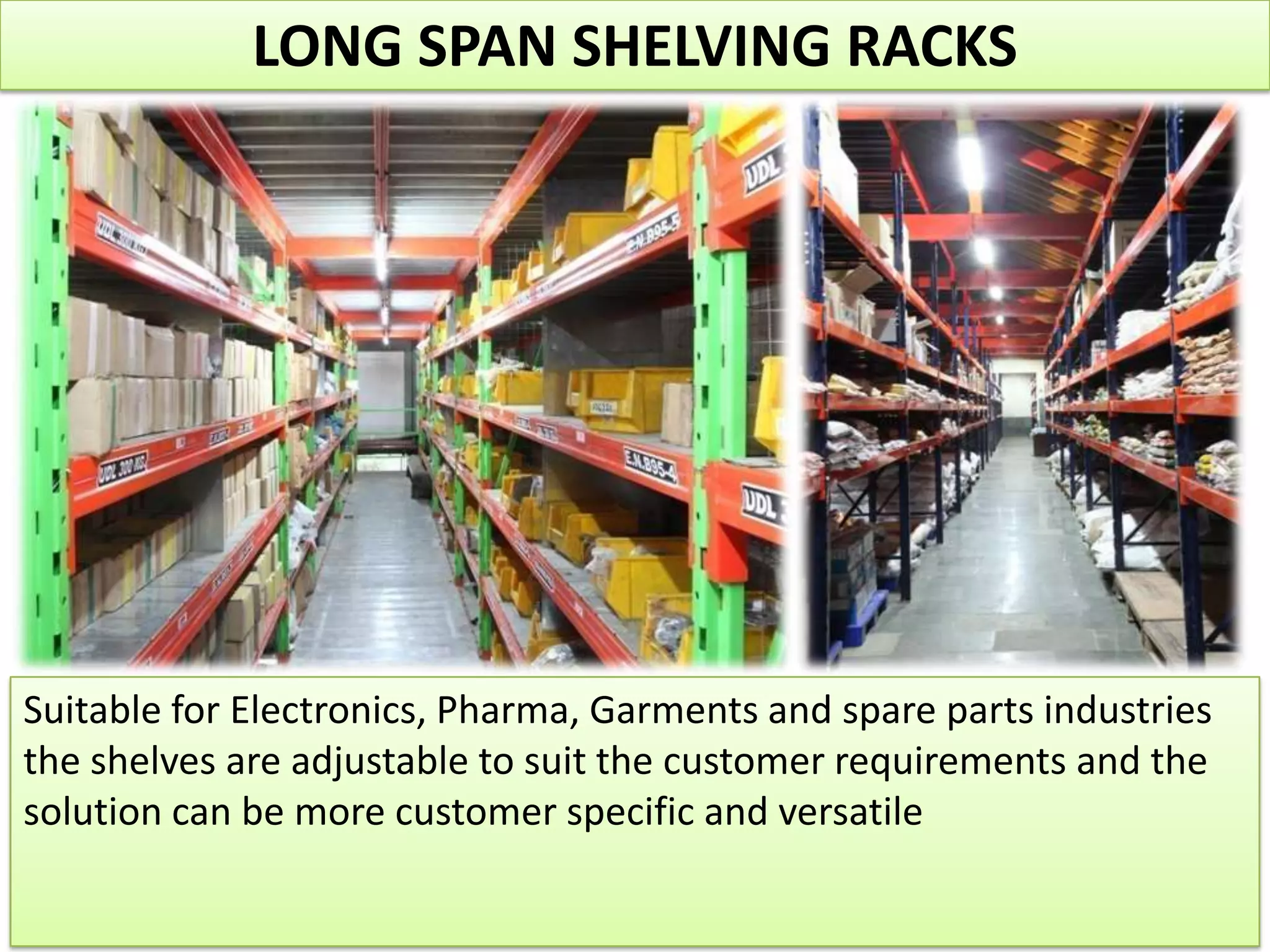

25. LONG SPAN SHELVING RACKS
Suitable for Electronics, Pharma, Garments and spare parts industries
the shelves are adjustable to suit the customer requirements and the
solution can be more customer specific and versatile

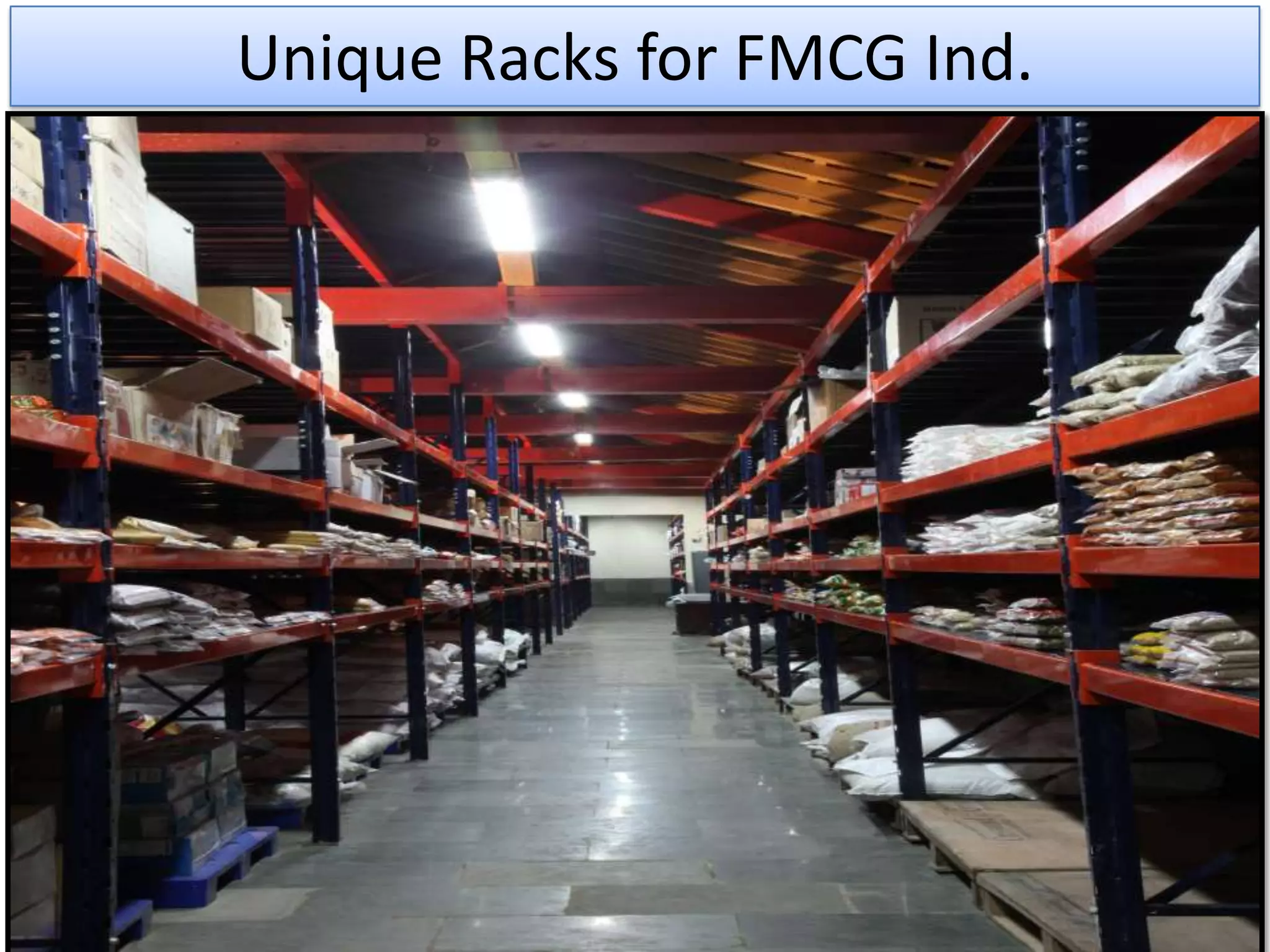

26. Unique Racks for FMCG Ind.

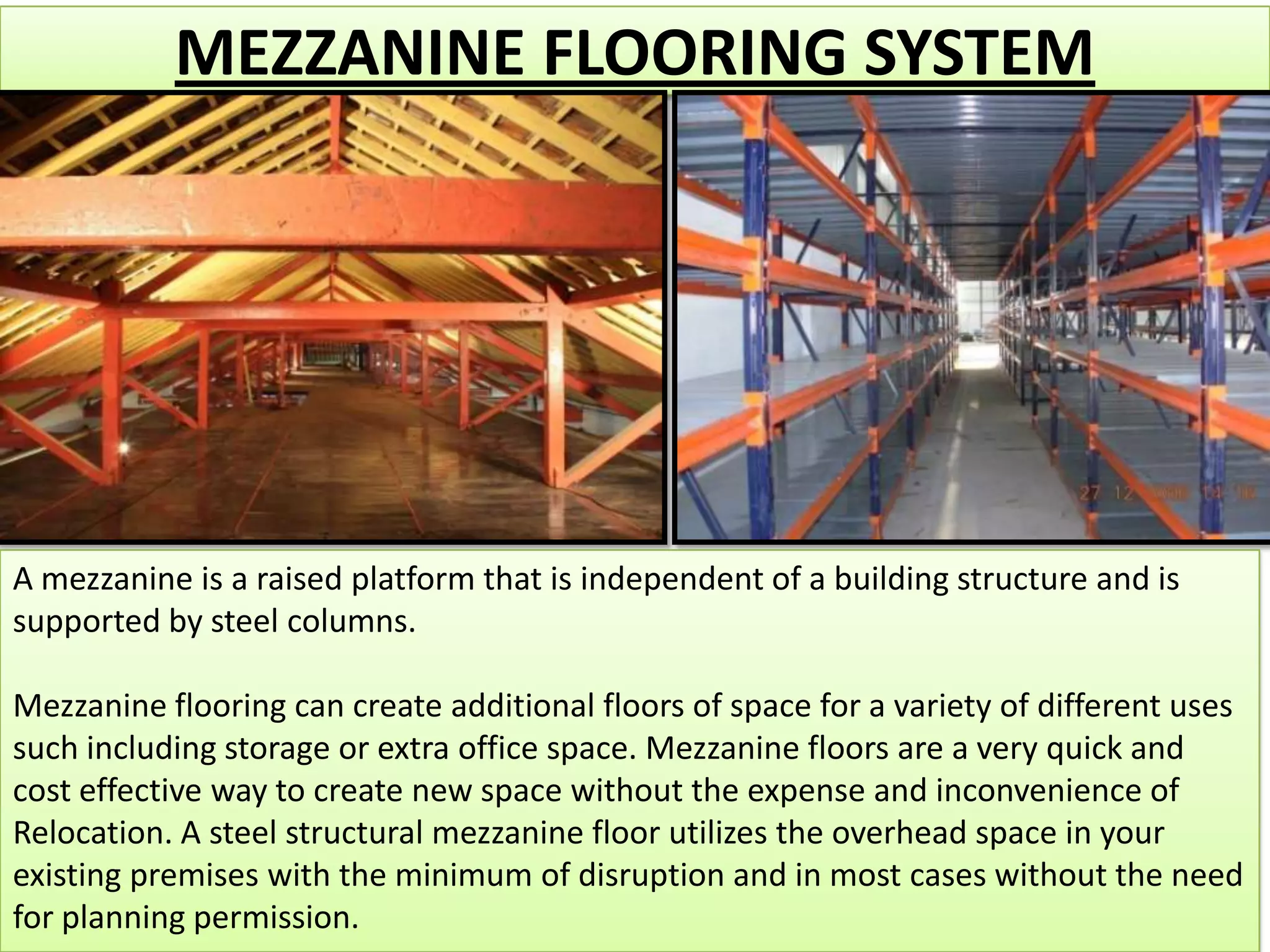

27. MEZZANINE FLOORING SYSTEM
A mezzanine is a raised platform that is independent of a building structure and is
supported by steel columns.
Mezzanine flooring can create additional floors of space for a variety of different uses
such including storage or extra office space. Mezzanine floors are a very quick and
cost effective way to create new space without the expense and inconvenience of
Relocation. A steel structural mezzanine floor utilizes the overhead space in your
existing premises with the minimum of disruption and in most cases without the need
for planning permission.

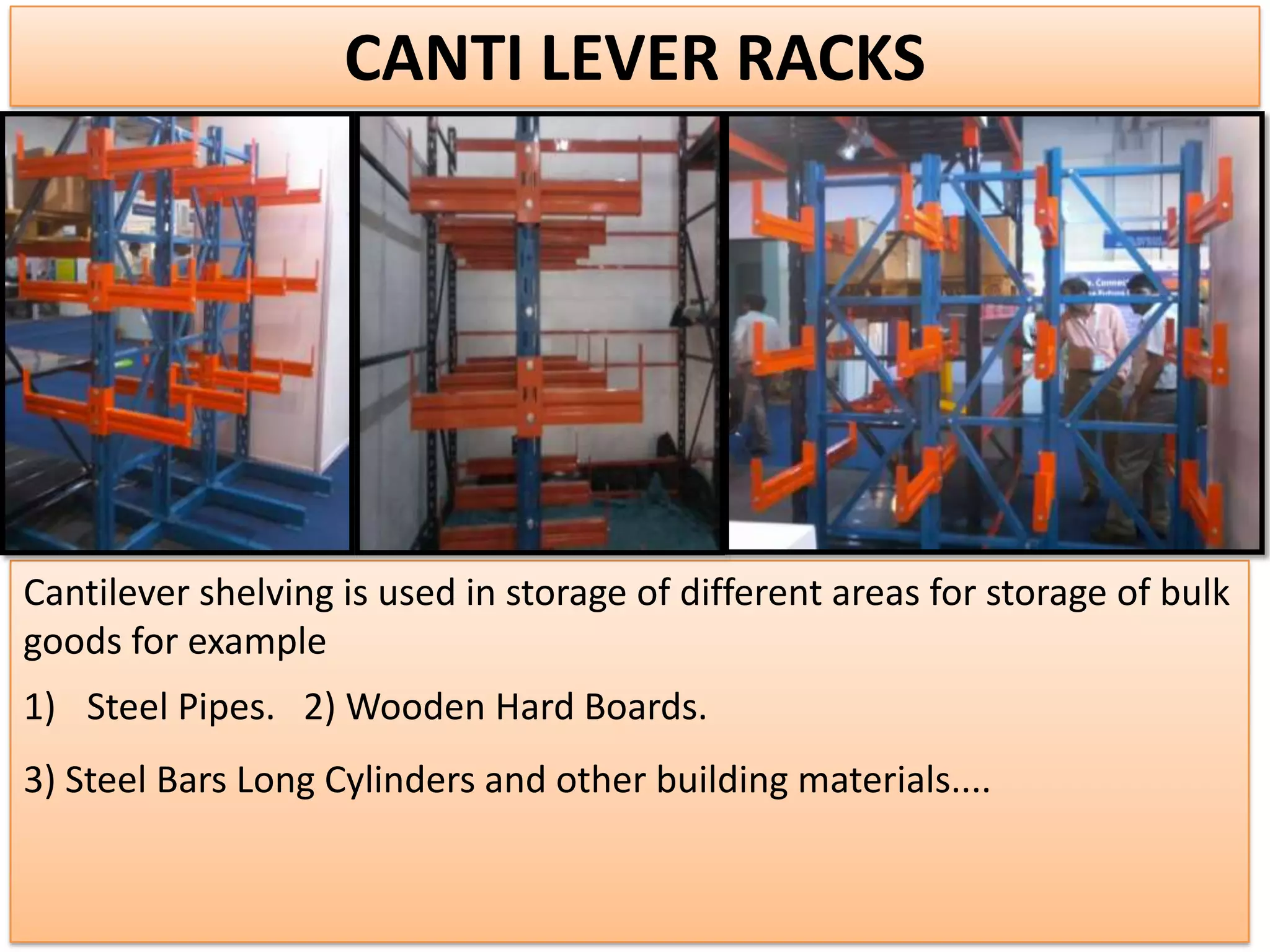

28. CANTI LEVER RACKS
Cantilever shelving is used in storage of different areas for storage of bulk
goods for example
1) Steel Pipes. 2) Wooden Hard Boards.
3) Steel Bars Long Cylinders and other building materials....

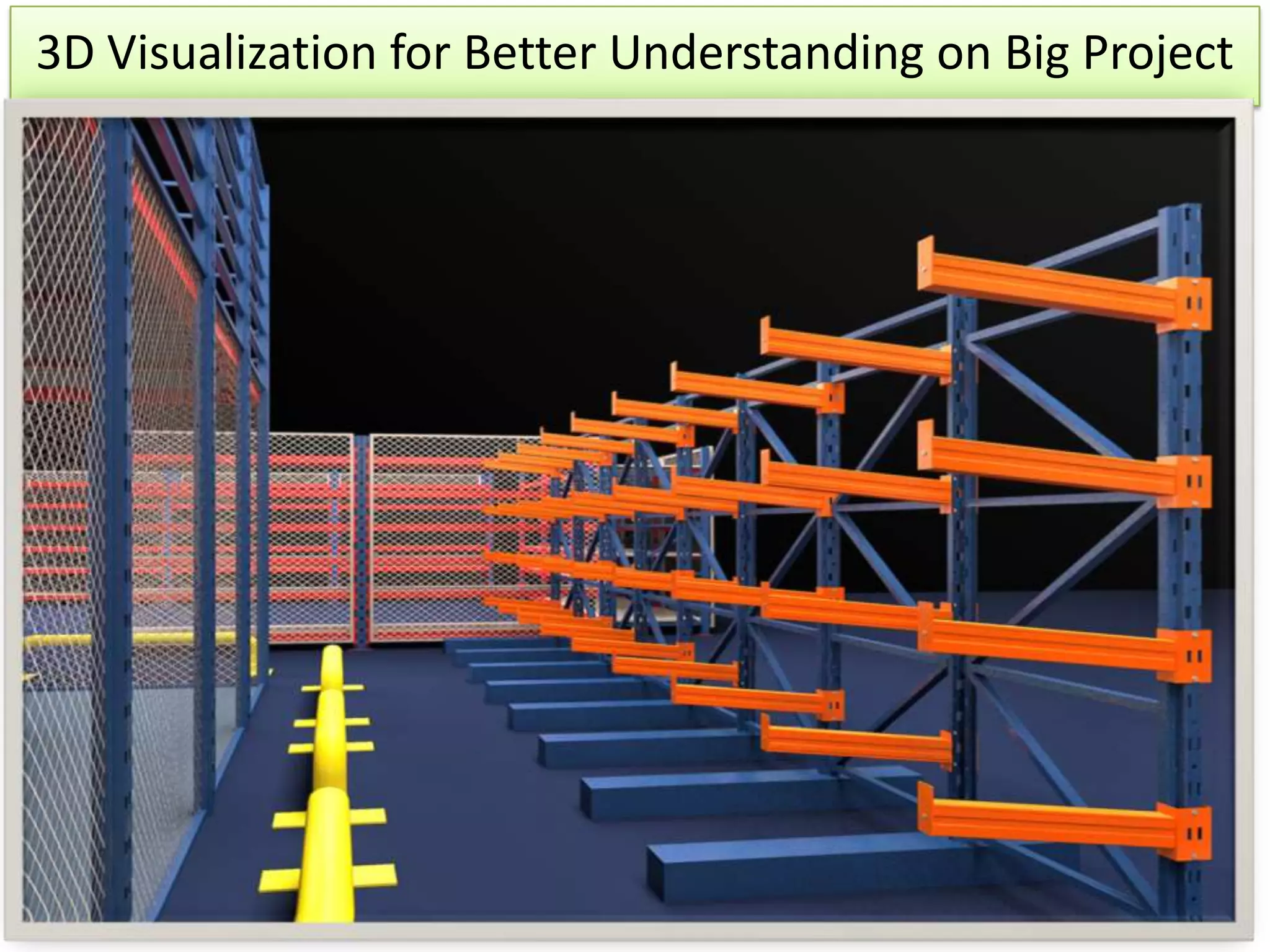

29. 3D Visualization for Better Understanding on Big Project

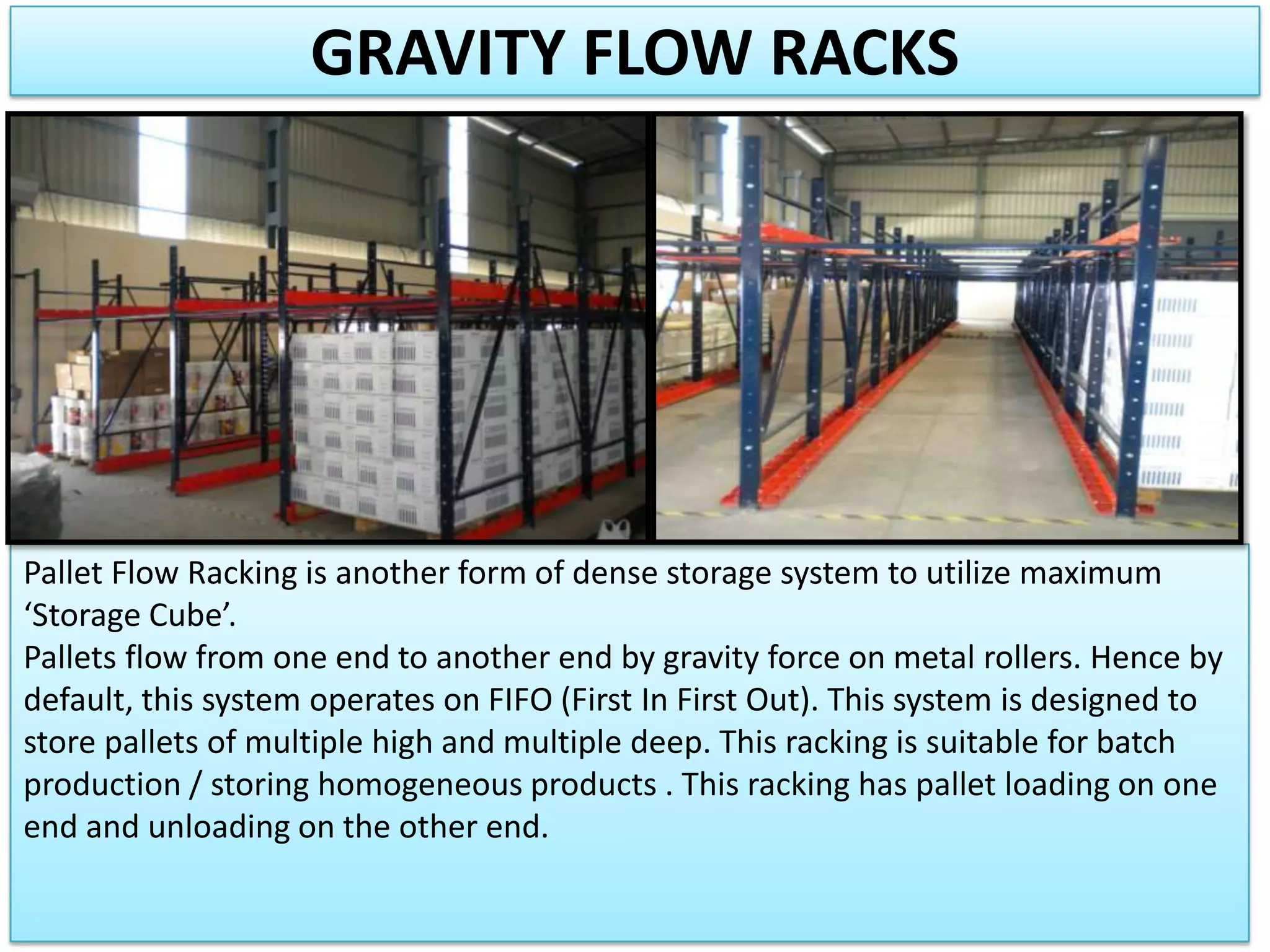

30. GRAVITY FLOW RACKS
Pallet Flow Racking is another form of dense storage system to utilize maximum
‘Storage Cube’.
Pallets flow from one end to another end by gravity force on metal rollers. Hence by
default, this system operates on FIFO (First In First Out). This system is designed to
store pallets of multiple high and multiple deep. This racking is suitable for batch
production / storing homogeneous products . This racking has pallet loading on one
end and unloading on the other end.

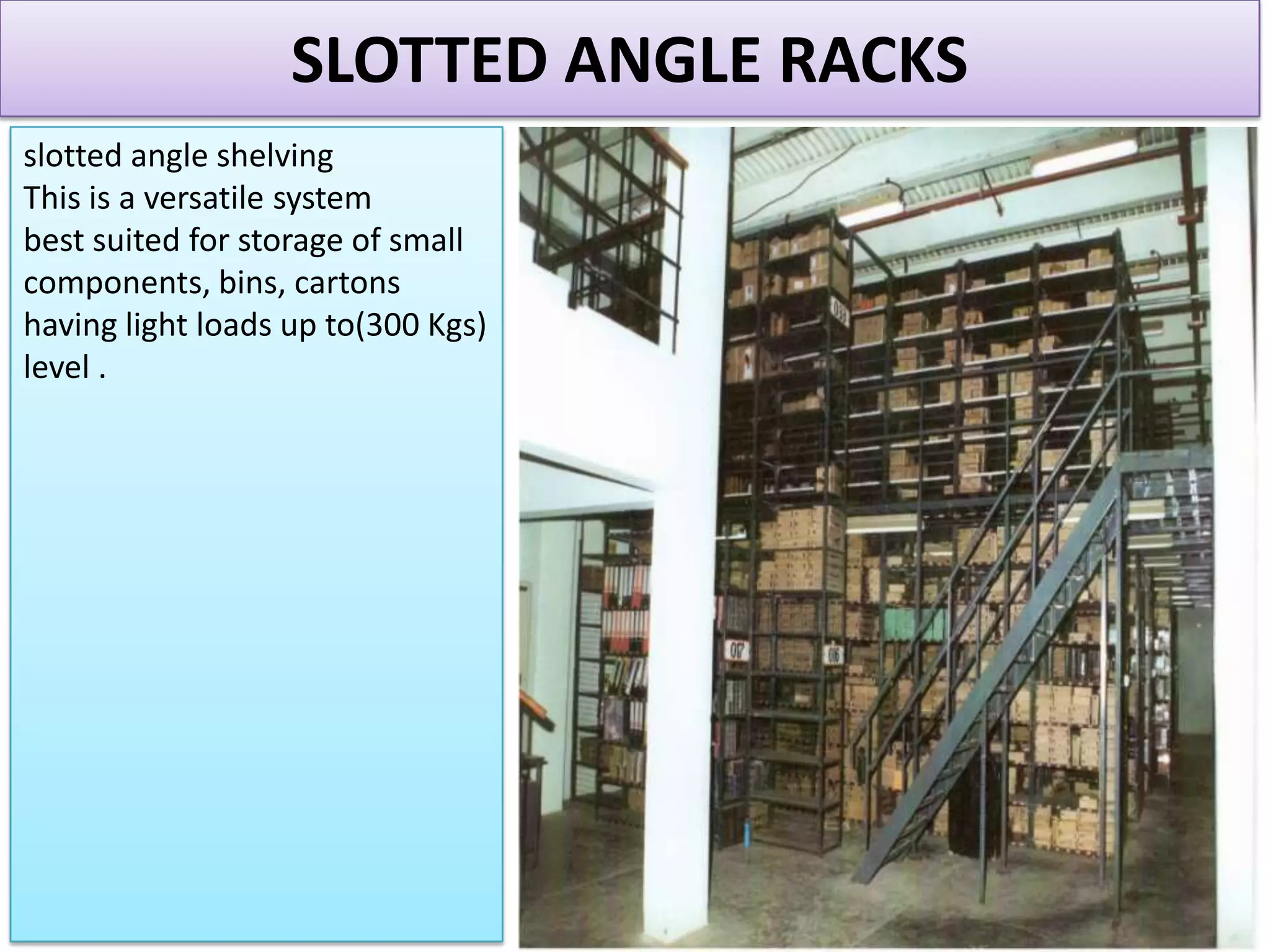

31. SLOTTED ANGLE RACKS
slotted angle shelving
This is a versatile system
best suited for storage of small
components, bins, cartons
having light loads up to(300 Kgs)
level .

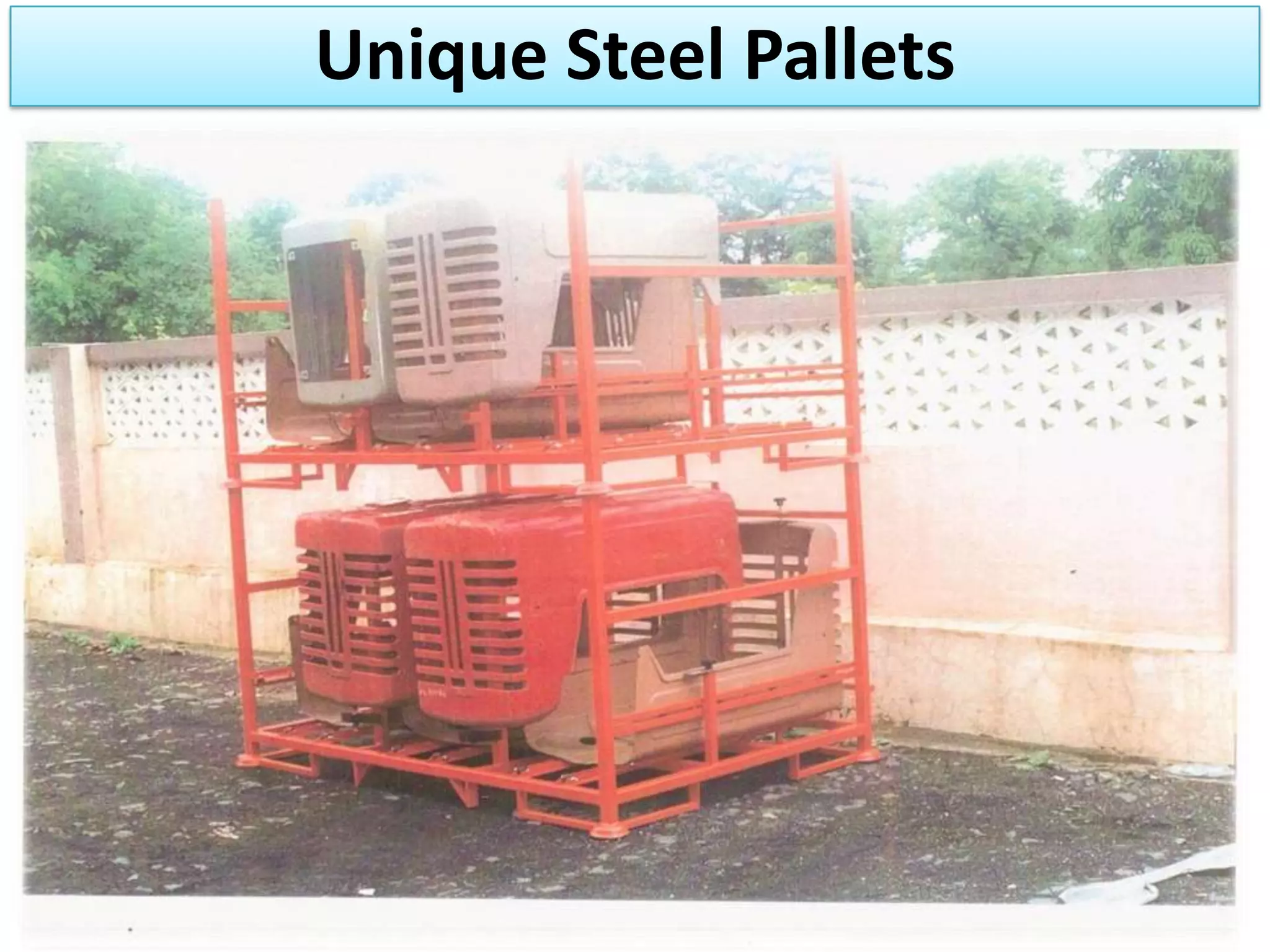

32. Unique Steel Pallets

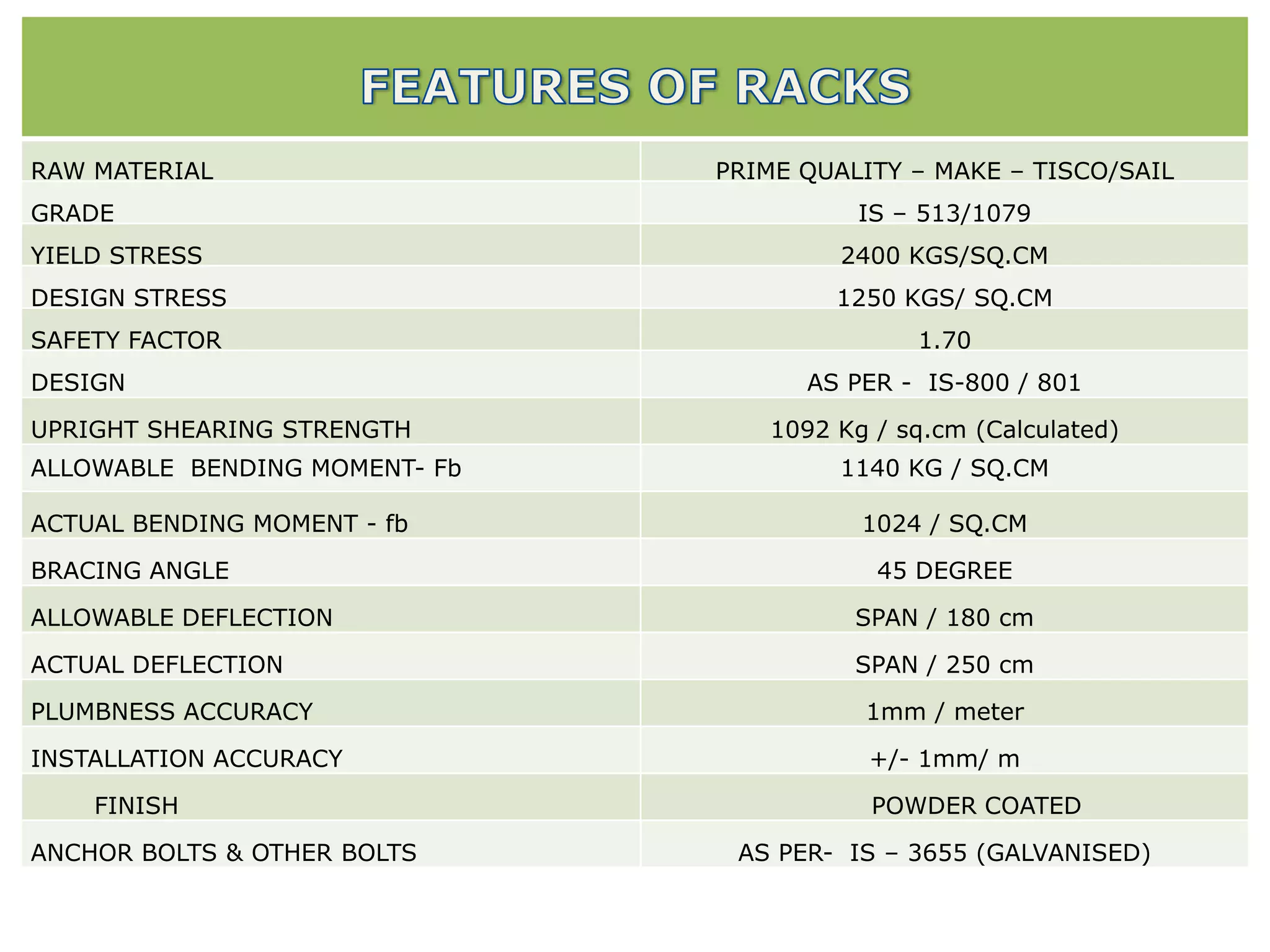

33. RAW MATERIAL
GRADE
PRIME QUALITY – MAKE – TISCO/SAIL
IS – 513/1079
YIELD STRESS
2400 KGS/SQ.CM
DESIGN STRESS
1250 KGS/ SQ.CM
SAFETY FACTOR
1.70
DESIGN
UPRIGHT SHEARING STRENGTH
ALLOWABLE BENDING MOMENT- Fb
ACTUAL BENDING MOMENT - fb
BRACING ANGLE
AS PER - IS-800 / 801
1092 Kg / sq.cm (Calculated)
1140 KG / SQ.CM
1024 / SQ.CM
45 DEGREE
ALLOWABLE DEFLECTION
SPAN / 180 cm
ACTUAL DEFLECTION
SPAN / 250 cm
PLUMBNESS ACCURACY
1mm / meter
INSTALLATION ACCURACY
+/- 1mm/ m
FINISH
ANCHOR BOLTS & OTHER BOLTS
POWDER COATED
AS PER- IS – 3655 (GALVANISED)

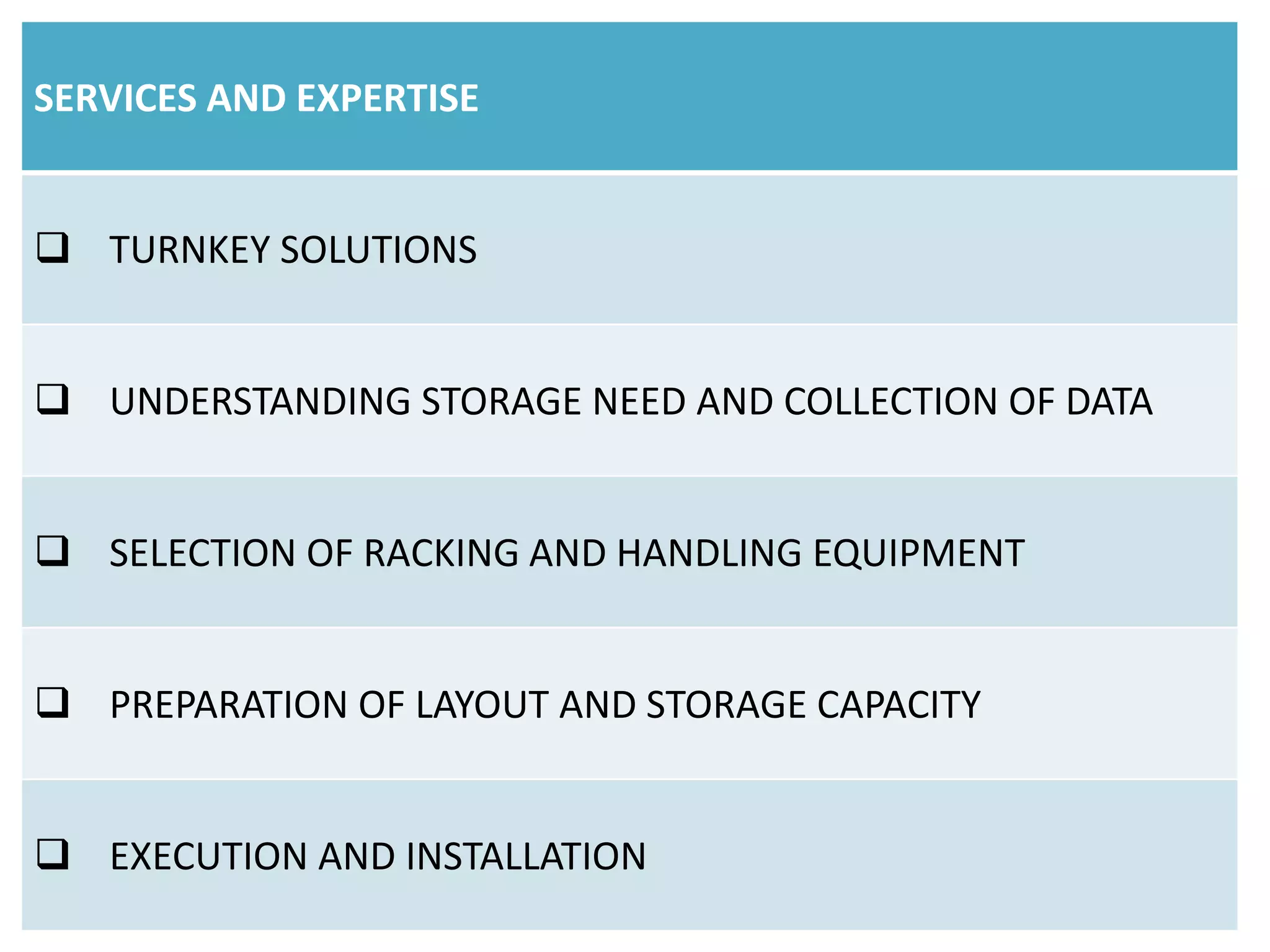

34. SERVICES AND EXPERTISE
 TURNKEY SOLUTIONS
 UNDERSTANDING STORAGE NEED AND COLLECTION OF DATA
 SELECTION OF RACKING AND HANDLING EQUIPMENT
 PREPARATION OF LAYOUT AND STORAGE CAPACITY
 EXECUTION AND INSTALLATION

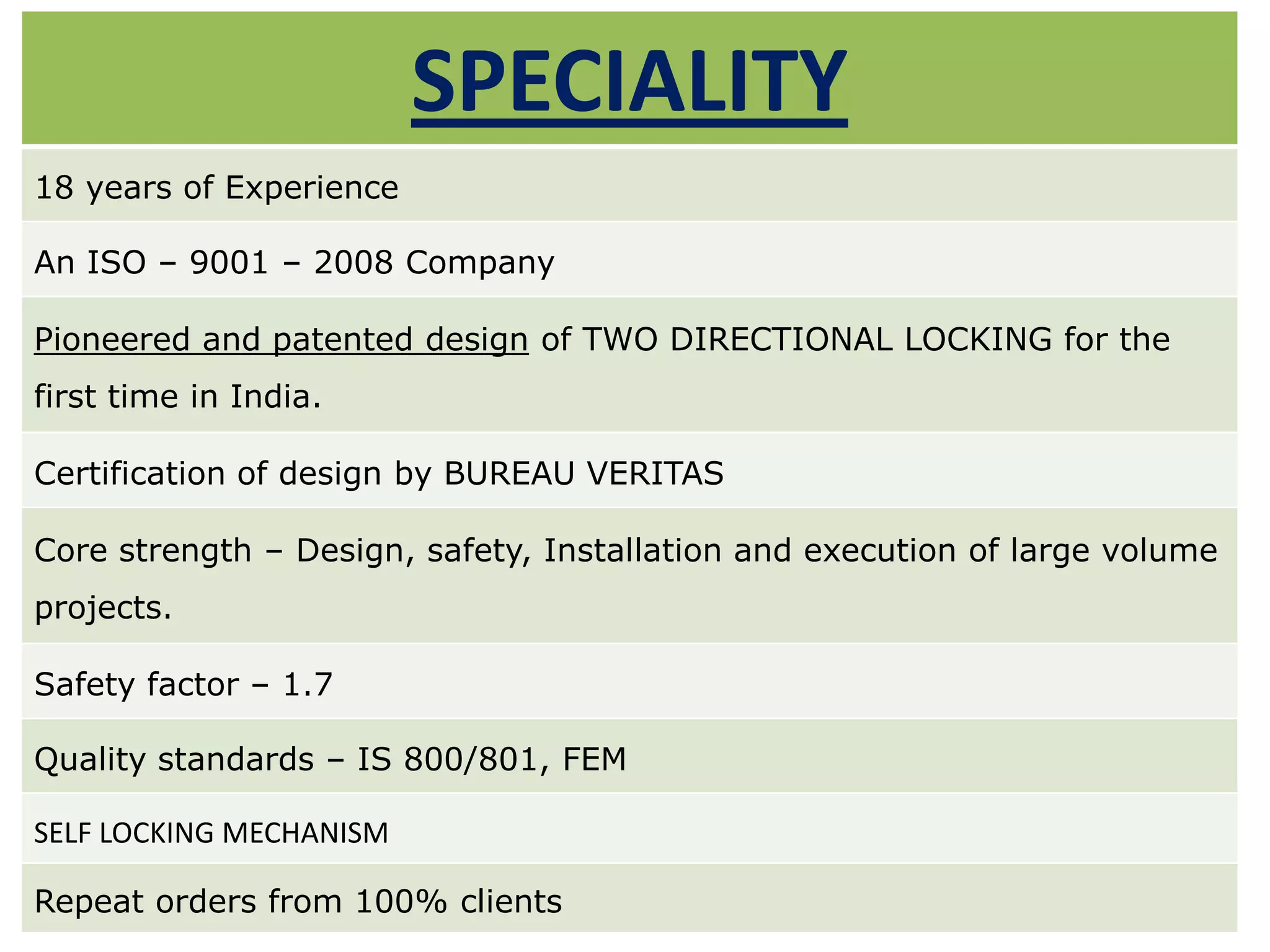

35. SPECIALITY
18 years of Experience
An ISO – 9001 – 2008 Company
Pioneered and patented design of TWO DIRECTIONAL LOCKING for the
first time in India.
Certification of design by BUREAU VERITAS
Core strength – Design, safety, Installation and execution of large volume
projects.
Safety factor – 1.7
Quality standards – IS 800/801, FEM
SELF LOCKING MECHANISM
Repeat orders from 100% clients

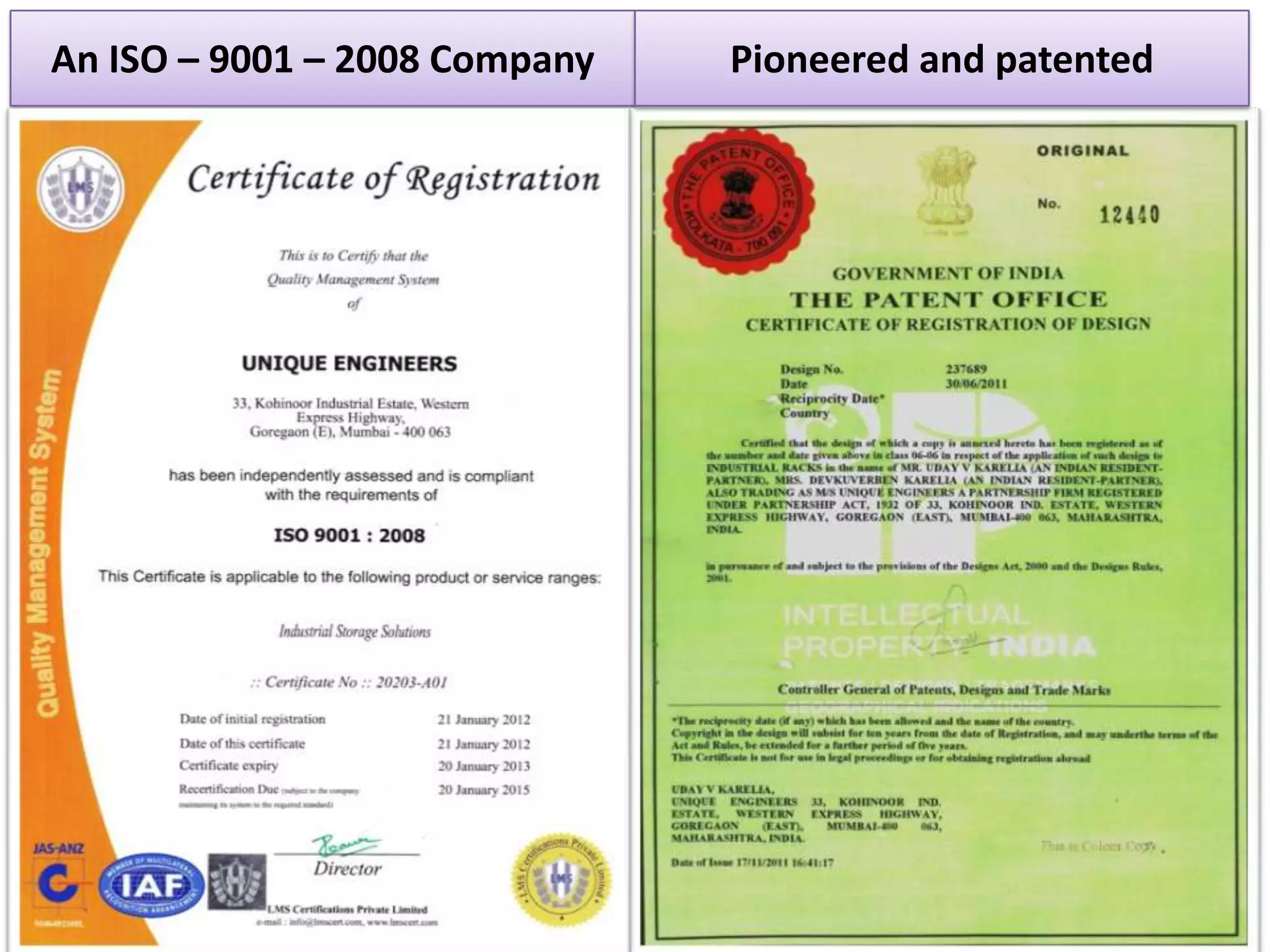

36. An ISO – 9001 – 2008 Company
Pioneered and patented

37. UNIQUE ENGINEERS
• AN ISO 9001:2008 CERTIFIED COMPANY
• INDUSTRIAL STORAGE & HANDLING SOLUTIONS
OFFICE : Unit No. 33, Kohinoor Industrial Estate,
Opp. Western Express Highway, Goregaon (East)
Mumbai – 400 063. Tel : 022-66951861/29271023
Mobile No. 081081 72241 / 09594 919781
email : unique@uniquestorage.in Website : www.uniquestorage.in
BRANCH OFFICE : 81/98, 1st Floor, Vellala Street, Purusawalkam,
Chennai - 600 084, Tamilnadu, Phone 04443322495,
Mobile: +919500074170 Email: uniquechennaioffice@gmail.com
WORKS : Unit No. 3,4,5, SUTIRTH, Sagar Signature Complex,
Waliv Phata, Waliv Village, Vasai (East) Dist. Thane - 401 208
Maharashtra, India. Phone : 0250-2480095,
Mobile No. 093245 88496 / 093245 88497
email : info@uniquestorage.in / unengineers@gmail.com
