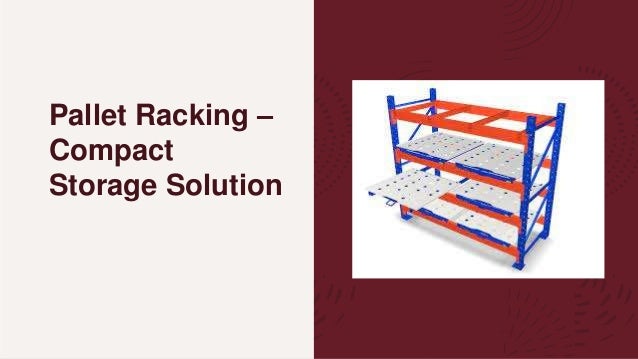

1. Pallet Racking –
Compact
Storage Solution

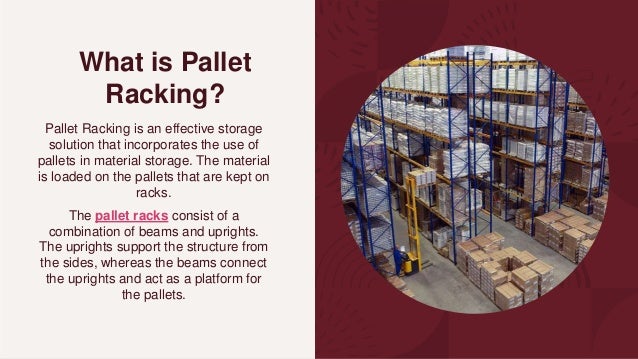

2. What is Pallet
Racking?
Pallet Racking is an effective storage
solution that incorporates the use of
pallets in material storage. The material
is loaded on the pallets that are kept on
racks.
The pallet racks consist of a
combination of beams and uprights.
The uprights support the structure from
the sides, whereas the beams connect
the uprights and act as a platform for
the pallets.

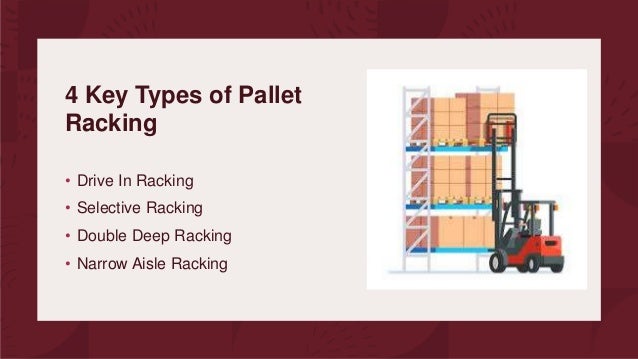

3. 4 Key Types of Pallet
Racking
• Drive In Racking
• Selective Racking
• Double Deep Racking
• Narrow Aisle Racking

4. Drive In Racking (Features)
• Clear Aisles of 3 to 3.4m for reach trucks or
3.5 to 4.5m for counter balanced fork lifts
• FILO for each ba
• The fork lift drives down the lane of each
racking bay to deposit or pick up pallets
• Drive in racking emulates the operation of
block stacking, but with the racking there is
reduced damage to pallets and stacking can
be higher
• Can be up to 10 or 12 pallets deep and up 6
or 7 pallets high
• Utilisation: 50-60%

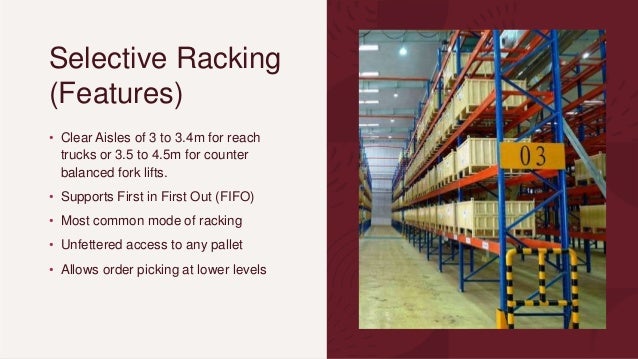

5. Selective Racking
(Features)
• Clear Aisles of 3 to 3.4m for reach
trucks or 3.5 to 4.5m for counter
balanced fork lifts.
• Supports First in First Out (FIFO)
• Most common mode of racking
• Unfettered access to any pallet
• Allows order picking at lower levels

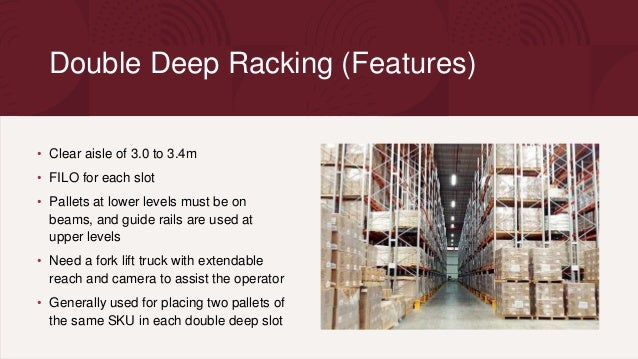

6. Double Deep Racking (Features)
• Clear aisle of 3.0 to 3.4m
• FILO for each slot
• Pallets at lower levels must be on
beams, and guide rails are used at
upper levels
• Need a fork lift truck with extendable
reach and camera to assist the operator
• Generally used for placing two pallets of
the same SKU in each double deep slot

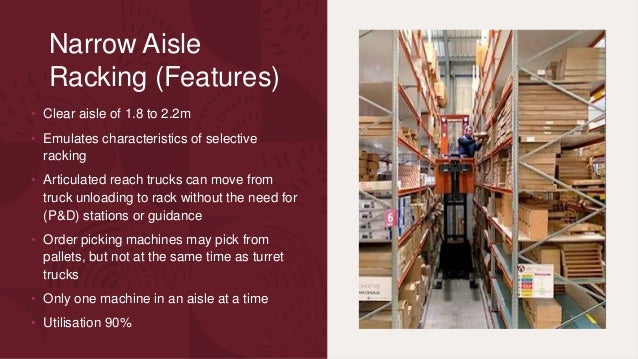

7. Narrow Aisle
Racking (Features)
• Clear aisle of 1.8 to 2.2m
• Emulates characteristics of selective
racking
• Articulated reach trucks can move from
truck unloading to rack without the need for
(P&D) stations or guidance
• Order picking machines may pick from
pallets, but not at the same time as turret
trucks
• Only one machine in an aisle at a time
• Utilisation 90%

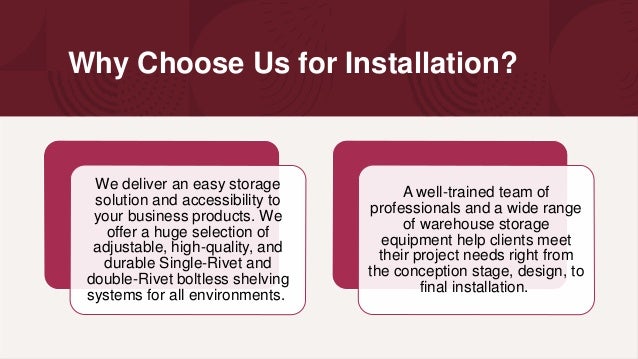

8. Why Choose Us for Installation?
We deliver an easy storage
solution and accessibility to
your business products. We
offer a huge selection of
adjustable, high-quality, and
durable Single-Rivet and
double-Rivet boltless shelving
systems for all environments.
A well-trained team of
professionals and a wide range
of warehouse storage
equipment help clients meet
their project needs right from
the conception stage, design, to
final installation.

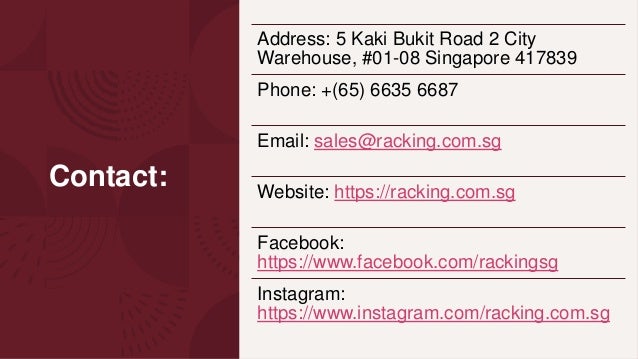

9. Contact:
Address: 5 Kaki Bukit Road 2 City
Warehouse, #01-08 Singapore 417839
Phone: +(65) 6635 6687
Email: sales@racking.com.sg
Website: https://racking.com.sg
Facebook:
https://www.facebook.com/rackingsg
Instagram:
https://www.instagram.com/racking.com.sg
