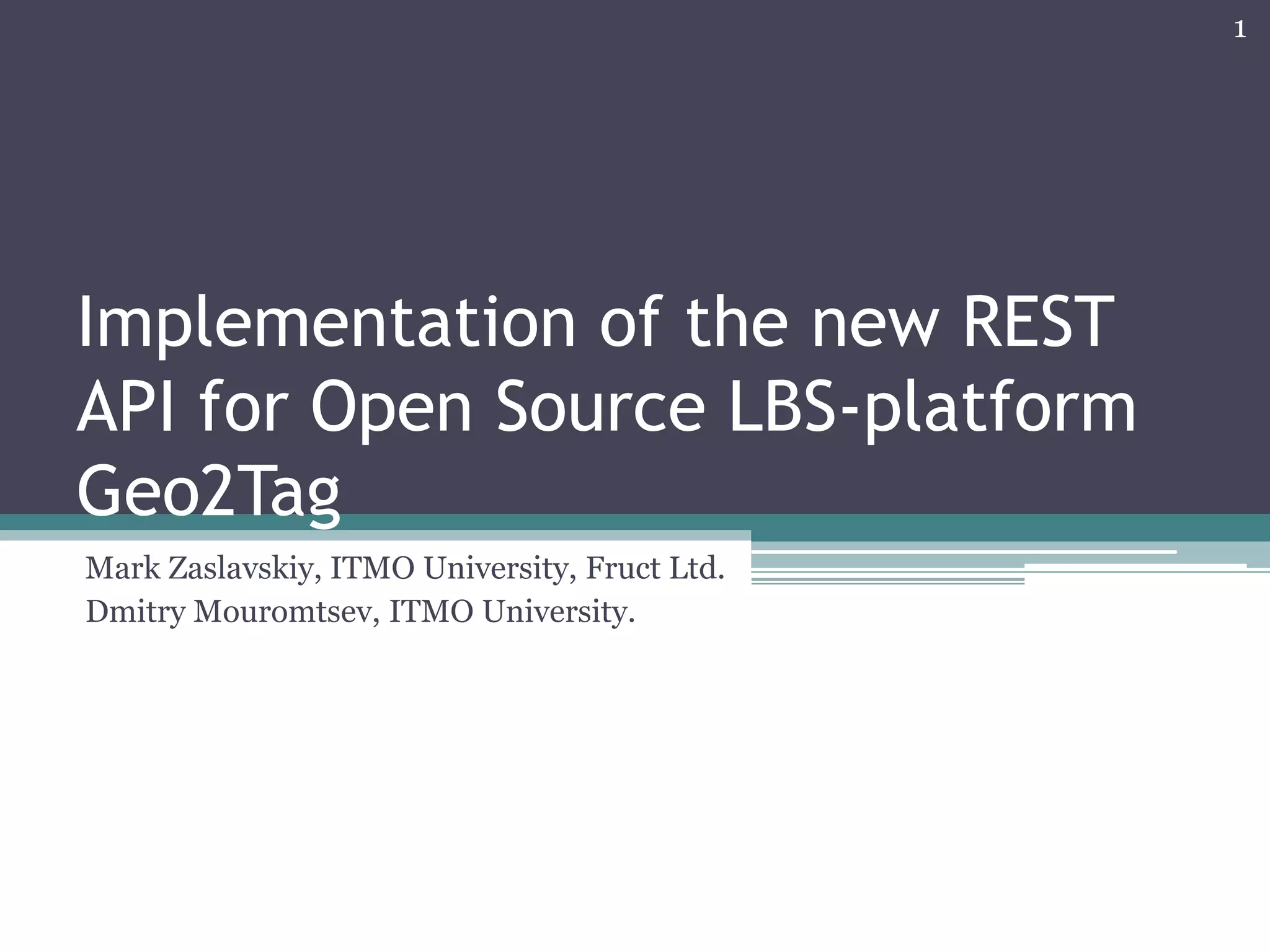

Implementation of the new REST
API for Open Source LBS-platform
Geo2Tag
Mark Zaslavskiy, ITMO University, Fruct Ltd.
Dmitry Mouromtsev, ITMO University.
1

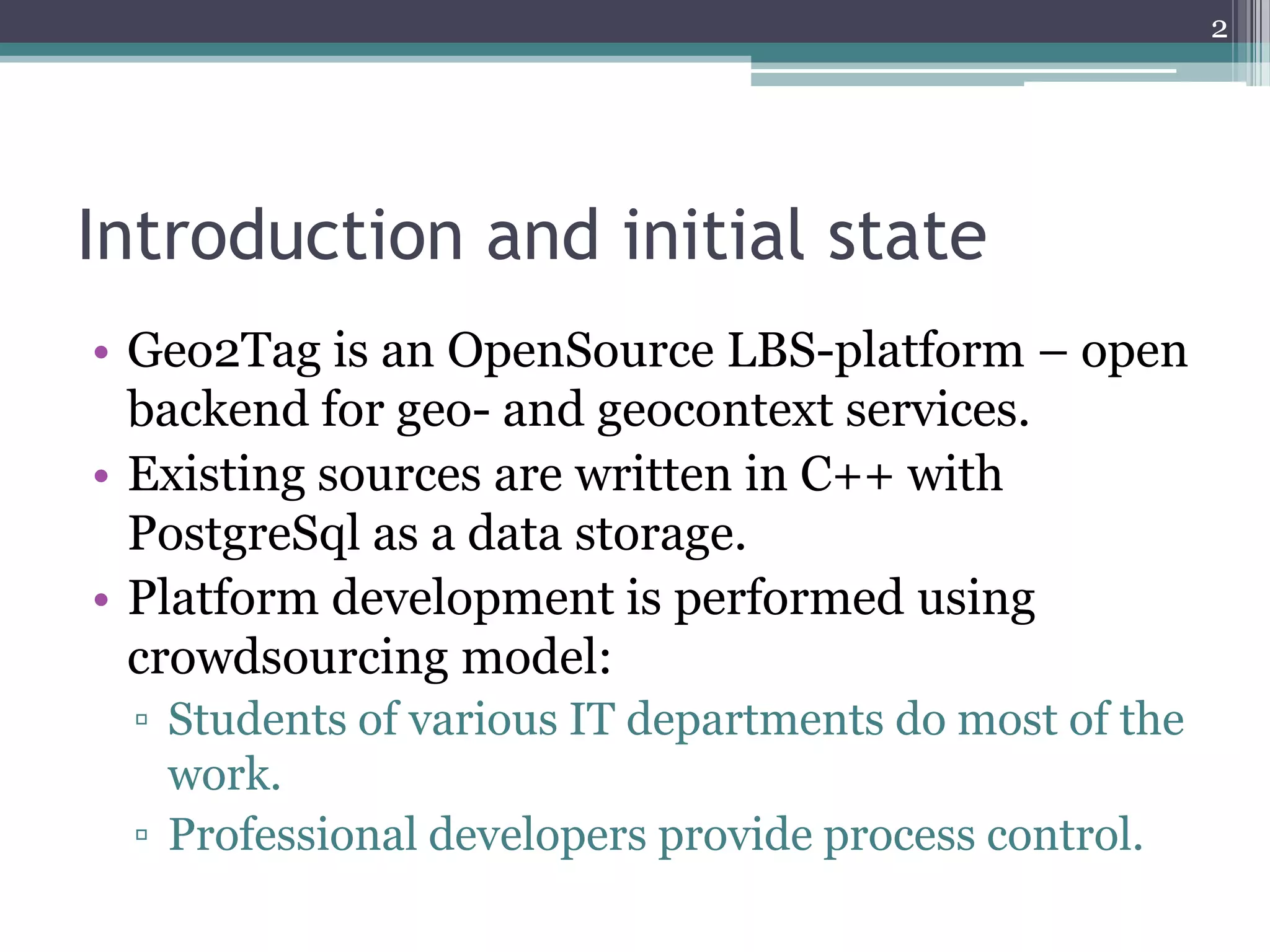

Introduction and initial state
• Geo2Tag is an OpenSource LBS-platform – open
backend for geo- and geocontext services.
• Existing sources are written in C++ with
PostgreSql as a data storage.
• Platform development is performed using
crowdsourcing model:
▫ Students of various IT departments do most of the
work.
▫ Professional developers provide process control.
2

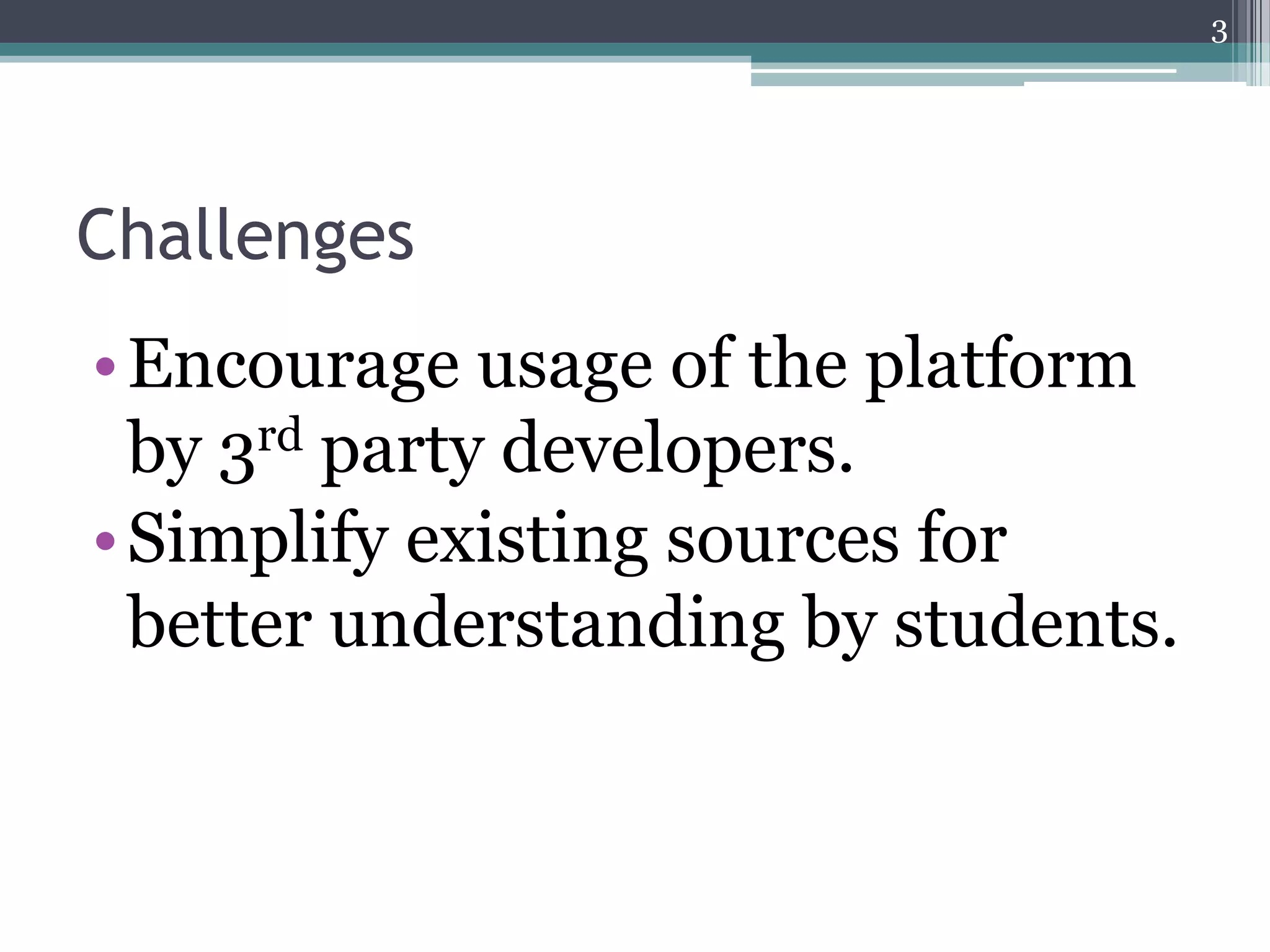

Challenges
•Encourage usage of the platform
by 3rd party developers.
•Simplify existing sources for
better understanding by students.
3

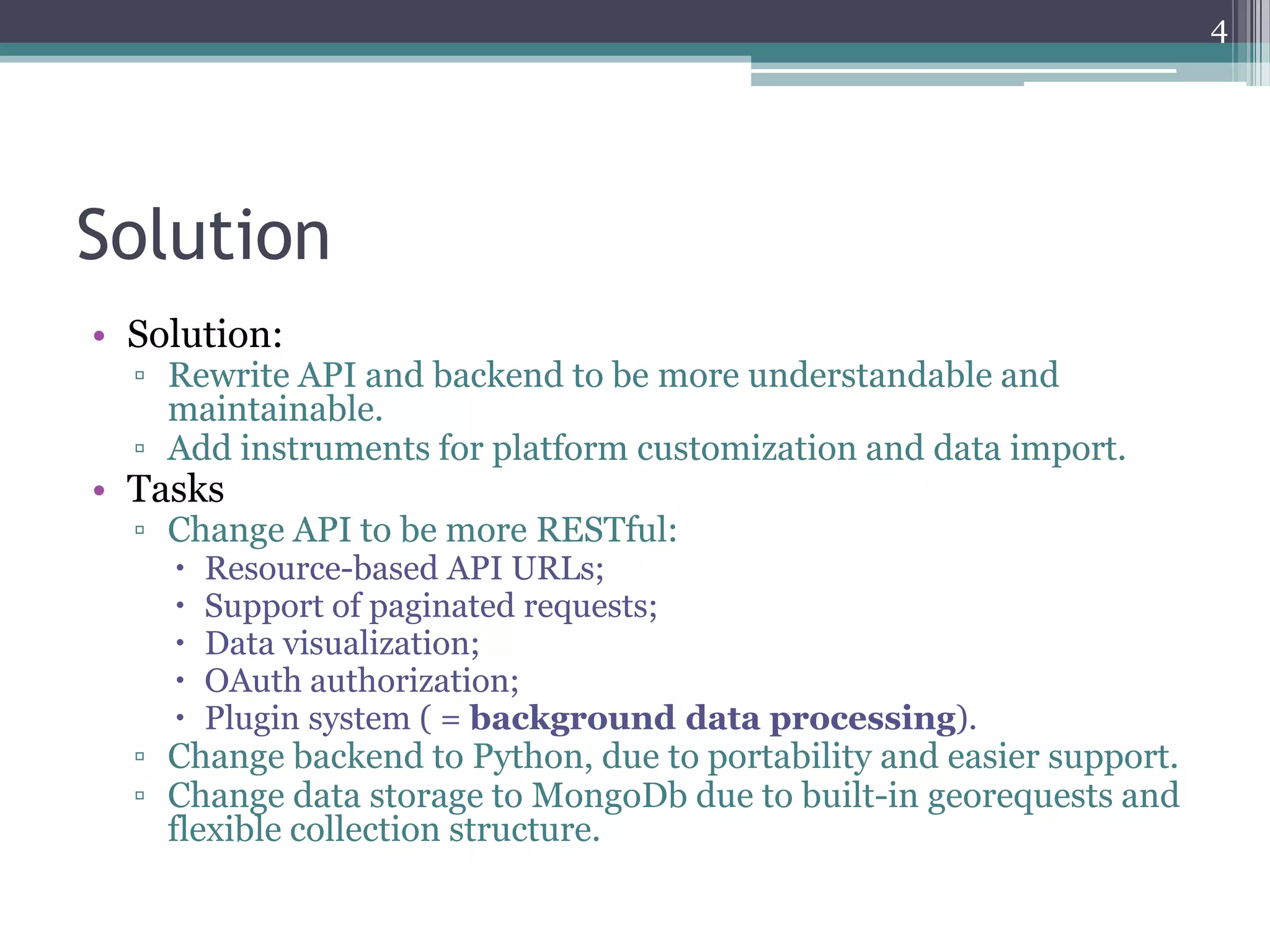

Solution
• Solution:
▫ Rewrite API and backend to be more understandable and
maintainable.
▫ Add instruments for platform customization and data import.
• Tasks
▫ Change API to be more RESTful:
 Resource-based API URLs;
 Support of paginated requests;
 Data visualization;
 OAuth authorization;
 Plugin system ( = background data processing).
▫ Change backend to Python, due to portability and easier support.
▫ Change data storage to MongoDb due to built-in georequests and
flexible collection structure.
4

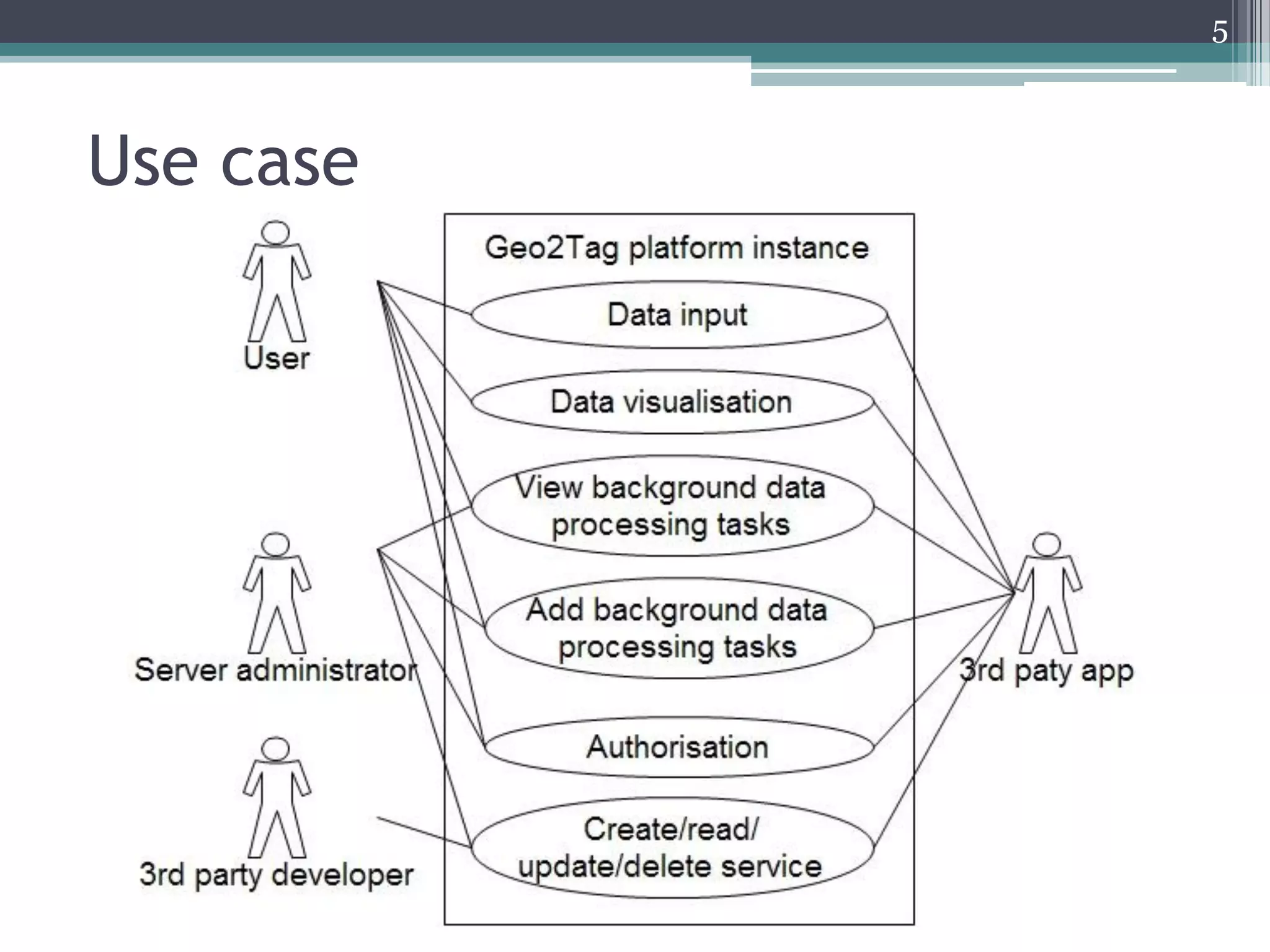

Use case
5

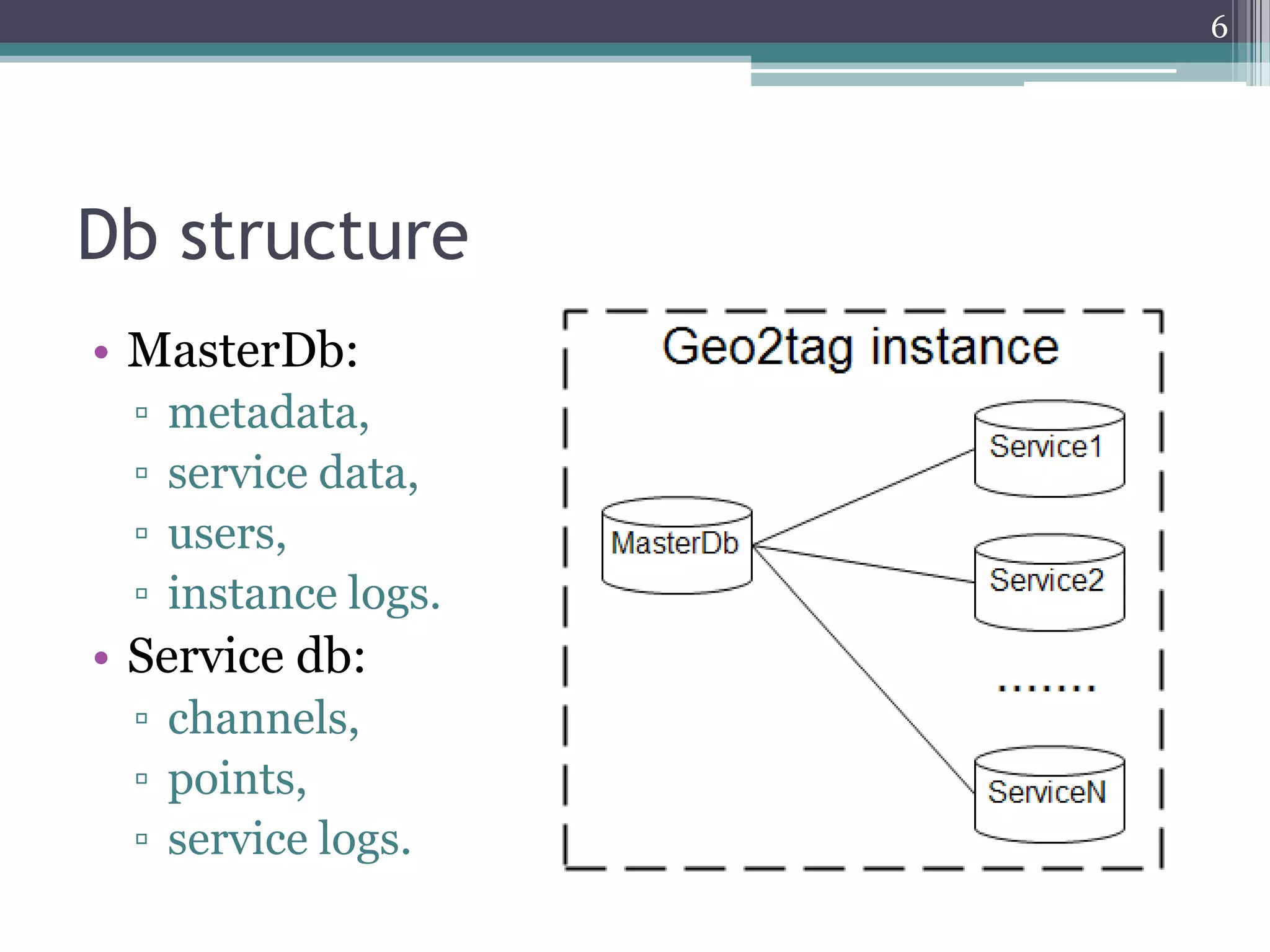

Db structure
• MasterDb:
▫ metadata,
▫ service data,
▫ users,
▫ instance logs.
• Service db:
▫ channels,
▫ points,
▫ service logs.
6

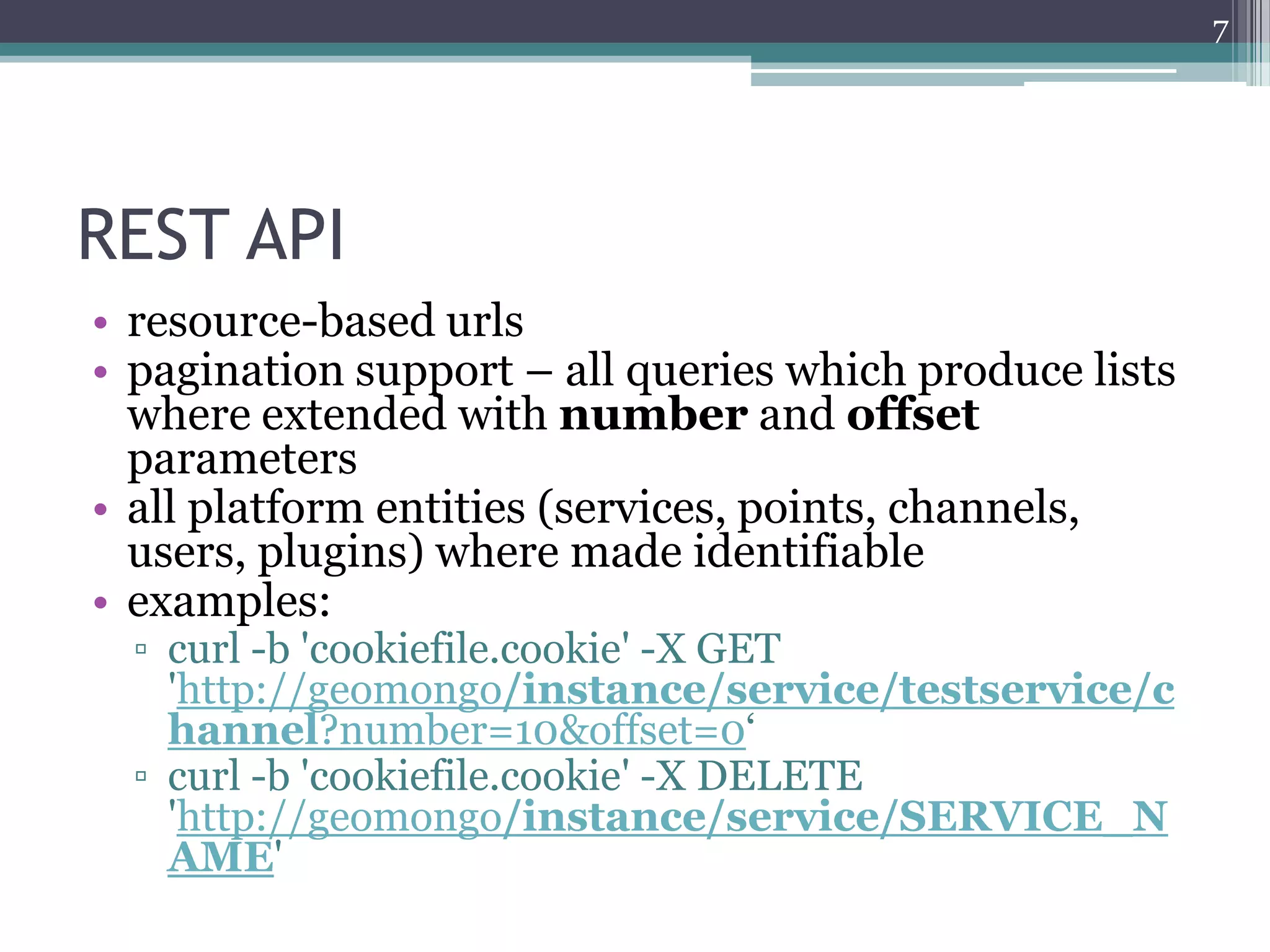

REST API
• resource-based urls
• pagination support – all queries which produce lists
where extended with number and offset
parameters
• all platform entities (services, points, channels,
users, plugins) where made identifiable
• examples:
▫ curl -b 'cookiefile.cookie' -X GET
'http://geomongo/instance/service/testservice/c
hannel?number=10&offset=0‘
▫ curl -b 'cookiefile.cookie' -X DELETE
'http://geomongo/instance/service/SERVICE_N
AME'
7

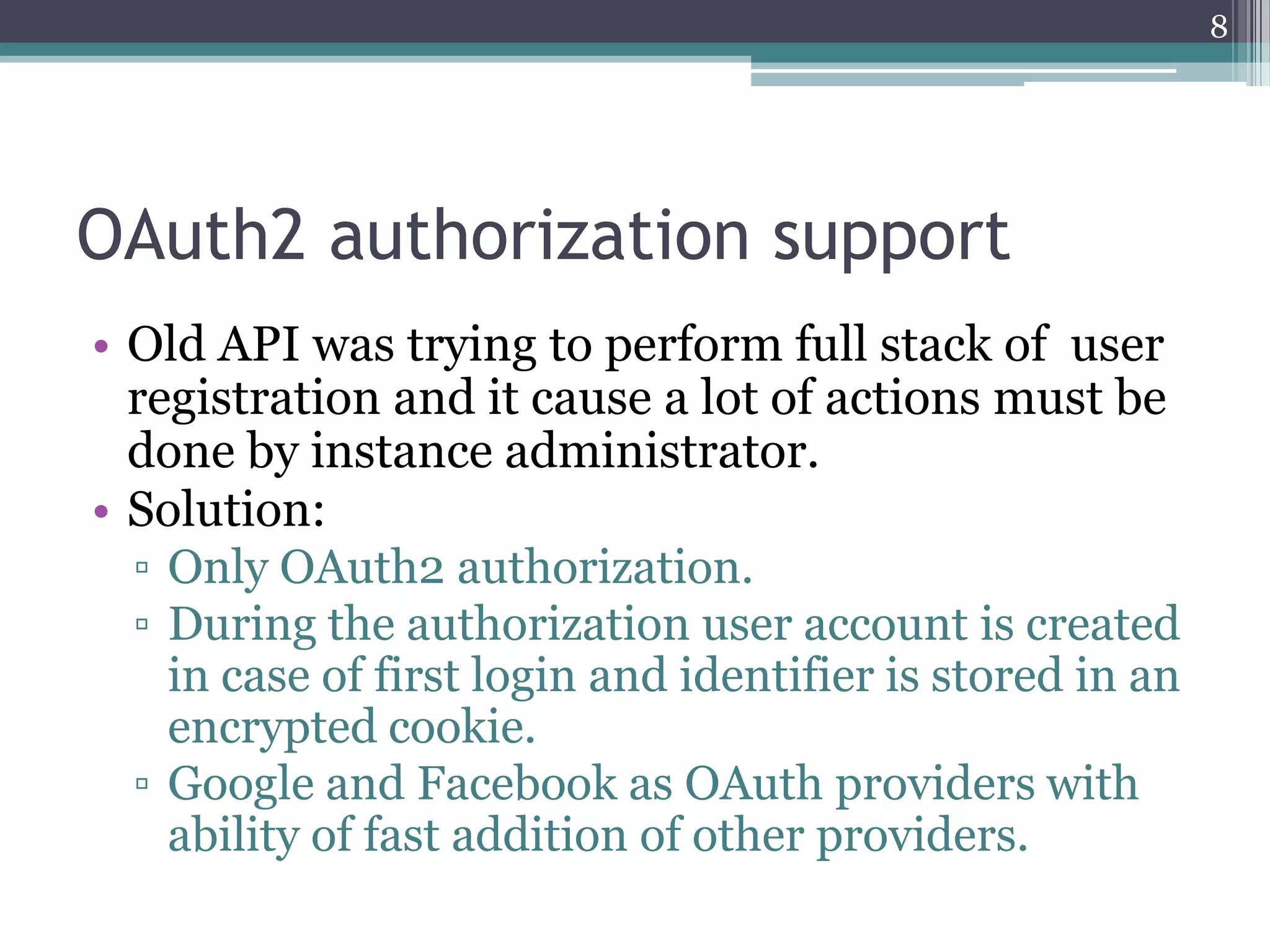

OAuth2 authorization support
• Old API was trying to perform full stack of user
registration and it cause a lot of actions must be
done by instance administrator.
• Solution:
▫ Only OAuth2 authorization.
▫ During the authorization user account is created
in case of first login and identifier is stored in an
encrypted cookie.
▫ Google and Facebook as OAuth providers with
ability of fast addition of other providers.
8

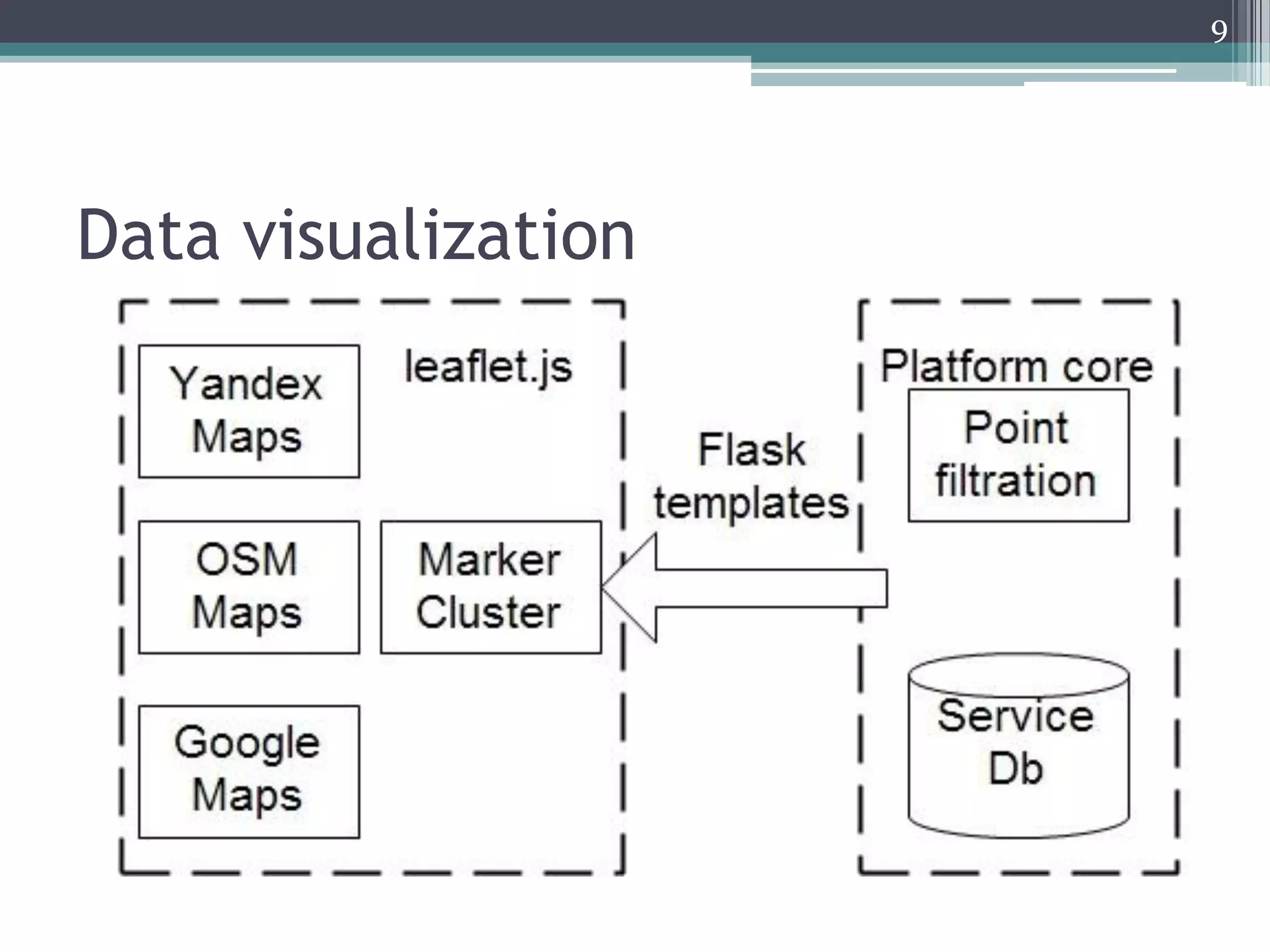

Data visualization
9

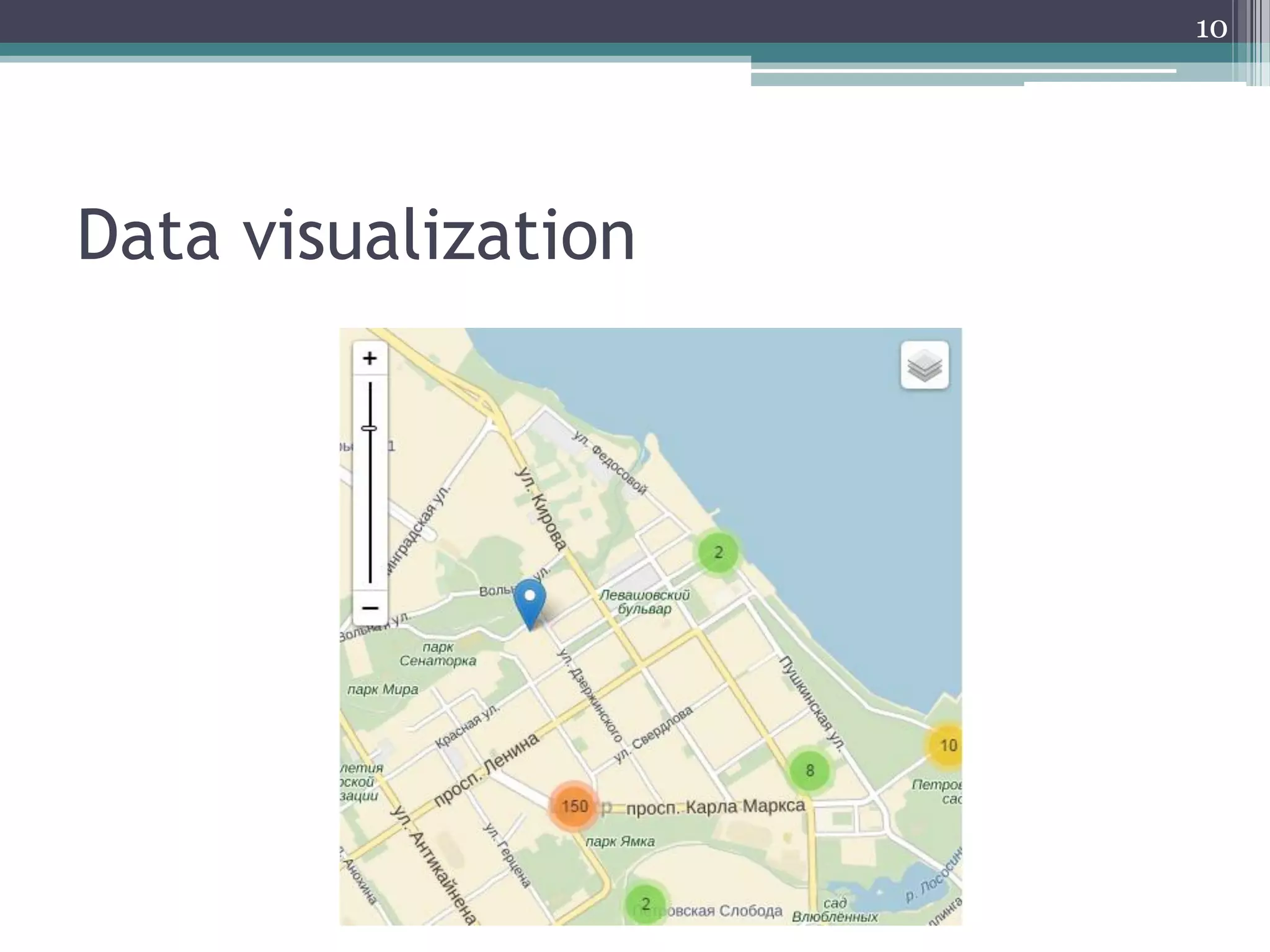

Data visualization
10

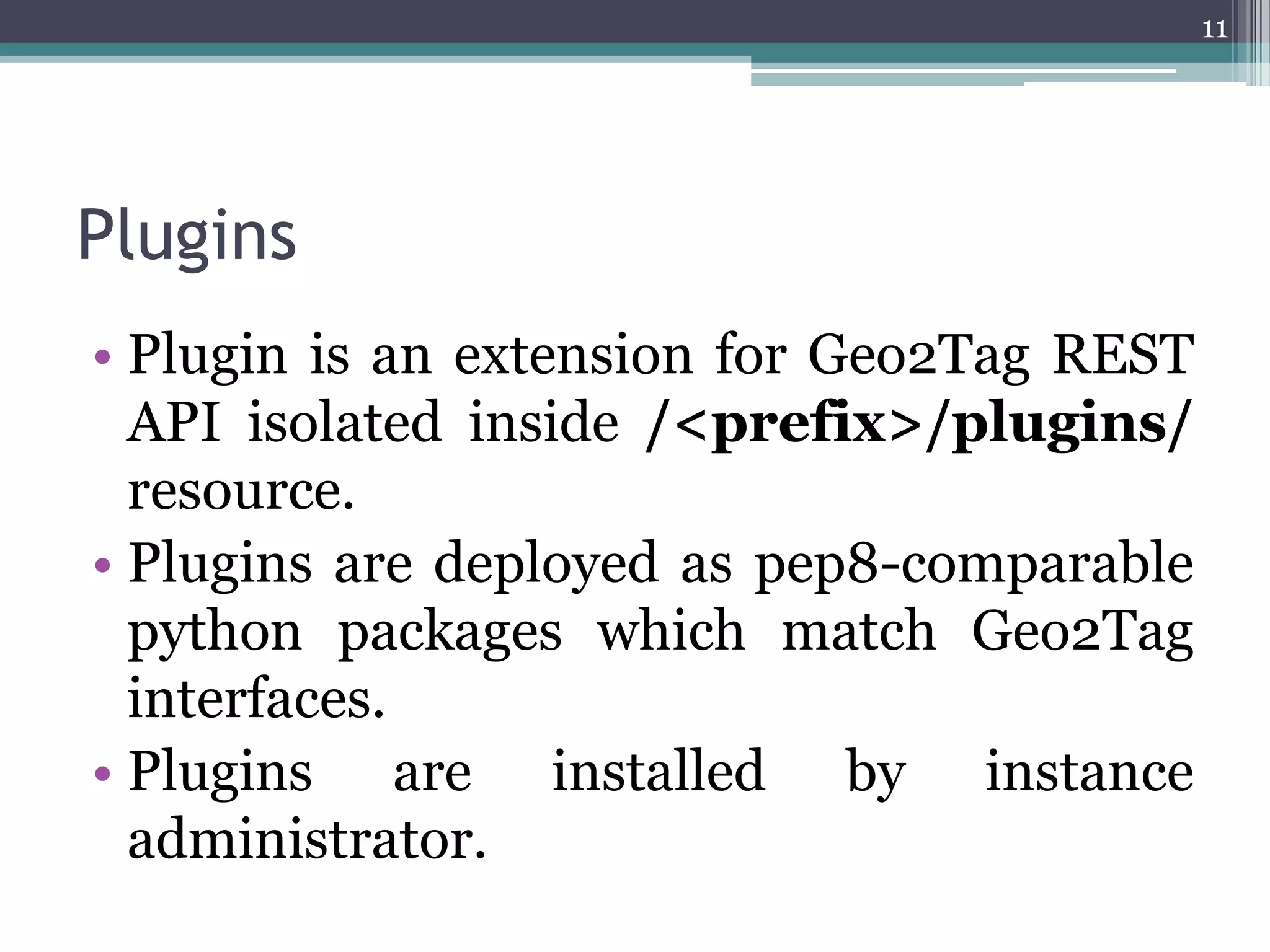

Plugins
• Plugin is an extension for Geo2Tag REST
API isolated inside /<prefix>/plugins/
resource.
• Plugins are deployed as pep8-comparable
python packages which match Geo2Tag
interfaces.
• Plugins are installed by instance
administrator.
11

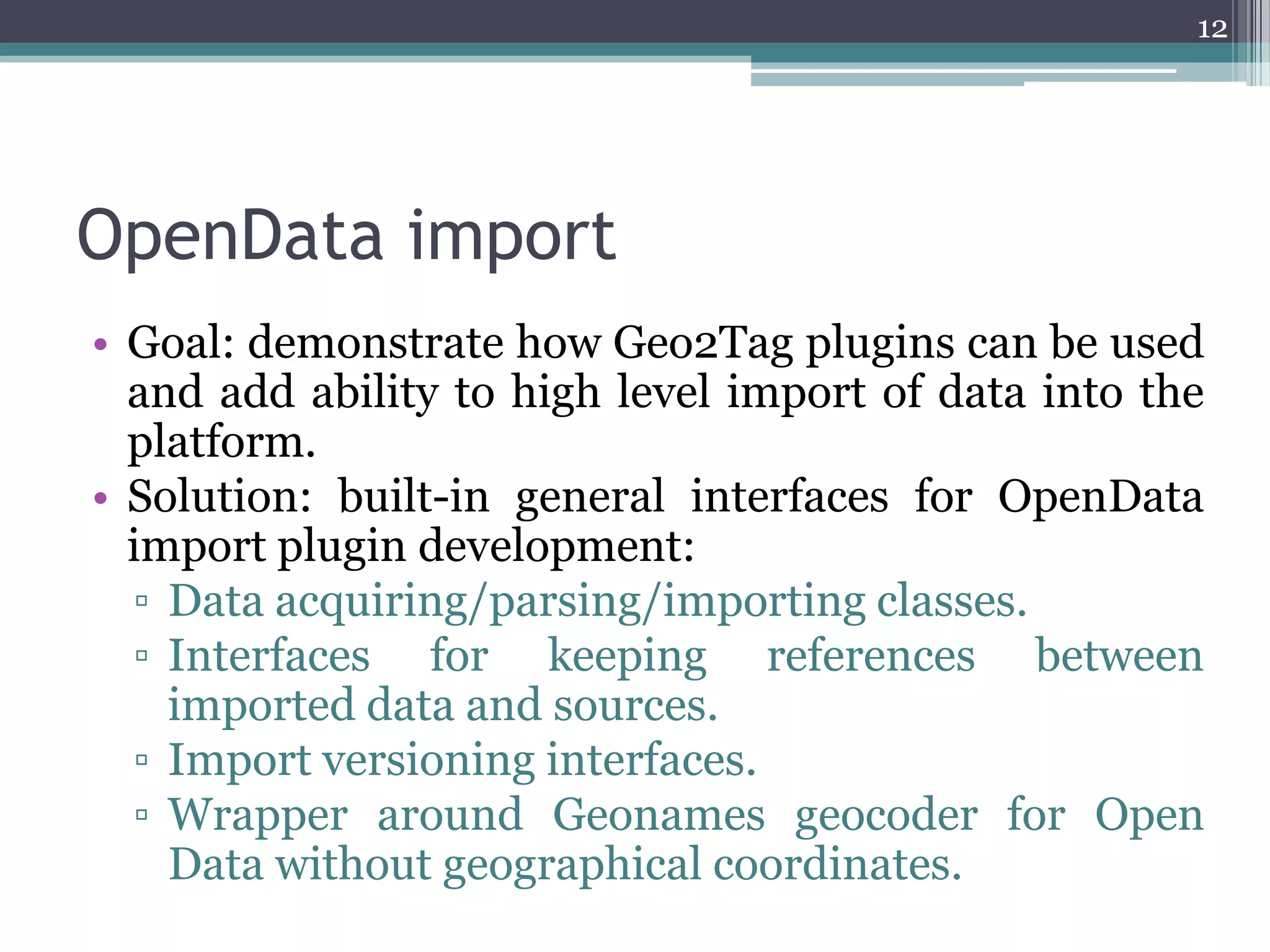

OpenData import
• Goal: demonstrate how Geo2Tag plugins can be used
and add ability to high level import of data into the
platform.
• Solution: built-in general interfaces for OpenData
import plugin development:
▫ Data acquiring/parsing/importing classes.
▫ Interfaces for keeping references between
imported data and sources.
▫ Import versioning interfaces.
▫ Wrapper around Geonames geocoder for Open
Data without geographical coordinates.
12

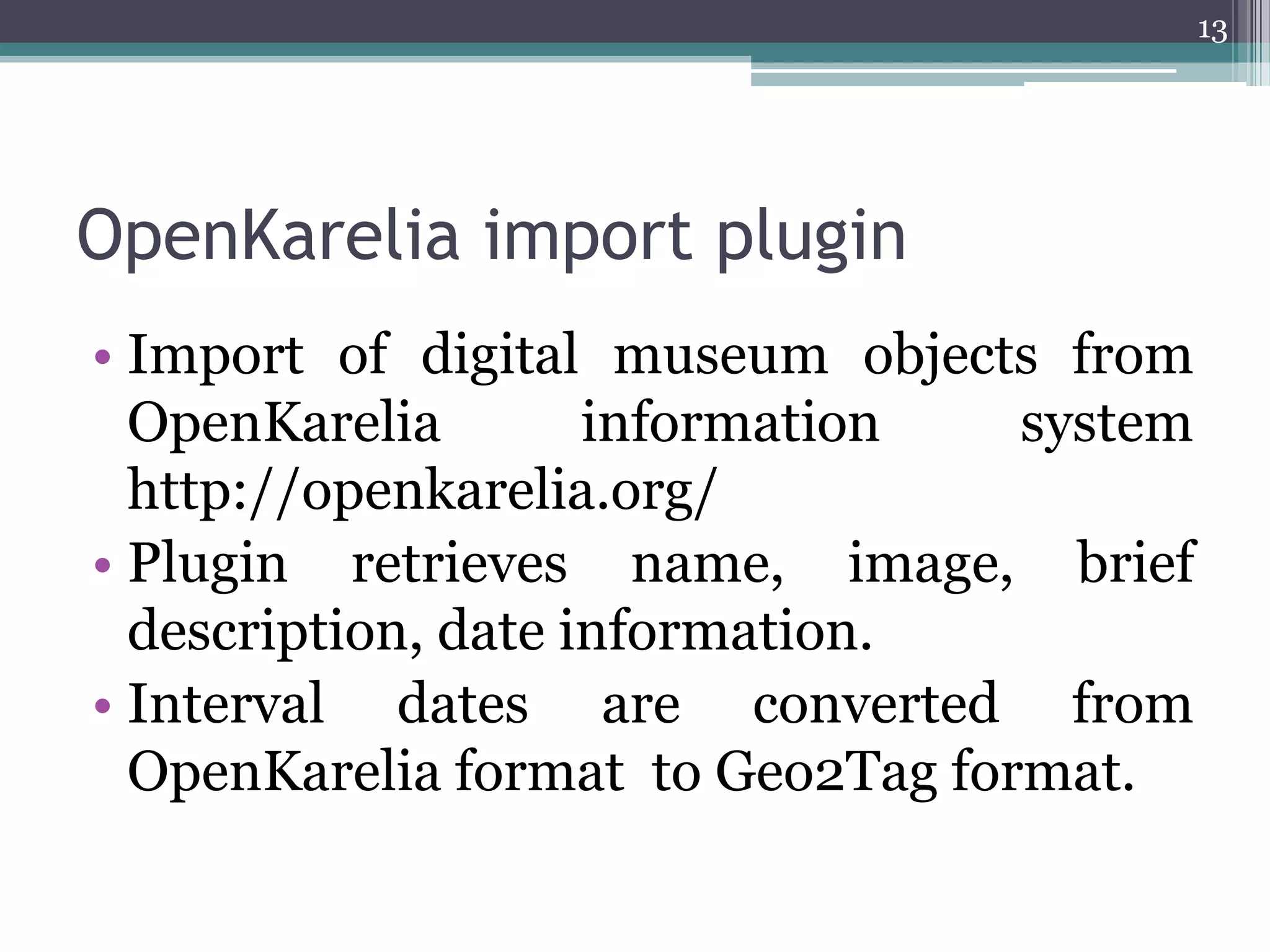

OpenKarelia import plugin
• Import of digital museum objects from
OpenKarelia information system
http://openkarelia.org/
• Plugin retrieves name, image, brief
description, date information.
• Interval dates are converted from
OpenKarelia format to Geo2Tag format.
13

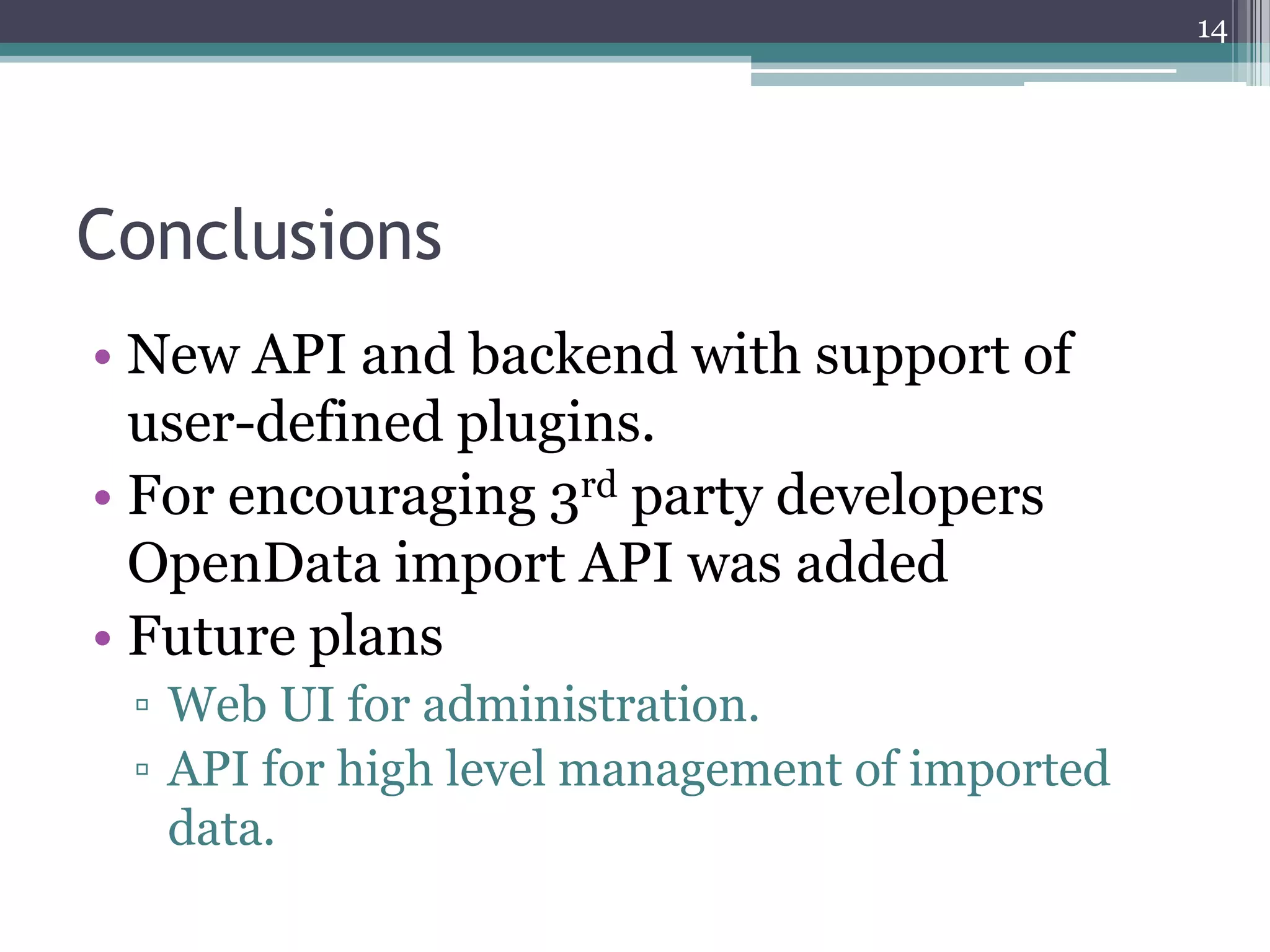

Conclusions
• New API and backend with support of
user-defined plugins.
• For encouraging 3rd party developers
OpenData import API was added
• Future plans
▫ Web UI for administration.
▫ API for high level management of imported
data.
14

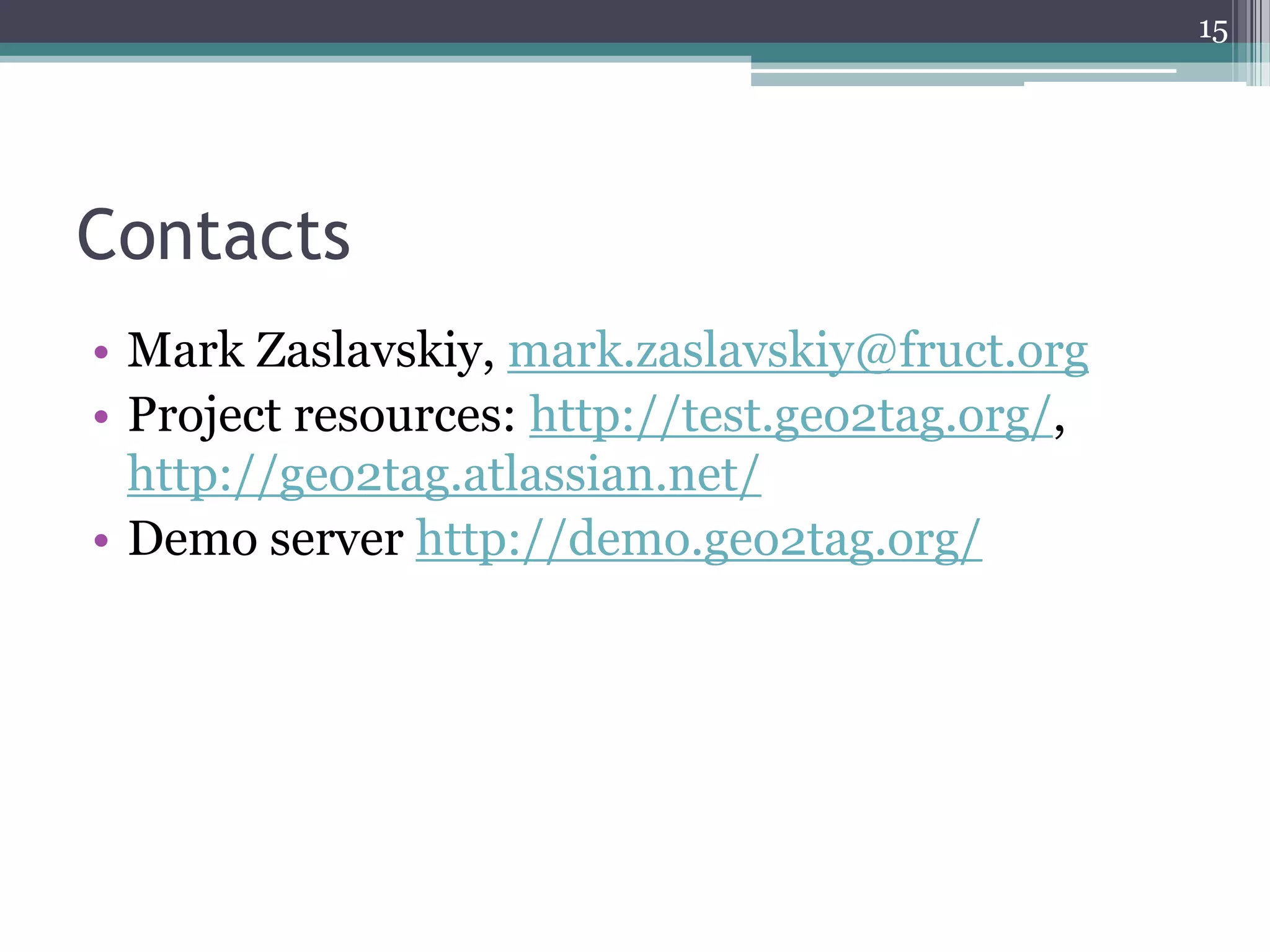

Contacts
• Mark Zaslavskiy, mark.zaslavskiy@fruct.org
• Project resources: http://test.geo2tag.org/,
http://geo2tag.atlassian.net/
• Demo server http://demo.geo2tag.org/
15
