1. IGLOO PROJECT
PRESENTATION

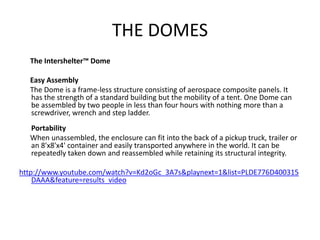

2. THE DOMES
The Intershelter™ Dome
Easy Assembly
The Dome is a frame-less structure consisting of aerospace composite panels. It
has the strength of a standard building but the mobility of a tent. One Dome can
be assembled by two people in less than four hours with nothing more than a
screwdriver, wrench and step ladder.
Portability
When unassembled, the enclosure can fit into the back of a pickup truck, trailer or
an 8'x8'x4' container and easily transported anywhere in the world. It can be
repeatedly taken down and reassembled while retaining its structural integrity.
http://www.youtube.com/watch?v=Kd2oGc_3A7s&playnext=1&list=PLDE776D400315
DAAA&feature=results_video

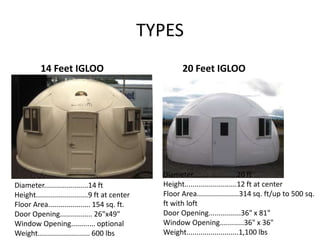

3. TYPES
14 Feet IGLOO 20 Feet IGLOO
Diameter......................20 ft
Diameter......................14 ft Height..........................12 ft at center
Height..........................9 ft at center Floor Area.....................314 sq. ft/up to 500 sq.
Floor Area..................... 154 sq. ft. ft with loft
Door Opening................ 26"x49" Door Opening................36" x 81"
Window Opening............ optional Window Opening............36" x 36"
Weight.......................... 600 lbs Weight..........................1,100 lbs

4. Insulation
P2000 is a hybrid rigid-board insulation that in our opinion is decades ahead of
the conventional ideas and products used for insulating building structures.
P2000 is made with a dense expanded polystyrene (EPS) core and utilizes a
high grade reflective finish on one side and a very durable white woven finish
on the other. P2000 kits for our Omnisphere come precut to fit in the interior
of our structures with no fasteners because of this woven finish; all you have to
do is tape the seams. The added benefit once you've installed the P2000 kit in
your Omnisphere and taped the seams is that you now have a vapor
barrier, radiant and convection heat barrier, wind barrier, thermal barrier, bug
barrier and a beautifully finished interior for your Omnisphere
http://www.p2000insulation.com/

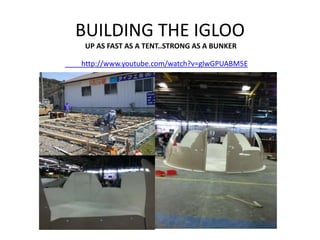

5. BUILDING THE IGLOO
UP AS FAST AS A TENT..STRONG AS A BUNKER
http://www.youtube.com/watch?v=glwGPUABM5E

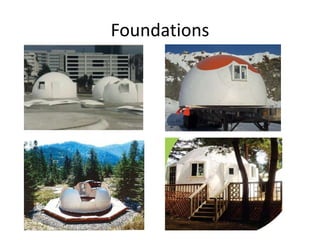

6. Foundations

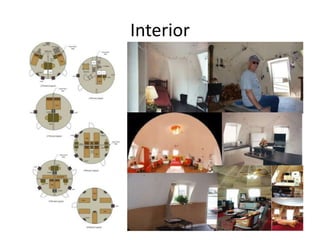

7. Interior

8. Gel coat
An exterior gel coat which is virtually indestructible covers the panels. This gel coat is
resistant to sun, snow, rain or temperatures over 120°F or below 0°F. The gel coat is
molded into the fiberglass giving the Intershelter Dome incredible structural strength.
DRAGONSHIELD – Bullet and bomb proof
http://www.specialty-
products.com/?gclid=CMK9i_CG1a0CFaEZQgoda1P66w#!prettyPhoto[mixed]/0/

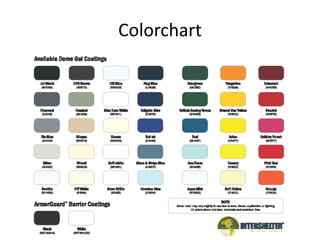

9. Colorchart

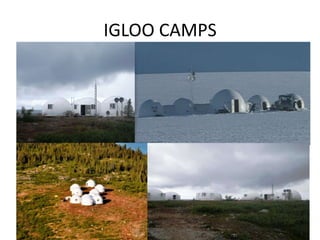

10. IGLOO CAMPS

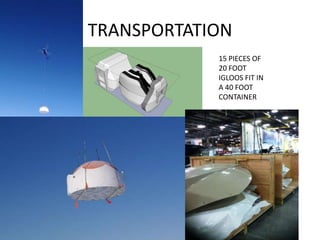

12. TRANSPORTATION
15 PIECES OF
20 FOOT
IGLOOS FIT IN
A 40 FOOT
CONTAINER

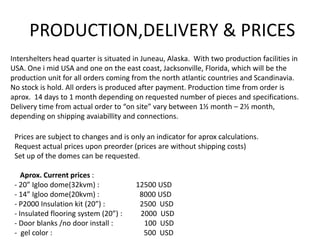

13. PRODUCTION,DELIVERY & PRICES
Intershelters head quarter is situated in Juneau, Alaska. With two production facilities in
USA. One i mid USA and one on the east coast, Jacksonville, Florida, which will be the
production unit for all orders coming from the north atlantic countries and Scandinavia.
No stock is hold. All orders is produced after payment. Production time from order is
aprox. 14 days to 1 month depending on requested number of pieces and specifications.
Delivery time from actual order to “on site” vary between 1½ month – 2½ month,
depending on shipping avaiabillity and connections.
Prices are subject to changes and is only an indicator for aprox calculations.
Request actual prices upon preorder (prices are without shipping costs)
Set up of the domes can be requested.
Aprox. Current prices :
- 20” Igloo dome(32kvm) : 12500 USD
- 14” Igloo dome(20kvm) : 8000 USD
- P2000 Insulation kit (20”) : 2500 USD
- Insulated flooring system (20”) : 2000 USD
- Door blanks /no door install : 100 USD
- gel color : 500 USD
