IDL to C++11 revised submission presentation

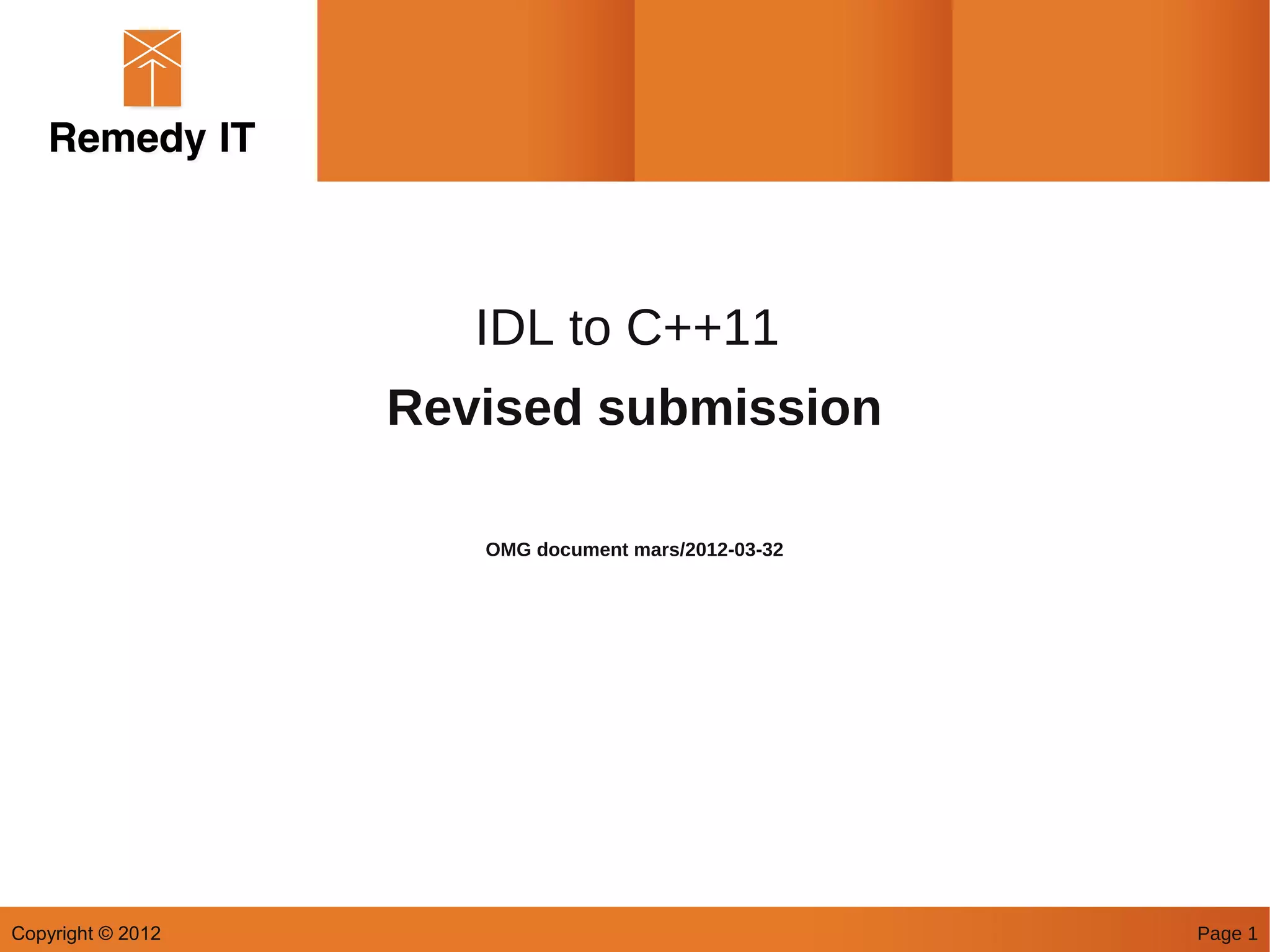

IDL to C++11
Revised submission

OMG document mars/2012-03-32

Copyright © 2012 Page 1

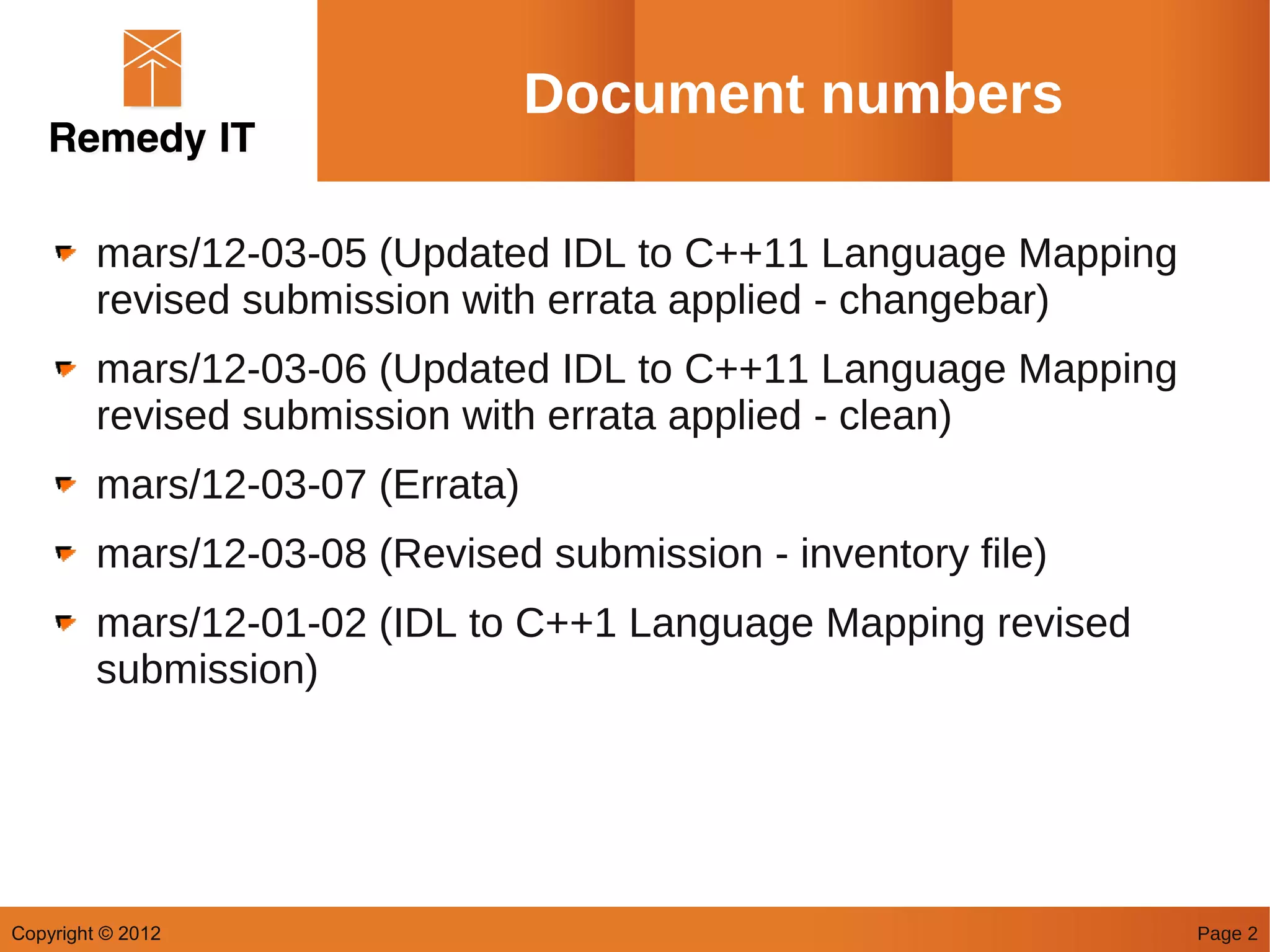

Document numbers

mars/12-03-05 (Updated IDL to C++11 Language Mapping
revised submission with errata applied - changebar)
mars/12-03-06 (Updated IDL to C++11 Language Mapping
revised submission with errata applied - clean)
mars/12-03-07 (Errata)
mars/12-03-08 (Revised submission - inventory file)
mars/12-01-02 (IDL to C++1 Language Mapping revised
submission)

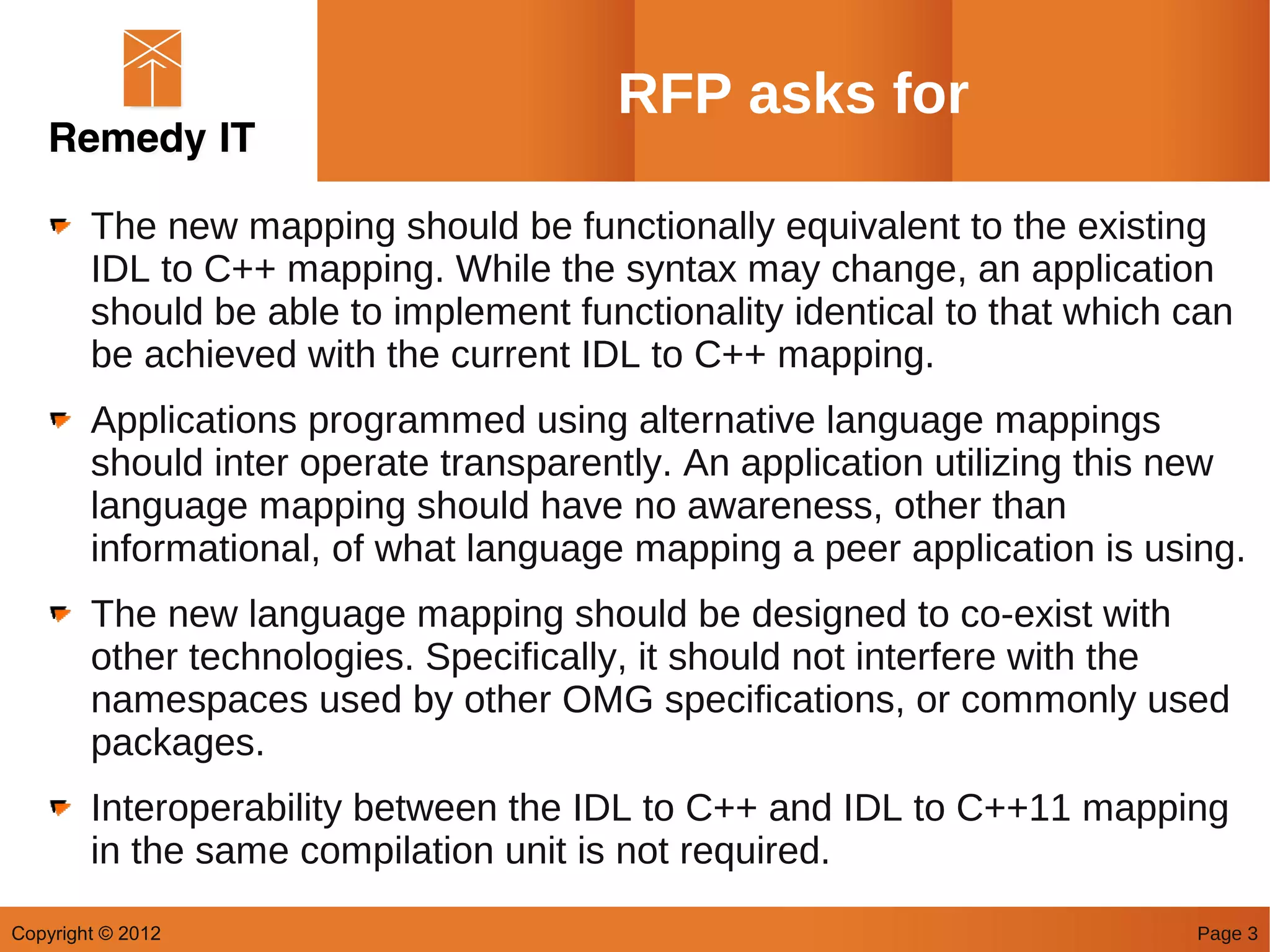

RFP asks for

The new mapping should be functionally equivalent to the existing
IDL to C++ mapping. While the syntax may change, an application
should be able to implement functionality identical to that which can
be achieved with the current IDL to C++ mapping.
Applications programmed using alternative language mappings
should inter operate transparently. An application utilizing this new
language mapping should have no awareness, other than
informational, of what language mapping a peer application is using.
The new language mapping should be designed to co-exist with
other technologies. Specifically, it should not interfere with the
namespaces used by other OMG specifications, or commonly used
packages.
Interoperability between the IDL to C++ and IDL to C++11 mapping
in the same compilation unit is not required.

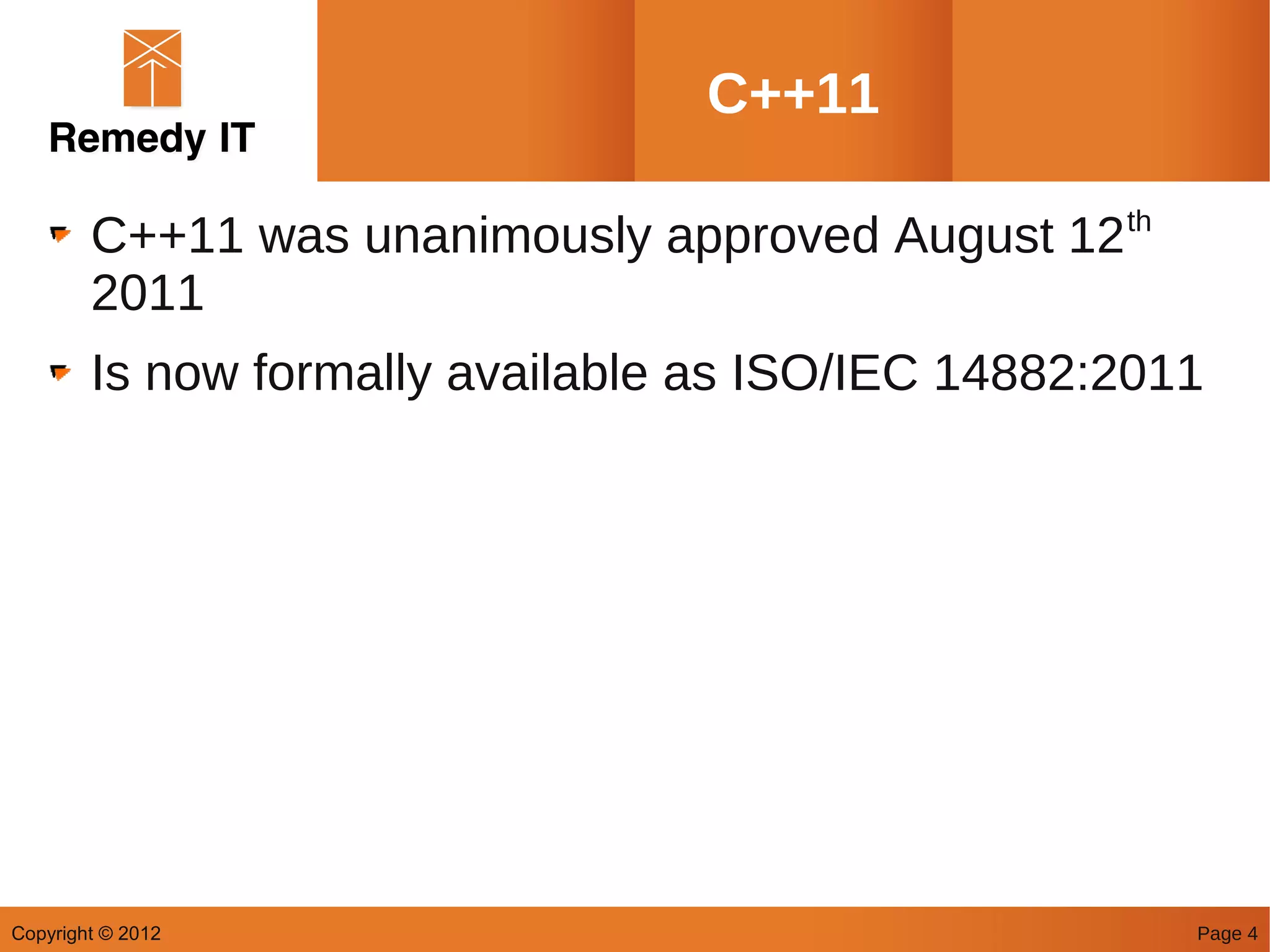

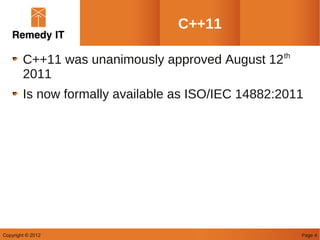

C++11

C++11 was unanimously approved August 12 th
2011
Is now formally available as ISO/IEC 14882:2011

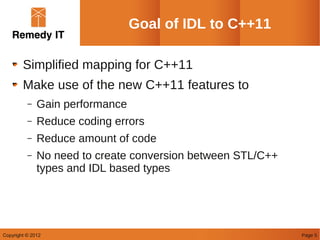

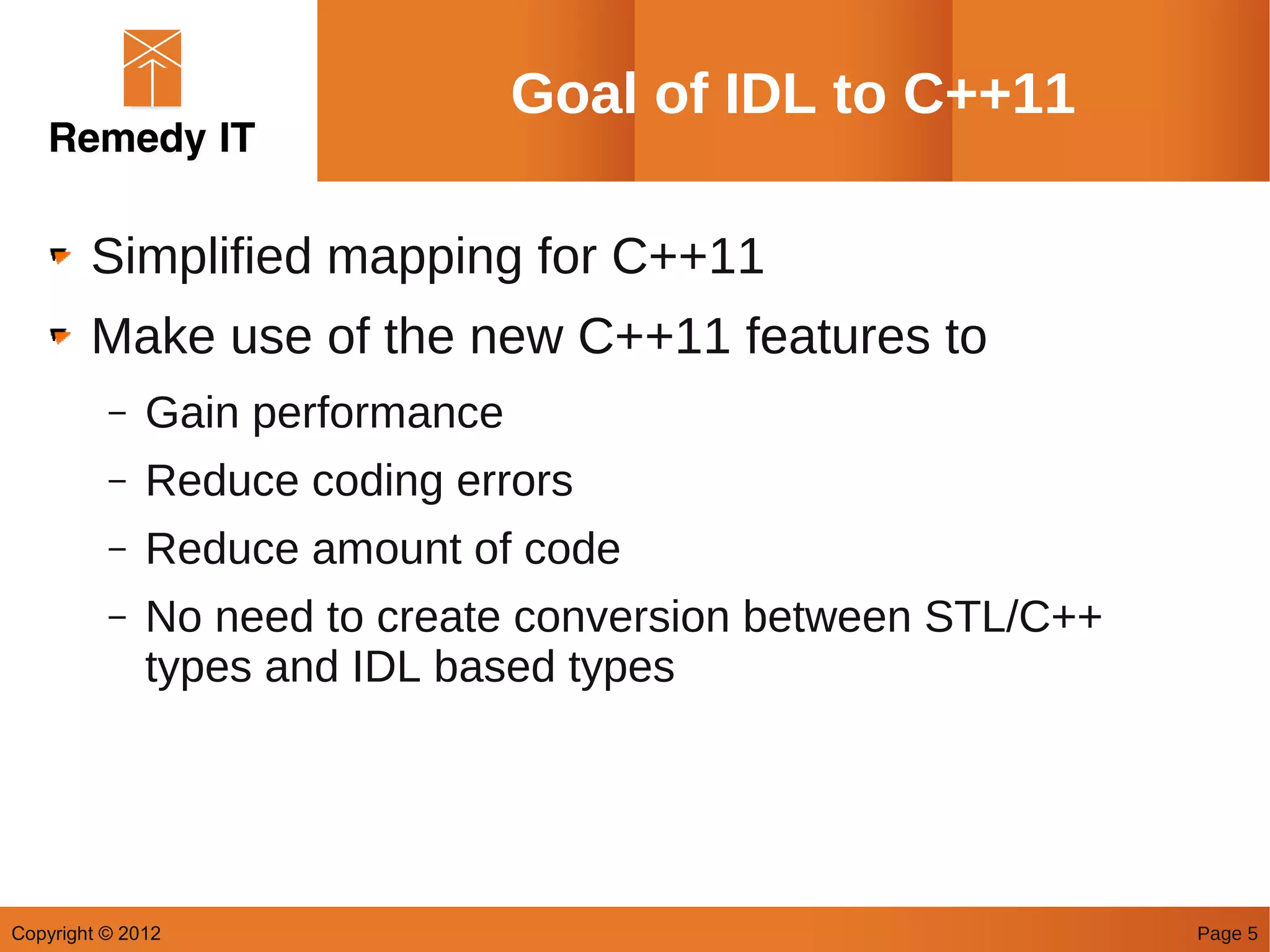

Goal of IDL to C++11

Simplified mapping for C++11
Make use of the new C++11 features to
– Gain performance
– Reduce coding errors
– Reduce amount of code
– No need to create conversion between STL/C++
types and IDL based types

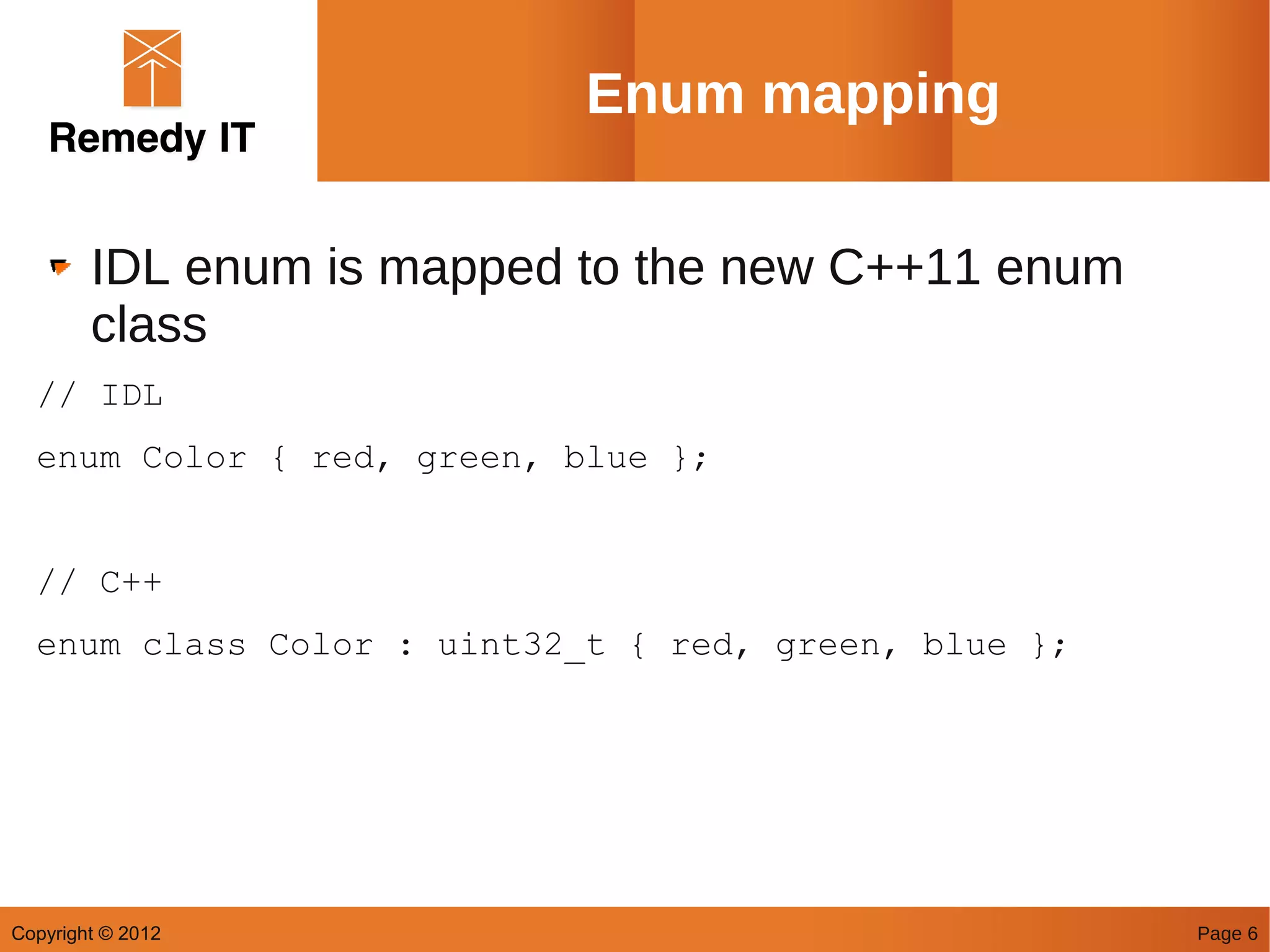

Enum mapping

IDL enum is mapped to the new C++11 enum
class
// IDL
enum Color { red, green, blue };

// C++
enum class Color : uint32_t { red, green, blue };

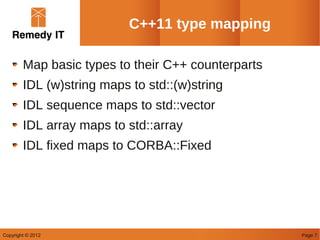

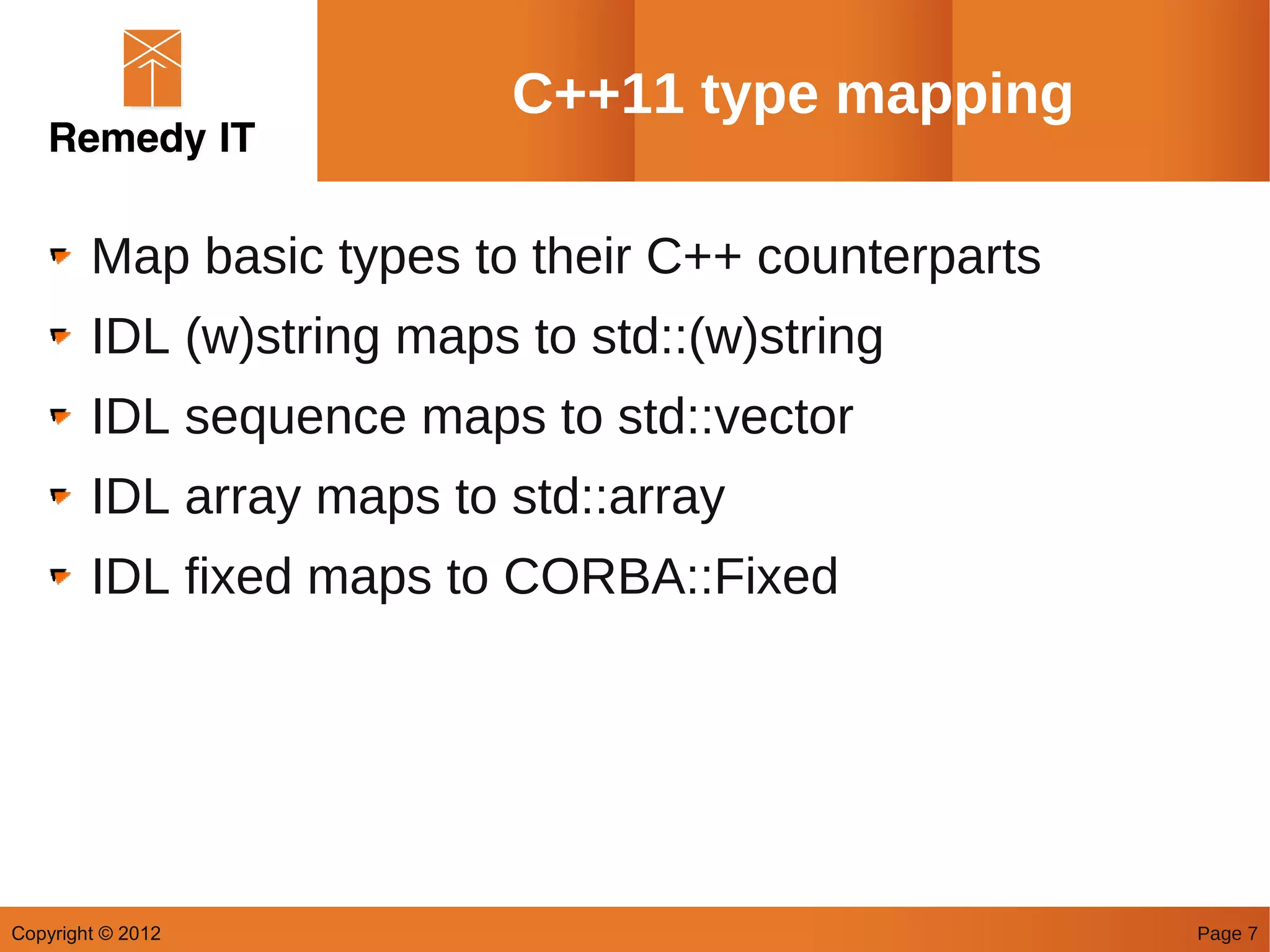

C++11 type mapping

Map basic types to their C++ counterparts
IDL (w)string maps to std::(w)string
IDL sequence maps to std::vector
IDL array maps to std::array
IDL fixed maps to CORBA::Fixed

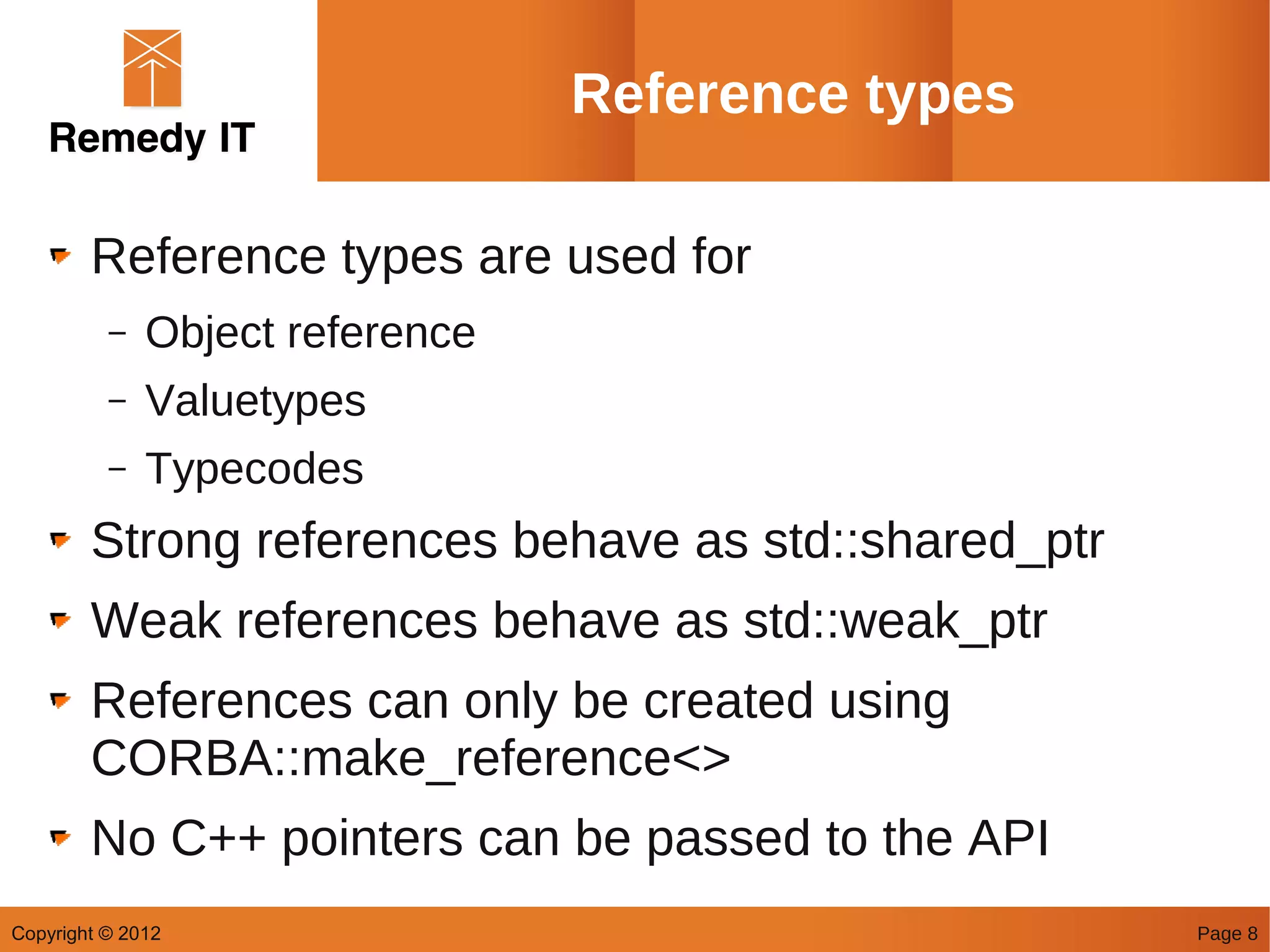

Reference types

Reference types are used for
– Object reference
– Valuetypes
– Typecodes
Strong references behave as std::shared_ptr
Weak references behave as std::weak_ptr
References can only be created using
CORBA::make_reference<>
No C++ pointers can be passed to the API

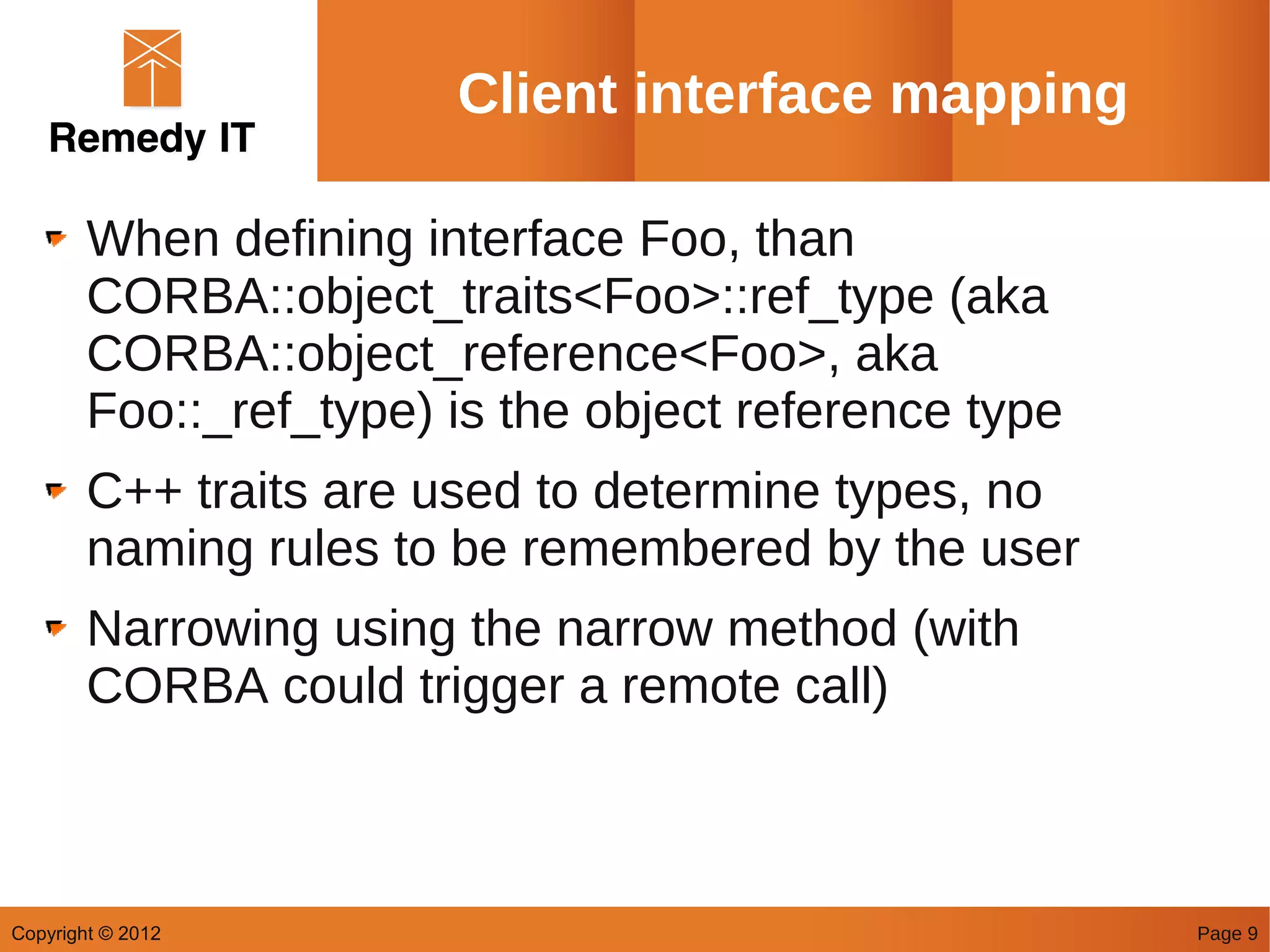

Client interface mapping

When defining interface Foo, than
CORBA::object_traits<Foo>::ref_type (aka
CORBA::object_reference<Foo>, aka
Foo::_ref_type) is the object reference type
C++ traits are used to determine types, no
naming rules to be remembered by the user
Narrowing using the narrow method (with
CORBA could trigger a remote call)

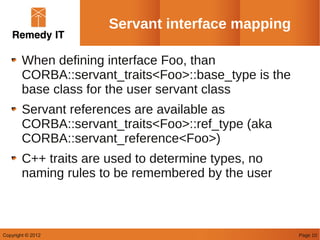

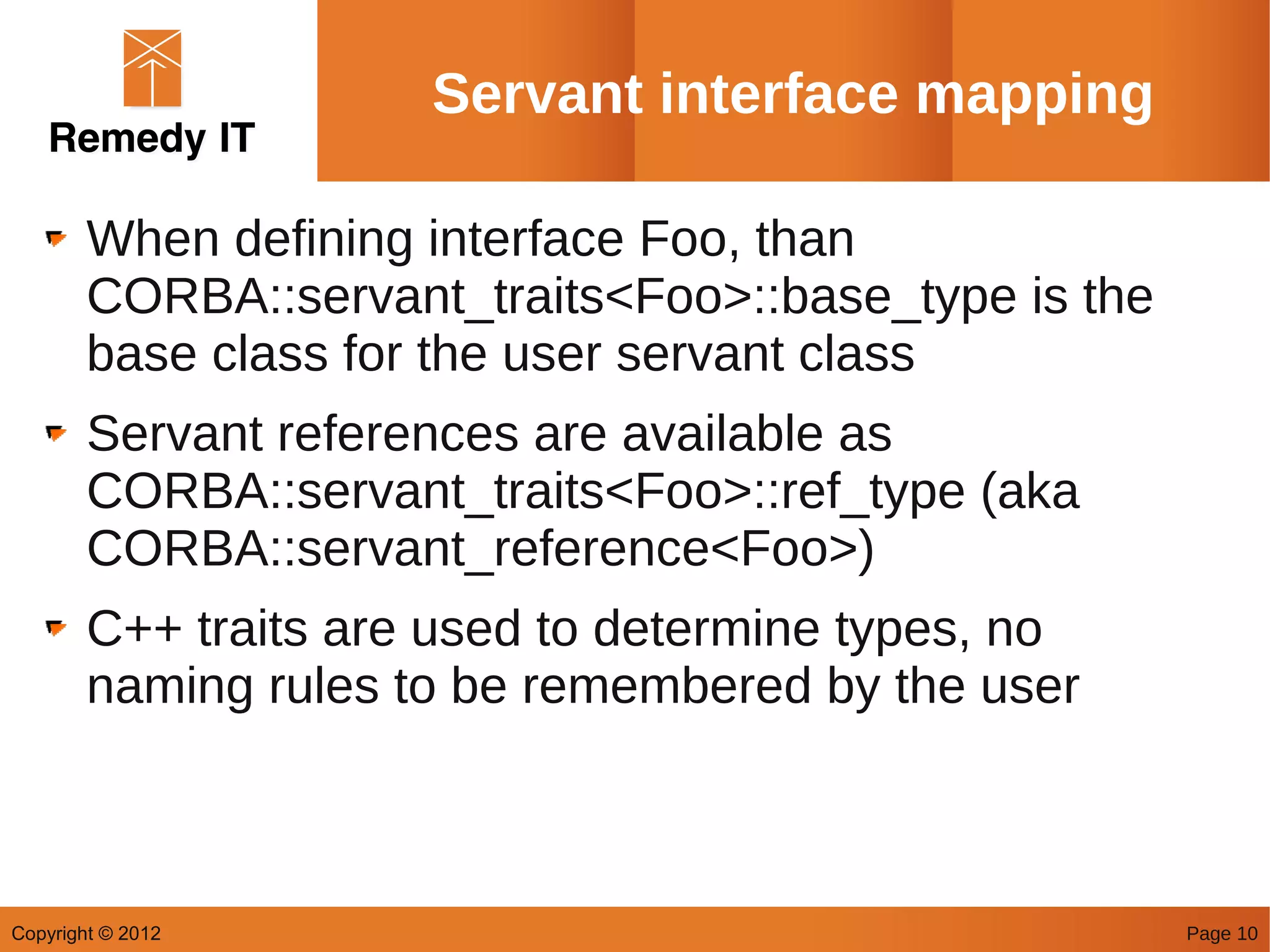

Servant interface mapping

When defining interface Foo, than
CORBA::servant_traits<Foo>::base_type is the
base class for the user servant class
Servant references are available as
CORBA::servant_traits<Foo>::ref_type (aka
CORBA::servant_reference<Foo>)
C++ traits are used to determine types, no
naming rules to be remembered by the user

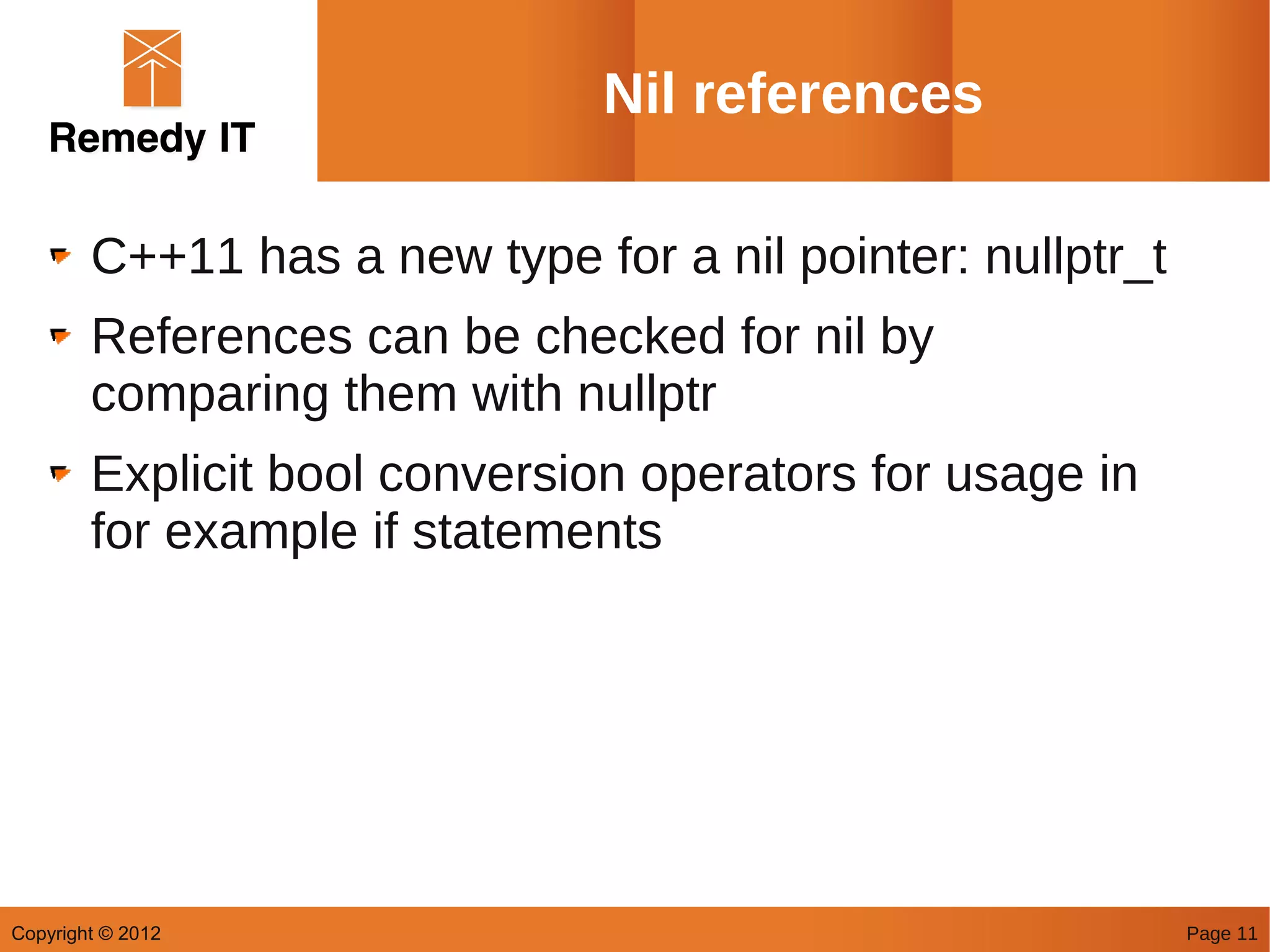

Nil references

C++11 has a new type for a nil pointer: nullptr_t
References can be checked for nil by
comparing them with nullptr
Explicit bool conversion operators for usage in
for example if statements

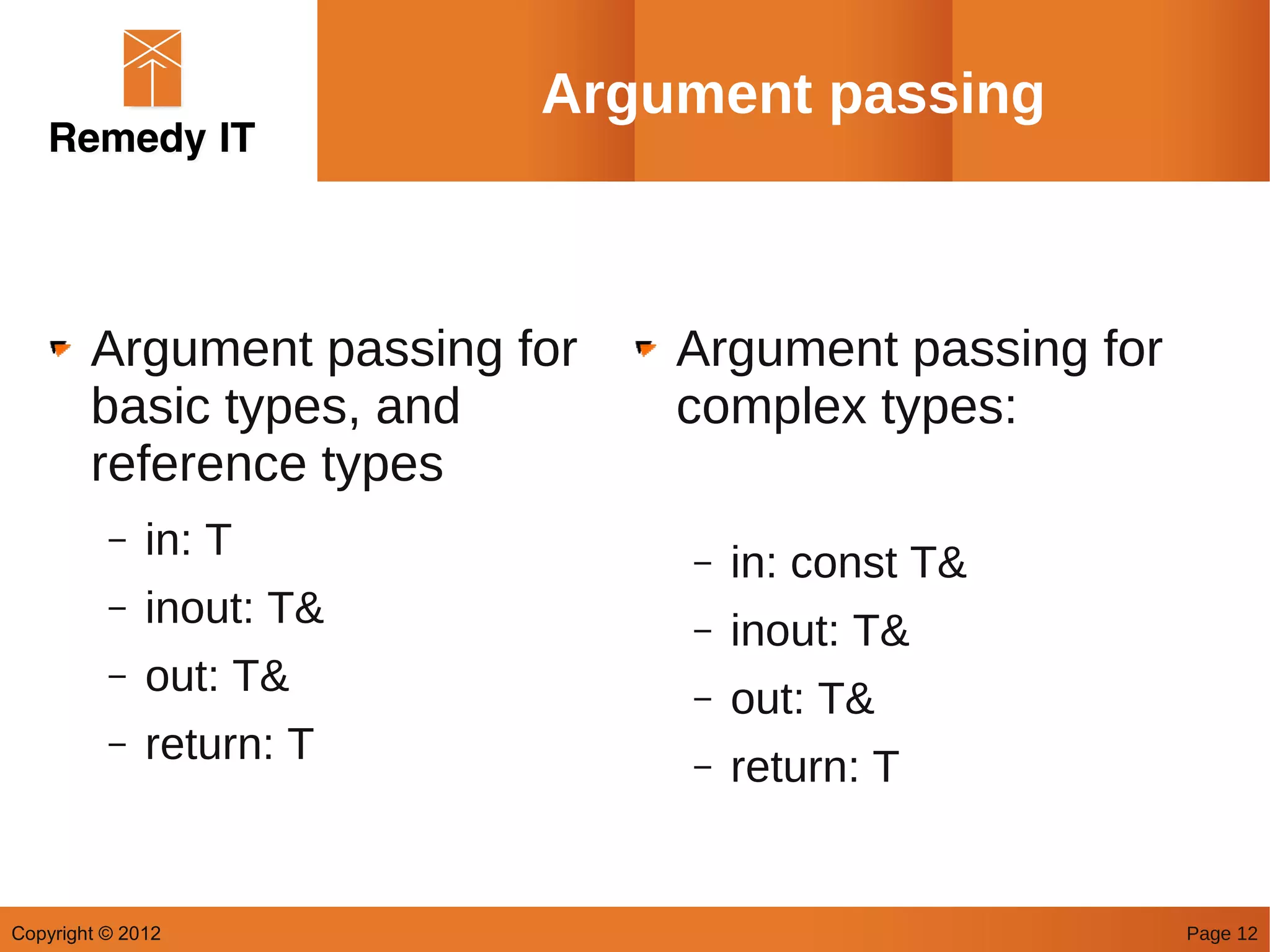

Argument passing

Argument passing for Argument passing for
basic types, and complex types:
reference types
– in: T – in: const T&
– inout: T& – inout: T&
– out: T& – out: T&
– return: T – return: T

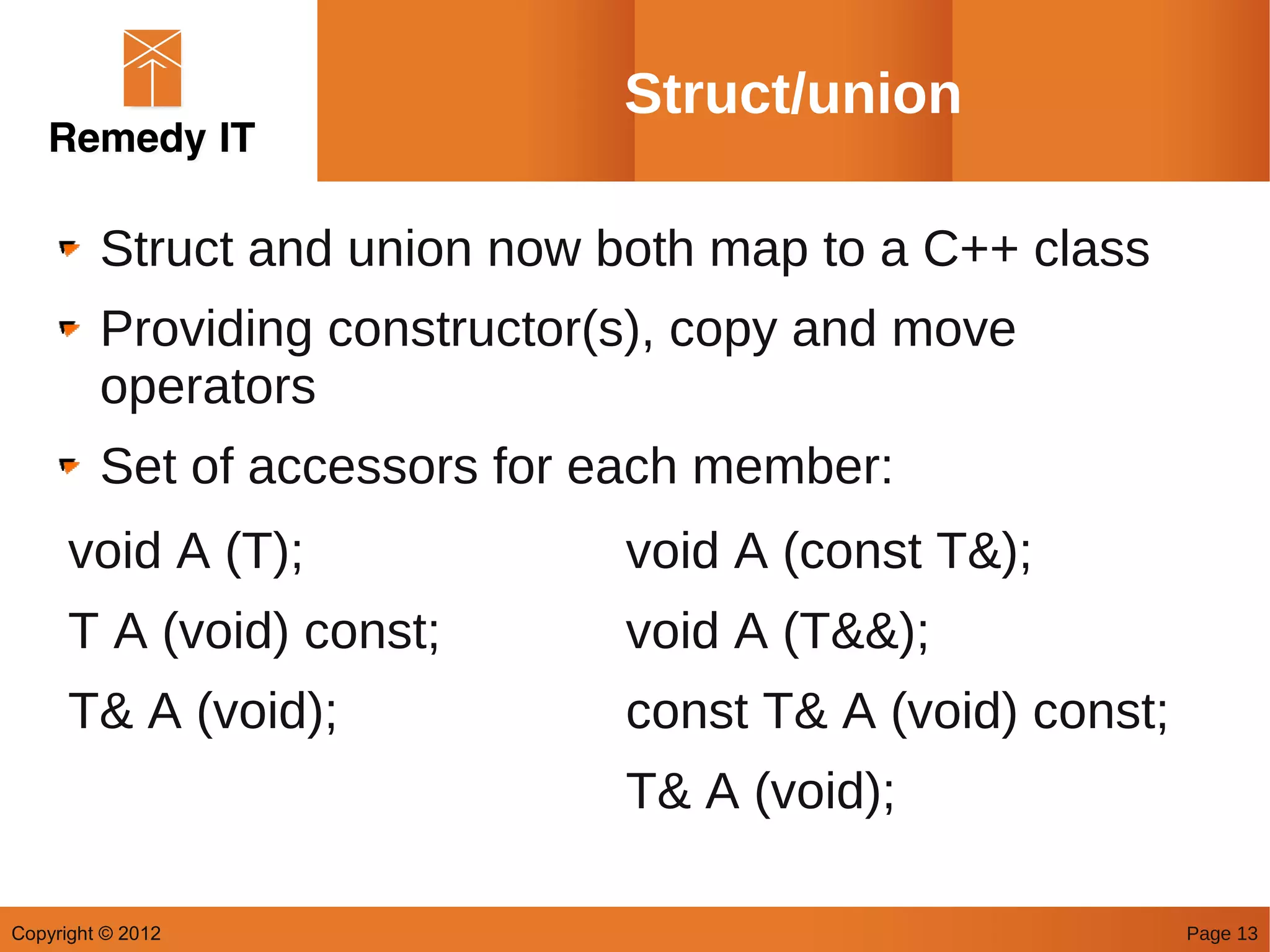

Struct/union

Struct and union now both map to a C++ class
Providing constructor(s), copy and move
operators
Set of accessors for each member:
void A (T); void A (const T&);
T A (void) const; void A (T&&);
T& A (void); const T& A (void) const;
T& A (void);

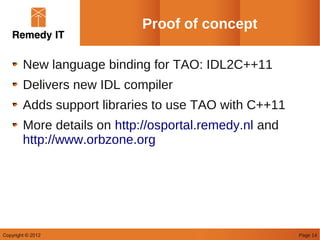

Proof of concept

New language binding for TAO: IDL2C++11
Delivers new IDL compiler
Adds support libraries to use TAO with C++11
More details on http://osportal.remedy.nl and
http://www.orbzone.org

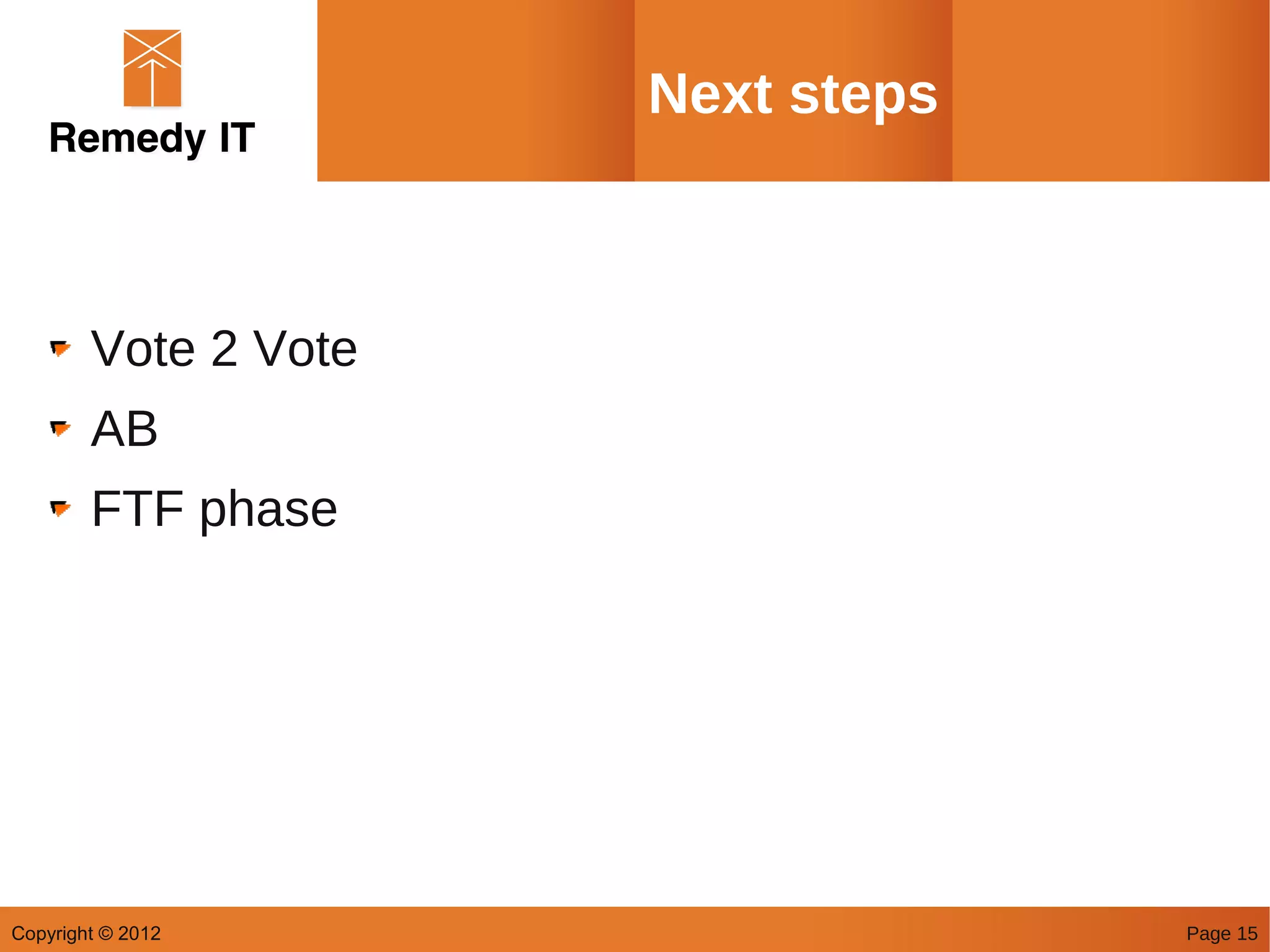

Next steps

Vote 2 Vote
AB
FTF phase
