This document provides an overview of performance tuning for software systems. It discusses setting reasonable performance goals, understanding your system environment and usage patterns, identifying common performance issues, and taking a cyclical approach to ongoing monitoring and optimization. The key points are: set achievable performance goals based on peak demand, understand dependencies, data flows, and where load lies; monitor baseline performance and "red flags" like disk I/O, memory, and CPU usage; revisit performance regularly and after changes; and consider virtual environments, add-ons, OS patches, and hardware drivers.

1. ID114
Wrestling the Snake:
Performance Tuning 101
Wes Morgan | Senior Software Engineer
© 2012 IBM Corporation

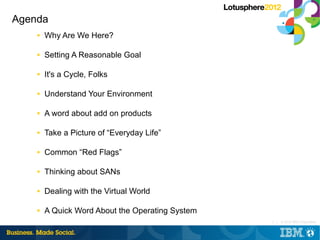

2. Agenda
■ Why Are We Here?
■ Setting A Reasonable Goal
■ It's a Cycle, Folks
■ Understand Your Environment
■ A word about add on products
■ Take a Picture of “Everyday Life”
■ Common “Red Flags”
■ Thinking about SANs
■ Dealing with the Virtual World
■ A Quick Word About the Operating System
2 | © 2012 IBM Corporation

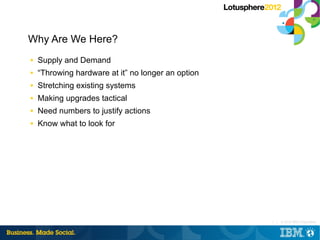

3. Why Are We Here?
■ Supply and Demand
■ “Throwing hardware at it” no longer an option
■ Stretching existing systems
■ Making upgrades tactical
■ Need numbers to justify actions
■ Know what to look for
3 | © 2012 IBM Corporation

4. Setting A Reasonable Goal
■ We aren't going to Unicorn-and-Rainbow Land
─ Even the best designs can be stressed
■ Changing demand
■ New initiatives, new software, new users
■ Most reasonable goal: Meet peak demand with (some) room to spare
4 | © 2012 IBM Corporation

5. It's a Cycle, Folks
■ You can't do this once and call it finished
■ As system load changes, we must adjust and adapt
─ Remember that load can change in volume, footprint, complexity or all of the above
■ Revisit performance on a regular basis
─ Know what numbers are important for your enterprise
─ Know who supports what in your organization
─ Automate reports (monthly, bi-monthly)
─ Catch trends before they become problems
■ Revisit performance on any significant change
─ New software releases
─ Changing OS (or OS version)
─ Adding/moving/removing virtual machines
─ Networking changes in your enterprise
5 | © 2012 IBM Corporation

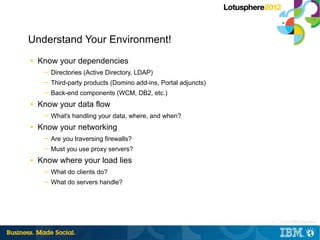

6. Understand Your Environment!
■ Know your dependencies
─ Directories (Active Directory, LDAP)
─ Third-party products (Domino add-ins, Portal adjuncts)
─ Back-end components (WCM, DB2, etc.)
■ Know your data flow
─ What's handling your data, where, and when?
■ Know your networking
─ Are you traversing firewalls?
─ Must you use proxy servers?
■ Know where your load lies
─ What do clients do?
─ What do servers handle?
6 | © 2012 IBM Corporation

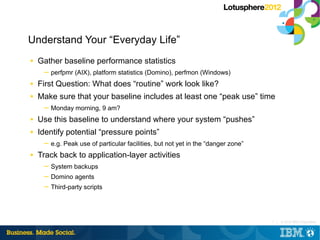

7. Understand Your “Everyday Life”
■ Gather baseline performance statistics
─ perfpmr (AIX), platform statistics (Domino), perfmon (Windows)
■ First Question: What does “routine” work look like?
■ Make sure that your baseline includes at least one “peak use” time
─ Monday morning, 9 am?
■ Use this baseline to understand where your system “pushes”
■ Identify potential “pressure points”
─ e.g. Peak use of particular facilities, but not yet in the “danger zone”
■ Track back to application-layer activities
─ System backups
─ Domino agents
─ Third-party scripts
7 | © 2012 IBM Corporation

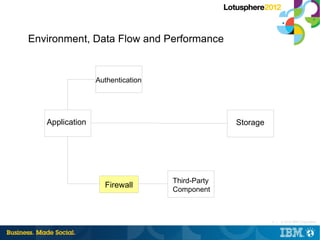

8. Environment, Data Flow and Performance
Authentication
Application Storage
Third-Party
Firewall
Component
8 | © 2012 IBM Corporation

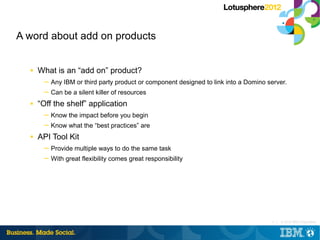

9. A word about add on products
■ What is an “add on” product?
─ Any IBM or third party product or component designed to link into a Domino server.
─ Can be a silent killer of resources
■ “Off the shelf” application
─ Know the impact before you begin
─ Know what the “best practices” are
■ API Tool Kit
─ Provide multiple ways to do the same task
─ With great flexibility comes great responsibility
9 | © 2012 IBM Corporation

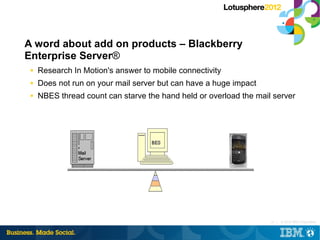

10. A word about add on products – Blackberry
Enterprise Server®
■ Research In Motion's answer to mobile connectivity
■ Does not run on your mail server but can have a huge impact
■ NBES thread count can starve the hand held or overload the mail server
10 | © 2012 IBM Corporation

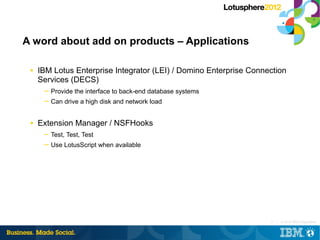

11. A word about add on products – Applications
■ IBM Lotus Enterprise Integrator (LEI) / Domino Enterprise Connection
Services (DECS)
─ Provide the interface to back-end database systems
─ Can drive a high disk and network load
■ Extension Manager / NSFHooks
─ Test, Test, Test
─ Use LotusScript when available
11 | © 2012 IBM Corporation

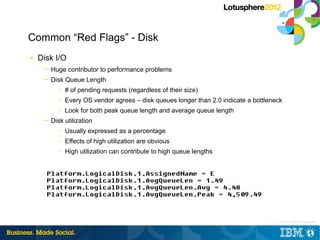

12. Common “Red Flags” - Disk
■ Disk I/O
─ Huge contributor to performance problems
─ Disk Queue Length
– # of pending requests (regardless of their size)
– Every OS vendor agrees – disk queues longer than 2.0 indicate a bottleneck
– Look for both peak queue length and average queue length
─ Disk utilization
– Usually expressed as a percentage
– Effects of high utilization are obvious
– High utilization can contribute to high queue lengths
12 | © 2012 IBM Corporation

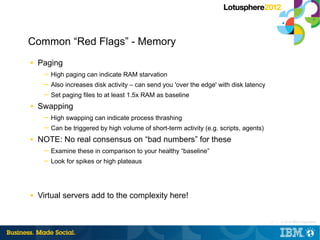

13. Common “Red Flags” - Memory
■ Paging
─ High paging can indicate RAM starvation
─ Also increases disk activity – can send you 'over the edge' with disk latency
─ Set paging files to at least 1.5x RAM as baseline
■ Swapping
─ High swapping can indicate process thrashing
─ Can be triggered by high volume of short-term activity (e.g. scripts, agents)
■ NOTE: No real consensus on “bad numbers” for these
─ Examine these in comparison to your healthy “baseline”
─ Look for spikes or high plateaus
■ Virtual servers add to the complexity here!
13 | © 2012 IBM Corporation

14. Common “Red Flags” - CPU
■ Looking for repeated spikes or high plateaus
■ Easy for one process to effectively hang your system
■ May need to go to per-process views to find culprit
■ First cut – match against known actions (agents, scripts, backups)
14 | © 2012 IBM Corporation

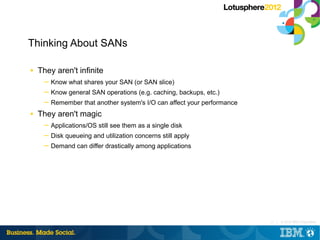

15. Thinking About SANs
■ They aren't infinite
─ Know what shares your SAN (or SAN slice)
─ Know general SAN operations (e.g. caching, backups, etc.)
─ Remember that another system's I/O can affect your performance
■ They aren't magic
─ Applications/OS still see them as a single disk
─ Disk queueing and utilization concerns still apply
─ Demand can differ drastically among applications
15 | © 2012 IBM Corporation

16. Dealing With The Virtual World
■ Regardless of vendor, you're still sharing one set of physical resources
■ Still subject to “interference” from other virtual machines
■ Still need to provision virtual machines as fully as “real hardware”
■ Compare your performance to other virtual machines on the same host
■ Be careful with moving virtual machines
─ Pay attention to overall application architecture
─ Can lose fault-tolerance/failover
■ Remember, you now have TWO potential bottleneck points
─ Within your virtual machine
─ The virtual host itself
– Example: Output queue length on VM network interface
─ ASK ABOUT OVERCOMMITTING THE VIRTUAL HOST!!!
16 | © 2012 IBM Corporation

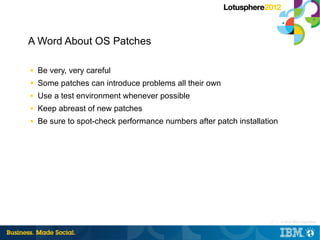

17. A Word About OS Patches
■ Be very, very careful
■ Some patches can introduce problems all their own
■ Use a test environment whenever possible
■ Keep abreast of new patches
■ Be sure to spot-check performance numbers after patch installation
17 | © 2012 IBM Corporation

18. What About BIOS and Drivers?
■ Keep system BIOS as close to “latest and greatest” as possible
─ Some vendors release new BIOS versions almost monthly
─ May address/optimize important subsystems
─ May resolve particular performance issues
■ Watch for new device drivers as dictated by your performance
─ If you're disk-heavy, keep an eye out for SAN/controller drivers
─ If you're network-heavy, watch for advanced network drivers
■ Partner with your hardware team!
18 | © 2012 IBM Corporation

19. In Conclusion...
■ No “one right answer” across systems or applications
■ Performance tuning driven by your users, your data, your network
■ It's a repeating cycle – get used to it
■ Partner with network/hardware teams for best effect
19 | © 2012 IBM Corporation

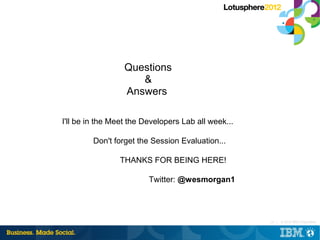

20. Questions
&
Answers
I'll be in the Meet the Developers Lab all week...
Don't forget the Session Evaluation...
THANKS FOR BEING HERE!
Twitter: @wesmorgan1
20 | © 2012 IBM Corporation

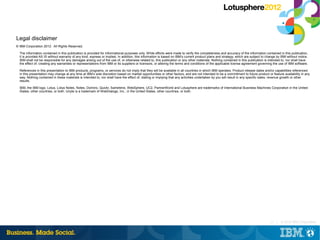

21. Legal disclaimer
