IBM Spectrum Scale and Its Use for Content Management

#ibmedge© 2016 IBM Corporation
IBM Spectrum Scale and ECM
FileNet Content Manager - Winning
Combination
- Atul Gore , Lead Lab Service, IBM ECM
- Sandeep R Patil, STSM, IBM Spectrum Scale

#ibmedge

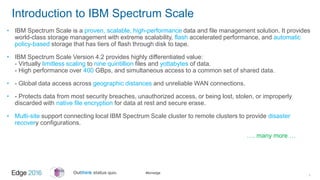

Introduction to IBM Spectrum Scale
• IBM Spectrum Scale is a proven, scalable, high-performance data and file management solution. It provides
world-class storage management with extreme scalability, flash accelerated performance, and automatic
policy-based storage that has tiers of flash through disk to tape.
• IBM Spectrum Scale Version 4.2 provides highly differentiated value:
- Virtually limitless scaling to nine quintillion files and yottabytes of data.
- High performance over 400 GBps, and simultaneous access to a common set of shared data.
• - Global data access across geographic distances and unreliable WAN connections.
• - Protects data from most security breaches, unauthorized access, or being lost, stolen, or improperly
discarded with native file encryption for data at rest and secure erase.
• Multi-site support connecting local IBM Spectrum Scale cluster to remote clusters to provide disaster
recovery configurations.
…. many more …
1

#ibmedge

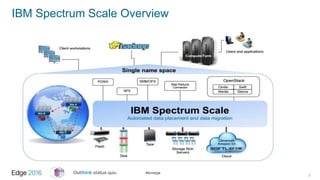

IBM Spectrum Scale Overview
2

#ibmedge

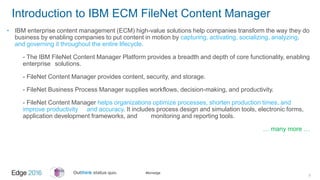

Introduction to IBM ECM FileNet Content Manager
• IBM enterprise content management (ECM) high-value solutions help companies transform the way they do
business by enabling companies to put content in motion by capturing, activating, socializing, analyzing,
and governing it throughout the entire lifecycle.
- The IBM FileNet Content Manager Platform provides a breadth and depth of core functionality, enabling
enterprise solutions.
- FileNet Content Manager provides content, security, and storage.
- FileNet Business Process Manager supplies workflows, decision-making, and productivity.
- FileNet Content Manager helps organizations optimize processes, shorten production times, and
improve productivity and accuracy. It includes process design and simulation tools, electronic forms,
application development frameworks, and monitoring and reporting tools.
… many more …
3

#ibmedge

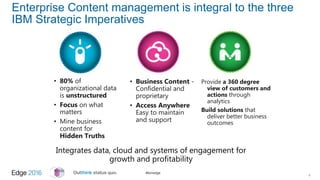

Enterprise Content management is integral to the three
IBM Strategic Imperatives
4
Integrates data, cloud and systems of engagement for
growth and profitability
Provide a 360 degree
view of customers and
actions through
analytics
Build solutions that
deliver better business
outcomes
• Business Content -
Confidential and
proprietary
• Access Anywhere
Easy to maintain
and support
• 80% of
organizational data
is unstructured
• Focus on what
matters
• Mine business
content for
Hidden Truths

#ibmedge

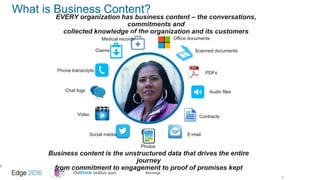

What is Business Content?
5
5
EVERY organization has business content – the conversations,
commitments and
collected knowledge of the organization and its customers
Scanned documents
PDFs
Audio files
Contracts
E-mail
Photos
Social media
Video
Chat logs
Phone transcripts
Claims
Medical records Office documents
Business content is the unstructured data that drives the entire
journey
from commitment to engagement to proof of promises kept

#ibmedge

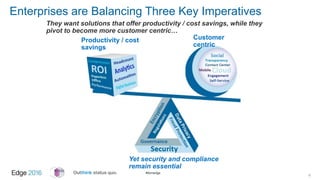

Enterprises are Balancing Three Key Imperatives
6
They want solutions that offer productivity / cost savings, while they
pivot to become more customer centric…
Productivity / cost
savings
Customer
centric
Yet security and compliance
remain essential

#ibmedge

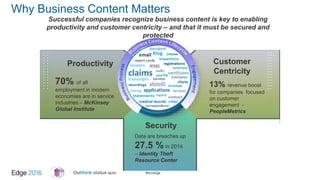

Successful companies recognize business content is key to enabling
productivity and customer centricity – and that it must be secured and
protected
Productivity Customer
Centricity
Security
70% of all
employment in modern
economies are in service
industries – McKinsey
Global Institute
13% revenue boost
for companies focused
on customer
engagement -
PeopleMetrics
Data are breaches up
27.5 % in 2014
– Identity Theft
Resource Center
Why Business Content Matters

#ibmedge
Smarter Content, Smarter People
Best practices to put business content to work
to realize new value
Protect EngageCapture Activate Analyze
IBM ECM Business Content Solutions

#ibmedge

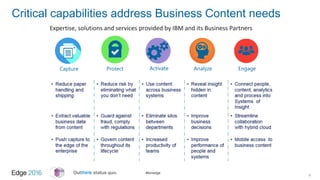

Critical capabilities address Business Content needs
9
Expertise, solutions and services provided by IBM and its Business Partners

#ibmedge

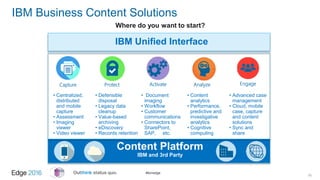

IBM Business Content Solutions
10
• Content
analytics
• Performance,
predictive and
investigative
analytics
• Cognitive
computing
• Document
imaging
• Workflow
• Customer
communications
• Connectors to
SharePoint,
SAP, etc.
• Advanced case
management
• Cloud, mobile
case, capture
and content
solutions
• Sync and
share
• Centralized,
distributed
and mobile
capture
• Assessment
• Imaging
viewer
• Video viewer
• Defensible
disposal
• Legacy data
cleanup
• Value-based
archiving
• eDiscovery
• Records retention
IBM Unified Interface
Content Platform
IBM and 3rd Party
Where do you want to start?

#ibmedge

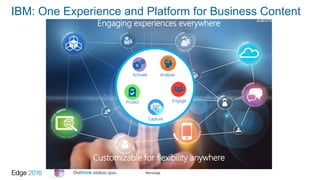

Engaging experiences everywhere
s
Customizable for flexibility anywhere
Protect
Capture
Activate
Engage
Analyze
IBM: One Experience and Platform for Business Content

#ibmedge

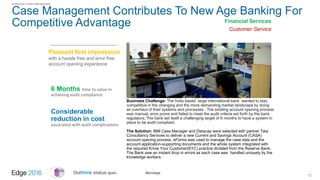

Case Management Contributes To New Age Banking For
Competitive Advantage
12
Pleasant first impression
with a hassle free and error free
account opening experience
Enterprise Content Management
Business Challenge: The India based large international bank wanted to stay
competitive in the changing and the more demanding market landscape by doing
an overhaul of their systems and processes . The existing account opening process
was manual, error prone and failed to meet the audit criteria set forth by the bank
regulators. The bank set itself a challenging target of 6 months to have a system in
place to be audit compliant.
The Solution: IBM Case Manager and Datacap were selected with partner Tata
Consultancy Services to deliver a new Current and Savings Account (CASA)
account opening process. eForms was used to manage the case data and the
account application-supporting documents and the whole system integrated with
the required Know Your Customer(KYC) practice dictated from the Reserve Bank.
The Bank saw an instant drop in errors as each case was handled uniquely by the
knowledge workers.
6 Months time to value in
achieving audit compliance
Considerable
reduction in cost
associated with audit complications
Financial Services
Customer Service

#ibmedge

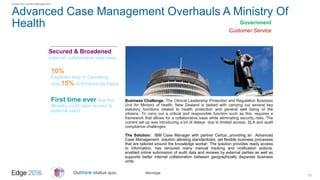

Advanced Case Management Overhauls A Ministry Of
Health
13
Secured & Broadened
external collaborative user base
Business Challenge: The Clinical Leadership Protection and Regulation Business
Unit for Ministry of health, New Zealand is tasked with carrying out several key
statutory functions related to health protection and general well being of the
citizens. To carry out a critical and responsible function such as this, requires a
framework that allows for a collaborative base while eliminating security risks. The
current set up was introducing a lot of delays due to limited access, SLA and audit
compliance challenges
The Solution: IBM Case Manager with partner Certus, providing an Advanced
Case Management solution allowing standardized, yet flexible business processes
that are tailored around the knowledge worker. The solution provides ready access
to information, has removed many manual tracking and notification actions,
enabled online submission of audit data and reviews by external parties as well as
supports better internal collaboration between geographically disparate business
units.
10%
Expected drop in Operating
cost;15% in Productivity Gains
First time ever that the
Ministry could open access to
external users
Government
Customer Service

#ibmedge

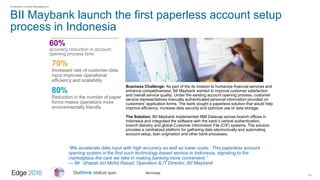

BII Maybank launch the first paperless account setup
process in Indonesia
14
60%
accuracy reduction in account
opening process time
Business Challenge: As part of the its mission to humanize financial services and
enhance competitiveness, BII Maybank wanted to improve customer satisfaction
and overall service quality. Under the existing account opening process, customer
service representatives manually authenticated personal information provided on
customers’ application forms. The bank sought a paperless solution that would help
improve efficiency, increase data security and optimize use of data storage.
The Solution: BII Maybank implemented IBM Datacap across branch offices in
Indonesia and integrated the software with the bank’s central authentication,
branch delivery and global Customer Information File (CIF) systems. The solution
provides a centralized platform for gathering data electronically and automating
account setup, loan origination and other bank processes.
70%
Increased rate of customer-data
input improves operational
efficiency and scalability
80%
Reduction in the number of paper
forms makes operations more
environmentally friendly
“We accelerate data input with high accuracy as well as lower costs. This paperless account
opening system is the first such technology-based service in Indonesia, signaling to the
marketplace the care we take in making banking more convenient.”
— Mr. Ghazali bin Mohd Rasad, Operation & IT Director, BII Maybank

#ibmedge

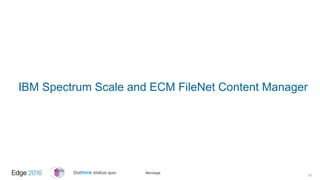

IBM Spectrum Scale and ECM FileNet Content Manager
15

#ibmedge
Deployment Topologies of ECM FileNet with IBM
Spectrum Scale
IBM Spectrum Scale is based on software-defined storage principals and provides various cluster topologies.
An administrator can leverage the access protocols offered by IBM Spectrum Scale topologies for deploying
ECM FileNet Content Manager.
1) ECM FileNet deployment using Spectrum Scale POSIX Interface
2) ECM FileNet deployment using Spectrum Scale NFS / SMB Interface
3) ECM FileNet deployment using Spectrum Scale Object Interface
16

#ibmedge

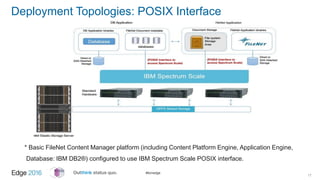

* Basic FileNet Content Manager platform (including Content Platform Engine, Application Engine,
Database: IBM DB2®) configured to use IBM Spectrum Scale POSIX interface.
Deployment Topologies: POSIX Interface
17

#ibmedge

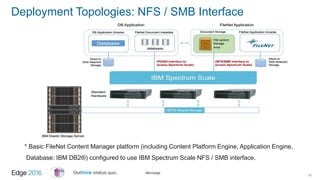

Deployment Topologies: NFS / SMB Interface
18
Database: IBM DB2®) configured to use IBM Spectrum Scale NFS / SMB interface.

#ibmedge

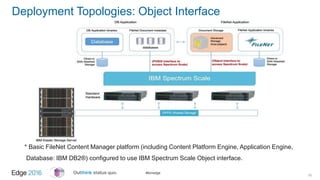

Deployment Topologies: Object Interface
19
Database: IBM DB2®) configured to use IBM Spectrum Scale Object interface.

#ibmedge
Value Added Features Configuration: Automated ILM
Policy
20
Demonstrates a basic ILM policy that if the file last access time is younger than a predetermined
time then all other files are automatically migrated to gold pool solid-state drives (SSD); files that do
not fall under this condition are migrated to lower tiers accordingly

#ibmedge

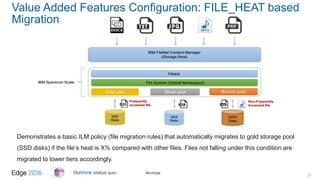

Value Added Features Configuration: FILE_HEAT based
Migration
21
Demonstrates a basic ILM policy (file migration rules) that automatically migrates to gold storage pool
(SSD disks) if the file’s heat is X% compared with other files. Files not falling under this condition are
migrated to lower tiers accordingly.

#ibmedge

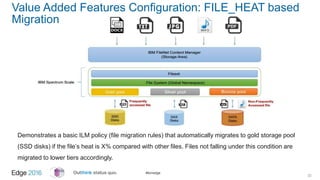

Value Added Features Configuration: FILE_HEAT based
Migration
22
Demonstrates a basic ILM policy (file migration rules) that automatically migrates to gold storage pool
(SSD disks) if the file’s heat is X% compared with other files. Files not falling under this condition are
migrated to lower tiers accordingly.

#ibmedge
Value Added Features Configuration: Encryption at Rest
(Storage layer)
23
Storage layer encryption results in relatively faster processing of documents due to the encryption job
offloaded to the storage controller as opposed to doing encryption at the application layer

#ibmedge

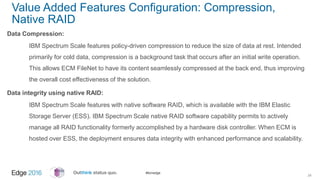

Value Added Features Configuration: Compression,
Native RAID
Data Compression:
IBM Spectrum Scale features policy-driven compression to reduce the size of data at rest. Intended
primarily for cold data, compression is a background task that occurs after an initial write operation.
This allows ECM FileNet to have its content seamlessly compressed at the back end, thus improving
the overall cost effectiveness of the solution.
Data integrity using native RAID:
IBM Spectrum Scale features with native software RAID, which is available with the IBM Elastic
Storage Server (ESS). IBM Spectrum Scale native RAID software capability permits to actively
manage all RAID functionality formerly accomplished by a hardware disk controller. When ECM is
hosted over ESS, the deployment ensures data integrity with enhanced performance and scalability.
24

#ibmedge
Case Study (TELECOM): High Level Requirement
• - The telecom service provider company has a customer base throughout the country, spread across a total
of 23 states. The customer base was hovering at approximately 85 - 90 million and is expected to grew to
160 million.
• - Each of these customers submits a set of documents when registering for the services provided by the
telecom service provider.
• - The government authority needed and continues to need a mechanism to access and audit this data on
occasion; the query and access to this data can go as far back in time as 15 years.
• - The data is required to be stored separately, per state of the country, in an ever-increasing scalable
platform.
• - The system must also be designed to handle the load of daily ingestion of customer data, amounting to
approximately 50 - 70 GB per day. Additionally, the client also has a backlog of approximately 80 TB or
more of customer data to be loaded in the system.
25

#ibmedge
Case Study: High level logical Architecture of the
Solution
26

#ibmedge
Detail steps for Case Study given in IBM Redpaper titled “IBM Spectrum Scale and ECM
FileNet Content Manager Are a Winning Combination: Deployment Variations and Value-
added Features”
27
http://www.redbooks.ibm.com/abstracts/redp5239.html?Open

#ibmedge
IBM ECM and IBM Spectrum Scale for Linux on z Systems
IBM Enterprise Content Management for Linux on z Systems
• Scale-Out Case Study (Part 1):
• Single ECM Node with XFS and IBM Spectrum Scale 4.2
• https://www.ibm.com/common/ssi/cgi-bin/ssialias?htmlfid=ZSW03340USEN&
• Scale-Out Case Study (Part 2):
• Multiple ECM Nodes with IBM WebSphere Application Server Cluster and IBM Spectrum Scale 4.2 coming
soon!
• Linux on z Systems – Tuning hints and tips
• http://www.ibm.com/developerworks/linux/linux390/perf/index.html
Demonstrates the strength of IBM ECM and IBM Spectrum Scale as a winning
solution for Linux on z Systems
28

#ibmedge
Using Capture and Case Management to Raise Service
Levels in a BPO Outsourcing Business
30
Single Source of truth
vastly improves informed decisions
critical to client servicing
Business Challenge: This BPO company in LA works in an environment with zero
tolerance to errors and need to establish trust as they serve as extended services
team to their customers businesses. An integrated process with single source of
truth, yet easy to use and scalable ,became a business imperative for the client in
such demanding environment. They wanted to streamline their evaluation and
qualification process for credit approvals, while maintaining cost advantage.
The Solution: IBM Case Manager based was used to create a configurable case-
based Factory Credit application, streamlining the evaluation and qualification of
the credit approval process. The solution integrates with Datacap for efficient
document ingestion. Cognos is used for work distribution and monitoring key
performance indicators. The whole system works together to improve service levels
and is architected to easily service multiple clients simultaneously.
Larger portfolio of
services added to challenge
competition
More robust business
continuity due to
improvement in system reliability
Financial Services
Customer Service

#ibmedge
Mexican Insurance Leader Strengthens Customer
Engagement With IBM Case Manager
31
Productivity and
efficiency gains due to
centralization and automation
Business Challenge: Being a market leader in Enterprise risk coverage, by
offering a wide range of insurance products, solutions and advisory services,
Zurich Mexico was exposed to the threat of competitive disadvantage if they did not
improve upon their case creation responsiveness and knowledge worker
productivity. They needed to establish an ecosystem that enabled them to walk the
talk in a business where credibility rates the most
The Solution: IBM and Business Partner DCG deployed an IBM Case Manager
based end to end process automation system for underwriting, issuance and
collection. The new process has dramatically reduced manual intervention to
enable knowledge workers to meet service level expectations. Cognos was used to
bring in operational visibility for better deliverance allowing Zurich to stay
competitive in the marketplace
Competitive Mileage
due to improved service
engagement
360 degree
operational visibility
ensures service level
expectations are met
Insurance
Customer Service

#ibmedge
Notices and Disclaimers
32
Copyright © 2016 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission
from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of
initial publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. THIS DOCUMENT IS
DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM THE
USE OF THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF PROFIT OR LOSS OF OPPORTUNITY.
IBM products and services are warranted according to the terms and conditions of the agreements under which they are provided.
IBM products are manufactured from new parts or new and used parts. In some cases, a product may not be new and may have been previously installed. Regardless, our
warranty terms apply.”
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers
have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in
which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials
and discussions are provided for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or
their specific situation.
It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and
interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to comply with such
laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer is in compliance with any law

#ibmedge
Notices and Disclaimers Con’t.
33
Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not
tested those products in connection with this publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products.
Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM does not warrant the quality of any third-party products, or the
ability of any such third-party products to interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The provision of the information contained h erein is not intended to, and does not, grant any right or license under any IBM patents, copyrights, trademarks or other intellectual
property right.
IBM, the IBM logo, ibm.com, Aspera®, Bluemix, Blueworks Live, CICS, Clearcase, Cognos®, DOORS®, Emptoris®, Enterprise Document Management System™, FASP®,
FileNet®, Global Business Services ®, Global Technology Services ®, IBM ExperienceOne™, IBM SmartCloud®, IBM Social Business®, Information on Demand, ILOG,
Maximo®, MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™, PureApplication®, pureCluster™, PureCoverage®, PureData®,
PureExperience®, PureFlex®, pureQuery®, pureScale®, PureSystems®, QRadar®, Rational®, Rhapsody®, Smarter Commerce®, SoDA, SPSS, Sterling Commerce®,
StoredIQ, Tealeaf®, Tivoli®, Trusteer®, Unica®, urban{code}®, Watson, WebSphere®, Worklight®, X-Force® and System z® Z/OS, are trademarks of International Business
Machines Corporation, registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM
trademarks is available on the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml.

IBM Spectrum Scale and Its Use for Content Management

More Related Content

What's hot

Viewers also liked

Similar to IBM Spectrum Scale and Its Use for Content Management

More from Sandeep Patil

Recently uploaded

IBM Spectrum Scale and Its Use for Content Management

Editor's Notes
