ODM Rules Compiler
IBM Streams Version 4.2
Chris Recoskie, Streams Developer
recoskie@ca.ibm.com
Ankit Pasricha, Streams Developer
ankitp@ca.ibm.com

2. © 2016 IBM Corporation2

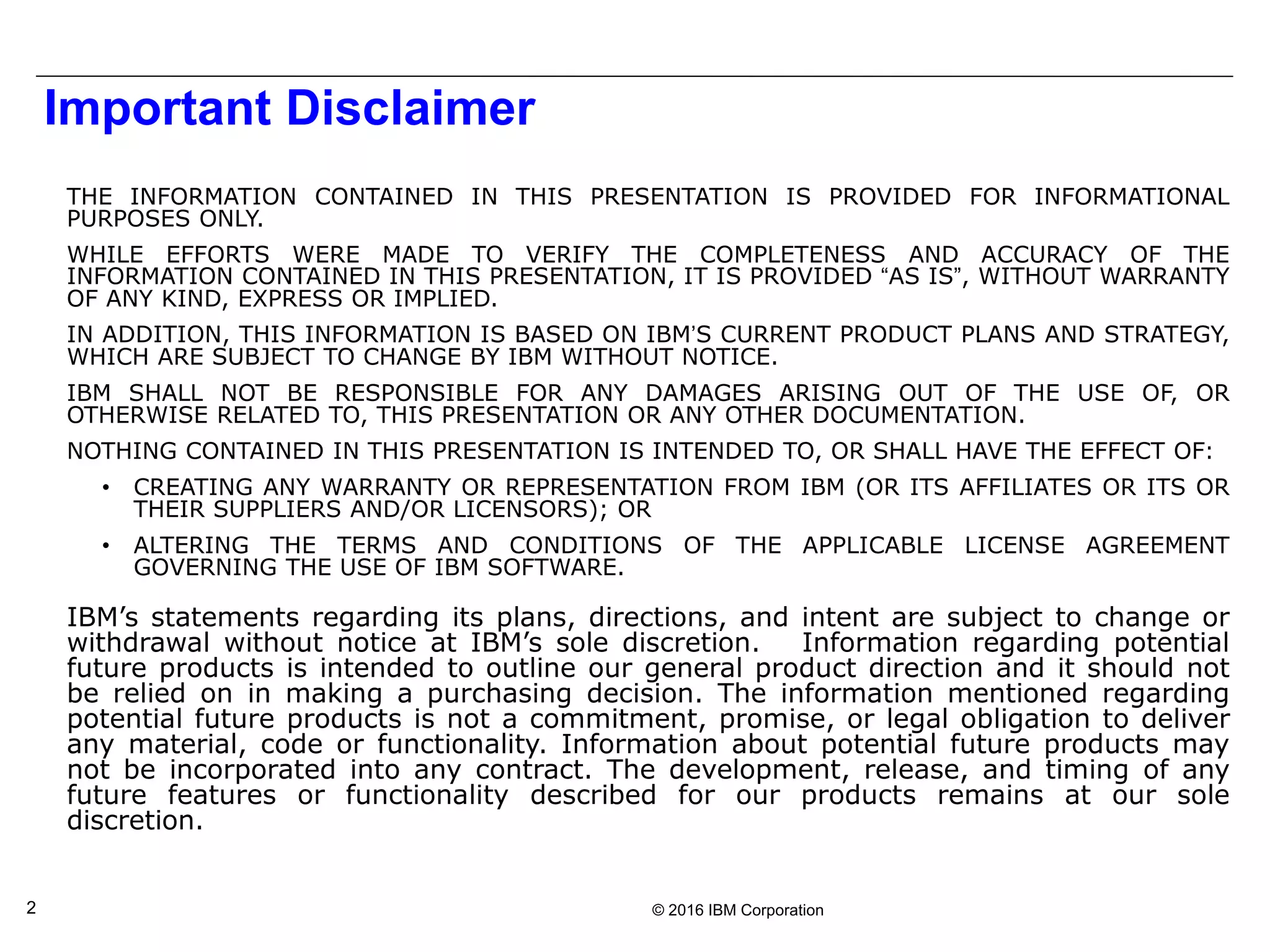

Important Disclaimer
THE INFORMATION CONTAINED IN THIS PRESENTATION IS PROVIDED FOR INFORMATIONAL
PURPOSES ONLY.
WHILE EFFORTS WERE MADE TO VERIFY THE COMPLETENESS AND ACCURACY OF THE
INFORMATION CONTAINED IN THIS PRESENTATION, IT IS PROVIDED “AS IS”, WITHOUT WARRANTY
OF ANY KIND, EXPRESS OR IMPLIED.
IN ADDITION, THIS INFORMATION IS BASED ON IBM’S CURRENT PRODUCT PLANS AND STRATEGY,
WHICH ARE SUBJECT TO CHANGE BY IBM WITHOUT NOTICE.
IBM SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES ARISING OUT OF THE USE OF, OR
OTHERWISE RELATED TO, THIS PRESENTATION OR ANY OTHER DOCUMENTATION.
NOTHING CONTAINED IN THIS PRESENTATION IS INTENDED TO, OR SHALL HAVE THE EFFECT OF:
• CREATING ANY WARRANTY OR REPRESENTATION FROM IBM (OR ITS AFFILIATES OR ITS OR
THEIR SUPPLIERS AND/OR LICENSORS); OR
• ALTERING THE TERMS AND CONDITIONS OF THE APPLICABLE LICENSE AGREEMENT
GOVERNING THE USE OF IBM SOFTWARE.
IBM’s statements regarding its plans, directions, and intent are subject to change or
withdrawal without notice at IBM’s sole discretion. Information regarding potential
future products is intended to outline our general product direction and it should not
be relied on in making a purchasing decision. The information mentioned regarding
potential future products is not a commitment, promise, or legal obligation to deliver
any material, code or functionality. Information about potential future products may
not be incorporated into any contract. The development, release, and timing of any
future features or functionality described for our products remains at our sole
discretion.
THIS INFORMATION IS BASED ON IBM’S CURRENT PRODUCT PLANS AND STRATEGY, WHICH ARE SUBJECT TO CHANGE BY IBM WITHOUT NOTICE.
IBM SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES ARISING OUT OF THE USE OF, OR OTHERWISE RELATED TO, THIS PRESENTATION OR ANY OTHER DOCUMENTATION.

3. © 2016 IBM Corporation3

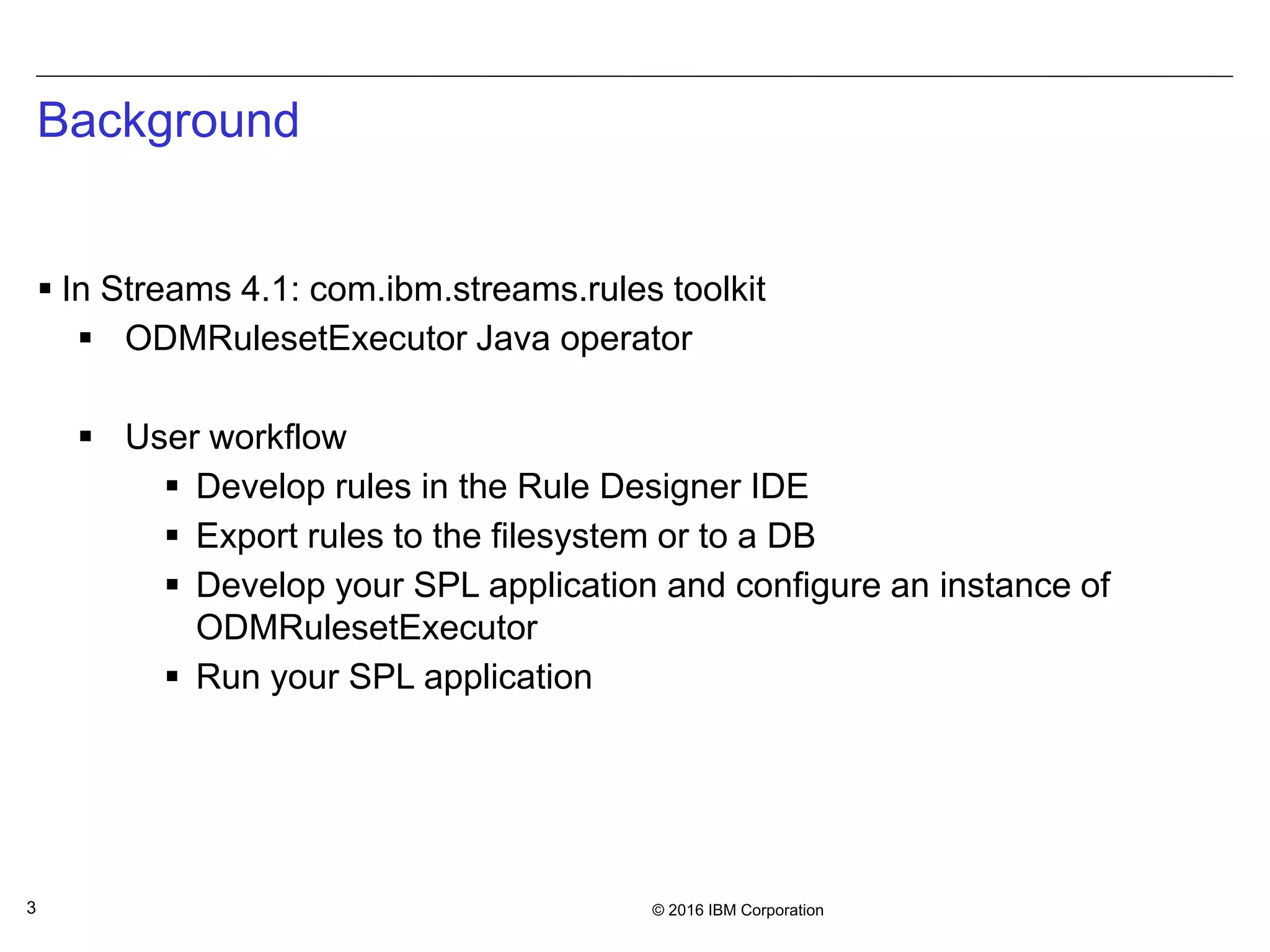

Background
 In Streams 4.1: com.ibm.streams.rules toolkit
 ODMRulesetExecutor Java operator
 User workflow
 Develop rules in the Rule Designer IDE
 Export rules to the filesystem or to a DB
 Develop your SPL application and configure an instance of
ODMRulesetExecutor
 Run your SPL application

4. © 2016 IBM Corporation4

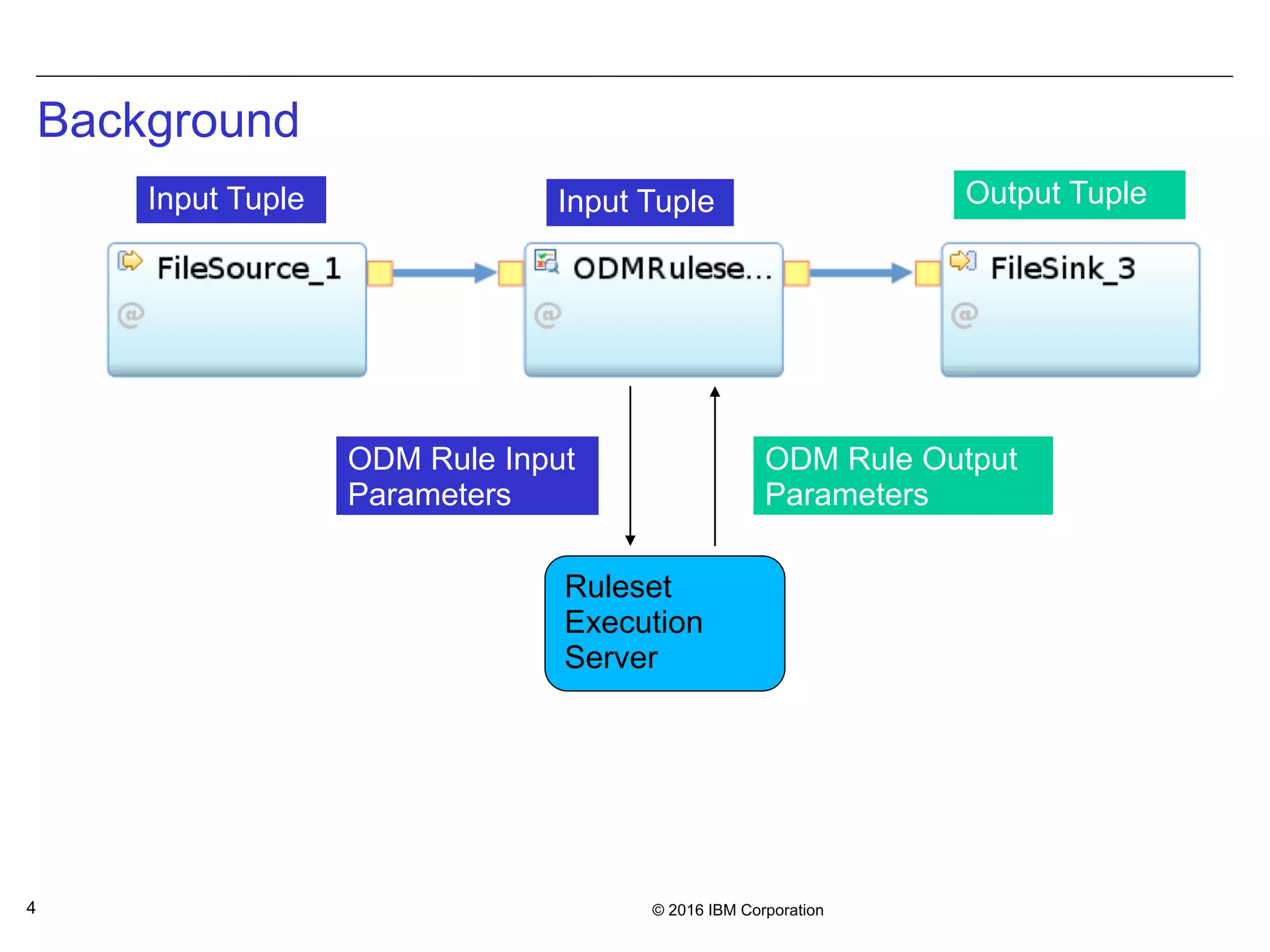

Background
Input Tuple Input Tuple
Ruleset
Execution
Server
ODM Rule Input
Parameters
ODM Rule Output
Parameters
Output Tuple

5. © 2016 IBM Corporation5

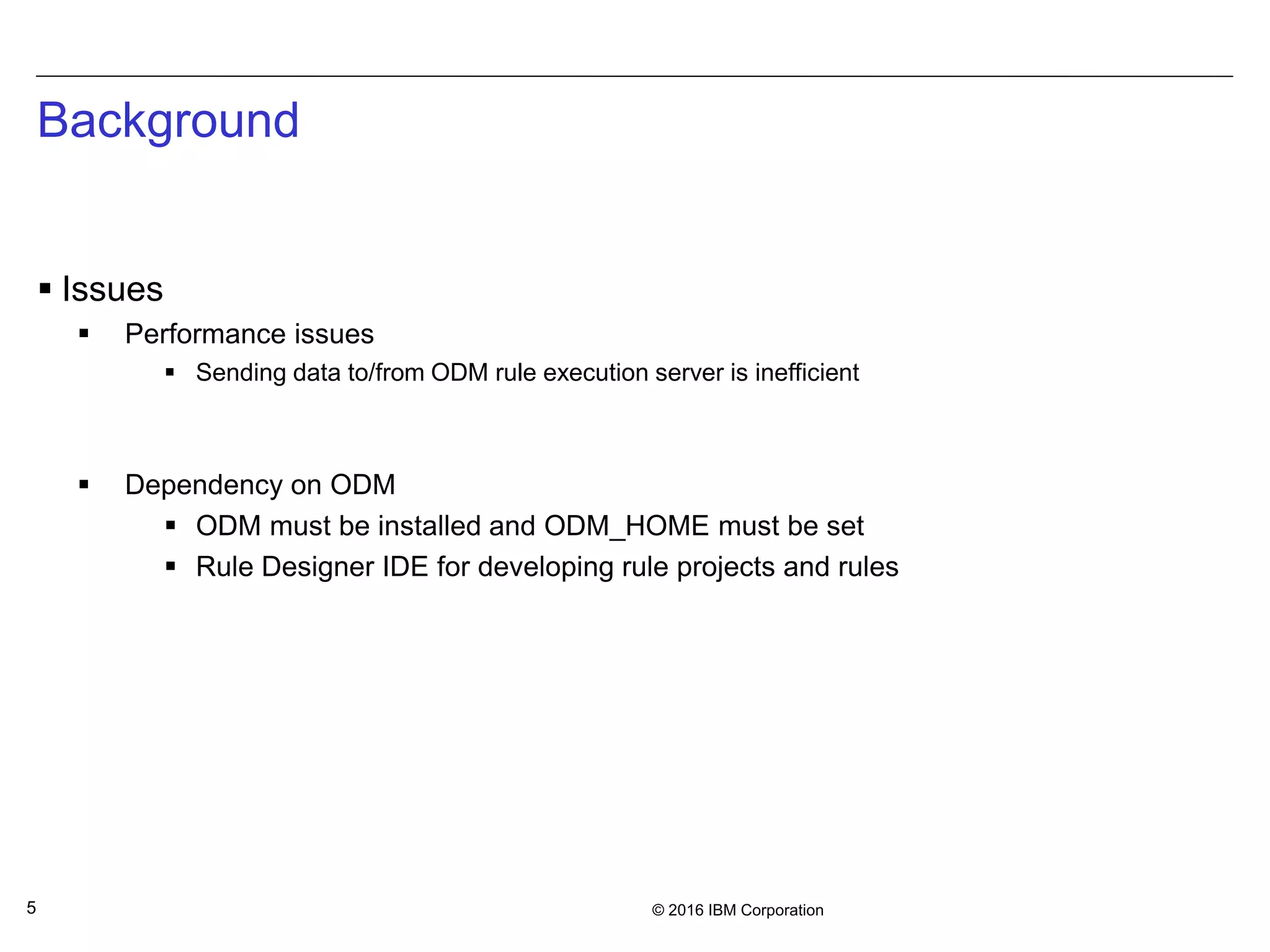

Background
 Issues
 Performance issues
 Sending data to/from ODM rule execution server is inefficient
 Dependency on ODM
 ODM must be installed and ODM_HOME must be set
 Rule Designer IDE for developing rule projects and rules

6. © 2016 IBM Corporation6

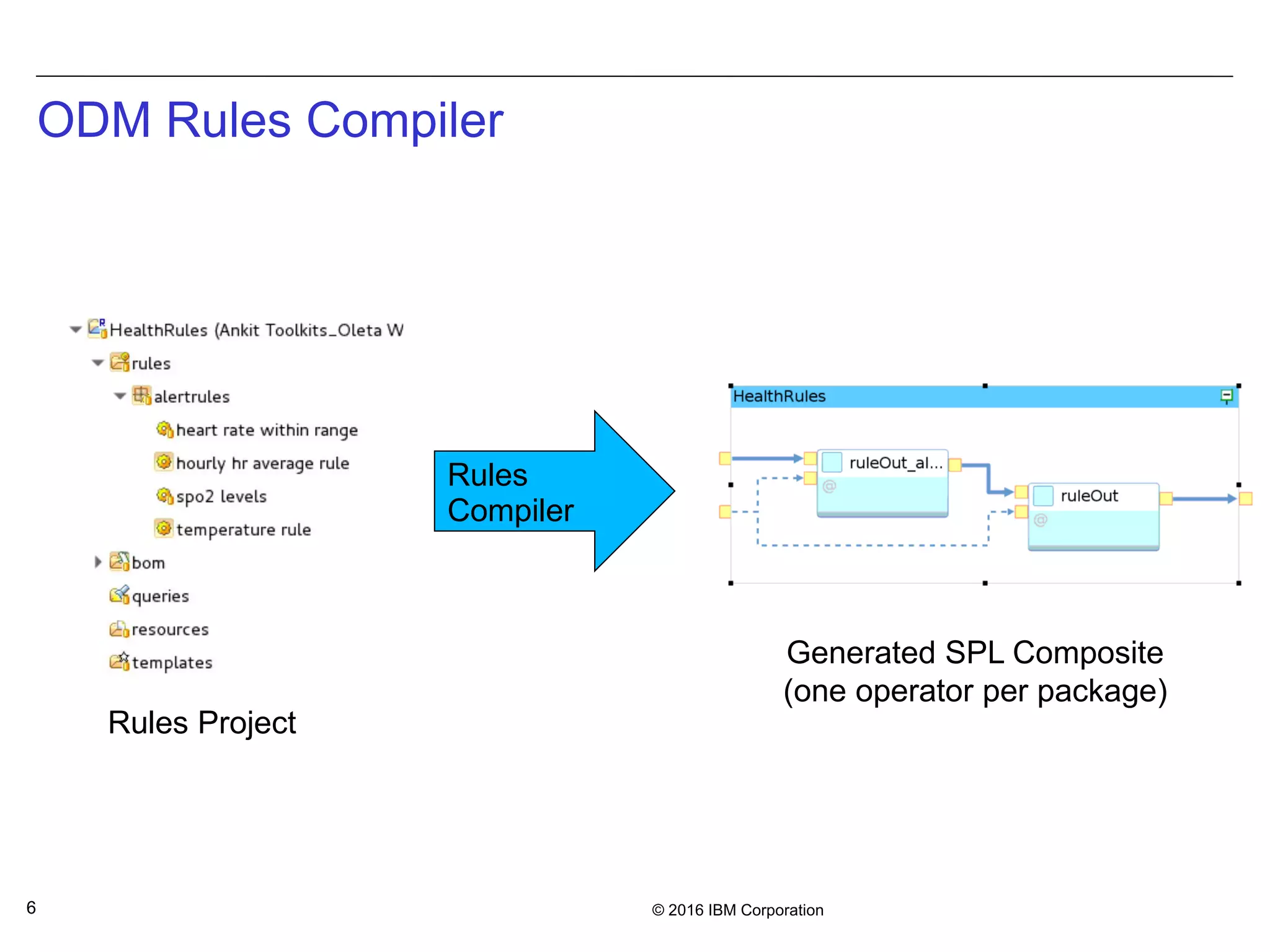

ODM Rules Compiler
Rules
Compiler
Rules Project
Generated SPL Composite
(one operator per package)

7. © 2016 IBM Corporation7

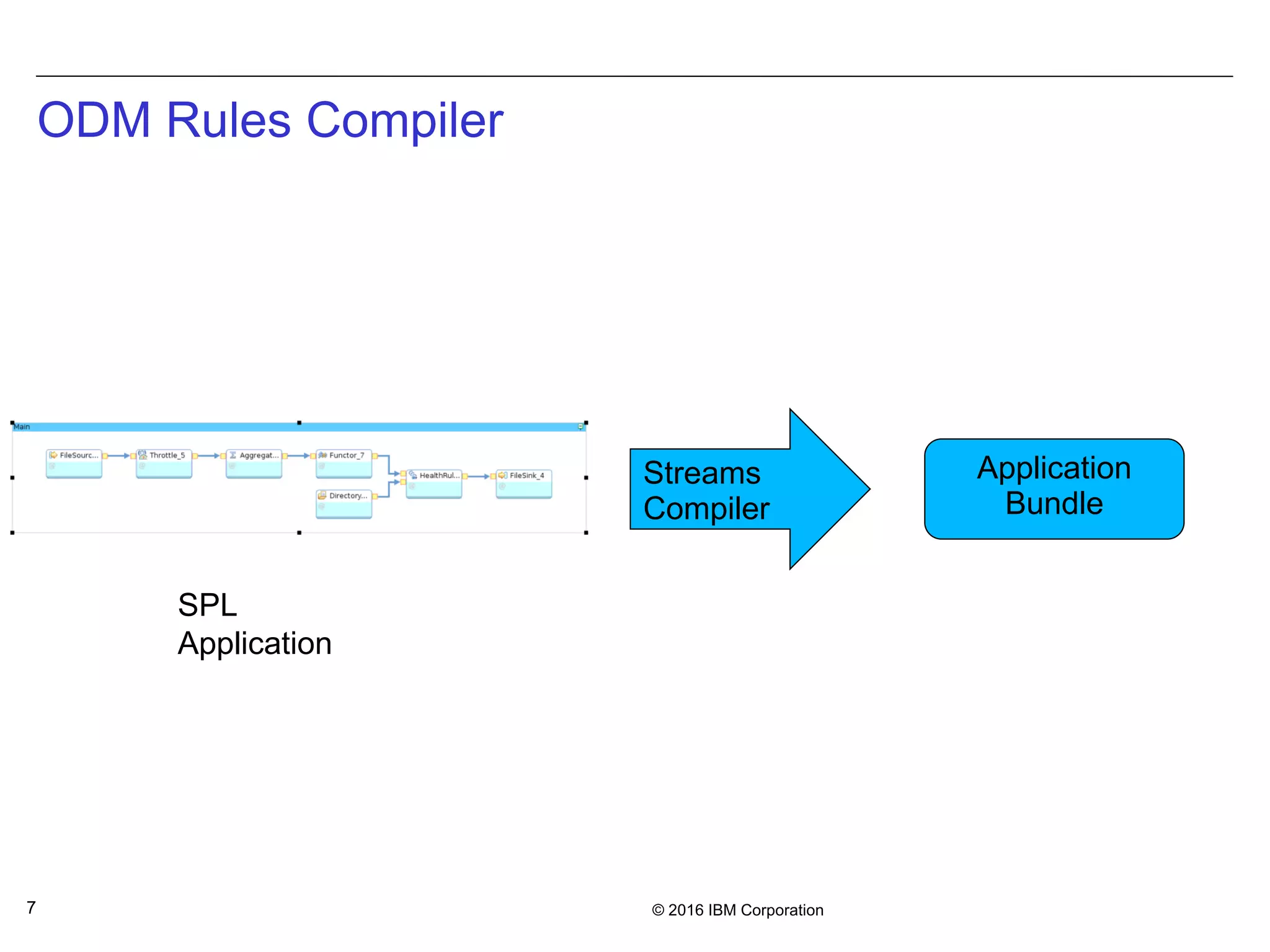

ODM Rules Compiler
Streams
Compiler
SPL
Application
Application
Bundle

8. © 2016 IBM Corporation8

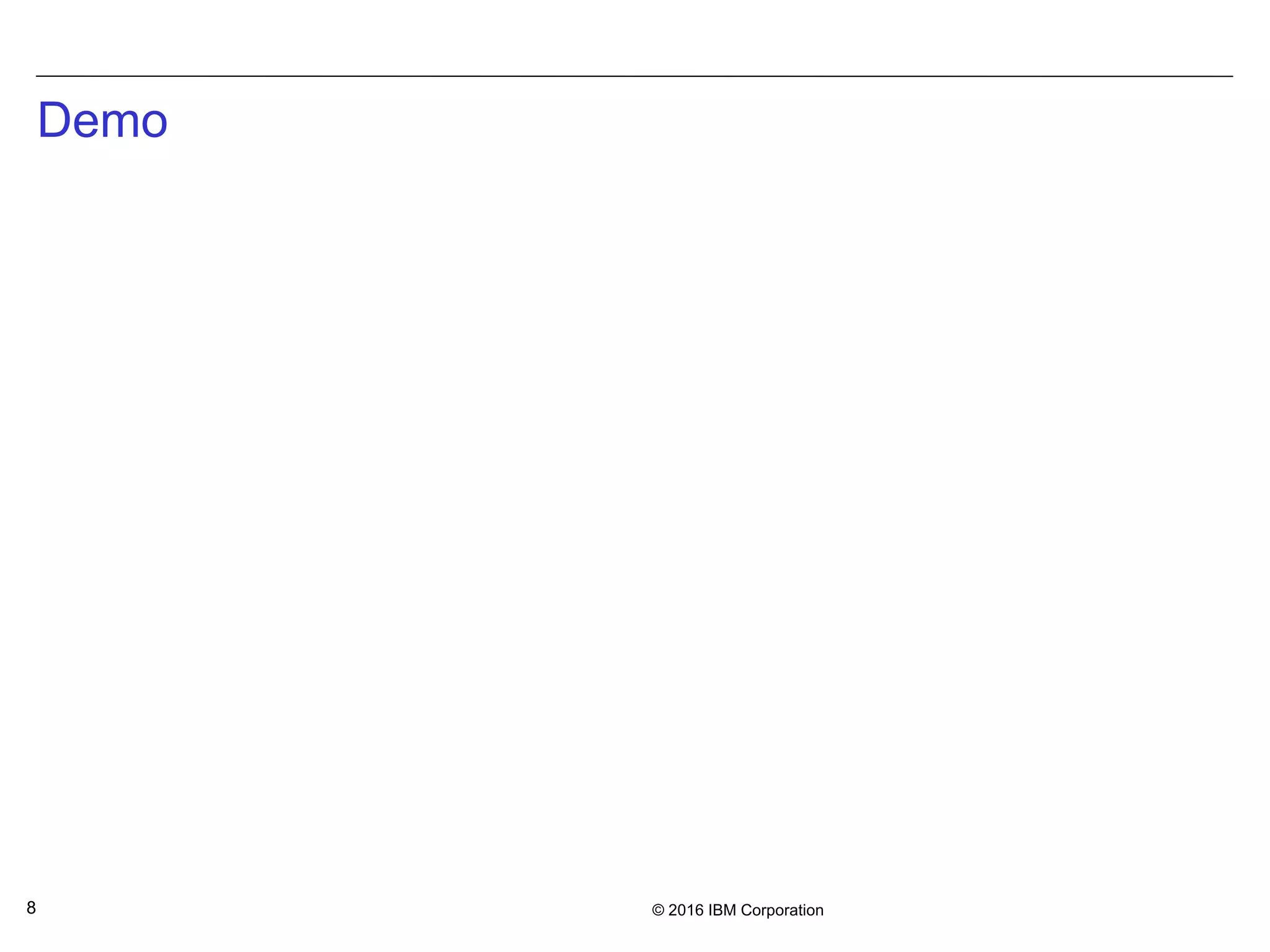

Demo

9. © 2016 IBM Corporation9

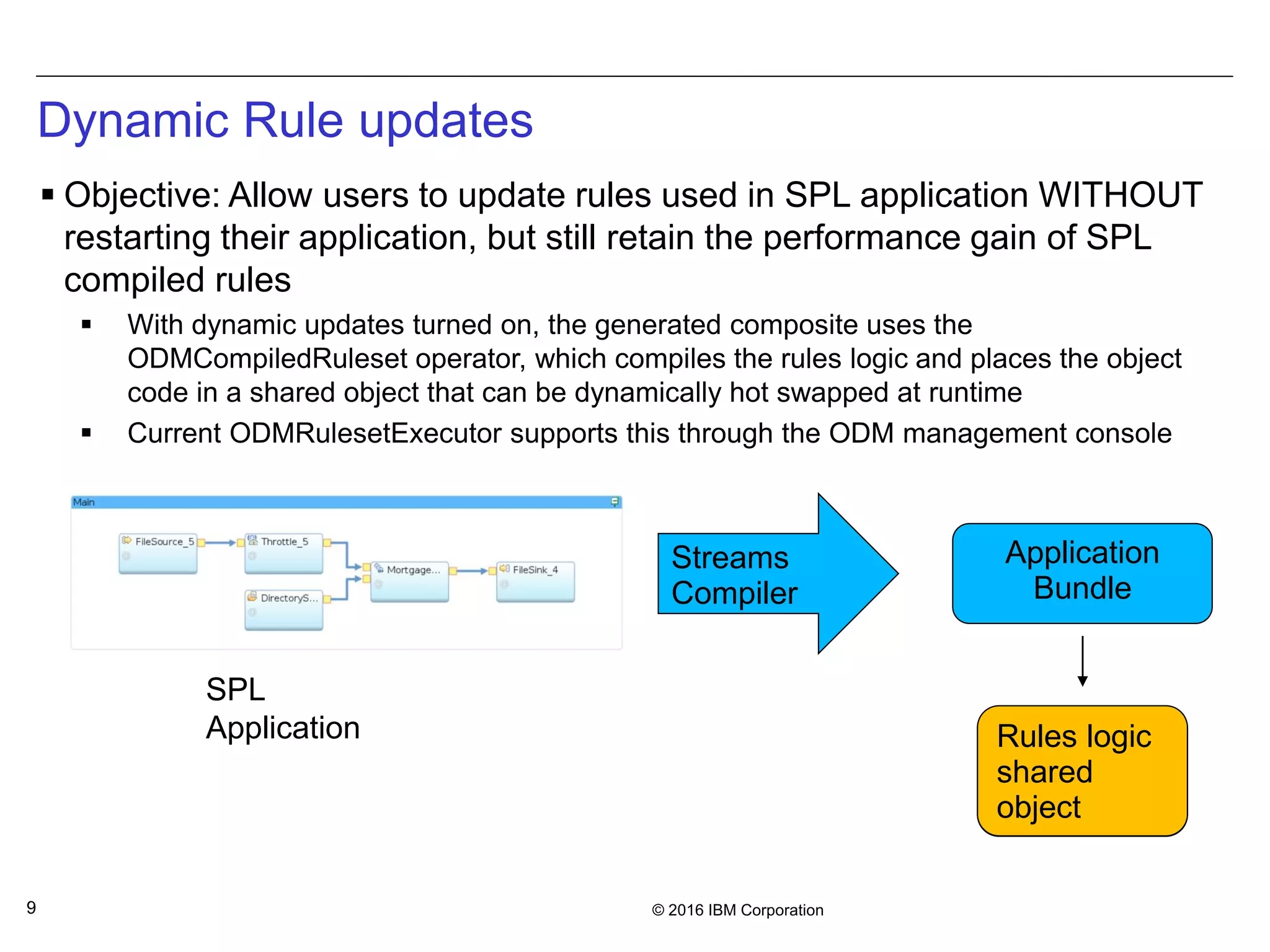

Dynamic Rule updates
 Objective: Allow users to update rules used in SPL application WITHOUT
restarting their application, but still retain the performance gain of SPL
compiled rules
 With dynamic updates turned on, the generated composite uses the
ODMCompiledRuleset operator, which compiles the rules logic and places the object
code in a shared object that can be dynamically hot swapped at runtime
 Current ODMRulesetExecutor supports this through the ODM management console
Streams
Compiler
SPL
Application
Application
Bundle
Rules logic
shared
object
Rules logic
shared
object

10. © 2016 IBM Corporation10

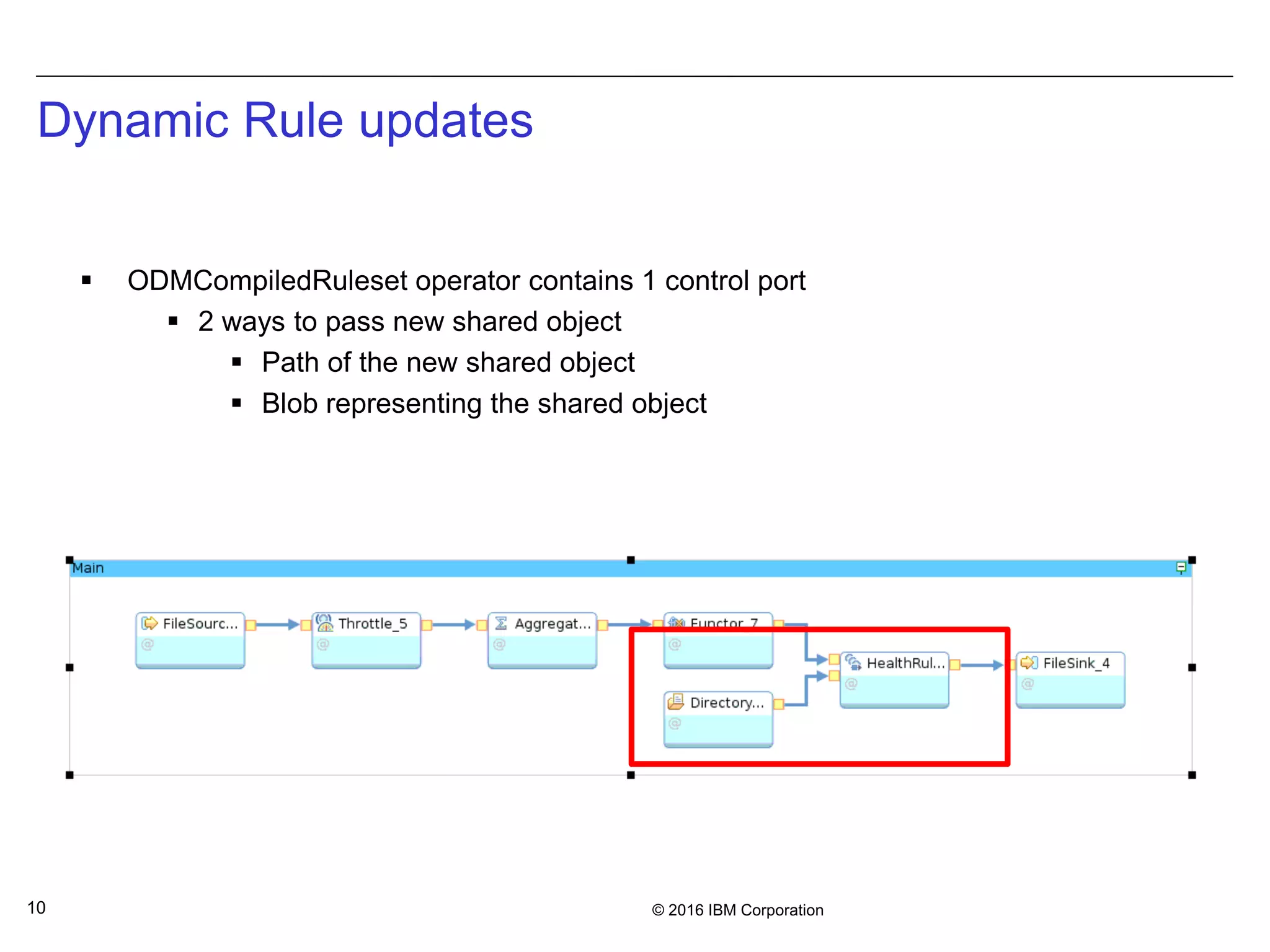

Dynamic Rule updates
 ODMCompiledRuleset operator contains 1 control port
 2 ways to pass new shared object
 Path of the new shared object
 Blob representing the shared object

11. © 2016 IBM Corporation11

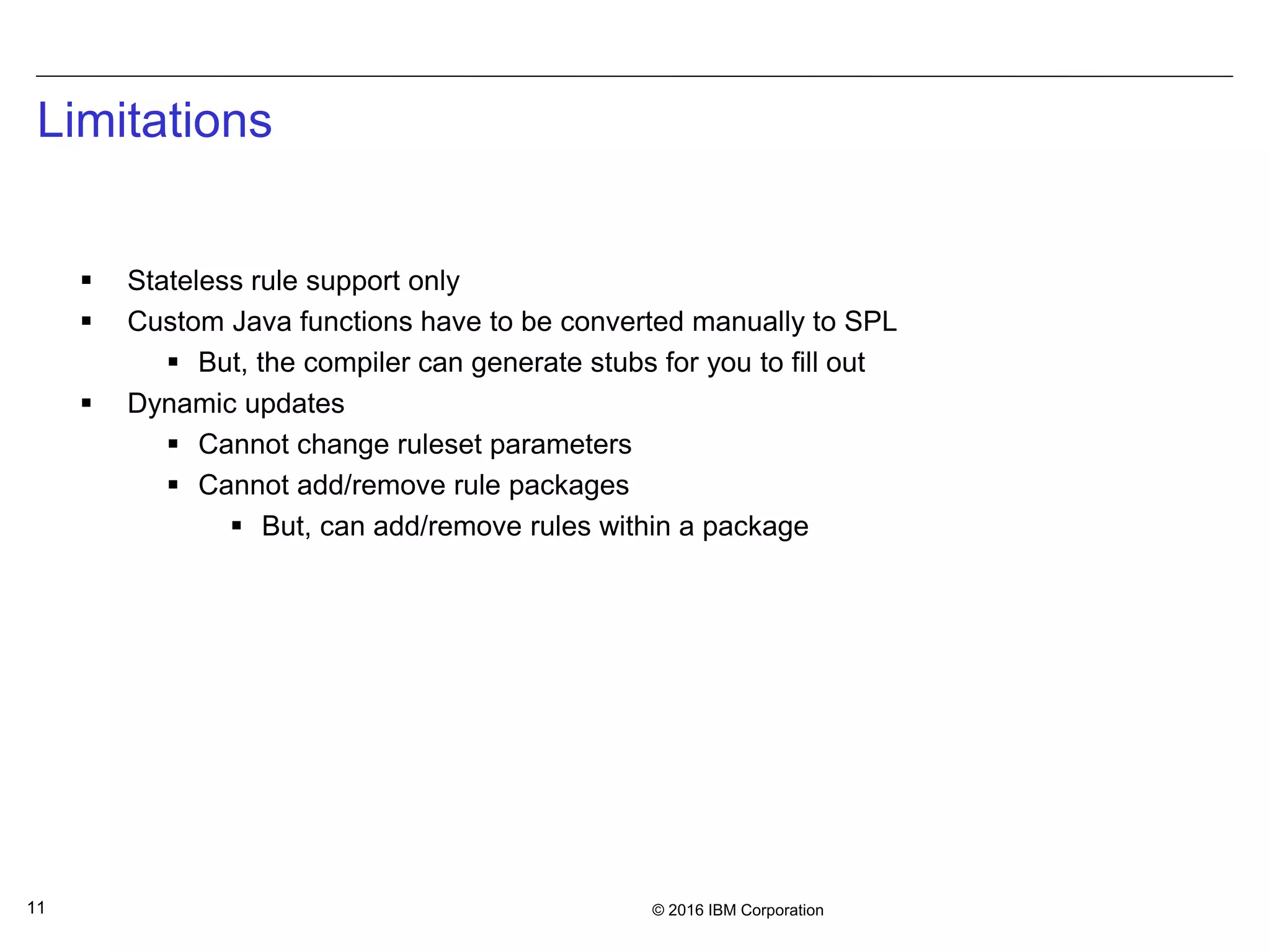

Limitations
 Stateless rule support only
 Custom Java functions have to be converted manually to SPL
 But, the compiler can generate stubs for you to fill out
 Dynamic updates
 Cannot change ruleset parameters
 Cannot add/remove rule packages
 But, can add/remove rules within a package

12. © 2016 IBM Corporation12

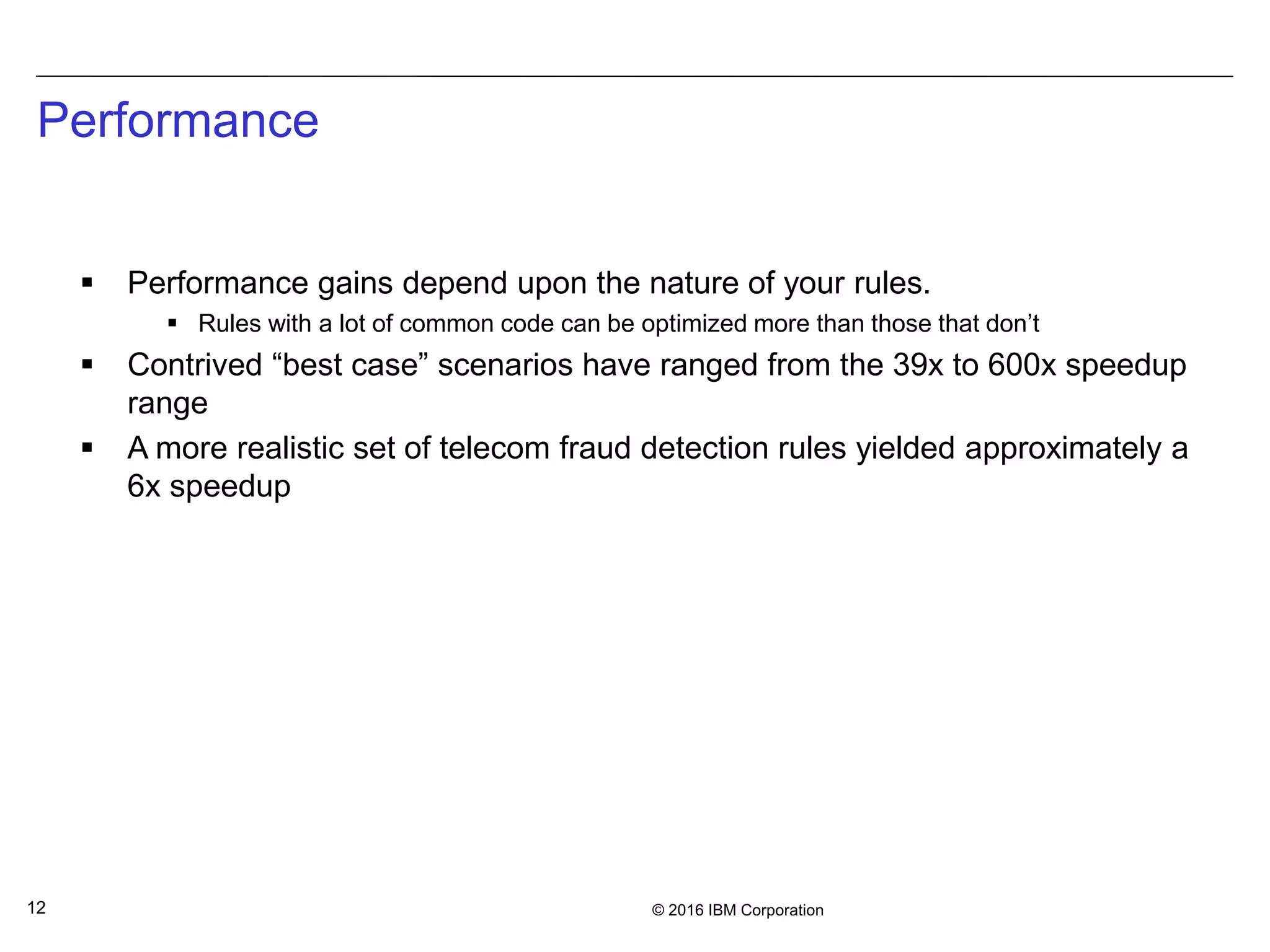

Performance
 Performance gains depend upon the nature of your rules.
 Rules with a lot of common code can be optimized more than those that don’t
 Contrived “best case” scenarios have ranged from the 39x to 600x speedup
range
 A more realistic set of telecom fraud detection rules yielded approximately a
6x speedup

13. © 2016 IBM Corporation13

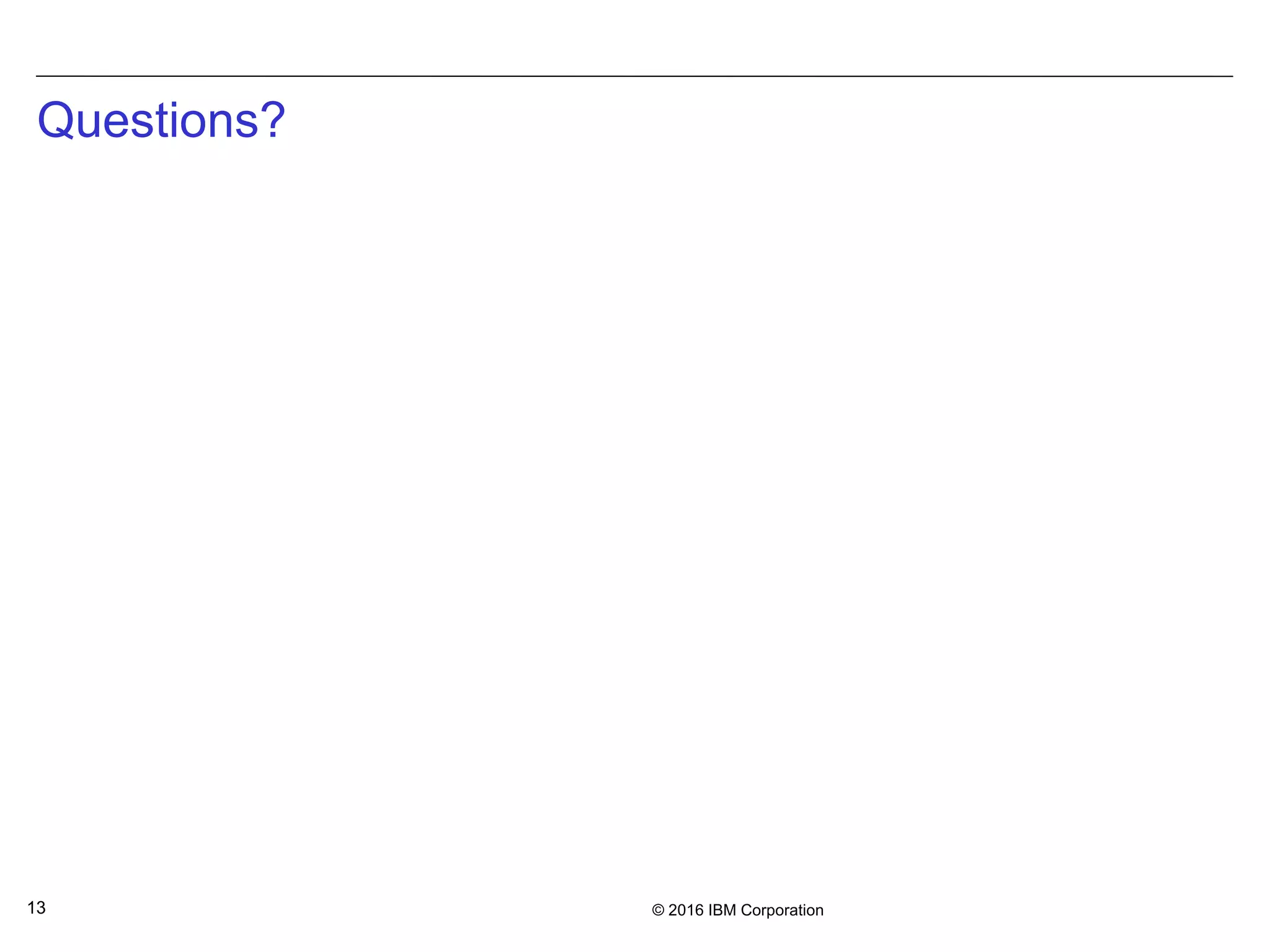

Questions?
