This document provides an overview of theme customization capabilities in IBM Digital Experience including: - Tools for customizing themes like the Theme Manager, Web Developer Dashboard, and Theme Editor. - Capabilities for customizing themes like creating new themes from templates, updating styles, templates, and adding modules and profiles. - Information on the resources and lab environment available for theme development.

1. Theme Customization
Worldwide Business Partner Technical Enablement 2016
Van Staub – North America Embedded Solution Partners
1

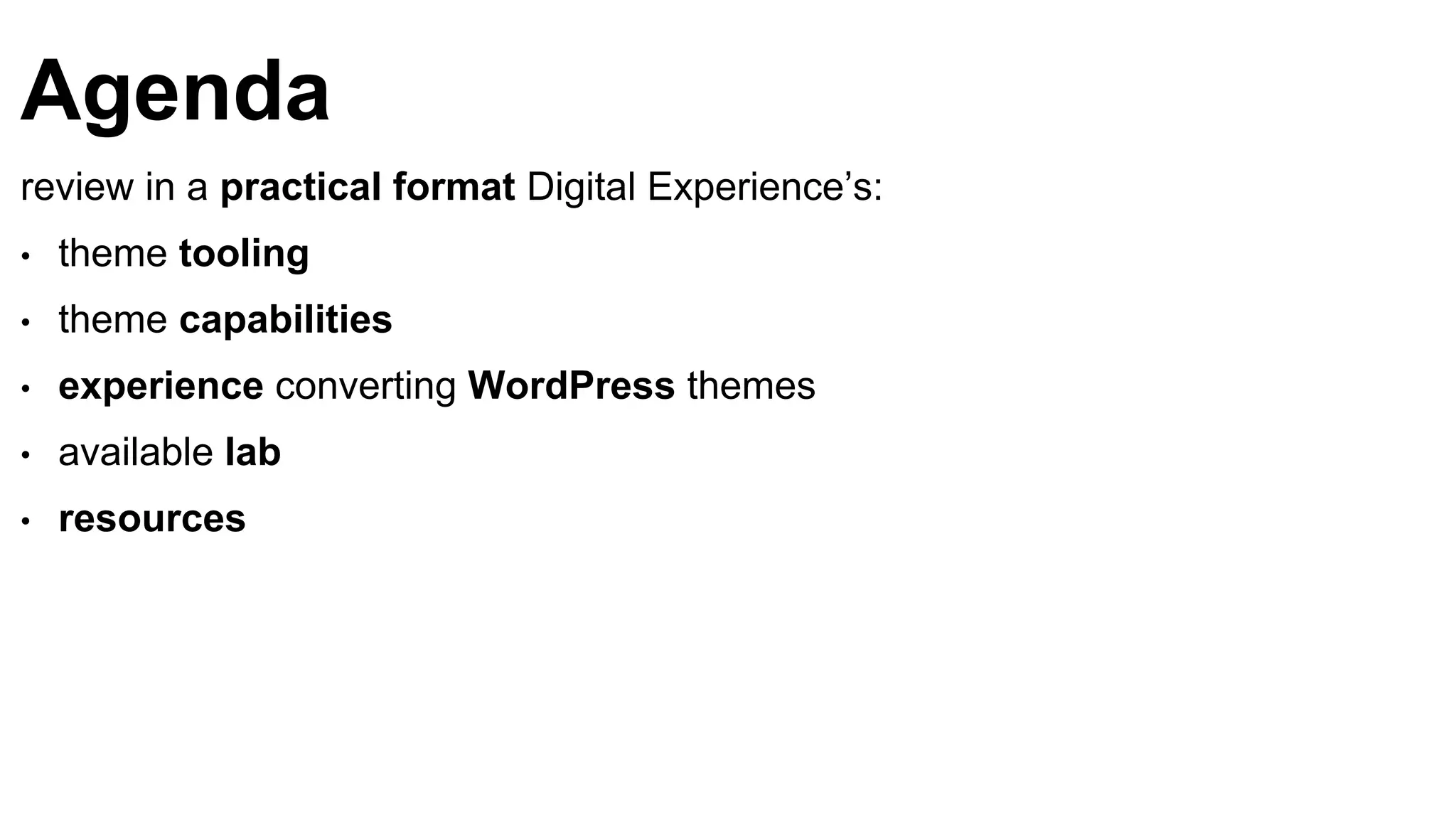

2. Agenda
review in a practical format Digital Experience’s:
• theme tooling
• theme capabilities
• experience converting WordPress themes
• available lab
• resources

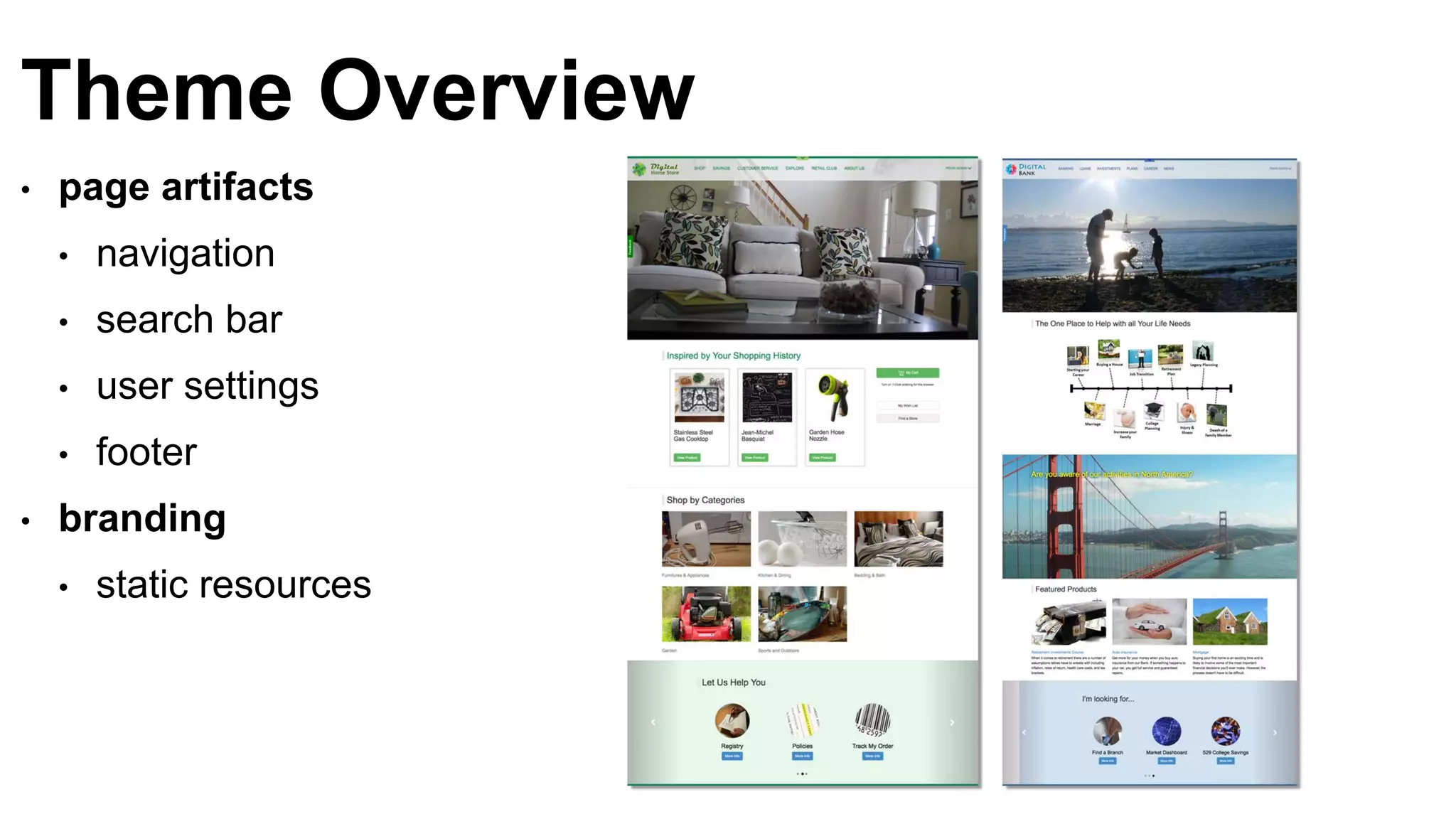

3. Theme Overview
• page artifacts
• navigation
• search bar
• user settings
• footer
• branding
• static resources

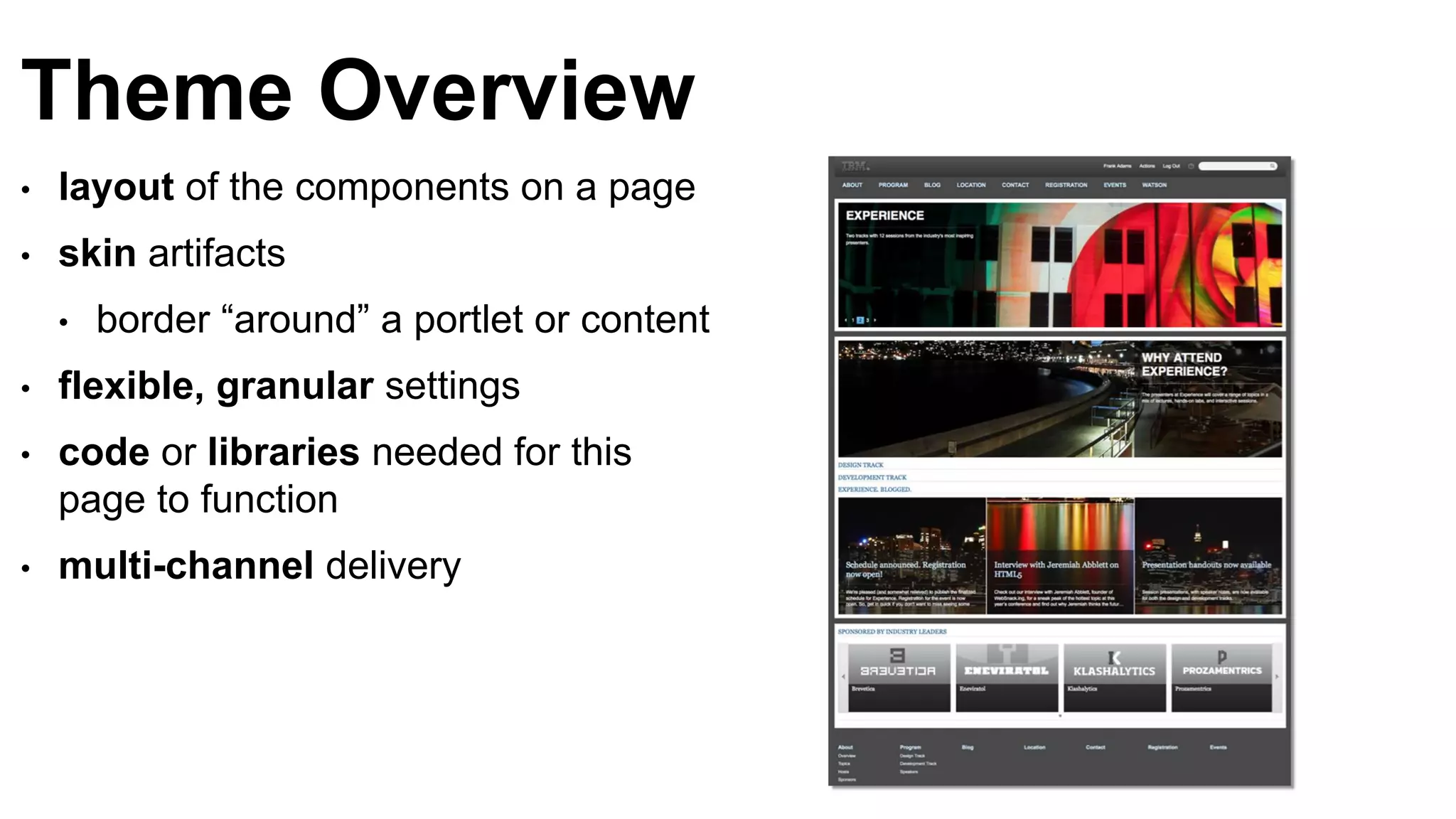

4. Theme Overview
• layout of the components on a page
• skin artifacts
• border “around” a portlet or content
• flexible, granular settings
• code or libraries needed for this
page to function
• multi-channel delivery

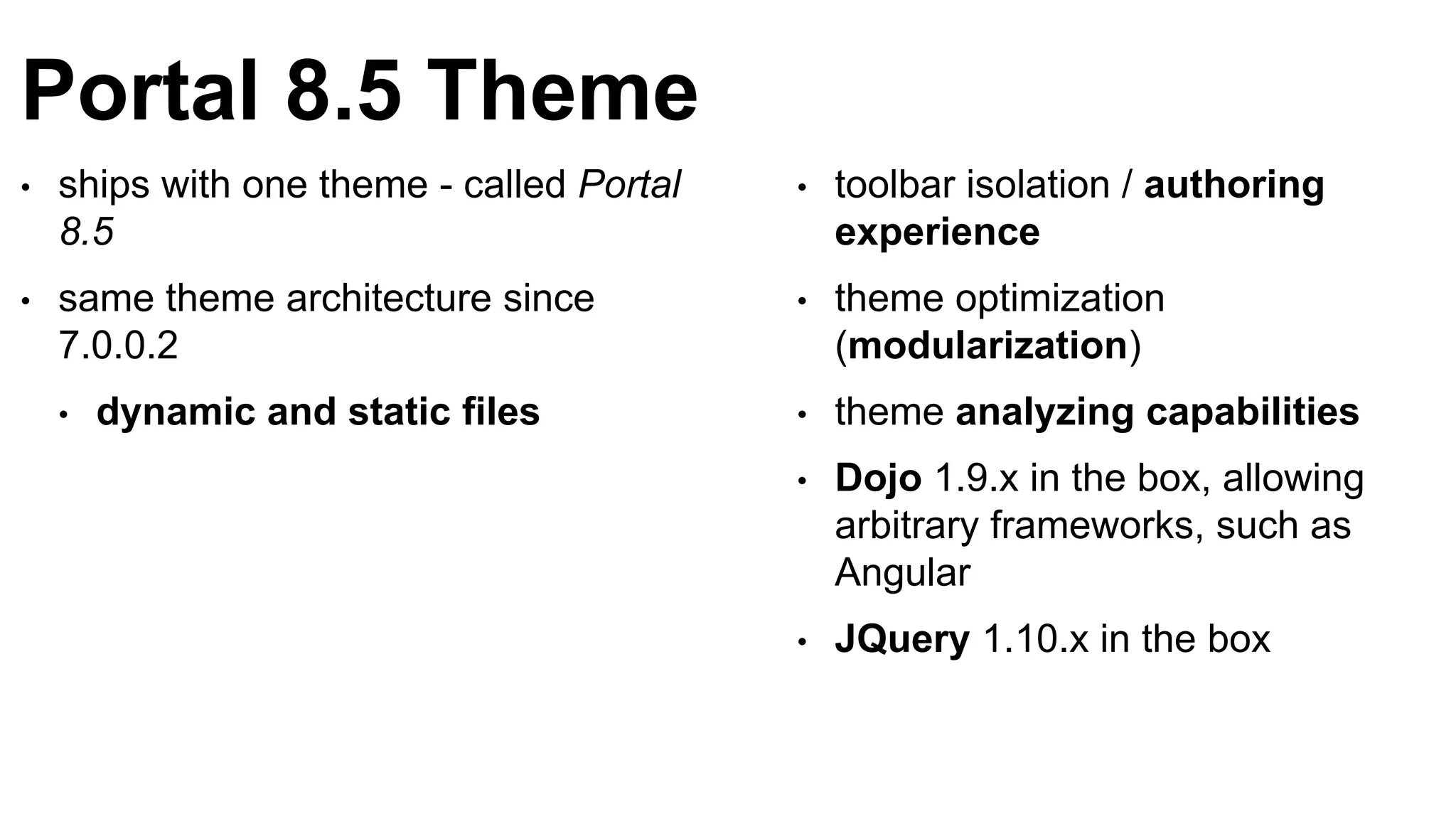

7. Portal 8.5 Theme
• ships with one theme - called Portal
8.5
• same theme architecture since
7.0.0.2
• dynamic and static files
• toolbar isolation / authoring
experience
• theme optimization
(modularization)
• theme analyzing capabilities
• Dojo 1.9.x in the box, allowing
arbitrary frameworks, such as
Angular
• JQuery 1.10.x in the box

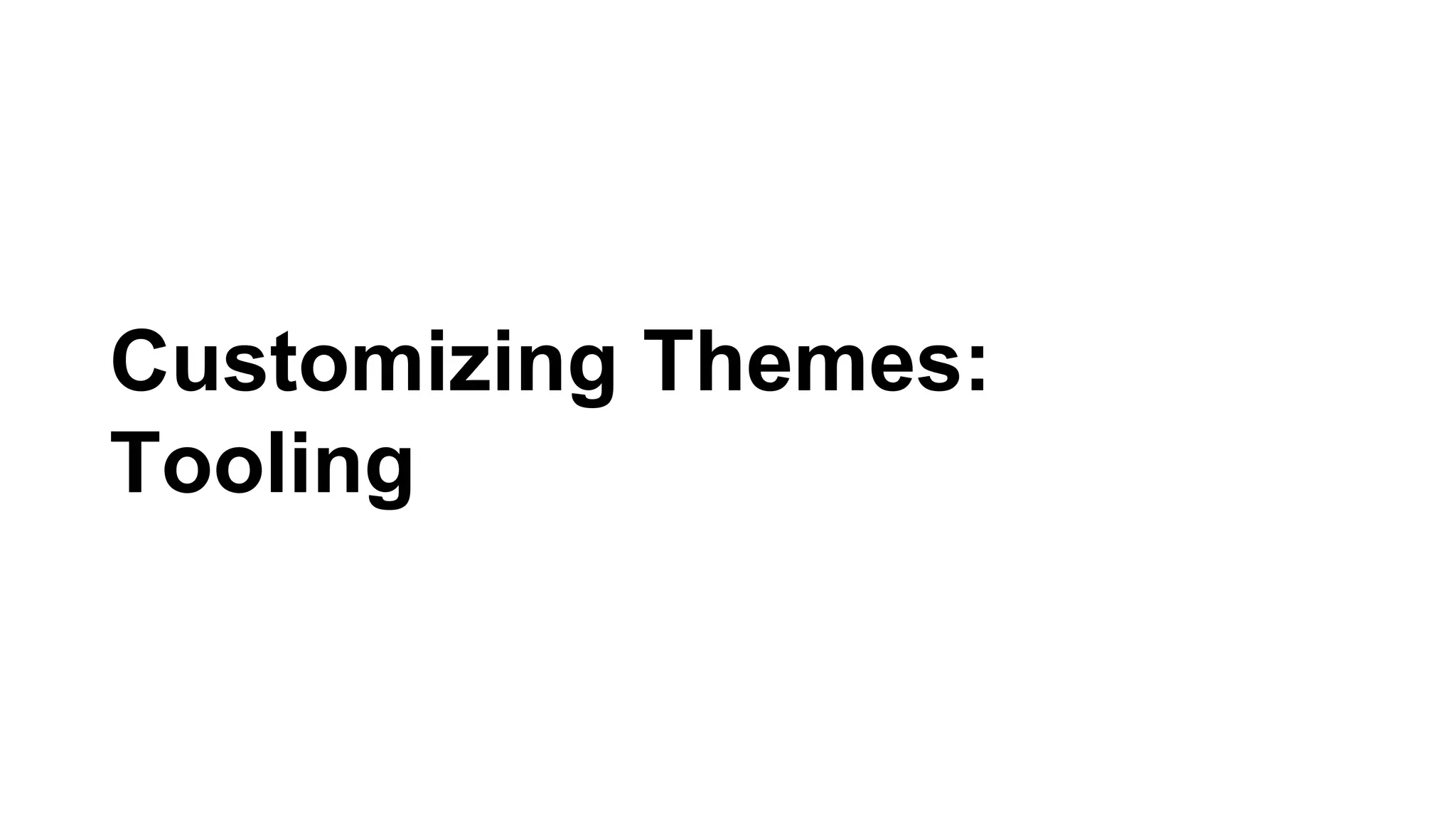

8. Customizing Themes:
Tooling

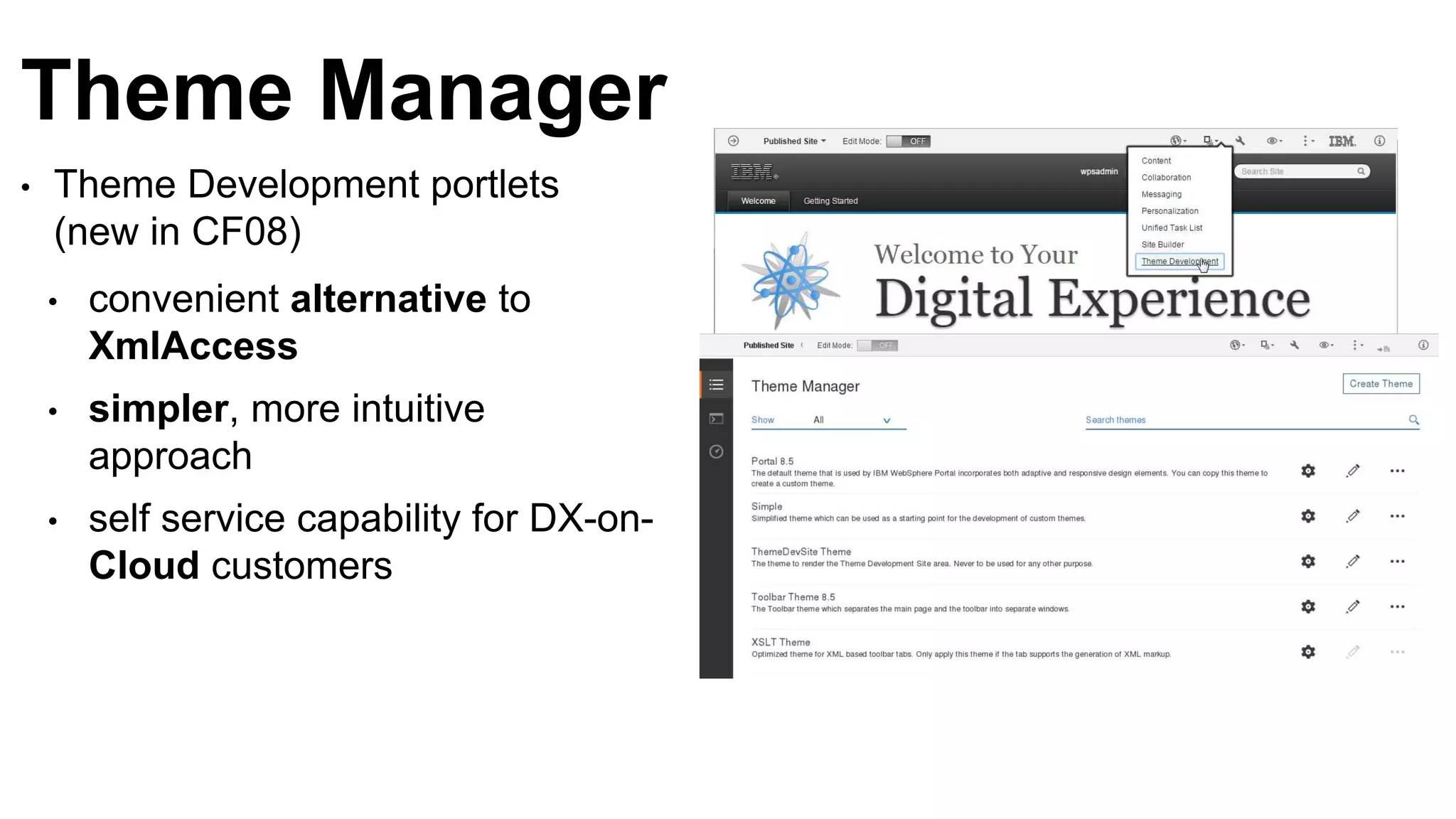

9. Theme Manager
• Theme Development portlets
(new in CF08)
• convenient alternative to
XmlAccess
• simpler, more intuitive
approach
• self service capability for DX-on-
Cloud customers

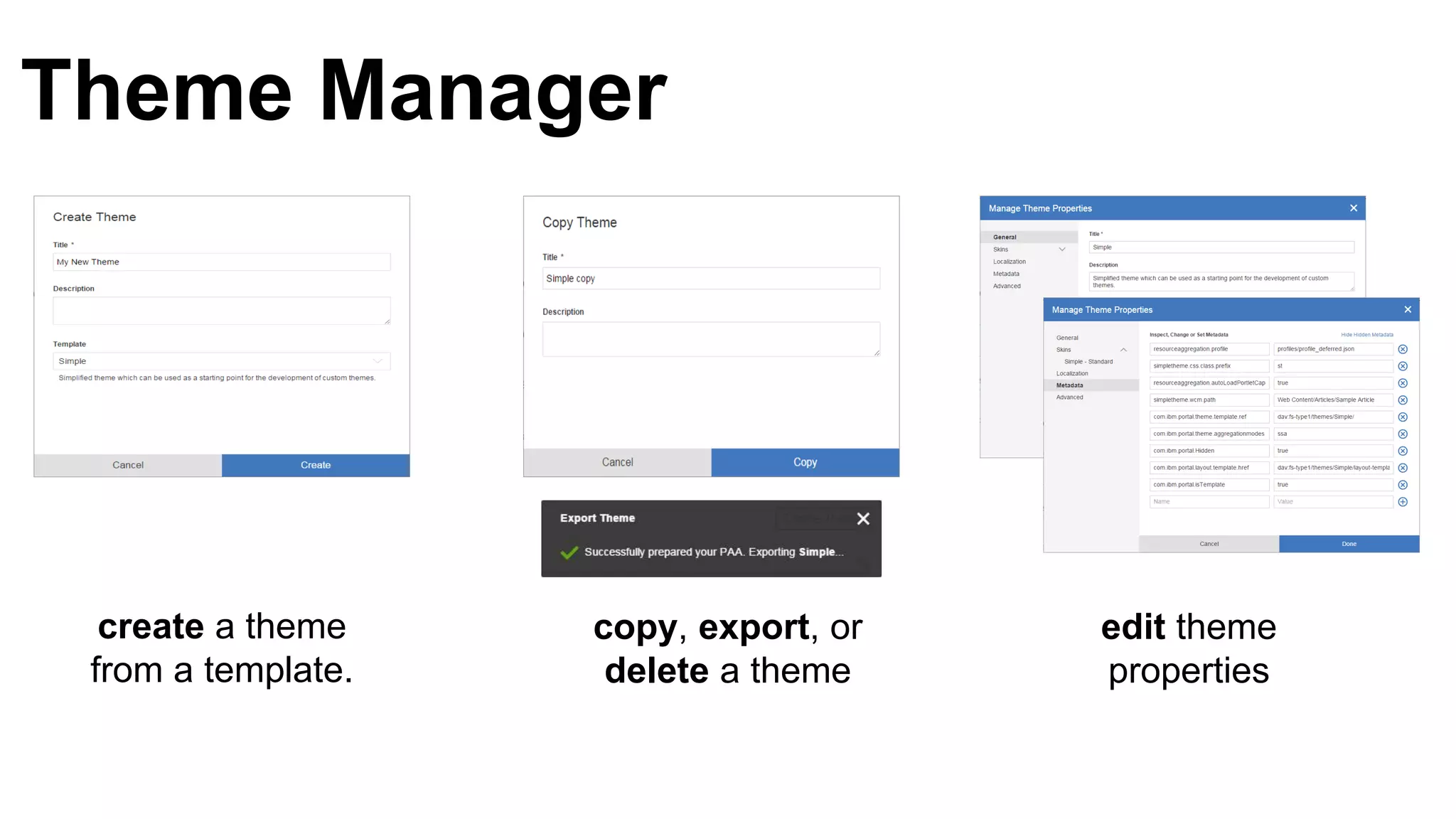

10. Theme Manager
create a theme
from a template.
copy, export, or
delete a theme
edit theme
properties

11. Web Developer Dashboard
• work with Script Portlet
applications, Themes, and
WCM design elements in a
simple UI
• click to push or watch/sync
applications and designs to a
local or remote Portal server
• use a simple UI to add and
edit your theme modules and
profiles
• run script applications locally
on test server

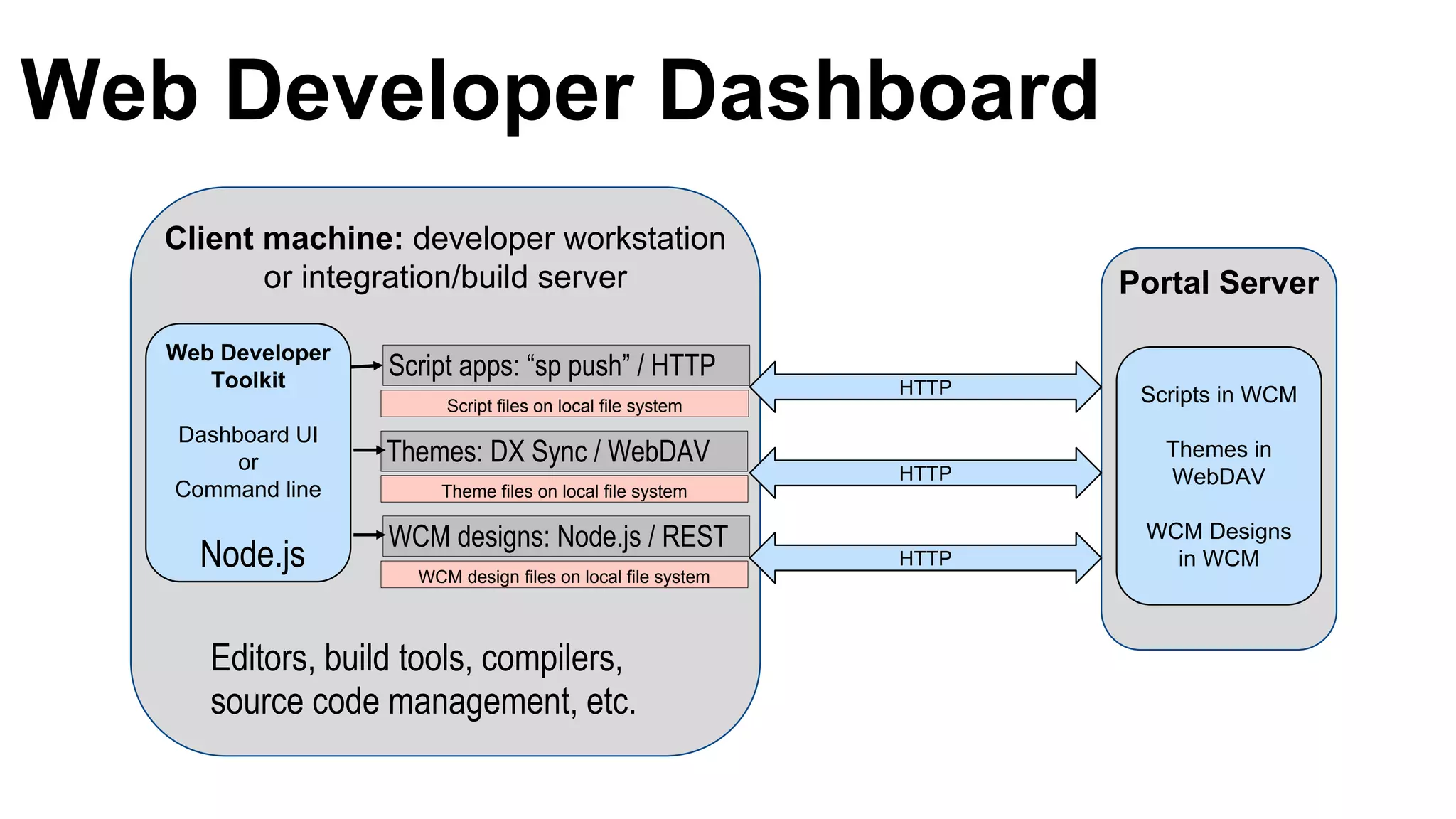

12. Web Developer Dashboard
Client machine: developer workstation
or integration/build server Portal Server
HTTP
Script apps: “sp push” / HTTP
Themes: DX Sync / WebDAV
WCM designs: Node.js / REST
HTTP
HTTP
Web Developer
Toolkit
Dashboard UI
or
Command line
Scripts in WCM
Themes in
WebDAV
WCM Designs
in WCM
Script files on local file system
Theme files on local file system
WCM design files on local file system
Node.js
Editors, build tools, compilers,
source code management, etc.

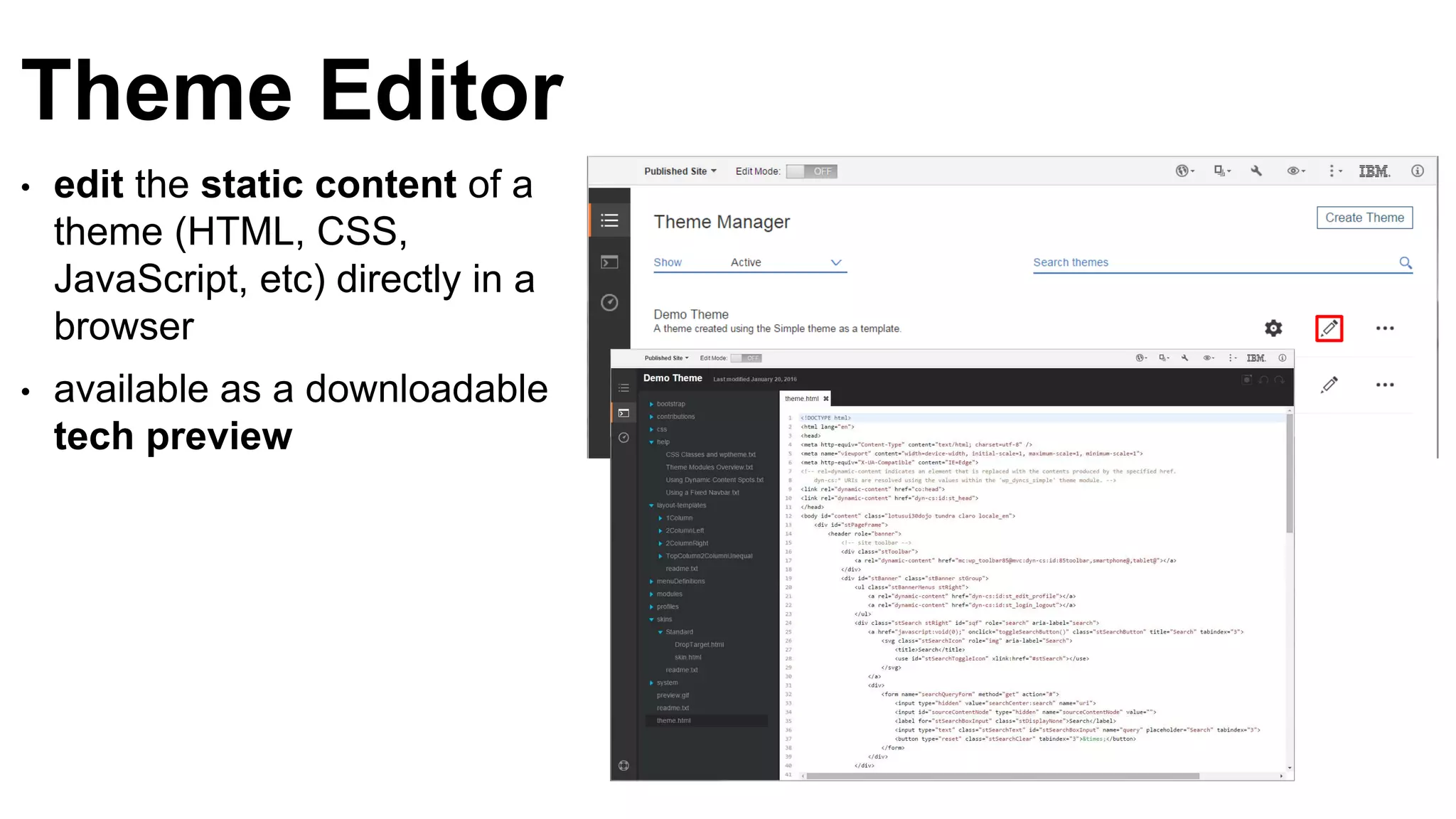

13. Theme Editor
• edit the static content of a
theme (HTML, CSS,
JavaScript, etc) directly in a
browser
• available as a downloadable
tech preview

14. Simple Theme
• minimal set of artifacts for an easy starting point and quick learning curve
• responsive design supports all mobile devices
• easily branded and customized using CSS/JS/HTML and editable via WebDAV
• several of generic dynamic content spots are available
• top navigation, mega menu, etc.

15. Theme Analyzer
• analysis and debugging tools available on Theme Development page

16. Customizing Themes:
Capabilities

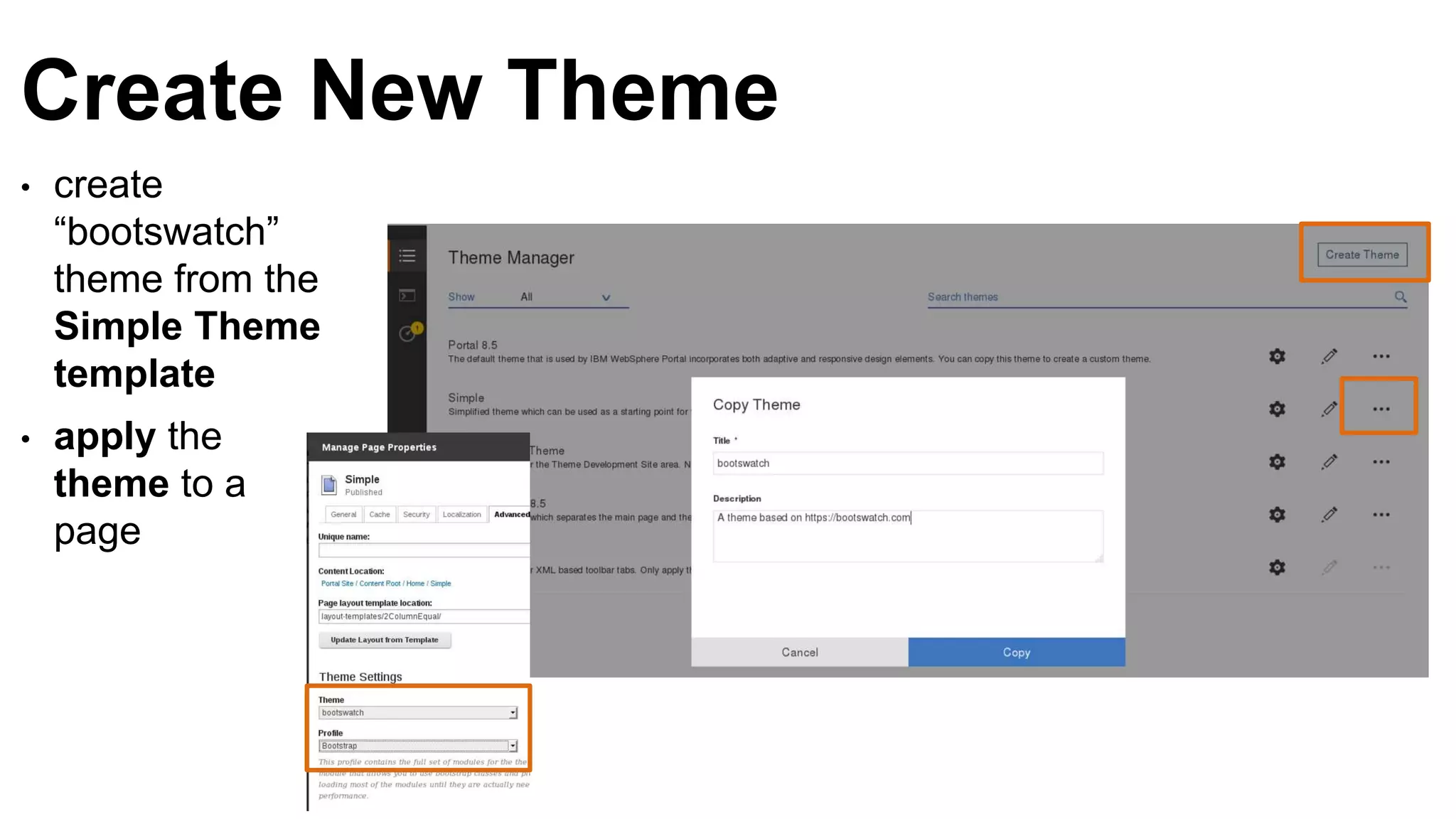

17. Create New Theme
• create
“bootswatch”
theme from the
Simple Theme
template
• apply the
theme to a
page

18. update
branding
add padding
add a few
layout
templates

19. Styles
• styles define the aesthetics of the
page – essentially a cascading style
sheet
• applied dynamically using page
properties
• let’s re-use bootswatch Bootstrap
styles to provide options for users
no other styles
available in Simple
Theme

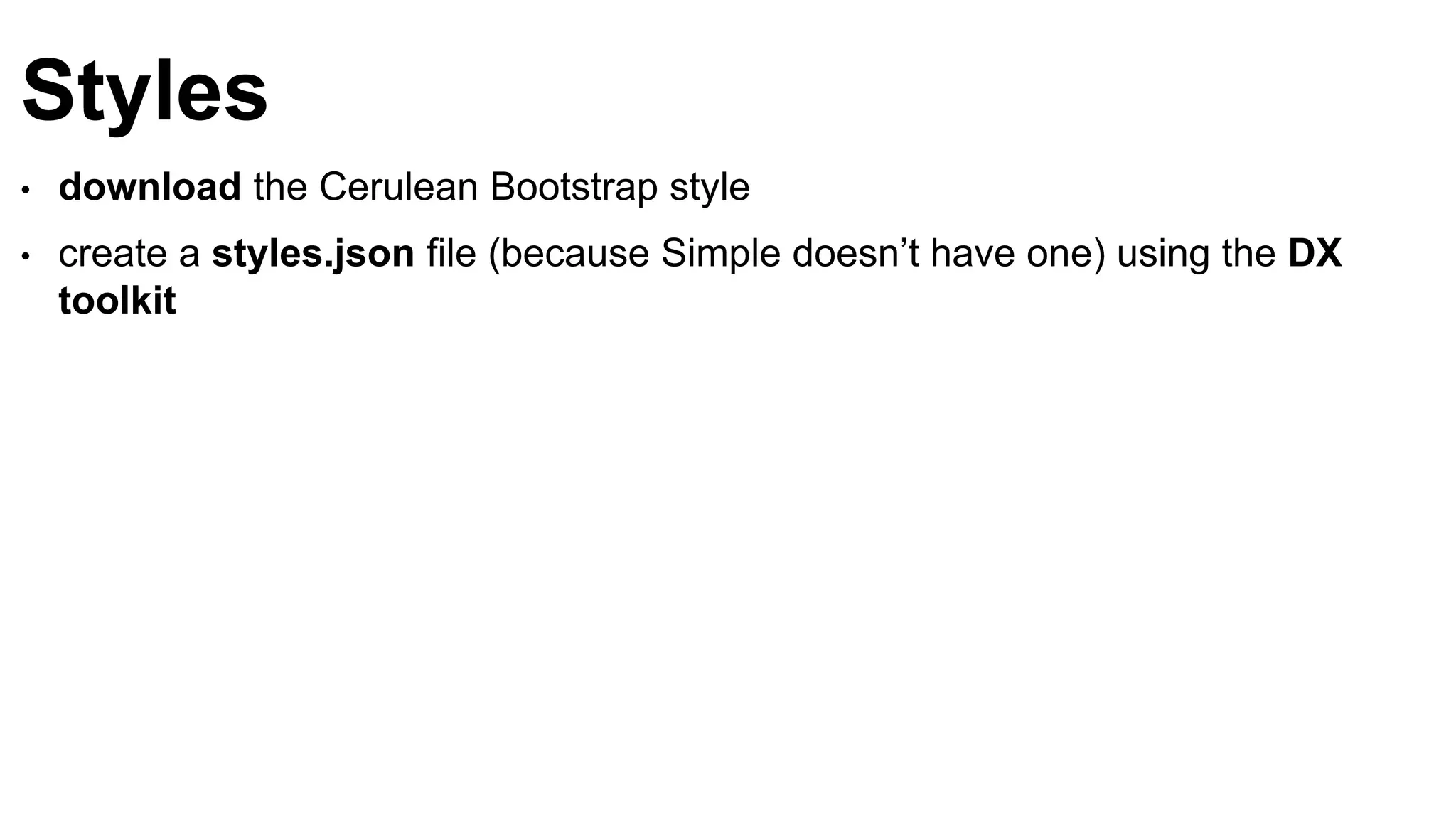

20. Styles
• download the Cerulean Bootstrap style
• create a styles.json file (because Simple doesn’t have one) using the DX
toolkit

22. Styles
• /Dev/bootswatch/system/styles.json
• /Dev/bootswatch/css
• /cerulean
• /bootstrap.min.css
• /thumbnail.png
• /cosmo
• /bootstrap.min.css
• /thumbnail.png
• /slate
• /bootstrap.min.css
• /thumbnail.png
{
localizationPackageName:'com.ibm.bundl
es', localizationBundleName:'Shelf',
identifier:'label', items: [
{'label':'Cerulean','id':'cerulean.css','url':'c
ss/cerulean/bootstrap.min.css','thumbna
il':ibmCfg.themeConfig.themeRootURI+'/c
ss/cerulean/thumbnail.png','help':''},
{'label':'Cosmo','id':'cosmo.css','url':'css/co
smo/bootstrap.min.css’,’thumbnail':ibmCfg
.themeConfig.themeRootURI+'/css/cosmo/
thumbnail.png','help':''},
{'label':'Slate','id':'slate.css','url':'css/slate/b
ootstrap.min.css','thumbnail':ibmCfg.them
eConfig.themeRootURI+'/css/slate/thumbn
ail.png','help':'’
}] }

23. this changed 
this did not 

24. Theme Templates
• a theme template (e.g. theme.html) defines the structure of the site
• contains both static and dynamic markup
• static reference example
• war: used to load static resources from a WAR file
• dynamic markup <a rel='dynamic-content' href='dyn-cs:id:…'/>
• modules are able to contribute dynamic content spots with the contribution
type dyn-cs from a plugin.xml
• beware localized templates; edit the NLS template inside
/<theme>/nls/theme_en.html

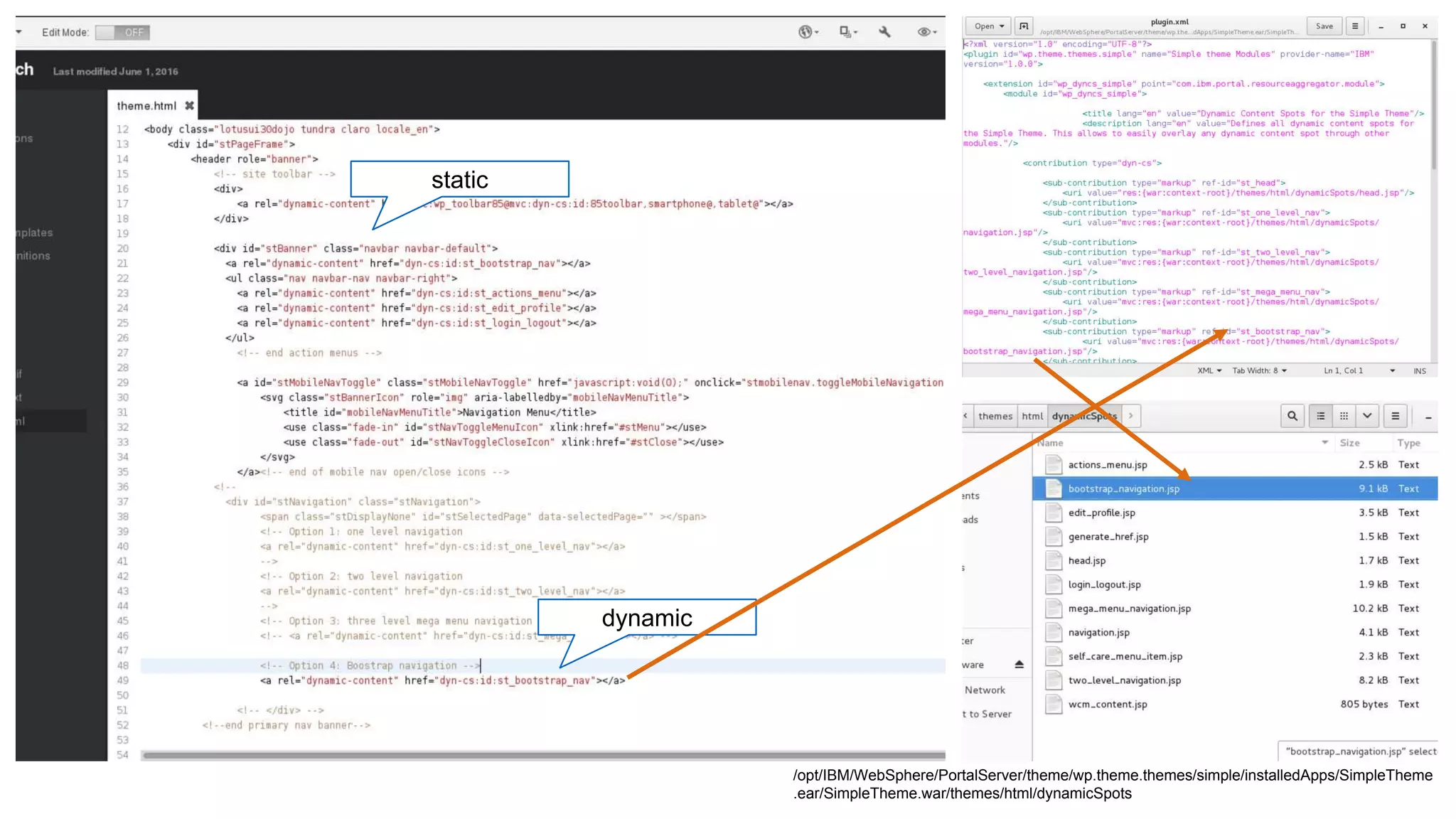

25. static
dynamic
/opt/IBM/WebSphere/PortalServer/theme/wp.theme.themes/simple/installedApps/SimpleTheme
.ear/SimpleTheme.war/themes/html/dynamicSpots

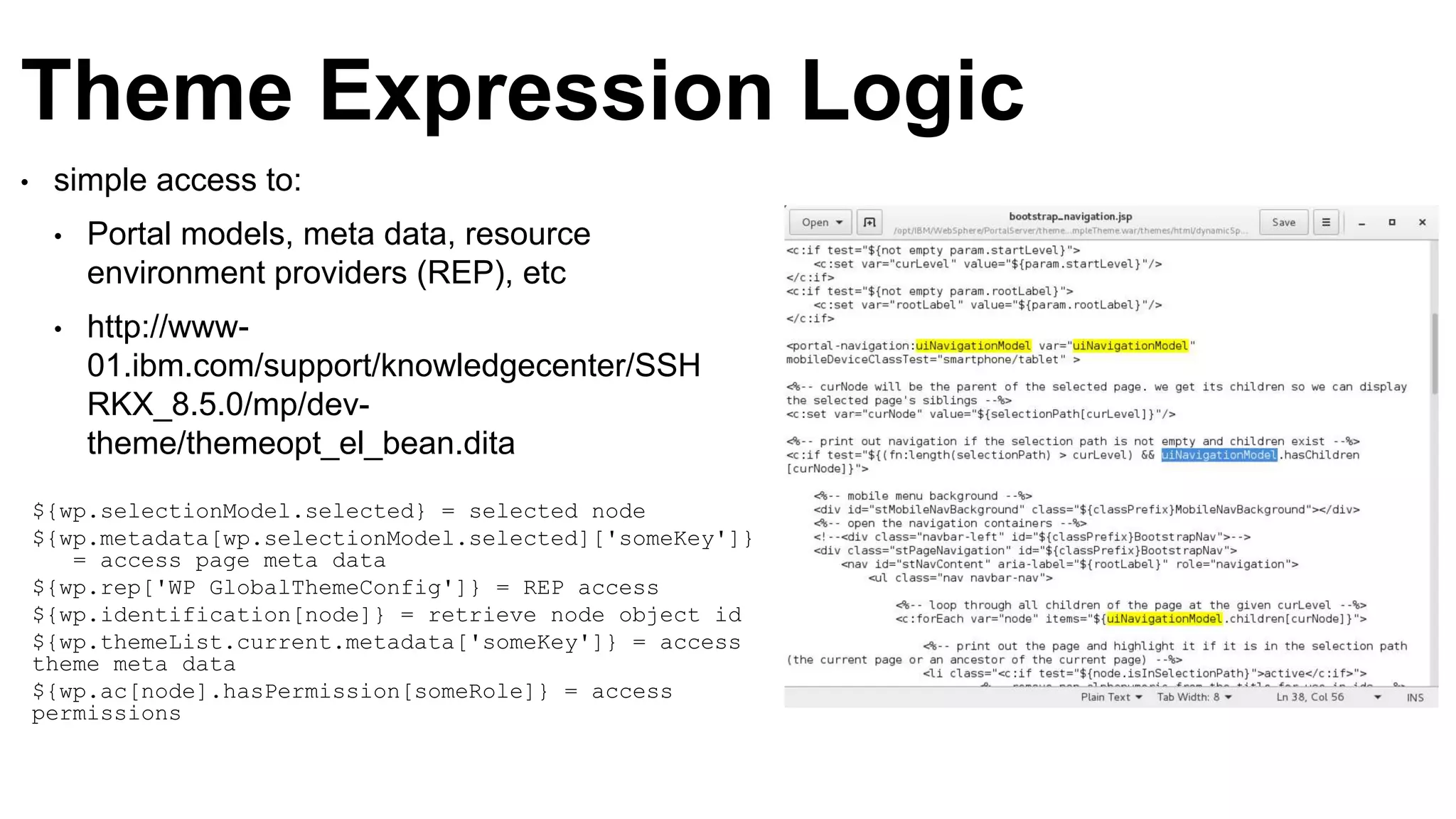

26. Theme Expression Logic
• simple access to:
• Portal models, meta data, resource
environment providers (REP), etc
• http://www-
01.ibm.com/support/knowledgecenter/SSH
RKX_8.5.0/mp/dev-
theme/themeopt_el_bean.dita
${wp.selectionModel.selected} = selected node
${wp.metadata[wp.selectionModel.selected]['someKey']}
= access page meta data
${wp.rep['WP GlobalThemeConfig']} = REP access
${wp.identification[node]} = retrieve node object id
${wp.themeList.current.metadata['someKey']} = access
theme meta data
${wp.ac[node].hasPermission[someRole]} = access
permissions

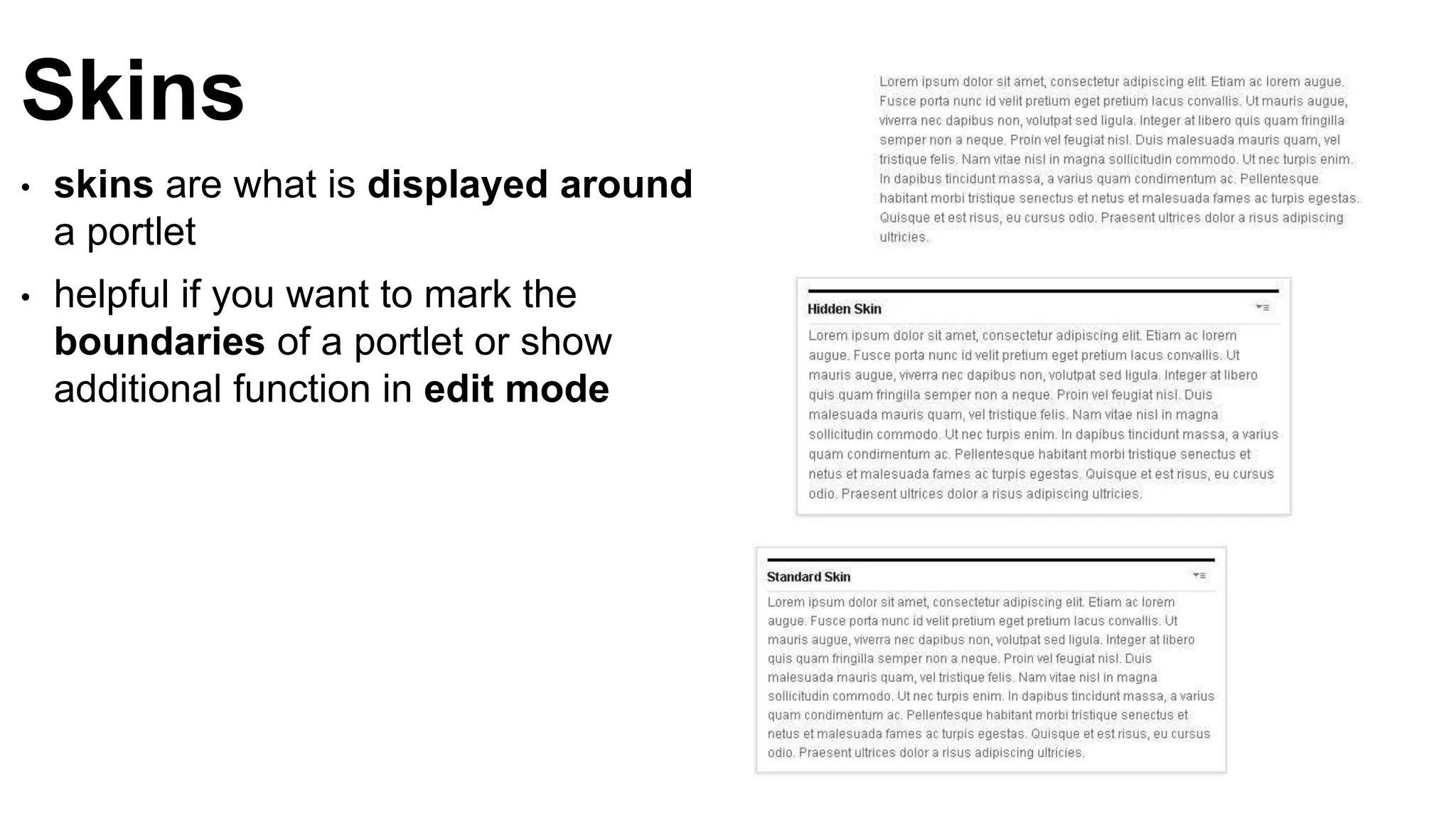

28. Skins
• skins are what is displayed around
a portlet
• helpful if you want to mark the
boundaries of a portlet or show
additional function in edit mode

29. Skins

30. just a bit more
padding
manually adding the style
to the skin html

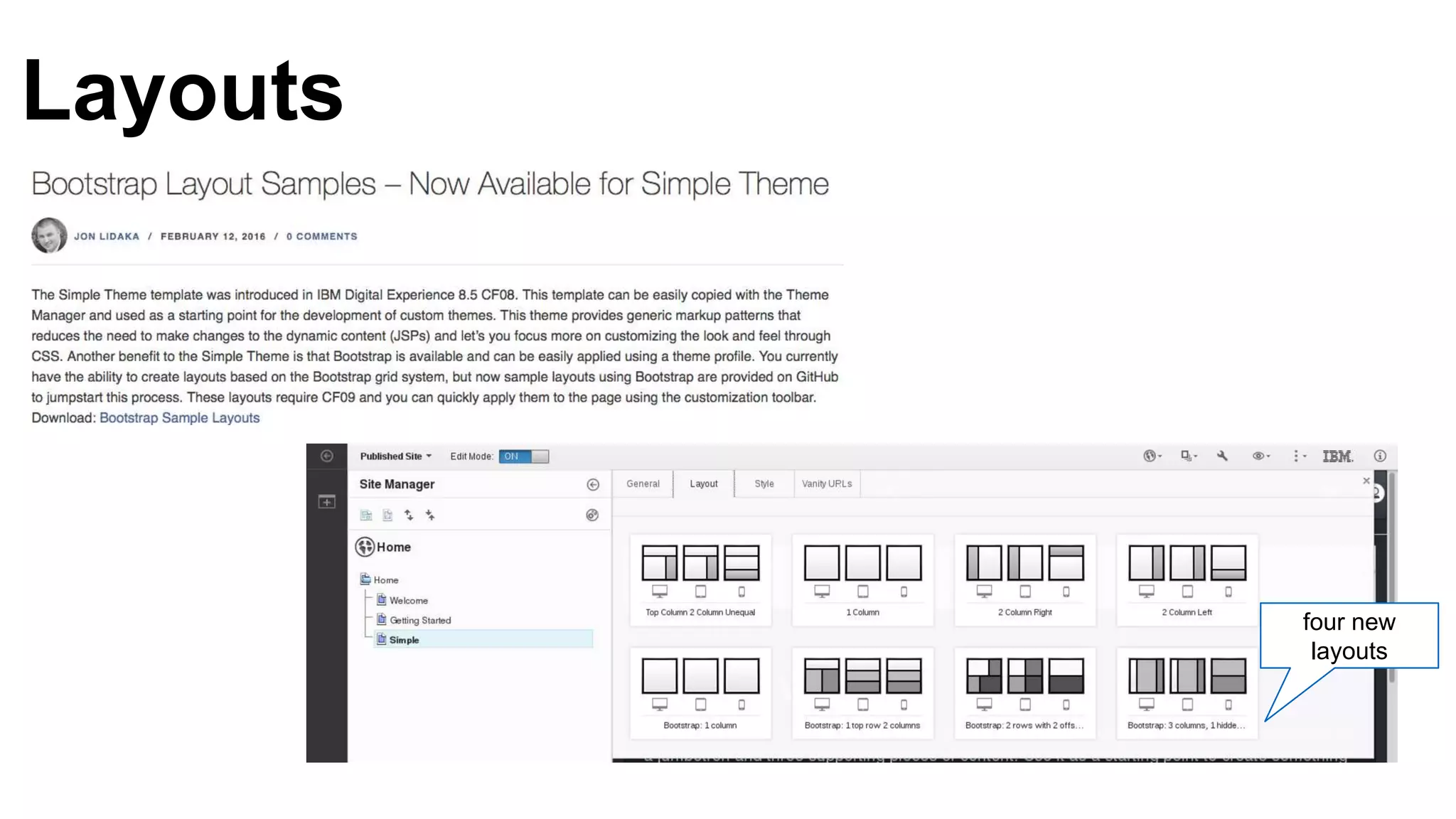

31. Layouts
four new
layouts

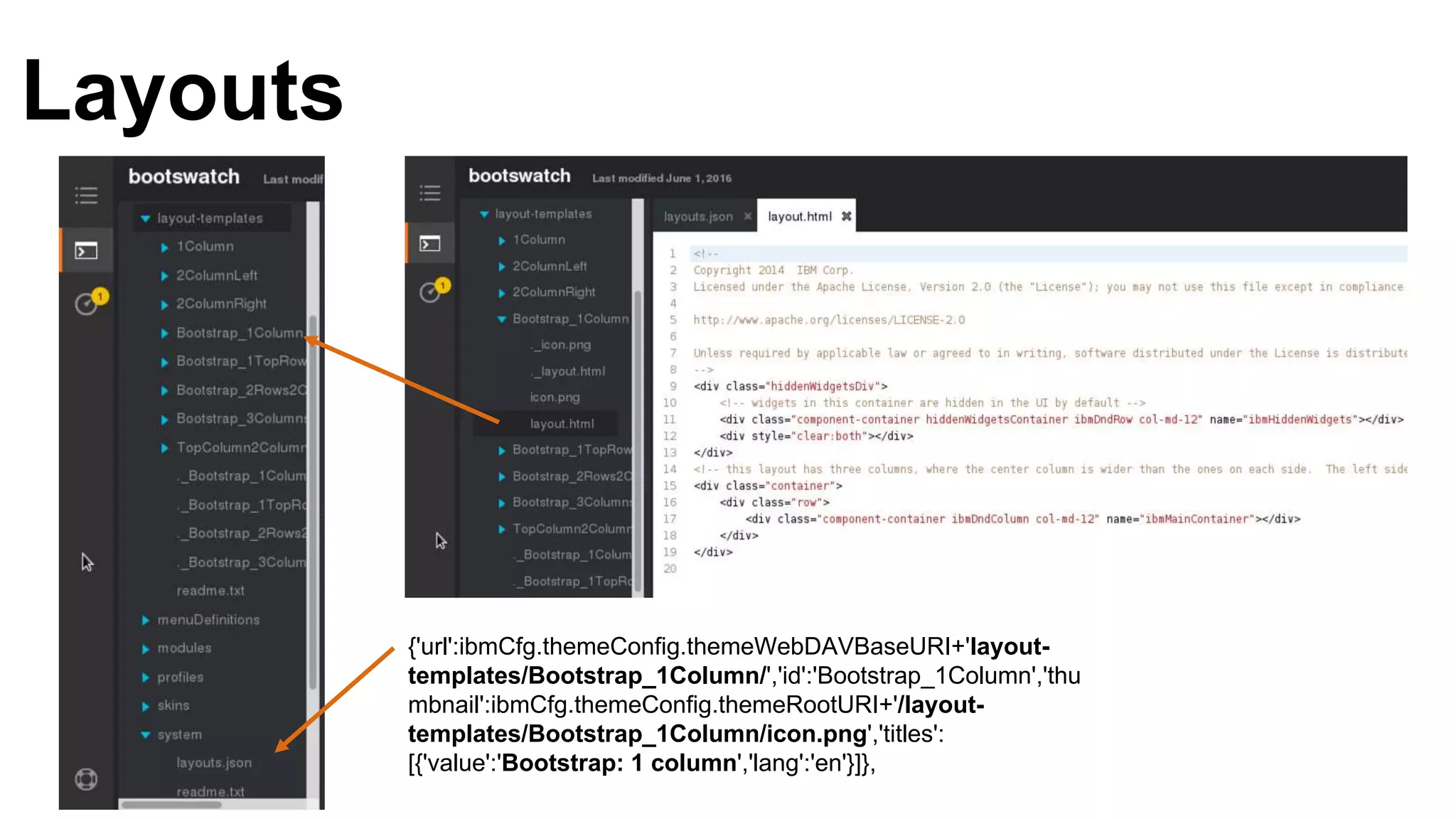

32. Layouts
{'url':ibmCfg.themeConfig.themeWebDAVBaseURI+'layout-
templates/Bootstrap_1Column/','id':'Bootstrap_1Column','thu
mbnail':ibmCfg.themeConfig.themeRootURI+'/layout-
templates/Bootstrap_1Column/icon.png','titles':
[{'value':'Bootstrap: 1 column','lang':'en'}]},

33. Modules
• modules add resources to
page markup – like
additional Javascript
libraries or CSS
• simple modules can be
created using folder
structure
• more advanced modules
can be created using
plugin.xml or JSON
• deferred modules can be
loaded dynamically

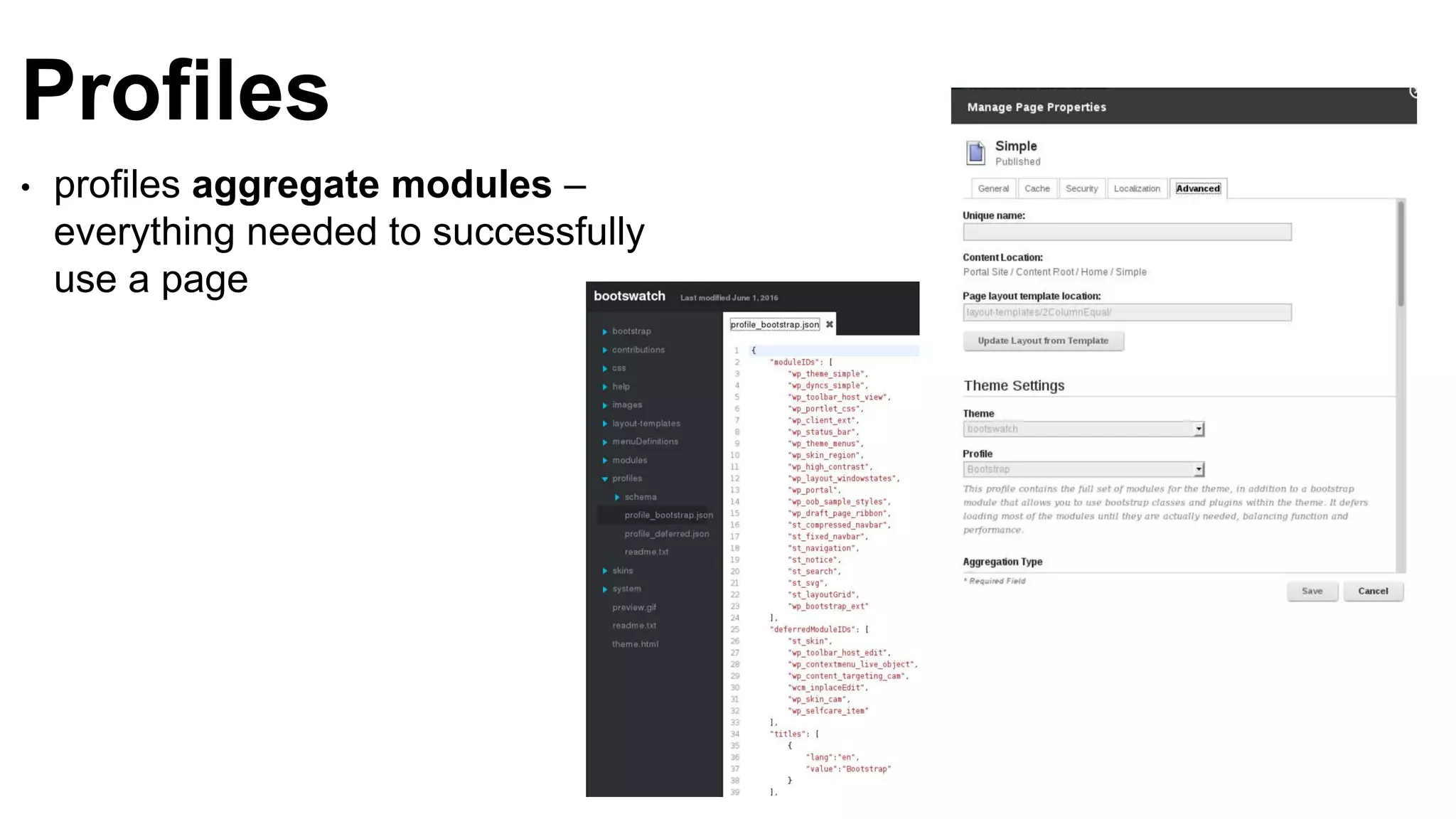

34. Profiles
• profiles aggregate modules –
everything needed to successfully
use a page

35. Resources
digitalExperience
Developer Downloads
https://developer.ibm.com/digexp/downloads/
Web Toolkit for IBM
Digital Experience
https://github.com/OpenNTF/WebDevToolkitForDx
IBM Theme Editor for
IBM WebSphere
Portal
https://greenhouse.lotus.com/plugins/plugincatalog.nsf/assetDetails.xsp?action=editDocument&documentId=4E6461C014E
DEAC785257F20002B035F&cm_mc_uid=64973263975314642744284&cm_mc_sid_50200000=1464712288&Login
Developing Themes
for WebSphere Portal
8.5
https://www-10.lotus.com/ldd/portalwiki.nsf/xpViewCategories.xsp?lookupName=Developing Themes for WebSphere Portal
8.5
Bootstrap http://getbootstrap.com/
Bootswatch https://bootswatch.com/

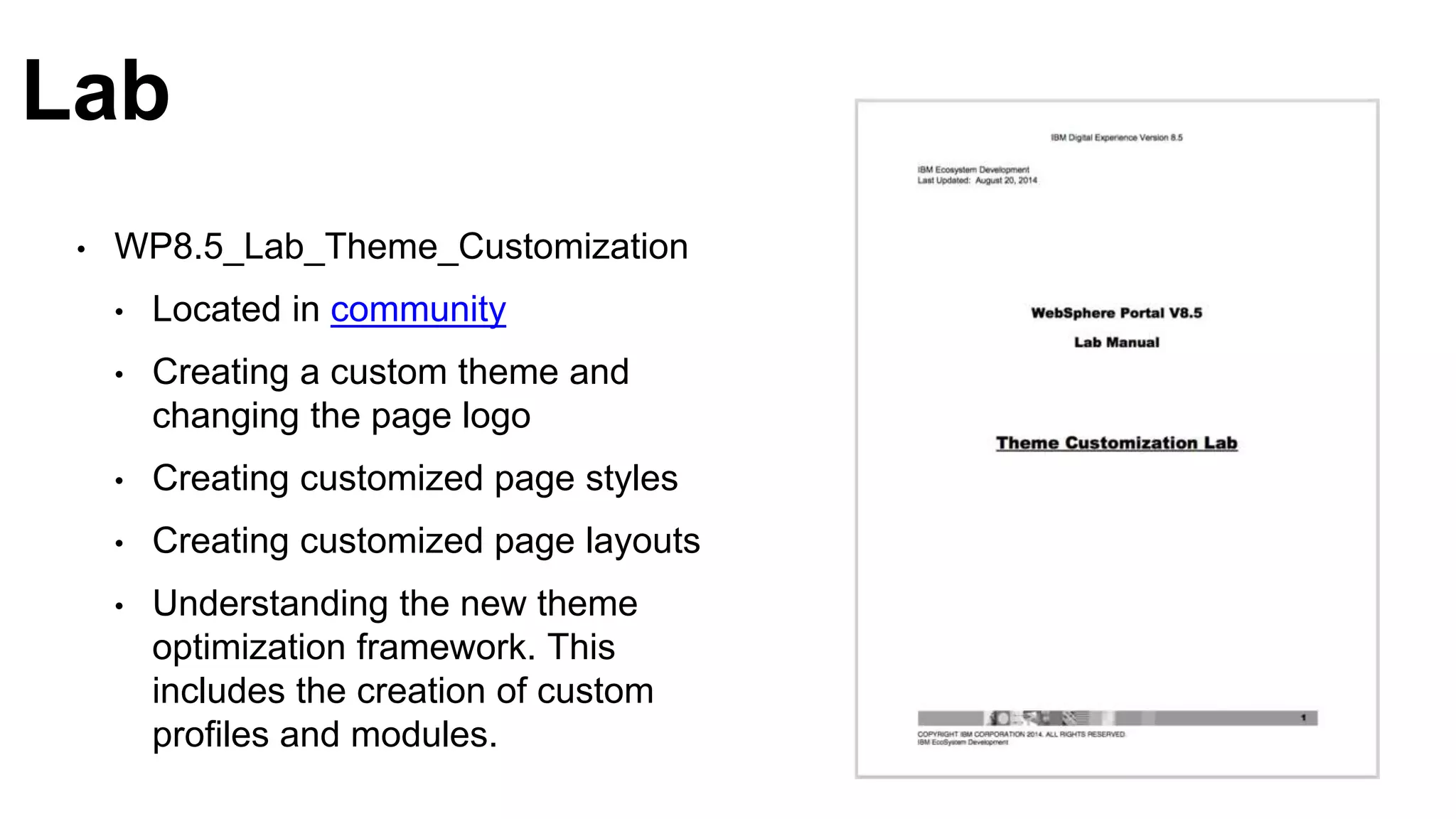

36. Lab
• WP8.5_Lab_Theme_Customization
• Located in community
• Creating a custom theme and
changing the page logo
• Creating customized page styles
• Creating customized page layouts
• Understanding the new theme
optimization framework. This
includes the creation of custom
profiles and modules.
