The document discusses hybrid fiber powerline communication (HFPC) as a new solution to deliver internet services that combines fiber optics and powerline communication (PLC). HFPC uses aerial fiber optic cables on medium voltage poles for backhaul and PLC to connect to consumers over low voltage powerlines. This allows internet access through any electrical outlet in a home while reducing costs compared to all-fiber networks. The technology provides high bandwidth to support services like IPTV and allows for both PLC and direct fiber connections.

1. GSCOM Confidential (C) 2013
CONSUMERS demand Internet services but
generally they do not care how it is
delivered.
Hybrid fiber Powerline
communication (HFPC)
Give FTTX wings

2. Hybrid Fibre Powerline (HFP)
Overview
 New solution which combines BPL with fibre
 BPL is used on LV only
 Aerial fibre optic cable on MV poles
provides backhaul
 Optimised for use with electricity systems
based on overhead poles
 Use MV pole wayleave as key asset
 BPL to consumers can be combined with
direct fibre services for business customers
 Unused fibres provide “dark fibre”
business opportunity
GSCOM Confidential (C) 2013

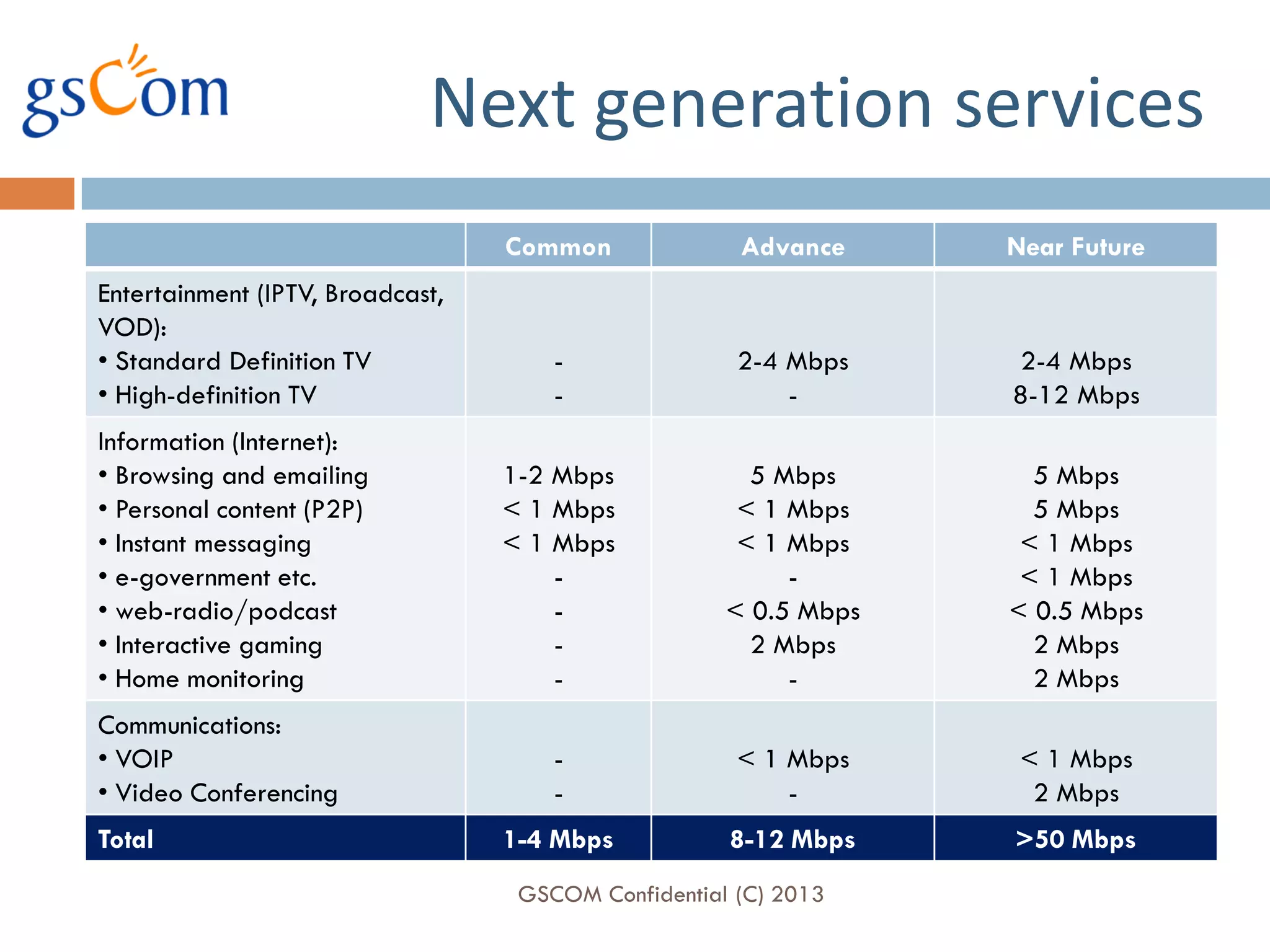

3. Next generation services
Common Advance Near Future
Entertainment (IPTV, Broadcast,
VOD):
• Standard Definition TV - 2-4 Mbps 2-4 Mbps
• High-definition TV - - 8-12 Mbps
Information (Internet):
• Browsing and emailing 1-2 Mbps 5 Mbps 5 Mbps
• Personal content (P2P) < 1 Mbps < 1 Mbps 5 Mbps
• Instant messaging < 1 Mbps < 1 Mbps < 1 Mbps
• e-government etc. - - < 1 Mbps
• web-radio/podcast - < 0.5 Mbps < 0.5 Mbps
• Interactive gaming - 2 Mbps 2 Mbps
• Home monitoring - - 2 Mbps
Communications:
• VOIP - < 1 Mbps < 1 Mbps
• Video Conferencing - - 2 Mbps
Total 1-4 Mbps 8-12 Mbps >50 Mbps
GSCOM Confidential (C) 2013

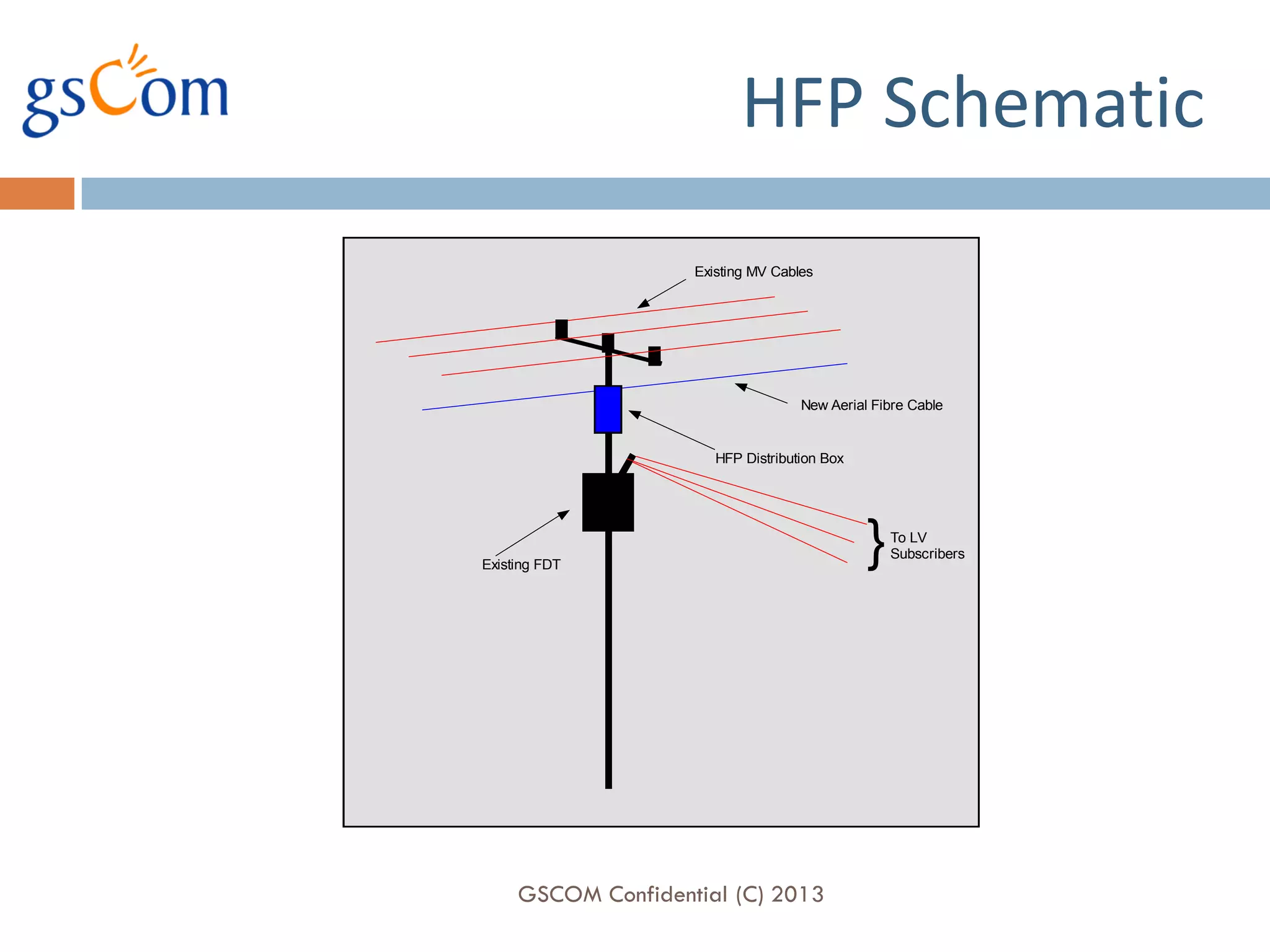

4. HFP Schematic
Existing MV Cables
New Aerial Fibre Cable
HFP Distribution Box
Existing FDT
} To LV
Subscribers
GSCOM Confidential (C) 2013

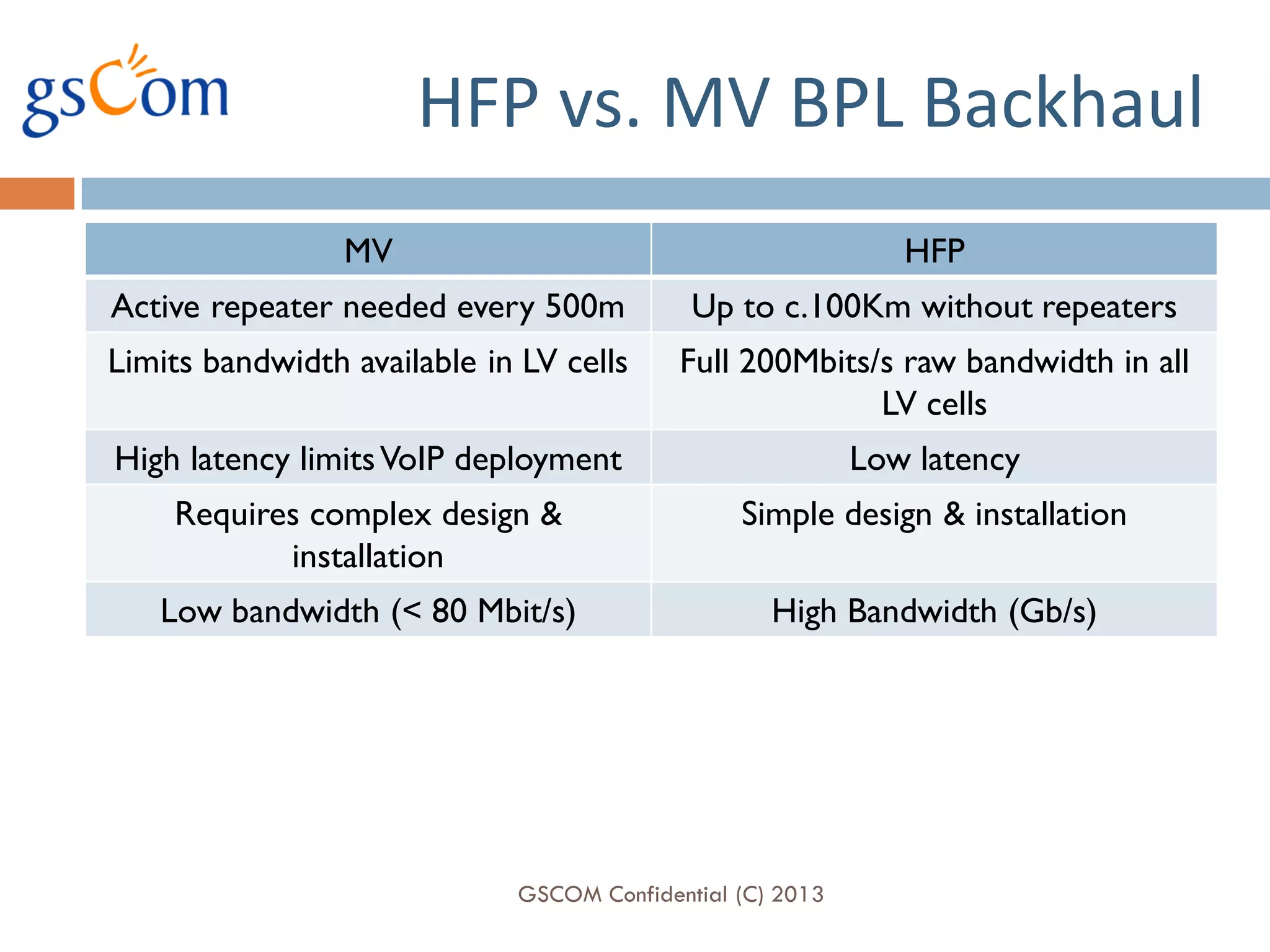

5. HFP vs. MV BPL Backhaul
MV HFP
Active repeater needed every 500m Up to c.100Km without repeaters
Limits bandwidth available in LV cells Full 200Mbits/s raw bandwidth in all
LV cells
High latency limits VoIP deployment Low latency
Requires complex design & Simple design & installation
installation
Low bandwidth (< 80 Mbit/s) High Bandwidth (Gb/s)
GSCOM Confidential (C) 2013

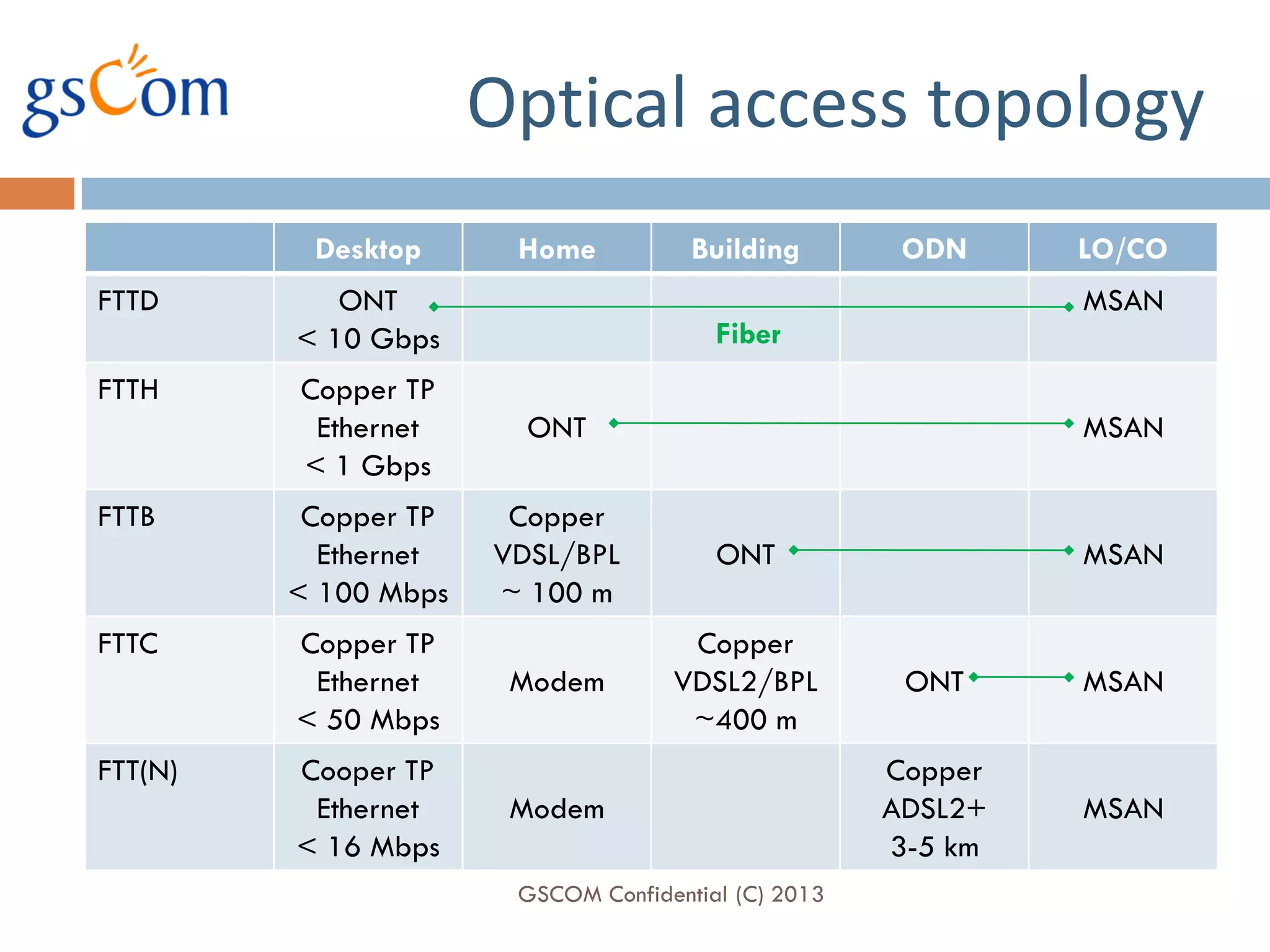

6. Optical access topology
Desktop Home Building ODN LO/CO
FTTD ONT MSAN
< 10 Gbps Fiber
FTTH Copper TP
Ethernet ONT MSAN
< 1 Gbps
FTTB Copper TP Copper
Ethernet VDSL/BPL ONT MSAN
< 100 Mbps ~ 100 m
FTTC Copper TP Copper
Ethernet Modem VDSL2/BPL ONT MSAN
< 50 Mbps ~400 m
FTT(N) Cooper TP Copper
Ethernet Modem ADSL2+ MSAN
< 16 Mbps 3-5 km
GSCOM Confidential (C) 2013

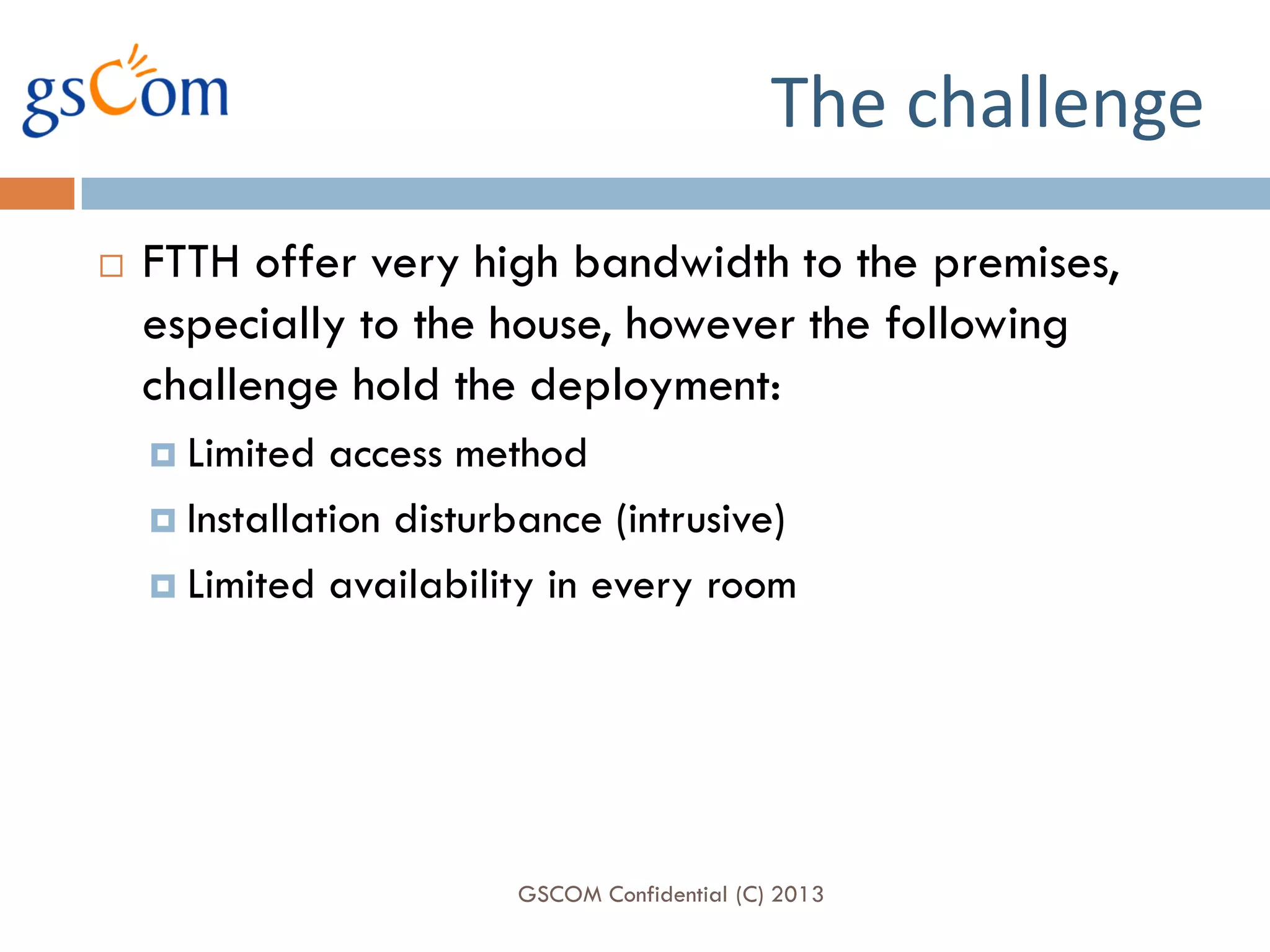

7. The challenge
 FTTH offer very high bandwidth to the premises,
especially to the house, however the following
challenge hold the deployment:
 Limited access method
 Installation disturbance (intrusive)
 Limited availability in every room
GSCOM Confidential (C) 2013

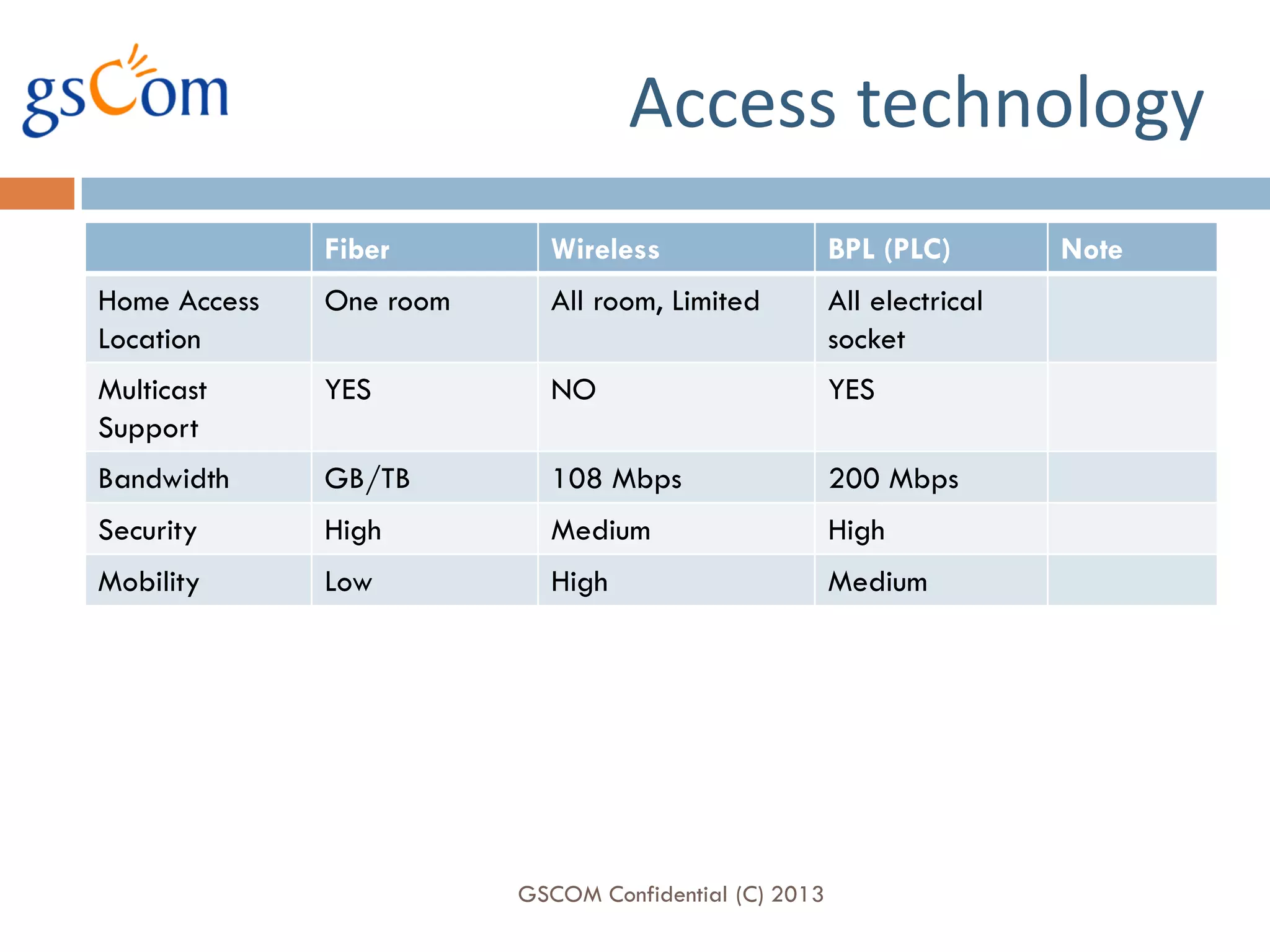

8. Access technology
Fiber Wireless BPL (PLC) Note
Home Access One room All room, Limited All electrical
Location socket
Multicast YES NO YES
Support
Bandwidth GB/TB 108 Mbps 200 Mbps
Security High Medium High
Mobility Low High Medium
GSCOM Confidential (C) 2013

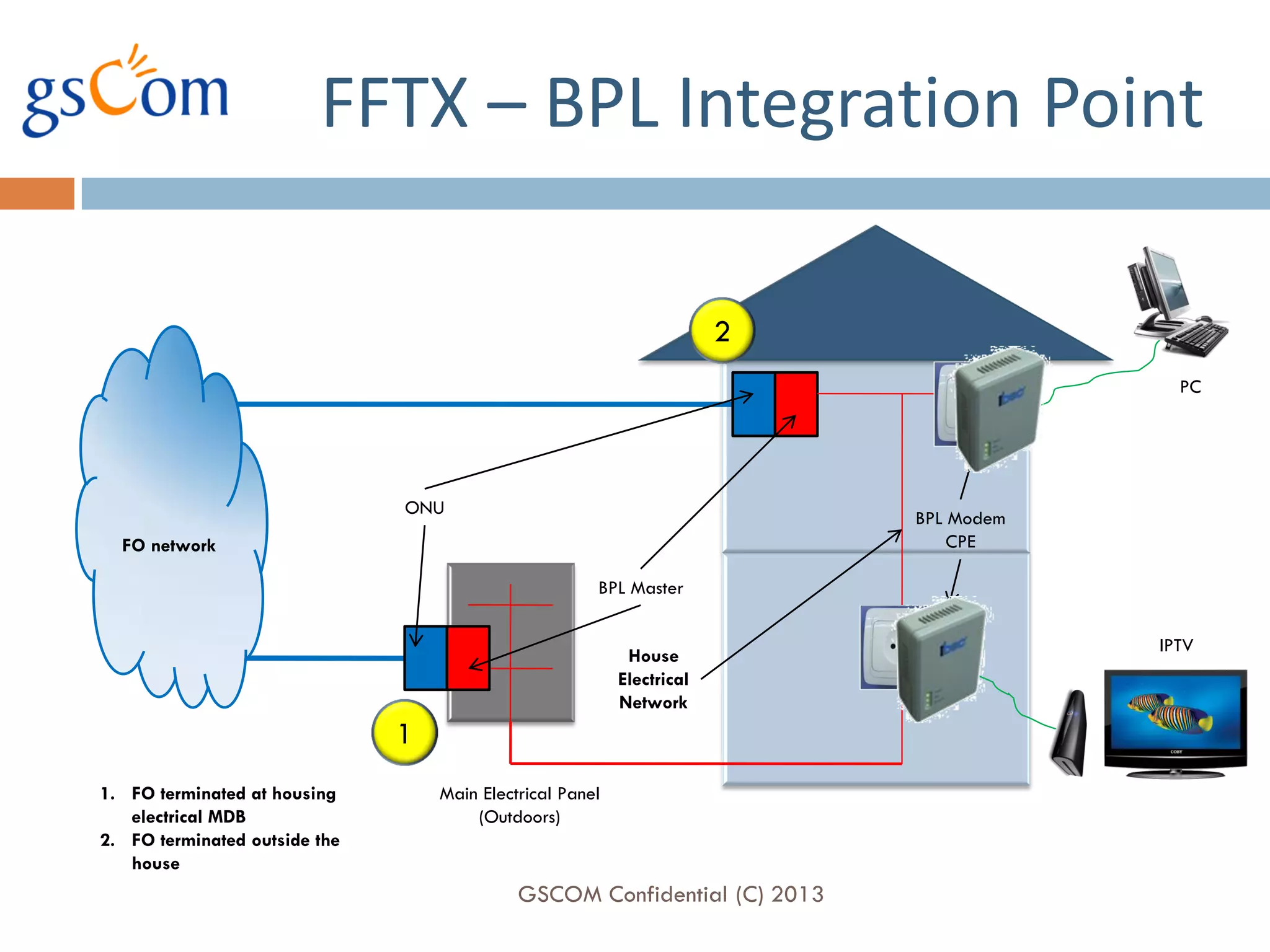

9. FFTX – BPL Integration Point
2
PC
ONU
BPL Modem
FO network CPE
BPL Master
IPTV
House
Electrical
Network
1
1. FO terminated at housing Main Electrical Panel
electrical MDB (Outdoors)
2. FO terminated outside the
house
GSCOM Confidential (C) 2013

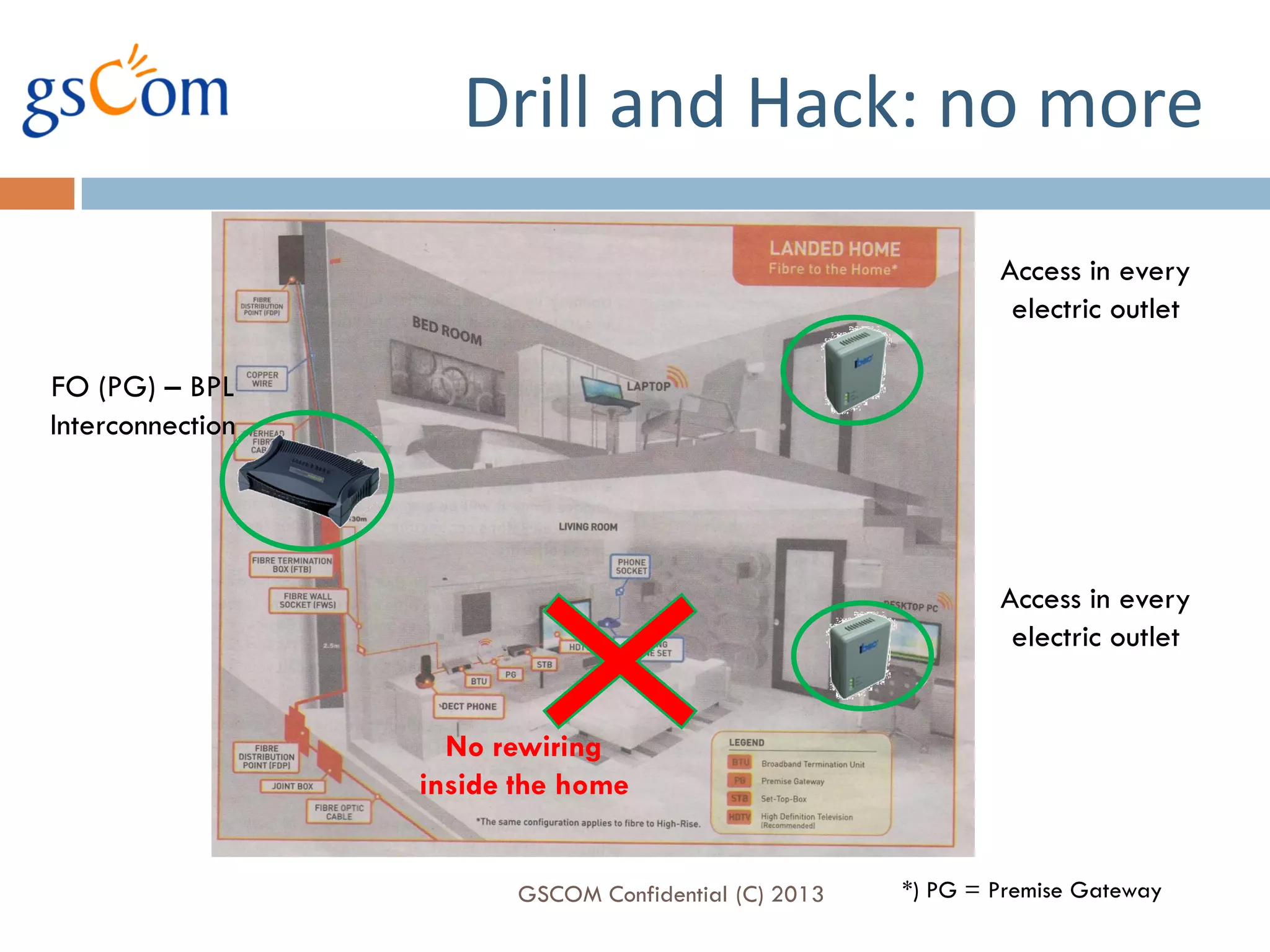

10. Drill and Hack: no more
Access in every
electric outlet
FO (PG) – BPL
Interconnection
Access in every
electric outlet
No rewiring
inside the home
GSCOM Confidential (C) 2013 *) PG = Premise Gateway

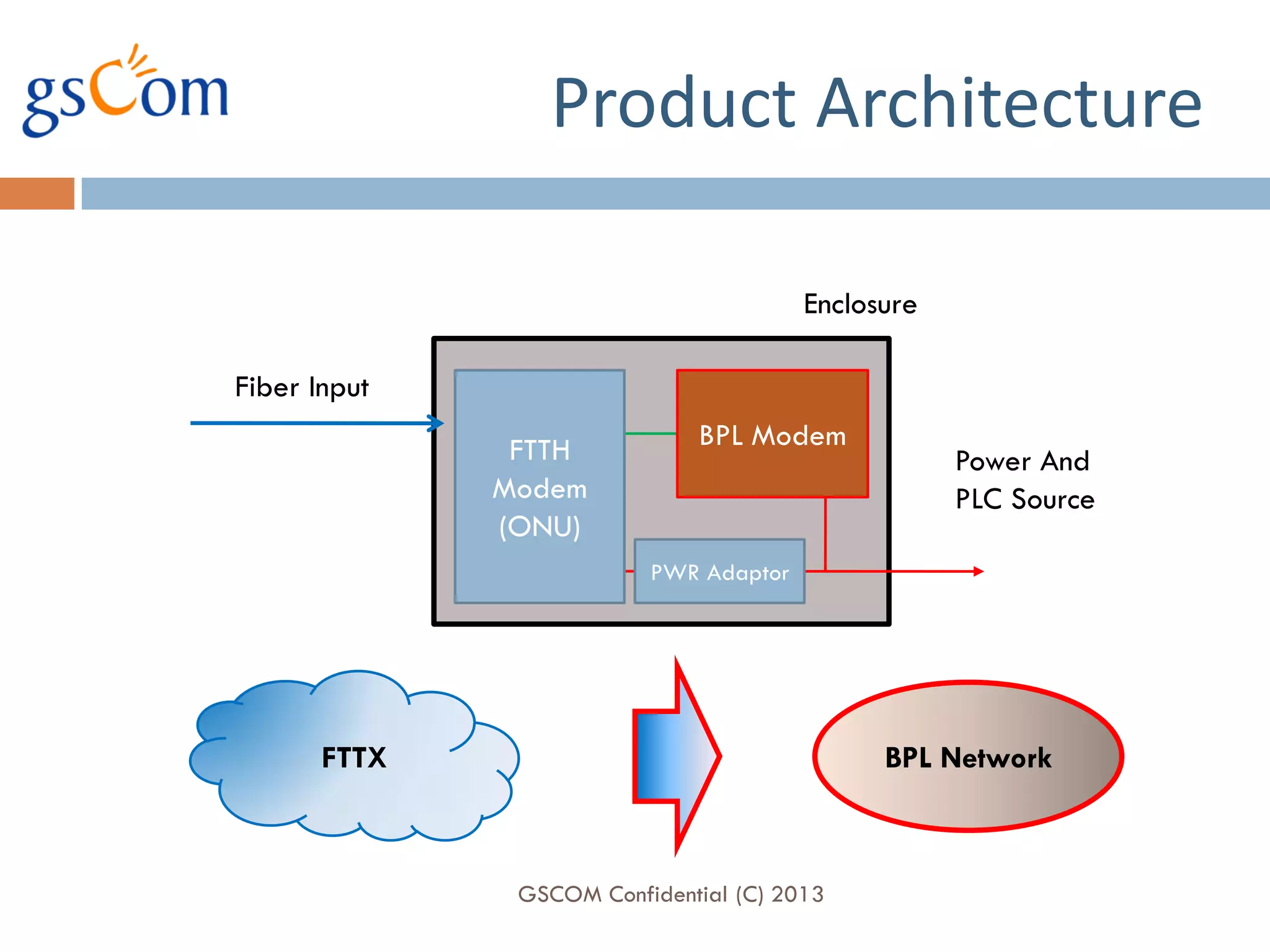

11. Product Architecture
Enclosure
Fiber Input
FTTH BPL Modem
Power And
Modem PLC Source
(ONU)
PWR Adaptor
FTTX BPL Network
GSCOM Confidential (C) 2013

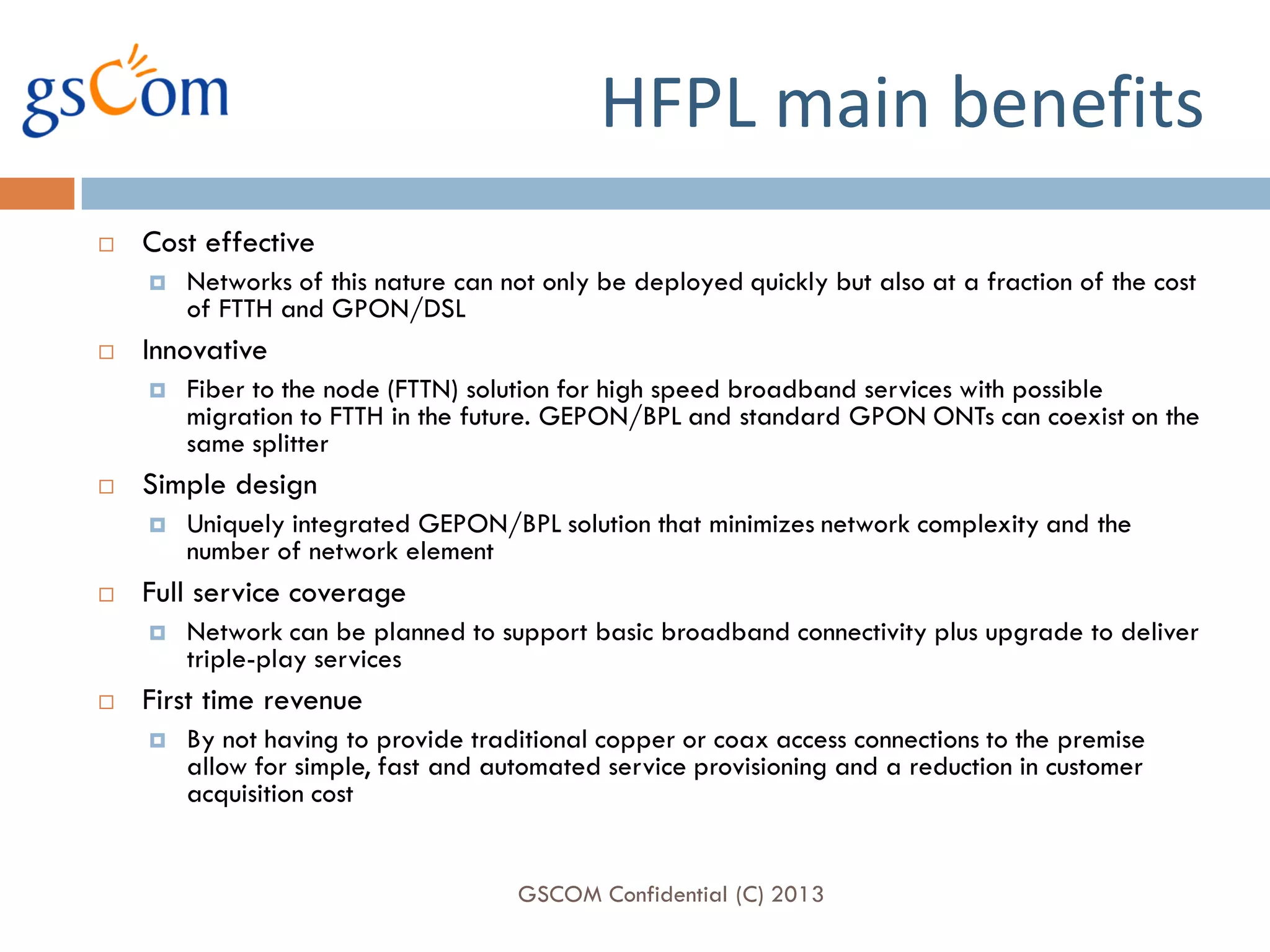

12. HFPL main benefits
 Cost effective
 Networks of this nature can not only be deployed quickly but also at a fraction of the cost
of FTTH and GPON/DSL
 Innovative
 Fiber to the node (FTTN) solution for high speed broadband services with possible
migration to FTTH in the future. GEPON/BPL and standard GPON ONTs can coexist on the
same splitter
 Simple design
 Uniquely integrated GEPON/BPL solution that minimizes network complexity and the
number of network element
 Full service coverage
 Network can be planned to support basic broadband connectivity plus upgrade to deliver
triple-play services
 First time revenue
 By not having to provide traditional copper or coax access connections to the premise
allow for simple, fast and automated service provisioning and a reduction in customer
acquisition cost
GSCOM Confidential (C) 2013
