The Huawei Eudemon all-in-one UTM provides high-performance network security for enterprises. It has leading firewall performance indexes and effectively protects against intrusions, attacks, malware, and DDoS attacks through regularly updated signatures. The Eudemon integrates firewall, routing, UTM, VPN, and wireless functions into one device to provide a comprehensive security solution while reducing costs. It uses a multi-core architecture to ensure high-speed processing of security services and smooth UTM performance.

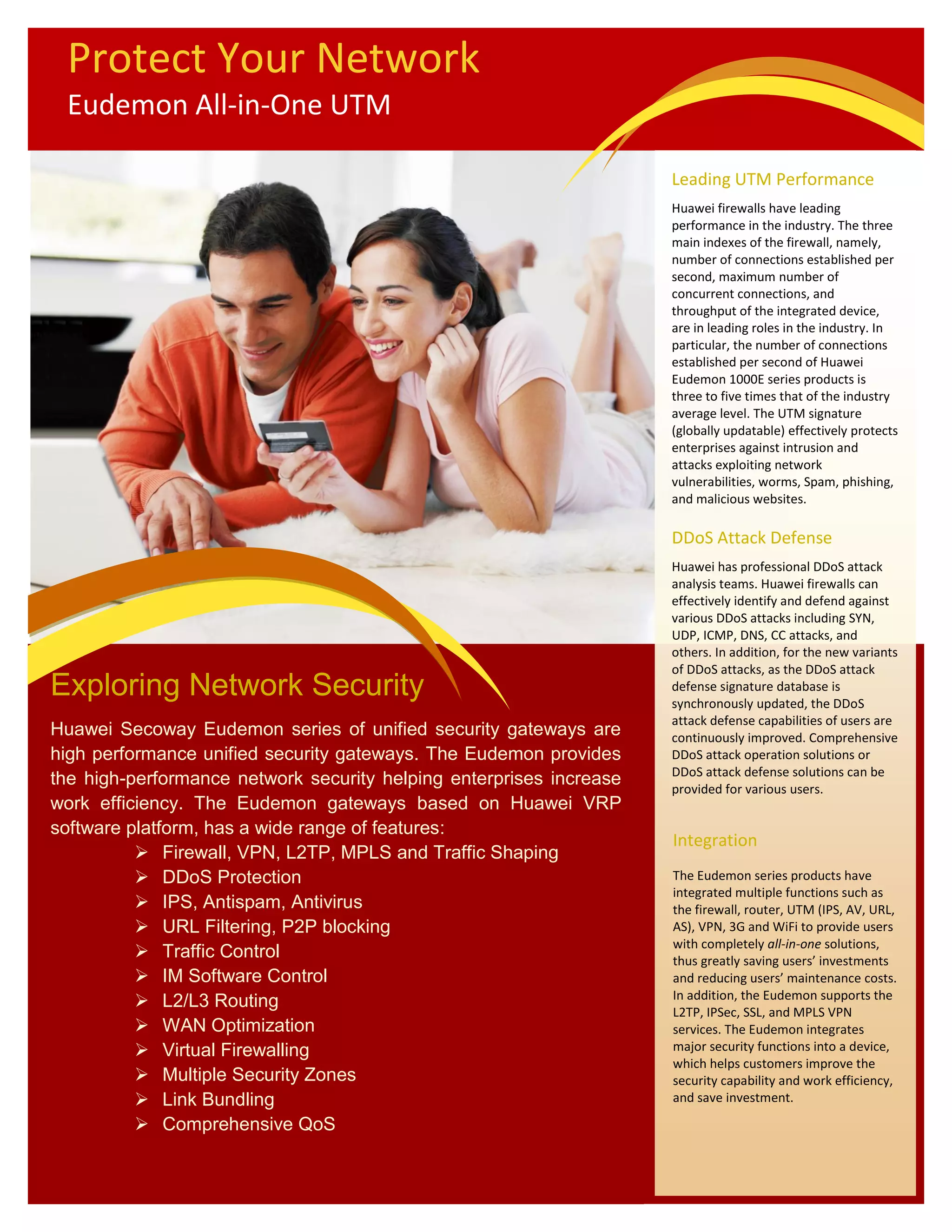

1. Protect Your Network
Eudemon All-in-One UTM
Leading UTM Performance
Huawei firewalls have leading
performance in the industry. The three
main indexes of the firewall, namely,
number of connections established per
second, maximum number of
concurrent connections, and
throughput of the integrated device,
are in leading roles in the industry. In
particular, the number of connections
established per second of Huawei
Eudemon 1000E series products is
three to five times that of the industry
average level. The UTM signature
(globally updatable) effectively protects
enterprises against intrusion and
attacks exploiting network
vulnerabilities, worms, Spam, phishing,
and malicious websites.
DDoS Attack Defense
Huawei has professional DDoS attack
analysis teams. Huawei firewalls can
effectively identify and defend against
various DDoS attacks including SYN,
UDP, ICMP, DNS, CC attacks, and
others. In addition, for the new variants
of DDoS attacks, as the DDoS attack
Exploring Network Security defense signature database is
synchronously updated, the DDoS
attack defense capabilities of users are
Huawei Secoway Eudemon series of unified security gateways are continuously improved. Comprehensive
high performance unified security gateways. The Eudemon provides DDoS attack operation solutions or
DDoS attack defense solutions can be
the high-performance network security helping enterprises increase provided for various users.
work efficiency. The Eudemon gateways based on Huawei VRP
software platform, has a wide range of features:
Integration
 Firewall, VPN, L2TP, MPLS and Traffic Shaping
 DDoS Protection The Eudemon series products have
integrated multiple functions such as
 IPS, Antispam, Antivirus the firewall, router, UTM (IPS, AV, URL,
 URL Filtering, P2P blocking AS), VPN, 3G and WiFi to provide users
with completely all-in-one solutions,
 Traffic Control thus greatly saving users’ investments
 IM Software Control and reducing users’ maintenance costs.
In addition, the Eudemon supports the
 L2/L3 Routing
L2TP, IPSec, SSL, and MPLS VPN
 WAN Optimization services. The Eudemon integrates
 Virtual Firewalling major security functions into a device,
which helps customers improve the
 Multiple Security Zones security capability and work efficiency,
 Link Bundling and save investment.
 Comprehensive QoS

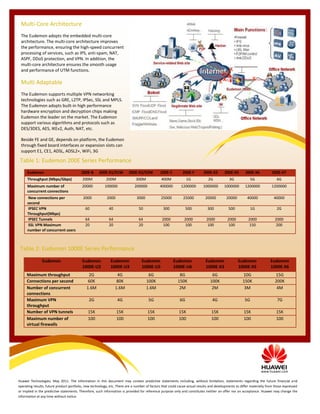

2. Multi-Core Architecture
The Eudemon adopts the embedded multi-core
architecture. The multi-core architecture improves
the performance, ensuring the high-speed concurrent
processing of services, such as IPS, anti-spam, NAT,
ASPF, DDoS protection, and VPN. In addition, the
multi-core architecture ensures the smooth usage
and performance of UTM functions.
Multi Adaptable
The Eudemon supports multiple VPN networking
technologies such as GRE, L2TP, IPSec, SSL and MPLS.
The Eudemon adopts built-in high performance
hardware encryption and decryption chips making
Eudemon the leader on the market. The Eudemon
support various algorithms and protocols such as
DES/3DES, AES, IKEv2, Auth, NAT, etc.
Beside FE and GE, depends on platform, the Eudemon
through fixed board interfaces or expansion slots can
support E1, CE1, ADSL, ADSL2+, WiFi, 3G
Table 1: Eudemon 200E Series Performance
Eudemon 200E-B 200E-X1/X1W 200E-X2/X2W 200E-C 200E-F 200E-X3 200E-X5 200E-X6 200E-X7
Throughput (Mbps/Gbps) 200M 200M 300M 400M 1G 2G 3G 5G 6G
Maximum number of 20000 100000 200000 400000 1200000 1000000 1000000 1200000 1200000
concurrent connections
New connections per 2000 2000 3000 25000 25000 20000 20000 40000 40000
second
IPSEC VPN 60 40 50 300 500 300 500 1G 2G
Throughput(Mbps)
IPSEC Tunnels 64 64 64 2000 2000 2000 2000 2000 2000
SSL VPN Maximum 20 20 20 100 100 100 100 150 200
number of concurrent users
Table 2: Eudemon 1000E Series Performance
Eudemon Eudemon Eudemon Eudemon Eudemon Eudemon Eudemon Eudemon
1000E-U2 1000E-U3 1000E-U5 1000E-U6 1000E-X3 1000E-X5 1000E-X6
Maximum throughput 2G 4G 6G 8G 6G 10G 15G
Connections per second 60K 80K 100K 150K 100K 150K 200K
Number of concurrent 1.6M 1.6M 1.6M 2M 2M 3M 4M
connections
Maximum VPN 2G 4G 5G 6G 4G 5G 7G
throughput
Number of VPN tunnels 15K 15K 15K 15K 15K 15K 15K
Maximum number of 100 100 100 100 100 100 100
virtual firewalls
