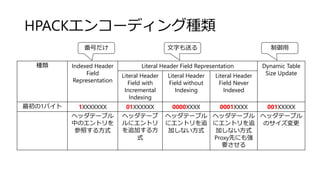

40. HPACKエンコーディング種類
種類 Indexed Header
Field
Representation
Literal Header Field Representation Dynamic Table
Size UpdateLiteral Header
Field with
Incremental
Indexing
Literal Header
Field without
Indexing
Literal Header
Field Never
Indexed
最初の1バイト 1XXXXXXX 01XXXXXX 0000XXXX 0001XXXX 001XXXXX
ヘッダテーブル
中のエントリを
参照する方式
ヘッダテーブ
ルにエントリ
を追加する方
式
ヘッダテーブル
にエントリを追
加しない方式
ヘッダテーブル
にエントリを追
加しない方式
Proxy先にも強
要させる
ヘッダテーブル
のサイズ変更
番号だけ 文字も送る 制御用

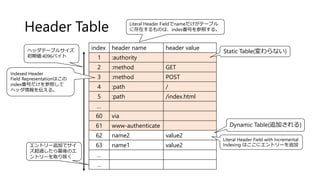

41. Header Table
index header name header value
1 :authority
2 :method GET
3 :method POST
4 :path /
5 :path /index.html
…
60 via
61 www-authenticate
62 name2 value2
63 name1 value2
…
…
Static Table(変わらない)
Literal Header Field with Incremental
Indexing はここにエントリーを追加
Dynamic Table(追加される)
ヘッダテーブルサイズ
初期値:4096バイト
エントリー追加でサイ
ズ超過したら最後のエ
ントリーを取り除く
Indexed Header
Field Representationはこの
index番号だけを参照して
ヘッダ情報を伝える。
Literal Header Fieldでnameだけがテーブル
に存在するものは、index番号を参照する。

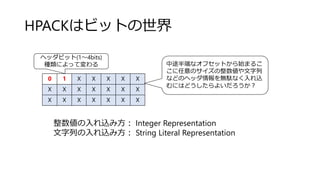

42. HPACKはビットの世界
0 1 X X X X X
X X X X X X X
X X X X X X X
ヘッダビット(1~4bits)
種類によって変わる 中途半端なオフセットから始まるこ
こに任意のサイズの整数値や文字列
などのヘッダ情報を無駄なく入れ込
むにはどうしたらよいだろうか?
整数値の入れ込み方: Integer Representation
文字列の入れ込み方: String Literal Representation

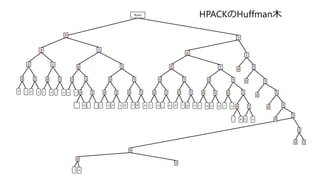

49. Root
0
1
0
0 1
1
0
0
0 1
1
2 a
!
0
s t
0
c e
1
i o
1
1
0
%
1
- .
0
/ 3
1
4 5
0
0
6 7
1
8 9
1
0
0 1
1
0
1
0 1
0
= A
1
_ b
0
0
d f
1
g h
1
0
l m
1
n p
0
0
r u
1
1
0
: B
1
C D
1
1
1
0
0
0
0
0
1
1
10
#
HPACKのHuffman木

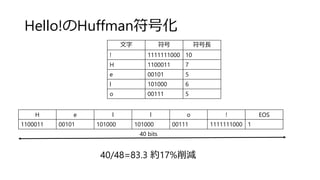

50. Hello!のHuffman符号化
文字 符号 符号長
! 1111111000 10
H 1100011 7
e 00101 5
l 101000 6
o 00111 5
H e l l o ! EOS
1100011 00101 101000 101000 00111 1111111000 1
40 bits
40/48=83.3 約17%削減

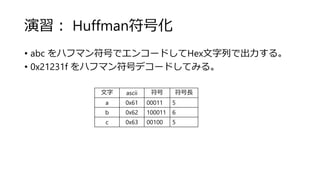

51. 演習: Huffman符号化
• abc をハフマン符号でエンコードしてHex文字列で出力する。
• 0x21231f をハフマン符号デコードしてみる。
文字 ascii 符号 符号長
a 0x61 00011 5
b 0x62 100011 6
c 0x63 00100 5

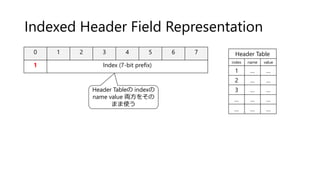

53. Indexed Header Field Representation
0 1 2 3 4 5 6 7
1 Index (7-bit prefix)
Header Table
index name value
1 … …
2 … …
3 … …
… … …
… … …
Header Tableの indexの
name value 両方をその
まま使う

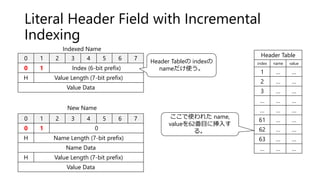

54. Literal Header Field with Incremental
Indexing
0 1 2 3 4 5 6 7
0 1 Index (6-bit prefix)
H Value Length (7-bit prefix)
Value Data
0 1 2 3 4 5 6 7
0 1 0
H Name Length (7-bit prefix)
Name Data
H Value Length (7-bit prefix)
Value Data
Header Table
index name value
1 … …
2 … …
3 … …
… … …
… … …
61 … …
62 … …
63 … …
… … …
Indexed Name
New Name
Header Tableの indexの
nameだけ使う。
ここで使われた name,
valueを62番目に挿入す
る。
55. Literal Header Field without Indexing
0 1 2 3 4 5 6 7
0 0 0 0 Index (4-bit prefix)
H Value Length (7-bit prefix)
Value Data
0 1 2 3 4 5 6 7
0 0 0 0 0
H Name Length (7-bit prefix)
Name Data
H Value Length (7-bit prefix)
Value Data
Header Table
index name value
1 … …
2 … …
3 … …
… … …
… … …
Indexed Name
New Name
Header Tableの indexの
nameだけ使う。
Header Tableの変更はなし

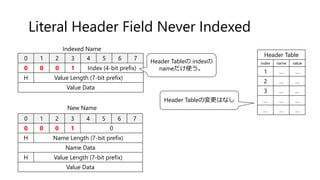

56. Literal Header Field Never Indexed
0 1 2 3 4 5 6 7
0 0 0 1 Index (4-bit prefix)
H Value Length (7-bit prefix)
Value Data
0 1 2 3 4 5 6 7
0 0 0 1 0
H Name Length (7-bit prefix)
Name Data
H Value Length (7-bit prefix)
Value Data
Header Table
index name value
1 … …
2 … …
3 … …
… … …
… … …
Indexed Name
New Name
Header Tableの変更はなし
Header Tableの indexの
nameだけ使う。

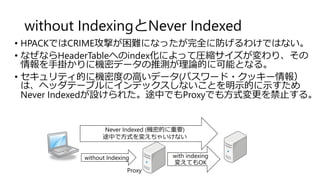

57. without IndexingとNever Indexed
• HPACKではCRIME攻撃が困難になったが完全に防げるわけではない。
• なぜならHeaderTableへのindex化によって圧縮サイズが変わり、その
情報を手掛かりに機密データの推測が理論的に可能となる。
• セキュリティ的に機密度の高いデータ(パスワード・クッキー情報)
は、ヘッダテーブルにインデックスしないことを明示的に示すため
Never Indexedが設けられた。途中でもProxyでも方式変更を禁止する。
Proxy
Never Indexed (機密的に重要)
途中で方式を変えちゃいけない
without Indexing with indexing
変えてもOK

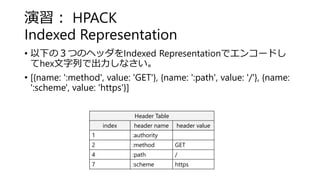

59. 演習: HPACK
Indexed Representation
Header Table
index header name header value
1 :authority
2 :method GET
4 :path /
7 :scheme https
• 以下の3つのヘッダをIndexed Representationでエンコードし
てhex文字列で出力しなさい。
• [{name: ':method', value: 'GET'}, {name: ':path', value: '/'}, {name:
':scheme', value: 'https'}]

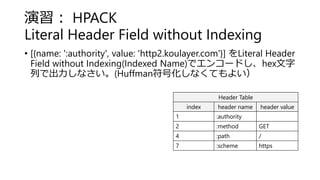

60. 演習: HPACK
Literal Header Field without Indexing
• [{name: ':authority', value: 'http2.koulayer.com'}] をLiteral Header
Field without Indexing(Indexed Name)でエンコードし、hex文字
列で出力しなさい。(Huffman符号化しなくてもよい)
Header Table
index header name header value
1 :authority
2 :method GET
4 :path /
7 :scheme https

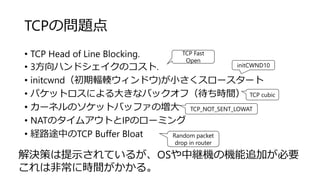

65. TCPの問題点
• TCP Head of Line Blocking.
• 3方向ハンドシェイクのコスト.
• initcwnd(初期輻輳ウィンドウ)が小さくスロースタート
• パケットロスによる大きなバックオフ(待ち時間)
• カーネルのソケットバッファの増大
• NATのタイムアウトとIPのローミング
• 経路途中のTCP Buffer Bloat
TCP Fast
Open
initCWND10
TCP cubic
Random packet
drop in router
TCP_NOT_SENT_LOWAT
解決策は提示されているが、OSや中継機の機能追加が必要
これは非常に時間がかかる。
