1. WELCOME
TO MY PRESENTATION
ON
TRIPLE SUPER PHOSPHATE

2. ABOUT MYSELF
I am Proshanta Roy. I have come from Nilphamari. I
passed SSC from Sonaher BL High School and HSC from
Debigonj Govt. college. Now I am studeying at Hajee
Mohammad Danesh Science & Technology University
under the faculty of Science, Department of Chemistry .

3. CONTENTS
Introduction
Raw materials
Manufacturing step
Advantages
Disadvantages
Future of TSP
Summarizing

4. INTRODUCTION
Name : TSP Complex Ltd.
Location : North Patenga,
Chattogram
Established : 1974
Process : Den process
Controlled by: BCIC

5. WHAT IS TSP FERTILIZER ?
 Chemical molecular formula is Ca(H2PO4)2.
 Superphosphate containing 44 to 51% of
available P2O5
It is more water soluble phosphate fertilizer.

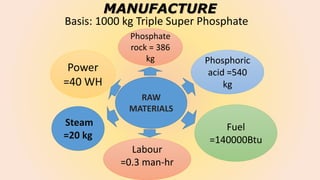

6. MANUFACTURE
Basis: 1000 kg Triple Super Phosphate
RAW
MATERIALS
Phosphate
rock = 386
kg Phosphoric
acid =540
kg
Power
=40 WH
Steam
=20 kg
Labour
=0.3 man-hr
Fuel
=140000Btu

7. MANUFACTURING STEP
REACTION
DENNING OR DEN PROCESS
STORAGE AND CURING
GRANULATION

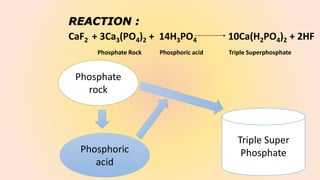

8. REACTION :
CaF2 + 3Ca3(PO4)2 + 14H3PO4 10Ca(H2PO4)2 + 2HF
Phosphate Rock Phosphoric acid Triple Superphosphate
Phosphate
rock
Phosphoric
acid
Triple Super
Phosphate

9. FLOW DIAGRAM FOR TSP
MANUFACTURING

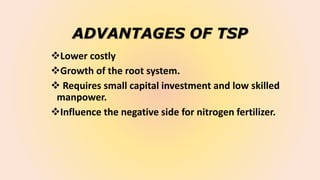

10. ADVANTAGES OF TSP
Lower costly
Growth of the root system.
 Requires small capital investment and low skilled
manpower.
Influence the negative side for nitrogen fertilizer.

11. DISADVANTAGES OF TSP
Short reaction time.
Deteriorates storage bags.
It is not suitable for blending with urea.

12. FUTURE OF TSP
To make high analysis TSP fertilizers for hundred years –
on world wide basis
 TSP fertilizers cost increase
High cost high analysis to promote developing countries
from lower grade TSP

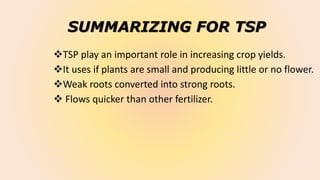

13. SUMMARIZING FOR TSP
TSP play an important role in increasing crop yields.
It uses if plants are small and producing little or no flower.
Weak roots converted into strong roots.
 Flows quicker than other fertilizer.

14. THANK YOU
Have any question?
