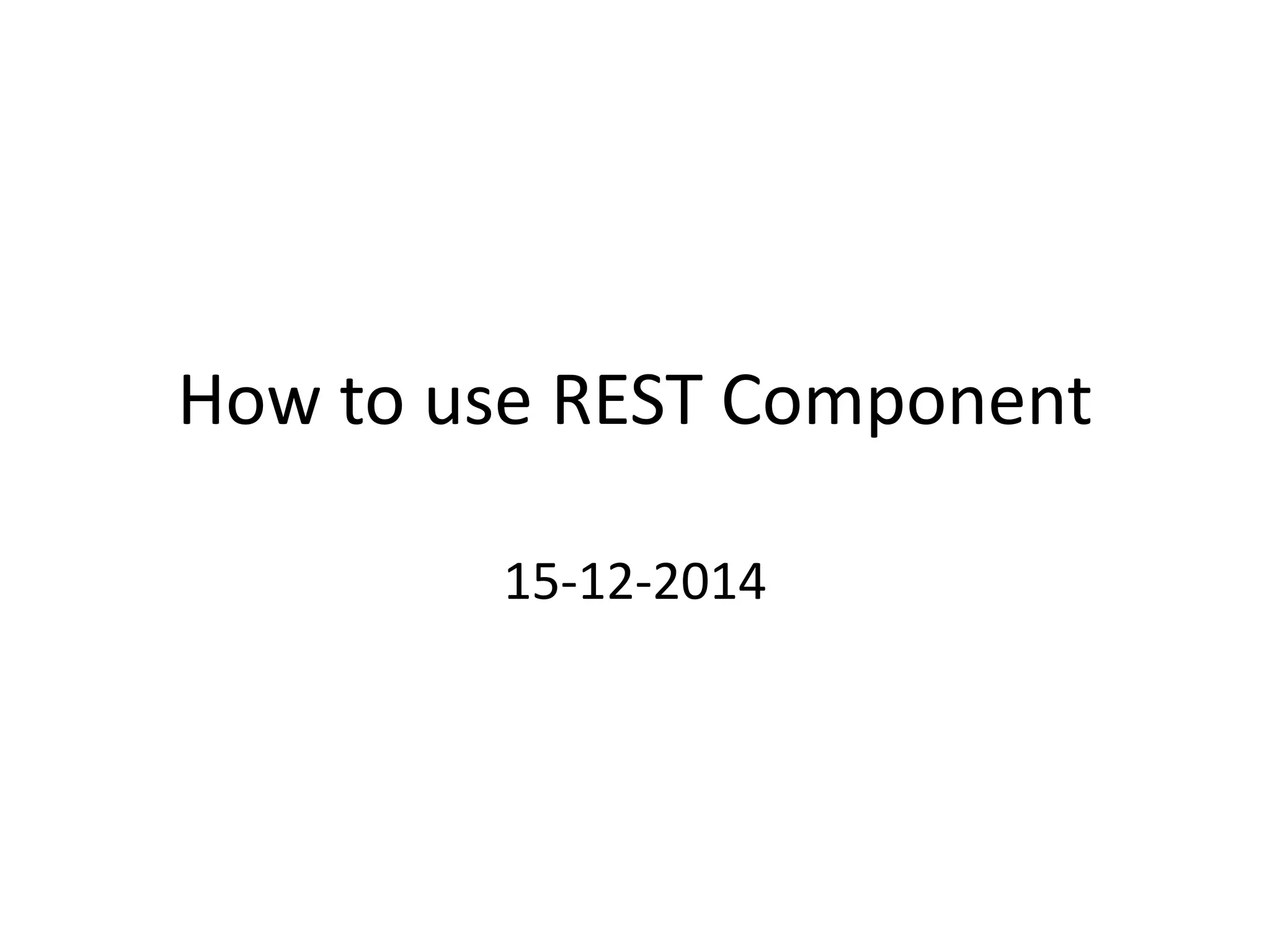

1. How to use REST Component
15-12-2014

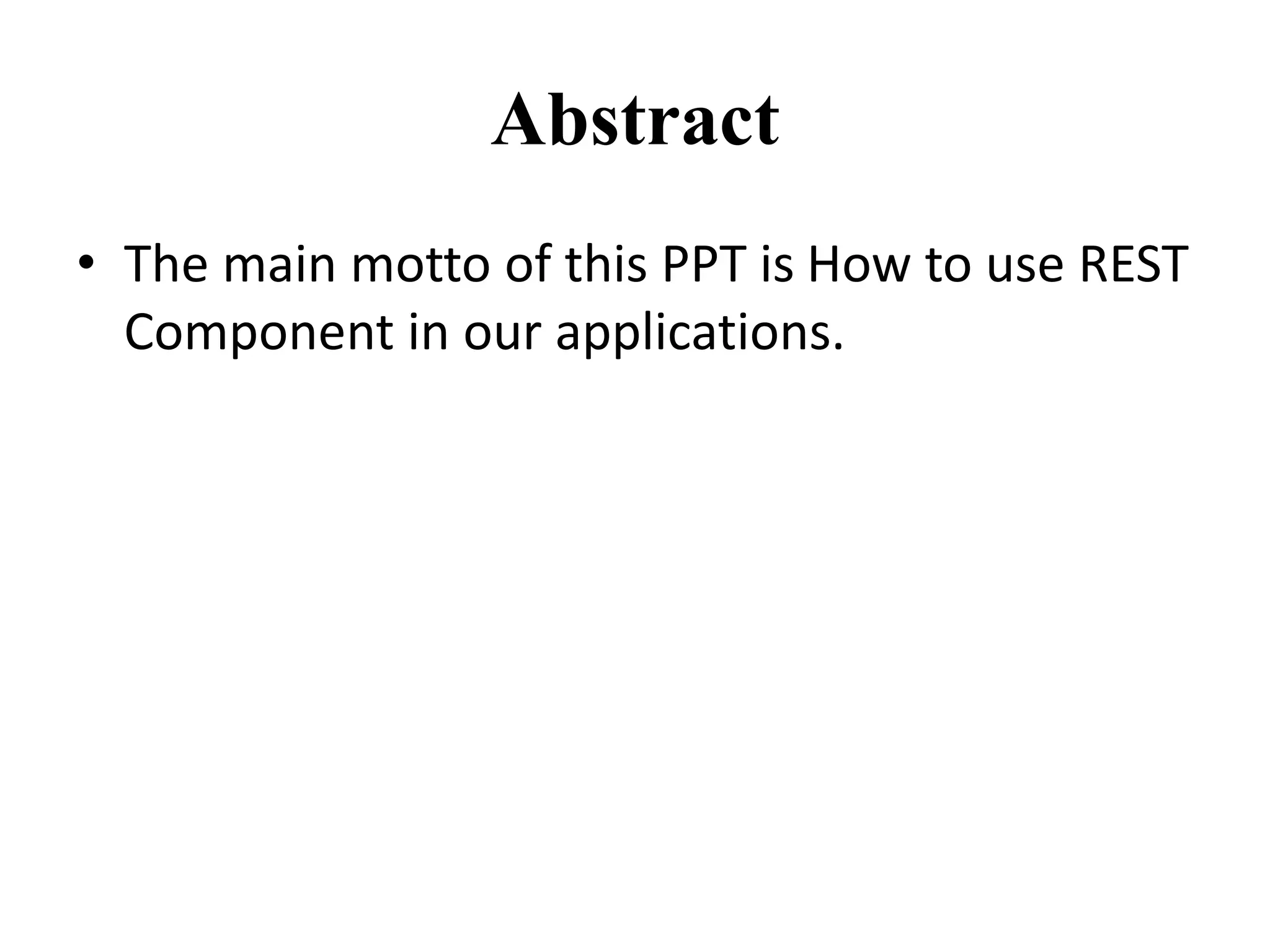

2. Abstract
• The main motto of this PPT is How to use REST
Component in our applications.

3. Introduction
• REST stands for Representational State
Transfer. REST exposes a much simpler
interface than SOAP. REST components are
bound with HTTP. So, if you are designing
an application to be used exclusively on the
Web, REST is a very good option. RESTful
applications simply rely on the built-in HTTP
security. A REST design is good for database-
driven applications and also when a client
wants quick integration.

4. SOAP Component POC:
Link: https://youtu.be/h-aJIjt9TcQ
How to do above POC using REST component?

5. Example
ArthematicOperations
a. Addition
b. Subtraction
c. Multiplication

7. .mflow
<?xml version="1.0" encoding="UTF-8"?>
<mule xmlns:jersey="http://www.mulesoft.org/schema/mule/jersey"
xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns="http://www.mulesoft.org/schema/mule/core"
xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
xmlns:spring="http://www.springframework.org/schema/beans" version="EE-3.4.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-current.xsd
http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
http://www.mulesoft.org/schema/mule/jersey http://www.mulesoft.org/schema/mule/jersey/current/mule-jersey.xsd">
<flow name="RestComponentFlow1" doc:name="RestComponentFlow1">
<http:inbound-endpoint exchange-pattern="request-response" host="localhost" port="8098" doc:name="HTTP"/>
<logger message="---Entered into the flow" level="INFO" doc:name="Logger"/>
<jersey:resources doc:name="REST">
<component class="com.ArthematicOperations"/>
</jersey:resources>
</flow>
</mule>

8. com.ArthematicOperations:
• package com;
• import javax.ws.rs.Consumes;
• import javax.ws.rs.POST;
• import javax.ws.rs.Path;
• import javax.ws.rs.Produces;
• import javax.ws.rs.core.MediaType;
• import org.codehaus.jackson.JsonNode;
• import org.codehaus.jettison.json.JSONObject;
• @Path("/")
• public class ArthematicOperations {
• @POST
• @Produces(MediaType.APPLICATION_JSON)
• @Consumes(MediaType.APPLICATION_JSON)
• @Path("Addition")
• public Object addition(JsonNode inputJSON) throws Exception {
• JSONObject jsonStatus = new JSONObject();
• jsonStatus.put("Result",(Integer.parseInt(inputJSON.get("Num1").getTextValue())+Integer.parseInt(inputJSON.get("Num2").getTextValue())));
• return jsonStatus.toString();
• }
• @POST
• @Consumes(MediaType.APPLICATION_JSON)
• @Produces(MediaType.APPLICATION_JSON)
• @Path("Subtraction")
• public Object subtraction(JsonNode inputJSON) throws Exception {JSONObject jsonStatus = new JSONObject();
• jsonStatus.put("Result",(Integer.parseInt(inputJSON.get("Num1").getTextValue())-Integer.parseInt(inputJSON.get("Num2").getTextValue())));
• return jsonStatus.toString();
• }
• @POST
• @Consumes(MediaType.APPLICATION_JSON)
• @Produces(MediaType.APPLICATION_JSON)
• @Path("Multiplication")
• public Object multiplication(JsonNode inputJSON) throws Exception {JSONObject jsonStatus = new JSONObject();
• jsonStatus.put("Result",(Integer.parseInt(inputJSON.get("Num1").getTextValue())*Integer.parseInt(inputJSON.get("Num2").getTextValue())));
• return jsonStatus.toString();
• }
• }

9. How to test this?
URLs
Addition: http://localhost:8098/Addition
Subtraction: http://localhost:8098/Subtraction
Multiplication:
http://localhost:8098/Multiplication

10. Trigger the methods:
1. Addition:

11. • Console:
INFO 2015-12-15 18:09:29,554 [main] org.mule.DefaultMuleContext:
**********************************************************************
* Application: RestComponent *
* OS encoding: Cp1252, Mule encoding: UTF-8 *
* *
* Agents Running: *
* Clustering Agent *
* JMX Agent *
**********************************************************************
INFO 2015-12-15 18:09:29,556 [main]
org.mule.module.launcher.MuleDeploymentService:
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
+ Started app 'RestComponent' +
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
INFO 2015-12-15 18:10:28,825
[[RestComponent].connector.http.mule.default.receiver.02]
org.mule.api.processor.LoggerMessageProcessor: ---Entered into the flow

12. References
• https://docs.mulesoft.com/mule-user-
guide/v/3.7/rest-component-reference
