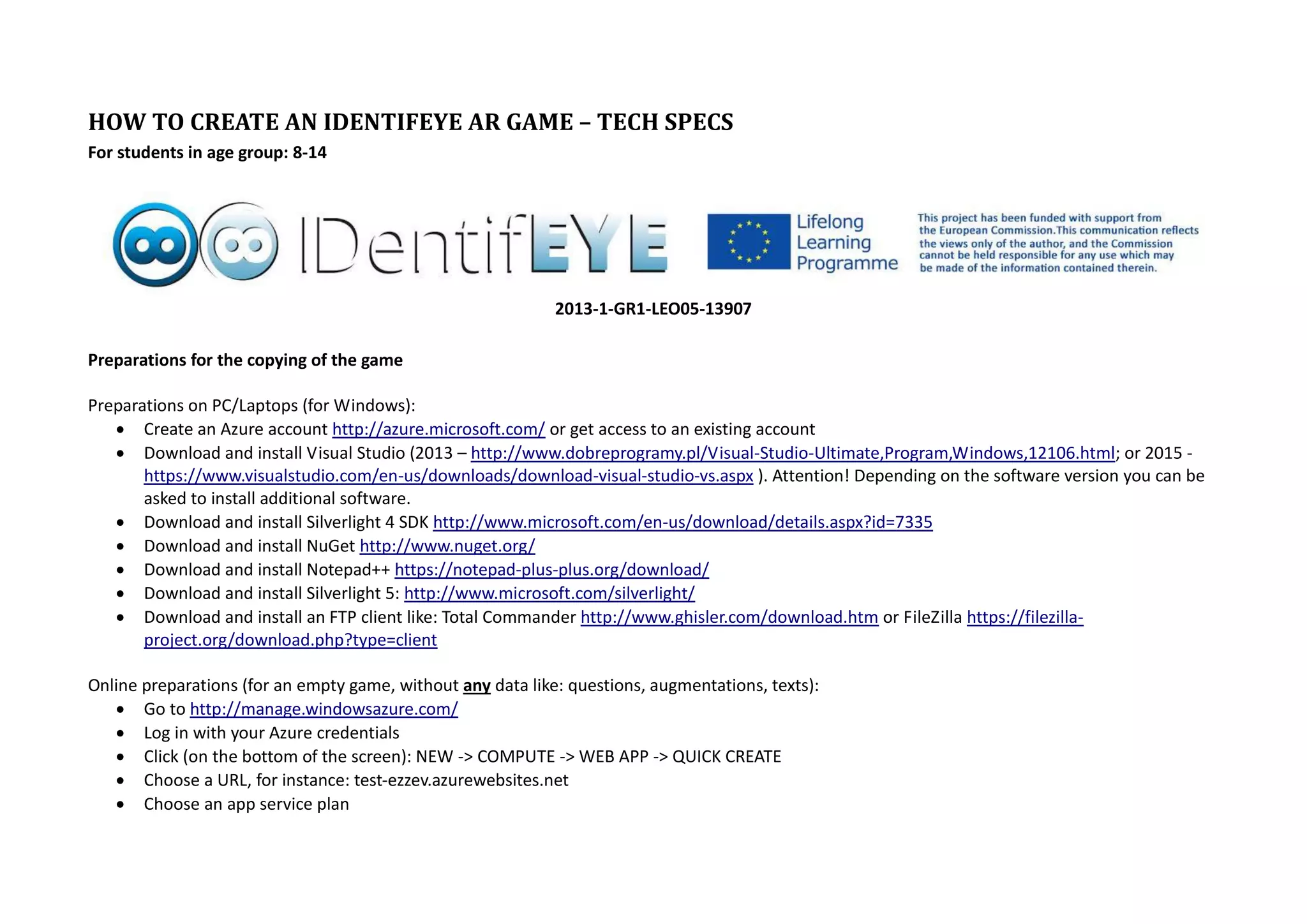

1. HOW TO CREATE AN IDENTIFEYE AR GAME – TECH SPECS
For students in age group: 8-14
2013-1-GR1-LEO05-13907
Preparations for the copying of the game
Preparations on PC/Laptops (for Windows):
 Create an Azure account http://azure.microsoft.com/ or get access to an existing account
 Download and install Visual Studio (2013 – http://www.dobreprogramy.pl/Visual-Studio-Ultimate,Program,Windows,12106.html; or 2015 -
https://www.visualstudio.com/en-us/downloads/download-visual-studio-vs.aspx ). Attention! Depending on the software version you can be
asked to install additional software.
 Download and install Silverlight 4 SDK http://www.microsoft.com/en-us/download/details.aspx?id=7335
 Download and install NuGet http://www.nuget.org/
 Download and install Notepad++ https://notepad-plus-plus.org/download/
 Download and install Silverlight 5: http://www.microsoft.com/silverlight/
 Download and install an FTP client like: Total Commander http://www.ghisler.com/download.htm or FileZilla https://filezilla-
project.org/download.php?type=client
Online preparations (for an empty game, without any data like: questions, augmentations, texts):
 Go to http://manage.windowsazure.com/
 Log in with your Azure credentials
 Click (on the bottom of the screen): NEW -> COMPUTE -> WEB APP -> QUICK CREATE
 Choose a URL, for instance: test-ezzev.azurewebsites.net
 Choose an app service plan

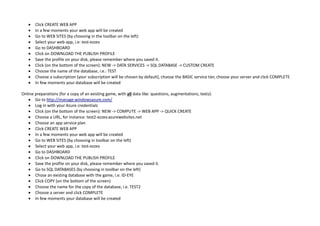

2.  Click CREATE WEB APP
 In a few moments your web app will be created
 Go to WEB SITES (by choosing in the toolbar on the left)
 Select your web app, i.e: test-ezzev
 Go to DASHBOARD
 Click on DOWNLOAD THE PUBLISH PROFILE
 Save the profile on your disk, please remember where you saved it.
 Click (on the bottom of the screen): NEW -> DATA SERVICES -> SQL DATABASE -> CUSTOM CREATE
 Choose the name of the database, i.e.: TEST
 Choose a subscription (your subscription will be chosen by default), choose the BASIC service tier, choose your server and click COMPLETE
 In few moments your database will be created
Online preparations (for a copy of an existing game, with all data like: questions, augmentations, texts):
 Go to http://manage.windowsazure.com/
 Log in with your Azure credentials
 Click (on the bottom of the screen): NEW -> COMPUTE -> WEB APP -> QUICK CREATE
 Choose a URL, for instance: test2-ezzev.azurewebsites.net
 Choose an app service plan
 Click CREATE WEB APP
 In a few moments your web app will be created
 Go to WEB SITES (by choosing in toolbar on the left)
 Select your web app, i.e: test-ezzev
 Go to DASHBOARD
 Click on DOWNLOAD THE PUBLISH PROFILE
 Save the profile on your disk, please remember where you saved it.
 Go to SQL DATABASES (by choosing in toolbar on the left)
 Chose an existing database with the game, i.e. ID-EYE
 Click COPY (on the bottom of the screen)
 Choose the name for the copy of the database, i.e. TEST2
 Choose a server and click COMPLETE
 In few moments your database will be created

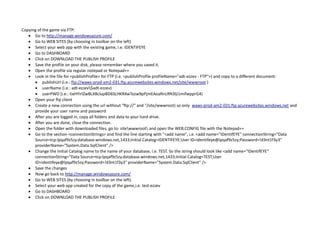

3. Copying of the game via FTP:
 Go to http://manage.windowsazure.com/
 Go to WEB SITES (by choosing in toolbar on the left)
 Select your web app with the existing game, i.e. IDENTIFEYE
 Go to DASHBOARD
 Click on DOWNLOAD THE PUBLISH PROFILE
 Save the profile on your disk, please remember where you saved it.
 Open the profile via regular notepad or Notepad++
 Look in the file for <publishProfile> for FTP (i.e. <publishProfile profileName="adt-ezzev - FTP">) and copy to a different document:
 publishUrl (i.e.: ftp://waws-prod-am2-031.ftp.azurewebsites.windows.net/site/wwwroot )
 userName (i.e.: adt-ezzev$adt-ezzev)
 userPWD (i.e.: tixHYirlZwBLXBclupBD6SLHKRXwTozw9pPjmEAoaRnLRN3lji1mifwpprG4)
 Open your ftp client
 Create a new connection using the url without "ftp://" and "/site/wwwroot) so only waws-prod-am2-031.ftp.azurewebsites.windows.net and
provide your user name and password
 After you are logged in, copy all folders and data to your hard drive.
 After you are done, close the connection.
 Open the folder with downloaded files, go to: sitewwwroot and open the WEB.CONFIG file with the Notepad++
 Go to the section <connectionStrings> and find the line starting with "<add name", i.e. <add name="IDentifEYE" connectionString="Data
Source=tcp:lpqaf9z5zy.database.windows.net,1433;Initial Catalog=IDENTIFEYE;User ID=identifeye@lpqaf9z5zy;Password=!d3nt1f3y3"
providerName="System.Data.SqlClient" />
 Change the Initial Catalog name to the name of your database, i.e. TEST. So the string should look like <add name="IDentifEYE"
connectionString="Data Source=tcp:lpqaf9z5zy.database.windows.net,1433;Initial Catalog=TEST;User
ID=identifeye@lpqaf9z5zy;Password=!d3nt1f3y3" providerName="System.Data.SqlClient" />
 Save the changes
 Now go back to http://manage.windowsazure.com/
 Go to WEB SITES (by choosing in toolbar on the left)
 Select your web app created for the copy of the game,i.e. test-ezzev
 Go to DASHBOARD
 Click on DOWNLOAD THE PUBLISH PROFILE

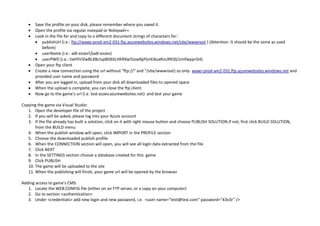

4.  Save the profile on your disk, please remember where you saved it.
 Open the profile via regular notepad or Notepad++
 Look in the file for and copy to a different document strings of characters for:
 publishUrl (i.e.: ftp://waws-prod-am2-031.ftp.azurewebsites.windows.net/site/wwwroot ) (Attention. It should be the same as used
before)
 userName (i.e.: adt-ezzev$adt-ezzev)
 userPWD (i.e.: tixHYirlZwBLXBclupBD6SLHKRXwTozw9pPjmEAoaRnLRN3lji1mifwpprG4)
 Open your ftp client
 Create a new connection using the url without "ftp://" and "/site/wwwroot) so only waws-prod-am2-031.ftp.azurewebsites.windows.net and
provided user name and password
 After you are logged in, upload from your disk all downloaded files to opened space
 When the upload is complete, you can close the ftp client.
 Now go to the game's url (i.e. test-ezzev.azurewebsites.net) and test your game
Copying the game via Visual Studio:
1. Open the developer file of the project
2. If you will be asked, please log into your Azure account
3. If the file already has built a solution, click on it with right mouse button and choose PUBLISH SOLUTION.If not, first click BUILD SOLUTION,
from the BUILD menu
4. When the publish window will open, click IMPORT in the PROFILE section
5. Choose the downloaded publish profile
6. When the CONNECTION section will open, you will see all login data extracted from the file.
7. Click NEXT
8. In the SETTINGS section choose a database created for this game
9. Click PUBLISH
10. The game will be uploaded to the site
11. When the publishing will finish, your game url will be opened by the browser
Adding access to game's CMS:
1. Locate the WEB.CONFIG file (either on an FTP server, or a copy on your computer)
2. Go to section <authentication>
3. Under <credentials> add new login and new password, i.e. <user name="test@test.com" password="43v3r" />

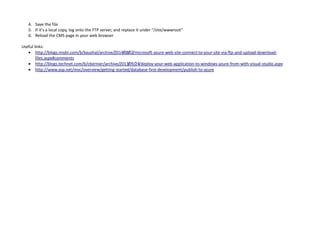

5. 4. Save the file
5. If it's a local copy, log onto the FTP server, and replace it under "/site/wwwroot"
6. Reload the CMS page in your web browser
Useful links:
 http://blogs.msdn.com/b/kaushal/archive/2014/08/02/microsoft-azure-web-site-connect-to-your-site-via-ftp-and-upload-download-
files.aspx#comments
 http://blogs.technet.com/b/cbernier/archive/2013/09/24/deploy-your-web-application-to-windows-azure-from-with-visual-studio.aspx
 http://www.asp.net/mvc/overview/getting-started/database-first-development/publish-to-azure
