Usually malicious domains are targeting end-users. In this article we will look at the pfBlockerNG application for block malicious domains.

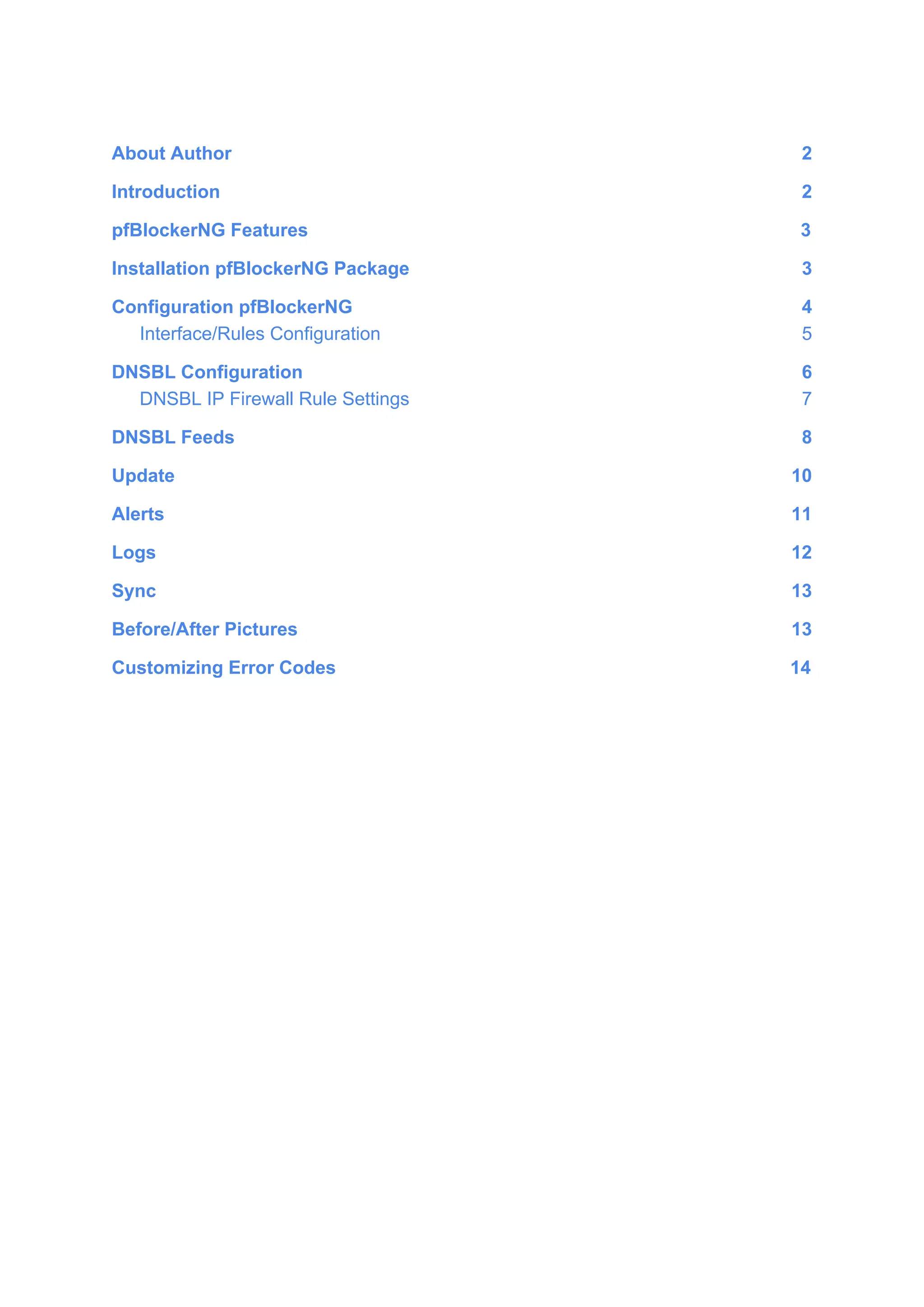

1. About Author 2
Introduction 2
pfBlockerNG Features 3
Installation pfBlockerNG Package 3
Configuration pfBlockerNG 4
Interface/Rules Configuration 5
DNSBL Configuration 6
DNSBL IP Firewall Rule Settings 7
DNSBL Feeds 8
Update 10
Alerts 11
Logs 12
Before/After Pictures 13
Customizing Error Codes 14

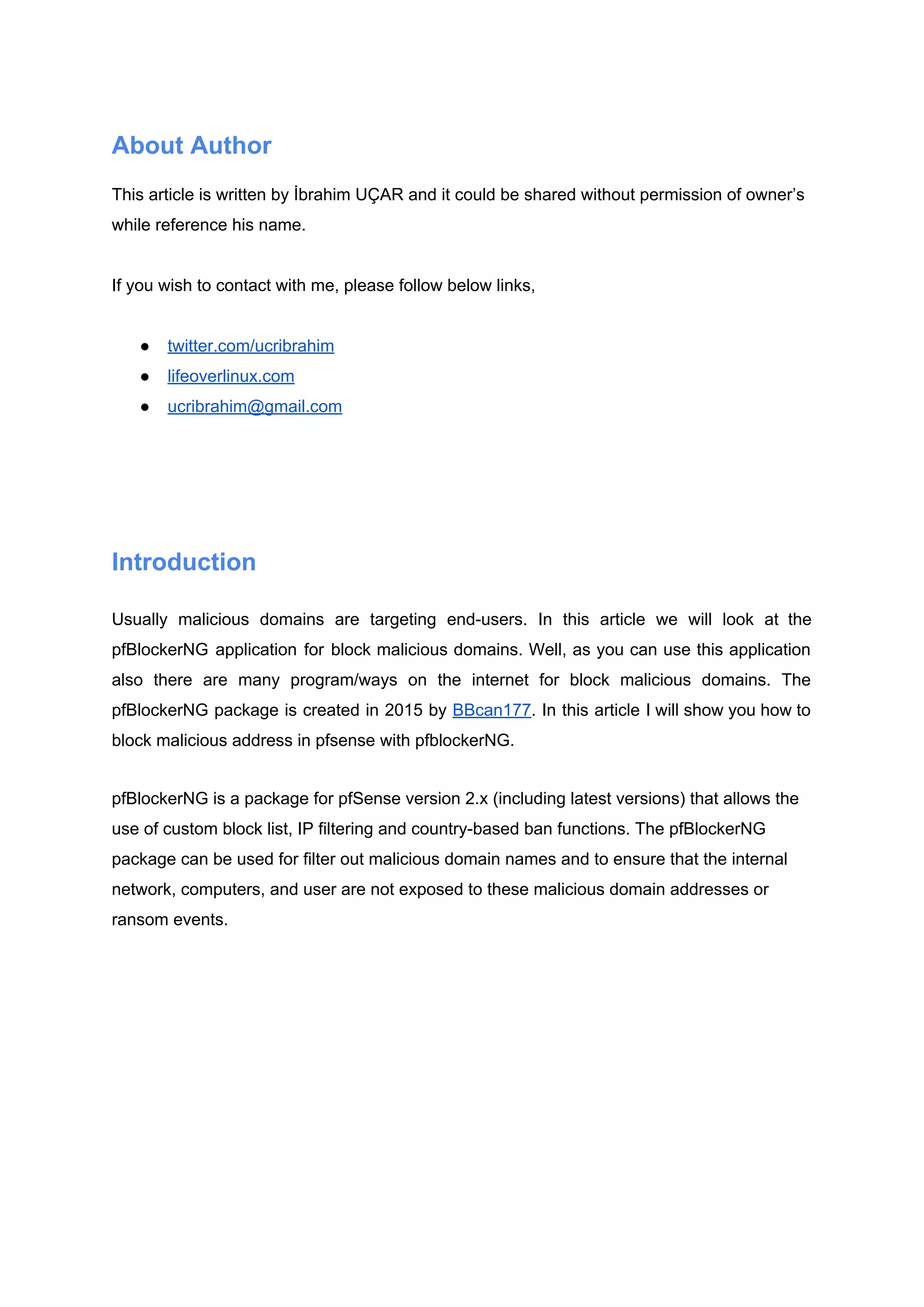

2. About Author
This article is written by İbrahim UÇAR and it could be shared without permission of owner’s
while reference his name.
If you wish to contact with me, please follow below links,
● twitter.com/ucribrahim
● lifeoverlinux.com
● ucribrahim@gmail.com
Introduction
Usually malicious domains are targeting end-users. In this article we will look at the
pfBlockerNG application for block malicious domains. Well, as you can use this application
also there are many program/ways on the internet for block malicious domains. The
pfBlockerNG package is created in 2015 by ​BBcan177​. In this article I will show you how to
block malicious address in pfsense with pfblockerNG.
pfBlockerNG is a package for pfSense version 2.x ​(including latest versions) ​that allows the
use of custom block list, IP filtering and country-based ban functions. The pfBlockerNG
package can be used for filter out malicious domain names and to ensure that the internal
network, computers, and user are not exposed to these malicious domain addresses or
ransom events.

3. pfBlockerNG Features
pfBlockerNG package features are listed below. There are no all features; just important
features are shown up below.
● Can ban the malicious/fake websites as a list.
● Can ban the malicious/bad ip address as a list. IPv4/IPv6
● Can ban the country based.
● Can synchronize with another pfsense which is using pfblockerng.
● And other small but useful features.
Installation pfBlockerNG Package
In the main menu, follow the ​System​ >​ Package Manager​ > ​Available​ ​Packages​ and after
that find the pfBlockerNG package and click the ​+​ button to install the package.

4. Configuration pfBlockerNG
After the package is installed, enter the ​Firewall​ > ​pfBlockerNG​ menu. In the ​“General”
tab, you can manage the pfblockerng features. We enable the features in the picture below.
Settings Name Description
LINK Shortcuts has been added to access (firewall alias, rules, logs)
easily and save time.
Enable pfBlockerNG Enable the pfBlockerNG feature.
CRON Settings Here you can specify the work range of the Cron tool.
Global Logging Firewall Rule logging - Enable Global logging to [ Status:
System Logs: FIREWALL Log ]. This overrides any log settings
in the Continent/IPv4/6 Alias tabs. (​DNSBL not included​)
Logfile Size Select number of Lines to keep in the pfblockerng.log, geoip.log,
extras.log and dnsbl.log files. Default: 20000

5. Interface/Rules Configuration
Before you leave from the “General” tab that we need to look at the under this tab. Under
this tab, the type of network interfaces detection and blocking is should be set. If you many
interfaces you have, you may can select the other interfaces.
Inbound Firewall Rules : ​ Select the Inbound interface(s) you want to apply auto rules to.
From internet traffic to local network.
Outbound Firewall Rules : ​Select the Outbound interface(s) you want to apply auto rules
to. From local clients to internet.
➔ Block : ​It will block the package and will not send any error message to user.
➔ Reject : ​It will block the package and returning ICMP error message to user.

6. DNSBL Configuration
The DNSBL resolver is used as the DNS service. When a DNS request is made for a
domain listed in DNSBL, the request is forwarded to the virtual ip address which is on the
DNSBL.
Please enter the DNSBL tab from the pfBlockerNG menu. In this tab, The settings are saved
by clicking the ​"Save"​ button after making the settings as below.
Info : ​This button gives information the features which are on the tab.

7. DNSBL IP Firewall Rule Settings
In here we need to select action for list. The action to be performed will indicate the lists to
be entered are blocked or not. Do not forget to apply settings.

8. DNSBL Feeds
This feature allows you to deny malicious domains. But at this point, you can’t use a single
domain like ( ​http://www.example.com​ ). This feature gets the domains from the link where
you put all domains inside to ​.txt​ file like this ( ​http://www.example.com/domains.txt​ ).
I will show you how to ban malicious domains using the URL address where malicious/fake
domains are provided by Normshield . Also you can find the other malicious/fake URL1
address from the other websites. But I strongly recommend to use url address is provided by
NormShield because it always up to date!
NormShield has a free service which gives you a URL address include malicious/fake
domains. You just need to register as a company from ​here​, that’s all.
Let’s get it start.
Click the​ +​ button for new rule in DNSBL tab. Do not forget the rules!
1
NormShield provides comprehensive Security-as-a-Service solutions focused on cyber threat
intelligence, vulnerability management and continuous perimeter monitoring.

9. Settings Name Description
DNS Group Name Enter DNS group name. ( example: normshield )
DNSBL It is recommended to make settings as shown below. You can
change some areas to suit you.
Add By clicking on this button you can create more than one link in a
group.
List Action Select Unbound to enable 'Domain Name' blocking for this Alias.
Update Frequency Select how often List files will be downloaded from the URL.

10. Update
Finally, you can update the "Update" tab to download the malicious/fake domain names
provided by NormShield as a group. The output after the update will be similar to the
following output. You can also see the how many url downloaded at the output.
You can also see the activity of the DNSBL groups at the pfSense dashboard.

11. Alerts
You can see the clients which is trying to access denied domains from this section. This tab
also allows you to apply rules for users on the same time.
Icons that can be used and what they doing;
Look up the link address in “Threat Source”
Add to the IP / Domain whitelist list. (DNSBL)
Add to the TLD domain whitelist list. (TLD)
The domain is already in the whitelist list.
The domain is already in the whitelist list. (Custom Whitelist entry prefixed by a “dot”)
Domain is blocked by a whole TLD.

12. Logs
From this tab, you can see the log files of pfblockerng and analyze them easily with gui. You
can access on the pfblockerng’s main tab.
The features:
● You can download the file which is you choosed.
● You can refresh the file which is you choosed.
● You can also find the path of the file on the gui.

13. Before/After Pictures
Two images are shared below before/after pfBlockerNG is installed. When a client/user
entered a banned website, it gives an error code (1x1) by default in the top corner of the
website.
This website is malicious/fake website!
Before:
After:
Note​:​ There is no any options to change blocked page but it’s customizable by editing
configuration file. Find out that on next chapter!

14. Customizing Error Codes
When you enter a banned website, you may want to print an error code or an image you
have created. Basically, You can print the image you want (​https://www.base64-image.de​)
as a error image by compressing it in base64 format then putting the pfblockerng’s
index.php​ file on the appropriate place on pfsense.
Enter the ​/usr/local/www/pfblockerng/www/index.php ​with your favorite editör. Then, as
you can see in the picture below, we need to put “//” front of the line which is start to line like
“echo base64...” for doing comment line. Then, written the base64 code as picture below
when we compress the image from the website. Do not forget the save and exit.
Finally, when a user try to enter a banned site, the user will see the picture that you have
prepared. If you know how to use HTML, you can do it better.
