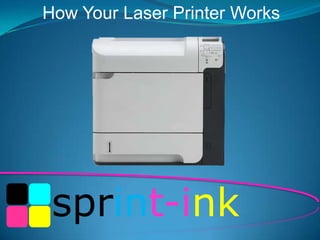

2. How Your Laser Printer Works
sprint-ink

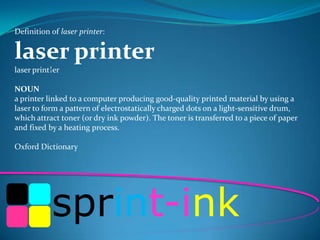

3. Definition of laser printer:
laser printer
laser print¦er
NOUN
a printer linked to a computer producing good-quality printed material by using a
laser to form a pattern of electrostatically charged dots on a light-sensitive drum,
which attract toner (or dry ink powder). The toner is transferred to a piece of paper
and fixed by a heating process.
Oxford Dictionary
sprint-ink

4. 1
1
Your PC ‘talks’ to your
printer through this
Controller translating
printing data through
a Raster Image
Processor (RIP)
converting your
printed work into
millions of little dots.
sprint-ink

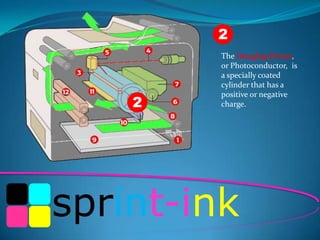

5. 2
2
The Imaging Drum,
or Photoconductor, is
a specially coated
cylinder that has a
positive or negative
charge.
sprint-ink

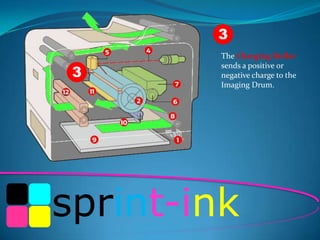

6. 3
3
The Charging Roller
sends a positive or
negative charge to the
Imaging Drum.
sprint-ink

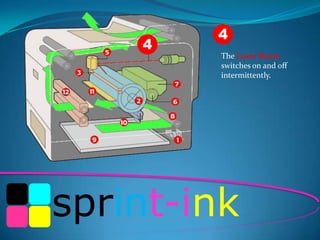

7. 4
4
The Laser Beam
switches on and off
intermittently.
sprint-ink

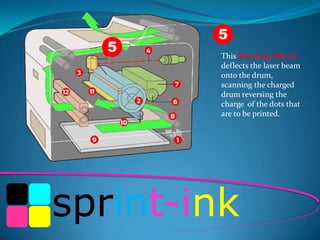

8. 5
5
This Rotating Mirror
deflects the laser beam
onto the drum,
scanning the charged
drum reversing the
charge of the dots that
are to be printed.
sprint-ink

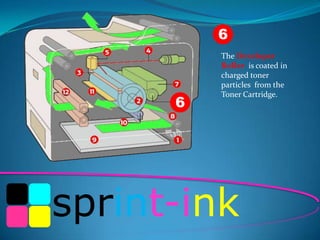

9. 6
6
The Developer
Roller is coated in
charged toner
particles from the
Toner Cartridge.
sprint-ink

10. 7
7
The Toner Hopper ,
part of the Toner
Cartridge, feeds toner
particles onto the
Developer Roller.
sprint-ink

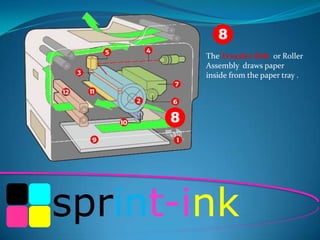

11. 8
The Transfer Belt or Roller
Assembly draws paper
inside from the paper tray .
8
sprint-ink

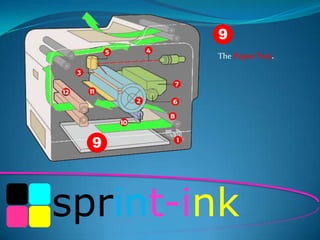

12. 9
The Paper Tray.
9
sprint-ink

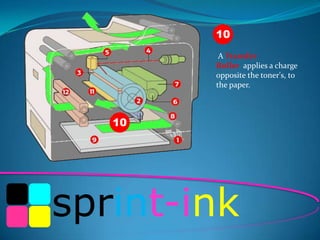

13. 10
A Transfer
Roller applies a charge
opposite the toner's, to
the paper.
10
sprint-ink

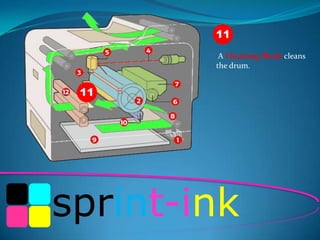

14. 11
A Cleaning Blade cleans
the drum.
11
sprint-ink

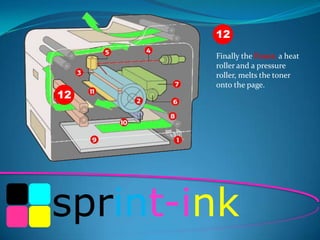

15. 12
12
Finally the Fuser, a heat
roller and a pressure
roller, melts the toner
onto the page.
