1. Just in Time
Thomas Kyte
http://asktom.oracle.com/

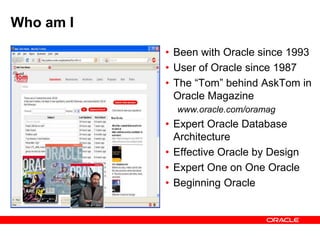

2. Who am I
• Been with Oracle since 1993
• User of Oracle since 1987
• The “Tom” behind AskTom in
Oracle Magazine
www.oracle.com/oramag
• Expert Oracle Database
Architecture
• Effective Oracle by Design
• Expert One on One Oracle
• Beginning Oracle

3. What I learned at
Hotsos 2011

4. What I learned at Hotsos 2011
• What Gary Goodman would
look like with hair.
• That it is really “Millsap
trace” not 10046 trace (and
no, tkprof does not stand
for…)
• Doug Burns programmed
8bit games before giving his
life up to Oracle
• Procrastination can be bad

5. It all started with
Back to the Future!

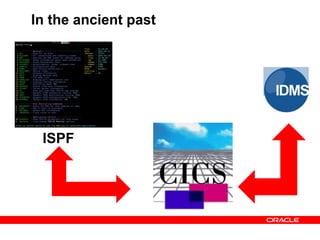

6. In the ancient past
ISPF

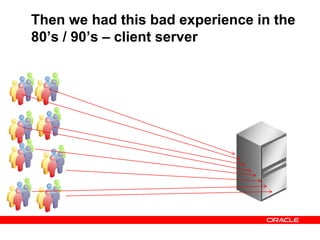

7. Then we had this bad experience in the
80’s / 90’s – client server

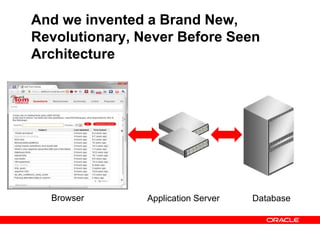

8. And we invented a Brand New,
Revolutionary, Never Before Seen
Architecture
Browser Application Server Database

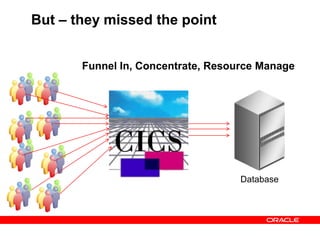

9. But – they missed the point
Database
Funnel In, Concentrate, Resource Manage

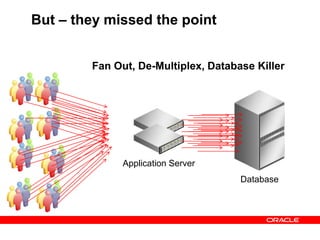

10. But – they missed the point
Database
Application Server
Fan Out, De-Multiplex, Database Killer

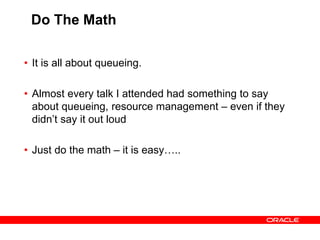

11. Do The Math
• It is all about queueing.
• Almost every talk I attended had something to say
about queueing, resource management – even if they
didn’t say it out loud
• Just do the math – it is easy…..

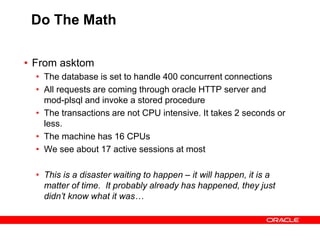

12. Do The Math
• From asktom
• The database is set to handle 400 concurrent connections
• All requests are coming through oracle HTTP server and
mod-plsql and invoke a stored procedure
• The transactions are not CPU intensive. It takes 2 seconds or
less.
• The machine has 16 CPUs
• We see about 17 active sessions at most
• This is a disaster waiting to happen – it will happen, it is a
matter of time. It probably already has happened, they just
didn’t know what it was…

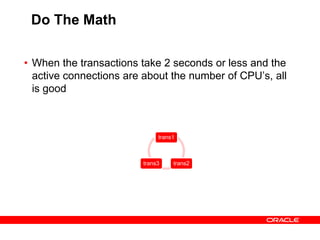

13. Do The Math
trans1
trans2trans3
• When the transactions take 2 seconds or less and the
active connections are about the number of CPU’s, all
is good

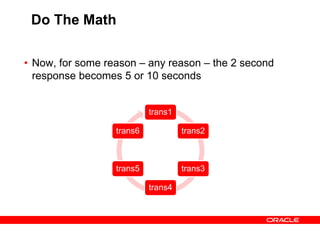

14. Do The Math
trans1
trans2
trans3
trans4
trans5
trans6
• Now, for some reason – any reason – the 2 second
response becomes 5 or 10 seconds

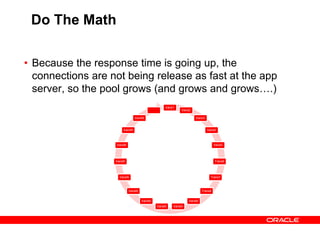

15. Do The Math
trans1
trans2
trans3
trans4
trans5
Trans6
Trans7
Trans8
transN
transNtransN
transN
transN
transN
transN
transN
transN
transN
• Because the response time is going up, the
connections are not being release as fast at the app
server, so the pool grows (and grows and grows….)

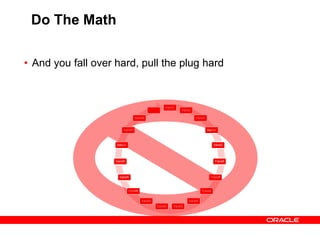

16. Do The Math
trans1
trans2
trans3
trans4
trans5
Trans6
Trans7
Trans8
transN
transNtransN
transN
transN
transN
transN
transN
transN
transN
• And you fall over hard, pull the plug hard

17. You cannot fix a queueing problem by
painting more stripes on the road…

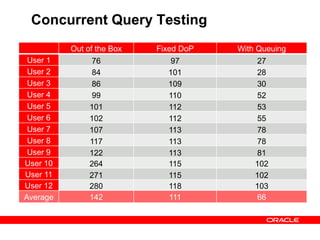

18. Concurrent Query Testing
Out of the Box Fixed DoP With Queuing
User 1 76 97 27
User 2 84 101 28
User 3 86 109 30
User 4 99 110 52
User 5 101 112 53
User 6 102 112 55
User 7 107 113 78
User 8 117 113 78
User 9 122 113 81
User 10 264 115 102
User 11 271 115 102
User 12 280 118 103
Average 142 111 66

19. Do The Math
• Really – just divide and multiply.
• Connection pool max size = N*cpu_count – where N is small
• Connection pool min size = max size
• What are the common reasons for having it set
otherwise…
• And why is that bad…

20. Preciseness

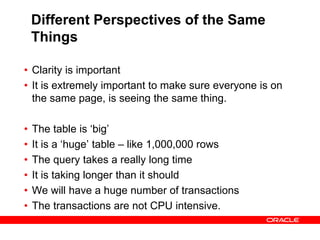

21. Different Perspectives of the Same
Things
• Clarity is important
• It is extremely important to make sure everyone is on
the same page, is seeing the same thing.
• The table is ‘big’
• It is a ‘huge’ table – like 1,000,000 rows
• The query takes a really long time
• It is taking longer than it should
• We will have a huge number of transactions
• The transactions are not CPU intensive.

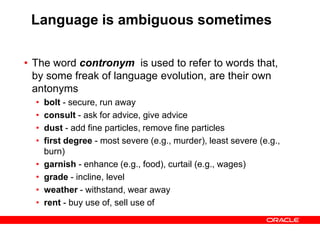

22. Language is ambiguous sometimes
• The word contronym is used to refer to words that,
by some freak of language evolution, are their own
antonyms
• bolt - secure, run away
• consult - ask for advice, give advice
• dust - add fine particles, remove fine particles
• first degree - most severe (e.g., murder), least severe (e.g.,
burn)
• garnish - enhance (e.g., food), curtail (e.g., wages)
• grade - incline, level
• weather - withstand, wear away
• rent - buy use of, sell use of

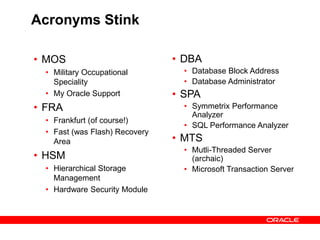

23. Acronyms Stink
• MOS
• Military Occupational
Speciality
• My Oracle Support
• FRA
• Frankfurt (of course!)
• Fast (was Flash) Recovery
Area
• HSM
• Hierarchical Storage
Management
• Hardware Security Module
• DBA
• Database Block Address
• Database Administrator
• SPA
• Symmetrix Performance
Analyzer
• SQL Performance Analyzer
• MTS
• Mutli-Threaded Server
(archaic)
• Microsoft Transaction Server

24. Remember from Monday…
• How often do you hear “Click to Order must be fast”

25. Mastercard Still Rules

27. DBA vs Developer vs DBA

28. To do complex things correctly
• We need these people
• To do things like complex triggers
that might be needed (reference
the other TK  )
• Never say never, never say
always, I always say….

29. Why?
It depends

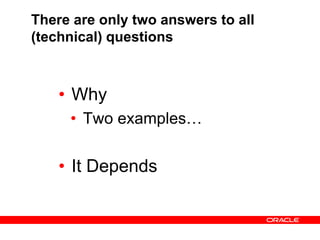

30. There are only two answers to all
(technical) questions
• Why
• Two examples…
• It Depends

31. Simple Things
Count

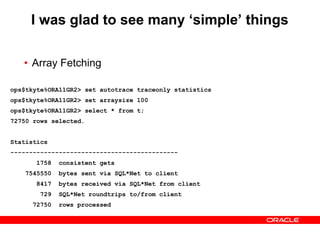

32. I was glad to see many ‘simple’ things
• Array Fetching
ops$tkyte%ORA11GR2> /*
ops$tkyte%ORA11GR2> drop table t;
ops$tkyte%ORA11GR2> create table t as select * from all_objects;
ops$tkyte%ORA11GR2> */
ops$tkyte%ORA11GR2> set autotrace traceonly statistics
ops$tkyte%ORA11GR2> set autotrace traceonly statistics
ops$tkyte%ORA11GR2> set arraysize 15
ops$tkyte%ORA11GR2> select * from t;
72750 rows selected.
Statistics
---------------------------------------------
5837 consistent gets
8081410 bytes sent via SQL*Net to client
53759 bytes received via SQL*Net from client
4851 SQL*Net roundtrips to/from client
72750 rows processed
ops$tkyte%ORA11GR2> set autotrace traceonly statistics
ops$tkyte%ORA11GR2> set arraysize 100
ops$tkyte%ORA11GR2> select * from t;
72750 rows selected.
Statistics
---------------------------------------------
1758 consistent gets
7545550 bytes sent via SQL*Net to client
8417 bytes received via SQL*Net from client
729 SQL*Net roundtrips to/from client
72750 rows processed

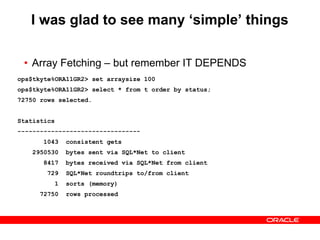

33. I was glad to see many ‘simple’ things
• Array Fetching – but remember IT DEPENDS
ops$tkyte%ORA11GR2> set arraysize 15
ops$tkyte%ORA11GR2> select * from t order by status;
72750 rows selected.
Statistics
---------------------------------
1043 consistent gets
3474024 bytes sent via SQL*Net to client
53759 bytes received via SQL*Net from client
4851 SQL*Net roundtrips to/from client
1 sorts (memory)
72750 rows processed
ops$tkyte%ORA11GR2> set arraysize 100
ops$tkyte%ORA11GR2> select * from t order by status;
72750 rows selected.
Statistics
---------------------------------
1043 consistent gets
2950530 bytes sent via SQL*Net to client
8417 bytes received via SQL*Net from client
729 SQL*Net roundtrips to/from client
1 sorts (memory)
72750 rows processed

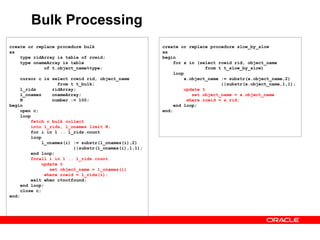

34. Bulk Processing
create or replace procedure bulk
as
type ridArray is table of rowid;
type onameArray is table
of t.object_name%type;
cursor c is select rowid rid, object_name
from t t_bulk;
l_rids ridArray;
l_onames onameArray;
N number := 100;
begin
open c;
loop
fetch c bulk collect
into l_rids, l_onames limit N;
for i in 1 .. l_rids.count
loop
l_onames(i) := substr(l_onames(i),2)
||substr(l_onames(i),1,1);
end loop;
forall i in 1 .. l_rids.count
update t
set object_name = l_onames(i)
where rowid = l_rids(i);
exit when c%notfound;
end loop;
close c;
end;
create or replace procedure slow_by_slow
as
begin
for x in (select rowid rid, object_name
from t t_slow_by_slow)
loop
x.object_name := substr(x.object_name,2)
||substr(x.object_name,1,1);
update t
set object_name = x.object_name
where rowid = x.rid;
end loop;
end;

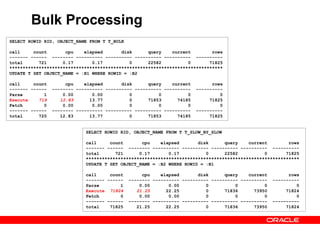

35. Bulk Processing
SELECT ROWID RID, OBJECT_NAME FROM T T_BULK
call count cpu elapsed disk query current rows
------- ------ -------- ---------- ---------- ---------- ---------- ----------
total 721 0.17 0.17 0 22582 0 71825
********************************************************************************
UPDATE T SET OBJECT_NAME = :B1 WHERE ROWID = :B2
call count cpu elapsed disk query current rows
------- ------ -------- ---------- ---------- ---------- ---------- ----------
Parse 1 0.00 0.00 0 0 0 0
Execute 719 12.83 13.77 0 71853 74185 71825
Fetch 0 0.00 0.00 0 0 0 0
------- ------ -------- ---------- ---------- ---------- ---------- ----------
total 720 12.83 13.77 0 71853 74185 71825
SELECT ROWID RID, OBJECT_NAME FROM T T_SLOW_BY_SLOW
call count cpu elapsed disk query current rows
------- ------ -------- ---------- ---------- ---------- ---------- ----------
total 721 0.17 0.17 0 22582 0 71825
********************************************************************************
UPDATE T SET OBJECT_NAME = :B2 WHERE ROWID = :B1
call count cpu elapsed disk query current rows
------- ------ -------- ---------- ---------- ---------- ---------- ----------
Parse 1 0.00 0.00 0 0 0 0
Execute 71824 21.25 22.25 0 71836 73950 71824
Fetch 0 0.00 0.00 0 0 0 0
------- ------ -------- ---------- ---------- ---------- ---------- ----------
total 71825 21.25 22.25 0 71836 73950 71824

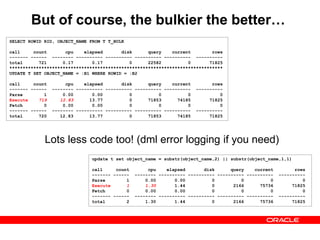

36. But of course, the bulkier the better…
SELECT ROWID RID, OBJECT_NAME FROM T T_BULK
call count cpu elapsed disk query current rows
------- ------ -------- ---------- ---------- ---------- ---------- ----------
total 721 0.17 0.17 0 22582 0 71825
********************************************************************************
UPDATE T SET OBJECT_NAME = :B1 WHERE ROWID = :B2
call count cpu elapsed disk query current rows
------- ------ -------- ---------- ---------- ---------- ---------- ----------
Parse 1 0.00 0.00 0 0 0 0
Execute 719 12.83 13.77 0 71853 74185 71825
Fetch 0 0.00 0.00 0 0 0 0
------- ------ -------- ---------- ---------- ---------- ---------- ----------
total 720 12.83 13.77 0 71853 74185 71825
update t set object_name = substr(object_name,2) || substr(object_name,1,1)
call count cpu elapsed disk query current rows
------- ------ -------- ---------- ---------- ---------- ---------- ----------
Parse 1 0.00 0.00 0 0 0 0
Execute 1 1.30 1.44 0 2166 75736 71825
Fetch 0 0.00 0.00 0 0 0 0
------- ------ -------- ---------- ---------- ---------- ---------- ----------
total 2 1.30 1.44 0 2166 75736 71825
Lots less code too! (dml error logging if you need)

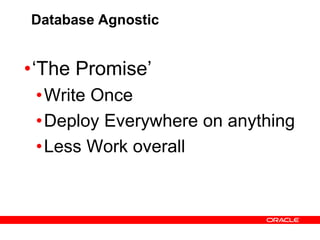

37. Database Agnostic
•‘The Promise’
•Write Once
•Deploy Everywhere on anything
•Less Work overall

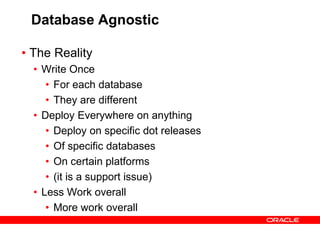

38. Database Agnostic
• The Reality
• Write Once
• For each database
• They are different
• Deploy Everywhere on anything
• Deploy on specific dot releases
• Of specific databases
• On certain platforms
• (it is a support issue)
• Less Work overall
• More work overall

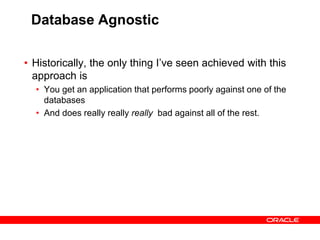

39. Database Agnostic
• Historically, the only thing I’ve seen achieved with this
approach is
• You get an application that performs poorly against one of the
databases
• And does really really really bad against all of the rest.

40. Nothing instills fear
more than…

41. Statistics

42. They seem like magic
ops$tkyte%ORA11GR2> create table t
2 as
3 select mod(rownum,5) id, a.* from all_objects a;
Table created.
ops$tkyte%ORA11GR2> update t set id = 99 where rownum = 1;
1 row updated.
ops$tkyte%ORA11GR2> create index t_idx on t(id);
Index created.
ops$tkyte%ORA11GR2> exec dbms_stats.gather_table_stats( user, 'T' );
PL/SQL procedure successfully completed.
ops$tkyte%ORA11GR2> select num_rows/6 from user_tables where table_name = 'T';
NUM_ROWS/6
----------
12125

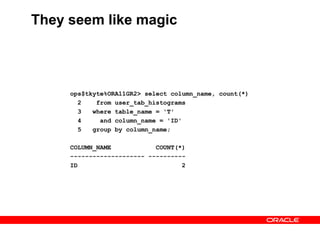

43. They seem like magic
ops$tkyte%ORA11GR2> select column_name, count(*)
2 from user_tab_histograms
3 where table_name = 'T'
4 and column_name = 'ID'
5 group by column_name;
COLUMN_NAME COUNT(*)
-------------------- ----------
ID 2

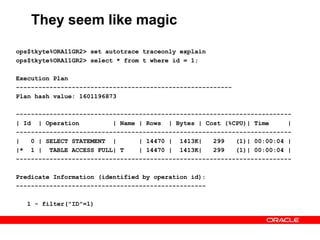

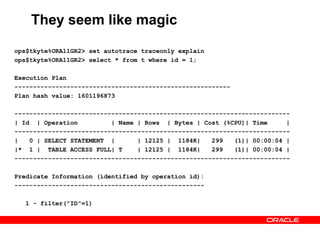

44. They seem like magic
ops$tkyte%ORA11GR2> set autotrace traceonly explain
ops$tkyte%ORA11GR2> select * from t where id = 1;
Execution Plan
----------------------------------------------------------
Plan hash value: 1601196873
--------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
--------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 12125 | 1184K| 299 (1)| 00:00:04 |
|* 1 | TABLE ACCESS FULL| T | 12125 | 1184K| 299 (1)| 00:00:04 |
--------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
1 - filter("ID"=1)

45. They seem like magic
ops$tkyte%ORA11GR2> set autotrace traceonly explain
ops$tkyte%ORA11GR2> select * from t where id = 99;
Execution Plan
----------------------------------------------------------
Plan hash value: 1601196873
--------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
--------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 12125 | 1184K| 299 (1)| 00:00:04 |
|* 1 | TABLE ACCESS FULL| T | 12125 | 1184K| 299 (1)| 00:00:04 |
--------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
1 - filter("ID"=99)

46. They seem like magic
exec dbms_stats.gather_table_stats( user, 'T' );
PL/SQL procedure successfully completed.
ops$tkyte%ORA11GR2> select column_name, count(*)
2 from user_tab_histograms
3 where table_name = 'T'
4 and column_name = 'ID'
5 group by column_name;
COLUMN_NAME COUNT(*)
-------------------- ----------
ID 5

47. They seem like magic
ops$tkyte%ORA11GR2> set autotrace traceonly explain
ops$tkyte%ORA11GR2> select * from t where id = 1;
Execution Plan
----------------------------------------------------------
Plan hash value: 1601196873
--------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
--------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 14470 | 1413K| 299 (1)| 00:00:04 |
|* 1 | TABLE ACCESS FULL| T | 14470 | 1413K| 299 (1)| 00:00:04 |
--------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
1 - filter("ID"=1)

48. They seem like magic
ops$tkyte%ORA11GR2> set autotrace traceonly explain
ops$tkyte%ORA11GR2> select * from t where id = 99;
Execution Plan
----------------------------------------------------------
Plan hash value: 470836197
-------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
-------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 100 | 2 (0)| 00:00:01 |
| 1 | TABLE ACCESS BY INDEX ROWID| T | 1 | 100 | 2 (0)| 00:00:01 |
|* 2 | INDEX RANGE SCAN | T_IDX | 1 | | 1 (0)| 00:00:01 |
-------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
2 - access("ID"=99)

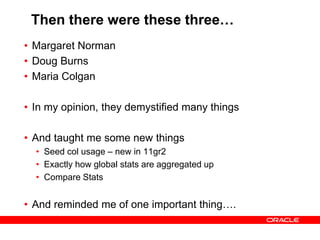

49. Then there were these three…
• Margaret Norman
• Doug Burns
• Maria Colgan
• In my opinion, they demystified many things
• And taught me some new things
• Seed col usage – new in 11gr2
• Exactly how global stats are aggregated up
• Compare Stats
• And reminded me of one important thing….

50. Never be afraid to
admit you made a
mistake ….

51. The R in Requirement
Stands for ….

52. Request

53. Requirements
• It is our job – repeat – it is our job – to inform this
“business” thing of the cost of what they ask for
• “Justify the Economics”
• We should be told what needs to be accomplished
• Not how to accomplish it

54. In the Future...

56. In conclusion...

57. Q U E S T I O N S
A N S W E R S
