This document discusses Hive transactions including ACID support in Hive. It provides an overview of transaction use cases in Hive like reporting with analytics and occasional updates. It describes how Hive implements transactions through writing changes to delta files and periodically merging them through minor and major compactions. It also covers transaction configuration settings and performance considerations for inserts, updates, and deletes in Hive with transactions enabled.
HiveACIDPublic
- 1. Page1 © HortonworksInc. 2014 Hive ACID Hive Streaming & SQL Insert/Update/Delete Raj Bains, Fall 2015
- 2. Page2 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Hive – Single tool for all SQL use cases OLTP, ERP, CRM Systems Unstructured documents, emails Clickstream Server logs Sentiment, Web Data Sensor. Machine Data Geolocation Interactive Analytics Batch Reports / Deep Analytics Hive - SQL ETL / ELT
- 3. Page3 © HortonworksInc. 2014 Hive: Batch to Sub-Second Hive 0.10 Batch Processing Hive 0.13 Human Interactive (10 seconds) Vectorized SQL Engine, Tez Execution Engine, ORC Columnar format 52x Average Query Speedup 7.8 days to 9.3 hours Hive 0.13 Human Interactive (10 seconds) Stinger Initiative Cost Based Optimizer Faster Map Joins Hive 0.14 Human Interactive (5 seconds) 3x Average Query Speedup Hive 2.0 Sub-SecondLLAP In-memory Cache, LLAP Resident Process, New Metastore for Compile, Vectorization Improvements Stinger.Next Initiative Significant Query Speedup Using TPC-DS Benchmark Hive 1.2 Human Interactive (5 seconds)
- 4. Page4 © HortonworksInc. 2014 Transaction Overview .
- 5. Page5 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Transaction Use Cases • Reporting with Analytics (YES) • Reporting on data with occasional updates • Corrections to the fact tables, evolving dimension tables • Low concurrency updates, low TPS • SQL INSERT / UPDATE / DELETE Support • Operational Reporting (Next) • High throughput ingest from operational (OLTP) database • Periodic inserts every 5-30 minutes • Bulk updates and deletes are not supported • SQL Merge • Requires tool support and changes in our Transactions • Operational (OLTP) Database (NO) • Small Transactions, each doing single line inserts • High Concurrency - Hundreds to thousands of connections Hive OLTP Hive Replication Analytics Modifications Hive High Concurrency OLTP
- 6. Page6 © HortonworksInc. 2014 Transaction Use Cases • Streaming Ingest • Use Hive Streaming API • Designed for tools Hive Analytics Append

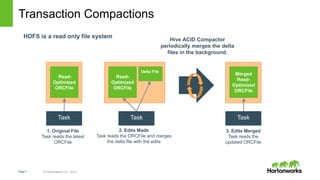

- 7. Page7 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Transaction Compactions Read- Optimized ORCFile Delta File Merged Read- Optimized ORCFile 1. Original File Task reads the latest ORCFile Task Read- Optimized ORCFile Task Task 2. Edits Made Task reads the ORCFile and merges the delta file with the edits 3. Edits Merged Task reads the updated ORCFile Hive ACID Compactor periodically merges the delta files in the background. HDFS is a read only file system

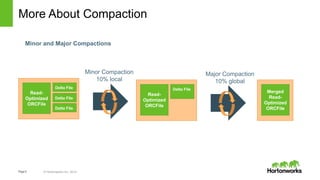

- 8. Page8 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION More About Compaction Read- Optimized ORCFile Delta File Merged Read- Optimized ORCFile Read- Optimized ORCFile Delta File Delta File Delta File Minor Compaction 10% local Major Compaction 10% global Minor and Major Compactions

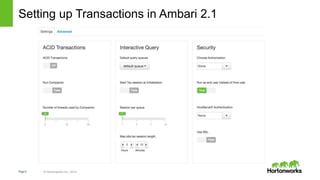

- 9. Page9 © HortonworksInc. 2014 Setting up Transactions in Ambari 2.1
- 10. Page10 © HortonworksInc. 2014 Transaction Internals .

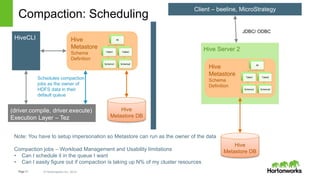

- 11. Page11 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Compaction: Scheduling (driver.compile, driver.execute) Execution Layer – Tez HiveCLI Hive Metastore Schema Definition db Table1 Schema1 Table2 Schema2 Hive Metastore DB Client – beeline, MicroStrategy Hive Server 2 JDBC/ ODBC Hive Metastore Schema Definition db Table1 Schema1 Table2 Schema2 Hive Metastore DB Schedules compaction jobs as the owner of HDFS data in their default queue Note: You have to setup impersonation so Metastore can run as the owner of the data Compaction jobs – Workload Management and Usability limitations • Can I schedule it in the queue I want • Can I easily figure out if compaction is taking up N% of my cluster resources

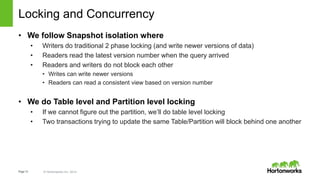

- 12. Page12 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Locking and Concurrency • We follow Snapshot isolation where • Writers do traditional 2 phase locking (and write newer versions of data) • Readers read the latest version number when the query arrived • Readers and writers do not block each other • Writes can write newer versions • Readers can read a consistent view based on version number • We do Table level and Partition level locking • If we cannot figure out the partition, we’ll do table level locking • Two transactions trying to update the same Table/Partition will block behind one another
- 13. Page13 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Transactions Implementation • INSERTS • inserts write delta files instead of appending rows to new files • Requires full list of columns: • INSERT INTO TABLE T VALUES(1, 2, 3) – OK • UPDATES • UPDATE T SET name = ‘fred’ WHERE name = ‘freddy’; • Writes new values to the delta file, complete with transaction information • New UPDATE privilege added to authorization • Updated columns passed to authorizer, SELECT privileges also required • DELETES • DELETE FROM T WHERE name = ‘freddy’; • Writes deleted values to the delta file, complete with transaction information • DELETE privilege already existed in authorization, SELECT privileges also required

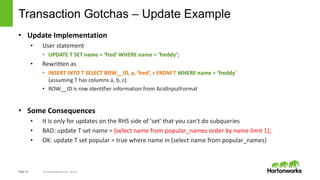

- 14. Page14 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Transaction Gotchas – Update Example • Update Implementation • User statement • UPDATE T SET name = ‘fred’ WHERE name = ‘freddy’; • Rewritten as • INSERT INTO T SELECT ROW__ID, a, ‘fred’, c FROM T WHERE name = ‘freddy’ (assuming T has columns a, b, c) • ROW__ID is row identifier information from AcidInputFormat • Some Consequences • It is only for updates on the RHS side of 'set' that you can't do subqueries • BAD: update T set name = (select name from popular_names order by name limit 1); • OK: update T set popular = true where name in (select name from popular_names)
- 15. Page15 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Restrictions OVERALL – ACID is V1 with restrictions and usability improvements to come • Need to declare the table as having Transaction Property • Table Needs to have buckets INSERTS • Still need to say “TABLE” and “PARTITION, (Fix TODO) • INSERT INTO TABLE T • INSERT INTO TABLE T PARTITION(ds = ‘today’) VALUES ... • insert/overwrite disallowed UPDATES • Cannot update the partition column or bucket column (as this would require a delete and insert, and we don’t have an easy way to do that at the moment) • Expressions on the right side of SET must be supported as projections by Hive, thus no subqueries. Compactions • Workload Management needs to be built

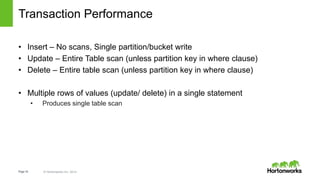

- 16. Page16 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Transaction Performance • Insert – No scans, Single partition/bucket write • Update – Entire Table scan (unless partition key in where clause) • Delete – Entire table scan (unless partition key in where clause) • Multiple rows of values (update/ delete) in a single statement • Produces single table scan
- 17. Page17 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Other commands and Settings • SHOW TRANSACTIONS • SHOW TRANSACTIONS is for use by administrators when Hive transactions are being used. It returns a list of all currently open and aborted transactions in the system, including this information: • transaction ID • transaction state • user who started the transaction • machine where the transaction was started • SHOW COMPACTIONS • SHOW COMPACTIONS returns a list of all tables and partitions currently being compacted or scheduled for compaction when Hive transactions are being used, including this information: • database name • table name • partition name (if the table is partitioned) • whether it is a major or minor compaction • the state the compaction is in, which can be: "initiated" – waiting in the queue to be compacted "working" – being compacted "ready for cleaning" – the compaction has been done and the old files are scheduled to be cleaned thread ID of the worker thread doing the compaction (only if in working state) the time at which the compaction started (only if in working or ready for cleaning state) • SHOW LOCKS • SHOW LOCKS <table_name>; • SHOW LOCKS <table_name> EXTENDED; • SHOW LOCKS <table_name> PARTITION (<partition_desc>); • SHOW LOCKS <table_name> PARTITION (<partition_desc>) EXTENDED;
- 18. Page18 © HortonworksInc. 2014 HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION Configuration Configuration key Values Notes hive.txn.manager Default: org.apache.hadoop.hive.ql.lockmgr.DummyTxnManager Need: transactions:org.apache.hadoop.hive.ql.lockmgr.DbTxnManager DummyTxnManager replicates pre Hive-0.13 behavior and provides no transactions. hive.txn.timeout Default: 300 Time after which transactions are declared aborted if the client has not sent a heartbeat, in seconds. hive.txn.max.open.batch Default: 1000 Maximum number of transactions that can be fetched in one call to open_txns(). Controls how many transactions streaming agents such as Flume or Storm open simultaneously. hive.compactor.initiator.on Default: false Value to turn on transactions: true (for exactly one instance of the Thrift metastore service) Whether to run the initiator and cleaner threads on this metastore instance. hive.compactor.worker.threads Default: 0 .Value to turn on transactions: > 0 on at least one instance of the Thrift metastore service How many compactor worker threads to run on this metastore instance.** hive.compactor.worker.timeout Default: 86400 Time in seconds after which a compaction job will be declared failed and the compaction re-queued. hive.compactor.check.interval Default: 300 Time in seconds between checks to see if any tables or partitions need to be compacted.*** hive.compactor.delta.num.threshold Default: 10 Number of delta directories in a table or partition that will trigger a minor compaction. hive.compactor.delta.pct.threshold Default: 0.1 Percentage (fractional) size of the delta files relative to the base that will trigger a major compaction. 1 = 100%, so the default 0.1 = 10%. hive.compactor.abortedtxn.threshold Default: 1000 Number of aborted transactions involving a given table or partition that will trigger a major compaction. Hive.enforce.bucketing true Hive.exec.dynamic.partition.mode nonstrict hive.support.concurrency true
- 19. Page19 © HortonworksInc. 2014 Streaming Solution Goals What business goals are required?
- 20. Page20 © HortonworksInc. 2014 Background - Hive Partitions and Buckets CREATE TABLE user_info( user_id BIGINT, firstname STRING, lastname STRING) PARTITIONED BY(ds STRING) CLUSTERED BY(user_id) INTO 255 BUCKETS; Buckets • Within every partitions, rows are distributed into buckets using a hash function • hash_fn(bucketing_column) mod num_buckets Table Partition date-0 Partition 2015-08-25 Bucket 1 Bucket 2 Bucket … Bucket 256 Partition … Partition date-N Partitions • All rows in a partition have the same value of partition key • Partition is a directory
- 21. Page21 © HortonworksInc. 2014 Hive Transactions and Buckets – Physical Structure Table Partition 2015-08-25 Delta1 Bucket 1 Bucket … Bucket 256 Delta2 Bucket 1 Bucket … Bucket 256 Partition … Partition date-N CREATE TABLE user_info( user_id BIGINT, firstname STRING, lastname STRING) PARTITIONED BY(ds STRING) CLUSTERED BY(user_id) INTO 255 BUCKETS; STORED AS ORC TBLPROPERTIES ("transactional"="true"); insert into table user_info values (,,), (,,), (,,), (,,), (,,);
- 22. Page22 © HortonworksInc. 2014 Example Streaming Solution Kafka Storm Hive Bolt Hive Bolt Hive Bolt Hive Storm Topology Hive Streaming API Streaming Analytics SQL Analytics
- 23. Page23 © HortonworksInc. 2014 Streaming into Hive without Hive Streaming Hive Bolt Hive Bolt Hive Bolt Partitions
- 24. Page24 © HortonworksInc. 2014 What are your Streaming Sink goals Write Throughput • Determines the hardware cost of solution • (events * size) per node Ingest to Query Latency • How long after ingest is the data available for query Query Speed • What query speed is needed when reading the data • How do I want to layout the data to achieve that Data Quality Guarantees • What are the semantics of the solution • At least once, Exactly once
- 25. Page25 © HortonworksInc. 2014 Hive Streaming Streaming API using ACID + ORC
- 26. Page26 © HortonworksInc. 2014 Hive Streaming API Basics Storm Hive Bolt Hive HIVE STREAMING API HiveEndPoint EP(MetastoreURI DB, Table, Partitions<>) TransactionBatch TB (10) Foreach (t : TB) { t.begin ( ); t.write (BatchSize rows); t.commit ( ); } TB.close ( ); Hive Metastore HDFS Performance Note: Fewer Metastore calls is better
- 27. Page27 © HortonworksInc. 2014 ORC File Basics Row Data indexes Row Groups of 10k rows each A stripe consists of 500K rows at 500bytes Read Considerations When read a subset of data in a common case, you want to push the predicate and skip over most of the data by looking at metadata. - Indexes index most primitive types - There are min and max that are most effective for sorted data - There are Bloom Filters (Hive 1.2+) that are effective even for non-sorted data

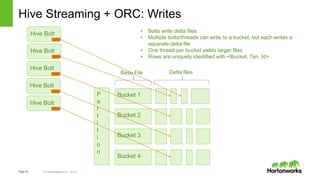

- 28. Page28 © HortonworksInc. 2014 Hive Streaming + ORC: Writes • Bolts write delta files • Multiple bolts/threads can write to a bucket, but each writes a separate delta file • One thread per bucket yields larger files • Rows are uniquely identified with <Bucket, Txn, Id> Bucket 1 Delta files P a r t i t i o n Bucket 2 Bucket 3 Bucket 4 Hive Bolt Hive Bolt Hive Bolt Base File Hive Bolt Hive Bolt

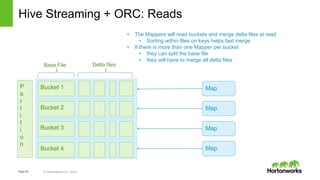

- 29. Page29 © HortonworksInc. 2014 Hive Streaming + ORC: Reads Bucket 1 Delta files P a r t i t i o n Bucket 2 Bucket 3 Bucket 4 • The Mappers will read buckets and merge delta files at read • Sorting within files on keys helps fast merge • If there is more than one Mapper per bucket • they can split the base file • they will have to merge all delta files Map Map Base File Map Map

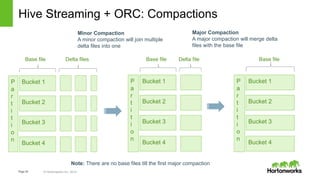

- 30. Page30 © HortonworksInc. 2014 Hive Streaming + ORC: Compactions Bucket 1 Delta files P a r t i t i o n Bucket 2 Bucket 3 Bucket 4 Note: There are no base files till the first major compaction Base file Bucket 1 Delta file P a r t i t i o n Bucket 2 Bucket 3 Bucket 4 Base file Bucket 1P a r t i t i o n Bucket 2 Bucket 3 Bucket 4 Base file Minor Compaction A minor compaction will join multiple delta files into one Major Compaction A major compaction will merge delta files with the base file
- 31. Page31 © HortonworksInc. 2014 Storm Overview .

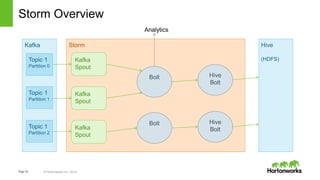

- 32. Page32 © HortonworksInc. 2014 Storm Storm Overview Kafka Spout Kafka Spout Kafka Spout Kafka Topic 1 Partition 0 Topic 1 Partition 1 Topic 1 Partition 2 Bolt Bolt Analytics Hive Bolt Hive Bolt Hive (HDFS)

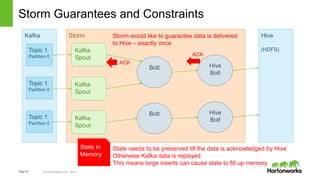

- 33. Page33 © HortonworksInc. 2014 Storm Storm Guarantees and Constraints Kafka Spout Kafka Spout Kafka Spout Kafka Topic 1 Partition 0 Topic 1 Partition 0 Topic 1 Partition 0 Bolt Bolt Hive Bolt Hive Bolt Hive (HDFS) State in Memory ACK ACK State needs to be preserved till the data is acknowledged by Hive Otherwise Kafka data is replayed This means large inserts can cause state to fill up memory Storm would like to guarantee data is delivered to Hive – exactly once
- 34. Page34 © HortonworksInc. 2014 Balancing Constraints .
- 35. Page35 © HortonworksInc. 2014 Balancing Storm and Hive Preferences • Storm wants to hold on to minimum state • Smaller writes make data visible to readers quicker • Hive prefers larger writes • Write throughput is good with larger writes • However, compaction can help State
- 36. Page36 © HortonworksInc. 2014 Questions ?
Editor's Notes
- #14 ===== INSERT IMPLEMENTATION ===== INSERT INTO TABLE T VALUES(1, 2, 3) – OK (assuming T has 3 int columns) Implemented as: Dump values to temp table Rewrite insert to INSERT INTO T SELECT * FROM temp_table; ===== UPDATE IMPLEMENTATION ===== Implemented by rewriting query to: INSERT INTO T SELECT ROW__ID, a, ‘fred’, c FROM T WHERE name = ‘freddy’ (assuming T has columns a, b, c) ROW__ID is row identifier information from AcidInputFormat FileSinkOperator is informed this is an update rather than a standard insert === DELETE IMPLEMENTATION ==== Implemented by rewriting query to: INSERT INTO T SELECT ROW__ID FROM T WHERE name = ‘freddy’ ROW__ID is row identifier information from AcidInputFormat FileSinkOperator is informed this is a delete rather than a standard insert
