Highly dependable automotive software
- 1. Alan Tatourian Intel Automotive ighly-Dependable Automotive Softwar SSG SecCon 2018

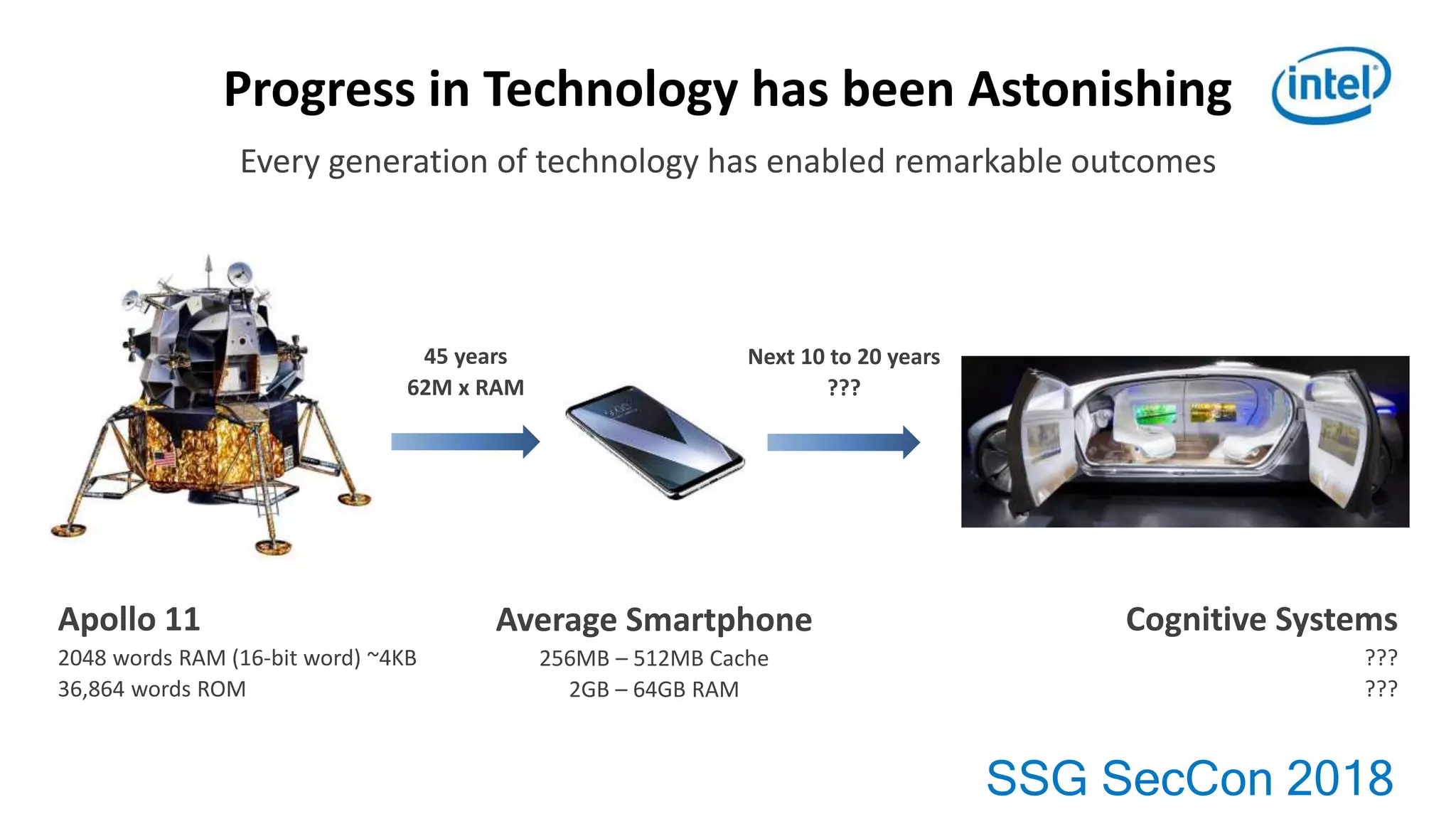

- 2. SSG SecCon 2018 Progress in Technology has been Astonishing Every generation of technology has enabled remarkable outcomes Apollo 11 2048 words RAM (16-bit word) ~4KB 36,864 words ROM Average Smartphone 256MB – 512MB Cache 2GB – 64GB RAM Next 10 to 20 years ??? 45 years 62M x RAM Cognitive Systems ??? ???

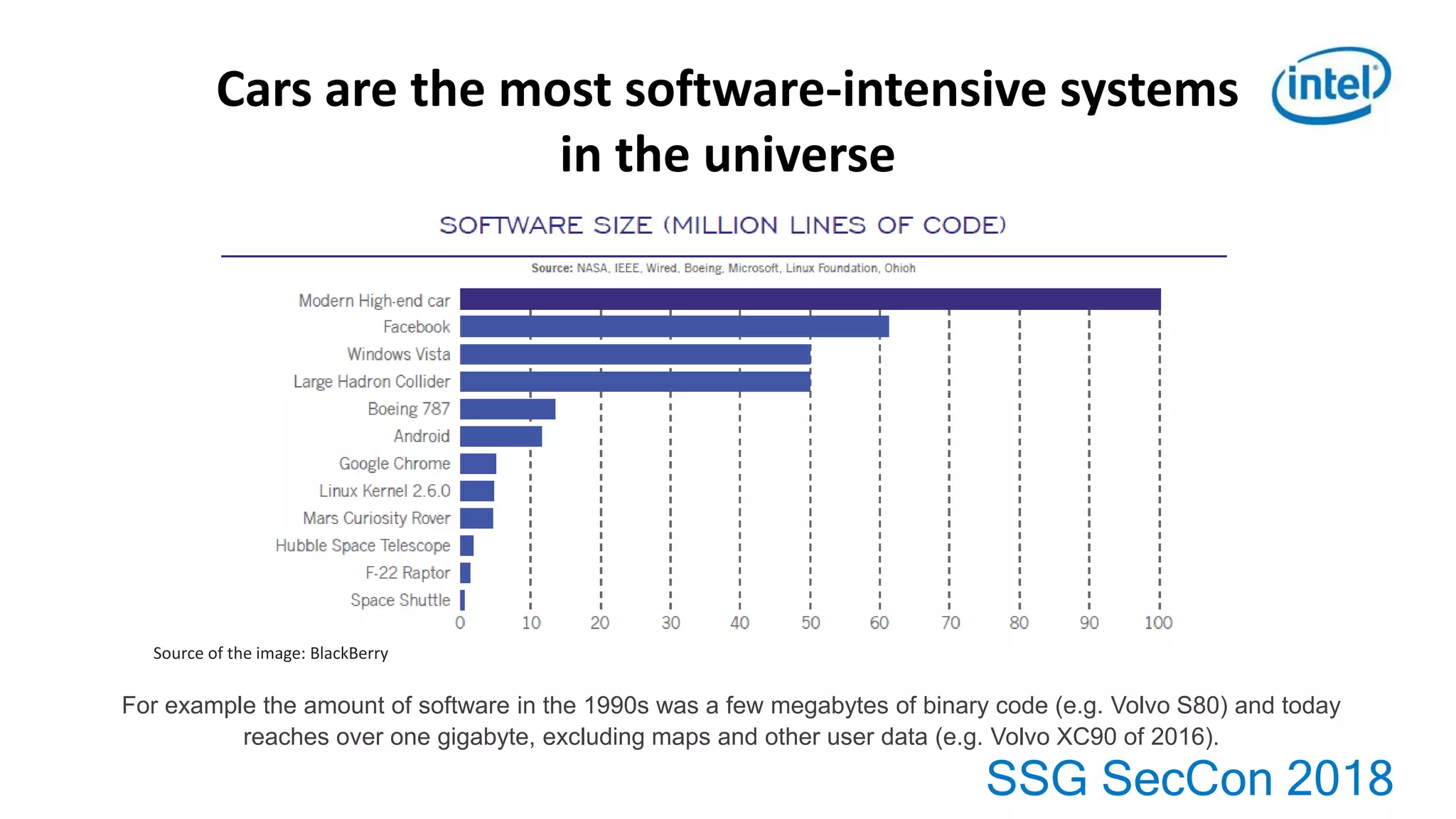

- 3. SSG SecCon 2018 Cars are the most software-intensive systems in the universe Source of the image: BlackBerry For example the amount of software in the 1990s was a few megabytes of binary code (e.g. Volvo S80) and today reaches over one gigabyte, excluding maps and other user data (e.g. Volvo XC90 of 2016).

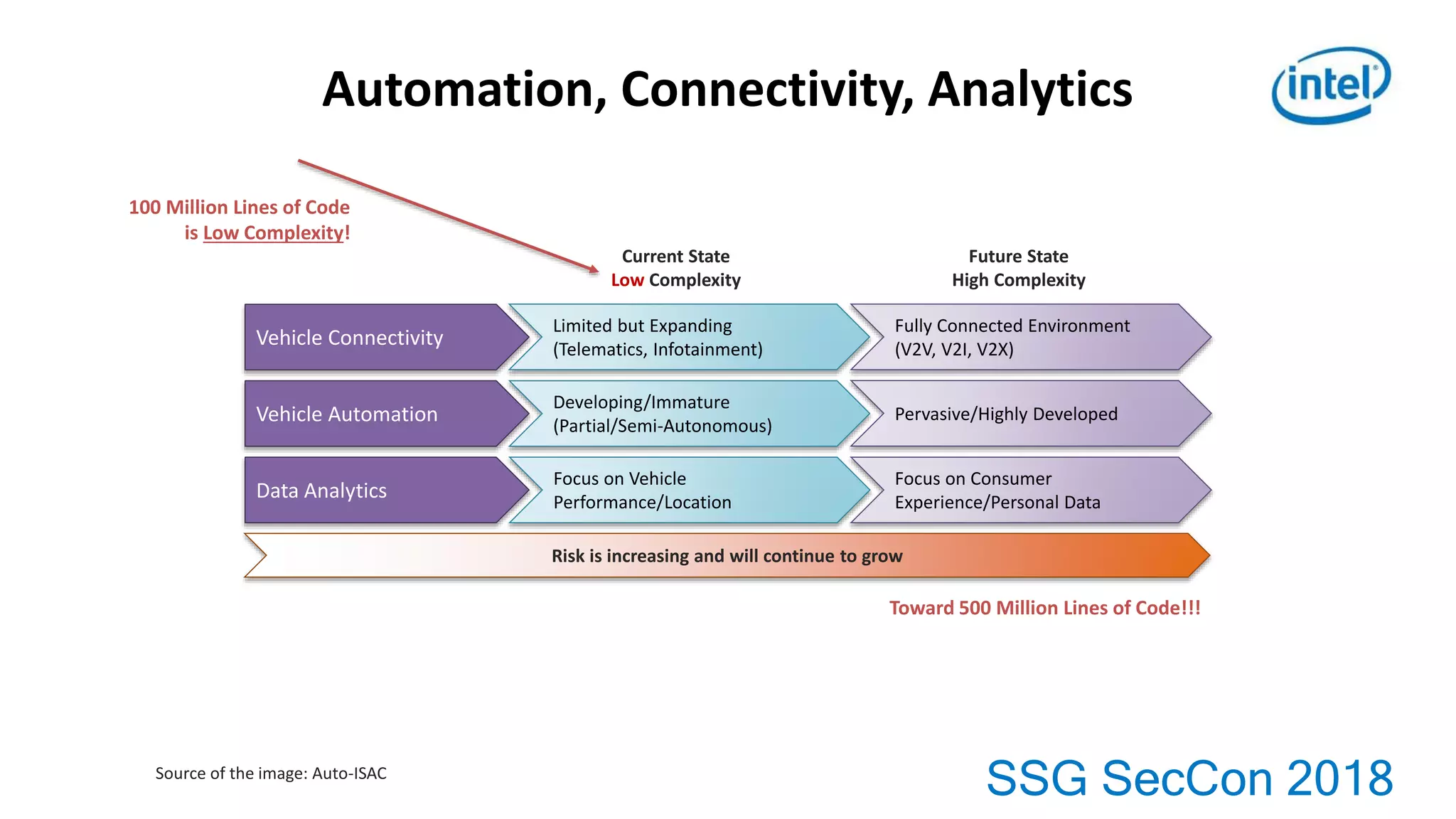

- 4. SSG SecCon 2018 Automation, Connectivity, Analytics Vehicle Connectivity Vehicle Automation Data Analytics Limited but Expanding (Telematics, Infotainment) Developing/Immature (Partial/Semi-Autonomous) Focus on Vehicle Performance/Location Fully Connected Environment (V2V, V2I, V2X) Pervasive/Highly Developed Focus on Consumer Experience/Personal Data Current State Low Complexity Future State High Complexity Risk is increasing and will continue to grow Source of the image: Auto-ISAC Toward 500 Million Lines of Code!!! 100 Million Lines of Code is Low Complexity!

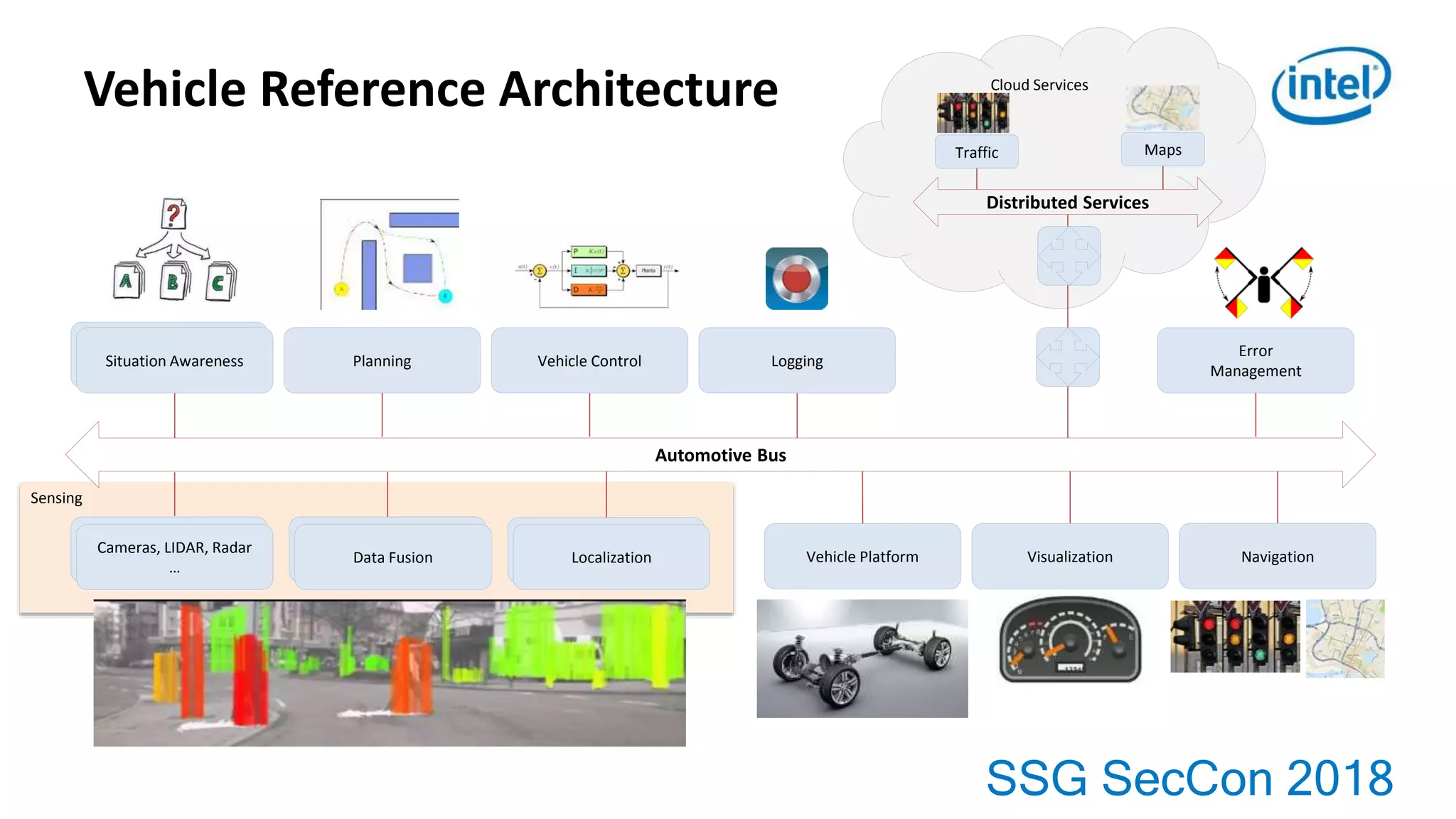

- 5. SSG SecCon 2018 Vehicle Reference Architecture Cloud Services Sensing Planning Radar, LIDAR Vehicle Platform Navigation Error Management Visualization Situation AnalysisSituation Awareness Vision FusionCameras, LIDAR, Radar … Data Fusion LoggingVehicle Control Localization Automotive Bus Traffic Maps Distributed Services

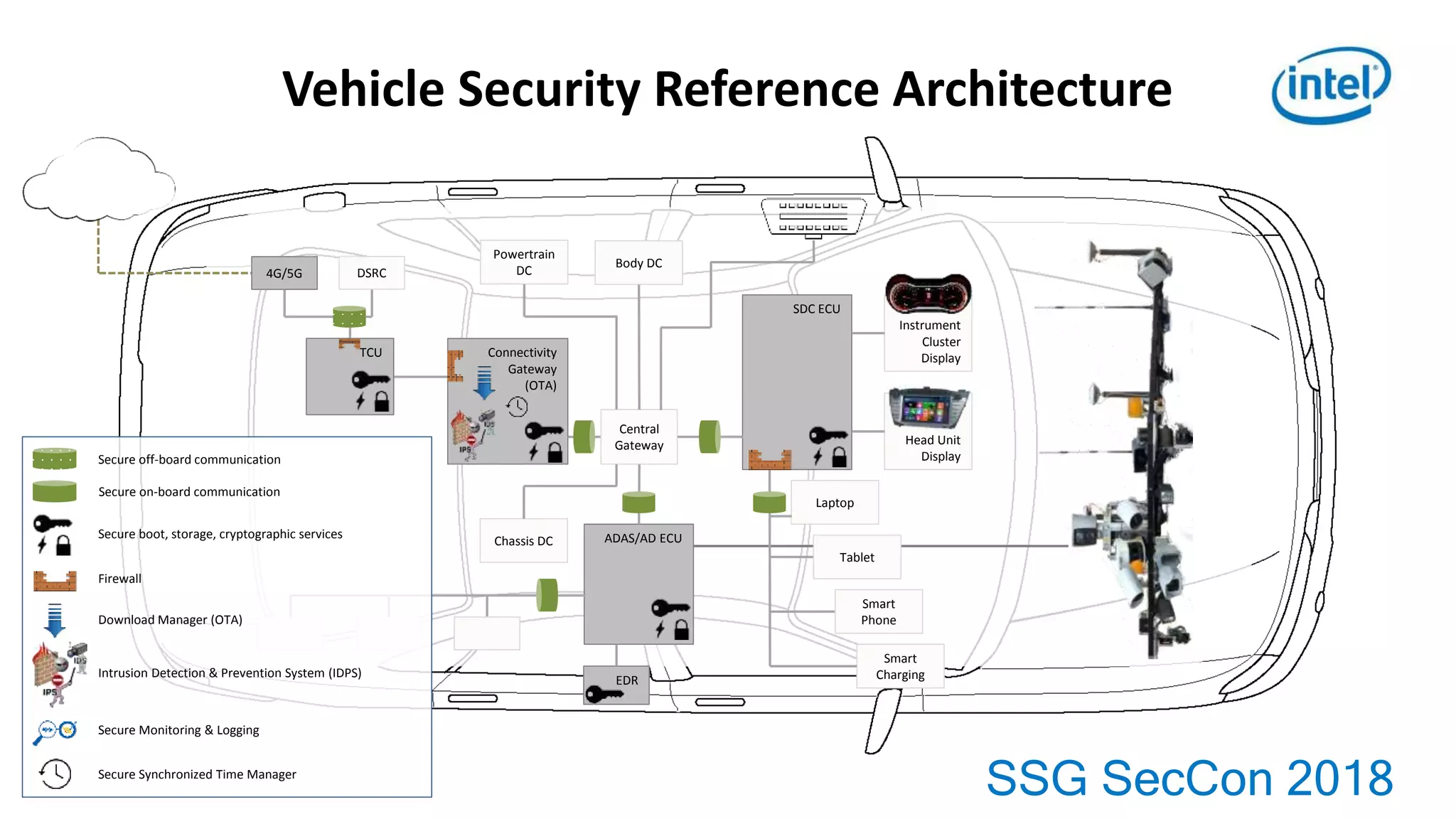

- 6. SSG SecCon 2018 Vehicle Security Reference Architecture 4G/5G DSRC Connectivity Gateway (OTA) Head Unit Display SDC ECU Instrument Cluster Display Central Gateway ADAS/AD ECU Powertrain DC Body DC Chassis DC EDR Smart Charging Laptop Tablet Smart Phone Secure off-board communication Secure on-board communication Secure boot, storage, cryptographic services Firewall Download Manager (OTA) Intrusion Detection & Prevention System (IDPS) Secure Monitoring & Logging Secure Synchronized Time Manager TCU

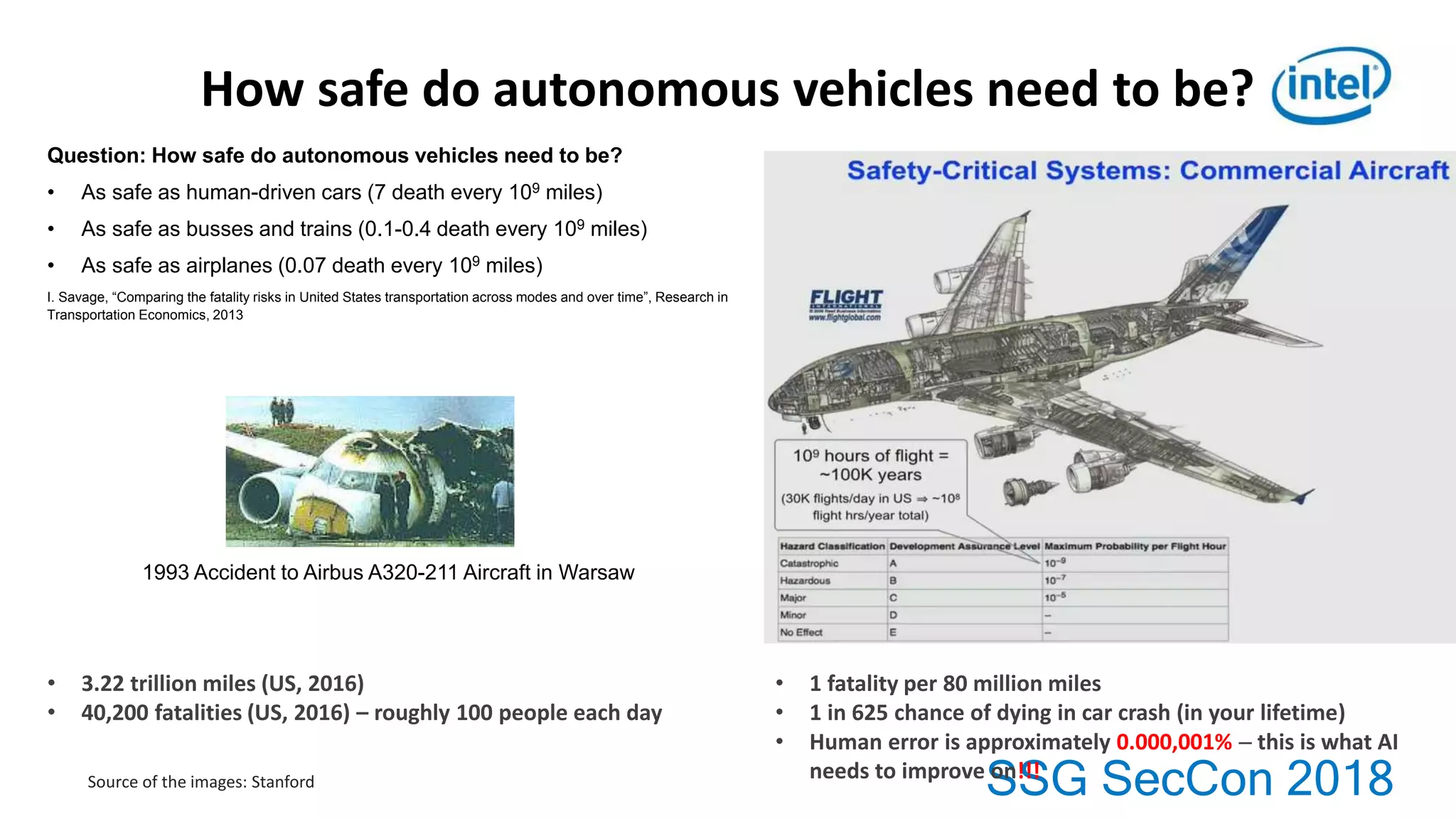

- 7. SSG SecCon 2018 How safe do autonomous vehicles need to be? • 3.22 trillion miles (US, 2016) • 40,200 fatalities (US, 2016) – roughly 100 people each day • 1 fatality per 80 million miles • 1 in 625 chance of dying in car crash (in your lifetime) • Human error is approximately 0.000,001% this is what AI needs to improve on!!!Source of the images: Stanford 1993 Accident to Airbus A320-211 Aircraft in Warsaw Question: How safe do autonomous vehicles need to be? • As safe as human-driven cars (7 death every 109 miles) • As safe as busses and trains (0.1-0.4 death every 109 miles) • As safe as airplanes (0.07 death every 109 miles) I. Savage, “Comparing the fatality risks in United States transportation across modes and over time”, Research in Transportation Economics, 2013

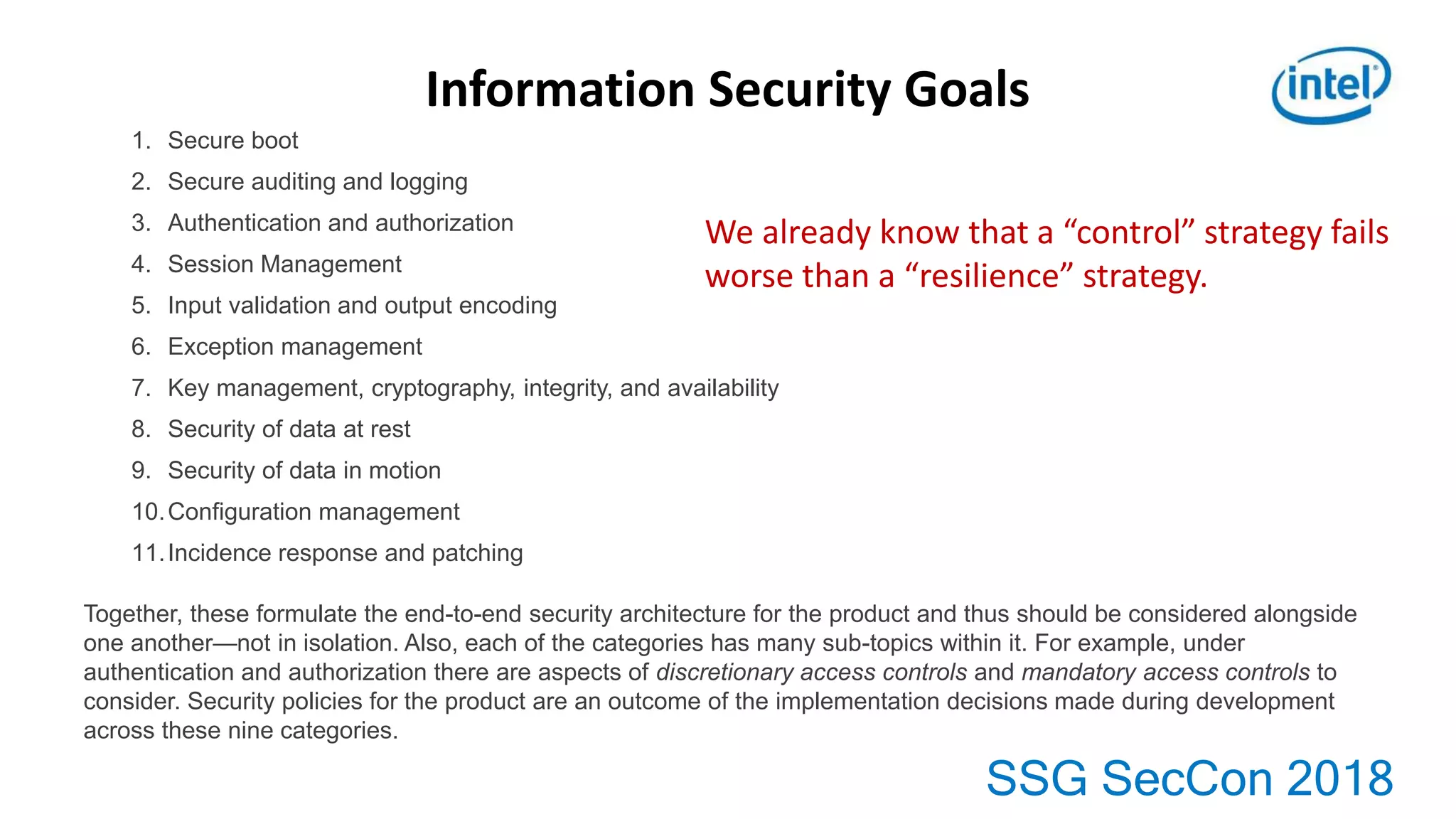

- 8. SSG SecCon 2018 Information Security Goals 1. Secure boot 2. Secure auditing and logging 3. Authentication and authorization 4. Session Management 5. Input validation and output encoding 6. Exception management 7. Key management, cryptography, integrity, and availability 8. Security of data at rest 9. Security of data in motion 10.Configuration management 11.Incidence response and patching Together, these formulate the end-to-end security architecture for the product and thus should be considered alongside one another—not in isolation. Also, each of the categories has many sub-topics within it. For example, under authentication and authorization there are aspects of discretionary access controls and mandatory access controls to consider. Security policies for the product are an outcome of the implementation decisions made during development across these nine categories. We already know that a “control” strategy fails worse than a “resilience” strategy.

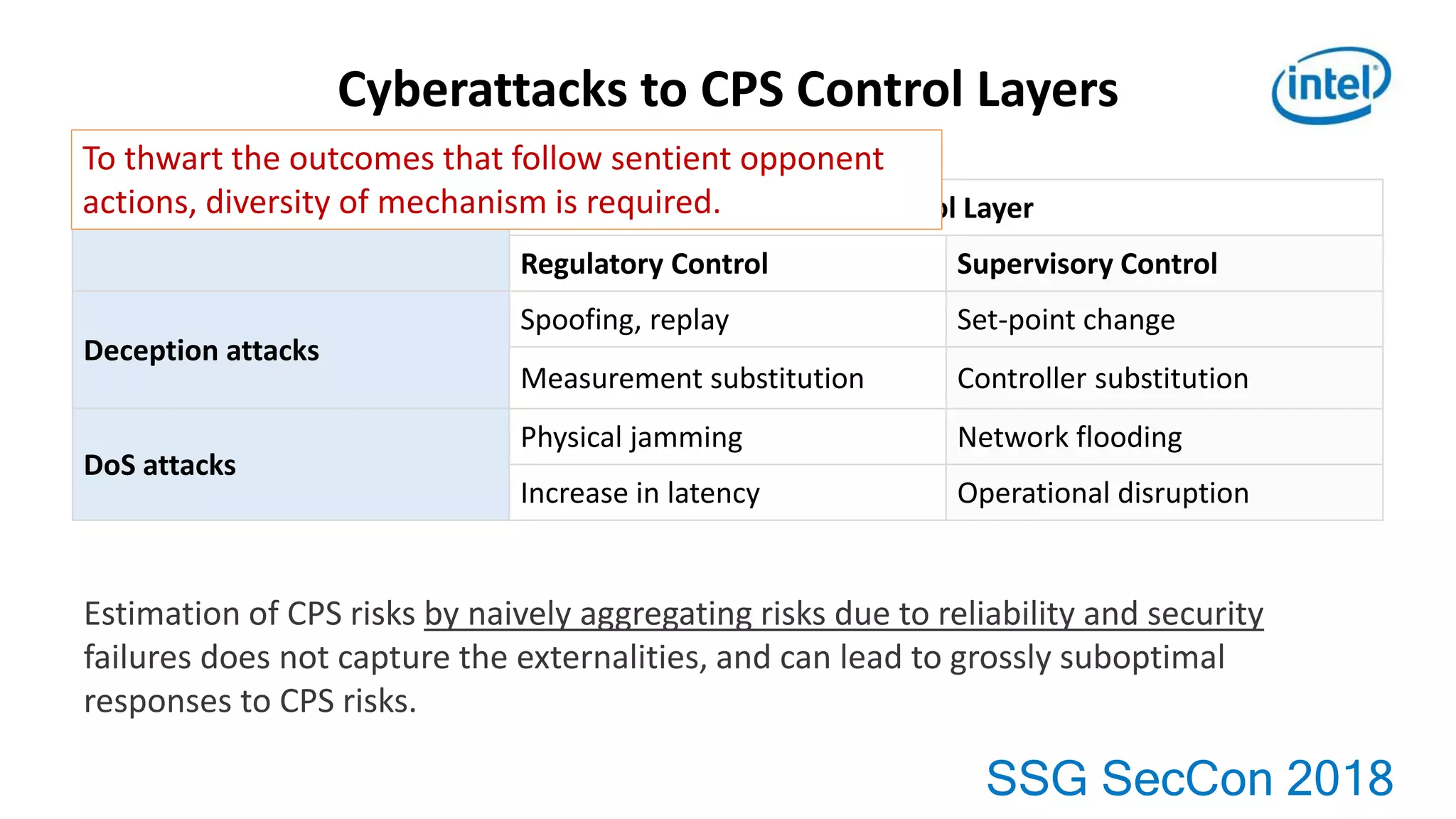

- 9. SSG SecCon 2018 Cyberattacks to CPS Control Layers Control Layer Regulatory Control Supervisory Control Deception attacks Spoofing, replay Set-point change Measurement substitution Controller substitution DoS attacks Physical jamming Network flooding Increase in latency Operational disruption Estimation of CPS risks by naively aggregating risks due to reliability and security failures does not capture the externalities, and can lead to grossly suboptimal responses to CPS risks. To thwart the outcomes that follow sentient opponent actions, diversity of mechanism is required.

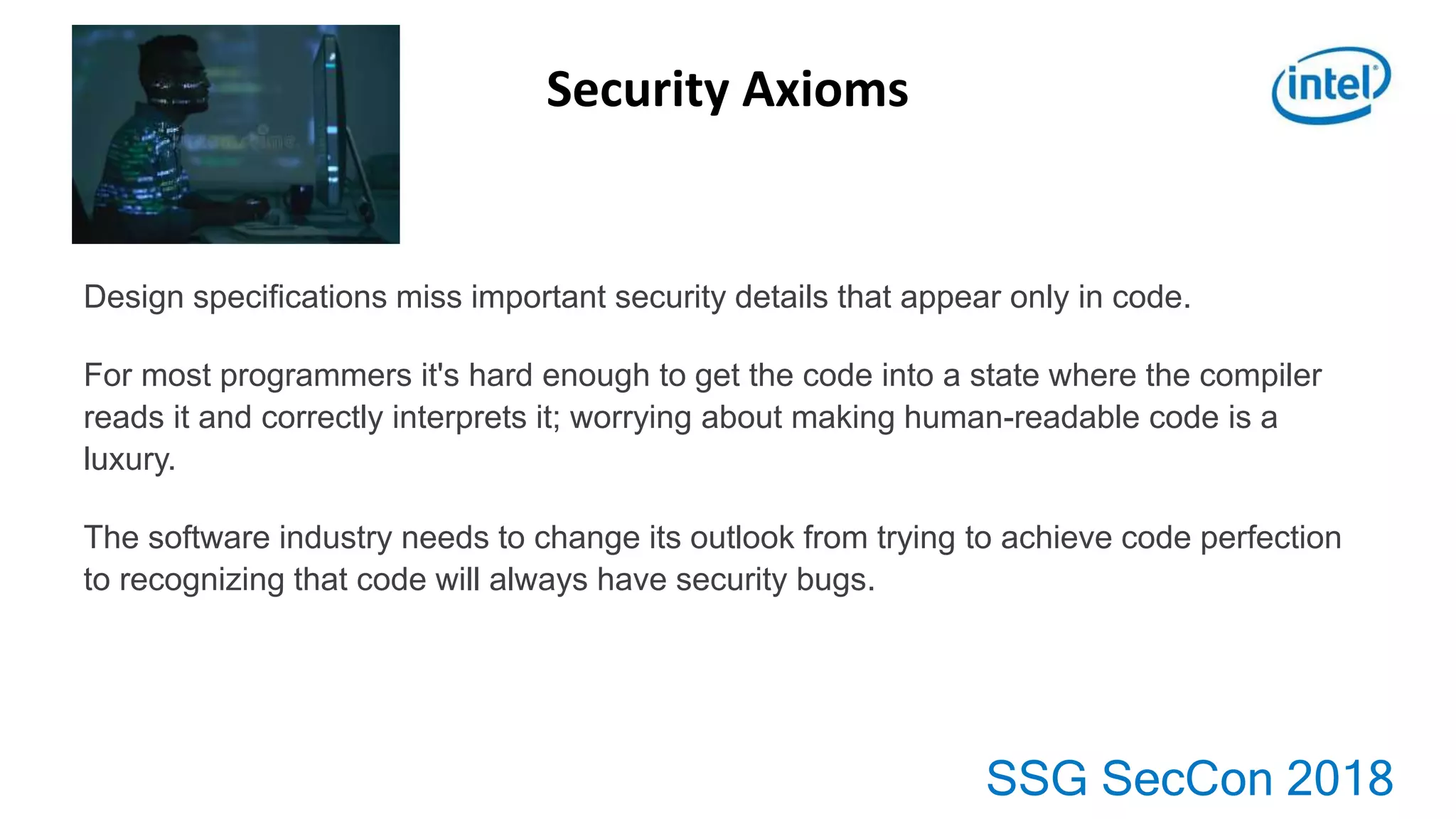

- 10. SSG SecCon 2018 Security Axioms Design specifications miss important security details that appear only in code. For most programmers it's hard enough to get the code into a state where the compiler reads it and correctly interprets it; worrying about making human-readable code is a luxury. The software industry needs to change its outlook from trying to achieve code perfection to recognizing that code will always have security bugs.

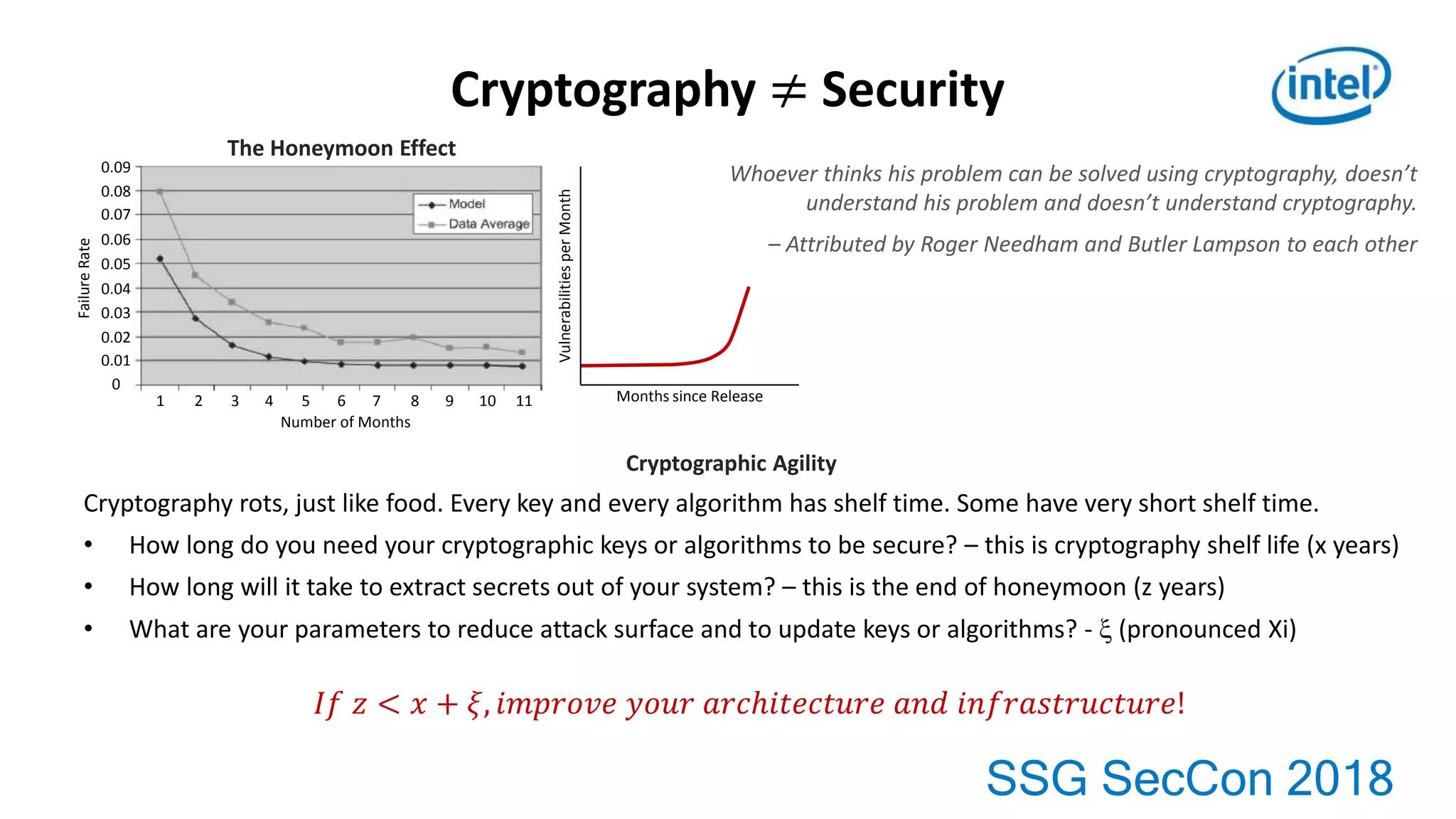

- 11. SSG SecCon 2018 Cryptography ≠ Security Whoever thinks his problem can be solved using cryptography, doesn’t understand his problem and doesn’t understand cryptography. – Attributed by Roger Needham and Butler Lampson to each other Cryptography rots, just like food. Every key and every algorithm has shelf time. Some have very short shelf time. • How long do you need your cryptographic keys or algorithms to be secure? – this is cryptography shelf life (x years) • How long will it take to extract secrets out of your system? – this is the end of honeymoon (z years) • What are your parameters to reduce attack surface and to update keys or algorithms? - (pronounced Xi) 𝐼𝑓 𝑧 < 𝑥 + 𝜉, 𝑖𝑚𝑝𝑟𝑜𝑣𝑒 𝑦𝑜𝑢𝑟 𝑎𝑟𝑐ℎ𝑖𝑡𝑒𝑐𝑡𝑢𝑟𝑒 𝑎𝑛𝑑 𝑖𝑛𝑓𝑟𝑎𝑠𝑡𝑟𝑢𝑐𝑡𝑢𝑟𝑒! FailureRate Number of Months 0.09 0.08 0.07 0.06 0.05 0.04 0.03 0.02 0.01 0 1 2 43 5 6 7 8 109 11 VulnerabilitiesperMonth Months since Release The Honeymoon Effect Cryptographic Agility

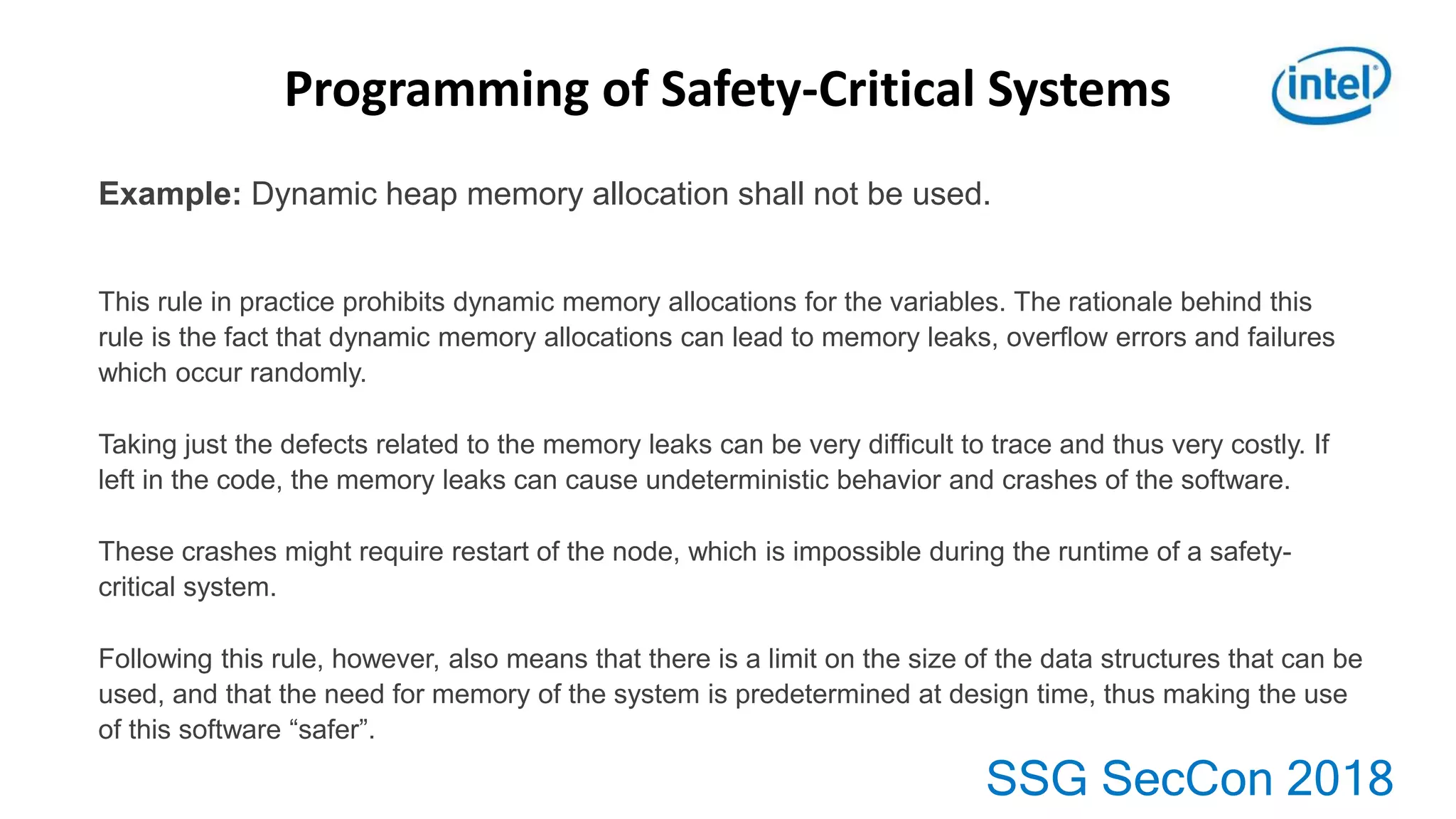

- 12. SSG SecCon 2018 Example: Dynamic heap memory allocation shall not be used. This rule in practice prohibits dynamic memory allocations for the variables. The rationale behind this rule is the fact that dynamic memory allocations can lead to memory leaks, overflow errors and failures which occur randomly. Taking just the defects related to the memory leaks can be very difficult to trace and thus very costly. If left in the code, the memory leaks can cause undeterministic behavior and crashes of the software. These crashes might require restart of the node, which is impossible during the runtime of a safety- critical system. Following this rule, however, also means that there is a limit on the size of the data structures that can be used, and that the need for memory of the system is predetermined at design time, thus making the use of this software “safer”. Programming of Safety-Critical Systems

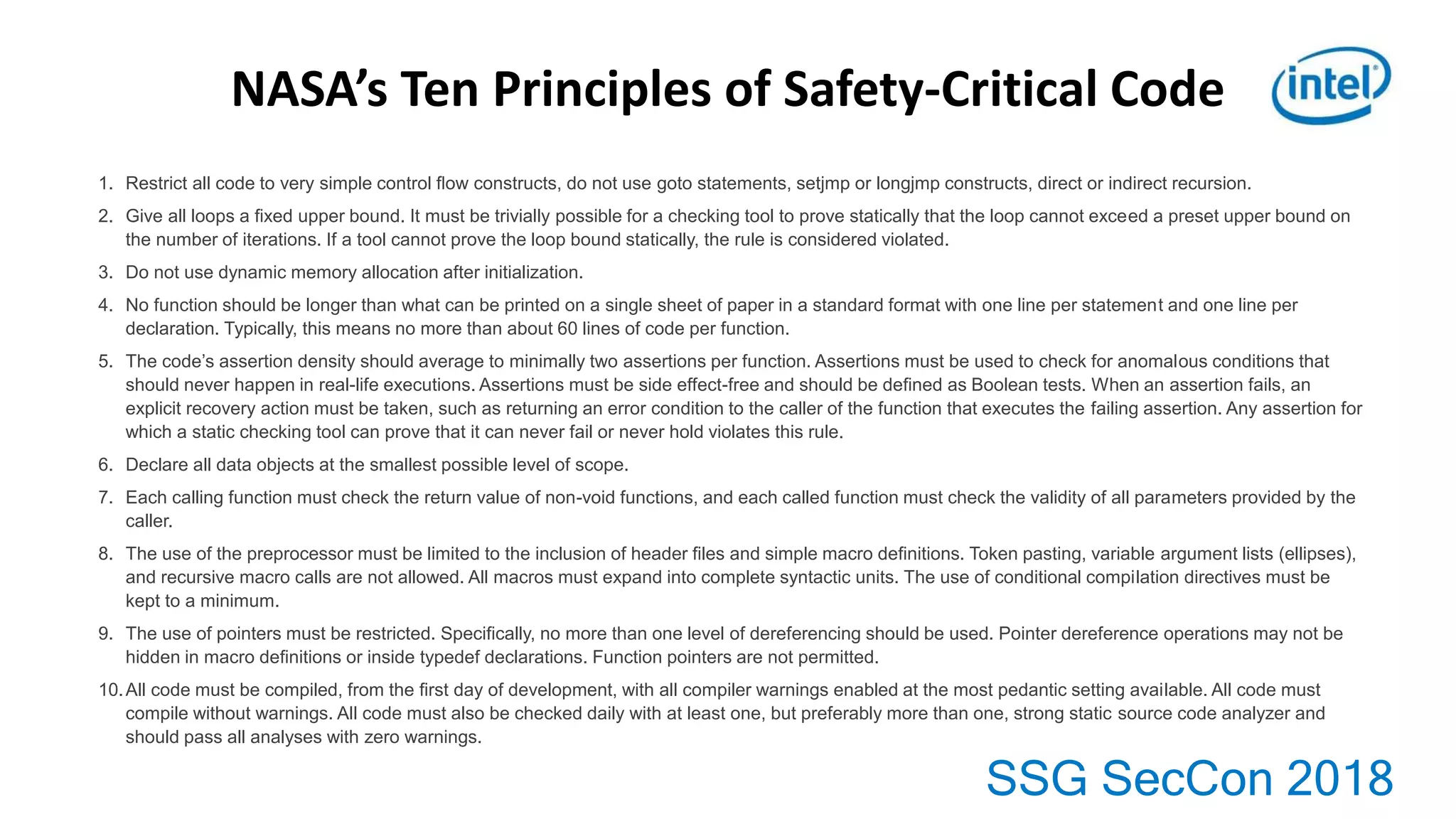

- 13. SSG SecCon 2018 1. Restrict all code to very simple control flow constructs, do not use goto statements, setjmp or longjmp constructs, direct or indirect recursion. 2. Give all loops a fixed upper bound. It must be trivially possible for a checking tool to prove statically that the loop cannot exceed a preset upper bound on the number of iterations. If a tool cannot prove the loop bound statically, the rule is considered violated. 3. Do not use dynamic memory allocation after initialization. 4. No function should be longer than what can be printed on a single sheet of paper in a standard format with one line per statement and one line per declaration. Typically, this means no more than about 60 lines of code per function. 5. The code’s assertion density should average to minimally two assertions per function. Assertions must be used to check for anomalous conditions that should never happen in real-life executions. Assertions must be side effect-free and should be defined as Boolean tests. When an assertion fails, an explicit recovery action must be taken, such as returning an error condition to the caller of the function that executes the failing assertion. Any assertion for which a static checking tool can prove that it can never fail or never hold violates this rule. 6. Declare all data objects at the smallest possible level of scope. 7. Each calling function must check the return value of non-void functions, and each called function must check the validity of all parameters provided by the caller. 8. The use of the preprocessor must be limited to the inclusion of header files and simple macro definitions. Token pasting, variable argument lists (ellipses), and recursive macro calls are not allowed. All macros must expand into complete syntactic units. The use of conditional compilation directives must be kept to a minimum. 9. The use of pointers must be restricted. Specifically, no more than one level of dereferencing should be used. Pointer dereference operations may not be hidden in macro definitions or inside typedef declarations. Function pointers are not permitted. 10.All code must be compiled, from the first day of development, with all compiler warnings enabled at the most pedantic setting available. All code must compile without warnings. All code must also be checked daily with at least one, but preferably more than one, strong static source code analyzer and should pass all analyses with zero warnings. NASA’s Ten Principles of Safety-Critical Code

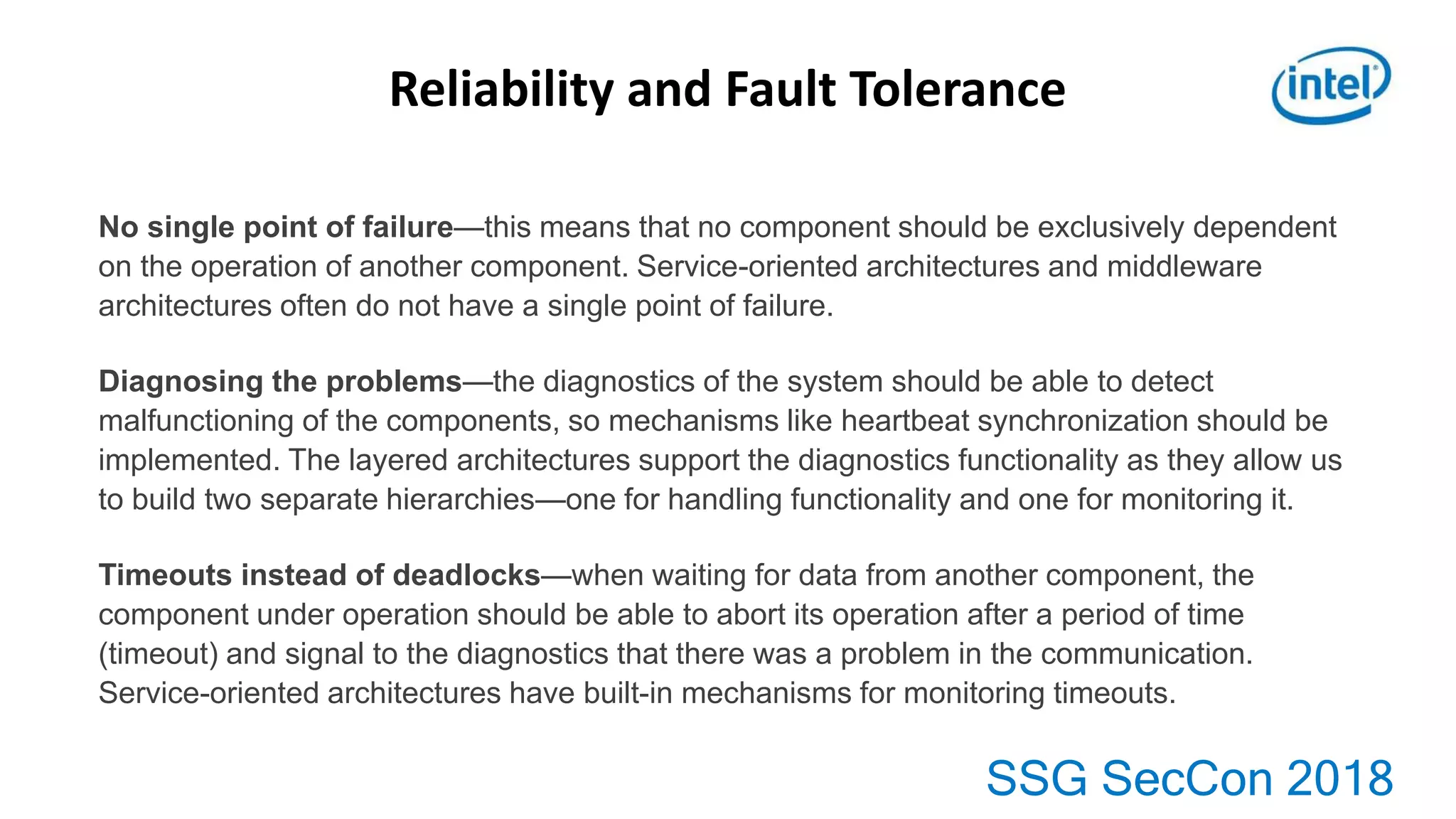

- 14. SSG SecCon 2018 No single point of failure—this means that no component should be exclusively dependent on the operation of another component. Service-oriented architectures and middleware architectures often do not have a single point of failure. Diagnosing the problems—the diagnostics of the system should be able to detect malfunctioning of the components, so mechanisms like heartbeat synchronization should be implemented. The layered architectures support the diagnostics functionality as they allow us to build two separate hierarchies—one for handling functionality and one for monitoring it. Timeouts instead of deadlocks—when waiting for data from another component, the component under operation should be able to abort its operation after a period of time (timeout) and signal to the diagnostics that there was a problem in the communication. Service-oriented architectures have built-in mechanisms for monitoring timeouts. Reliability and Fault Tolerance

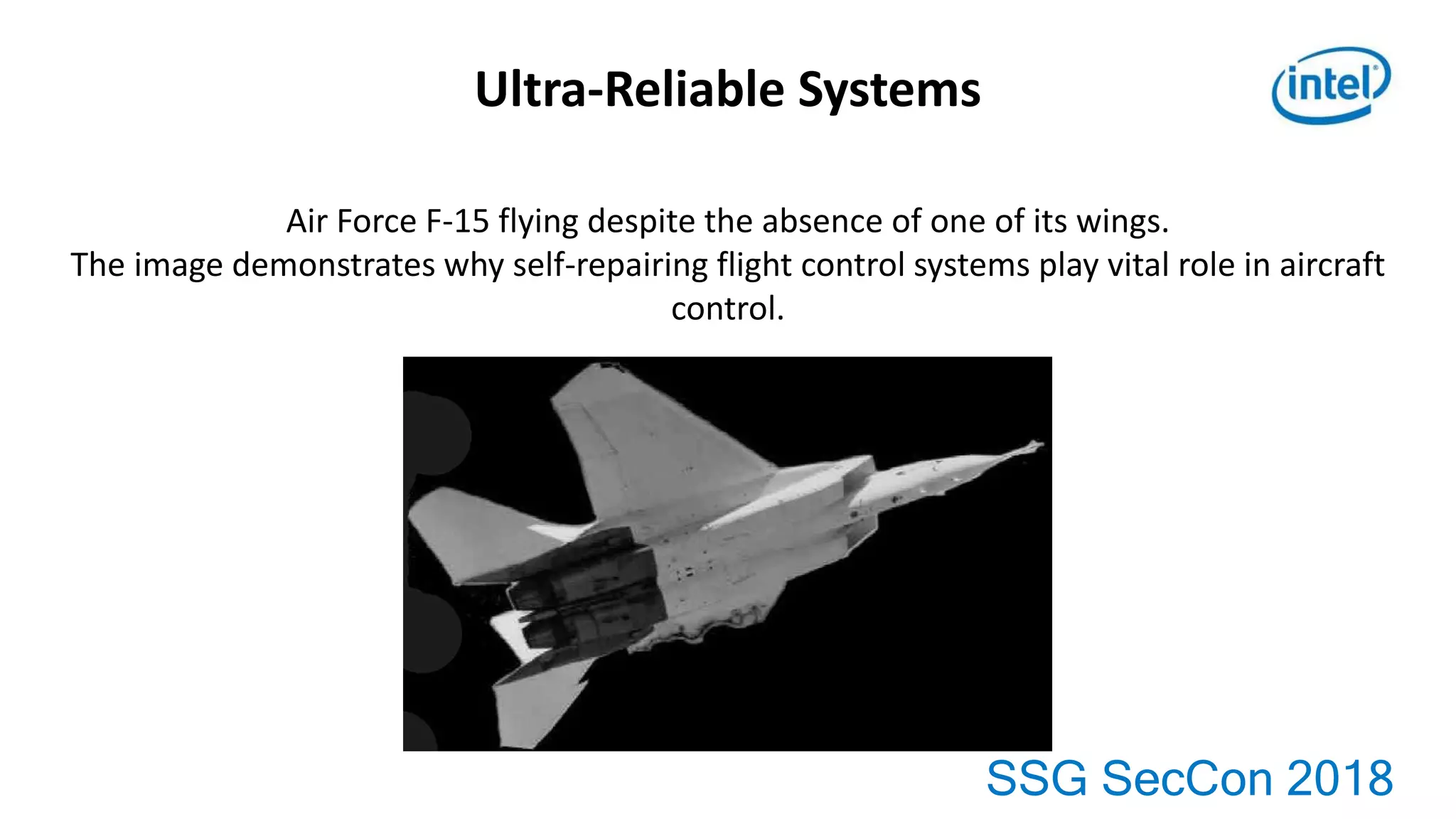

- 15. SSG SecCon 2018 Ultra-Reliable Systems Air Force F-15 flying despite the absence of one of its wings. The image demonstrates why self-repairing flight control systems play vital role in aircraft control.

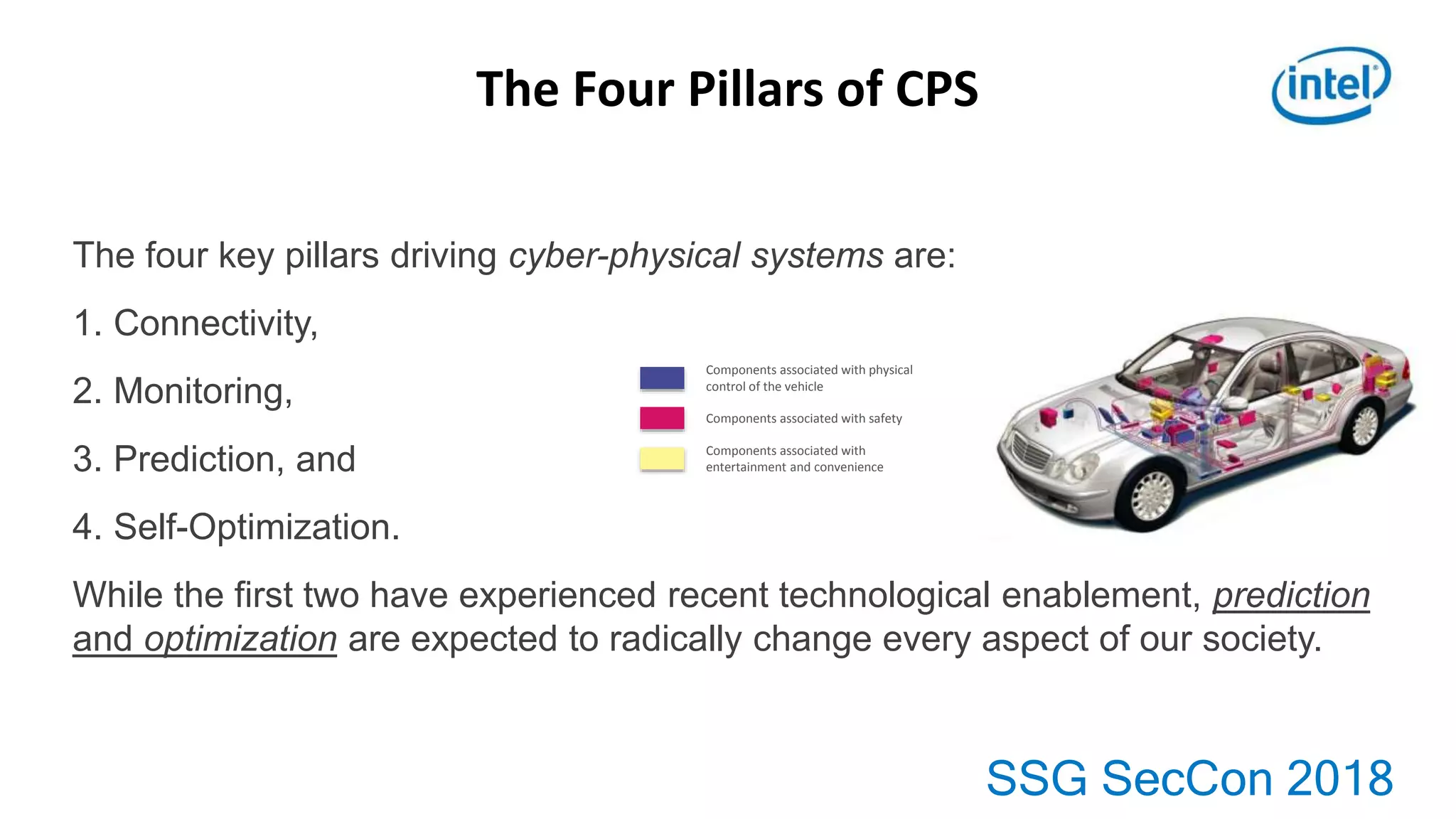

- 16. SSG SecCon 2018 The Four Pillars of CPS The four key pillars driving cyber-physical systems are: 1. Connectivity, 2. Monitoring, 3. Prediction, and 4. Self-Optimization. While the first two have experienced recent technological enablement, prediction and optimization are expected to radically change every aspect of our society. Components associated with physical control of the vehicle Components associated with safety Components associated with entertainment and convenience

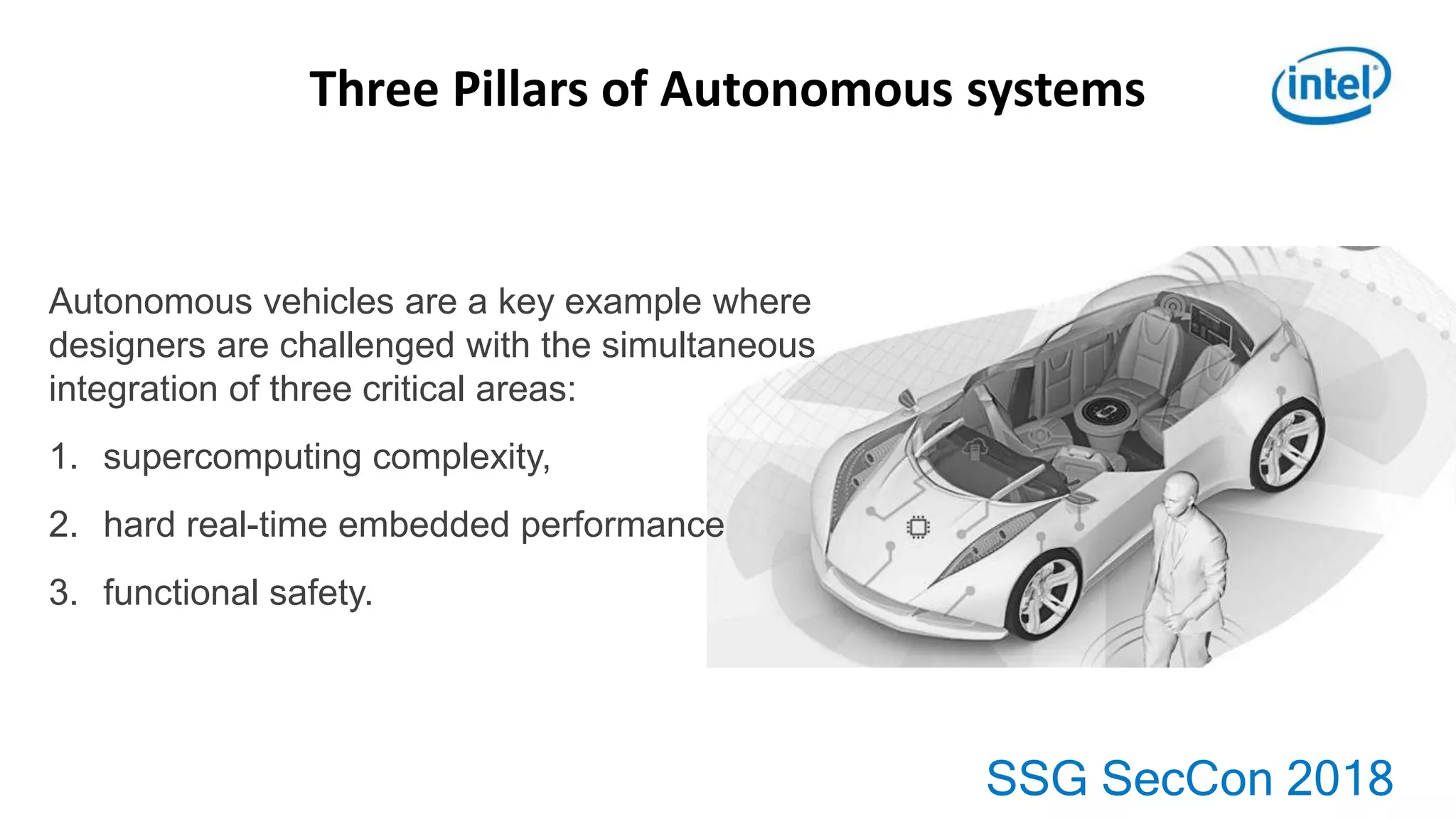

- 17. SSG SecCon 2018 Three Pillars of Autonomous systems Autonomous vehicles are a key example where designers are challenged with the simultaneous integration of three critical areas: 1. supercomputing complexity, 2. hard real-time embedded performance 3. functional safety.

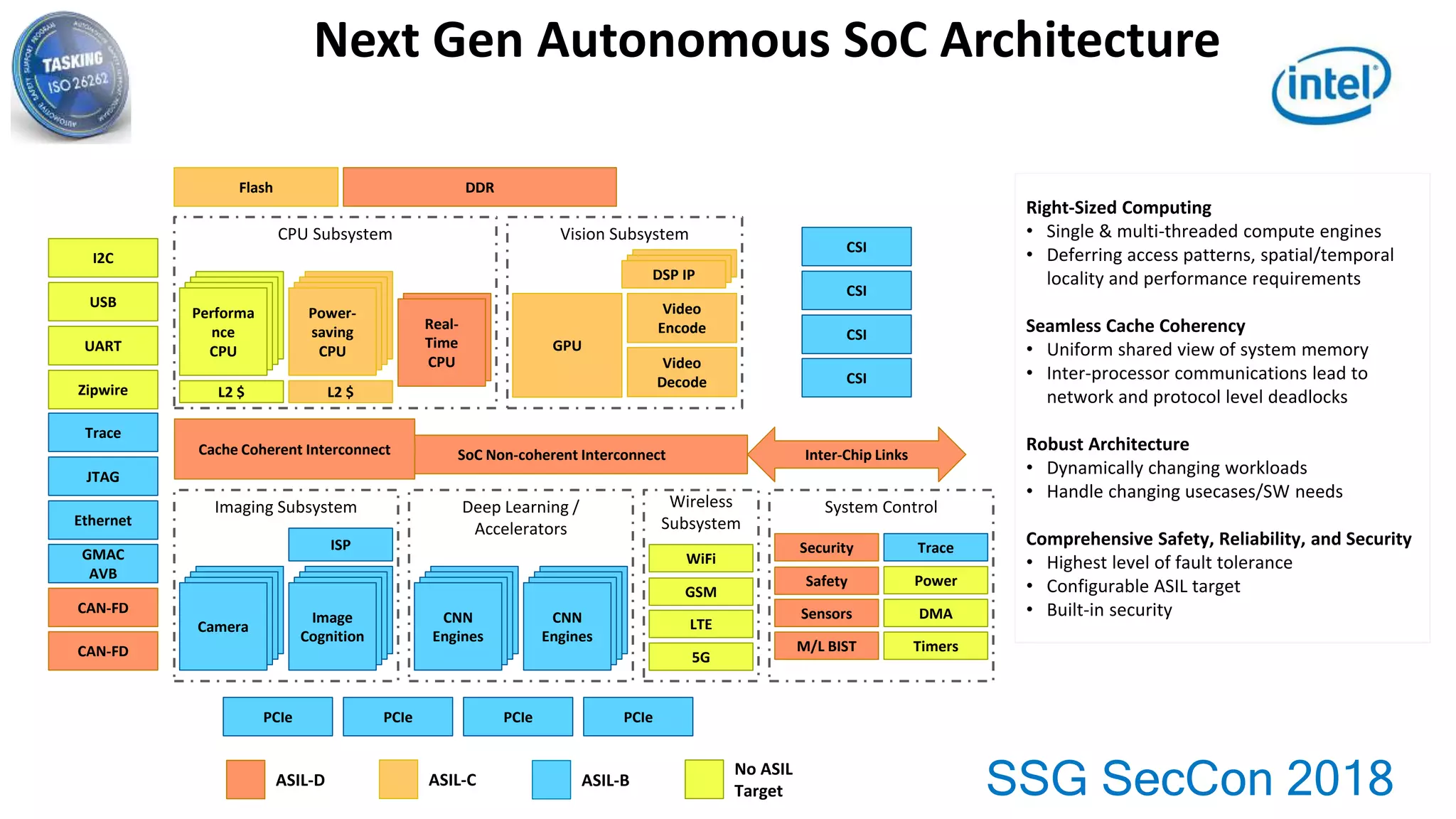

- 18. SSG SecCon 2018 Next Gen Autonomous SoC Architecture Right-Sized Computing • Single & multi-threaded compute engines • Deferring access patterns, spatial/temporal locality and performance requirements Seamless Cache Coherency • Uniform shared view of system memory • Inter-processor communications lead to network and protocol level deadlocks Robust Architecture • Dynamically changing workloads • Handle changing usecases/SW needs Comprehensive Safety, Reliability, and Security • Highest level of fault tolerance • Configurable ASIL target • Built-in security ASIL-D ASIL-C ASIL-B No ASIL Target PCIe PCIe PCIe PCIe CNN Engines CNN Engines Deep Learning / Accelerators CAN-FD CAN-FD SoC Non-coherent InterconnectCache Coherent Interconnect Wireless Subsystem Inter-Chip Links Camera Image Cognition ISP Imaging Subsystem Performa nce CPU Power- saving CPU CPU Subsystem Real- Time CPU L2 $ L2 $ Vision Subsystem GPU Video Encode Video Decode System Control Security Safety Sensors M/L BIST Trace Power DMA Timers GMAC AVB Ethernet Trace JTAG Flash DDR Zipwire UART USB CSI CSI CSI CSI I2C WiFi GSM LTE 5G DSP IP

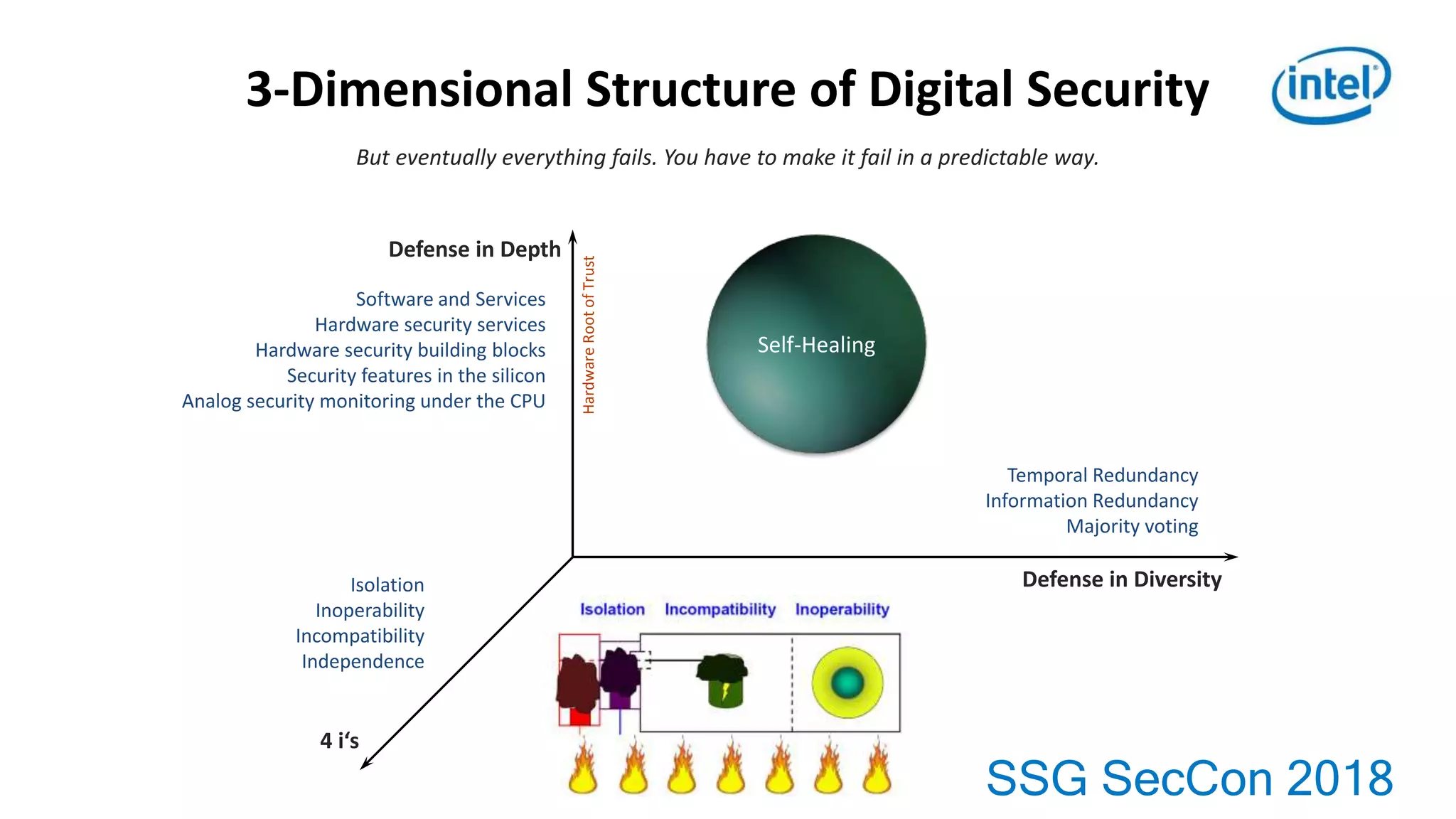

- 19. SSG SecCon 2018 3-Dimensional Structure of Digital Security Defense in Depth Defense in Diversity 4 i‘s Isolation Inoperability Incompatibility Independence But eventually everything fails. You have to make it fail in a predictable way. Temporal Redundancy Information Redundancy Majority voting Software and Services Hardware security services Hardware security building blocks Security features in the silicon Analog security monitoring under the CPU HardwareRootofTrust Self-Healing

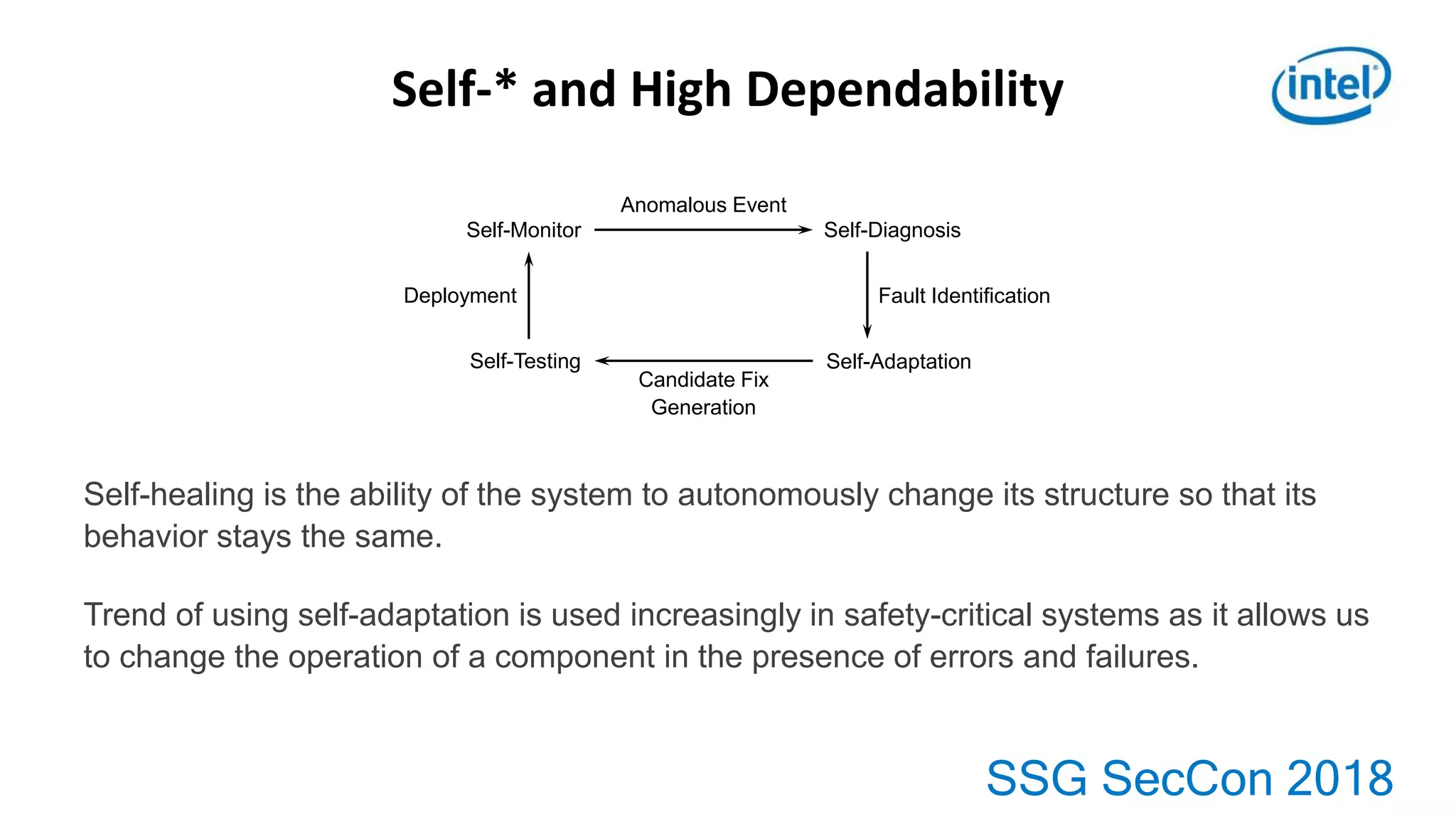

- 20. SSG SecCon 2018 Self-* and High Dependability Self-healing is the ability of the system to autonomously change its structure so that its behavior stays the same. Trend of using self-adaptation is used increasingly in safety-critical systems as it allows us to change the operation of a component in the presence of errors and failures. Self-Monitor Self-Diagnosis Anomalous Event Deployment Self-Testing Candidate Fix Generation Self-Adaptation Fault Identification
- 21. Thank you.

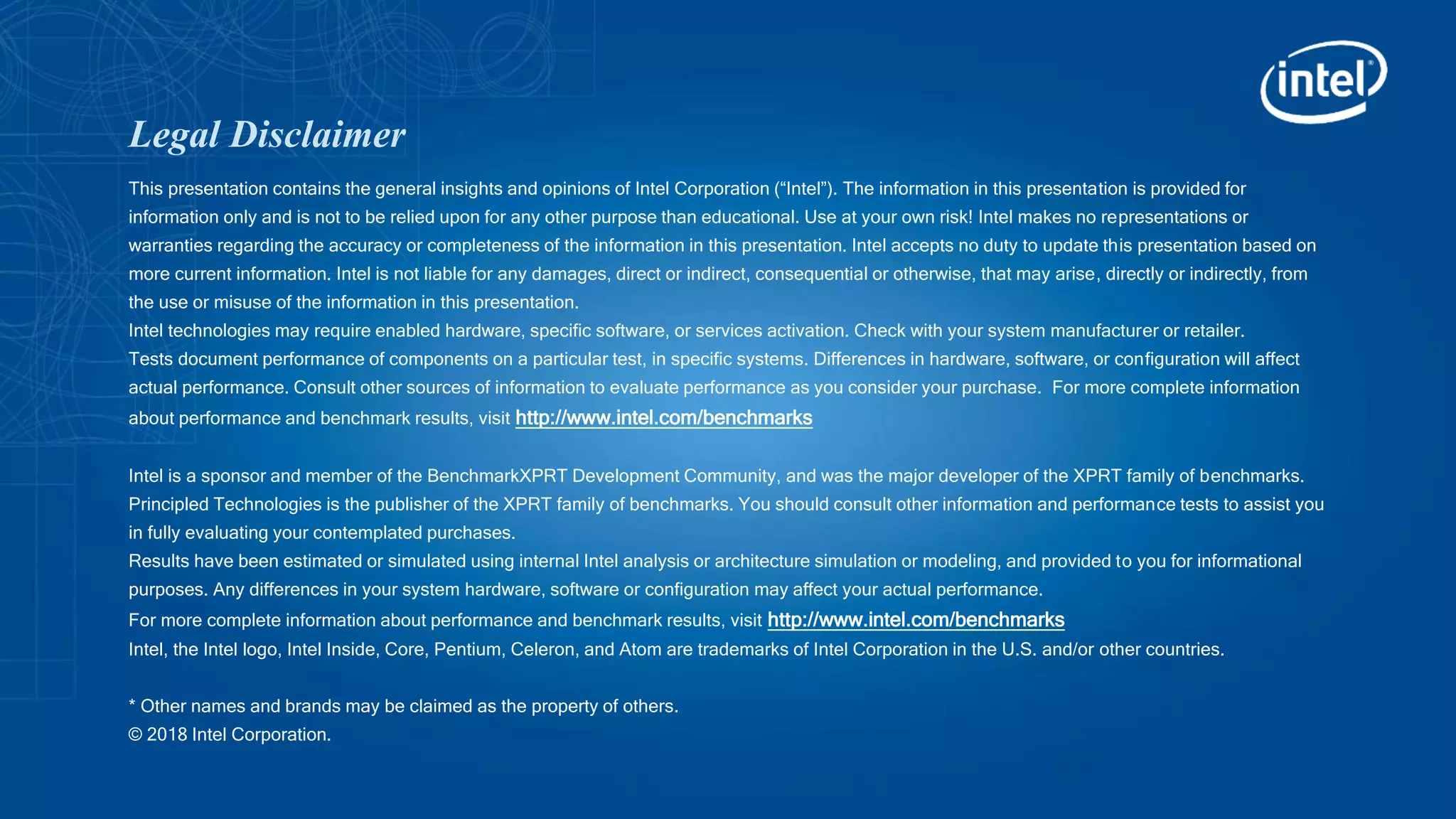

- 22. Legal Disclaimer This presentation contains the general insights and opinions of Intel Corporation (“Intel”). The information in this presentation is provided for information only and is not to be relied upon for any other purpose than educational. Use at your own risk! Intel makes no representations or warranties regarding the accuracy or completeness of the information in this presentation. Intel accepts no duty to update this presentation based on more current information. Intel is not liable for any damages, direct or indirect, consequential or otherwise, that may arise, directly or indirectly, from the use or misuse of the information in this presentation. Intel technologies may require enabled hardware, specific software, or services activation. Check with your system manufacturer or retailer. Tests document performance of components on a particular test, in specific systems. Differences in hardware, software, or configuration will affect actual performance. Consult other sources of information to evaluate performance as you consider your purchase. For more complete information about performance and benchmark results, visit http://www.intel.com/benchmarks Intel is a sponsor and member of the BenchmarkXPRT Development Community, and was the major developer of the XPRT family of benchmarks. Principled Technologies is the publisher of the XPRT family of benchmarks. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases. Results have been estimated or simulated using internal Intel analysis or architecture simulation or modeling, and provided to you for informational purposes. Any differences in your system hardware, software or configuration may affect your actual performance. For more complete information about performance and benchmark results, visit http://www.intel.com/benchmarks Intel, the Intel logo, Intel Inside, Core, Pentium, Celeron, and Atom are trademarks of Intel Corporation in the U.S. and/or other countries. * Other names and brands may be claimed as the property of others. © 2018 Intel Corporation.
Editor's Notes
- Every 30 years there is a new wave of things that computers do. Around 1950 they began to model events in the world (simulation), and around 1980 to connect people (communication). Since 2010 they have begun to engage with the physical world in a non-trivial way (embodiment – giving them bodies).
- http://blogs.blackberry.com/2016/12/ces-2017-holistic-security-for-the-software-defined-car/ Growing amount of software in contemporary cars—as the innovation is driven by software, the amount of software and its complexity grow exponentially. For example the amount of software in the 1990s was a few megabytes of binary code (e.g. Volvo S80) and today reaches over one gigabyte, excluding maps and other user data (e.g. Volvo XC90 of 2016).
- Miles All drivers: 10,658 miles (29.2 miles per day) Rural drivers: 12,264 miles Urban drivers: 9,709 miles Fatalities: Fatal crashes: 29,989 All fatalities: 32,675 Car occupants: 12,507 SUV occupants: 8,320 Pedestrians: 4,884 Motorcycle: 4,295 Bicyclists: 720 Large trucks: 587 Each day 29 people in the United States die in an alcohol-impaired driving crash; that is one person every 49 minutes. On average since 1982, one-third of all traffic fatalities were alcohol-impaired driving fatalities with more than 10,400 people killed in 2016. Almost 40 percent of alcohol-impaired driving fatalities are victims other than the drinking driver. 214 children aged 14 years or younger were killed in alcohol-impaired driving crashes in 2016. Rural areas are disproportionally affected by alcohol-impaired driving crashes and fatalities. The total economic cost of alcohol-impaired driving crashes was $121.5 billion in 2010 (including medical costs, earnings losses, productivity losses, legal costs, and vehicle damage). The more complex the system, the more potential anomalies hidden in the corners. While these anomalies may be rare, there are more than a billion car trips per day in the United States, greater than ten thousand times the number of daily airline flights. Google engineers speak about the “lazy driver,” the 93 percent of car accidents estimated to derive from human error. (Of course, human-factors specialists have long understood that human errors often are the result of poor system design and poor work practices.) Example of Interacting Requirements 1993 Accident to Airbus A320-211 Aircraft in Warsaw wet runway, crosswind Aircraft banked into crosswind Left wheels touched down 9 seconds after right pilot applied reverse thrust and spoilers but they were disabled until left gear compressed Why? Reverse thrust and spoilers must be disabled in the air Landing logic requires compression of both L&R gear Spoilers activate above 72 kts wheel speed or if both landing gear struts are compressed http://www.rvs.uni-bielefeld.de/publications/Incidents/DOCS/ComAndRep/Warsaw/warsaw-report.html
- In cybernetics and control theory, a setpoint (also set point, set-point) is the desired or target value for an essential variable, or process value of a system.[1] Departure of such a variable from its setpoint is one basis for error-controlled regulation using negative feedback for automatic control. [2]. The set point is usually abbreviated to SP, and the process value is usually abbreviated to PV.[3] https://en.wikipedia.org/wiki/Setpoint_(control_system)
- Gerard J Holzmann. The power of 10: rules for developing safety-critical code. Computer, 39(6):95–99, 2006.
- I sum up this model as design for security, ship, analyze, self-heal or quarantine, and treat (if required). Hackers too can generally pivot faster than product-makers so our approach must be anticipatory, flexible and resilient. I can see a world where we will have put hackers out of business. – Simon Segars, CEO, Arm
- Developers need to efficiently produce systems that meet safety and other key system-level requirements. This approach facilitates flexible and efficient integration of internal, 3rd party, and/or customer IP subsystems to support late design changes and potentially customer-specific technology/IP requirements.
- The speed of innovation is outpacing silicon design cycles, and what do you do about this challenge? The need is for adaptable chips.
- But eventually everything fails. You have to make it fail in a predictable way. Here, there are two strong links and one weak link. In case of failure, the weak link will disintegrate before the two strong links fail and detonate the warhead. Two strong links are made using different architecture (incompatibility). We already know that a “control” strategy fails worse than a “resilience” strategy. Temporal Redundancy: Read commands multiple times, Use median voting Information Redundancy: Process values multiple times, Store several copies in memory Use majority voting to schedule control commands independence – Design of subsystems to prevent common-mode and common-cause failures such that the failure of one subsystem does not affect the failure of another subsystem Incompatibility – the use of energy or information that will not be duplicated inadvertently Isolation – the predictable separation of weapon elements from compatible energy Inoperability – the predictable inability of weapon elements to function
- Despite considerable work in fault tolerance and reliability, software remains notoriously buggy and crash-prone. The current approach to ensuring the security and availability of software consists of a mix of different techniques: Proactive techniques seek to make the code as dependable as possible, through a combination of safe languages (e.g., Java [5]), libraries [6] and compilers [7, 8], code analysis tools and formal methods [9,10,11], and development methodologies. Debugging techniques aim to make post-fault analysis and recovery as easy as possible for the programmer that is responsible for producing a fix. Runtime protection techniques try to detect the fault using some type of fault isolation such as StackGuard [12] and FormatGuard [13], which address specific types of faults or security vulnerabilities. Containment techniques seek to minimize the scope of a successful exploit by isolating the process from the rest of the system, e.g., through use of virtual machine monitors such as VMWare or Xen, system call sandboxes such as Systrace [14], or operating system constructs such as Unix chroot(), FreeBSD’s jail facility, and others [15, 16]. Byzantine fault-tolerance and quorum techniques rely on redundancy and diversity to create reliable systems out of unreliable components [17, 1, 18]. These approaches offer a poor tradeoff between assurance, reliability in the face of faults, and performance impact of protection mechanisms. In particular, software availability has emerged as a concern of equal importance as integrity.
