Here.com implemented their website on AWS over time, starting with a single region and EC2 instances. They expanded to use CloudFront for caching, ElastiCache, and additional regions for latency. Performance issues prompted optimizations like refactoring stacks, right-sizing instances, and frontend improvements. Next steps include further performance fixes and using HTTP/2 when available. Lessons included starting small and iterating, being data-driven, automating pain points, and embracing limitations for workarounds.

1. berlin aws meetup: here.com on aws
Implementation timeline, pitfalls and lessons learned
Cristian Măgherușan-Stanciu
<cristian.magherusan-stanciu@here.com>
@magheru_san
June 16, 2015

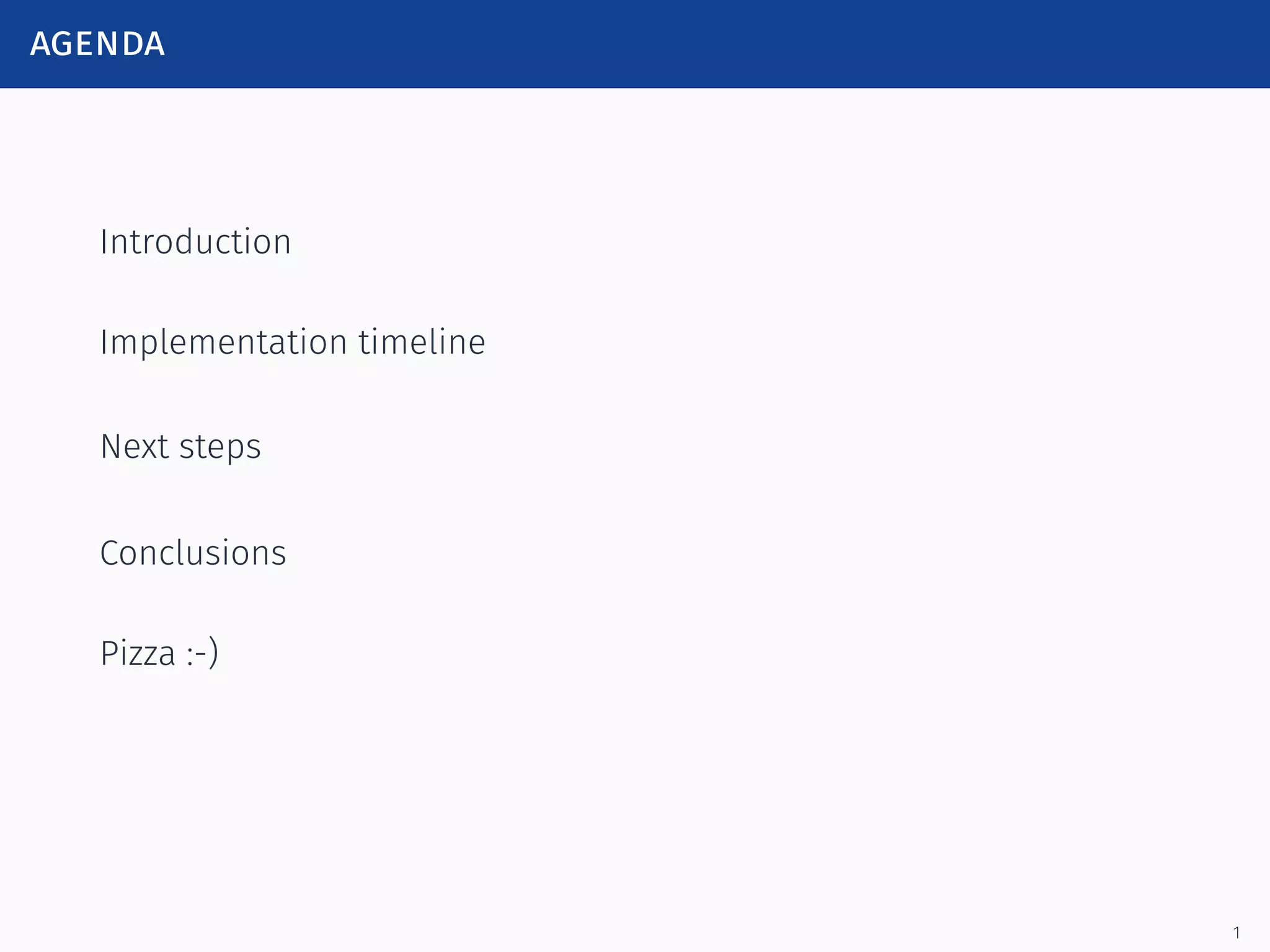

2. agenda
Introduction
Implementation timeline
Next steps
Conclusions
Pizza :-)
1

3. introduction

4. about here
HERE is a leading location company
∙ Over 6000 employees in 55 countries
∙ We own our map data
∙ state-of-the-art offline capabilities
∙ global map coverage
∙ weekly map updates
∙ location-based services around it
∙ Market leader in automotive
∙ in 4 out of 5 cars sold in the Western hemisphere
∙ Powering a myriad of partners, including
∙ Free apps on major mobile platforms
3

5. here in berlin
About us
∙ 820 internal employees and hiring :-)
∙ 56 countries and 25 languages, 36% germans
∙ 20% female
∙ Average age 36 years
∙ Interesting mix of start-up/enterprise culture
∙ AWS-first policy for all our services
4

6. about here.com
The main consumer website of HERE
∙ Designed to seamlessly integrate with, and complement the
native mobile apps
∙ Reference implementation for many capabilities
∙ Re-written from scratch since Fall 2013
∙ Modern technology stack
5

7. about here.com
About the new version of here.com
∙ Re-launched only 6 months ago
∙ Monthly page loads in the tens of millions
∙ Traffic growing fast, already 3x since the re-launch
∙ Hosted on AWS
6

8. here.com screenshots
7

9. implementation timeline

10. oct 2013 - initial architecture
First AWS setup
9

11. oct 2013 - first commits
Simple way to run the application
∙ Relatively easy to bootstrap
∙ reused as much as we could from our hello_world skeleton service
∙ Application running on EC2 instances
∙ Single AWS region
∙ Users would connect directly to the ELB
∙ All AWS infrastructure defined using CloudFormation
∙ stacks based on a reused hello_world template
∙ Primitive continuous delivery pipeline: Jenkins, Puppet, cron
10

12. dec 2013 - first internal release
’Backstage’ launch
∙ Shared with all HERE employees
∙ A few hundreds of daily users
∙ Started to get valuable feedback, mostly about the UX
∙ Production configuration snapshot-ed manually before the
launch
∙ No major architecture changes
11

13. jan 2014 - infrastructure improvements
Deployment orchestration changes
∙ Fully controlled by Jenkins via ec2_collective/SQS
∙ Production deployments triggered automatically after every
commit
∙ no longer relying on cron
∙ we can easily see deployment failures in the Job output
∙ automated configuration snapshot-ing for Production
12

14. jan 2014 - infrastructure improvements
Relatively large number of Dev environments
∙ Created and maintained manually via CloudFormation
∙ Configurations started drifting
∙ It became tedious to update them in case of a needed mass
change
∙ The clouds tool was written during a ’Research Week’
∙ makes it so much easier to manage diverging stacks
∙ released on Github as GPL2
∙ can be gem install-ed
13

15. aug 2014 - alpha release
Released to hundreds of selected preview users
∙ Capacity planning&load tests, all looked great
∙ Architecture remained almost the same
∙ added ElastiCache(memcached) as shared temporary storage
∙ worked around SQS limitations: split queues by environment
∙ Slow loading performance reports, triggered some actions
∙ started using NewRelic for Real User Monitoring(RUM)
∙ implemented WebPageTest(WPT) automation in our CI
14

16. oct 2014 - beta release
Opt-in release from the legacy website
∙ Beta invites implemented using SES
∙ Thousands of users world-wide
∙ More capacity planning
∙ Added CloudFront CDN for static files
15

17. oct 2014 - beta release
Beta architecture
16

18. oct 2014 - beta release
CloudFront setup details
∙ S3 bucket as origin
∙ Dev/prod S3 bucket sync, IAM cross-account bucket policy
∙ Noticed worse performance in NewRelic, WTH?
∙ CloudFront limitation: won’t compress content
∙ explicit gzip compression needed, scripted at build time
∙ upload already compressed files to S3
∙ only compress the files when it helps (>1KB size reduction)
∙ Required HTTP headers, set as S3 object metadata
∙ MIME type
∙ gzip encoding
∙ caching duration (we use half a year by default)
17

19. oct 2014 - beta release
File path conventions
∙ File paths depend on the file content:
/static_content/path/to/file.css_d34db33f
∙ ’d34db33f’ is the result of
sha256(plain_file_content)[0..7]
∙ path translation table
∙ all files under one directory for easy filtering later
∙ intentionally decoupled from what’s deployed on EC2
∙ idempotent content updates
18

20. oct 2014 - beta release
Still single region
∙ Limitation of our custom continuous deployment automation
was fixed, but it was too late
∙ Initial test results
∙ CloudFront static file caching would hide this well enough
∙ NewRelic and WebPageTest results deemed acceptable
19

21. dec 2014 - launch
Launch architecture
20

22. dec 2014 - launch
All traffic from the legacy environment (HTTP redirect)
∙ Millions of users world-wide, more capacity planning needed
∙ Extended CloudFront, now also used for dynamic content
∙ Decided to implement dynamic-CloudFront before multi-region,
more benefits for little extra costs
∙ OCSP Stapling - no more extra blocking call to your CA: 80-400ms
saving
∙ early TCP termination: 50-500ms saving
∙ long-living connections between CloudFront and ELB
∙ HTTP redirects to HTTPS: 50-500ms saving for plain HTTP users
∙ Browsers: one less domain to resolve, less TCP connections to
maintain, less CPU usage
21

23. jan 2015 - multi-region
Desired setup
22

24. jan 2015 - multi-region
First expansion attempt
∙ Latency-based routing with Route53, really straightforward
∙ No other architecture changes were needed
∙ Deployed to Singapore and Frankfurt in addition to existing
Virginia
∙ Soon realized that Frankfurt was broken a bit ’special’ :-)
∙ different way to define ElastiCache SGs (VPC-only region)
∙ ElastiCache was not yet supported by CloudFormation there
23

25. jan 2015 - multi-region
With Singapore added, we noticed almost no performance
improvement - WTH?
∙ Investigation immediately revealed NewRelic setup errors
∙ incorrectly included in HTML
∙ we were missing metrics from the slowest clients! :-(
∙ Fixed the NewRelic configuration
∙ noticed how slow we really were in most geographies
24

26. jan 2015 multi-region
Investigating the lack of performance improvements
∙ Backend performance issues in Singapore
∙ Only shifting network latency, not overcoming it
∙ Root cause: some APIs we depend on when rendering HTML
were deployed in remote regions
25

27. jan 2015 - multi-region
Speeding up Singapore
∙ Avoid blocking API calls from the landing page
∙ replaced one with a local GeoIP database, removed another
∙ backend performance improved 50x
26

28. apr-may 2015 - performance issues
Loading performance was lagging behind our competitors
∙ They improved significantly
∙ We got many new users from emerging markets
∙ Visible in user feedback and bounce rates
∙ Had to take some actions
27

29. apr-may 2015 - magellan
Our current ways of working, Magellan, set up in Jan 2015
∙ Self-organizing, temporary, cross-functional teams mandated by
management to increase a metric
∙ Bottom-up innovation
∙ everyone chooses their team
∙ design, implementation and release is team’s responsibility
∙ management reviews the progress and provides some advice
∙ First iteration (Jan - Apr): post-launch usability improvements
∙ Second iteration: tech debt and performance fixes
28

30. apr-may 2015 - magellan
Improving our performance
∙ Goal of one of the teams
∙ bring load performance back on par with the competition
∙ Actions that were taken
∙ finally launched Frankfurt(fixed in the meantime)
∙ also Sydney and California
∙ refactored our CloudFormation stacks (now all identical)
∙ instances were right-sized
∙ devs heavily optimized the application for faster loading
∙ DevOps at its best
29

31. apr-may 2015 - magellan
Results
∙ Visual progress now comparable to Google maps our
competition :-)
∙ Global loading time average reduced by about a second
∙ Lots of improvement ideas were added to the backlog
∙ More fixes to be implemented soon 30

32. next steps

33. next steps
More performance improvements
∙ Fix some remaining bugs
∙ we’d finish loading 2-3 seconds earlier
∙ but minimal visual progress changes
∙ SPDY HTTP2 on CloudFront
∙ AWS has to implement it
∙ eventual application changes
∙ reverse proxy through CloudFront some of our client APIs
32

34. conclusions

35. conclusions
In no particular order
∙ Start small
∙ Iterate continuously
∙ Be data-driven in decision making (A/B, user feedback, RUM,
WPT)
∙ Not all AWS regions are (born) equal
∙ Expect and embrace AWS limitations
∙ Workarounds sometimes lead to bigger improvements (cache
busting, clouds)
∙ CloudFront is excellent at HTTPS website acceleration, use it!
∙ Automate anything that bothers you
∙ DevOps FTW!
34

36. Questions
35

37. references and credits
Resources
∙ Clouds on GitHub https://github.com/cristim/clouds
∙ Any used logos and images are © of their respective authors
36
