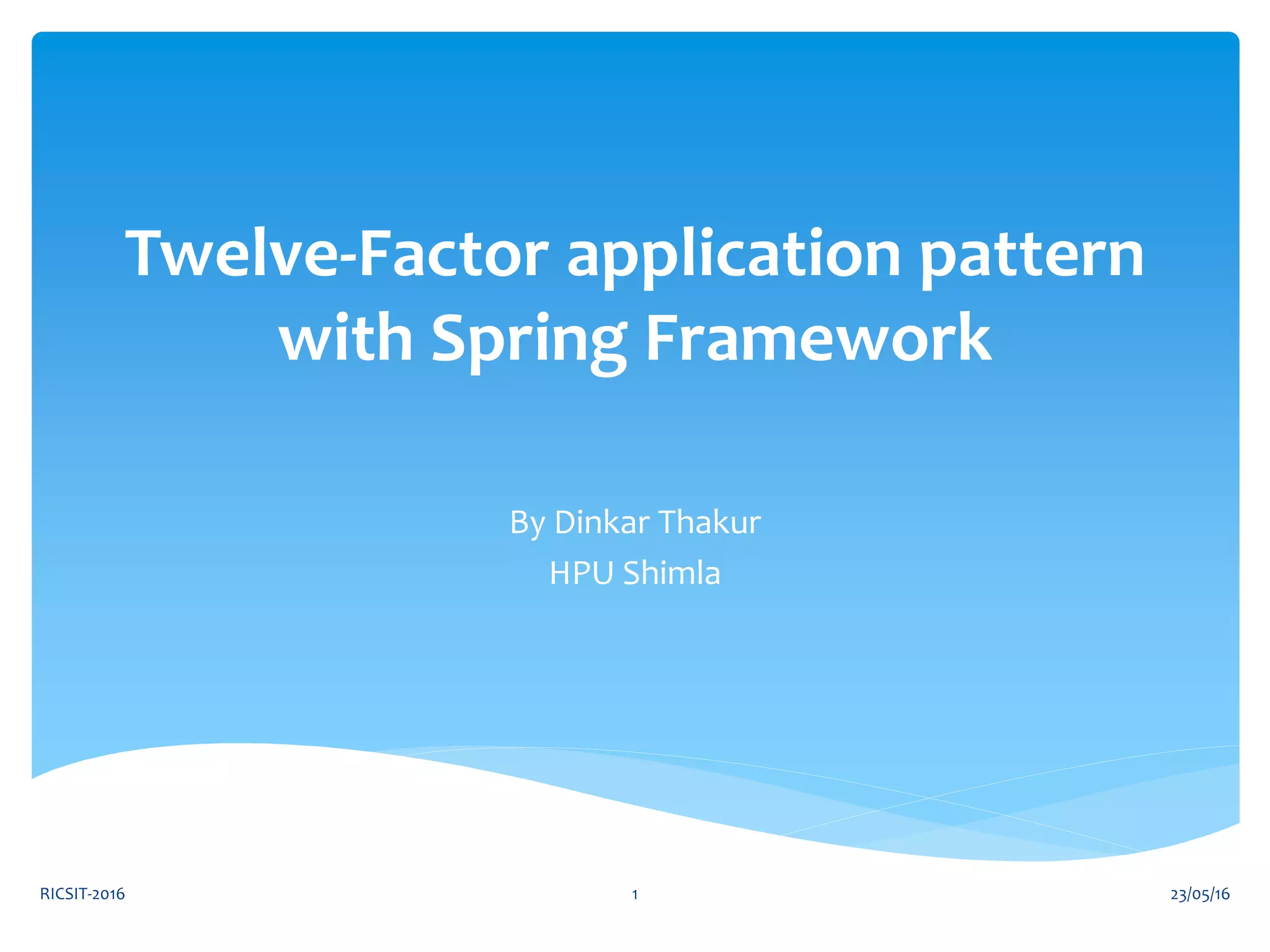

1. Twelve-Factor application pattern
with Spring Framework
By Dinkar Thakur
HPU Shimla
23/05/16RICSIT-2016 1

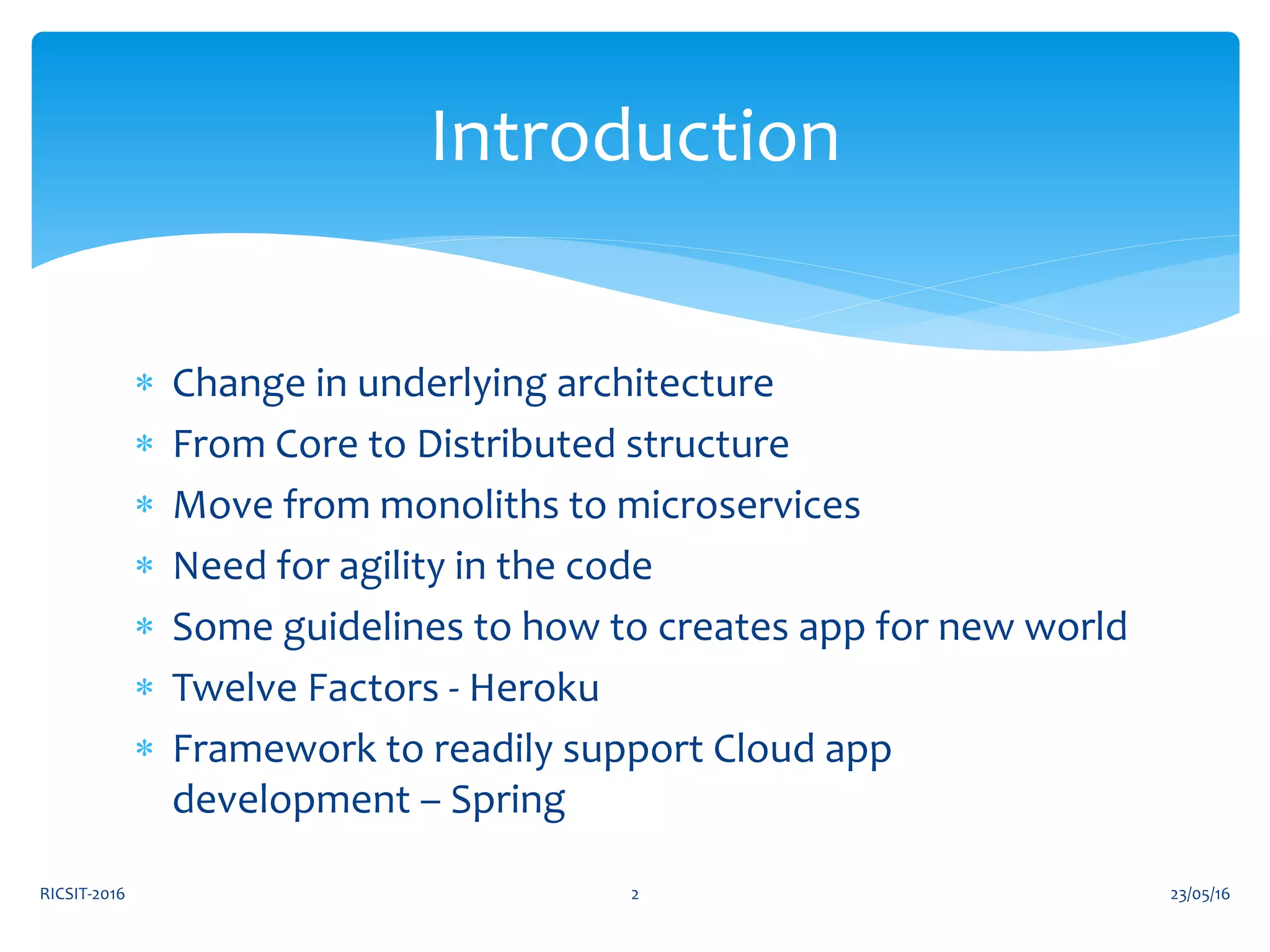

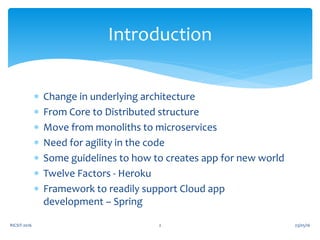

2.  Change in underlying architecture
 From Core to Distributed structure
 Move from monoliths to microservices
 Need for agility in the code
 Some guidelines to how to creates app for new world
 Twelve Factors - Heroku
 Framework to readily support Cloud app
development – Spring
23/05/16RICSIT-2016 2
Introduction

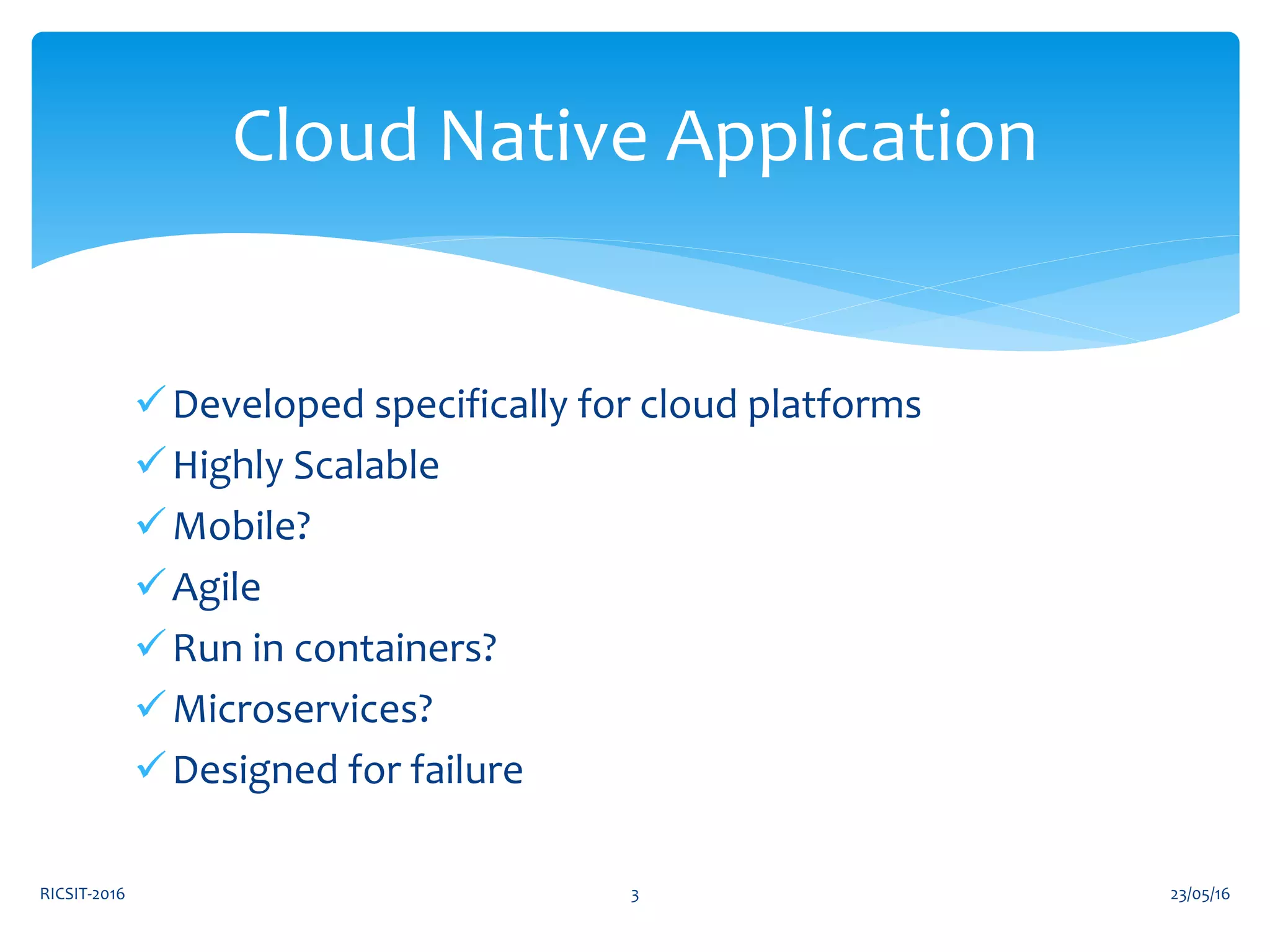

3. Developed specifically for cloud platforms
Highly Scalable
Mobile?
Agile
Run in containers?
Microservices?
Designed for failure
23/05/16RICSIT-2016 3
Cloud Native Application

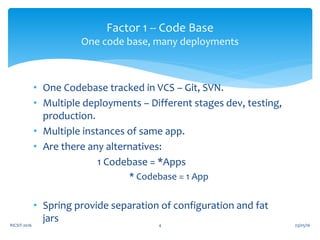

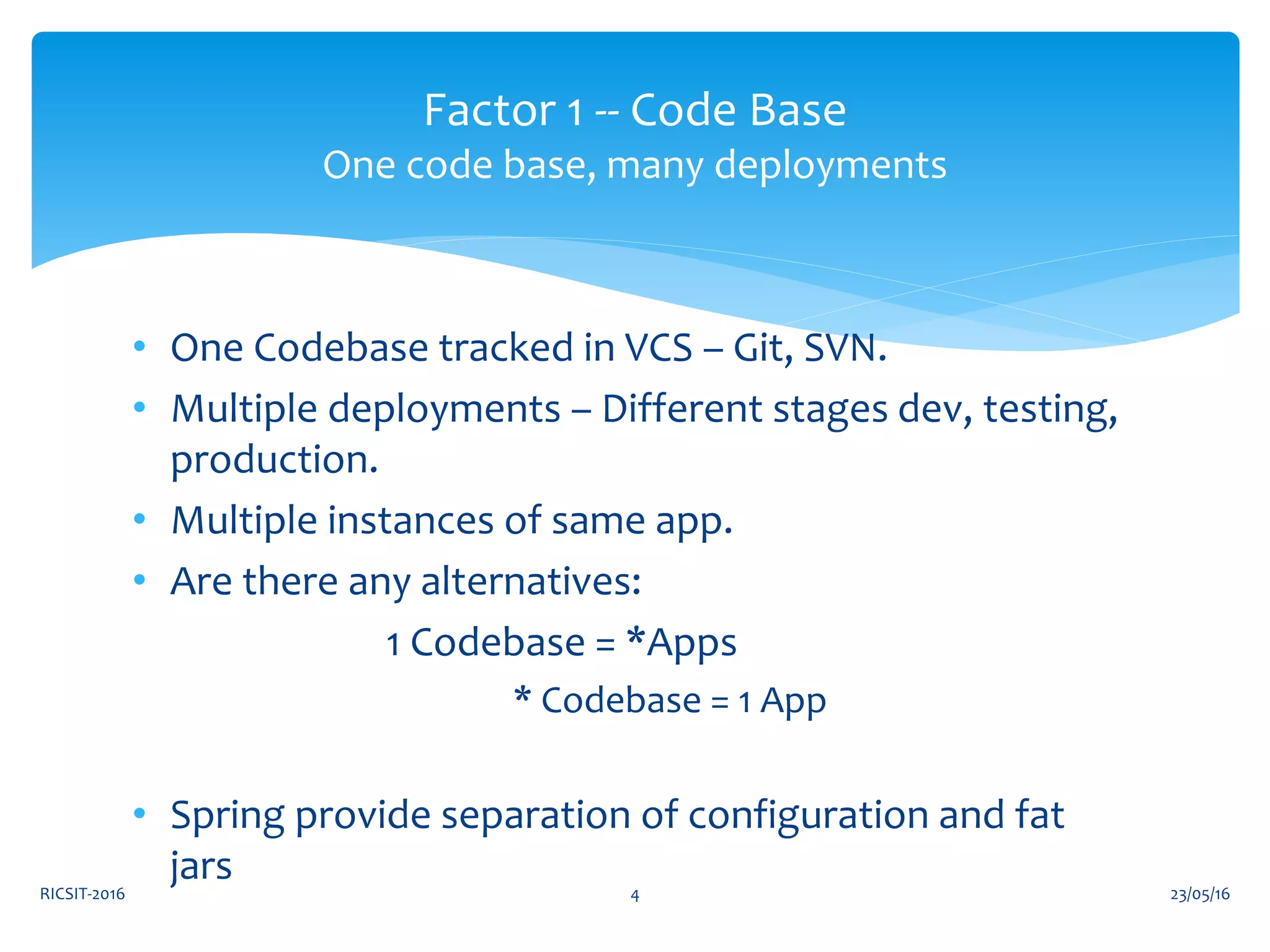

4. • One Codebase tracked in VCS – Git, SVN.
• Multiple deployments – Different stages dev, testing,
production.
• Multiple instances of same app.
• Are there any alternatives:
1 Codebase = *Apps
* Codebase = 1 App
• Spring provide separation of configuration and fat
jars 23/05/16RICSIT-2016 4
Factor 1 -- Code Base
One code base, many deployments

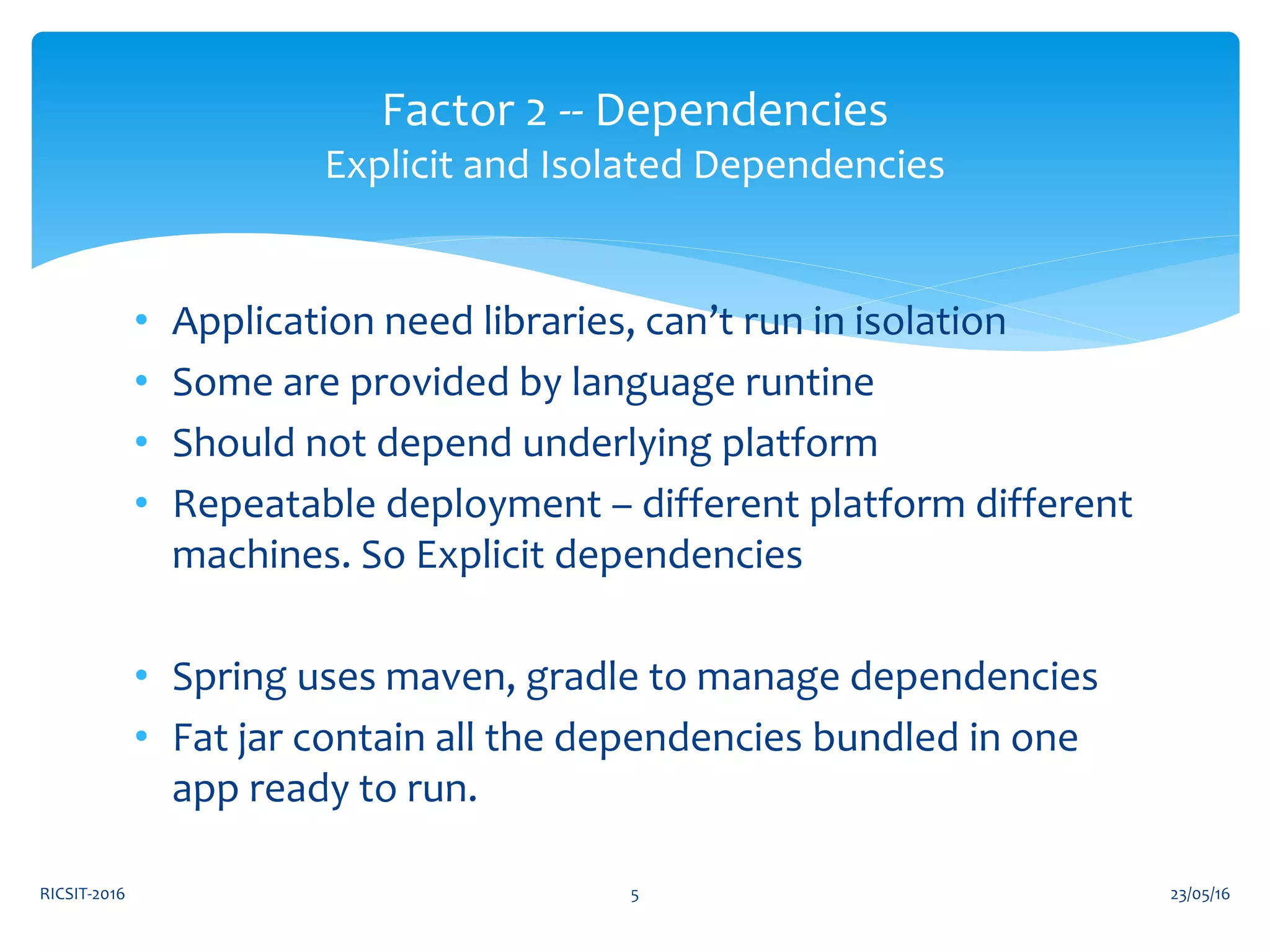

5. • Application need libraries, can’t run in isolation
• Some are provided by language runtine
• Should not depend underlying platform
• Repeatable deployment – different platform different
machines. So Explicit dependencies
• Spring uses maven, gradle to manage dependencies
• Fat jar contain all the dependencies bundled in one
app ready to run.
23/05/16RICSIT-2016 5
Factor 2 -- Dependencies
Explicit and Isolated Dependencies

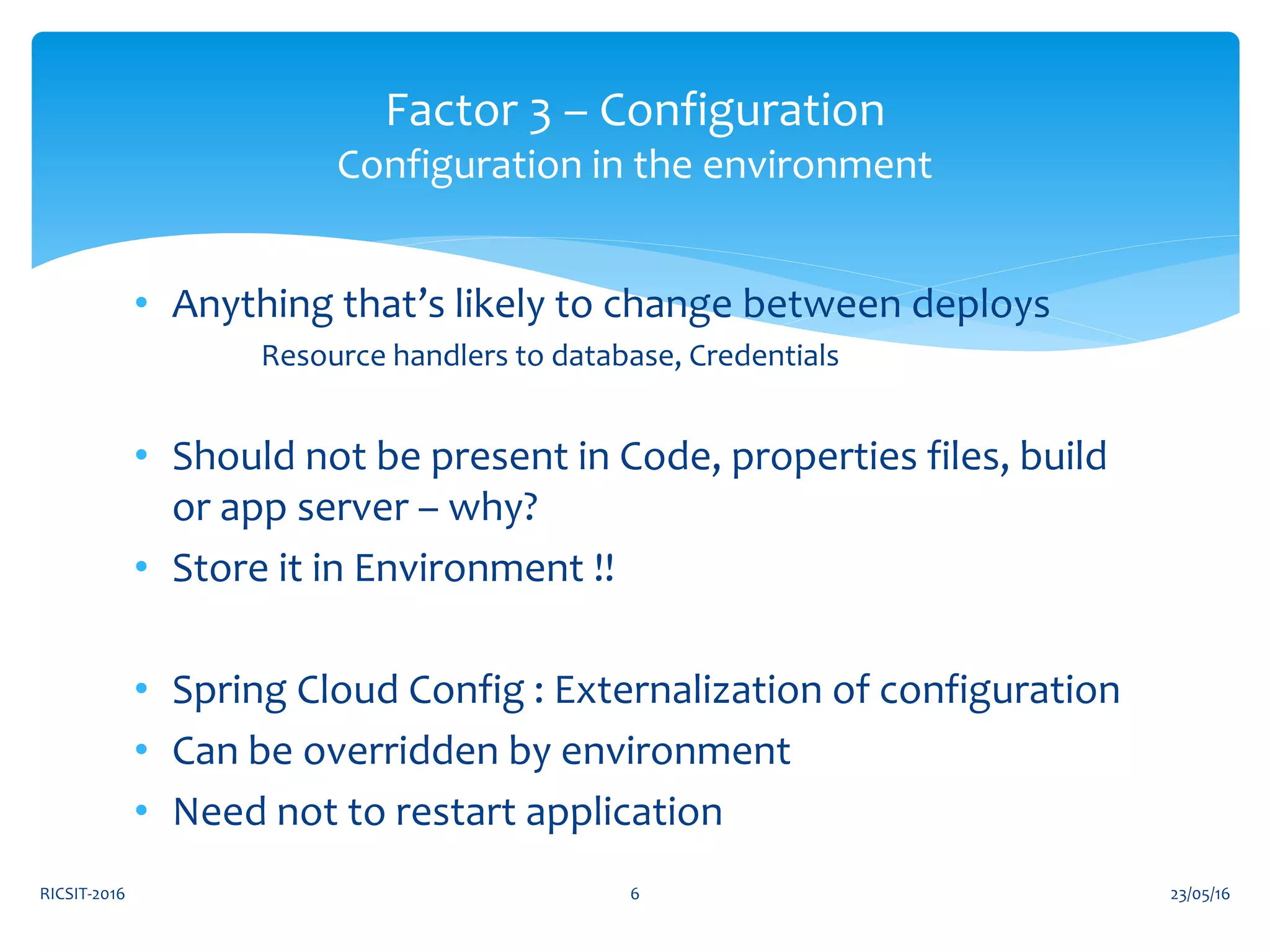

6. • Anything that’s likely to change between deploys
Resource handlers to database, Credentials
• Should not be present in Code, properties files, build
or app server – why?
• Store it in Environment !!
• Spring Cloud Config : Externalization of configuration
• Can be overridden by environment
• Need not to restart application
23/05/16RICSIT-2016 6
Factor 3 – Configuration
Configuration in the environment

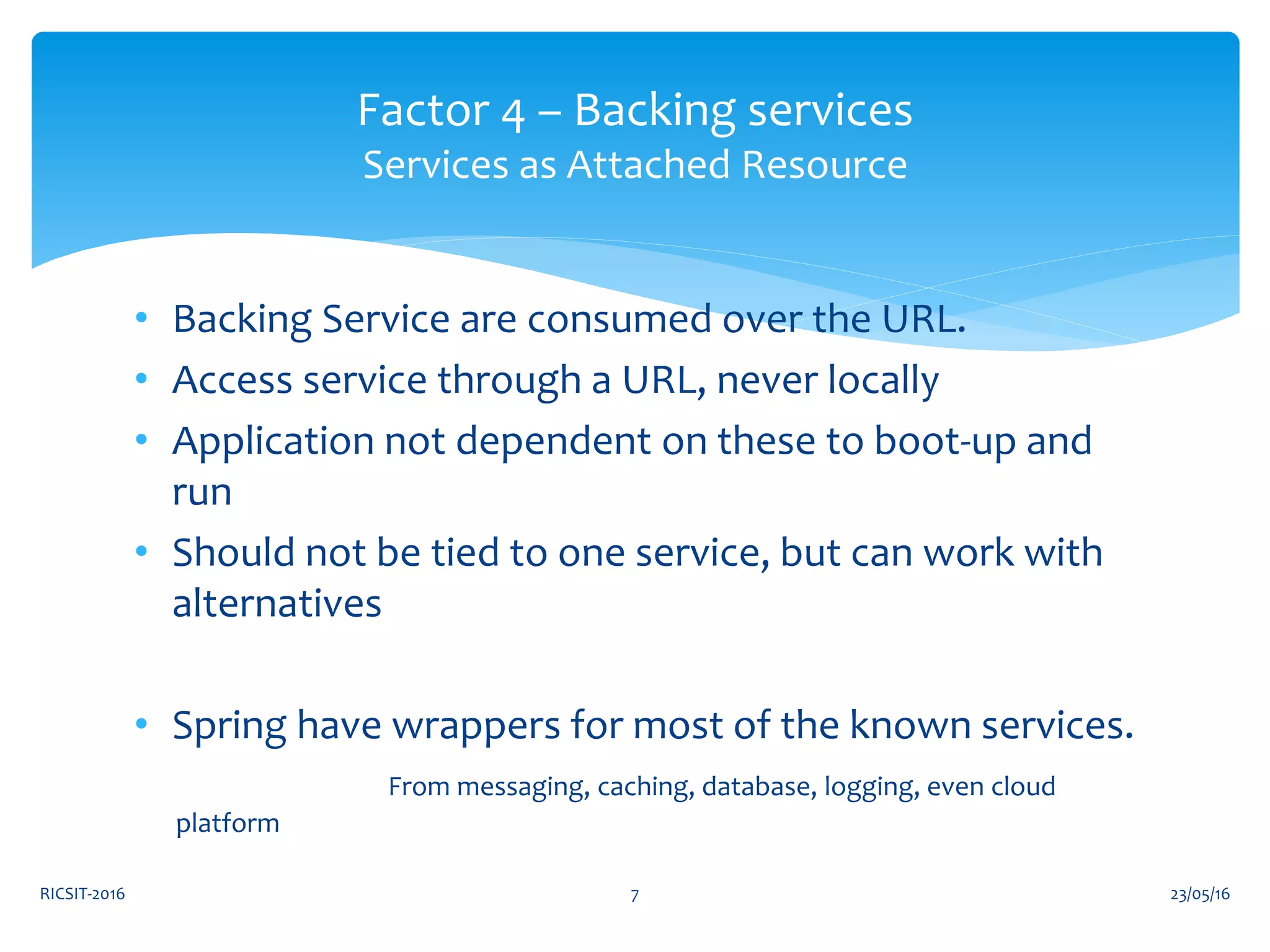

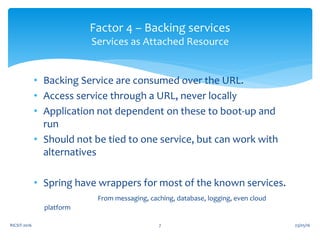

7. • Backing Service are consumed over the URL.
• Access service through a URL, never locally
• Application not dependent on these to boot-up and
run
• Should not be tied to one service, but can work with
alternatives
• Spring have wrappers for most of the known services.
From messaging, caching, database, logging, even cloud
platform
23/05/16RICSIT-2016 7
Factor 4 – Backing services
Services as Attached Resource

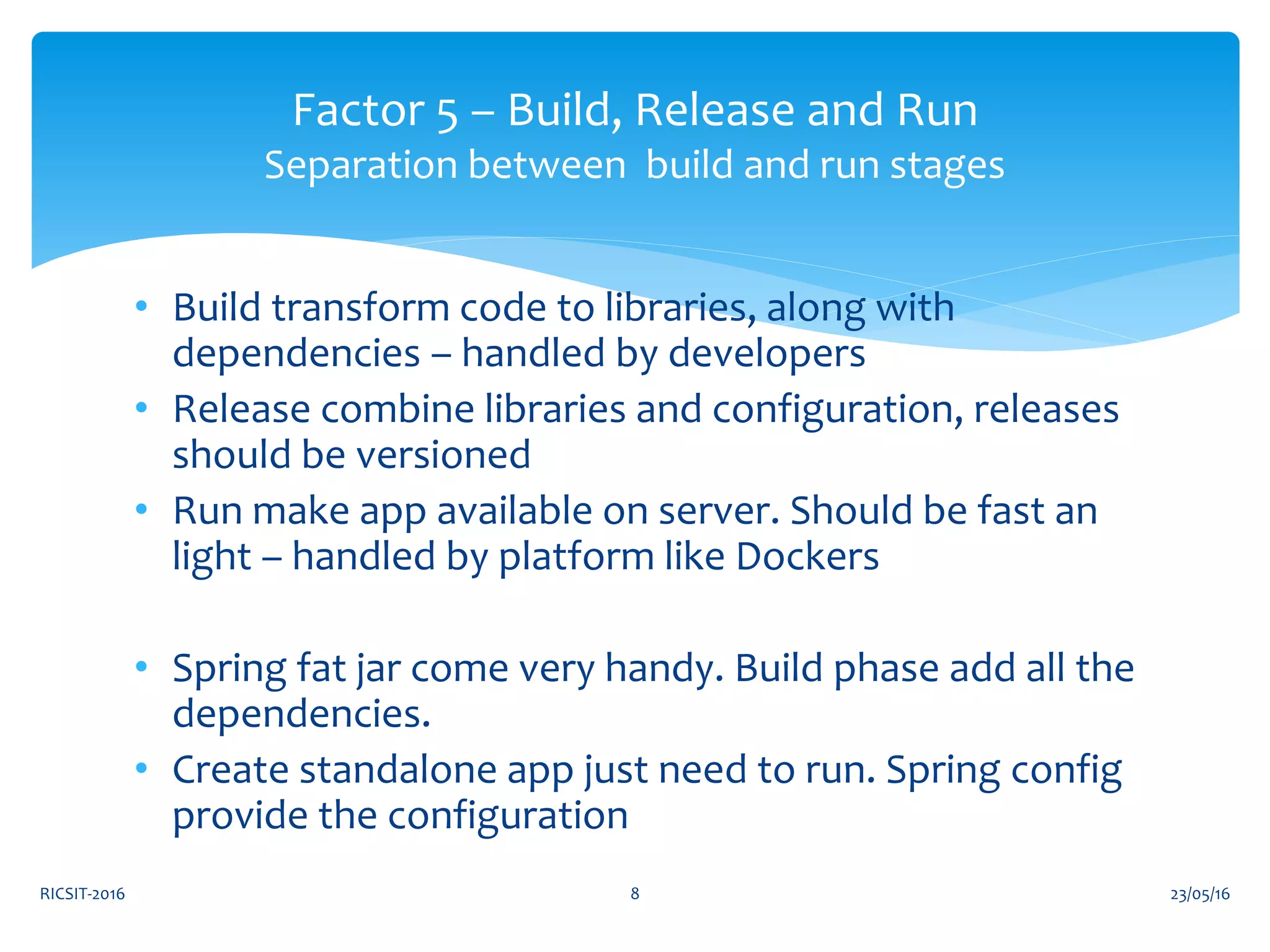

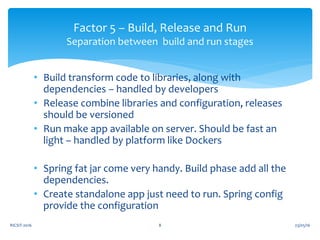

8. • Build transform code to libraries, along with
dependencies – handled by developers
• Release combine libraries and configuration, releases
should be versioned
• Run make app available on server. Should be fast an
light – handled by platform like Dockers
• Spring fat jar come very handy. Build phase add all the
dependencies.
• Create standalone app just need to run. Spring config
provide the configuration
23/05/16RICSIT-2016 8
Factor 5 – Build, Release and Run
Separation between build and run stages

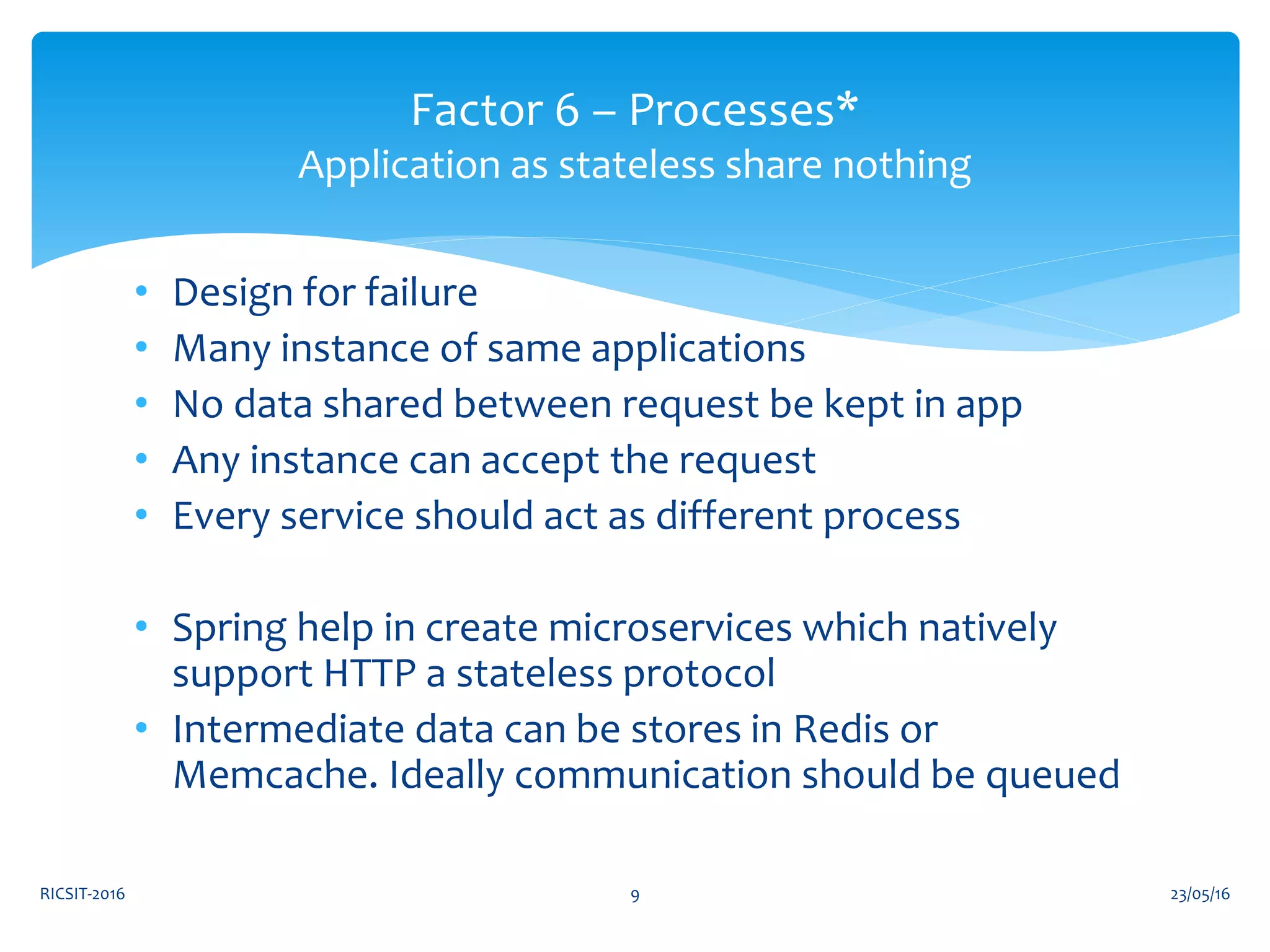

9. • Design for failure
• Many instance of same applications
• No data shared between request be kept in app
• Any instance can accept the request
• Every service should act as different process
• Spring help in create microservices which natively
support HTTP a stateless protocol
• Intermediate data can be stores in Redis or
Memcache. Ideally communication should be queued
23/05/16RICSIT-2016 9
Factor 6 – Processes*
Application as stateless share nothing

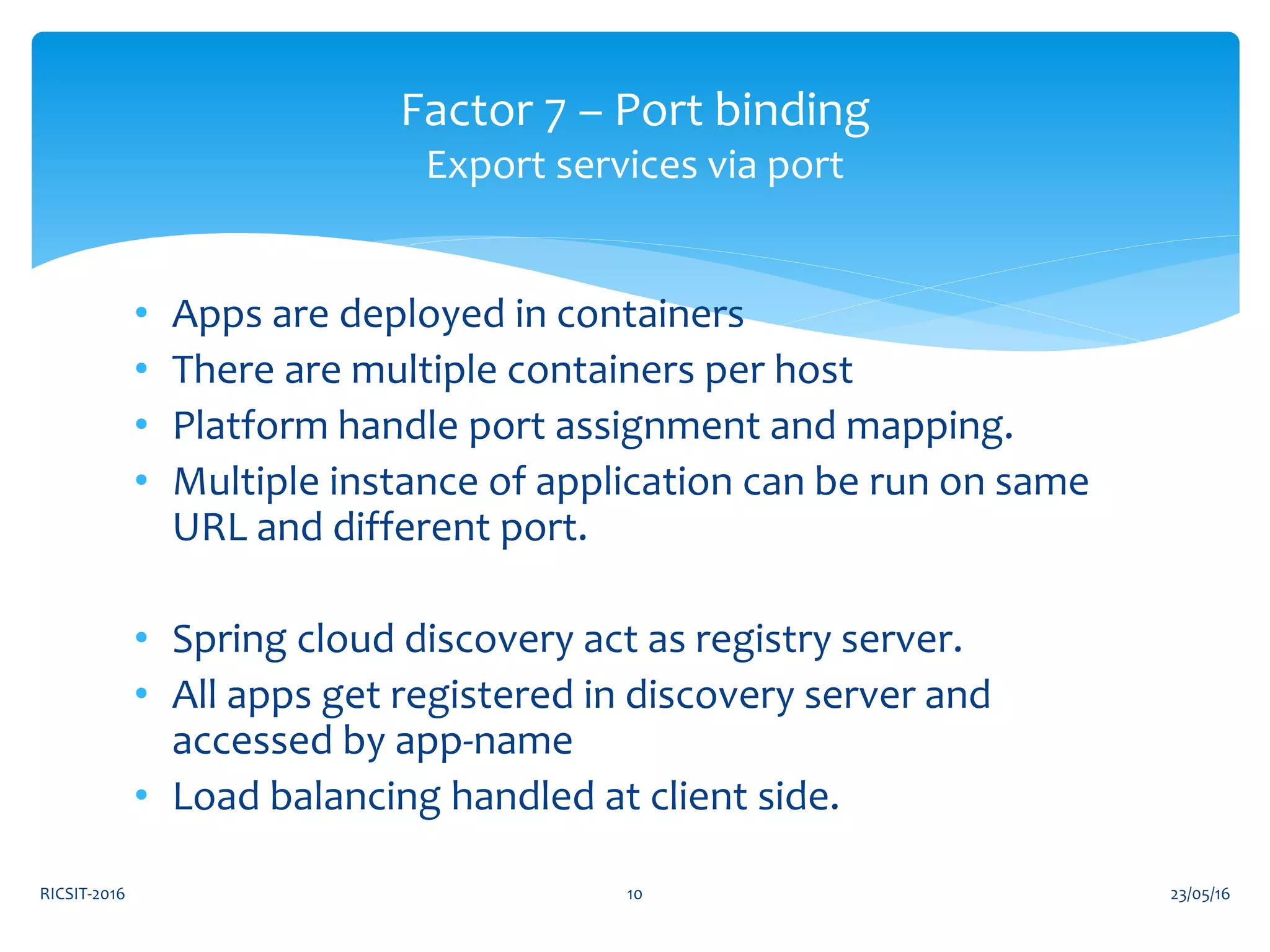

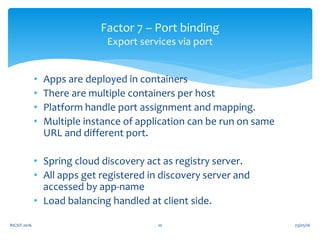

10. • Apps are deployed in containers
• There are multiple containers per host
• Platform handle port assignment and mapping.
• Multiple instance of application can be run on same
URL and different port.
• Spring cloud discovery act as registry server.
• All apps get registered in discovery server and
accessed by app-name
• Load balancing handled at client side.
23/05/16RICSIT-2016 10
Factor 7 – Port binding
Export services via port

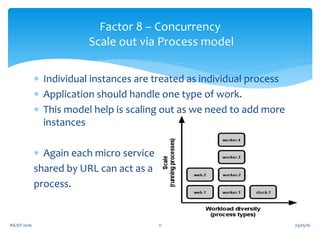

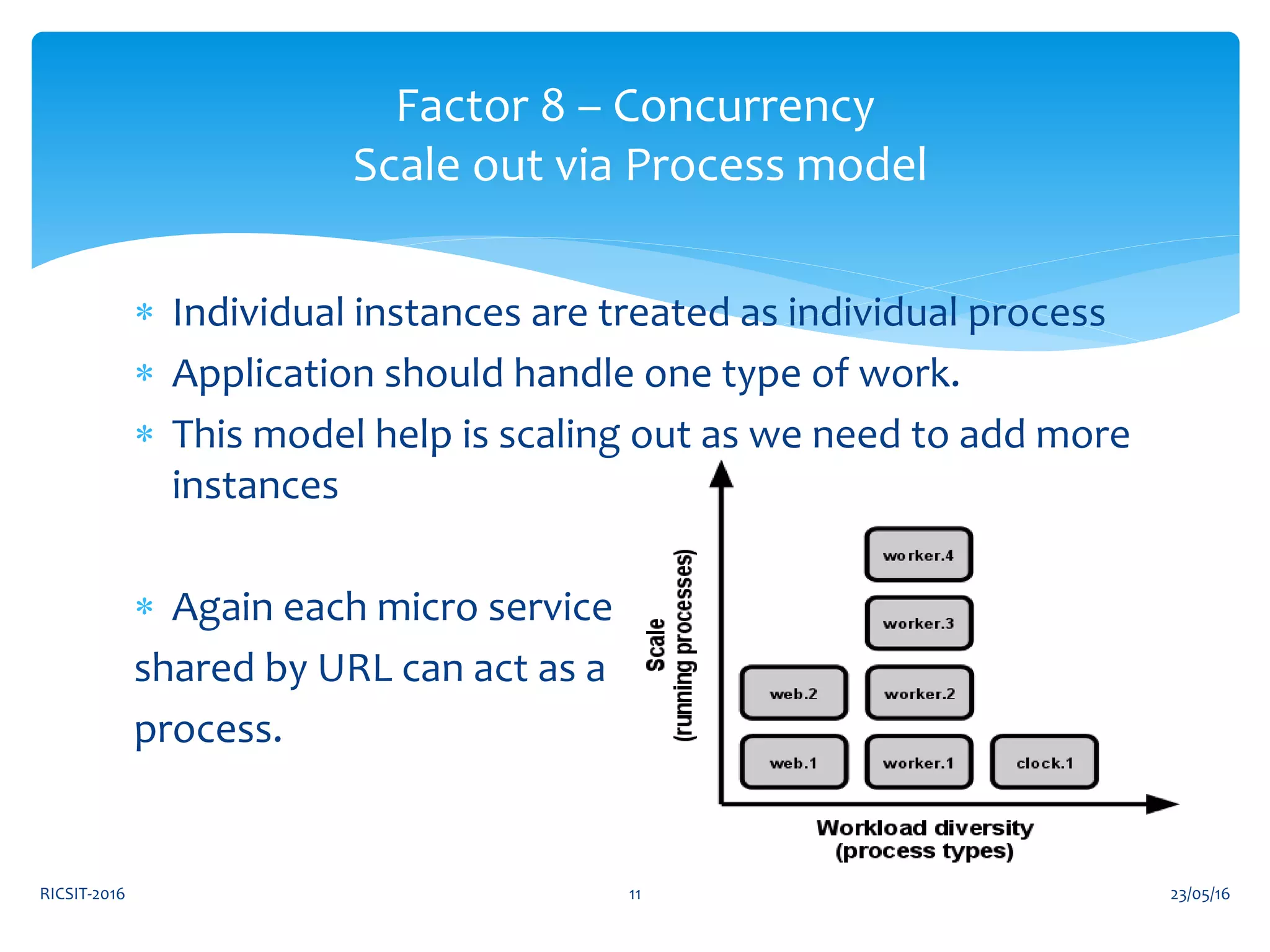

11.  Individual instances are treated as individual process
 Application should handle one type of work.
 This model help is scaling out as we need to add more
instances
 Again each micro service
shared by URL can act as a
process.
23/05/16RICSIT-2016 11
Factor 8 – Concurrency
Scale out via Process model

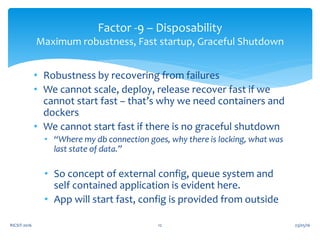

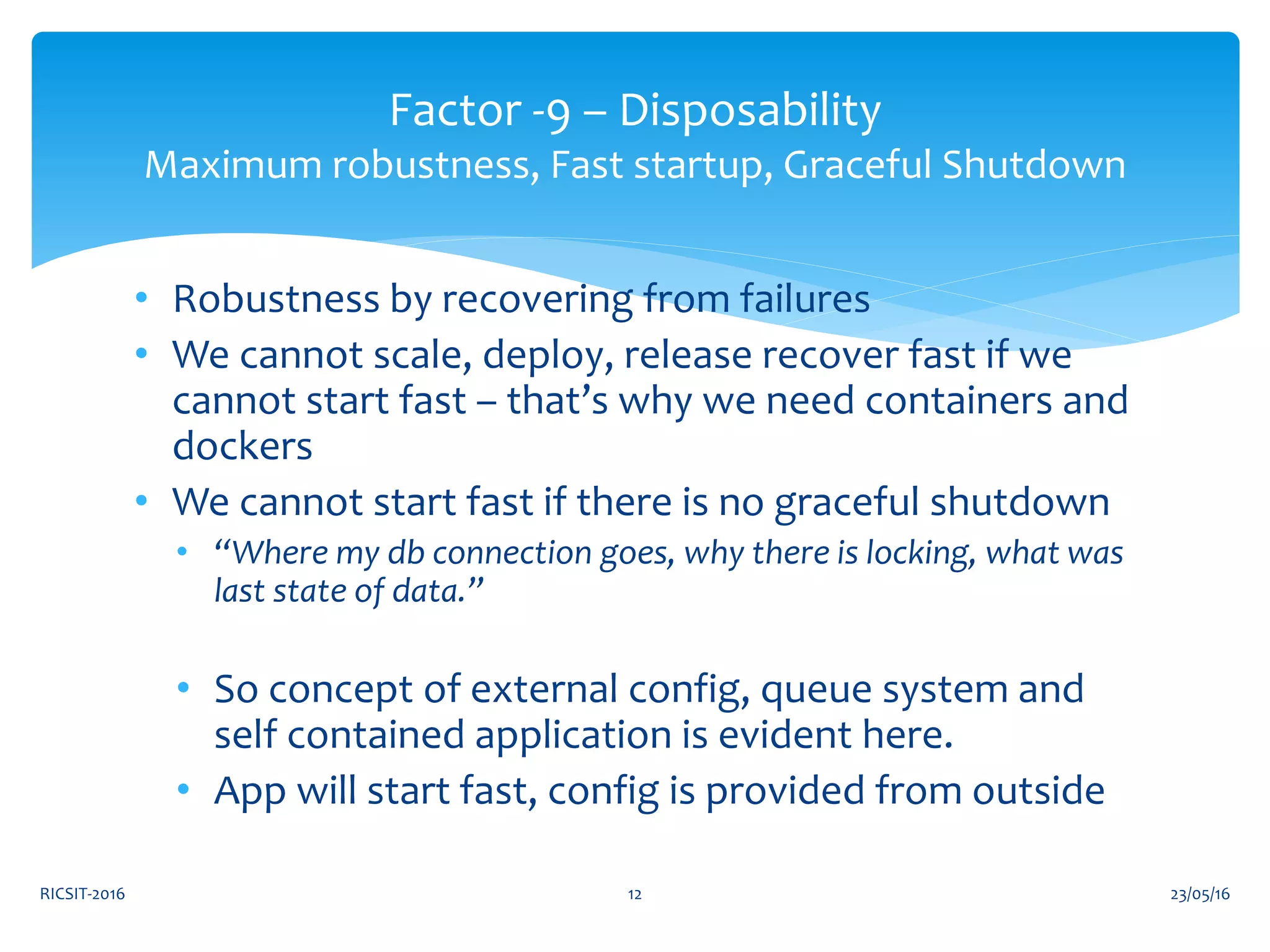

12. • Robustness by recovering from failures
• We cannot scale, deploy, release recover fast if we
cannot start fast – that’s why we need containers and
dockers
• We cannot start fast if there is no graceful shutdown
• “Where my db connection goes, why there is locking, what was
last state of data.”
• So concept of external config, queue system and
self contained application is evident here.
• App will start fast, config is provided from outside
23/05/16RICSIT-2016 12
Factor -9 – Disposability
Maximum robustness, Fast startup, Graceful Shutdown

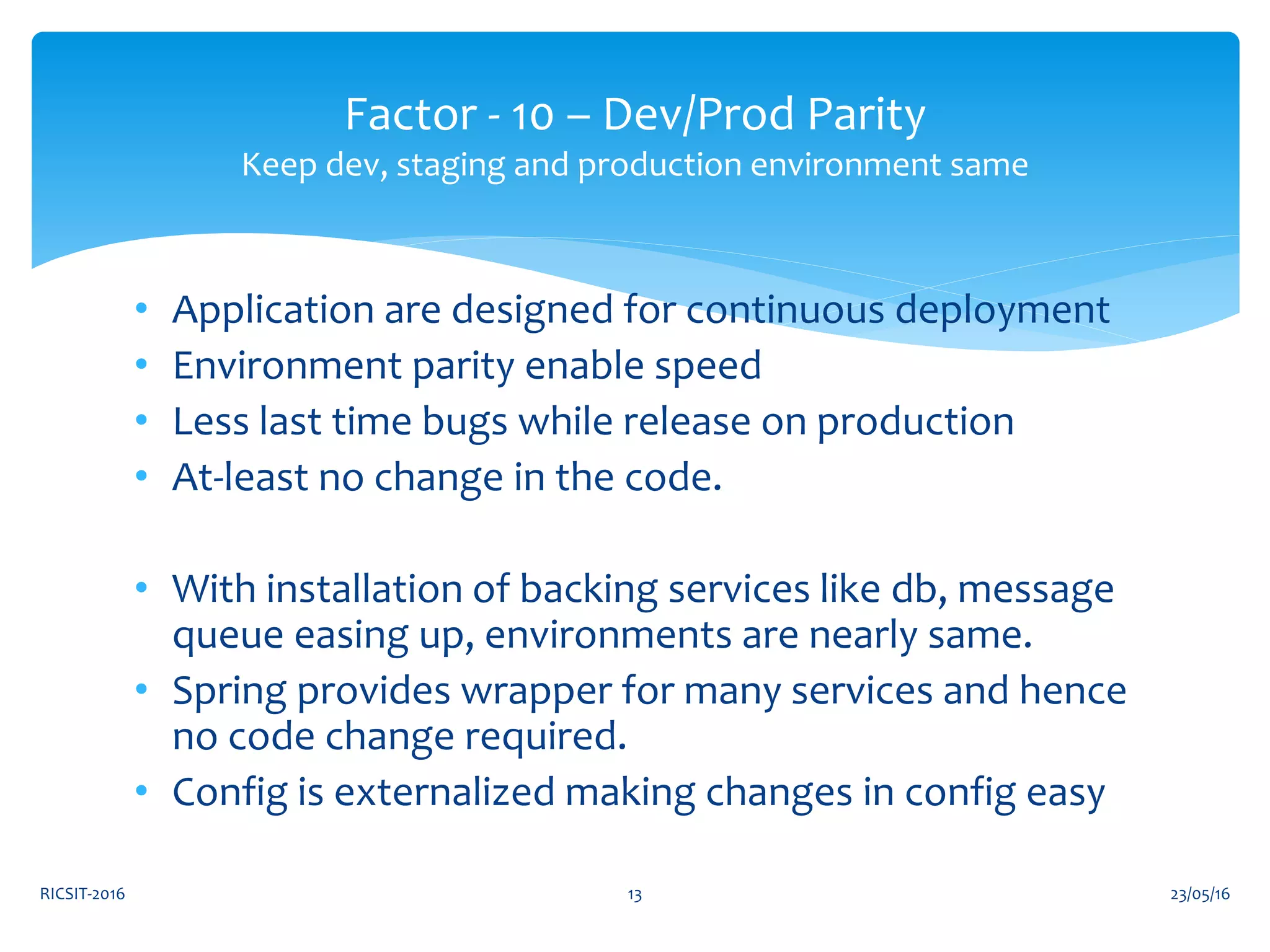

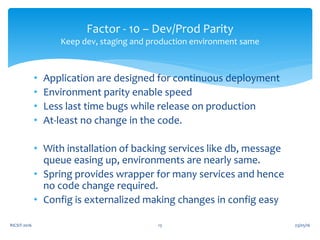

13. • Application are designed for continuous deployment
• Environment parity enable speed
• Less last time bugs while release on production
• At-least no change in the code.
• With installation of backing services like db, message
queue easing up, environments are nearly same.
• Spring provides wrapper for many services and hence
no code change required.
• Config is externalized making changes in config easy
23/05/16RICSIT-2016 13
Factor - 10 – Dev/Prod Parity
Keep dev, staging and production environment same

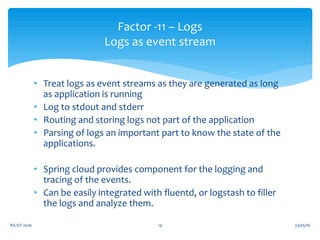

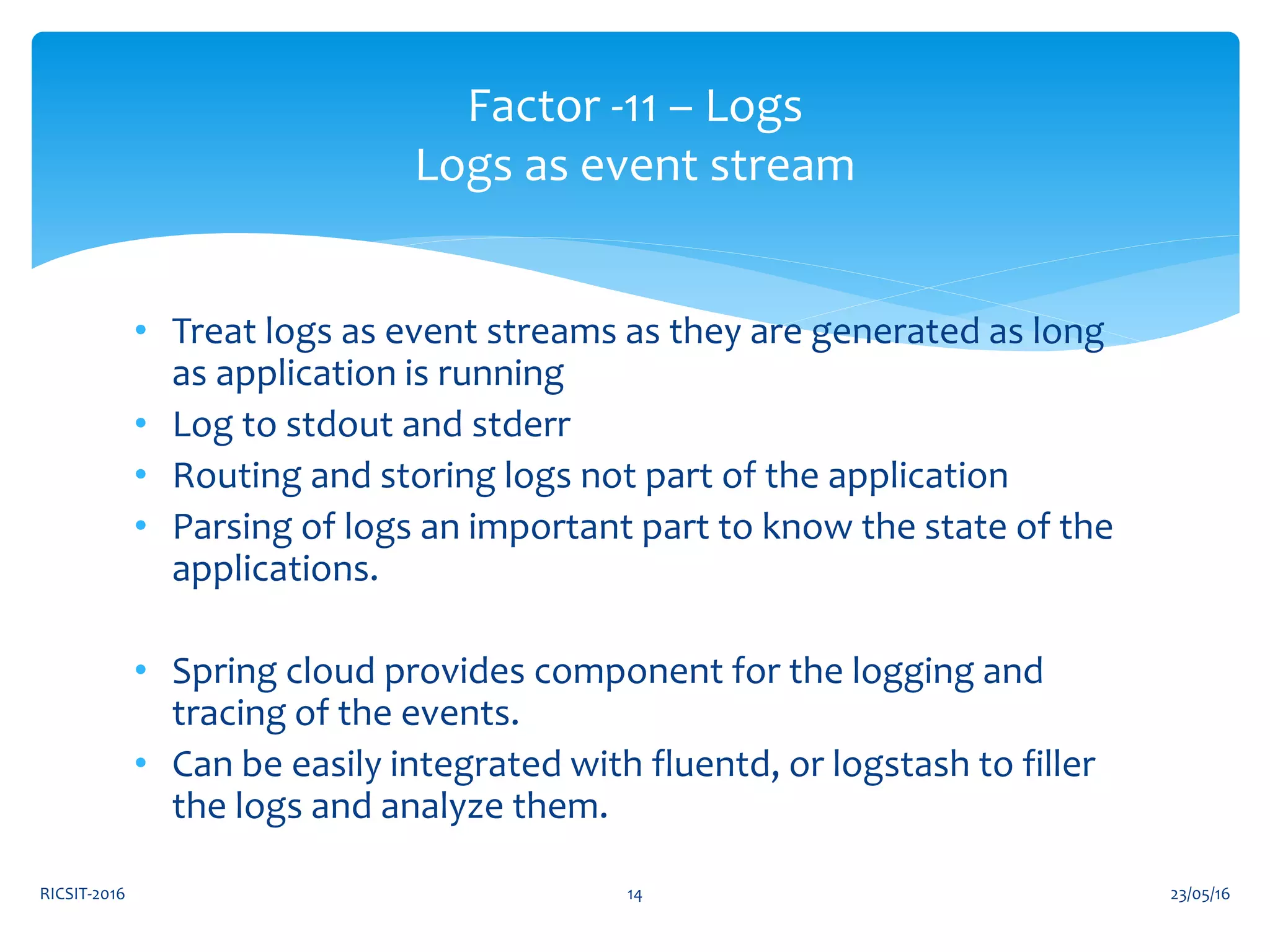

14. • Treat logs as event streams as they are generated as long
as application is running
• Log to stdout and stderr
• Routing and storing logs not part of the application
• Parsing of logs an important part to know the state of the
applications.
• Spring cloud provides component for the logging and
tracing of the events.
• Can be easily integrated with fluentd, or logstash to filler
the logs and analyze them.
23/05/16RICSIT-2016 14
Factor -11 – Logs
Logs as event stream

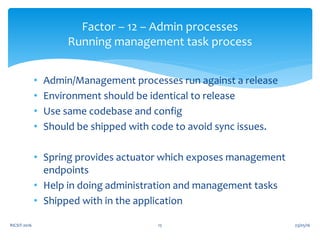

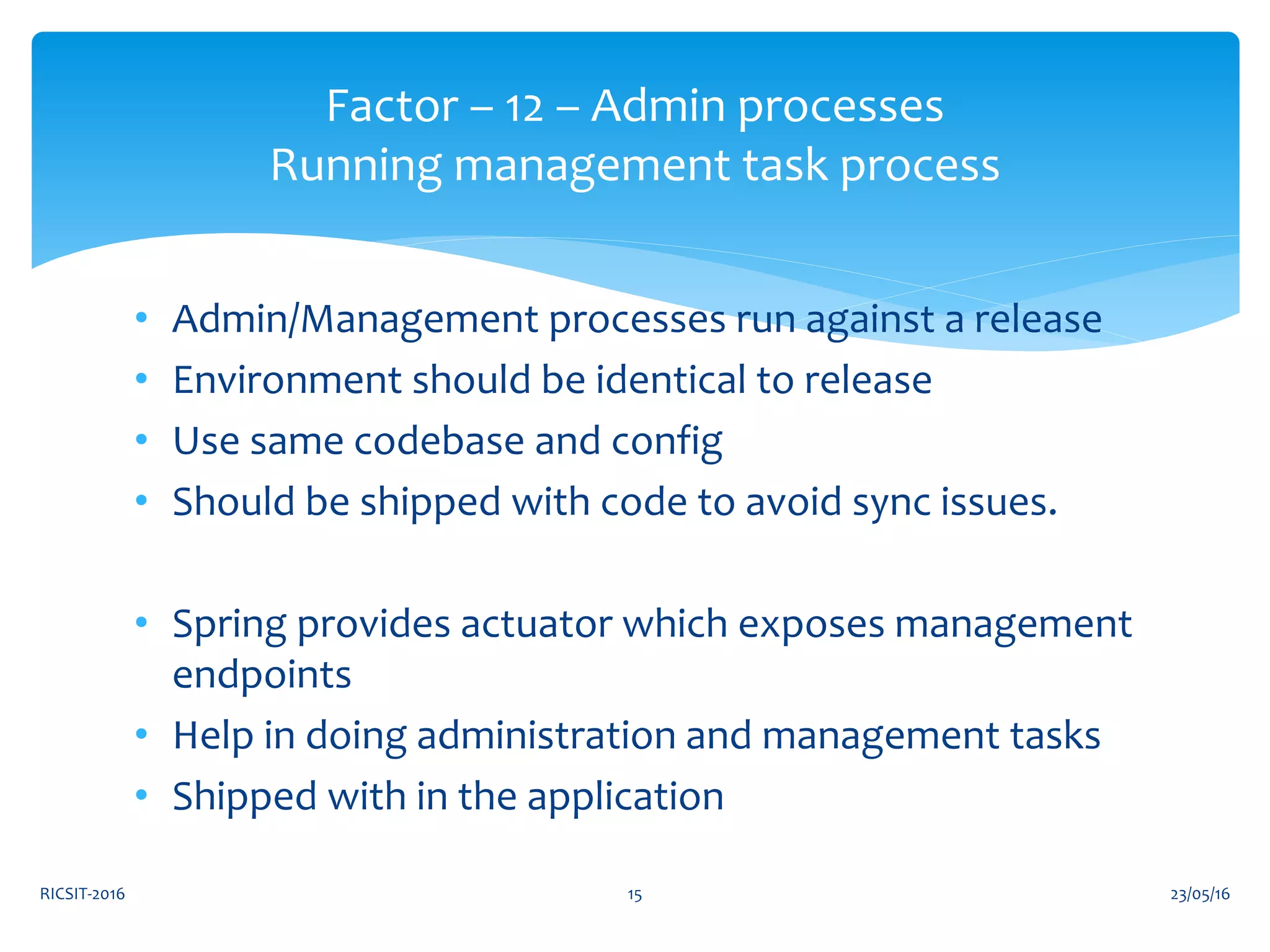

15. • Admin/Management processes run against a release
• Environment should be identical to release
• Use same codebase and config
• Should be shipped with code to avoid sync issues.
• Spring provides actuator which exposes management
endpoints
• Help in doing administration and management tasks
• Shipped with in the application
23/05/16RICSIT-2016 15
Factor – 12 – Admin processes
Running management task process

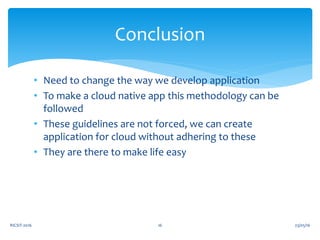

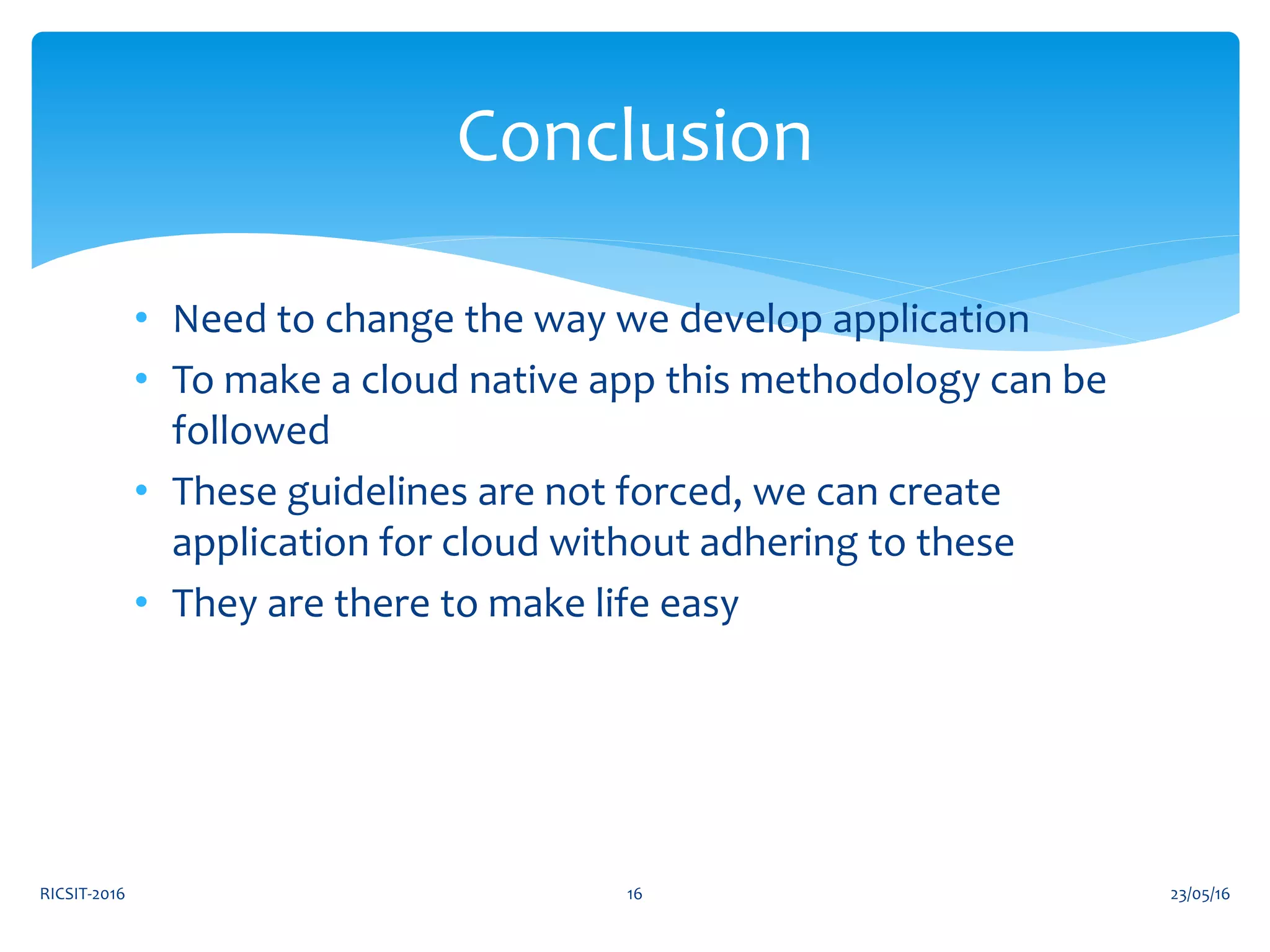

16. • Need to change the way we develop application
• To make a cloud native app this methodology can be
followed
• These guidelines are not forced, we can create
application for cloud without adhering to these
• They are there to make life easy
23/05/16RICSIT-2016 16
Conclusion

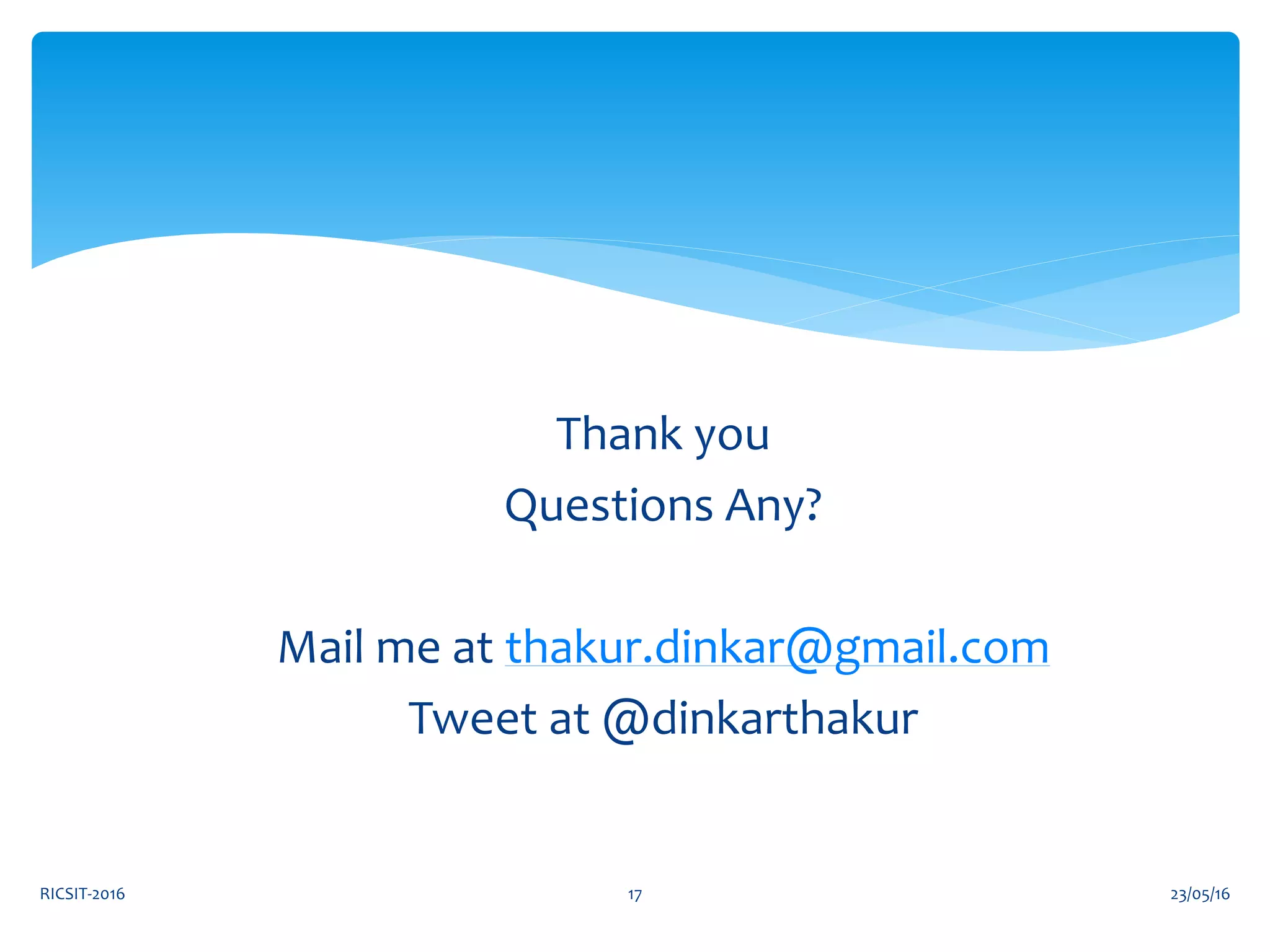

17. Thank you
Questions Any?
Mail me at thakur.dinkar@gmail.com
Tweet at @dinkarthakur
23/05/16RICSIT-2016 17
