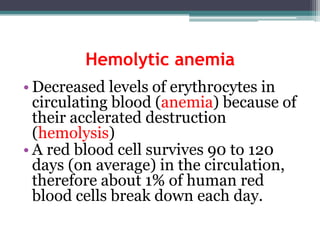

2. Hemolytic anemia
• Decreased levels of erythrocytes in
circulating blood (anemia) because of
their acclerated destruction
(hemolysis)
• A red blood cell survives 90 to 120
days (on average) in the circulation,
therefore about 1% of human red
blood cells break down each day.
3. • The spleen (part of the reticulo-endothelial
system) is the main organ which removes old
and damaged RBCs from the circulation.
• In health, the breakdown and removal of RBCs
from the circulation is matched by the
production of new RBCs in the bone marrow.

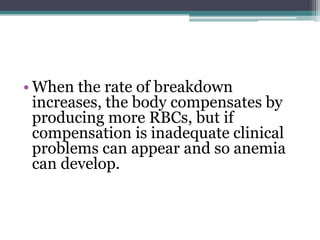

4. • When the rate of breakdown
increases, the body compensates by
producing more RBCs, but if
compensation is inadequate clinical
problems can appear and so anemia
can develop.

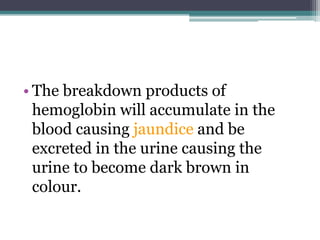

5. • The breakdown products of
hemoglobin will accumulate in the
blood causing jaundice and be
excreted in the urine causing the
urine to become dark brown in
colour.

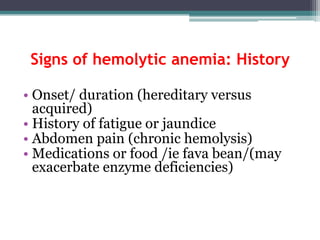

6. Signs of hemolytic anemia: History
• Onset/ duration (hereditary versus
acquired)
• History of fatigue or jaundice
• Abdomen pain (chronic hemolysis)
• Medications or food /ie fava bean/(may
exacerbate enzyme deficiencies)

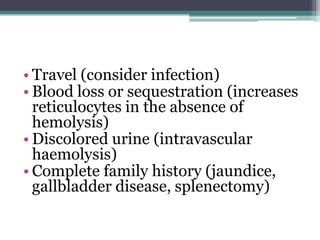

7. • Travel (consider infection)
• Blood loss or sequestration (increases
reticulocytes in the absence of
hemolysis)
• Discolored urine (intravascular
haemolysis)
• Complete family history (jaundice,
gallbladder disease, splenectomy)
8. Signs of hemolytic anemia: Physical
• Symptoms of anemia
• Jaundice
• Pallor
• Splenomegaly / hepatosplenomegaly

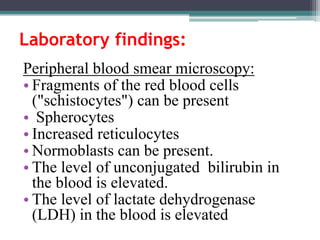

9. Laboratory findings:
Peripheral blood smear microscopy:
• Fragments of the red blood cells
("schistocytes") can be present
• Spherocytes
• Increased reticulocytes
• Normoblasts can be present.
• The level of unconjugated bilirubin in
the blood is elevated.
• The level of lactate dehydrogenase
(LDH) in the blood is elevated

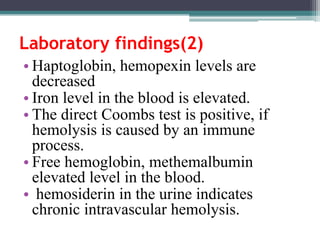

10. Laboratory findings(2)
• Haptoglobin, hemopexin levels are
decreased
• Iron level in the blood is elevated.
• The direct Coombs test is positive, if
hemolysis is caused by an immune
process.
• Free hemoglobin, methemalbumin
elevated level in the blood.
• hemosiderin in the urine indicates
chronic intravascular hemolysis.
13. Classification of hemolytic anemias
===Acquired===
• ''Immune mediated hemolytic anemia''' (direct
Coombs test is positive)
Autoimmune hemolytic anemia
• Warm antibody autoimmune hemolytic anemia
(Ab binds at 37degree Celsius)
▫ Idiopathic
▫ Systemic lupus erythematosus (SLE)
▫ Evans' syndrome (antiplatelet antibodies
and hemolytic antibodies)

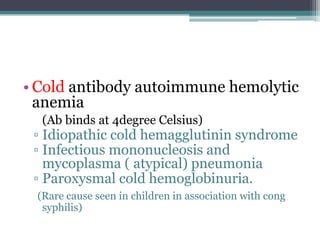

14. • Cold antibody autoimmune hemolytic
anemia
(Ab binds at 4degree Celsius)
▫ Idiopathic cold hemagglutinin syndrome
▫ Infectious mononucleosis and
mycoplasma ( atypical) pneumonia
▫ Paroxysmal cold hemoglobinuria.
(Rare cause seen in children in association with cong
syphilis)

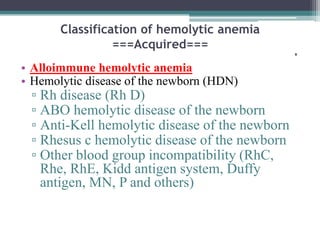

15. Classification of hemolytic anemia
===Acquired===
'
• Alloimmune hemolytic anemia
• Hemolytic disease of the newborn (HDN)
▫ Rh disease (Rh D)
▫ ABO hemolytic disease of the newborn
▫ Anti-Kell hemolytic disease of the newborn
▫ Rhesus c hemolytic disease of the newborn
▫ Other blood group incompatibility (RhC,
Rhe, RhE, Kidd antigen system, Duffy
antigen, MN, P and others)
16. • Alloimmune hemolytic blood transfusion
reactions (ie from a non-compatible blood type)
• Drug induced immune mediated
hemolytic anemia
• Penicillin (high dose)
• Methyldopa

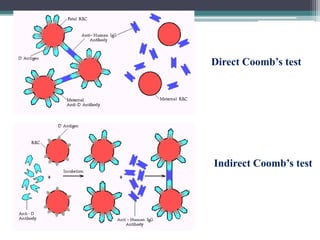

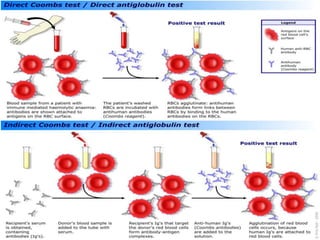

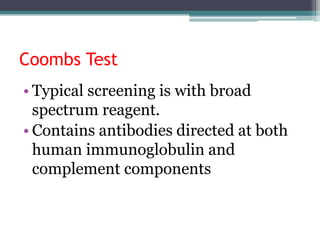

17. Coombs Test
• Typical screening is with broad
spectrum reagent.
• Contains antibodies directed at both
human immunoglobulin and
complement components

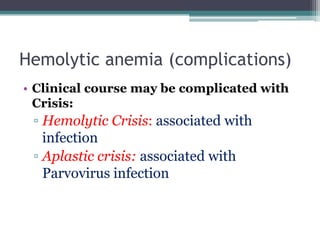

32. Hemolytic anemia (complications)
• Clinical course may be complicated with
Crisis:
▫ Hemolytic Crisis: associated with
infection
▫ Aplastic crisis: associated with
Parvovirus infection

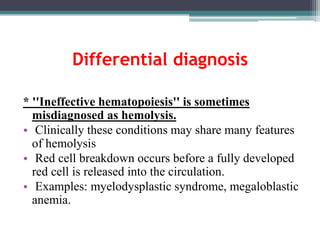

33. Differential diagnosis
* ''Ineffective hematopoiesis'' is sometimes
misdiagnosed as hemolysis.
• Clinically these conditions may share many features
of hemolysis
• Red cell breakdown occurs before a fully developed
red cell is released into the circulation.
• Examples: myelodysplastic syndrome, megaloblastic
anemia.
34. Hereditary Spherocytosis
1. Inherited as autosomal dominant
2. red cell membrane protein defects
(Deficiency of Beta Spectrin or Ankyrin)
3. Family history
4. Clinical features: jaundice,
gallstones, splenomegaly.

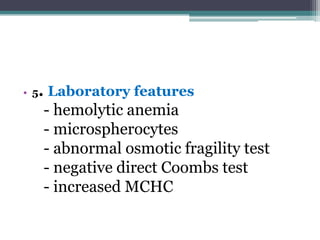

35. • 5. Laboratory features
- hemolytic anemia
- microspherocytes

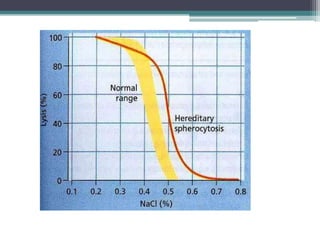

- abnormal osmotic fragility test
- negative direct Coombs test
- increased MCHC

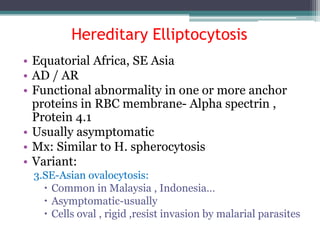

39. Hereditary Elliptocytosis
• Equatorial Africa, SE Asia
• AD / AR
• Functional abnormality in one or more anchor
proteins in RBC membrane- Alpha spectrin ,
Protein 4.1
• Usually asymptomatic
• Mx: Similar to H. spherocytosis
• Variant:
3.SE-Asian ovalocytosis:
Common in Malaysia , Indonesia…
Asymptomatic-usually
Cells oval , rigid ,resist invasion by malarial parasites

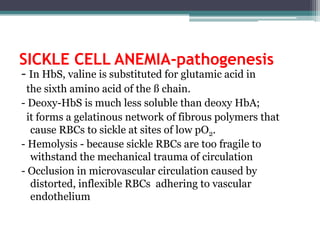

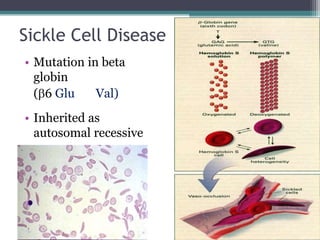

41. SICKLE CELL ANEMIA
Definition: chronic hemolytic anemia
characterized by sickle-shaped red
cells(RBCs) caused by homozygous
inheritance of Hemoglobin S
42. SICKLE CELL ANEMIA-pathogenesis
- In HbS, valine is substituted for glutamic acid in
the sixth amino acid of the ß chain.
- Deoxy-HbS is much less soluble than deoxy HbA;
it forms a gelatinous network of fibrous polymers that
cause RBCs to sickle at sites of low pO2.
- Hemolysis - because sickle RBCs are too fragile to
withstand the mechanical trauma of circulation
- Occlusion in microvascular circulation caused by
distorted, inflexible RBCs adhering to vascular
endothelium
43. SICKLE CELL ANEMIA-incidence
- Homozygous - about 0.3% of blacks
in the USA
(have sickle cell anemia)
- Heterozygotes 8-13% of blacks, (are
not anemic, but the sickling can be
demonstrated in vitro)
44. SICKLE CELL ANEMIA-clinical features
IN HOMOZYGOTES
1. Clinical complications due to severe hemolytic anaemia
- slow growth and development in children
- gall bladder stones
- aplastic crisis
- congestive heart failure from chronic anemia and
cardiac overload compensation
2. Consequences of vaso-occlusion of the microcirculations
(tissue ischemia and infarction)
- infarction of spleen, brain, kidney, lung, aseptic
necrosis, central nervous system and ophtalmic vascular
lesions
45. SICKLE CELL ANEMIA
laboratory findinges
1. Anemia-normocytic or slightly macrocytic
2. Leukocytosis (chronic neutrophilia)
3. Thrombocytosis - usually mild
4. Reticulocytosis
5. Peripheral smear: sickle shaped red cells,
polychromatophilia, Howell-Jolly bodies
6. Hb –electrophoresis or high-performance
liquid chromatography (HPLC)
46. Sickle Cell Disease
• Mutation in beta
globin
(6 Glu Val)
• Inherited as
autosomal recessive
• Protection against
malaria
47. Thalasemias
• Thalasemia result from gene (located on
chromosomes 11 and 16) deletion, abnormalities
in transcription and translation and instability of
the mRNA directing globin synthesis or of the
globin itself.
• Result: imbalanced synthesis of normal globin
chain. The unpaired chain accumulates in the
developing erythroid precursor cell, and toxicity
results – ineffective erythropoiesis, hemolysis
and anemia of variable degree.

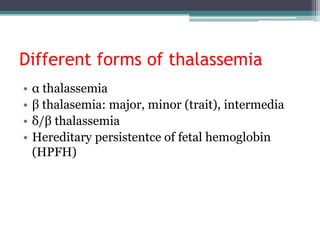

49. Different forms of thalassemia
• α thalassemia
• β thalasemia: major, minor (trait), intermedia
• δ/β thalassemia
• Hereditary persistentce of fetal hemoglobin
(HPFH)

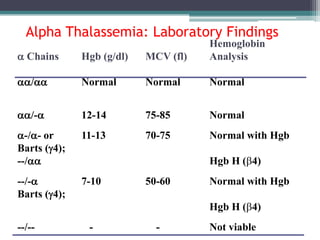

50. Hemoglobin
Chains Hgb (g/dl) MCV (fl) Analysis
/ Normal Normal Normal
/- 12-14 75-85 Normal
-/- or 11-13 70-75 Normal with Hgb
Barts (4);
--/ Hgb H (4)
--/- 7-10 50-60 Normal with Hgb
Barts (4);
Hgb H (4)
--/-- - - Not viable
Alpha Thalassemia: Laboratory Findings

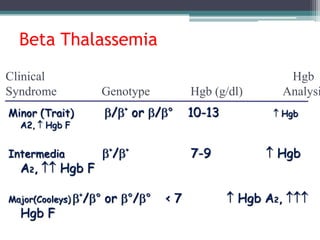

51. Beta Thalassemia
Clinical Hgb
Syndrome Genotype Hgb (g/dl) Analysi
Minor (Trait) /+
or /° 10-13 Hgb
A2, Hgb F
Intermedia +
/+
7-9 Hgb
A2, Hgb F
Major(Cooleys) +
/° or °/° < 7 Hgb A2,
Hgb F

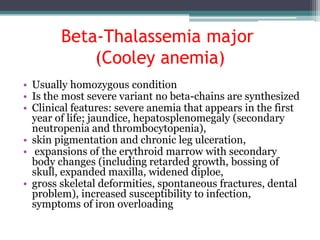

52. Beta-Thalassemia major
(Cooley anemia)
• Usually homozygous condition
• Is the most severe variant no beta-chains are synthesized
• Clinical features: severe anemia that appears in the first
year of life; jaundice, hepatosplenomegaly (secondary
neutropenia and thrombocytopenia),
• skin pigmentation and chronic leg ulceration,
• expansions of the erythroid marrow with secondary
body changes (including retarded growth, bossing of
skull, expanded maxilla, widened diploe,
• gross skeletal deformities, spontaneous fractures, dental
problem), increased susceptibility to infection,
symptoms of iron overloading
53. Beta-Thalassemia major
laboratory features
• Severe anemia
• Blood film: anisopoikilocytosis, hypochromia,
target cells, basophilic stippling, reticulocytosis
• Bone marrow: marked erythroid hyperplasia,
increased sideroblasts
• Shortened red cell survival
• Fetal hemoglobin > 90%, HbA absent, HbA2
low/normal/high

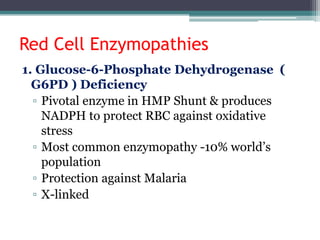

54. Red Cell Enzymopathies
1. Glucose-6-Phosphate Dehydrogenase (
G6PD ) Deficiency
▫ Pivotal enzyme in HMP Shunt & produces
NADPH to protect RBC against oxidative
stress
▫ Most common enzymopathy -10% world’s
population
▫ Protection against Malaria
▫ X-linked
