This document describes an infrared heating system called UDEN-S. It provides energy efficient, environmentally friendly heating that uses 30-40% less power than other systems. UDEN-S heating is comfortable, easy to install, and quickly eliminates cold walls. It allows for automated temperature control in separate rooms. Infrared heating is also 1.5-2 times more economical than other options. The document discusses the various UDEN-S heater models like wall panels, heated plinths, and ceiling panels. It highlights the system's advantages such as universality, efficiency, safety and modern design options.

1. Exclusive contractExclusive contract
with the sunwith the sun
PRESENTSPRESENTS

2.  energy-efficient independent
electrical heating
 radiation of infrared long-wave
heating corresponding to the human
body radiation spectrum
 environmentally friendly and
economical heating

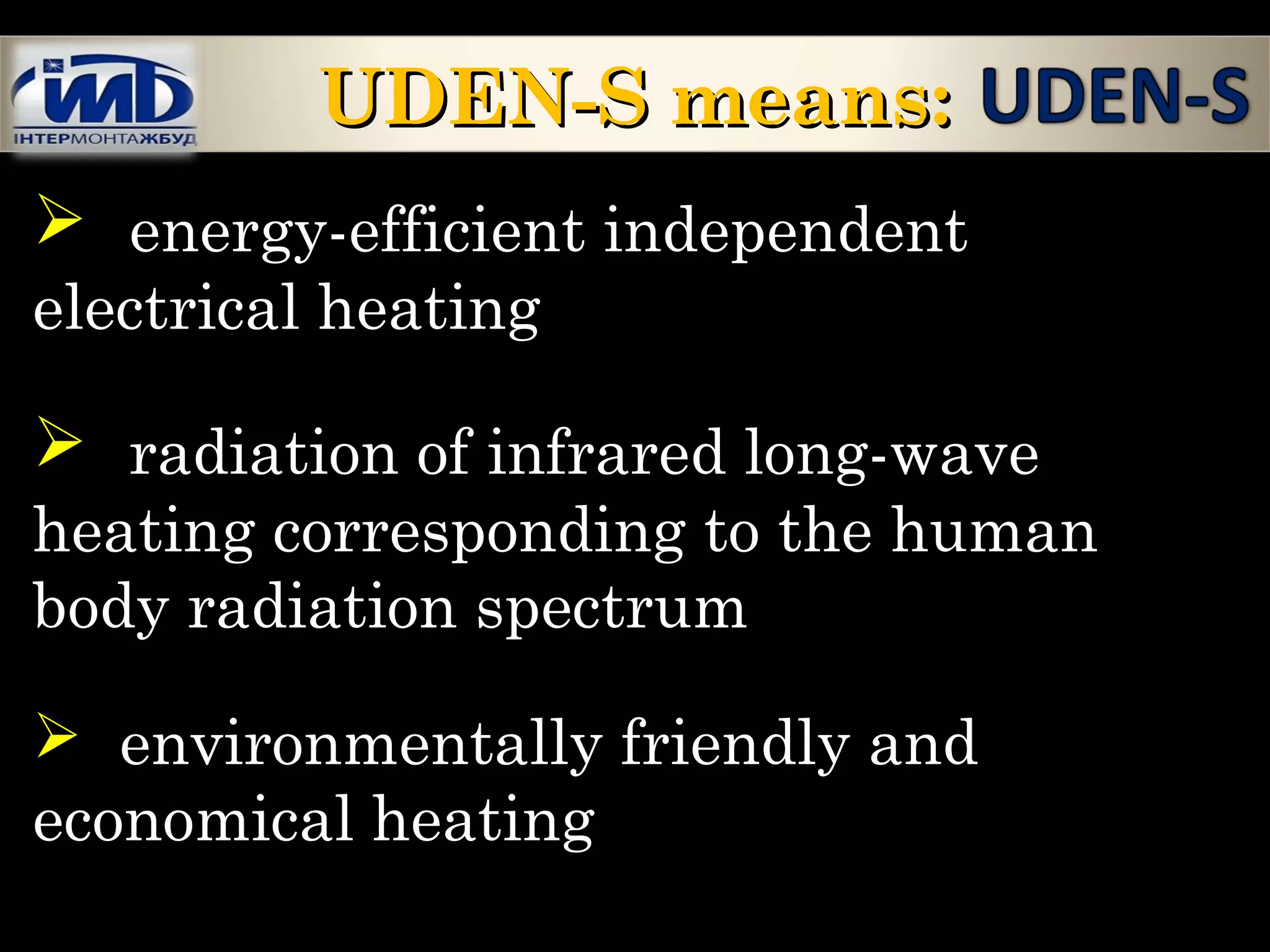

UDEN-S means:UDEN-S means:

3.  infrared heating systems
require 30 to 40 per cent less power
than convectors or furnaces
 they are easy to install and
provide comfortable temperature
conditions
 they quickly eliminate the
problem of cold and wet walls and
corners
Why choose UDEN-S heating?Why choose UDEN-S heating?

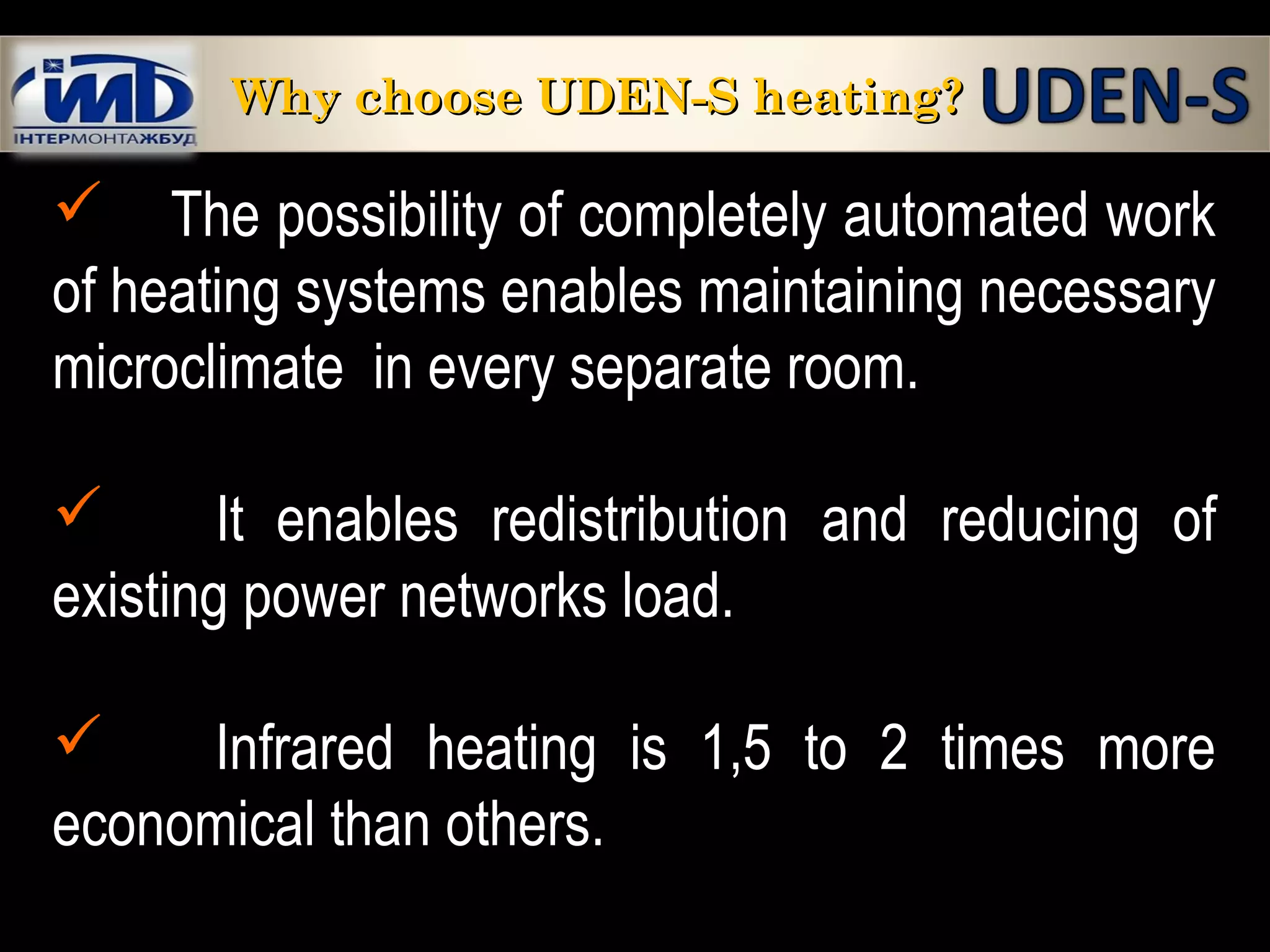

4.  The possibility of completely automated work
of heating systems enables maintaining necessary
microclimate in every separate room.
 It enables redistribution and reducing of
existing power networks load.
 Infrared heating is 1,5 to 2 times more
economical than others.
Why choose UDEN-S heating?Why choose UDEN-S heating?

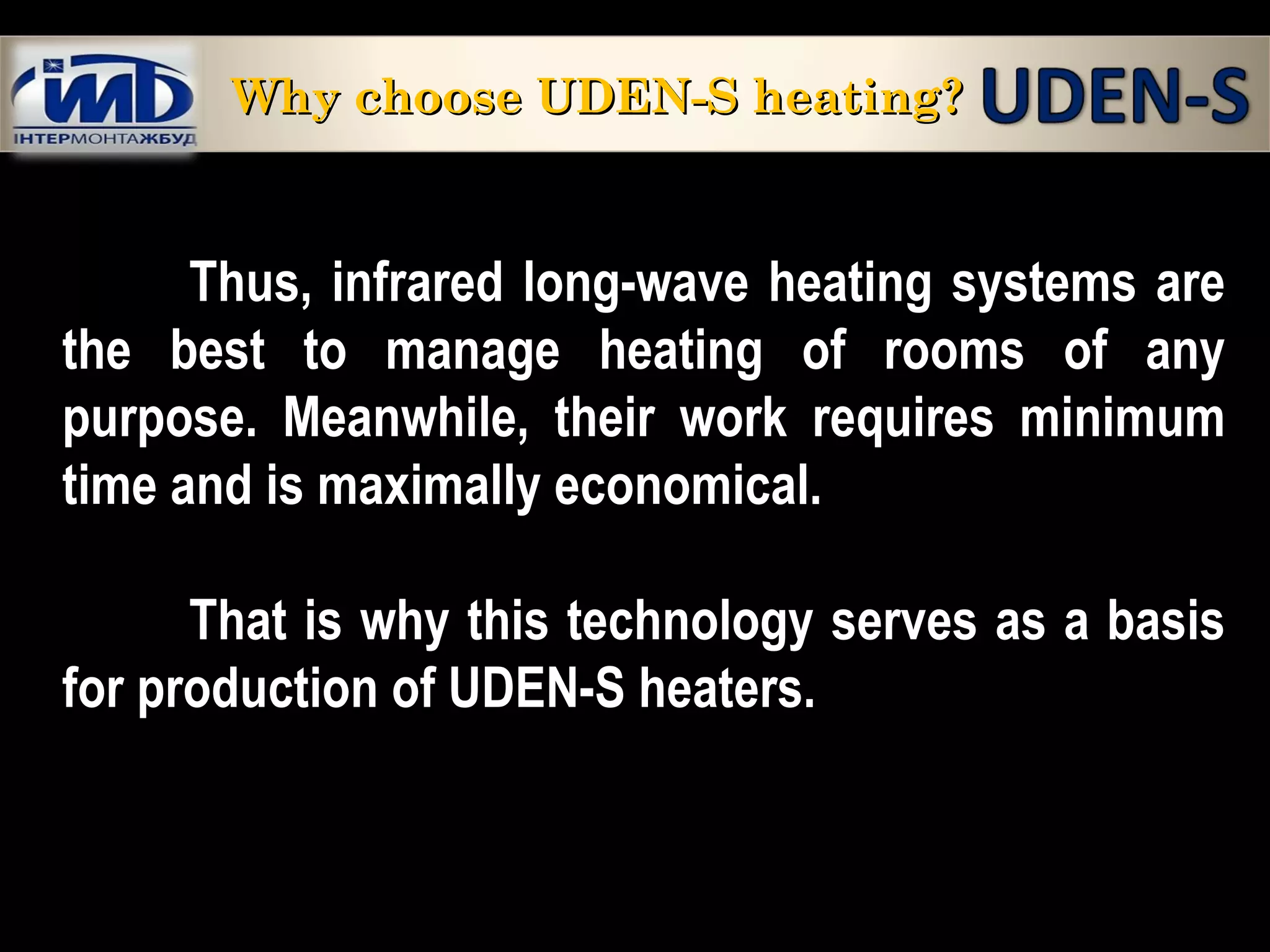

5. Thus, infrared long-wave heating systems are
the best to manage heating of rooms of any
purpose. Meanwhile, their work requires minimum
time and is maximally economical.
That is why this technology serves as a basis
for production of UDEN-S heaters.
Why choose UDEN-S heating?Why choose UDEN-S heating?

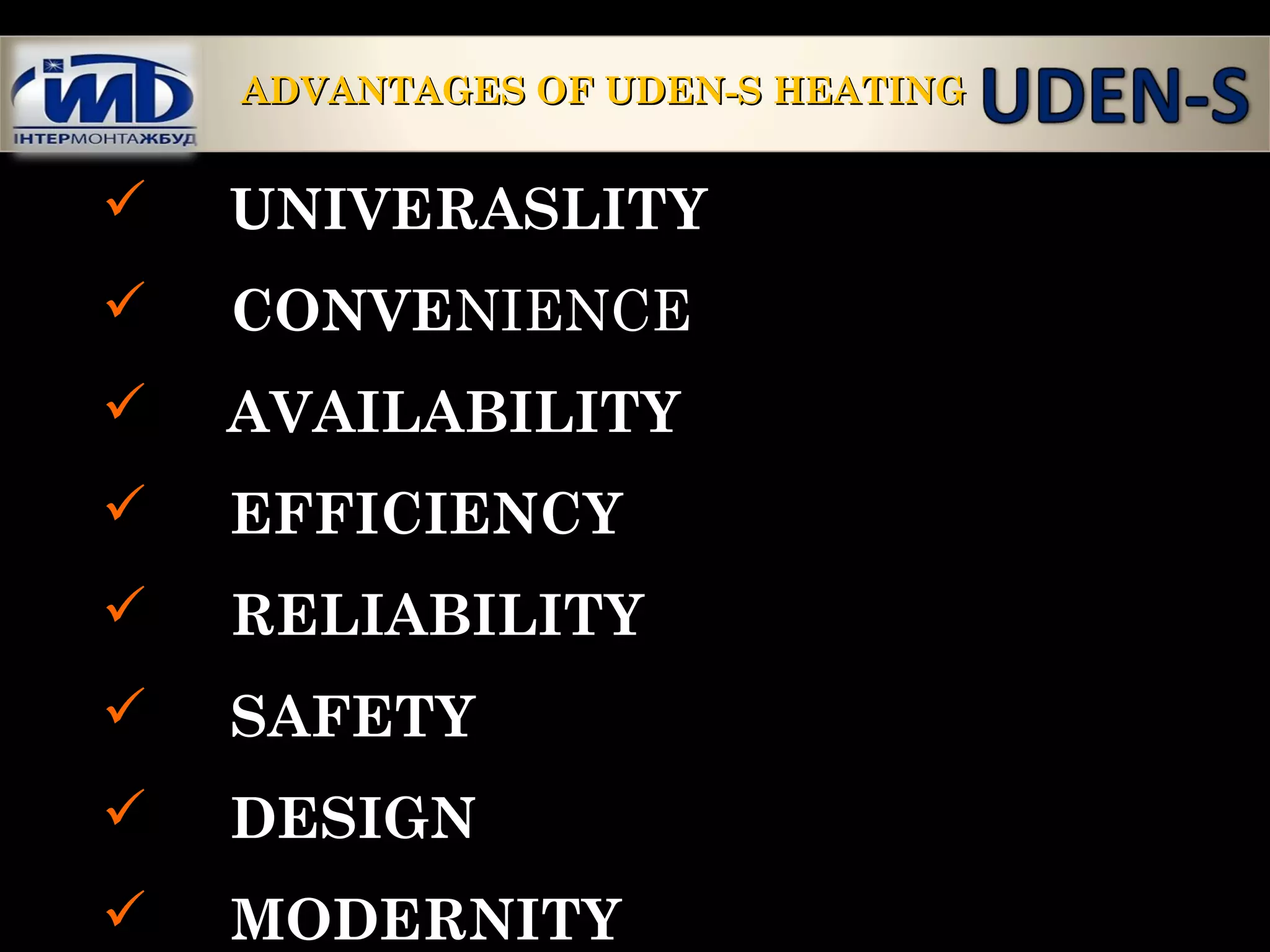

6.  UNIVERASLITY
 CONVENIENCE
 AVAILABILITY
 EFFICIENCY
 RELIABILITY
 SAFETY
 DESIGN
 MODERNITY
ADVANTAGES OF UDEN-S HEATINGADVANTAGES OF UDEN-S HEATING

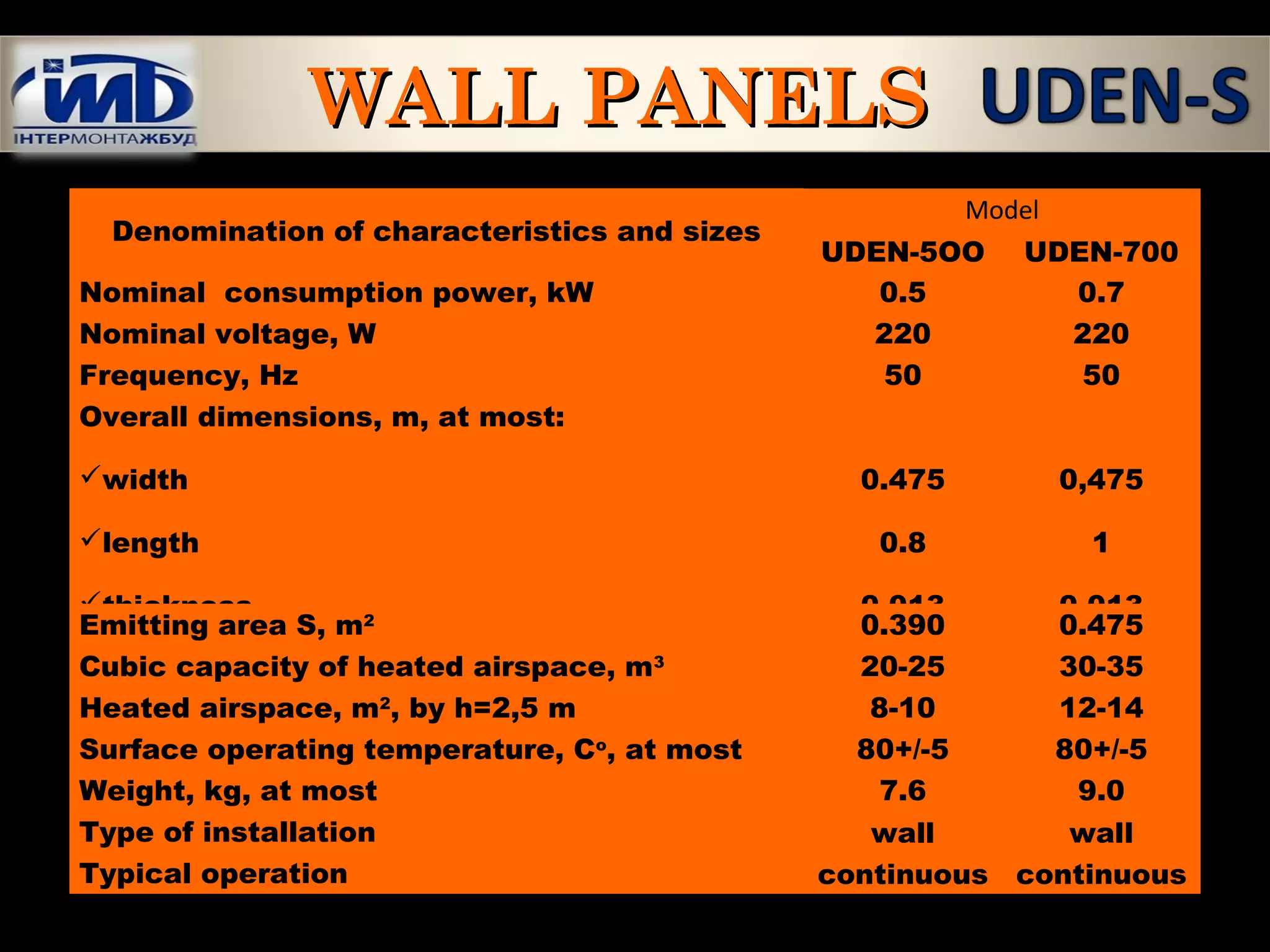

7. WALL PANELSWALL PANELS
Denomination of characteristics and sizes
Model
UDEN-5OO UDEN-700
Nominal consumption power, kW 0.5 0.7
Nominal voltage, W 220 220
Frequency, Hz 50 50
Overall dimensions, m, at most:
width
length
thickness
0.475
0.8
0.013
0,475
1
0.013
Emitting area S, m2
0.390 0.475
Cubic capacity of heated airspace, m3
20-25 30-35
Heated airspace, m2
, by h=2,5 m 8-10 12-14
Surface operating temperature, Co
, at most 80+/-5 80+/-5
Weight, kg, at most 7.6 9.0
Type of installation wall wall
Typical operation continuous continuous

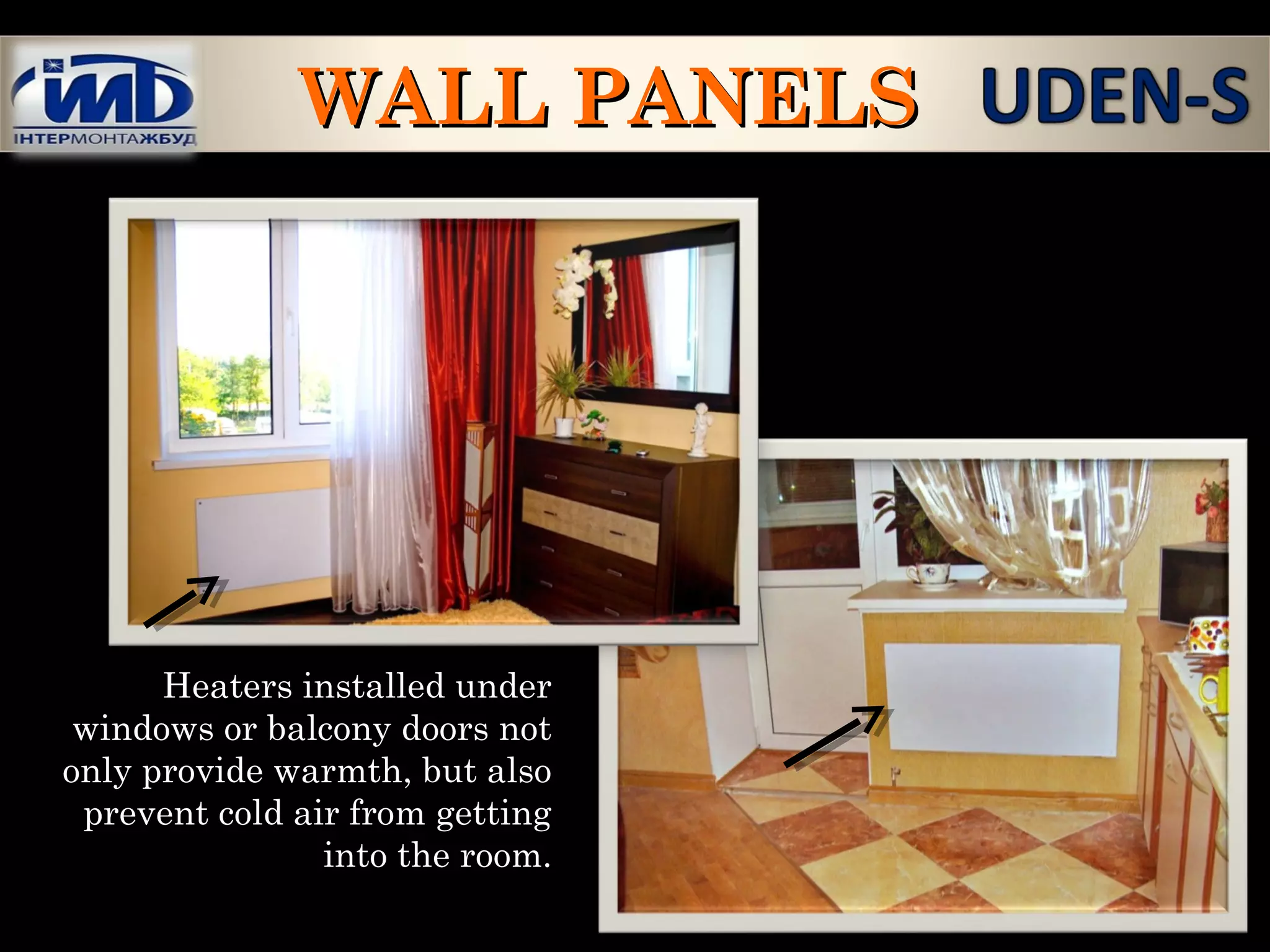

8. Heaters installed under
windows or balcony doors not
only provide warmth, but also
prevent cold air from getting
into the room.
WALL PANELSWALL PANELS

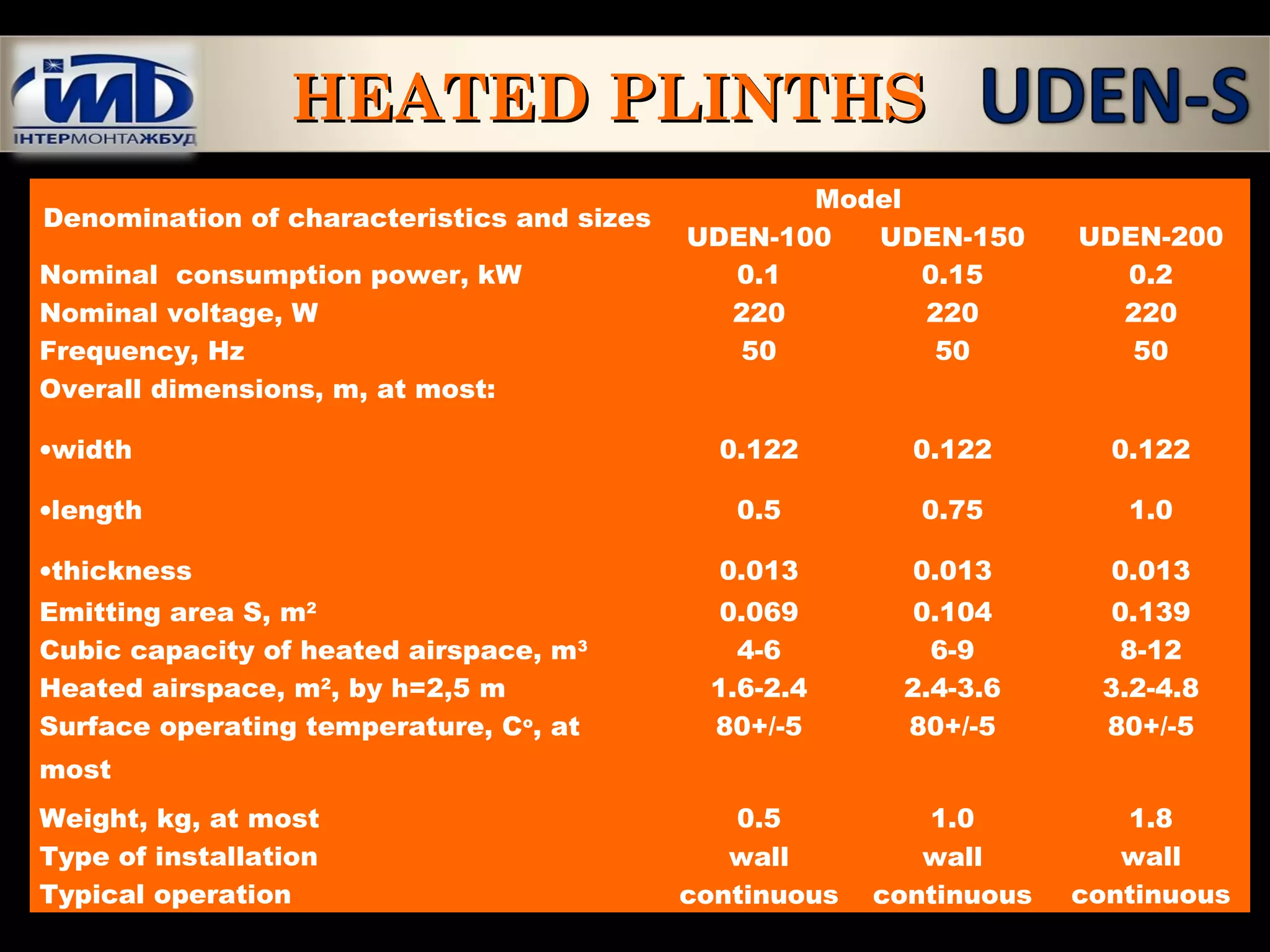

9. HEATED PLINTHSHEATED PLINTHS
Denomination of characteristics and sizes
Model
UDEN-100 UDEN-150 UDEN-200
Nominal consumption power, kW 0.1 0.15 0.2
Nominal voltage, W 220 220 220
Frequency, Hz 50 50 50
Overall dimensions, m, at most:
•width
•length
•thickness
0.122
0.5
0.013
0.122
0.75
0.013
0.122
1.0
0.013
Emitting area S, m2
0.069 0.104 0.139
Cubic capacity of heated airspace, m3
4-6 6-9 8-12
Heated airspace, m2
, by h=2,5 m 1.6-2.4 2.4-3.6 3.2-4.8
Surface operating temperature, Co
, at
most
80+/-5 80+/-5 80+/-5
Weight, kg, at most 0.5 1.0 1.8
Type of installation wall wall wall
Typical operation continuous continuous continuous

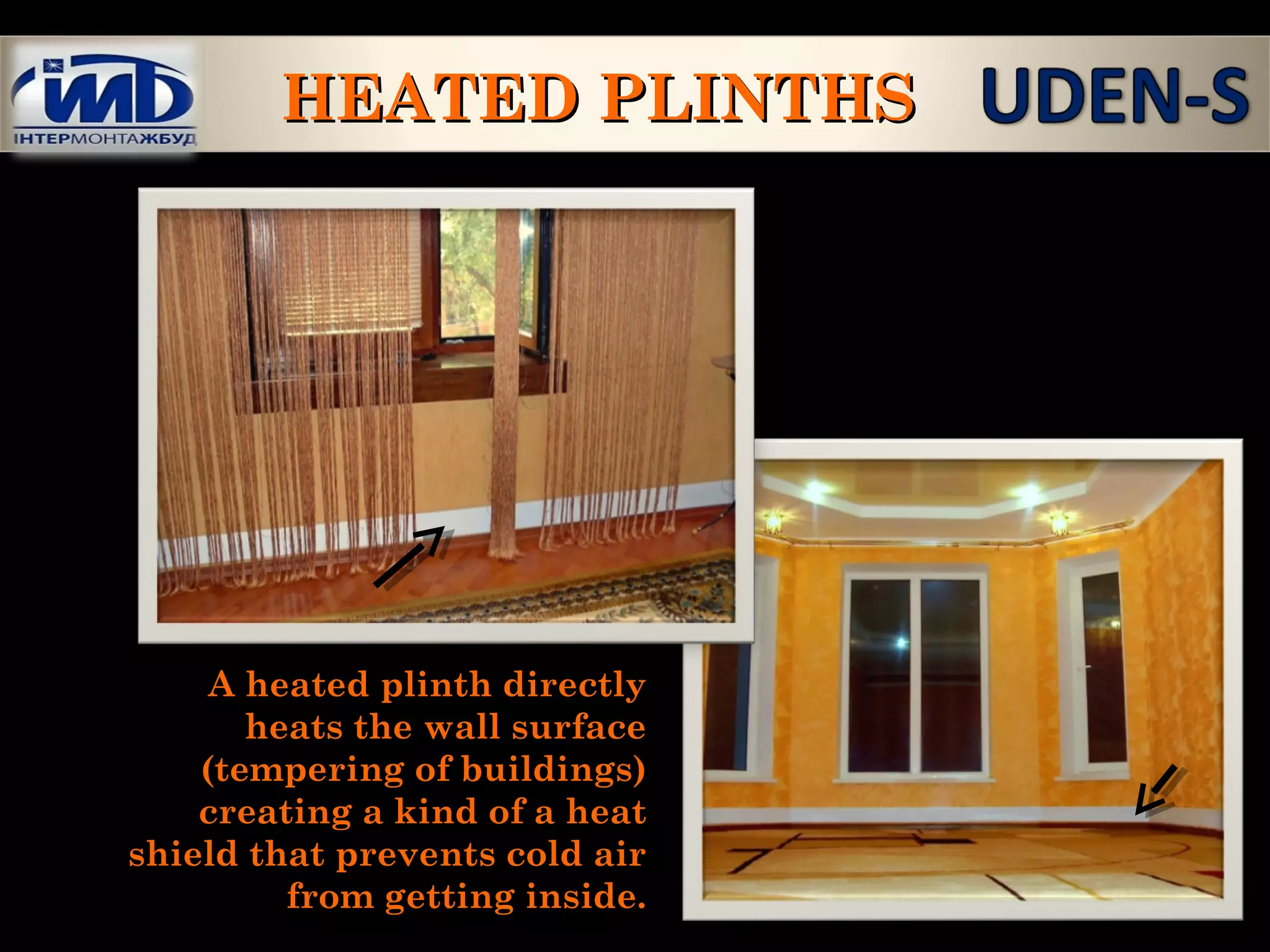

10. A heated plinth directlyA heated plinth directly
heats the wall surfaceheats the wall surface
(tempering of buildings)(tempering of buildings)
creating a kind of a heatcreating a kind of a heat
shield that prevents cold airshield that prevents cold air
from getting inside.from getting inside.
HEATED PLINTHSHEATED PLINTHS

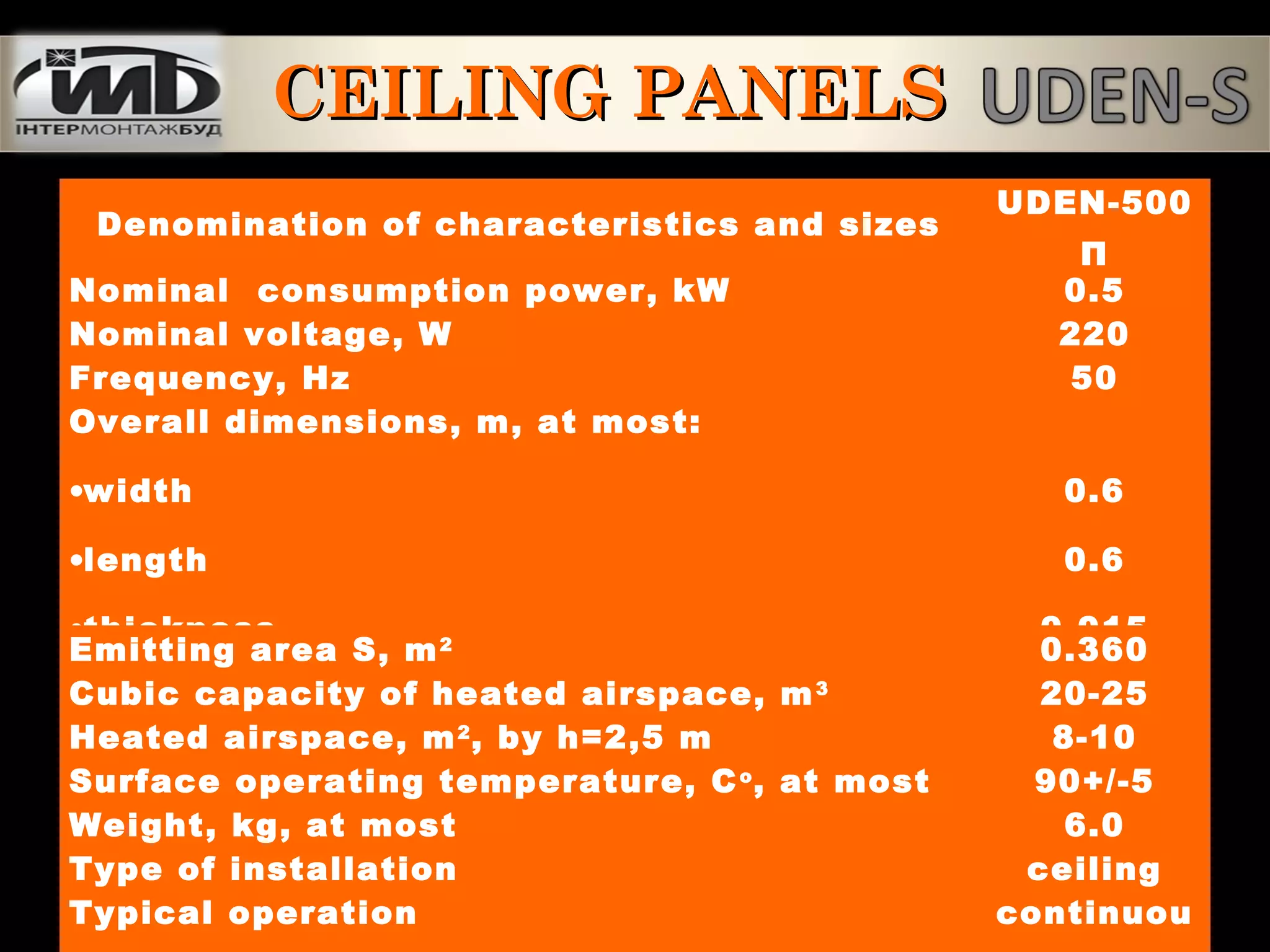

11. CEILING PANELSCEILING PANELS
Denomination of characteristics and sizes
UDEN-500
П
Nominal consumption power, kW 0.5
Nominal voltage, W 220
Frequency, Hz 50
Overall dimensions, m, at most:
•width
•length
•thickness
0.6
0.6
0.015
Emitting area S, m2
0.360
Cubic capacity of heated airspace, m3
20-25
Heated airspace, m2
, by h=2,5 m 8-10
Surface operating temperature, Co
, at most 90+/-5
Weight, kg, at most 6.0
Type of installation ceiling
Typical operation continuou

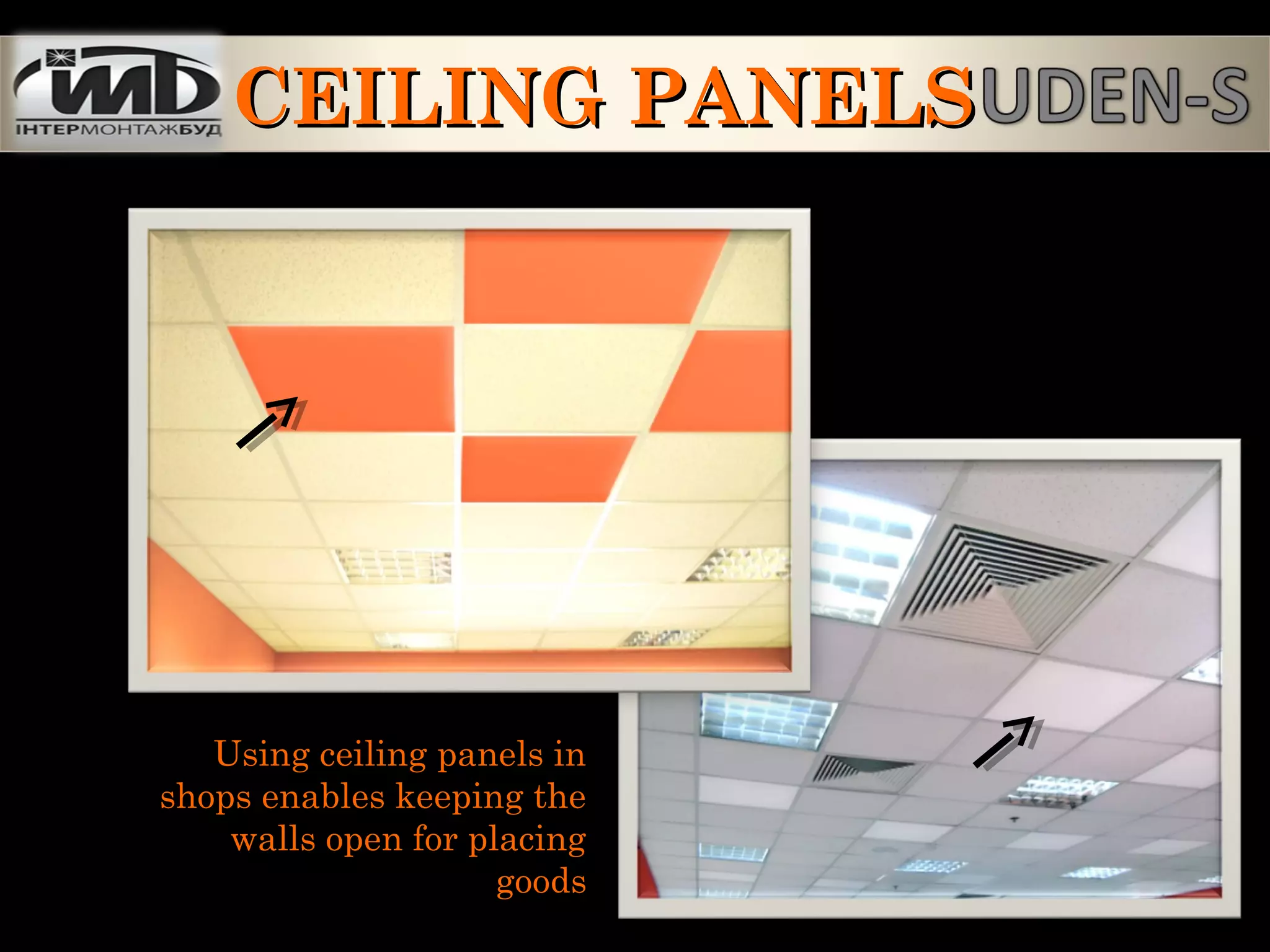

12. Using ceiling panels in
shops enables keeping the
walls open for placing
goods
CEILING PANELSCEILING PANELS

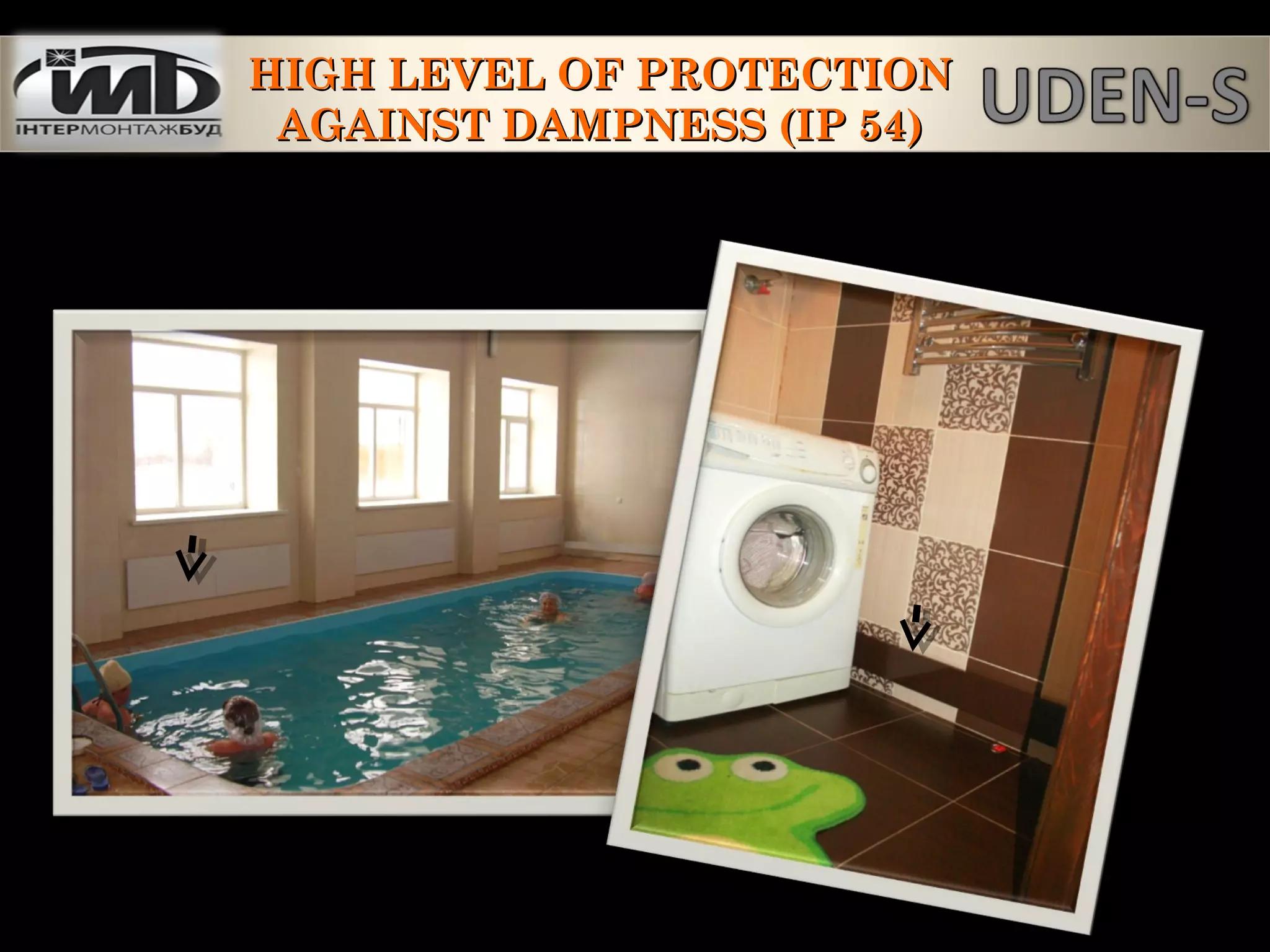

13. HIGH LEVEL OF PROTECTIONHIGH LEVEL OF PROTECTION
AGAINST DAMPNESS (IP 54)AGAINST DAMPNESS (IP 54)

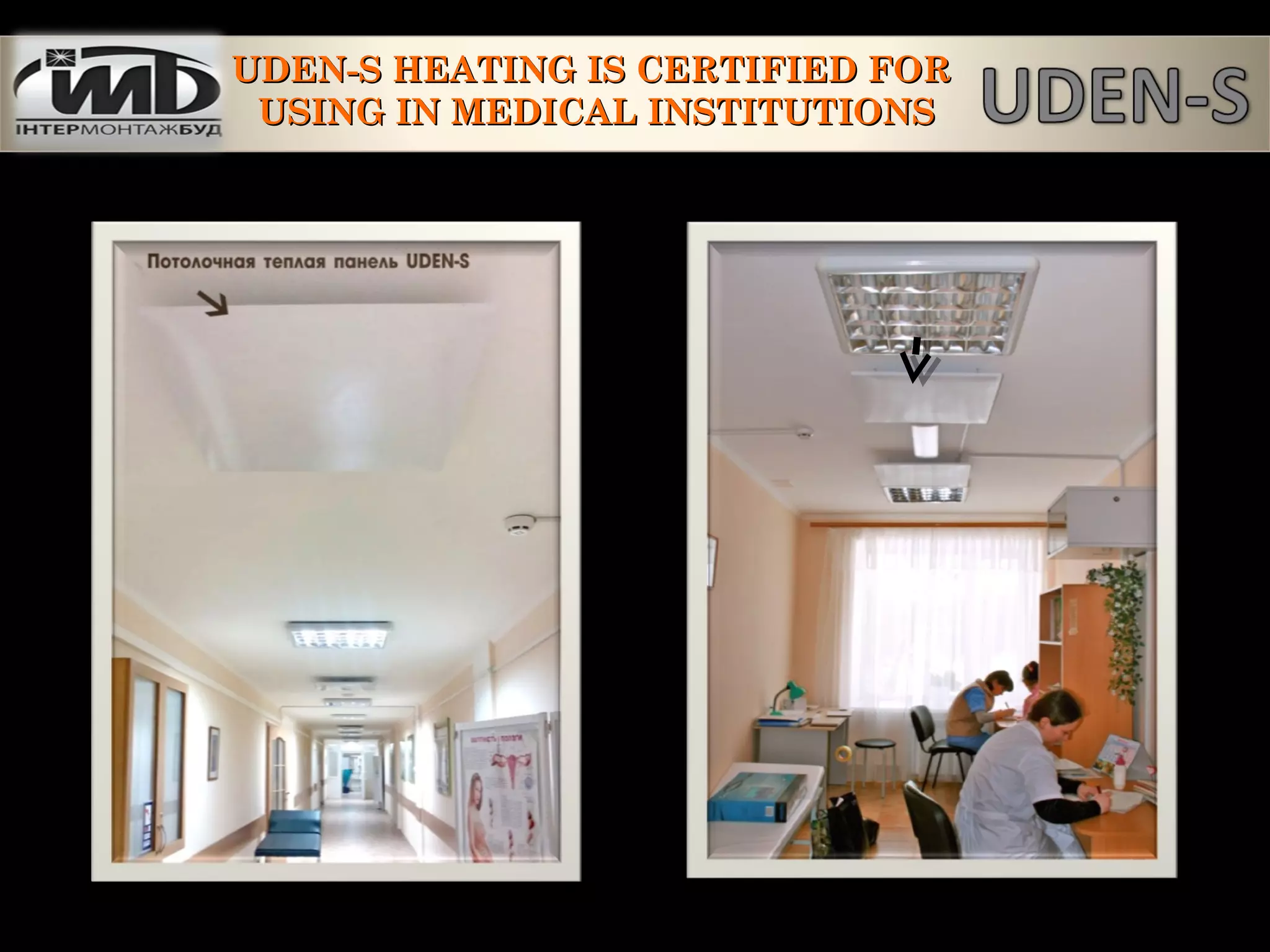

14. UDEN-S HEATING IS CERTIFIED FORUDEN-S HEATING IS CERTIFIED FOR
USING IN MEDICAL INSTITUTIONSUSING IN MEDICAL INSTITUTIONS

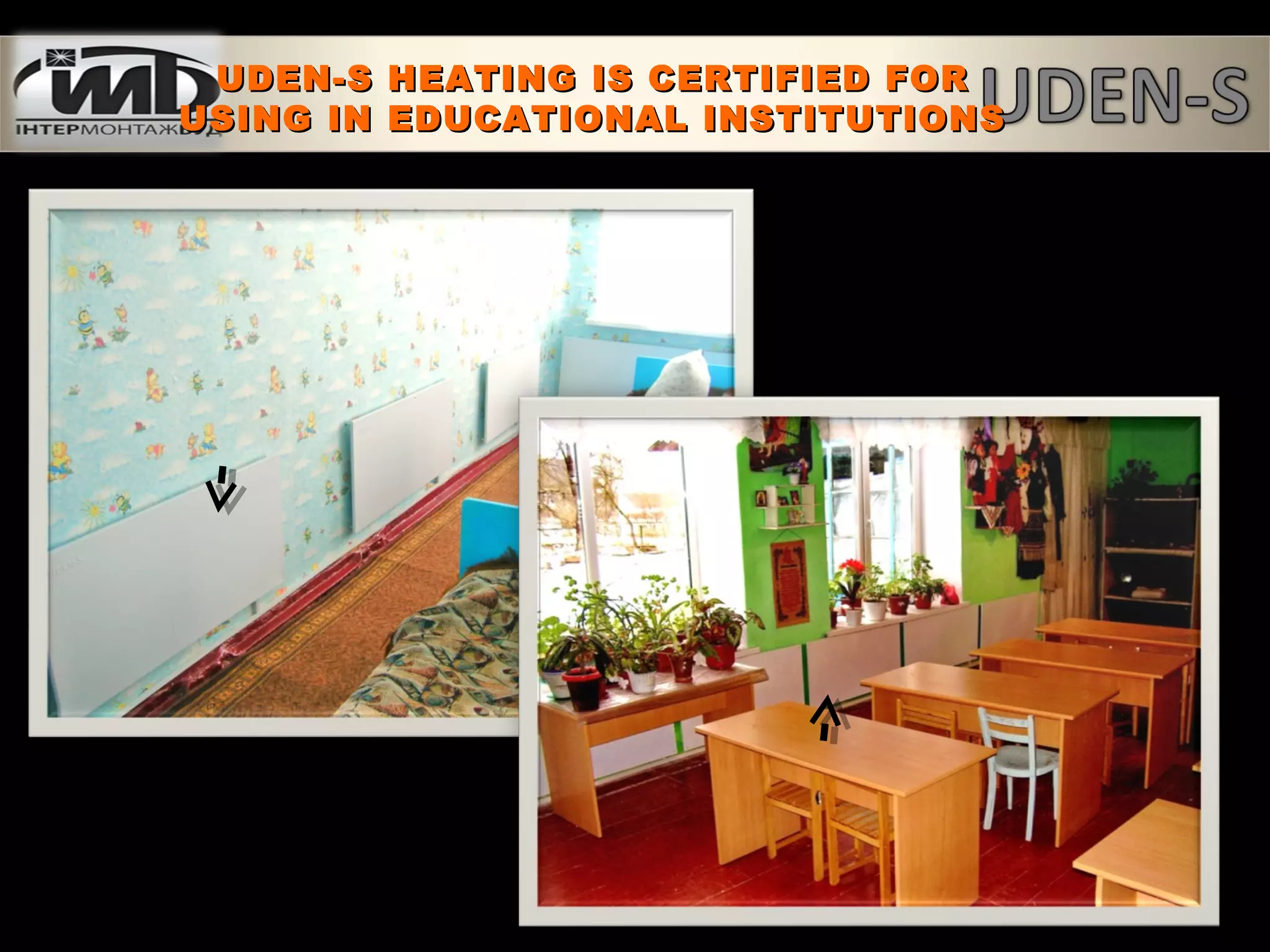

15. UDEN-S HEATING IS CERTIFIED FORUDEN-S HEATING IS CERTIFIED FOR
USING IN EDUCATIONAL INSTITUTIONSUSING IN EDUCATIONAL INSTITUTIONS

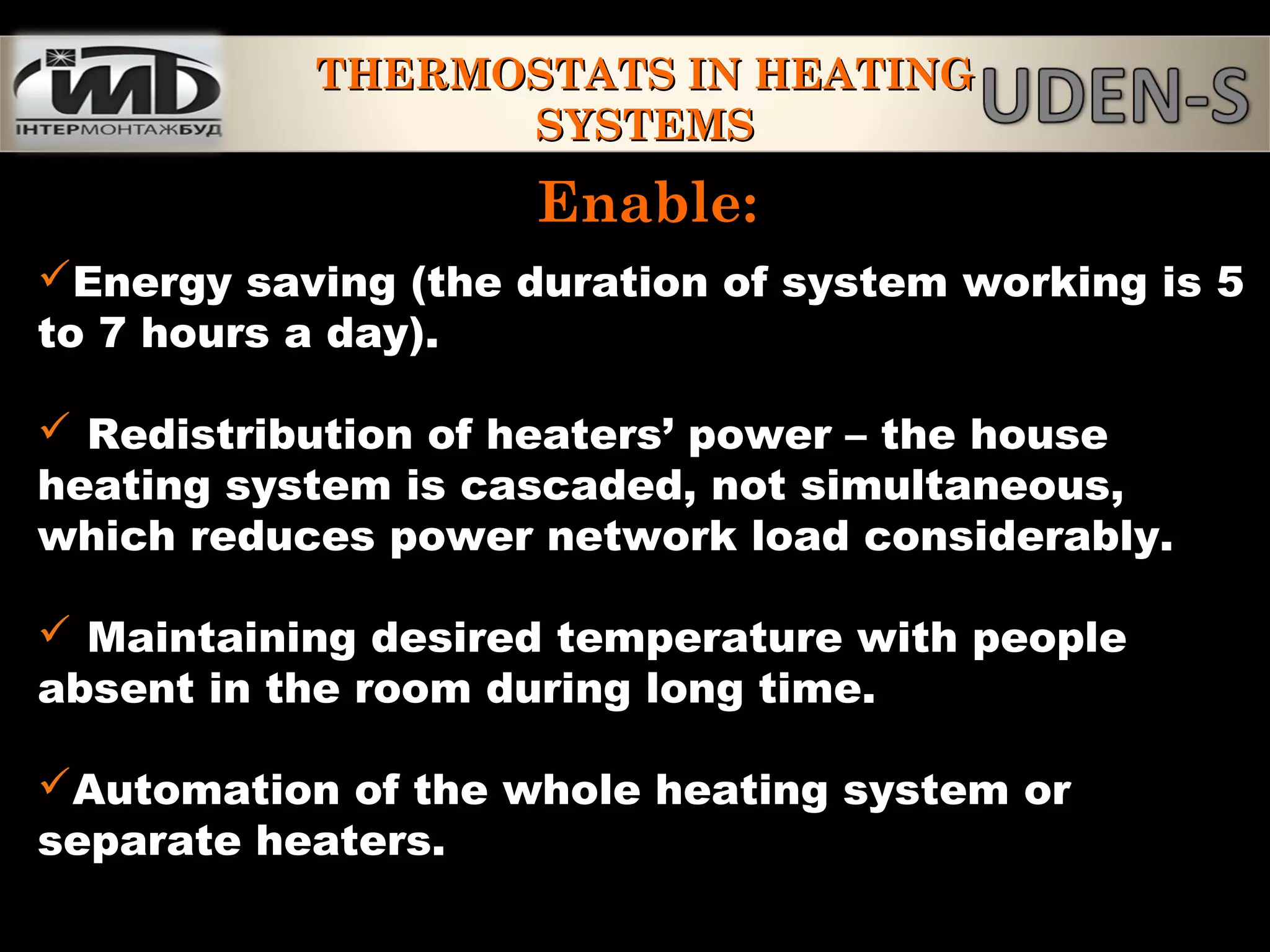

16. Enable:Enable:
Energy saving (the duration of system working is 5
to 7 hours a day).
 Redistribution of heaters’ power – the house
heating system is cascaded, not simultaneous,
which reduces power network load considerably.
 Maintaining desired temperature with people
absent in the room during long time.
Automation of the whole heating system or
separate heaters.
THERMOSTATS IN HEATINGTHERMOSTATS IN HEATING
SYSTEMSSYSTEMS

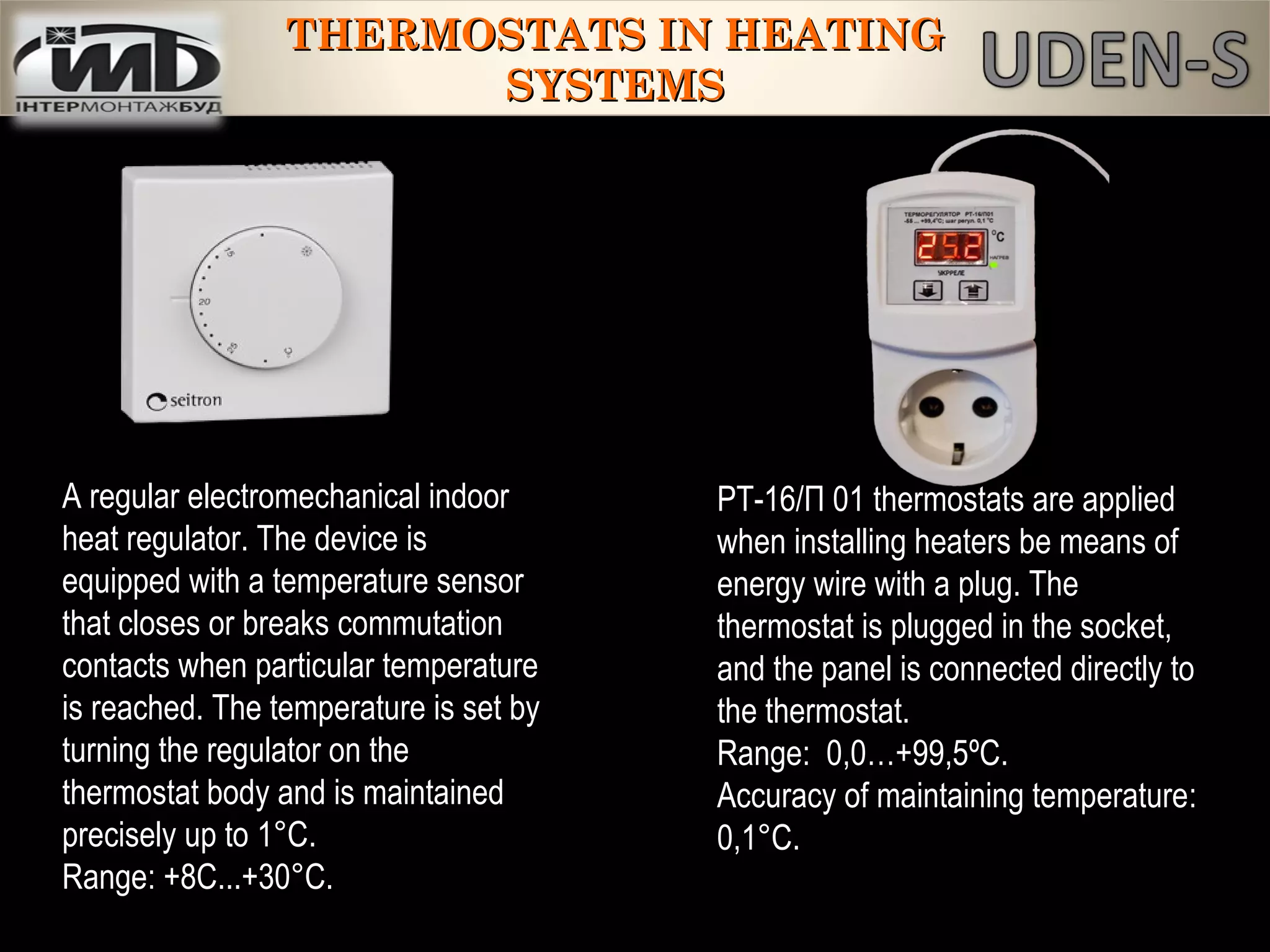

17. A regular electromechanical indoor
heat regulator. The device is
equipped with a temperature sensor
that closes or breaks commutation
contacts when particular temperature
is reached. The temperature is set by
turning the regulator on the
thermostat body and is maintained
precisely up to 1°C.
Range: +8С...+30°С.
РТ-16/П 01 thermostats are applied
when installing heaters be means of
energy wire with a plug. The
thermostat is plugged in the socket,
and the panel is connected directly to
the thermostat.
Range: 0,0…+99,5ºС.
Accuracy of maintaining temperature:
0,1°C.
THERMOSTATS IN HEATINGTHERMOSTATS IN HEATING
SYSTEMSSYSTEMS

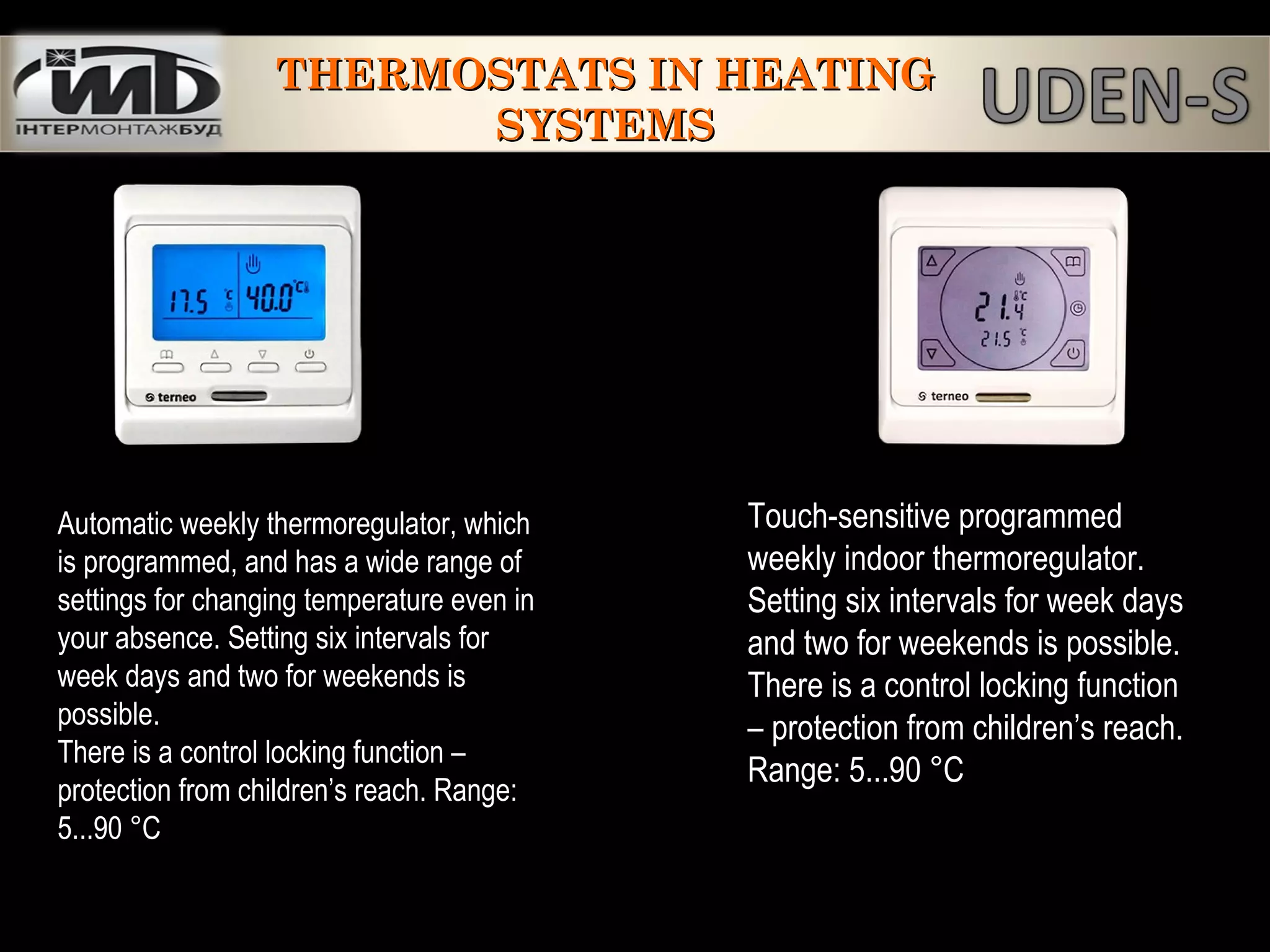

18. Automatic weekly thermoregulator, which
is programmed, and has a wide range of
settings for changing temperature even in
your absence. Setting six intervals for
week days and two for weekends is
possible.
There is a control locking function –
protection from children’s reach. Range:
5...90 °С
Touch-sensitive programmed
weekly indoor thermoregulator.
Setting six intervals for week days
and two for weekends is possible.
There is a control locking function
– protection from children’s reach.
Range: 5...90 °С
THERMOSTATS IN HEATINGTHERMOSTATS IN HEATING
SYSTEMSSYSTEMS

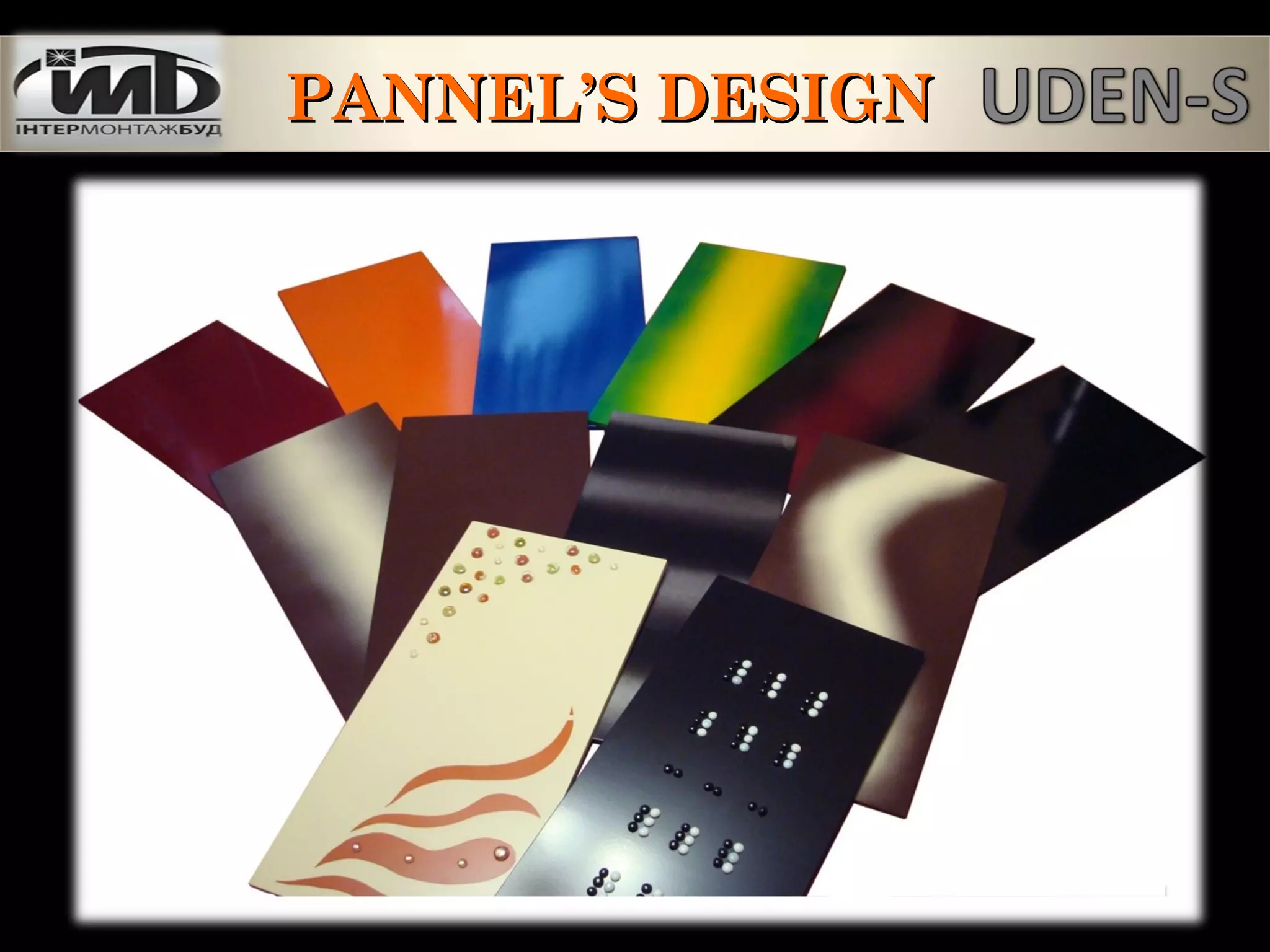

19. PANNEL’S DESIGNPANNEL’S DESIGN

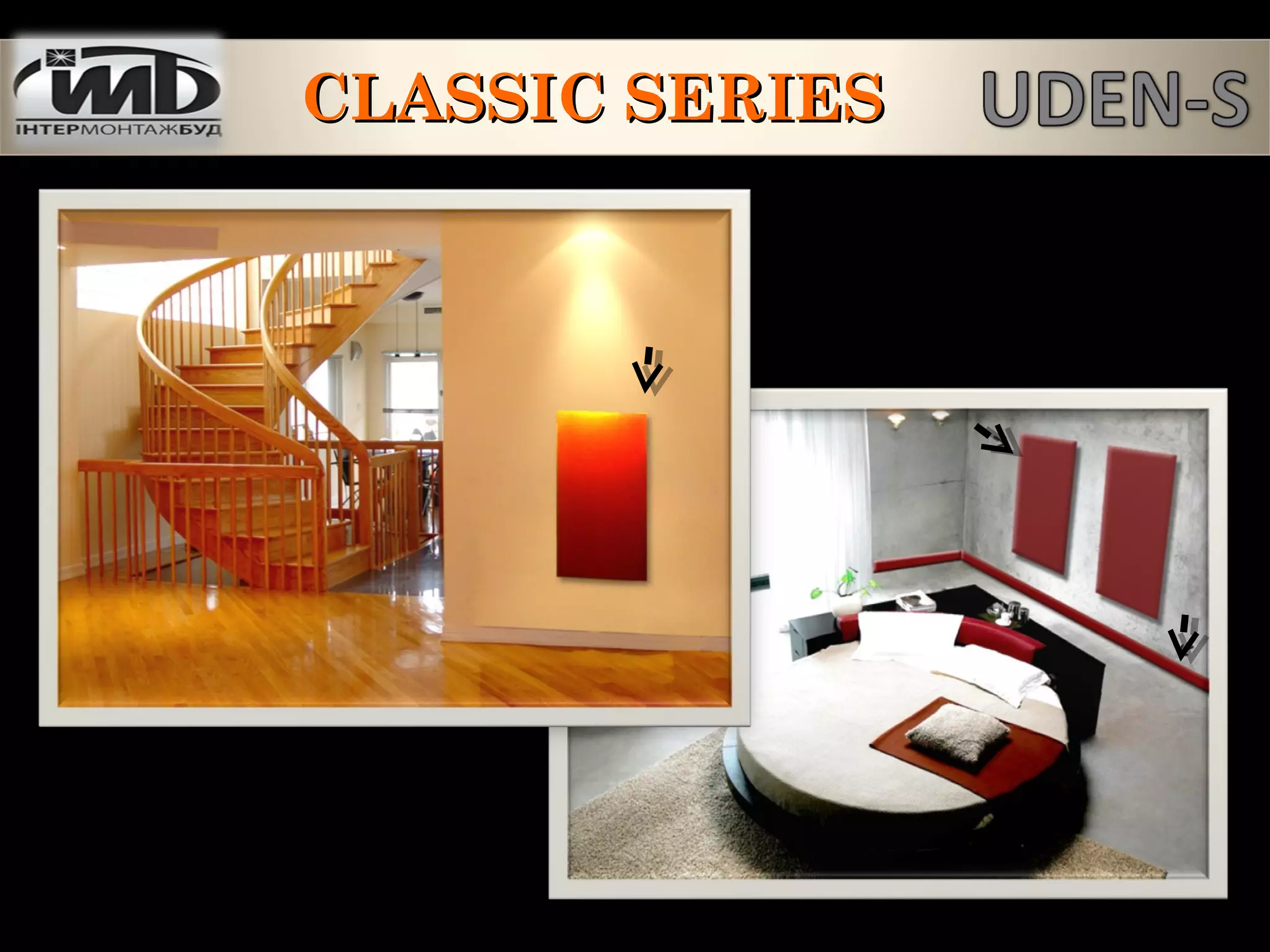

20. CLASSIC SERIESCLASSIC SERIES

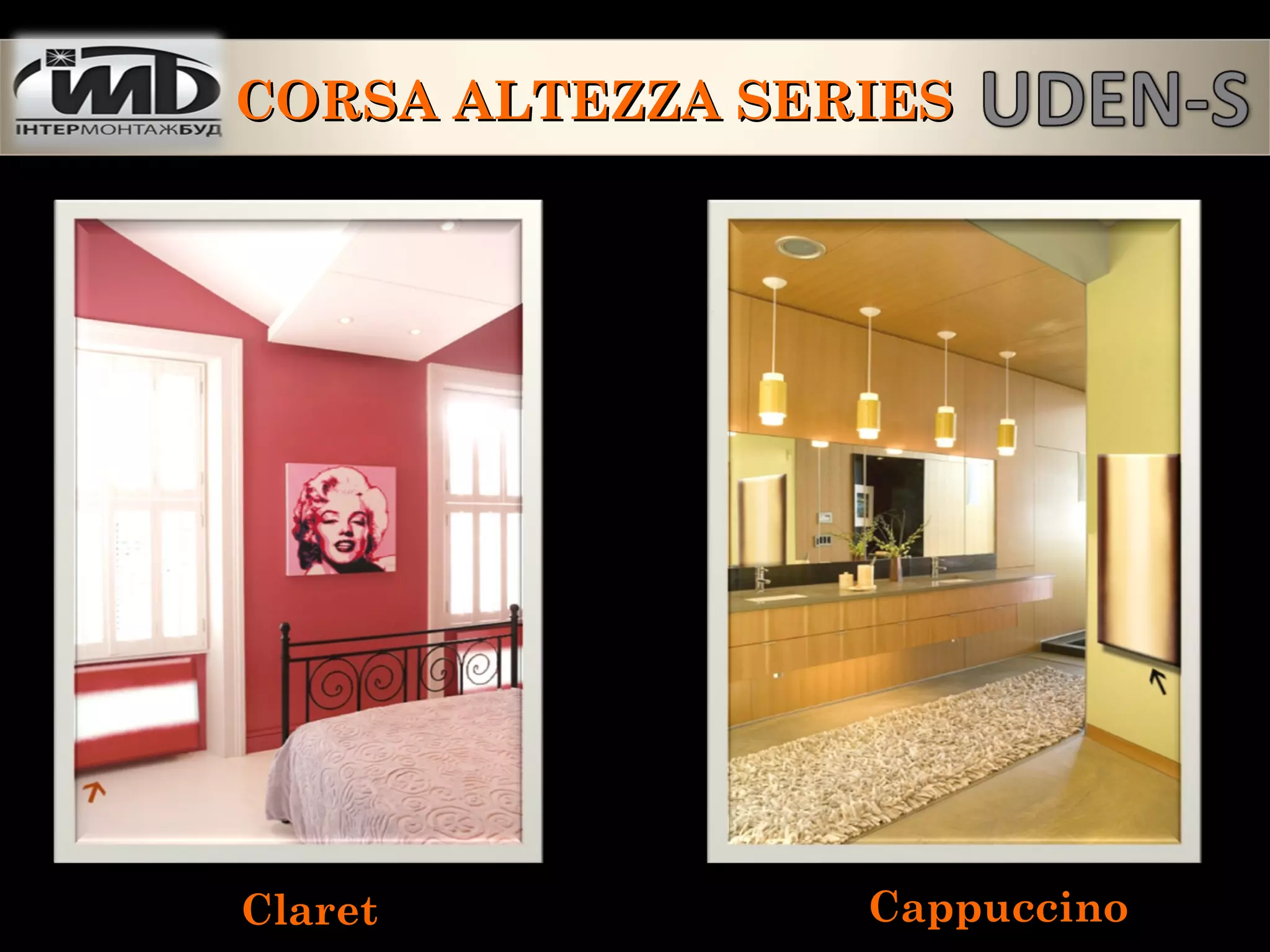

21. Claret Cappuccino
CORSA ALTEZZA SERIESCORSA ALTEZZA SERIES

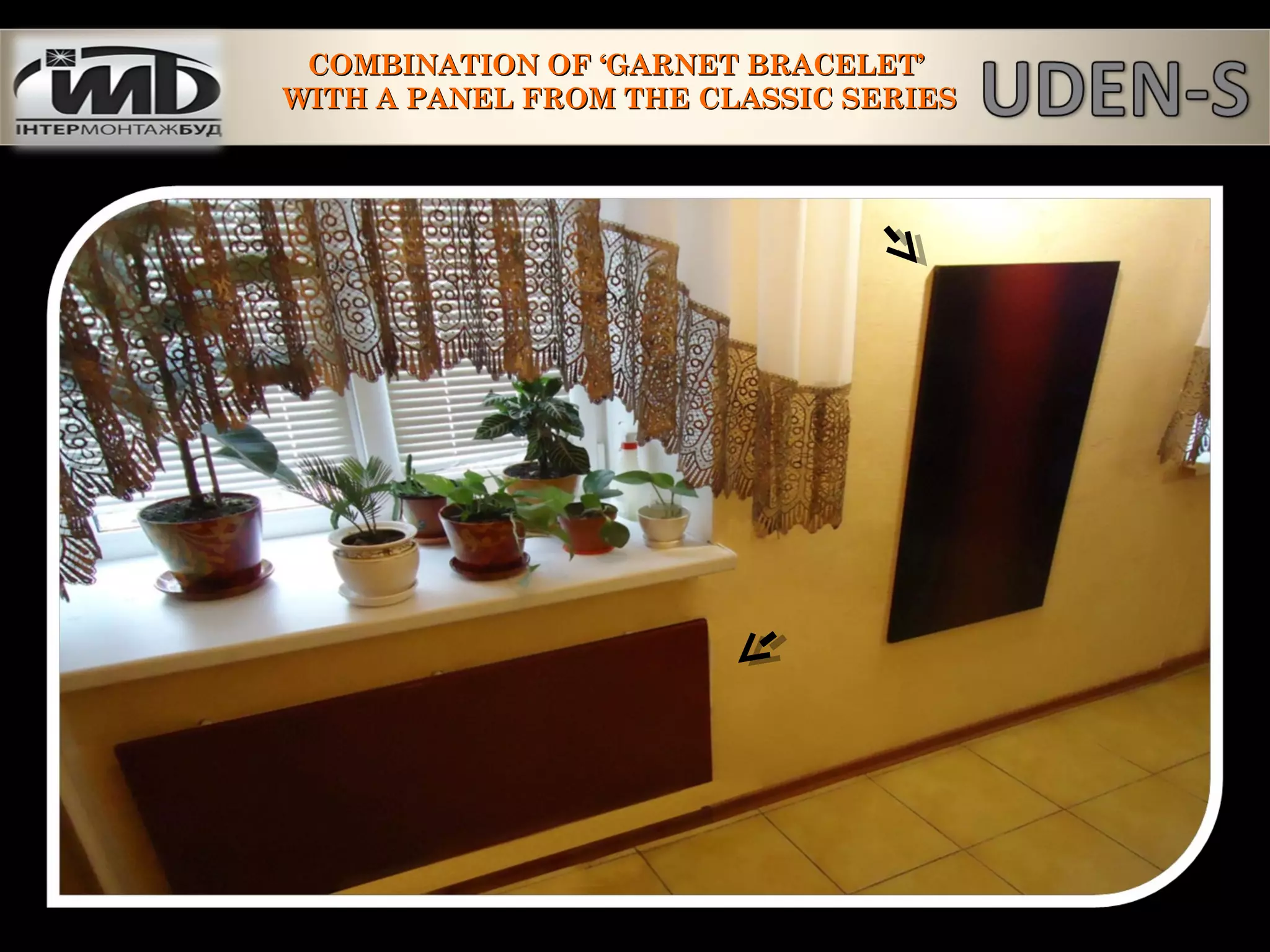

22. COMBINATION OF ‘GARNET BRACELET’COMBINATION OF ‘GARNET BRACELET’
WITH A PANEL FROM THE CLASSIC SERIESWITH A PANEL FROM THE CLASSIC SERIES

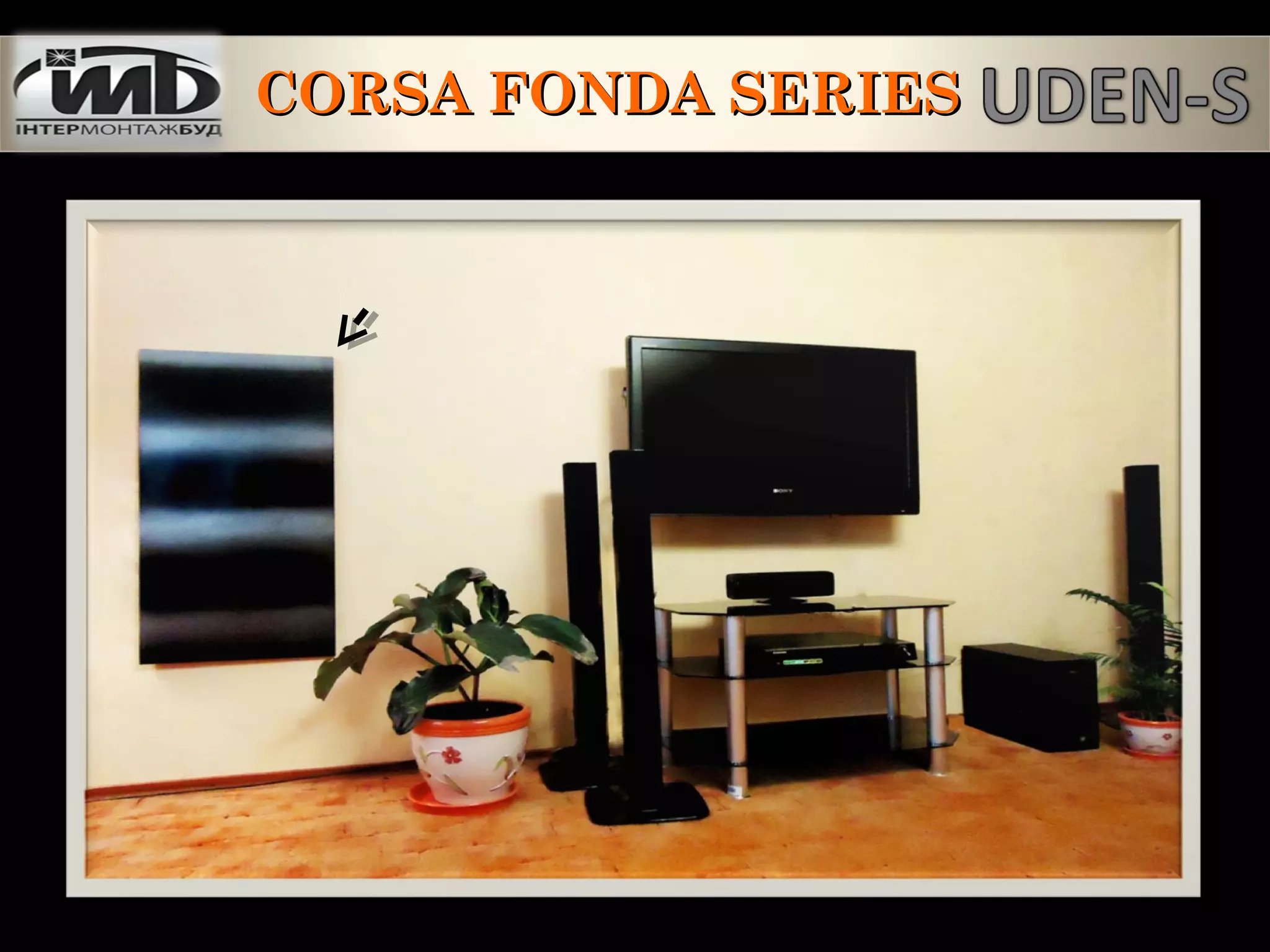

23. CORSA FONDA SERIESCORSA FONDA SERIES

24. Viardot
Amaranth

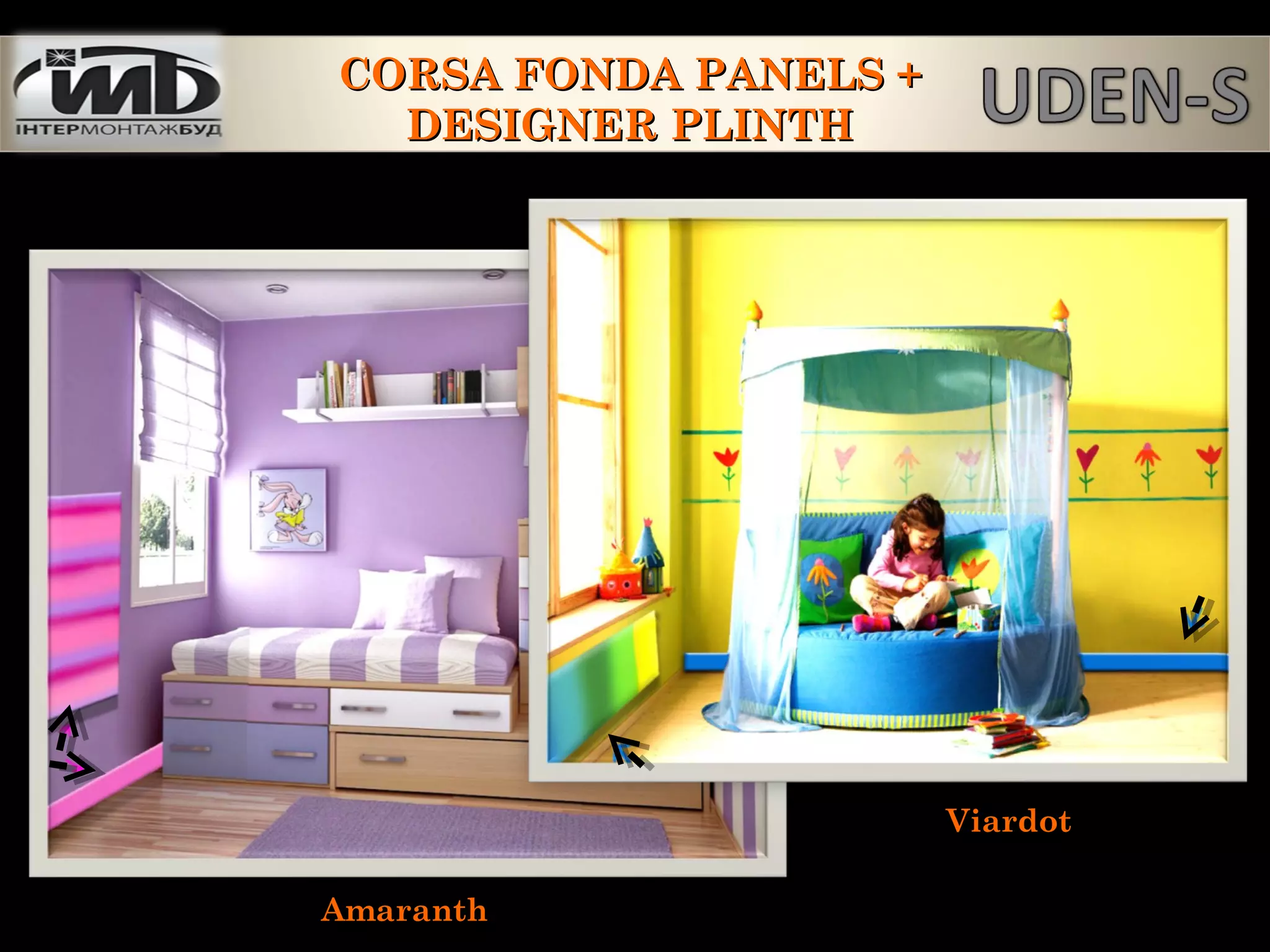

CORSA FONDA PANELS +CORSA FONDA PANELS +
DESIGNER PLINTHDESIGNER PLINTH

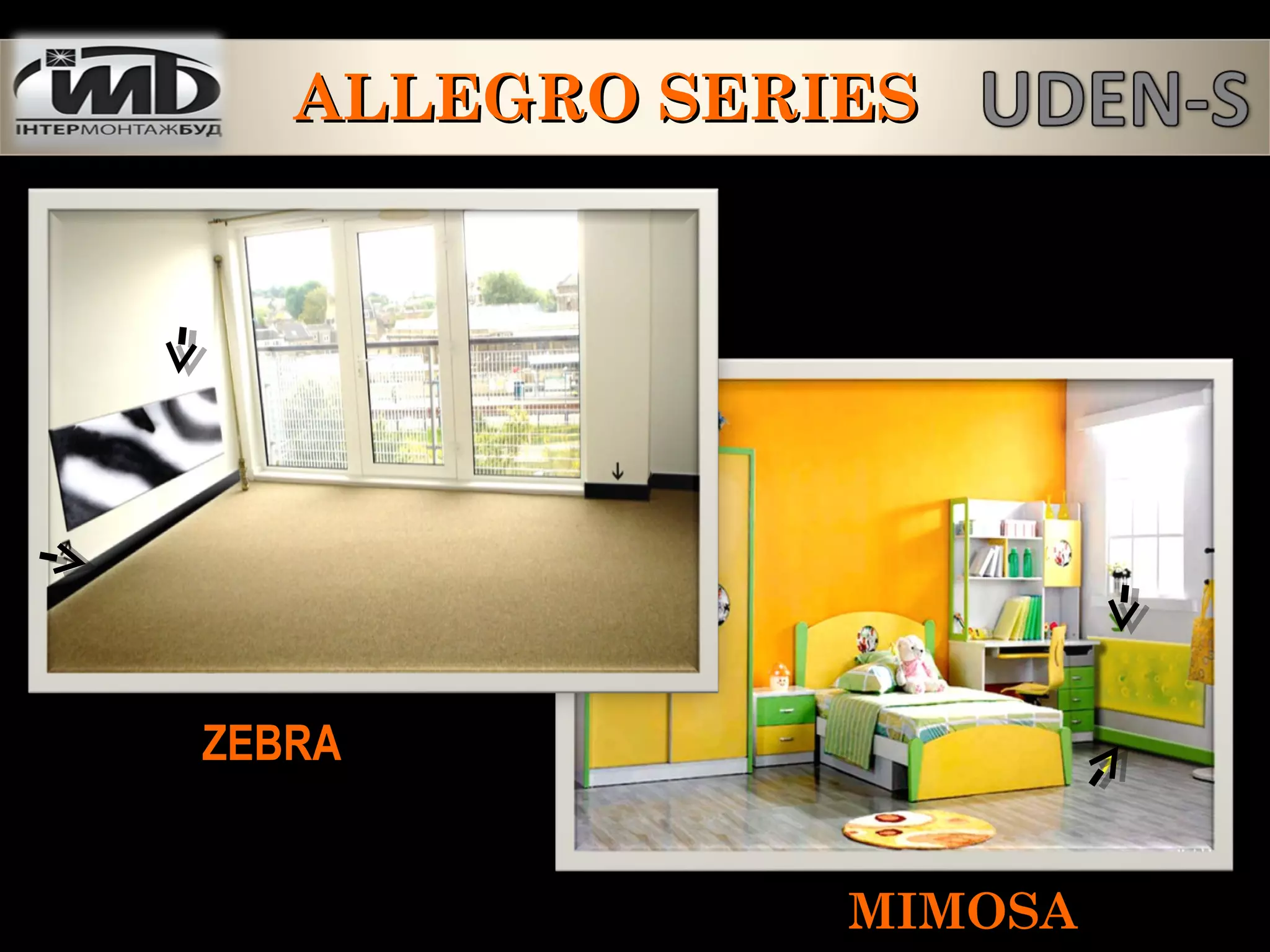

25. ZEBRAZEBRA
MIMOSAMIMOSA
ALLEGRO SERIESALLEGRO SERIES

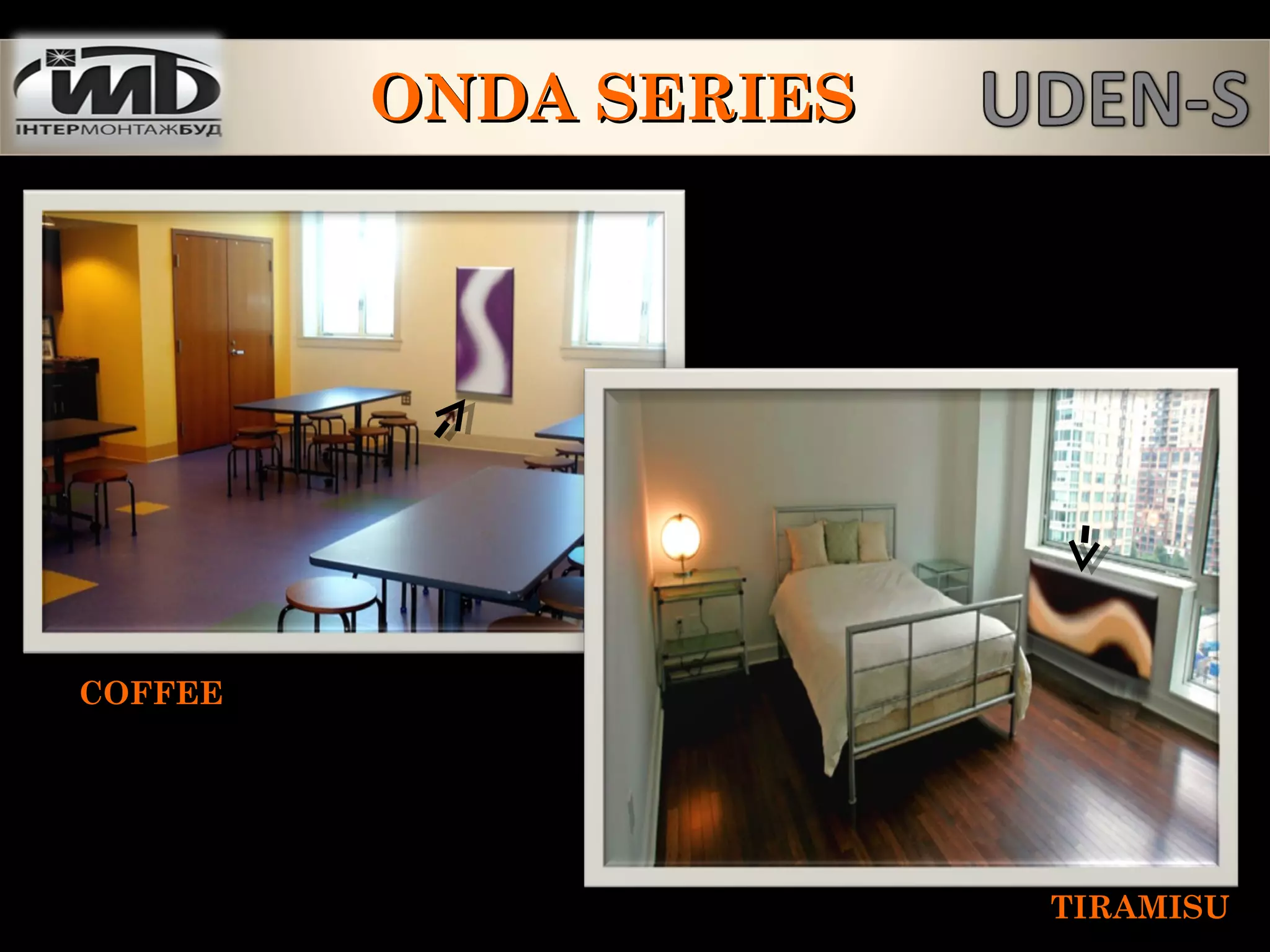

26. COFFEE
TIRAMISUTIRAMISU
ONDA SERIESONDA SERIES

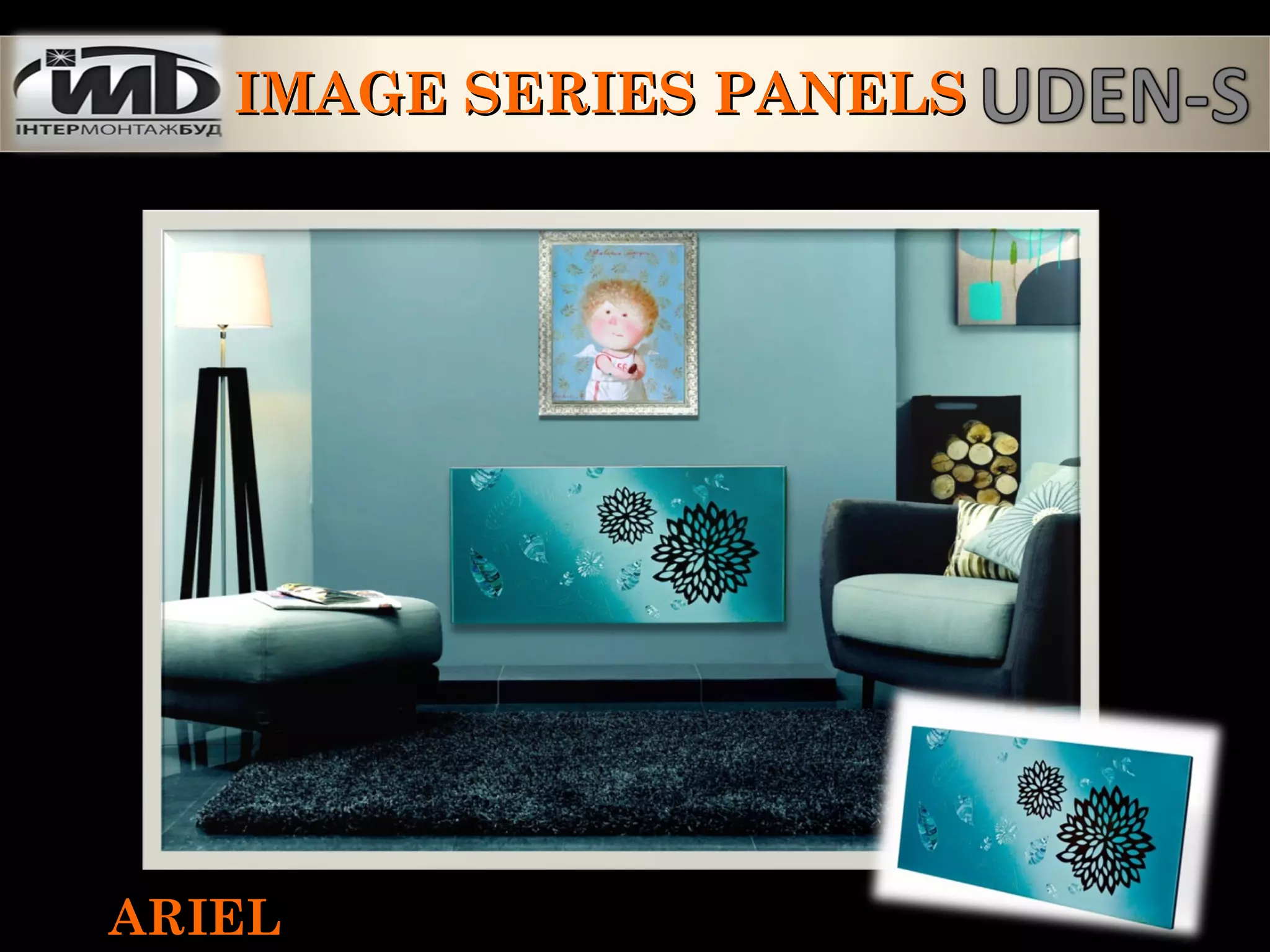

27. ARIELARIEL
IMAGE SERIES PANELSIMAGE SERIES PANELS

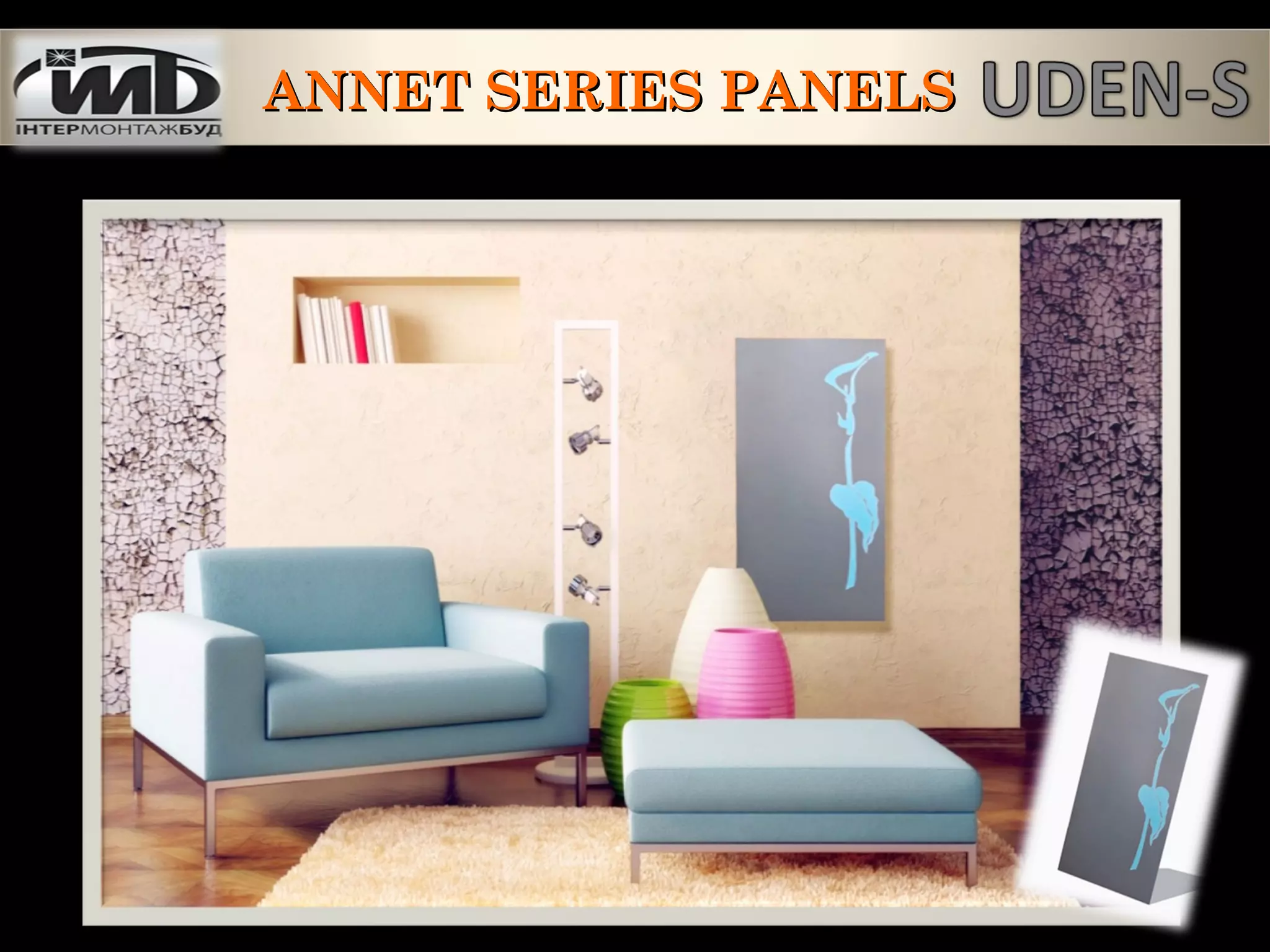

28. ANNETANNET SERIES PANELSANNET SERIES PANELS

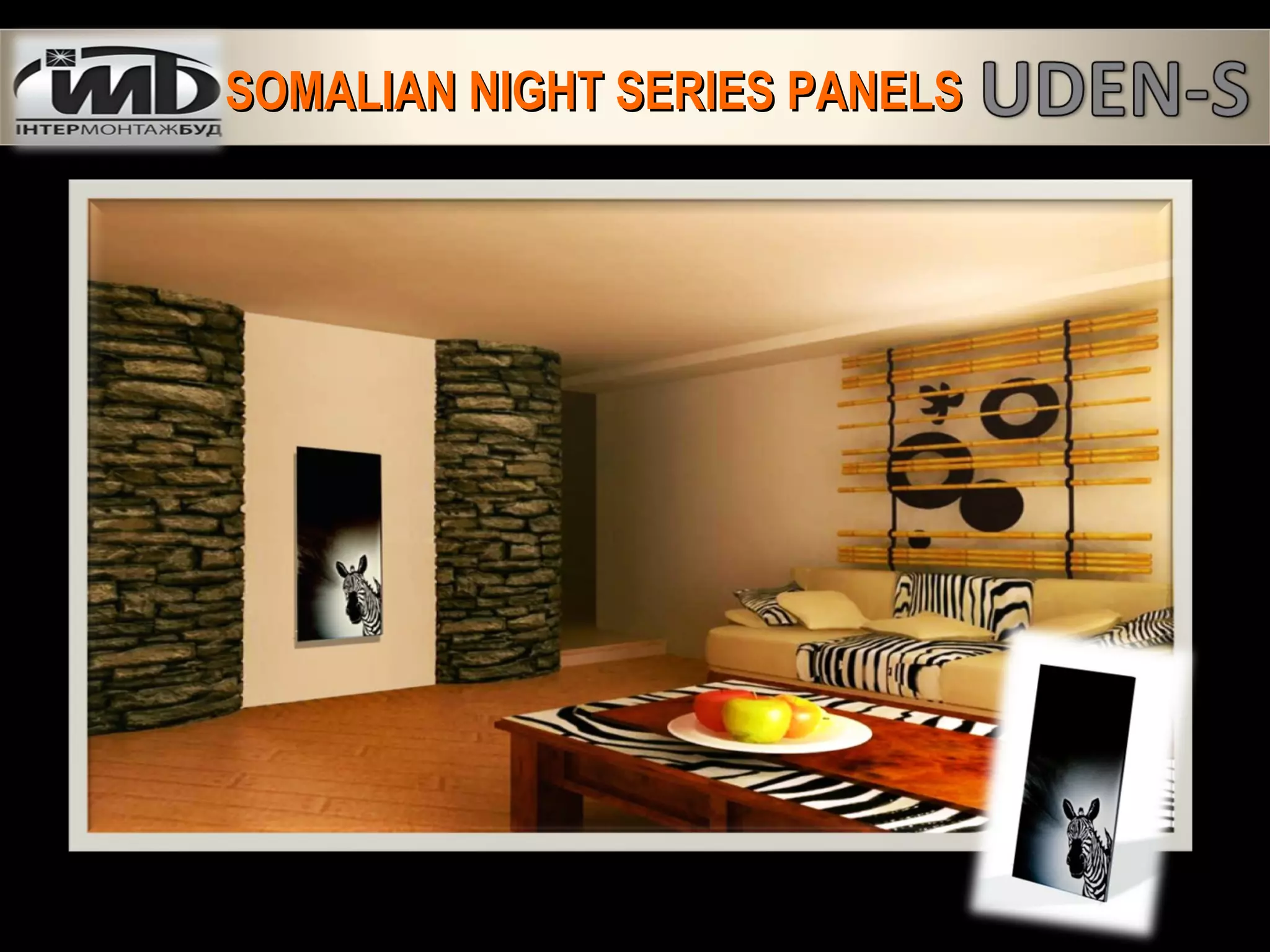

29. SOMALIAN NIGHT SERIES PANELSSOMALIAN NIGHT SERIES PANELS

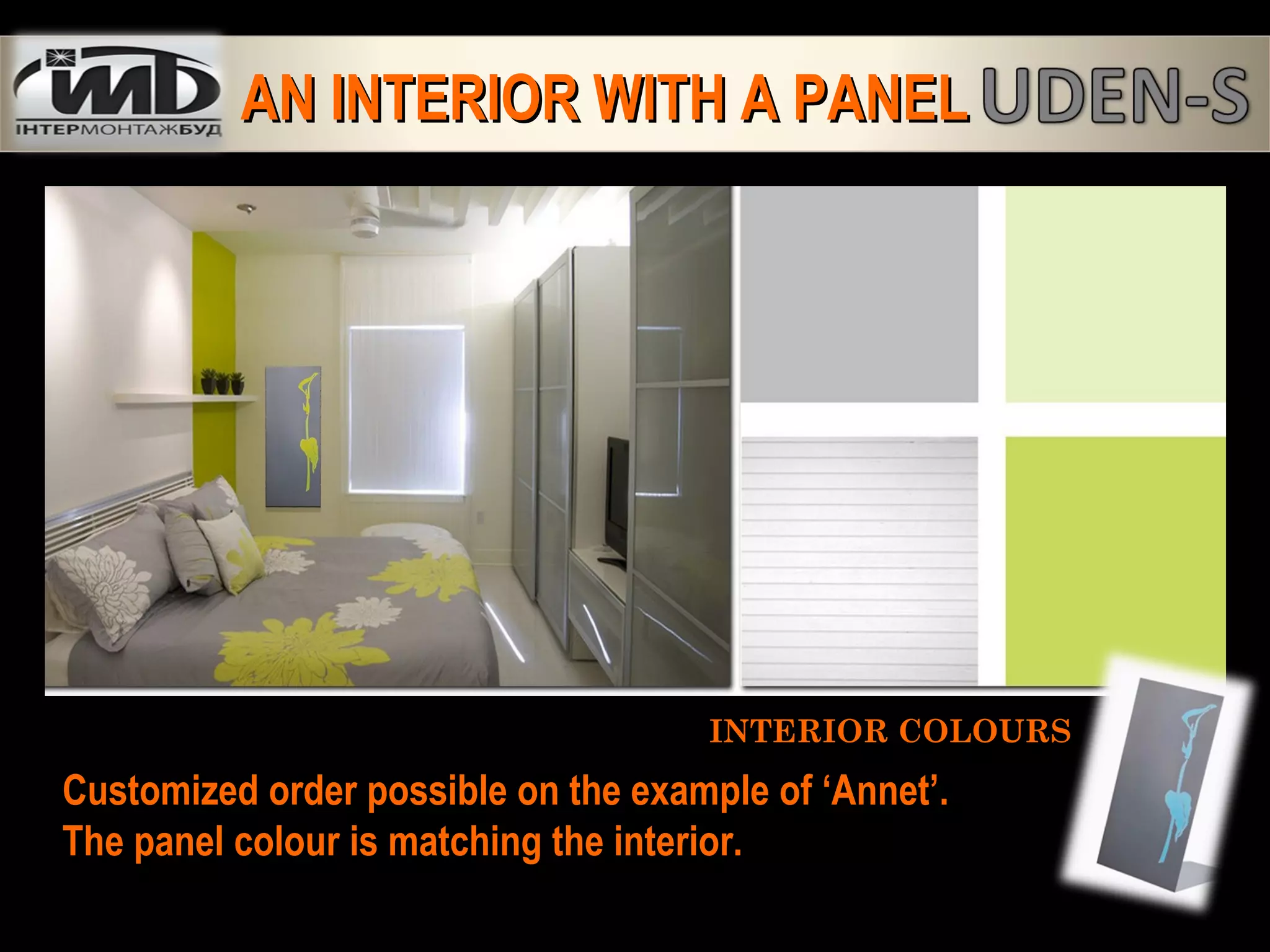

30. INTERIOR COLOURSINTERIOR COLOURS
Customized order possible on the example of ‘Annet’.
The panel colour is matching the interior.
AN INTERIOR WITH A PANELAN INTERIOR WITH A PANEL

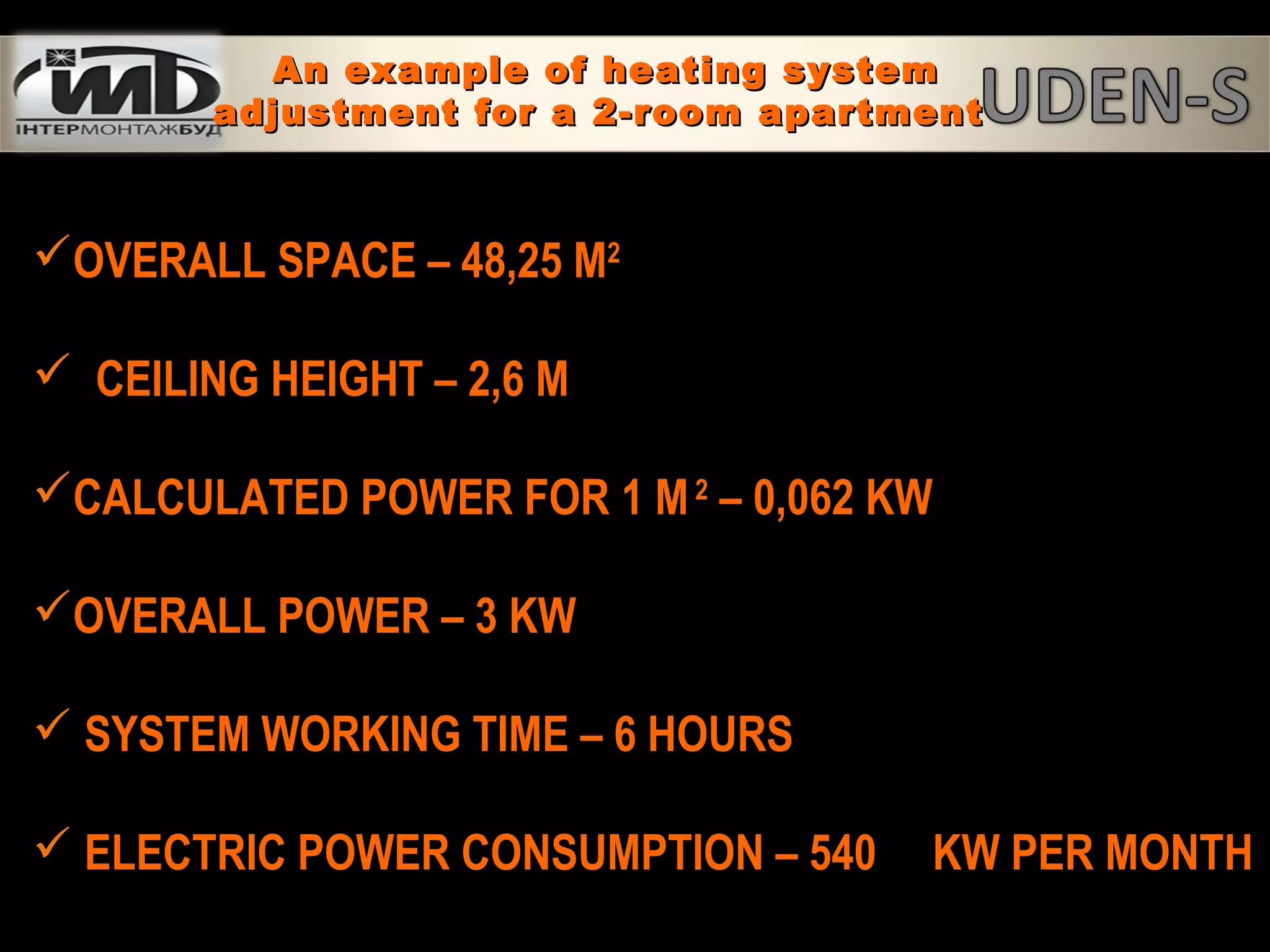

31. OVERALL SPACE – 48,25 M2
 CEILING HEIGHT – 2,6 M
CALCULATED POWER FOR 1 M2
– 0,062 KW
OVERALL POWER – 3 KW
 SYSTEM WORKING TIME – 6 HOURS
 ELECTRIC POWER CONSUMPTION – 540 KW PER MONTH
An example of heating systemAn example of heating system
adjustment for a 2-room apartmentadjustment for a 2-room apartment

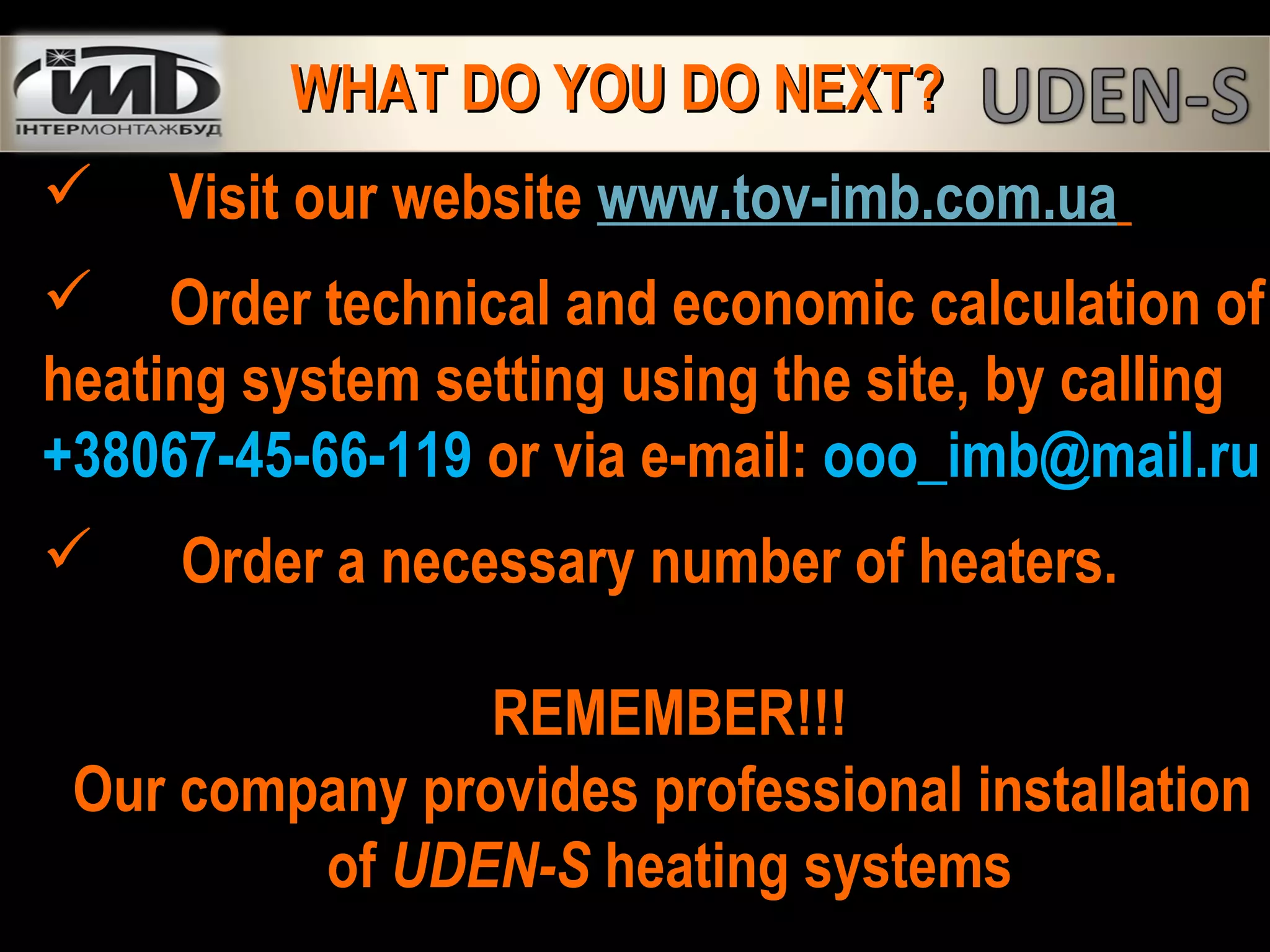

32.  Visit our website www.tov-imb.com.ua
 Order technical and economic calculation of
heating system setting using the site, by calling
+38067-45-66-119 or via e-mail: ooo_imb@mail.ru
 Order a necessary number of heaters.
REMEMBER!!!
Our company provides professional installation
of UDEN-S heating systems
WHAT DO YOU DO NEXT?WHAT DO YOU DO NEXT?

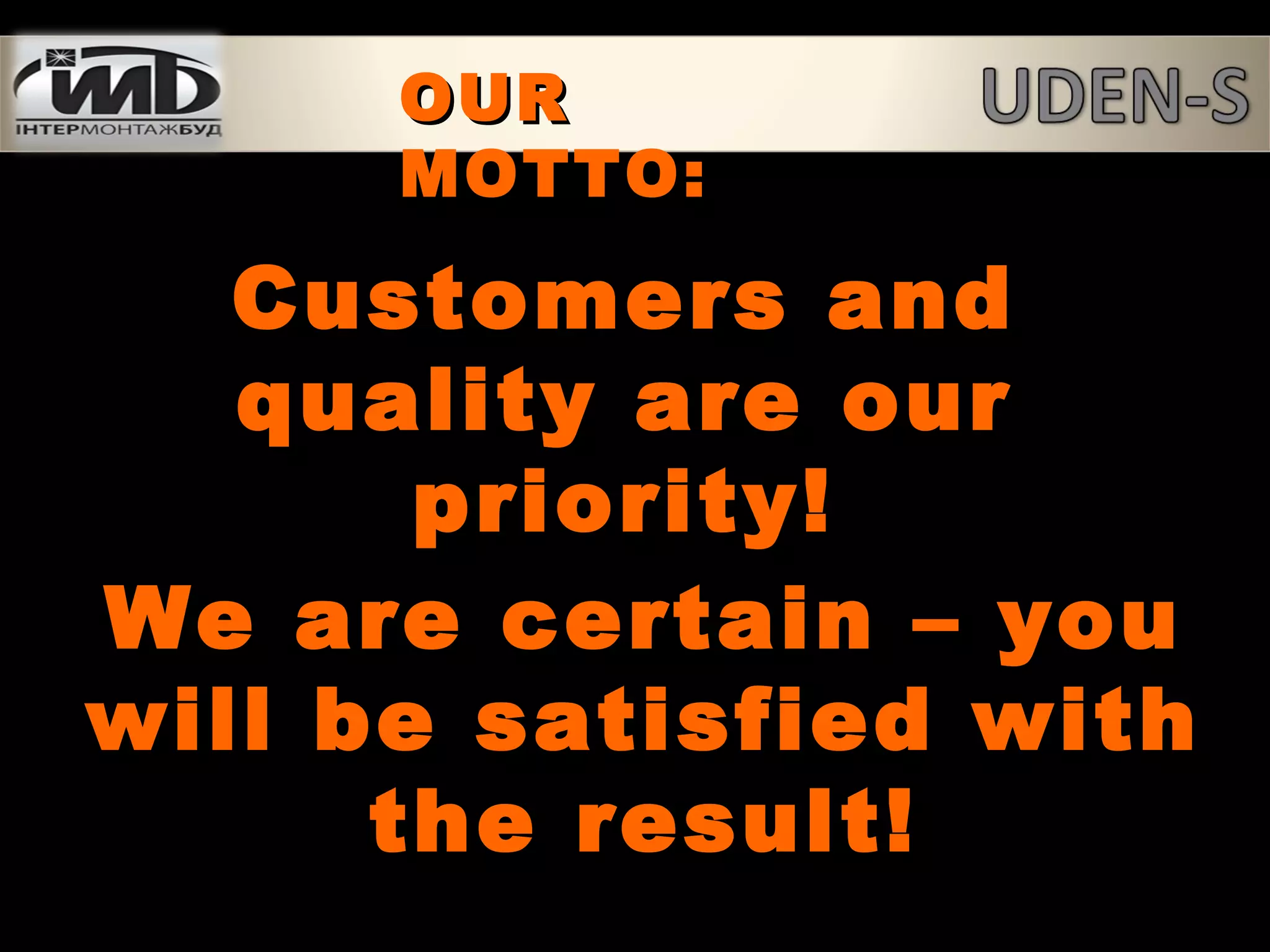

33. Customers and
