This document provides instructions for making a heart-shaped box from a single sheet of paper. The instructions are divided into two sections - one for making the base and one for the lid. To make the base, the paper is folded in half lengthwise and various mountain and valley folds are made to create the shape. Tabs are tucked into pockets to form and lock the shape. The lid instructions follow a similar process of folding, shaping, and locking tabs into pockets to form the lid of the heart box.

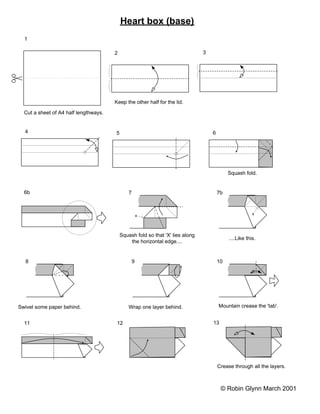

1. Heart box (base)
1
2 3
Keep the other half for the lid.
Cut a sheet of A4 half lengthways.
4 5 6
Squash fold.
6b 7 7b
x x
Squash fold so that 'X' lies along
....Like this.
the horizontal edge....
8 9 10
Swivel some paper behind. Wrap one layer behind. Mountain crease the 'tab'.
11 12 13
Crease through all the layers.
© Robin Glynn March 2001

2. Heart box (base)
14 15
Unfold back to step 11.
16 17
Mountain crease the diagonals.
19
18
Squash fold. Petal fold.
Model becomes 3 dimensional.
20 21
Swivel 4 segments.
Tuck point up inside.
It's easier if you seperate the bottom
edges during the move.
© Robin Glynn March 2001

3. Heart box (base)
22 23
Tuck the layer under
the pocket.
24
25
Repeat steps 21-23 on this side.
26
Tuck behind to lock.
Slide the tab into the pocket.
Now for the lid....
© Robin Glynn March 2001

4. Heart box (lid)
1 2 3
2mm 2mm
Fold the top edge so it is about Unfold.
2mm from the bottom.
4 5 6
Fold so that the top corner lies on Crease using the circled corner as
the horizontal crease. a guide.
7 8 8b
Squash fold.
9 9b 10
x x
Squash fold so that 'X' lies along
.....like this. Swivel some paper behind.
the horizontal edge....
11 12
13
Wrap one layer behind. Mountain crease the 'tab'.
© Robin Glynn March 2001

5. Heart box (lid)
14 16
15
Crease through all the layers. Unfold back to step 13.
17 18
19 20
Mountain fold using the tab as a guide. Reinforce as valley folds.
21 22
Mountain crease the diagonals.
Squash fold.
Model becomes 3 dimensional.
23 24
Petal fold
Tuck point up inside.
It's easier if you seperate the
bottom edges during the move.
© Robin Glynn March 2001

6. Heart box (lid)
25 26
Swivel 4 segments.
27 28
Tuck the layer under
the pocket.
Repeat steps 25-27 on this side.
29 30 30b
Tuck the small flap behind to lock. Turn over
Slide the tab into the pocket.
31
Finished!
Mountain fold the tip inside the model
(you may need to reorganise the hidden
layers to free the tip). © Robin Glynn March 2001
