Hawman Container Services is an ISO 9001:2008 certified manufacturing company located in Barrie, Ontario with over 120,000 square feet of manufacturing space across three locations. They have extensive engineering and manufacturing capabilities including API 650 tank design, piping system design, 3D modeling, welding, and turnkey modular fluid handling systems. Their products and services include custom fluid handling equipment, pressure vessels, API tanks, pumping systems, and structural supports for industries including oil and gas, mining, and chemical processing.

1. 888-895-1449 www.hawman.com
HCS Group Manufacturing,
Division of 872556 Ontario Inc.
HawmanContainer Services
ISO 9001:2008 Certified
HawmanContainer Services
ISO 9001:2008 Certified
Custom Fluid Handling
Process Equipment

2. HISTORY
HCS GROUP ENGINEERING CAPABILITIES
• API 650 tank design using AME tank design software c/w calculations:
• wind, seismic, lifting lugs and structural FEA c/w P.Eng. stamp for the province of installation
• Piping system design as per ASME code B31.3 or B31.1
• Concept - P&IDs, & piping components selection supporting documentation
• 3D Modeling, GA & BOM creation using Solid Works latest edition
• QA documentation submittals for approval c/w document Index
• Inspection & test plans, welder’s qualifications, procedures: Weld, NDE, Functional & Hydro Testing…etc.
• Provincial Registration - Piping Data Report c/w P.Eng stamped calculations – TSSA, ABSA …etc.
HCS GROUP MANUFACTURING CAPABILITIES
• ISO 9001 - quality control – material traceability, ITPs
• ISO Z299 also available
• CWB certified welders - W47.1 – structural frames and tank
supports
• AWS D1.1 certified procedures also available
• TSSA Certified Shop – ASME section VIII, division 1 & CSA B51
• NDE & PWHT as required c/w weld & NDE mapping
• Third party NDE: RT, UT, visual, mag particle & PMI
• Project management, start-up assistance & on-site training
Hawman Container Services was founded in the late
70’s as a service and refurbishing facility of barils
and intermediate bulk containers (IBCs) based out of
Barrie ON.
Over the years the company has experienced
tremendous growth by developing its own line of
standard products. Our off the shelf, UN approved,
IBC containers product line represents our standard
offering, having our own Polyethylene Rotomolding
division capable of building 40 IBC’s per day from raw
materials to a completely finished product.
Being 100% Canadian family owned and operated
the company has continued to expand its fabrication
capabilities with significant expansions in equipment
and facilities therefore creating the HCS Group
Manufacturing business unit.
Our exposure to a variety of industries over the past
30 years has allowed us to expand into custom
fabricated process equipment supply such as API 650
& 12F tanks, CWB structural frames & platforms as
well as ASME registered pressure piping and turnkey
fluid handling systems.
APIMEMBER
COMPANY

3. 888-895-1449 www.hawman.com
TURNKEY MODULAR FLUID HANDLING STATION
APPLICATION: ALBERTA O&G – SAGD WELLHEAD CHEMICAL INJECTION
100BBL (16000L) - API 12F TANK
• 304SS construction
• PVRV & EPRV as per API 2000
• 30” manway & ladder
• AME tank calculations - wind, seismic…etc.
110% CONTAINMENT – AB DIRECTIVE 55
• 12’x28’x2’H - designed for installation on 4 piles
• CS construction - 24” I beams perimeter
• Envirobox - truck loading station
• ABC compliant c/w FEA & P.Eng stamps
PUMPING EQUIPMENT ENCLOSURE
• 6’x8’x8“H c/w dual doors and manual louvre
• CS frame, insulation & vic west cladding
• Internal heaters c/w thermostat - C1D2
• ABC & NBC compliant c/w P.Eng stamps
HCS GROUP
BARRIE, ONTARIO
Analyzed with SOLIDWORKS Simulation Simulation of 13520-T1M85-X-850-100A 1
Simulation of 13520-
T1M85-X-850-100A
Date: Wednesday, August 03, 2016
Designer: H.A.
Study name: Static 2
Analysis type: Static
Table of Contents
Description............................................1
Assumptions ..........................................2
Model Information ...................................2
Study Properties .....................................9
Units ...................................................9
Material Properties ................................ 10
Loads and Fixtures................................. 12
Connector Definitions............................. 13
Contact Information............................... 13
Mesh information .................................. 14
Sensor Details ...................................... 15
Resultant Forces ................................... 15
Beams................................................ 16
Study Results ....................................... 21
Conclusion .......................................... 21
Description
Simulated static analysis of support structure weldment with
storage tank at full capacity and all necessary equipment
mounted.
Husky Doc No: SNRS-ZZ-T1M85-EN-VP-85-004-1
Document Title: DA2-STRUCTURAL DESIGN
Prominent PFC No: 3115800474
HCS Group
Barrie, Ontario H.A.
8/4/2016
Analyzed with SOLIDWORKS Simulation Simulation of 13520-T1M85-X-850-101 11
Beams
No Data
Study Results
Name Type Min Max
Displacement1 URES: Resultant Displacement 0 in
Node: 327
0.00177395 in
Node: 10520
13520-T1M85-X-850-101-Static 2-Displacement-Displacement1

4. PRESSURE VESSELS
ACTIVATED CARBON VESSEL
• ASME design – 180psi @ 200° F
• TSSA registration c/w ON P.Eng. stamps & CRN
• Shell – 48” OD x 72”str side x 0.375” wall
• 304 & 316SS Construction
• 24” manway c/w davit
• Internal diffuser hub c/w wedge wire screens

5. 888-895-1449 www.hawman.com
API 650 TANKS
APPLICATION: REAGENT MAKE DOWN SYSTEM –
GOLD MINING
• API 650 stacked tanks
• Internally reinforced bottom tank to support upper tank & mixer

6. API 650 TANKS
APPLICATION: REAGENT INJECTION – ALBERTA O&G – SAGD
• 304SS API 650 tanks
• Wind, seismic, lifting lugs and structural FEA c/w AB P.Eng. stamp

7. 888-895-1449 www.hawman.com
API 650 TANKS
APPLICATION: REAGENT INJECTION – ALBERTA O&G – SAGD
• 304SS API 650 tanks EHT, insulated & cladded
• Wind, seismic, lifting lugs and structural FEA c/w AB P.Eng. stamp
APPLICATION: MOLTEN SULPHUR & BENTONITE
SLURRY MIXING
• Two API 650 CS jacketed tanks
• Three leg design to suit load cell level monitoring

8. TURNKEY PUMPING SYSTEMS
APPLICATION: MINING & O&G API PUMPING SYSTEMS
• 316SS Piping Systems – ASME B31.3
• CRNs c/w provincial registration

9. 888-895-1449 www.hawman.com
ASME PRESSURE PIPING
APPLICATION: O&G - PIPING SPOOLS
• 316SS Piping Spools – ASME B31.3
• CRNs c/w provincial registration
APPLICATION: VARIOUS STRUCTURAL SUPPORTS
• CS & SS – CWB W47.1 Structural Supports Frames
• P.Eng Stamped Structural Calculations
• Lifting Lugs rated for -45°C – Cat 4 material Charpy impact tested
• NDE – 100% Magnetic Particle Testing
STRUCTURAL FRAMES

10. VARIOUS CUSTOM PROCESS EQUIPMENT
40” INLINE MIXING VESSEL
RESIN TRAPS
LIME SLURRY SS CONICAL
BOTTOM MIX TANK
SS TRUCK UNLOADING STATION
C/W SPILL CONTAINMENT
SS SUPPLY TOTE & AODD
TRANSFER PUMP ASSEMBLY

11. 888-895-1449 www.hawman.com

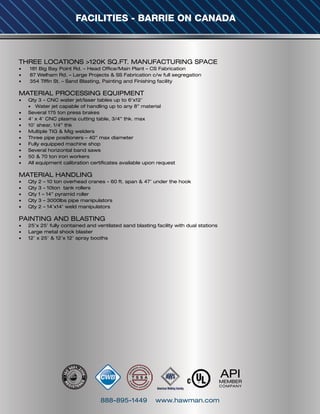

FACILITIES - BARRIE ON CANADA
THREE LOCATIONS >120K SQ.FT. MANUFACTURING SPACE
• 181 Big Bay Point Rd. – Head Office/Main Plant – CS Fabrication
• 87 Welham Rd. – Large Projects & SS Fabrication c/w full segregation
• 354 Tiffin St. – Sand Blasting, Painting and Finishing facility
MATERIAL PROCESSING EQUIPMENT
• Qty 3 - CNC water jet/laser tables up to 6’x12’
• Water jet capable of handling up to any 8” material
• Several 175 ton press brakes
• 4’ x 4’ CNC plasma cutting table, 3/4” thk. max
• 10’ shear, 1/4” thk
• Multiple TIG & Mig welders
• Three pipe positioners – 40” max diameter
• Fully equipped machine shop
• Several horizontal band saws
• 50 & 70 ton iron workers
• All equipment calibration certificates available upon request
MATERIAL HANDLING
• Qty 2 – 10 ton overhead cranes - 60 ft. span & 47’ under the hook
• Qty 3 - 10ton tank rollers
• Qty 1 – 14” pyramid roller
• Qty 3 – 3000lbs pipe manipulators
• Qty 2 – 14’x14’ weld manipulators
PAINTING AND BLASTING
• 25’x 25’ fully contained and ventilated sand blasting facility with dual stations
• Large metal shock blaster
• 12’ x 25’ & 12’x 12’ spray booths
APIMEMBER
COMPANY

12. WORLDWIDE SERVICE
Our customer base is virtually every country on the globe and our transportation co-ordinator can deliver our goods to any
location whether it is easily accessible or remote.
GOAL
Our goal as a company is to offer the most comprehensive product line in our industry and to specialize at developing
packaging solutions for the most difficult packaging problems our customers may present.
LOCATIONS
We have over 120,000 square feet of manufacturing space at 3 locations in Barrie Ontario and manufacture most of the
components and sub-components for our products in house. Our in house capabilities allow us to offer the shortest lead
times in the industry and often we­­­are able to ship directly from stock.
HawmanContainer Services
ISO 9001:2008 Certified
HawmanContainer Services
ISO 9001:2008 Certified
