This document provides an overview of HbbTV (Hybrid Broadcast Broadband TV), which allows a TV screen to be overlaid with a web browser controlled by the remote. It discusses how HbbTV works, including starting URLs signaled via broadcast, supported screen resolution and browser engines. It also covers development tools, placement of content to avoid overscan, autostart applications, typical app functionality and limitations of the video/broadcast object. Links are also provided for demos, specs, HOWTO guides and other HbbTV resources.

1. | Page 1
19. March 2016
HbbTV Primer
Kai Mysliwiec
OTT Development

2. | Page 2
Follow me
@kaimys
I will post the links there

3. | Page 3
What is HbbTV?
It‘s a TV screen which is
overlaid by a web browser
controlled by your remote
control.
+
• Start URL is signaled via broadcast
• 1280x720px in XHTML!
• HTML contains specific <objects>
which expose the HbbTV API
• onKeyDown listens on special key
events of the remote control

4. | Page 4

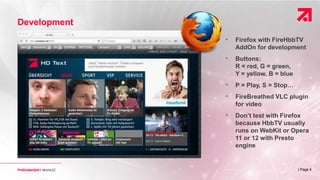

Development
• Firefox with FireHbbTV
AddOn for development
• Buttons:
R = red, G = green,
Y = yellow, B = blue
• P = Play, S = Stop…
• FireBreathed VLC plugin
for video
• Don’t test with Firefox
because HbbTV usually
runs on WebKit or Opera
11 or 12 with Presto
engine

5. | Page 5

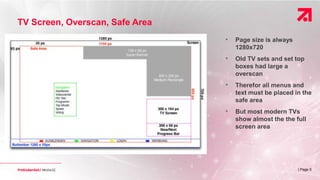

• Page size is always
1280x720
• Old TV sets and set top
boxes had large a
overscan
• Therefor all menus and
text must be placed in the
safe area
• But most modern TVs
show almost the the full
screen area
TV Screen, Overscan, Safe Area

6. | Page 6

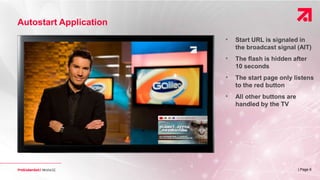

Autostart Application
• Start URL is signaled in
the broadcast signal (AIT)
• The flash is hidden after
10 seconds
• The start page only listens
to the red button
• All other buttons are
handled by the TV

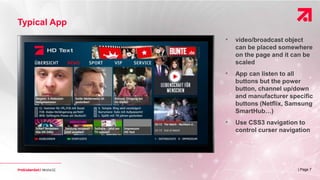

7. | Page 7
Typical App
• video/broadcast object
can be placed somewhere
on the page and it can be
scaled
• App can listen to all
buttons but the power
button, channel up/down
and manufacturer specific
buttons (Netflix, Samsung
SmartHub…)
• Use CSS3 navigation to
control curser navigation

8. | Page 8

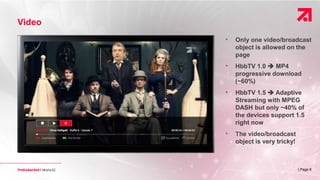

Video
• Only one video/broadcast
object is allowed on the
page
• HbbTV 1.0  MP4
progressive download
(~60%)
• HbbTV 1.5  Adaptive
Streaming with MPEG
DASH but only ~40% of
the devices support 1.5
right now
• The video/broadcast
object is very tricky!

9. | Page 9

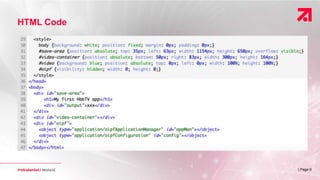

HTML Code

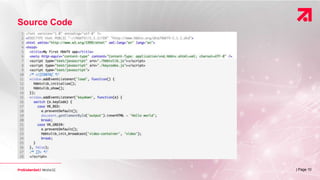

10. | Page 10
Source Code

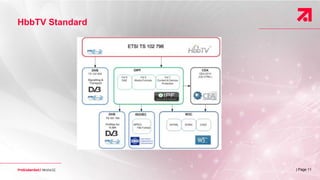

11. | Page 11| Page 11
HbbTV Standard

12. | Page 12

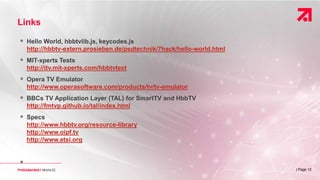

Links
 Hello World, hbbtvlib.js, keycodes.js
http://hbbtv-extern.prosieben.de/psdtechnik/7hack/hello-world.html
 MIT-xperts Tests
http://itv.mit-xperts.com/hbbtvtest
 Opera TV Emulator
http://www.operasoftware.com/products/tv/tv-emulator
 BBCs TV Application Layer (TAL) for SmartTV and HbbTV
http://fmtvp.github.io/tal/index.html
 Specs
http://www.hbbtv.org/resource-library
http://www.oipf.tv
http://www.etsi.org


13. | Page 13
More Links
 Demos
http://tv-html.irt.de/
http://www.hbbig.com/
 HOWTOs
http://www.hbbtv-developer.com/
http://blog.sybit.de/2010/12/hbbtv-und-red-button-ein-kleiner-uberblick/
http://blog.sybit.de/2012/03/hbbtv-fur-anwendungs-entwickler-%E2%80%93-teil-1/
http://blog.sybit.de/2012/03/hbbtv-fur-anwendungs-entwickler-%E2%80%93-teil-2/
http://blog.sybit.de/2012/04/hbbtv-fur-anwendungs-entwickler-%E2%80%93-teil-3/
 MPEG DASH
http://stackoverflow.com/a/23499528/1496459
 Usability
http://www.usabilityblog.de/2012/04/navigation-am-fernsehgerat-usability-und-hbbtv/
 Facts and Figures for HbbTV and Addressable TV
https://www.sevenonemedia.de/downloads/ctv/basispraesentation
