1. GWT – The Java Advantage
Yoav Aharoni
Consultant, AlphaCSP

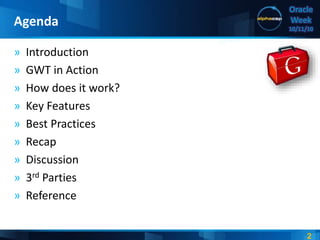

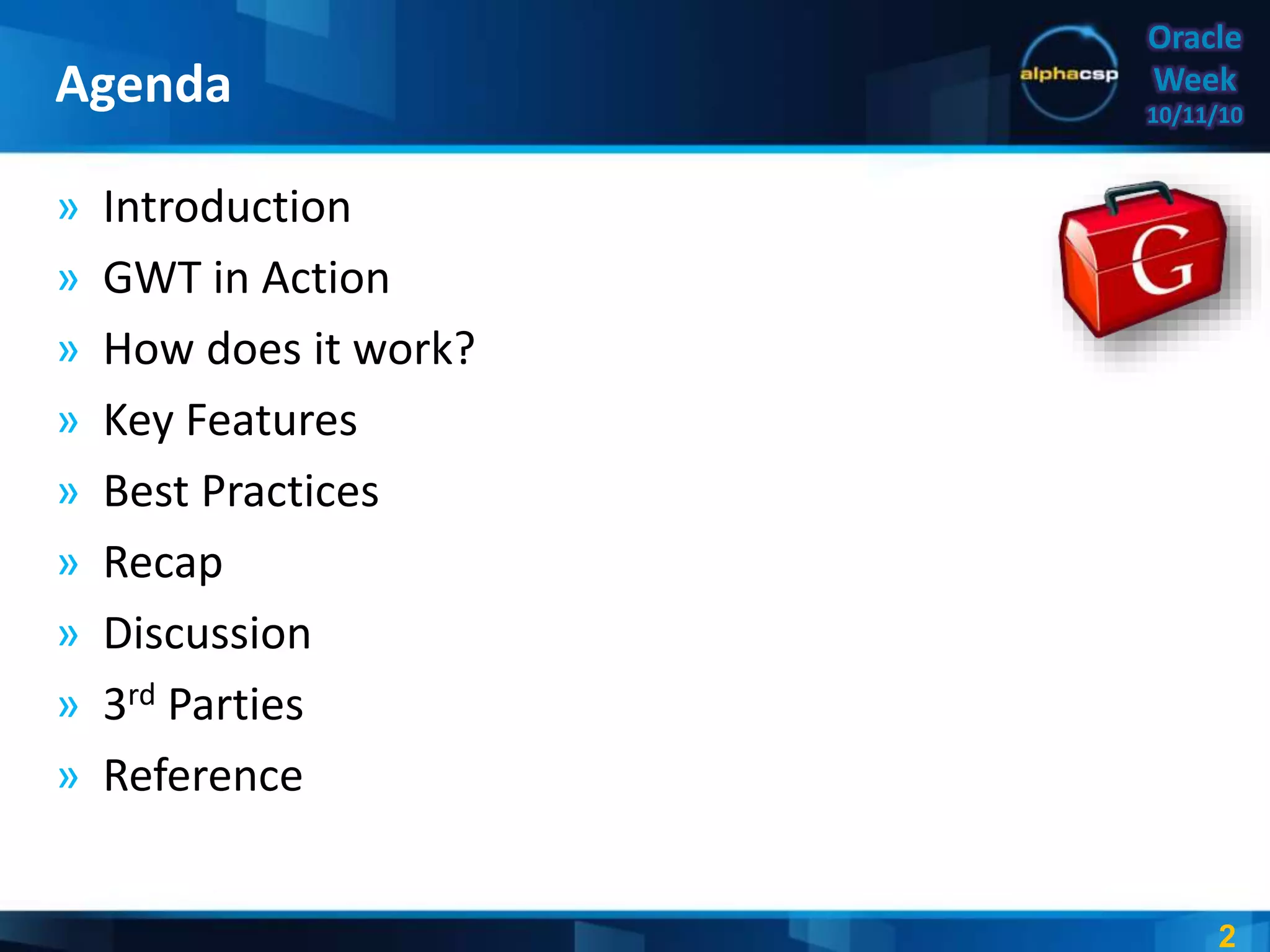

2. 2
Oracle
Week
10/11/10
» Introduction
» GWT in Action
» How does it work?
» Key Features
» Best Practices
» Recap
» Discussion
» 3rd Parties
» Reference
Agenda

3. 3
Oracle
Week
10/11/10
Introduction
GWT What?

4. 4
Oracle
Week
10/11/10

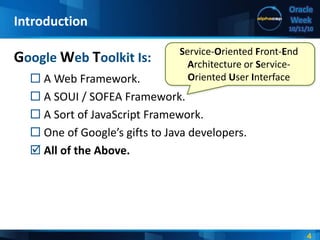

 A Web Framework.
 A SOUI / SOFEA Framework.
 A Sort of JavaScript Framework.
 One of Google’s gifts to Java developers.
 All of the Above.
Google Web Toolkit Is:
Introduction
Service-Oriented Front-End
Architecture or Service-
Oriented User Interface

5. 5
Oracle
Week
10/11/10

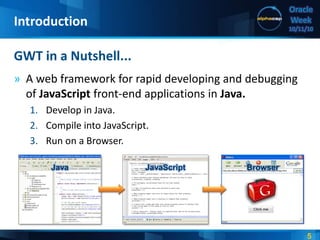

» A web framework for rapid developing and debugging
of JavaScript front-end applications in Java.
1. Develop in Java.
2. Compile into JavaScript.
3. Run on a Browser.
GWT in a Nutshell...
Introduction
BrowserJavaScriptJava

6. 6
Oracle
Week
10/11/10
“GWT's mission is to radically improve the web
experience for users by enabling developers to use
existing Java tools to build no-compromise AJAX for
any modern browser.”
Mission Statement
Introduction

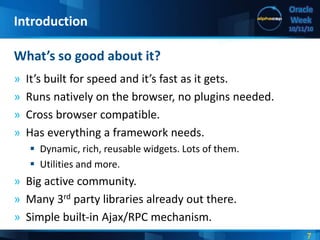

7. 7
Oracle
Week
10/11/10
» It’s built for speed and it’s fast as it gets.
» Runs natively on the browser, no plugins needed.
» Cross browser compatible.
» Has everything a framework needs.
 Dynamic, rich, reusable widgets. Lots of them.
 Utilities and more.
» Big active community.
» Many 3rd party libraries already out there.
» Simple built-in Ajax/RPC mechanism.
What’s so good about it?
Introduction

8. 8
Oracle
Week
10/11/10
» Develop using Java.
 Using YOUR IDE.
 Detect error in compile-time rather than runtime.
 Java tools: refactoring, debugging, profiling, etc…
 JUnit integration.
» Good development environment.
» It’s Open source: Apache v2.0 license.
» It’s Google’s – will be around for a long time.
What’s so good about it?
Introduction

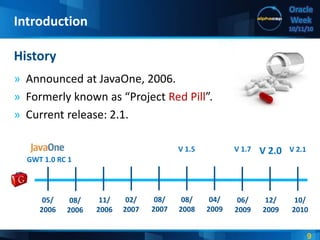

9. 9
Oracle
Week
10/11/10
» Announced at JavaOne, 2006.
» Formerly known as “Project Red Pill”.
» Current release: 2.1.
History
Introduction
05/
2006
10/
2010
06/
2009
GWT 1.0 RC 1
08/
2006
11/
2006
02/
2007
08/
2007
08/
2008
04/
2009
12/
2009
V 2.0V 1.7 V 2.1V 1.5

10. 10
Oracle
Week
10/11/10

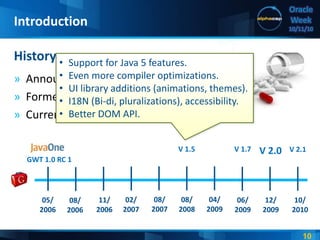

» Announced at JavaOne, 2006.
» Formerly known as “Project Red Pill”.
» Current release: 2.1.
History
Introduction
05/
2006
10/
2010
06/
2009
GWT 1.0 RC 1
V 2.0V 1.7
08/
2006
11/
2006
02/
2007
08/
2007
08/
2008
04/
2009
12/
2009
V 2.1
• Support for Java 5 features.
• Even more compiler optimizations.
• UI library additions (animations, themes).
• I18N (Bi-di, pluralizations), accessibility.
• Better DOM API.
V 1.5

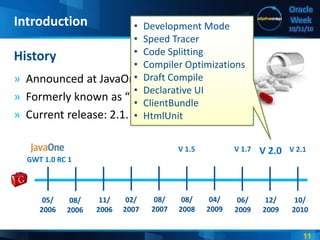

11. 11
Oracle
Week
10/11/10
» Announced at JavaOne, 2006.
» Formerly known as “Project Red Pill”.
» Current release: 2.1.
History
Introduction
05/
2006
10/
2010
06/
2009
GWT 1.0 RC 1
V 2.0V 1.7
08/
2006
11/
2006
02/
2007
08/
2007
08/
2008
04/
2009
12/
2009
V 2.1
• Development Mode
• Speed Tracer
• Code Splitting
• Compiler Optimizations
• Draft Compile
• Declarative UI
• ClientBundle
• HtmlUnit
V 1.5

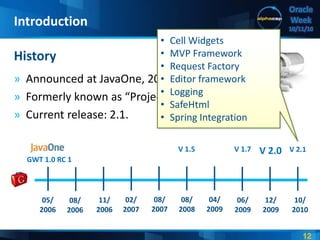

12. 12
Oracle
Week
10/11/10
» Announced at JavaOne, 2006.
» Formerly known as “Project Red Pill”.
» Current release: 2.1.
History
Introduction
05/
2006
10/
2010
06/
2009
GWT 1.0 RC 1
V 2.0V 1.7
08/
2006
11/
2006
02/
2007
08/
2007
08/
2008
04/
2009
12/
2009
V 2.1
• Cell Widgets
• MVP Framework
• Request Factory
• Editor framework
• Logging
• SafeHtml
• Spring Integration
V 1.5

13. 13
Oracle
Week
10/11/10
GWT in Action
Seeing is believing

14. 14
Oracle
Week
10/11/10
How does it work?
... and why is it so damn fast...

15. 15
Oracle
Week
10/11/10

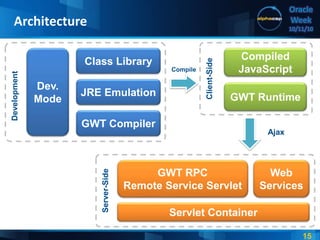

Architecture
JRE Emulation
GWT Compiler
Dev.
Mode
Class Library
Development
Servlet Container
GWT RPC
Remote Service Servlet
Web
Services
Server-Side
Ajax
GWT Runtime
Compiled
JavaScript
Client-Side
Compile

16. 16
Oracle
Week
10/11/10
Development Lifecycle
Download SDK
+ Browser Plugin
Create Project
with IDE/Maven
Develop & Code
View & Debug
using Dev. Mode
Compile to
JavaScript
Deploy to Prod
Server
Profile with
Speed Tracer
Unit Test with
Java Tools
Debug using
Dev. Mode
Fix Bugs

17. 17
Oracle
Week
10/11/10

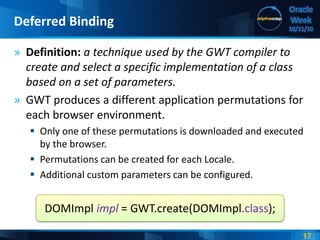

» Definition: a technique used by the GWT compiler to
create and select a specific implementation of a class
based on a set of parameters.
» GWT produces a different application permutations for
each browser environment.
 Only one of these permutations is downloaded and executed
by the browser.
 Permutations can be created for each Locale.
 Additional custom parameters can be configured.
Deferred Binding
DOMImpl impl = GWT.create(DOMImpl.class);

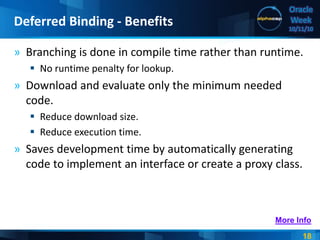

18. 18
Oracle
Week
10/11/10
» Branching is done in compile time rather than runtime.
 No runtime penalty for lookup.
» Download and evaluate only the minimum needed
code.
 Reduce download size.
 Reduce execution time.
» Saves development time by automatically generating
code to implement an interface or create a proxy class.
Deferred Binding - Benefits
More Info

19. 20
Oracle
Week
10/11/10
» Only “used” code is compiled.
» Highly optimized JavaScript and CSS code.
» Images can be combined into one file to minimize
server requests (aka Image Sprites).
Compilation

20. 21
Oracle
Week
10/11/10

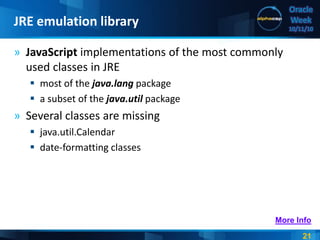

» JavaScript implementations of the most commonly
used classes in JRE
 most of the java.lang package
 a subset of the java.util package
» Several classes are missing
 java.util.Calendar
 date-formatting classes
JRE emulation library
More Info

21. 23
Oracle
Week
10/11/10
Developing with GWT
Lets get to work!
More Info

22. 24
Oracle
Week
10/11/10

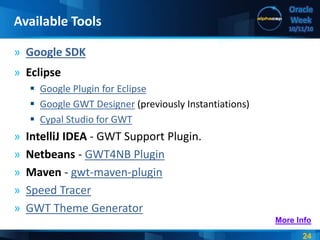

» Google SDK
» Eclipse
 Google Plugin for Eclipse
 Google GWT Designer (previously Instantiations)
 Cypal Studio for GWT
» IntelliJ IDEA - GWT Support Plugin.
» Netbeans - GWT4NB Plugin
» Maven - gwt-maven-plugin
» Speed Tracer
» GWT Theme Generator
Available Tools
More Info

23. 34
Oracle
Week
10/11/10
Key Features
Tools of the Toolkit

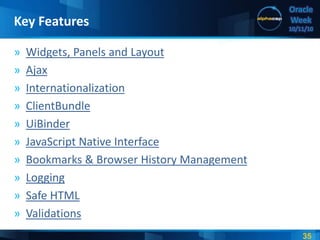

24. 35
Oracle
Week
10/11/10
» Widgets, Panels and Layout
» Ajax
» Internationalization
» ClientBundle
» UiBinder
» JavaScript Native Interface
» Bookmarks & Browser History Management
» Logging
» Safe HTML
» Validations
Key Features

25. 50
Oracle
Week
10/11/10
Best Practices
Learn from experience

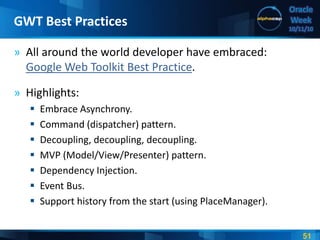

26. 51
Oracle
Week
10/11/10
» All around the world developer have embraced:
Google Web Toolkit Best Practice.
» Highlights:
 Embrace Asynchrony.
 Command (dispatcher) pattern.
 Decoupling, decoupling, decoupling.
 MVP (Model/View/Presenter) pattern.
 Dependency Injection.
 Event Bus.
 Support history from the start (using PlaceManager).
GWT Best Practices

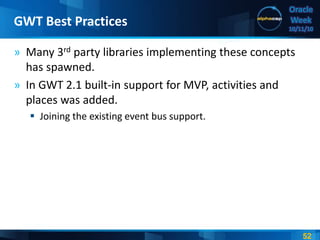

27. 52
Oracle
Week
10/11/10
» Many 3rd party libraries implementing these concepts
has spawned.
» In GWT 2.1 built-in support for MVP, activities and
places was added.
 Joining the existing event bus support.
GWT Best Practices

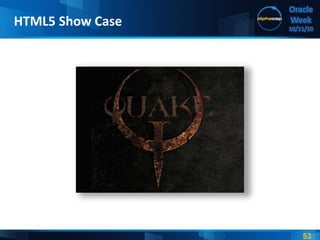

28. 53
Oracle
Week
10/11/10
HTML5 Show Case

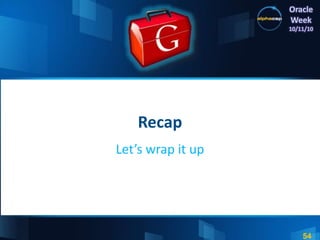

29. 54
Oracle
Week
10/11/10
Recap
Let’s wrap it up

30. 55
Oracle
Week
10/11/10
» Driven by a big corporation - Google.
» Lighting fast.
 UI code runs at the client.
 Deferred binding.
 Code optimizations and magnification.
 Code splitting.
 Image Sprites.
 Asynchronous DNA.
 No state needs to be saved on the server.
Pros
Recap
Scalable
Responsive
Application
=

31. 56
Oracle
Week
10/11/10
» Big, active community.
» Mature project (Version 2.1), ever improving.
» Has all you’re ever need + many 3rd party libs.
» Open Source (Apache v2.0) License.
» No Plugins needed.
» HTML 5 support.
» Can work with any back-end technology (like .NET) or
even without any back-end application.
Pros
Recap

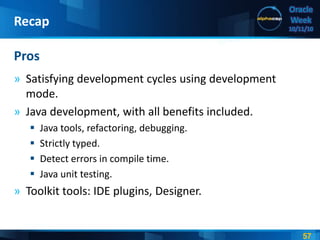

32. 57
Oracle
Week
10/11/10
» Satisfying development cycles using development
mode.
» Java development, with all benefits included.
 Java tools, refactoring, debugging.
 Strictly typed.
 Detect errors in compile time.
 Java unit testing.
» Toolkit tools: IDE plugins, Designer.
Pros
Recap

33. 58
Oracle
Week
10/11/10

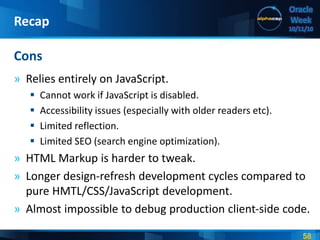

» Relies entirely on JavaScript.
 Cannot work if JavaScript is disabled.
 Accessibility issues (especially with older readers etc).
 Limited reflection.
 Limited SEO (search engine optimization).
» HTML Markup is harder to tweak.
» Longer design-refresh development cycles compared to
pure HMTL/CSS/JavaScript development.
» Almost impossible to debug production client-side code.
Cons
Recap

34. 59
Oracle
Week
10/11/10

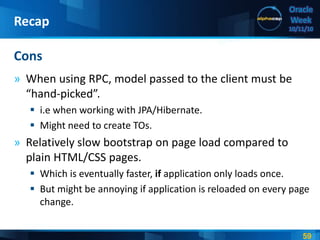

» When using RPC, model passed to the client must be
“hand-picked”.
 i.e when working with JPA/Hibernate.
 Might need to create TOs.
» Relatively slow bootstrap on page load compared to
plain HTML/CSS pages.
 Which is eventually faster, if application only loads once.
 But might be annoying if application is reloaded on every page
change.
Cons
Recap

35. 60
Oracle
Week
10/11/10
» Best for:
 Building RIA.
 Desktop like applications.
 HTML5 Games.
 Gadgets.
» Not to be used for:
 Building simple/content websites.
 Applications which relies heavily on form submit.
Conclusion
Recap

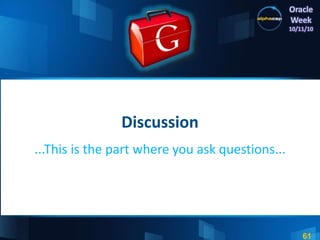

36. 61
Oracle
Week
10/11/10
Discussion
...This is the part where you ask questions...

37. 62
Oracle
Week
10/11/10
3rd Parties
Community Contributions

38. 63
Oracle
Week
10/11/10
» Google Web Toolkit Incubator
» Ajax/REST:
 GWT-REST
 RestyGWT
 Restlet
 Gwittir (+ other utilities)
» Widgets and more:
 Ext GWT (aka GXT), based on Ext-JS
 SmartGWT, based on Smart-Client
 Tatami, based on Dojo
 GWT Mosaic
3rd Party Libraries & Frameworks

39. 64
Oracle
Week
10/11/10

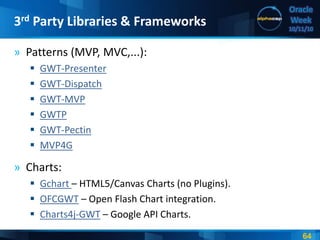

» Patterns (MVP, MVC,...):
 GWT-Presenter
 GWT-Dispatch
 GWT-MVP
 GWTP
 GWT-Pectin
 MVP4G
» Charts:
 Gchart – HTML5/Canvas Charts (no Plugins).
 OFCGWT – Open Flash Chart integration.
 Charts4j-GWT – Google API Charts.
3rd Party Libraries & Frameworks

40. 65
Oracle
Week
10/11/10

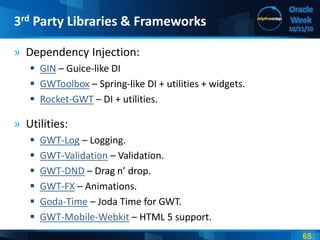

» Dependency Injection:
 GIN – Guice-like DI
 GWToolbox – Spring-like DI + utilities + widgets.
 Rocket-GWT – DI + utilities.
» Utilities:
 GWT-Log – Logging.
 GWT-Validation – Validation.
 GWT-DND – Drag n’ drop.
 GWT-FX – Animations.
 Goda-Time – Joda Time for GWT.
 GWT-Mobile-Webkit – HTML 5 support.
3rd Party Libraries & Frameworks

41. 66
Oracle
Week
10/11/10
» Canvas:
 GWT-Canvas
 GWT-G2D
 GWTCanvas – inside Google Incubator.
» Misc:
 Emite – XMPP (Jabber) Chat Client.
 GWT-Cal – Calendar widget (like Google Calendar, Outlook, iCal).
 Vaadin – Framework based on GWT.
 GWT-Client-Storage – HTML5 local storage.
3rd Party Libraries & Frameworks

42. 67
Oracle
Week
10/11/10
» Spring Integration
 Spring MVC
 Spring Roo (since GWT 2.1)
 Spring Insight profiler.
» Vaadin – Framework based on GWT.
Integration

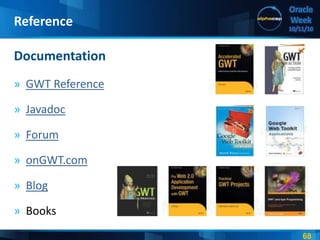

43. 68
Oracle
Week
10/11/10
» GWT Reference
» Javadoc
» Forum
» onGWT.com
» Blog
» Books
Documentation
Reference
68

44. 69
Oracle
Week
10/11/10
Thank You!

