This document provides specifications for a PM 6015 24V DC motor with a RA 2600T 30:1 ratio gearbox. Key specifications include a no-load speed of 79.3 rpm, torque of 27.5 lb-in, and continuous duty cycle. Start/stall conditions are listed as 14.69 amps current and 182.80 lb-in torque. Performance curves are provided showing torque, speed, efficiency at varying loads. The motor and gearbox are sold and serviced by Electromate.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6015
24 v DC
2400 rpm 2 Poles
RA 2600T 30:1 Ratio
Product ID: 10320
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
79.3 rpm
27.5lb-in
3.3 amps
26 watts
0.0346 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
45.2 %
76.1 %
34.4 %
Start/Stall Conditions:
Current:
Torque:
14.69 amps
182.80 lb-in
Constants:
Ke: 6.55 v/krpm
Kt: 0.55 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
10.0
0.0
0.0
20.0
20.0
40.0
30.0
60.0
40.0
80.0
50.0
100.0
60.0
120.0
70.0
140.0
80.0
160.0
90.0
180.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0

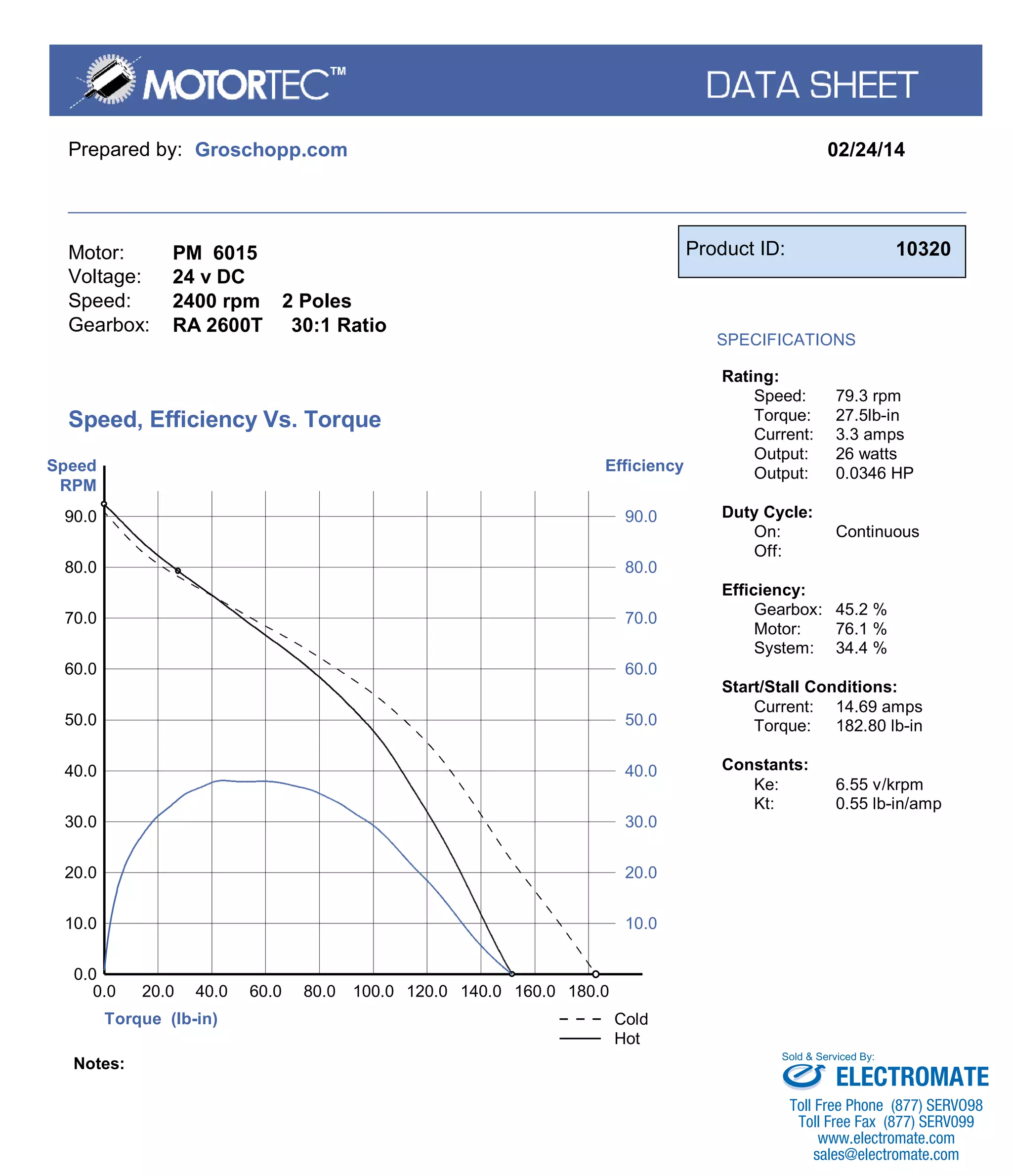

Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
