This document provides specifications for a PM 6015 24V DC motor with a 5:1 ratio RA 2600T gearbox. Key specifications include a no-load speed of 475.6 rpm, a rated torque of 4.7lb-in, a continuous duty cycle, and system efficiency of 35.2%. Performance curves are provided showing torque, speed, and efficiency over a range of operating conditions. The motor and gearbox combination is sold and serviced by Electromate.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6015
24 v DC
2400 rpm 2 Poles
RA 2600T 5:1 Ratio
Product ID: 10317
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
475.6 rpm
4.7lb-in
3.3 amps
26 watts
0.0355 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
46.3 %
76.1 %
35.2 %
Start/Stall Conditions:
Current:
Torque:
14.69 amps
34.00 lb-in
Constants:
Ke: 6.63 v/krpm
Kt: 0.56 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
60.0
0.0
0.0
4.0
120.0
8.0
180.0
12.0
240.0
16.0
300.0
20.0
360.0
24.0
420.0
28.0
480.0
32.0
540.0
36.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0

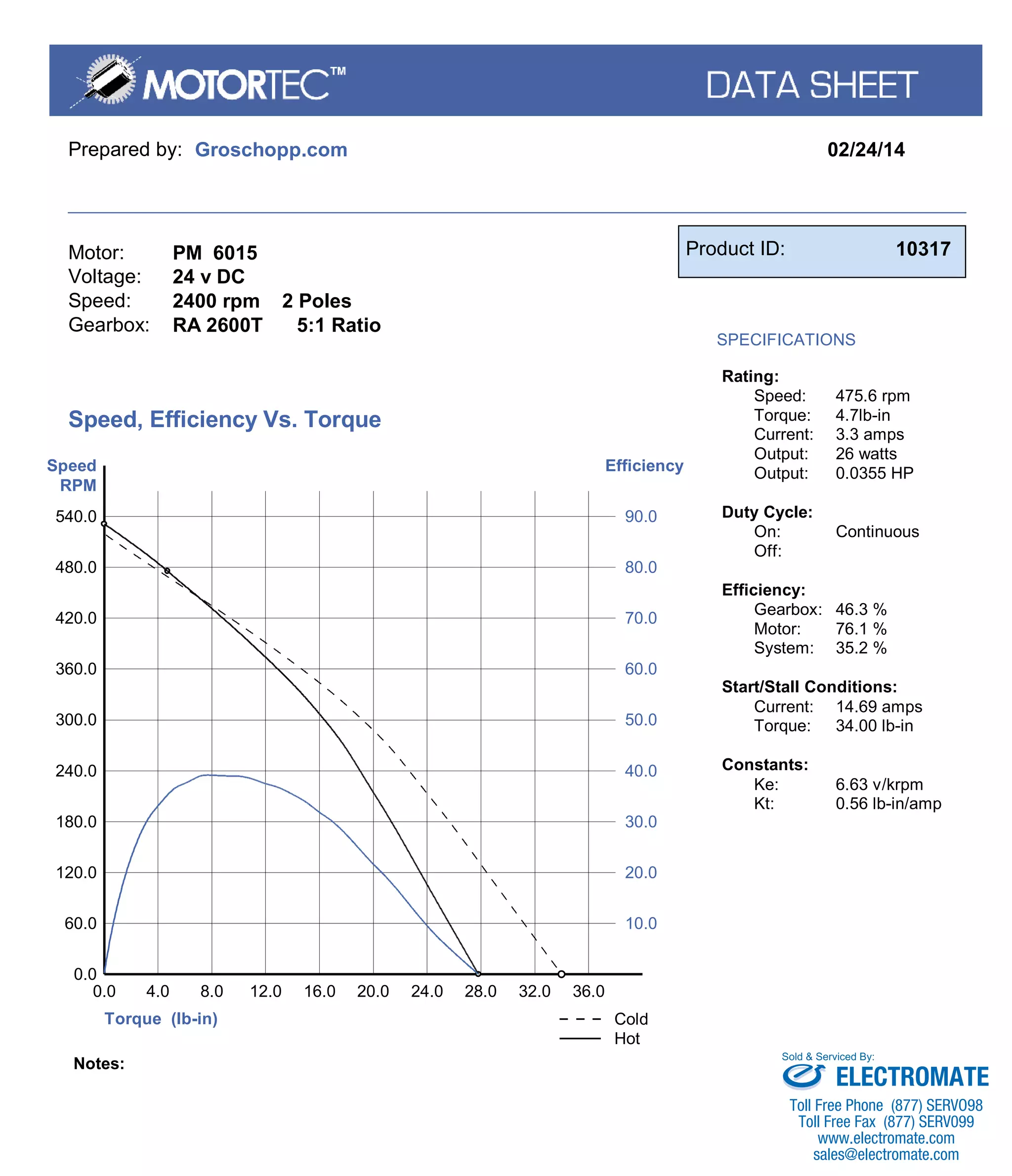

Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
