This document summarizes a presentation about the Grails framework. It discusses how Grails allows building modern Java web applications quickly using Groovy and conventions over configuration. Key features covered include GORM for object-relational mapping, Spring Security integration, and useful Grails tags and plugins.

1. IEEE Day 2013
01 October 2013, Qafqaz University
Ziya Askerov
Java Software Developer
Cybernet LLC
ziyaaskerov@gmail.com

2. Build modern,
sophisticated and
robust Groovy web
applications in record
time !
Ziya Askerov
http://www.professionals.az

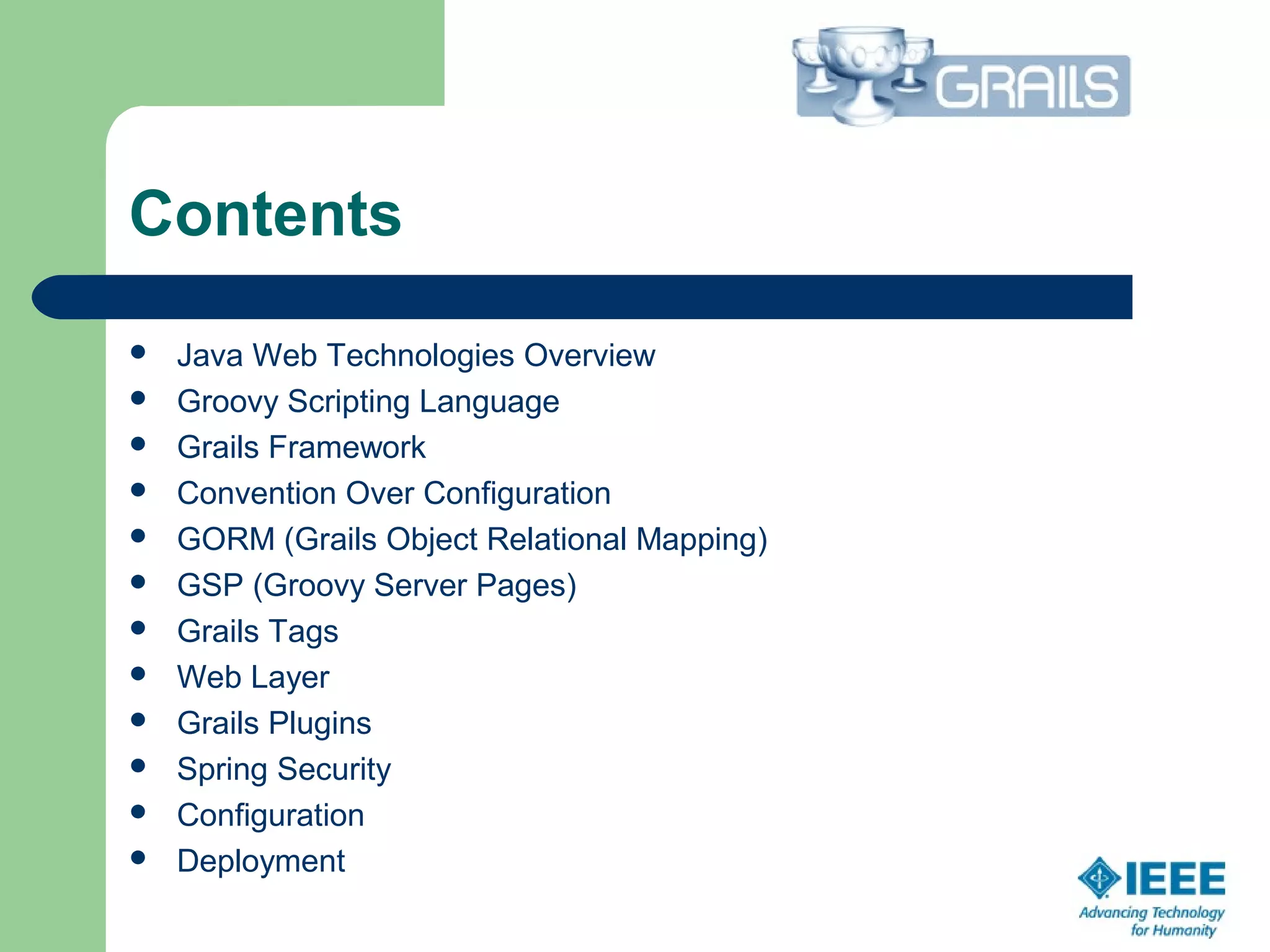

3. Contents
 Java Web Technologies Overview
 Groovy Scripting Language
 Grails Framework
 Convention Over Configuration
 GORM (Grails Object Relational Mapping)
 GSP (Groovy Server Pages)
 Grails Tags
 Web Layer
 Grails Plugins
 Spring Security
 Configuration
 Deployment

4. JAVA WEB TECHNOLOGIES

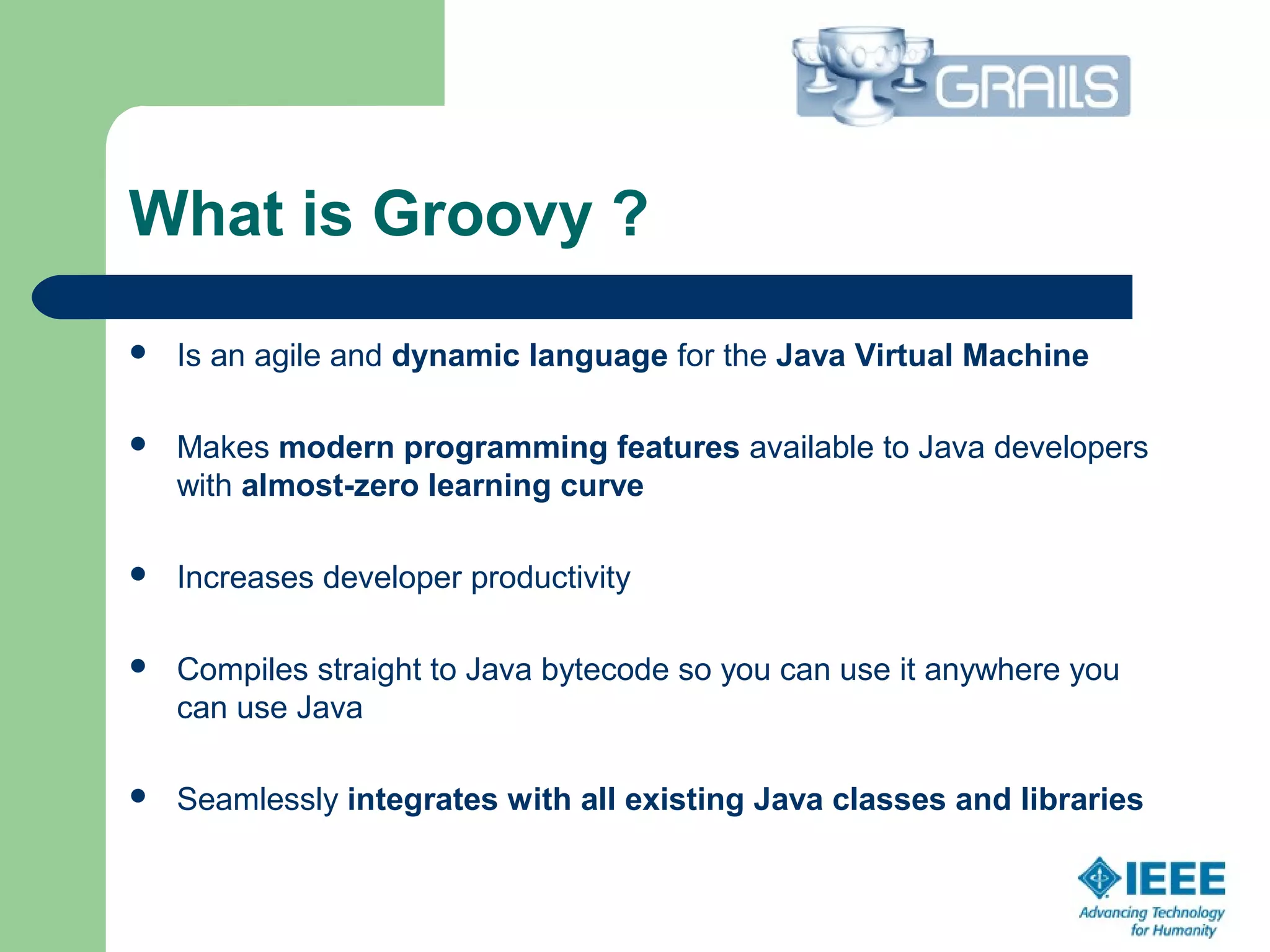

5. What is Groovy ?
 Is an agile and dynamic language for the Java Virtual Machine
 Makes modern programming features available to Java developers
with almost-zero learning curve
 Increases developer productivity
 Compiles straight to Java bytecode so you can use it anywhere you
can use Java
 Seamlessly integrates with all existing Java classes and libraries

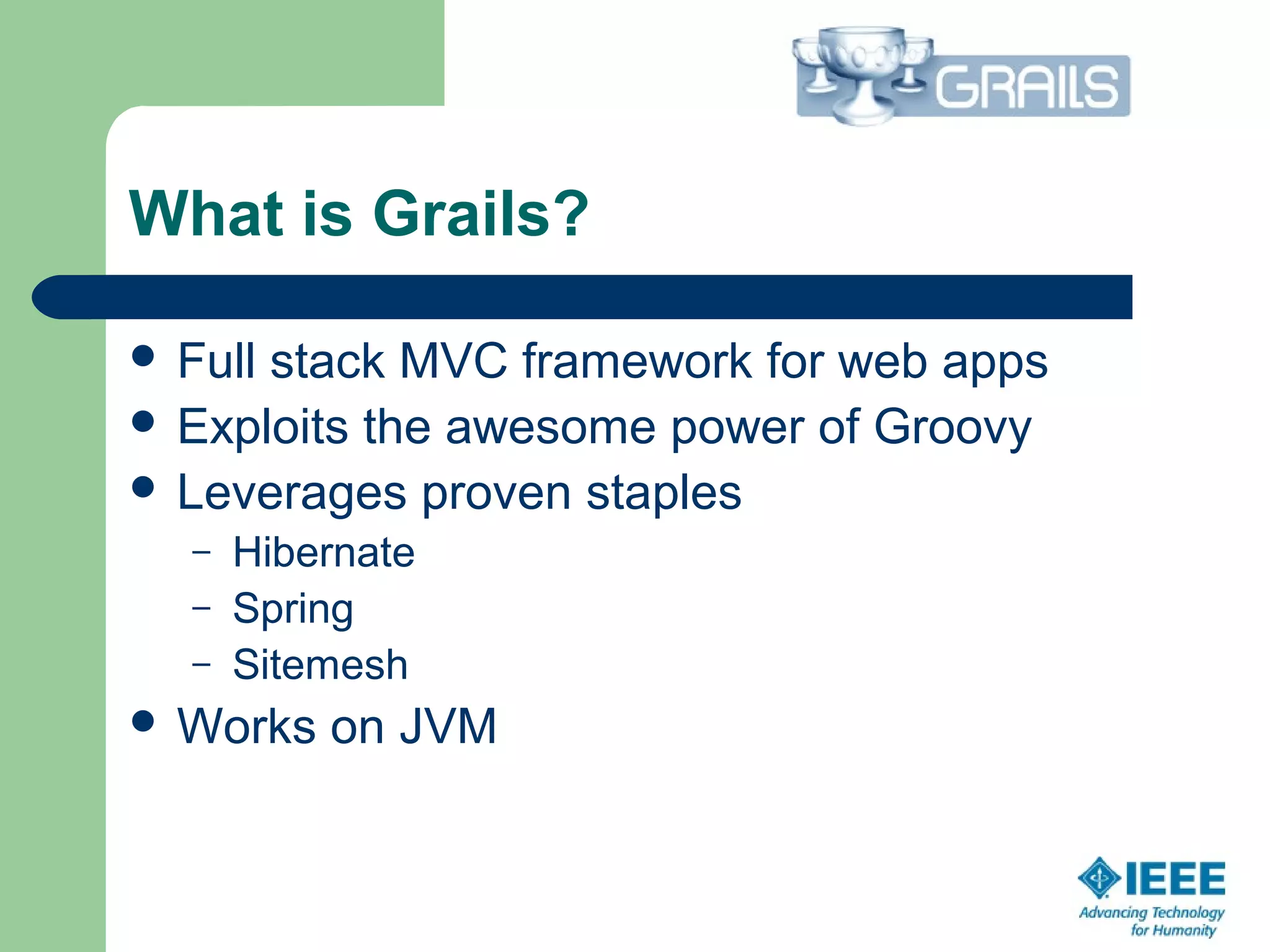

6. What is Grails?
 Full stack MVC framework for web apps
 Exploits the awesome power of Groovy
 Leverages proven staples
– Hibernate
– Spring
– Sitemesh
 Works on JVM

7. GRAILS ARCHITECTURE

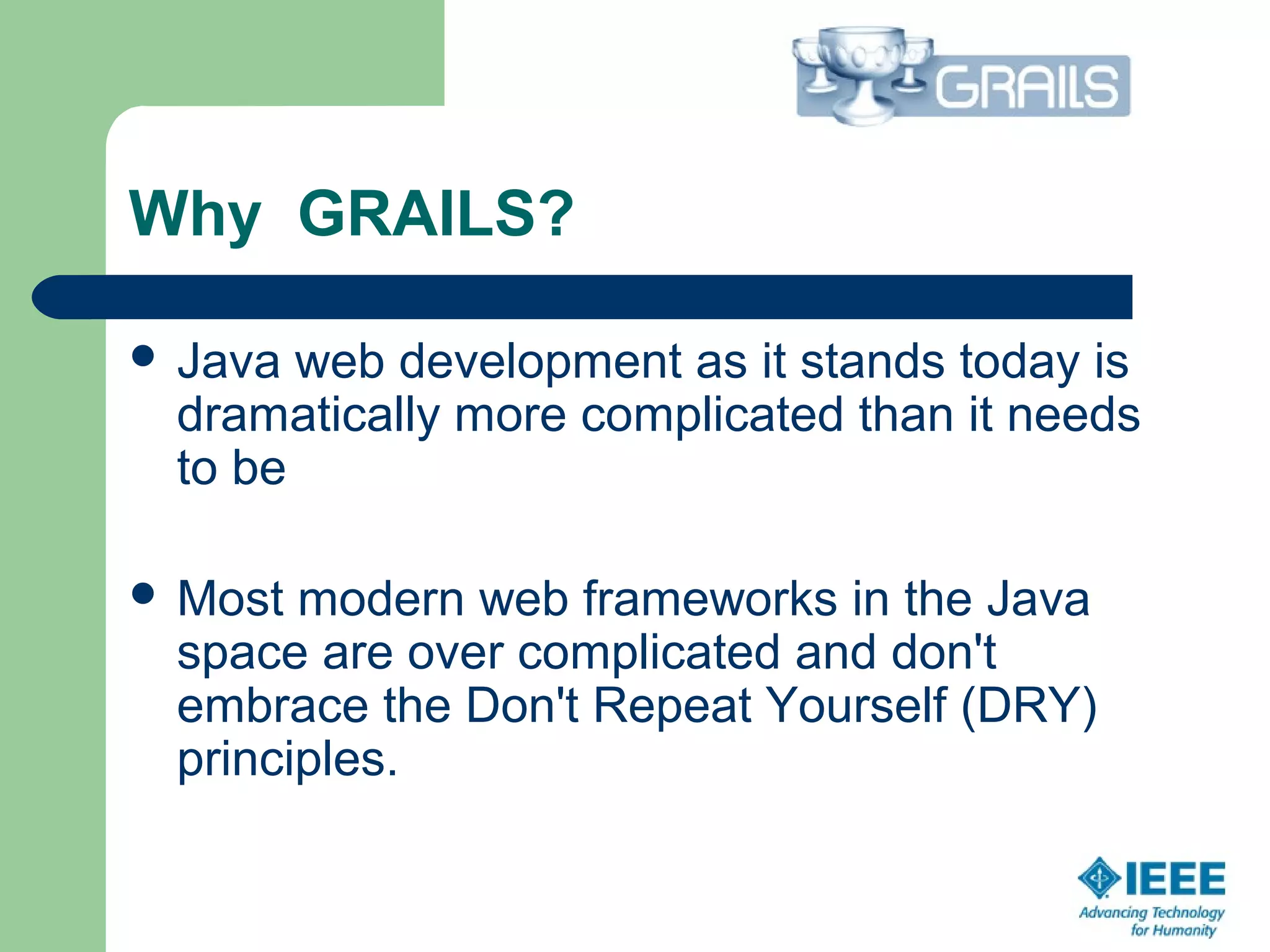

8. Why GRAILS?
 Java web development as it stands today is
dramatically more complicated than it needs
to be
 Most modern web frameworks in the Java
space are over complicated and don't
embrace the Don't Repeat Yourself (DRY)
principles.

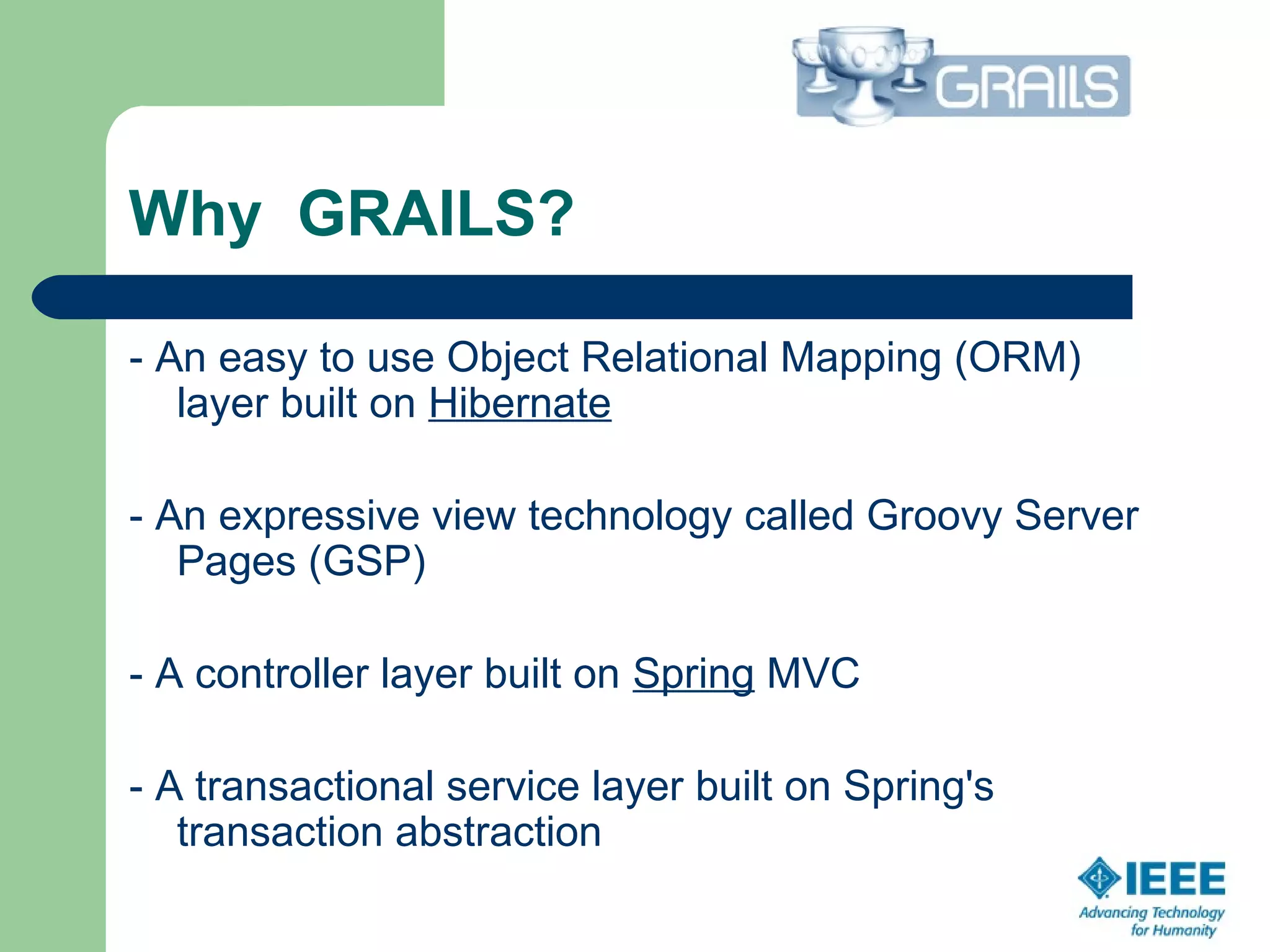

9. Why GRAILS?
- An easy to use Object Relational Mapping (ORM)
layer built on Hibernate
- An expressive view technology called Groovy Server
Pages (GSP)
- A controller layer built on Spring MVC
- A transactional service layer built on Spring's
transaction abstraction

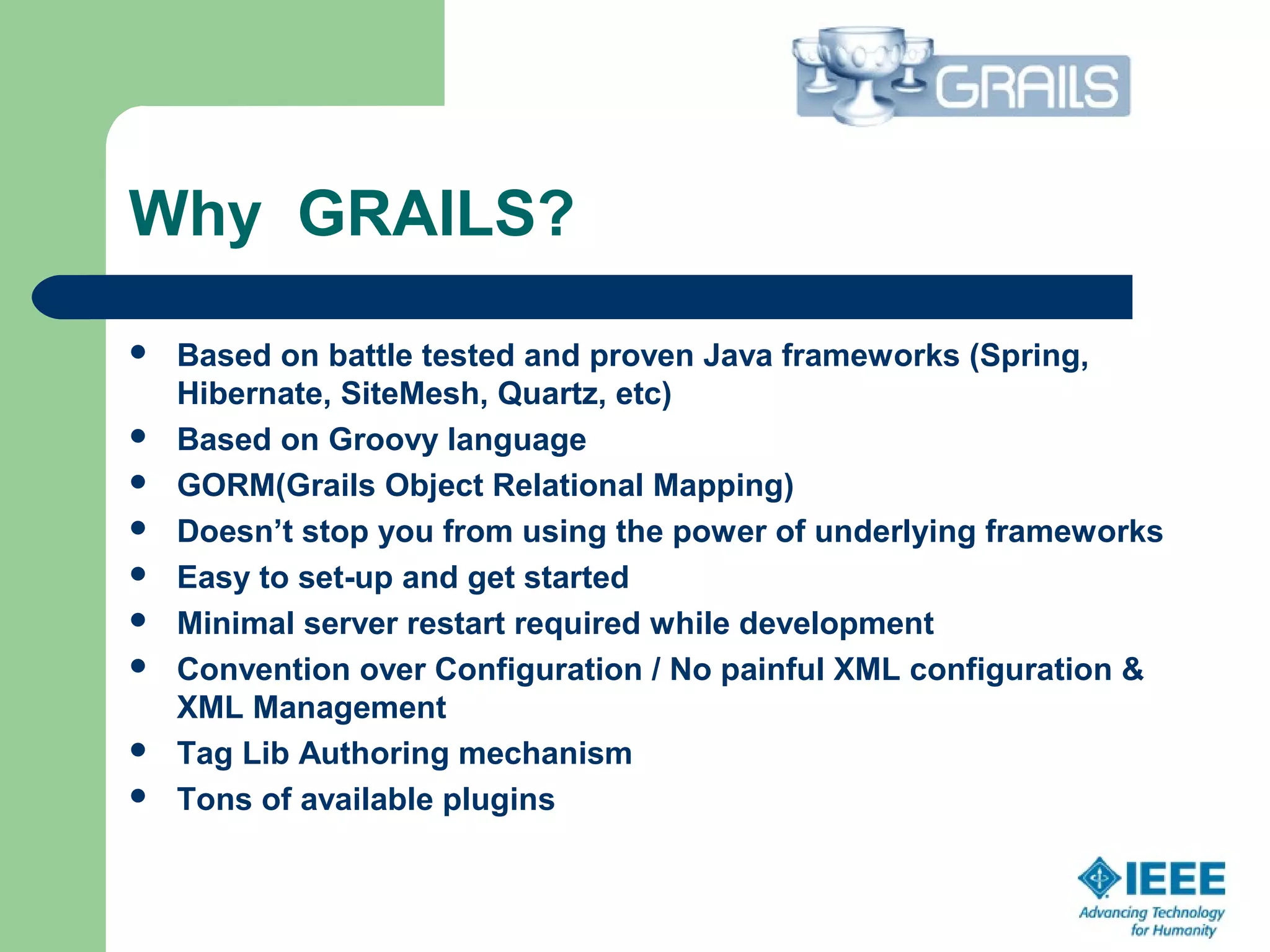

10. Why GRAILS?
 Based on battle tested and proven Java frameworks (Spring,
Hibernate, SiteMesh, Quartz, etc)
 Based on Groovy language
 GORM(Grails Object Relational Mapping)
 Doesn’t stop you from using the power of underlying frameworks
 Easy to set-up and get started
 Minimal server restart required while development
 Convention over Configuration / No painful XML configuration &
XML Management
 Tag Lib Authoring mechanism
 Tons of available plugins

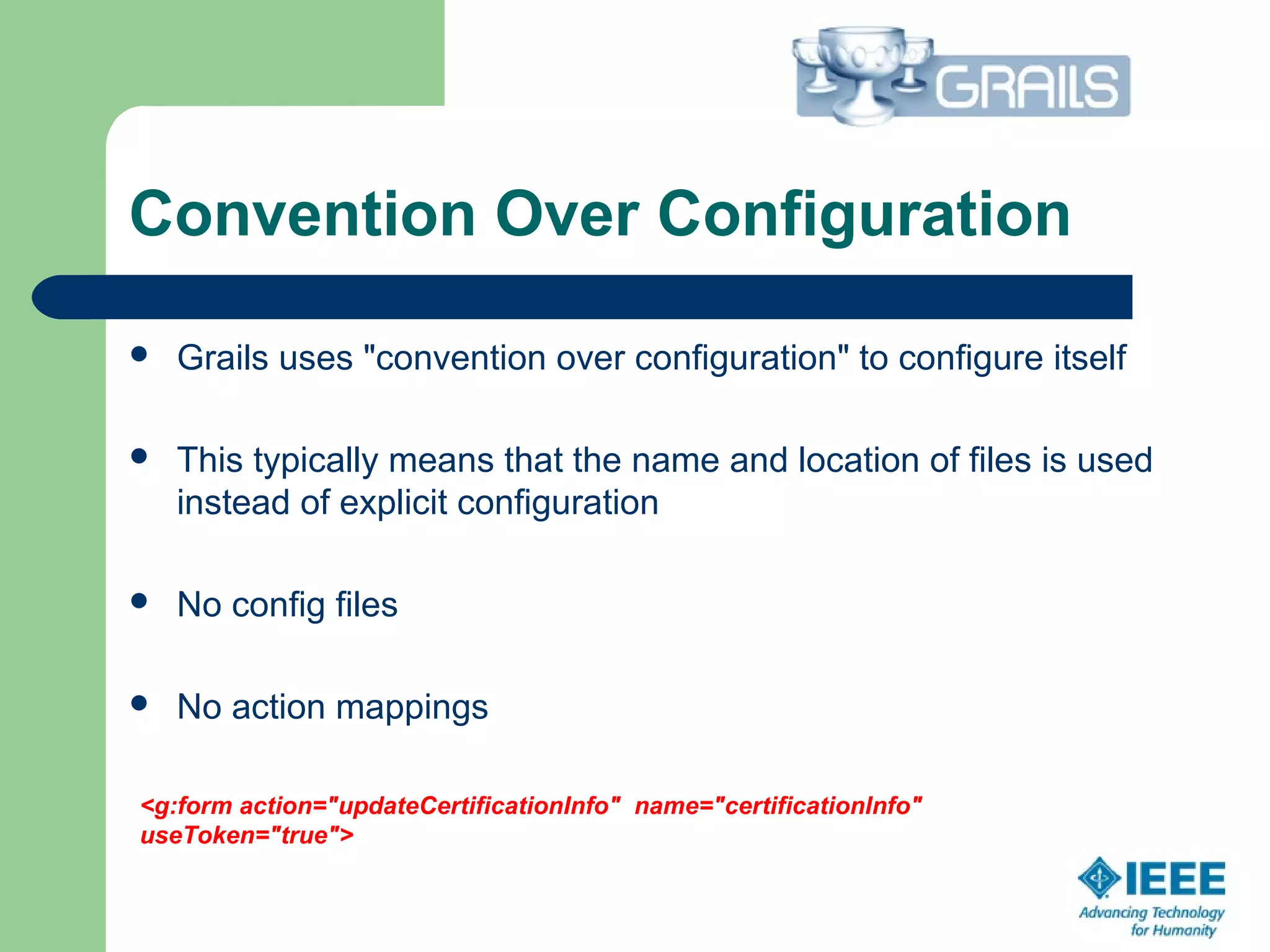

11. Convention Over Configuration
 Grails uses "convention over configuration" to configure itself
 This typically means that the name and location of files is used
instead of explicit configuration
 No config files
 No action mappings
<g:form action="updateCertificationInfo" name="certificationInfo"
useToken="true">

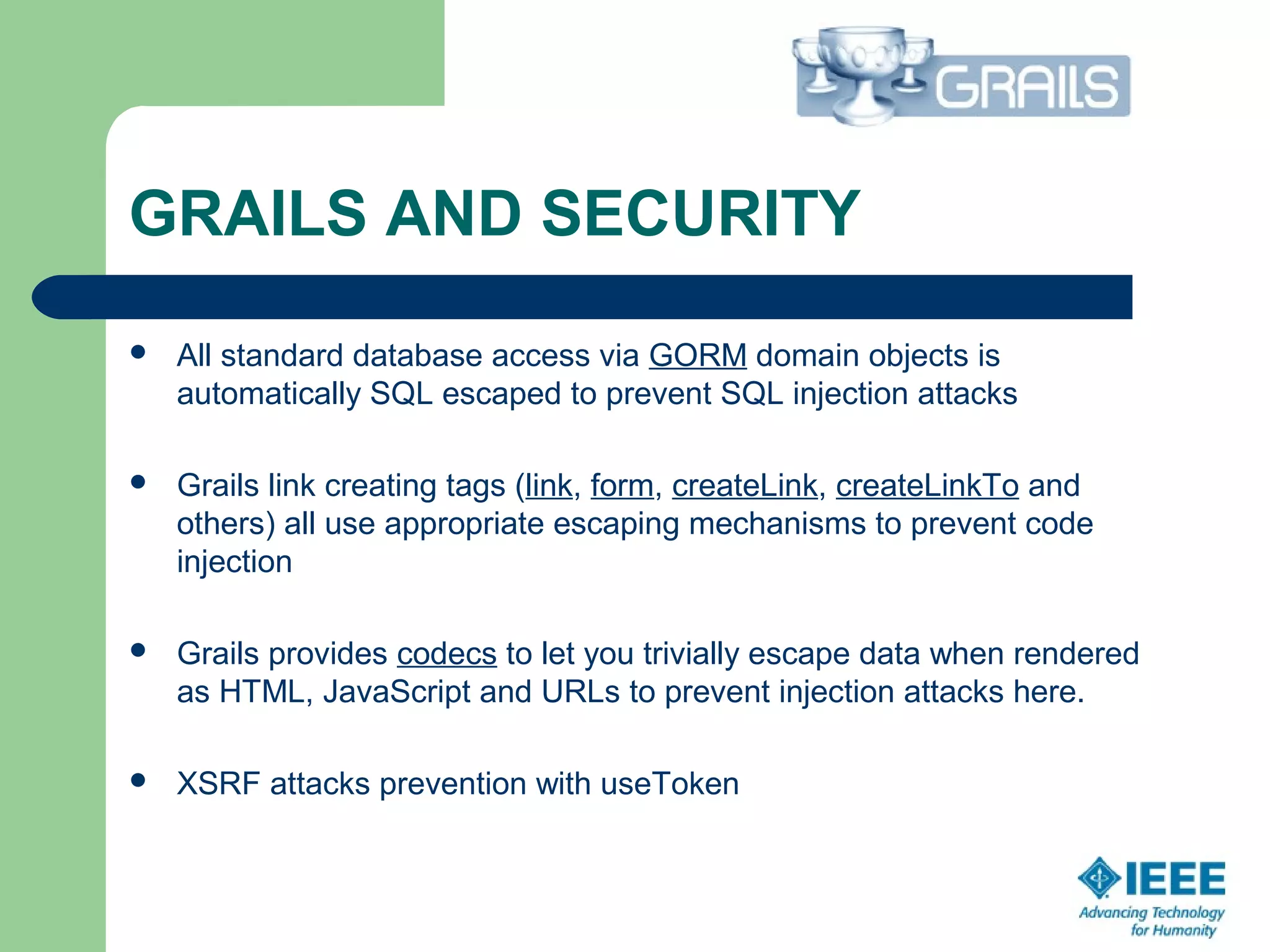

12. GRAILS AND SECURITY
 All standard database access via GORM domain objects is
automatically SQL escaped to prevent SQL injection attacks
 Grails link creating tags (link, form, createLink, createLinkTo and
others) all use appropriate escaping mechanisms to prevent code
injection
 Grails provides codecs to let you trivially escape data when rendered
as HTML, JavaScript and URLs to prevent injection attacks here.
 XSRF attacks prevention with useToken

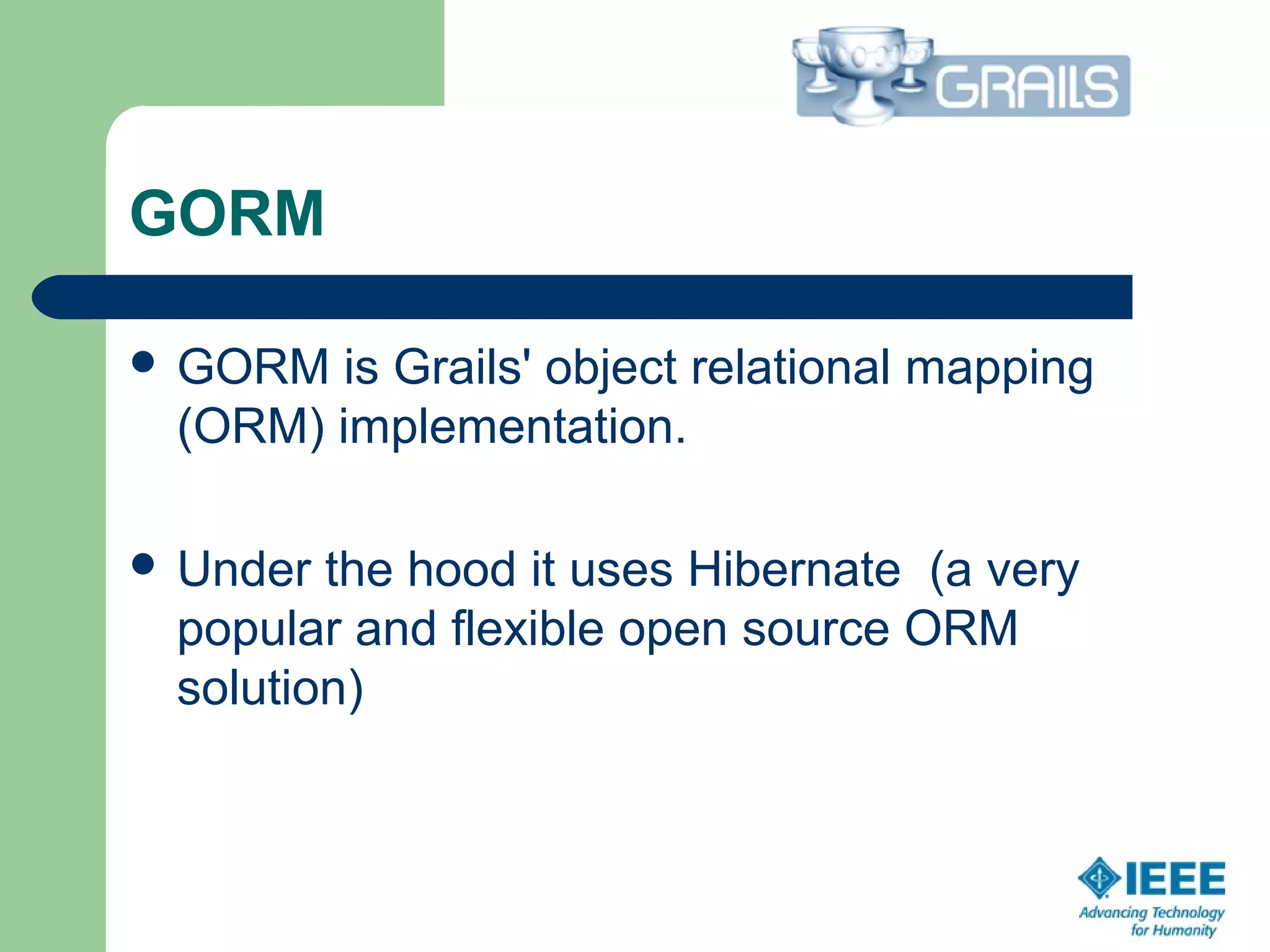

13. GORM
 GORM is Grails' object relational mapping
(ORM) implementation.
 Under the hood it uses Hibernate (a very
popular and flexible open source ORM
solution)

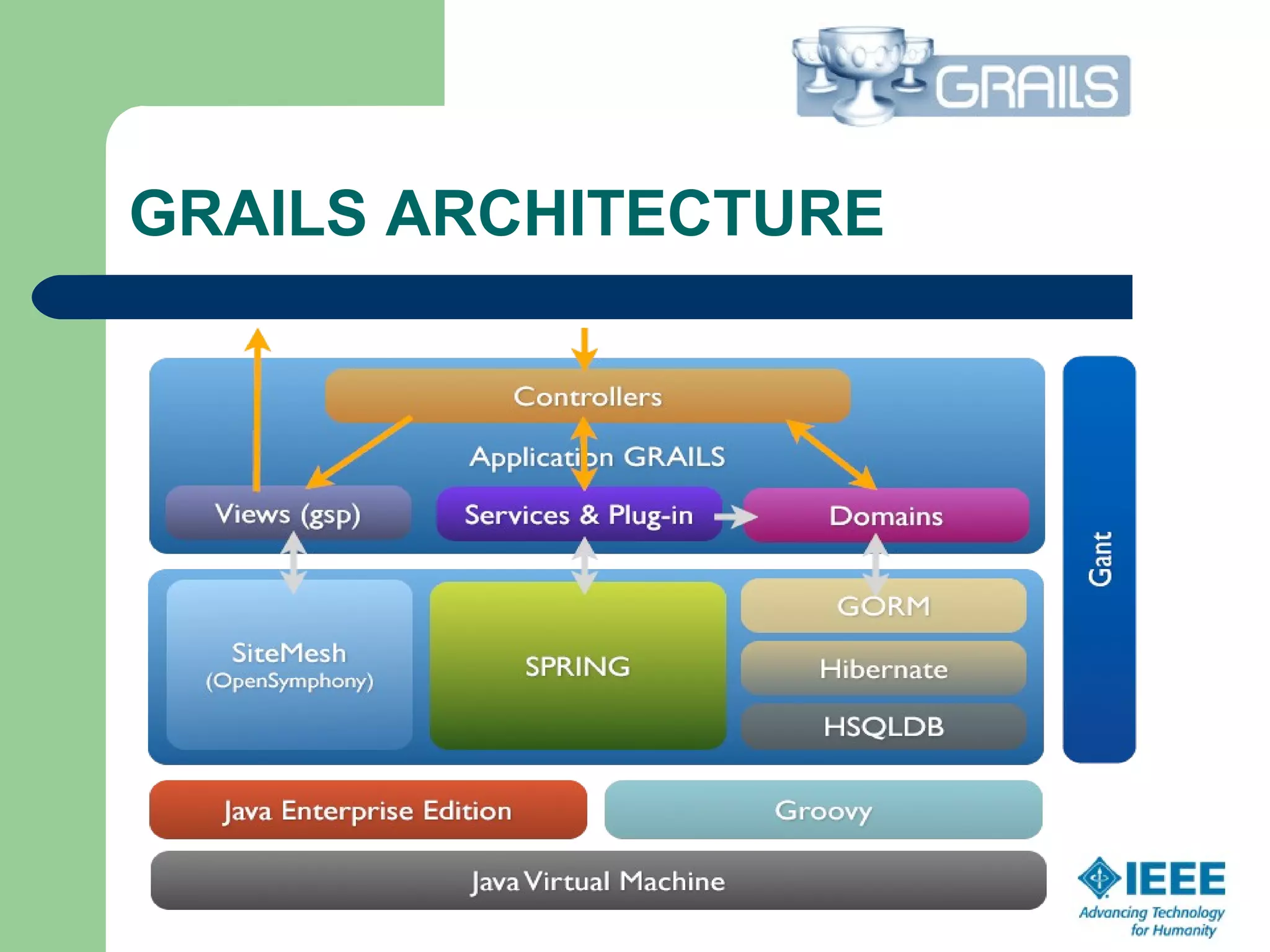

14. GRAILS ARCHITECTURE

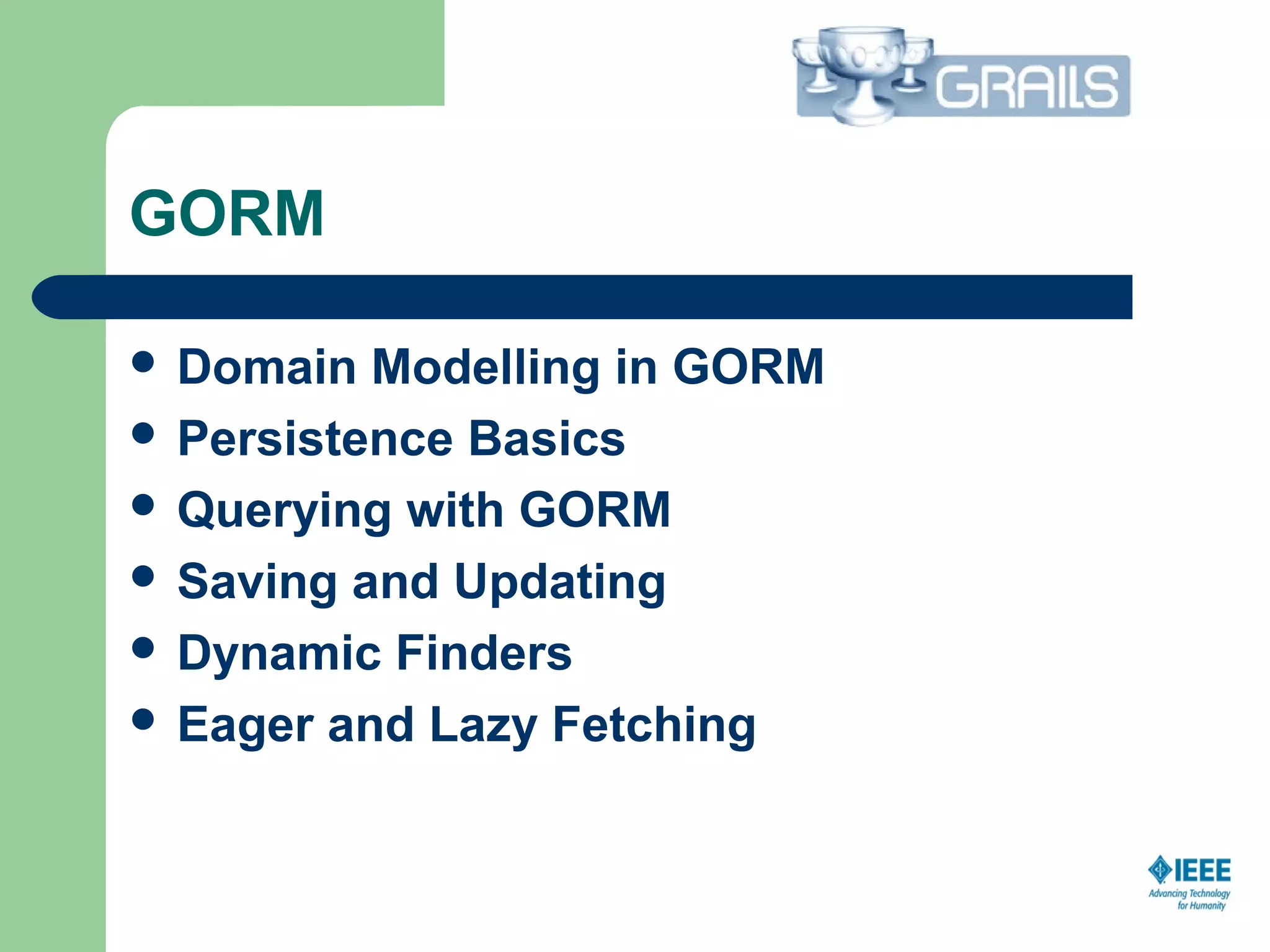

15. GORM
 Domain Modelling in GORM
 Persistence Basics
 Querying with GORM
 Saving and Updating
 Dynamic Finders
 Eager and Lazy Fetching

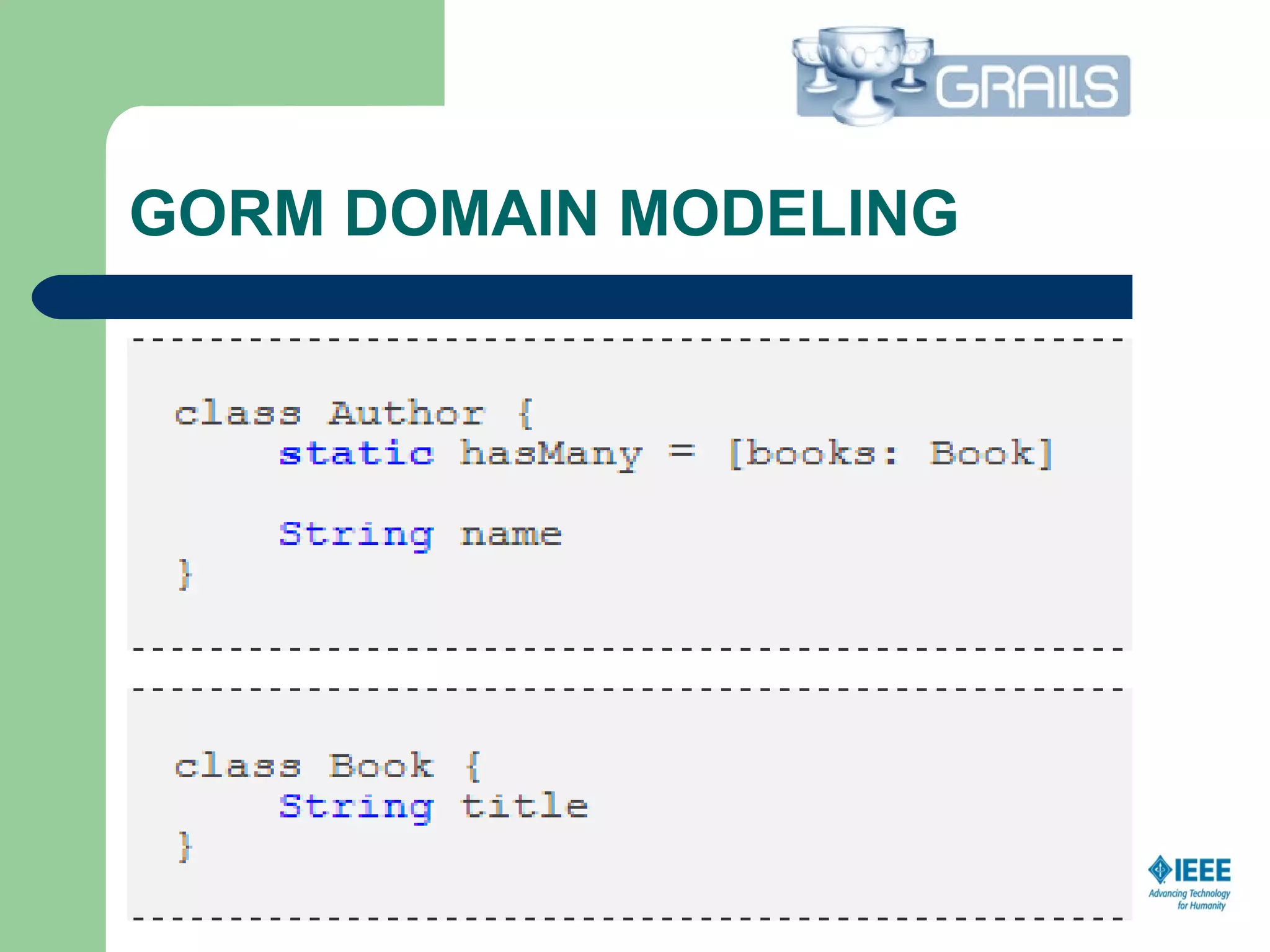

16. GORM DOMAIN MODELING

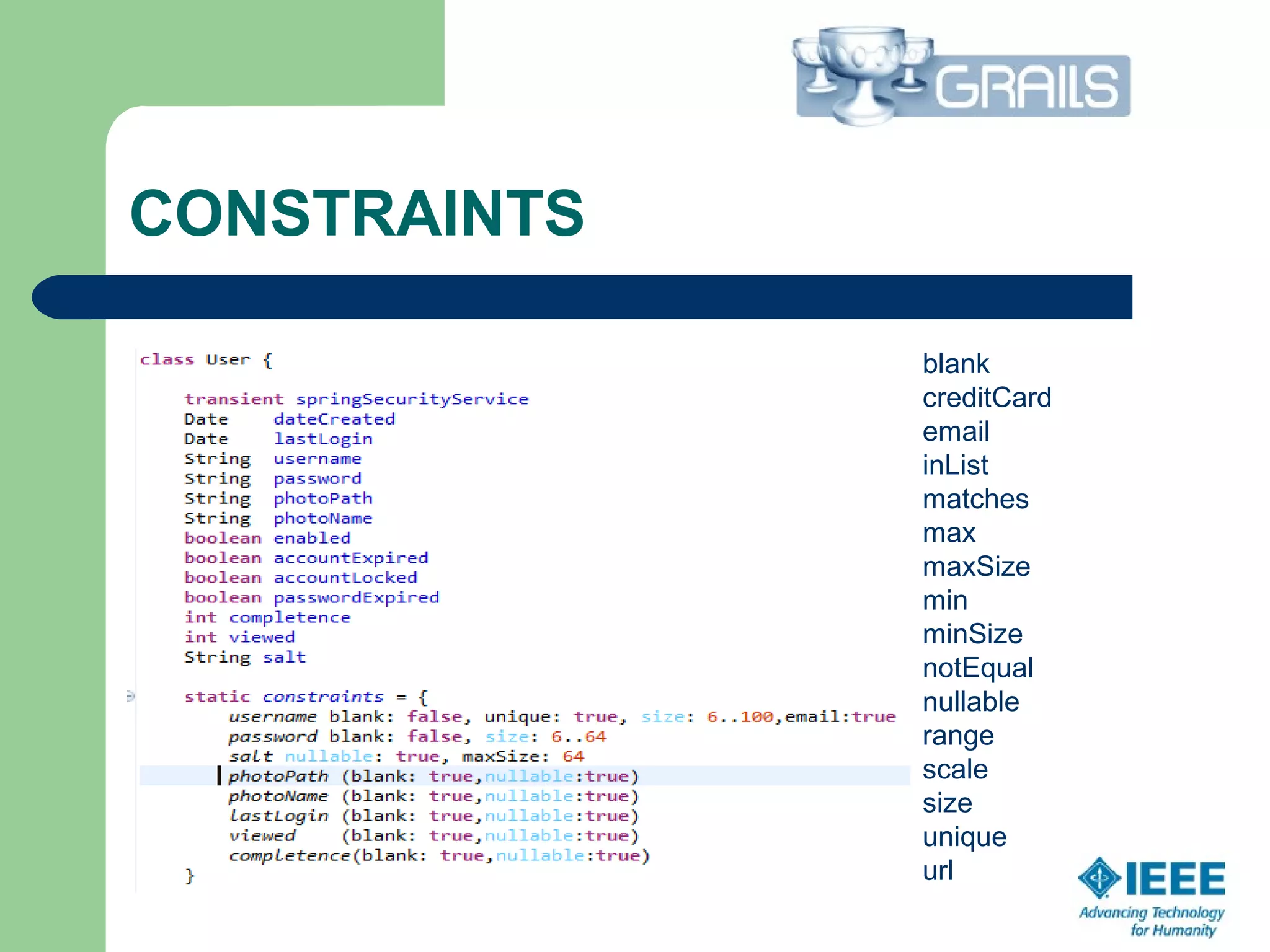

17. CONSTRAINTS
blank
creditCard
email
inList
matches
max
maxSize
min
minSize
notEqual
nullable
range
scale
size
unique
url

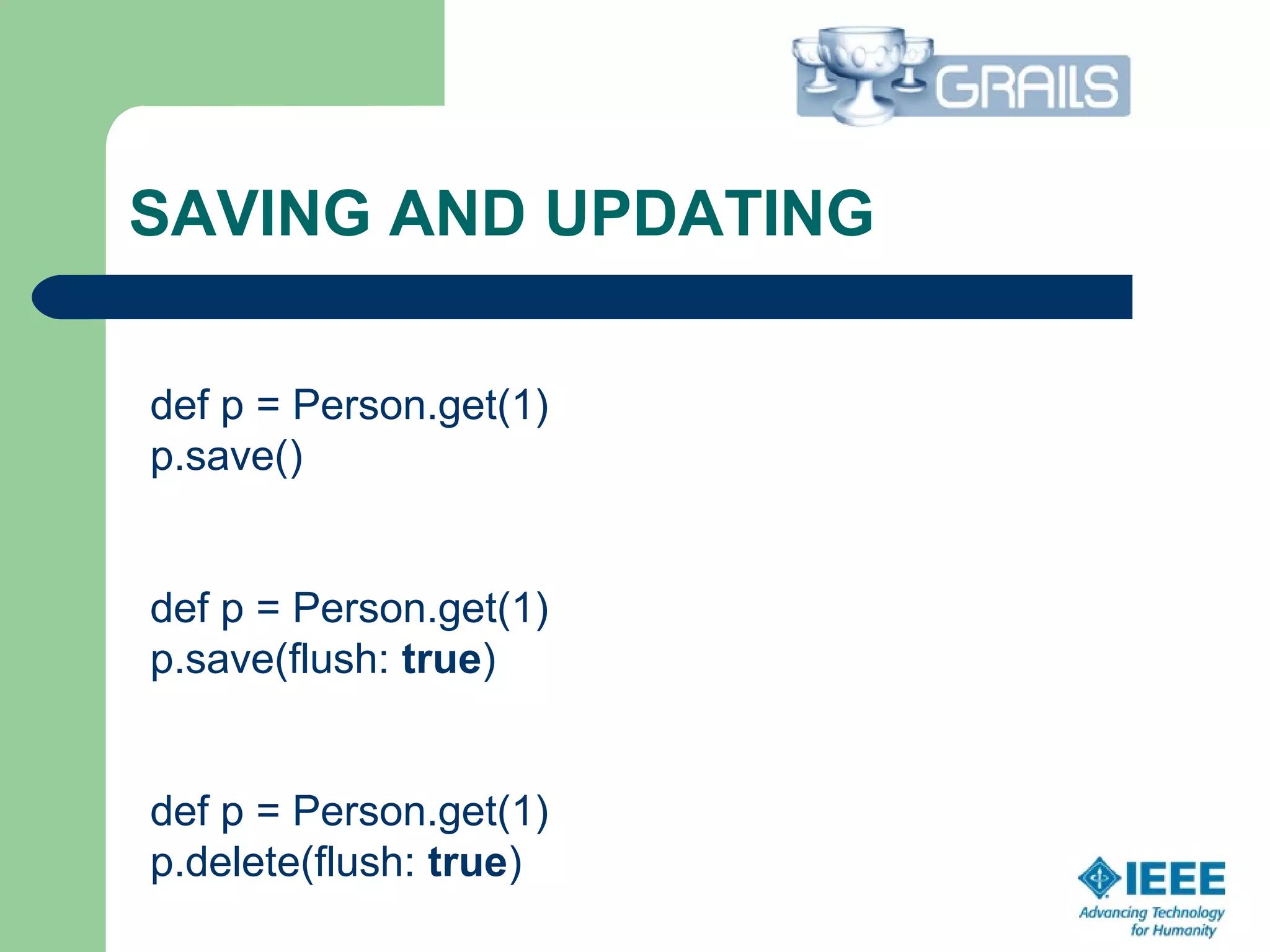

18. SAVING AND UPDATING
def p = Person.get(1)
p.save()
def p = Person.get(1)
p.save(flush: true)
def p = Person.get(1)
p.delete(flush: true)

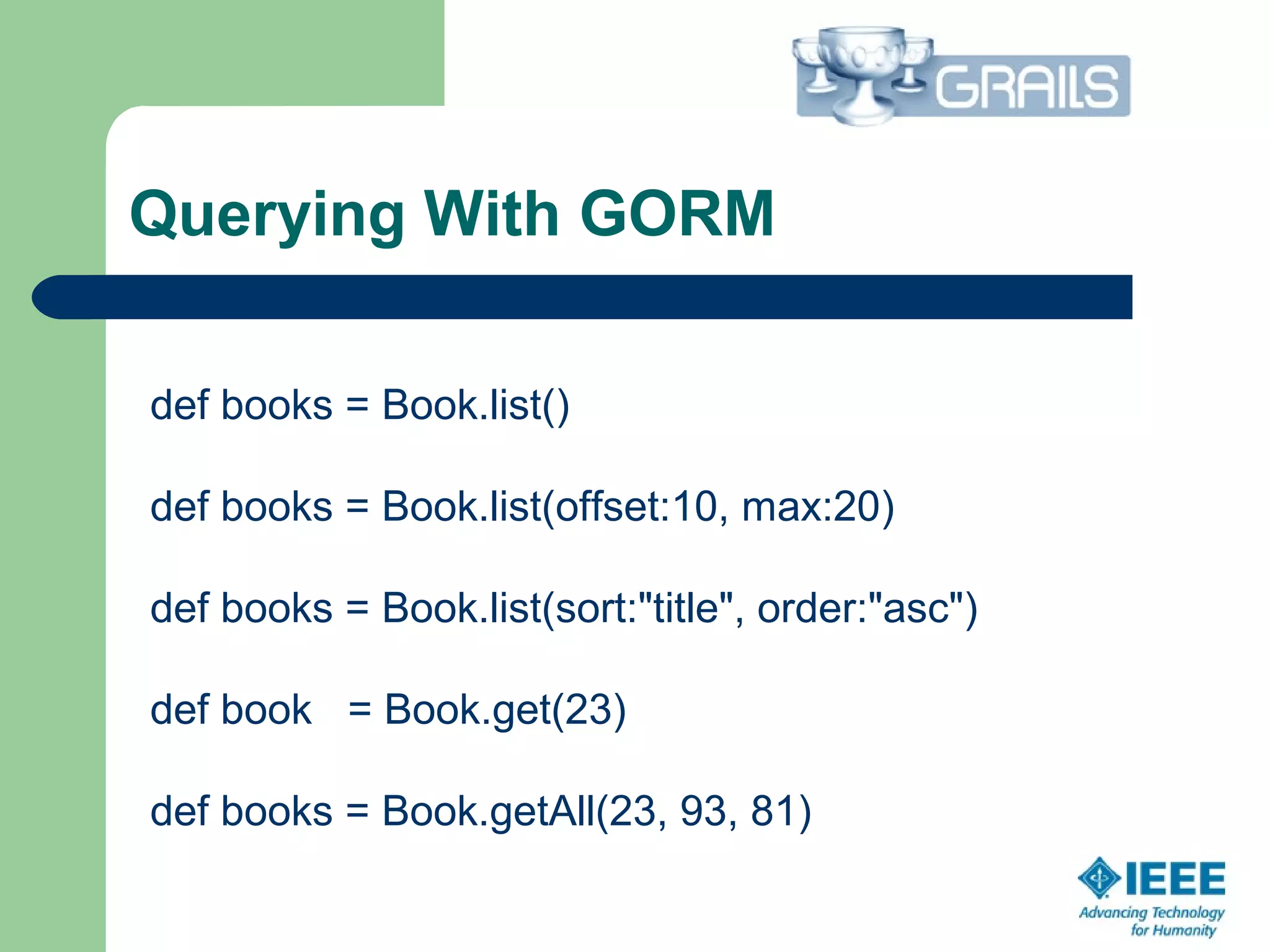

19. Querying With GORM
def books = Book.list()
def books = Book.list(offset:10, max:20)
def books = Book.list(sort:"title", order:"asc")
def book = Book.get(23)
def books = Book.getAll(23, 93, 81)

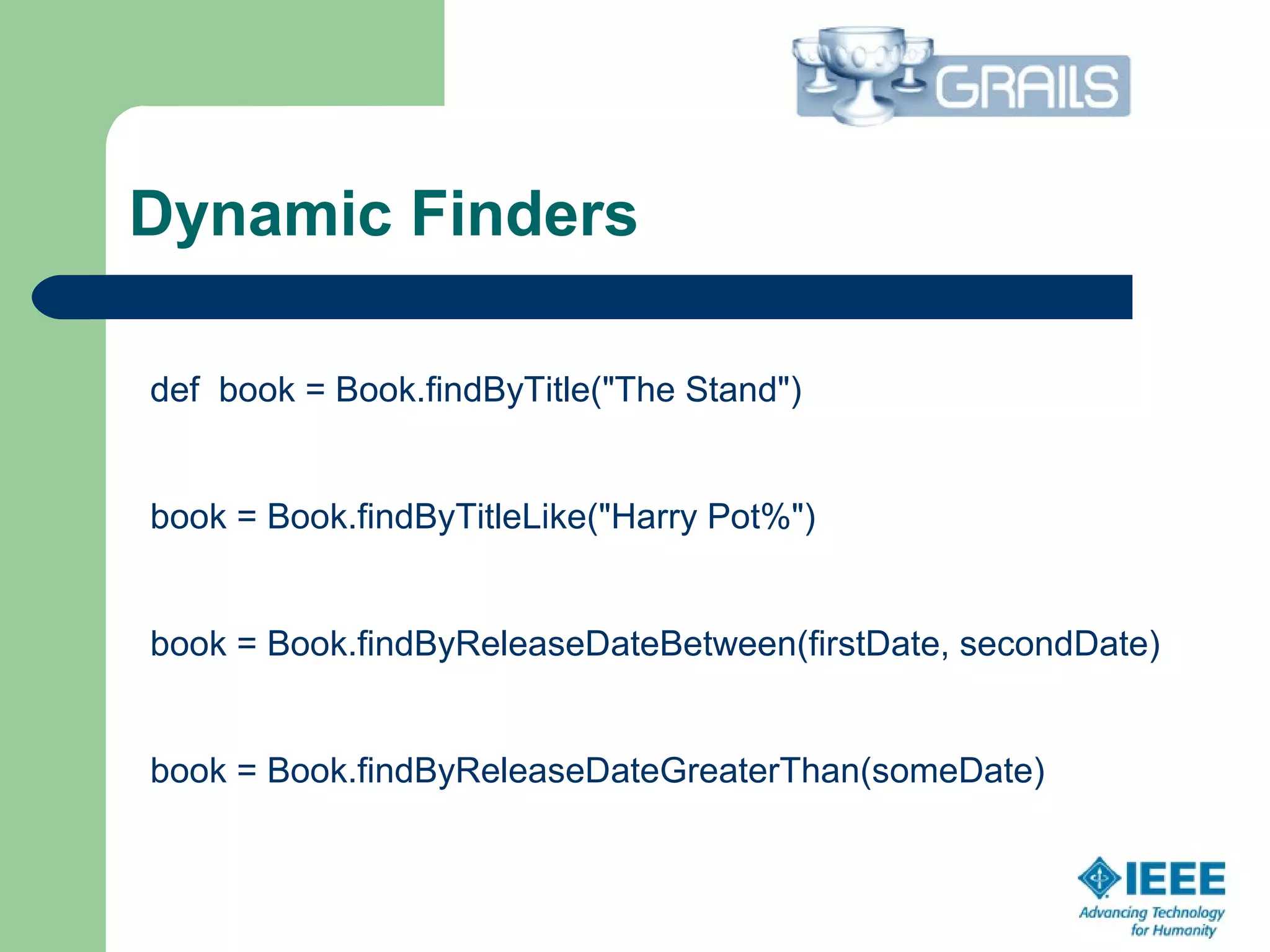

20. Dynamic Finders
def book = Book.findByTitle("The Stand")
book = Book.findByTitleLike("Harry Pot%")
book = Book.findByReleaseDateBetween(firstDate, secondDate)
book = Book.findByReleaseDateGreaterThan(someDate)

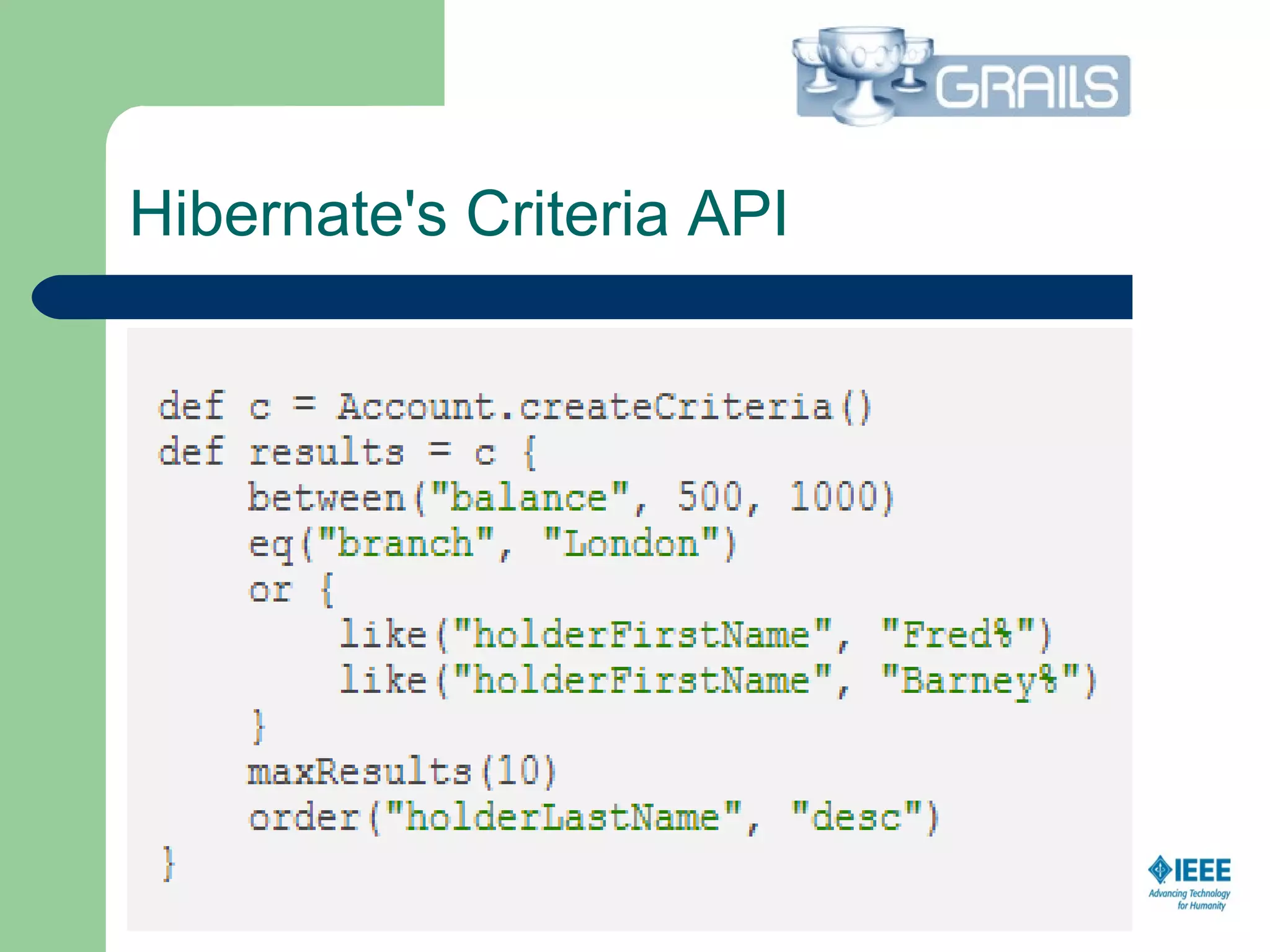

21. Hibernate's Criteria API

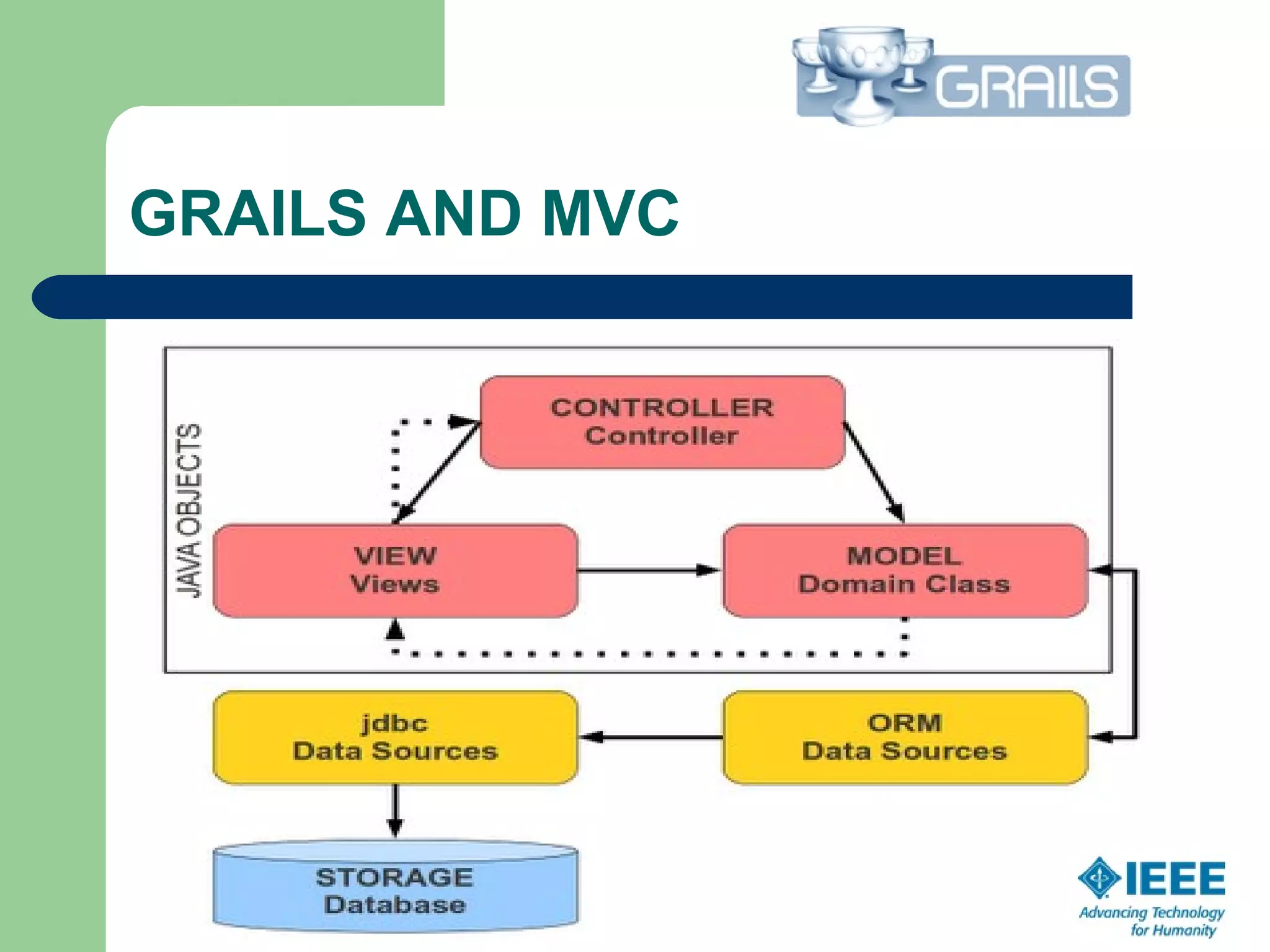

22. GRAILS AND MVC

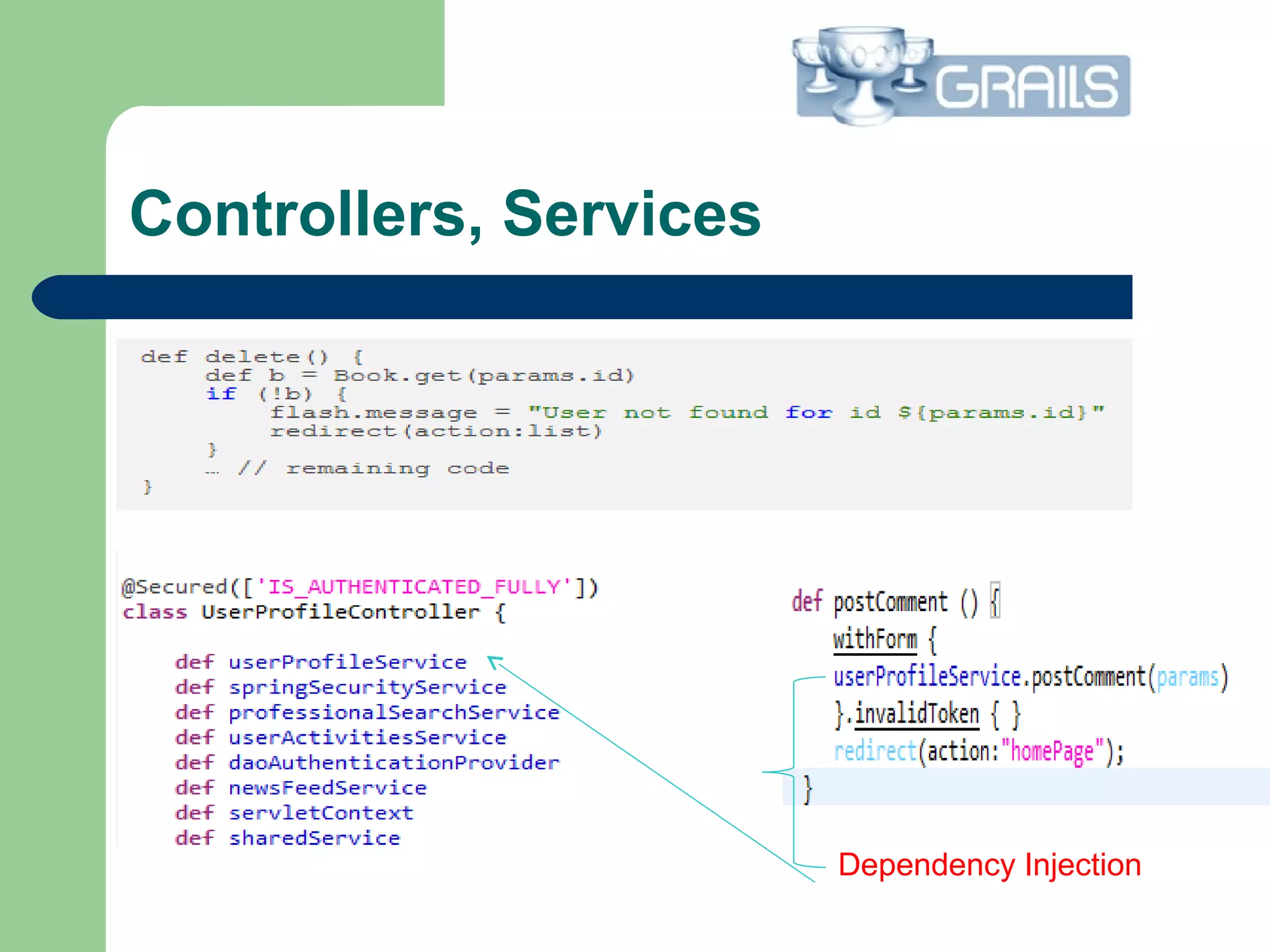

23. Controllers, Services
Dependency Injection

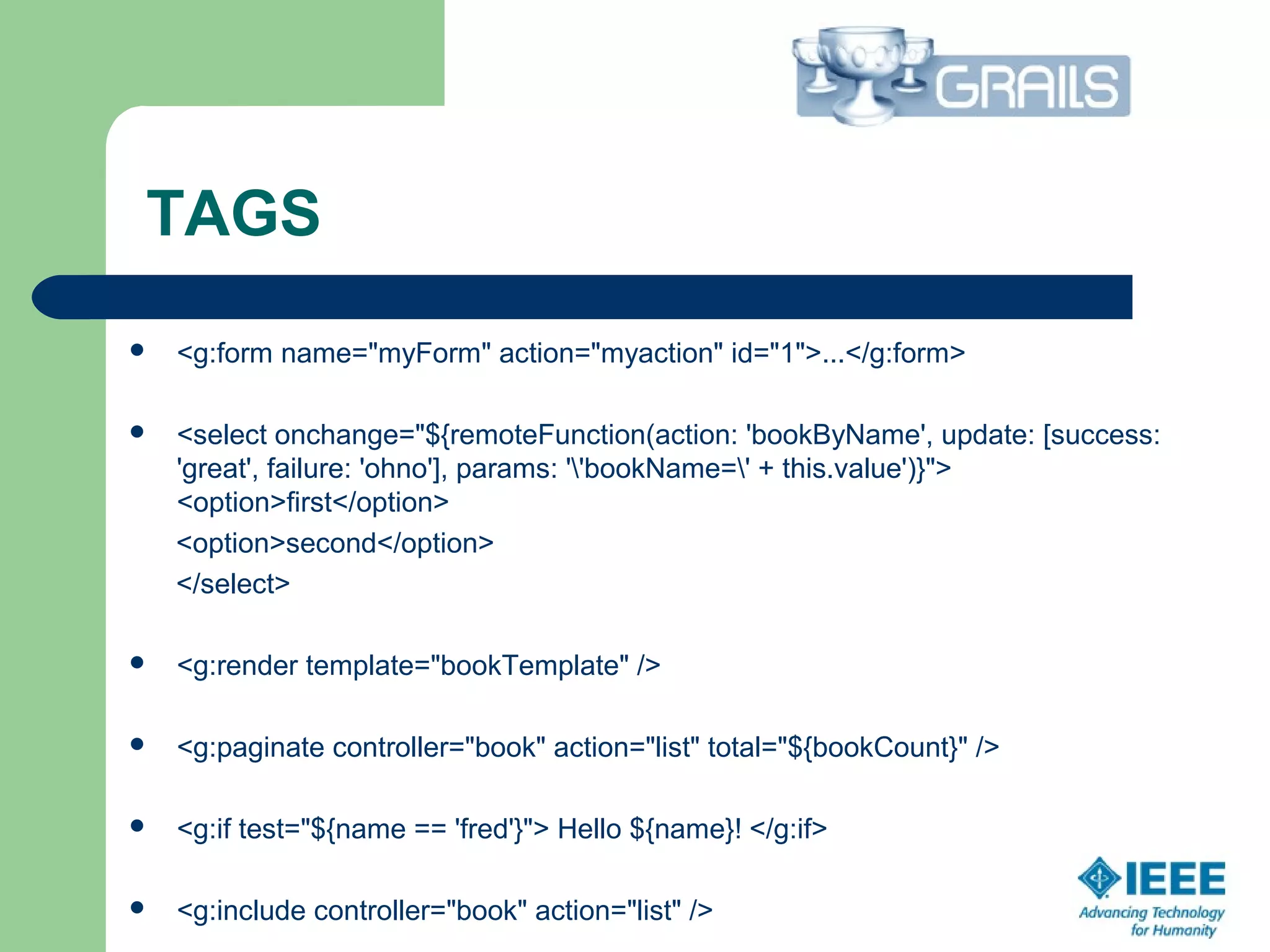

24. TAGS
 <g:form name="myForm" action="myaction" id="1">...</g:form>
 <select onchange="${remoteFunction(action: 'bookByName', update: [success:
'great', failure: 'ohno'], params: ''bookName=' + this.value')}">
<option>first</option>
<option>second</option>
</select>
 <g:render template="bookTemplate" />
 <g:paginate controller="book" action="list" total="${bookCount}" />
 <g:if test="${name == 'fred'}"> Hello ${name}! </g:if>
 <g:include controller="book" action="list" />

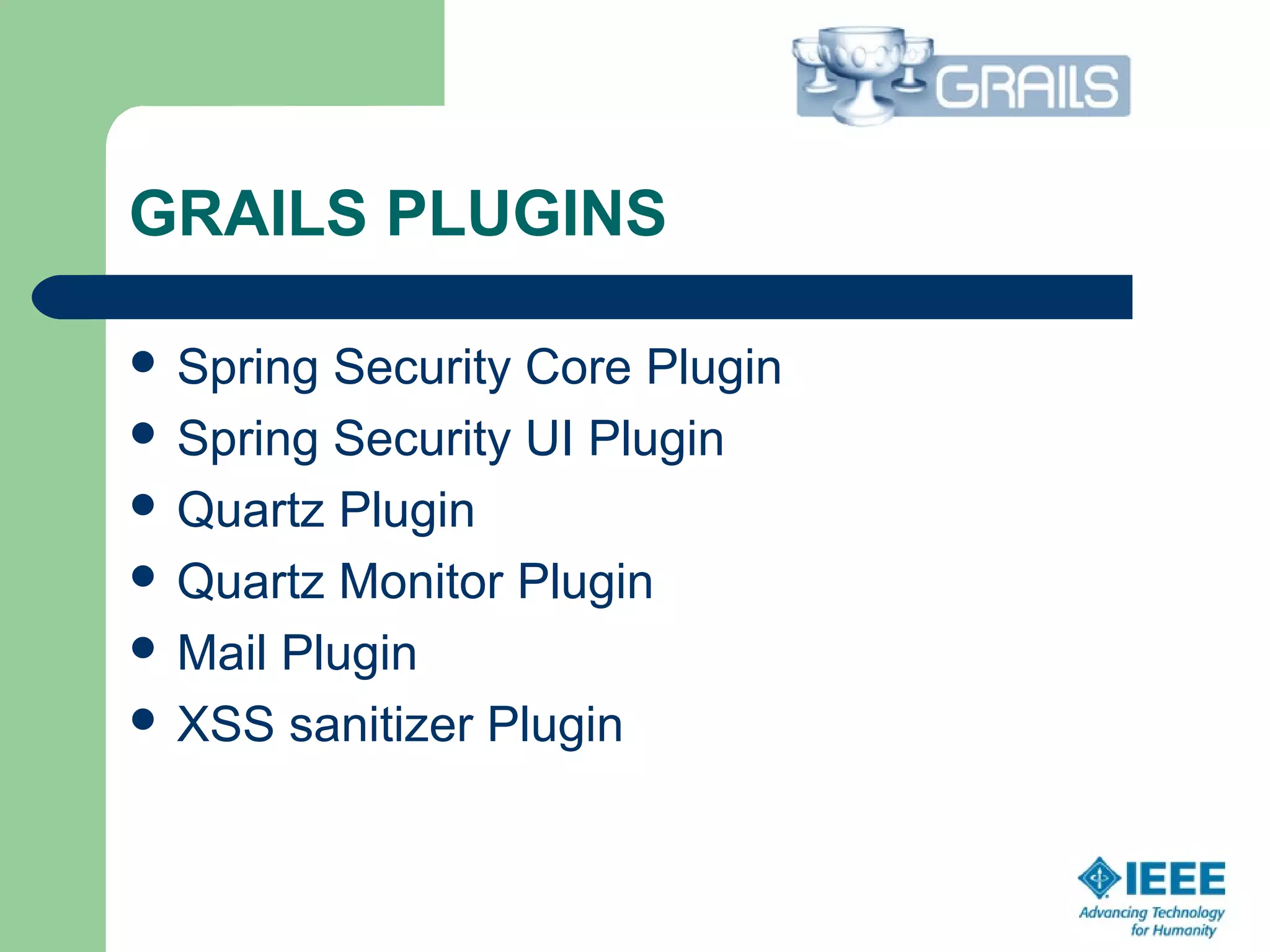

25. GRAILS PLUGINS
 Spring Security Core Plugin
 Spring Security UI Plugin
 Quartz Plugin
 Quartz Monitor Plugin
 Mail Plugin
 XSS sanitizer Plugin

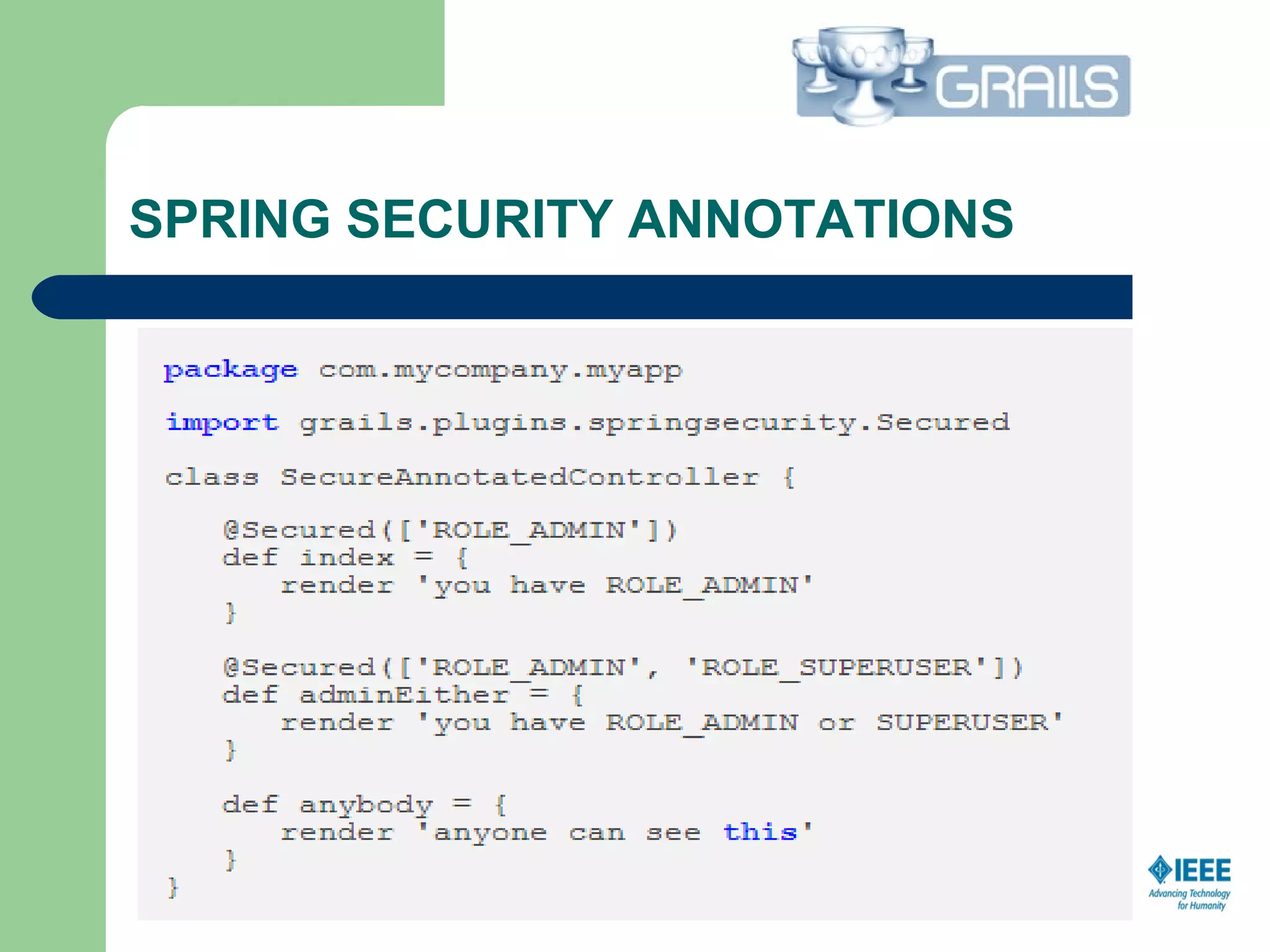

26. SPRING SECURITY ANNOTATIONS

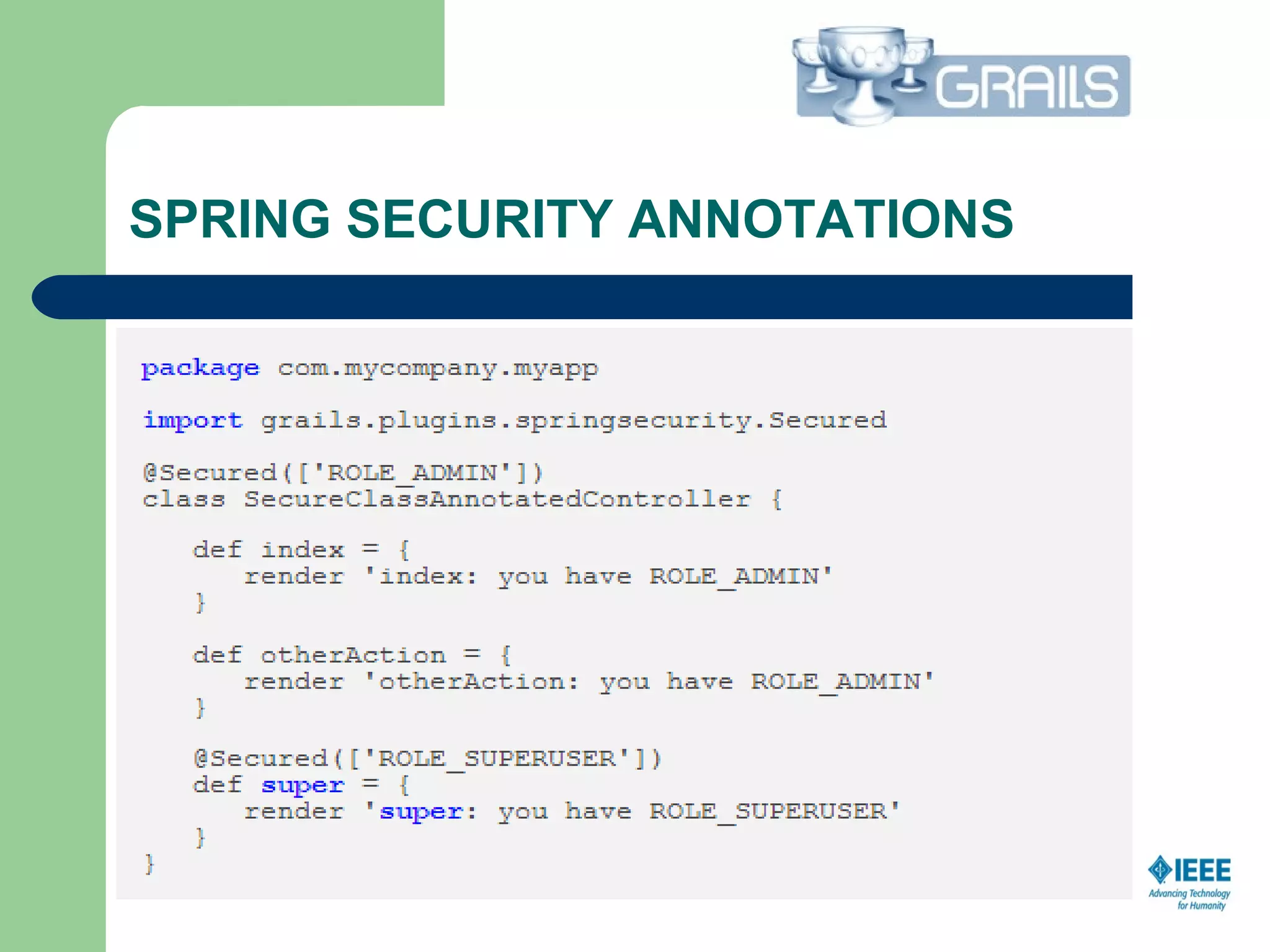

27. SPRING SECURITY ANNOTATIONS

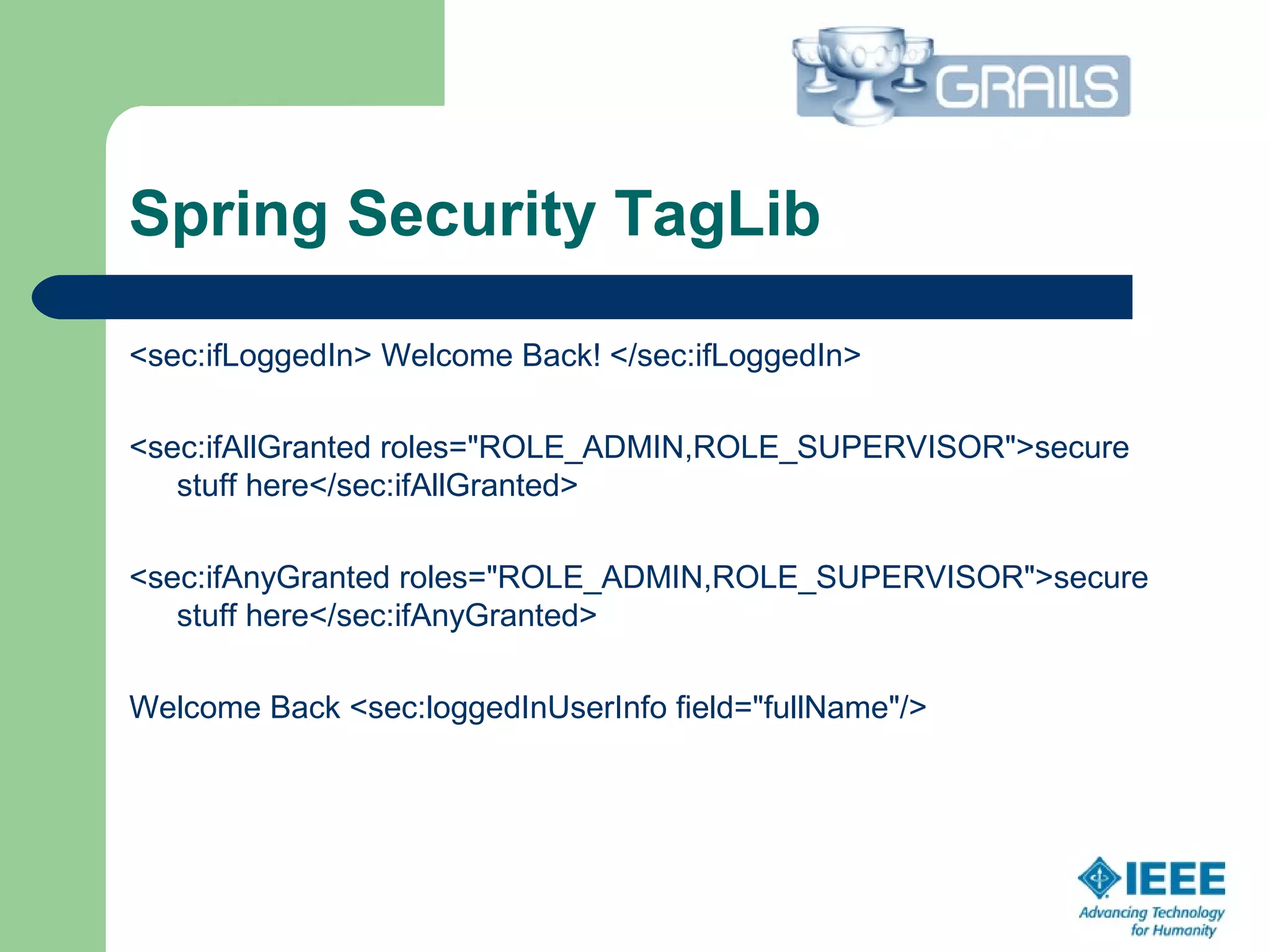

28. Spring Security TagLib
<sec:ifLoggedIn> Welcome Back! </sec:ifLoggedIn>
<sec:ifAllGranted roles="ROLE_ADMIN,ROLE_SUPERVISOR">secure
stuff here</sec:ifAllGranted>
<sec:ifAnyGranted roles="ROLE_ADMIN,ROLE_SUPERVISOR">secure
stuff here</sec:ifAnyGranted>
Welcome Back <sec:loggedInUserInfo field="fullName"/>

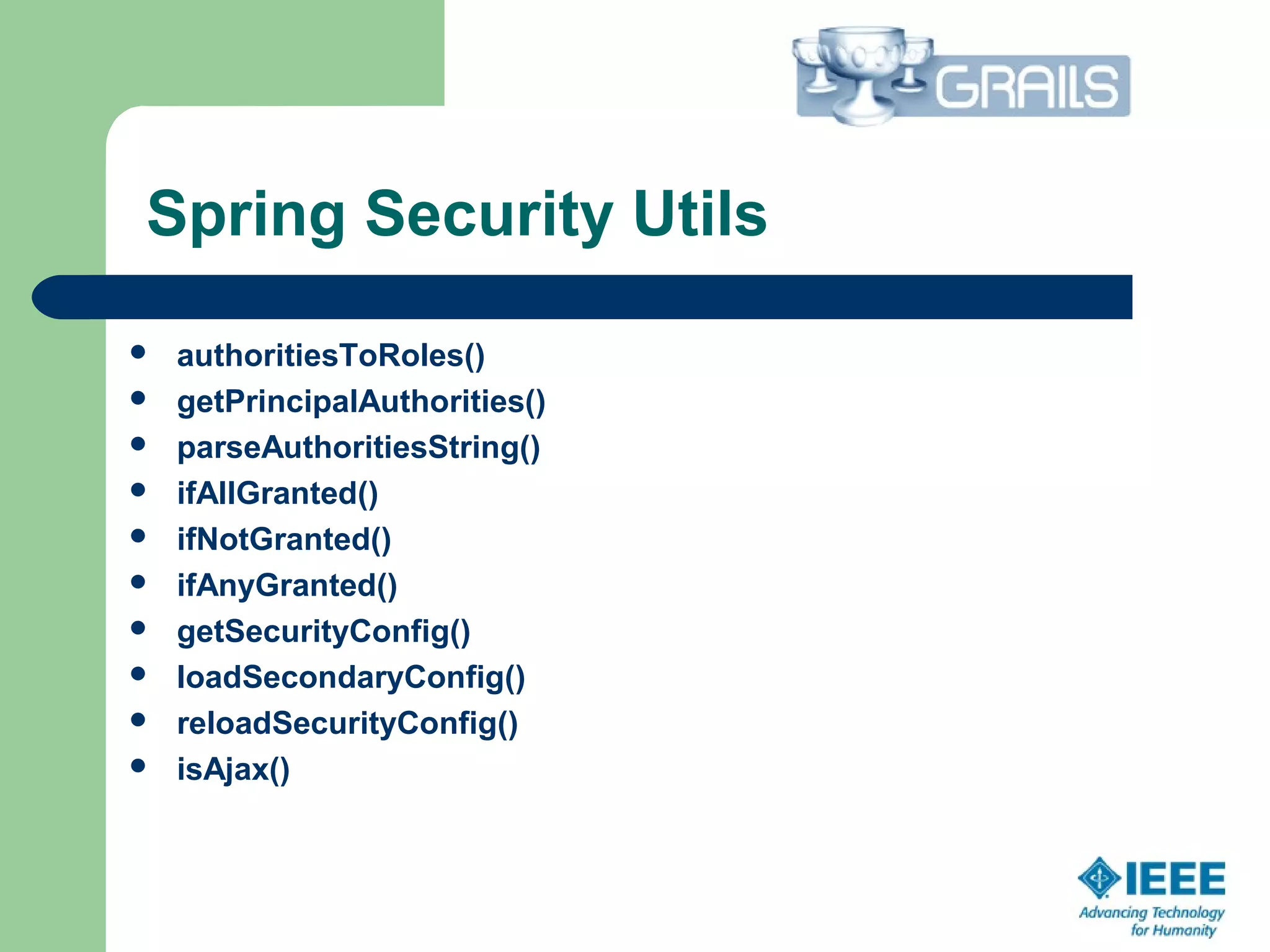

29. Spring Security Utils
 authoritiesToRoles()
 getPrincipalAuthorities()
 parseAuthoritiesString()
 ifAllGranted()
 ifNotGranted()
 ifAnyGranted()
 getSecurityConfig()
 loadSecondaryConfig()
 reloadSecurityConfig()
 isAjax()

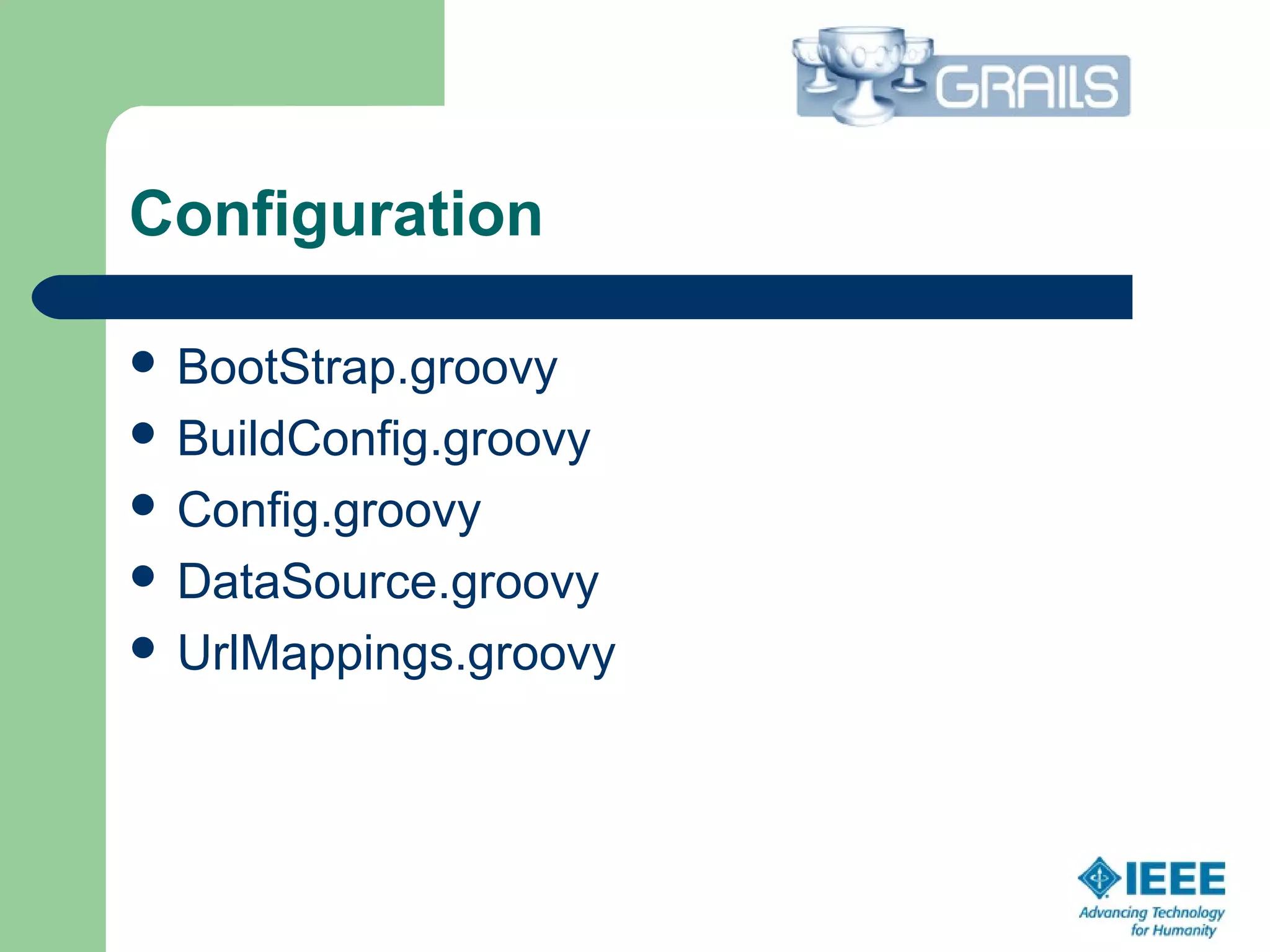

30. Configuration
 BootStrap.groovy
 BuildConfig.groovy
 Config.groovy
 DataSource.groovy
 UrlMappings.groovy

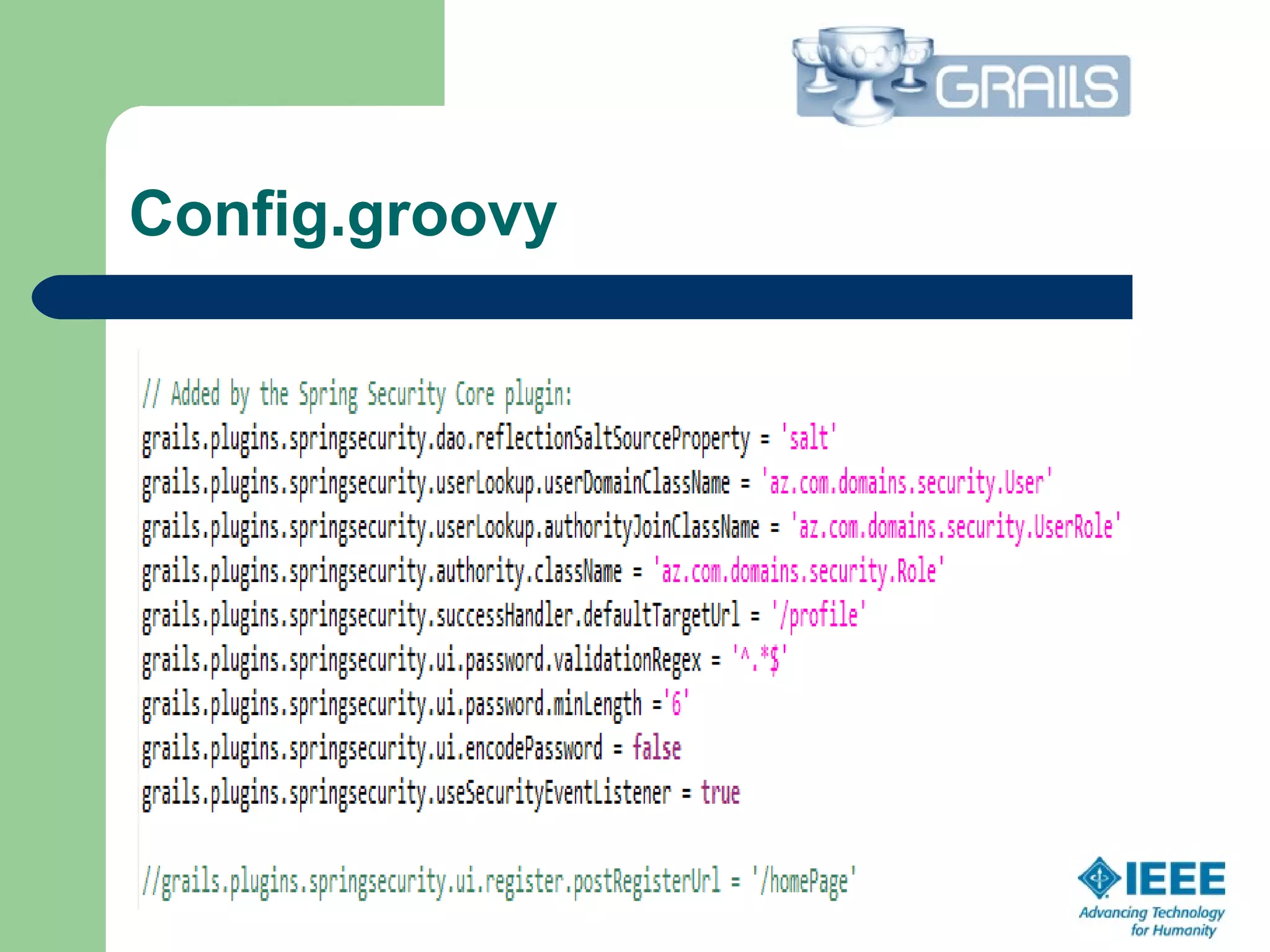

31. Config.groovy

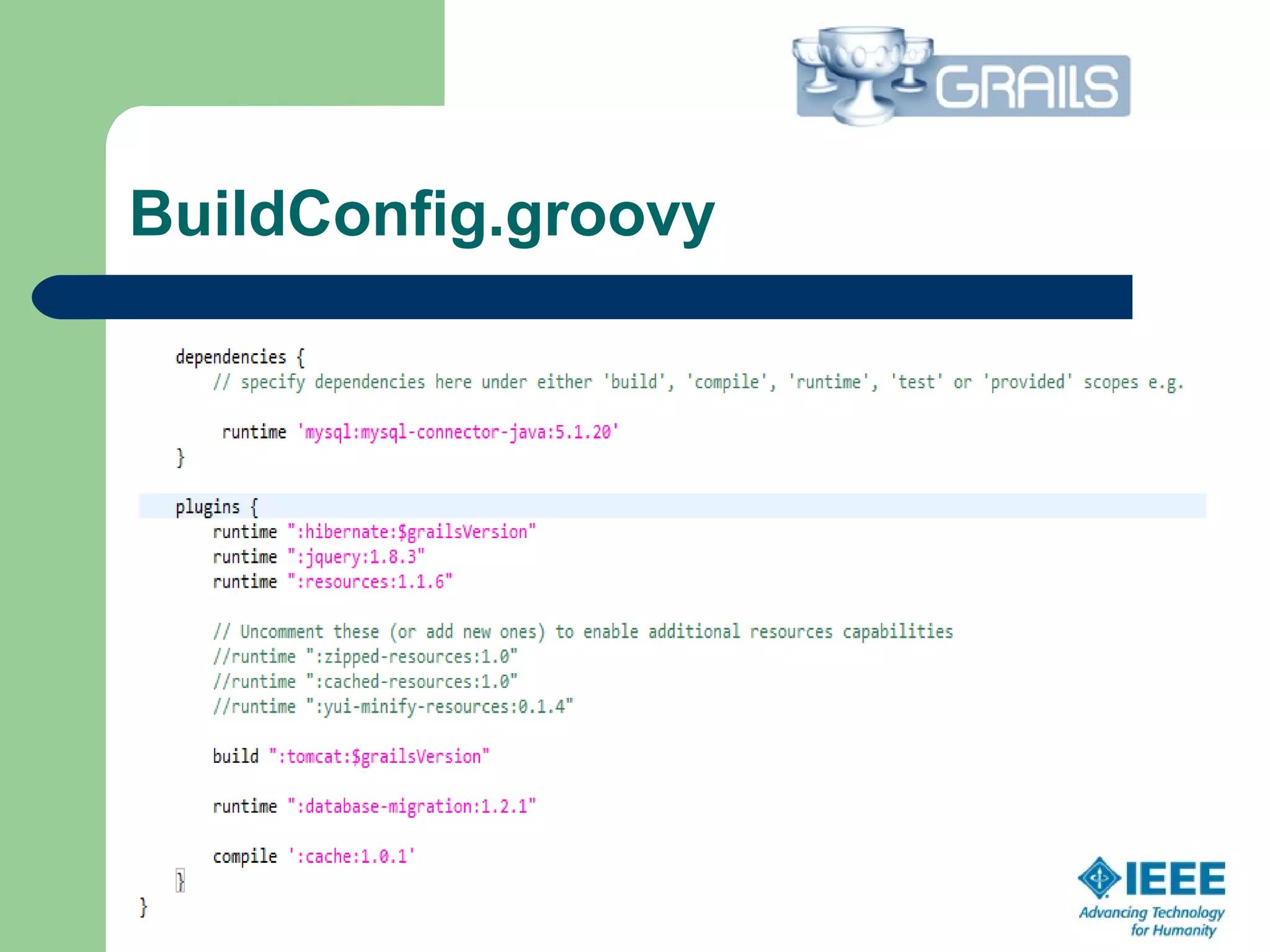

32. BuildConfig.groovy

33. DataSource.groovy

34. UrlMappings.groovy
class UrlMappings {
static mappings = {
}
}
"/profile"(controller:"userProfile“,action:"userProfile")
"/newsfeed"(controller:"userProfile“,action:"homePage")
"/company"(controller:"company“,action:"companyProfile")

35. GRAILS TOOL (GGTS)
Download from : http://spring.io/tools/ggts

36. SITES USING GRAILS
