1. CS Dudes
meetup #1. Graph theory basics
1

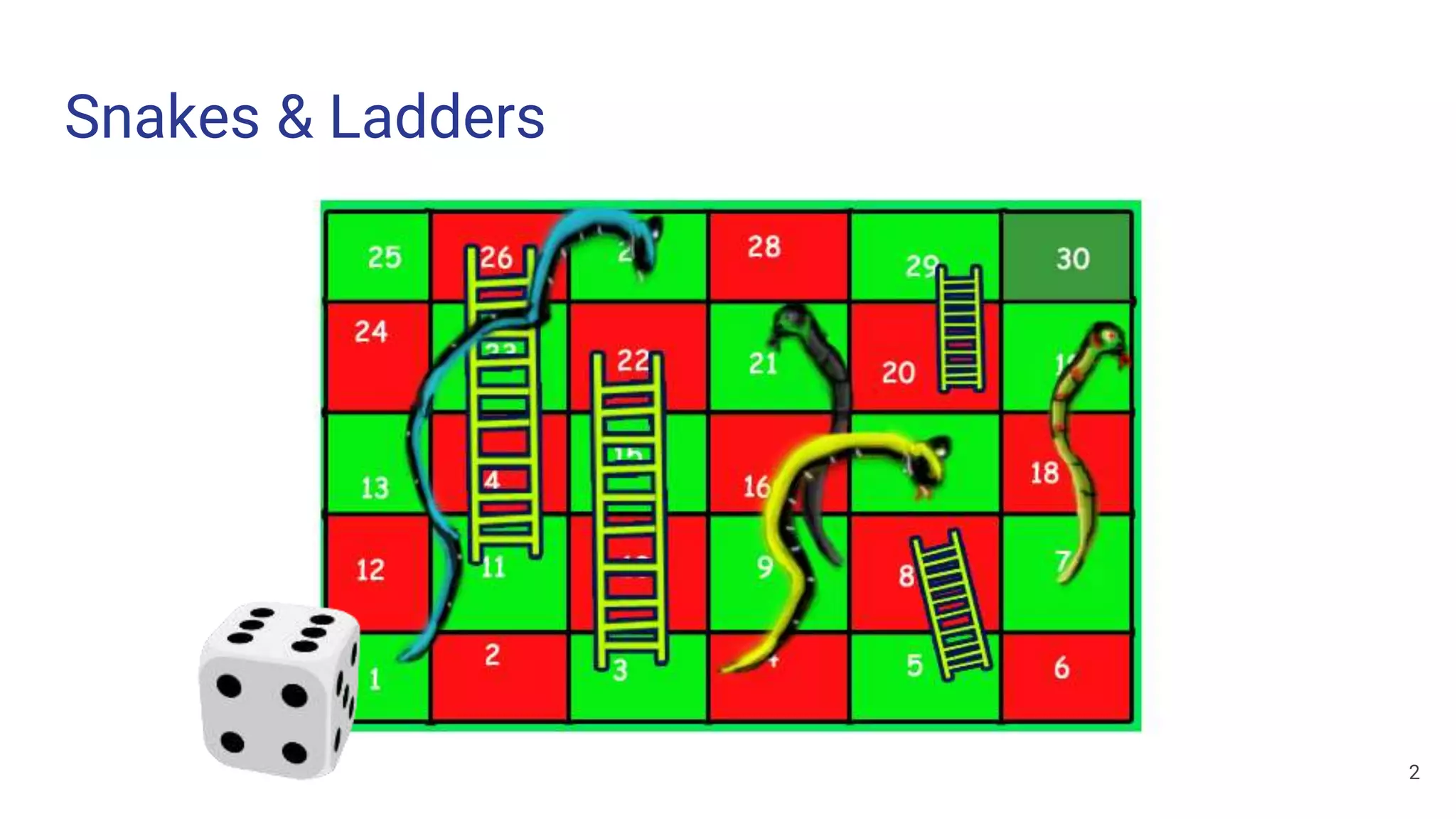

2. Snakes & Ladders
2

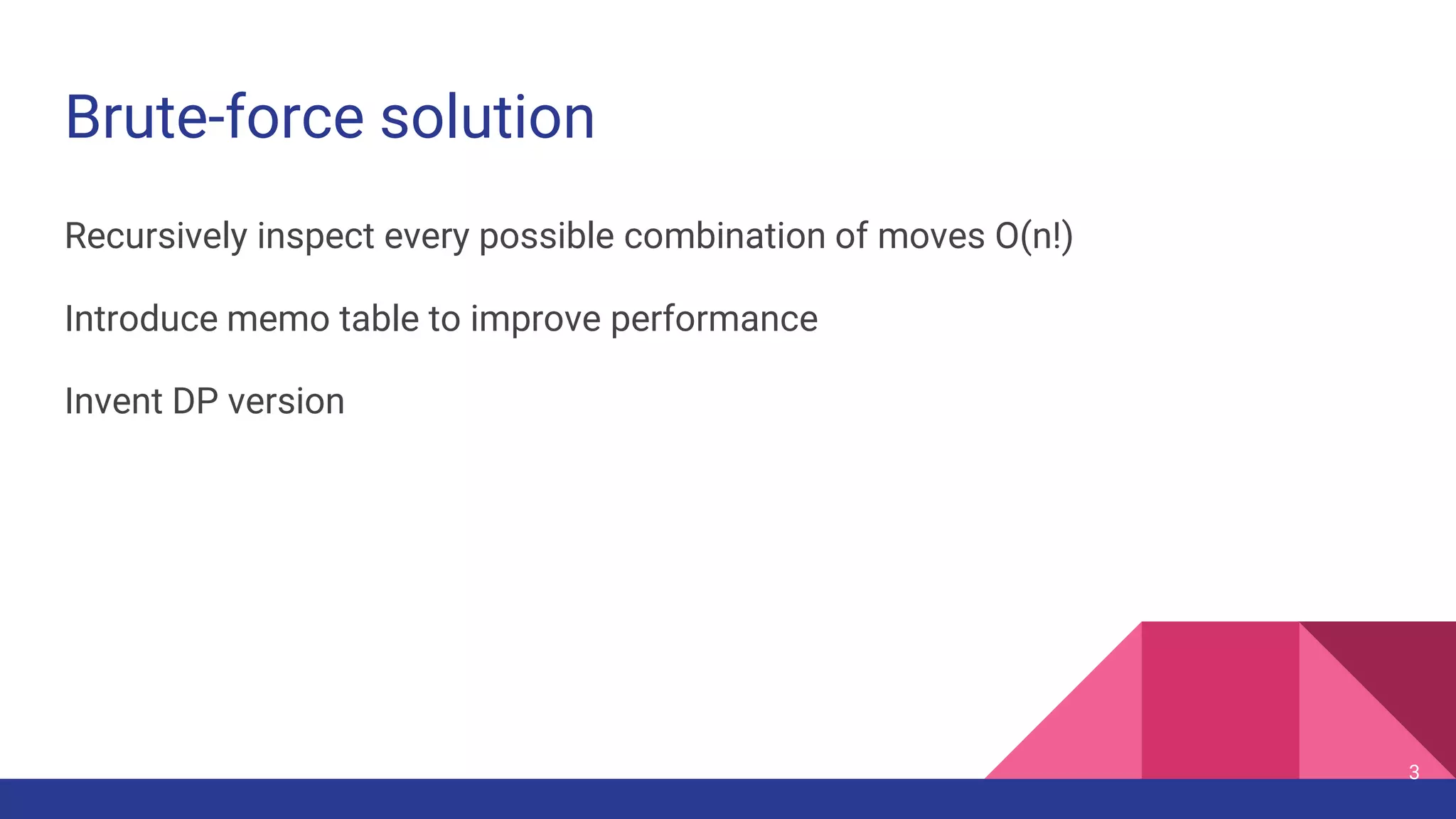

3. Brute-force solution
Recursively inspect every possible combination of moves O(n!)
Introduce memo table to improve performance
Invent DP version
3

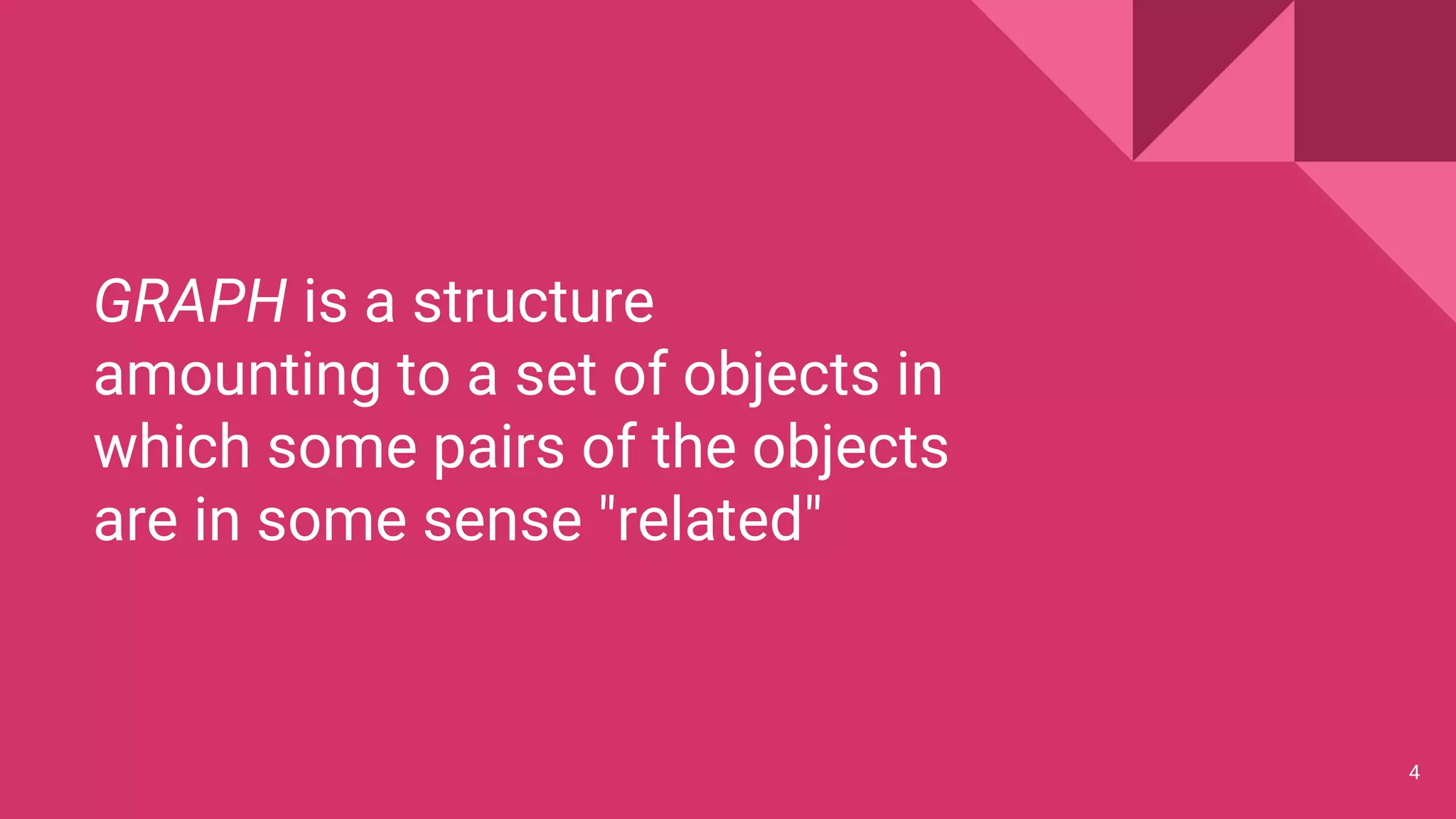

4. GRAPH is a structure
amounting to a set of objects in
which some pairs of the objects
are in some sense "related"
4

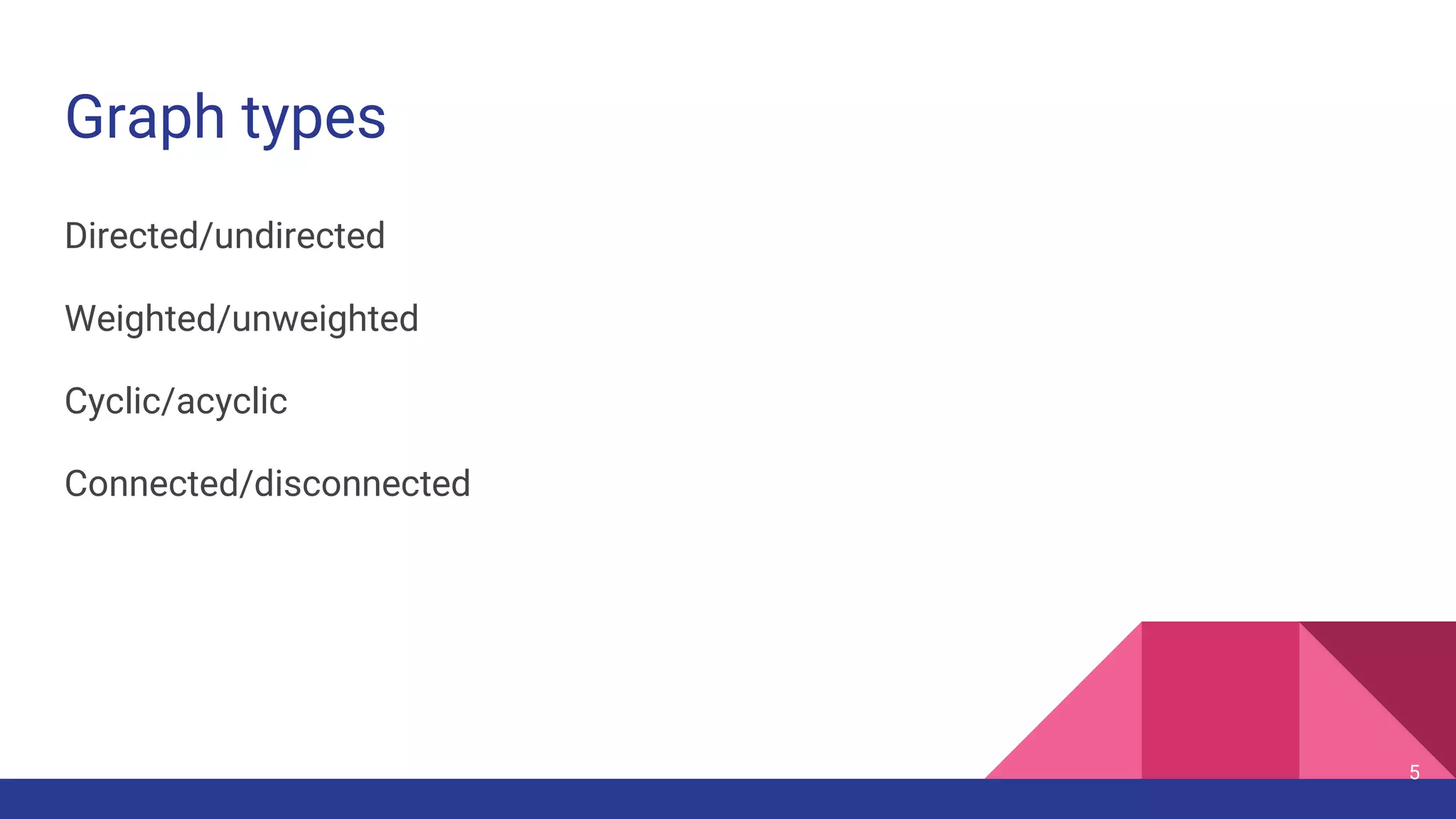

5. Graph types
Directed/undirected
Weighted/unweighted
Cyclic/acyclic
Connected/disconnected
5

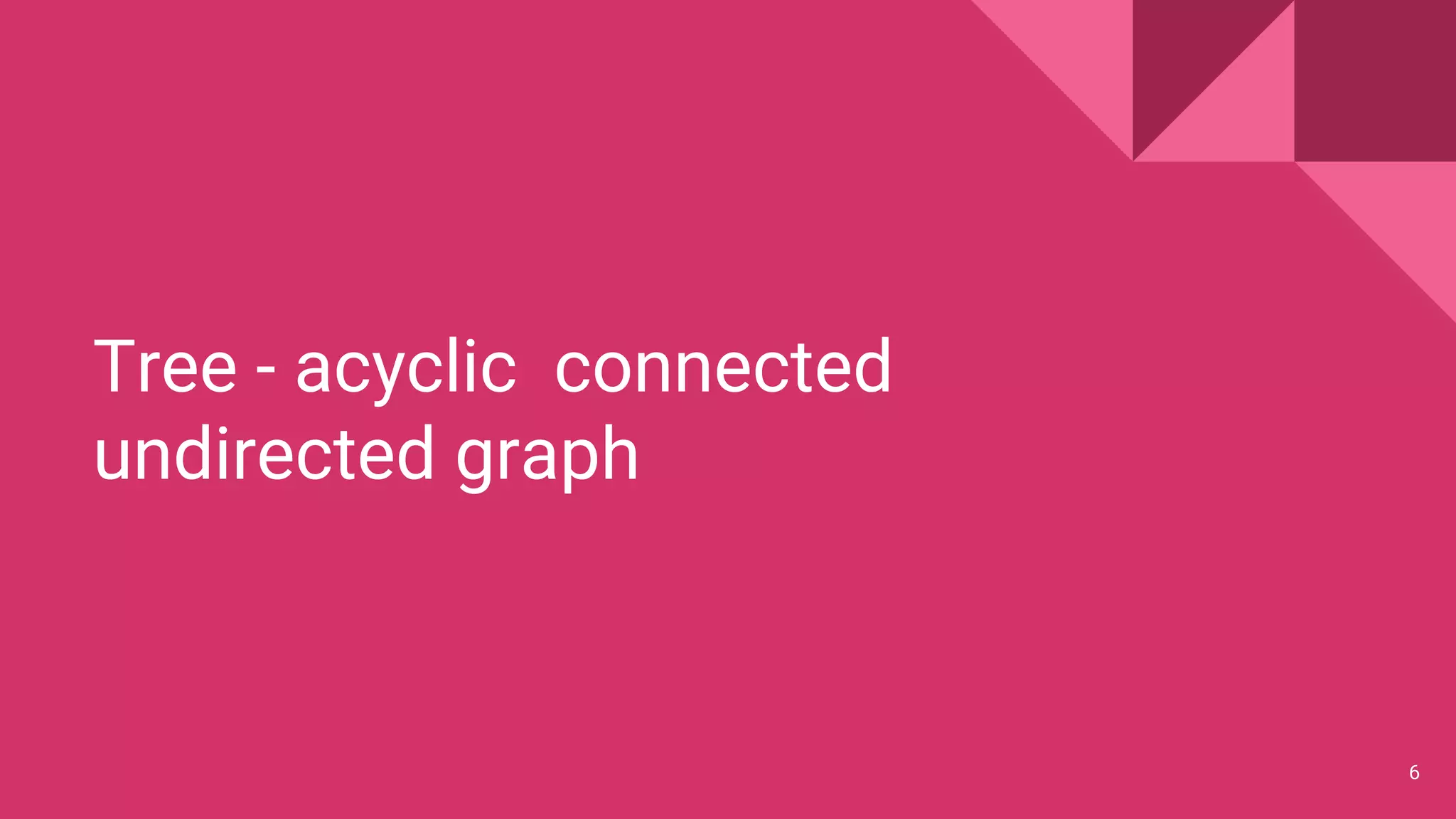

6. Tree - acyclic connected
undirected graph
6

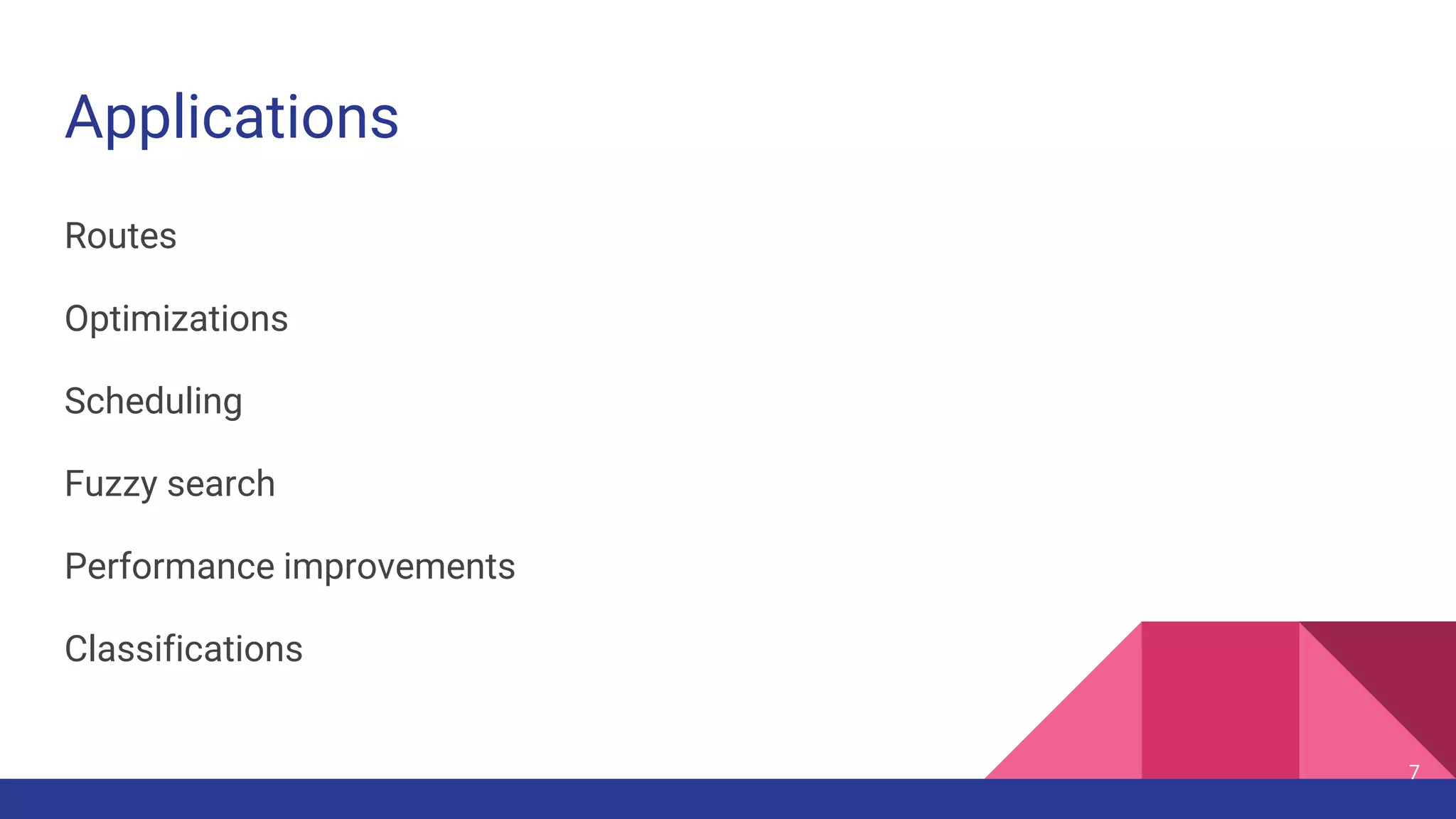

7. Applications
Routes
Optimizations
Scheduling
Fuzzy search
Performance improvements
Classifications
7

8. Representation in CS
8

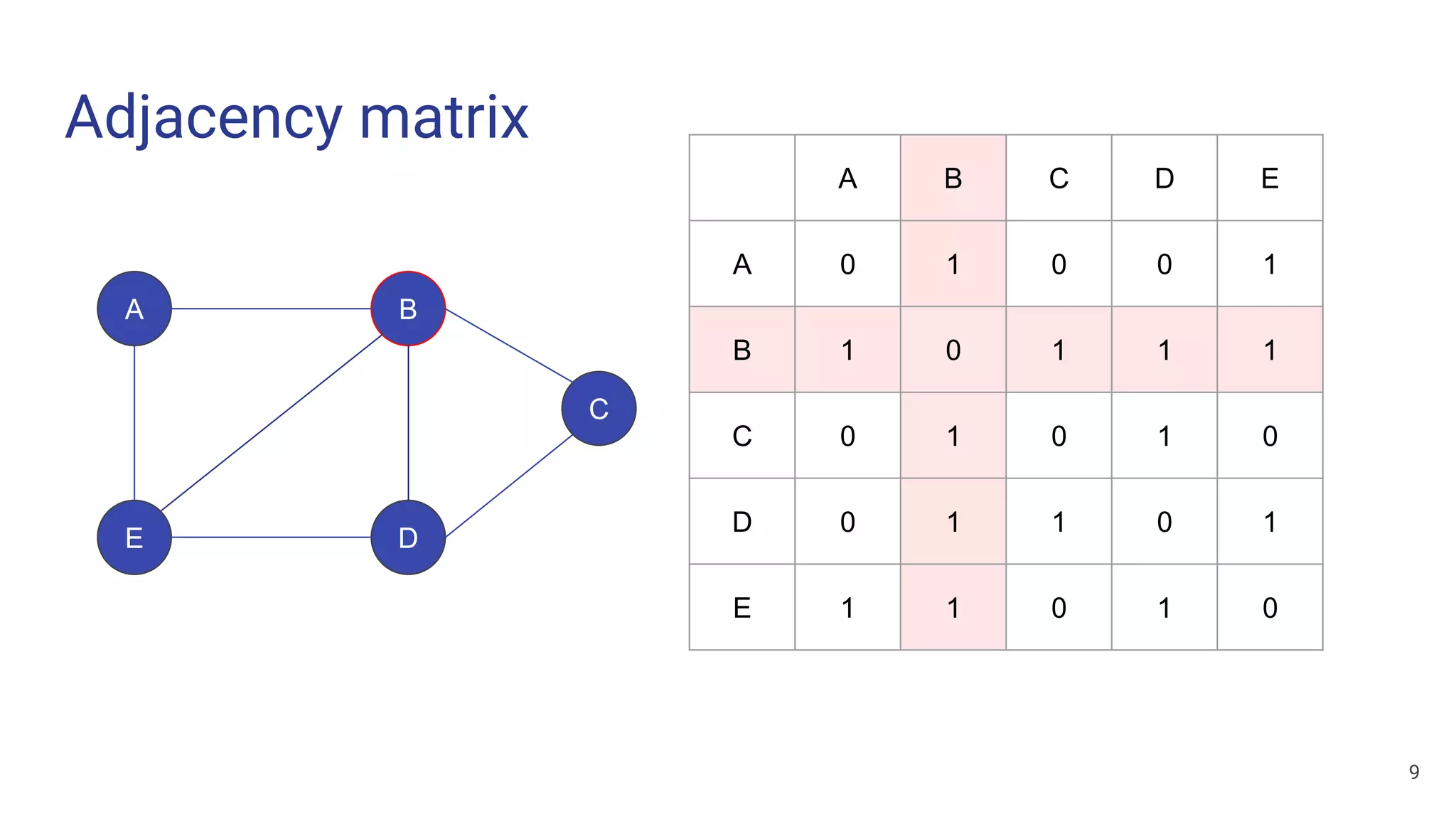

9. Adjacency matrix
A
E
B
D
C
A B C D E
A 0 1 0 0 1
B 1 0 1 1 1
C 0 1 0 1 0
D 0 1 1 0 1
E 1 1 0 1 0
9

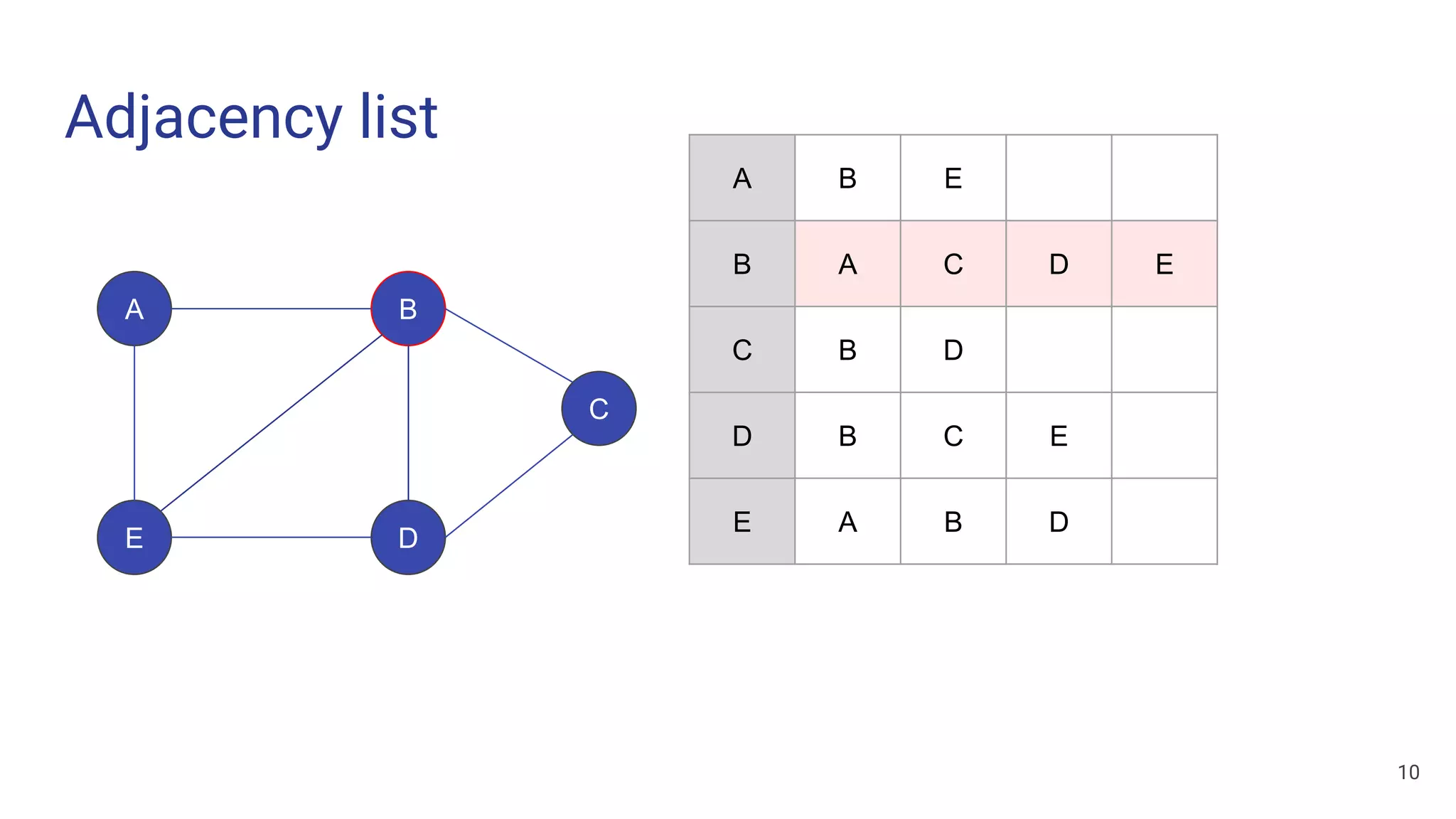

10. Adjacency list
A
E
B
D
C
A B E
B A C D E
C B D
D B C E
E A B D
10

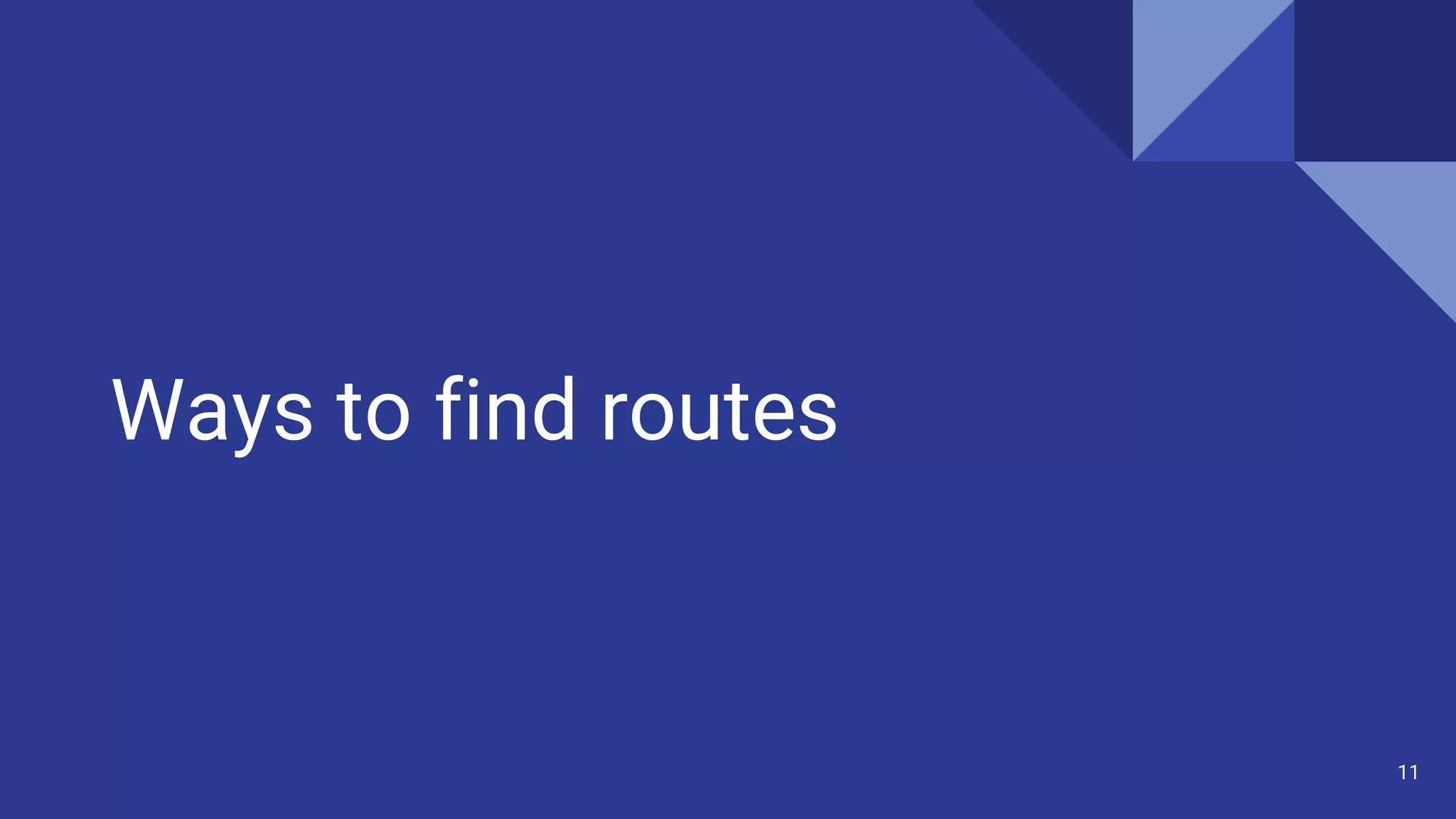

11. Ways to find routes
11

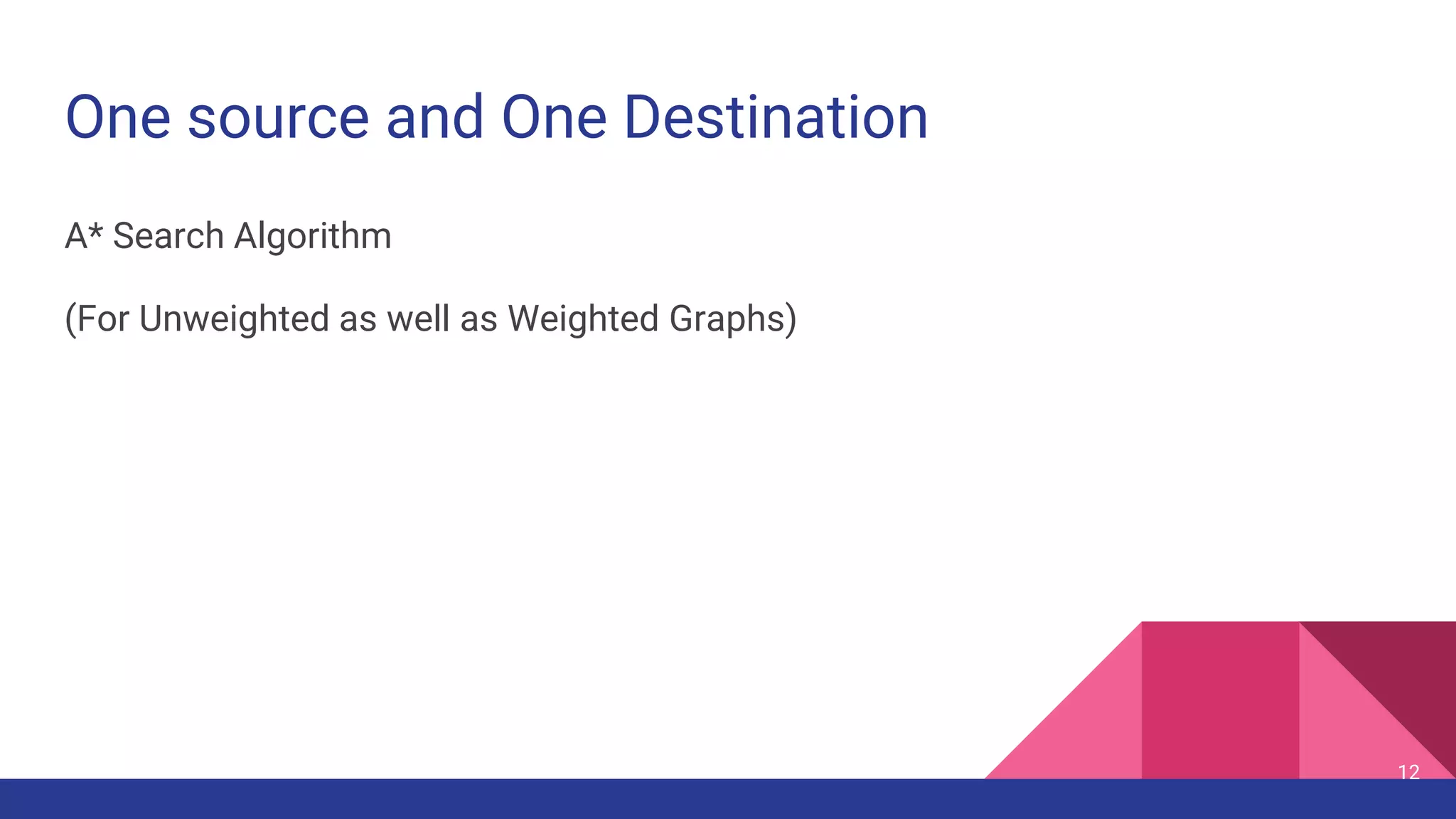

12. One source and One Destination
A* Search Algorithm
(For Unweighted as well as Weighted Graphs)
12

13. One Source, All Destination
BFS (For Unweighted Graphs)
Dijkstra (For Weighted Graphs without negative weights)
Bellman Ford (For Weighted Graphs with negative weights)
13

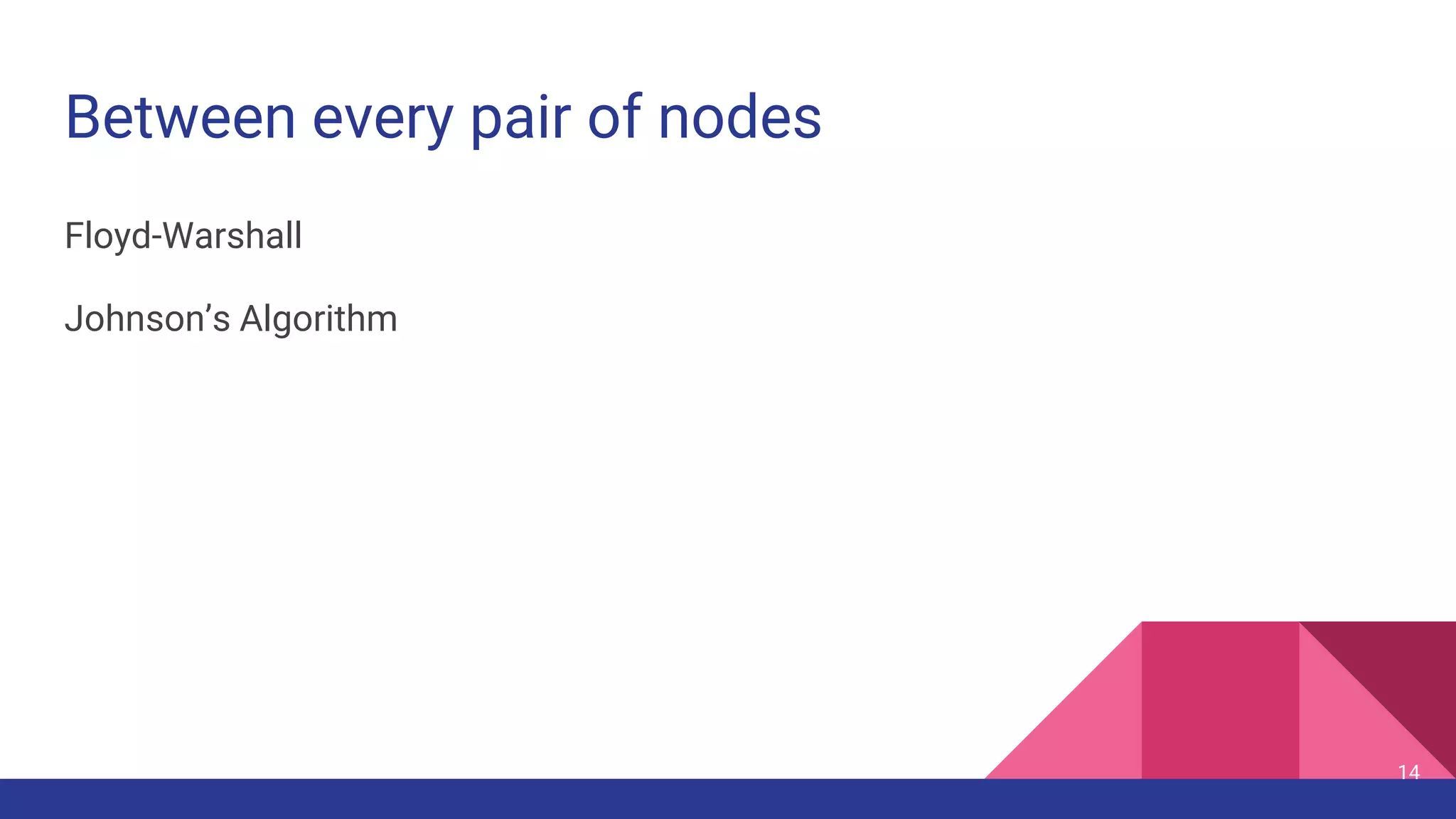

14. Between every pair of nodes
Floyd-Warshall
Johnson’s Algorithm
14

15. BFS in action
15

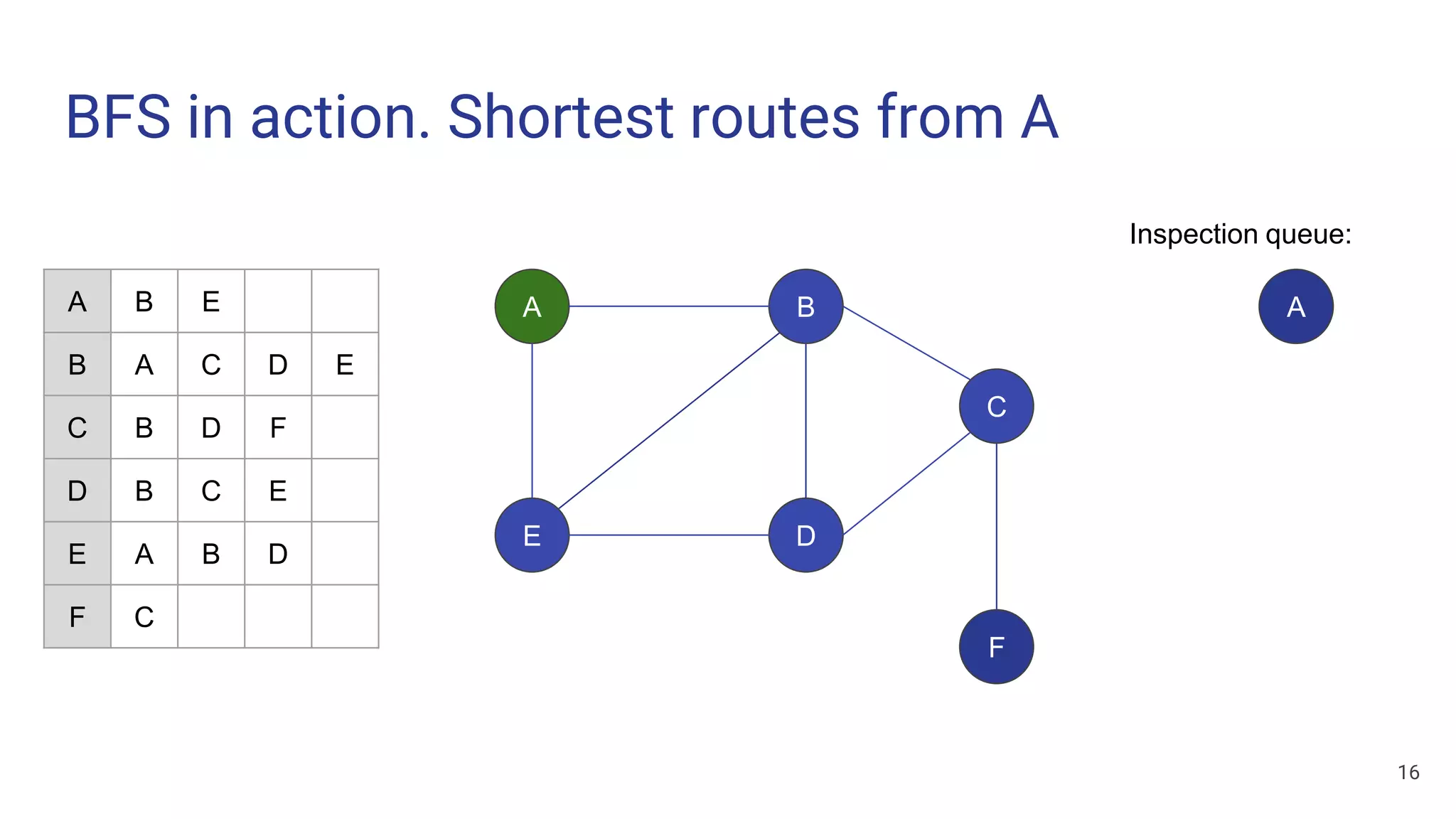

16. BFS in action. Shortest routes from A
A
E
B
D
C
F
A
Inspection queue:
A B E
B A C D E
C B D F
D B C E
E A B D
F C
16

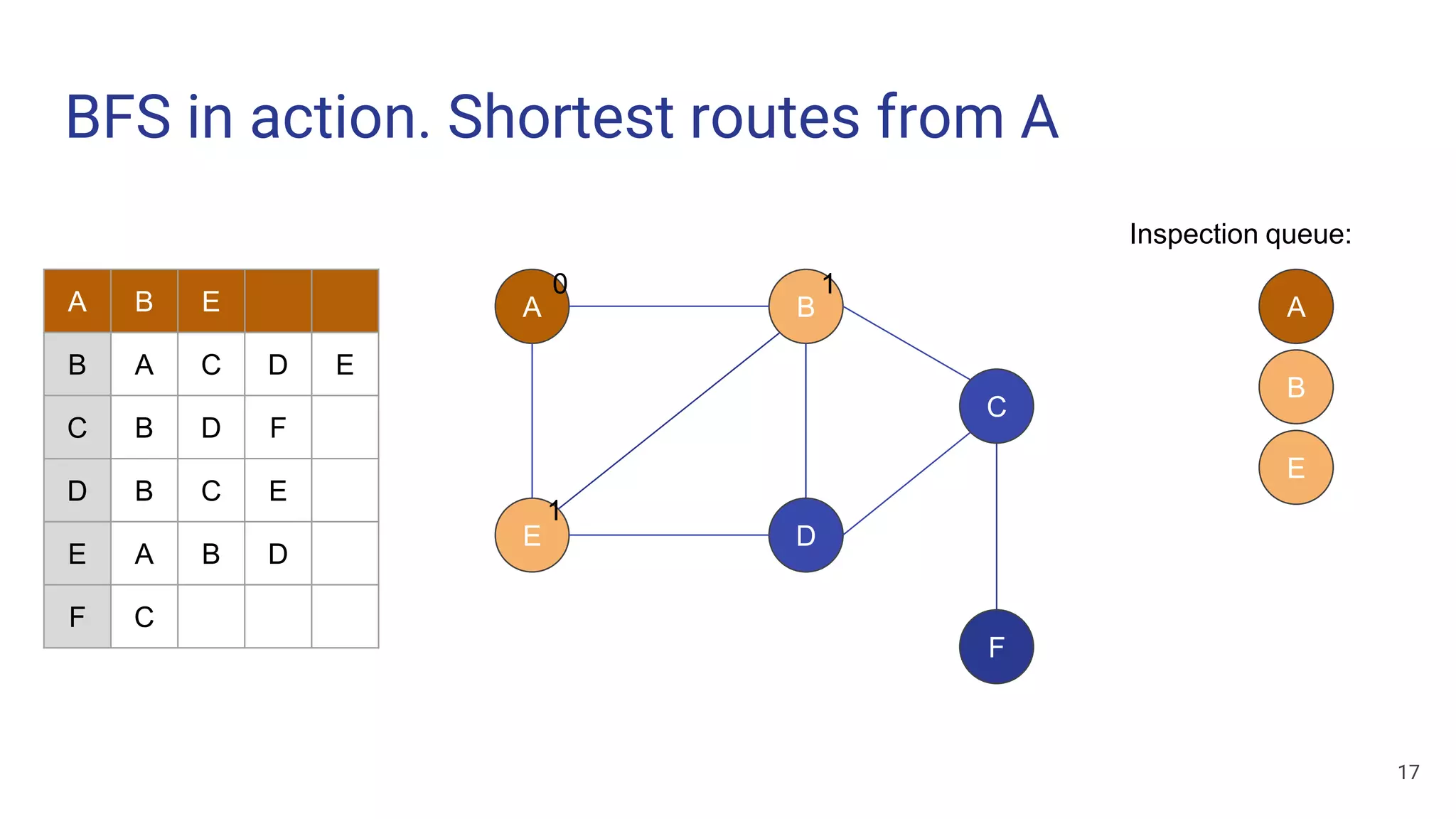

17. BFS in action. Shortest routes from A
A
E
B
D
C
F
A
Inspection queue:
A B E
B A C D E
C B D F
D B C E
E A B D
F C
1
1
B
E
0
17

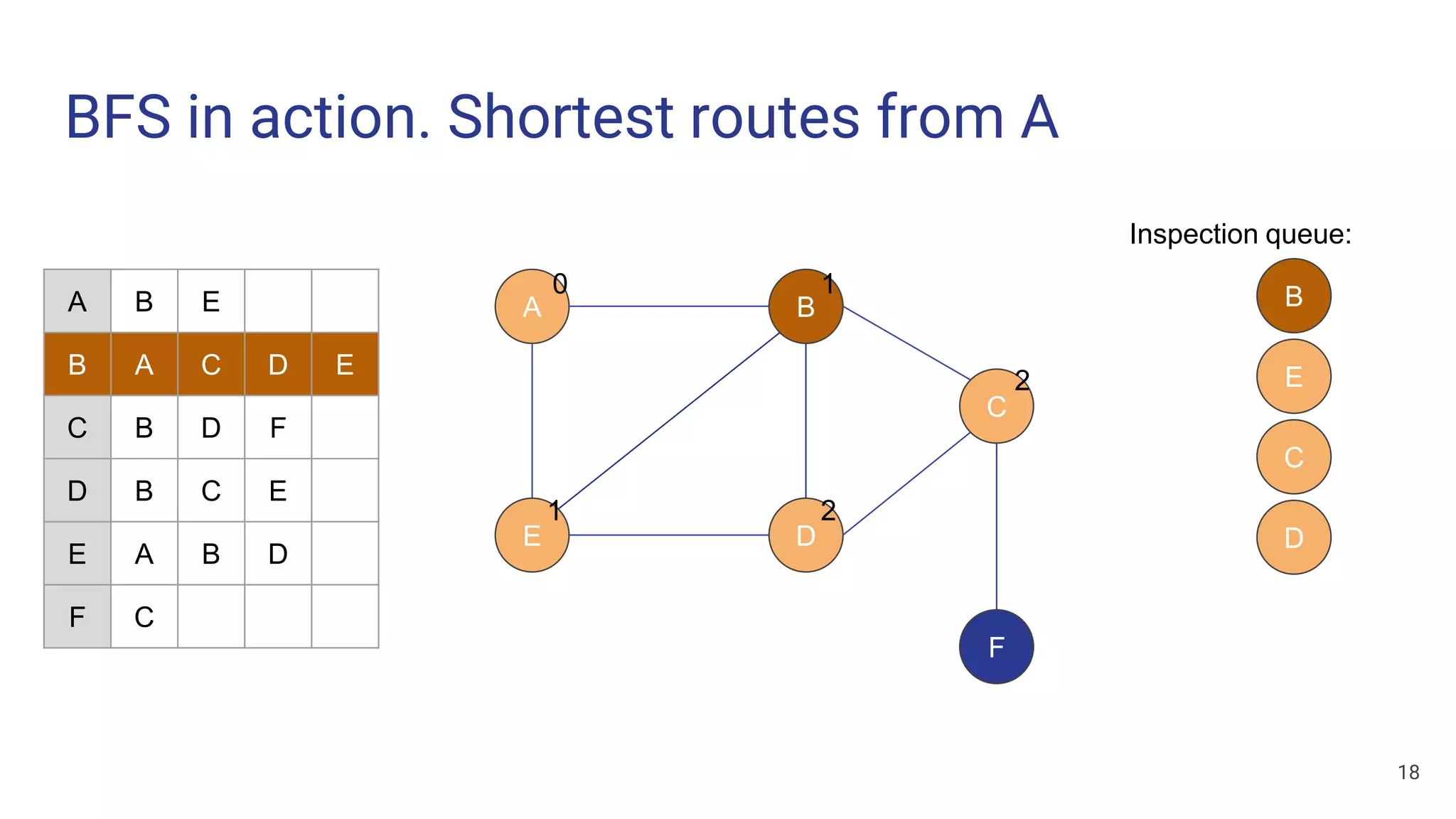

18. BFS in action. Shortest routes from A
A
E
B
D
C
F
Inspection queue:
A B E
B A C D E
C B D F
D B C E
E A B D
F C
1
1
B
E
0
C
D
2
2
18

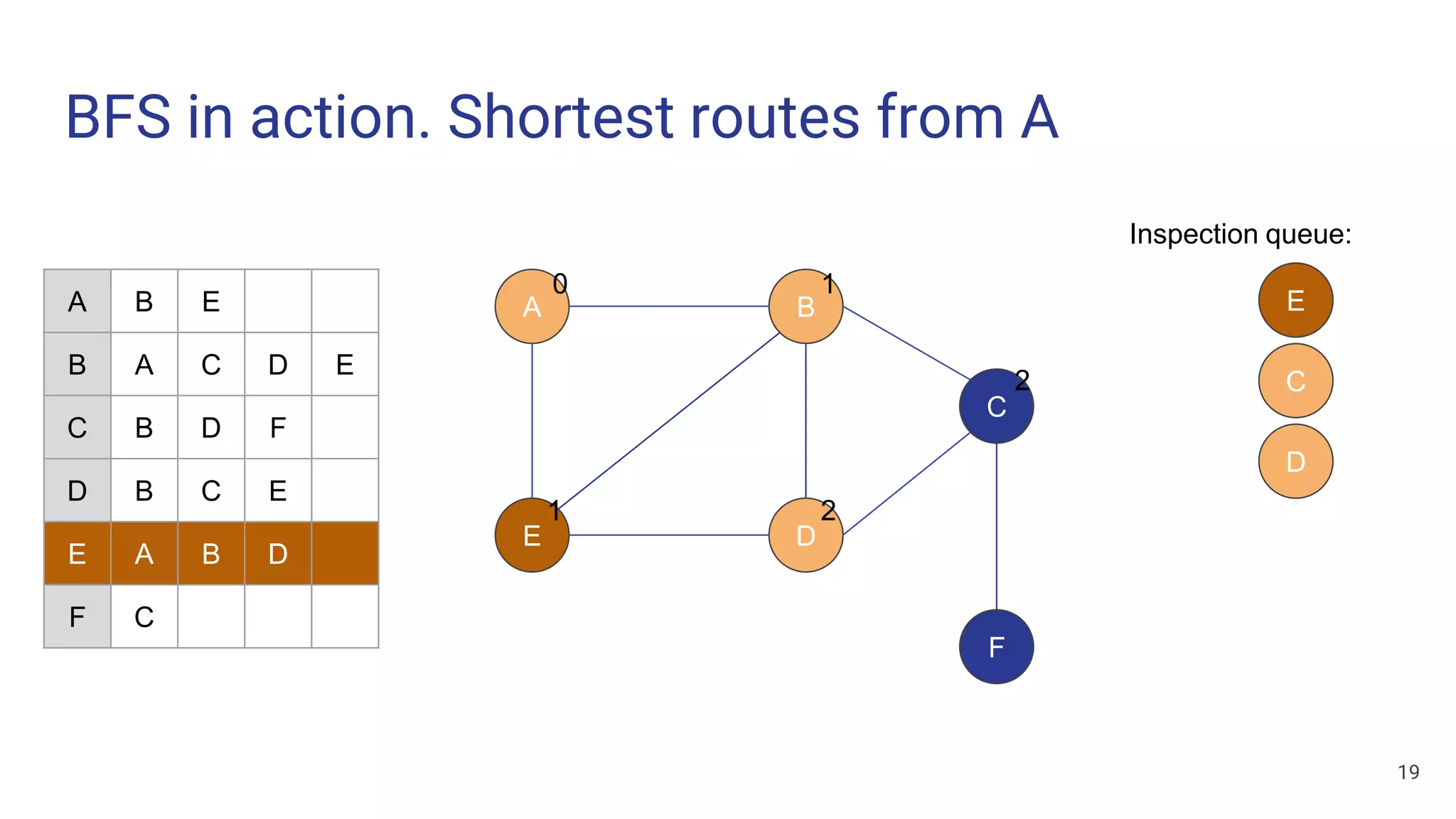

19. BFS in action. Shortest routes from A
A
E
B
D
C
F
Inspection queue:
A B E
B A C D E
C B D F
D B C E
E A B D
F C
1
1
E
0
C
D
2
2
19

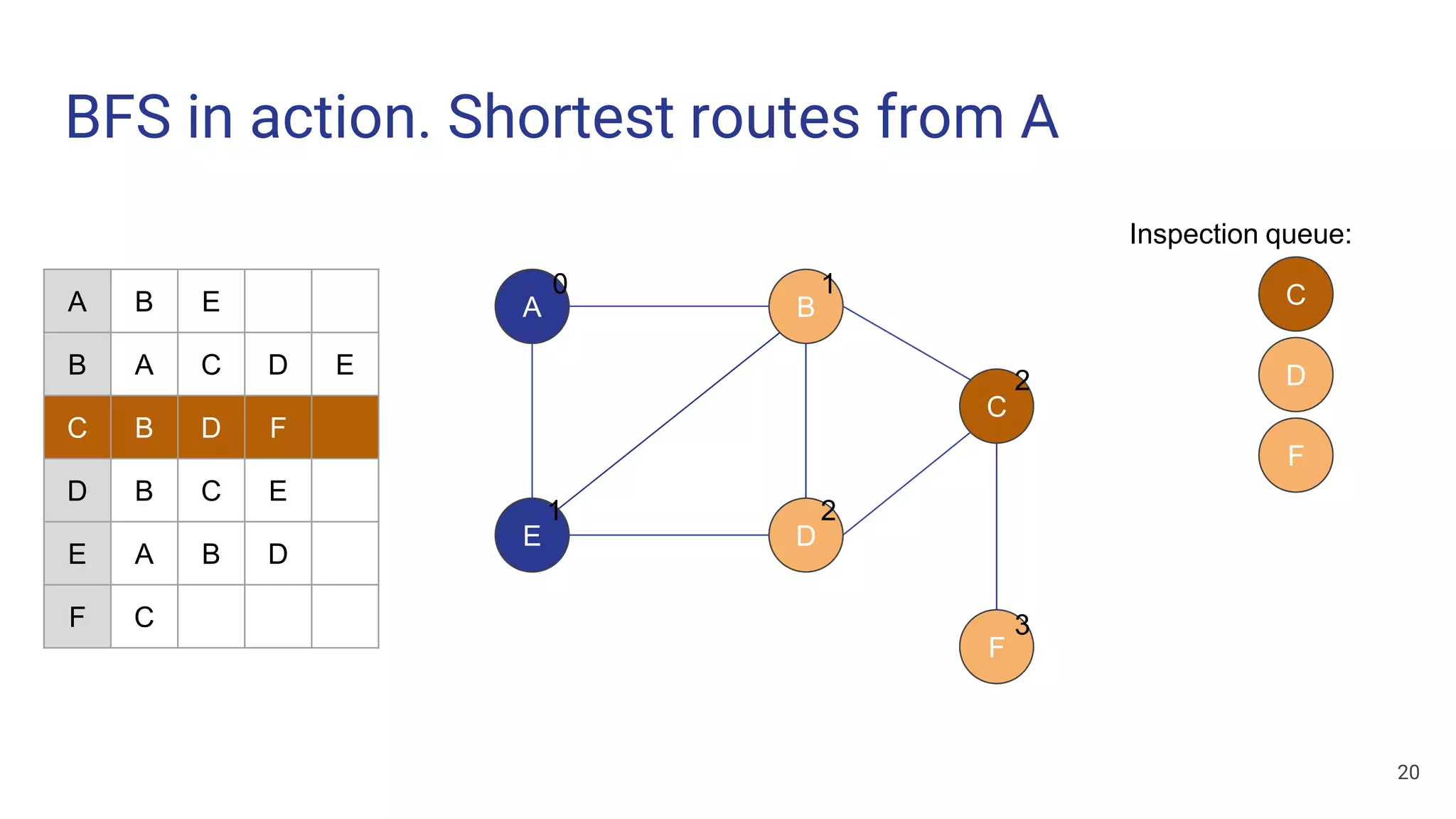

20. BFS in action. Shortest routes from A
A
E
B
D
C
F
Inspection queue:
A B E
B A C D E
C B D F
D B C E
E A B D
F C
1
1
0 C
D2
2
F
3
20

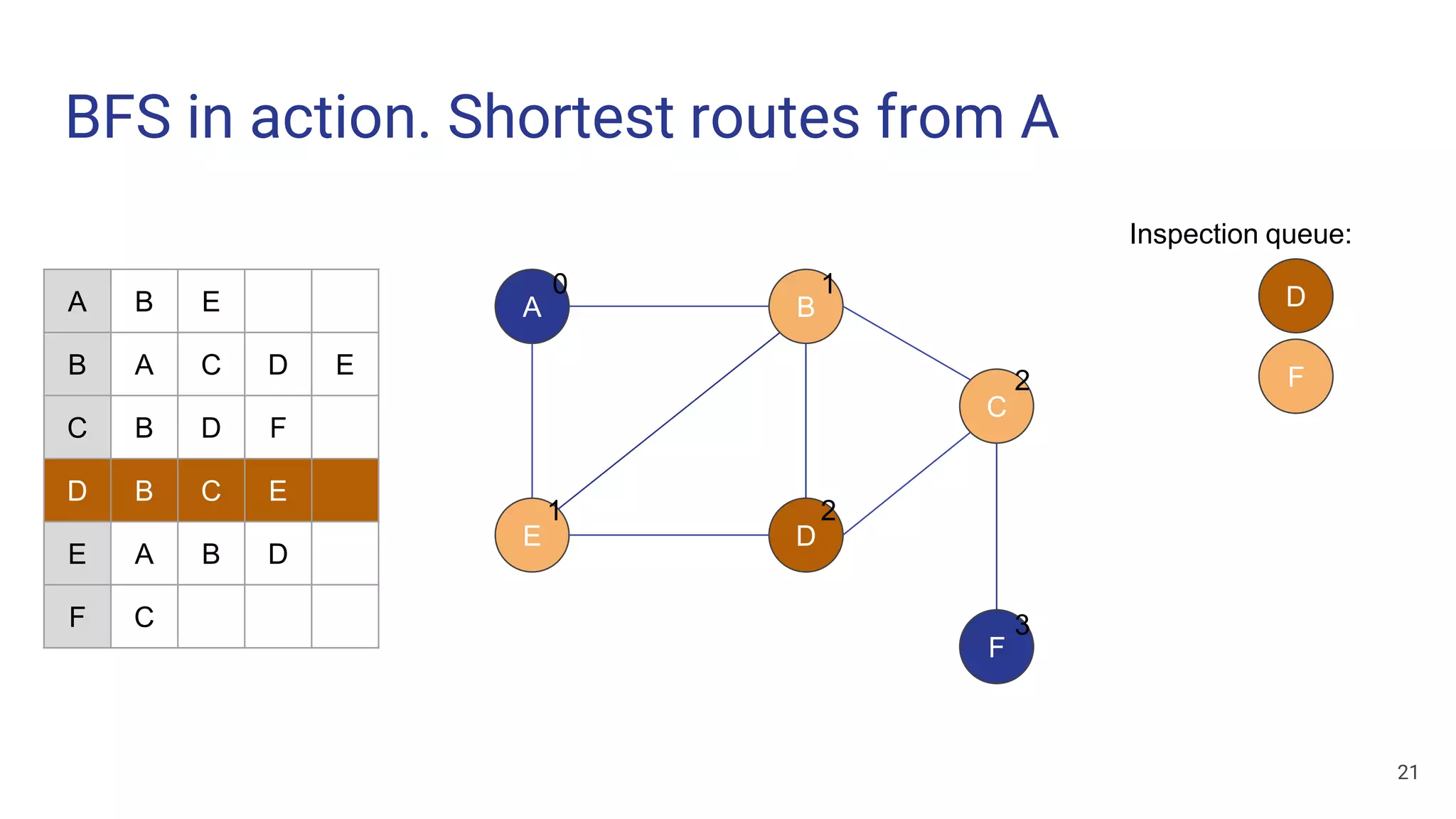

21. BFS in action. Shortest routes from A
A
E
B
D
C
F
Inspection queue:
A B E
B A C D E
C B D F
D B C E
E A B D
F C
1
1
0 D
2
2
F
3
21

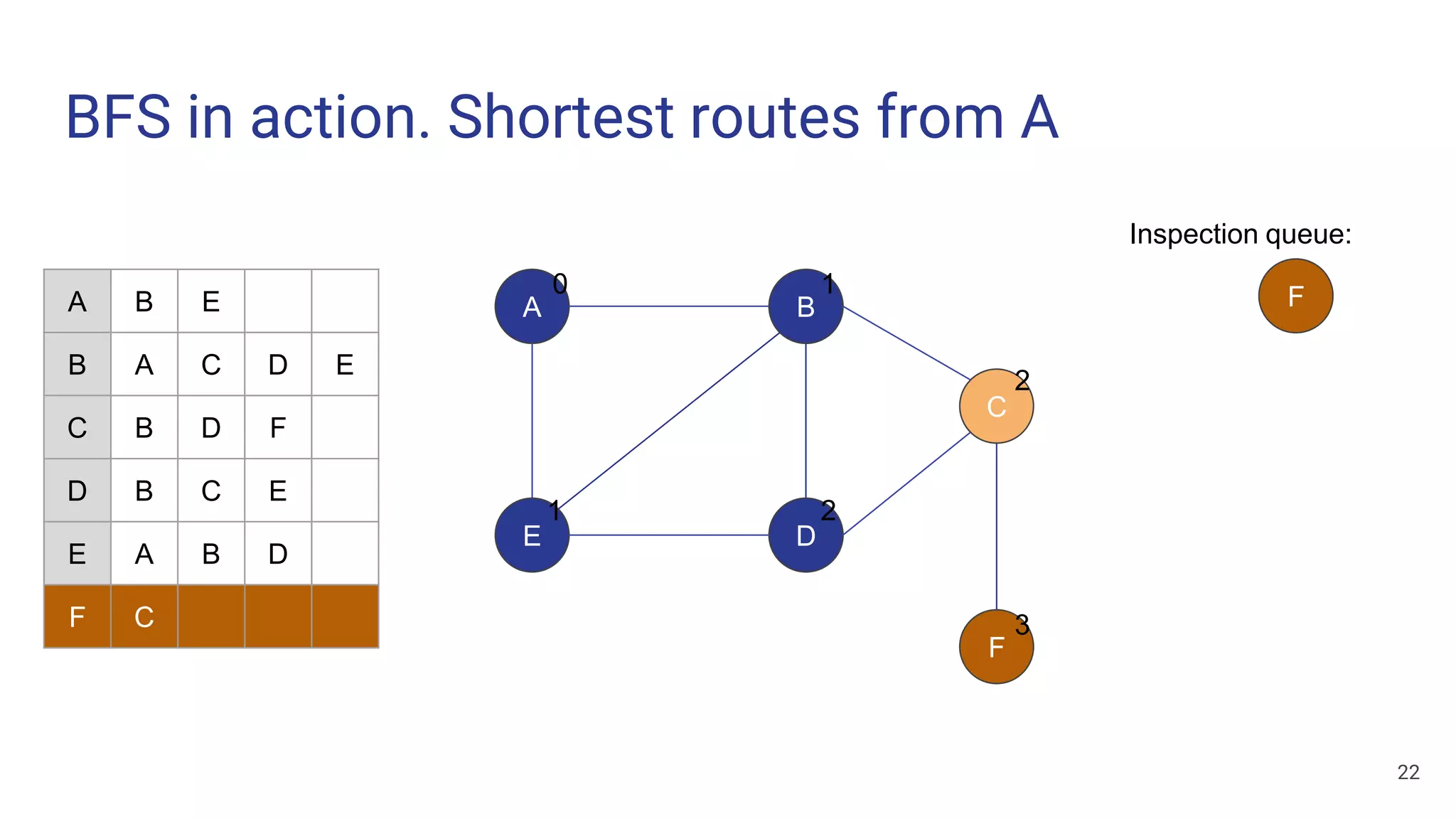

22. BFS in action. Shortest routes from A
A
E
B
D
C
F
Inspection queue:
A B E
B A C D E
C B D F
D B C E
E A B D
F C
1
1
0 F
2
2
3
22

23. Implementation
23

24. Snakes & Ladders
24

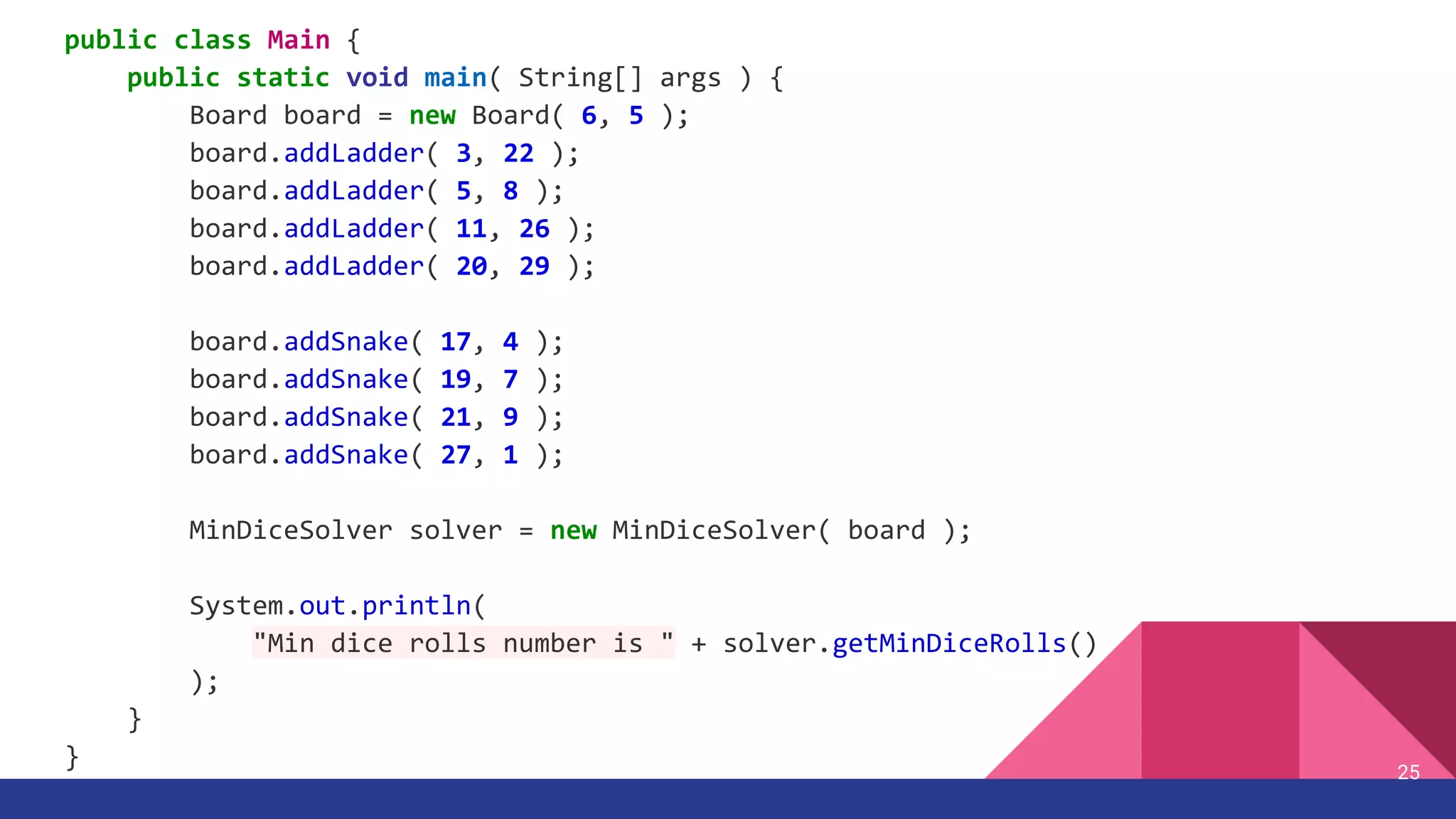

25. public class Main {
public static void main( String[] args ) {
Board board = new Board( 6, 5 );
board.addLadder( 3, 22 );
board.addLadder( 5, 8 );
board.addLadder( 11, 26 );
board.addLadder( 20, 29 );
board.addSnake( 17, 4 );
board.addSnake( 19, 7 );
board.addSnake( 21, 9 );
board.addSnake( 27, 1 );
MinDiceSolver solver = new MinDiceSolver( board );
System.out.println(
"Min dice rolls number is " + solver.getMinDiceRolls()
);
}
} 25

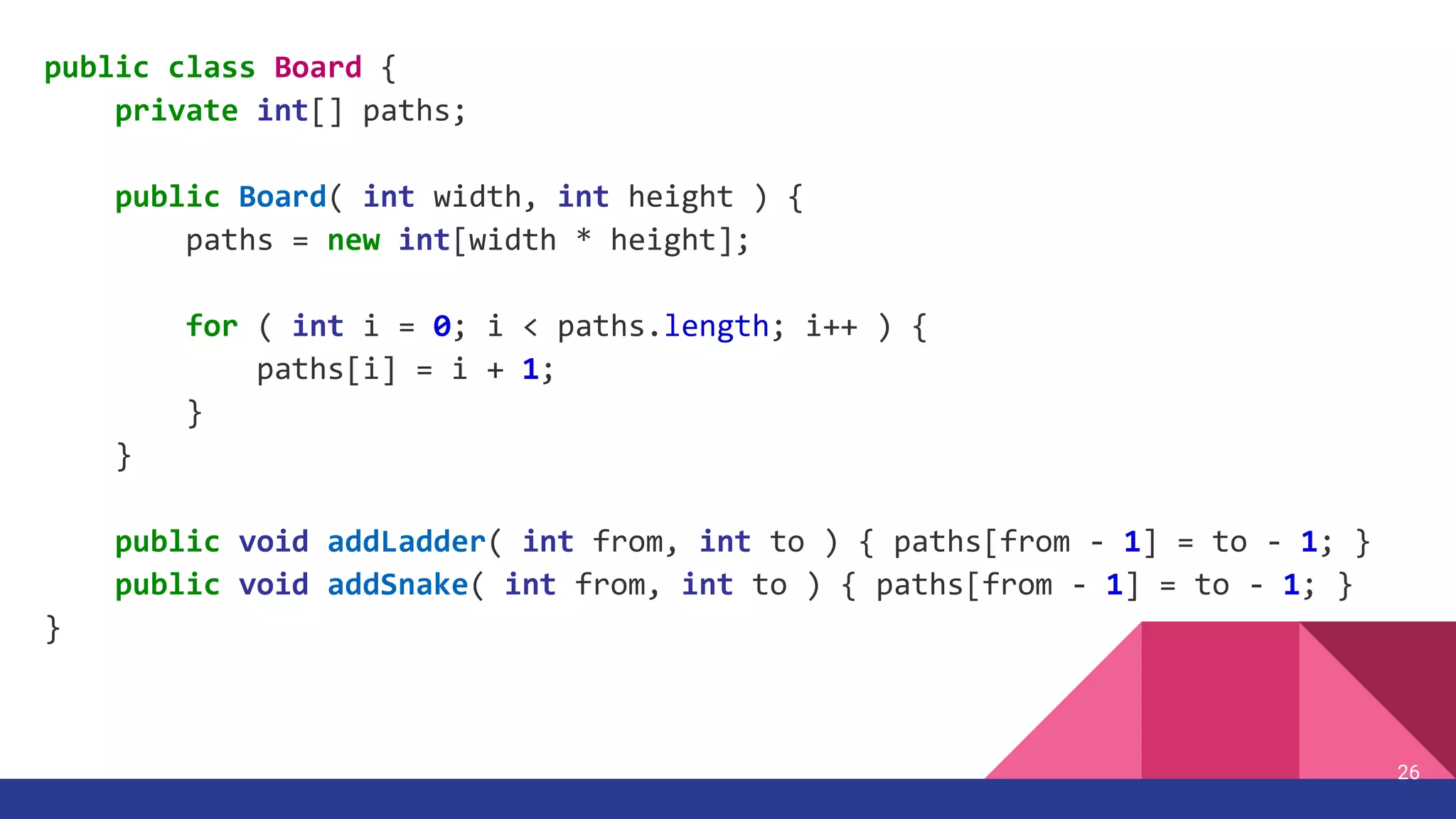

26. public class Board {
private int[] paths;
public Board( int width, int height ) {
paths = new int[width * height];
for ( int i = 0; i < paths.length; i++ ) {
paths[i] = i + 1;
}
}
public void addLadder( int from, int to ) { paths[from - 1] = to - 1; }
public void addSnake( int from, int to ) { paths[from - 1] = to - 1; }
}
26

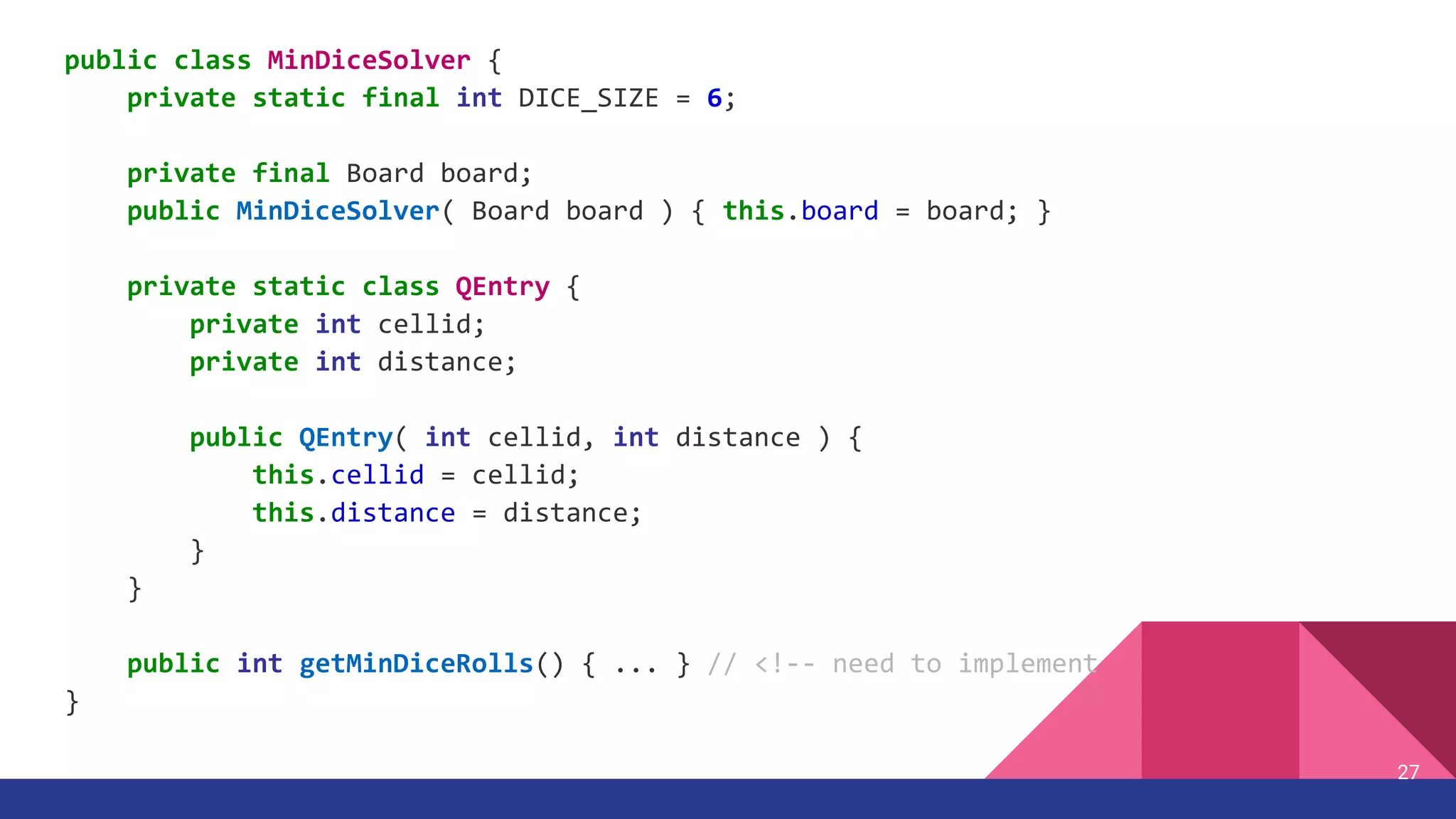

27. public class MinDiceSolver {
private static final int DICE_SIZE = 6;
private final Board board;
public MinDiceSolver( Board board ) { this.board = board; }
private static class QEntry {
private int cellid;
private int distance;
public QEntry( int cellid, int distance ) {
this.cellid = cellid;
this.distance = distance;
}
}
public int getMinDiceRolls() { ... } // <!-- need to implement
}
27

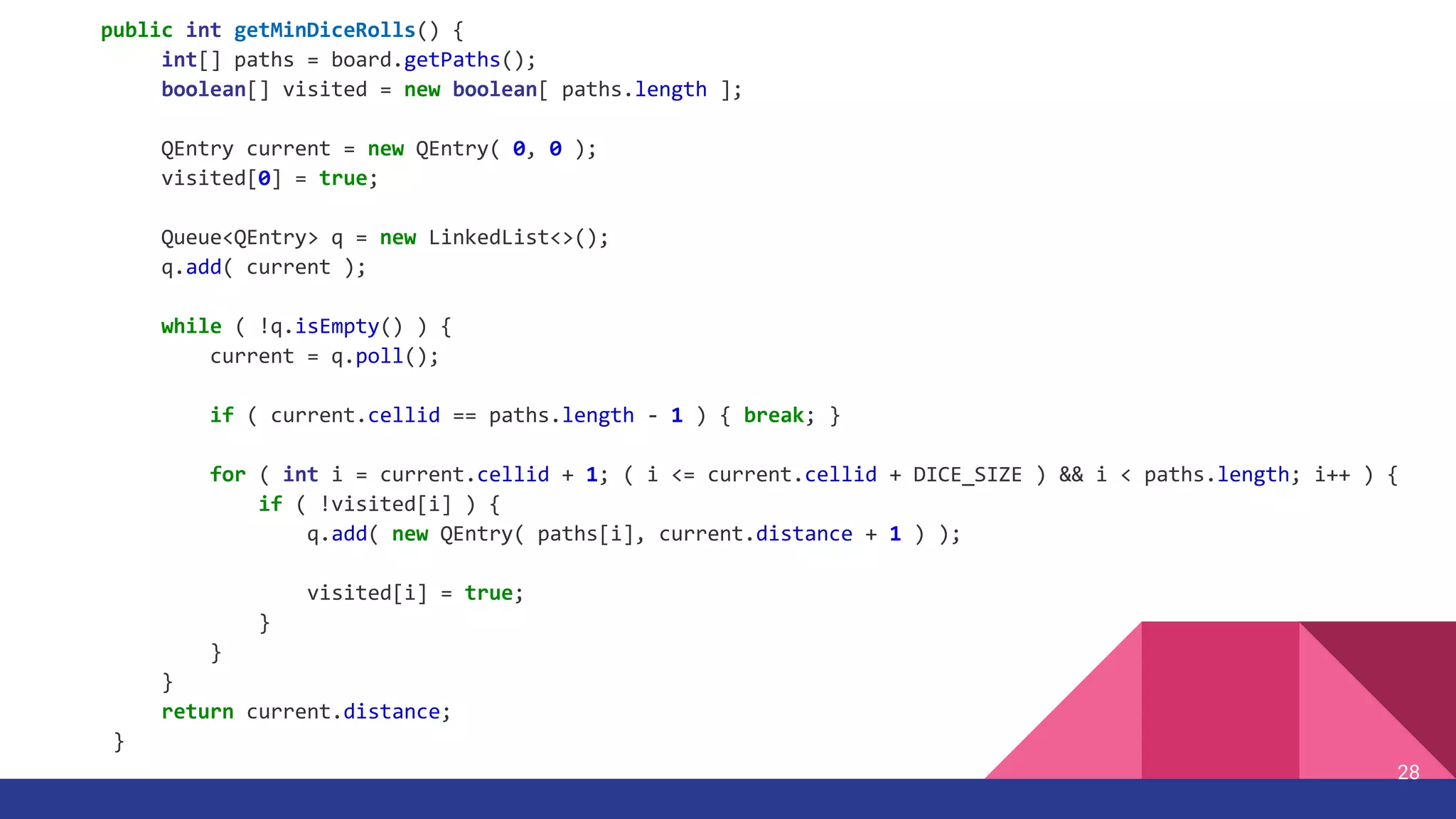

28. public int getMinDiceRolls() {
int[] paths = board.getPaths();
boolean[] visited = new boolean[ paths.length ];
QEntry current = new QEntry( 0, 0 );
visited[0] = true;
Queue<QEntry> q = new LinkedList<>();
q.add( current );
while ( !q.isEmpty() ) {
current = q.poll();
if ( current.cellid == paths.length - 1 ) { break; }
for ( int i = current.cellid + 1; ( i <= current.cellid + DICE_SIZE ) && i < paths.length; i++ ) {
if ( !visited[i] ) {
q.add( new QEntry( paths[i], current.distance + 1 ) );
visited[i] = true;
}
}
}
return current.distance;
}
28

29. Gimme the code!
Grab & run:
$ git clone https://gitlab.com/csdudes/meetup1.git
$ cd metup1/
$ ./gradlew run
29
